Harley Davidson Parts Catalog 2015: Touring models - page 8
Index No.
Part No.
Description
Model(s)
69200576
MAIN WIRING HARNESS - NON-ABS
FLTRX, FLTRXS
NOTE: Includes the following parts.
1
10065
CABLE STRAP (3)
FLTRX, FLTRXS
2
10147
CLIP, connector
FLTRX, FLTRXS
3
72066-06A
HOUSING, 4-way socket, female (black)
FLTRX, FLTRXS
4
72135-06
SECONDARY LOCK, 4-way socket, female
FLTRX, FLTRXS
5
72213-94
TERMINAL, socket, female, 16-20 gauge (2)
FLTRX, FLTRXS
6
72484-08
TERMINAL, socket, 20 gauge (4)
FLTRX, FLTRXS
7
72486-08
WIRE SEAL, 20 gauge (green) (4)
FLTRX, FLTRXS
8
72518-01
HOUSING, 2-way socket (red)
FLTRX, FLTRXS
9
72533-06
DUST CAP, 2-pin connector
FLTRX, FLTRXS
10
72609-08
SECONDARY LOCK, 2-way socket (black)
FLTRX, FLTRXS
11
72610-08
SEAL, 18-20 gauge (white) (2)
FLTRX, FLTRXS
12
72664-12A
HOUSING, 18-way socket (black)
FLTRX, FLTRXS
13
72666-12
TERMINAL, socket, 18-20 gauge (silver) (38)
FLTRX, FLTRXS
14
72720-07
HOUSING, 2-way socket
FLTRX, FLTRXS
15
72721-07
TERMINAL, socket, 18-20 gauge (2)
FLTRX, FLTRXS
16
69200267A
HOUSING, 18-way socket (gray)
FLTRX, FLTRXS
17
69200268A
HOUSING, 18-way socket (brown)
FLTRX, FLTRXS

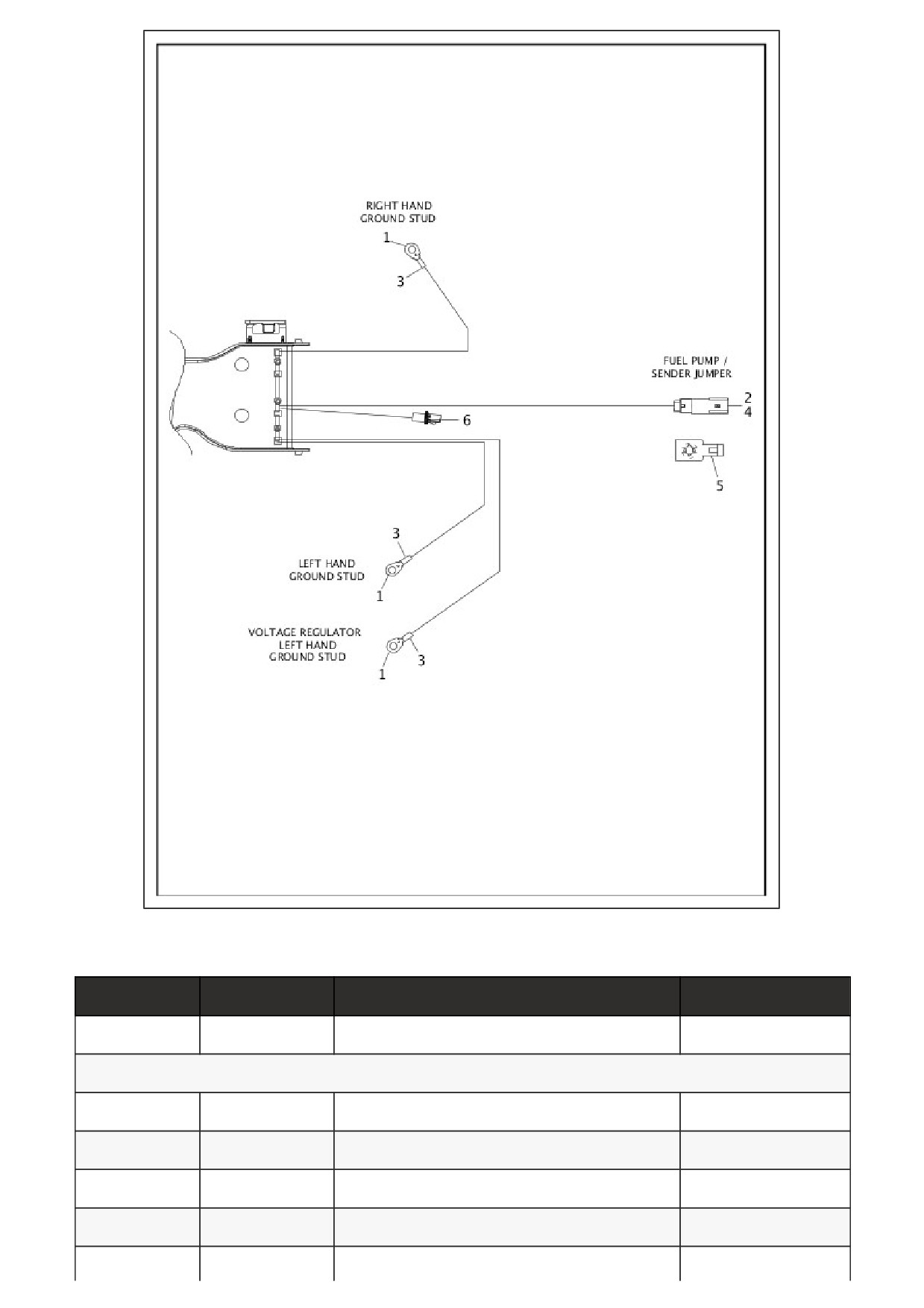

WIRING HARNESS, MAIN, NON-ABS (FAIRING MODELS) - FLTRX &
FLTRXS (5 OF 8)
Index No.
Part No.
Description
Model(s)
69200576
MAIN WIRING HARNESS - NON-ABS
FLTRX, FLTRXS
NOTE: Includes the following parts.
1
9819
TERMINAL, 1/4 in. ring, 12 gauge (3)
FLTRX, FLTRXS
2
72169-07
TERMINAL, pin, 16-20 gauge (4)
FLTRX, FLTRXS
3
72249-94
HEAT SHRINK TUBE, .415 x 1 (black)
FLTRX, FLTRXS
4
72415-07GY
HOUSING, 4-way pin (gray) (2)
FLTRX, FLTRXS
5
73213-07
RETAINER, x-mas tree clip
FLTRX, FLTRXS
6
69200629
CABLE, AM/FM antenna
FLTRX, FLTRXS
WIRING HARNESS, MAIN, NON-ABS (FAIRING MODELS) - FLTRX &
FLTRXS (6 OF 8)
Index No.
Part No.
Description
Model(s)
69200576
MAIN WIRING HARNESS - NON-ABS
FLTRX, FLTRXS
NOTE: Includes the following parts.
1
10006
CABLE STRAP
FLTRX, FLTRXS
2
10065
CABLE STRAP (4)
FLTRX, FLTRXS
3
11779
FASTENER, push-in (black) (2)
FLTRX, FLTRXS
4
72291-94
TERMINAL, 14-16 gauge
FLTRX, FLTRXS
5
72295-94
CONNECTOR, starter housing
FLTRX, FLTRXS
6
72405-98BK
WIRE ASSEMBLY, push-on, right angle molded, 65-1/2 in. length (2)
FLTRX, FLTRXS
7
72484-08
TERMINAL, socket, 20 gauge (3)
FLTRX, FLTRXS
8
72486-08
WIRE SEAL, 20 gauge (green) (3)
FLTRX, FLTRXS
9
72543-07BK
HOUSING, 3-way socket (black)
FLTRX, FLTRXS
10
72544-07
SECONDARY LOCK, 3-way socket, female
FLTRX, FLTRXS
11
69200175
CADDY, fuse block, electrical panel
FLTRX, FLTRXS

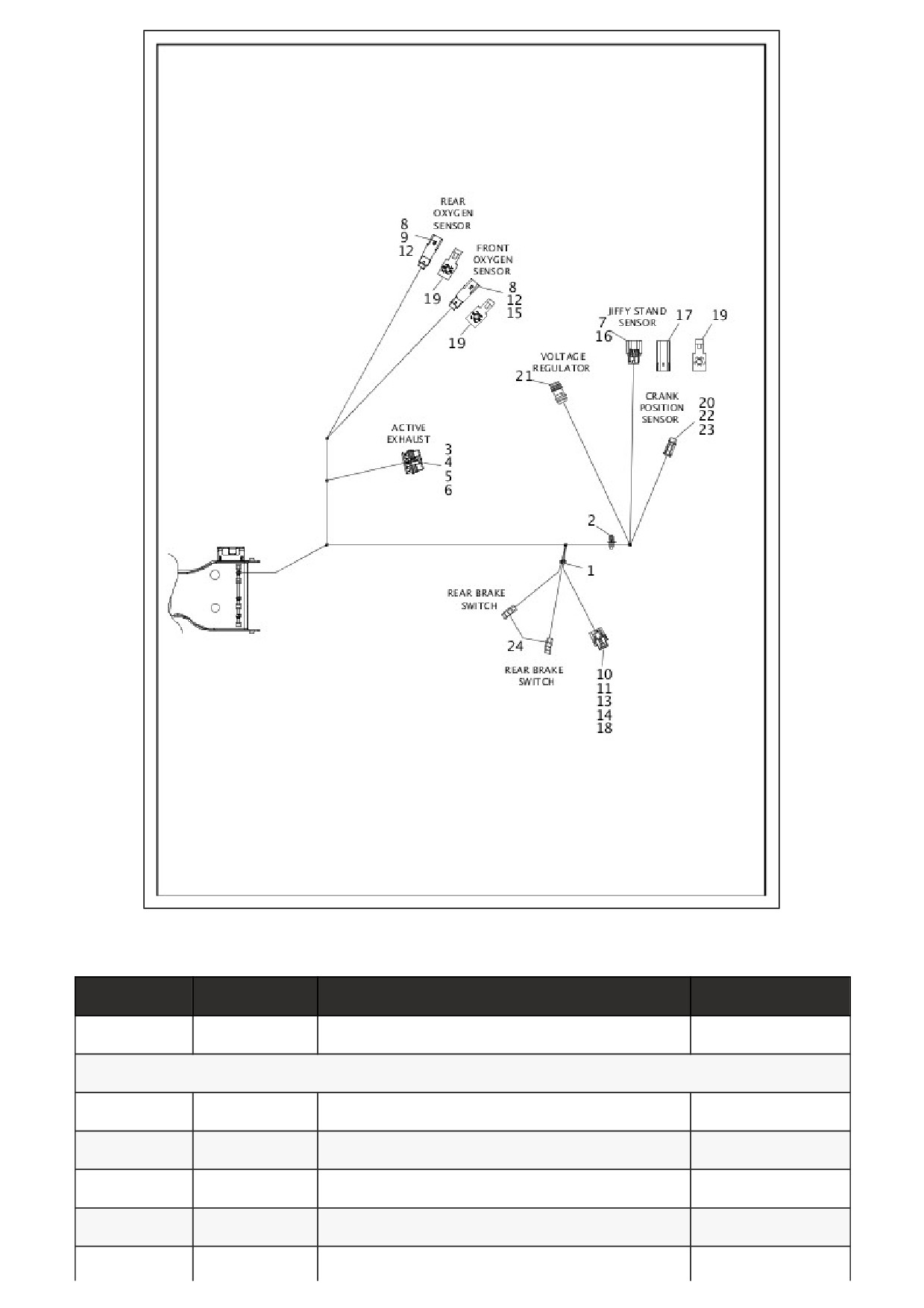

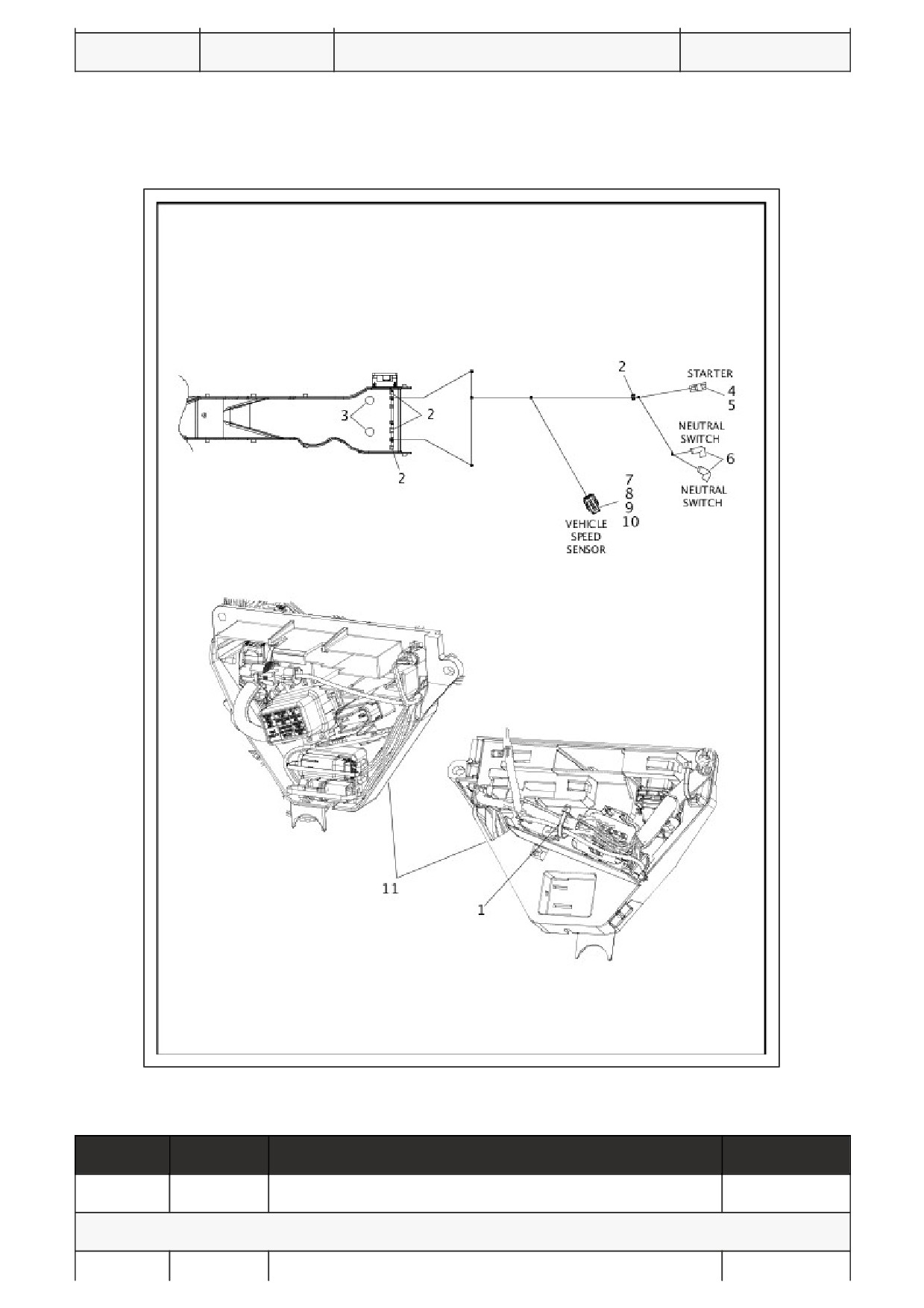

WIRING HARNESS, MAIN, NON-ABS (FAIRING MODELS) - FLTRX &
FLTRXS (7 OF 8)
Index No.
Part No.
Description
Model(s)
69200576
MAIN WIRING HARNESS - NON-ABS
FLTRX, FLTRXS
NOTE: Includes the following parts.
1
10065
CABLE STRAP
FLTRX, FLTRXS
2
10177
CABLE STRAP, tree mount
FLTRX, FLTRXS
3
72010-05
WIRE SEAL, 22-26 gauge (green) (4)
FLTRX, FLTRXS
4
72012-07
HOUSING, 5-way socket
FLTRX, FLTRXS
5
72014-07
SEAL PIN
FLTRX, FLTRXS
6
72024-08
TERMINAL, socket, 20-22 gauge (4)
FLTRX, FLTRXS
7
72168-07
TERMINAL, socket, 18-20 gauge (3)
FLTRX, FLTRXS
8
72169-07
TERMINAL, pin, 16-20 gauge (4)
FLTRX, FLTRXS
9
72175-07BK
HOUSING, 4-way pin (black)
FLTRX, FLTRXS
10
72213-94
TERMINAL, socket, female, 16-20 gauge (2)
FLTRX, FLTRXS
11
72232-96
SEAL PLUG (2)
FLTRX, FLTRXS
12
72343-10
TERMINAL, pin, 16-20 gauge (gold) (4)
FLTRX, FLTRXS
13
72400-99
CONNECTOR, 4-way
FLTRX, FLTRXS
14
72403-99
SECONDARY LOCK, 4-way
FLTRX, FLTRXS
15
72415-07GY
HOUSING, 4-way pin (gray)
FLTRX, FLTRXS
16
72512-07BK
HOUSING, 3-way socket (black)
FLTRX, FLTRXS
17
72519-09BK
DUST CAP, 3-way socket (black)
FLTRX, FLTRXS
18
72610-08
SEAL, 18-20 gauge (white) (2)
FLTRX, FLTRXS
19
73213-07
RETAINER, x-mas tree clip (3)
FLTRX, FLTRXS
20
74112-98BK
HOUSING, 2-way socket (black)
FLTRX, FLTRXS
21
74120-08
DC LEAD ASSEMBLY
FLTRX, FLTRXS
22
74152-98
SECONDARY LOCK, 2-way socket
FLTRX, FLTRXS
23
74191-98
TERMINAL, socket (2)
FLTRX, FLTRXS
24
69200238
TERMINAL, 20 gauge (black) (2)
FLTRX, FLTRXS

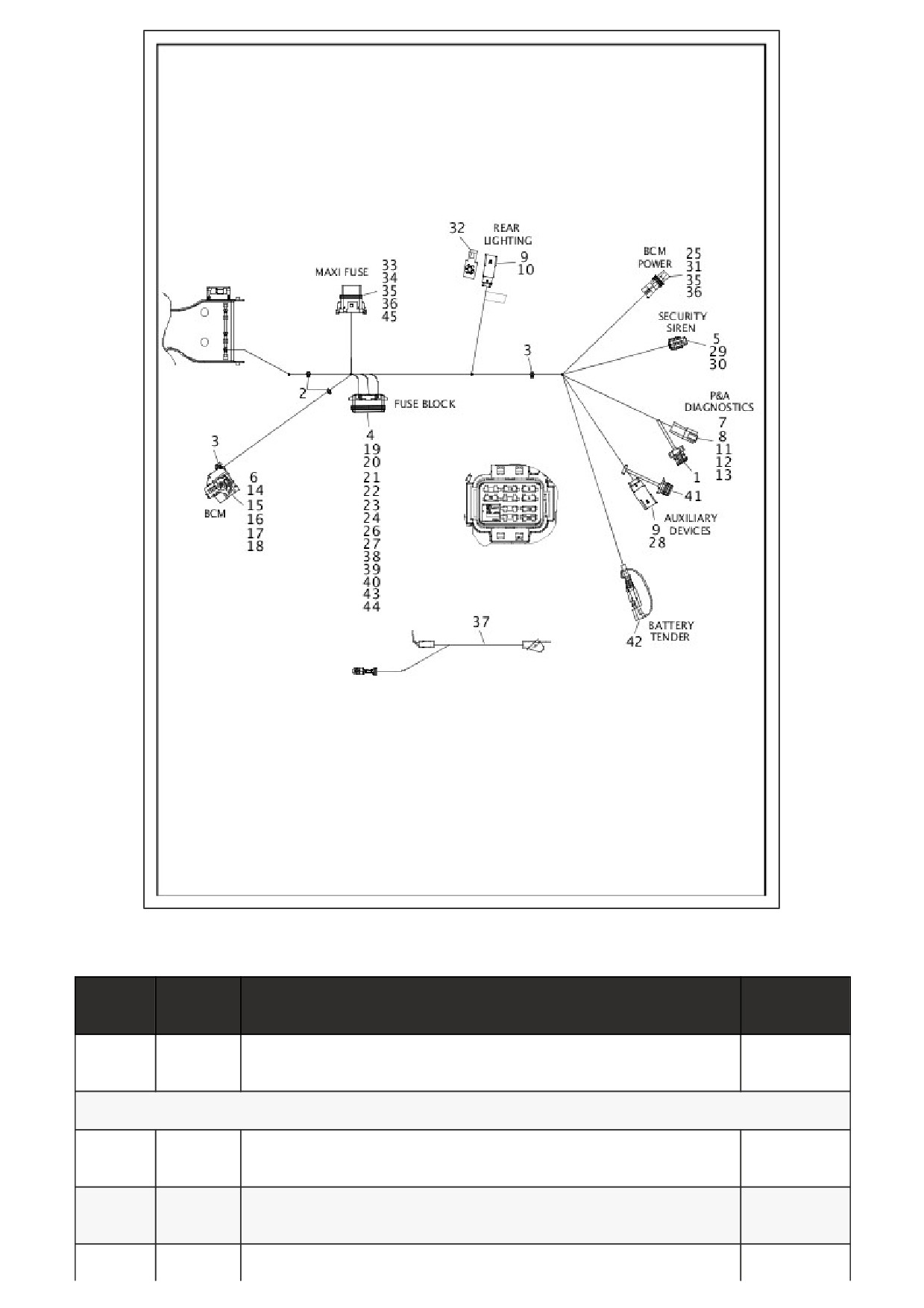

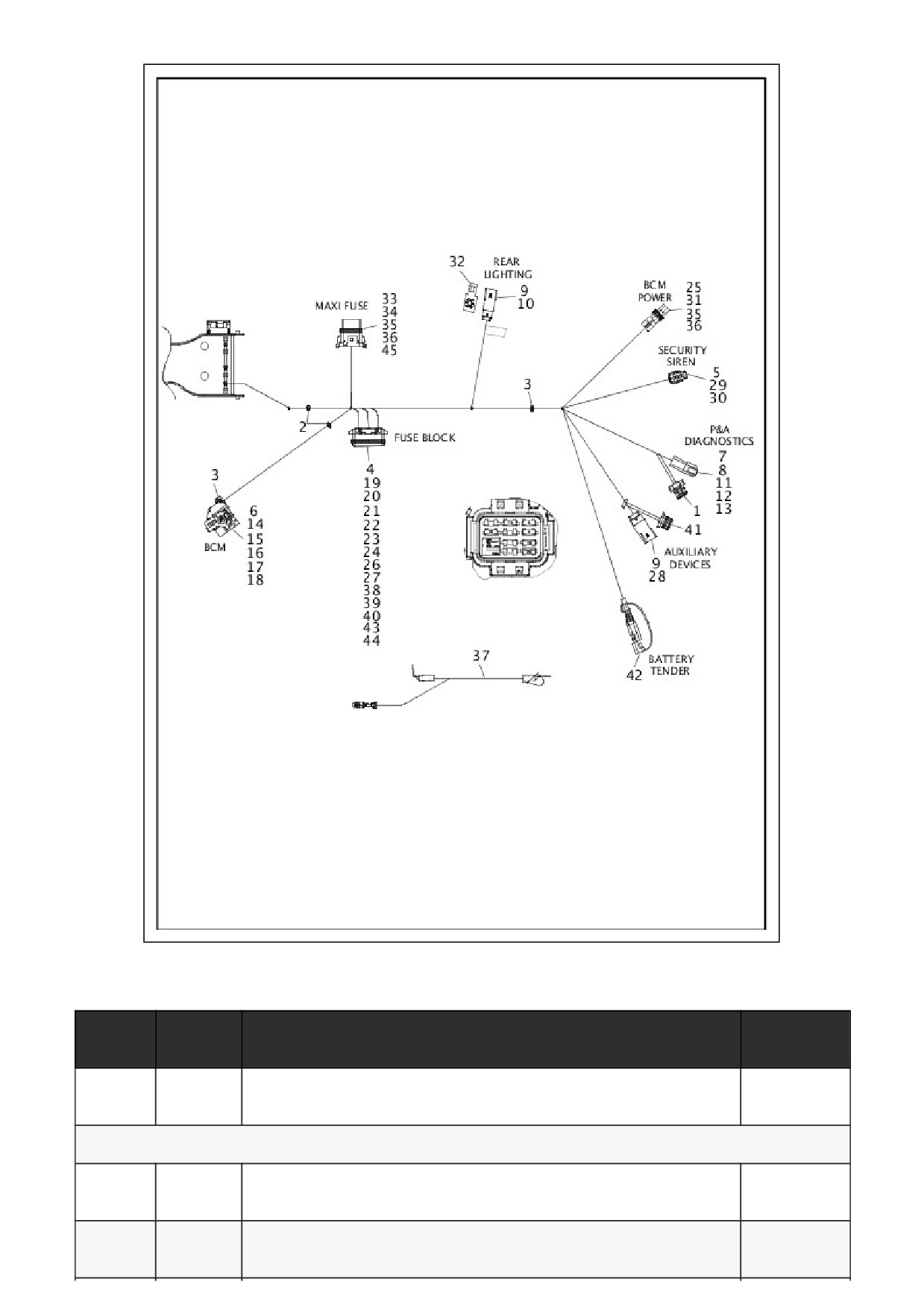

WIRING HARNESS, MAIN, NON-ABS (FAIRING MODELS) - FLTRX &
FLTRXS (8 OF 8)
Index
Part No.
Description
Model(s)
No.
69200576
MAIN WIRING HARNESS - NON-ABS
FLTRX,
FLTRXS
NOTE: Includes the following parts.
1
6990
WEATHER PLUG, 6-way pin
FLTRX,
FLTRXS
2
10006
CABLE STRAP (2)
FLTRX,
FLTRXS
3
10065
CABLE STRAP (2)
FLTRX,
FLTRXS
4
31586-07
RELAY
FLTRX,
FLTRXS
5
72064-06
HOUSING, 3-way socket, female
FLTRX,
FLTRXS
6
72081-11
HOUSING, 48-way socket
FLTRX,
FLTRXS
7
72106-
HOUSING, 6-pin (black) (replaces gray connector)
FLTRX,
94BK
FLTRXS
8
72146-94
SECONDARY LOCK, 6-way pin
FLTRX,
FLTRXS
9
72169-07
TERMINAL, pin, 16-20 gauge (14)
FLTRX,
FLTRXS
10
72188-
HOUSING, 6-way pin (black) (1)
FLTRX,
07BK
FLTRXS
11
72190-94
TERMINAL, pin, 16-18 gauge (2)
FLTRX,
FLTRXS
12
72194-94
TERMINAL, pin, 20 gauge (3)
FLTRX,
FLTRXS
13
72195-94
SEAL PIN
FLTRX,
FLTRXS
14
72209-11
COVER, wire dress
FLTRX,
FLTRXS
15
72222-11
TERMINAL, socket, 18-20 gauge (22)
FLTRX,
FLTRXS
16
72226-11
TERMINAL, socket, 14-16 gauge
FLTRX,
FLTRXS
17
72227-11
TERMINAL, socket, 18-20 gauge (5)
FLTRX,
FLTRXS
18
72256-11
SEAL PIN (8)
FLTRX,
FLTRXS
19
72296-95
TERMINAL, female, sealed (2)
FLTRX,
FLTRXS
20
72298-95
PLUG, cavity (2)
FLTRX,
FLTRXS
21
72299-95
PLUG, cavity (8)
FLTRX,
FLTRXS
22
72308-97
TERMINAL, female, 12-14 gauge (4)
FLTRX,
FLTRXS
23
72331-95
FUSE, 5-amp, mini (tan) (2)
FLTRX,
FLTRXS
24
72345-02
FUSE, 20-amp, mini (yellow) (3)
FLTRX,
FLTRXS
25
72350-11
HOUSING, 1-way socket
FLTRX,
FLTRXS
26
72356-95
TERMINAL, socket, 18-20 gauge (10)
FLTRX,
FLTRXS
27
72412-97
SEAL, cable, 12-14 gauge (4)
FLTRX,
FLTRXS
28
72447-
HOUSING, 8-way pin (gray)
FLTRX,
07GY
FLTRXS
29
72484-08
TERMINAL, socket, 20 gauge (3)
FLTRX,
FLTRXS
30
72486-08
WIRE SEAL, 20 gauge (green) (3)
FLTRX,
FLTRXS
31
72575-11
SECONDARY LOCK
FLTRX,
FLTRXS
32
73213-07
RETAINER, x-mas tree clip
FLTRX,
FLTRXS
33
73301-04
HOUSING, 2-way pin
FLTRX,
FLTRXS
34
73303-04
SECONDARY LOCK, 2-way socket, female
FLTRX,
FLTRXS
35
73304-04
TERMINAL, female, 10 gauge (2)
FLTRX,
FLTRXS
36
73305-04
SEAL WIRE, 10 gauge (blue) (2)
FLTRX,
FLTRXS
37
69200137
WIRE HARNESS, positive cable
FLTRX,
FLTRXS
38
69200194
HOUSING, 24-way fuse block
FLTRX,
FLTRXS
39
69200195
COVER, fuse block
FLTRX,
FLTRXS
40
69200199
WIRE SEAL, 18-20 gauge (10)
FLTRX,
FLTRXS
41
69200204
WEATHER PLUG, 8-way pin
FLTRX,
FLTRXS
42
69200212
HOUSING, 2-way
FLTRX,
FLTRXS
43
69200293
FUSE, 7.5-amp, mini (brown) (2)
FLTRX,
FLTRXS
44
69200312
SECONDARY LOCK, 24-way fuse block (3)
FLTRX,
FLTRXS
45
69200336
MAIN FUSE, 50 amp (red), NOTE: Fuse is sold separately and is not part of
FLTRX,
main harness
FLTRXS
46
11100115
CLOTH, HARNESS WRAP, 50m (not shown)
FLTRX,
FLTRXS
WIRING HARNESS, MAIN, ABS (FAIRING MODELS) - FLTRX &
FLTRXS (1 OF 8)
Index No.
Part No.
Description
Model(s)
69200623
MAIN WIRING HARNESS - ABS
FLTRX, FLTRXS
NOTE: Includes the following parts.
1
10006
CABLE STRAP
FLTRX, FLTRXS
2
72130-04
HOUSING, 12-way socket
FLTRX, FLTRXS
3
72168-07
TERMINAL, socket, 18-20 gauge (5)
FLTRX, FLTRXS
4
72169-07
TERMINAL, pin, 16-20 gauge (8)
FLTRX, FLTRXS
5
72189-04
SEAL PIN (6)
FLTRX, FLTRXS
6
72364-06
CONNECTOR, w/ terminal
FLTRX, FLTRXS
7
72414-07BK
HOUSING, 6-way socket
FLTRX, FLTRXS
8
72473-07
SEAL PIN (5)
FLTRX, FLTRXS
9
72490-07GY
HOUSING, 12-way pin (gray)
FLTRX, FLTRXS
10
72721-07
TERMINAL, socket, 18-20 gauge (2)
FLTRX, FLTRXS
11
72902-01BK
HOUSING, 2-way pin (black)
FLTRX, FLTRXS
12
72912-01BK
HOUSING, 2-way socket (black)
FLTRX, FLTRXS
13
72991-01
SOCKET TERMINAL, 18-22 gauge (black) (2)
FLTRX, FLTRXS
14
73213-07
RETAINER, x-mas tree clip
FLTRX, FLTRXS
15
74196-04
SOCKET TERMINAL, socket (6)
FLTRX, FLTRXS
16
74197-04
SECONDARY LOCK, 12-way socket
FLTRX, FLTRXS
17
12500002
CABLE STRAP
FLTRX, FLTRXS
18
69200201
HOUSING, 2-way socket
FLTRX, FLTRXS
19
69200202
WIRE TROUGH
FLTRX, FLTRXS
20
69200203
COVER, wire trough
FLTRX, FLTRXS
21
69200629
WIRE HARNESS, AM/FM antenna
FLTRX, FLTRXS
22
69200700
CADDY
FLTRX, FLTRXS

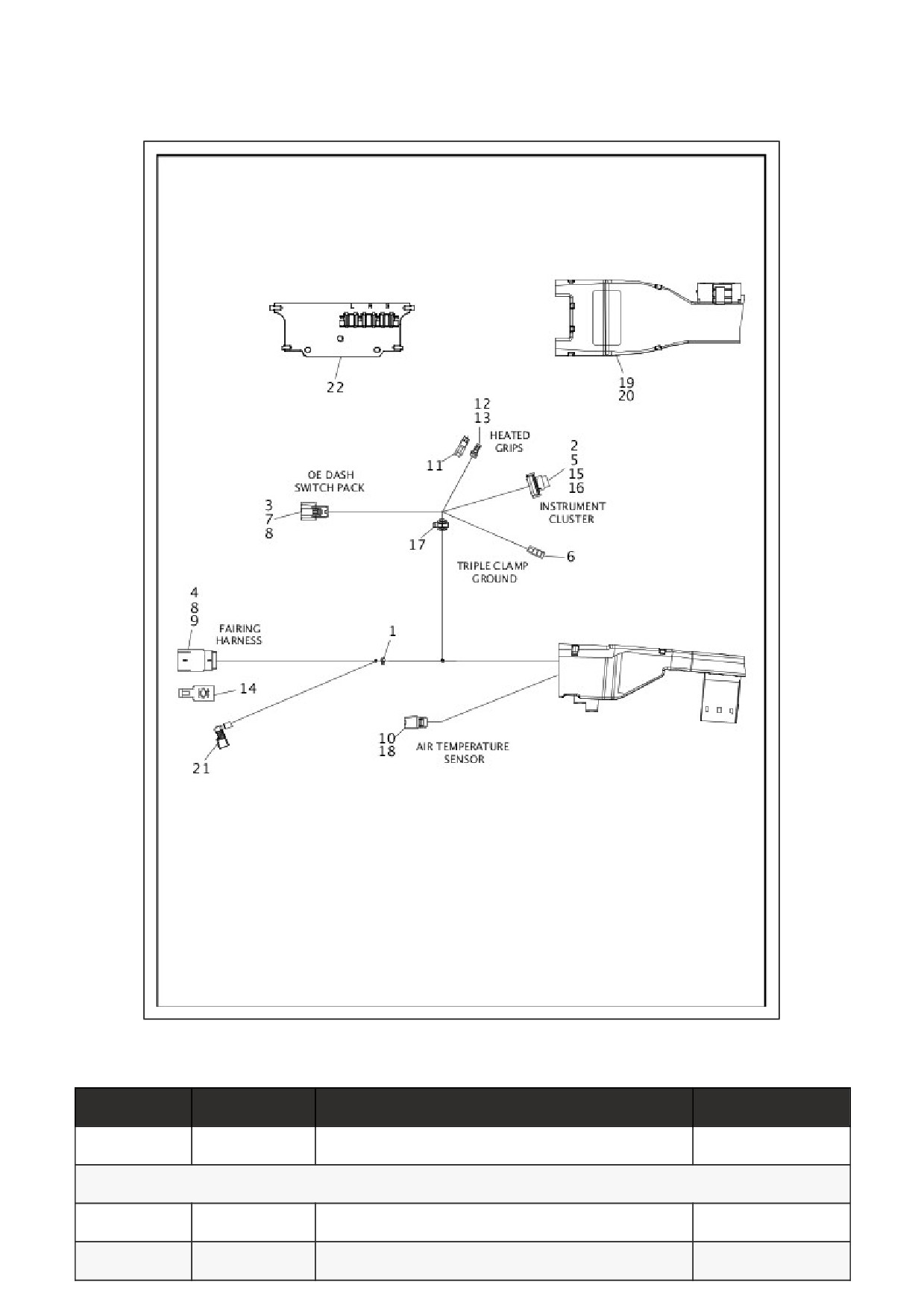

WIRING HARNESS, MAIN, ABS (FAIRING MODELS) - FLTRX &
FLTRXS (2 OF 8)
Index No.
Part No.
Description
Model(s)
69200623
MAIN WIRING HARNESS - ABS
FLTRX, FLTRXS
NOTE: Includes the following parts.
1
5118
SEAL PIN
FLTRX, FLTRXS
2
10006
CABLE STRAP (3)
FLTRX, FLTRXS
3
10065
CABLE STRAP (4)
FLTRX, FLTRXS
4
72062-06
HOUSING, 2-way socket
FLTRX, FLTRXS
5
72167-07BK
HOUSING, 16-way pin (black)
FLTRX, FLTRXS
6
72168-07
TERMINAL, socket, 18-20 gauge (5)
FLTRX, FLTRXS
7
72169-07
TERMINAL, pin, 16-20 gauge (45)
FLTRX, FLTRXS
8
72175-07BK
HOUSING, 4-way pin (black)
FLTRX, FLTRXS
9
72188-07BK
HOUSING, 6-way pin (black)
FLTRX, FLTRXS
10
72209-11
COVER, wire dress
FLTRX, FLTRXS
11
72213-94
TERMINAL, socket, female, 16-20 gauge (2)
FLTRX, FLTRXS
12
72222-11
TERMINAL, socket, 18-20 gauge (27)
FLTRX, FLTRXS
13
72226-11
TERMINAL, socket, 14-16 gauge (8)
FLTRX, FLTRXS
14
72256-11
SEAL PIN (13)
FLTRX, FLTRXS
15
72414-07BK
HOUSING, 6-way socket
FLTRX, FLTRXS
16
72473-07
SEAL PIN (6)
FLTRX, FLTRXS
17
72484-08
TERMINAL, socket, 20 gauge (2)
FLTRX, FLTRXS
18
72486-08
WIRE SEAL, 20 gauge (green) (2)
FLTRX, FLTRXS
19
72488-07BK
HOUSING, 12-way pin (black)
FLTRX, FLTRXS
20
72490-07GY
HOUSING, 12-way pin (gray)
FLTRX, FLTRXS
21
72606-08
HOUSING, 2-way socket
FLTRX, FLTRXS
22
72610-08
SEAL, 18-20 gauge (white) (2)
FLTRX, FLTRXS
23
72632-10
WEATHER PLUG, 4-way pin
FLTRX, FLTRXS
24
72639-10
SECONDARY LOCK, 2-way socket
FLTRX, FLTRXS
25
72905-11
HOUSING, 2-way pin (black)
FLTRX, FLTRXS
26
72907-11
HOUSING, 4-way pin (black) (2)
FLTRX, FLTRXS
27
72909-11
TERMINAL, pin, 20-22 gauge (9)
FLTRX, FLTRXS
28
73213-07
RETAINER, x-mas tree clip (4)
FLTRX, FLTRXS
29
12500002
CABLE STRAP
FLTRX, FLTRXS
30
69200193
HOUSING, 48-way socket
FLTRX, FLTRXS
31
69200205
WEATHER PLUG, 12-way pin (2)
FLTRX, FLTRXS
32
69200700
CADDY
FLTRX, FLTRXS

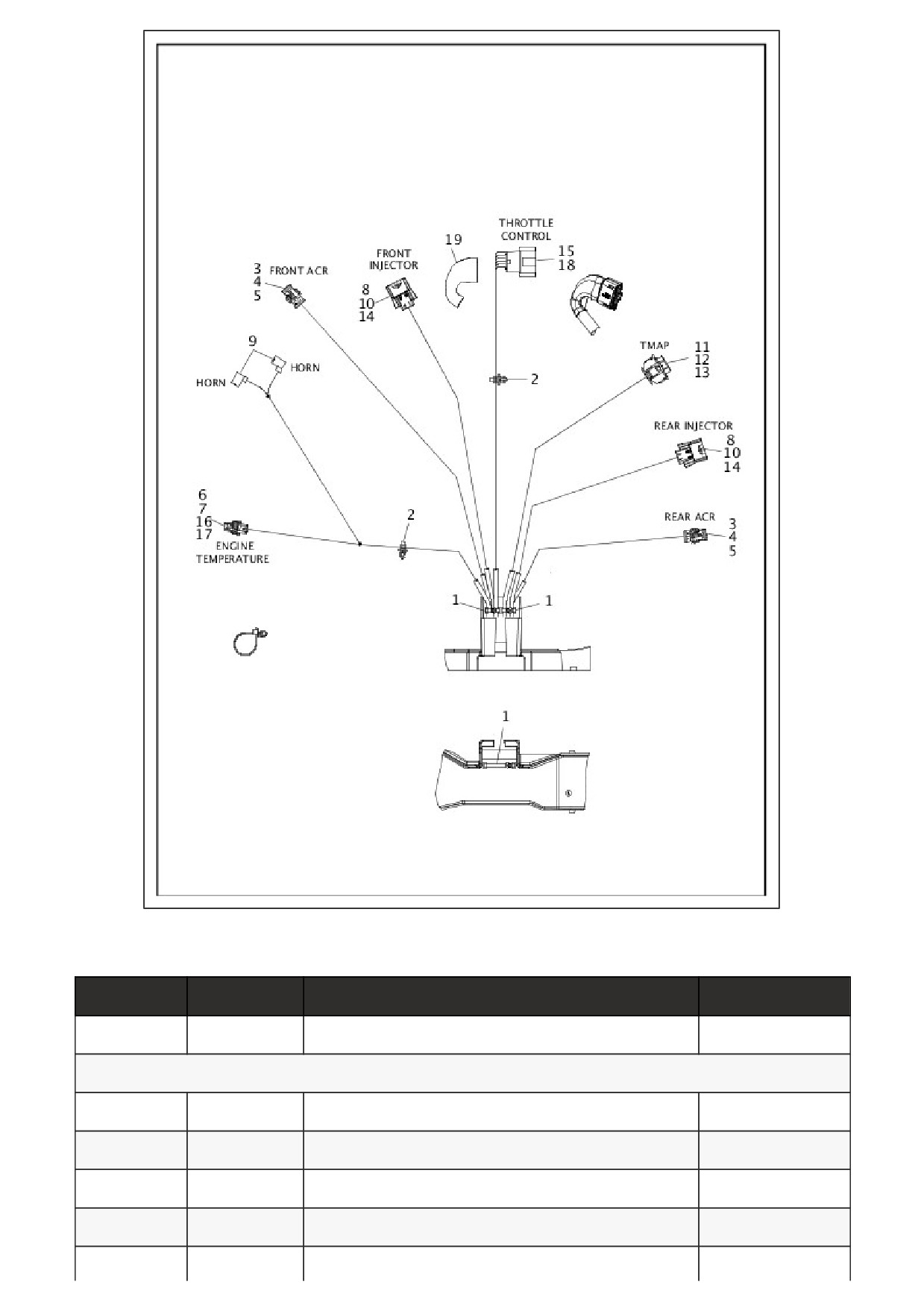

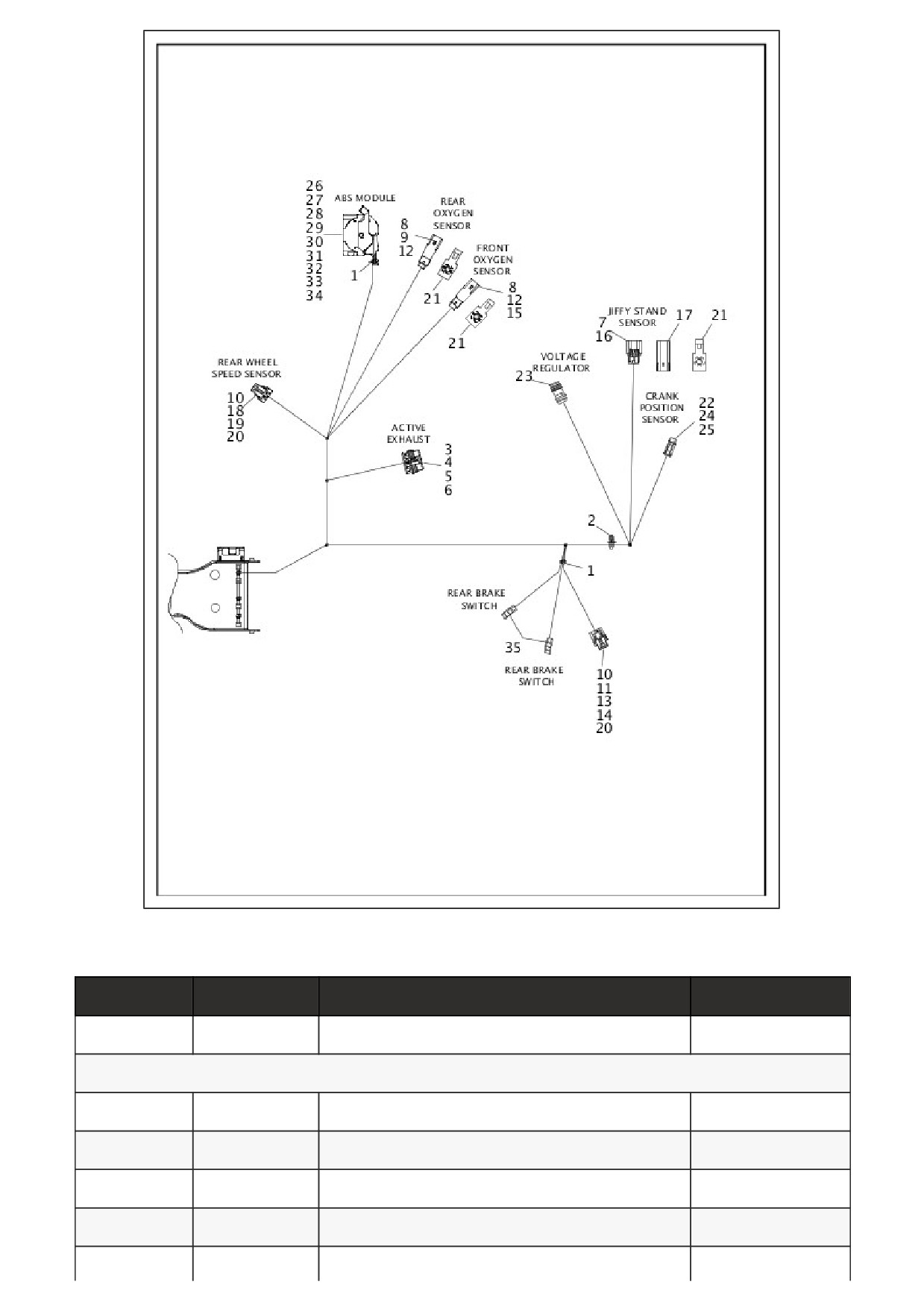

WIRING HARNESS, MAIN, ABS (FAIRING MODELS) - FLTRX &
FLTRXS (3 OF 8)
Index No.
Part No.
Description
Model(s)
69200623
MAIN WIRING HARNESS - ABS
FLTRX, FLTRXS
NOTE: Includes the following parts.
1
10065
CABLE STRAP (3)
FLTRX, FLTRXS
2
10177
CABLE STRAP, tree mount (2)
FLTRX, FLTRXS
3
72007-05
HOUSING, 2-way socket (2)
FLTRX, FLTRXS
4
72010-05
WIRE SEAL, 22-26 gauge (green) (4)
FLTRX, FLTRXS
5
72024-08
TERMINAL, socket, 20-22 gauge (4)
FLTRX, FLTRXS
6
72063-06
HOUSING, 2-way socket
FLTRX, FLTRXS
7
72111-06
SECONDARY LOCK, 2-way socket, female (gray)
FLTRX, FLTRXS
8
72251-07
SECONDARY LOCK, 2-way socket (yellow) (2)
FLTRX, FLTRXS
9
72283-09
TERMINAL, female, 14-16 gauge, 90 degree (2)
FLTRX, FLTRXS
10
72402-07
HOUSING, 2-way socket (2)
FLTRX, FLTRXS
11
72406-07A
HOUSING, 4-way socket
FLTRX, FLTRXS
12
72407-07
TERMINAL, socket, 16-20 gauge (4)
FLTRX, FLTRXS
13
72408-07
WIRE SEAL, 16-20 gauge (blue) (4)
FLTRX, FLTRXS
14
72413-07
TERMINAL, socket, 18-20 gauge (4)
FLTRX, FLTRXS
15
72483-08BK
HOUSING, 6-way socket
FLTRX, FLTRXS
16
72484-08
TERMINAL, socket, 20 gauge (2)
FLTRX, FLTRXS
17
72486-08
WIRE SEAL, 20 gauge (green) (2)
FLTRX, FLTRXS
18
72663-11
TERMINAL, socket, 18-20 gauge (silver) (6)
FLTRX, FLTRXS
19
69200437
RUBBER BOOT, wire connector
FLTRX, FLTRXS

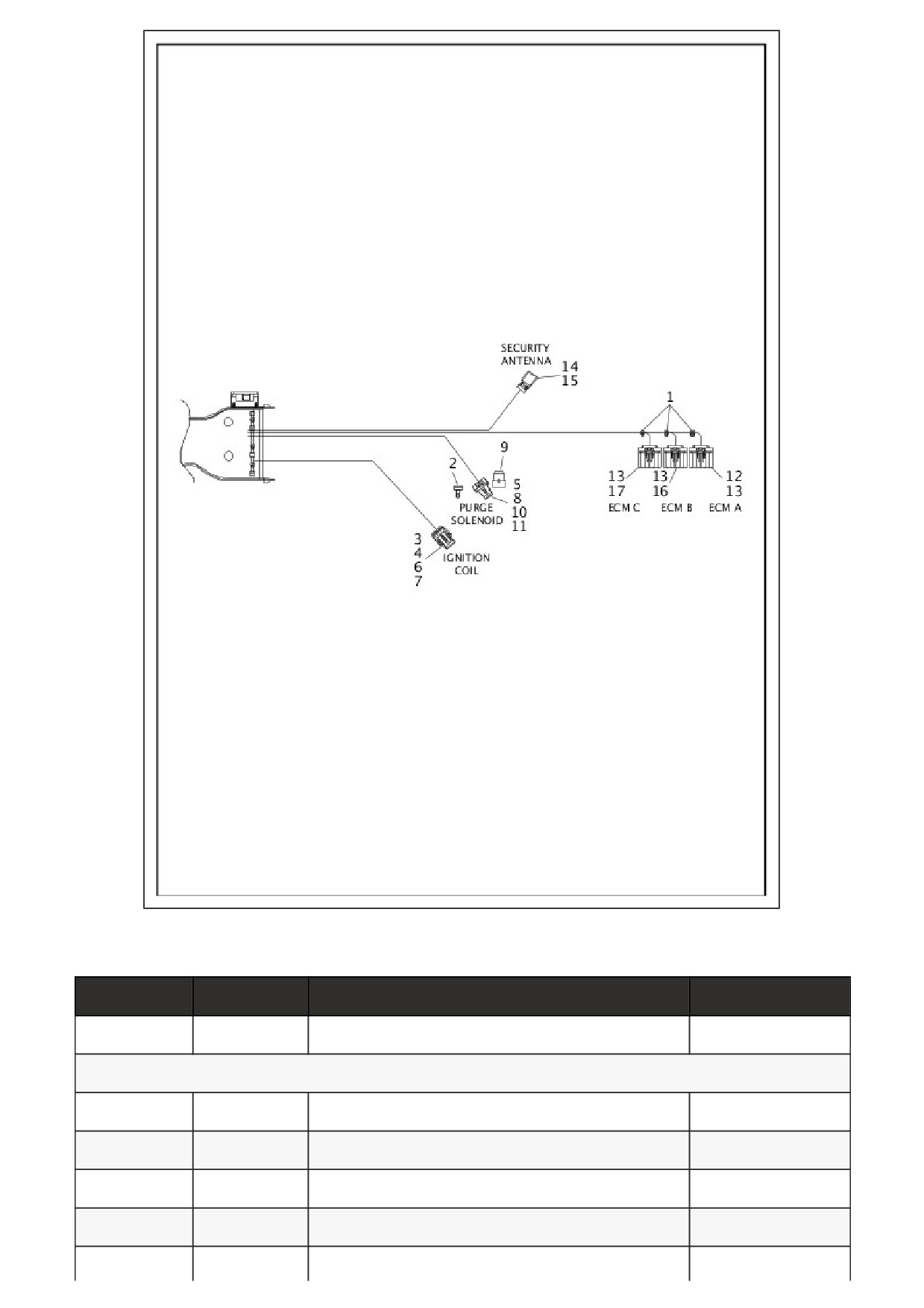

WIRING HARNESS, MAIN, ABS (FAIRING MODELS) - FLTRX &
FLTRXS (4 OF 8)
Index No.
Part No.
Description
Model(s)
69200623
MAIN WIRING HARNESS - ABS
FLTRX, FLTRXS
NOTE: Includes the following parts.
1
10065
CABLE STRAP (3)
FLTRX, FLTRXS
2
10147
CLIP, connector
FLTRX, FLTRXS
3
72066-06A
HOUSING, 4-way socket, female (black)
FLTRX, FLTRXS
4
72135-06
SECONDARY LOCK, 4-way socket, female
FLTRX, FLTRXS
5
72213-94
TERMINAL, socket, female, 16-20 gauge (2)
FLTRX, FLTRXS
6
72484-08
TERMINAL, socket, 20 gauge (4)
FLTRX, FLTRXS
7
72486-08
WIRE SEAL, 20 gauge (green) (4)
FLTRX, FLTRXS
8
72518-01
HOUSING, 2-way socket (red)
FLTRX, FLTRXS
9
72533-06
DUST CAP, 2-pin connector
FLTRX, FLTRXS
10
72609-08
SECONDARY LOCK, 2-way socket (black)
FLTRX, FLTRXS
11
72610-08
SEAL, 18-20 gauge (white) (2)
FLTRX, FLTRXS
12
72664-12A
HOUSING, 18-way socket (black)
FLTRX, FLTRXS
13
72666-12
TERMINAL, socket, 18-20 gauge (silver) (38)
FLTRX, FLTRXS
14
72720-07
HOUSING, 2-way socket
FLTRX, FLTRXS
15
72721-07
TERMINAL, socket, 18-20 gauge (2)
FLTRX, FLTRXS
16
69200267A
HOUSING, 18-way socket (gray)
FLTRX, FLTRXS
17
69200268A
HOUSING, 18-way socket (brown)
FLTRX, FLTRXS
WIRING HARNESS, MAIN, ABS (FAIRING MODELS) - FLTRX &
FLTRXS (5 OF 8)
Index No.
Part No.
Description
Model(s)
69200623
MAIN WIRING HARNESS - ABS
FLTRX, FLTRXS
NOTE: Includes the following parts.
1
9819
TERMINAL, 1/4 in. ring, 12 gauge (3)
FLTRX, FLTRXS
2
72169-07
TERMINAL, pin, 16-20 gauge (4)
FLTRX, FLTRXS
3
72249-94
HEAT SHRINK TUBE, .415 x 1 (black)
FLTRX, FLTRXS
4
72415-07GY
HOUSING, 4-way pin (gray) (2)
FLTRX, FLTRXS
5
73213-07
RETAINER, x-mas tree clip
FLTRX, FLTRXS
6
69200629
CABLE, AM/FM antenna
FLTRX, FLTRXS
WIRING HARNESS, MAIN, ABS (FAIRING MODELS) - FLTRX &
FLTRXS (6 OF 8)
Index No.
Part No.
Description
Model(s)
69200623
MAIN WIRING HARNESS - ABS
FLTRX, FLTRXS
NOTE: Includes the following parts.
1
10006
CABLE STRAP
FLTRX, FLTRXS
2
10065
CABLE STRAP (4)
FLTRX, FLTRXS
3
11779
FASTENER, push-in (black) (2)
FLTRX, FLTRXS
4
72291-94
TERMINAL, 14-16 gauge
FLTRX, FLTRXS
5
72295-94
CONNECTOR, starter housing
FLTRX, FLTRXS
6
72405-98BK
WIRE ASSEMBLY, push-on, right angle molded, 65-1/2 in. length (2)
FLTRX, FLTRXS
7
72484-08
TERMINAL, socket, 20 gauge (3)
FLTRX, FLTRXS
8
72486-08
WIRE SEAL, 20 gauge (green) (3)
FLTRX, FLTRXS
9
72543-07BK
HOUSING, 3-way socket (black)
FLTRX, FLTRXS
10
72544-07
SECONDARY LOCK, 3-way socket, female
FLTRX, FLTRXS
11
69200175
CADDY, fuse block, electrical panel
FLTRX, FLTRXS
WIRING HARNESS, MAIN, ABS (FAIRING MODELS) - FLTRX &
FLTRXS (7 OF 8)
Index No.
Part No.
Description
Model(s)
69200623
MAIN WIRING HARNESS - ABS
FLTRX, FLTRXS
NOTE: Includes the following parts.
1
10065
CABLE STRAP (2)
FLTRX, FLTRXS
2
10177
CABLE STRAP, tree mount
FLTRX, FLTRXS
3
72010-05
WIRE SEAL, 22-26 gauge (green) (4)
FLTRX, FLTRXS
4
72012-07
HOUSING, 5-way socket
FLTRX, FLTRXS
5
72014-07
SEAL PIN
FLTRX, FLTRXS
6
72024-08
TERMINAL, socket, 20-22 gauge (4)
FLTRX, FLTRXS
7
72168-07
TERMINAL, socket, 18-20 gauge (3)
FLTRX, FLTRXS
8
72169-07
TERMINAL, pin, 16-20 gauge (4)
FLTRX, FLTRXS
9
72175-07BK
HOUSING, 4-way pin (black)
FLTRX, FLTRXS
10
72213-94
TERMINAL, socket, female, 16-20 gauge (4)
FLTRX, FLTRXS
11
72232-96
SEAL PLUG (2)
FLTRX, FLTRXS
12
72343-10
TERMINAL, pin, 16-20 gauge (gold) (4)
FLTRX, FLTRXS
13
72400-99
CONNECTOR, 4-way
FLTRX, FLTRXS
14
72403-99
SECONDARY LOCK, 4-way
FLTRX, FLTRXS
15
72415-07GY
HOUSING, 4-way pin (gray)
FLTRX, FLTRXS
16
72512-07BK
HOUSING, 3-way socket (black)
FLTRX, FLTRXS
17
72519-09BK
DUST CAP, 3-way socket (black)
FLTRX, FLTRXS
18
72606-08
HOUSING, 2-way socket
FLTRX, FLTRXS
19
72609-08
SECONDARY LOCK, 2-way socket (black)
FLTRX, FLTRXS
20
72610-08
SEAL, 18-20 gauge (white) (4)
FLTRX, FLTRXS
21
73213-07
RETAINER, x-mas tree clip (3)
FLTRX, FLTRXS
22
74112-98BK
HOUSING, 2-way socket (black)
FLTRX, FLTRXS
23
74120-08
DC LEAD ASSEMBLY
FLTRX, FLTRXS
24
74152-98
SECONDARY LOCK, 2-way socket
FLTRX, FLTRXS
25
74191-98
TERMINAL, socket (2)
FLTRX, FLTRXS
26
69200183
HOUSING, 26-way socket
FLTRX, FLTRXS
27
69200184
COVER, 26-way socket
FLTRX, FLTRXS
28
69200185
TERMINAL, socket, 20 gauge (6)
FLTRX, FLTRXS
29
69200186
TERMINAL, socket, 14-16 gauge (2)
FLTRX, FLTRXS
30
69200187
TERMINAL, socket, 12 gauge (2)
FLTRX, FLTRXS
31
69200188
WIRE SEAL, 20 gauge (6)
FLTRX, FLTRXS
32
69200189
WIRE SEAL, 14-16 gauge (2)
FLTRX, FLTRXS
33
69200190
WIRE SEAL, 12 gauge (2)
FLTRX, FLTRXS
34
69200191
SEAL PIN (16)
FLTRX, FLTRXS
35
69200238
TERMINAL, 20 gauge (black) (2)
FLTRX, FLTRXS
WIRING HARNESS, MAIN, ABS (FAIRING MODELS) - FLTRX &
FLTRXS (8 OF 8)
Index
Part No.
Description
Model(s)
No.
69200623
MAIN WIRING HARNESS - ABS
FLTRX,
FLTRXS
NOTE: Includes the following parts.
1
6990
WEATHER PLUG, 6-way pin
FLTRX,
FLTRXS
2
10006
CABLE STRAP (2)
FLTRX,
FLTRXS
3
10065
CABLE STRAP (2)
FLTRX,
FLTRXS
4
31586-07
RELAY
FLTRX,
FLTRXS
5
72064-06
HOUSING, 3-way socket, female
FLTRX,
FLTRXS
6
72081-11
HOUSING, 48-way socket
FLTRX,
FLTRXS
7
72106-
HOUSING, 6-pin (black) (replaces gray connector)
FLTRX,
94BK
FLTRXS
8
72146-94
SECONDARY LOCK, 6-way pin
FLTRX,
FLTRXS
9
72169-07
TERMINAL, pin, 16-20 gauge (14)
FLTRX,
FLTRXS
10
72188-
HOUSING, 6-way pin (black)
FLTRX,
07BK
FLTRXS
11
72190-94
TERMINAL, pin, 16-18 gauge (2)
FLTRX,
FLTRXS
12
72194-94
TERMINAL, pin, 20 gauge (3)
FLTRX,
FLTRXS
13
72195-94
SEAL PIN
FLTRX,
FLTRXS
14
72209-11
COVER, wire dress
FLTRX,
FLTRXS
15
72222-11
TERMINAL, socket, 18-20 gauge (22)
FLTRX,
FLTRXS
16
72226-11
TERMINAL, socket, 14-16 gauge
FLTRX,
FLTRXS
17
72227-11
TERMINAL, socket, 18-20 gauge (5)
FLTRX,
FLTRXS
18
72256-11
SEAL PIN (8)
FLTRX,
FLTRXS
19
72296-95
TERMINAL, female, sealed (2)
FLTRX,
FLTRXS
20
72298-95
PLUG, cavity (2)
FLTRX,
FLTRXS
21
72299-95
PLUG, cavity (8)
FLTRX,
FLTRXS
22
72308-97
TERMINAL, female, 12-14 gauge (4)
FLTRX,
FLTRXS
23
72331-95
FUSE, 5-amp, mini (tan) (2)
FLTRX,
FLTRXS
24
72345-02
FUSE, 20-amp, mini (yellow) (3)
FLTRX,
FLTRXS
25
72350-11
HOUSING, 1-way socket
FLTRX,
FLTRXS
26
72356-95
TERMINAL, socket, 18-20 gauge (10)
FLTRX,
FLTRXS
27
72412-97
SEAL, cable, 12-14 gauge (4)
FLTRX,
FLTRXS
28
72447-
HOUSING, 8-way pin (gray)
FLTRX,
07GY
FLTRXS
29
72484-08
TERMINAL, socket, 20 gauge (3)
FLTRX,
FLTRXS
30
72486-08
WIRE SEAL, 20 gauge (green) (3)
FLTRX,
FLTRXS
31
72575-11
SECONDARY LOCK
FLTRX,
FLTRXS
32
73213-07
RETAINER, x-mas tree clip
FLTRX,
FLTRXS
33
73301-04
HOUSING, 2-way pin
FLTRX,
FLTRXS
34
73303-04
SECONDARY LOCK, 2-way socket, female
FLTRX,
FLTRXS
35
73304-04
TERMINAL, female, 10 gauge (2)
FLTRX,
FLTRXS
36
73305-04
SEAL WIRE, 10 gauge (blue) (2)
FLTRX,
FLTRXS
37
69200137
WIRE HARNESS, positive cable
FLTRX,
FLTRXS
38
69200194
HOUSING, 24-way fuse block
FLTRX,
FLTRXS
39
69200195
COVER, fuse block
FLTRX,
FLTRXS
40
69200199
WIRE SEAL, 18-20 gauge (10)
FLTRX,
FLTRXS
41
69200204
WEATHER PLUG, 8-way pin
FLTRX,
FLTRXS
42
69200212
HOUSING, 2-way
FLTRX,
FLTRXS
43
69200293
FUSE, 7.5-amp, mini (brown) (2)
FLTRX,
FLTRXS
44
69200312
SECONDARY LOCK, 24-way fuse block (3)
FLTRX,
FLTRXS
45
69200336
MAIN FUSE, 50 amp (red), NOTE: Fuse is sold separately and is not part of
FLTRX,
main harness
FLTRXS
46
11100115
CLOTH, HARNESS WRAP, 50m (not shown)
FLTRX,
FLTRXS

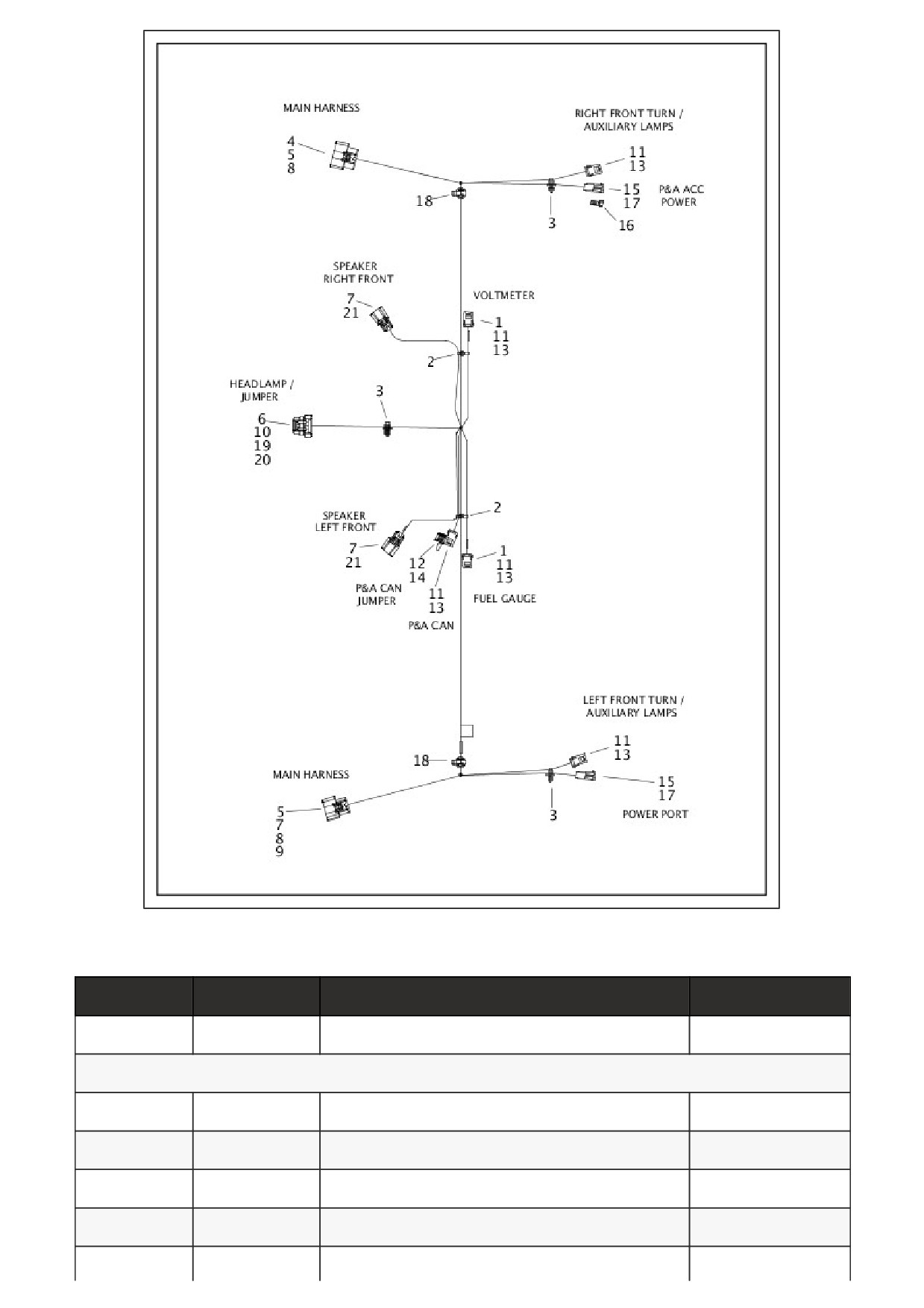

WIRING HARNESS, FAIRING - FLHTCU/L, FLHTK/L, FLHX & FLHXS (1
OF 2)
Index
Part No.
Description
Model(s)
No.
69200121
WIRING HARNESS, fairing
FLHTCU, FLHX, FLHTCUL, FLHTK, FLHTCUL TC, FLHTKL,
FLHXS, FLHTCU TC
NOTE: Includes the following parts.
1
5118
SEAL PIN
FLHTCU, FLHX, FLHTCUL, FLHTK, FLHTCUL TC, FLHTKL,
FLHXS, FLHTCU TC
2
10065
CABLE STRAP (8)
FLHTCU, FLHX, FLHTCUL, FLHTK, FLHTCUL TC, FLHTKL,
FLHXS, FLHTCU TC
3
72167-
HOUSING, pin, 16-way
FLHTCU, FLHX, FLHTCUL, FLHTK, FLHTCUL TC, FLHTKL,
07BK
(black)
FLHXS, FLHTCU TC
4
72169-07
TERMINAL, pin, 16-20
FLHTCU, FLHX, FLHTCUL, FLHTK, FLHTCUL TC, FLHTKL,
gauge (19)
FLHXS, FLHTCU TC
5
72213-94
SOCKET HOUSING, 2-way
FLHTCU, FLHX, FLHTCUL, FLHTK, FLHTCUL TC, FLHTKL,
(4)
FLHXS, FLHTCU TC
6
72473-07
SEAL PIN (9)
FLHTCU, FLHX, FLHTCUL, FLHTK, FLHTCUL TC, FLHTKL,
FLHXS, FLHTCU TC
7
72490-
PIN HOUSING, 12-way
FLHTCU, FLHX, FLHTCUL, FLHTK, FLHTCUL TC, FLHTKL,
07GY
(gray)
FLHXS, FLHTCU TC
8
72610-08
CABLE SEAL, 18-20 AWG
FLHTCU, FLHX, FLHTCUL, FLHTK, FLHTCUL TC, FLHTKL,
(white) (4)
FLHXS, FLHTCU TC
9
72902-
PIN HOUSING, 2-way
FLHTCU, FLHX, FLHTCUL, FLHTK, FLHTCUL TC, FLHTKL,
01BK
(black)
FLHXS, FLHTCU TC
10
72905-11
HOUSING, 2-way pin (black)
FLHTCU, FLHX, FLHTCUL, FLHTK, FLHTCUL TC, FLHTKL,
FLHXS, FLHTCU TC
11
72907-11
HOUSING, 4-way pin (4)
FLHTCU, FLHX, FLHTCUL, FLHTK, FLHTCUL TC, FLHTKL,
FLHXS, FLHTCU TC
12
72909-11
TERMINAL, pin, 20-22
FLHTCU, FLHX, FLHTCUL, FLHTK, FLHTCUL TC, FLHTKL,
gauge (17)
FLHXS, FLHTCU TC
13
72912-
HOUSING SOCKET, 2-way
FLHTCU, FLHX, FLHTCUL, FLHTK, FLHTCUL TC, FLHTKL,
01BK
(black)
FLHXS, FLHTCU TC
14
72991-01
SOCKET TERMINAL, 18-22
FLHTCU, FLHX, FLHTCUL, FLHTK, FLHTCUL TC, FLHTKL,
AWG (2)
FLHXS, FLHTCU TC
15
69200109
CADDY, fairing harness
FLHTCU, FLHX, FLHTCUL, FLHTK, FLHTCUL TC, FLHTKL,
FLHXS, FLHTCU TC
16
69200254
SOCKET HOUSING, 4-way
FLHTCU, FLHX, FLHTCUL, FLHTK, FLHTCUL TC, FLHTKL,
FLHXS, FLHTCU TC
17
69200256
LOCK, secondary, 4-way
FLHTCU, FLHX, FLHTCUL, FLHTK, FLHTCUL TC, FLHTKL,
FLHXS, FLHTCU TC
WIRING HARNESS, FAIRING - FLHTCU/L, FLHTK/L, FLHX & FLHXS (2
OF 2)
Index
Part No.
Description
Model(s)
No.
69200121
WIRING HARNESS, fairing
FLHTCU, FLHX, FLHTCUL, FLHTK, FLHTCUL TC,
FLHTKL, FLHXS, FLHTCU TC
NOTE: Includes the following parts.
1
10177
CABLE STRAP, tree mount (4)
FLHTCU, FLHX, FLHTCUL, FLHTK, FLHTCUL TC,
FLHTKL, FLHXS, FLHTCU TC
2
72066-
SOCKET HOUSING, 4-way
FLHTCU, FLHX, FLHTCUL, FLHTK, FLHTCUL TC,
06A
female (black) (2)
FLHTKL, FLHXS, FLHTCU TC
3
72097-06
CAVITY PLUG, oval (orange) (2)
FLHTCU, FLHX, FLHTCUL, FLHTK, FLHTCUL TC,
FLHTKL, FLHXS, FLHTCU TC
4
72130-04
SOCKET HOUSING, 12-way
FLHTCU, FLHX, FLHTCUL, FLHTK, FLHTCUL TC,
(black)
FLHTKL, FLHXS, FLHTCU TC
5
72135-06
LOCK, secondary, 4-way female
FLHTCU, FLHX, FLHTCUL, FLHTK, FLHTCUL TC,
(2)
FLHTKL, FLHXS, FLHTCU TC
6
72189-04
SEAL PIN (5)
FLHTCU, FLHX, FLHTCUL, FLHTK, FLHTCUL TC,
FLHTKL, FLHXS, FLHTCU TC
7
72264-94
TERMINAL, socket, 18-20 gauge
FLHTCU, FLHX, FLHTCUL, FLHTK, FLHTCUL TC,
(2)
FLHTKL, FLHXS, FLHTCU TC
8
72272-07
TERMINAL, socket, 14-16 AWG
FLHTCU, FLHX, FLHTCUL, FLHTK, FLHTCUL TC,
(4)
FLHTKL, FLHXS, FLHTCU TC
9
72484-08
TERMINAL, socket, 20 AWG (6)
FLHTCU, FLHX, FLHTCUL, FLHTK, FLHTCUL TC,
FLHTKL, FLHXS, FLHTCU TC
10
72486-08
SEAL WIRE, 20 AWG (green)
FLHTCU, FLHX, FLHTCUL, FLHTK, FLHTCUL TC,
(6)
FLHTKL, FLHXS, FLHTCU TC
11
73101-
PIN HOUSING, 2-way, w/ panel
FLHTCU, FLHX, FLHTCUL, FLHTK, FLHTCUL TC,
96BK
mount (black)
FLHTKL, FLHXS, FLHTCU TC
12
73102-
PIN HOUSING, 2-way (black)
FLHTCU, FLHX, FLHTCUL, FLHTK, FLHTCUL TC,
96BK
FLHTKL, FLHXS, FLHTCU TC
13
73152-
SOCKET HOUSING, 2-way
FLHTCU, FLHX, FLHTCUL, FLHTK, FLHTCUL TC,
96BK
(black)
FLHTKL, FLHXS, FLHTCU TC
14
73190-96
TERMINAL, pin, 16-20 AWG (4)
FLHTCU, FLHX, FLHTCUL, FLHTK, FLHTCUL TC,
FLHTKL, FLHXS, FLHTCU TC
15
74196-04
TERMINAL, socket (7)
FLHTCU, FLHX, FLHTCUL, FLHTK, FLHTCUL TC,
FLHTKL, FLHXS, FLHTCU TC
16
74197-04
SOCKET LOCK, secondary 12-
FLHTCU, FLHX, FLHTCUL, FLHTK, FLHTCUL TC,
way
FLHTKL, FLHXS, FLHTCU TC
17
12500002
CABLE STRAP (2)
FLHTCU, FLHX, FLHTCUL, FLHTK, FLHTCUL TC,
FLHTKL, FLHXS, FLHTCU TC
18
69200271
SOCKET HOUSING, 2-way (2)
FLHTCU, FLHX, FLHTCUL, FLHTK, FLHTCUL TC,
FLHTKL, FLHXS, FLHTCU TC
19
69200337
SOCKET HOUSING, 2-way
FLHTCU, FLHX, FLHTCUL, FLHTK, FLHTCUL TC,
FLHTKL, FLHXS, FLHTCU TC

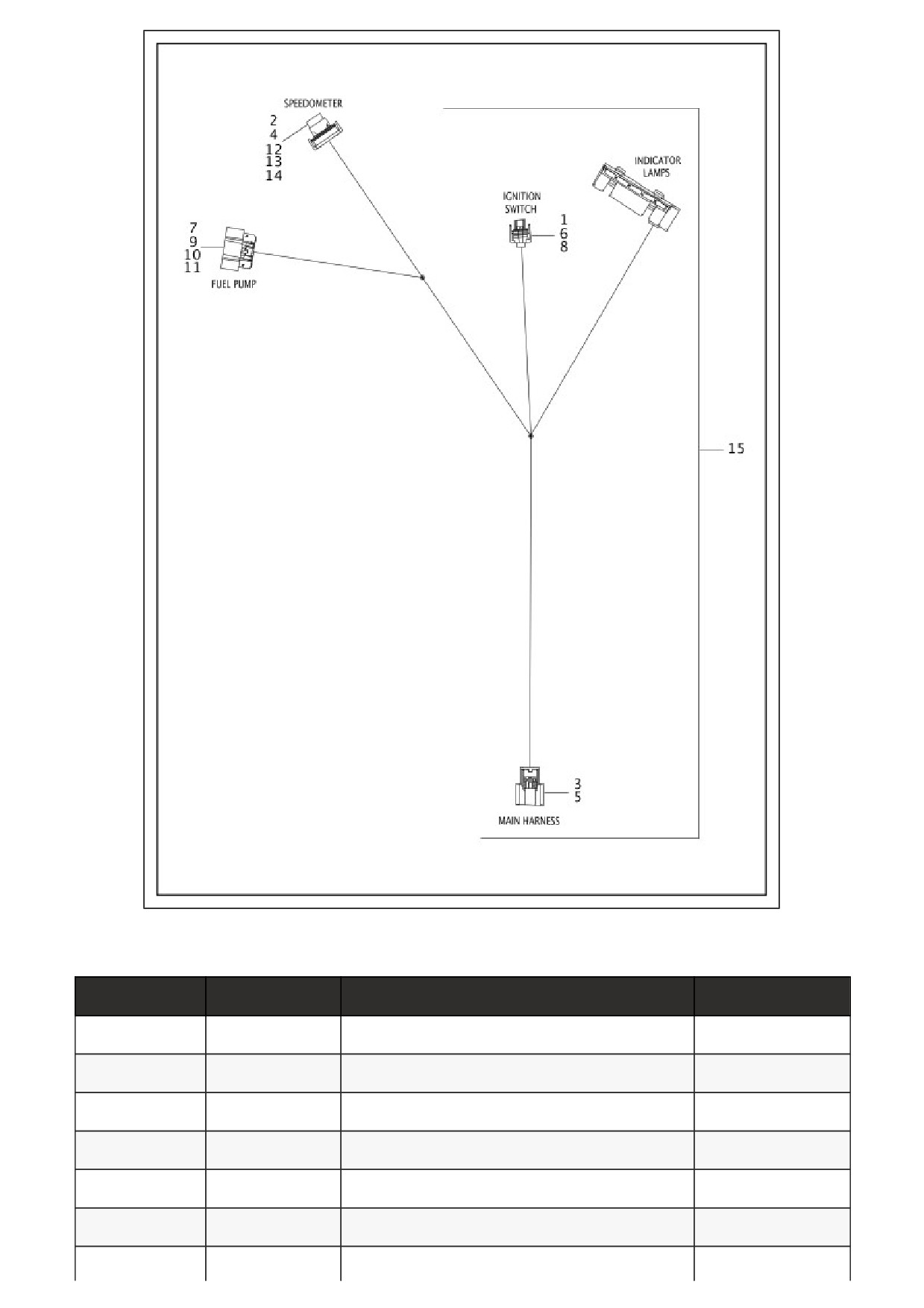

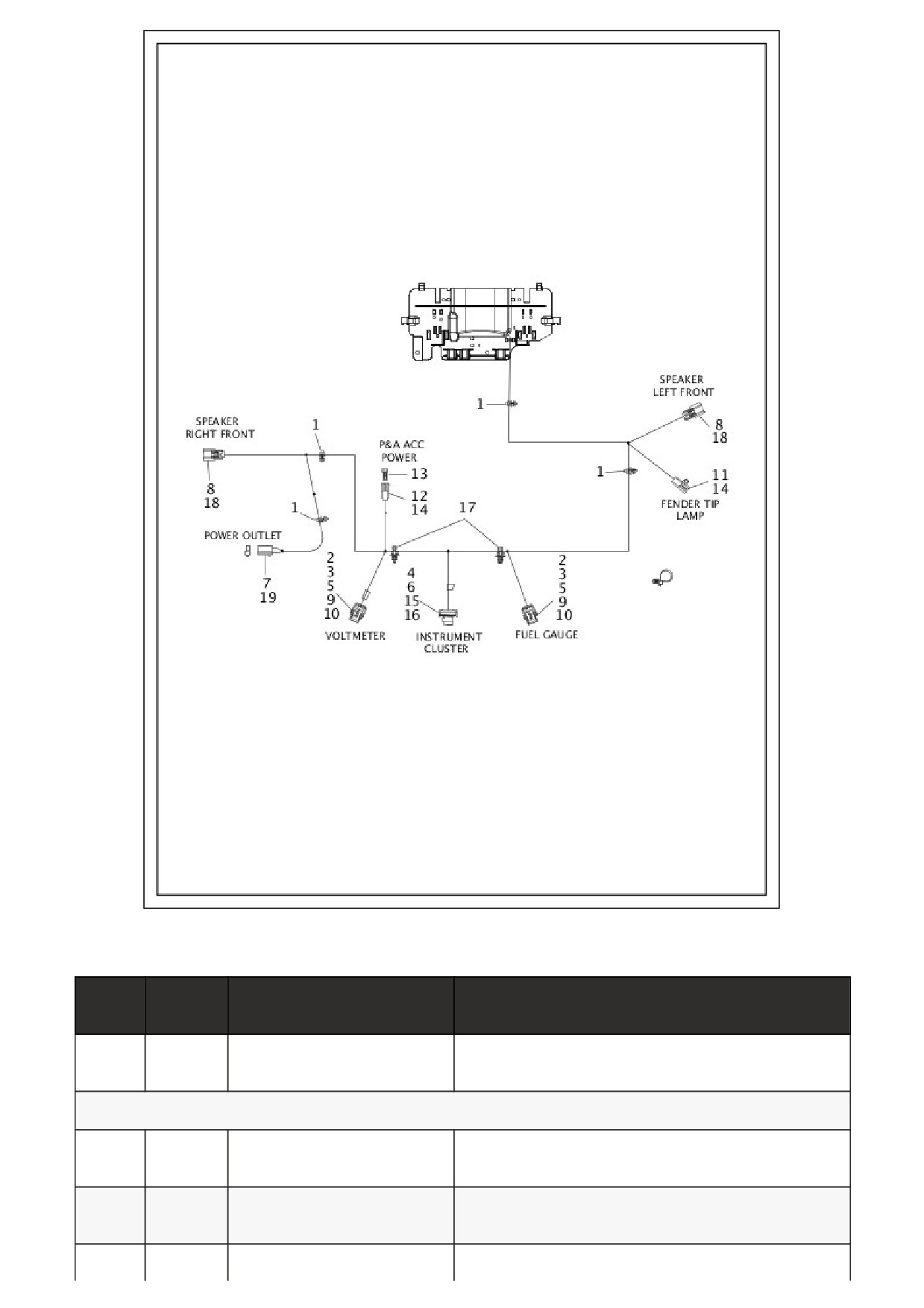

WIRING HARNESS, CONSOLE - FLHR & FLHRC
Index No.
Part No.
Description
Model(s)
1
72062-06
SOCKET HOUSING, 2-way
FLHR, FLHRC
2
72130-04
SOCKET HOUSING, 12-way (black)
FLHR, FLHRC
3
72168-07
TERMINAL, socket, 18-20 AWG (8)
FLHR, FLHRC
4
72189-04
SEAL PIN (2)
FLHR, FLHRC
5
72479-07BK
SOCKET HOUSING, 8-way (black)
FLHR, FLHRC
6
72484-08
TERMINAL, socket, 20 AWG (2)
FLHR, FLHRC
7
72485-07
SOCKET HOUSING, 4-way
FLHR, FLHRC
8
72486-08
WIRE SEAL, 20 AWG (green) (2)
FLHR, FLHRC
9
72493-07
TERMINAL SOCKET, 16-18 AWG (4)
FLHR, FLHRC
10
72494-07
WIRE SEAL, 16-18 AWG (4)
FLHR, FLHRC
11
72557-07
SECONDARY LOCK, 4-way socket
FLHR, FLHRC
12
72662-11
TERMINAL, socket, 22 AWG (5)
FLHR, FLHRC
13
74196-04
TERMINAL, socket, 20 AWG (5)
FLHR, FLHRC
14
74197-04
SOCKET LOCK, secondary 12-way
FLHR, FLHRC
15
69200124
HARNESS ASSEMBLY, console
FLHR, FLHRC

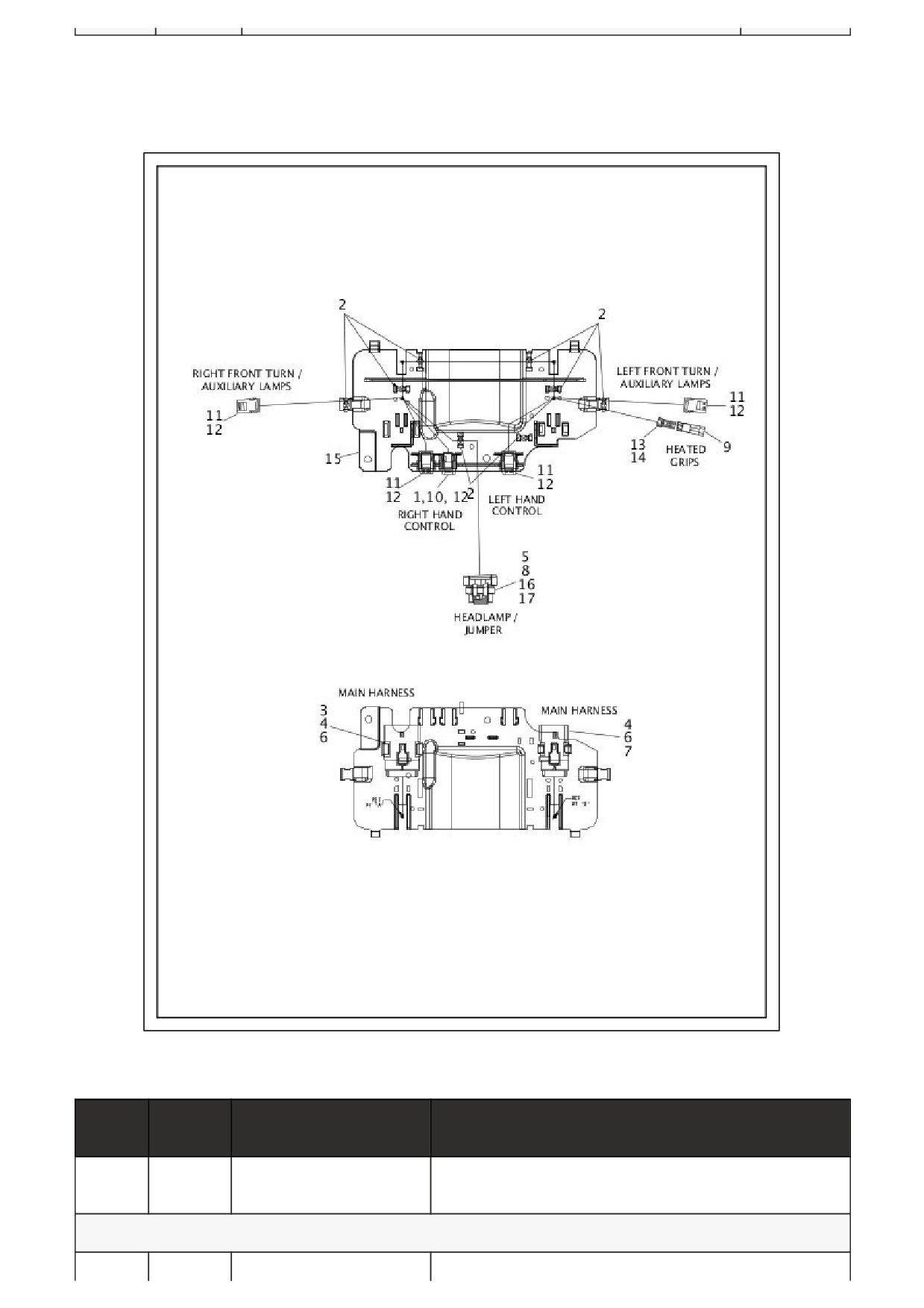

WIRING HARNESS, FAIRING - FLTRX & FLTRXS
Index No.
Part No.
Description
Model(s)
69200122
WIRING HARNESS - FAIRING
FLTRX, FLTRXS
NOTE: Includes the following parts.
1
5118
SEAL PIN
FLTRX, FLTRXS
2
10006
CABLE STRAP (2)
FLTRX, FLTRXS
3
10177
CABLE STRAP, tree mount (3)
FLTRX, FLTRXS
4
72166-07BK
HOUSING, 16-way socket (black)
FLTRX, FLTRXS
5
72168-07
TERMINAL, socket, 18-20 AWG (16)
FLTRX, FLTRXS
6
72213-94
TERMINAL, socket, female, 16-20 AWG (4)
FLTRX, FLTRXS
7
72272-07
TERMINAL, socket, 14-16 AWG (8)
FLTRX, FLTRXS
8
72473-07
SEAL PIN (8)
FLTRX, FLTRXS
9
72489-07GY
HOUSING, 12-way socket (gray)
FLTRX, FLTRXS
10
72610-08
CABLE SEAL, 18-20 AWG (white) (4)
FLTRX, FLTRXS
11
72907-11
HOUSING, 4-way pin (black) (5)
FLTRX, FLTRXS
12
72908-11
SOCKET HOUSING, 4-place
FLTRX, FLTRXS
13
72909-11
TERMINAL, pin, 20-22 AWG (18)
FLTRX, FLTRXS
14
72910-11
TERMINAL, pin, 20-22 AWG (4)
FLTRX, FLTRXS
15
73102-96BK
HOUSING, 2-way pin (black) (2)
FLTRX, FLTRXS
16
73152-96BK
SOCKET HOUSING, 2-way (black)
FLTRX, FLTRXS
17
73190-96
TERMINAL, pin, 16-20 AWG (4)
FLTRX, FLTRXS
18
12500002
CABLE STRAP (2)
FLTRX, FLTRXS
19
69200254
HOUSING, 4-way socket
FLTRX, FLTRXS
20
69200256
SECONDARY LOCK, 4-way
FLTRX, FLTRXS
21
69200271
HOUSING, 2-way socket (2)
FLTRX, FLTRXS

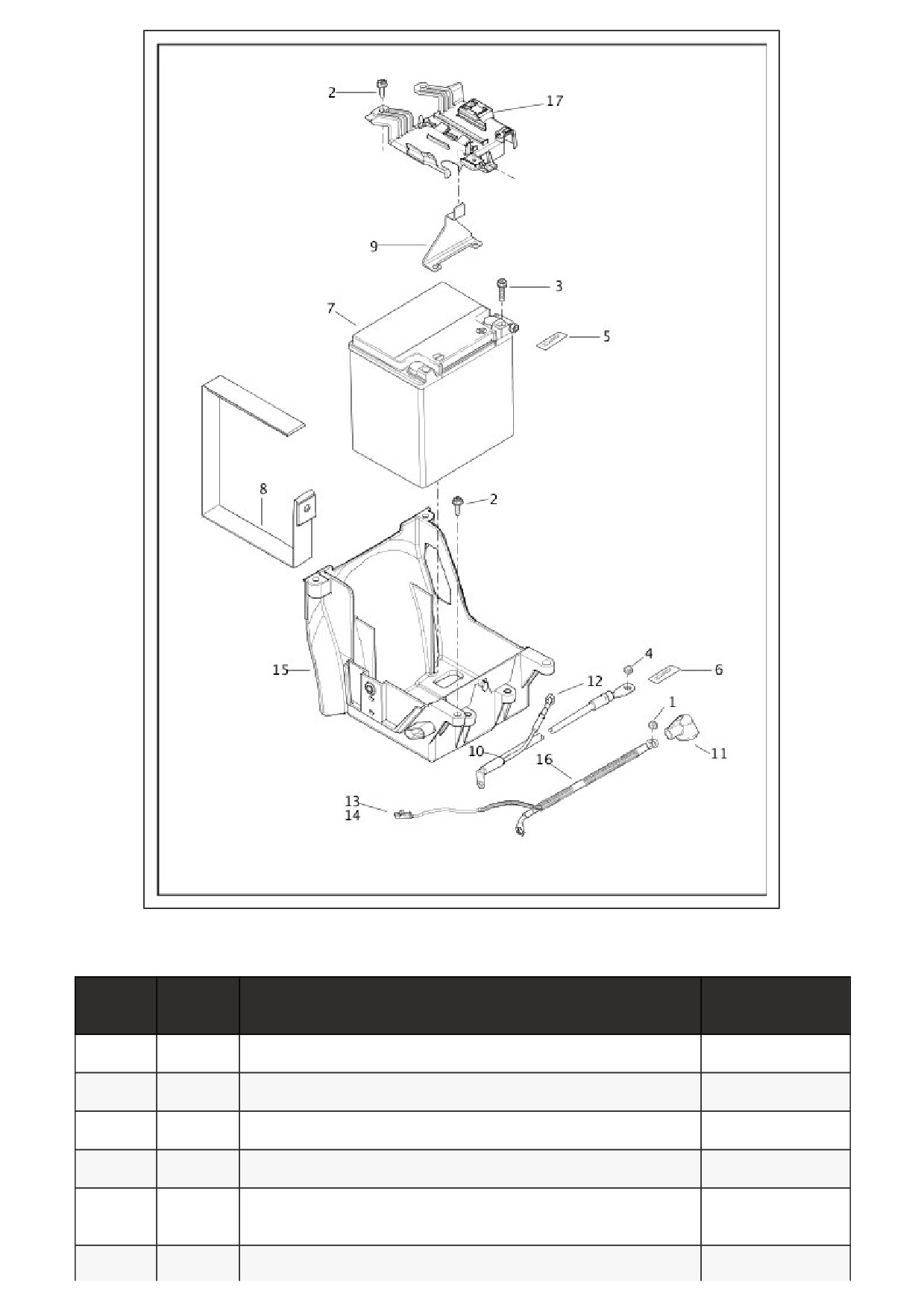

BATTERY
Index
Part No.
Description
Model(s)
No.
1
3403
LOCKNUT
2
3634
SCREW (6)
3
4312C
SCREW (2)
4
7792
NUT
5
14263-04
LABEL BATTERY, (Brazil)
FLHRC, FLHTK,
FLHXS
6
15368-
LABEL BATTERY WARNING
01A
7
66010-
BATTERY, w/ 4312C (except Brazil)
97C
66000066
BATTERY, w/ 4312C (Brazil)
FLHRC, FLHTK,
FLHXS
8
66051-08
STRAP, battery removal
9
66200-09
BRACKET, battery hold down
10
70267-09
CABLE ASSEMBLY, starter to ground, w/ 72242-94
11
70578-89
BOOT, battery positive
12
72242-94
TERMINAL, ring
13
73304-04
TERMINAL, female, 10 AWG
14
73305-04
SEAL WIRE, 10 AWG (blue)
15
66000010
BATTERY TRAY
16
69200137
CABLE ASSEMBLY, battery positive to starter, w/ 70578-89, 73304-04
& 73305-04
17
69200174
CADDY, electronic control module (ECM)

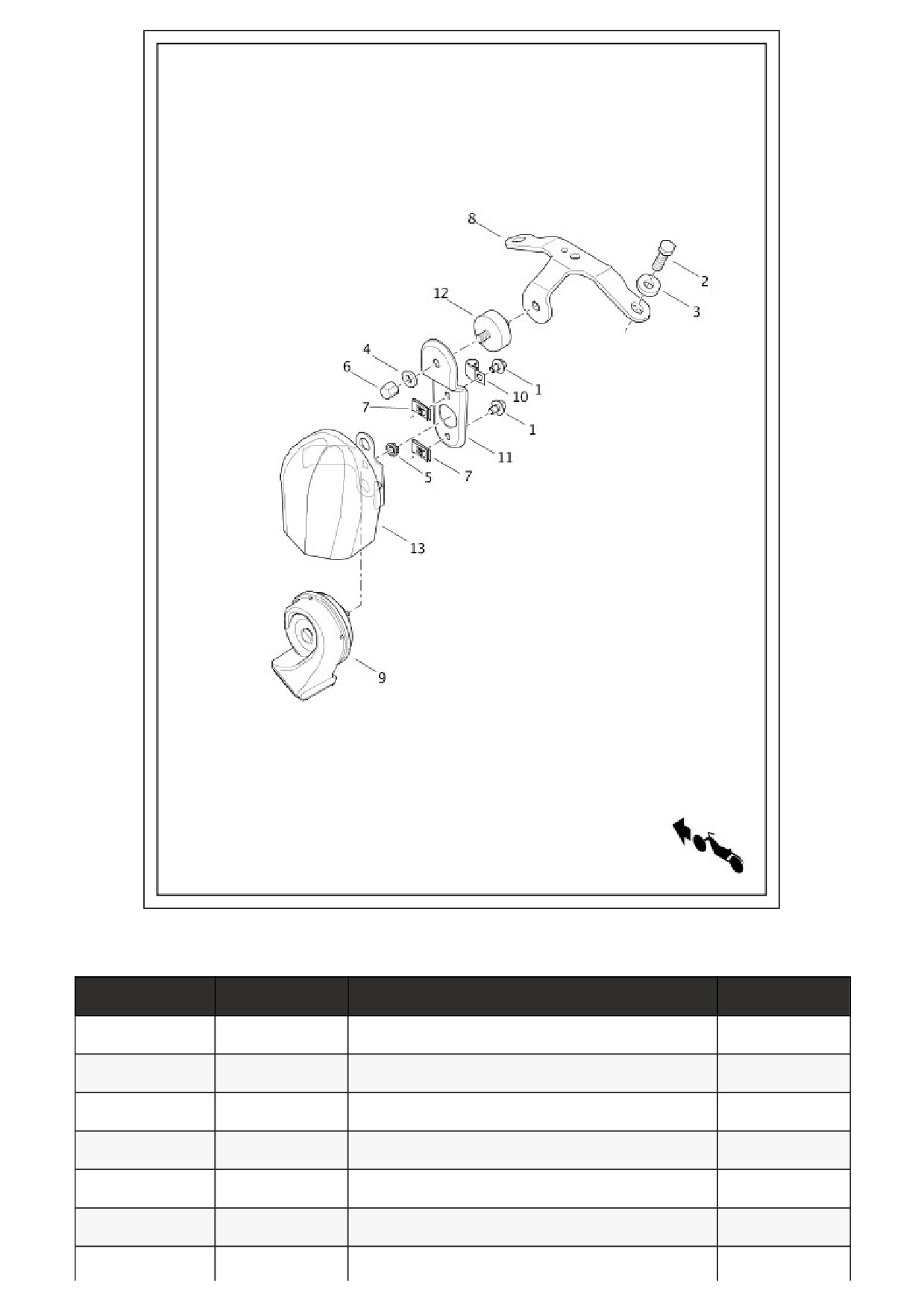

HORN
Index No.
Part No.
Description
Model(s)
1
3563
SCREW (2)
2
4775
SCREW (2)
3
6019
WASHER (2)
4
6109
WASHER
5
7495
NUT
6
7549A
ACORN NUT
7
8108
SPEEDNUT (2)
8
16316-08
BRACKET ASSEMBLY, horn mount
9
69060-90H
HORN ASSEMBLY
10
69062-91A
CLAMP
11
69120-91
BRACKET, horn
12
69123-92A
MOUNT, horn, rubber
13
61300478
COVER, horn (chrome)

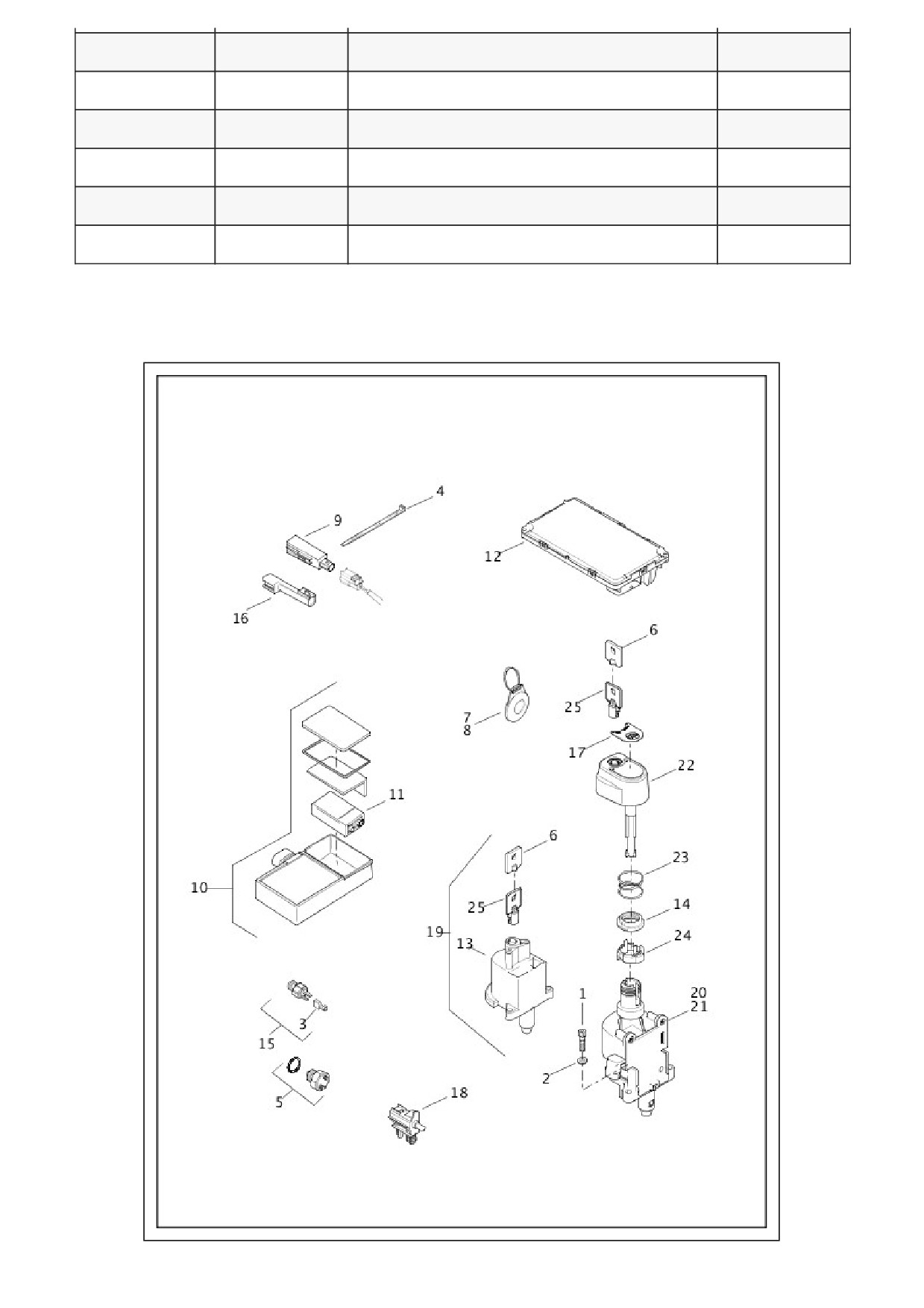

SWITCHES
Index
Part No.
Description
Model(s)
No.
1
2647B
SCREW (2)
FLHTCU, FLHX, FLHTK, FLHTCUL TC, FLHXS,
FLHTCU TC, FLTRX, FLTRXS, FLHTCUL, FLHTKL
2
6150W
WASHER (2)
FLHTCU, FLHX, FLHTK, FLHXS, FLHTCU TC,
FLTRX, FLTRXS, FLHTCUL, FLHTCUL TC, FLHTKL
3
9907
WIRE TERMINAL (2)
4
10065
CABLE STRAP (2)
5
33926-
SWITCH, neutral indicator, w/ o-ring
06B
6
61081-92
COVER, key head (set of 2)
7
66373-06
BATTERY, 3V, CR2032
8
68926-07
REMOTE CONTROL FOB, w/ 66373-
06 (except Japan) (2)
69995-11
REMOTE CONTROL FOB, w/ 66373-
06 (Japan) (2)
9
68956-07
ANTENNA MODULE, security system
10
68958-
SIREN ALARM, (Australia, England,
FLHRC, FLHXS, FLTRXS, FLHTK, FLHTCUL TC,
07C
HDI, Japan & Asia-Pacific)
FLHTKL, FLHTCU TC
11
69309-10
BATTERY, siren alarm (Australia,
FLHRC, FLHXS, FLTRXS, FLHTK, FLHTCUL TC,
England, HDI, Japan & Asia-Pacific)
FLHTKL, FLHTCU TC
12
69992-
BODY CONTROL MODULE, (BCM)
FLHTCU, FLHR, FLHX, FLHXS, FLHTCUL, FLTRX,
12B
FLTRXS
69994-
BODY CONTROL MODULE, (BCM) w/
12B
security (Domestic, HDI)
69996-
BODY CONTROL MODULE, (BCM) w/
FLHRC, FLHX, FLHTK, FLHTCU TC, FLHXS,
12B
security (Japan)
FLTRXS, FLHTCUL TC, FLHTKL
13
71540-
FORK LOCK, (specify key number)
FLHR, FLHRC
94A
14
71660-03
NUT, ignition switch
FLHTCU TC, FLHTCU, FLHX, FLHTK, FLHXS,
FLTRX, FLTRXS, FLHTCUL, FLHTCUL TC, FLHTKL
15
72023-
KIT, SWITCH, rear brakelite, w/ 9907
51E
16
72594-11
DUST CAP, 2-way socket (w/o
FLHR, FLHTCU, FLHX, FLTRX, FLHXS, FLHTCUL,
security)
FLTRXS
17
14100158
DECAL, ignition switch knob
FLHTCU TC, FLHTCU, FLHX, FLHTK, FLHXS,
FLTRX, FLTRXS, FLHTCUL, FLHTCUL TC, FLHTKL
18
32700010
SENSOR, ambient temperature (2)
FLHTCU, FLHX, FLHTK, FLHTCU TC, FLHXS,
FLTRX, FLTRXS, FLHTCUL, FLHTCUL TC, FLHTKL
19
71400010
LOCKSET, complete, w/ keys, ignition
FLHR
switch, fork lock & saddle bag lock
71400011
LOCKSET, complete, w/ keys, ignition
FLHRC
switch, cover & fork lock
20
71400012
HOUSING, ignition switch, w/ 71660-03
FLHTCU TC, FLHTCU, FLHX, FLHTK, FLHXS,
& 71400081 (Domestic)
FLTRX, FLTRXS, FLHTCUL, FLHTKL
71400013
HOUSING, ignition switch, w/ 71660-03
FLHTCU TC, FLHTK, FLHXS, FLTRXS, FLHTCUL TC,
& 71400081 (HDI)
FLHTKL
21
71400015
LOCKSET, complete, w/ keys, ignition
FLHTCU TC, FLHTCU, FLHTK, FLHTCUL, FLHTCUL
knob, saddlebag & Tour-Pak locks
TC, FLHTKL
71400016
LOCKSET, complete, w/ keys, ignition
FLHX, FLHXS, FLTRX, FLTRXS
knob & saddlebag lock
22
71400017
KNOB, ignition switch, w/ 14100158
FLHTCU TC, FLHTCU, FLHX, FLHTK, FLHXS,
(specify key number)
FLTRX, FLTRXS, FLHTCUL, FLHTCUL TC, FLHTKL
23
71400073
SPRING, ignition knob
FLHTCU, FLHX, FLHTK, FLHXS, FLHTCU TC,
FLTRX, FLTRXS, FLHTCUL, FLHTCUL TC, FLHTKL
24
71400081
COLLAR, ignition switch, top
FLHTCU TC, FLHTCU, FLHX, FLHTK, FLHXS,
FLTRX, FLTRXS, FLHTCUL, FLHTCUL TC, FLHTKL
25
90300043
KEY, w/ 61081-92 (set of 2) (specify
key number)
NOTE: For additional fuse and relay part number information see wiring harness pages.
SOUND SYSTEM - FLHTCU/L, FLHTK/L, FLHX & FLHXS (1 OF 2)
