Harley Davidson 2019 Boom GTS. Manual

BASIC OPERATION

SAFETY

Follow all warnings, cautions and safety tips in this Quick Start
Guide, vehicle owner's manual and

Boom! Box

owner's

manual.

WARNING

Set volume levels and other controls on audio and
electronic devices before riding. Distractions can lead to
loss of control, resulting in death or serious injury.
(00088b)

WARNING

Set CB channel, squelch threshold and volume before
riding to minimize adjustments on the road. Distractions
can lead to loss of control, resulting in death or serious
injury. (00089a)

WARNING

Do not select a volume level that blocks out traffic noise
or interrupts the concentration necessary for safe
operation of the motorcycle. Distractions or a volume level
that blocks out traffic noise could cause loss of control
resulting in death or serious injury. (00539b)

NOTICE

There are no serviceable parts inside the unit; leave all
servicing to qualified service personnel. Disassembly of
the unit could result in equipment damage and/or
equipment malfunction. (00172a)

QUICK

ART

GUIDE

Quick Start Guide 7

CONTROLS

Faceplate

1142080

Power/Mute

Home

Setup

Audio

Communications

Navigation

Favorites

Phone

Audio Settings

10.

Information (Vehicle Status)

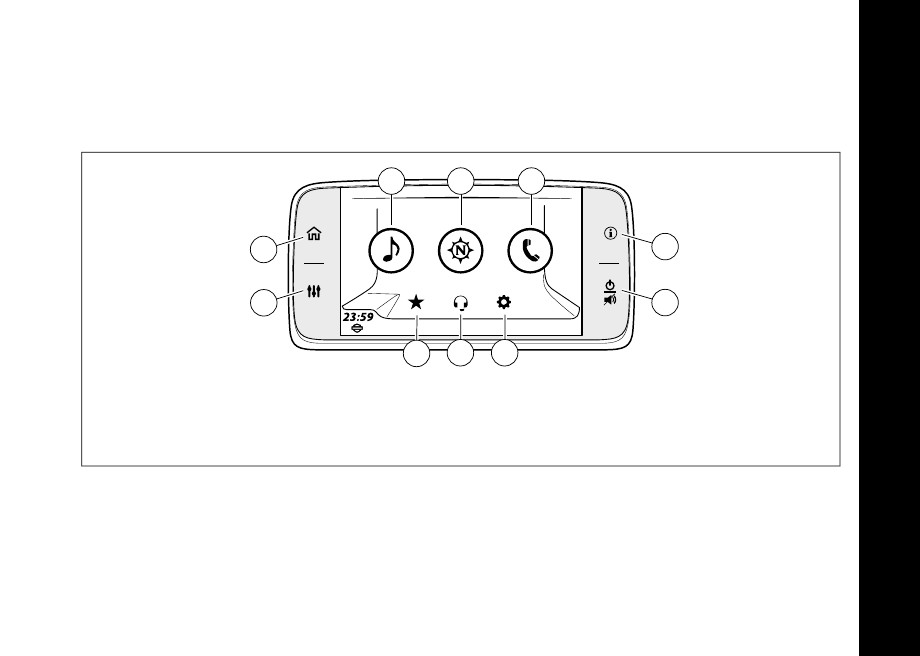

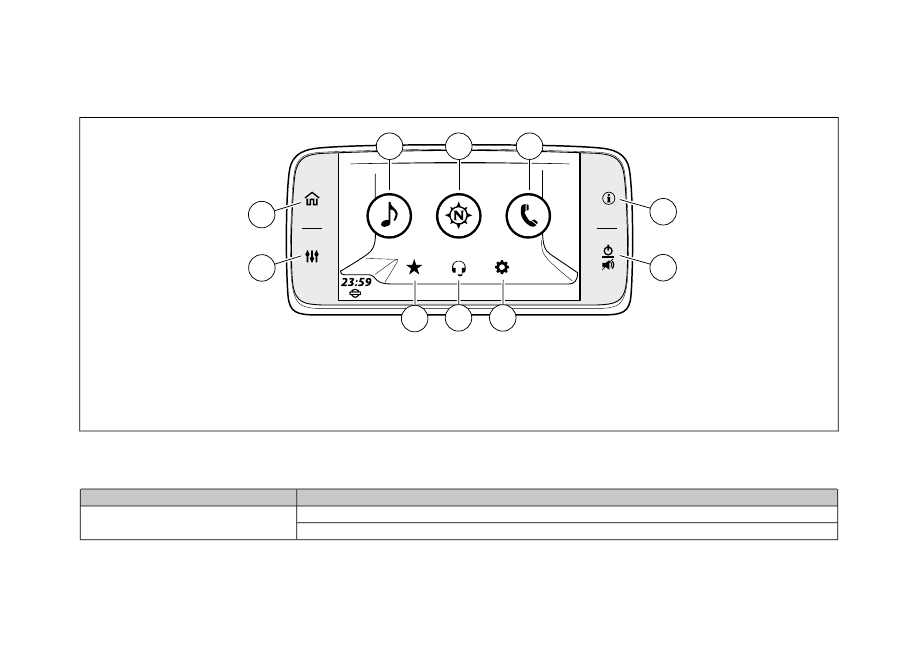

Figure 3. Faceplate Home Screen Selections

Table 2. Faceplate Home Screen Selections

Result

Press

Displays Home screen. Toggle between Home screen and active media.

1 [Home]

Available selections:

Audio, Navigation, Phone, Setup, Communications, Favorites.

8 Quick Start Guide

Table 2. Faceplate Home Screen Selections

Result

Press

Displays active source with audible content information.

2 [Audio]

Available selections:

FM, AM, WB (weather band).

Optional selections:

When connected: iPod, USB Media, Bluetooth Audio. If equipped:

SiriusXM.
Displays map with current position.

3 [Navigation]

Available selections:

Search, Menu, Stop Route, Highway Services (shows only on high-

ways), Data Wing (right and left), Zoom (in and out).

Informational display:

Current Street, Compass, Next Maneuver, Distance to Next Man-

euver, Next Street, Repeat.
Displays menus for staying connected.

4 [Phone]

Available selections:

Calls, Contacts, Messages, Keypad, SOS.

Displays vehicle status.

5 [Info]

Available selections:

Info, Engine/Fuel Info, Ride Summary, TPMS (CVO only).

Toggles power on and off (hold for three seconds).

6 [Mute/Power]

Silence or pause audio.
Configure system settings.

Do before riding the motorcycle.

7 [Setup]

Available selections:

Audio Settings, Display, Global Presets, Keyboard, Bluetooth setup,

Wireless Headset, Units, Clock, Rear Controls, System Information, Language, Projection
Mode.
Displays enabled communication devices.

8 [Communication]

Available selections:

Intercom (when enabled), Citizen Band (CB, if equipped).

Displays saved favorites.

9 [Favorites]

Available selections:

Tuner, Media, Phone, Destination.

Displays audio setting screen.

10 [Audio Setup]

Available selections:

Bass, Treble, Audio Routing, Fade, Volumes.

Quick Start Guide 9

Left Hand Control

om01712

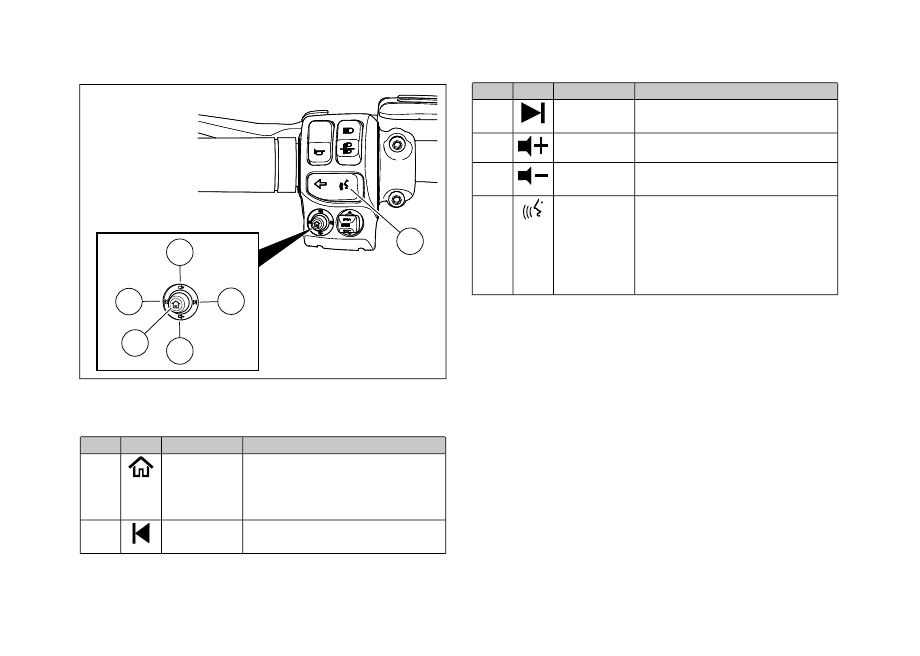

Figure 4. Left Hand Control Audio Functions (typical)

Table 3. Left Hand Control Audio Functions

FUNCTION

NAME

ICON

ITEM

Short Press:

Toggles between

current screen and Home screen.

Long Press:

Toggles the Quick

Jump screen.

Home

Media:

Previous media file.

Tuner:

Tune/seek down.

Previous
/Seek Down

Table 3. Left Hand Control Audio Functions

FUNCTION

NAME

ICON

ITEM

Media:

Next media file.

Tuner:

Tune/seek up.

Next/Seek
Up

Increases volume.

Volume Up

Decreases volume.

Volume
down

Initiates a voice recognition ses-
sion.
Also, a long press initiates Siri for
Bluetooth paired iPhone or Apple
CarPlay when a headset is con-
nected.

Voice Recog-
nition

Quick Jump

On the left hand control perform a long press on the Home
button. This displays the Quick jump screen.

10 Quick Start Guide

1172336

Home

Navigation

Information (Vehicle Status)

Power/Mute

Audio Settings

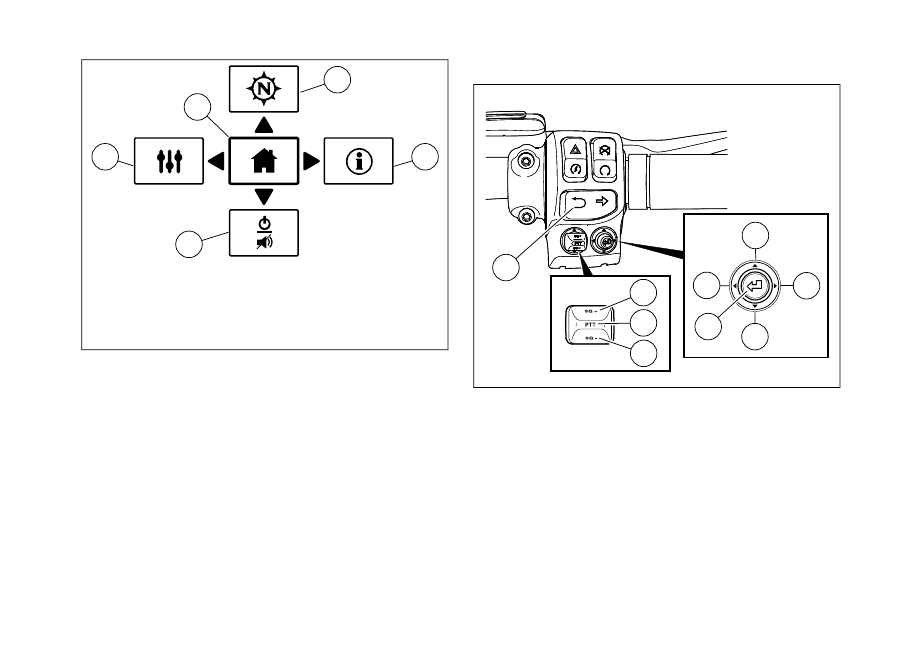

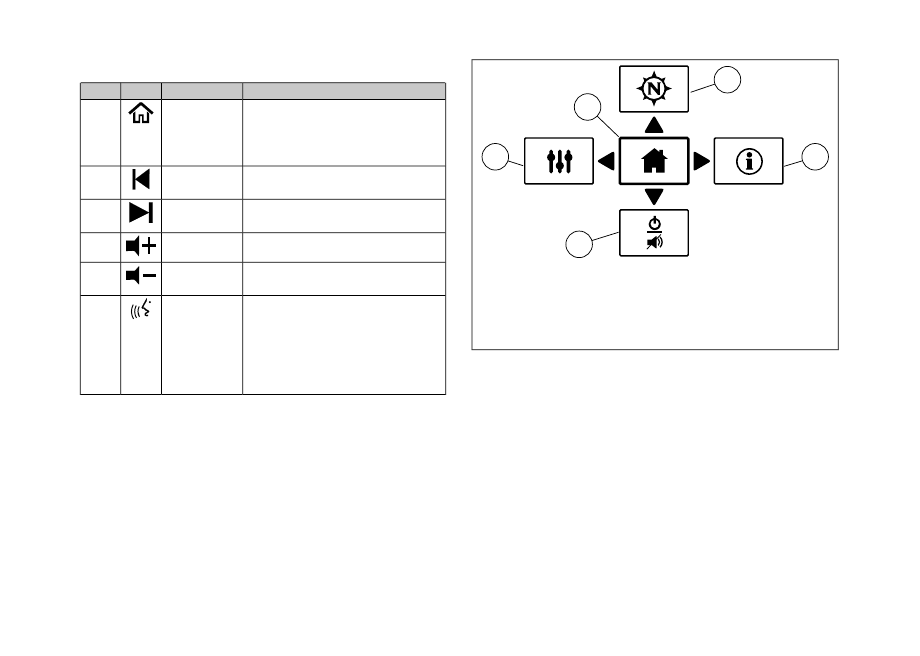

Figure 5. Quick Jump

Right Hand Controls

1153744

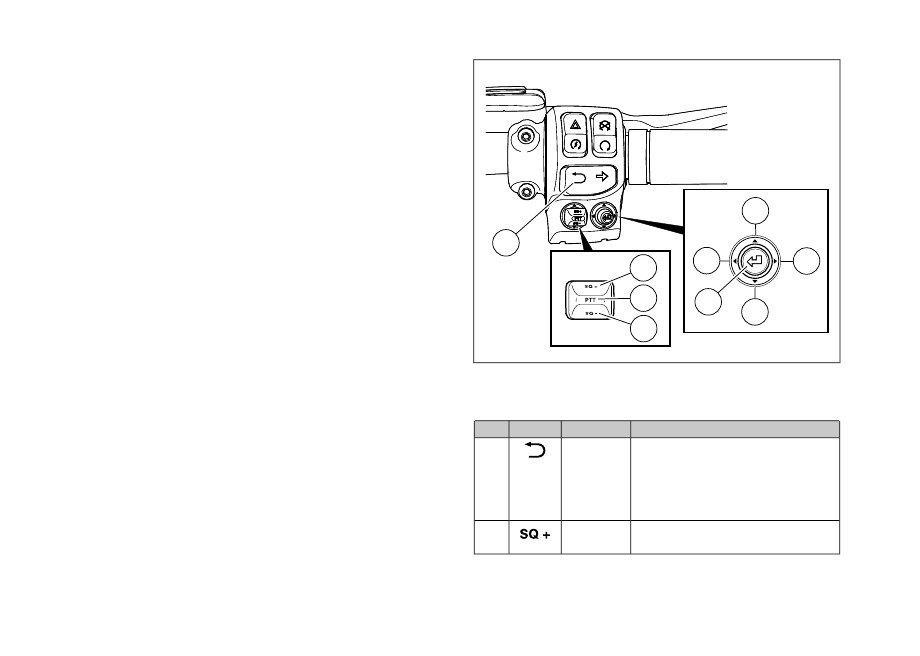

Figure 6. Right Hand Control Audio Functions

Quick Start Guide 11

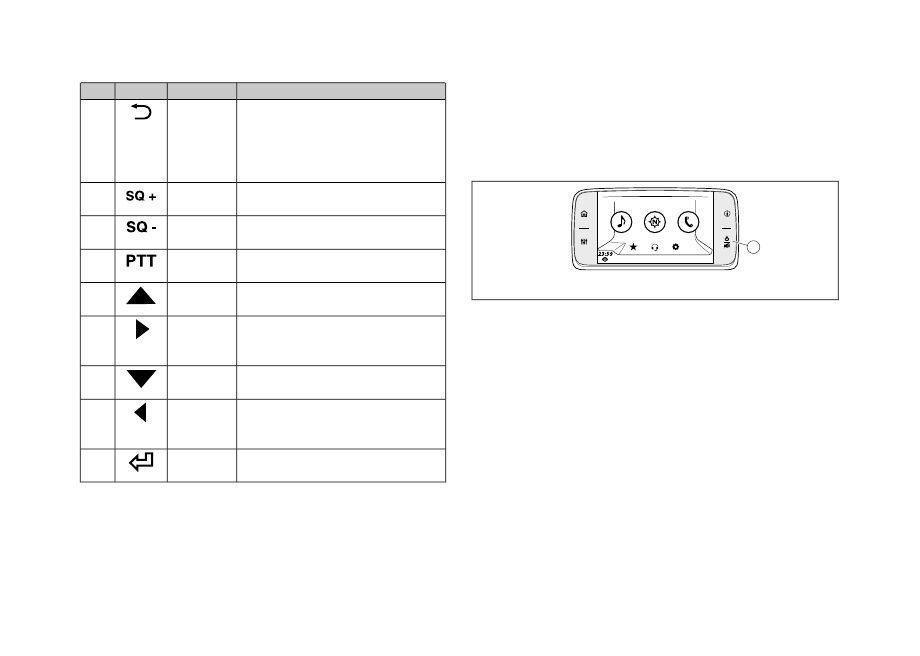

Table 4. Right Hand Control Audio Functions

FUNCTION

NAME

ICON

ITEM

Short Press:

Back to previous

screen.

Long Press:

Screen transitions

between normal day color and high
contrast color.

Back

Increases CB squelch level (if
equipped).

CB
Squelch +

Decreases CB squelch level (if
equipped).

CB
Squelch -

Press and hold to transmit on
CB/intercom (if equipped).

CB Push
to Talk

Moves the highlighting up through
the selections.

Cursor Up

Moves the highlighting right
through the selections.

Tuner:

preset up.

Cursor
Right

Moves the highlighting down
through the selections.

Cursor
Down

Moves the highlighting left through
the selections.

Tuner:

Next preset

down.

Cursor
Left

Selects highlighted item.

Select
/Enter

BASIC OPERATION

Turning System ON/OFF

Switch power to Accessory, Ignition or Run (CVO).

See Figure 7. If radio is off, press Power (1).

1154988

Power/Mute

Figure 7. Turning System ON/OFF

See Figure 8. Read the warning and select Accept.

12 Quick Start Guide

1154098

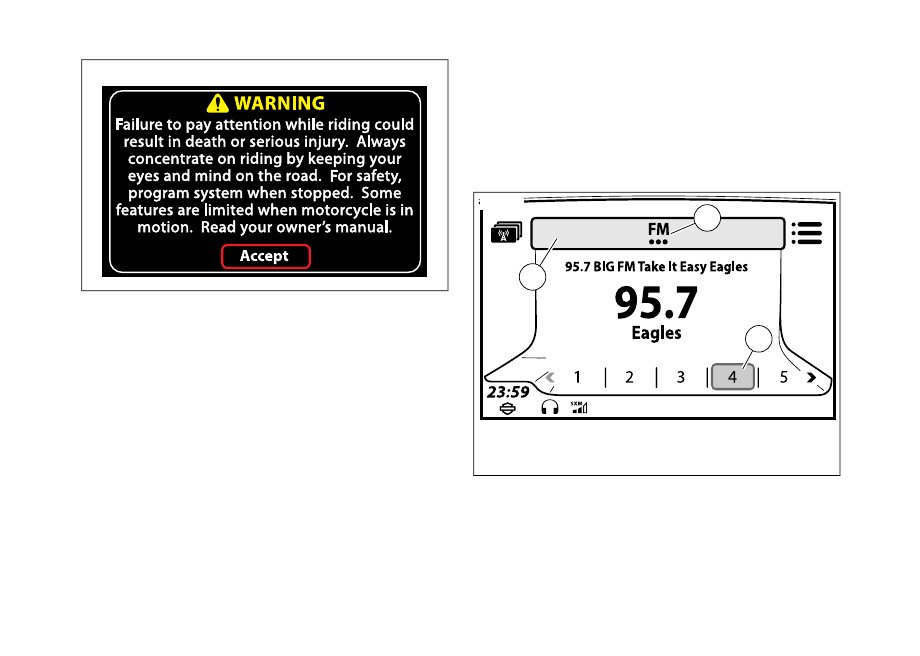

Figure 8. Warning and Accept

NOTE

Pressing Mute for more than 3 seconds turns off radio.

To mute or unmute audio, briefly press Mute.

RADIO

Select Source

Navigate:

Home > Audio.

See Figure 9.

Select:

Source field.

Tuner:

AM - FM - WB (selections vary for European

Union).

Media:

USB (when connected), phone (Bluetooth),

SiriusXM (if equipped).

1181784

Source field (selectable)

Tuner or media selection

Presets (1-5, up to 20)

Figure 9. Source Selection

Quick Start Guide 13

Seek and Save Station

See Figure 10.

Select:

Seek Down (1) or Seek Up (2) on

left hand control.

See Figure 9. Press screen and hold preset until it beeps.

1155643

Seek Down

Seek Up

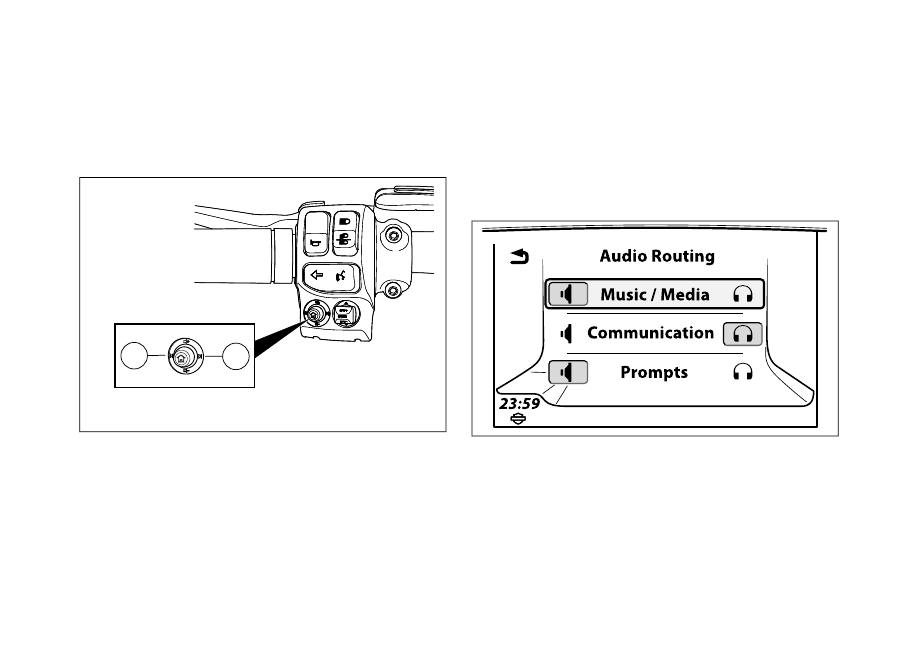

Figure 10. Radio Station Seek

SETUP

Audio Settings

Navigate:

Home > Setup > Audio Settings.

Adjust:

Bass or Treble.

Select Speakers or Headsets (if equipped with
headset)

Navigate:

Home > Setup > Audio Settings > Audio

Routing.

See Figure 11.

Select:

Speaker or Headset.

1155073

Figure 11. Speaker or Headset

Speaker Volumes

Navigate:

Home > Setup > Audio Settings > Speaker

Volumes.

14 Quick Start Guide

Adjust:

Media/Tuner, Prompt Nav, Phone, CB, Beep.

BLUETOOTH

Pair Phone or Other Device

Activate Bluetooth on your device.

Navigate:

Home > Phone.

Prompt:

No device connected. Would you like to connect

a device?

Select:

Yes.

Select:

Add new device.

Prompt:

Does PIN match on device?

Check PINs (auto-generated) on audio system and
device.

Select:

Yes (if numbers match).

Prompt:

Would you like to set an Emergency number?

Select:

Yes or No.

Streaming Audio

NOTE

The device must first be paired with the Boom! Audio system
before it can be used. See Bluetooth (Page 106). Device must
also support Bluetooth audio streaming profile.

Navigate:

Home > Audio.

See Figure 9.

Select:

Source field.

Select:

Phone (Bluetooth).

PHONE

Making a Call

NOTE

• The phone must first be paired with the audio system before

it can be used through the Boom! Box infotainment system.
See Bluetooth (Page 106).

• A Harley-Davidson headset with microphone is required to

make and receive calls via Bluetooth.

Navigate:

Home > Phone.

See Figure 12.

Select:

Icon from phone menu.

Quick Start Guide 15

1181802

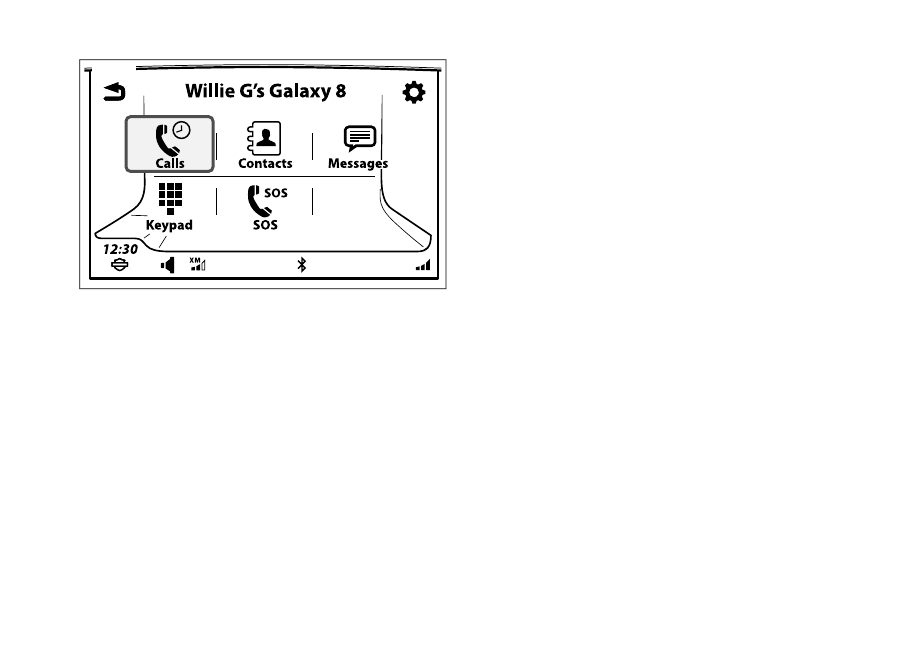

Figure 12. Phone Menu

Receiving a Call

Select:

Accept or Ignore.

VOICE RECOGNITION

NOTE

A teleprompter is shown when the Voice Recognition switch
is pressed. The teleprompter screen shows commonly used
commands, along with a line item to display more commands.

See Figure 4.

Select:

Voice recognition.

When the system beeps, speak a voice command calmly
and normally into the headset microphone.

NAVIGATION SYSTEM

Map Display

NOTE

See Boom! Box owner's manual for additional information.

Navigate:

Home > Navigation.

See Figure 13.

Select:

Search or Menu icons. This is the

starting points for seeking destinations.

16 Quick Start Guide

1181809

Search icon

Menu icon

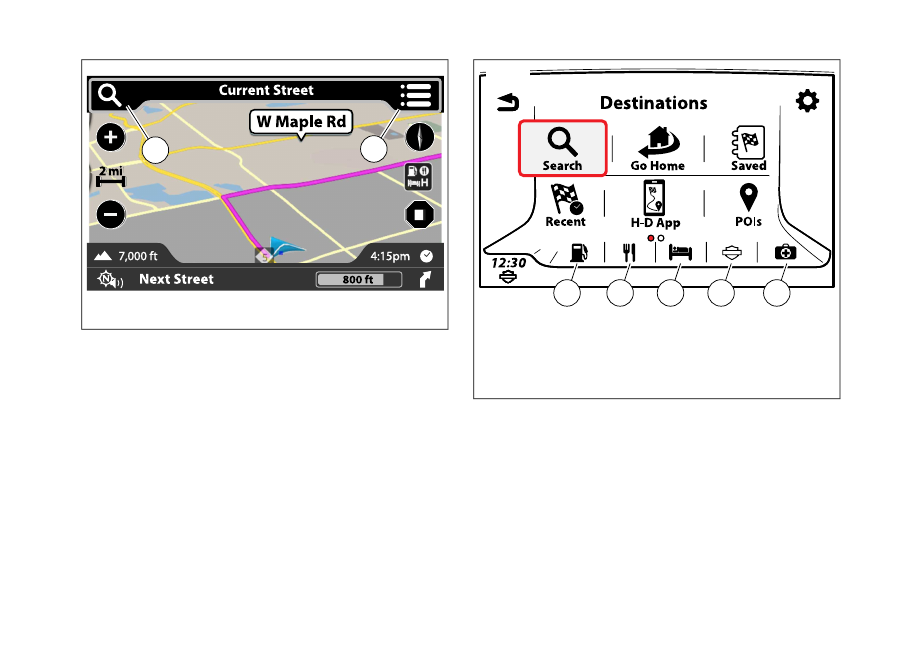

Figure 13. Map Display

Select From Category

Navigate:

Home > Navigation.

Select:

Search icon.

See Figure 14.

Select:

Category icon.

1264659

Fuel

Food

Hotel

Harley-Davidson dealership

Emergency

Figure 14. Categories

Input Address

Navigate:

Home > Navigation.

Select:

Search icon.

Quick Start Guide 17

See Figure 15.

Prompt:

Search: Near Me

Input address of location.

1164349

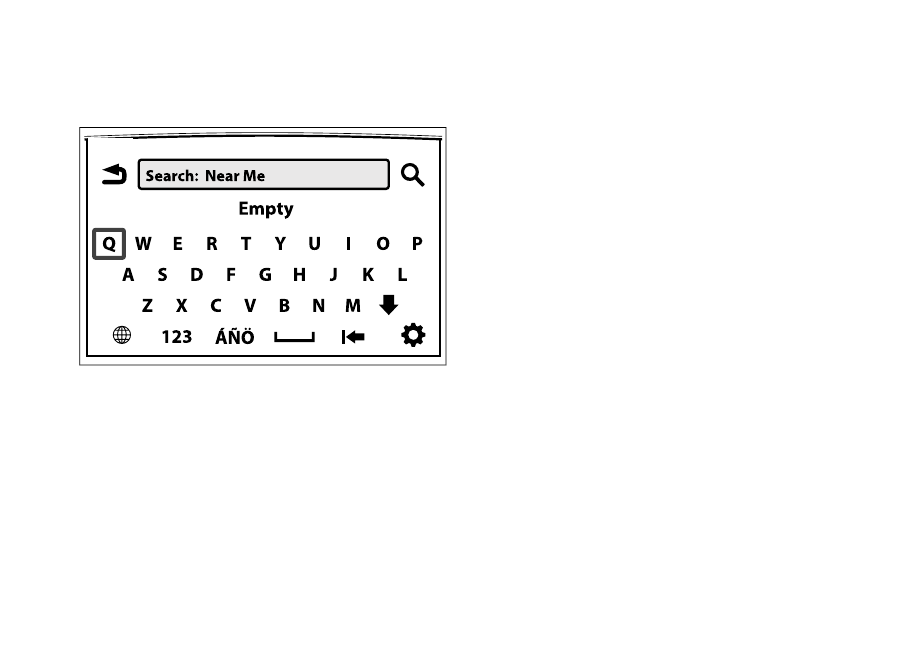

Figure 15. Input Address

Saving a Destination: Home

Navigate:

Home > Navigation.

Select:

Search icon.

Select:

Go Home icon.

From

Set Home

screen, select a destination (perform a

search, select a recent destination, select a POI or a Saved
file).

Select:

Save.

Select:

As Home.

Route to Destination: Home

Navigate:

Home > Navigation.

Select:

Search icon.

Select:

Go Home icon.

18 Quick Start Guide

ACRONYMS USED IN THIS MANUAL

See Table 5. explains the acronyms used throughout this
manual.

Table 5. Acronyms

DESCRIPTION

ACRONYM

Two Dimensional

Three Dimensional

Automatic Volume Control

AVC

Bluetooth

Bluetooth Audio

BTA

Bluetooth Headset

BTHS

Citizens Band

Communication

COM

Custom Vehicle Operations

CVO

Display

DISP

Engine Idle Temperature Management System

EITMS

Global Positioning System

GPS

Navigation

NAV

New Technology File System

NTFS

Point Of Interest

POI

Push To Talk

PTT

Radio Data System

RDS

Radio Broadcast Data System

RBDS

Traffic Announcement

Traffic Program

Total Harmonic Distortion

THD

Traffic Message Control

TMC

Table 5. Acronyms

DESCRIPTION

ACRONYM

Tire Pressure Monitoring System

TPMS

Universal Serial Bus

USB

Voice operated transmission

VOX

Wireless Headset Interface Module

WHIM

DEFINITIONS USED IN THIS MANUAL

Breadcrumbs

Breadcrumbs are a navigational aide showing the string of
selections made to locate a specific function. Each item to
select is separated by a greater than symbol ">".

Example:

Navigate:

Home > Setup > Audio Settings > Volumes

> Speaker Volumes.

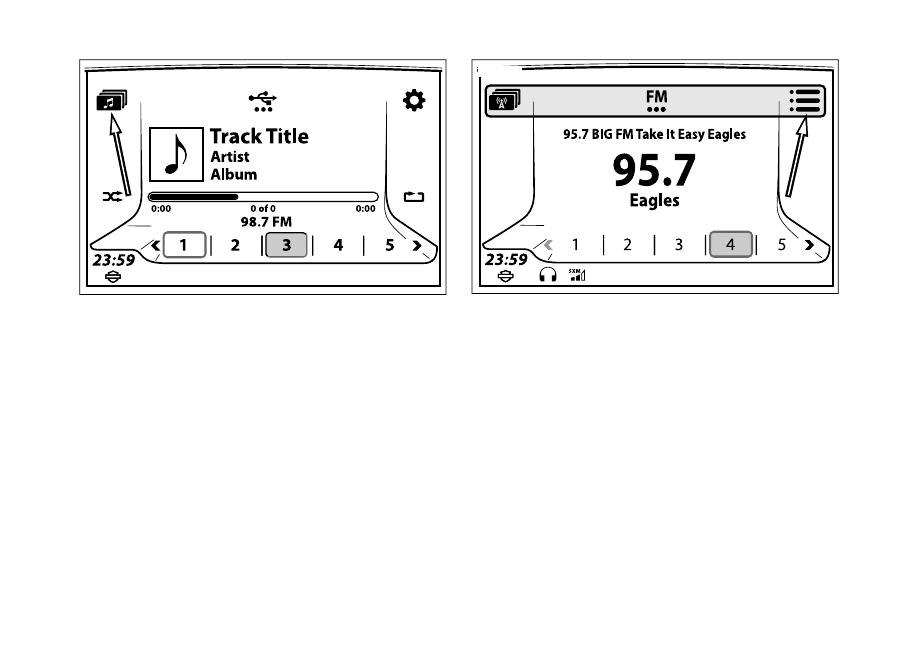

Media Filters

See Figure 16.

Select:

Media filter icon. This will display

categories associated with files connected via the USB port.

FEA

TURES

AND

SPECIFICA

TIONS

Features and Specifications 19

1183426

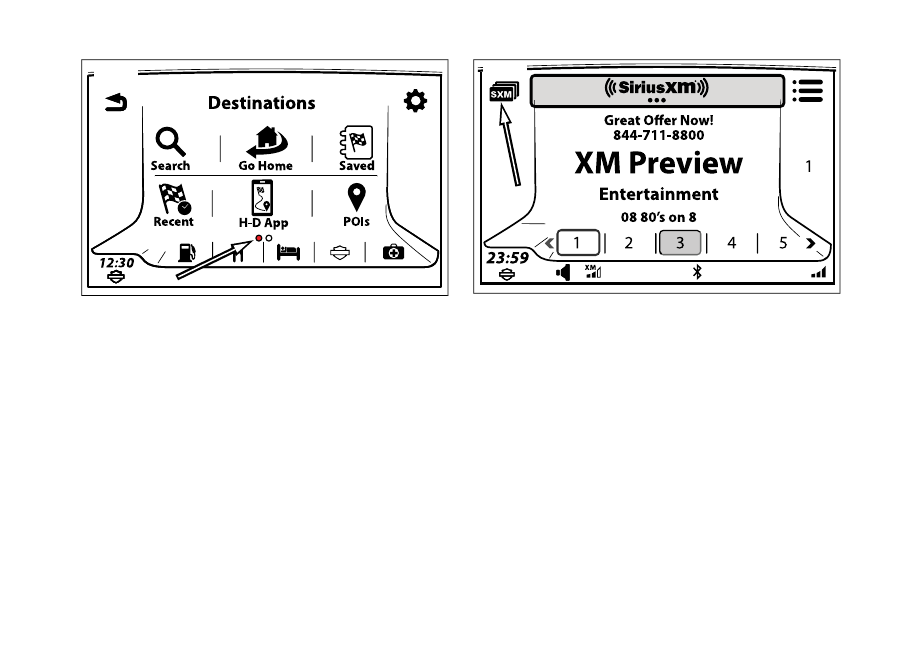

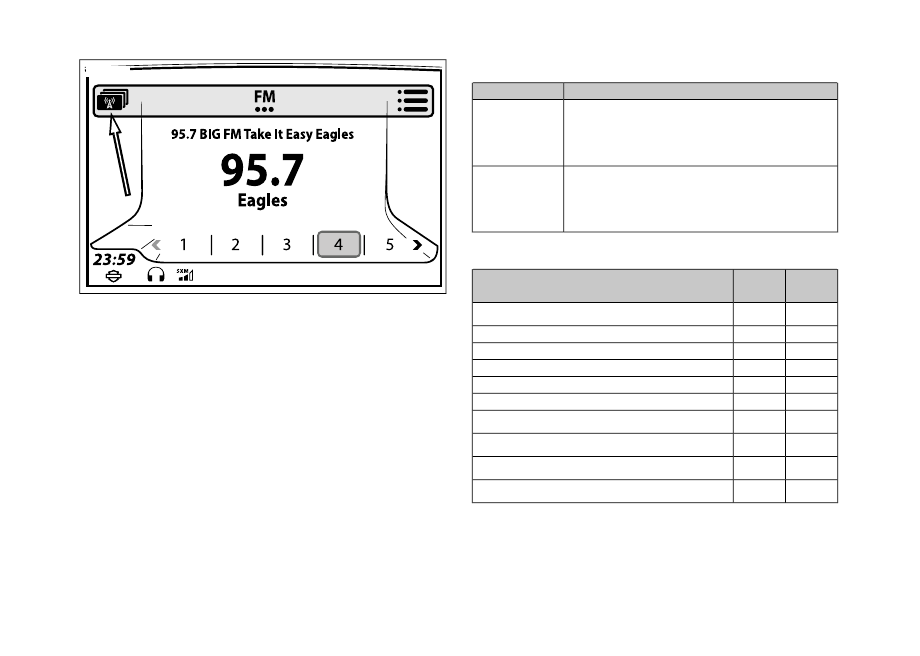

Figure 20. Station Categories Icon

SPECIFICATIONS

Not all features are available on all models, destinations or
year of manufacture. Most screen illustrations in this manual
show the GTS radio.

Vehicles are equipped from the factory with the radios and
features as described in Table 6 and Table 7. Also see System
Information (Page 68) to view the hardware, software and
navigation database installed on your vehicle.

Table 6. Boom! Box Radio Identification

IDENTIFYING FEATURES *

MODEL

Screen measures 165 mm (6.5 in) diagonally.
Radio face is glass and has four fixed-key
buttons. Splash screen shows H-D bar &
Shield logo.

GTS

Screen measures 165 mm (6.5 in) diagonally.
Radio face is glass and has four fixed-key
buttons. Splash screen shows Custom
Vehicles Operations logo.

GTS (CVO)

Table 7. Infotainment System Features

GTS

(CVO)

GTS

FEATURES

Tuner

Media playback

Phone

Voice commands

Vehicle status

Wireless headset interface module (WHIM)

CB radio

Rider/passenger intercom

Weather alert

2,5

Navigation

22 Features and Specifications

Table 7. Infotainment System Features

GTS

(CVO)

GTS

FEATURES

SiriusXM radio and services

2,4

Frequency bands, DAB and RDS features depend on region.

Not available in all regions.

Models with passenger headset.

Requires activation.

CB equipped only.

Table 8. Display

DESCRIPTION

ITEM

Weatherproof WVGA TFT MVA-PSV color
touchscreen

Screen

English (US), English (UK), Czech, Dutch,
French (Canada), French (France), German,
Italian, Japanese, Polish, Portuguese (Brazil),
Portuguese (Portugal), Russian, Spanish
(Mexico), Spanish (Spain), Turkish

Languages

Day, night or automatic sensor activated

Day/night col-
or modes

6 selectable colors

Background
colors

Selectable in day or automatic color modes

High contrast
day colors

Manual or automatic sensor activated

Adjustable
brightness

Table 9. Controls

DESCRIPTION

ITEM

Home, information, on/off/mute, audio
settings, four fixed-key touchscreen but-
tons

Illuminated face-
plate controls

Home/volume/seek/previous/next, voice
recognition, CB push-to-talk
(PTT)/squelch, cursor/select, back
switches

Integrated handle-
bar controls

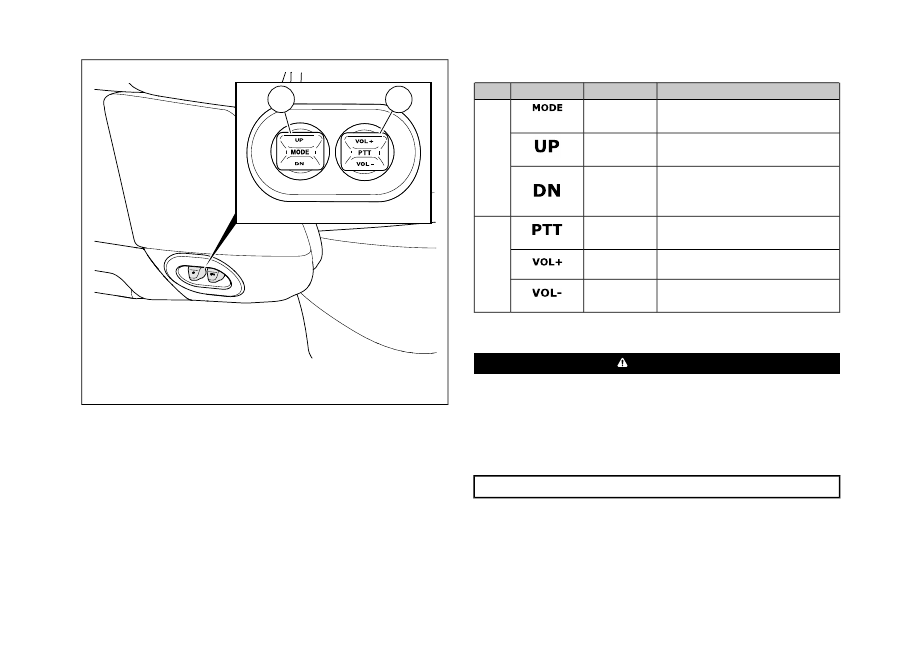

Push-To-Talk (PTT)/Volume (VOL±),
MODE/UP/DOWN switches

Integrated passen-
ger controls

Full keyboard, full QWERTY keyboard
with smart speller

Keyboard

Touchscreen

Screen selection

Table 10. Bluetooth

DESCRIPTION

ITEM

Media streaming, phone calls, phone
book download, text message notifica-
tions

Functions

Hands-Free Calling Profile (HFP,
HFPAG/HFPHF services), Phone Book
Access Profile (PBAP), A2DP/AVRCP
(AV/Music, A2DP sink/source services),
Message Access Profile (MAP),
HFP+PBAP+AV Profile (simultaneously
used), MP3, MPEG-4AAC, WMA, WAV

Protocols

6 devices maximum

Paired devices

Features and Specifications 23

Table 10. Bluetooth

DESCRIPTION

ITEM

1 for phone, 1 for media

Connections

30 ft (9 m)

Range (approxim-
ate)

Table 11. Tuner

DESCRIPTION

ITEM

AM, FM, MW, LW, DAB+, CB.
Satellite Radio and Weather Band (de-
pendent on region).

Tuner bands

20 Satellite radio, 15 FM/DAB+, 5 AM, 5
LW, 5 MW, 5 Weather Band

Tuner presets

Up to 4 pages with up to 20 total

Global presets

Tune, seek, scan, preset scan

Tuning modes

6 presets

Favorites

Selectable

Category filtering
(PTY)

Dependent on region

Stations list

Dependent on region

RDS/RDBS

Traffic Announcement/Traffic Program,
Alternate Frequency Switching, Region-
alization (dependent on region)

RDS functions

Dependent on region

Single/dual tuner

7 channels, 5 presets

Weather band
channels

Select regions, requires CB module

Weather alert

Table 11. Tuner

DESCRIPTION

ITEM

WB1-162.400MHz, WB2-162.425MHz,
WB3-162.450MHz, WB4-162.475MHz,
WB5-162.500MHz, WB6-162.525MHz,
WB7-162.550MHz

Weather band fre-
quency

GPS/RDS/user-selectable time setting,
automatic time zone adjustment

Clock

Frequency bands and RDS features depend on region.

Not available in all regions.

Models with passenger headset.

Requires activation.

CB equipped only.

Table 12. Media

DESCRIPTION

ITEM

20 per device

Media presets

USB flash drives, Apple devices (iAP,
iUI), PlaysForSure devices, SDRAM card
with reader

Media devices sup-
ported

exFAT, FAT16, FAT32, NTFS, HFS+
(exFAT format required for data import/ex-
port and software updates)

USB device compat-
ibility

MP3, MP4, MPEG-4AAC, M4A, M4B,
WAV, WMA

Media file playback
(USB/PlaysFor-
Sure)

24 Features and Specifications

Table 12. Media

DESCRIPTION

ITEM

MP3, MPEG-4AAC, WMA, WAV

Media file playback
(Bluetooth)

All iPod supported file types decoded and
played from Apple device

Media file playback
(Apple devices)

USB 2.0, 5 V, 1.0 A charging current

USB port

Repeat, shuffle, find, Bluetooth stream-
ing, pause/resume

Media controls

All playlists native to Apple iPod

Playlists supported
(Apple)

ASX, WPL, M3U, PLS, XML, RMP

Playlists supported
(USB/PlaysFor-
Sure)

Table 13. Audio

DESCRIPTION

ITEM

4 levels of automatic gain based on
speed, plus off setting

Speed volume

Adjustable speaker/headset audio
routing (tuner, communication device,
phone)

Audio routing

Audio tone and fade adjustment

Sound adjustment

7-pin DIN with protective cap (number
of headset ports depends on vehicle
configuration)

Headset connectors

Helmet-mounted 7-pin DIN headset with
microphone boom (non-mounted head-
set optional)

Headsets (wired)

Table 13. Audio

DESCRIPTION

ITEM

Boom Audio 20S EVO Bluetooth helmet
headset with microphone (CVO)

Headsets (wireless)

15 step adjustable, plus full on/off

Squelch

25 W (GTS) or 75 W (GTS CVO) per
channel

Output

2 sealed and closed front speaker
housings, 2 bass port rear speakers
(models with Tour-Pak), 2 saddlebag
speakers (FLHXSE and FLTRXSE). 2
fairing lower speakers (FLHXSE).

Speaker configura-
tions

6.5 in, 1.7 ohm, 88.9 dB, 75-16.2kHz,
51 W

Speakers, fairing:
Touring and Trike

6.5 in, 1.7 ohm, 88.9 dB, 75Hz-16.2kHz,
51 W

Speakers, Tour-Pak:
Touring and Trike

6.5 in, 1.7 ohm, 91.5 dB, 75Hz-20kHz,
75 W

Speakers, fairing:
FLHTKSE

6.5 in, 2.0 ohm, 91.5 dB, 75Hz-20kHz,
75 W

Speakers, fairing
lower:
FLHTKSE

6.5 in, 1.7 ohm, 91.5 dB, 75Hz-20kHz,
51 W

Speakers, Tour-Pak:
FLHTKSE

6.5 in, 1.7 ohm, 91.5 dB, 65Hz-20kHz,
150 W

Speakers, fairing:
FLHXSE

5 x 7 in, 1.7 ohm, 91 dB, 60Hz-20kHz,
150 W

Speakers, saddle-
bag:
FLHXSE

Features and Specifications 25

Table 13. Audio

DESCRIPTION

ITEM

Internal 25 W amplifier (all models,
turned off for CVO), 75 W fairing ampli-
fier (CVO), additional 75 W amplifier in
left saddlebag (FLHXSE and
FLTRXSE), third 75W amplifier in RH
saddlebag (FLHXSE)

Amplifiers - Watts per
channel

<1.5% THD+N

Distortion

Table 14. Phone

DESCRIPTION

ITEM

Inbound/outbound calls, call history,
mute/unmute, phone book download,
emergency phone calling, point of in-
terest dialing

Features

Up to 60 calls (20 received, 20 missed,
and 20 dialed calls)

Call history

Up to 200 contacts or phone numbers

Saved phone num-
bers

See www.H-D.com for phone list

Compatible phones

Only one call at a time. Call waiting and
three-way calling not supported

Calls supported

USB (media and charging only),
Bluetooth (calls, text messaging,
streaming media)

Connections

Inbound SMS messages (with text-to-
speech), outbound text message
autoreply (not available on all devices)

Text messaging

Table 14. Phone

DESCRIPTION

ITEM

Signal strength and battery level indicat-
ors, low battery indicator, text message
notification

Indicators

4 built-in ring tones, 1 custom ring tone
(media file import)

Ring tones

Table 15. Wireless Headset Interface Module (WHIM)

DESCRIPTION

ITEM

Bluetooth 4.1; Supporting profiles:
Headset Profile, Hands-Free Profile
(HFP), Advanced Audio Distribution
Profile (A2DP), and Audio Video Re-
mote Control Profile (AVRCP)

Key specifications

Upgradeable

Firmware

Dual module communication system,
intercom up to 2.0 kilometers (1.2
miles)*, audio recording, pairing for dual
mobile phones, hands-free for Bluetooth
mobile phones, stereo headset for
Bluetooth audio devices such as MP3
players, stereo headset for Bluetooth
GPS navigations

Bluetooth

Yes

Reset to factory set-
tings

Yes

Fault reset

FCC, FCC, CE, IC, RoHS, WEEE

Certification and
safety approvals

26 Features and Specifications

Table 15. Wireless Headset Interface Module (WHIM)

DESCRIPTION

ITEM

Bluetooth 4.1, music sharing, playback
control, versatile jog control, speed dial,
audio booster, use while charging, indi-
vidual volume control, dual Bluetooth
module communication system, audio
multitasking, multi-way intercom up to
4 connections, group intercom,
Bluetooth intercom up to 2.0 kilometers
(1.2 miles)*, smartphone app for iPhone
and Android, universal intercom, ad-
vanced noise control, Intuitive voice
prompts and voice commands,
Bluetooth audio recording, all-in-one
helmet clamp kit, built-in FM radio tuner
with a station scan and save function,
Bluetooth pairing for dual mobile
phones, Bluetooth hands-free for
Bluetooth mobile phones, Bluetooth
stereo headset for Bluetooth audio
devices such as MP3 players, Bluetooth
stereo headset for Bluetooth GPS nav-
igations

Features

*In open terrain

Table 16. CB Radio: Bike-To-Bike Communications

DESCRIPTION

ITEM

CB channels

26.925 to 27.405 MHz

Frequency range

4 W

Transmitter output

AM or FM (depending on region)

Modulation

15 step adjustable, plus full on/off

Squelch

Table 17. Intercom

DESCRIPTION

ITEM

Rider/passenger headset communication

Communication

Push-to-talk (PTT) or voice activation
(VOX)

Operation

VOX sensitivity, automatic speed sensit-
ivity adjustment

Adjustments

Features and Specifications 27

Table 18. Voice Recognition

DESCRIPTION

ITEM

Tuner, media, phone, SiriusXM, naviga-
tion, Siri

Functions

• English (US), French (CA), Spanish

(MX) (for North America
49ST/CAL/CAN configurations).

• English (US/UK), French (FR/CA),

Spanish (MX/ES), Czech, Dutch,
German, Italian, Japanese, Polish,
Portuguese (BR/PT) Russian, Turkish
(for ENG/HDI-Europe configurations).

• Not supported for other destinations.

Languages (one-
shot destination
entry)

English (US/UK), French (FR/CA),
Spanish (MX/ES), Czech, Dutch, Ger-
man, Italian, Japanese, Polish, Por-
tuguese (BR/PT) Russian, Turkish (for
ENG/HDI-Europe configurations).

Languages (other
commands)

Table 19. SiriusXM

DESCRIPTION

ITEM

Free 3-month trial subscription for GTS
CVO, optional module and subscription
required for GTS systems

Subscription

Over 200 channels

Channels

Channel list, direct tune, scanning,
song/artist tagging, program categories

Radio features

Game Zone, fuel prices, weather, traffic

Specialty services

Table 19. SiriusXM

DESCRIPTION

ITEM

Game and score alerts, up to seven
teams

Game Zone

Up to 30 nearest stations within 100
miles, sort by price/distance/brand, nav-
igate/call station

Fuel prices

Current, daily (3 hour and 6 hour), and
5-day forecast

Weather forecast

Radar, weather fronts, atmospheric
pressure

Weather map

Traffic navigation mapping, rerouting,
traffic alerts

Traffic

Table 20. Navigation

DESCRIPTION

ITEM

Two data fields, next turn guidance, cur-
rent street, POI icons, navigation routing,
traffic flow/events (requires RDS or Siri-
usXM traffic service), 3D terrain and
landmarks (6.5 CVO only)

Map display

North up, 2D heading up, 3D heading up

Map orientation

Over 80 POI types

Points of interest
(POIs)

Address, recent destination, home destin-
ation, phone book contact, POI, dealer-
ship, emergency facility, coordinates

Navigation route
selection

28 Features and Specifications

Table 20. Navigation

DESCRIPTION

ITEM

Depends on complexity and length of the
Rides. Limit is the GTS radio's memory
capacity.

Rides

Up to 400 destinations per ride

Waypoints per ride

Up to 20 trails

Trails

GPS Exchange Format (GPX) export of
Rides, Trails and aved Destinations

File export

GPX and V-card contact files (VCF)

File import

Next turn, list of turns, view turn location,
avoid turns and roads

Maneuvers (turn-
by-turn instructions)

Lane guidance arrows, signpost and
junction view

Lane guidance

Current location, preferred POI, home
location

Saving destinations

Traffic flow (green/yellow/red), traffic
event icons, traffic event list, rerouting

Traffic (requires
RDS or SiriusXM
Traffic)

Current location or route guidance to co-
ordinates

GPS coordinates

On screen scrolling and destination selec-
tion

Touchscreen selec-
tion

Selectable

Avoidances

Automatic or manually selectable

Detours

Full screen compass and directional
heading markers

Compass

Selectable (on/off), adjustable volume

Voice prompts

Table 20. Navigation

DESCRIPTION

ITEM

Round trip guidance, trip summary,
phone contact navigation, route simula-
tion, low fuel navigation alert, graphical
signpost display

Other features

North American map (for North America
49ST/CAL/CAN configurations).
European map (for ENG/HDI-Europe
configurations). Map optional (other
destinations).

Map database

Table 21. Vehicle Status

DESCRIPTION

ITEM

Departure time/estimated arrival
time/distance,current speed, actual
time/actual distance, distance until next
turn, air temperature, altitude

Info

Oil pressure, distance to empty, distance
since last service, Engine Idle Temperat-
ure Management System (EITMS)

Engine/Fuel Info

Tire pressure monitoring system (CVO
only)

TPMS

Average speed/MPG, distance traveled,
fuel used/stops, destination arrival date,
time spent traveling, destination start
date

Ride Summary

Features and Specifications 29

TOUCHSCREEN

See Figure 21. Press on touchscreen to select menu items and
operate the radio. The touchscreen can be operated while
wearing riding gloves.

The screen is designed to minimize glare, be viewable in all
lighting conditions and be operable in wet weather conditions.

To properly care for the radio faceplate and touchscreen, see
Audio System Care (Page 111).

1142080

Power/Mute

Home

Setup

Audio

Communications

Navigation

Favorites

Phone

Audio Settings

10.

Information (Vehicle Status)

Figure 21. Faceplate Home Screen Selections

CONTROLS

AND

COMPONENTS

Controls and Components 31

Home

Select

Home

to display the Home screen. Press Home again

to show the current audio source (tuner station, media file, or
phone screen).

Audio

Select

Audio

to display the audio sources (tuner station, media

file or phone ).

Tuner (NA):

AM, FM, WB (weather band)

Tuner (EU):

MW, LW, FM, DAB+

Media:

iPod, USB Media, Bluetooth Audio, Phone, SiriusXM

(if applicable)

Navigation

Select

Navigation

to display the map. The current location will

be shown at the top of the map screen and selecting the search
icon will be able to do some of the following:

• Setting Go Home address

• Perform a search, input a destination or selecting a POI

• Selecting from a list of preset destinations: Gas, Food, Hotel,

H-D Dealers, Emergency

Compass:

For radios without navigation, press the

Navigation

icon to display the compass. See Navigation (Page 131) to
configure and operate the navigation features.

Phone

Select

Phone

to display available phone lists and dialing

choices.

Calls:

Displays the call activity list for the current phone. The

list can be filtered to show all, missed, received or dialed.

Contacts:

Choose from contacts on radio, contacts on phone

or sync phone contacts.

Message:

Text message from paired phone.

Keypad:

Used to manually enter a phone number.

SOS:

Emergency number stored in radio.

Information (Vehicle Status)

Press

Vehicle Information

to display various vehicle

information. Press the button again to exit the Vehicle Status
screen.

Power/Mute

When turning the motorcycle on, the radio resumes its previous
state (radio on or off).

Power On:

With the motorcycle turned on or in accessory

mode, press POWER/MUTE to turn on the system. The system
returns to the last state as when it was last turned off (media
file, station, and so on).

32 Controls and Components

Power Off:

Press and hold POWER/MUTE for three seconds

to turn the system off. The screen goes black and the clock is
displayed. The radio remains in sleep mode and continues to
draw current while the motorcycle is turned on or in accessory
mode. The radio does not reinitialize unless the vehicle is
turned off for up to 30 seconds.

Mute/Pause:

Briefly press POWER/MUTE to mute audio. Radio

stations, CB, intercom, navigation audio and prompts are
muted. Media devices are paused.

Unmute/Resume:

To resume audio or media files, briefly press

POWER/MUTE again.

NOTE

• Audio can also be unmuted by pressing the volume switch

on the left hand control.

• Media

can

also

resumed

pressing

the

PREVIOUS/NEXT switch on the left hand control.

• POWER/MUTE does not mute phone call audio. Use the

Mute function in the phone menu to mute inbound/outbound
phone audio during a call.

Setup

Configure the system settings before riding the motorcycle,
with the motorcycle stationary and set to accessory mode.
Adjust the options to match your personal riding style, and to
make best use of any features or devices that you may be

using. If there are problems with any features in the radio, first
check the relevant settings.

Most settings are similar for all radios. However, some features
or selections may be unique or unavailable on some vehicles.
Some settings may also be specific for particular countries or
regions. See Specifications (Page 22) for more information
about the features available on your motorcycle and in your
region.

If audio accessories have been added to the motorcycle, see
the instruction sheets for proper configuration and operation
of those accessories.

Communications

The intercom allows the rider and passenger to talk with each
other through the headsets. The intercom can be operated by
pressing the PTT switch or by using voice operated
transmission (VOX). When voice input is picked up by the rider
or passenger microphone, the intercom is automatically
activated. This process is known as "breaking VOX".

The rider or passenger can initiate intercom communication.
When the intercom is active, tuner and media volume are
automatically reduced so the intercom can be heard through
the headsets.

For privacy, the intercom is only heard through the rider and
passenger headsets. It is not heard through the speakers.

Controls and Components 33

Microphone sensitivity and headset volume can be adjusted.
The microphone sensitivity (VOX) applies to both rider and
passenger microphones. The rider and passenger headset
volumes are adjusted independently.

NOTE

Some local governments prohibit or restrict the use of headset
(helmet-mounted) speakers. Check with local authorities and
obey all applicable laws and regulations.

Favorites

Selecting the favorites icon displays up to six saved favorites.

Navigate:

Home > Favorites.

Press and hold desired preset until screen title changes
to

Select a Favorite Type

NOTE

To overwrite a currently stored favorite, repeat the procedure
for setting.

Select:

Type.

Tuner:

Currently playing station, SXM, AM, FM or

WB.

Phone:

Recent, Contacts on Radio or Contacts on

Phone. Select from list.

Location:

Recent or Saved. Select from list.

Media:

usb. Select from list.

Listen to favorite:

Briefly press the favorites icon. Select

from list.

Audio Settings

The audio settings are used to custom tune the radio output.

Bass:

Adjust audio bass from minimum to maximum.

Treble:

Adjust audio treble from minimum to maximum.

Audio Routing:

Direct audio through speakers or headset.

Fade:

Adjust center of audio output.

Volumes:

Adjust speaker, rider headset and passenger

headset volumes. Also, turn speed volume on or off.

LEFT HAND CONTROL

Some features and functions shown are model and/or
region-specific.

See vehicle owner's manual for functionality of other hand
control switches.

34 Controls and Components

See Figure 22. The

Home/Volume/Previous/Next

five-way

switch operates radio features on equipped vehicles.

Home:

Press to display the Home screen. Press again to

display current audio source (tuner station, media file, or phone
screen).

Previous/Next:

Tap left or right to select previous/next radio

frequency or media file.

NOTE

• A one second press will seek the next transmitting station.

• A long press will accelerate through frequencies, or fast

forward/rewind through media files.

Volume:

Press up to increase volume or down to decrease

volume to speakers or rider headset. Volume control can also
unmute audio and resume media.

NOTE

• Unlike the

Mute

switch, decreasing volume to zero does not

pause media.

• Volume output is also affected by the speed volume setting.

See Speed Volume (Page 65).

• CB, intercom, phone calls and system prompts have

independent volume levels. Adjust volume for these different
audio sources while they are active. See appropriate
sections for each of these functions for operation.

Voice Recognition:

This switch activates voice recognition

features on equipped vehicles. With a headset connected,
press

Voice Recognition

switch. The radio beeps and shows

a list of available commands. Speak desired command into
headset microphone. See Voice Recognition (Page 171).

To cancel voice recognition, press and hold

Voice Recognition

switch for three seconds, or press

Home

hand control switch.

om01712

Figure 22. Left Hand Control Audio Functions (typical)

Controls and Components 35

Table 22. Left Hand Control Audio Functions

FUNCTION

NAME

ICON

ITEM

Short Press:

Toggles between

current screen and Home screen.

Long Press:

Toggles the Quick

Jump screen.

Home

Media:

Previous media file.

Tuner:

Tune/seek down.

Previous
/Seek Down

Media:

Next media file.

Tuner:

Tune/seek up.

Next/Seek
Up

Increases volume.

Volume Up

Decreases volume.

Volume
down

Initiates a voice recognition ses-
sion.
Also, a long press initiates Siri for
Bluetooth paired iPhone or Apple
CarPlay when a headset is con-
nected.

Voice Recog-
nition

Quick Jump:

On left hand control do a long press on the

Home

switch and this will display the

Quick Jump

screen. Use the

left or right hand control switch to make selection. See Figure
23.

1172336

Home

Navigation

Information (Vehicle Status)

Power/Mute

Audio Settings

Figure 23. Quick Jump

RIGHT HAND CONTROL

Some features and functions shown are model and/or
region-specific.

See vehicle owner's manual for functionality of other hand
control switches.

See Figure 24.

Back:

Press to view previous screen on radio.

36 Controls and Components

NOTE

• A long press will change the screen between normal day

and high contrast color.

Push-To-Talk/Squelch (PTT):

Press to transmit over CB or

intercom. Both rider and passenger microphones are live.
Intercom can also be operated by voice activation (VOX).

Squelch (SQ+/SQ-):

Raise squelch (SQ+) to prevent noise or

unwanted weak signals from unmuting the CB. Lower squelch
(SQ-) to a level that allows desired CB signals to unmute the
CB.

Cursor/Select:

The

Cursor/Select

five-way switch can be

used to select items on the radio screen.

Cursor:

Press switch in desired direction to move

highlighted cursor to another selection on radio screen.

Select:

Press switch straight in to select a highlighted item

or toggle a feature on radio screen.

1153744

Figure 24. Right Hand Control Audio Functions

Table 23. Right Hand Control Audio Functions

FUNCTION

NAME

ICON

ITEM

Short Press:

Back to previous

screen.

Long Press:

Screen transitions

between normal day color and high
contrast color.

Back

Increases CB squelch level (if
equipped).

CB
Squelch +

Controls and Components 37

Table 23. Right Hand Control Audio Functions

FUNCTION

NAME

ICON

ITEM

Decreases CB squelch level (if
equipped).

CB
Squelch -

Press and hold to transmit on
CB/intercom (if equipped).

CB Push
to Talk

Moves the highlighting up through
the selections.

Cursor Up

Moves the highlighting right
through the selections.

Tuner:

preset up.

Cursor
Right

Moves the highlighting down
through the selections.

Cursor
Down

Moves the highlighting left through
the selections.

Tuner:

Next preset

down.

Cursor
Left

Selects highlighted item.

Select
/Enter

REAR (PASSENGER) CONTROLS

See Figure 25. Some vehicles have passenger controls on the
right side of the Tour-Pak. These controls allow the passenger
to operate functions in the radio.

MODE/UP/DN Switch

MODE:

Press switch straight in to select the next available

audio source.

UP/DN:

Press switch up/down to select the previous/next radio

station or media file.

Push-To-Talk (PTT)/Volume (VOL) Switch

PTT:

Press switch to transmit over CB or intercom.

VOL+/VOL-:

Press switch up (or down) to raise (or lower) the

volume to the passenger headset. This switch does not affect
the rider headset volume or speaker volume.

Enabling Rear Controls

The PTT/VOL switch is always enabled. However, the
MODE/UP/DN switch can be enabled or disabled through the
setup screens. See Rear Controls (Page 65) to enable these
rear controls.

38 Controls and Components

1123047

MODE/UP/DOWN Switch

Push-To-Talk (PTT)/Volume (VOL±) Switch

Figure 25. Passenger Controls

Table 24. Rear (Passenger) Control Audio Functions

FUNCTION

NAME

ICON

ITEM

Cycles to next available audio
source.

Mode

Tuner:

Seek up.

Media:

Next file.

Next/Seek
Up

Tuner:

Seek down.

Media:

Previous file.

Previous
/Seek
Down

If Equipped:

Press and hold

to transmit on CB/intercom.

CB Push-
to-Talk

Increases volume.

Volume Up

Decreases volume.

Volume
Down

HEADSET CONNECTION

WARNING

NOTICE

Do not pull on the cord to remove the headset from the
socket. Pull on the headset jack to disconnect the headset
from the socket. (00174a)

Controls and Components 39

Harley Davidson 2019 Boom GTS. Manual - page 2
