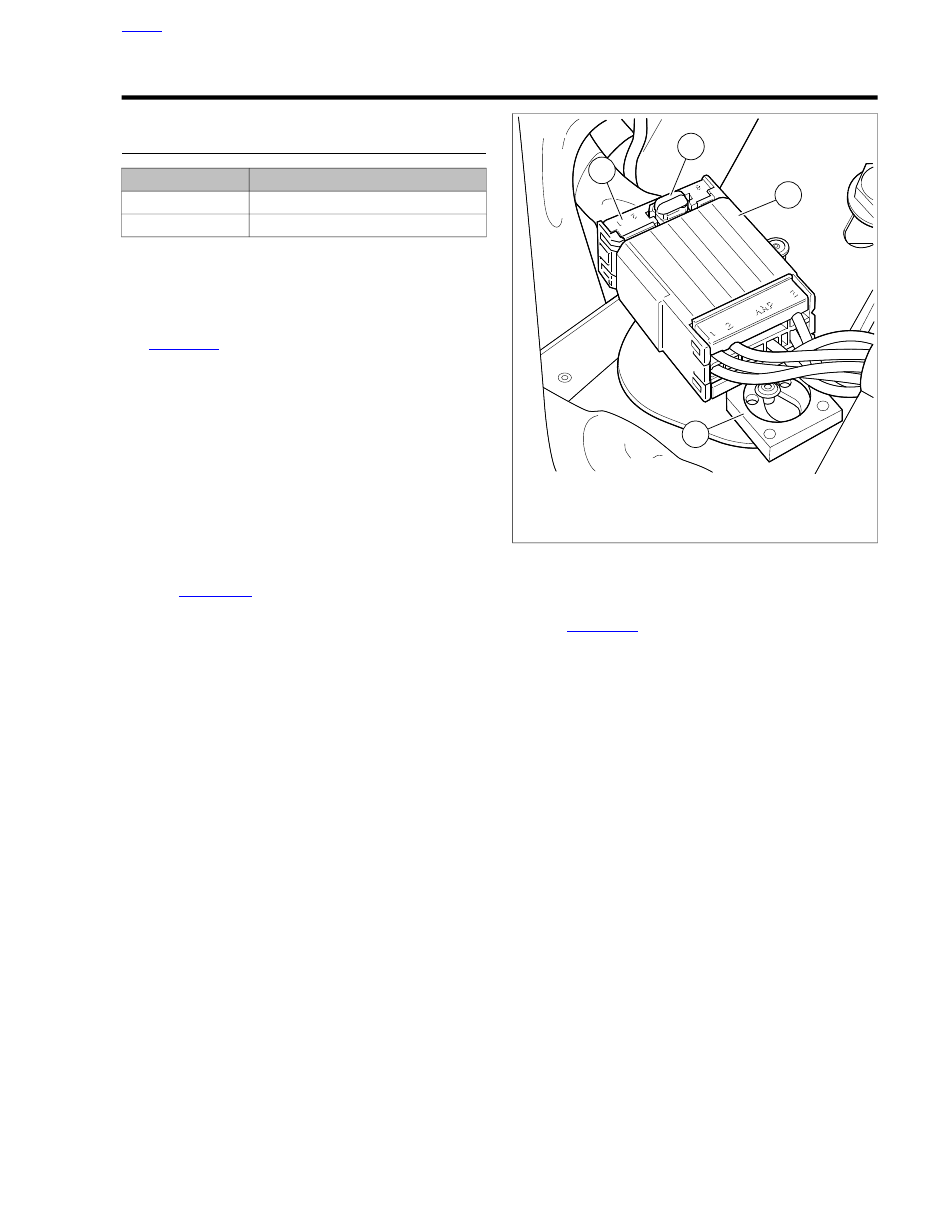

TYCO 070 MULTILOCK UNSEALED CONNECTOR

TYCO 070 MULTILOCK UNSEALED
CONNECTOR REPAIR

TOOL NAME

PART NUMBER

AMP MULTI-LOCK CRIMPER

HD-41609

SNAP-ON PICK

SNAP-ON TT600-3

General

Tyco 070 Multilock Unsealed connectors are found between
wire harnesses and component wiring and may be either
floating or anchored to the frame with attachment clips.

See

Figure A-58

. Attachment clips (1) on the pin housings are

fitted to T-studs on the motorcycle frame. The T-studs identify
OE connector locations. To maintain serviceability, always
return connectors to OE locations after service.

Obtain the necessary tools to repair the connector and ter-
minals.

NOTE

For terminal crimping use the AMP MULTI-LOCK CRIMPER
(Part No. HD-41609).

Separating Pin and Socket Housings

If necessary, slide connector attachment clip T-stud to the
large end of the opening.

See

Figure A-58

. Press the release button (2) on the

socket terminal side of the connector and pull the socket
housing (3) out of the pin housing (4).

Mating Pin and Socket Housings

Hold the housings to match wire color to wire color.

Insert the socket housing into the pin housing until it clicks
in place.

If OE location is a T-stud, fit large opening end of attach-
ment clip over T-stud and slide connector to engage T-
stud to small end of opening.

sm00002a

1. Attachment clip
2. Release button
3. Socket housing
4. Pin housing

Figure A-58. Tyco 070 Multilock Unsealed Connector

Removing Terminals from Housing

See

Figure A-59

. Bend back the latch (1) to free one end

of secondary lock (2) then repeat on the opposite end.
Hinge the secondary lock outward.

Look in the terminal side of the connector (opposite the
secondary lock) and note the cavity next to each terminal.

Insert a pick or pin into the terminal cavity until it stops.

NOTE

If socket/pin terminal tool is not available, use a push pin/safety
pin or a SNAP-ON PICK (Part No. SNAP-ON TT600-3).

Press the tang in the housing to release the terminal.

Socket:

Lift the socket tang (8) up.

Pin:

Press the pin tang (7) down.

NOTE

A click is heard if the tang is released.

Gently tug on wire to pull wire and terminal from cavity.

HOME

2013 Softail Service: Appendix A Connector Repair A-35

sm00013

1. Latch
2. Secondary lock open
3. Pin housing
4. Socket housing
5. Pin terminal
6. Socket terminal
7. Tang (pin)
8. Tang (socket)

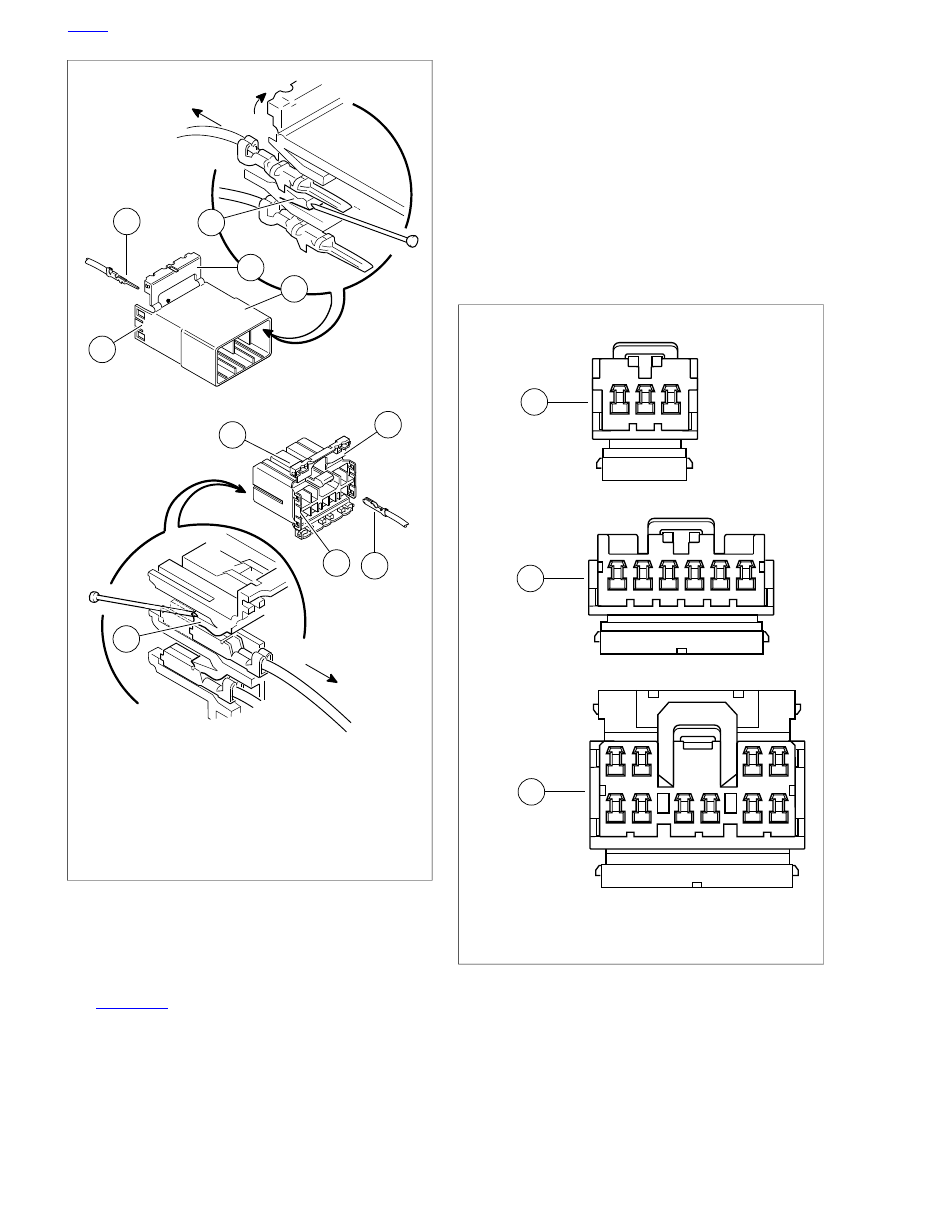

Figure A-59. Tyco 070 Multilock Unsealed Connector:

Socket and Pin Housings

Inserting Terminals into Housing

NOTE

See

Figure A-60

. Cavity numbers are stamped into the sec-

ondary locks of both the socket and pin housings. Match the
wire color to the cavity number found on the wiring diagram.

Hold the terminal so the catch faces the tang in the
chamber. Insert the terminal into its numbered cavity until
it snaps in place.

NOTES

•

The release button is always on the top of the connector.

•

On the pin side of the connector, tangs are positioned at
the bottom of each cavity, so the slot in the pin terminal
(on the side opposite the crimp tails) must face downward.

•

On the socket side, tangs are at the top of each cavity, so
the socket terminal slot (on the same side as the crimp
tails) must face upward.

Gently tug on wire end to verify that the terminal is locked
in place.

Rotate the hinged secondary lock inward until tabs fully
engage latches on both sides of connector.

– AMP

sm00005

1. 3-place housing
2. 6-place housing
3. 10-place housing

Figure A-60. Tyco 070 Multilock Unsealed Connector:

Cavity Numbers on Secondary Locks (socket housings

shown)

Preparing Wire Leads for Crimping

Strip wire lead removing 5/32 in (4.0 mm) of insulation.

HOME

A-36 2013 Softail Service: Appendix A Connector Repair

See

Figure A-61

and

Figure A-62

. Select the pin/socket

terminals from the parts catalog and identify the insulation
crimp tails (1) and the wire crimp tails (2) and the groove
for the crimp tool locking bar (3).

Identify the wire lead gauge and the corresponding crimper
tool and nesting die. Refer to

Table A-8

Table A-8. AMP Multilock Connector: Crimp Tool Wire

Gauge/Nest

NEST

WIRE GAUGE

Front

Middle

Rear

sm00004

1. Insulation crimp tail
2. Wire crimp tail
3. Locking bar groove

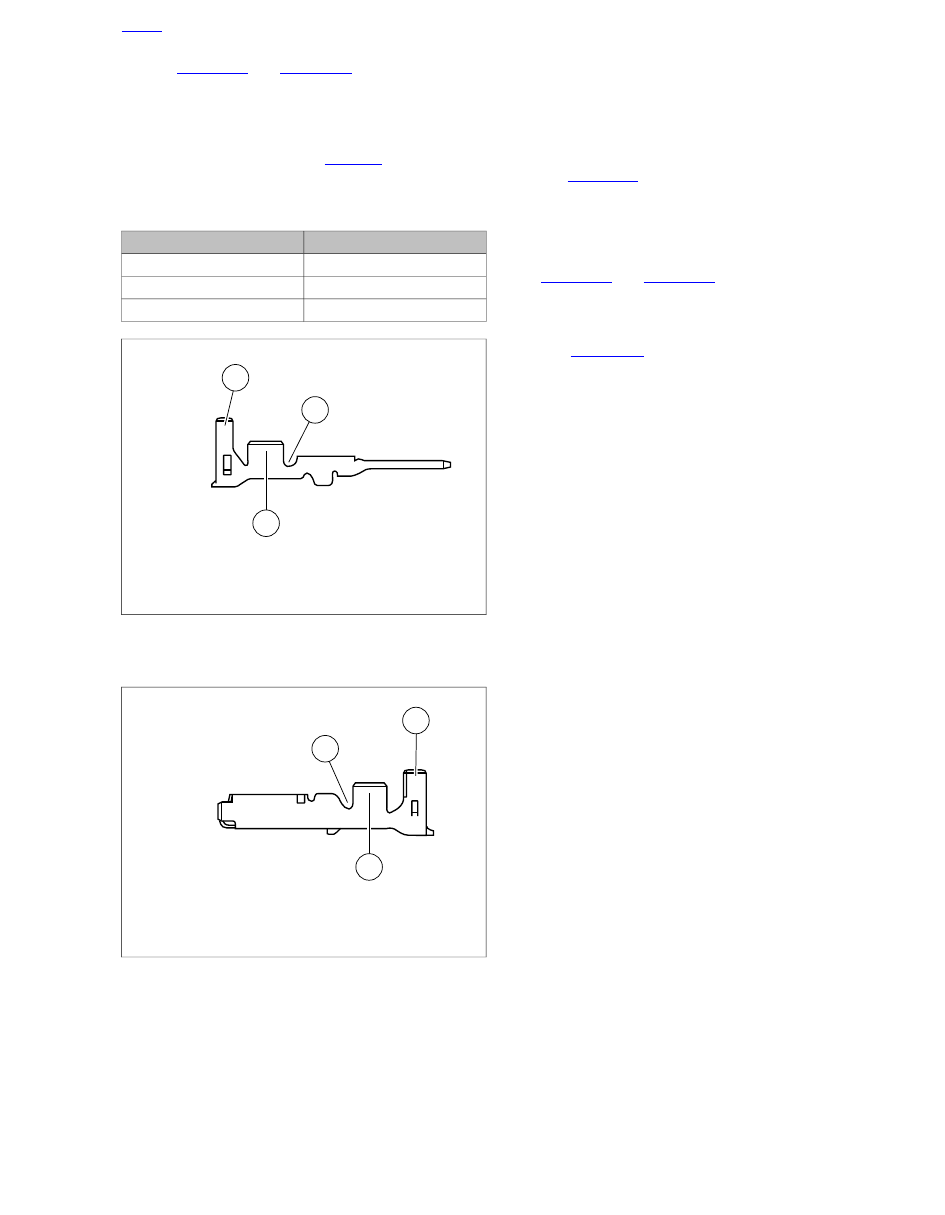

Figure A-61. Tyco 070 Multilock Unsealed Connector: Pin

Terminal

sm00001

1. Insulation crimp tail
2. Wire crimp tail
3. Locking bar groove

Figure A-62. Tyco 070 Multilock Unsealed Connector:

Socket Terminal

Crimping Terminals to Leads

NOTE

Crimping with the AMP Multi-lock Crimper is a one step opera-
tion. One squeeze crimps both the wire core and the insulation
tails.

See

Figure A-63

. Squeeze the handles to cycle the AMP

MULTI-LOCK CRIMPER (Part No. HD-41609) to the fully
open position (1).

Raise locking bar by pushing up on bottom flange (2).

NOTE

See

Figure A-61

and

Figure A-62

. Hold the terminal with the

insulation crimp tail (1) facing up. The tool will hold the terminal
by the locking bar groove (3) and simultaneously crimp around
the stripped lead and the insulation.

See

Figure A-63

. With the insulation crimp tail facing

upward, insert terminal (pin or socket) (3) through the
locking bar, so that the closed side of the terminal rests
on the nest of the crimp tool.

Release locking bar to lock position of contact (4). When
correctly positioned, the locking bar fits snugly in the space
at the front of the core crimp tails.

Insert stripped end of lead (5) until ends make contact with
locking bar.

Position wire that the wide pair of crimp tails squeeze bare
wire strands, while the narrow pair folds over the insulation
material.

Squeeze handle of crimp tool until tightly closed. Tool
automatically opens when the crimping sequence is com-
plete.

Raise up locking bar (7) to remove crimped terminal.

HOME

2013 Softail Service: Appendix A Connector Repair A-37

sm00007

1. Open position
2. Locking bar flange
3. Insert contact
4. Release locking bar
5. Insert lead
6. Squeeze
7. Raise locking bar
8. Remove crimped terminal

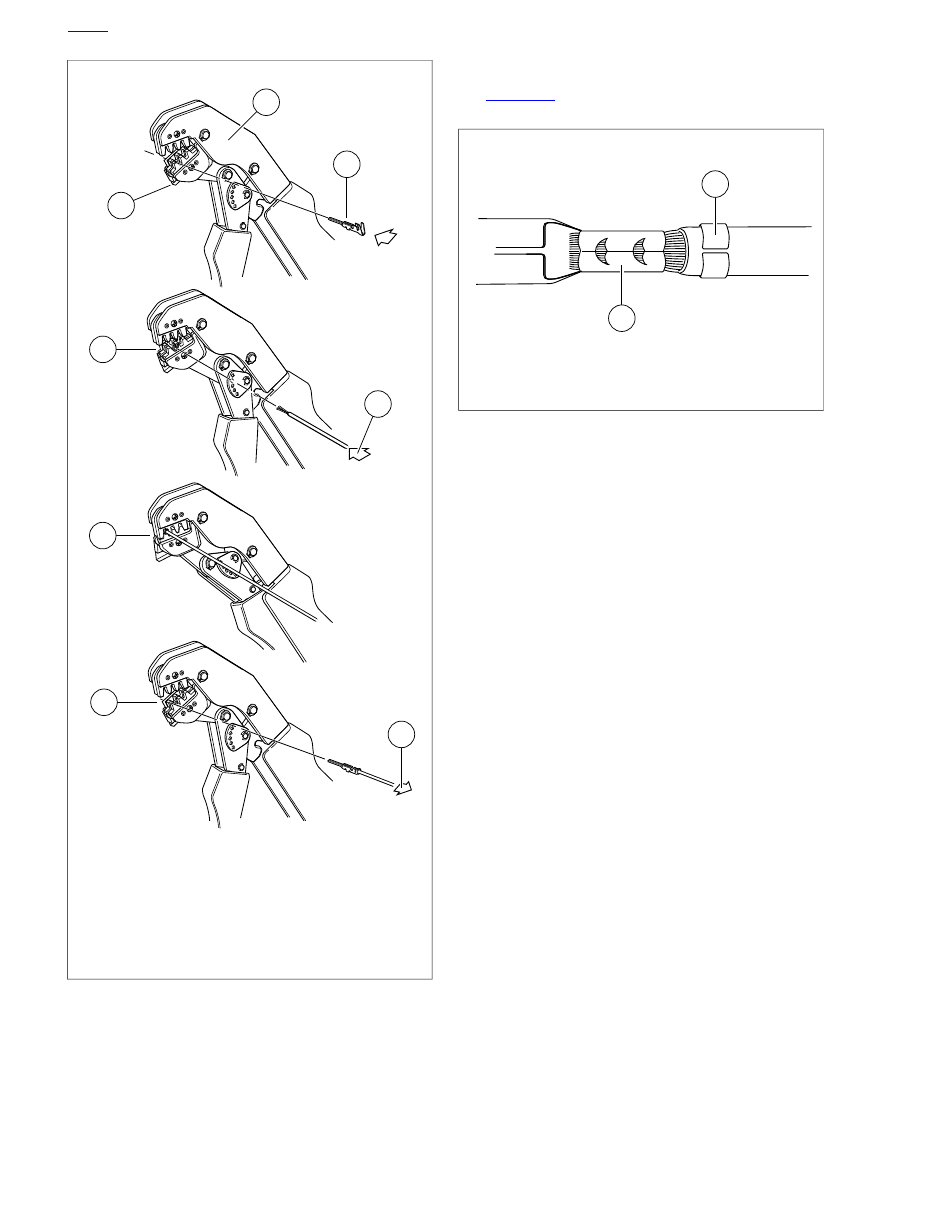

Figure A-63. Tyco 070 Multilock Unsealed Connector:

Terminal Crimping Procedure

Inspecting Crimped Terminals

See

Figure A-64

. Inspect the wire core crimp (2) and insulation

crimp (1). Distortion should be minimal.

sm00008

1. Insulation crimp
2. Wire core crimp

Figure A-64. Tydo 070 Multilock Unsealed Connector:

Terminal Crimp

HOME

A-38 2013 Softail Service: Appendix A Connector Repair

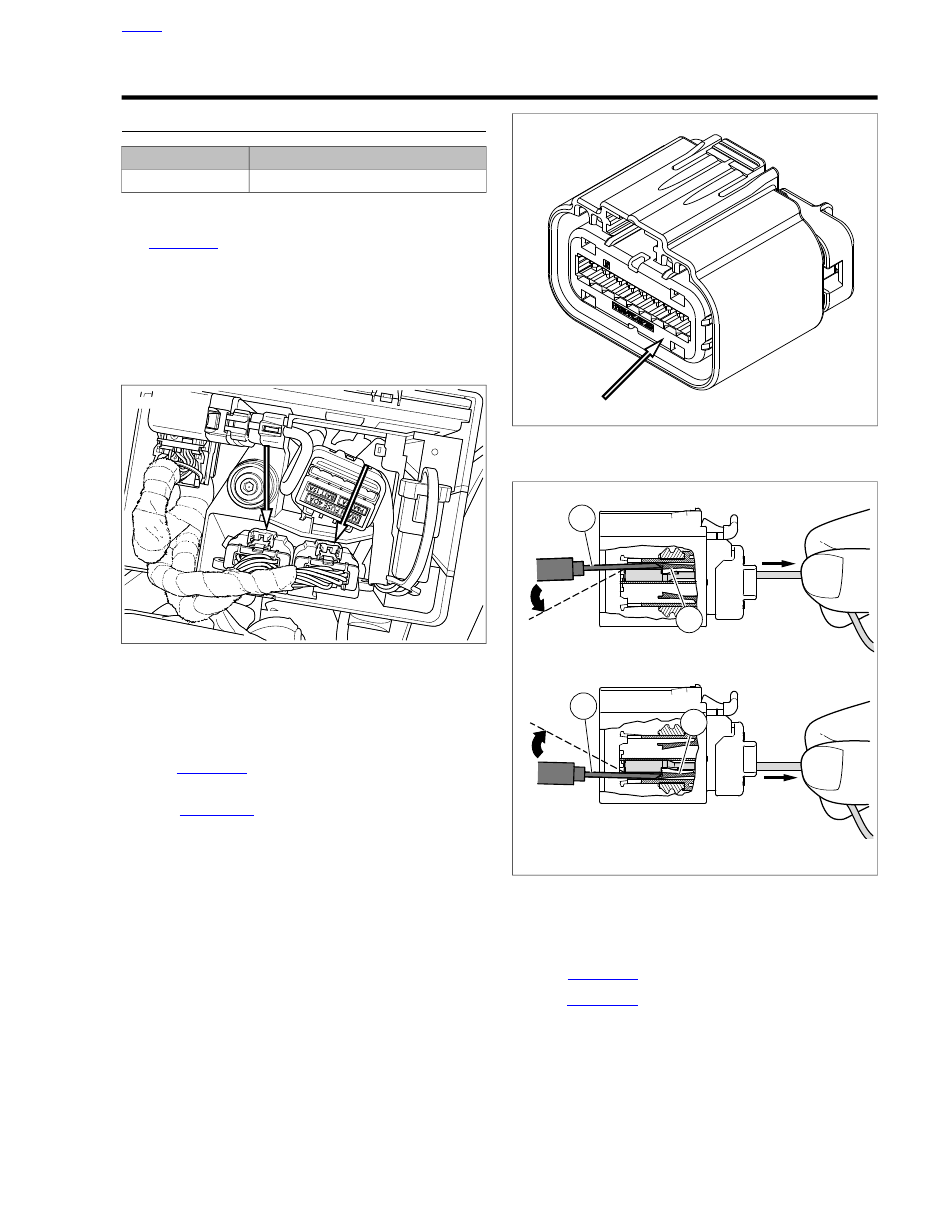

A.21

TYCO GET 64 SEALED CONNECTOR

TOOL NAME

PART NUMBER

TERMINAL EXTRACTOR

B-50085

General

See

Figure A-65

. The Tyco GET 64 Sealed connector is found

on the ECM of Dyna and Softail Models.

Housings

Separate:

Press on the latch. Pull the socket housings off of

the ECM.

Join:

Align the socket housing latch with the catch on the ECM.

Press housing onto ECM.

sm07294

Figure A-65. Tyco GET 64 Sealed Connector Latch

Removing Socket Terminals

Remove the black wrap to access the back of the con-
nector.

See

Figure A-66

. Use needle nose pliers to pull the sec-

ondary lock out of the housing.

See

Figure A-67

. Orient the bevel of the TERMINAL

EXTRACTOR (Part No. B-50085) (1) to the upper or lower
terminal row. Insert the extractor into the slot adjacent to
the terminal.

Rotate the extractor to release the retention beam and
simultaneously pull on the wire lead to remove the ter-
minal.

sm07311

Figure A-66. Tyco GET 64 Secondary Lock

sm07293

1. Terminal extractor
2. Retention beam

Figure A-67. Removing Terminals: Tyco GET 64 Sealed

Connector

Installing Socket Terminals

See

Figure A-68

. Locate the wire lead cavity by number.

See

Figure A-69

. Orient the open side of the crimp to the

lower or the upper terminal row.

Press the terminal in through the rear cover and the seal
until it clicks.

Press the secondary lock into the locked position.

Black wrap the wire lead bundle.

HOME

2013 Softail Service: Appendix A Connector Repair A-39

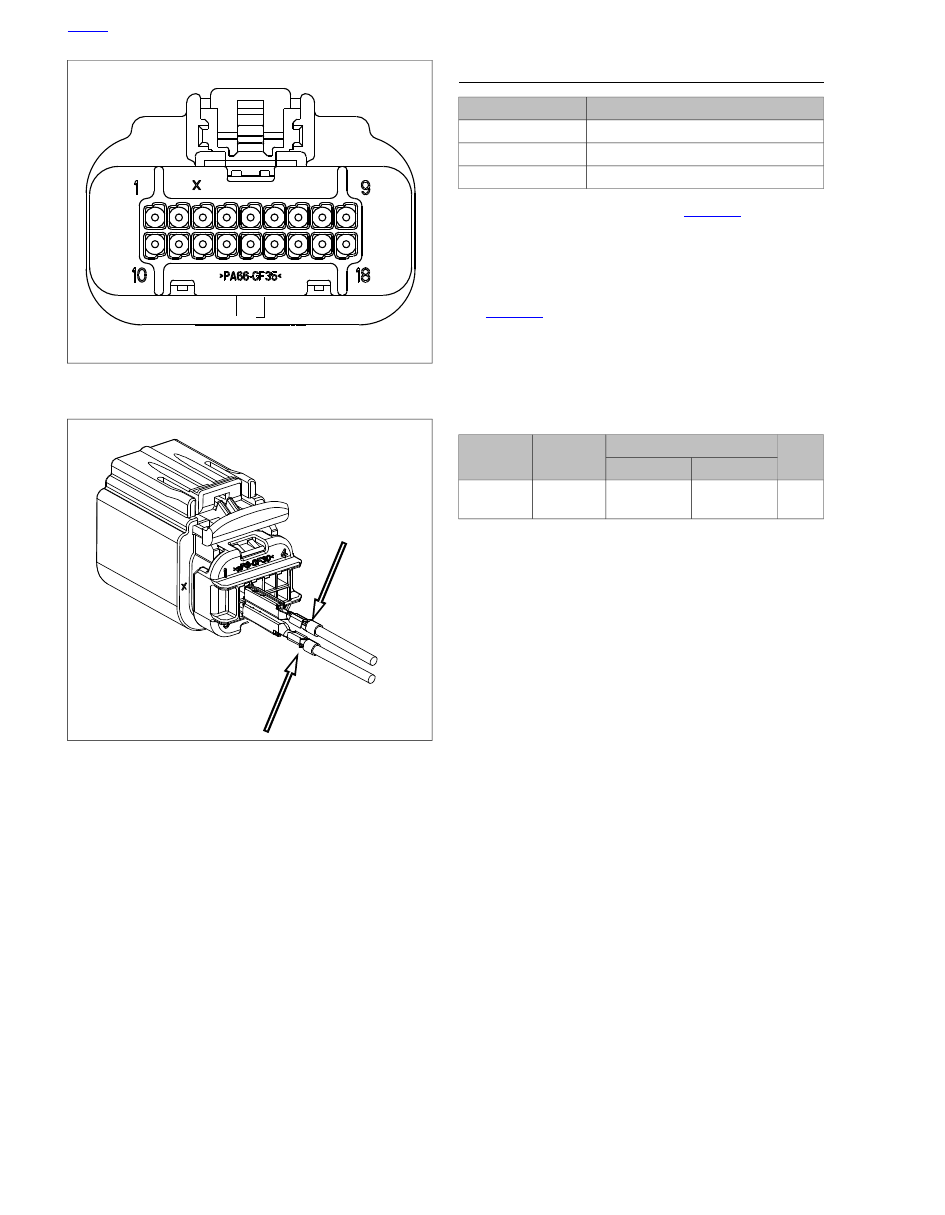

sm07340

Figure A-68. Cavity Numbers

sm07314

Figure A-69. Socket Terminal Orientation: Crimp Open

Side

CRIMPING TERMINALS

TOOL NAME

PART NUMBER

UNIVERSAL CRIMPER SET

HD-50120

HAND CRIMP FRAME

HD-50120-2

TYCO GET 64 DIE

HD-50120-7

Strip the wire insulation. Refer to

Table A-9

Install the TYCO GET 64 DIE (Part No. HD-50120-7) in
the HAND CRIMP FRAME (Part No. HD-50120-2) of the
UNIVERSAL CRIMPER SET (Part No. HD-50120).

Place the

new

terminal in the specified nest. Refer to

Table A-9

Insert the wire to the wire stop. Crimp the terminal.

Inspect the crimped terminal and wire lead.

Table A-9. Tyco GET 64 Sealed Crimper Die (Part No.

HD-50120-7)

NEST

STRIP LENGTH

PART NO.

TERMINAL

4.4

0.170

72666-12

Socket:
18-20 AWG

HOME

A-40 2013 Softail Service: Appendix A Connector Repair

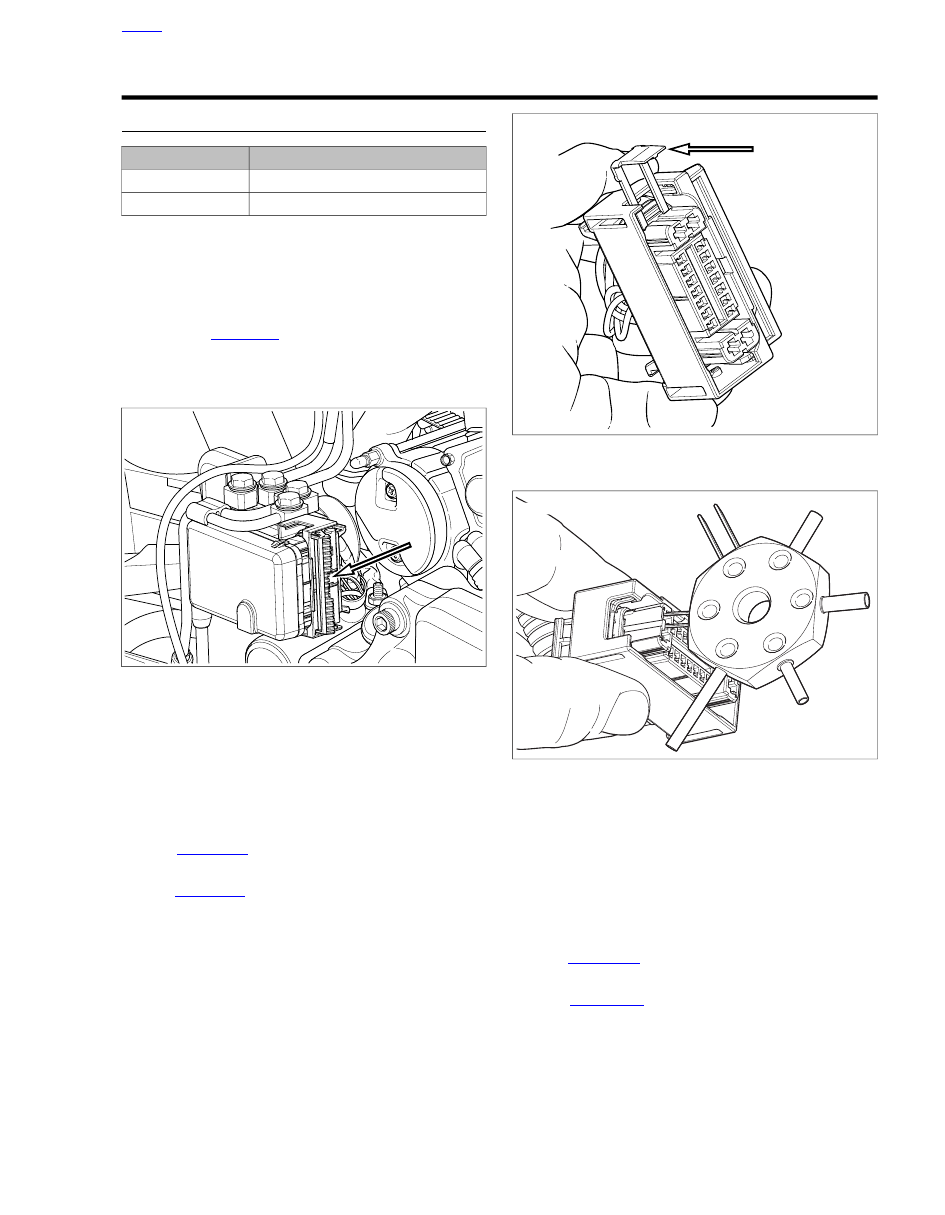

A.22

TYCO MCP SEALED CONNECTOR

TOOL NAME

PART NUMBER

TERMINAL EXTRACTOR

B-0085

SNAP-ON TERMINAL PICK

GA500A

General

The Tyco MCP sealed connector is used on certain ABS
modules.

Housing

Separate:

See

Figure A-70

. Press and hold the lock tab. Pulling

on both ends of the lever, open the lever.

Join:

Gently mate the pins to the socket. Press and hold the

lock tab. Pressing on both ends of the lever, close the lever.

sm07296

Figure A-70. Tyco MCP Connector Release Bar

Removing the Large Terminals

Snap the wire harness cover off of the back of the con-
nector

NOTE

Insert a thin flat bladed screwdriver all the way to the bottom
behind the tab of the secondary lock.

See

Figure A-71

. Gently slide the secondary lock out of

the connector with a screw driver.

See

Figure A-72

. Insert the smallest pins of the SNAP-ON

TERMINAL PICK (Part No. GA500A) into the gaps on
each side of the socket to compress the tangs on each
side of the terminal.

Gently pull on the wire to remove the terminal.

sm07369b

Figure A-71. Tyco MCP Connector Secondary Lock

sm07354

Figure A-72. Removing Large Socket Terminals: Tyco MCP

Connector

Removing the Small Terminals

Snap the wire harness cover off of the back of the con-
nector

NOTE

Insert a thin flat bladed screwdriver all the way to the bottom
behind the tab of the secondary lock.

See

Figure A-71

. Gently slide the secondary lock out of

the connector with a screw driver.

See

Figure A-73

. Insert the TERMINAL EXTRACTOR

(Part No. B-0085) into the cavity on the outside of the ter-
minal.

Tilt the extractor to lift the molding latch and release the
terminal.

Gently pull on the wire to remove the terminal.

HOME

2013 Softail Service: Appendix A Connector Repair A-41

sm07355a

Figure A-73. Removing Small Socket Terminal: Tyco MCP

Connector

Installing Terminals

See

Figure A-74

. Locate the wire lead cavity by number.

Use a hobby knife to bend the tangs on each side of the
terminal outward.

Align the socket.

Push the socket in until it clicks.

Press the secondary lock back into the connector.

Snap the wire cover in place.

sm07361

Figure A-74. Tyco MCP Sealed Connector Cavity Numbers

CRIMPING TERMINALS

TOOL NAME

PART NUMBER

UNIVERSAL CRIMPER SET

HD-50120

TYCO MCP DIE

HD-50120-8

Strip the wire insulation to specification. Refer to

Table A-10

Install the TYCO MCP DIE (Part No. HD-50120-8) in the
handle of the UNIVERSAL CRIMPER SET (Part No. HD-
50120).

Place the

new

terminal in the specified nest.

Insert the wire to the wire stop.

Crimp the terminal.

Inspect the crimped terminal.

Table A-10. Tyco MCP Crimper Die (Part No. HD-50120-8)

NEST

STRIP LENGTH

PART NO.

TERMINAL

4.2-4.8

0.165-0.189

72579-12

Large socket:
14 AWG

4.2-4.8

0.165-0.189

72579-12

Large socket:
16 AWG

3.3-3.9

0.130-0.153

72580-12

Small socket:
20 AWG

sm07290

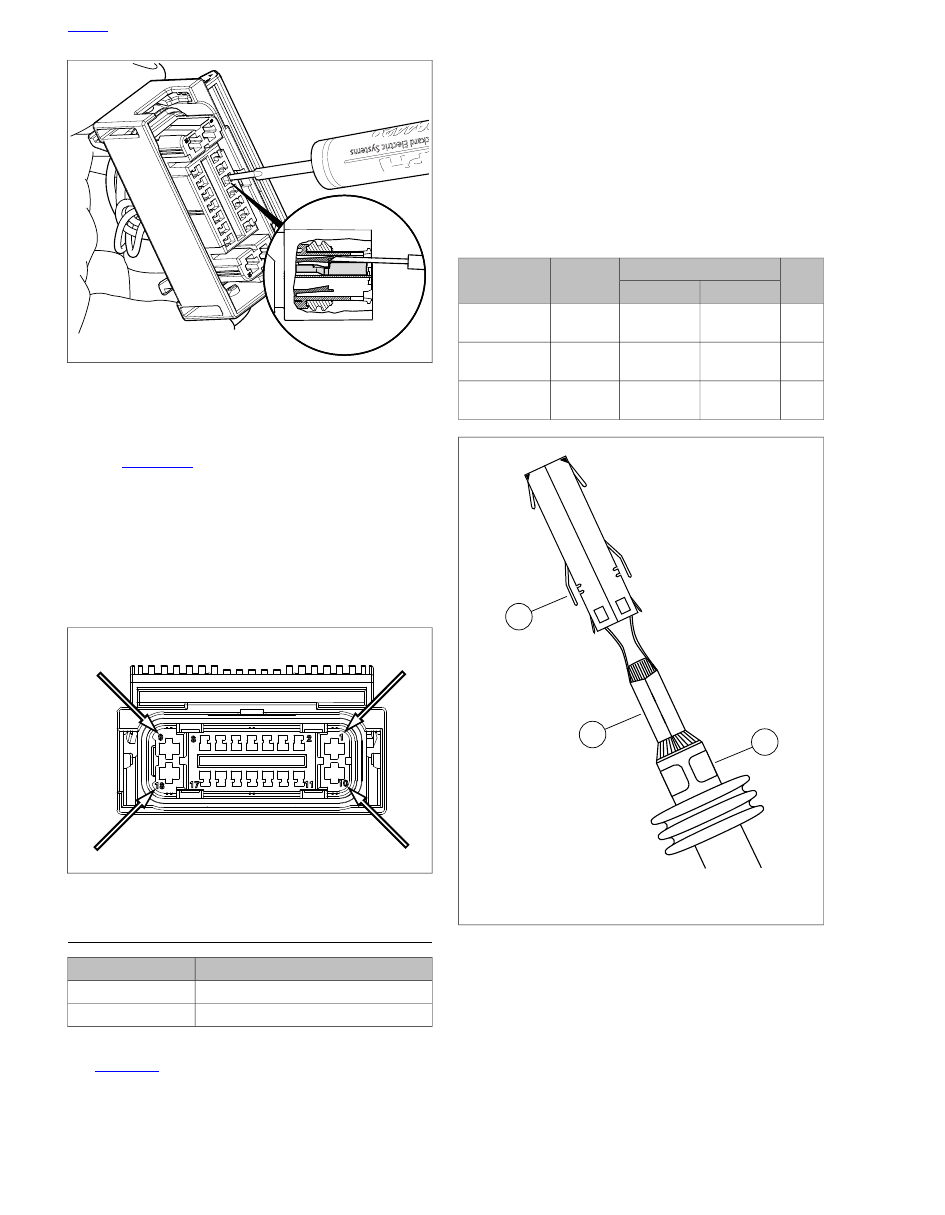

1. Locking tang
2. Lead crimp
3. Seal crimp

Figure A-75. Tyco MCP Socket Terminal Crimp

HOME

A-42 2013 Softail Service: Appendix A Connector Repair

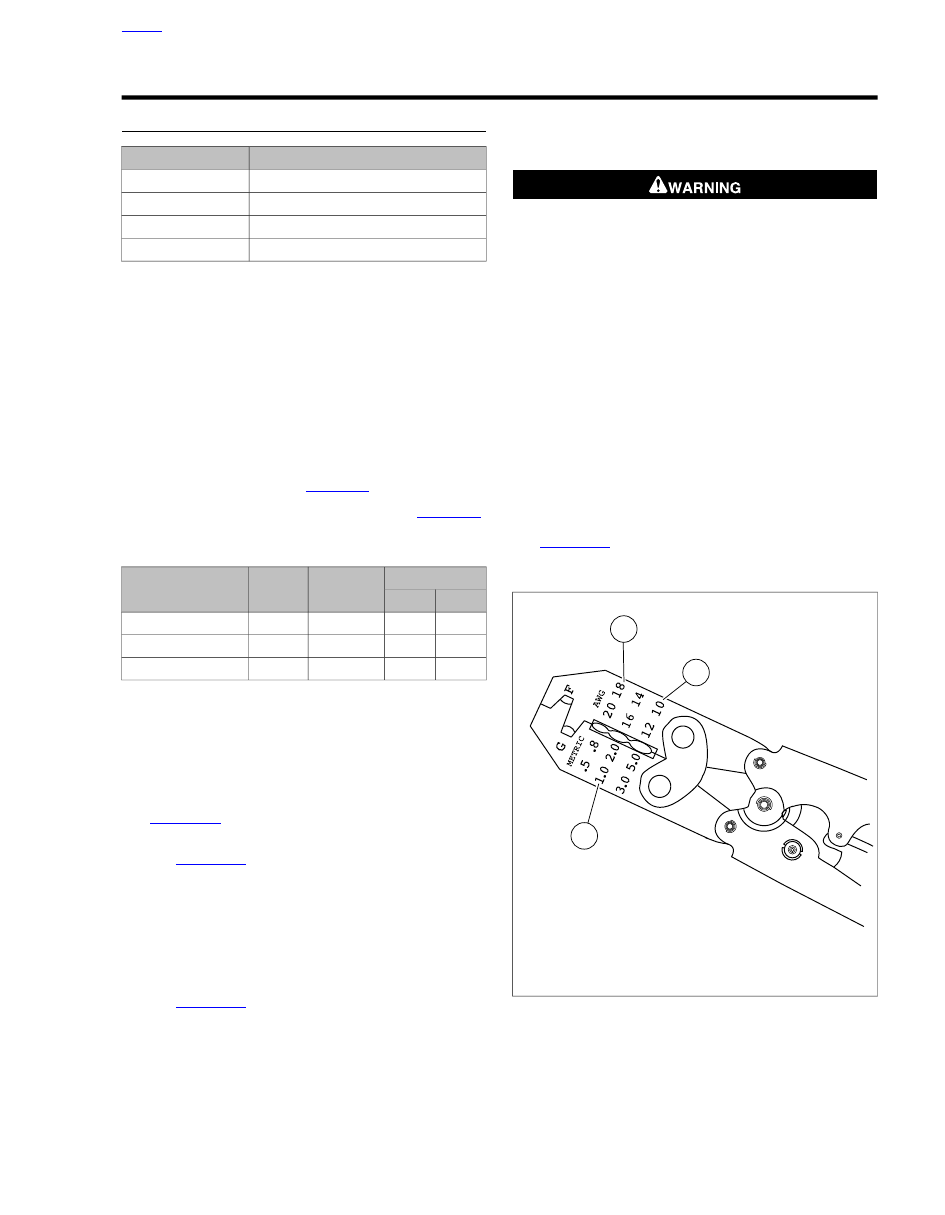

A.23

SEALED SPLICE CONNECTORS

SEALED SPLICE CONNECTOR REPAIR

TOOL NAME

PART NUMBER

HEAT GUN

HD-25070

PACKARD CRIMPING TOOL

HD-38125-8

ULTRA TORCH

HD-39969

HEAT SHIELD ATTACHMENT

HD-41183

General

Splice connectors and several OE ring terminal connectors
use heat shrink covering to seal the connection.

Preparing Wire Leads

NOTE

When splicing adjacent wires, stagger the splices that the
sealed splice connectors will not touch each other.

Using a shop gauge, identify the gauge of the wire.

Match the wire gauge to a sealed splice connector by color
and part number. Refer to

Table A-11

Strip insulation off the the wire lead. Refer to

Table A-11

Table A-11. Sealed Splice Connectors

STRIP LENGTH

PART NO.

COLOR

WIRE GAUGE

9.5

3/8

70585-93

Red

18-20 (0.5-0.8 mm)

9.5

3/8

70586-93

Blue

14-16 (1.0-2.0 mm)

9.5

3/8

70587-93

Yellow

10-12 (3.0-5.0 mm)

NOTE

If any copper wire strands are cut off of the wire core, trim the
end and strip the wire again in a larger gauge stripper.

Splicing Wire Leads

NOTE

See

Figure A-77

. The connector is crimped on one side and

then the other.

See

Figure A-76

. Open the PACKARD CRIMPING TOOL

(Part No. HD-38125-8) ratchet by squeezing the handles
closed.

Match the connector color to the wire gauge crimp die in
the jaws. Insert one end of the sealed connector.

Gently squeeze the handles until the connector is held in
the jaws.

See

Figure A-77

. Feed the stripped end of a wire into the

connector until the wire stops inside the metal insert (1).

Squeeze the handles tightly closed to crimp the lead in
the insert (2). The tool automatically opens when the
crimping is complete.

Slide the connector to the other half of the metal insert.
Insert the stripped wire lead (1) until it stops. Crimp the
lead in the insert (2).

Be sure to follow manufacturer's instructions when using
the UltraTorch UT-100 or any other radiant heating device.
Failure to follow manufacturer's instructions can cause a
fire, which could result in death or serious injury. (00335a)

•

Avoid directing heat toward any electrical system com-
ponent that is not being serviced.

•

Always keep hands away from tool tip area and heat shrink
attachment.

Use an ULTRA TORCH (Part No. HD-39969), or a HEAT
GUN (Part No. HD-25070) with a HEAT SHIELD
ATTACHMENT (Part No. HD-41183), to heat the connector
from the center of the crimp (3) out to each end.

NOTE

It is acceptable for the splice to rest against the heat shrink
tool attachment.

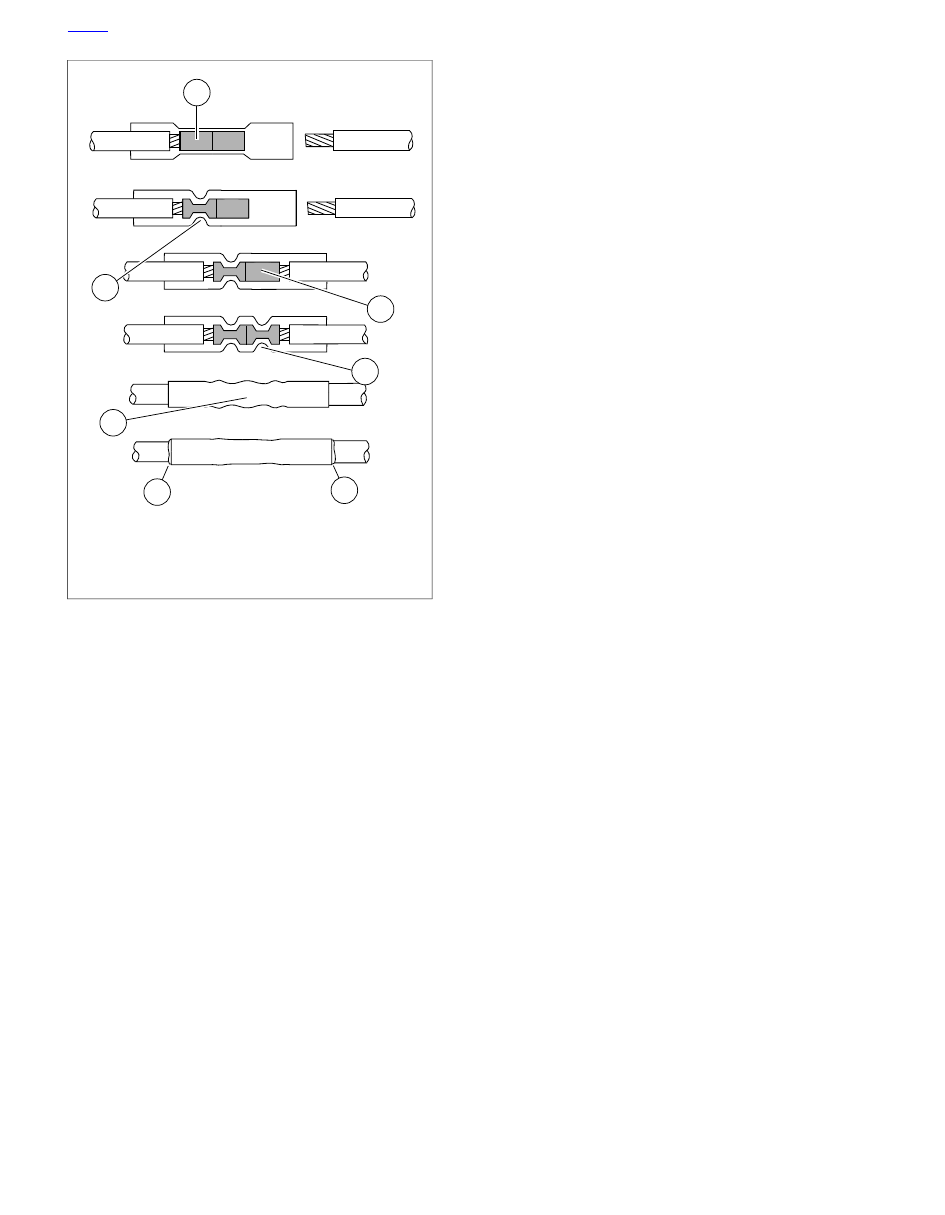

Inspecting Seals

See

Figure A-77

. Allow the splice to cool and inspect the seal.

The insulation should appear smooth and cylindrical. Melted
sealant will have extruded out the ends (4) of the insulation.

sm00050

1. Red connector die
2. Blue connector die
3. Yellow connector die

Figure A-76. Packard Crimping Tool (HD-38125-8)

HOME

2013 Softail Service: Appendix A Connector Repair A-43

B.1

CONNECTORS

CONNECTOR LOCATIONS

Function/Location

All vehicle connectors are identified by their function and loca-
tion. Refer to

Table B-1

Place and Color

The place (number of wire cavities of a connector housing)
and color of the connector can also aid identification.

Connector Number

On wiring diagrams and in service/repair instructions, con-
nectors are identified by a number in brackets.

Repair Instructions

The repair instructions in Appendix A are by connector type.
Refer to

Table B-1

Table B-1. Softail Connector Locations

LOCATION

TERMINAL

PROBE
COLOR

TYPE

DESCRIPTION

NO.

Under seat

Gray

8-place Tyco 070 Multilock
Unsealed (BK) (except FXS/B)

Tail lamp harness to main har-
ness

[7]

Behind fuel tank (under seat)

Gray

4-place Tyco 070 Multilock
Unsealed (BK) (FXS/B)

Fuel tank harness

[13]

Inside tail lamp lens (except FXS/B,
FLS)

Gray/Brown

2-place Tyco 070 Multilock
Unsealed (except FLSTN,
FXS/B, FLS) (BK)

Right rear stop, tail, and turn
assembly

[18]

Under seat (FXS/B and FLS)

2-place Deutsch DTM Sealed
(FLSTN)
4-place Deutsch DTM Sealed
(FXS/B, FLS) (GY)

Inside tail lamp lens (except FXS/B,
FLS)

Gray/Brown

2-place Tyco 070 Multilock
Unsealed (except FLSTN,
FXS/B, FLS) (BK)

Left rear stop, tail, and turn
assembly

[19]

Under seat (FXS/B and FLS)

2-place Deutsch DTM Sealed
(FLSTN)
4-place Deutsch DTM Sealed
(FXS/B, FLS) (BK)

Under console

Gray

6-place Molex MX 150 Sealed
(BK)

Console harness

[20]

Under console

Gray

6-place Molex MX 150 Sealed
(BK)

Indicator lamps

[21]

Under fuel tank, right side

Yellow

4-place JAE MX19 Sealed (BK)

Right hand controls

[22-1]

Under fuel tank, right side

Yellow

2-place JAE MX19 Sealed (BK)

Right hand controls

[22-2]

Under fuel tank, left side

Yellow

4-place JAE MX19 Sealed (BK)

Left hand controls

[24]

Under fuel tank, right side

Gray

6-place Tyco 070 Multilock
Unsealed (BK)

Front turn signals

[31]

Under fuel tank, left side

Gray

2-place Tyco 070 Multilock
Unsealed (BK)

Front fender tip lamp

[32]

Under fuel tank console (except
FXS/B)

Gray

2-place Delphi GT 150 Sealed
(GY)

Ignition switch

[33]

Behind ignition coil (FXS/B)

Under fuel tank, left side

Gray

4-place Tyco 070 Multilock
Unsealed (BK)

Headlamp

[38]

Back of speedometer

Breakout Box

12-place Delphi Micro 64
Sealed (GY)

Speedometer

[39]

Inside tail lamp lens (except FXS/B,
FLS)

Brown

6-place Deutsch DTM Sealed
(except FXS/B, FLS) (BK)

LP, stop, and tail lamp

[40]

Under seat (FXS/B and FLS)

3-place Deutsch DTM Sealed
(FXS/B, FLS) (BK)

HOME

2013 Softail Service: Appendix B Wiring B-1

Table B-1. Softail Connector Locations

LOCATION

TERMINAL

PROBE
COLOR

TYPE

DESCRIPTION

NO.

Inside tail lamp lens

Gray

3-place Tyco 070 Multilock
Unsealed (BK)

Rear fender tip lamp

[45]

Back of voltage regulator

3-place Dekko (BK)

Voltage regulator to stator

[47]

Under seat

Gray/Red

Delphi 280 Metripack Sealed

Fuse block

[64]

Delphi 800 Metripack Sealed
(main fuse)

Top of transmission case

Gray

3-place Delphi GT 150 Sealed
(BK)

VSS

[65]

Behind front fork panel

Gray

2-place Tyco 070 Multilock
Unsealed (BK)

Auxiliary lamps

[73]

Back of voltage regulator

2-place Dekko (BK)

Voltage regulator

[77]

Under seat in front of rear fender
(except FXSB)

Breakout Box

18-place Tyco (BK)

ECM

[78-1]

Electrical panel behind fender
extension (FXSB)

Under seat in front of rear fender
(except FXSB)

Breakout Box

18-place Tyco (GY)

ECM

[78-2]

Electrical panel behind fender
extension (FXSB)

Back of voltage regulator bracket

Brown

2-place Deutsch DTM Sealed
(BK)

CKP sensor

[79]

Top of induction module

Gray

3-place Delphi 150 Metripack
Sealed (GY)

MAP sensor

[80]

Back of coil

Gray

4-place Delphi GT 150 Sealed
(BK)

Ignition coil

[83]

Beneath fuel tank

Gray

2-place Delphi GT 150 Sealed
(GY)

Front fuel injector

[84]

Beneath fuel tank

Gray

2-place Delphi GT 150 Sealed
(GY)

Rear fuel injector

[85]

Beneath fuel tank

Gray

4-place Delphi GT 150 Sealed
(BK)

IAC

[87]

Behind air cleaner backing plate

Gray

3-place Delphi GT 150 Sealed
(BK)

TP sensor

[88]

Behind air cleaner backing plate

Gray

2-place Delphi GT 150 Sealed
(GY)

IAT sensor

[89]

Back of front cylinder, left side

Gray

2-place Delphi GT 150 Sealed
(BK)

ET sensor

[90]

Under seat

Black

6-place Deutsch DT Sealed
(GY)

DLC

[91]

Inside tail lamp lens

Gray

4-place Tyco 070 Multilock
Unsealed (BK)

Tail lamp

[93]

Circuit board under tail lamp
assembly

Gray

6-place Tyco 070 Multilock
Unsealed (BK)

Rear fender lights harness in
circuit board

[94]

Electrical panel behind fender
extension

Purple

2-place Delphi 150 Metripack
Sealed (BK)

Purge solenoid

[95]

Fork back panel

Gray

Tyco Insulated Spade terminal

Auxiliary lamp switch

[109]

Left front side of fuel tank

Gray

4-place Tyco 040 Unsealed
(BK)

Fuel gauge

[117]

HOME

B-2 2013 Softail Service: Appendix B Wiring

Table B-1. Softail Connector Locations

LOCATION

TERMINAL

PROBE
COLOR

TYPE

DESCRIPTION

NO.

Front right crankcase

Right Angle Push On Molded
(BK)

Oil pressure switch

[120]

Right side of transmission

Red

Tyco Insulated Spade terminal
(BK)

Rear stop lamp switch

[121]

Between cylinders, left side (except
FXS/B)

Red

Flag terminals (BK)

Horn

[122]

Front of frame above voltage regu-
lator (FXS/B)

Top of starter

Red

Tyco Insulated Spade terminal
(W)

Starter solenoid

[128]

Top of transmission

Right Angle Push On Molded
(BK)

Neutral switch

[131]

Back of voltage regulator bracket

Gray

3-place Molex MX 150 Sealed
(BK)

JSS

[133]

Under seat in front of battery

Gray

4-place Molex MX 150 Sealed
(BK)

HO2 sensor (rear)

[137]

Behind voltage regulator

Gray

4-place Molex MX 150 Sealed
(BK)

HO2 sensor (front)

[138]

Top of fuel tank

Gray

4-place Delphi GT 150 Sealed
(BK)

Fuel pump and sender

[141]

Electrical panel behind fender
extension

Gray

3-place Delphi GT 150 Sealed
(BK)

Security siren (optional)

[142]

In front fender tip lamp

Gray

2-place Tyco 070 Multilock
Unsealed (BK)

Front fender tip lamp

[143]

Electrical panel behind fender
extension

Breakout Box

20-place Molex MX 150 Sealed
(BK)

ABS ECU

[166]

Under fuel tank, left side

Gray

2-place Delphi 150 Metripack
Sealed (BK)

Front WSS

[167]

Electrical panel behind fender
extension

Gray

2-place Delphi 150 Metripack
Sealed (BK)

Rear WSS

[168]

Air cleaner backing plate

Gray

2-place Tyco Superseal 1.5
Sealed (BK)

Active intake solenoid

[178]

Exhaust bracket

Gray

5-place Tyco Superseal 1.5
Sealed (BK)

Active exhaust

[179]

Under seat

Gray

3-place Molex MX 150 Sealed
(GY)

Resistor assembly

[200]

Bracket attached to the throttle body

Gray

2-place Tyco Superseal 1.5
Sealed

ACR (front)

[203F]

Bracket attached to the throttle body

Gray

2-place Tyco Superseal 1.5
Sealed

ACR (rear)

[203R]

Under seat

Light Blue

2-place Molex MX 64 Unsealed
(BK)

Security antenna

[209]

Electrical panel behind fender
extension

Breakout Box

48-place Molex CMC Sealed
(BK)

BCM

[242]

Front of frame above voltage regu-
lator

Gray

4-place Delphi GT 150 Sealed
(BK)

Front HCU

[254]

Below electrical panel behind fender
extension

Gray

4-place Delphi GT 150 Sealed
(BK)

Rear HCU

[255]

HOME

2013 Softail Service: Appendix B Wiring B-3

Table B-1. Softail Connector Locations

LOCATION

TERMINAL

PROBE
COLOR

TYPE

DESCRIPTION

NO.

Electrical panel behind fender
extension

1-place Delphi 800 Metripack
Sealed (BK)

BCM battery power

[259]

Electrical panel behind fender
extension

Gray

4-place Delphi GT 150 Sealed
(BK)

Anti-theft Tracking Module

[266]

Under seat

Ring terminals

Left side ground stud

[GND1]

Right side ground stud

[GND2]

(Regulator) Right side ground
stud

[GND2A]

HOME

B-4 2013 Softail Service: Appendix B Wiring

B.2

WIRING DIAGRAMS

WIRING DIAGRAM INFORMATION

Wire Color Codes

Wire traces on wiring diagrams are labeled with alpha codes.
Refer to

Table B-2

For Solid Color Wires:

See

Figure B-1

. The alpha code

identifies wire color.

For Striped Wires:

The code is written with a slash (/) between

the solid color code and the stripe code. For example, a trace
labeled GN/Y is a green wire with a yellow stripe.

Wiring Diagram Symbols

See

Figure B-1

. On wiring diagrams and in service/repair

instructions, connectors are identified by a number in brackets
[ ]. The letter inside the brackets identifies whether the housing
is a socket or pin housing.

A=Pin:

The letter A and the pin symbol after a connector

number identifies the pin side of the terminal connectors.

B=Socket:

The letter B and the socket symbol after a connector

number identifies the socket side of the terminal connectors.
Other symbols found on the wiring diagrams include the fol-
lowing:

Diode:

The diode allows current flow in one direction only in

a circuit.

Wire break:

The wire breaks are used to show option variances

or page breaks.

No Connection:

Two wires crossing over each other in a wiring

diagram that are shown with no splice indicating they are not
connected together.

Circuit to/from:

This symbol indicates a more complete circuit

diagram on another page. The symbol is also identifying the
direction of current flow.

Splice:

Splices are where two or more wires are connected

together along a wiring diagram. The indication of a splice only
indicates that wires are spliced to that circuit. It is not the true
location of the splice in the wiring harness.

Ground:

Grounds can be classified as either clean or dirty

grounds. Clean grounds are identified by a (BK/GN) wire and
are normally used for sensors or modules.

NOTE

Clean grounds usually do not have electric motors, coils or
anything that may cause electrical interference on the ground
circuit.

Dirty grounds are identified by a (BK) wire and are used for
components that are not as sensitive to electrical interference.

Twisted pair:

This symbol indicates the two wires are twisted

together in the harness. This minimizes the circuit's electromag-
netic interference from external sources. If repairs are neces-
sary to these wires they should remain as twisted wires.

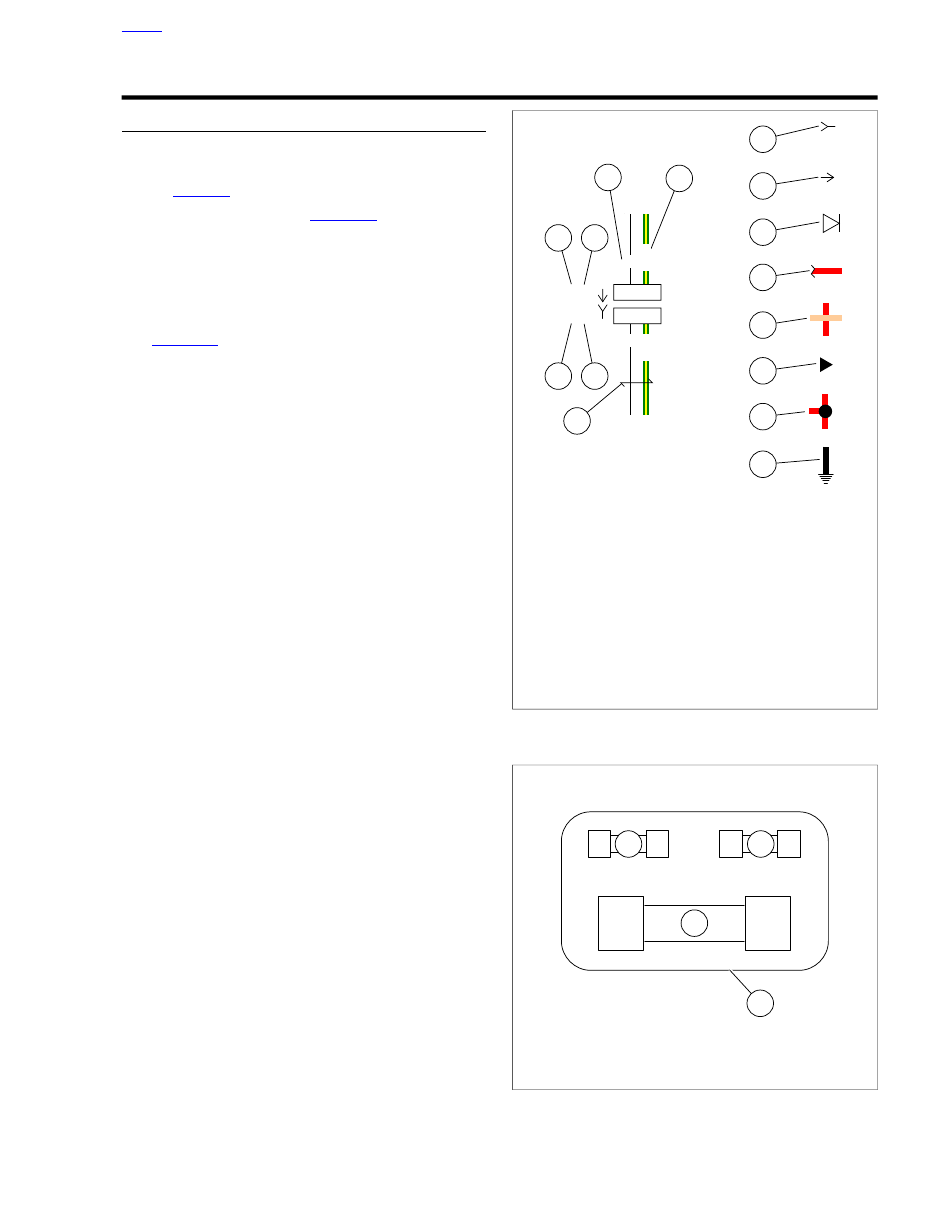

GN/Y

[21A]

[21B]

ed03175

1. Connector number
2. Terminal code (A=pin, B=socket)
3. Solid wire color
4. Striped wire color
5. Socket symbol
6. Pin symbol
7. Diode
8. Wire break
9. No connection
10. Circuit to/from
11. Splice
12. Ground
13. Twisted pair

Figure B-1. Connector/Wiring Diagram Symbols

ed03169

1. Battery
2. P&A
3. Main
4. Fuse block [64]

Figure B-2. Fuse Block and Socket Terminals

HOME

2013 Softail Service: Appendix B Wiring B-5

Harley Davidson Softail Delux FLSTN BIKE 2011-2015. Service Manual - page 43
