Harley Davidson Softail Delux FLSTN BIKE 2011-2015. Service Manual - page 42

sm06094a

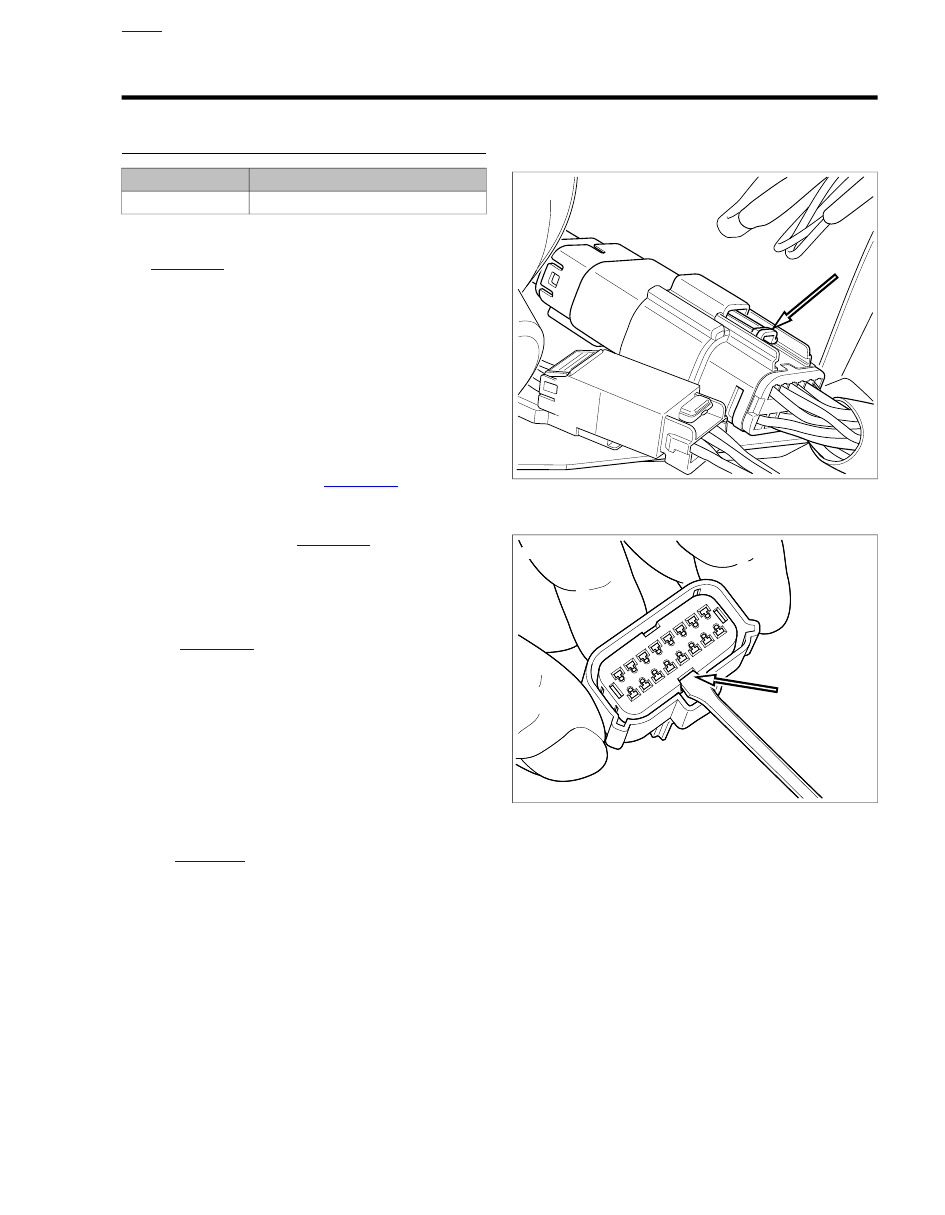

Figure A-27. Remove Ground Secondary Lock

sm06095a

Figure A-28. Remove ECM Ground Terminal

HOME

2013 Softail Service: Appendix A Connector Repair A-19

A.13

DEUTSCH DT SEALED CONNECTORS

DEUTSCH DT SEALED CONNECTOR
REPAIR

TOOL NAME

PART NUMBER

DEUTSCH TERMINAL REPAIR KIT

HD-41475

FLAT BLADE L-HOOK

HD-41475-100

General

Deutsch DT sealed connectors are colored coded for location
purposes. DT connectors associated with

left

side accessories,

such as the front and rear

left

turn signals, are

gray

. All other

DT connectors are

black

NOTES

•

A DEUTSCH TERMINAL REPAIR KIT (Part No. HD-
41475) contains a selection of seals and seal plugs,
locking wedges, attachment clips and terminals.

•

Also included is a FLAT BLADE L-HOOK (Part No. HD-
41475-100) used to remove locking wedges, compart-
mented storage box and carrying case.

Separating Pin and Socket Housings

See

Figure A-29

. To separate the connector halves, Press the

external latch(es) (1) on the socket housing (2) while rocking
the pin (3) and socket housings.

NOTES

•

Generally, the socket housing is found on the accessory
side, while the pin housing is attached to the wiring har-
ness.

•

Six-place and smaller Deutsch connectors have one latch
on the connector.

•

Eight- and twelve-place connectors have a latch on each
side. Simultaneously press both latches to separate the
connector.

Mating Pin and Socket Housings

Align the connectors to match the wire lead colors.

For One External Latch:

Six-place and smaller

Deutsch connectors have one external latch on the
socket housing. To join the housings, align the latch
on the socket side with the latch cover on the pin side.

For Two External Latches:

Align the tabs on the

socket housing with the grooves on the pin housing.

Insert socket housing into pin housing until it snaps or
clicks into place.

NOTE

For Two External Latches: If latches do not click (latch), press
on one side of the connector until that latch engages then press
on the opposite side to engage the other latch.

If necessary, fit the attachment clip to the pin housing.

Place large end of slot on attachment clip over T-stud on
frame. Push assembly forward to engage small end of
slot.

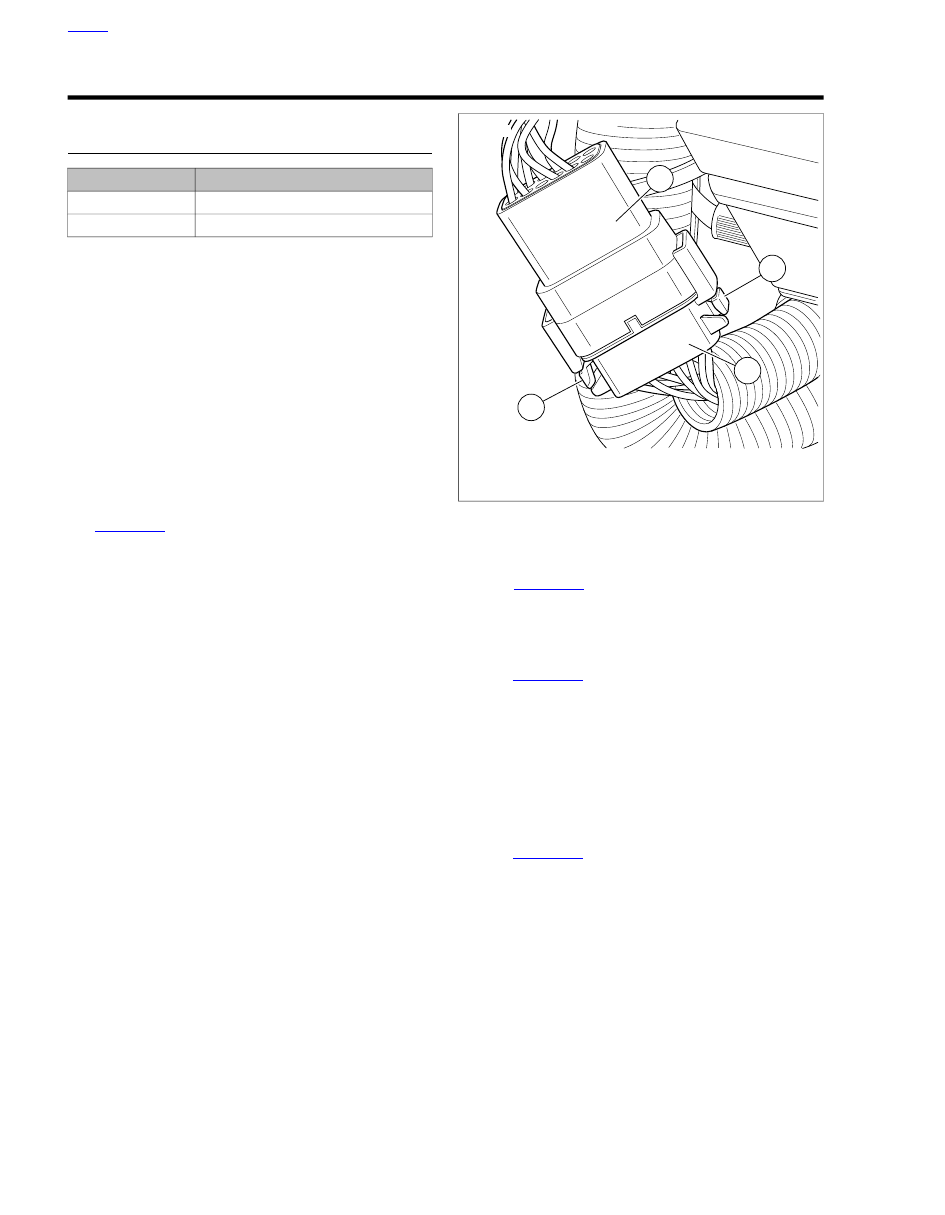

sm00017a

1. External latch
2. Socket housing
3. Pin housing

Figure A-29. Deutsch DT Sealed Connector

Removing Socket Terminals

See

Figure A-30

. Insert a small screwdriver between the

socket housing and locking wedge in-line with the groove
(in-line with the pin holes if the groove is absent). Turn the
screwdriver 90 degrees to pop the wedge up and remove
the secondary locking wedge.

See

Figure A-33

. Use a pick or small screwdriver to press

terminal latches inside socket housing and back out
sockets through holes in rear wire seal.

NOTE

If wire leads require new terminals, see the instructions for
crimping terminals.

Installing Socket Terminals

Match wire lead color to connector cavity.

See

Figure A-32

. Fit rear wire seal (1) into back of socket

housing (2), if removed.

Grasp wire lead (3) approximately 1.0 in (25.4 mm) behind
the socket terminal. Gently push socket through hole in
wire seal into its chambers until it clicks in place.

A tug on the wire will confirm that it is properly locked in
place.

NOTE

Install seal plugs (6) into unused chambers. If removed, seal
plugs must be replaced to seal the connector.

Install internal seal (4) on lip of socket housing, if removed.

Insert tapered end of secondary locking wedge (5) into
socket housing and press down until it snaps in place. The

HOME

A-20 2013 Softail Service: Appendix A Connector Repair

wedge fits into the center groove within the socket housing
and holds the terminal latches tightly closed.

NOTES

•

See

Figure A-31

. While rectangular wedges do not require

a special orientation, align arrow (1) on conical secondary
locking wedge towards external latch for three-place con-
nectors.

•

If the secondary locking wedge does not slide into position
easily, check the installation of all the terminals. Unseated
terminals prevent the locking wedge from proper installa-
tion.

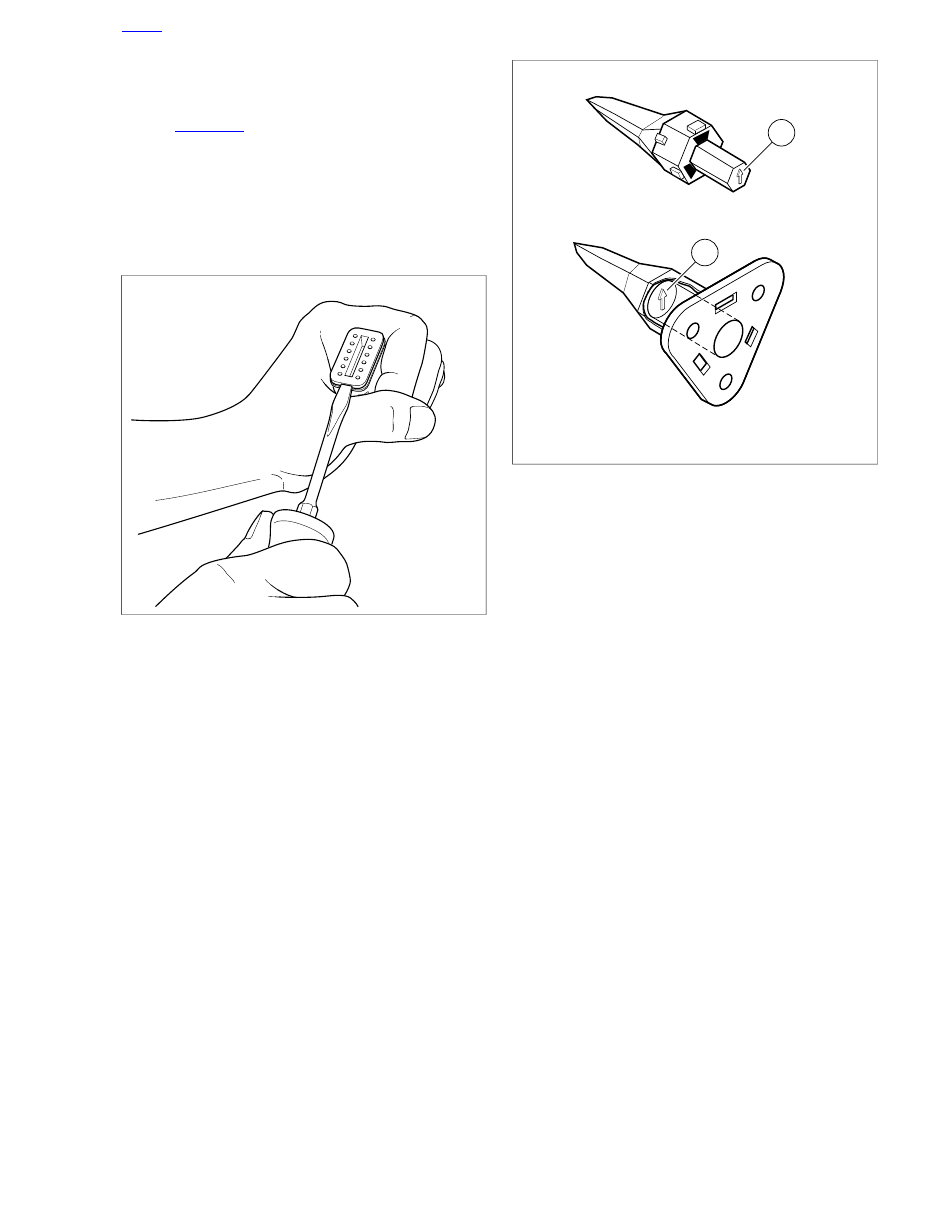

sm00009a

Figure A-30. Deutsch DT Sealed Connector: Remove

Secondary Locking Wedge

sm00018

1. Arrow on socket locking wedge
2. Arrow on pin locking wedge

Figure A-31. Deutsch DT Sealed Connector: 3-Place

Locking Wedges

HOME

2013 Softail Service: Appendix A Connector Repair A-21

DEUTSCH

sm00010

1. Wire seal
2. Socket housing
3. Wire lead
4. Internal seal
5. Secondary locking wedge
6. Seal plug

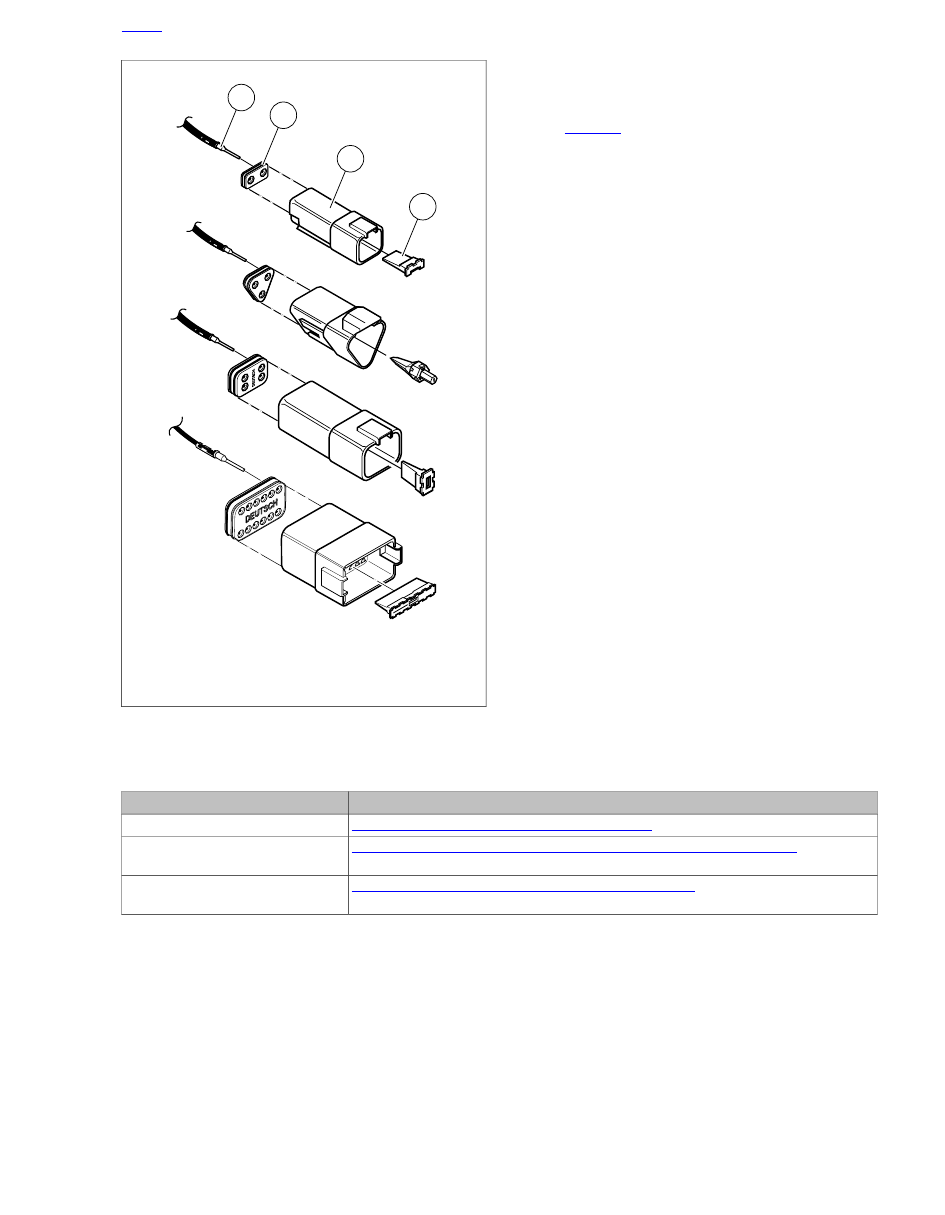

Figure A-32. Deutsch DT Sealed Connector: 2, 3, 4 and

12-Place Socket Housings

Removing Pin Terminals

Use the hooked end of a stiff piece of mechanics wire, a
needle nose pliers or the FLAT BLADE L-HOOK (Part
No. HD-41475-100) to remove the secondary locking
wedge.

Gently press terminal latches inside pin housing and back
out pins through holes in wire seal.

NOTES

•

If wire leads require new terminals, see the instructions
for crimping terminals.

•

The 8-place and 12-place gray and black connectors are
not interchangeable. If replacing both the socket and pin
housings, the black may be substituted for the gray.

•

The socket and pin housings of all other connectors are
interchangeable. Black may be mated with the gray since
the alignment tabs are absent and the orientation of the
external latch is the same.

sm00019

Figure A-33. Deutsch DT Sealed Connector: Press Terminal

Latch and Back Out Pin

Installing Pin Terminals

See

Figure A-34

. Fit wire seal (1) into back of pin housing

(2).

Grasp wire lead approximately 1.0 in (25.4 mm) behind
the pin terminal (3). Gently push pin through holes in wire
seal into its respective numbered chamber until it "clicks"
in place.

NOTE

A tug on the wire lead will confirm that a pin is locked in place.

Insert tapered end of secondary locking wedge (4) into
pin housing. Press down until it snaps in place.

NOTES

•

The wedge fits in the center groove of the pin housing and
holds the terminal latches tightly closed.

•

See

Figure A-31

. While rectangular wedges do not require

a special orientation, align arrow (1) on conical secondary
locking wedge towards external latch for three-place con-
nectors.

•

If the secondary locking wedge does not slide into position
easily, check the installation of all the terminals. Unseated
terminals prevent the locking wedge from proper installa-
tion.

HOME

A-22 2013 Softail Service: Appendix A Connector Repair

DEUTSCH

sm00020

1. Wire seal
2. Pin housing
3. Pin terminal
4. Locking wedge

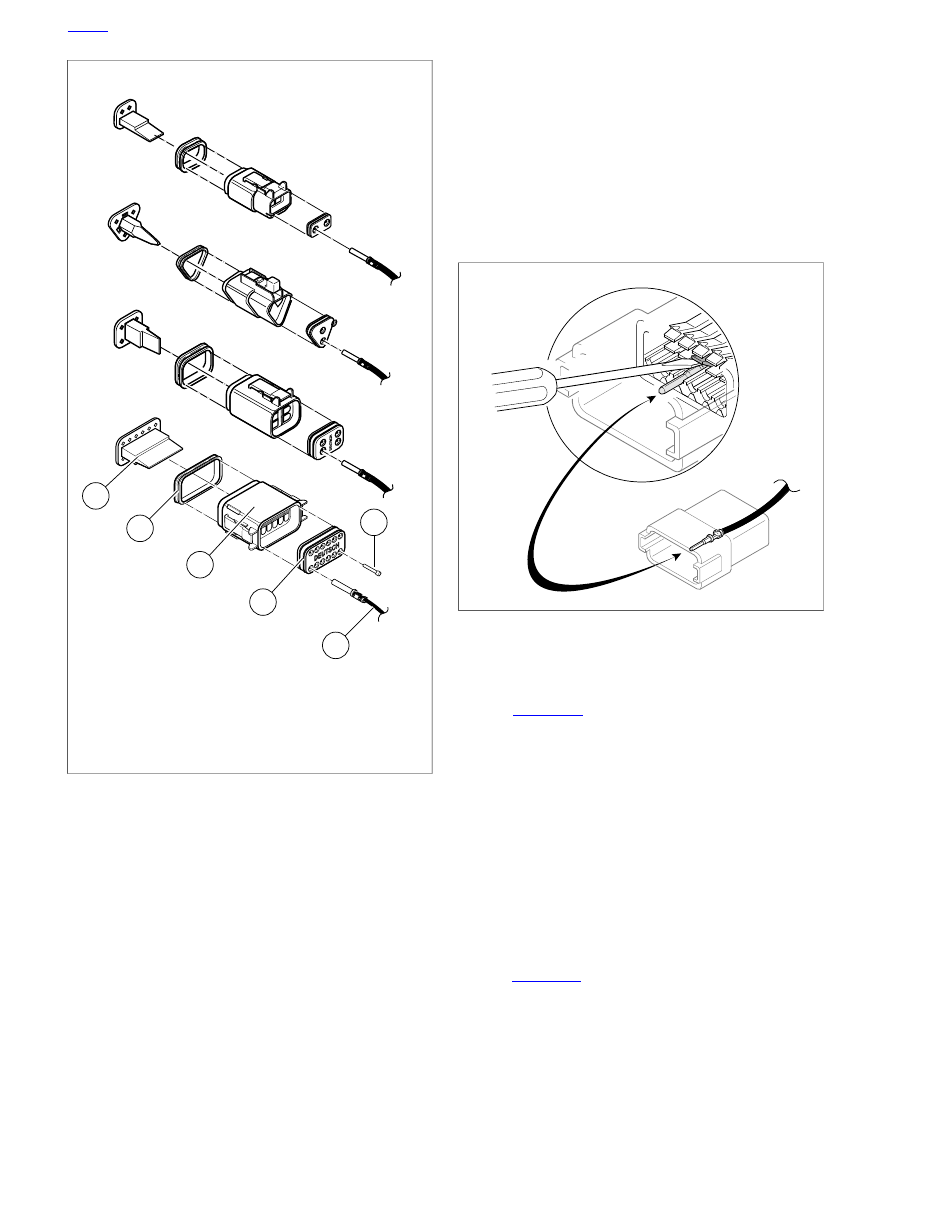

Figure A-34. Deutsch DT Sealed Connector: 2, 3, 4 and

12-Place Pin Housings

Crimping Terminals

Identify which of the types of Deutsch terminals are used with
the connector. Follow the corresponding crimping instructions.
Refer to

Table A-2

Table A-2. Deutsch Connector: Terminal Crimping Instructions

CRIMPING INSTRUCTIONS

TYPE

A.14 DEUTSCH DT SEALED TERMINAL REPAIR

DT Sealed (with crimp tails)

A.16 DEUTSCH DTM SEALED SOLID BARREL MINI TERMINAL REPAIR

DTM Mini Sealed Terminal (solid
barrel)

A.15 DEUTSCH DTM SEALED MINI TERMINAL REPAIR

DTM Mini Sealed Terminal (with crimp
tails)

HOME

2013 Softail Service: Appendix A Connector Repair A-23

A.14

DEUTSCH DT SEALED TERMINAL REPAIR

DEUTSCH DT SEALED TERMINAL CRIMPS

TOOL NAME

PART NUMBER

DEUTSCH TERMINAL CRIMP TOOL

HD-39965-A

Preparing Wire Leads for Crimping

Use a shop gauge to determine gauge of wire lead.

Strip 5/32 in (4.0 mm) of insulation from the wire lead.

Crimping Terminal to Lead

See

Figure A-35

. Squeeze the handles of the DEUTSCH

TERMINAL CRIMP TOOL (Part No. HD-39965-A) to open
the jaws. Push the locking bar (1) up.

Match the wire gauge to the crimp tool die. Refer to

Table A-3

NOTE

Rest the rounded side of the contact barrel in the nest (concave
split level area) with the crimp tails facing up.

Insert (2) terminal (socket/pin) through hole of the locking
bar.

Release locking bar to lock terminal in die.

NOTE

If the crimp tails are slightly out of alignment, the crimp tool
rotates the terminal to face the tails upward. When positioned,
the locking bar fits snugly in the space between the contact
band and the core crimp tails.

Insert stripped wire core between crimp tails until ends
make contact with locking bar. Position wire that the wide
pair of crimp tails squeeze bare wire strands, while the
narrow pair folds over the insulation material.

Squeeze handle of crimp tool until tightly closed. Tool
automatically opens after the terminal is crimped.

Raise locking bar up to remove wire lead and terminal.

Inspecting Crimps

Inspect the wire core and insulation crimps. Distortion should
be minimal.

Table A-3. Deutsch DT Sealed Terminal Crimp: Wire Gauge

To Die

CRIMP TOOL DIE

WIRE GAUGE (AWG)

Front

Middle

16-18

sm00021

Insert stripped lead

Open jaws and raise locking bar

Insert terminal in locking bar

Squeeze crimper

Raise locking bar to remove terminal

Release locking bar to lock terminal in die

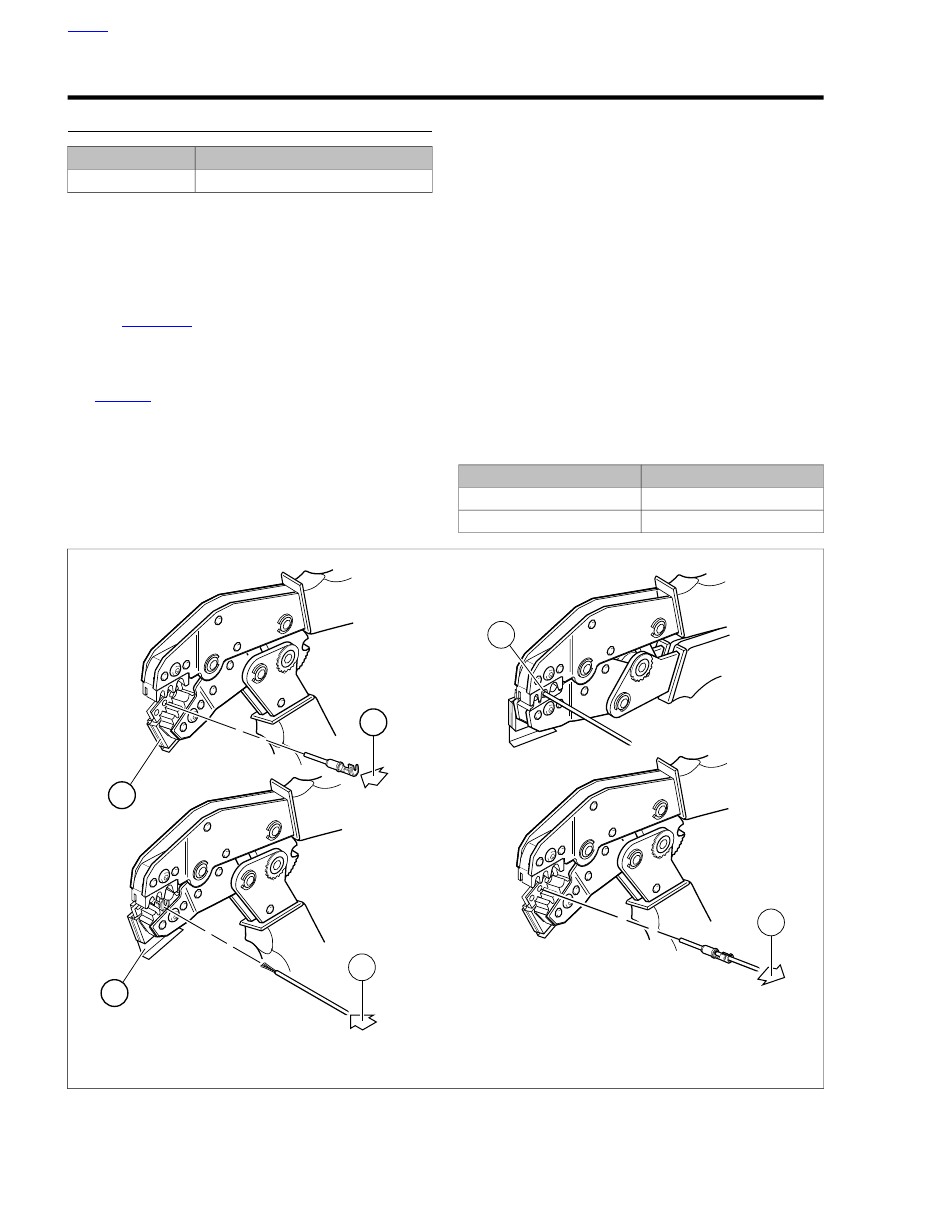

Figure A-35. Crimping a Deutsch DT Sealed Terminal

HOME

A-24 2013 Softail Service: Appendix A Connector Repair

A.15

DEUTSCH DTM SEALED MINI TERMINAL
REPAIR

DEUTSCH DTM SEALED MINI TERMINAL
CRIMPS

TOOL NAME

PART NUMBER

PACKARD TERMINAL CRIMPER

HD-38125-7

Preparing Wire Leads for Crimping

Strip 5/32 in (4.0 mm) of insulation from the wire lead.

Crimping a Mini Terminal to Wire Lead

See

Figure A-36

. Compress the handles of PACKARD

TERMINAL CRIMPER (Part No. HD-38125-7) until the
ratchet (2) automatically opens.

NOTE

Always perform core crimp before insulation crimp.

Position the core crimp on die E (1) of the crimper. Verify
the core crimp tails are facing the forming jaws.

Gently apply pressure to handles of tool until crimpers just
secure the core crimp tails.

Insert stripped wire core stands between crimp tails. Pos-
ition wire that the short pair of crimp tails squeeze bare
wire strands, while long pair squeeze over the insulation.

Squeeze handle of crimper until tightly closed. Tool auto-
matically opens when the crimping sequence is complete.

NOTE

If the crimper does not open, squeeze the ratchet trigger (2).

Position the insulation crimp on nest C of the crimper.
Verify the insulation crimp tails are facing the forming jaws.

Squeeze handle of crimp tool until tightly closed. Tool
automatically opens when the crimping sequence is com-
plete.

Inspecting Crimps

Inspect the core and insulation crimps. Distortion should be
minimal.

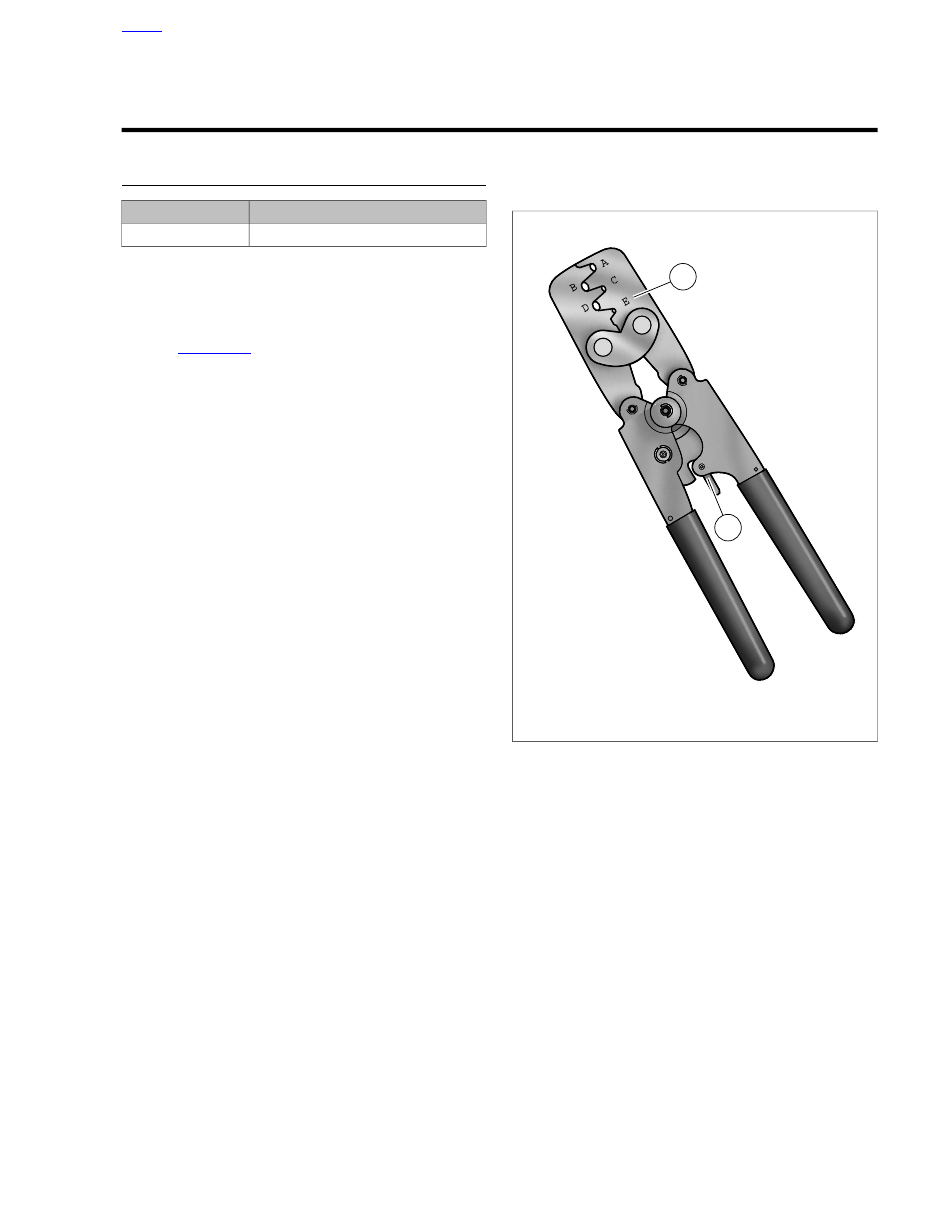

sm00022

1. E die
2. Crimper ratchet trigger

Figure A-36. Packard Terminal Crimper (HD-38125-7)

HOME

2013 Softail Service: Appendix A Connector Repair A-25

A.16

DEUTSCH DTM SEALED SOLID BARREL MINI
TERMINAL REPAIR

DEUTSCH DTM SEALED SOLID BARREL
TERMINAL CRIMPS

TOOL NAME

PART NUMBER

ELECTRICAL CRIMPER TOOL

HD-42879

Preparing Wire Leads For Crimping

For size 20, 16 and 12 contacts, wire ranges 26-12 AWG.

Strip 1/4 in (6.4 mm) of insulation from the wire lead.

Adjusting Crimper Tool

See

Figure A-37

. Squeeze the ELECTRICAL CRIMPER

TOOL (Part No. HD-42879) handles to cycle the crimp
tool to open.

Remove locking pin (1) from selector knob (2).

Raise selector knob. Roate knob until selected wire size
stamped on wheel is aligned with "SEL. NO." arrow (3).

Loosen knurled locknut (4) and turn adjusting screw (5)
clockwise (in) until it stops.

Crimping a Barrel Contact To Wire Lead

See

Figure A-38

. Turn tool over and drop contact barrel

(1) into indentor cover (2) hole with the wire end out.

Turn adjusting screw counterclockwise (out) until contact
is flush with bottom of recess in indentor cover. Tighten
knurled locknut.

Slowly squeeze handles of crimp tool until contact centers
between the four indentor points (3).

Insert bare wire core strands of stripped wire lead (4) into
contact barrel. Squeeze handle of crimp tool until tightly
closed. Tool automatically opens when the crimping
sequence is complete.

Remove wire lead with crimped contact from indentor.

NOTE

Adjust the crimper tool for each contact/wire size.

Install pin to lock selector knob.

Inspecting Crimps

Inspect the crimp. All core wire strands are to be crimped in
the barrel.

This

HAND

tool

ust

not

used

ered

"PRESS''

defined

OSHA

CFR

1910.211

(46)

sm00023

1. Locking pin
2. Selector knob
3. SEL. NO. arrow
4. Knurled locknut
5. Adjusting screw

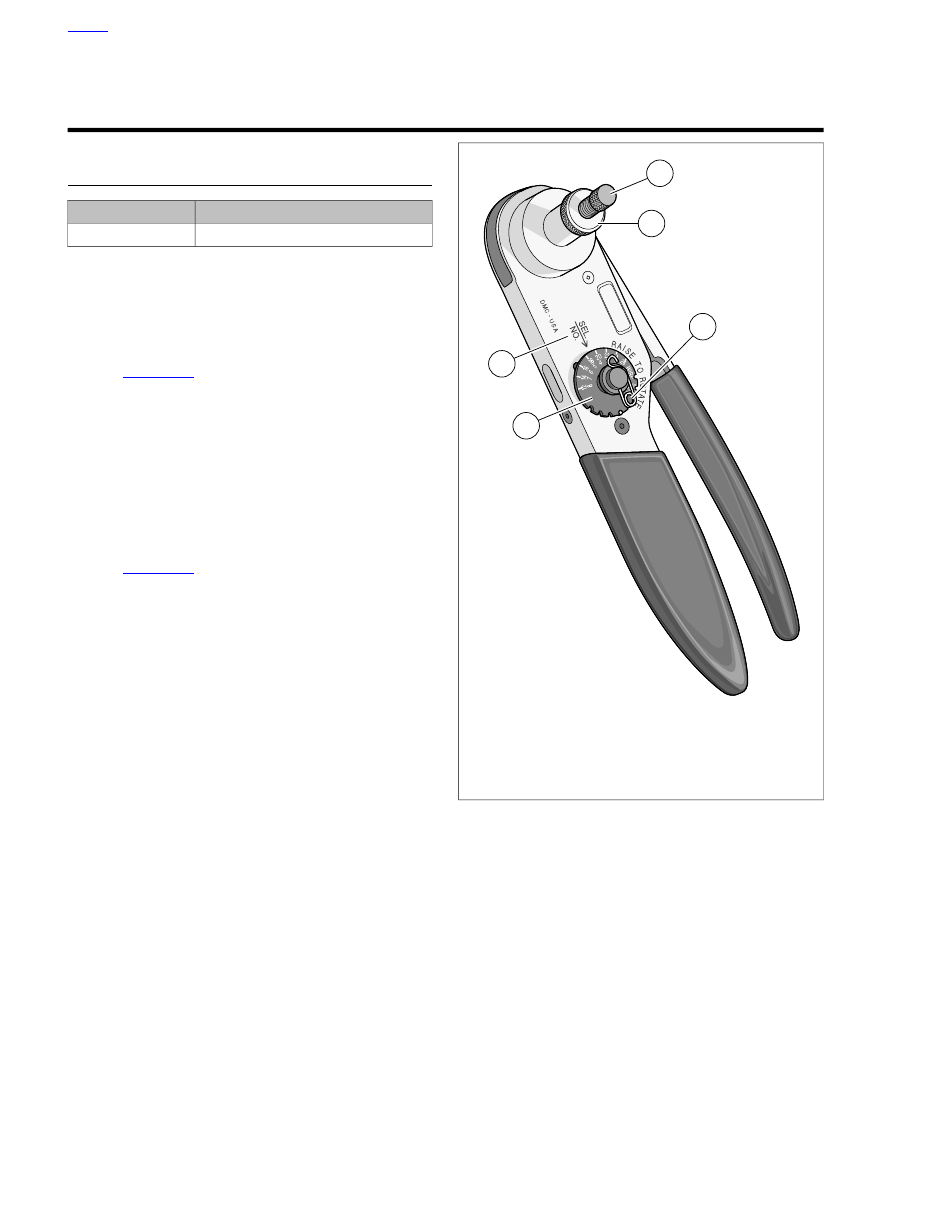

Figure A-37. Electrical Crimper Tool (HD-42879)

HOME

A-26 2013 Softail Service: Appendix A Connector Repair

HDT

- 48

- 00

JDG360-1

HEMET

RYAN

AIRPOR

T, P

. BO

X 878

HEMET

, CA.

92343-0161

(714)

929-1200

INDUSTRIAL

PRODUCTS

DIVISION

HDT

- 48

- 00

JDG360-1

HEMET

RYAN

AIRPOR

T, P

. BO

X 878

HEMET

, CA.

92343-0161

(714)

929-1200

INDUSTRIAL

PRODUCTS

DIVISION

sm00024

1. Contact barrel
2. Indentor cover
3. Indentor point
4. Stripped wire lead

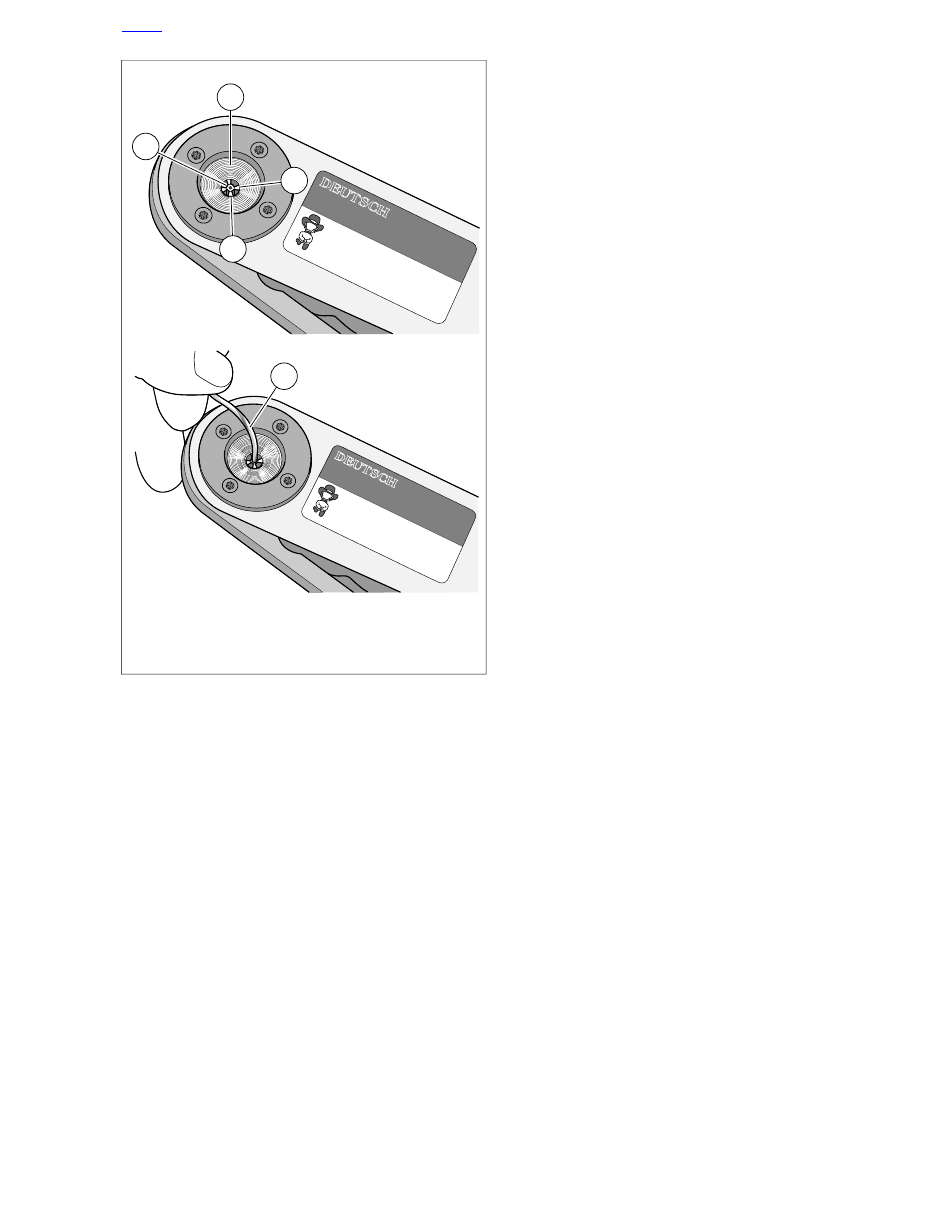

Figure A-38. Deutsch Solid Barrel

HOME

2013 Softail Service: Appendix A Connector Repair A-27

A.17

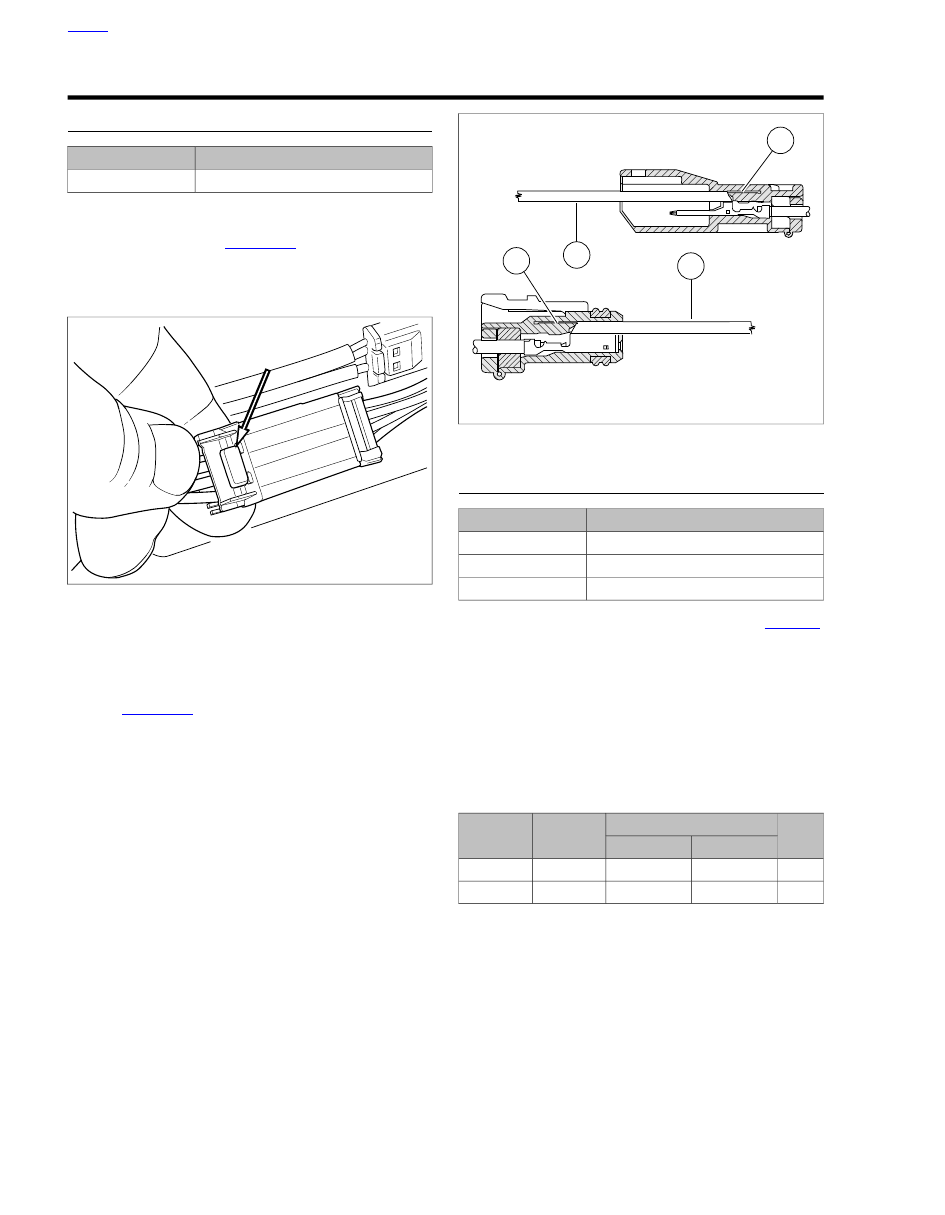

JAE MX19 SEALED CONNECTORS

TOOL NAME

PART NUMBER

TERMINAL EXTRACTOR

B-50085

Connector Housings

Separate Housings:

See

Figure A-39

. Press the two release

buttons on each side of the housing to separate the connector.

Connect Housings:

Align housings. Press together until the

locking tabs click.

sm06925

Figure A-39. Release Buttons: JAE MX19 Sealed Connector

Removing Terminals

Modify a TERMINAL EXTRACTOR (Part No. B-50085) by
filing the front edge to 45 degrees.

See

Figure A-40

. Insert the extractor (1) into the opening

above the terminal and press the plastic molding (2) up
and out of the way.

Pull the wire lead and terminal out of the back of the
housing.

Installing Terminals

Inspect the plastic molding and replace the connector
housing if necessary.

Orient the terminal to the housing. Push terminal into
housing until it clicks into place.

sm06926

1. Extractor
2. Plastic molding

Figure A-40. JAE MX19 Terminal Removal

CRIMPING TERMINALS

TOOL NAME

PART NUMBER

UNIVERSAL CRIMPER SET

HD-50120

HAND CRIMP FRAME

HD-50120-2

JAE DIE

HD-50120-6

Strip the wire insulation to specification. Refer to

Table A-4

Install the JAE DIE (Part No. HD-50120-6) in the handle
of the HAND CRIMP FRAME (Part No. HD-50120-2) of
the UNIVERSAL CRIMPER SET (Part No. HD-50120).

Place the

new

terminal in the specified nest.

Insert the wire to the wire stop. Crimp the terminal.

Inspect the crimped terminal.

Table A-4. JAE MX19 Crimper Die (Part No. HD-50120-6)

NEST

STRIP LENGTH

PART NO.

TERMINAL

2.0-2.5

0.051-0.098

72910-11

Socket

2.0-2.5

0.051-0.098

72909-11

HOME

A-28 2013 Softail Service: Appendix A Connector Repair

A.18

MOLEX CMC SEALED CONNECTORS

TOOL NAME

PART NUMBER

0.6 MM TERMINAL EXTRACTOR
TOOL

HD-50423

1.5 MM TERMINAL EXTRACTOR
TOOL

HD-50424

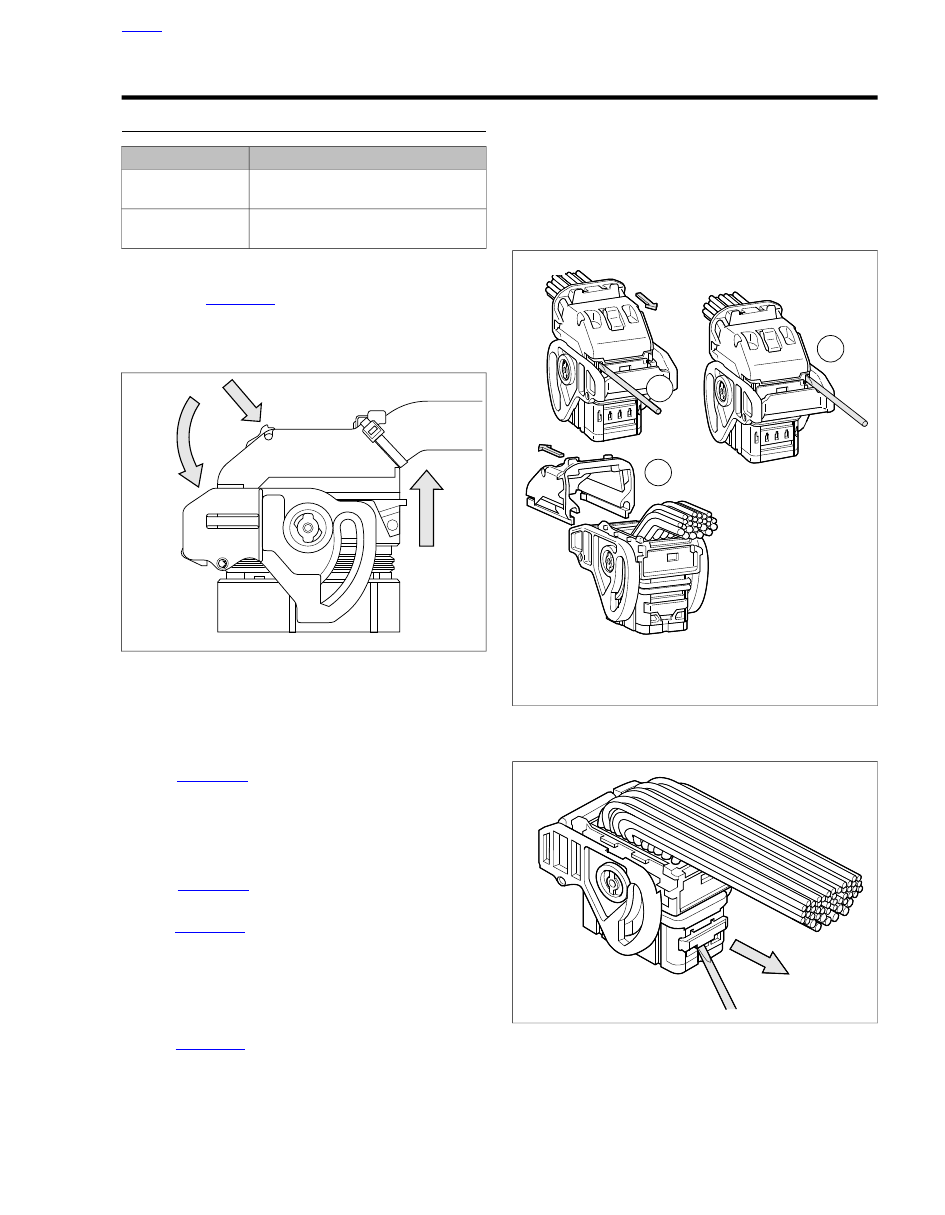

Separating the Connector

Release:

See

Figure A-41

. Press the catch and rotate the lever

arm down.

Connect:

Press on the front guard to release the latch and

rotate the lever arm up until the catch clicks in place.

sm06931

Figure A-41. Release

Removing Terminals

With the lever arm open, cut the cable strap around the
wire bundle.

See

Figure A-42

. Open a wire cap latch (1) with a small

screwdriver.

Maintain pressure on the cap and open the opposite latch
(2) with the screwdriver.

Slide the cap off (3).

See

Figure A-43

. Use the screwdriver to open the sec-

ondary lock. Pull the locking bar all the way out.

See

Figure A-44

. Locate the wire lead cavity by the alpha-

numeric coordinates.

Identify the size of the terminal and select either the CMC
extractor 0.6 MM TERMINAL EXTRACTOR TOOL (Part
No. HD-50423) or the 1.5 MM TERMINAL EXTRACTOR
TOOL (Part No. HD-50424).

See

Figure A-45

. Insert the pins of the CMC extractor tool

(1) into the access slots (2) of the terminal cavity and
retract the lead and terminal.

Installing Terminals

Orient the terminal to the housing cavity. Snap the terminal
in place.

Slide the cap over the lead bundle. Snap the cap in place.

Install a cable strap through the guide and around the lead
bundle.

sm06936

1. Press latch
2. Press cap and latch
3. Remove cap

Figure A-42. Remove the Wire Lead Cap

sm06928

Figure A-43. Molex CMC Sealed Connector Secondary

Lock

HOME

2013 Softail Service: Appendix A Connector Repair A-29

sm06927

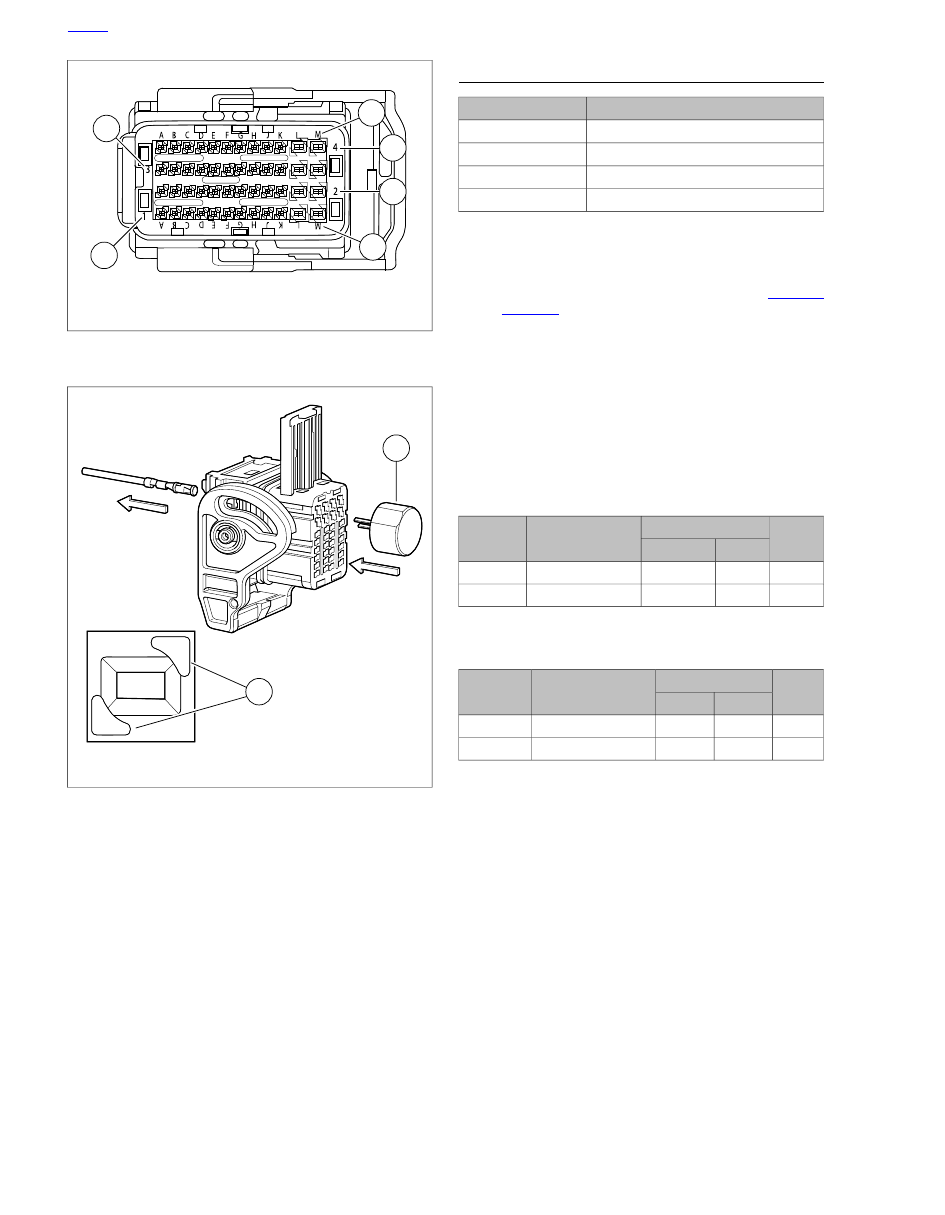

1. Alpha
2. Numeric

Figure A-44. Alpha-Numeric Coordinates

sm06935

1. Extractor tool
2. Access slots

Figure A-45. Terminal Removal

CRIMPING TERMINALS

TOOL NAME

PART NUMBER

UNIVERSAL CRIMPER SET

HD-50120

HAND CRIMP FRAME

HD-50120-2

JAE DIE

HD-50120-3

JAE DIE

HD-50120-4

Select the crimper die according to the terminal part
number from the UNIVERSAL CRIMPER SET (Part
No. HD-50120).

Strip the wire insulation to specification. Refer to

Table A-5

Table A-6

Install the JAE DIE (Part No. HD-50120-3) or JAE DIE
(Part No. HD-50120-4) in the handle of the HAND CRIMP
FRAME (Part No. HD-50120-2).

Place the

new

terminal in the specified nest.

Insert the wire to the wire stop. Crimp the terminal.

Inspect the crimped terminal.

Table A-5. Molex CMC Sealed Crimper Die (Part No.

HD-50120-3)

NEST

STRIP LENGTH

TERMINAL:
WIRE GAUGE

PART

NO.

4.5

0.177

Socket: 16 AWG

72226-11

4.5

0.177

Socket: 18 AWG

72227-11

Table A-6. Molex CMC Sealed Crimper Die (Part No.

HD-50120-4)

NEST

STRIP LENGTH

TERMINAL:
WIRE GAUGE

PART NO.

3.5

0.138

Socket: 18 AWG

72222-11

3.5

0.138

Socket: 20 AWG

72222-11

HOME

A-30 2013 Softail Service: Appendix A Connector Repair

A.19

MOLEX MX 150 SEALED CONNECTORS

MOLEX MX 150 SEALED CONNECTOR
REPAIR

TOOL NAME

PART NUMBER

TERMINAL REMOVER

HD-48114

Separating Pin and Socket Housings

See

Figure A-46

. Press the latch while pulling the pin and

socket housings apart.

Mating Pin and Socket Housings

Orient the latch on the pin housing to the latch pocket on
the socket housing so the rails on the outside of the pin
housings lines up with the tunnels on the socket housing.

Press the housings together until the latch clicks.

Removing Terminals

Pull the secondary lock up, approximately 3/16 in (4.8
mm), until it stops.

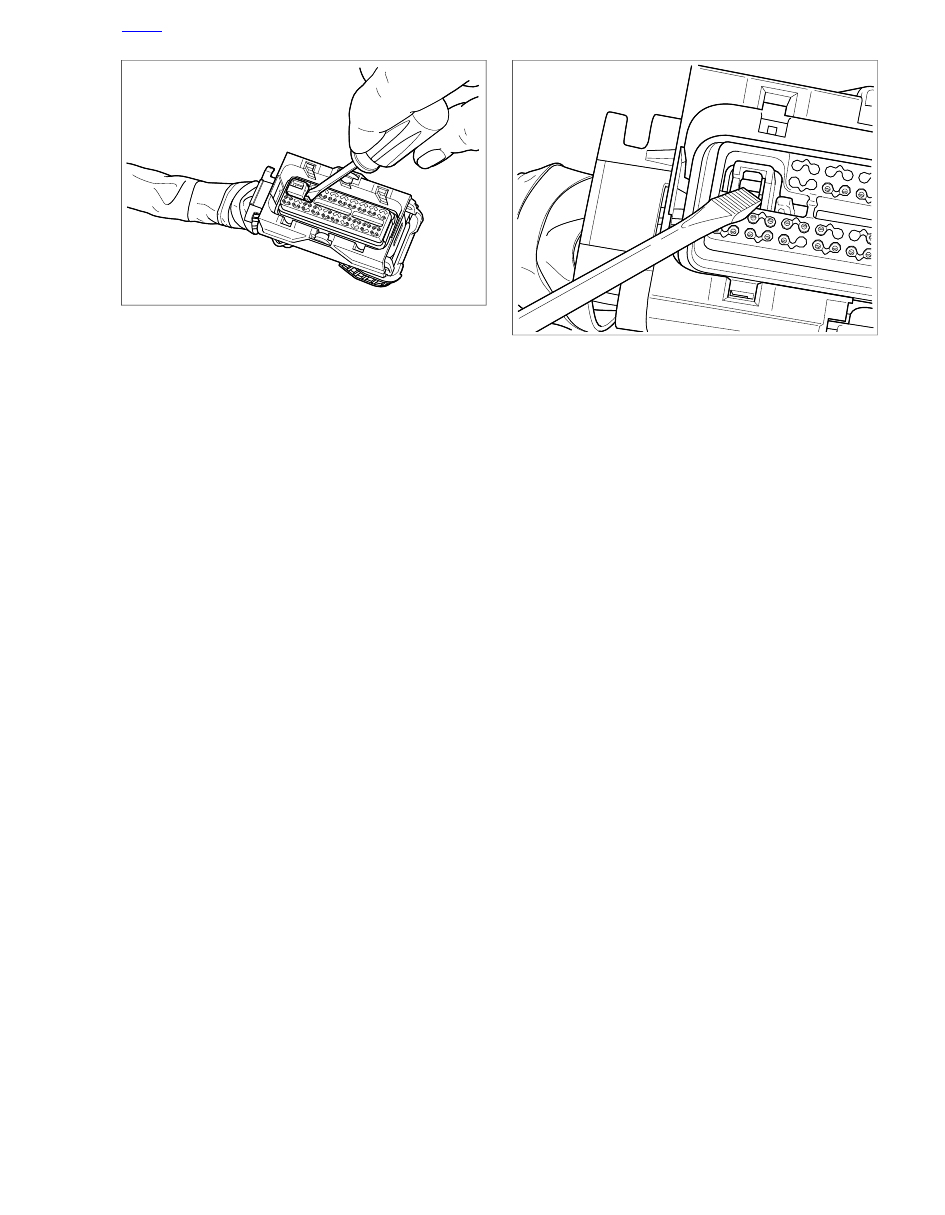

Socket Housing:

See

Figure A-47

. Use a small

screwdriver in the pry slot. The slot next to the
external latch provides a pivot point.

Pin Housing:

See

Figure A-48

. Use needle nose

pliers to engage the D-holes in the center of the sec-
ondary lock.

NOTE

Do not remove the secondary lock from the connector housing.

See

Figure A-49

. Insert TERMINAL REMOVER (Part

No. HD-48114) into the pin hole next to the terminal until
the tool bottoms.

Socket Housing:

The pin holes are inside the ter-

minal openings.

Pin Housing:

The pin holes are outside the pins.

Pressing the terminal remover to the bottom of the pin
hole, gently pull on the wire to remove wire terminal from
its cavity.

Installing Terminals

See

Figure A-50

. From the wiring diagram, match the wire

color to its numbered terminal cavity.

NOTE

Cavity numbers (1) are stamped on the housing at the ends
of the cavity rows. Determine the cavity number by counting
the cavities up or down along the row from each stamped
number.

Orient the terminal that the tang (2) opposite the open
crimp engages the slot (3) in the cavity.

Push the terminal into the cavity.

Gently tug on wire to verify that the terminal is captured
by the secondary lock.

With all terminals installed, push the secondary lock into
the socket housing to lock the wire terminals into the
housing.

sm00040a

Figure A-46. Molex MX 150 Sealed Connector: Latch

sm03332a

Figure A-47. Secondary Lock Pry Slot (Socket Housing)

HOME

2013 Softail Service: Appendix A Connector Repair A-31

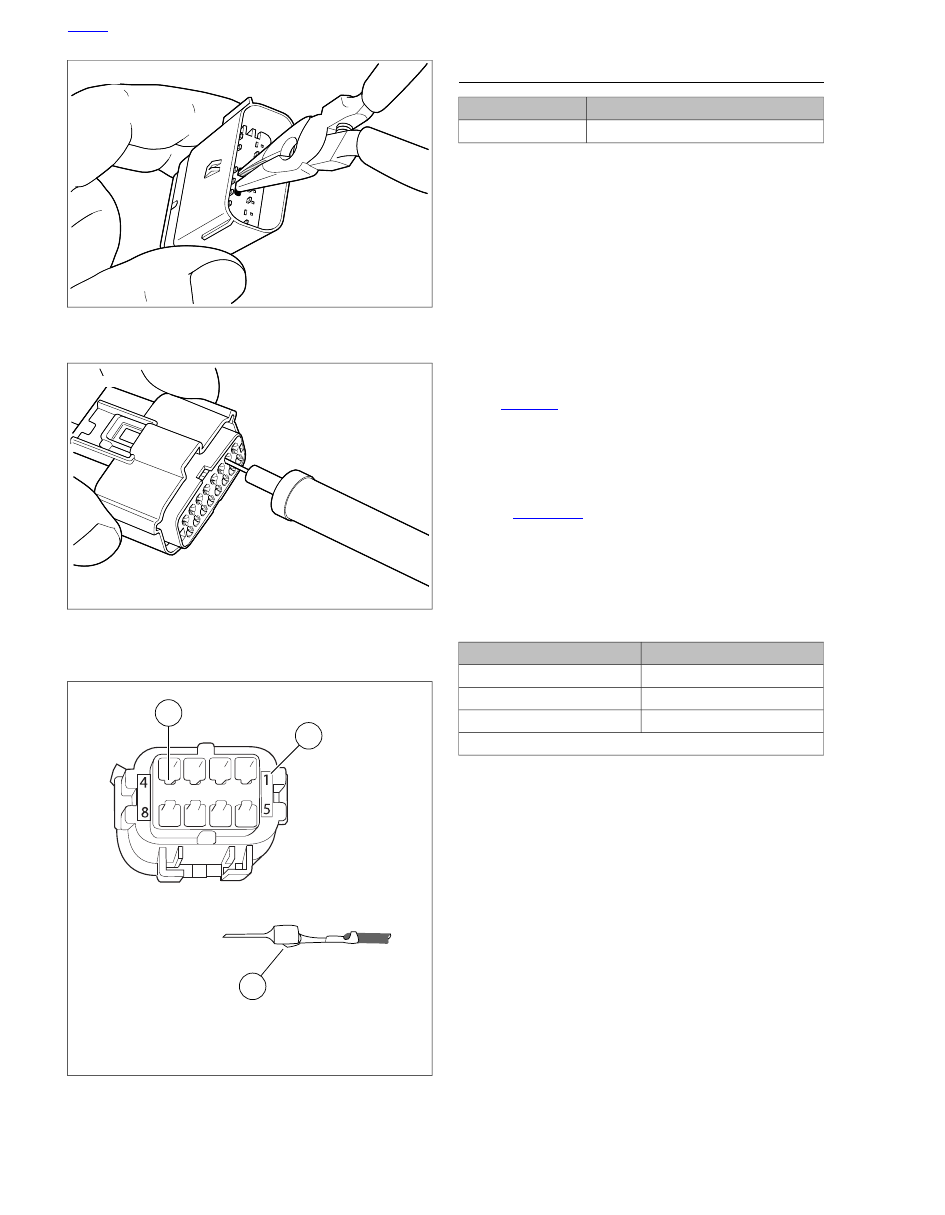

sm02851a

Figure A-48. Pull Up Secondary Lock

sm00043a

Figure A-49. Molex MX 150 Sealed Connector: Terminal

Remover (HD-48114)

sm00044

1. Cavity number
2. Tang
3. Cavity slot

Figure A-50. Molex MX 150 Sealed Connector: Pin Cavities

and Wire Terminal

CRIMP TERMINAL TO LEAD

TOOL NAME

PART NUMBER

TERMINAL CRIMPER

HD-48119

Prepare Lead

Cut the damaged terminal close to the back of the terminal
to leave as much wire length as possible.

Strip wire lead removing 3/16 in (4.70-5.60 mm) of insula-
tion.

NOTE

The strip length is the same for both pin and socket terminals
and for wire gauges from 22 to 14.

Prepare Tool

Identify the punch/die in the jaws of the TERMINAL
CRIMPER (Part No. HD-48119) for the wire gauge. Refer
to

Table A-7

Squeeze and release the handles to open the tool.

NOTE

The crimp tool automatically opens when the handles are
released.

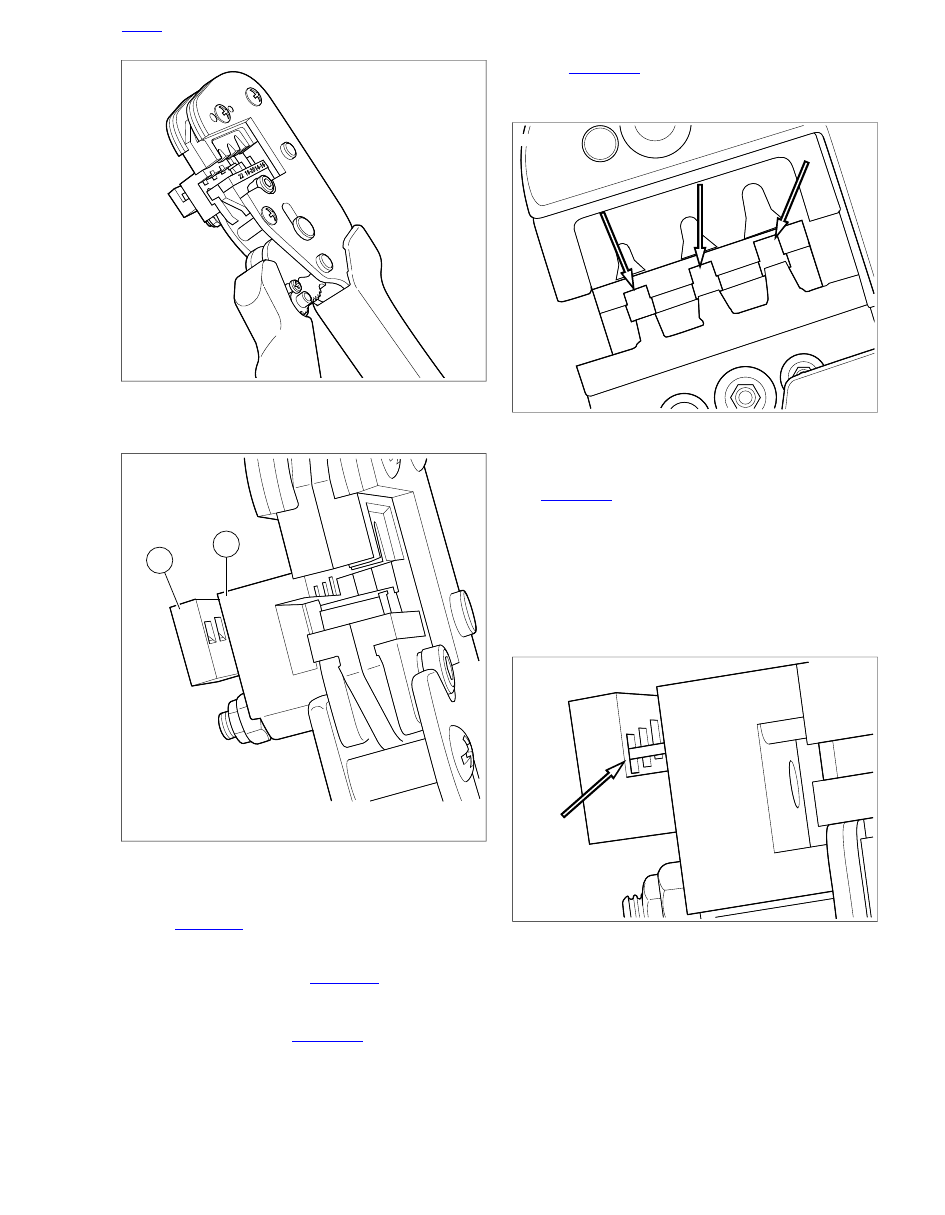

See

Figure A-51

. Hold fully open tool at approximately 45

degrees.

NOTE

Do NOT tighten the locknut holding the locator bars. The bars
must float to accommodate the different terminal gauges.

Table A-7. Crimp Tool Wire Gauge Punch/Die

PUNCH/DIE

AWG (WIRE GAUGE)

Left

Middle

18-20

Right

14-16*

* Crimp 16 AWG

pin

terminals in the 18-20 middle die.

HOME

A-32 2013 Softail Service: Appendix A Connector Repair

sm02853a

Figure A-51. Open Terminal Crimper (HD-48119) at 45

Degrees

sm02854a

1. Socket locator bar
2. Pin locator bar

Figure A-52. Terminal Locator Bars

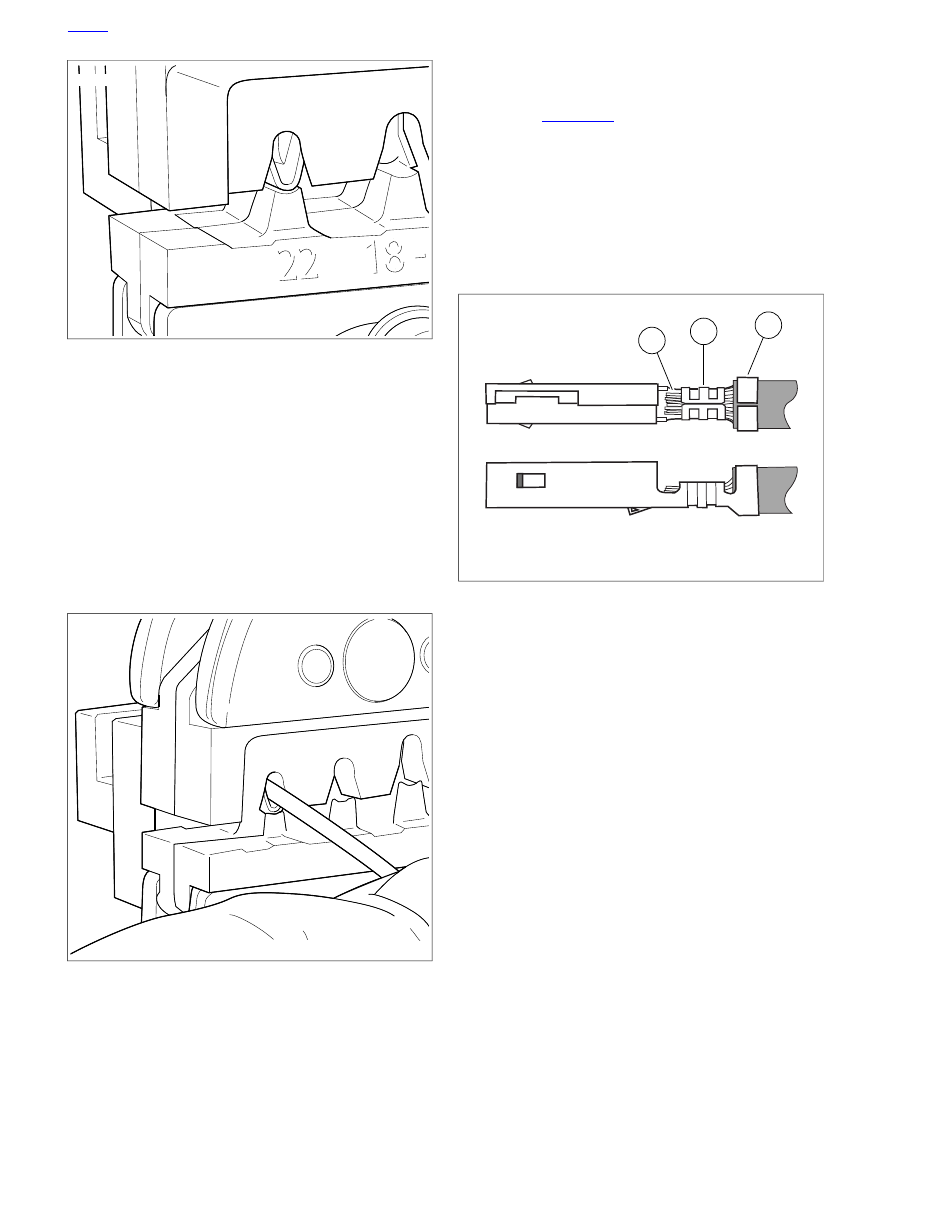

Position Terminal in the Punch/Die

See

Figure A-53

. With the crimp tails up, place the terminal

through the punch/die into the square opening in the
socket locator bar.

Socket Terminal:

See

Figure A-52

. A socket terminal

stops against the back face of the socket locator bar
(1).

Pin Terminal:

See

Figure A-54

. The tip of a pin ter-

minal passes through the socket locator bar and stops
in the notch in the face of the pin locator bar.

See

Figure A-55

. Ratchet the handles together until the

crimp tails are held in vertical alignment between the punch
and the die.

sm02855a

Figure A-53. Square Openings in Socket Locator Bar

Insert Stripped Lead

See

Figure A-56

. Insert the stripped end (wire core) between

the crimp tails at an up angle until the wire core touches the
face of the socket locator bar above the square opening.

NOTES

•

The insulation must extend through the insulation crimp
tails.

•

Insert the wire with little or no pressure. Pressing on the
lead will bend the wire core.

sm02856a

Figure A-54. Pin Terminal against Pin Locator Bar

HOME

2013 Softail Service: Appendix A Connector Repair A-33

sm02857a

Figure A-55. Crimp Tails in Vertical Alignment between

Punch and Die

Crimp Terminal to Lead

Holding the wire lead in position touching the locator face
at an angle, quickly and smoothly squeeze the crimp tool
closed.

Final squeeze the handles to open the tool and release
the terminal.

NOTE

Open a stuck or jammed tool by pressing the ratchet release
lever found between the handles. Do not force the handles
open or closed.

sm02858a

Figure A-56. Stripped Lead at Up Angle

Inspect Crimp

Inspect Crimp:

Inspect the core and insulation crimp.

See

Figure A-57

. The core tails should be creased

into the wire strands at the core crimp (1).

Strands (2) of wire should be visible beyond the core
crimp but not forward into the terminal shell.

The insulation tails should be folded into the insulation
(3) without piercing or cutting the insulation.

Distortion should be minimal.

Test Crimp:

Hold the terminal. Pull the lead.

sm02859

1. Core crimp
2. Wire strands
3. Insulation crimp

Figure A-57. Terminal Crimp

HOME

A-34 2013 Softail Service: Appendix A Connector Repair

Content .. 40 41 42 43 ..
