INTAKE LEAK TEST

GENERAL

Do not allow open flame or sparks near propane. Propane
is extremely flammable, which could cause death or ser-
ious injury. (00521b)

Read and follow warnings and directions on propane
bottle. Failure to follow warnings and directions can result
in death or serious injury. (00471b)

NOTES

•

To prevent false readings, keep air cleaner cover installed
when performing test.

•

Do not direct propane into air cleaner. It will cause false
readings.

•

Be careful when testing vehicle with Screamin' Eagle air
cleaner assembly. This type of air cleaner has an open
backplate. Even with air cleaner cover on, directing nozzle
too close to backplate can give false readings.

LEAK TESTER

TOOL NAME

PART NUMBER

PROPANE ENRICHMENT KIT

HD-41417

Parts List

•

Standard 14 oz. propane cylinder.

•

PROPANE ENRICHMENT KIT (Part No. HD-41417).

Tester Assembly

See

Figure 4-51

. Make sure valve knob (6) is closed (fully

clockwise).

Screw valve assembly (5) onto propane bottle (1).

Tester Adjustment

See

Figure 4-51

. Press and hold trigger button (8).

Slowly open valve knob (6) until pellet in flow gauge (7)
rises 5-10 SCFH on gauge.

Release trigger button.

sm02629

1. Propane bottle
2. Nozzle
3. Copper tube
4. Hose
5. Valve assembly
6. Valve knob
7. Flow gauge
8. Trigger button
9. Hanger

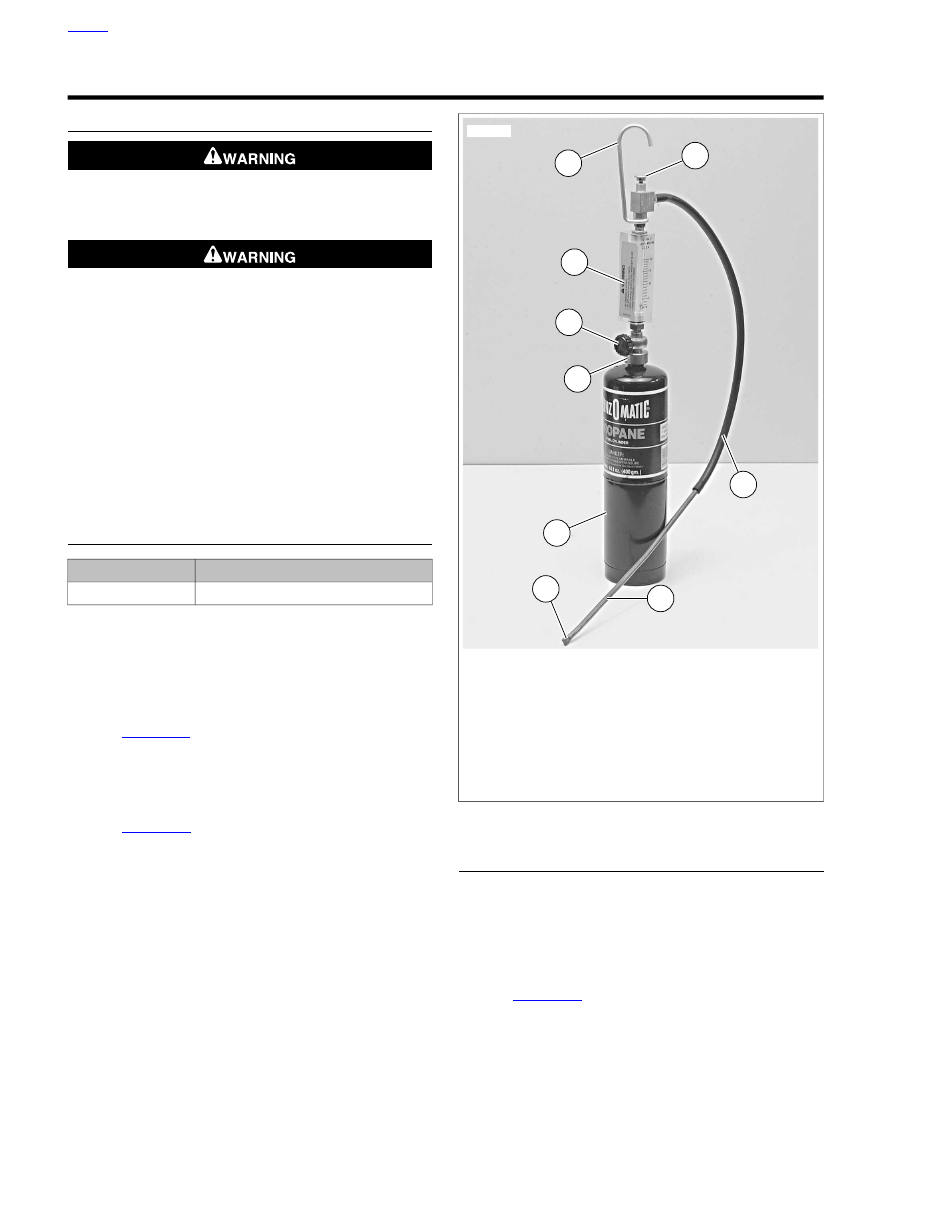

Figure 4-51. Leak Tester

PROCEDURE

Start engine.

Warm up engine to operating temperature.

NOTE

Do not direct propane stream toward air cleaner. If propane
enters air cleaner, a false reading will be obtained.

See

Figure 4-52

. Aim nozzle (3) toward possible sources

of leak such as intake manifold mating surfaces.

Press and release trigger button (2) to dispense propane.
Tone of engine will change when propane enters source
of leak. Repeat as necessary to detect leak.

HOME

4-34 2013 Softail Service: Fuel System

When test is finished, close valve knob (turn knob fully
clockwise).

sm02630

1. Propane bottle
2. Trigger button
3. Nozzle

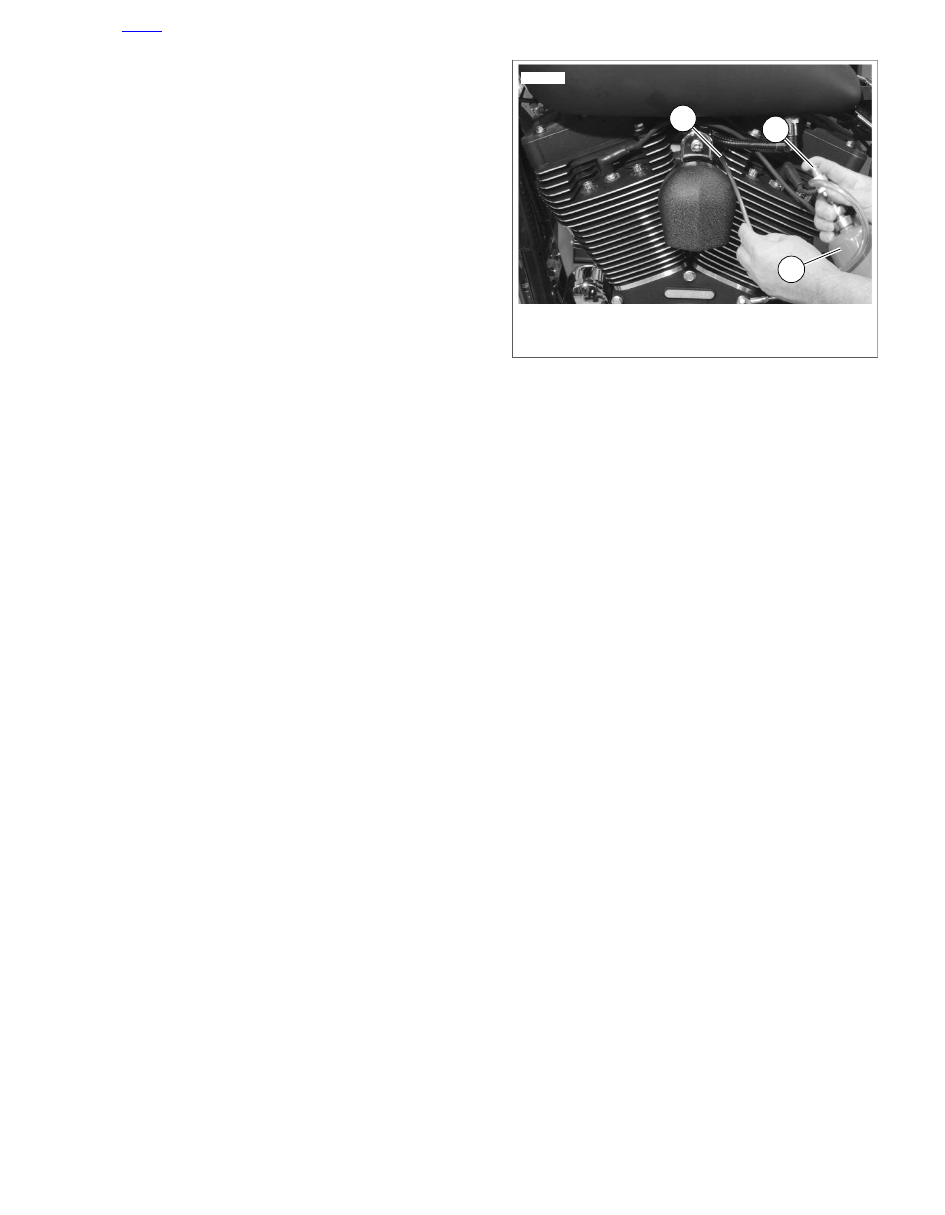

Figure 4-52. Checking for Leaks

HOME

2013 Softail Service: Fuel System 4-35

4.19

EVAPORATIVE EMISSIONS CONTROL SYSTEM

GENERAL

Motorcycles sold in some markets are equipped with an
evaporative (EVAP) emissions control system. See

Figure 4-53

The EVAP system functions as follows:

•

The fuel vapor vent tube is connected to the vent tube on
the fuel tank top plate. It allows fuel vapors in the fuel tank
to be vented to the charcoal canister.

•

Under certain engine conditions, the ECM (working in
conjunction with the EFI system relay) opens the purge
solenoid. Negative pressure (vacuum) draws the fuel
vapors in the charcoal canister through the purge tube to
the induction module. They are then burned as part of the
normal combustion process.

Keep evaporative emissions vent lines away from exhaust
and engine. Gasoline is extremely flammable and highly
explosive, which could result in death or serious injury.
(00266a)

NOTE

The EVAP system has been designed to operate with a min-
imum of maintenance. Check that all tubes are correctly routed
and properly connected. Also, verify that the tubes are not
pinched or kinked. Verify that there is no contact between the
tubes and engine parts.

sm07028a

Charcoal Canister-to-purge solenoid tube

Fuel tank vent tube

Purge solenoid-to-induction module tube

Vent tube-to-charcoal canister tube

Charcoal canister

Purge solenoid

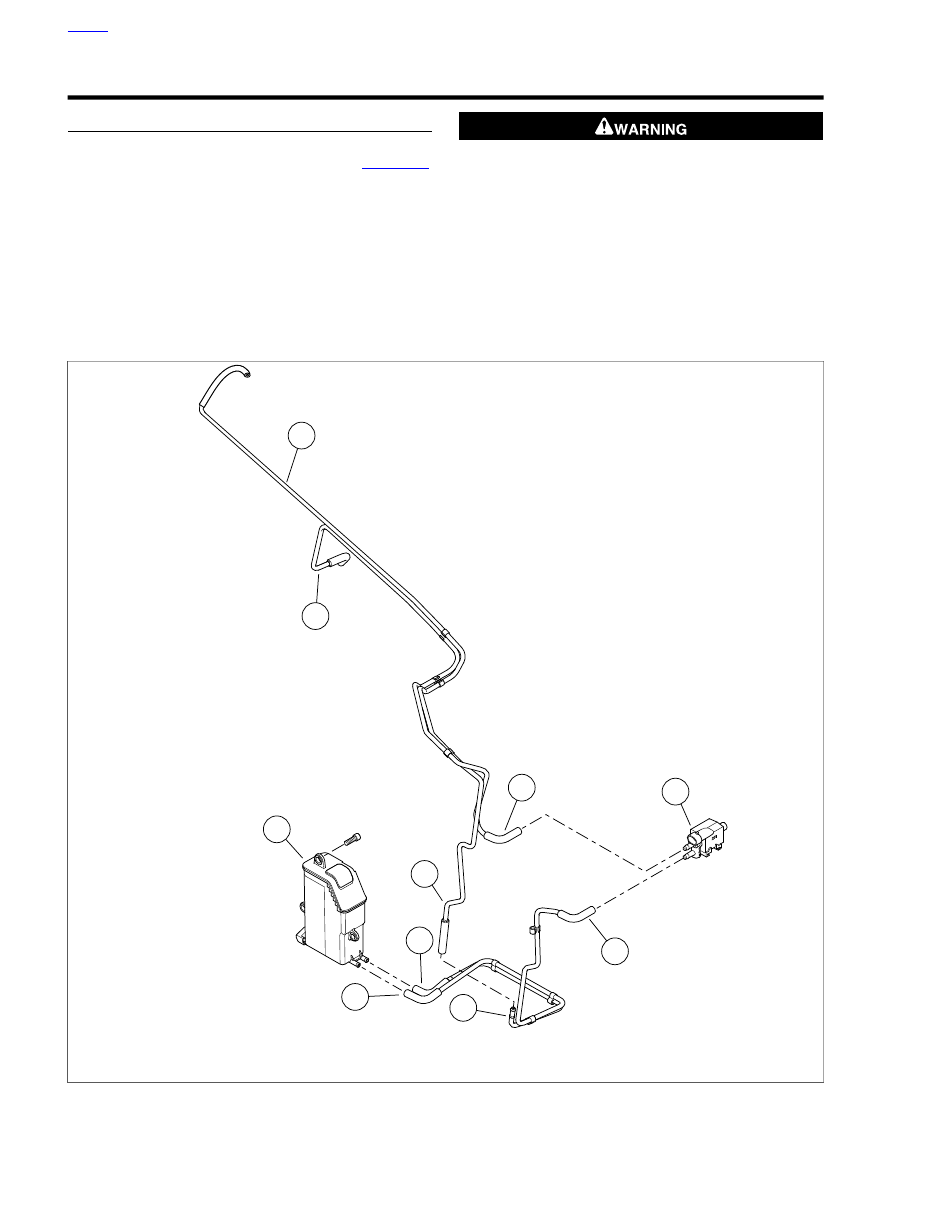

Figure 4-53. Evaporative Emissions Control System

HOME

4-36 2013 Softail Service: Fuel System

CHARCOAL CANISTER

TORQUE VALUE

FASTENER

10.2-12.9 Nm

90-114

in-lbs

Charcoal canister screws

Removal

The EVAP charcoal canister is mounted on the side of the
primary chaincase housing.

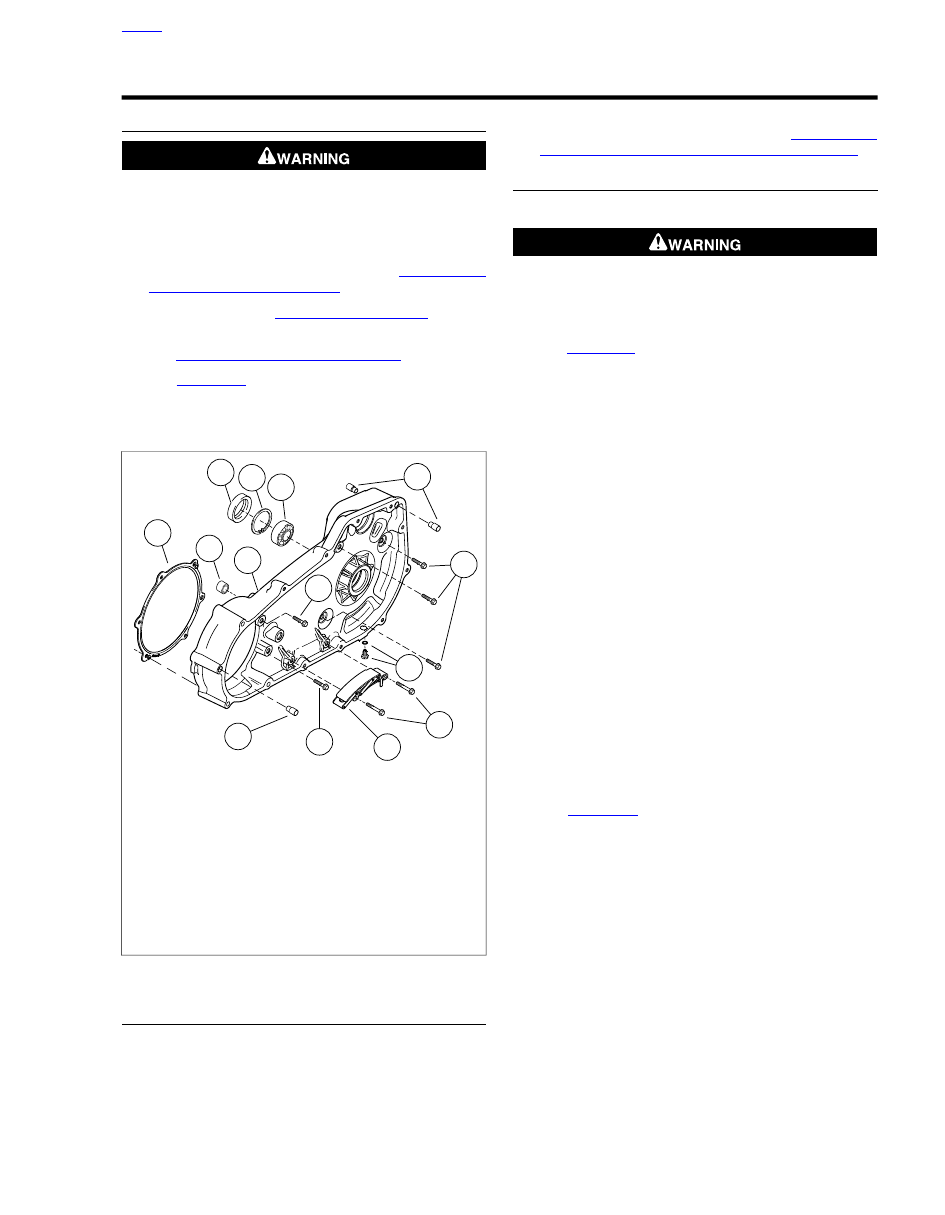

Remove primary chaincase housing. See

5.5 PRIMARY

CHAINCASE HOUSING

See

Figure 4-53

. Note the two hose connections on the

canister. After hoses are marked, gently pull hoses off the
canister.

Remove charcoal canister from primary chaincase
housing.

Installation

Install charcoal canister to primary chaincase housing.
Tighten screws to 90-114

in-lbs

(10.2-12.9 Nm).

See

Figure 4-53

. Attach hoses to charcoal canister.

Install primary chaincase housing. See

1.12 DRIVE BELT

AND SPROCKETS

PURGE SOLENOID

Removal

Remove seat.

To prevent accidental vehicle start-up, which could cause
death or serious injury, remove main fuse before pro-
ceeding. (00251b)

Remove main fuse.

Remove splash guard. See

2.20 REAR FORK

NOTE

The purge solenoid is attached to the top of the rear electrical
panel.

See

Figure 4-53

. Disconnect electrical connector from

purge solenoid (3).

NOTE

Label evaporative emissions tube for ease of installation.

Remove tubes (2, 4) from purge solenoid.

Remove purge solenoid from electrical panel.

Installation

See

Figure 4-53

. Attach purge solenoid (3) to top of rear

electrical panel.

Attach tubes (2, 4) to purge solenoid.

Connect electrical connector to purge solenoid (3).

Install splash guard. See

2.20 REAR FORK

Install main fuse.

After installing seat, pull upward on seat to be sure it is
locked in position. While riding, a loose seat can shift
causing loss of control, which could result in death or
serious injury. (00070b)

Install seat.

HOSE ROUTING/REPLACEMENT

NOTE

Record location of cable straps before removal. Install cable
straps in same location when installing.

Stop the engine when refueling or servicing the fuel
system. Do not smoke or allow open flame or sparks near
gasoline. Gasoline is extremely flammable and highly
explosive, which could result in death or serious injury.
(00002a)

Fuel Tank Vent Hose

Remove console and fuel tank. See

4.6 FUEL TANK

Remove splash guard. See

2.20 REAR FORK

Route fuel tank vent tube.

See

Figure 4-53

. If replacing fuel tank vent tube (1),

add hose to end of vent tube.

Route fuel tank vent tube (1) along right side of frame.
Cross over to the left side just before the battery.
Continue past the battery and then down between
the wire harness and frame crossmember. The end
of the vent tube should end just below the left side of
the rear electrical panel.

Attach the other end of the tube to the nipple on the
fuel tank top plate.

If equipped with a charcoal canister (6), connect the
fuel tank vent tube, at the rear electrical panel, to the
vent tube-to-charcoal canister tube (5).

Install splash guard. See

2.20 REAR FORK

Install fuel tank and console. See

4.6 FUEL TANK

Purge Solenoid-to-Induction Module Tube

Remove console and fuel tank. See

4.6 FUEL TANK

Remove splash guard. See

2.20 REAR FORK

Route purge solenoid-to-induction module tube.

See

Figure 4-53

. Route purge solenoid-to-induction

module tube (2) along right side of frame. Cross over
to the left side just before the battery. Continue past
the battery and then down between the wire harness
and frame crossmember. The end of the vent tube
will attach to the upper nipple on the purge solenoid
(3).

See

Figure 4-19

. Attach the other end of the tube to

the inboard purge nipple on the induction module.

Install splash guard. See

2.20 REAR FORK

HOME

2013 Softail Service: Fuel System 4-37

Install fuel tank and console. See

4.6 FUEL TANK

Charcoal Canister-to-Purge Solenoid Tube

Remove splash guard. See

2.20 REAR FORK

See

Figure 4-53

. Route charcoal canister-to-purge

solenoid tube (4) from the bottom nipple on the purge
solenoid down between the shocks and over to the char-
coal canister.

Attach the other end of the tube to the outer nipple on the
charcoal canister.

Install splash guard. See

2.20 REAR FORK

Vent Tube-to-Charcoal Canister Tube

Remove splash guard. See

2.20 REAR FORK

See

Figure 4-53

. Route vent tube-to-charcoal canister

tube (5) from vent tube (1) on left side of rear electrical
panel down between the shocks and over to the charcoal
canister.

Attach the other end of the tube to the inner nipple on the
charcoal canister.

Install splash guard. See

2.20 REAR FORK

HOME

4-38 2013 Softail Service: Fuel System
