4-18 2013 Softail Service: Fuel System

4.13

MANIFOLD ABSOLUTE PRESSURE SENSOR
(MAP)

REMOVAL

Remove induction module. See

4.11 INDUCTION

MODULE

See

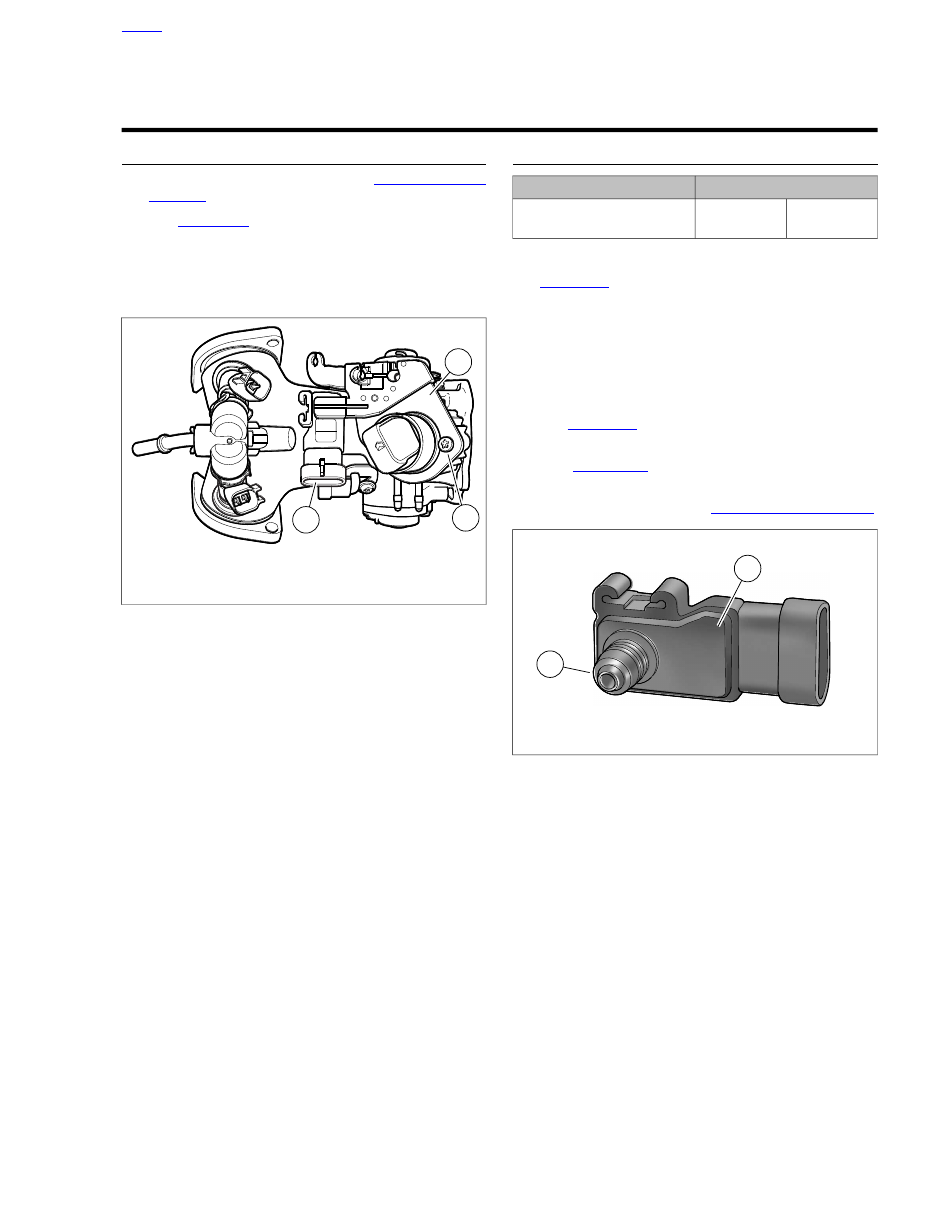

Figure 4-25

. Remove two fasteners (2) to release

throttle cable bracket (1) from induction module. Discard
fasteners.

Using appropriate tool, gently push up on MAP sensor
and attached seal to remove from intake manifold.

sm07010

1. Throttle cable bracket
2. Fastener (2)
3. Manifold Absolute Pressure Sensor (MAP)

Figure 4-25. Throttle Cable Bracket Location

INSTALLATION

TORQUE VALUE

FASTENER

2.3-4.0 Nm

20-35

in-lbs

Throttle cable bracket
fasteners

NOTE

See

Figure 4-26

. Prior to installing the original sensor, inspect

the seal (1). Seals not in good condition could cause vacuum
leaks. Install new seal if necessary.

Push MAP sensor and seal into intake manifold.

With the electrical connector facing toward the rear of the
induction module (side opposite throttle wheel), insert MAP
sensor into hole in induction module.

See

Figure 4-24

. Insert index pin (2) at bottom of throttle

cable bracket into hole in boss at top of induction module.

See

Figure 4-25

. Install

new

throttle cable bracket

fasteners (2). Tighten to 20-35

in-lbs

(2.3-4.0 Nm).

Install induction module. See

4.11 INDUCTION MODULE

sm02360

1. Seal
2. MAP sensor

Figure 4-26. MAP Sensor

2013 Softail Service: Fuel System 4-19

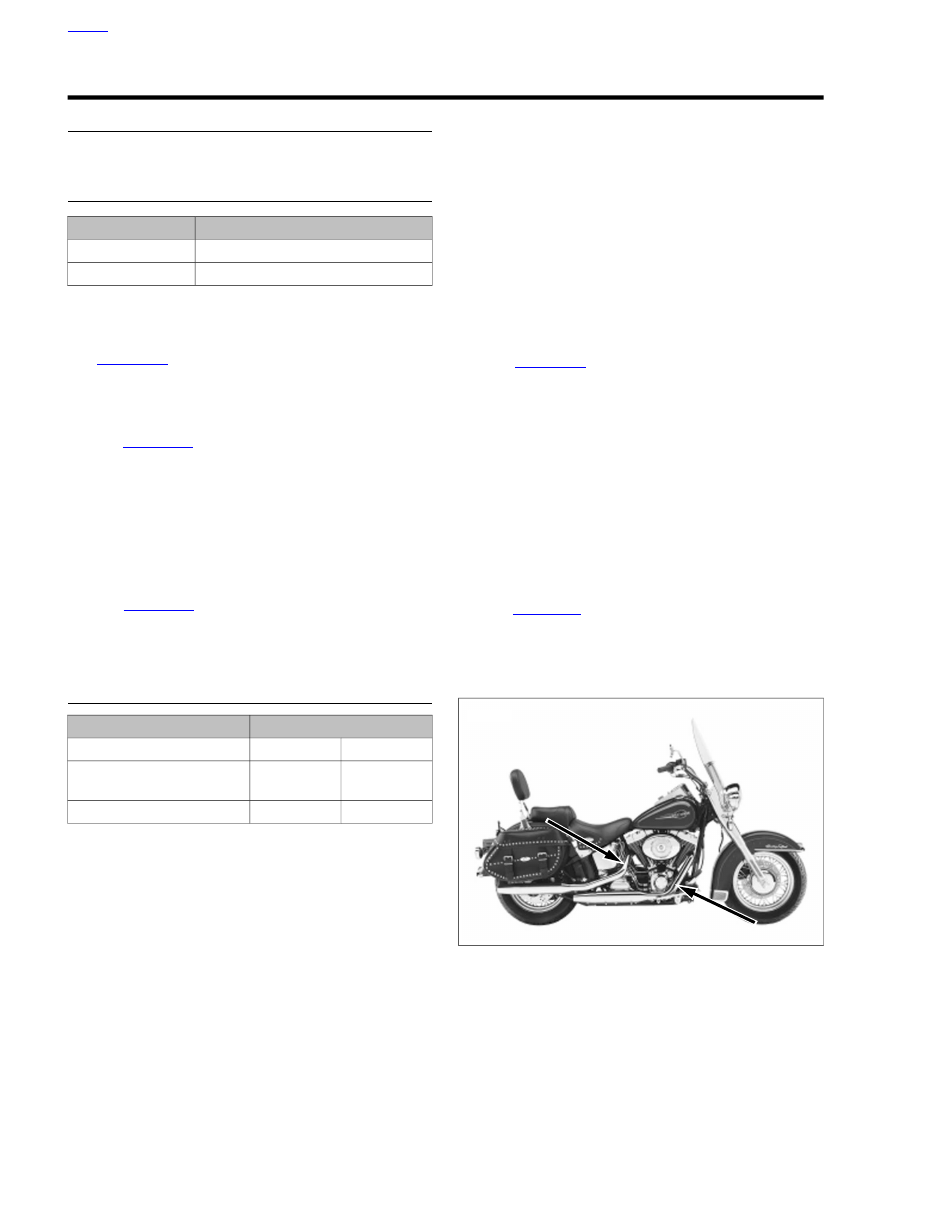

4.14

OXYGEN (O2) SENSOR

GENERAL

See the electrical diagnostic manual for information on the
function and testing of the heated oxygen sensor (HO2).

REMOVAL

TOOL NAME

PART NUMBER

OXYGEN SENSOR SOCKET

FRX181

OXYGEN SENSOR SOCKET

HD-50652

Front O2 Sensor

NOTE

See

Figure 4-27

. The O2 sensors are installed in threaded

bosses on the inboard side of front and rear exhaust pipes.

Remove fasteners securing voltage regulator bracket to
crankcase.

See

Figure 4-28

. Disconnect front O2 sensor connector

(1).

Use OXYGEN SENSOR SOCKET (Part No. HD-50652)
to remove front O2 sensor.

Rear O2 Sensor

Remove seat.

Remove battery.

See

Figure 4-29

. Disconnect rear O2 sensor connector

(1).

Use OXYGEN SENSOR SOCKET (Part No. FRX181) to
remove rear O2 sensor.

INSTALLATION

TORQUE VALUE

FASTENER

19.0 Nm

14.0 ft-lbs

Oxygen sensor, front

7.9-11.3 Nm

70-100

in-lbs

Voltage Regulator Bracket
Fasteners

19.0 Nm

14.0 ft-lbs

Oxygen sensor, rear

NOTES

•

Do not install sensors that have been dropped or impacted
by other components. Damage to the sensing element
may have occurred.

•

Replacement sensor assemblies have threads coated with
ANTI-SEIZE LUBRICANT and new seal rings.

•

If O2 sensor will be reused, replace the gasket. Use a
high-quality professional grade side cutter for gasket
removal. Make sure larger side of new gasket faces
exhaust.

•

If O2 sensor will be reused, apply a thin coat of ANTI-
SEIZE LUBRICANT to threads of each oxygen sensor

prior to installing in header. Do not use any other grease
or sealant product on sensor threads.

•

The electrical connector must be clean and free of any
dielectric grease.

Front O2 Sensor

If reusing oxygen sensor:

Remove used seal and install a

new

one.

Apply a light coating of ANTI-SEIZE LUBRICANT to
threads.

Thread sensor into threaded boss on exhaust pipe and
tighten to 14.0 ft-lbs (19.0 Nm).

See

Figure 4-28

. Install front oxygen sensor connector

(1).

Install voltage regulator bracket. Tighten voltage regulator
bracket screws to 70-100

in-lbs

(7.9-11.3 Nm).

Rear O2 Sensor

If reusing oxygen sensor:

Remove used seal and install a

new

one.

Apply a light coating of ANTI-SEIZE LUBRICANT to
threads.

Thread sensor into threaded boss on exhaust pipe and
tighten to 14.0 ft-lbs (19.0 Nm).

See

Figure 4-29

, Install rear oxygen sensor connector (1)

and place harness in battery caddy clip (2).

Install battery.

Install seat.

sm02760

Figure 4-27. Oxygen Sensors (Inboard Side of Exhaust

Pipes)

4-20 2013 Softail Service: Fuel System

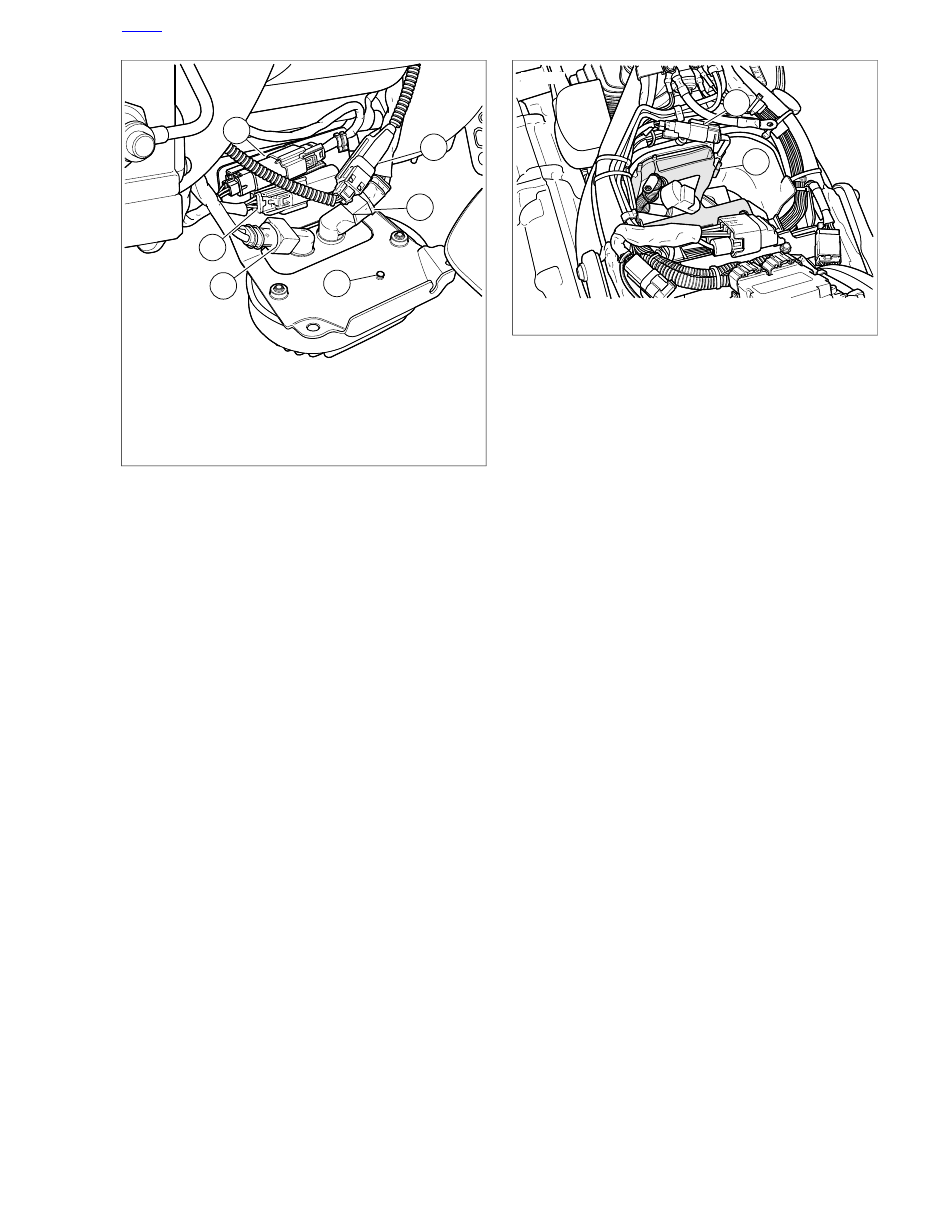

sm03782b

1. Front oxygen sensor connector
2. Crank position sensor connector
3. Stator connector lock
4. Crank position sensor connector stud
5. Voltage regulator connector lock
6. Jiffy stand interlock connector

Figure 4-28. Voltage Regulator Connectors

sm07272

1. Rear oxygen sensor connector
2. Battery caddy clip

Figure 4-29. Rear O2 Sensor Connector

2013 Softail Service: Fuel System 4-21

4.15

FUEL INJECTORS

GENERAL

Do not use solvents or other products that contain chlorine
on plastic fuel system components. Chlorine can degrade
plastic fuel system components, which can cause a loss
of fuel system pressure or engine stalling and could result
in death or serious injury. (000621b)

See the electrical diagnostic manual for information on the
function and testing of the fuel injectors.

REMOVAL

Remove induction module. See

4.11 INDUCTION

MODULE

NOTE

If not replacing fuel supply tube or O-rings, do not remove.

See

Figure 4-30

. Remove fastener (1) retaining fuel supply

tube (2).

Pull fuel supply tube from fuel rail. Remove sealing washer
(4) and O-ring (3) from fuel supply tube. Remove second
O-ring from fuel rail bore. Discard sealing washer and O-
rings.

See

Figure 4-31

. With a rocking motion, pull fuel injectors

with attached fuel rail from the induction module.

See

Figure 4-32

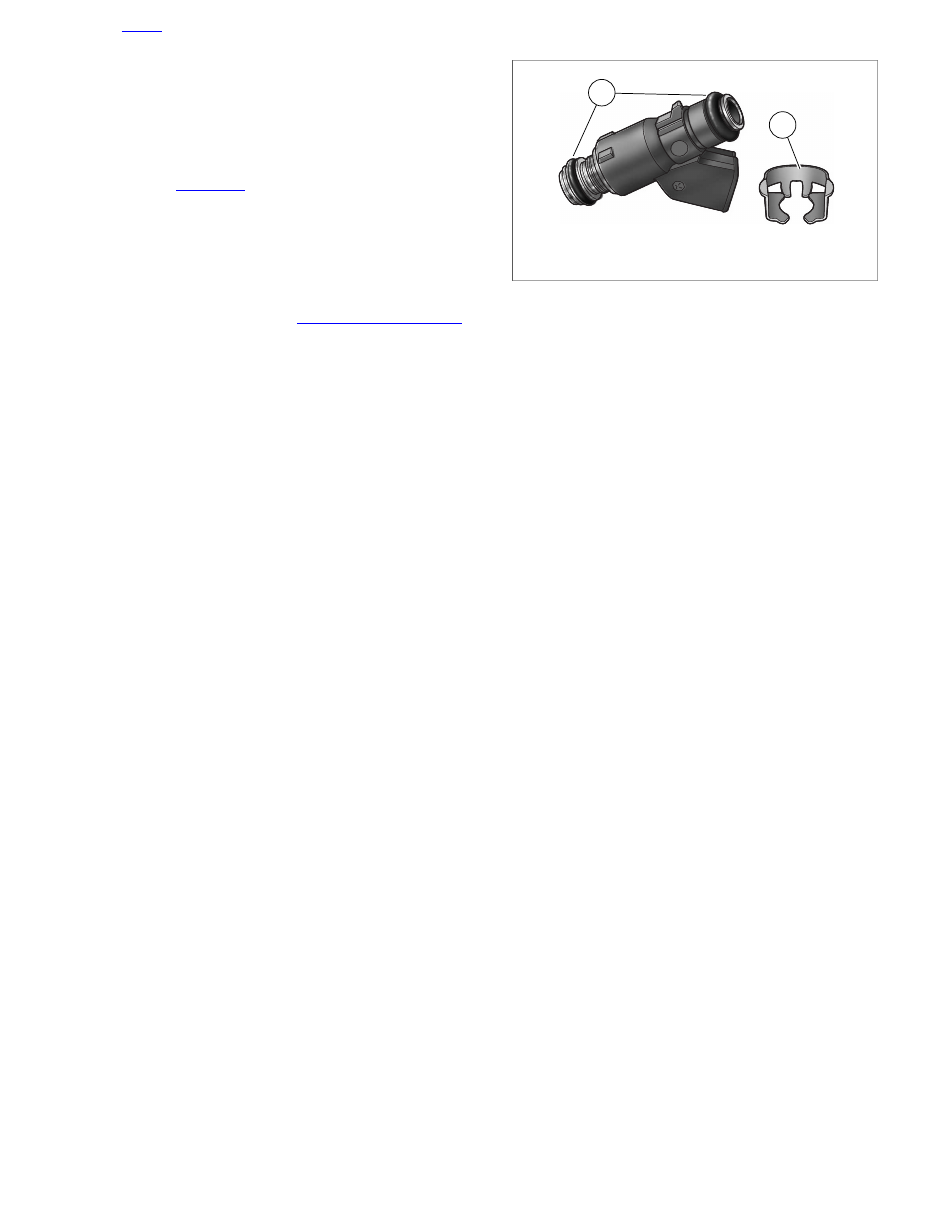

. Remove spring clips (2) from fuel

injectors. Pull fuel injectors from fuel rail. To overcome the
resistance of the top O-ring, gently rock each fuel injector
while pulling.

Remove O-rings (1) from fuel injectors. Discard O-rings.

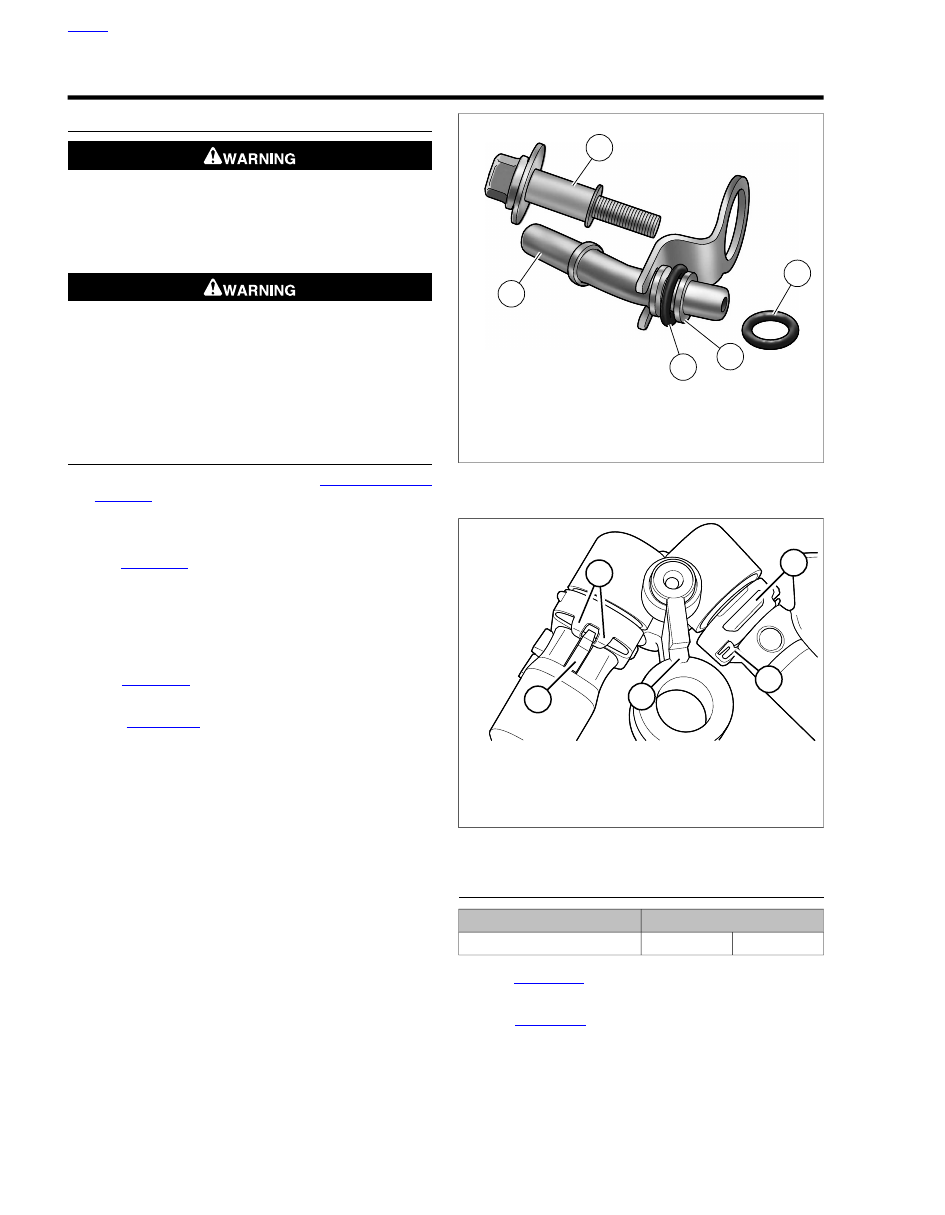

sm02362

1. Fastener
2. Fuel supply tube
3. O-ring (2)
4. Sealing washer

Figure 4-30. Fuel Supply Tube

sm02609

1. Fork
2. Lip
3. Opening
4. Rail tab
5. Injector tab

Figure 4-31. Fuel Rail

INSTALLATION

TORQUE VALUE

FASTENER

10.2-12.4 Nm

90-110

in-lbs

Fuel supply tube fastener

See

Figure 4-32

. Apply a thin coat of clean engine oil to

new

fuel injector O-rings (1). Install on fuel injectors.

See

Figure 4-31

. Push electrical connector side of fuel

injectors into fuel rail.

With the concave side toward the fuel rail, install spring
clip into slot on fuel injector. In the installed position,
openings (3) in sides of clip engage lip (2) on fuel rail,

4-22 2013 Softail Service: Fuel System

while fork (1) at back of clip captures rail tab (4) on fuel
injector.

Rotate fuel injectors, so that the electrical connectors are
on the outboard side. Push fuel injectors into induction
module bores until tab on fuel rail engages machined slot
at top of induction module.

See

Figure 4-30

. Slide

new

O-ring (3) down shorter neck

of the fuel supply tube until it contacts the collar. Slide

new

sealing washer (4) down tube until it contacts O-ring.

Install second O-ring (3) in fuel rail bore.

Push fuel supply tube (2) into fuel rail bore until clamp is
seated on round step of fuel rail. Install fastener (1) and
tighten to 90-110

in-lbs

(10.2-12.4 Nm).

Install induction module.

4.11 INDUCTION MODULE

sm02363

1. O-rings
2. Spring clip

Figure 4-32. Fuel Injector

2013 Softail Service: Fuel System 4-23

4.16

FUEL PUMP AND FUEL GAUGE SENDING UNIT

GENERAL

See the electrical diagnostic manual for information on the
function and testing of the fuel pump.

REMOVAL

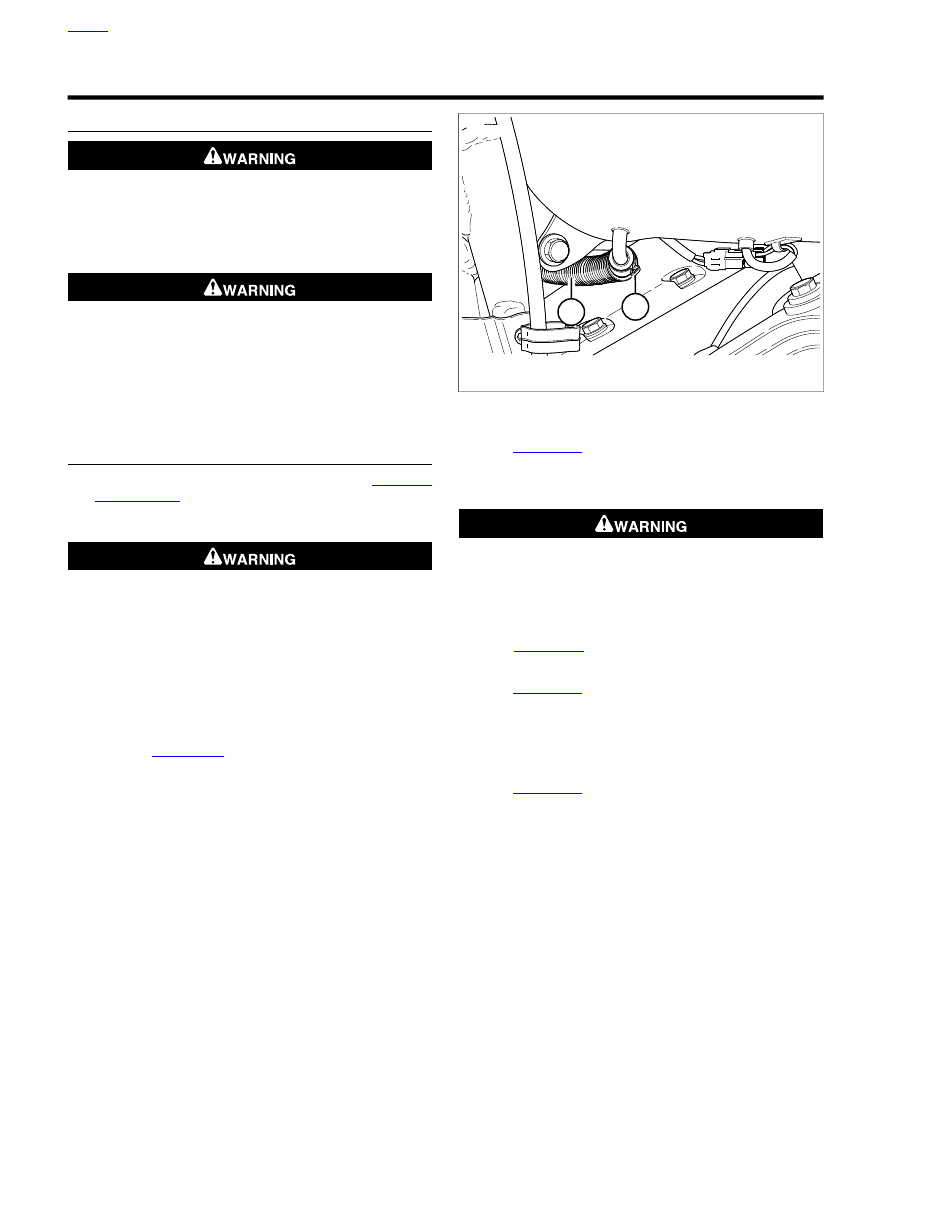

Purge and disconnect fuel supply line. See

4.4 FUEL

SUPPLY LINE

Disconnect console wiring.

To prevent accidental vehicle start-up, which could cause
death or serious injury, remove main fuse before pro-
ceeding. (00251b)

Remove main fuse.

Drain fuel tank.

Obtain a short section of hose (5/16 inch I.D.). Insert
bolt in one end of hose and install hose clamp to verify
that end is securely plugged.

See

Figure 4-33

. Cut clamp (1) from one end of

crossover hose (2). Quickly replace crossover hose
on fuel tank fitting with open end of short hose while
directing flow of gasoline from free end of crossover
hose into suitable container.

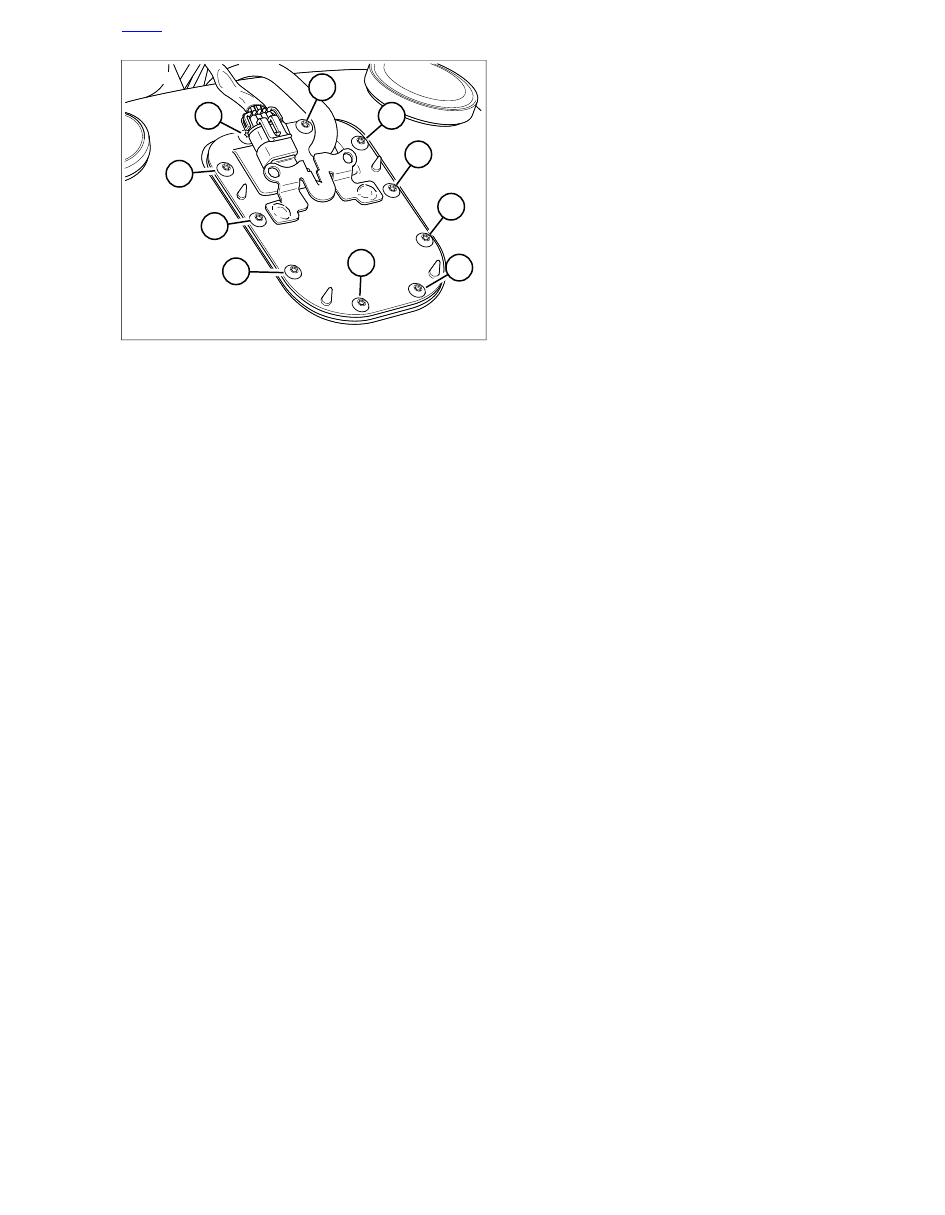

Remove screws securing top plate to fuel tank. Discard
screws.

sm02763

1. Clamp
2. Crossover hose

Figure 4-33. Crossover Hose

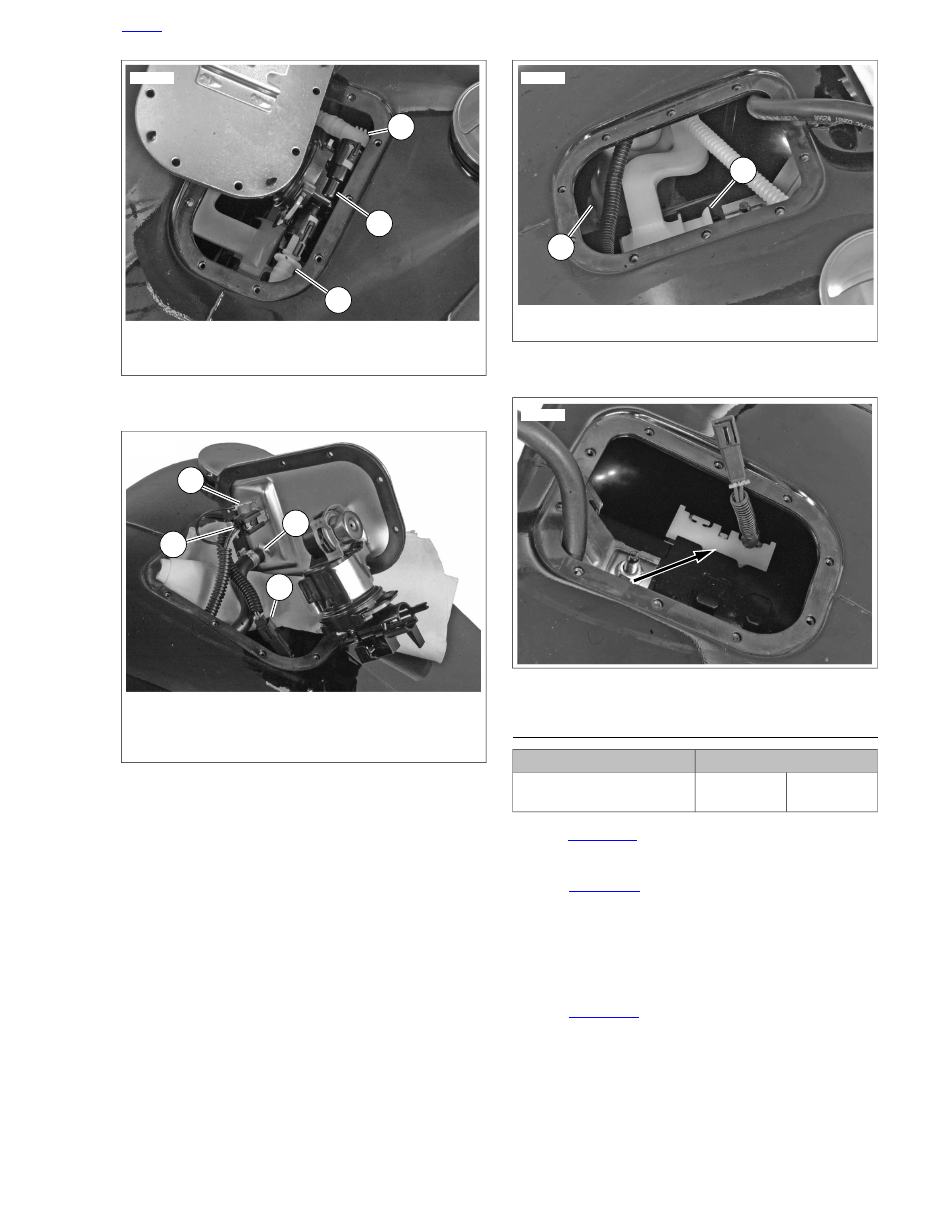

See

Figure 4-34

. Pull top plate out of fuel tank enough to

expose fuel hoses (1, 3).

Disconnect hoses (1, 3) from filter housing (2).

Do not replace the special Teflon coated fuel pump wiring
with ordinary bulk wire. Ordinary insulation materials can
deteriorate when put in contact with gasoline and cause
an explosion, which could result in death or serious injury.
(00566b)

See

Figure 4-35

. Disconnect electrical connectors (2-4).

Move top plate with filter and regulator out of the way.

See

Figure 4-36

. Pull up on bracket (2) and slide forward.

Remove fuel pump assembly (1) from fuel tank.

NOTE

Exercise care to avoid bending float rod of fuel level sender.
A bent float rod will result in erroneous gauge readings.

10. See

Figure 4-37

. Pull out and up on fuel sending unit and

remove from fuel tank.

4-24 2013 Softail Service: Fuel System

sm02765a

1. Hose
2. Filter housing
3. Hose

Figure 4-34. Fuel Pump Hoses

sm04399a

1. Vapor valve hose
2. Top plate connector
3. Fuel level sender connector
4. Ground connector

Figure 4-35. Fuel Pump and Sending Unit Wire Connectors

sm02766a

1. Fuel Pump Assembly
2. Bracket

Figure 4-36. Fuel Pump

sm04401a

Figure 4-37. Fuel Sending Unit Removal

VAPOR VALVE

TORQUE VALUE

FASTENER

13.6-16.3 Nm

120-144

in-lbs

Vapor valve bracket nut

See

Figure 4-38

. Remove nut.

Pull bracket with vapor valve from fuel tank.

See

Figure 4-39

. Cut clamp (1) and remove hose from

vapor valve (2).

Cut cable strap securing vapor valve and replace. Secure
with

new

cable strap.

Attach hose to vapor valve and secure with

new

hose

clamp.

See

Figure 4-38

. Install bracket with nut. Tighten nut to

120-144

in-lbs

(13.6-16.3 Nm).

2013 Softail Service: Fuel System 4-25

sm06989

Figure 4-38. Vapor Valve Bracket

sm06988

1. Clamp (2)
2. Vapor valve

Figure 4-39. Vapor Valve

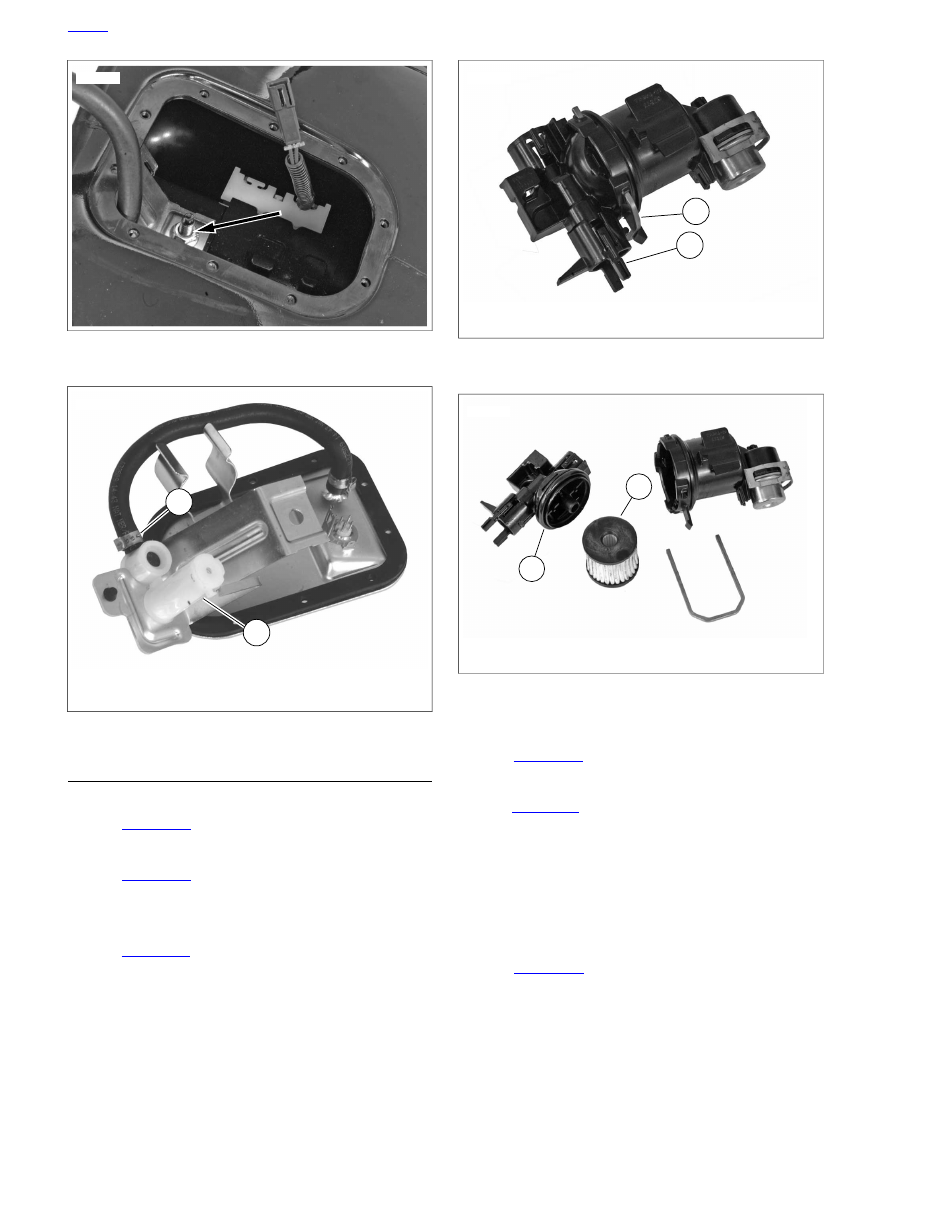

DISASSEMBLY AND ASSEMBLY

Fuel Filter

See

Figure 4-40

. Remove retainer clip (1).

Separate filter manifold (2) from fuel filter housing.

See

Figure 4-41

. Remove O-ring (1) and fuel filter (2).

Install

new

fuel filter.

Install

new

O-ring.

See

Figure 4-40

. Install filter manifold (2) and retainer clip

(1).

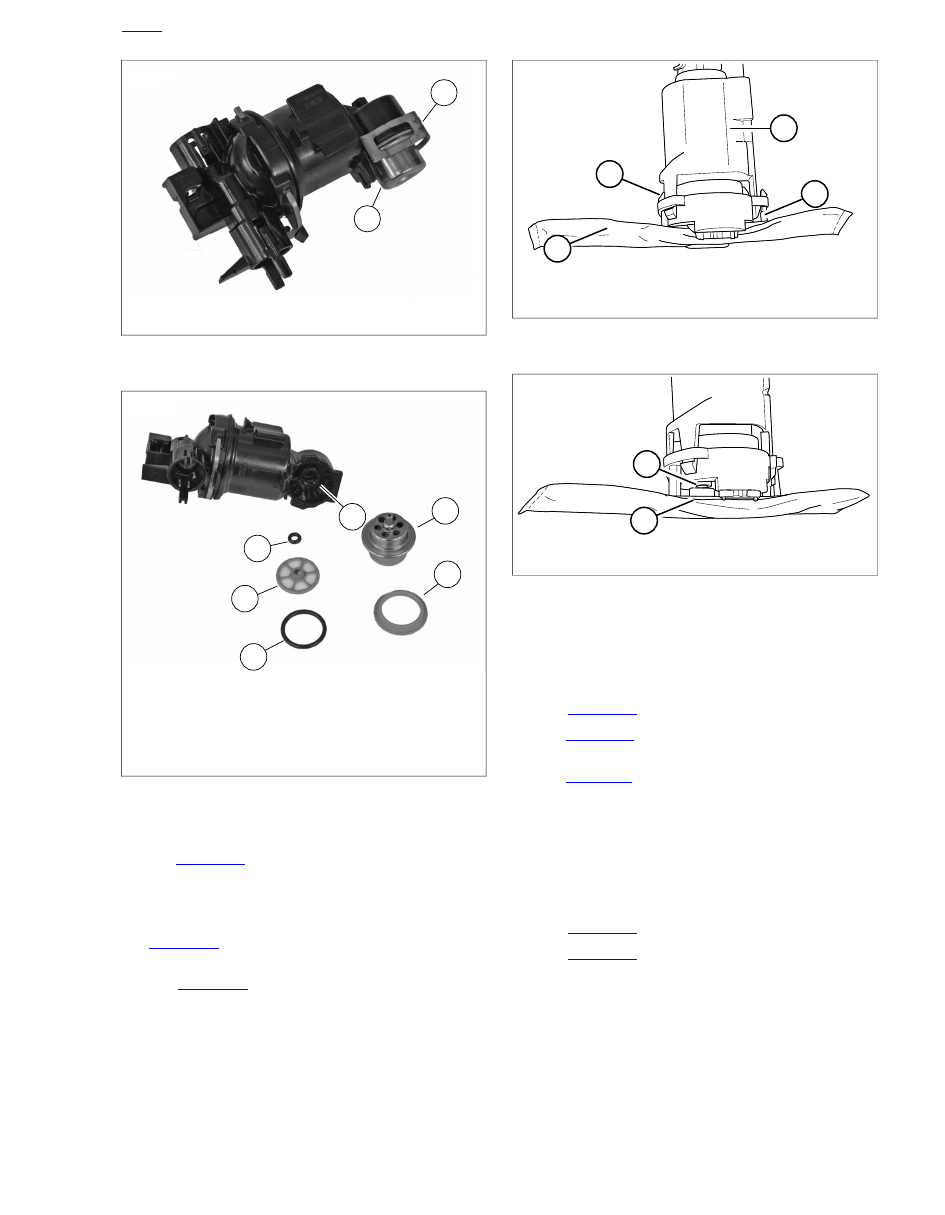

sm04407a

1. Retainer clip
2. Filter manifold

Figure 4-40. Fuel Filter Housing

sm04409a

1. O-ring
2. Fuel filter

Figure 4-41. Fuel Filter

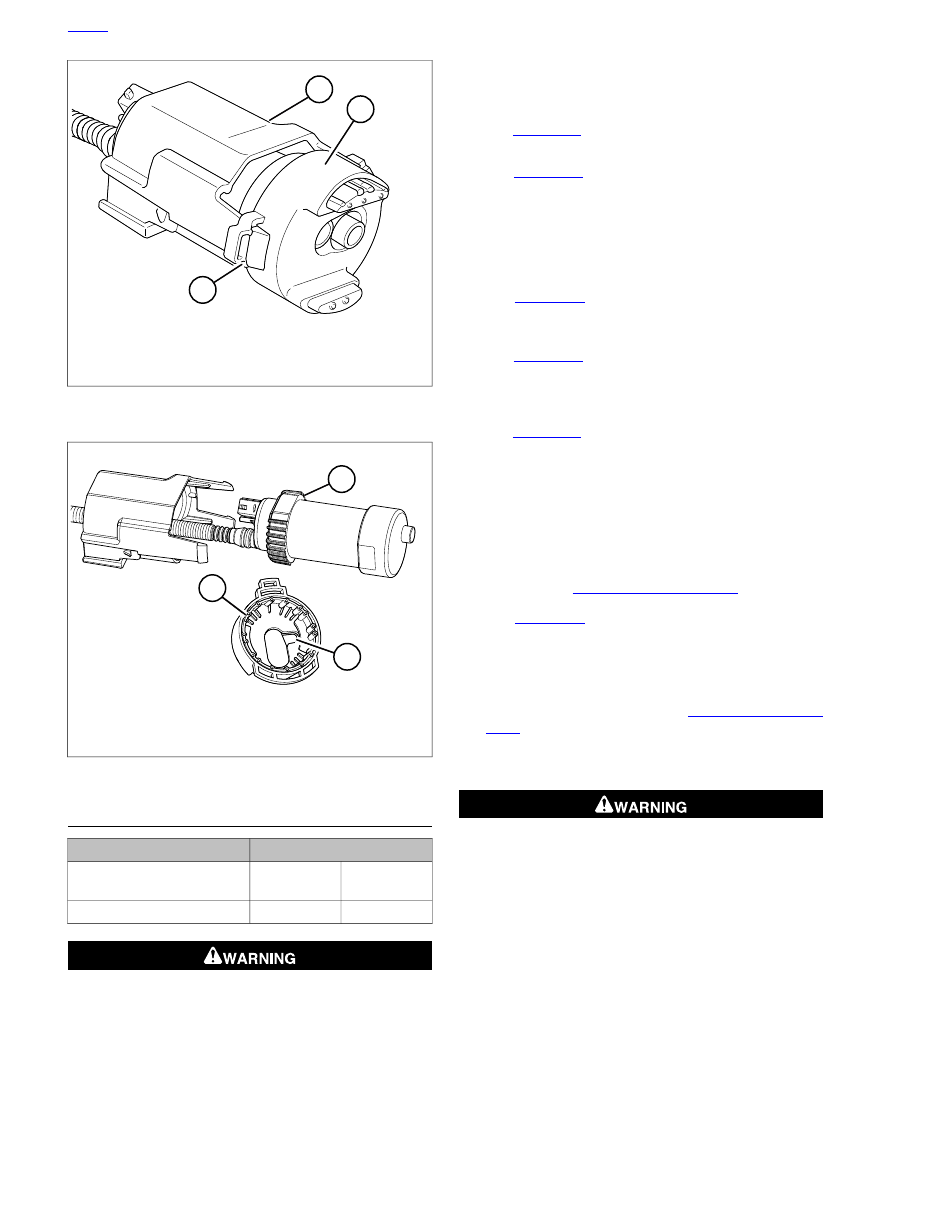

Regulator

See

Figure 4-42

. Remove retaining clip (1).

Remove regulator (2).

See

Figure 4-43

. Check seal (3), O-rings (4, 6), and screen

(5) for damage. Replace if necessary.

Install O-ring (4) in regulator housing outlet port (1).

Install screen (5) with inner shoulder facing O-ring (4).

Install O-ring (6) in regulator housing.

Place seal (3) on regulator (2) with shoulder facing away
from regulator.

See

Figure 4-42

. Place regulator in housing and secure

with retaining clip (2).

4-26 2013 Softail Service: Fuel System

sm04410a

1. Retaining clip
2. Regulator

Figure 4-42. Fuel Regulator

sm04412a

1. Regulator housing outlet Port
2. Regulator
3. Seal
4. O-ring
5. Screen
6. O-ring

Figure 4-43. Regulator Assembly

Inlet sock

See

. Press tabs (2) securing inlet sock (1) to

upper retainer (3).

Remove inlet sock from upper retainer.

NOTE

See

Figure 4-45

. In next step, be sure inlet sock (2) engages

fuel pump inlet (1).

See

. Install inlet sock (1) on upper retainer

(3). Be sure tabs (2) engage slots in body.

sm02617

1. Inlet sock
2. Tab (2)
3. Upper retainer

Figure 4-44. Fuel Sock

sm02618

1. Fuel pump inlet
2. Inlet sock

Figure 4-45. Fuel Sock Installation

Fuel Pump

Disconnect electrical harness from fuel pump.

Remove mounting bracket.

See

. Remove fuel sock.

See

Figure 4-46

. Press tabs (3) and remove lower retainer

(2) from upper retainer (1).

See

Figure 4-47

. Remove upper isolator (1) from fuel pump

and replace pump.

Install upper isolator (1) onto fuel pump.

Install fuel pump into upper retainer.

Make sure lower isolator (3) is properly positioned in lower
retainer. Groove in lower retainer (2) should be visible with
lower isolator installed.

See

Figure 4-46

. Install lower retainer.

10. See

. Install fuel sock.

11. Install mounting bracket onto upper retainer.

12. Connect wiring harness to fuel pump.

2013 Softail Service: Fuel System 4-27

sm04416

1. Upper retainer
2. Lower retainer
3. Tabs (3)

Figure 4-46. Fuel Pump

sm04418

1. Upper isolator
2. Groove in lower retainer
3. Lower isolator

Figure 4-47. Fuel Pump Isolators

INSTALLATION

TORQUE VALUE

FASTENER

2.0-2.7 Nm

18-24

in-lbs

Fuel pump/fuel gauge sending
unit screws

3.4-5.7 Nm

30-50

in-lbs

Instrument console acorn nut

NOTE

Exercise care to avoid bending float rod of fuel level sender.
A bent float rod will result in erroneous gauge readings.

See

Figure 4-37

. Slide fuel sending unit down into welded

bracket on right side of fuel tank until it snaps into position.

See

Figure 4-36

. Install fuel pump assembly (1) into fuel

tank. Slide bracket (2) rearward into welded bracket until
it snaps into place.

NOTE

Do not apply any type of sealant to gasket.

Install

new

gasket under top plate.

See

Figure 4-35

. Place top plate with filter housing and

regulator on fuel tank. Connect electrical connectors (1-
4).

See

Figure 4-34

. Install

new

O-rings on hoses (1,3).

Attach hoses (1, 3) to filter housing (2).

Install top plate on top of fuel tank.

See

Figure 4-48

. Install

new

screws and tighten using the

pattern shown, to 18-24

in-lbs

(2.0-2.7 Nm).

Connect fuel pump module connector [86].

10. Connect console wiring if present.

11. Install instrument console.

All but FXS:

Install instrument console with acorn nut

and washer. Tighten to 30-50

in-lbs

(3.4-5.7 Nm).

FXS:

see

4.7 CONSOLE: FXS, FXSB

12. See

Figure 4-33

. Connect crossover hose (2) with

new

clamps (1).

13. Fill tank with gasoline and check for leaks.

14. Install main fuse.

15. Check fuel system pressure. See

4.5 FUEL PRESSURE

TEST

16. Clear any DTC that was set due to running the engine with

fuel pump module connector [86] disconnected.

After installing seat, pull upward on seat to be sure it is
locked in position. While riding, a loose seat can shift
causing loss of control, which could result in death or
serious injury. (00070b)

17. Install seat.

4-28 2013 Softail Service: Fuel System

sm02776a

Figure 4-48. Top Plate Torque Sequence

2013 Softail Service: Fuel System 4-29

4.17

EXHAUST SYSTEM

MUFFLERS: FLSTC, FXST, FXSB

TORQUE VALUE

FASTENER

51.6-58.4 Nm

38-43 ft-lbs

Muffler clamps: FLSTC, FXST,
FXSB

10.9-13.6 Nm

96-120

in-lbs

Muffler fasteners: FLSTC,
FXST, FXSB

Removal

See

Figure 4-49

. Apply penetrating oil to seams of mufflers

and exhaust pipes (7, 23).

Remove muffler shield clamps (30) to detach muffler
shields (29) from mufflers.

Remove muffler fasteners (24).

Remove and discard muffler clamps (3) to separate
mufflers from exhaust pipes (7, 23).

Slide mufflers rearward off of pipes.

Assembly

Install

new

muffler clamps (3) to attach front (28) and rear

(1) mufflers to exhaust pipes. Tighten clamps to 38-43 ft-
lbs (51.6-58.4 Nm).

Install muffler fasteners (24). Tighten to 96-120

in-lbs

(10.9-13.6 Nm).

Open muffler shield clamps (30) and install the muffler
shields (29). Position clamps so the screws are on the
outboard side in the most accessible position.

SYSTEM: FLSTC, FXST, FXSB

TORQUE VALUE

FASTENER

20.4-27.1 Nm

15-19 ft-lbs

Exhaust interconnect clamp:
FLSTC, FXST, FXSB

1.0-2.0 Nm

9-18

in-lbs

Exhaust manifold clamp lower
nut, 1st torque: FLSTC, FXST,
FXSB

11.3-13.6 Nm

100-120

in-lbs

Exhaust manifold clamp upper
nut: FLSTC, FXST, FXSB

11.3-13.6 Nm

100-120

in-lbs

Exhaust manifold clamp lower
nut final torque: FLSTC,
FXST, FXSB

27.1-33.9 Nm

20-25 ft-lbs

Exhaust system interconnect
tube fasteners: FLSTC, FXST,
FXSB

Removal

Disconnect O2 sensor wiring. See

See

Figure 4-49

. Remove heat shields (9, 22) by opening

exhaust shield clamps (21).

Remove nuts (16) from front and rear cylinder head
exhaust studs.

Remove two locknuts (25) attaching interconnect tube
assembly (26) to frame.

Remove exhaust system as an assembly. Disengage rear
pipe from port, then front pipe. Replace interconnect gas-
kets (27) and clamps (31) anytime the connections are
disassembled.

Installation

NOTE

Replacement cylinder head exhaust port gaskets (17) are
tapered internally. Be sure the tapered side is facing exhaust
pipes. Also check condition of retaining ring (18) before
installation.

If either exhaust tube was removed from the interconnect
tube, replace exhaust interconnect gasket (27) and
exhaust interconnect clamp (31). Tighten

new

clamp to

15-19 ft-lbs (20.4-27.1 Nm).

Install

new

gaskets in both the front and rear cylinder

heads with the tapered side facing exhaust pipes.

Position ends of exhaust pipes into front, then rear cylinder
head exhaust ports placing holes in exhaust manifold
clamp (19) over cylinder head exhaust studs. Loosely
thread on flange nuts (16).

Loosely install locknuts (25) to attach interconnect tube
assembly (26) to frame.

Tighten nuts (16) at cylinder studs as follows:

Install upper nut and tighten finger tight.

Install lower nut and tighten to 9-18

in-lbs

(1.0-2.0

Nm).

Tighten upper nut to 100-120

in-lbs

(11.3-13.6 Nm).

Tighten lower nut to 100-120

in-lbs

(11.3-13.6 Nm).

Align exhaust system and tighten all nuts and bolts;
beginning at cylinder head exhaust ports and working
backwards. Tighten interconnect fasteners to 20-25 ft-lbs
(27.1-33.9 Nm).

Open the muffler shield clamps (21) and install front and
rear heat shields (9, 22).

Connect O2 sensor wiring. See

4-30 2013 Softail Service: Fuel System

sm02777

17.

Exhaust port gasket (2)

Rear muffler, typical (FLSTC shown)

18.

Active exhaust cable

Exhaust gasket retaining ring (2)

19.

Exhaust manifold clamp (2)

Muffler clamp (2)

20.

Bellcrank

Front oxygen sensor

21.

Exhaust shield clamp (4)

Cable retainer

22.

Ferrule

Front exhaust shield

23.

Front exhaust pipe

Rear exhaust pipe

24.

Rear oxygen sensor

Fastener

25.

Locknut (2)

Rear exhaust shield

10.

26.

Cable housing

Interconnect tube assembly

27.

11.

Exhaust interconnect gasket (2)

Ferrule

12.

28.

Fastener

Front muffler, typical (FLSTC shown)

29.

13.

Muffler shield (2 on HDI vehicles)

Active exhaust module

14.

30.

Active exhaust module bracket

Muffler shield clamp (2, 4 on HDI vehicles)

31.

15.

Exhaust interconnect clamp (2)

Spacer stud (2)

16. Nut (4)

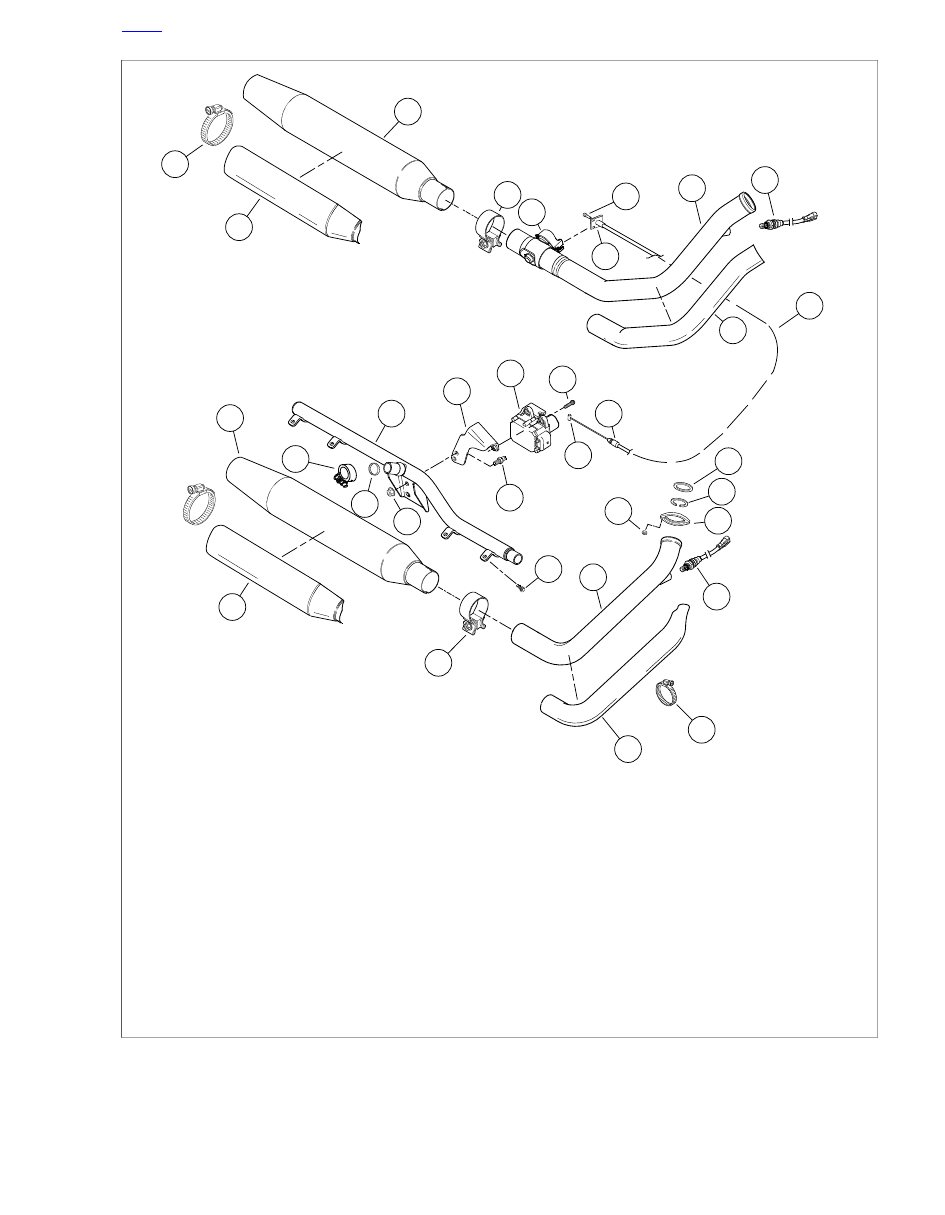

Figure 4-49. Exhaust System: FXST, FLSTC, FXSB

2013 Softail Service: Fuel System 4-31

MUFFLERS: FLSTN, FLSTF/B, FLS, FXS

TORQUE VALUE

FASTENER

51.6-58.4 Nm

38-43 ft-lbs

Muffler clamp: FLSTN,
FLSTF/B, FLS, FXS

27.1-33.9 Nm

20-25 ft-lbs

Exhaust pipe clamp locknut:
FLSTN, FLSTF/B, FLS, FXS

10.8-13.6 Nm

96-120

in-lbs

Muffler support fastener:
FLSTN, FLSTF/B, FLS, FXS

Removal

See

Figure 4-50

. Loosen clamps (21).

Apply penetrating oil to seams of mufflers and exhaust
pipe (2).

Loosen flange locknut (12) on carriage bolt (17).

Remove muffler fasteners (29) to detach mufflers from
muffler support (30).

Remove muffler shield clamps (23) to detach muffler
shields (22, 26) from mufflers.

Remove mufflers. Discard clamps.

Assembly

See

Figure 4-50

. Place

new

clamps (21) over exhaust

pipe (2).

Slide mufflers (24, 25), onto exhaust pipe.

Loosely attach mufflers to muffler support (30) using
muffler fasteners (29).

Loosely install flange locknut (12) on carriage bolt (17).

Tighten all muffler fasteners.

Tighten muffler clamps to 38-43 ft-lbs (51.6-58.4 Nm).

Tighten flange locknut (12) on carriage bolt (17) to
20-25 ft-lbs (27.1-33.9 Nm).

Tighten muffler support fasteners to 96-120

in-lbs

(10.8-13.6 Nm).

Open muffler shield clamps (23) and install the muffler
shields (22, 26). Position clamps so the screws are on the
outboard side in the most accessible position.

SYSTEM: FLSTN, FLSTF/B, FLS, FXS

TORQUE VALUE

FASTENER

1.0-2.0 Nm

9-18

in-lbs

Exhaust manifold clamp lower
nut, 1st torque: FLSTN,
FLSTF/B, FLS, FXS

11.3-13.6 Nm

100-120

in-lbs

Exhaust manifold clamp upper
nut: FLSTN, FLSTF/B, FLS,
FXS

11.3-13.6 Nm

100-120

in-lbs

Exhaust manifold clamp lower
nut, final torque: FLSTN,
FLSTF/B, FLS, FXS

27.1-33.9 Nm

20-25 ft-lbs

Exhaust carriage bolt flange
locknut: FLSTN, FLSTF/B,
FLS, FXS

Removal

Disconnect O2 sensor wiring. See

Remove two bolts and nuts to detach right side floorboard
from mount.

See

Figure 4-50

. Detach heat shields (1, 10, 13, 14, 15)

from exhaust pipe (2) by removing clamps (9).

Remove all four exhaust header nuts (7).

Loosen flange locknut (12) from carriage bolt (17). Slide
exhaust pipe clamp (16) from the exhaust bracket (11).

Remove two locknuts (27) and bolt (28) to detach exhaust
system from frame.

Installation

NOTE

See

Figure 4-50

. Replacement cylinder head exhaust port

gaskets (4) are tapered internally. Be sure the tapered side is
facing exhaust pipes. Also check condition of retaining ring (5)
before installation.

Install

new

gaskets (4) in both the front and rear cylinder

heads with the tapered side facing exhaust pipes.

Position ends of exhaust pipes into front, then rear cylinder
head exhaust ports placing holes in exhaust manifold
clamp (6) over cylinder head exhaust studs. Loosely thread
on flange nuts (7).

Loosely attach exhaust system to frame using locknuts
(27).

Loosely attach exhaust pipe clamp (16) to exhaust bracket
(11) using flange locknut (12) and carriage bolt (17).

Align exhaust system and tighten all nuts and bolts;
beginning at cylinder head exhaust ports and working
backwards.

Install upper nut and tighten finger tight.

Install lower nut and tighten to 9-18

in-lbs

(1.0-2.0

Nm).

Tighten upper nut to 100-120

in-lbs

(11.3-13.6 Nm).

Tighten lower nut to 100-120

in-lbs

(11.3-13.6 Nm).

4-32 2013 Softail Service: Fuel System

Tighten flange locknut (12) on carriage bolt (17) to 20-25
ft-lbs (27.1-33.9 Nm).

Open clamps (9) and install heat shields (1, 10, 13, 14,
15).

Install right side floorboard with two bolts and nuts.

Connect O2 sensor wiring. See

sm02778

20.

Bellcrank

Rear cylinder exhaust pipe shield

21.

Exhaust pipe

Clamp (2)

22.

Front muffler shield

Rear oxygen sensor

23.

Exhaust port gasket (2)

Muffler shield clamp

24.

Front muffler

Exhaust gasket retaining ring (2)

25.

Exhaust manifold clamp (2)

Rear muffler

26.

Rear muffler shield

Nut (4)

27.

Front oxygen sensor

Locknut (2)

28.

Muffler support fastener

Exhaust shield clamp (7)

10.

29.

Front exhaust shield

Muffler fastener

30.

11.

Muffler support

Exhaust bracket

12.

31.

Flange locknut

Spacer stud (2)

32.

13.

Active exhaust module bracket

Crossover heat shield: FLSTF/B

14.

33.

Front exhaust shield extension: FLSTN

Active exhaust module

34.

15.

Fastener

Interconnect shield: FLSTN

16.

35.

Exhaust pipe clamp

Ferrule

36.

17.

Cable housing

Carriage bolt

18.

37.

Ferrule

Active exhaust cable

19. Cable retainer

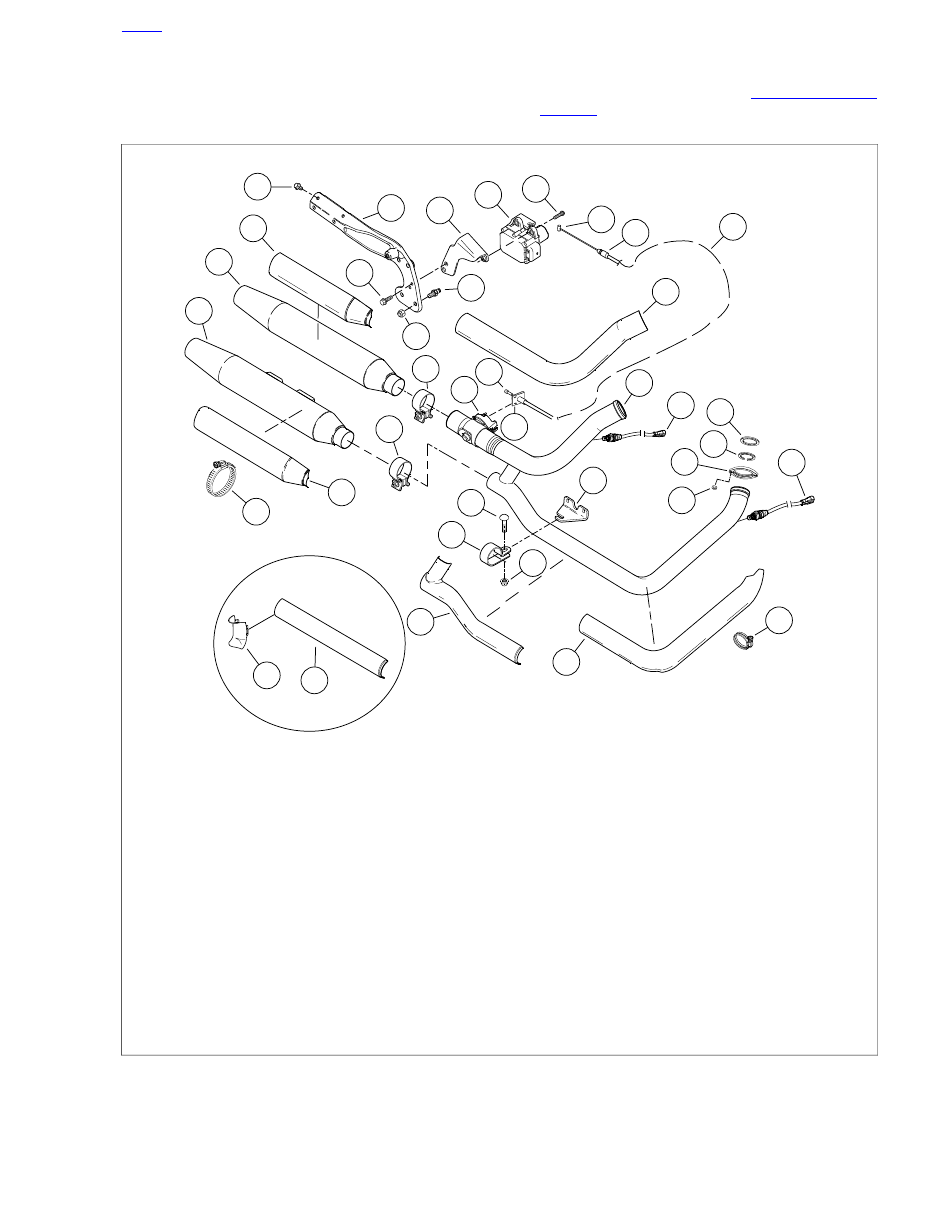

Figure 4-50. Exhaust System: FLSTF/B, FLSTN, FLS, FXS
