12•50

Wiring diagrams

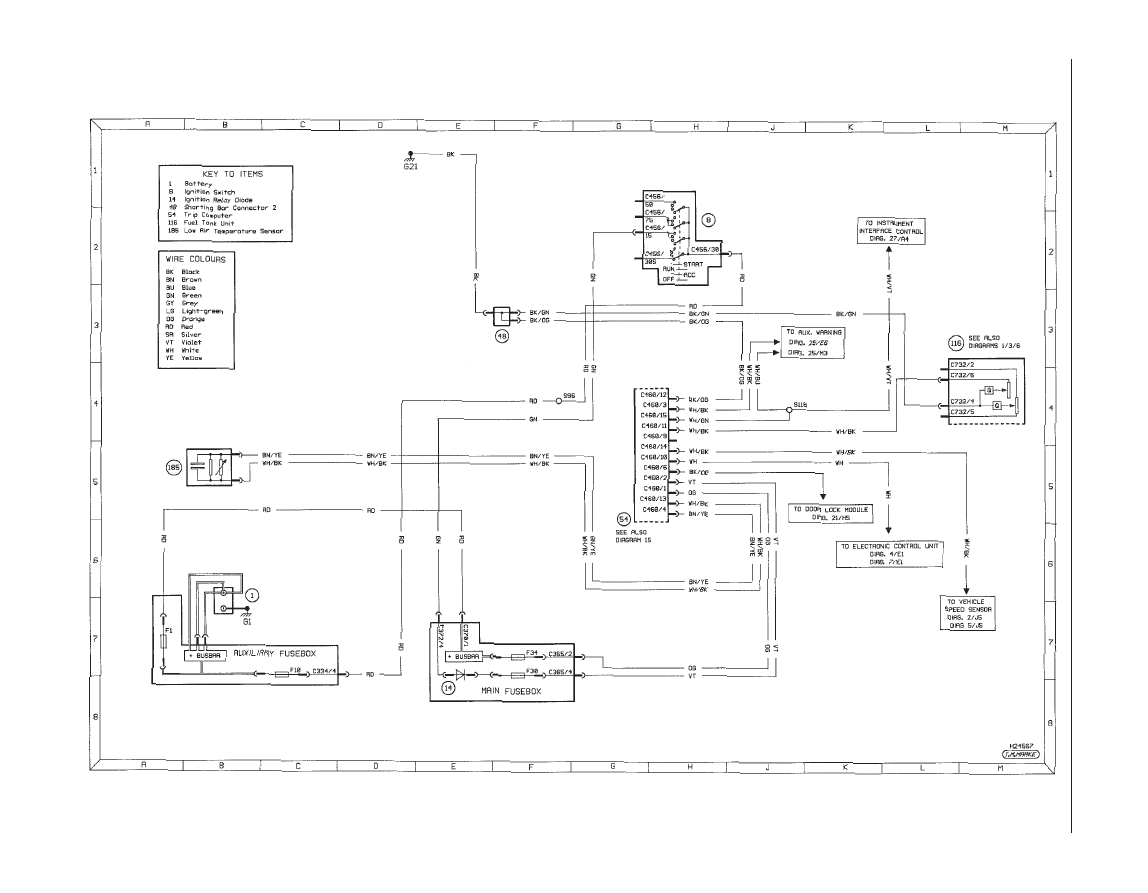

Diagram 26: Trip computer

Wiring diagrams  12•51

12

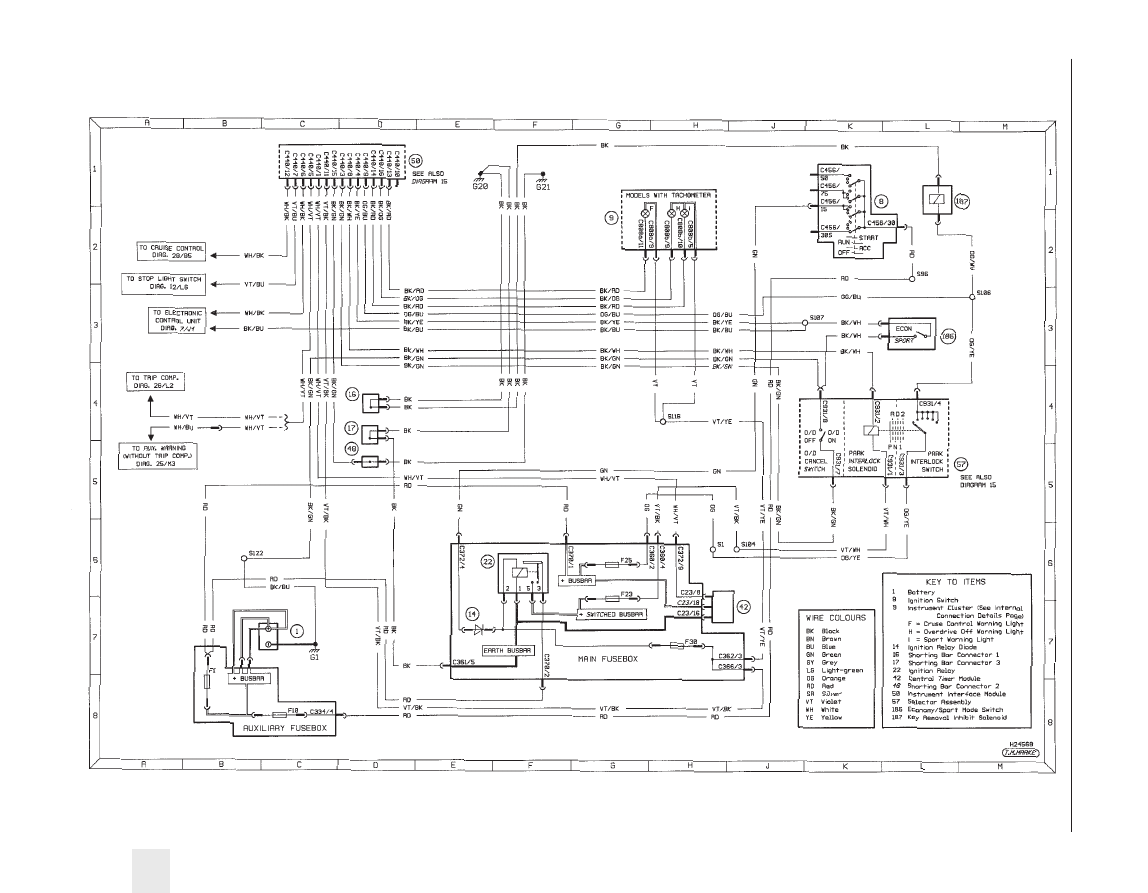

Diagram 27: Instrument interface control

12•52

Wiring diagrams

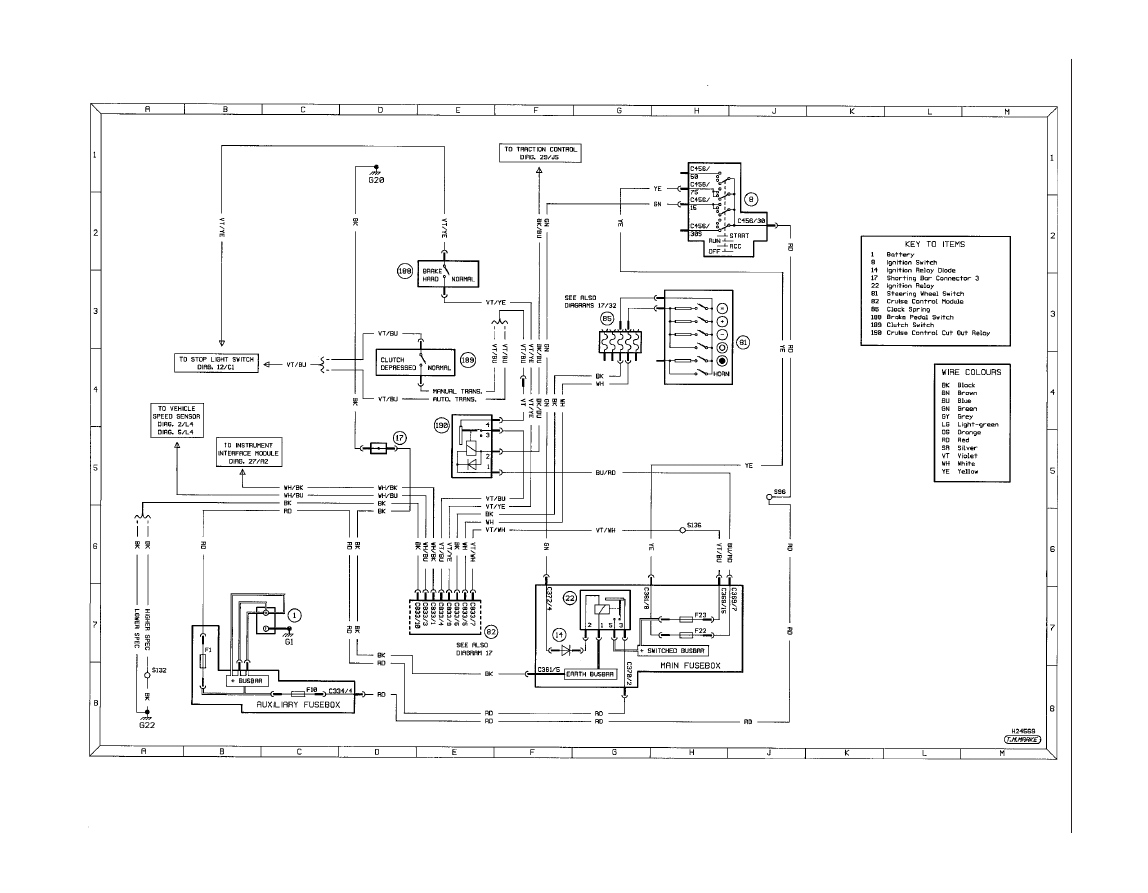

Diagram 28: Cruise control

Wiring diagrams  12•53

12

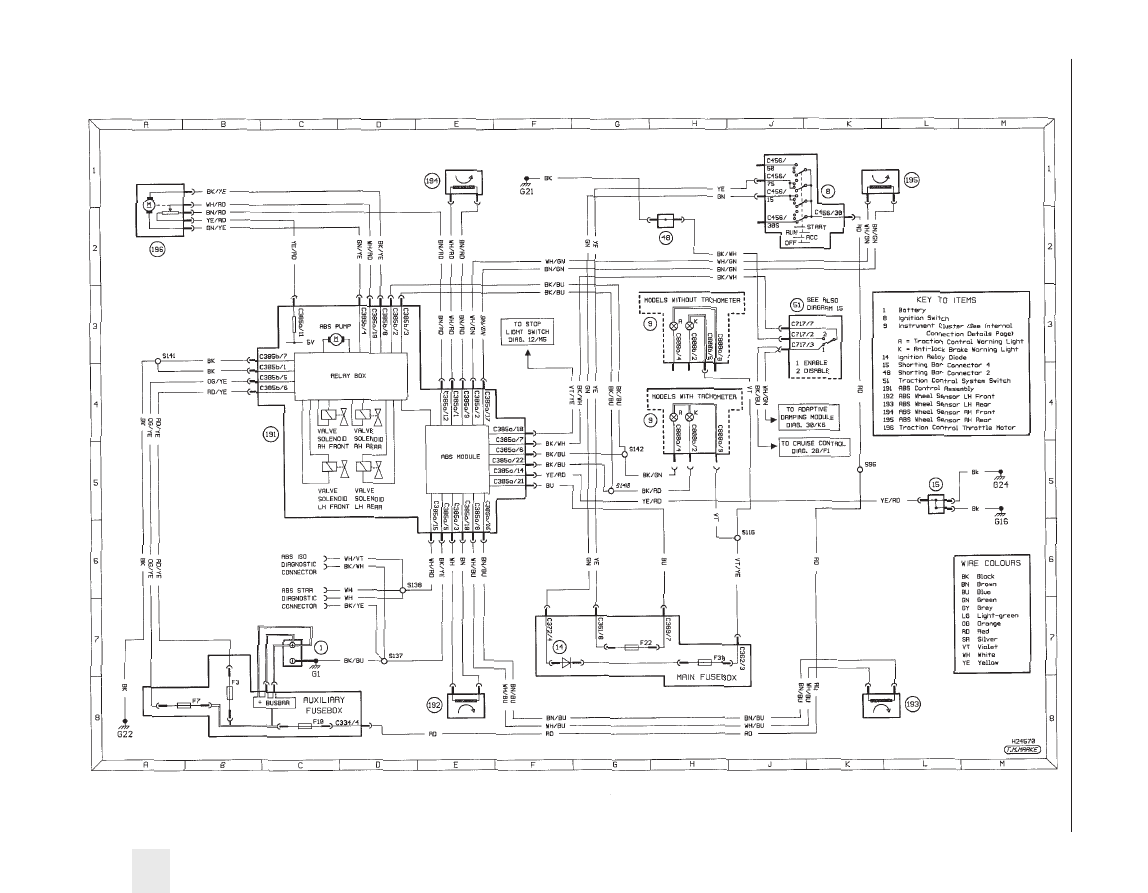

Diagram 29: ABS with traction control
