2003 SYSTEM WIRING DIAGRAMS Ford - Pickup F150

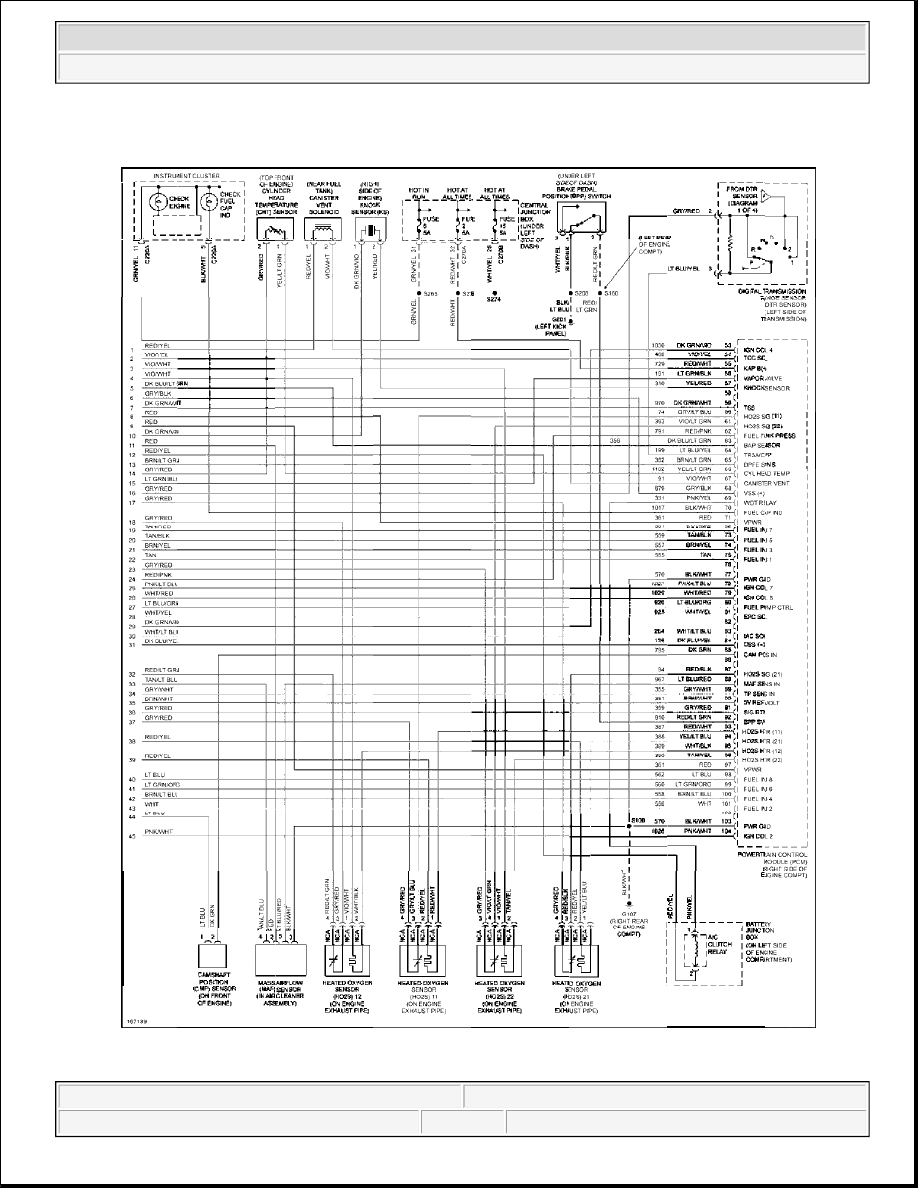

Fig. 45: 5.4L Supercharged, Engine Performance Circuit (3 of 4)

2003 Ford Pickup F150

2003 SYSTEM WIRING DIAGRAMS Ford - Pickup F150

2003 Ford Pickup F150

2003 SYSTEM WIRING DIAGRAMS Ford - Pickup F150

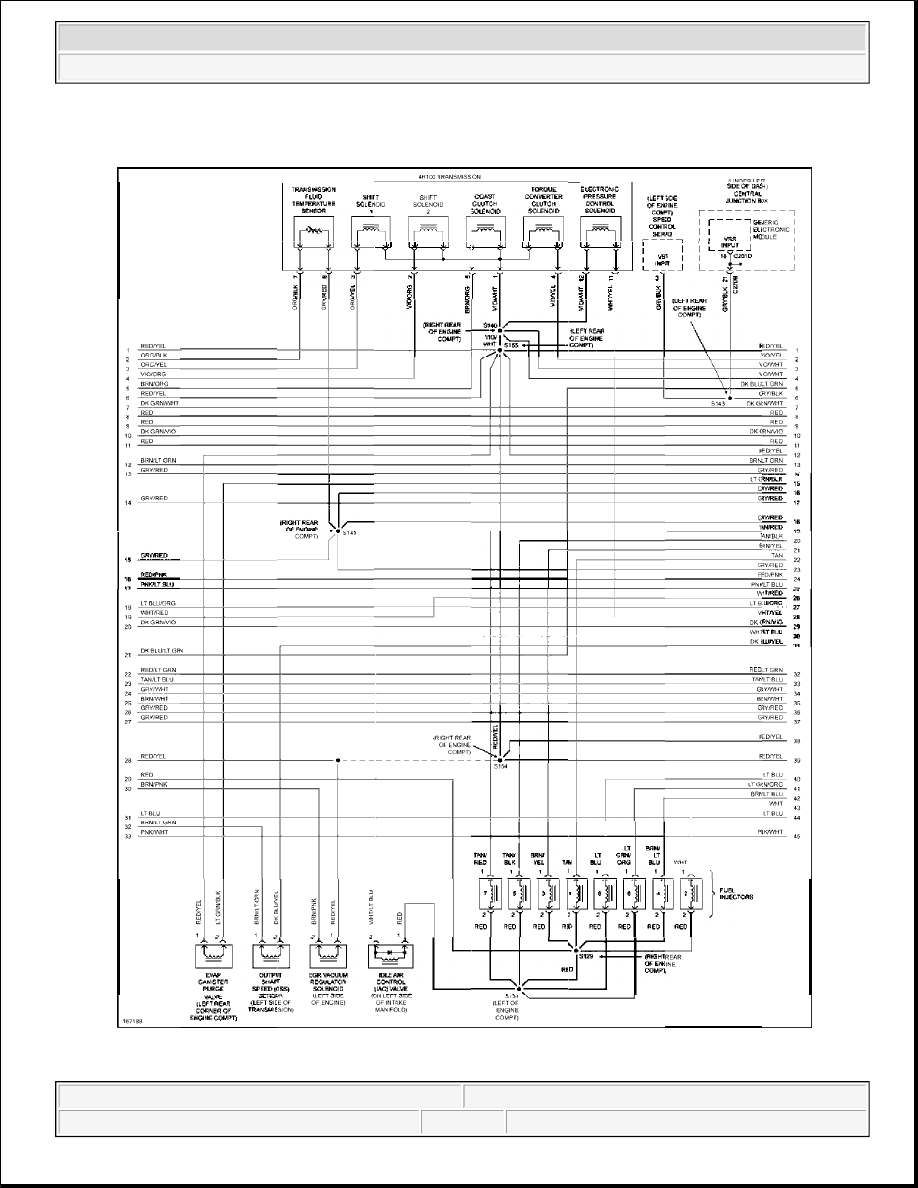

Fig. 46: 5.4L Supercharged, Engine Performance Circuit (4 of 4)
