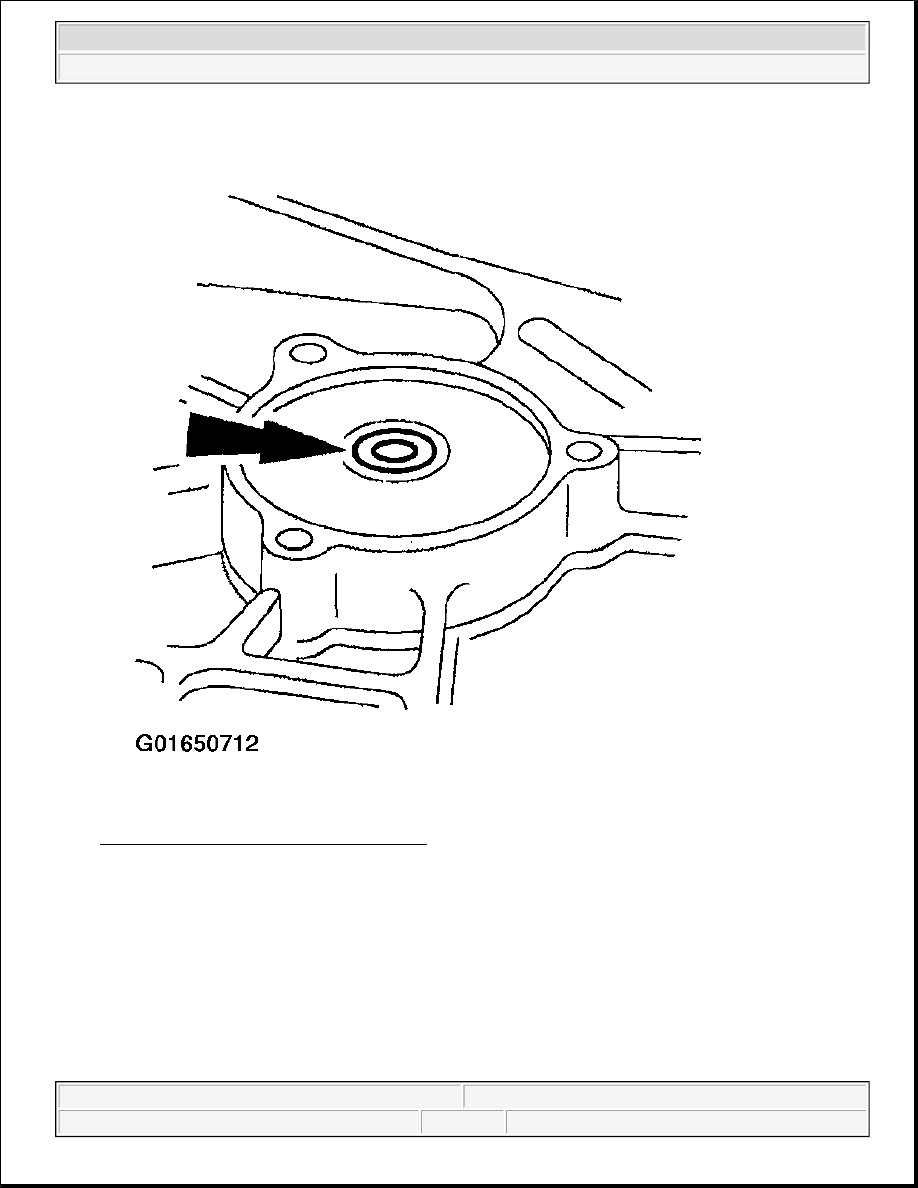

Fig. 79: Locating Electric Shift Motor Seal
Courtesy of FORD MOTOR CO.

40. Remove the dust shield, if necessary.



2003 Ford Pickup F150

2003 TRANSMISSIONS Transfer Case - F150 Pickup



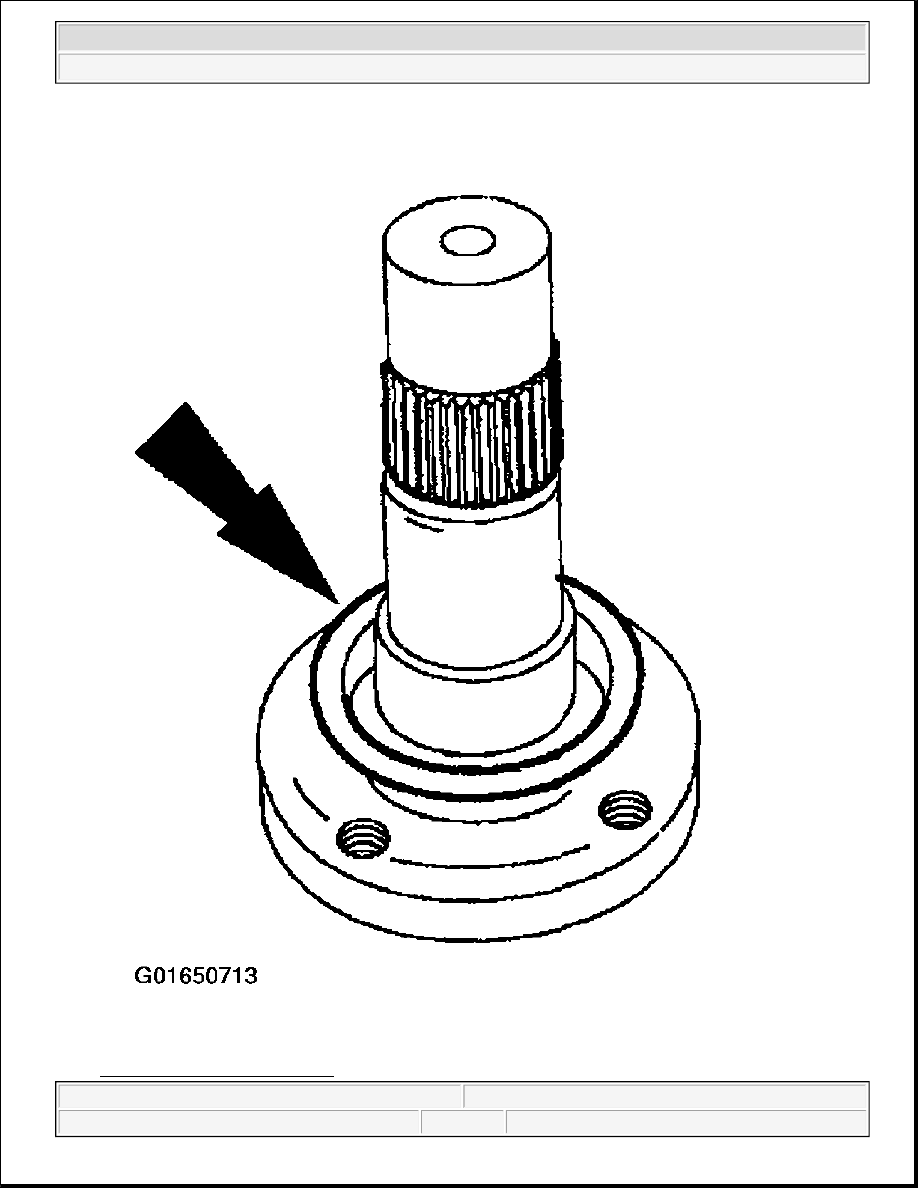

Fig. 80: Removing Dust Shield



2003 Ford Pickup F150

2003 TRANSMISSIONS Transfer Case - F150 Pickup



Courtesy of FORD MOTOR CO.

Assembly

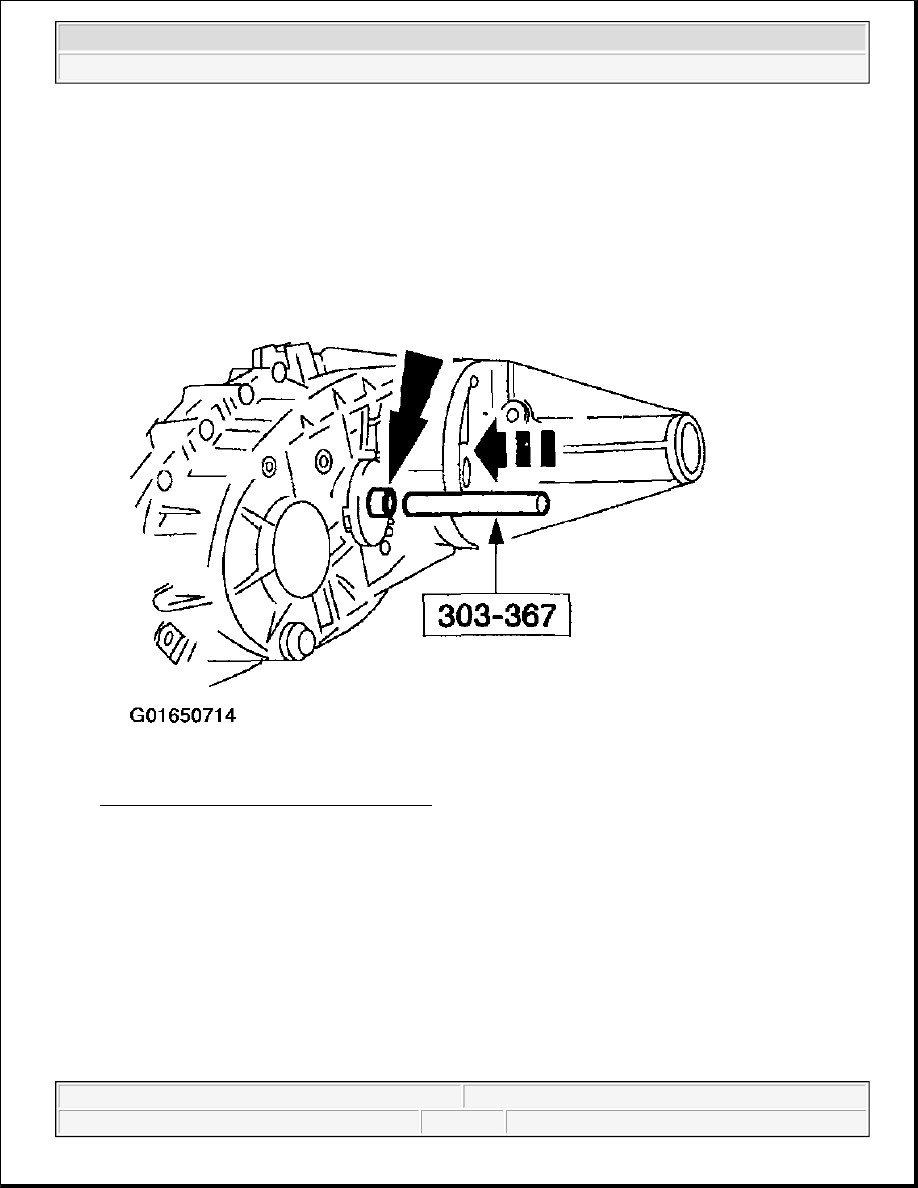

Fig. 81: Installing Electric Shift Motor Seal
Courtesy of FORD MOTOR CO.

1. Using the special tool, install the electric shift motor seal, if equipped.

CAUTION: Do not crush the seal.

CAUTION: Do not crush the seal.



2003 Ford Pickup F150

2003 TRANSMISSIONS Transfer Case - F150 Pickup

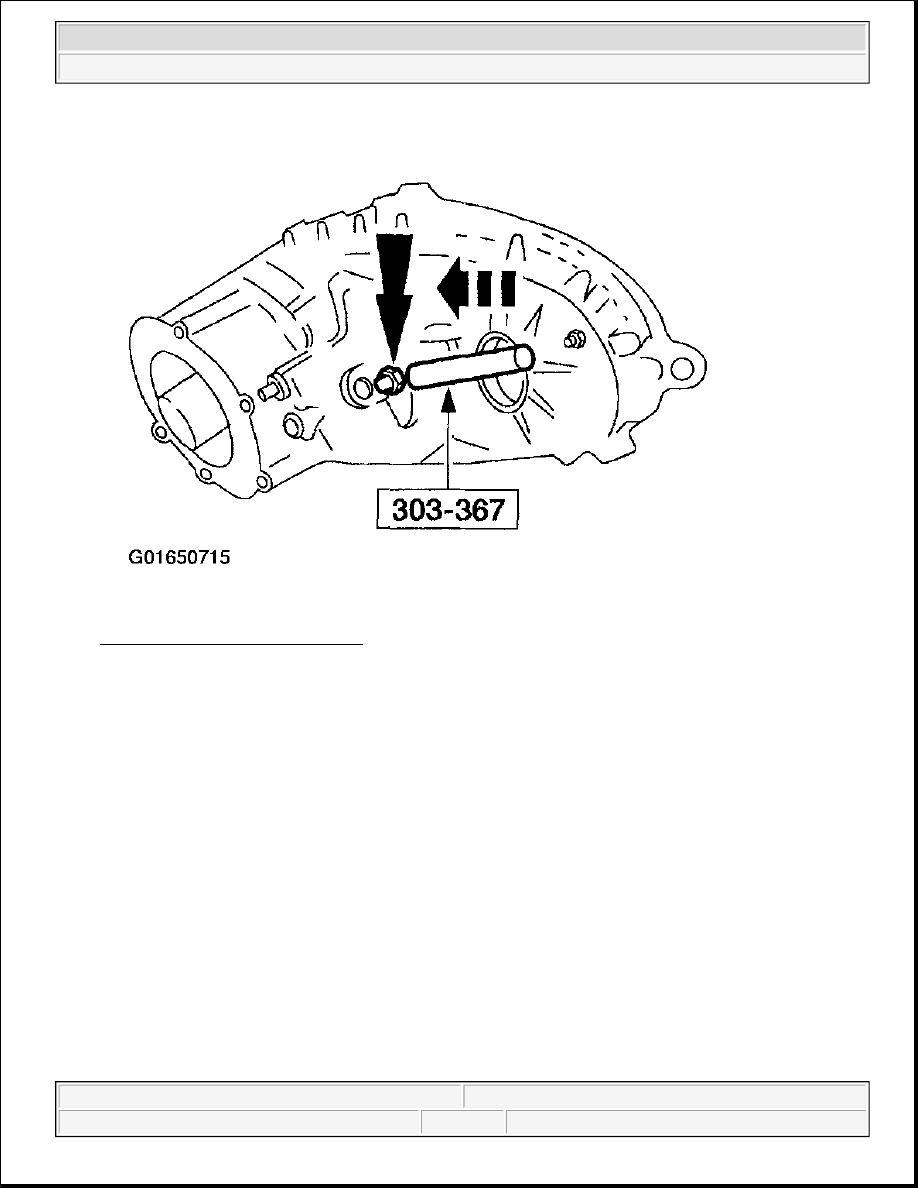

Fig. 82: Installing Shift Lever Seal
Courtesy of FORD MOTOR CO.

2. Using the special tool, install the shift lever seal, if equipped.

3. Install the shift lever (from outside of case), shift cam, detent spring and detent roller, if equipped.
