Fig. 75: Removing Front Yoke To Flange Seal
Courtesy of FORD MOTOR CO.

NOTE:

Access the shift lever set screw through the 4WD indicator switch hole, if
equipped.



2003 Ford Pickup F150

2003 TRANSMISSIONS Transfer Case - F150 Pickup

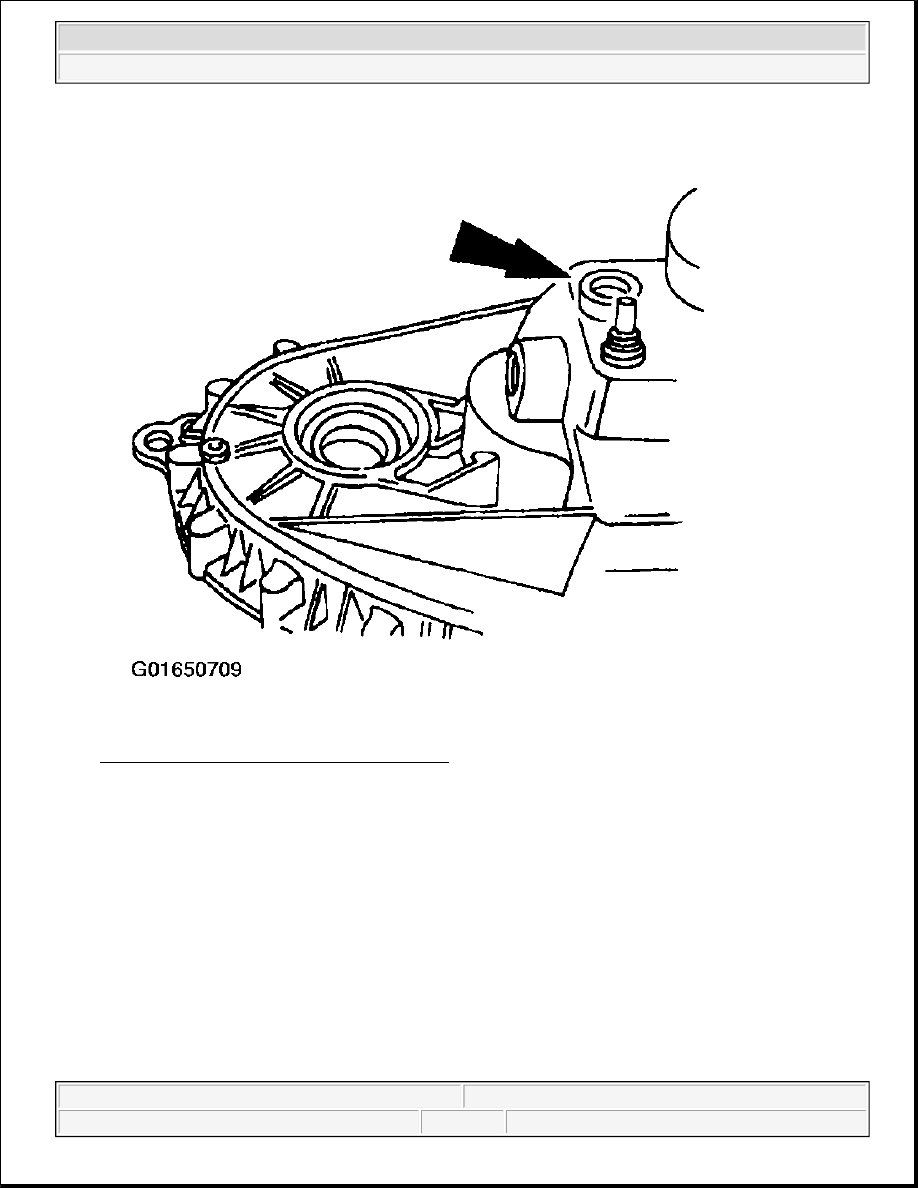

Fig. 76: Locating 4WD Indicator Switch Hole
Courtesy of FORD MOTOR CO.

36. Loosen the shift lever set screw.

37. Remove the shift lever (from outside of case), shift cam detent spring and detent roller, if equipped.



2003 Ford Pickup F150

2003 TRANSMISSIONS Transfer Case - F150 Pickup

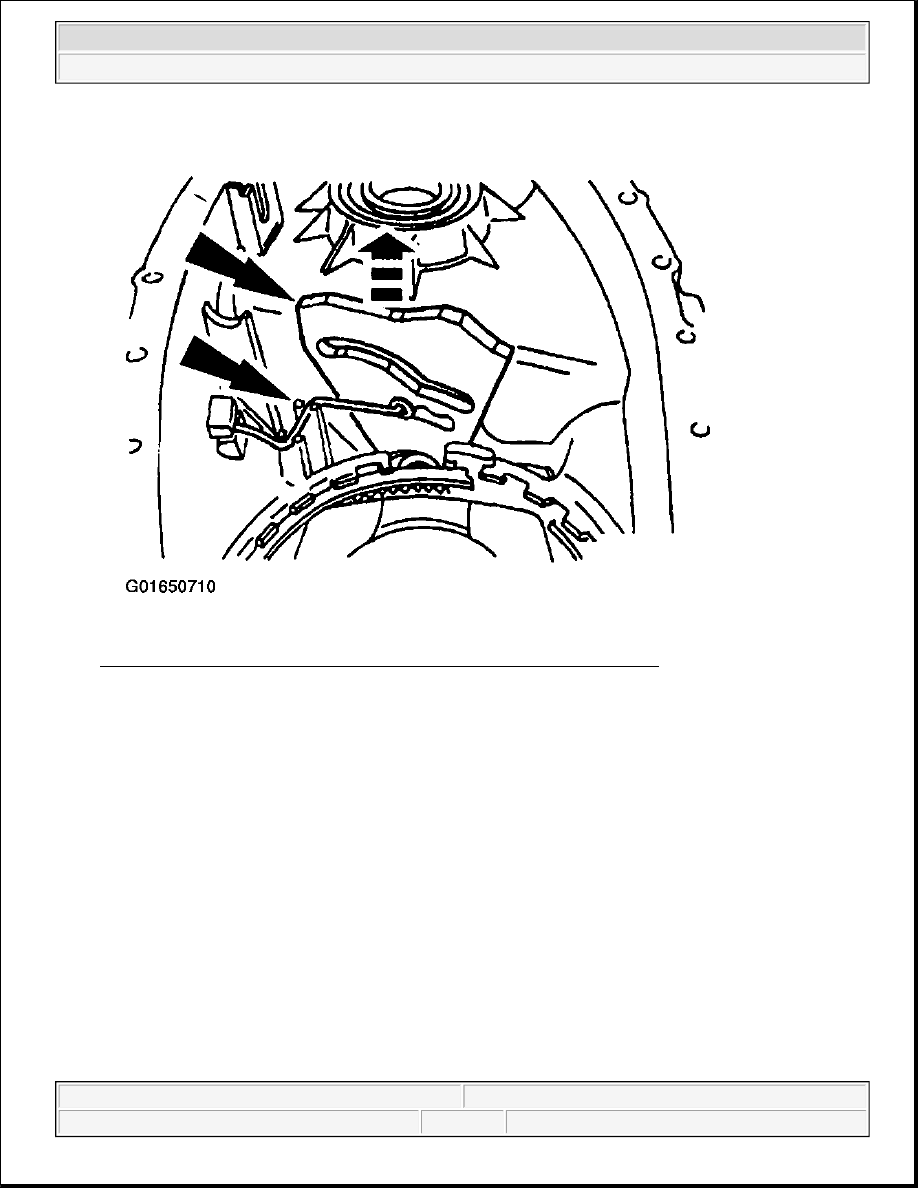

Fig. 77: Removing Shift Lever, Shift Cam Detent Spring & Detent Roller
Courtesy of FORD MOTOR CO.

38. Using the special tools, remove the shift lever seal, if equipped.



2003 Ford Pickup F150

2003 TRANSMISSIONS Transfer Case - F150 Pickup

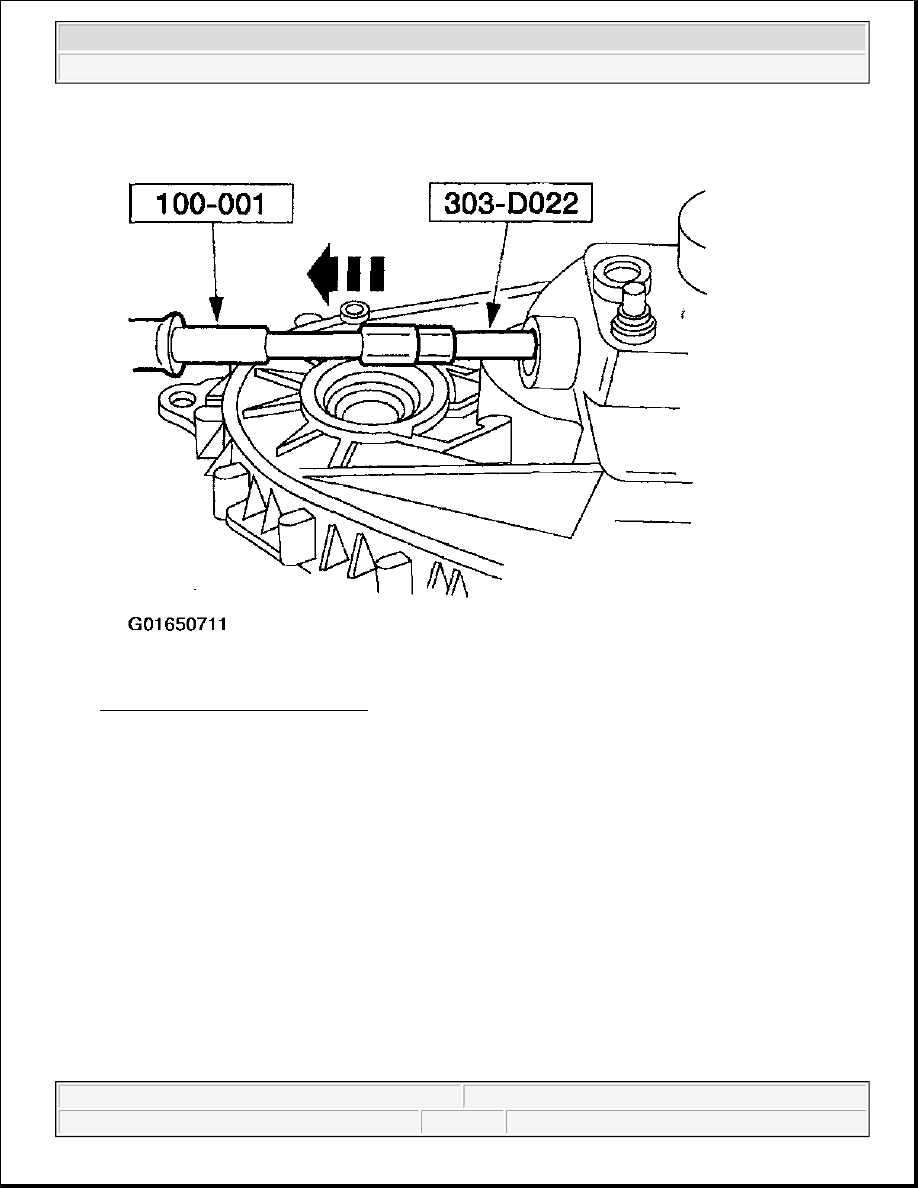

Fig. 78: Removing Shift Lever Seal
Courtesy of FORD MOTOR CO.

39. Using a suitable pry tool, remove the electric shift motor seal, if equipped.



2003 Ford Pickup F150

2003 TRANSMISSIONS Transfer Case - F150 Pickup
