Ford F150 Pickup. Manual - part 1916

Fig. 207: Tightening Crossmember Bolts
Courtesy of FORD MOTOR CO.

8. Install the transmission mount bolts.



2003 Ford Pickup F150

2003 TRANSMISSIONS Manual Transmission - F150 Pickup



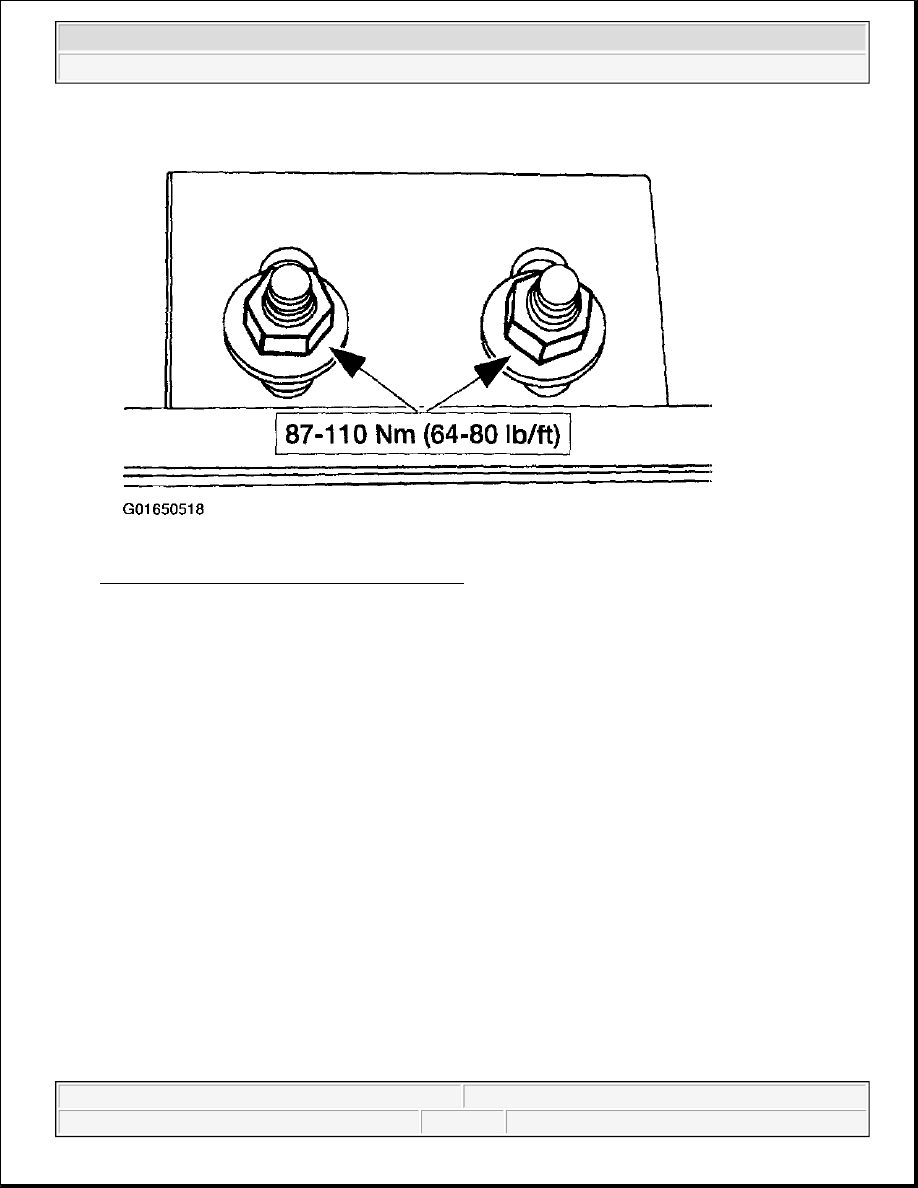

Fig. 208: Tightening Transmission Mount Bolts
Courtesy of FORD MOTOR CO.

9. Install the two heat shield bolts to the crossmember.



2003 Ford Pickup F150

2003 TRANSMISSIONS Manual Transmission - F150 Pickup



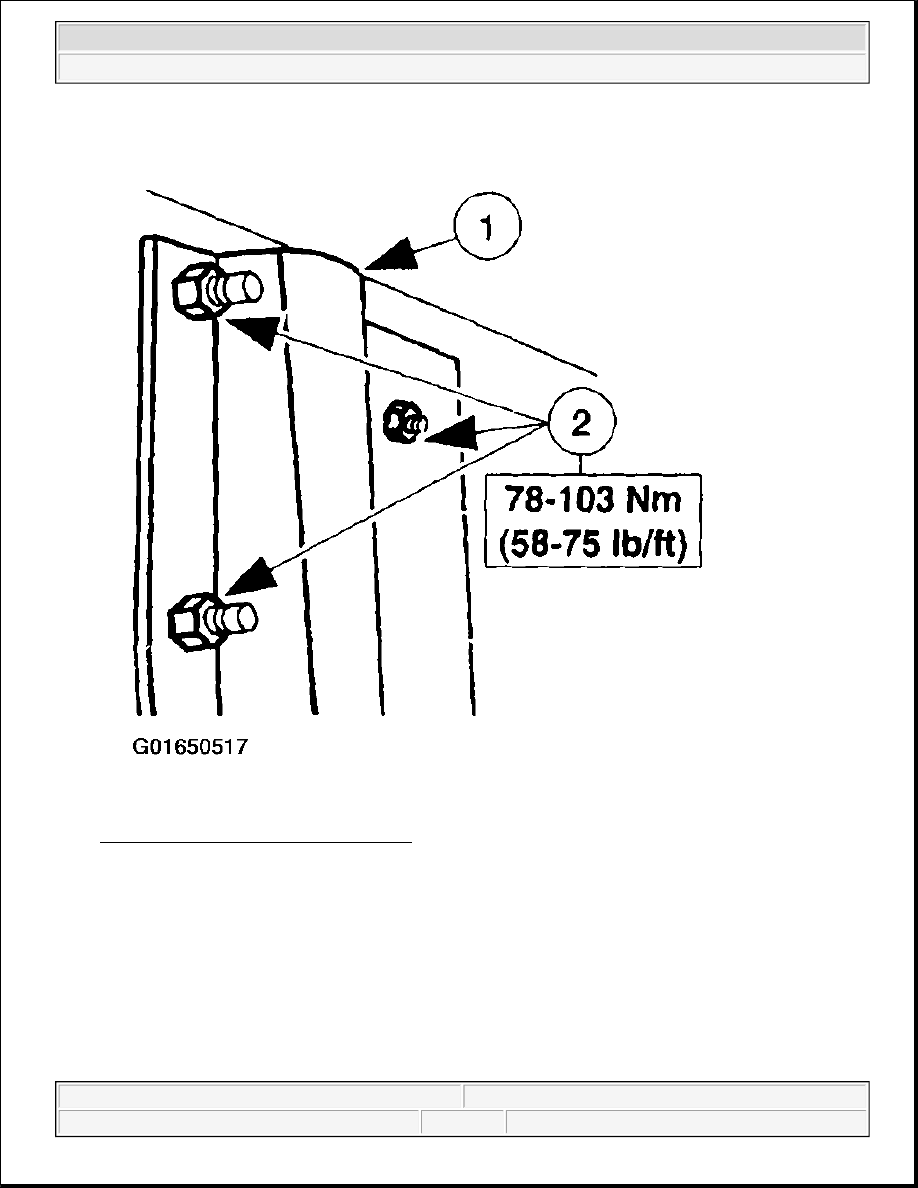

Fig. 209: Tightening Heat Shield Bolts
Courtesy of FORD MOTOR CO.

10. Remove the transmission support from the transmission.

11. Connect the clutch hydraulic line.



2003 Ford Pickup F150

2003 TRANSMISSIONS Manual Transmission - F150 Pickup



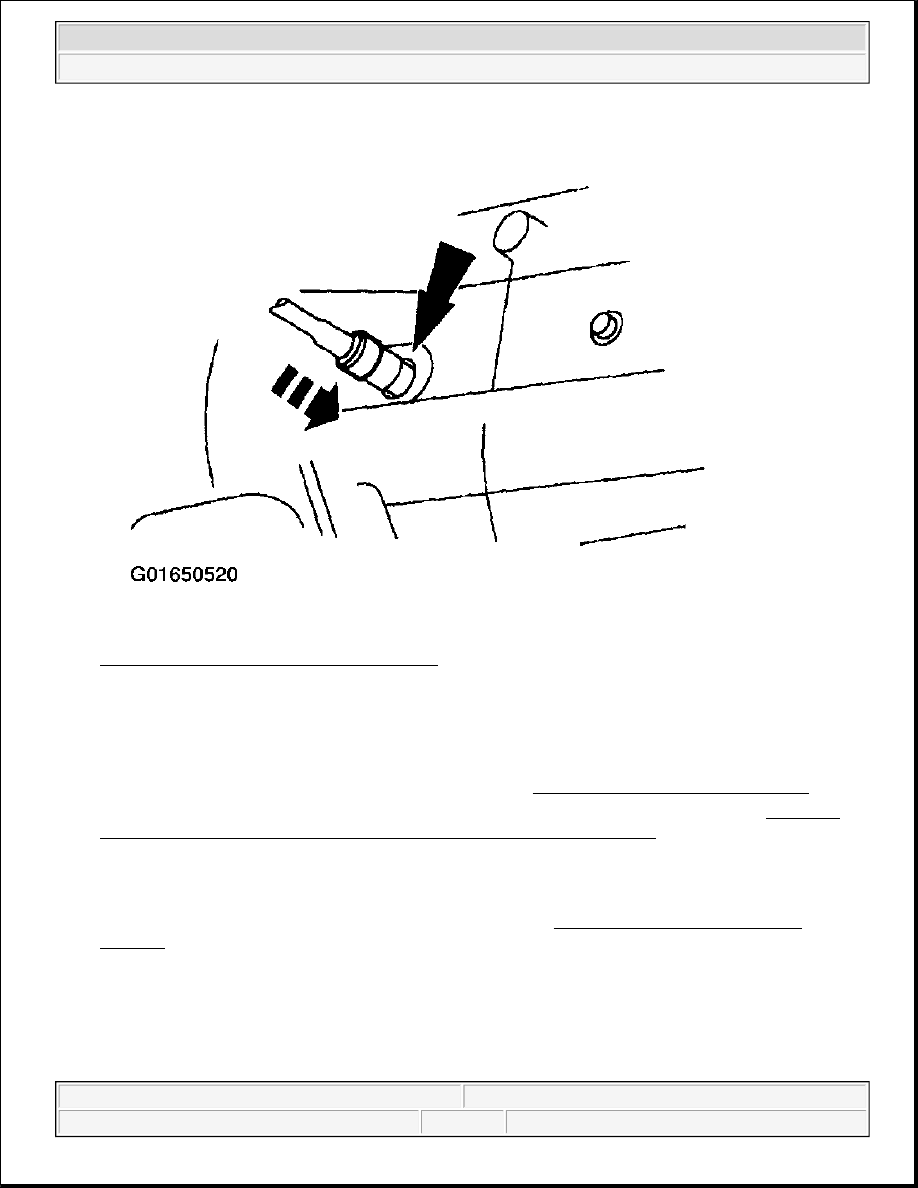

Fig. 210: Connecting Clutch Hydraulic Line
Courtesy of FORD MOTOR CO.

Four Wheel Drive Vehicles

12. Connect the transfer case shift lever and install the bolt.

13. Install the transfer case. For additional information, refer to TRANSFER CASE - F150 PICKUP .

14. Install the torsion bars and the torsion bar crossmember. For additional information, refer to FRONT -

4WD TORSION BAR - EXPEDITION, F150 PICKUP & NAVIGATOR .

15. Install the front driveshaft. For additional information, refer to DRIVESHAFT & UNIVERSAL

JOINTS .

16. Install the transfer case heat shield.

17. Install the skid plate.

All Vehicles

NOTE:

Align the index marks made during removal.



2003 Ford Pickup F150

2003 TRANSMISSIONS Manual Transmission - F150 Pickup
