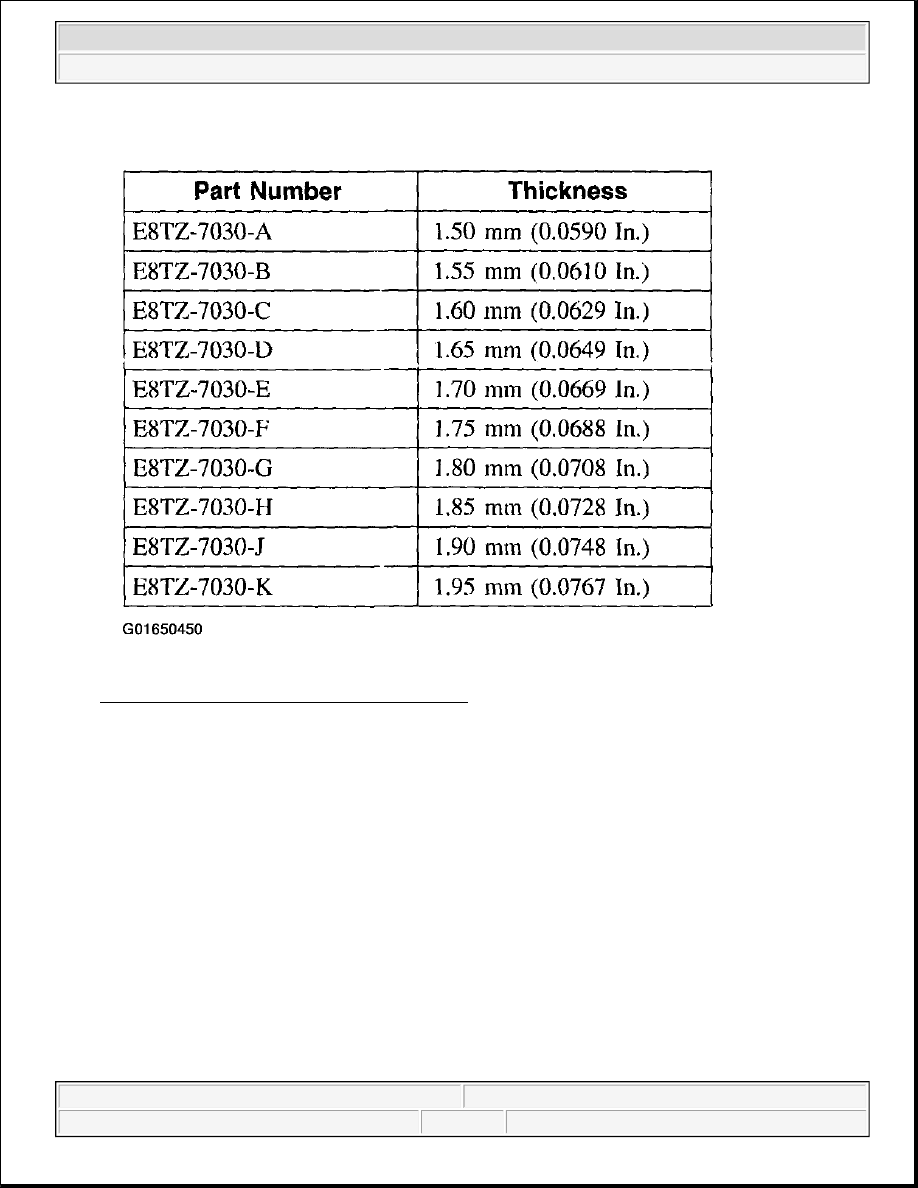

Fig. 140: Bearing Outer Snap Ring Select Chart
Courtesy of FORD MOTOR CO.



2003 Ford Pickup F150

2003 TRANSMISSIONS Manual Transmission - F150 Pickup

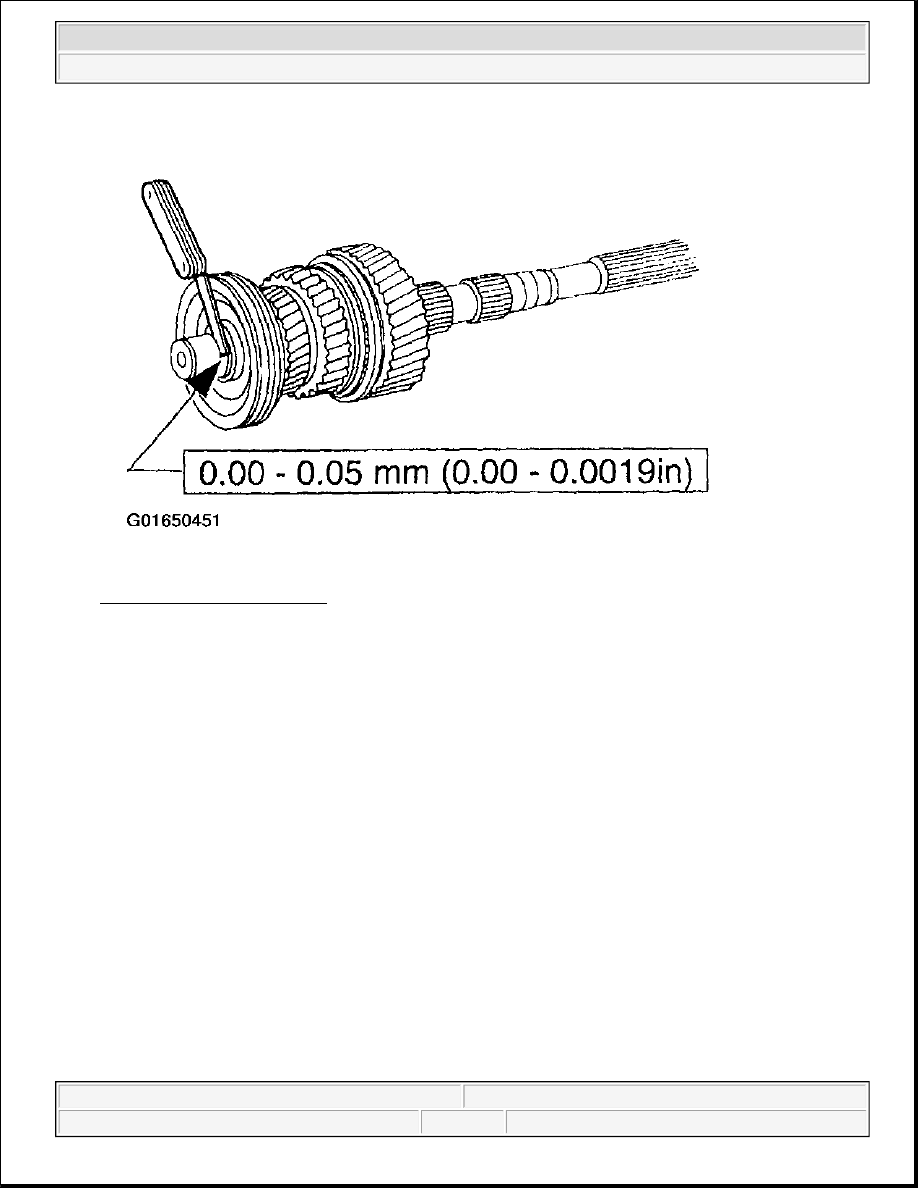

Fig. 141: Checking Clearance
Courtesy of FORD MOTOR CO.

REVERSE IDLER GEAR

Disassembly

1. Disassemble the reverse idler gear.

1. Remove the reverse idler gear retaining ring (7156).

2. Remove the spacer.

3. Remove the reverse idler gear and bushing (7141).

4. Remove the reverse idler gear bearing (7E139).

5. Remove the reverse idler gear thrust washer (7N037)



2003 Ford Pickup F150

2003 TRANSMISSIONS Manual Transmission - F150 Pickup

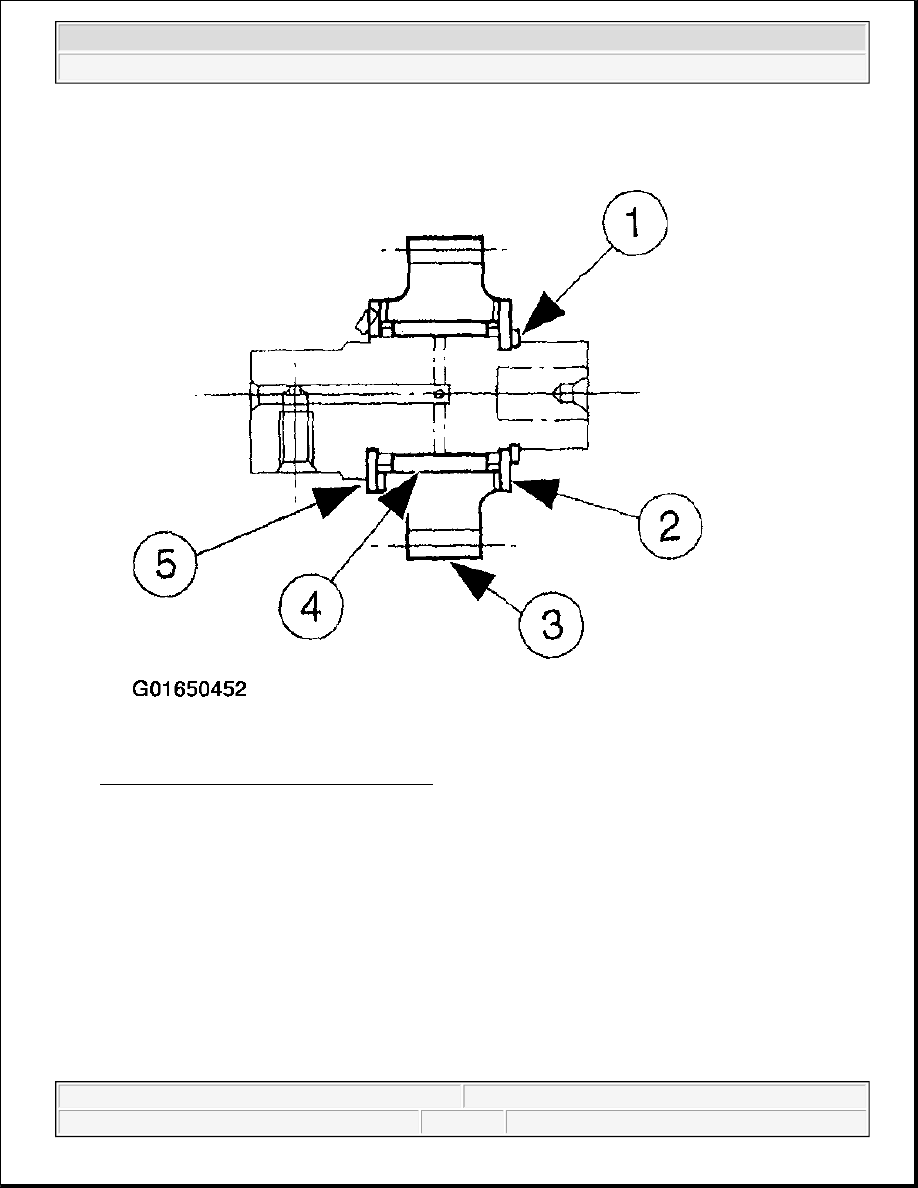

Fig. 142: Disassembling Reverse Idler Gear
Courtesy of FORD MOTOR CO.

Assembly

1. Assemble the reverse idler gear.

1. Install the reverse idler gear thrust washer.

2. Install the reverse idler gear bearing.

3. Install the reverse idler gear and bushing.

4. Install the spacer.

5. Install the reverse idler gear retaining ring.



2003 Ford Pickup F150

2003 TRANSMISSIONS Manual Transmission - F150 Pickup

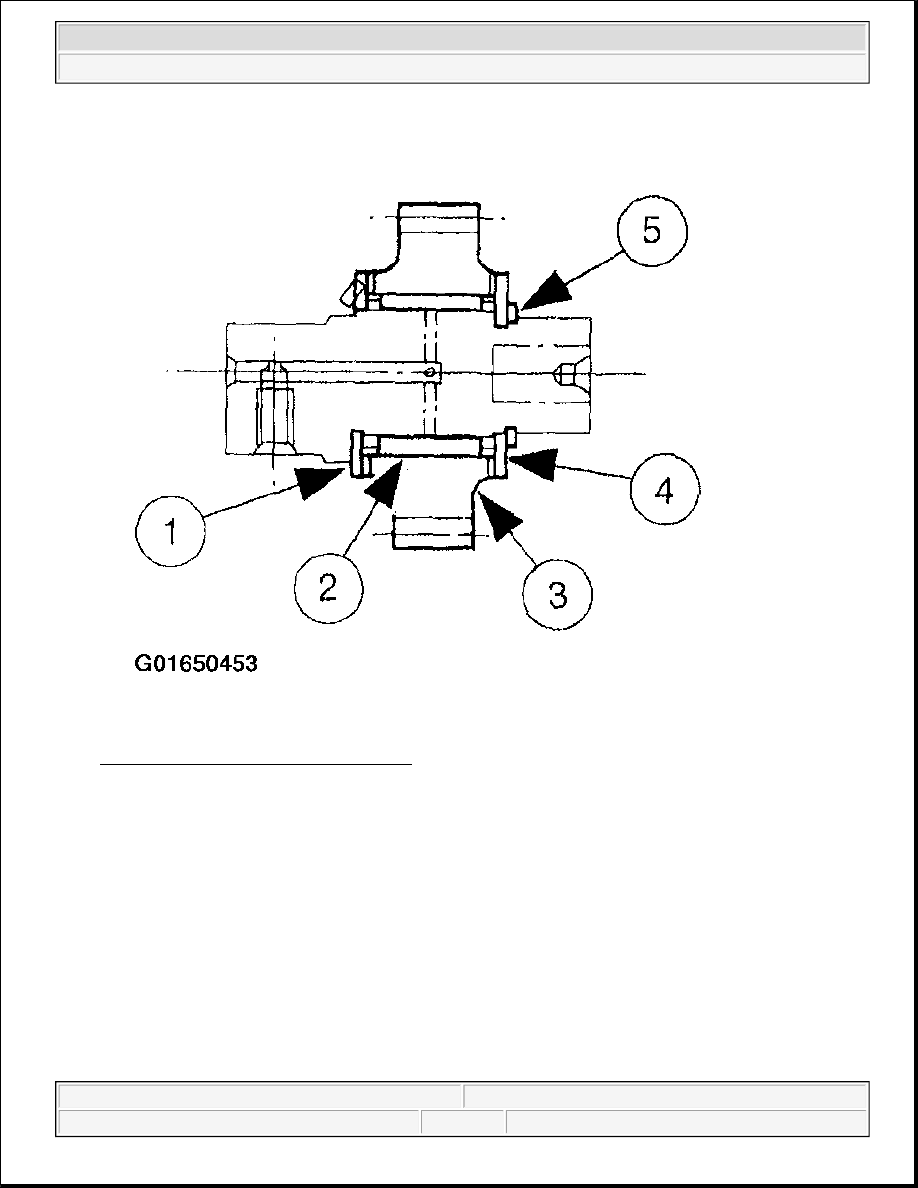

Fig. 143: Assembling Reverse Idler Gear
Courtesy of FORD MOTOR CO.

2. Measure reverse idler gear end play.

z

If end play is not within specifications, install a retaining ring of proper thickness.
