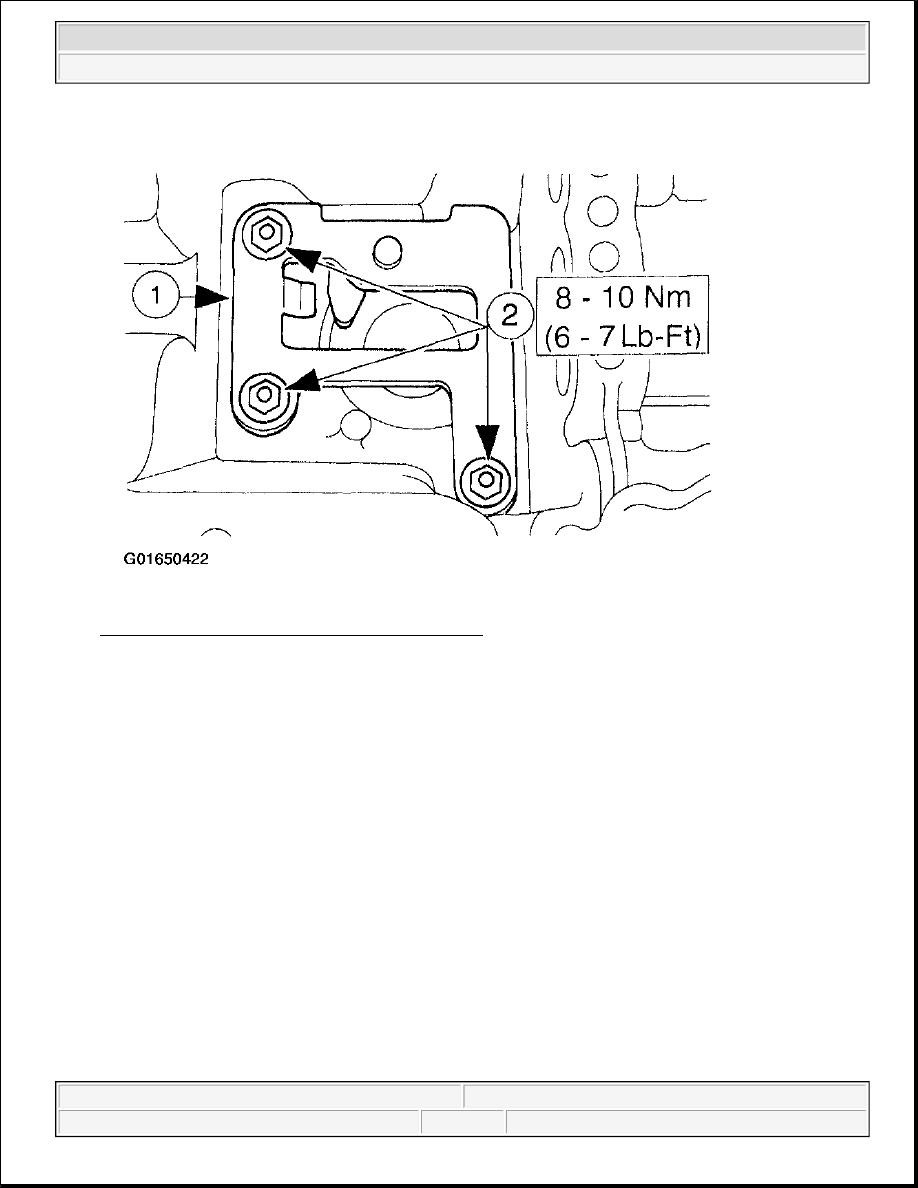

Fig. 112: Installing Gear Selector Interlock Sleeve
Courtesy of FORD MOTOR CO.

NOTE:

Improper installation of the interlock pins will prevent activation of the
shift rail.



2003 Ford Pickup F150

2003 TRANSMISSIONS Manual Transmission - F150 Pickup



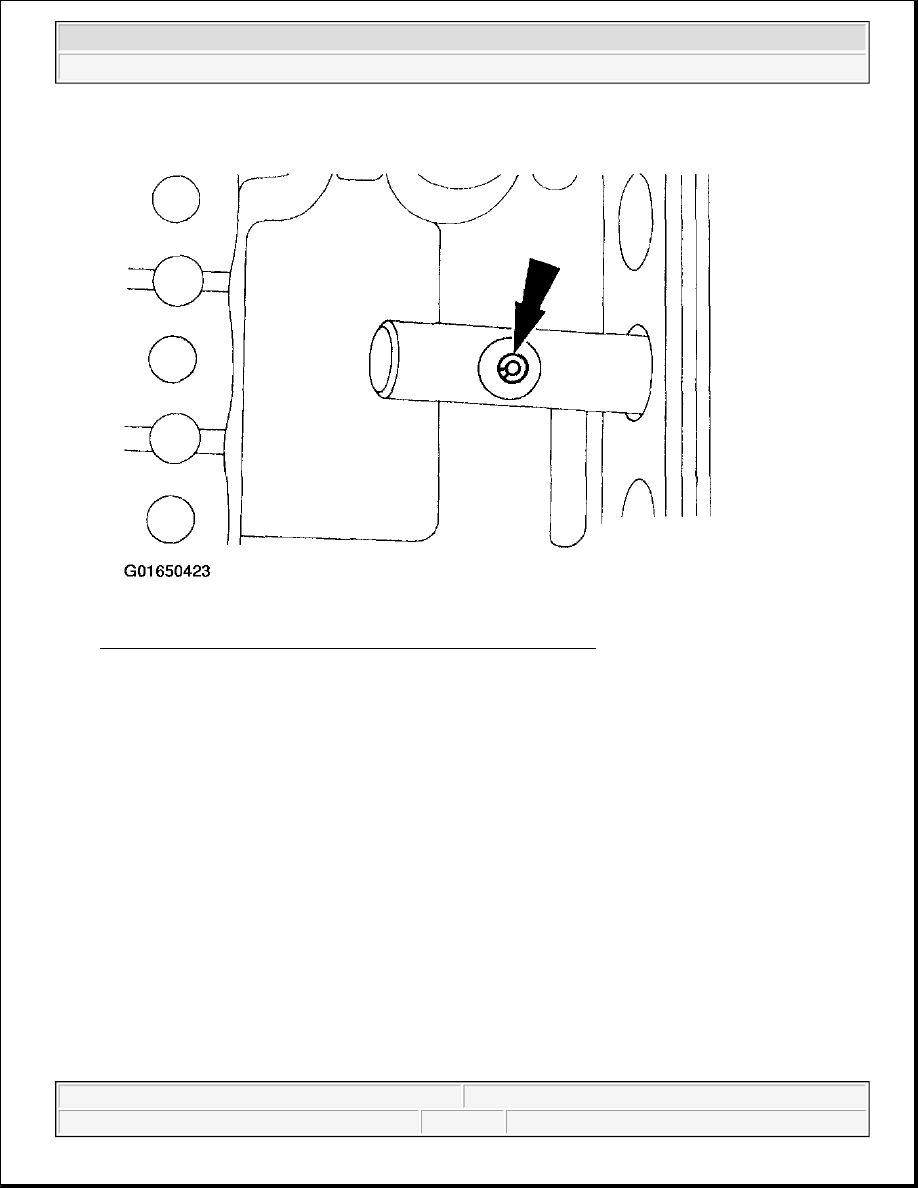

Fig. 113: Installing Interlock Pins Into Their Original Shift Rails
Courtesy of FORD MOTOR CO.

3. Install the interlock pins into their original shift rails.

4. Position the (B) detent ball and spring, (C) shift gate, (D) shift fork and spring and install the (A)

third/fourth shift rail.



2003 Ford Pickup F150

2003 TRANSMISSIONS Manual Transmission - F150 Pickup



Fig. 114: Installing Third/Fourth Shift Rail
Courtesy of FORD MOTOR CO.

5. Position the (B) detent ball and spring, (C) shift gate, (D) shift fork and spring and install the (A)

first/second shift rail.



2003 Ford Pickup F150

2003 TRANSMISSIONS Manual Transmission - F150 Pickup



Fig. 115: Installing First/Second Shift Rail
Courtesy of FORD MOTOR CO.

6. Position the (B) fifth/reverse shift control, (C) detent ball and spring and (D) shift gate and install the (A)

fifth/reverse shift rail.



2003 Ford Pickup F150
