Fig. 108: Removing First/Second Shift Rail
Courtesy of FORD MOTOR CO.

10. Use spring pin bore to remove the third/fourth shift rail.



2003 Ford Pickup F150

2003 TRANSMISSIONS Manual Transmission - F150 Pickup

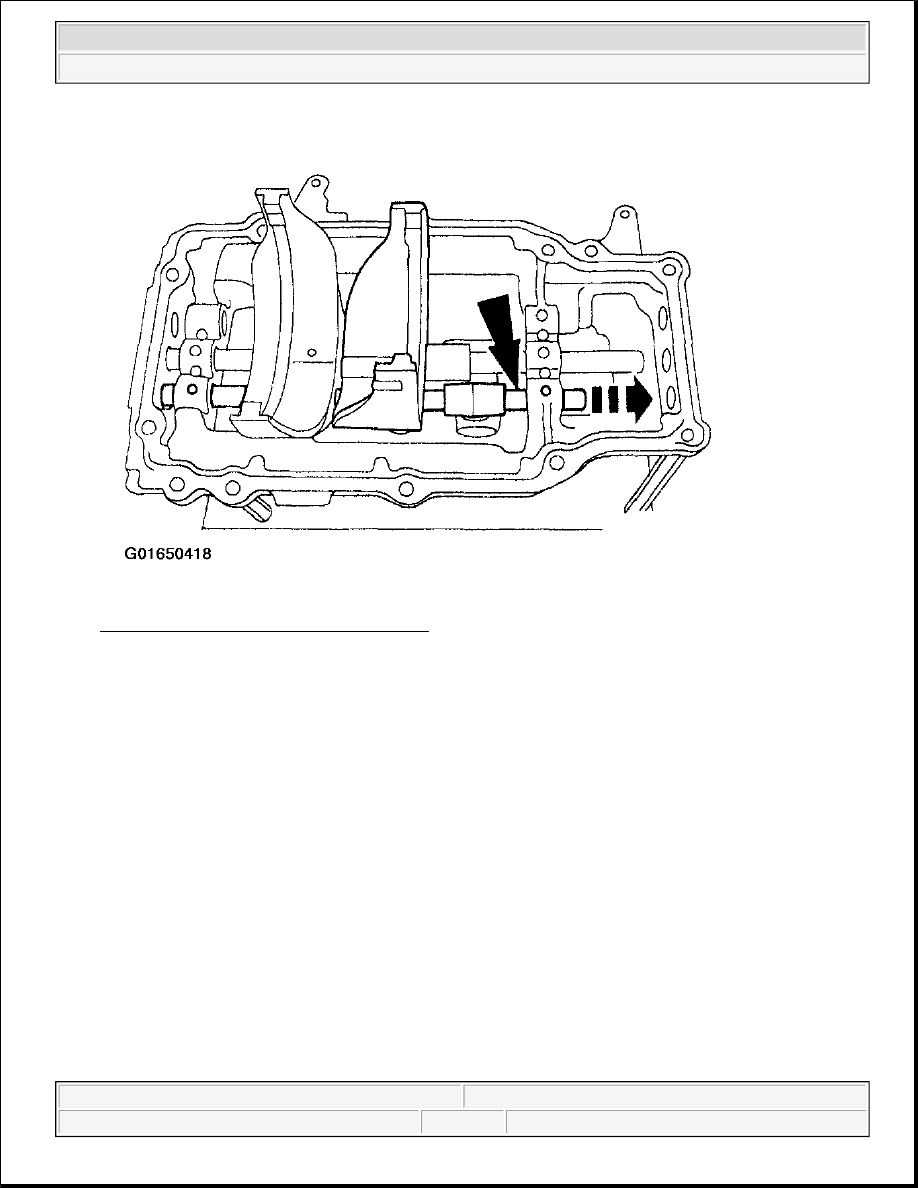

Fig. 109: Removing Third/Fourth Shift Rail
Courtesy of FORD MOTOR CO.

11. Remove the gear selector interlock sleeve (7K201).

1. Remove the bolts.

2. Remove the gear selector interlock sleeve.



2003 Ford Pickup F150

2003 TRANSMISSIONS Manual Transmission - F150 Pickup

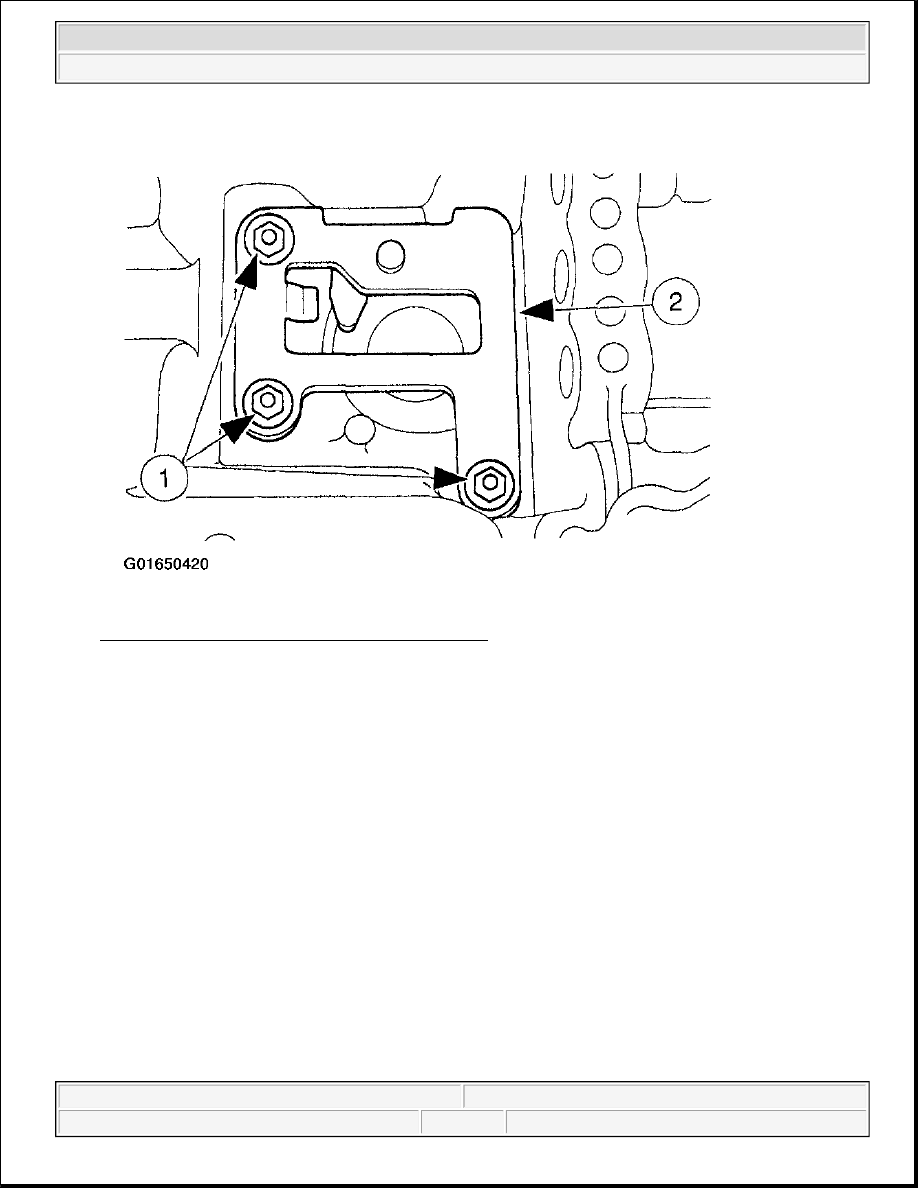

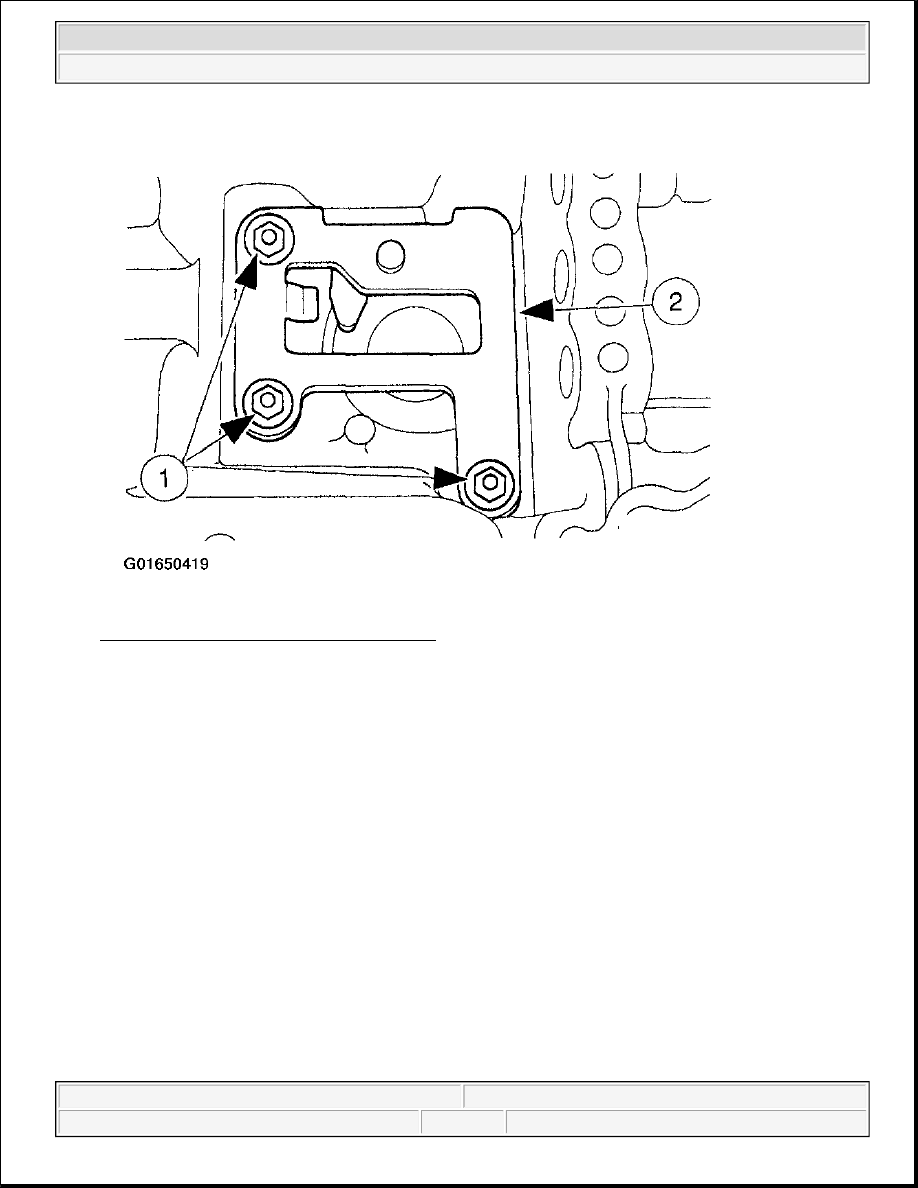

Fig. 110: Removing Gear Selector Interlock Sleeve
Courtesy of FORD MOTOR CO.

Assembly

1. Check the contact surface of the (A) shift fork and (B) synchronizer sleeve for wear or damage.



2003 Ford Pickup F150

2003 TRANSMISSIONS Manual Transmission - F150 Pickup

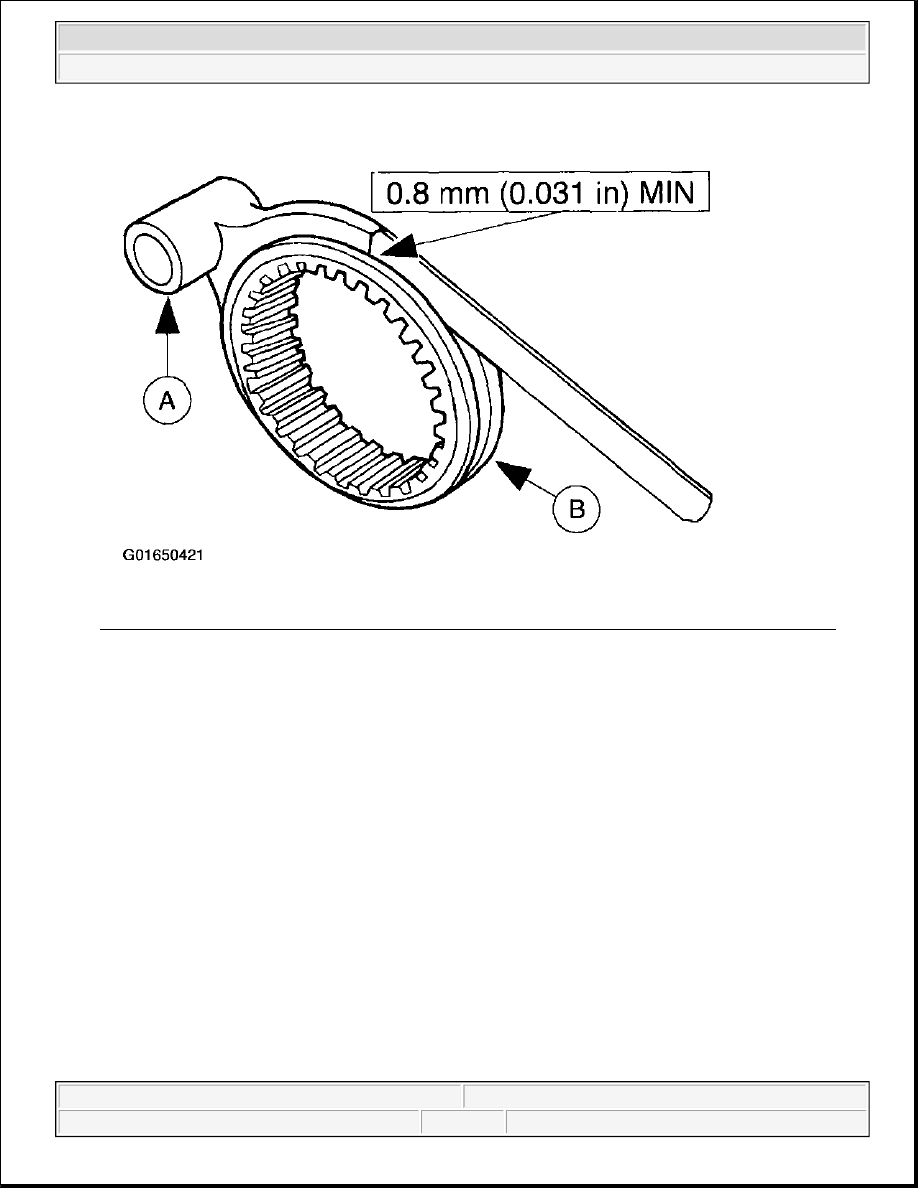

Fig. 111: Checking Contact Surface Of Shift Fork & Synchronizer Sleeve For Wear Or Damage
Courtesy of FORD MOTOR CO.

2. Install the gear selector interlock sleeve.

1. Position the gear selector interlock sleeve.

2. Install the bolts.
