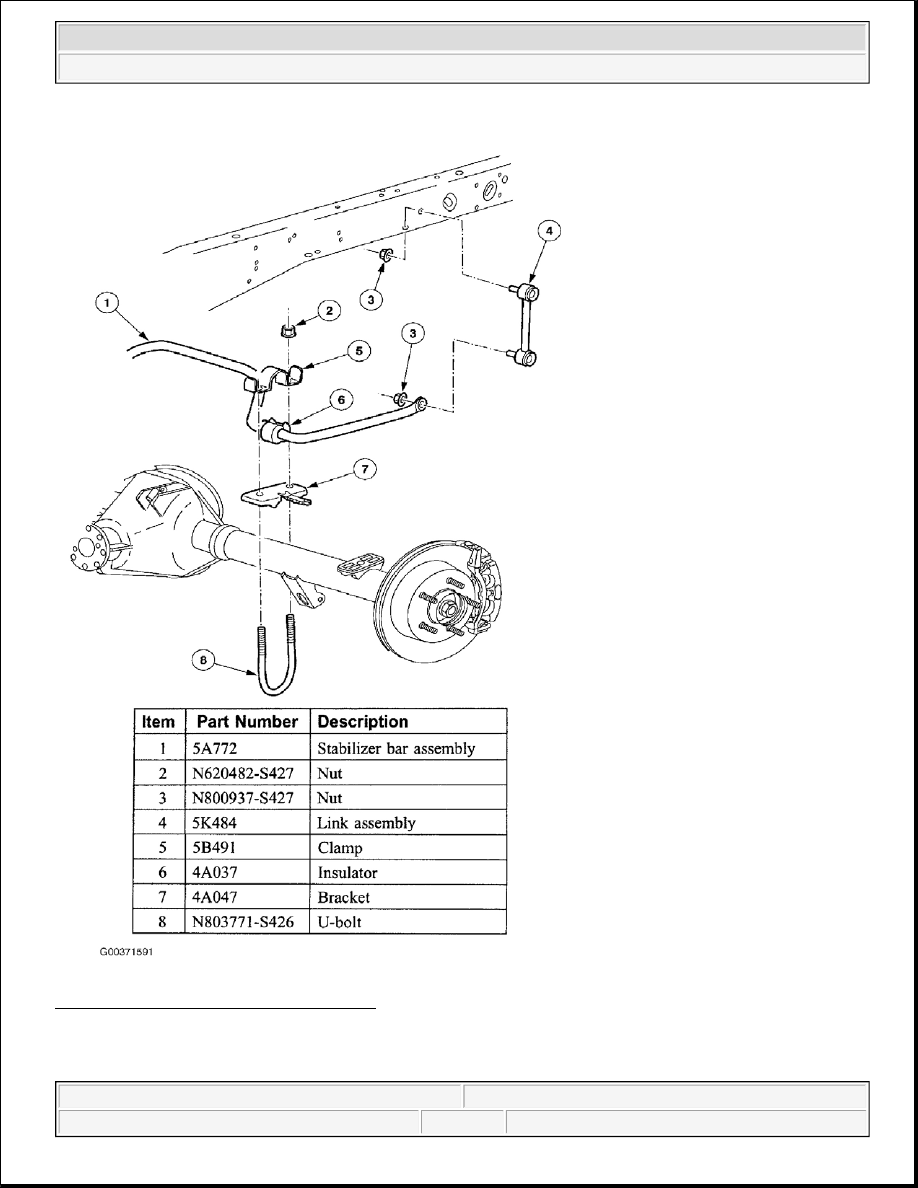

Fig. 3: Stabilizer Bar - Lightning Vehicles
Courtesy of FORD MOTOR CO.



2003 Ford Pickup F150

2002-03 SUSPENSION Rear - F150 Pickup

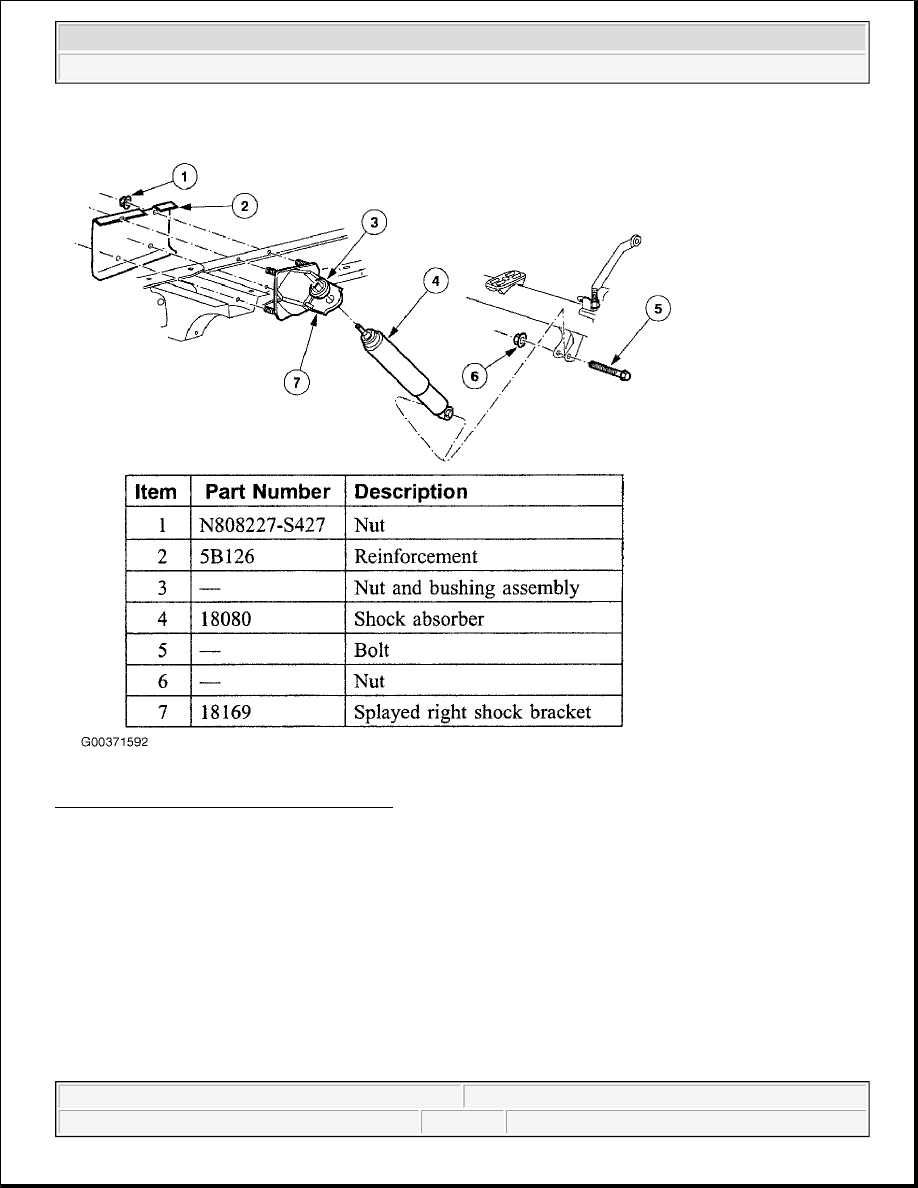

Fig. 4: Shock Absorber - Lightning Vehicles
Courtesy of FORD MOTOR CO.

REAR AXLE BUMPERS

The rear axle bumpers (4730) are used to prevent metal-to-metal contact between the rear axle and the frame
(5005).

REAR SPRING

Semi-elliptic, leaf-type rear springs are used for the rear suspension. Supplemental air springs are available as
part of the optional air suspension system.

SHOCK ABSORBERS



2003 Ford Pickup F150

2002-03 SUSPENSION Rear - F150 Pickup



The shock absorbers (18125) provide the necessary suspension dampening control.

SUSPENSION FASTENERS

These fasteners are important parts that can affect the performance of vital components and systems and result
in major vehicle damage. New fasteners must be installed if the old fasteners are loosened or removed. New
fasteners with the same part number or an equivalent part must be installed if necessary. Do not use a part of
lesser quality or substitute design. The specified torque value must be used during assembly to ensure correct
part retention.

REMOVAL AND INSTALLATION

WHEEL STUDS

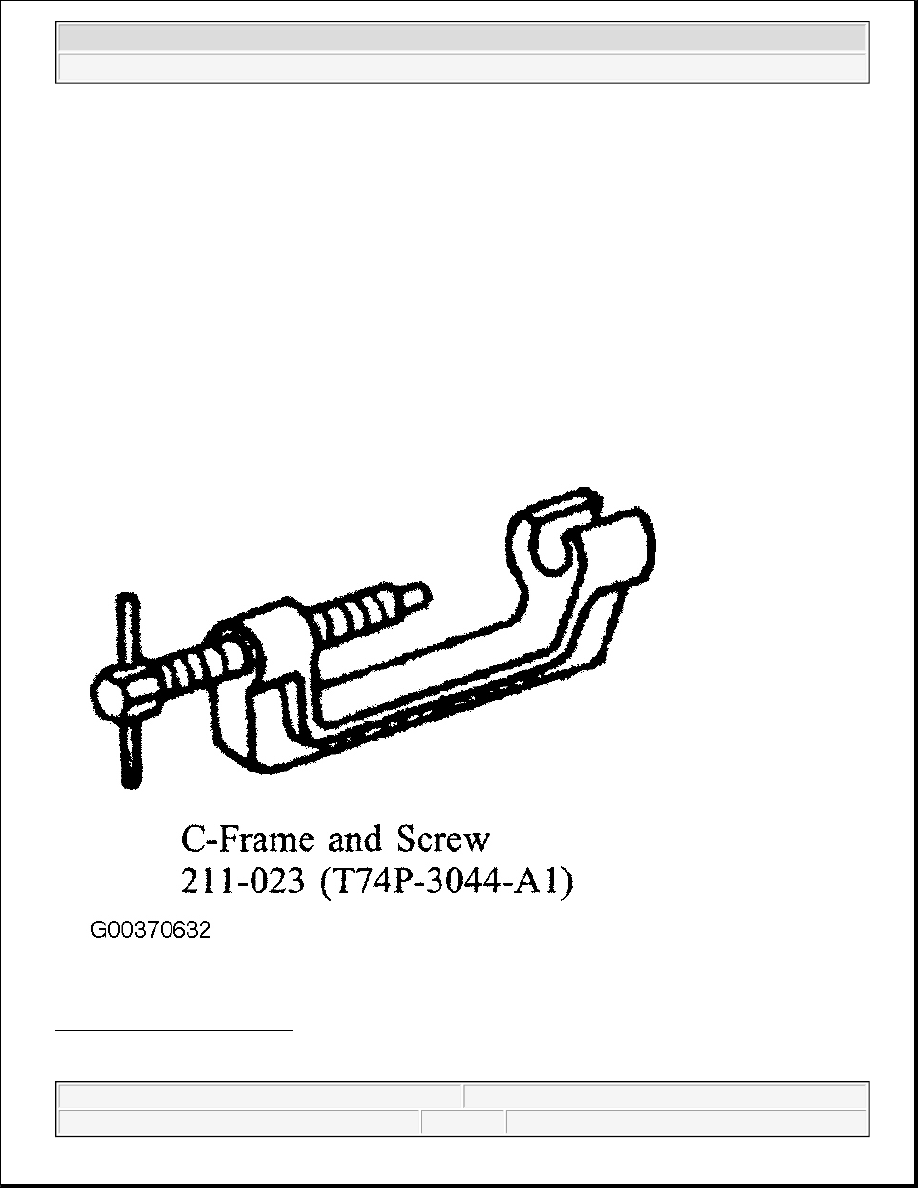

Fig. 5: Identifying Special Tool
Courtesy of FORD MOTOR CO.



2003 Ford Pickup F150

2002-03 SUSPENSION Rear - F150 Pickup



Removal

All vehicles

1. Raise the vehicle and install safety stands.

2. Remove the wheel and tire assembly.

5 lug vehicles with rear disc brakes

Remove the rear axle shaft. For additional information, refer to DIFFERENTIALS/DRIVE AXLES.

7 lug vehicles with rear disc brakes

Remove the rear brake disc. For additional information, refer to DISC - BLACKWOOD, F150 HERITAGE
PICKUP & F150 .

Vehicles with drum brakes

Remove the rear brake drum. For additional information, refer to DISC - BLACKWOOD, F150 HERITAGE
PICKUP & F150 .

All vehicles

Using C-Frame and Clamp Assembly Tool, press the wheel bolt from its seat and discard.

CAUTION: Never use a hammer to remove the wheel bolt. Damage to the axle flange,

hub flange, wheel bearing or hub bearing can result.
