Ford F150 Pickup. Manual - part 1803

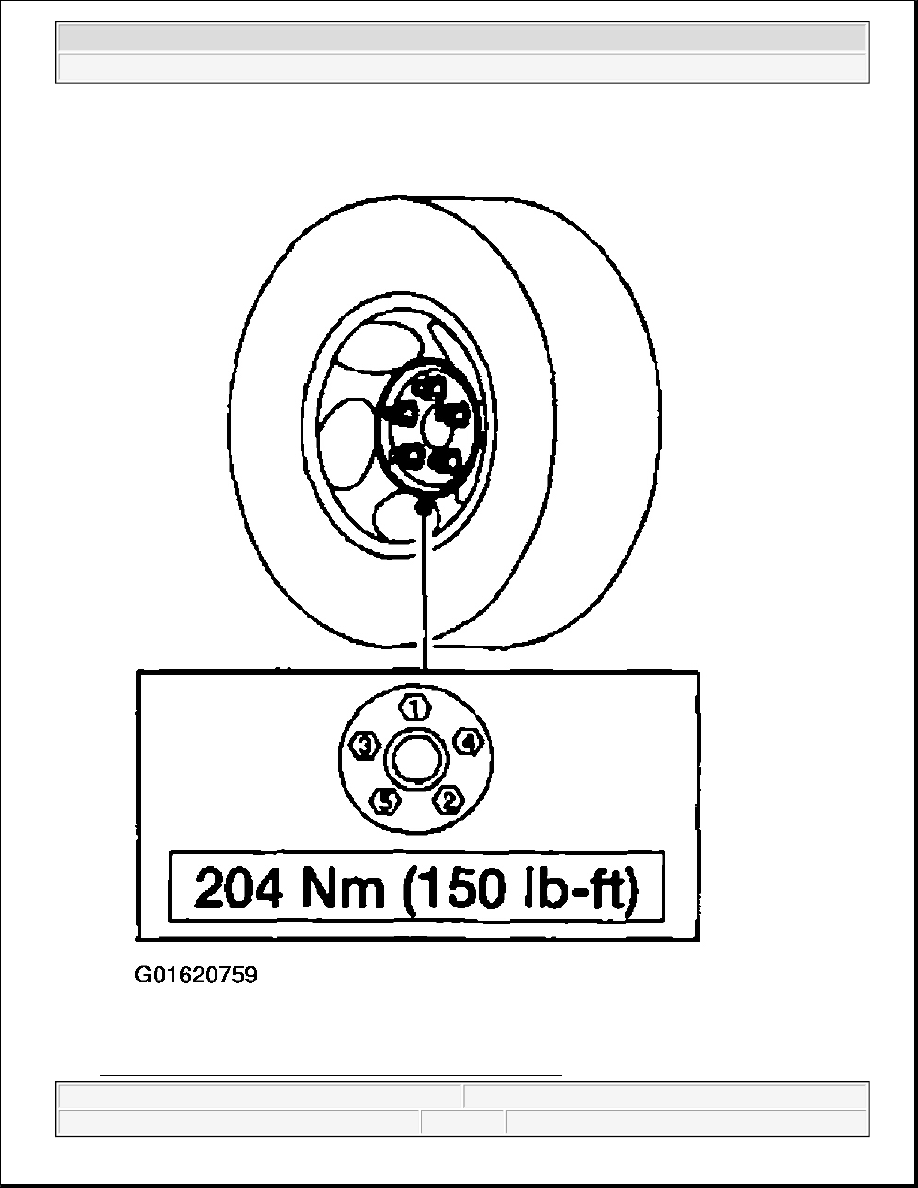

Fig. 11: Wheel Nut Tightening Pattern (14 mm Wheel Bolts)



2003 Ford Pickup F150

2003 SUSPENSION Wheels And Tires - F150 Pickup



Courtesy of FORD MOTOR CO.



2003 Ford Pickup F150

2003 SUSPENSION Wheels And Tires - F150 Pickup



2002-03 SUSPENSION

Rear - F150 Pickup

TORQUE SPECIFICATIONS

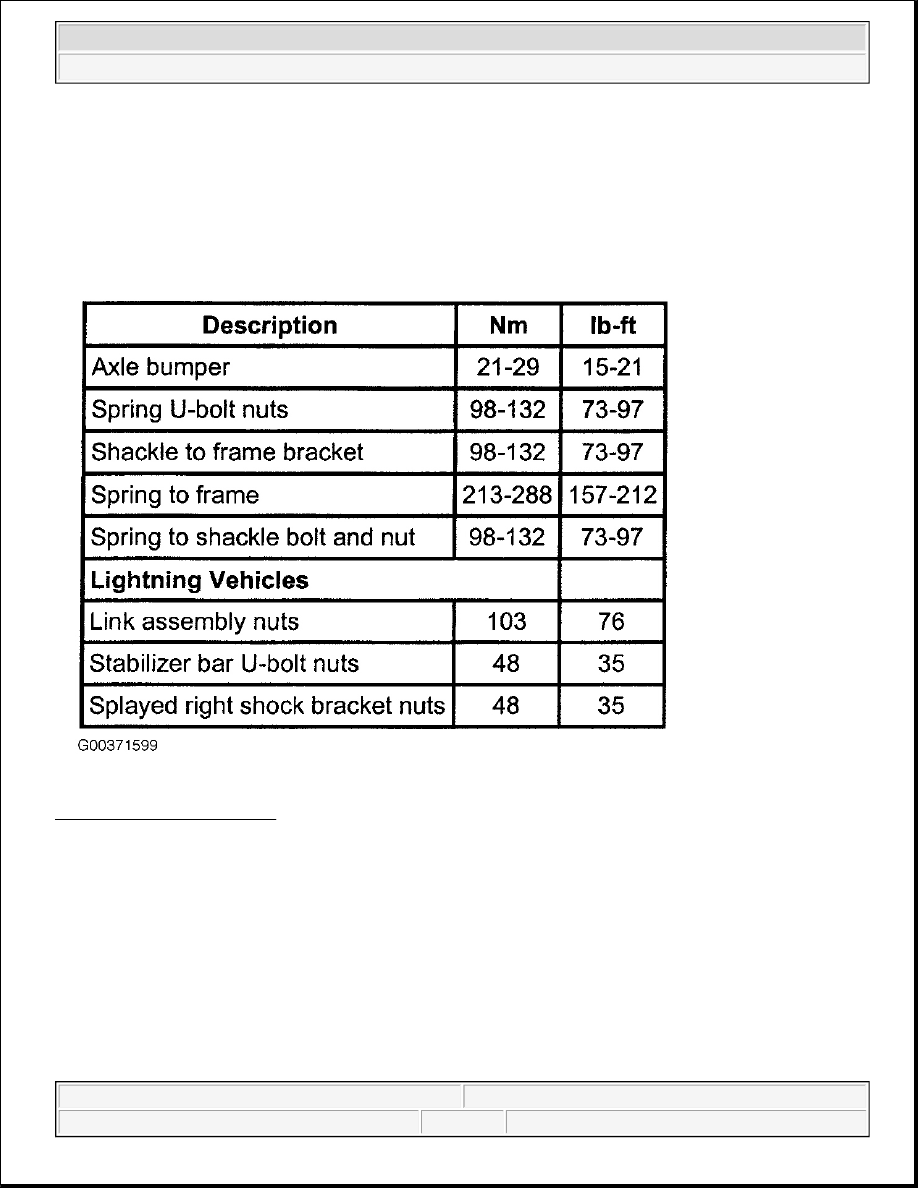

Fig. 1: Torque Specifications
Courtesy of FORD MOTOR CO.

DESCRIPTION AND OPERATION



2003 Ford Pickup F150

2002-03 SUSPENSION Rear - F150 Pickup





2003 Ford Pickup F150

2002-03 SUSPENSION Rear - F150 Pickup

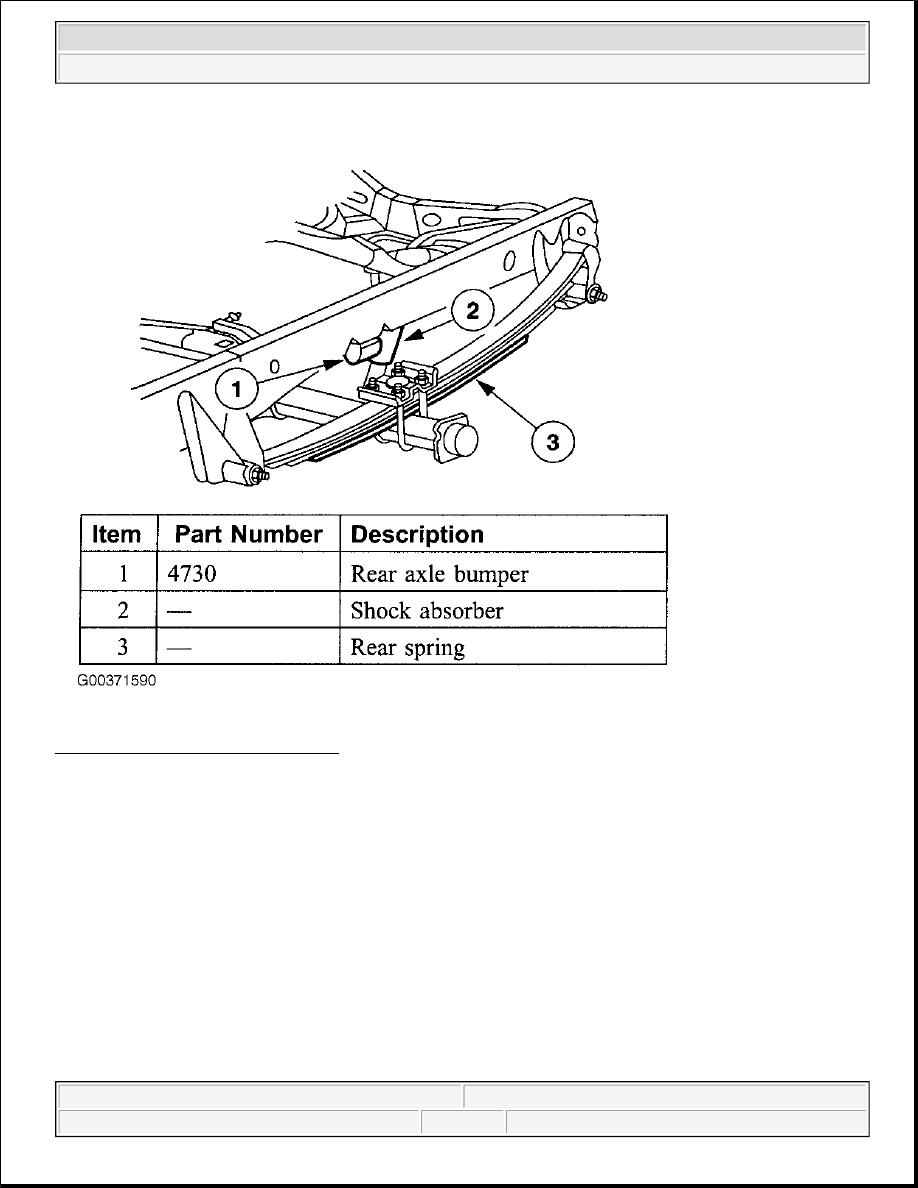

Fig. 2: Rear Suspension Components
Courtesy of FORD MOTOR CO.



2003 Ford Pickup F150

2002-03 SUSPENSION Rear - F150 Pickup
