Ford F150 Pickup. Manual - part 1438

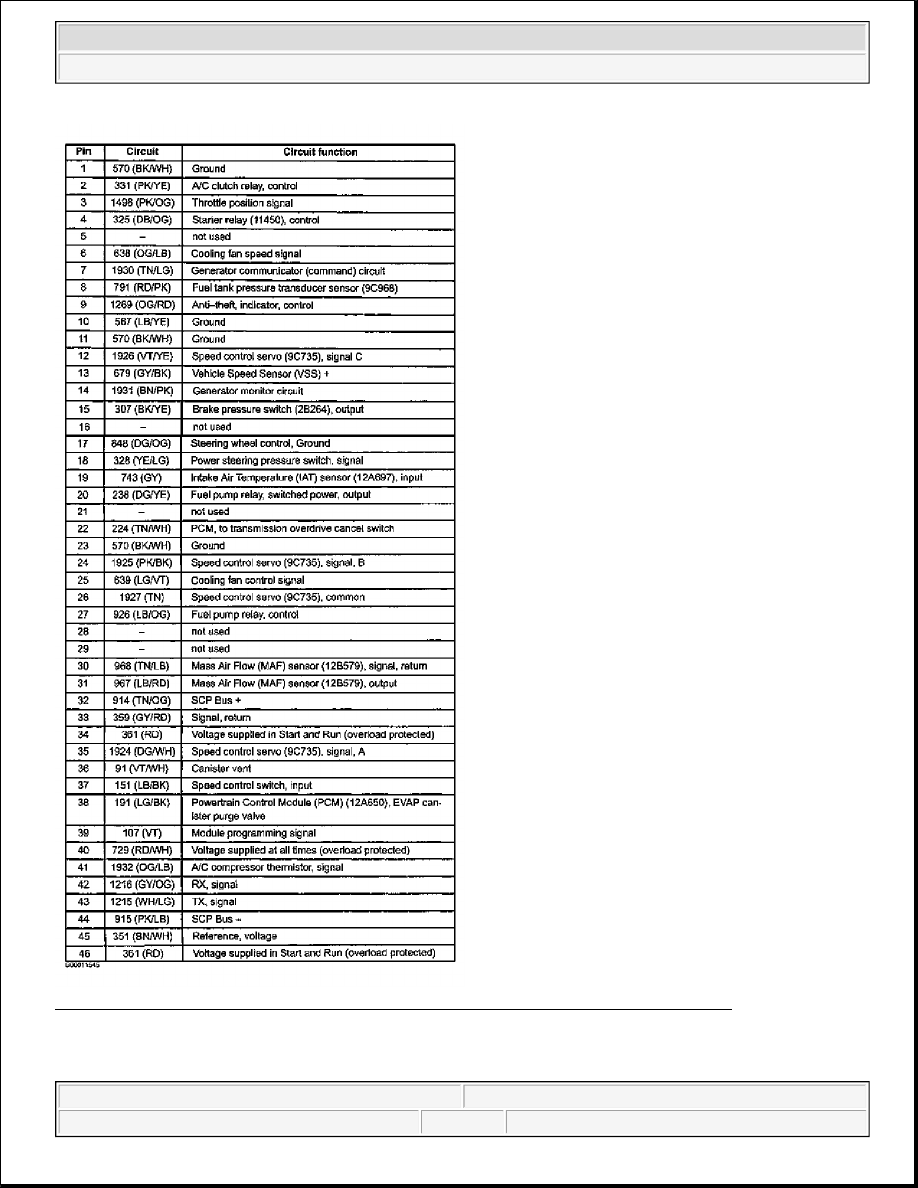

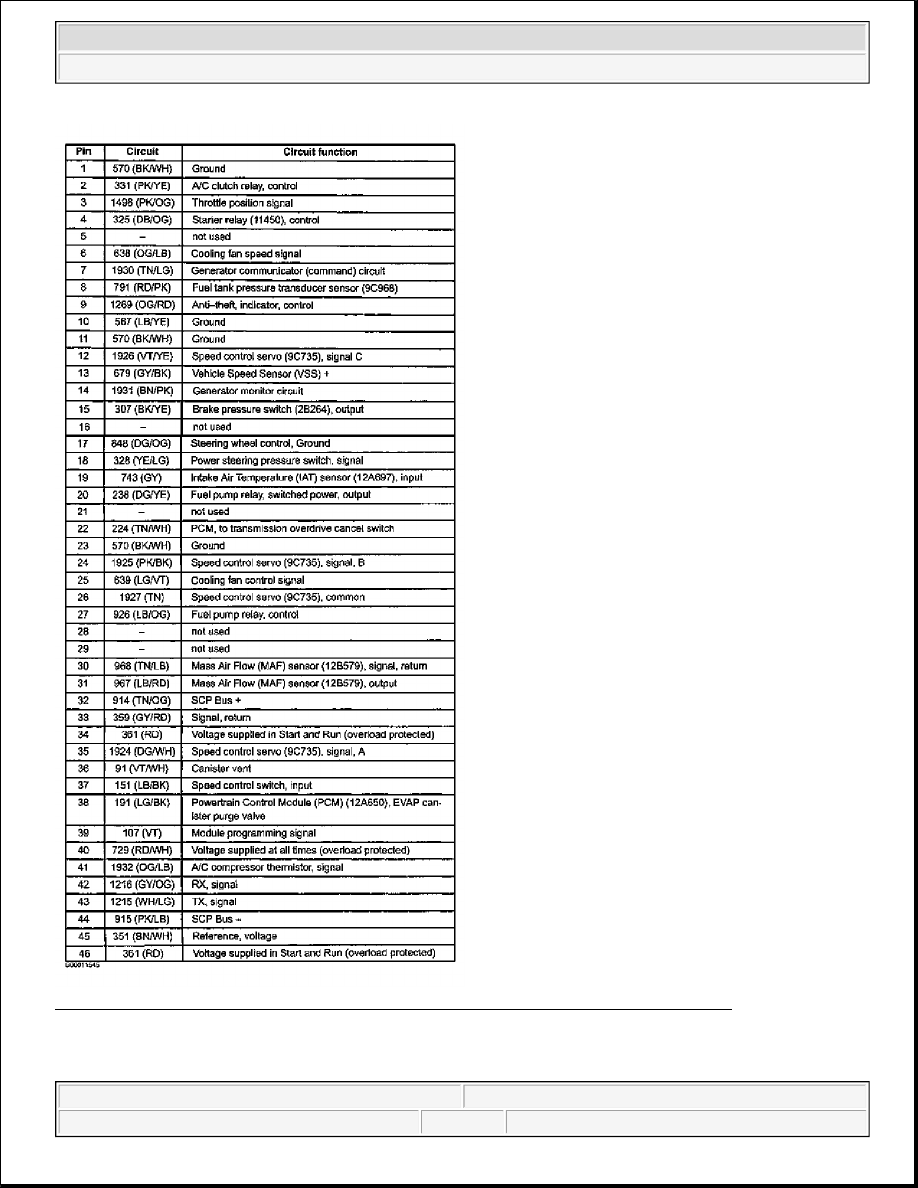

Fig. 91: Identifying PCM Connector C175B Circuit Functions (Expedition & Navigator)
Courtesy of FORD MOTOR CO.

2003 Ford Pickup F150

2003 ENGINE PERFORMANCE Self-Diagnostics - CNG, Flex-Fuel & Gasoline

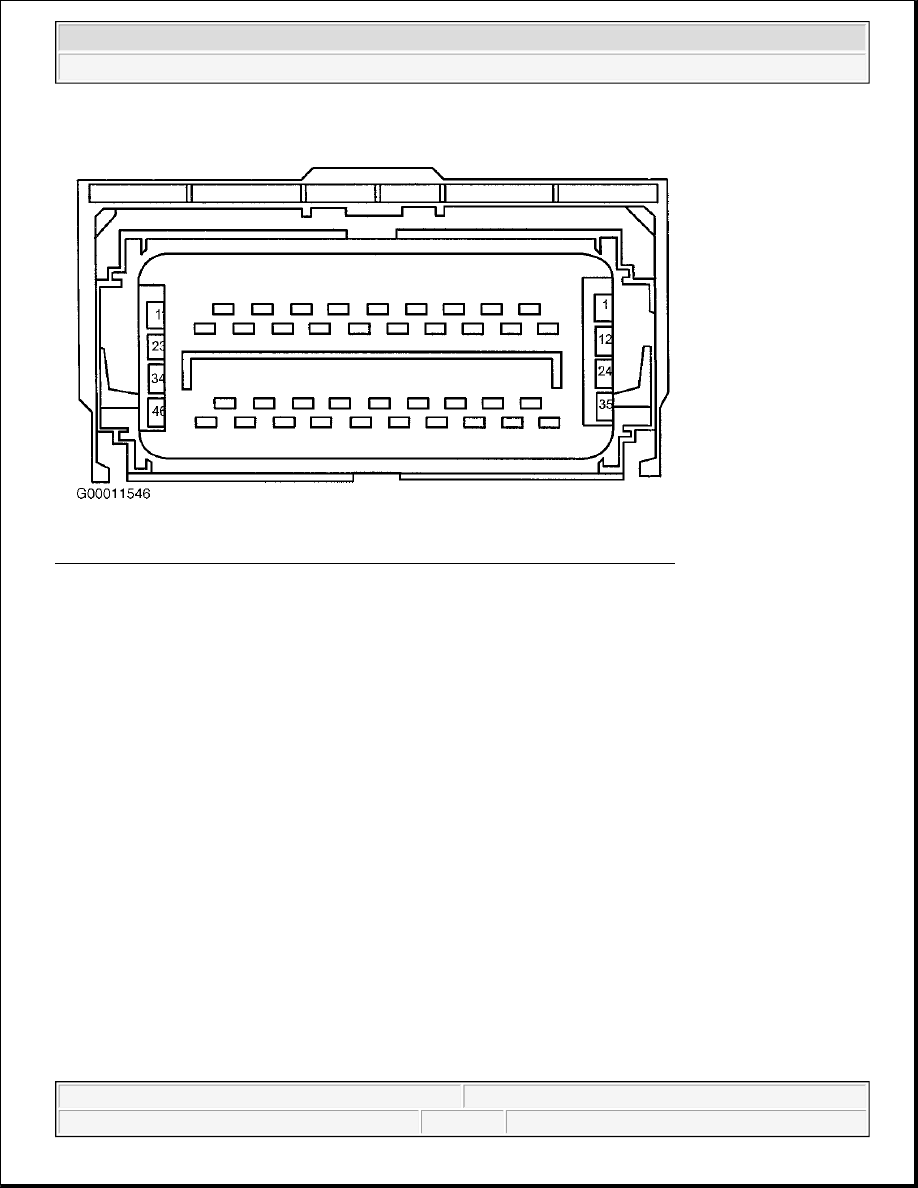

Fig. 92: Identifying PCM Connector C175E Terminals (Expedition & Navigator)
Courtesy of FORD MOTOR CO.

2003 Ford Pickup F150

2003 ENGINE PERFORMANCE Self-Diagnostics - CNG, Flex-Fuel & Gasoline

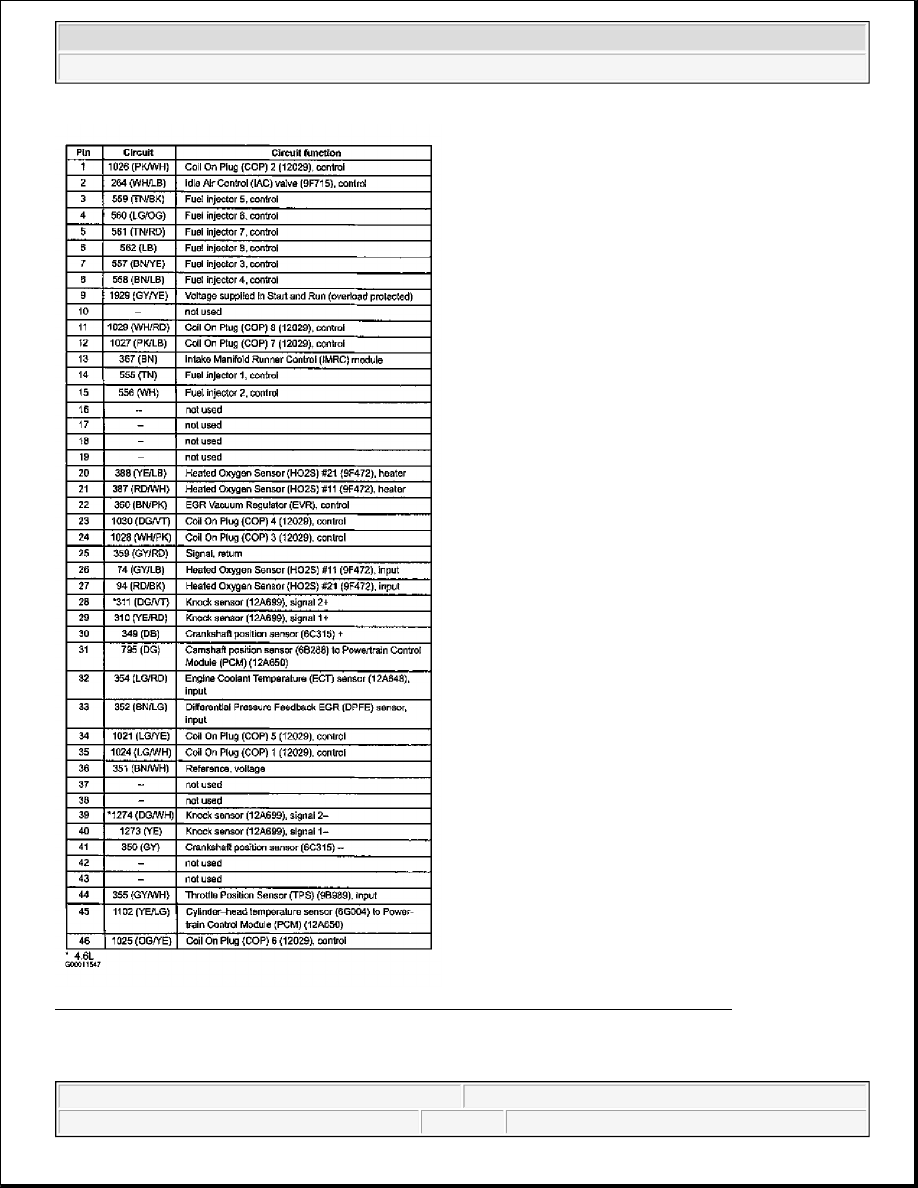

Fig. 93: Identifying PCM Connector C175E Circuit Functions (Expedition & Navigator)
Courtesy of FORD MOTOR CO.

2003 Ford Pickup F150

2003 ENGINE PERFORMANCE Self-Diagnostics - CNG, Flex-Fuel & Gasoline

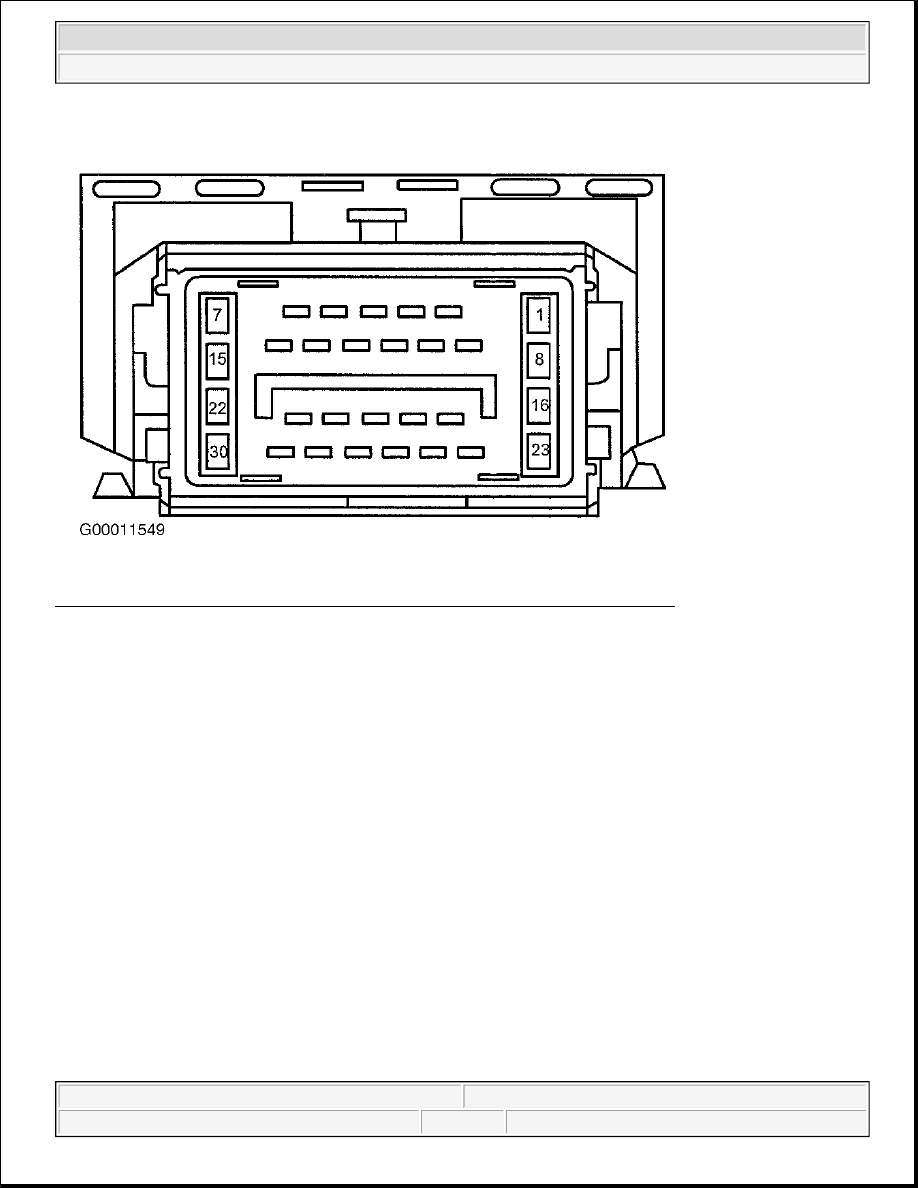

Fig. 94: Identifying PCM Connector C175T Terminals (Expedition & Navigator)
Courtesy of FORD MOTOR CO.

2003 Ford Pickup F150

2003 ENGINE PERFORMANCE Self-Diagnostics - CNG, Flex-Fuel & Gasoline
