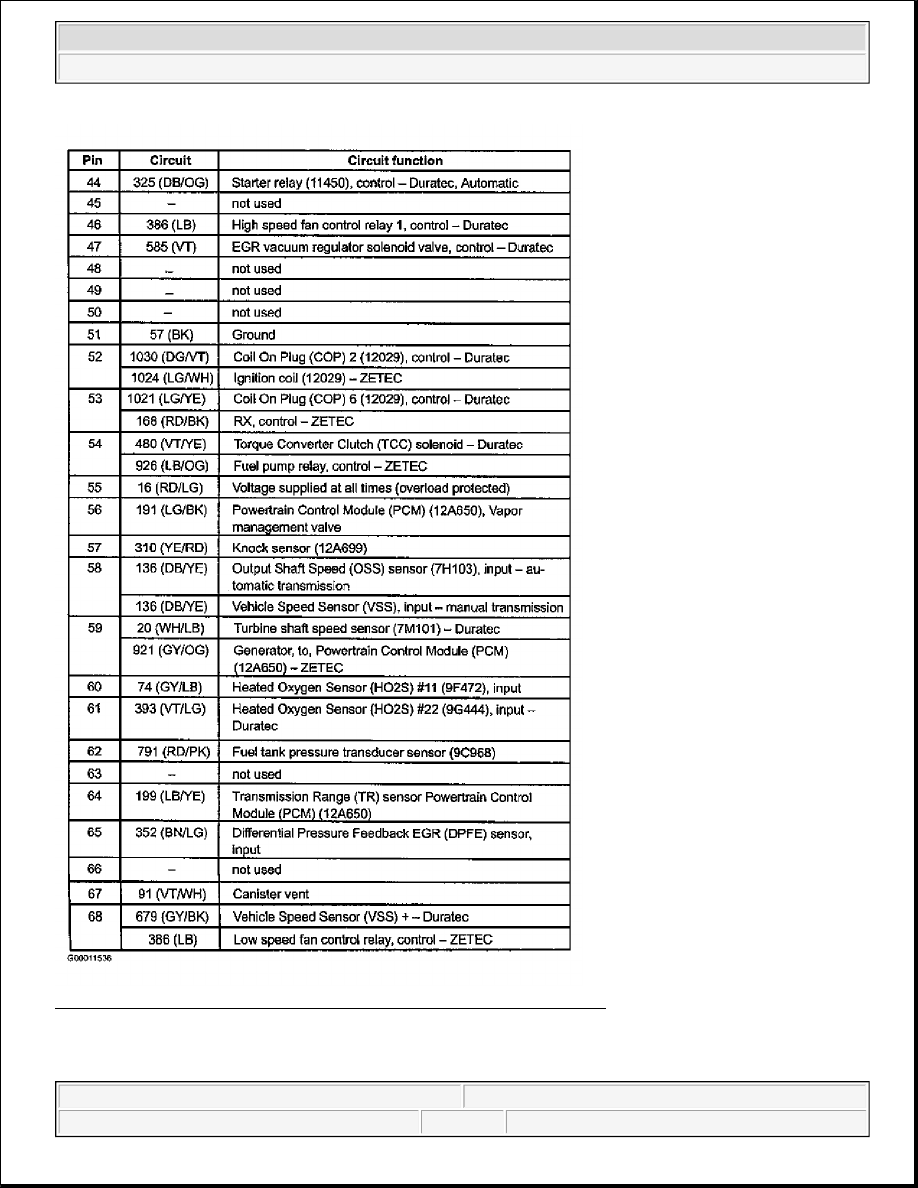

Fig. 83: Identifying PCM Connector Circuit Functions (3 Of 5 - Escape)
Courtesy of FORD MOTOR CO.



2003 Ford Pickup F150

2003 ENGINE PERFORMANCE Self-Diagnostics - CNG, Flex-Fuel & Gasoline





2003 Ford Pickup F150

2003 ENGINE PERFORMANCE Self-Diagnostics - CNG, Flex-Fuel & Gasoline

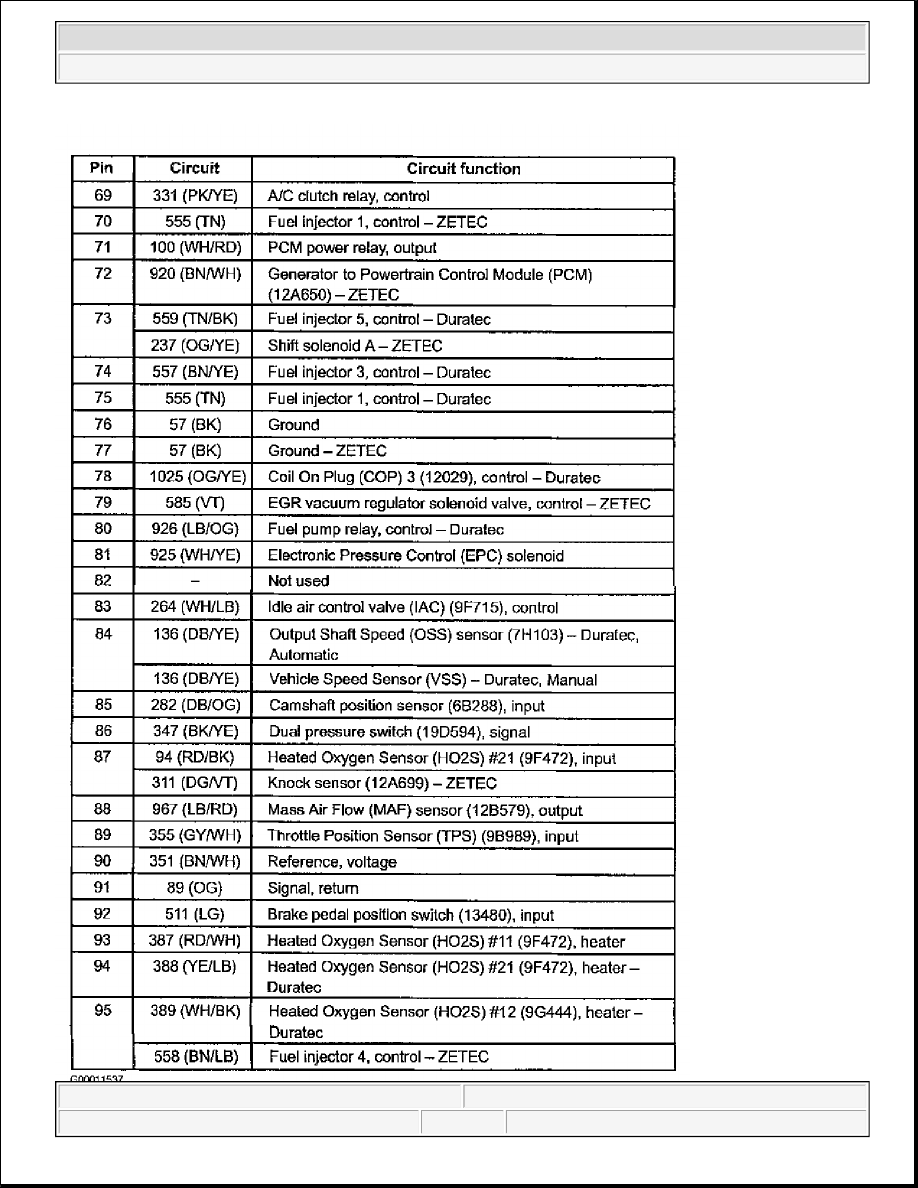

Fig. 84: Identifying PCM Connector Circuit Functions (4 Of 5 - Escape)
Courtesy of FORD MOTOR CO.

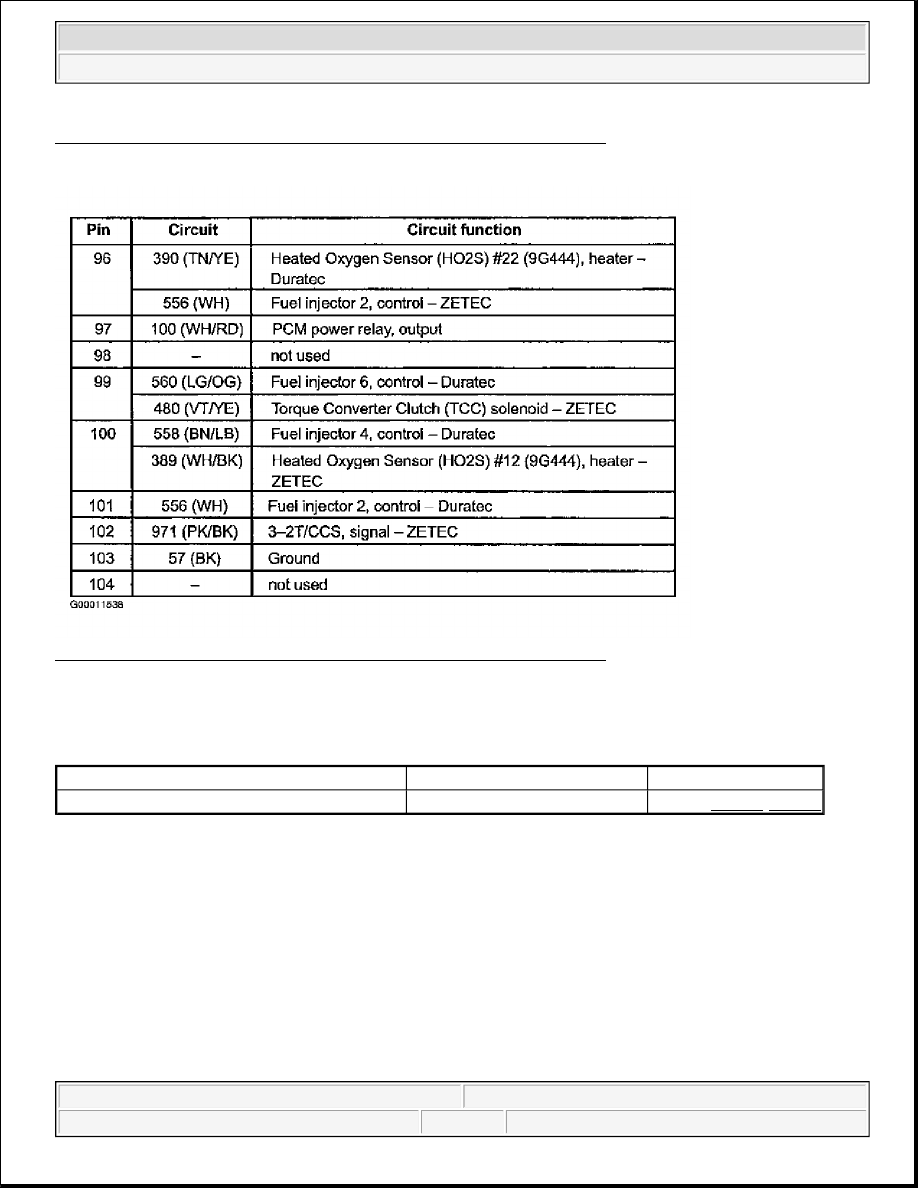

Fig. 85: Identifying PCM Connector Circuit Functions (5 Of 5 - Escape)
Courtesy of FORD MOTOR CO.

EXCURSION & F250-F550 SUPER DUTY

EXCURSION & F250-F550 SUPER DUTY PCM CONNECTOR IDENTIFICATION

Application

Terminal Identification

Circuit Function

Excursion & F250-F550 Super Duty



Fig. 86-Fig. 89



2003 Ford Pickup F150

2003 ENGINE PERFORMANCE Self-Diagnostics - CNG, Flex-Fuel & Gasoline

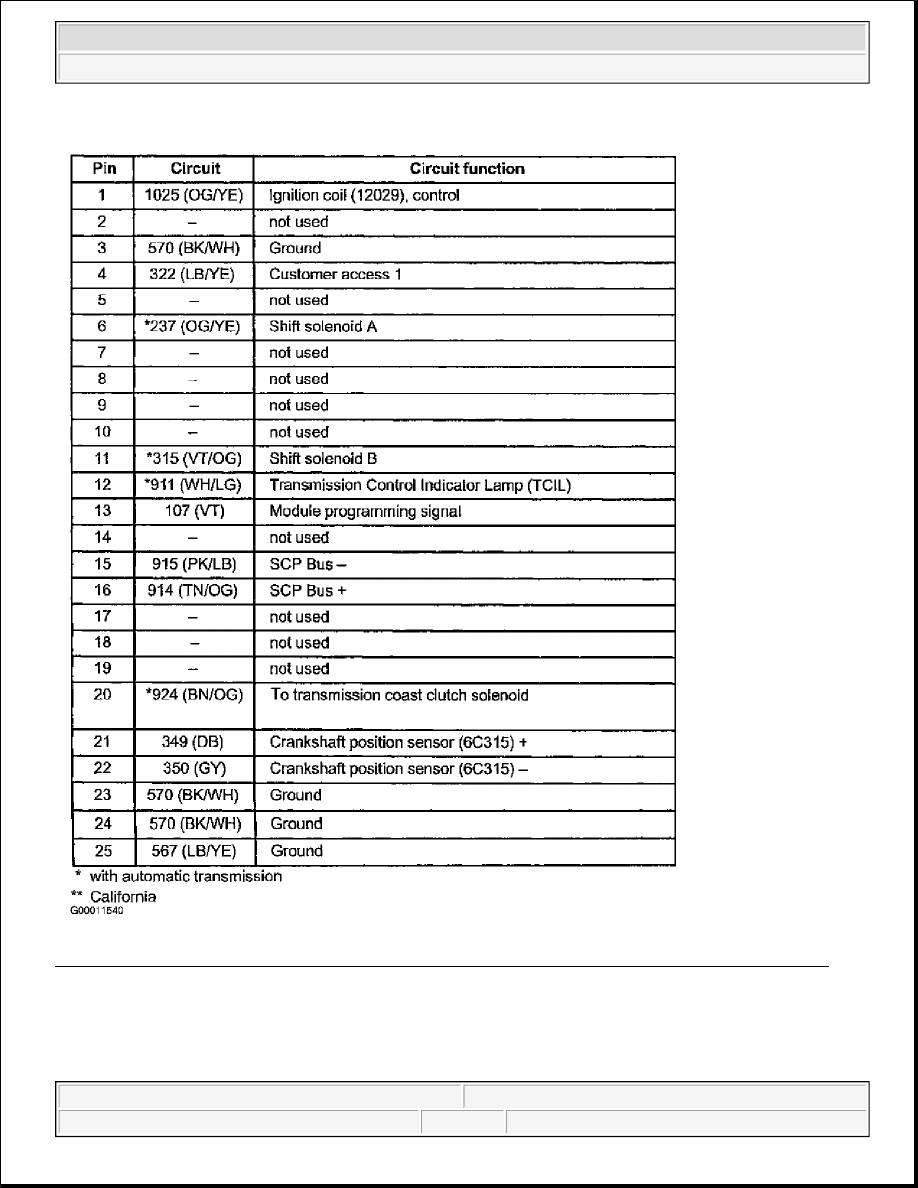

Fig. 86: Identifying PCM Connector Circuit Functions (1 Of 4 - Excursion & F250-F550 Super Duty)
Courtesy of FORD MOTOR CO.
