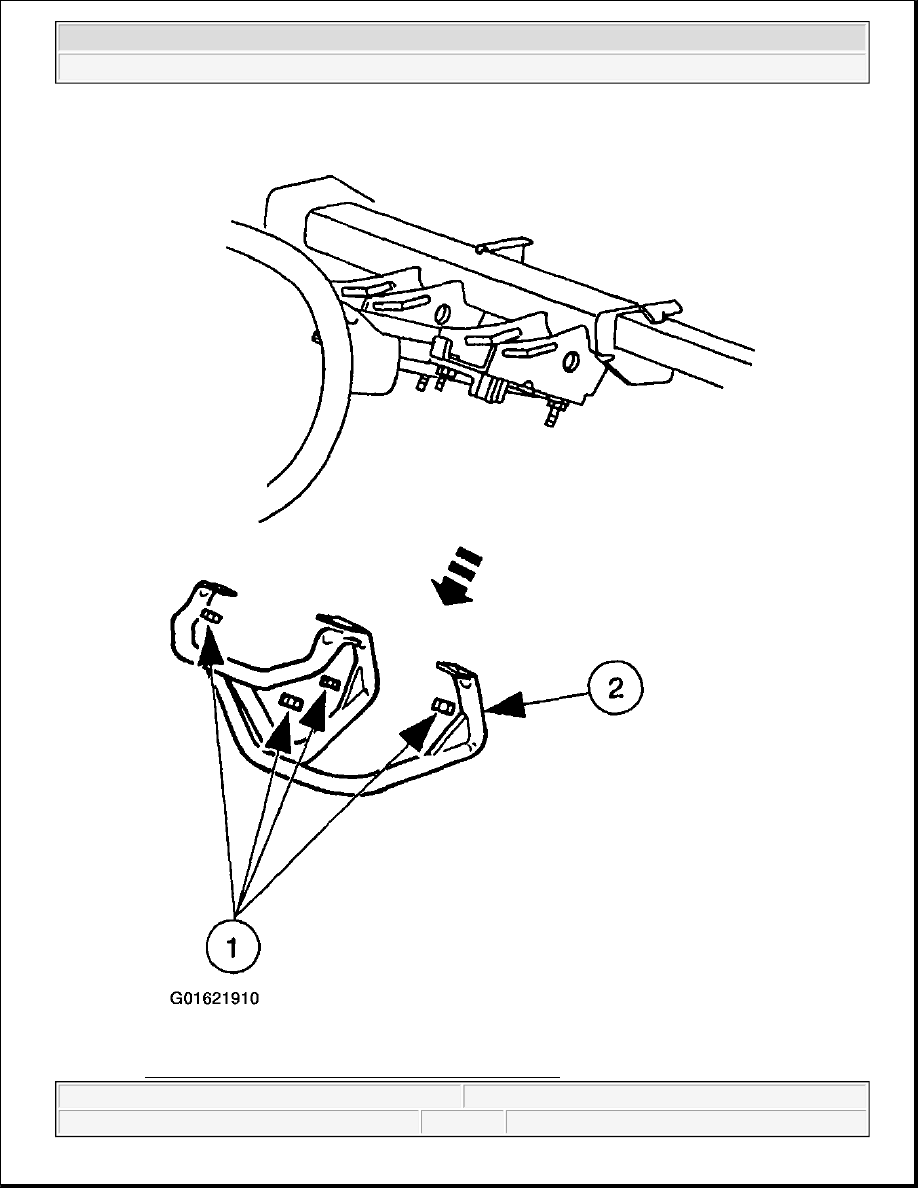

Fig. 23: Removing Instrument Panel Steering Column



2003 Ford Pickup F150

2003 ACCESSORIES AND BODY, CAB Instrument Panel and Console - F150 Pickup



Courtesy of FORD MOTOR CO.

27. Disconnect the clockspring electrical connectors and the anti-theft sensor electrical connector.

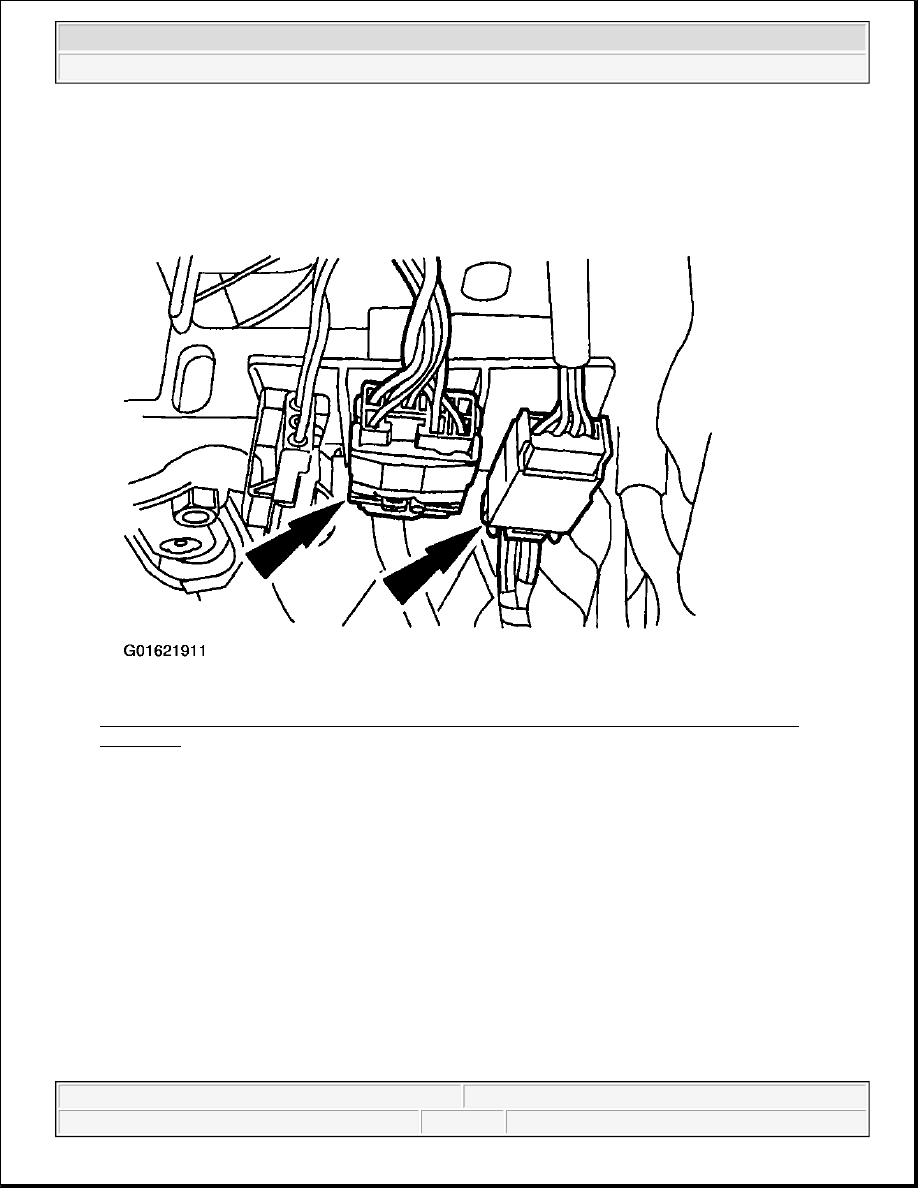

Fig. 24: Disconnecting Clockspring Electrical Connectors And Anti-Theft Sensor Electrical
Connector
Courtesy of FORD MOTOR CO.

28. Disconnect the remaining electrical connectors on the steering column.



2003 Ford Pickup F150

2003 ACCESSORIES AND BODY, CAB Instrument Panel and Console - F150 Pickup





2003 Ford Pickup F150

2003 ACCESSORIES AND BODY, CAB Instrument Panel and Console - F150 Pickup

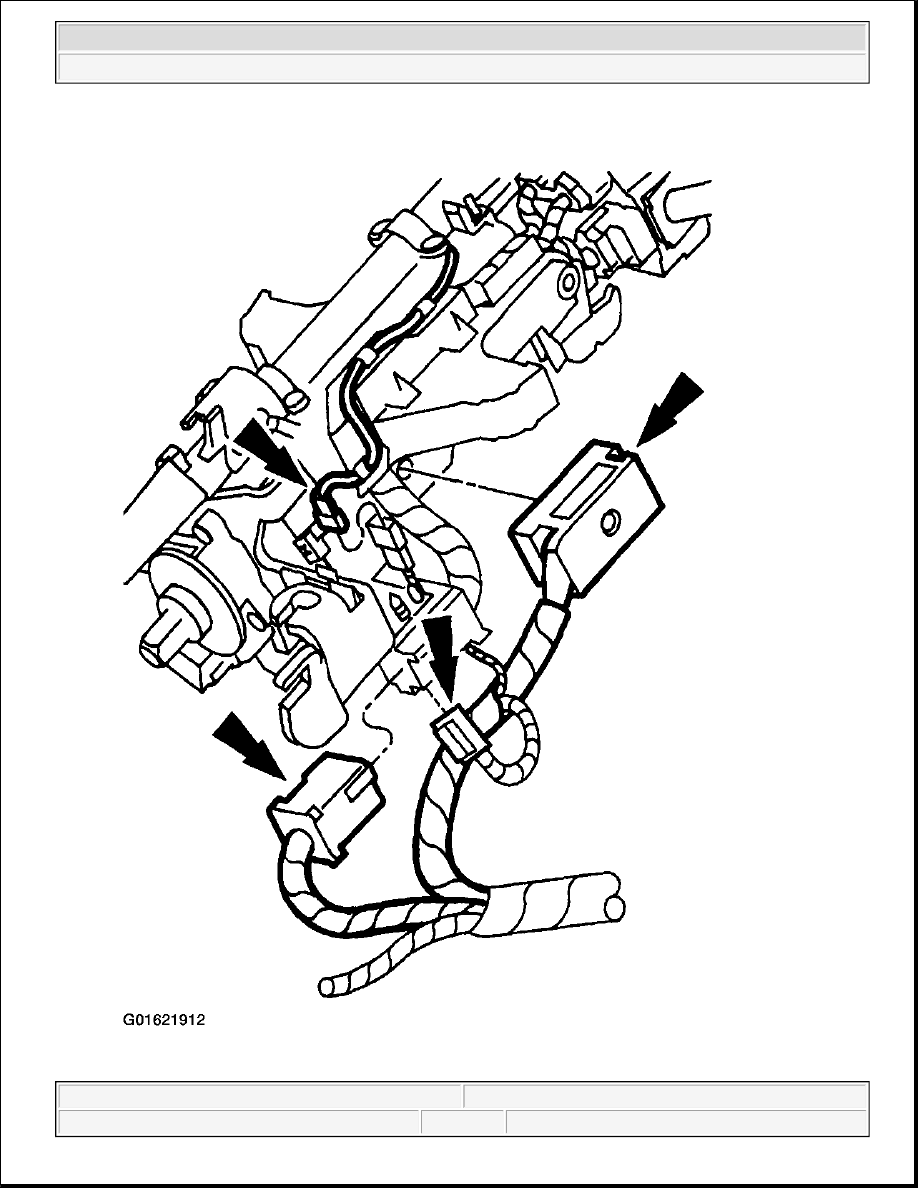

Fig. 25: Disconnecting Remaining Electrical Connectors On Steering Column
Courtesy of FORD MOTOR CO.

29. If equipped, disconnect the transmission range indicator from the steering column.

1. Remove the bolt.

2. Disconnect the cable.

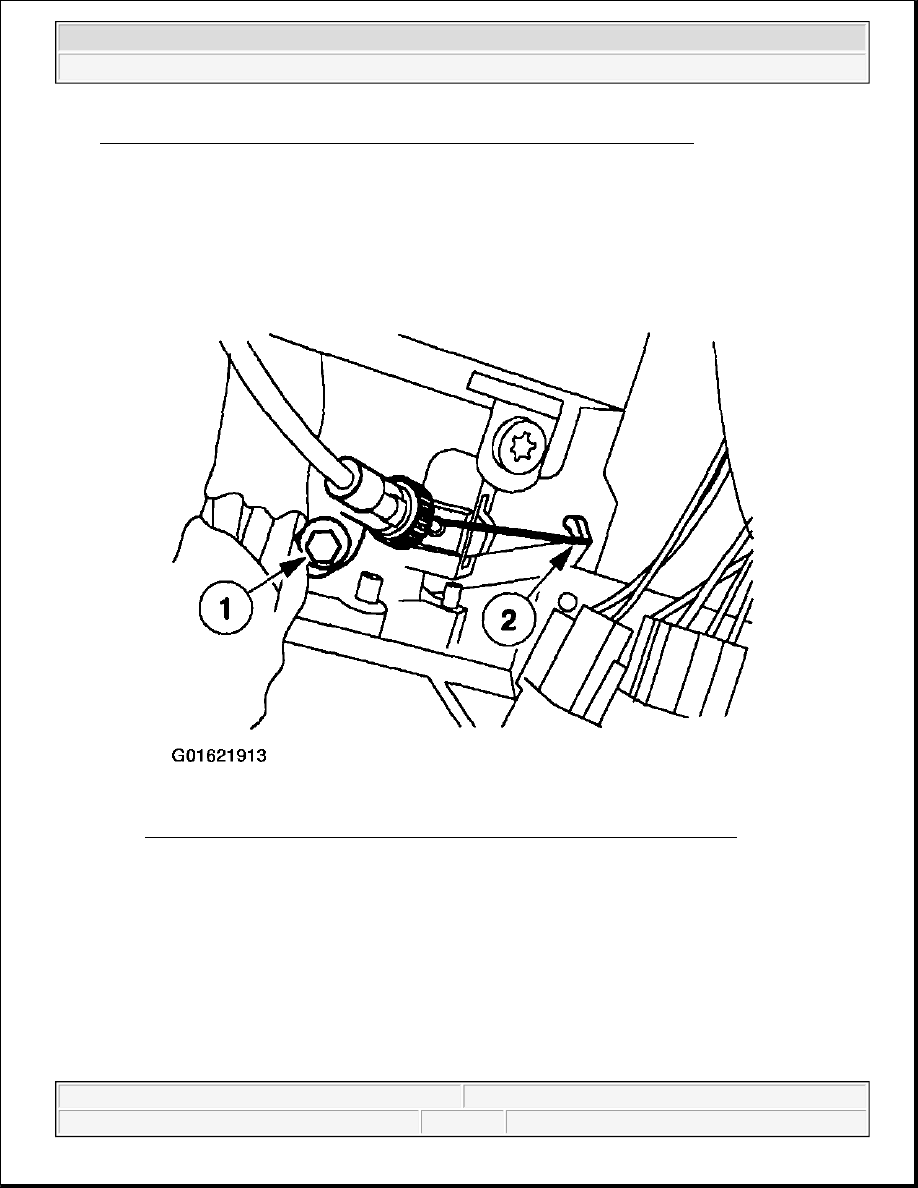

Fig. 26: Disconnecting Transmission Range Indicator From Steering Column
Courtesy of FORD MOTOR CO.

30. Lower the steering column.

1. Remove the nuts.

2. Lower the steering column.
