Ford F150 Pickup. Manual - part 92

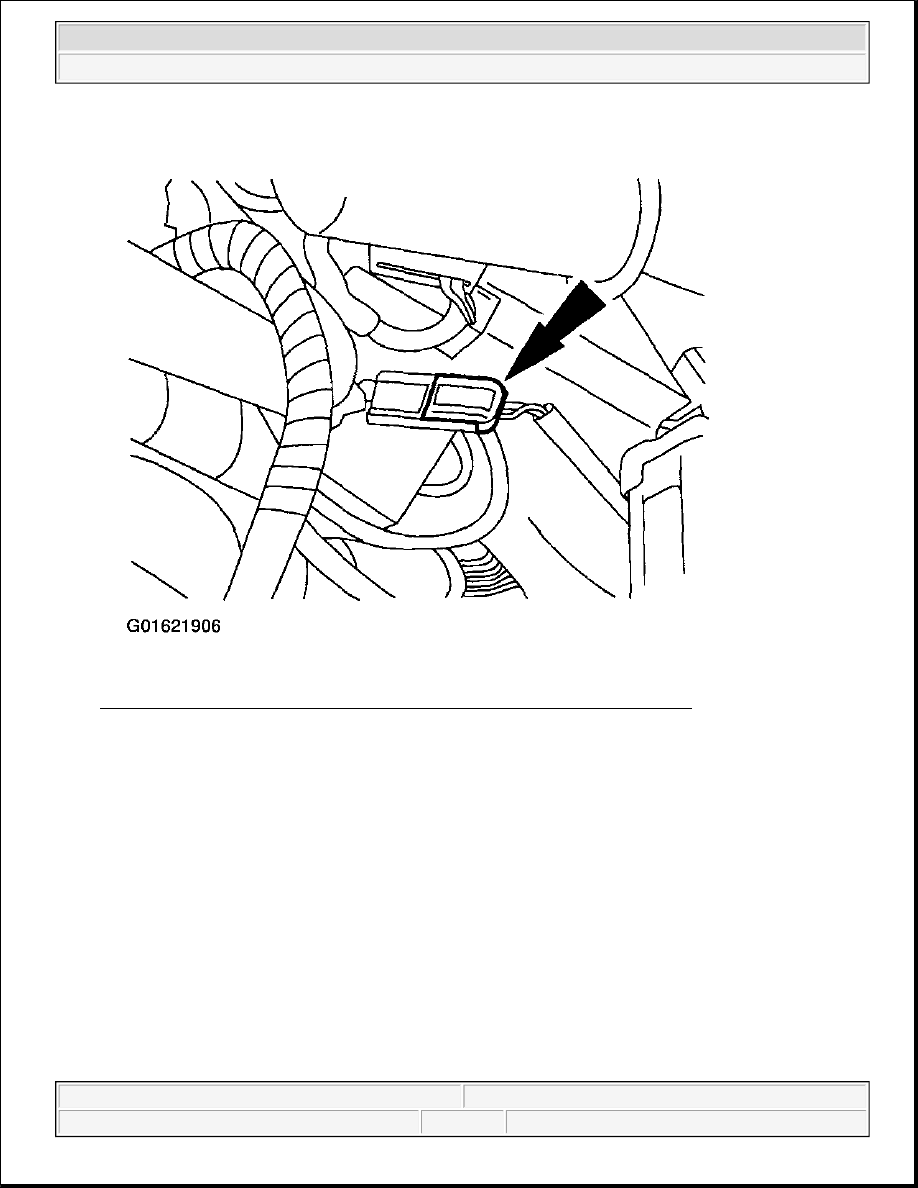

Fig. 19: Disconnecting Adjustable Pedal Motor Harness Electrical Connector
Courtesy of FORD MOTOR CO.

23. If equipped, disconnect the clutch pedal position (CPP) switch.



2003 Ford Pickup F150

2003 ACCESSORIES AND BODY, CAB Instrument Panel and Console - F150 Pickup

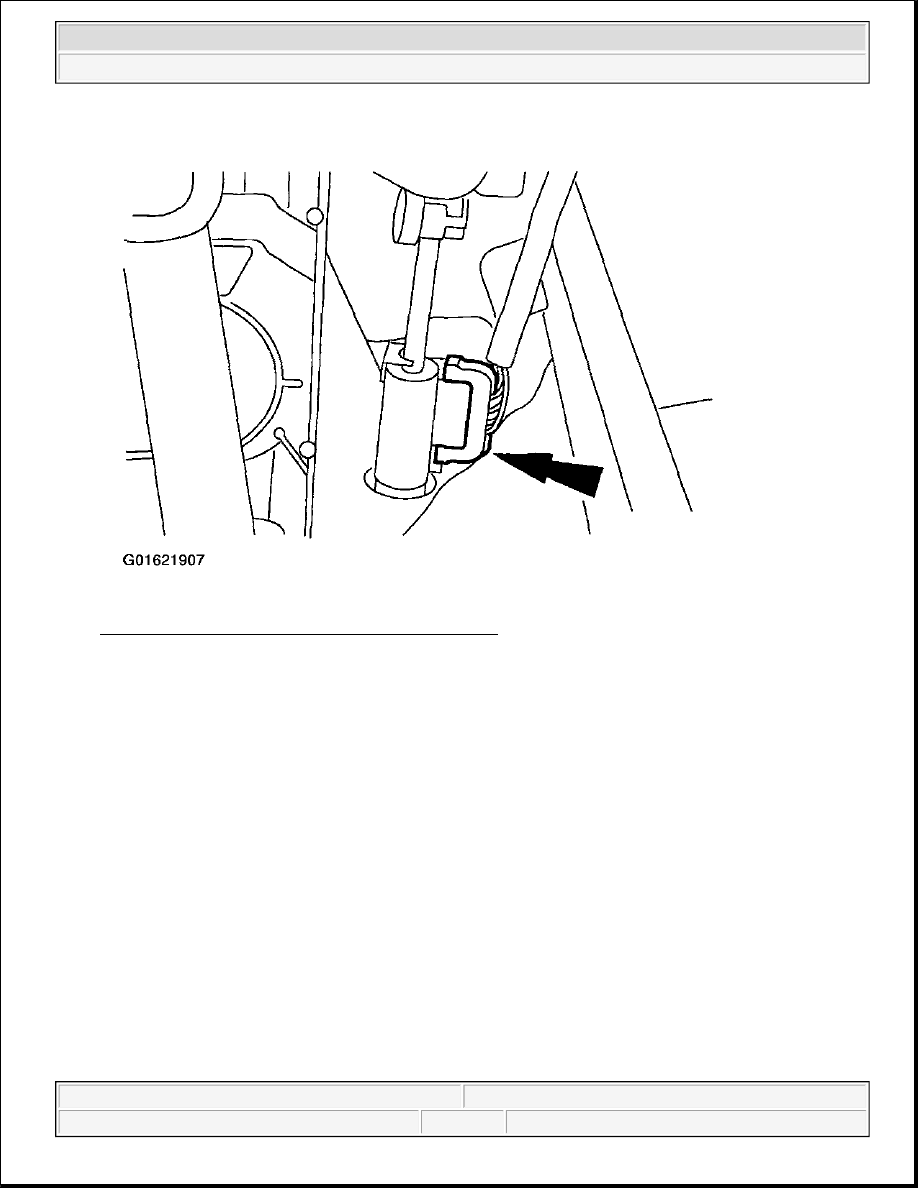

Fig. 20: Disconnecting Clutch Pedal Position Switch
Courtesy of FORD MOTOR CO.

24. Remove the (A) audio unit ground and the (B) GEM/CTM ground bolts.



2003 Ford Pickup F150

2003 ACCESSORIES AND BODY, CAB Instrument Panel and Console - F150 Pickup

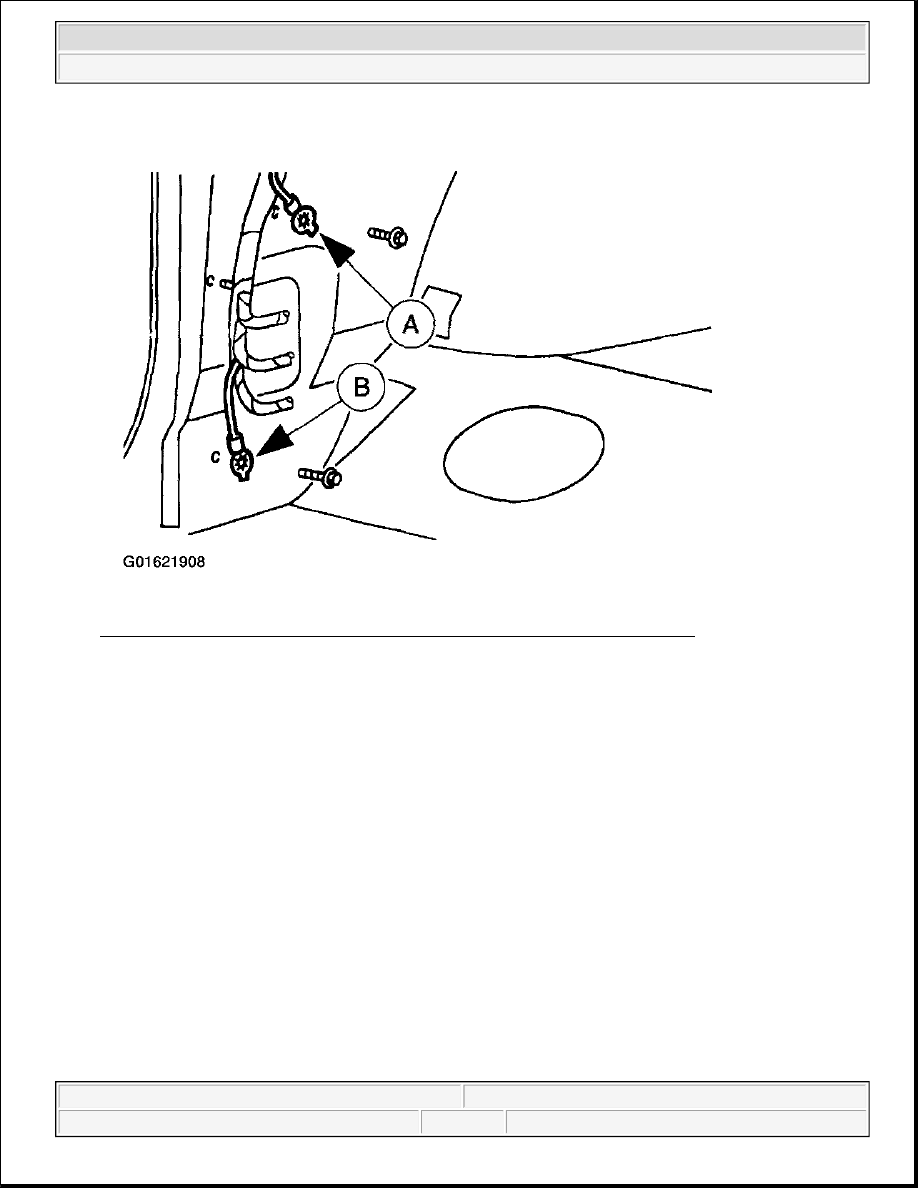

Fig. 21: Removing (A) Audio Unit Ground And (B) GEM/CTM Ground Bolts
Courtesy of FORD MOTOR CO.

25. Disconnect the LH instrument panel main wiring harness connectors.

z

Release all the main wiring harness locators.



2003 Ford Pickup F150

2003 ACCESSORIES AND BODY, CAB Instrument Panel and Console - F150 Pickup

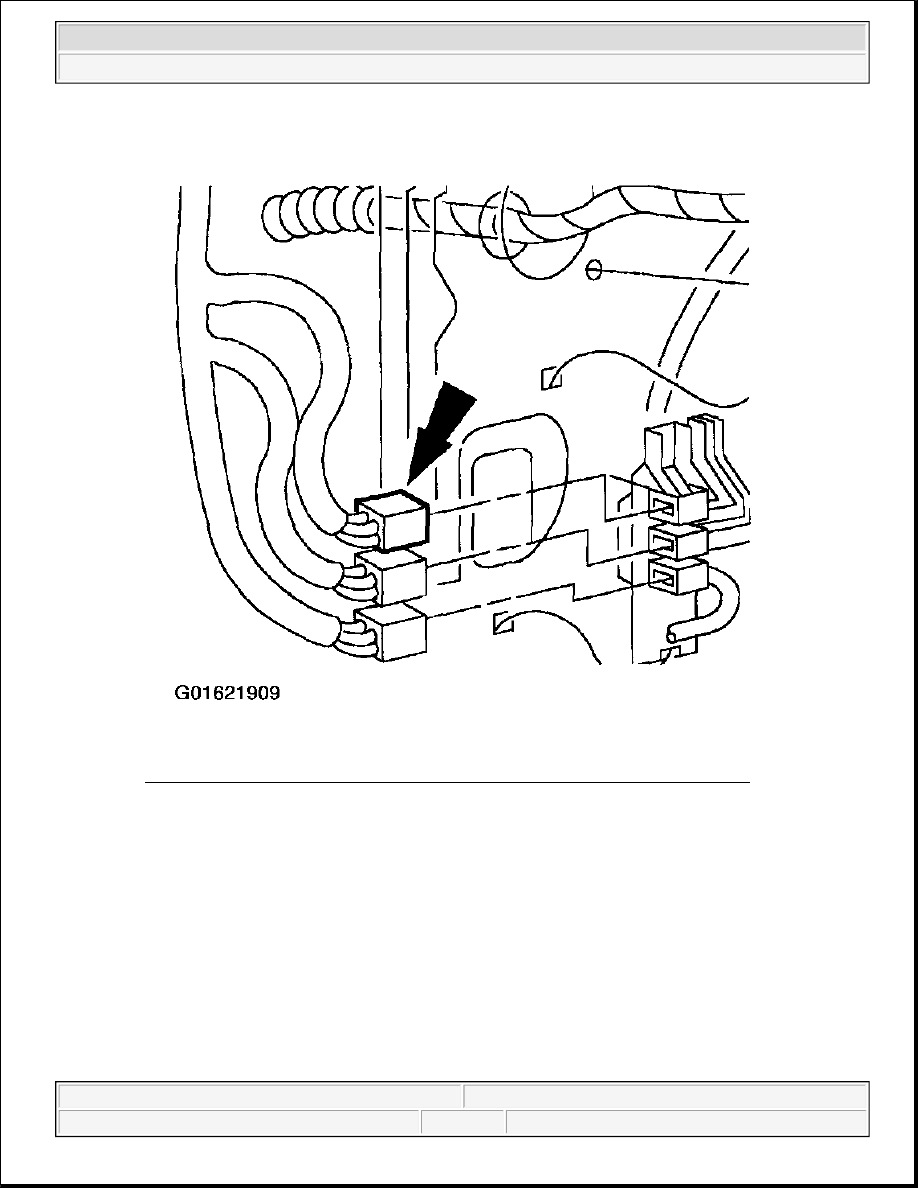

Fig. 22: Disconnecting LH Instrument Panel Main Wiring Harness Connectors
Courtesy of FORD MOTOR CO.

26. Remove the instrument panel steering column opening cover reinforcement.

1. Remove the nuts

2. Remove the instrument panel steering column opening cover reinforcement.



2003 Ford Pickup F150

2003 ACCESSORIES AND BODY, CAB Instrument Panel and Console - F150 Pickup
