Wiring diagrams

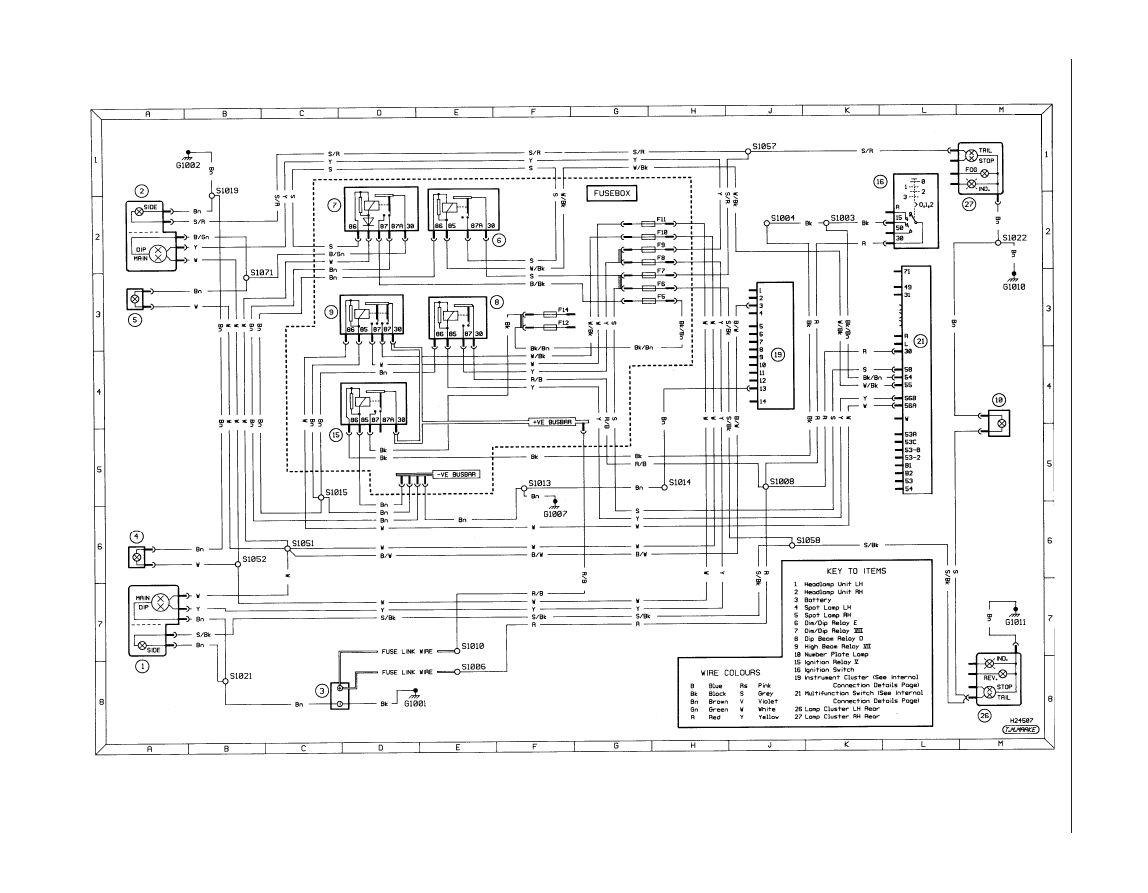

Diagram 2: Exterior lighting – side and headlamps

1595Ford Fiesta Remake

Wiring diagrams

12•27

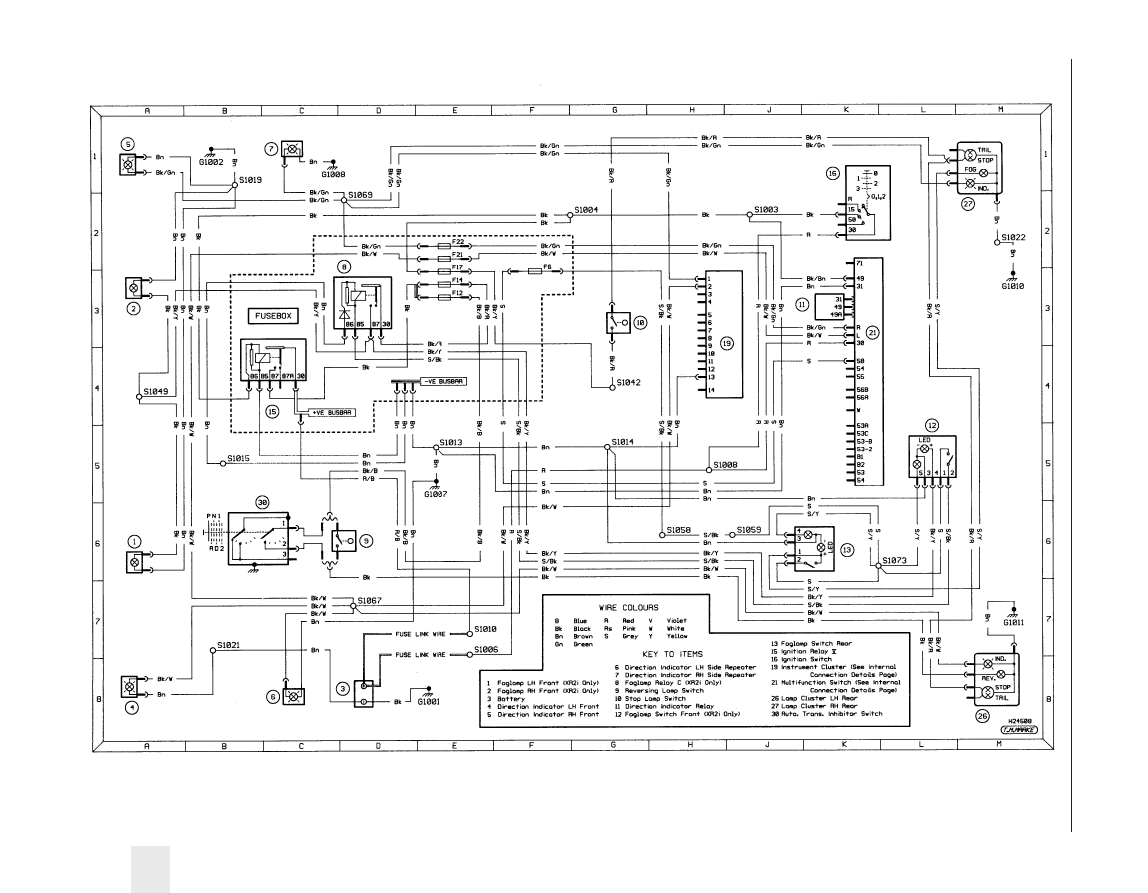

Diagram 2a: Exterior lighting – stop, reversing, fog and direction indicator lamps

12

1595Ford Fiesta Remake

12•28

Wiring diagrams

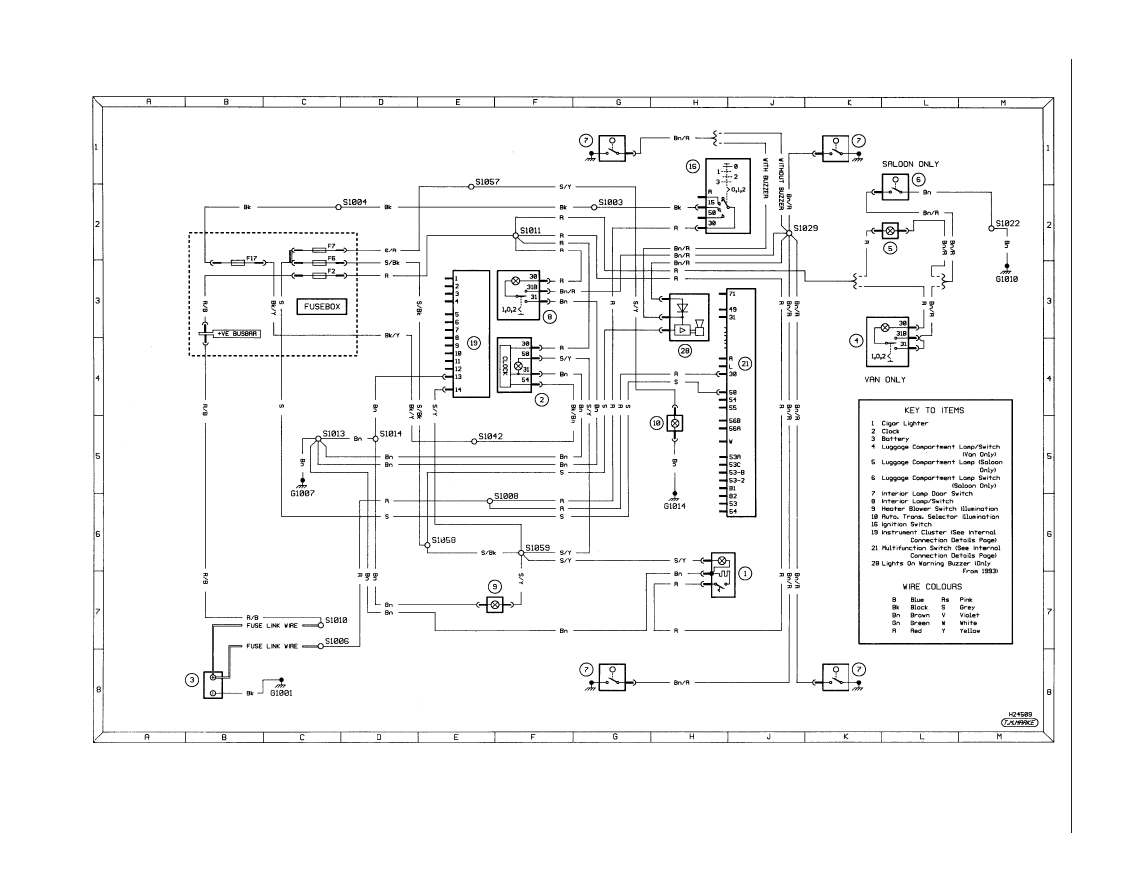

Diagram 2b: Interior lighting, lights-on warning buzzer, clock and cigar lighter

1595Ford Fiesta Remake

Wiring diagrams

12•29

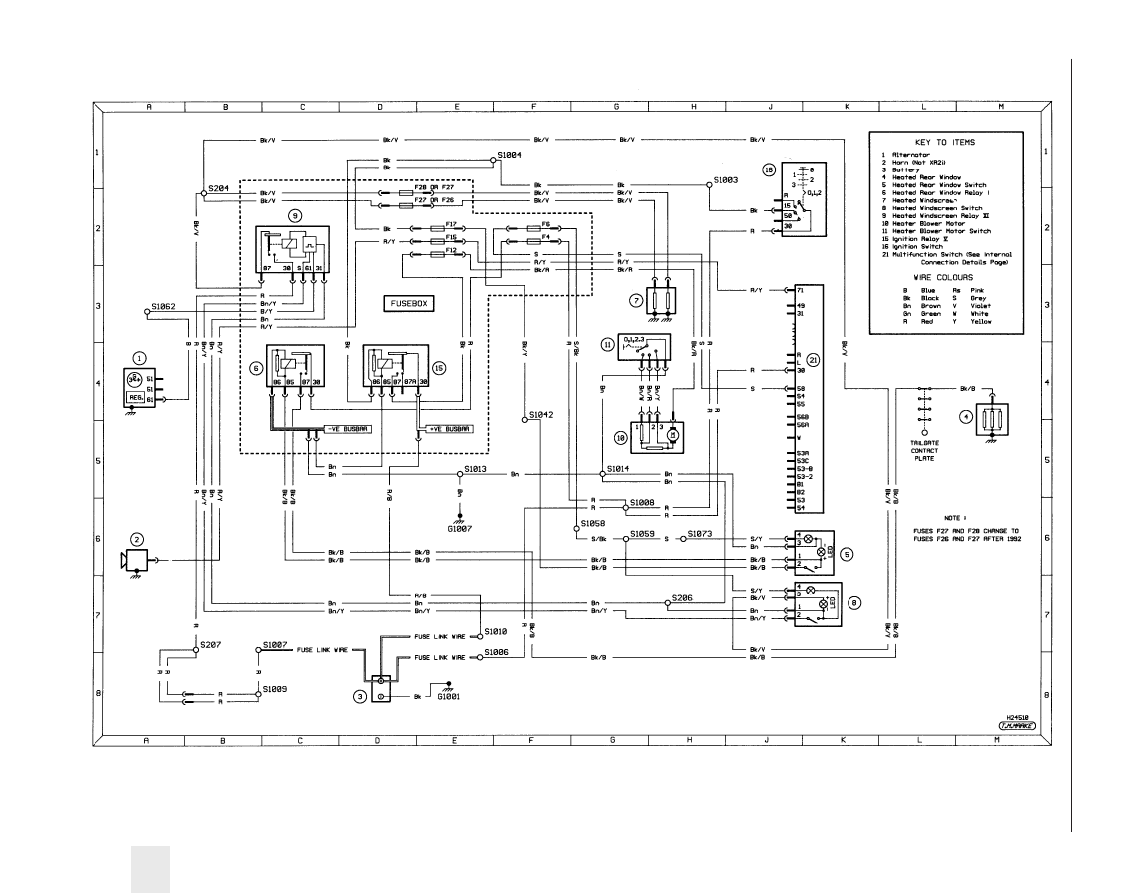

Diagram 3: Ancillary circuits – horn (except XR2i/RS models), heater blower and heated front /rear screens

12

1595Ford Fiesta Remake
