12•22

Wiring diagrams

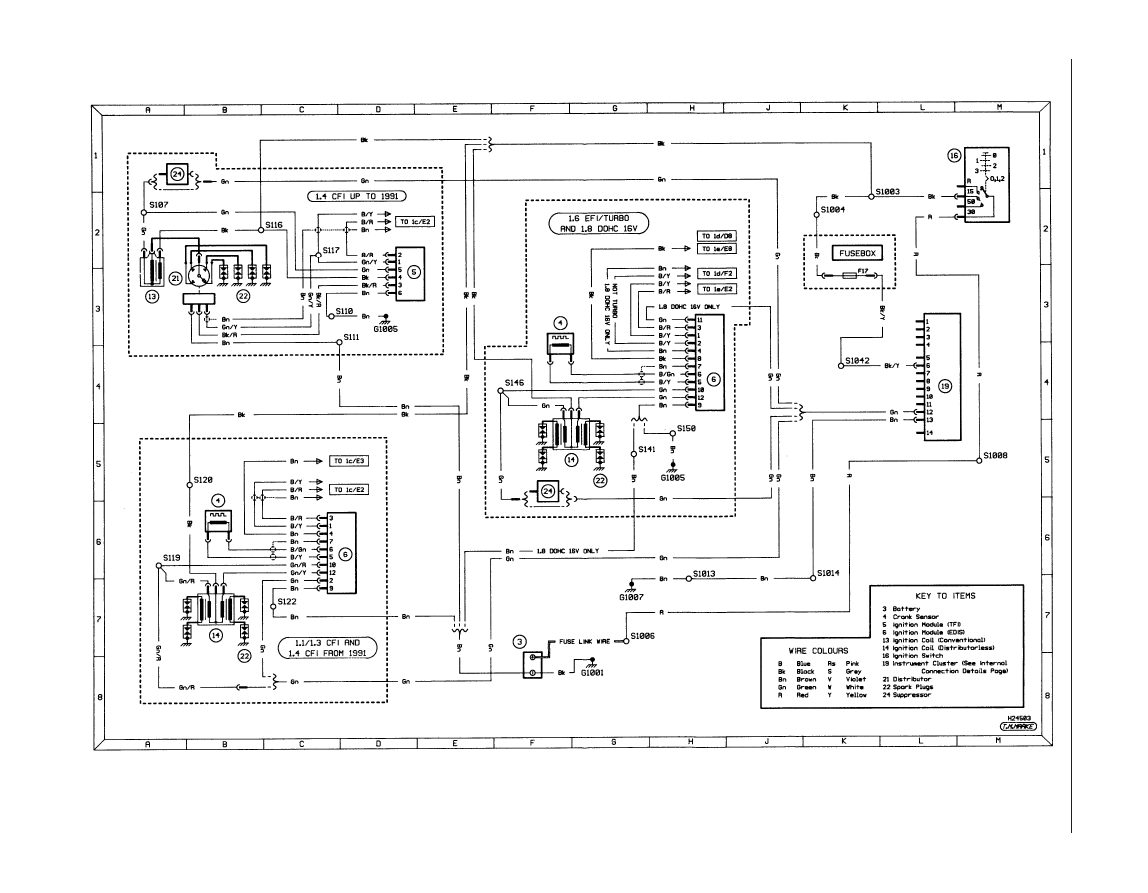

Diagram 1b: Ignition system – fuel-injected models

1595Ford Fiesta Remake

Wiring diagrams

12•23

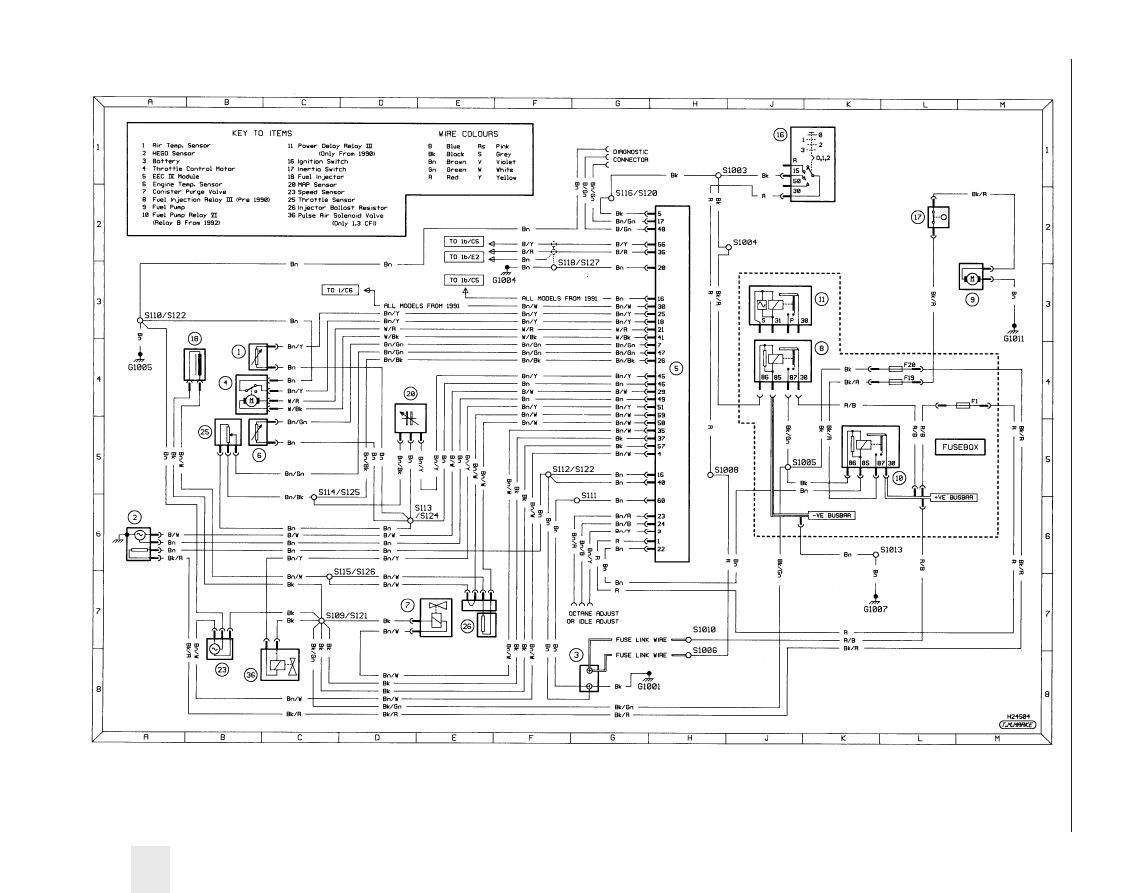

Diagram 1c: Typical 1.1/1.3/1.4 CFi fuel injection

12

1595Ford Fiesta Remake

12•24

Wiring diagrams

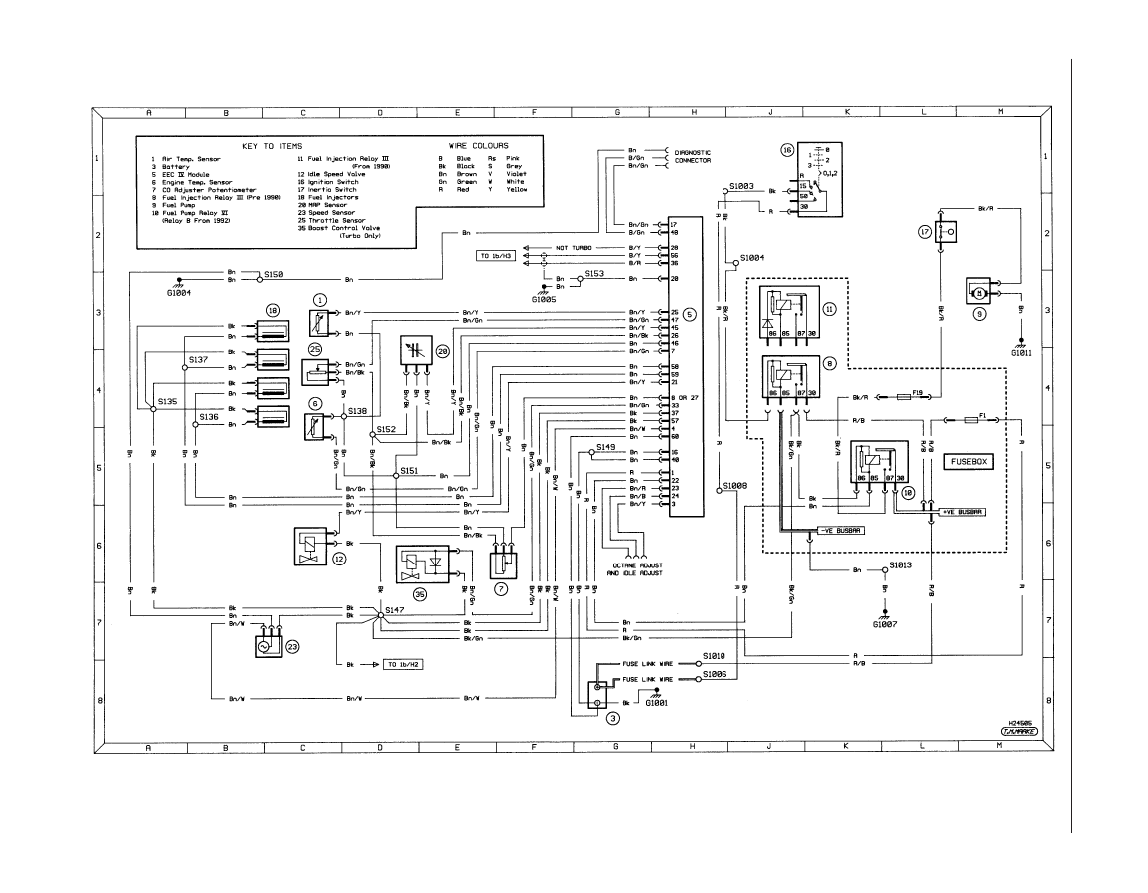

Diagram 1d: 1.6 EFi fuel injection (including RS Turbo)

1595Ford Fiesta Remake

Wiring diagrams

12•25

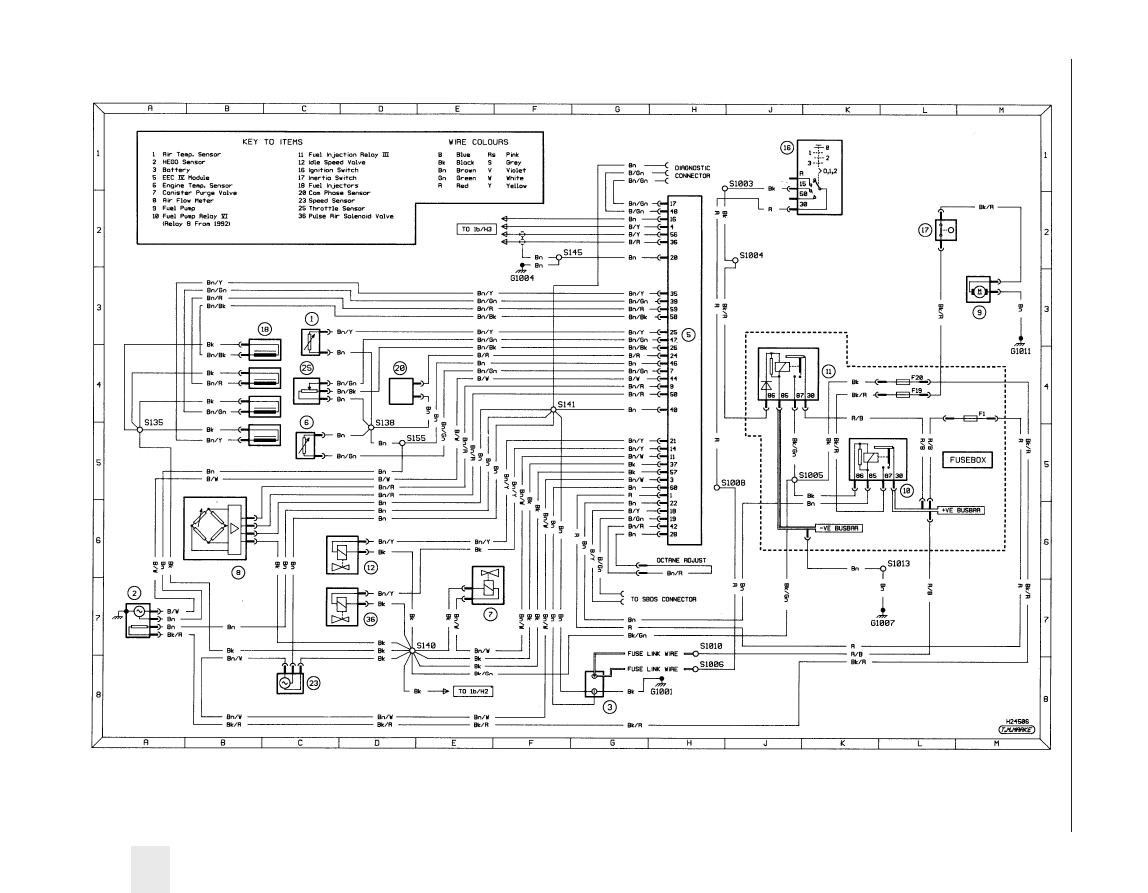

Diagram 1e: DOHC 16-valve fuel injection

12

1595Ford Fiesta Remake
