Citroen DS4 (2017 year). Manual - part 23

351

Audio and Telematics

DS4_en_Chap10b_SMEGplus_ed01-2016

Level 1

Level 2

Comments

Settings

Secondary page

Languages

Confirm

Select the language then confirm.

Settings

Secondary page

Calculator

Select the calculator.

Settings

Secondary page

Calendar

Select the calendar.

352

Audio and Telematics

DS4_en_Chap10b_SMEGplus_ed01-2016

Audio settings

Press on Settings

to display the

primary page.

Select "Audio settings

Select "Ambience

"Balance

"Sound effects

"Ringtones

"Voice

On-board audio: Arkamys

Sound

Staging optimises sound distribution in
the passenger compartment.

The distribution (or spatialisation using
the Arkamys

system) of sound is an

audio process that allows the audio
quality to be adapted to the number of
passengers in the vehicle.
Available only with the 6-speaker
configuration.

The audio settings (Ambience, Bass:,
Treble:

and Loudness) are different

and independent for each sound
source.
The settings for Distribution and
Balance

are common to all sources.

- "Ambience

" (choice of 6 musical

ambiences)

- "Bass:"
- "Treble:"
- "Loudness

" (Activate/Deactivate)

- "Distribution" ("Driver", "All

passengers", "Front only")

- "Audible response from touch screen"
- "Volume linked to speed

" (Activate/

Deactivate)

At each change of color scheme the
system restarts, showing a black
screen for a few moments.

As a safety measure, the procedure
for changing the color scheme is only
possible with the vehicle stationary.

Press on Settings

to display the

primary page.

Select "Color schemes

Select the color scheme in the list
then "Confirm

Color schemes

353

Audio and Telematics

DS4_en_Chap10b_SMEGplus_ed01-2016

Press on Settings

to display the

primary page.

Press on Settings

to display the

primary page.

Press on Settings

to display the

primary page.

Press on the secondary page.

Press on the secondary page

Press on the secondary page.

Select "System Settings

Select "Time/Date

" to change the

time zone, synchronisation with GPS,
the time and its format, then the date.

Select "Screen settings

Select "Units

" to change the units

of distance, fuel consumption and
temperature.

Select "Languages

" to change

language.

Activate or deactivate "Activate
automatic text scrolling

" and

"Activate animations

Select "Delete data

" to delete the

list of recent destinations, personal
points of interest, contacts in the list.

Select "Calculator

" to display a

calculator.

Choose the item then select "Delete".

Select "Calendar

" to display a

calendar.

Select "Factory settings" to return
to the original settings.

Modifying system settings

The system does not manage changes
between summer time and winter time
automatically (according to country).

354

Audio and Telematics

DS4_en_Chap10b_SMEGplus_ed01-2016

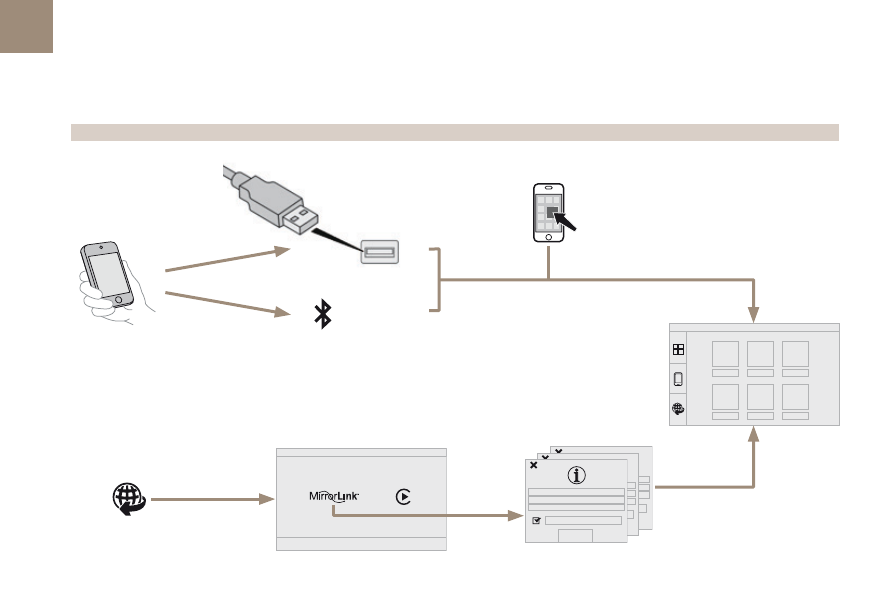

MirrorLink

Optional depending on the
smartphone and operating system.

Connected services

355

Audio and Telematics

DS4_en_Chap10b_SMEGplus_ed01-2016

As a safety measure and because it
requires sustained attention by the
driver, using a smartphone when
driving is prohibited.
All operations must be done with the
vehicle stationary

The synchronisation of a
smartphone allows applications on a
smartphone that are adapted to the
MirrorLink

technology to be displayed

in the vehicle's screen.
The principles and standards
are constantly evolving. For the
communication process between the
smartphone and the system to work
correctly, the smartphone must be
unlocked; update the operating system
of your smartphone as well as the date
and time in the smartphone and the
system.
For the list of eligible smartphones,
connect to the brand's internet website
in your country.

Please note:
- if your smartphone is supported, to

make it "MirrorLink

" compatible,

some phone manufacturers
nevertheless invite you to first
download a dedicated application.

When connecting a smartphone to
the system, it is recommended that
Bluetooth

be started on the smartphone

Start the application on the
smartphone (optional, depending
on the smartphone and operating
system).

Access to the different audio sources remains
accessible in the margin of the MirrorLink

display, using touch buttons in the upper bar.
Access to the menus for the system is possible
at any time using the dedicated buttons

During the procedure, several screen
pages relating to certain functions
are displayed.
Accept to start and end the
connection.

Connect a USB cable. The
smartphone charges when
connected by a USB cable.

Press on "MirrorLink

" to

start the application in the
system.

Once connection is established, an page
is displayed with the applications already
downloaded to your smartphone and adapted
to MirrorLink

technology.

If only one application has been downloaded to
the smartphone, it starts automatically.

MirrorLink

smartphone connection

Press the end of the lighting control stalk to
start voice recognition of your smartphone via
the system.
Voice recognition requires a compatible
smartphone connected to the vehicle by
Bluetooth

Voice recognition

As a safety measure, applications
can only be viewed with the vehicle
stationary; display is interrupted once
the vehicle is moving.

From the system, press on
"Connected services

" to display the

primary page.

356

Audio and Telematics

DS4_en_Chap10b_SMEGplus_ed01-2016

Level 1

Level 2

Level 3

357

Audio and Telematics

DS4_en_Chap10b_SMEGplus_ed01-2016

Level 1

Level 2

Level 3

Comments

Connected

services

MirrorLink

Access or return to the applications already
downloaded to your smartphone and adapted to
MirrorLink

technology.

Access to a menu list depending on the
application chosen.
"Back": abandon the current operation, go up one
level.
"Home": access or return to the "Car mode" page.

Access to the "Connected services" primary
page.

358

Audio and Telematics

DS4_en_Chap10b_SMEGplus_ed01-2016

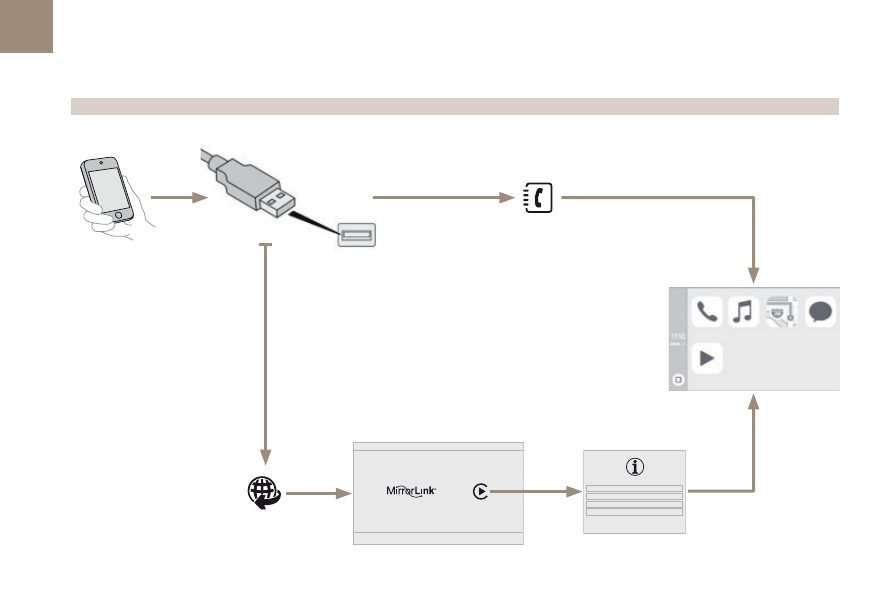

CarPlay

359

Audio and Telematics

DS4_en_Chap10b_SMEGplus_ed01-2016

As a safety measure and because it
requires sustained attention by the
driver, using a smartphone when
driving is prohibited.
All operations must be done with the
vehicle stationary

The synchronisation of a
smartphone allows applications on a
smartphone that are adapted to the
CarPlay

technology to be displayed in

the vehicle's screen.
As the principles and standards are
constantly evolving, it is recommended
that you update the operating system of
your smartphone.
For the list of eligible smartphones,
connect to the brand's internet website
in your country.

Connect the USB cable. The
smartphone is charged while
connected by the USB cable.

Connect a USB cable. The
smartphone charges when
connected by a USB cable.

Press "Telephone

" to display the

CarPlay

interface.

Press on "CarPlay

" to display the

CarPlay

interface.

CarPlay

smartphone connection

Press the end of the lighting control stalk to
start voice recognition of your smartphone via
the system.

When the telephone menu is displayed, on
connecting the USB cable the display changes
automatically to CarPlay mode.
If a menu other than the telephone menu is
displayed, on connecting the USB cable a
message is displayed in the upper banner
indicating the activation of the CarPlay mode.
Press on Open to display the CarPlay mode.

Voice recognition

As a safety measure, applications
can only be viewed with the vehicle
stationary; display is interrupted once
the vehicle is moving.

During the procedure, one or more
screen pages relating to certain
functions are displayed on connection.

From the system, press "Connected
services

" to display the primary

page.

17 18

360

Audio and Telematics

DS4_en_Chap10b_SMEGplus_ed01-2016

Level 1

Telephone

Level 2

Level 3

Contacts

Call log

361

Audio and Telematics

DS4_en_Chap10b_SMEGplus_ed01-2016

Level 1

Level 2

Level 3

Comments

Telephone

Call log

All calls

After making choices, start the call.

Incoming calls

Outgoing calls

Contacts

Magnifying glass

View

Create

Call

Telephone

Contacts

Addresses

After making choices, start the call.

View

Create

Modify

Delete

Delete all

By name

Confirm

Navigate to

Search for contact

Call

362

Audio and Telematics

DS4_en_Chap10b_SMEGplus_ed01-2016

Bluetooth (devices)

Telephone Options

Devices detected

Telephone connection

Level 1

Level 2

Level 3

363

Audio and Telematics

DS4_en_Chap10b_SMEGplus_ed01-2016

Level 1

Level 2

Level 3

Comments

Telephone

connection

Secondary page

Bluetooth

connection

Search

Start the search for another peripheral device to
connect.

Connect / Disconnect

Start or stop the Bluetooth

connection to the

selected peripheral device.

Update

Import the contacts from the selected telephone
to store them in the audio system.

Delete

Delete the selected telephone.

Confirm

Save the settings.

Telephone

connection

Secondary page

Search for devices

Devices detected

Telephone

Start the search for peripheral devices.

Audio streaming

Internet

Telephone

connection

Secondary page

Telephone Options

Put on hold

Cut the microphone temporarily so that the
contact cannot hear your conversation with a
passenger.

Update

Import the contacts from the selected telephone
to save then in the audio system.

Ringtones

Choose the telephone ringtone and volume.

Memory info.

Contact records used and free, percentage of
storage space used by internal contacts and
Bluetooth

contacts.

Confirm

Save the settings.

364

Audio and Telematics

DS4_en_Chap10b_SMEGplus_ed01-2016

Pairing a Bluetooth

telephone

For reasons of safety and because they
require prolonged attention on the part
of the driver, the operations for pairing
the Bluetooth

mobile telephone to the

hands-free system of the audio system
must be carried out with the vehicle
stationary

Procedure (short) from the

telephone

In the Bluetooth

menu of your device, select

the system name in the list of devices detected.

Enter a code of at least 4 figures in the device
and confirm.

Enter this same code in the system,
select "OK

" and confirm.

Procedure from the system

Activate the telephone's Bluetooth

function

and ensure that it is "visible to all" (telephone
configuration).

Press on Telephone

to display the

primary page.

Press on the secondary page.

Select "Bluetooth connection

Select "Search for devices

The list of telephones detected is
displayed.

If the telephone is not detected, it is
recommended that you switch the Bluetooth

function on your telephone off and then on again.

Select the name of the
desired peripheral from the
list and "Confirm".

Enter a code of at least 4 figures for
the connection then "Confirm

Enter this same code in the telephone then
accept the connection.

The system offers to connect the telephone:
-

in "Telephone

" (hands-free kit, telephone

only),

in "Audio streaming

" (streaming: wireless

playing of audio files from the telephone),

in "Internet

" (internet browsing, only if your

telephone is compatible with the "DUN"
Dial-Up Networking Bluetooth

standard).

Select one or more profiles and confirm.

365

Audio and Telematics

DS4_en_Chap10b_SMEGplus_ed01-2016

The services available depend
on the network, the SIM card and
the compatibility of the Bluetooth

telephone used. Check the telephone
manual and with your network provider
for details of the services available to
you.

The ability of the system to connect
with only one profile depends on the
telephone. The three profiles may all
connect by default.

Visit www.citroen.co.uk for more information
(compatibility, additional help, ...).

The recognised telephone
appears in the list.

Depending on your telephone, you may be
asked to accept automatic connection every
time the ignition is switched on.

On return to the vehicle, if the last telephone
connected is present again, it is reconnected
automatically and within around 30 seconds
after switching on the ignition the pairing is
done without any action on your part, with
(Bluetooth

activated).

To modify the automatic connection mode,
select the telephone in the list then select the
desired profile.

Depending on the type of telephone,
the system will ask you to accept or not
the transfer of your contacts.

If not, select "Update

Connecting a Bluetooth

peripheral device

Automatic reconnection

On switching on the ignition, the telephone
connected when the ignition was last switched
off is automatically reconnected, if this
connection mode had been activated during the
pairing procedure.
The connection is confirmed by the display of a
message and the name of the telephone.

Manual connection

Press on Telephone

to display the

primary page.

Press on the secondary page.

Select "Bluetooth

" to display the list

of paired peripherals.

Select the peripheral to connect.

Press on "Search for devices

The connection is confirmed by the display of a
message and the name of the telephone.

366

Audio and Telematics

DS4_en_Chap10b_SMEGplus_ed01-2016

Managing paired telephones

This function allows the connection or
disconnection of a peripheral device as
well as the deletion of a pairing.

Using the telephone is not
recommended while driving.
Park the vehicle.
Make the call using the steering
mounted controls.

Press on Telephone

to display the

primary page.

Press on the secondary page.

Select "Bluetooth

" to display the list

of paired peripheral devices.

Select the peripheral in the list.

Select "Search for devices "

"Connect / Disconnect" to start or
end the Bluetooth connection with
the selected device.

"Delete

" to delete the pairing.

Receiving a call

An incoming call is announced by a ring and a
superimposed display in the screen.

Make a short press on the steering
mounted TEL button to accept an
incoming call.

Make a long press

on the steering mounted TEL button
to reject the call.

Select "End call

Making a call

Calling a new number

Press on Telephone

to display the

primary page.

Enter the phone number using the
digital keypad.
Press "Call

" to start the call.

Calling a contact

Press on Telephone

to display the

primary page.

Or make a long press

on the steering mounted TEL button.

Content .. 21 22 23 24 ..
