Citroen DS3 (2016 year). Manual - part 17

DS3_en_Chap10_caracteristiques_ed02-2015

DS3_en_Chap10_caracteristiques_ed02-2015

Petrol engine

PureTech 82

PureTech 82 S&S

VTi 120

gearbox

Manual

(5-speed)

ETG electronic

(5-speed)

Manual

(5-speed)

Automatic

(4-speed)

Model code:
SA...

HMZ6

HMZ6/PS

5FS0

5FS9

Cubic capacity (cc)

1 199

1 598

Bore x stroke (mm)

75 x 90.5

77 x 85.8

Max power: EU standard (kW)*

Max power engine speed (rpm)

5 750

6 000

Max torque: EU standard (Nm)

118

160

Max torque engine speed (rpm)

2 750

4 250

Fuel

Unleaded

Catalytic converter

yes

Yes

yes

Engine oil capacity (in litres) (with filter
replacement)

3.25

4.25

* The maximum power corresponds to the value type-approved on a test bed, under conditions defined in European legislation

(Directive 1999/99/EC).

Petrol engines

257

Technical data

DS3_en_Chap10_caracteristiques_ed02-2015

Petrol engines

PureTech 110

PureTech 110 S&S

PureTech 130

S&S

THP 155

THP 150**

THP 165 S&S

THP 150

S&S***

gearbox

EAT6

(6-speed

automatic)

Manual

(5-speed)

EAT6

(6-speed automatic)

Manual

(6-speed)

Manual

(6-speed)

Manual

(6-speed)

Model code:
SA...

HNVT

HNZ6/S

HNZT/S

HNVT/S

HNYM/S

5FV8

5FN8**

5GZM/S

5GWM/S***

Cubic capacity (cc)

1 199

1 598

Bore x stroke (mm)

75 x 90.5

77 x 85.8

Max power: EU standard (kW)*

115

110**

120

110***

Max power engine speed (rpm)

5 500

6 000

Max torque: EU standard (Nm)

205

230

240

Max torque engine speed (rpm)

1 500

1 750

1 400

Fuel

Unleaded

Catalytic converter

Yes

Engine oil capacity (in litres) (with
filter replacement)

3.25

3.5

4.25

* The maximum power corresponds to the value type-approved on a test bed, under conditions defined in European legislation

(Directive 1999/99/EC).

** For Belgium and Russia.
*** For Belgium.

Petrol engines

DS3_en_Chap10_caracteristiques_ed02-2015

* The maximum power corresponds to the value type-approved on a test bed, under conditions defined in European legislation

(Directive 1999/99/EC).

Petrol engine

Performance

Gearbox

Manual (6-speed)

Model code: SA...

5GRM/S

Cubic capacity (cc)

1 598

Bore x stroke (mm)

77 x 85.8

Max power: EU standard (kW)*

153

Max power engine speed (rpm)

5 800

Max torque: EU standard (Nm)

300

Max torque engine speed (rpm)

1 700

Fuel

Unleaded

Catalytic converter

Yes

Engine oil capacity (in litres) (with filter
replacement)

4.25

Engines - PERFORMANCE

259

Technical data

DS3_en_Chap10_caracteristiques_ed02-2015

The GTW and towed load values indicated are valid up to a maximum altitude of 1 000 metres; the towed load mentioned must be reduced by 10 % for
each additional 1 000 metres of altitude.
The speed of a towing vehicle must not exceed 60 mph (100 km/h) (comply with the legislation in force in your country).
High ambient temperatures may result in a reduction in the performance of the vehicle to protect the engine; if the ambient temperature is above 37 °C,
limit the towed load.

* The weight of the braked trailer can be increased, within the GTW limit, if the GVW of the towing vehicle is reduced by an equal amount. Warning:

towing using a lightly loaded towing vehicle may have an adverse effect on its road holding.

Petrol engine

PureTech 82

PureTech 82 S&S

VTi 120

gearbox

Manual (5-speed)

ETG electronic

(5-speed)

Manual (5-speed)

Automatic (4-speed)

Model code:
SA...

HMZ6

HMZ6/PS

5FS0

5FS9

Unladen weight

974

980

1 075

1 089

Kerb weight

1 049

1 055

1 150

1 164

Gross vehicle weight (GVW)

1 511

1 523

1 554

1 587

Gross train weight (GTW)
on a 12% gradient

2 311

2 022

2 454

2 487

Braked trailer (within the GTW limit)
on a 12% gradient

800

500

900

Braked trailer* (with transfer of load within the
GTW limit)

1 100

750

1 150

Unbraked trailer

520

500

570

Recommended nose weight

Petrol weights and towed loads (in kg)

DS3_en_Chap10_caracteristiques_ed02-2015

Petrol engines

PureTech 110

PureTech 110 S&S

PureTech 130

S&S

THP 155

THP 150**

THP 165 S&S

THP 150

S&S***

gearbox

EAT6

(6-speed

automatic)

Manual

(5-speed)

EAT6

(6-speed automatic)

Manual

(6-speed)

Manual

(6-speed)

Manual

(6-speed)

Model code:
SA...

HNVT

HNZ6/S

HNZT/S

HNVT/S

HNYM/S

5FV8

5FN8**

5GZM/S

5GWM/S***

Unladen weight

1 085

1 070

1 090

1 140

Kerb weight

1 160

1 145

1 165

1 215

Gross vehicle weight (GVW)

1 610

1 578

1 615

1 600

1 590

1 605

Gross train weight (GTW)
on a 12% gradient

2 510

2 478

2 515

2 500

2 490

2 505

Braked trailer (within the GTW limit)
on a 12% gradient

900

Braked trailer* (with transfer of
load within the GTW limit)

1 150

Unbraked trailer

570

Recommended nose weight

* The weight of the braked trailer can be increased, within the GTW limit, if the GVW of the towing vehicle is reduced by an equal amount. Warning:

towing using a lightly loaded towing vehicle may have an adverse effect on its road holding.

** For Belgium and Russia.
*** For Brazil.

The GTW and towed load values indicated are valid up to a maximum altitude of 1 000 metres; the towed load mentioned must be reduced by 10 % for each additional
1 000 metres of altitude.
The speed of a towing vehicle must not exceed 60 mph (100 km/h) (comply with the legislation in force in your country).
High ambient temperatures may result in a reduction in the performance of the vehicle to protect the engine; if the ambient temperature is above 37 °C, limit the towed load.

Petrol weights and towed loads (in kg)

261

Technical data

DS3_en_Chap10_caracteristiques_ed02-2015

Petrol engine

Performance

Gearbox

Manual (6-speed)

Model code: SA...

5GRM/S

Unladen weight

1 175

Kerb weight

1 250

Gross vehicle weight (GVW)

1 607

Gross train weight (GTW)

on a 12% gradient

1 607

Braked trailer (within the GTW limit)

on a 12% gradient

Braked trailer (with transfer of load within the

GTW limit)

Unbraked trailer

Recommended nose weight*

* See the "Towing a trailer" section.

Weights (in kg) - PERFORMANCE

DS3_en_Chap10_caracteristiques_ed02-2015

Diesel engines

e-HDi 90

BlueHDi 75

BlueHDi 100 S&S

BlueHDi 120 S&S

BlueHDi 115

S&S**

gearbox

ETG6 (6-speed

electronic)

Manual (5-speed) Manual (5-speed)

ETG6 (6-speed

electronic)

Manual (6-speed)

Model code:
SA...

9HP8/PS

BHW6

BHY6/S

BHYM/PS

BHZM/S

BHXM/S**

Cubic capacity (cc)

1 560

Bore x stroke (mm)

75 x 88.3

Max power: EU standard (kW)*

85**

Max power engine speed (rpm)

4 000

3 500

3 750

3 500

Max torque: EU standard (Nm)

230

233

254

300

Max torque engine speed (rpm)

1 750

Fuel

Diesel

Catalytic converter

Yes

Particle filter (FAP)

Yes

Engine oil capacity (in litres) (with filter
replacement)

3.75

* The maximum power corresponds to the value type-approved on a test bed, under conditions defined in European legislation

(Directive 1999/99/EC).

** For Belgium.

Diesel engines

.../S: model fitted with Stop & Start

263

Technical data

DS3_en_Chap10_caracteristiques_ed02-2015

Diesel engines

e-HDi 90

BlueHDi 75

BlueHDi 100 S&S

BlueHDi 120 S&S

BlueHDi 115 S&S**

gearbox

ETG6 (6-speed

electronic)

Manual (5-speed) Manual (5-speed)

ETG6 (6-speed

electronic)

Manual (6-speed)

Model code:
SA...

9HP8/PS

BHW6

BHY6/S

BHYM/PS

BHZM/S

BHXM/S**

Unladen weight

1 090

1 080

1 085

1 110

1 150

Kerb weight

1 165

1 155

1 160

1 185

1 225

Gross vehicle weight (GVW)

1 609

1 620

1 633

1 650

1 653

Gross train weight (GTW)
on a 12% gradient

2 509

2 520

2 533

2 395

2 553

Braked trailer (within the GTW limit)
on a 12% gradient

900

745

900

Braked trailer* (with transfer of load within
the GTW limit)

1 150

1 075

1 150

Unbraked trailer

570

Recommended nose weight

* The weight of the braked trailer can be increased, within the GTW limit, if the GVW of the towing vehicle is reduced by an equal amount. Warning:

towing using a lightly loaded towing vehicle may have an adverse effect on its road holding.

** For Belgium.

Diesel weights and towed loads (in kg)

The GTW and towed load values indicated are valid up to a maximum altitude of 1 000 metres; the towed load mentioned must be reduced by 10 % for each additional
1 000 metres of altitude.
The speed of a towing vehicle must not exceed 60 mph (100 km/h) (comply with the legislation in force in your country).
High ambient temperatures may result in a reduction in the performance of the vehicle to protect the engine; if the ambient temperature is above 37 °C, limit the towed load.

DS3_en_Chap10_caracteristiques_ed02-2015

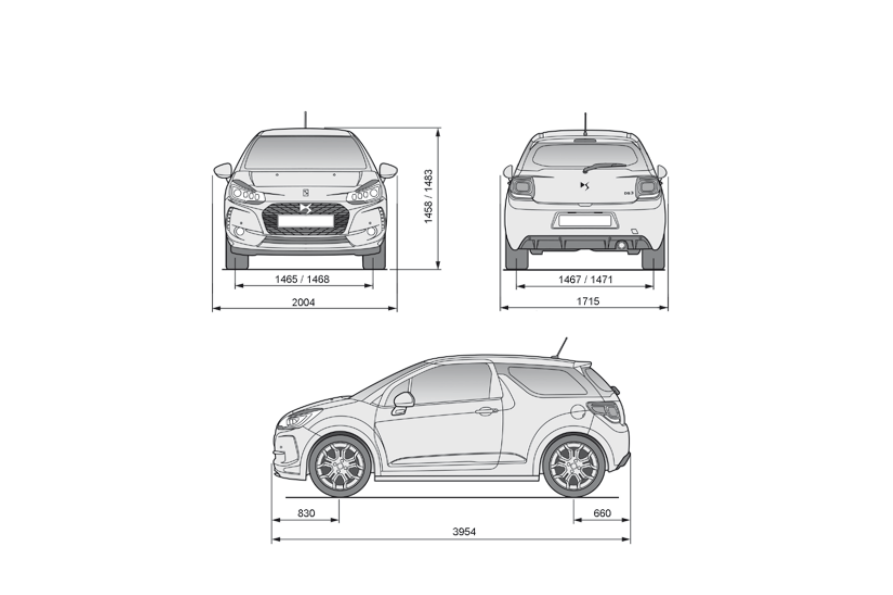

Dimensions (in mm)

265

Technical data

DS3_en_Chap10_caracteristiques_ed02-2015

Bumpers and lower body

Your vehicle has reduced ground
clearance.
Take care when traversing kerbs,
speed humps, access ramps, fords,
unmade roads…

Dimensions (in mm) PERFORMANCE

DS3_en_Chap10_caracteristiques_ed02-2015

Identification markings

Various visible markings for the identification of your vehicle.

A. Vehicle identification number (VIn)

under the bonnet.

This number is engraved on the bodywork near
the passenger compartment filter.

B. Vehicle identification number on the

bottom edge of the windscreen aperture.

This number is indicated on a self-adhesive
label which is visible through the windscreen.

The tyre pressures must be checked
when the tyres are cold, at least once
a month.
Low tyre pressures increase fuel
consumption.

C. Manufacturer's label.
The self-destroying label on the left hand
centre pillar carries the following information.
-

the name of the manufacturer,

the European type approval number,

-  the vehicle identification number (VIN),
-  the gross vehicle weight,
-  the gross train weight,
-  the maximum front axle weight,
-  the maximum rear axle weight.

D. Tyre/paint label.
This label on the left centre pillar, driver's side,
carries the following information:
-

the tyre pressures, for unladen and laden
conditions,

- the tyre sizes (including the load index and

speed rating of the tyre),

the spare tyre inflation pressure,

- the paint colour code.

267

Technical data

DS3_en_Chap10_caracteristiques_ed02-2015

011

DS3_en_Chap11_audio_ed02-2015

Audio and telematics

DS3_en_Chap11_audio_ed02-2015

DS3_en_Chap11b_BTA_ed02-2015

Emergency or assistance call

If an impact is detected by the airbag
control unit, and independently of
the deployment of any airbags, an
emergency call is made automatically.

Localised Emergency Call

In an emergency, press this
button for more than 2 seconds.
Flashing of the green indicator
lamp and a voice message
confirm that the call has
been made to the "Localised
Emergency Call"* centre.

Pressing this button again immediately cancels
the call.
The green indicator lamp goes off.
At any time, pressing this button for more than
8 seconds cancels the call.

The green indicator lamp remains on (without
flashing) when communication is established.
It goes off at the end of the call.

This call is dealt with by the "Localised
Emergency Call" centre, which receives
locating information from the vehicle and
can send a detailed alert to the appropriate
emergency services.
In countries in which a centre is not
operational, or when the locating service
has been expressly declined, the call is dealt
with directly by the emergency services (112)
without the vehicle location.

* These services are subject to conditions and

availability.

Consult a CITROËN dealer.

If you benefit from the DS Connect
BOX offer with the SOS and assistance
pack included, you also have available
additional services in your MyCITROËN
personal space, via the CITROËN
Internet website in your country,
accessible on www.citroen.com.

Content .. 15 16 17 18 ..
