Citroen C4 Picasso Dag (2009 year). Manual

A C C E S S

Lost keys

Visit a CITROËN dealer with the vehi-
cle's V5 registration document and your

personal identiﬁ cation documents.
The CITROËN dealer will be able to
retrieve the key code and the trans-
ponder code required to order a re-
placement key.

Remote control

The high frequency remote control is
a sensitive system; do not operate it
while it is in your pocket as there is a
possibility that it may unlock the vehi-
cle, without you being aware of it.
Do not repeatedly press the buttons
of  your  remote  control  out  of  range
and out of sight of your vehicle. You
run the risk of stopping it from work-
ing  and  the  remote  control  would
have to be reinitialised.
The remote control does not operate
when the key is in the ignition, even
when the ignition is switched off, ex-
cept for reinitialisation.

Locking the vehicle

Driving with the doors locked may
make access to the passenger com-
partment by the emergency services

more difﬁ cult in an emergency.
As a safety precaution (with children
on board), remove the key from the
ignition when you leave the vehicle,
even for a short time.

Anti-theft protection

Do not make any modiﬁ cations to the

electronic engine immobiliser sys-
tem; this could cause malfunctions.

When purchasing a second-
hand vehicle

Have the key codes memorised by a
CITROËN dealer, to ensure that the
keys in your possession are the only
ones which can start the vehicle.

Do not throw the remote
control batteries away, they
contain metals which are
harmful to the environment.

Take them to an approved collection
point.

A C C E S S

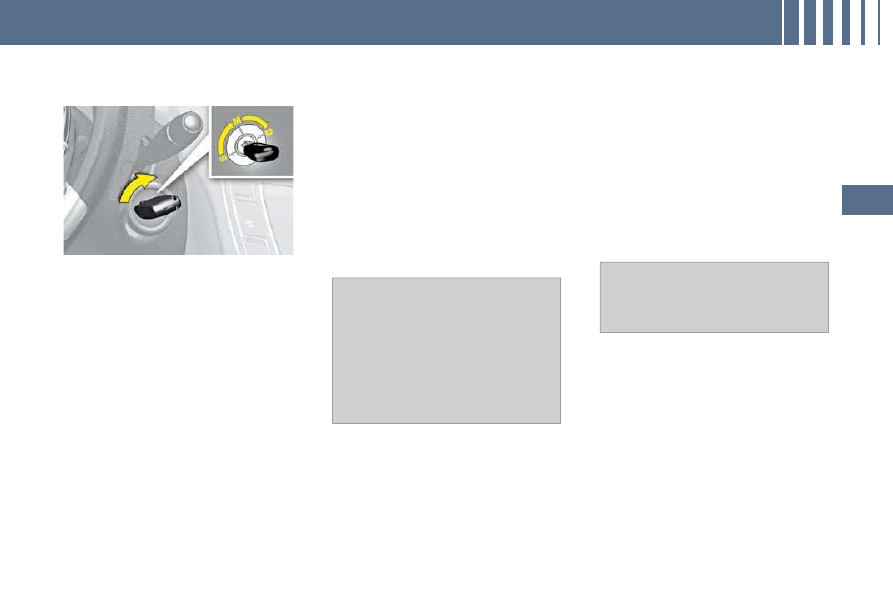

STARTING

1. "S": Steering lock

To unlock the steering, gently move
the steering wheel while turning the
key, without forcing it.

2. "M": Drive position

Depending  on  the  version  of  your
vehicle,  the  orange  and  red  warning
lamps should also come on for a short
time.

3. "D": Starter

Release the key as soon the engine
has started.
If the ﬁ rst attempt fails, switch off the

ignition. Wait ten seconds then operate
the starter again.

Steering lock

1. " S": After removing the key, turn

the steering wheel to lock the
steering. The key can only be re-
moved in position S .

2. "M": Ignition switched on, the

steering  is  unlocked  (by  turning
the  key  to  position   M ,  move  the
steering  wheel  gently  if  neces-
sary).

3. "D": Starter position.

Key left in position "M" buzzer

If you forget to remove the key from
the  ignition,  the  ignition  is  switched
off automatically after one hour.
To  switch  the  ignition  back  on,  turn
the  key  to  position   S   then  back  to
position  M .

Do not run the engine in an en-
closed space or where there is

insufﬁ cient ventilation  .
  It is essential always to keep the
engine running in order to retain
braking  and  steering    power    as-
sistance .
  Never  remove  the  ignition  key
before the vehicle has come to a
complete stop.

STOPPING

Vehicles equipped with a
turbocharger

Never stop the engine without having
allowed  it  to  run  for  a  few  seconds
at  idle,  this  being  the  time  required
for  the  turbocharger  to  return  to  a
normal speed.
Flicking  the  accelerator  at  the  mo-
ment  of  switching  off  the  ignition
could cause serious damage.

  A heavy object (key fob...), attached
to  the  key  and  weighing  down  on
its shaft in the ignition switch, could
cause a malfunction.

Never turn the key to this position
when the engine is running.

A C C E S S

Remote control problem

Following  disconnection  of  the  ve-
hicle battery, replacement of the re-
mote  control  battery  or  in  the  event
of a remote control malfunction, you
can no longer unlock, lock or locate
your vehicle.
      First of all, use the key in the lock

to unlock or lock your vehicle.

 Then, reinitialise the remote con-

trol.

If the problem persists, contact a
CITROËN dealer as soon as pos-
sible.

  Reinitialisation
      Switch off the ignition.
     Turn  the  key  to  position   2

(Ignition on) .

 Press the closed padlock imme-

diately for a few seconds.

 Switch off the ignition and re-

move the key from the ignition
switch.

The remote control is fully opera-
tional again.

Battery ref.: CR0523/3 volts.
This replacement battery is avail-
able from CITROËN dealers.

If the remote control bat-

tery is ﬂ at, you are in-

formed by lighting of this
warning lamp, an audible
signal and a message on
the multifunction screen.

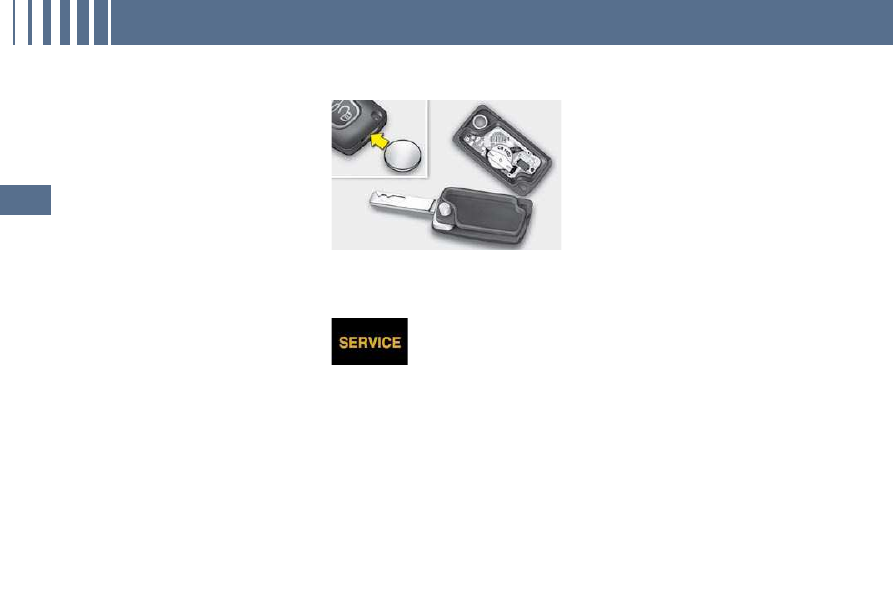

 Unclip the casing using a coin at

the notch.



Slide the ﬂ at battery out of its lo-

cation.

 Slide the new battery into its lo-

cation observing the original di-
rection.

 Clip the casing together.
 Reinitialise the remote control.

Changing the battery

A C C E S S

ALARM

System which protects and provides
a deterrent against the theft of your
vehicle. It provides two types of pro-
tection, exterior and interior, as well
as an anti-tamper function.

Exterior perimiter protection

The system detects opening of the
vehicle.
The alarm is triggered if anyone tries
to enter the vehicle by forcing a door,
the boot or the bonnet.

Interior volumetric protection

The system detects any variation in the
volume in the passenger compartment.
The  alarm  is  triggered  if  anyone
breaks  a  window  or  moves  inside
the vehicle.
If you wish to leave a pet in the vehicle
or a window partially open, deactivate
the interior volumetric protection.

Anti-tamper function

The  system  detects  the  putting  out
of service of its components.
The  alarm  is  triggered  if  anyone
tries to put the wires of the siren, the
central  control  or  the  battery  out  of
service.
Do  not  make  any  modiﬁ cations  to

the alarm system, this could cause
malfunctions.

Locking the vehicle with full
alarm

Activation
 Switch off the ignition and get out

of the vehicle.

 Lock or deadlock the vehicle

using the locking button on the
remote control.

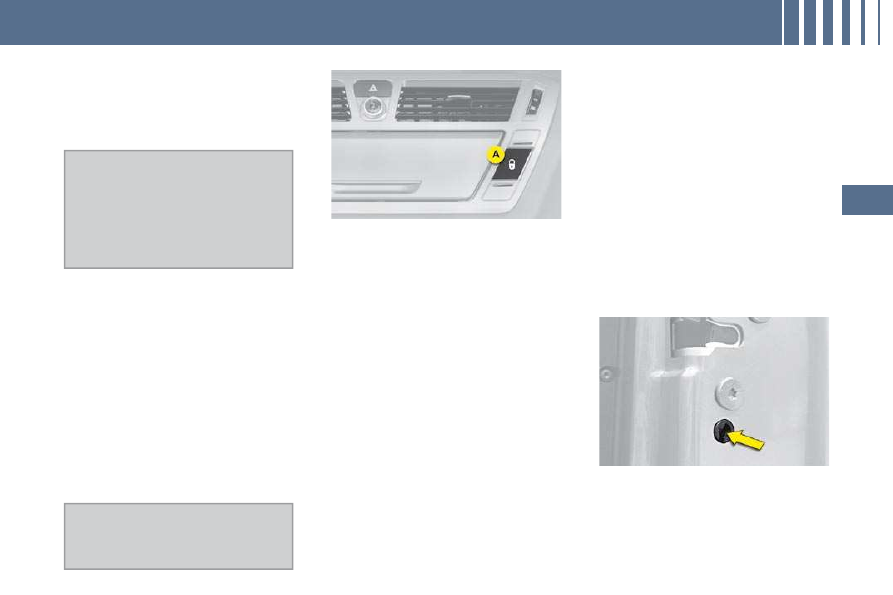

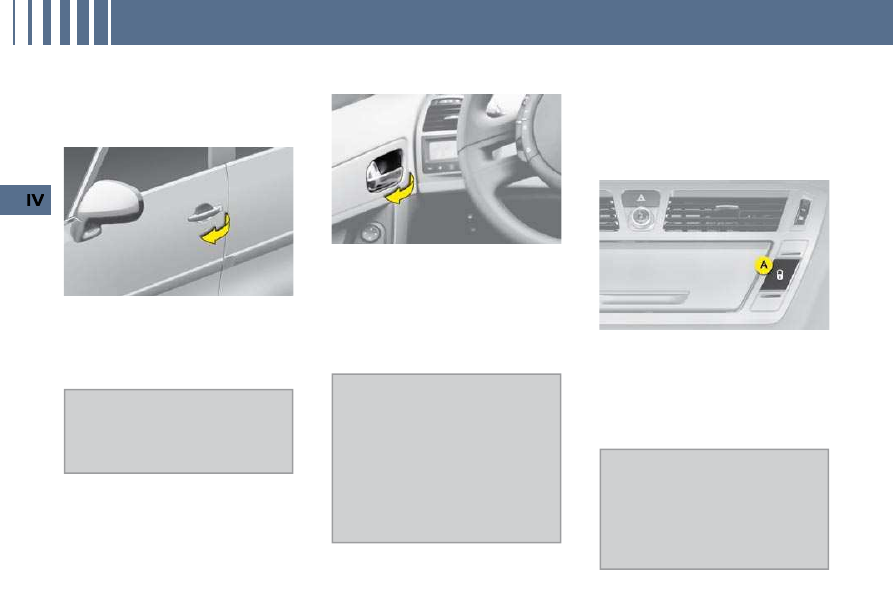

The alarm is activated; the indicator
lamp on button A

ﬂ ashes once per

second.

Deactivation
 Unlock the vehicle using the

unlocking button on the remote
control.

The alarm is deactivated; the indica-
tor lamp on button A switches off.

Locking the vehicle with
exterior protection alarm only

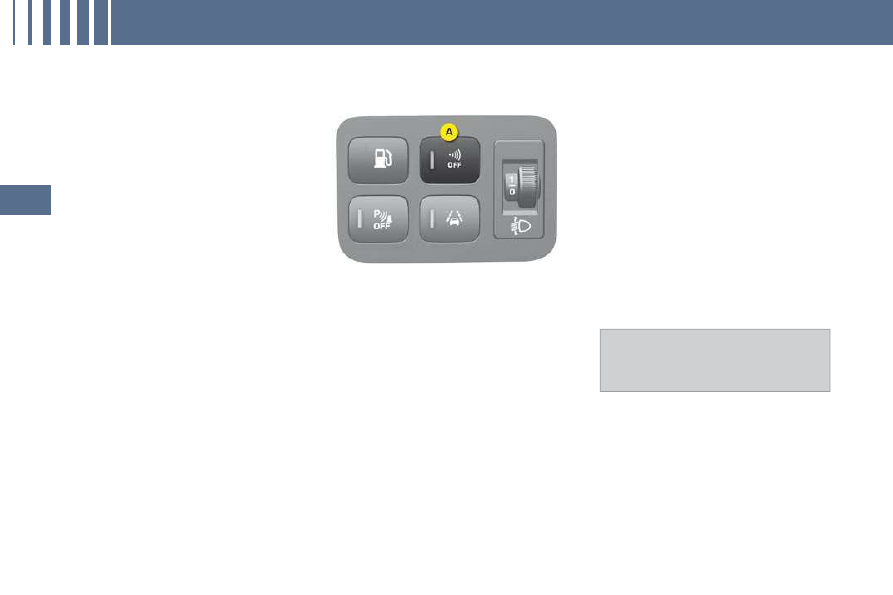

  Deactivation of the interior
volumetric protection
      Switch off the ignition.
     Within  ten  seconds,  press  but-

ton A until the indicator lamp is lit
continuously.

 Get out of the vehicle.
 Lock or deadlock the vehicle

using the locking button on the
remote control.

The  exterior  protection  alarm  alone
remains  activated;  the  indicator
lamp  on  button   A

ﬂ ashes once per

second.

To  be  effective,  this  deactivation
must  be  carried  out  each  time  the
ignition is switched off.

Reactivation of the interior
volumetric protection
 Unlock the vehicle using the

unlocking button on the remote
control.

 Relock the vehicle using the

remote control.

The alarm is activated again with
both types of protection; the indica-
tor lamp on button A switches off.

A C C E S S

Triggering
This is indicated by sounding of the

siren and ﬂ ashing of the direction

indicators for approximately thirty
seconds.
After it has been triggered, the alarm
is again operational.
If the alarm is triggered ten times in
succession, the eleventh time will
result in it becoming inactive.

If the indicator lamp on button A

ﬂ ashes rapidly, this indicates that

the alarm was triggered during
your absence. When the ignition is

switched on, this ﬂ ashing stops im-

mediately.
To avoid triggering the alarm when
washing your vehicle, lock it using
the key in the driver's door lock.
Do  not  activate  the  alarm  before
disconnecting  the  battery,  other-
wise the siren will sound.

Failure of the remote control
 Unlock the vehicle using the key

in the driver's door lock.

 Open the door; the alarm is trig-

gered.

 Switch on the ignition; the alarm

stops.

Locking the vehicle without
activating the alarm
 Lock or deadlock the vehicle us-

ing the key in the driver's door
lock.

* According to country.

  Malfunction
When  the  ignition  is  switched  on,
lighting of the indicator lamp on but-
ton  A  for ten seconds indicates a si-
ren fault.
Have  it  checked  by  a  CITROËN
dealer.

  Automatic operation *
Depending on the legislation in force
in  your  country,  one  of  these  cases
may occur:
   -

45  seconds  after  the  vehicle  is
locked using the remote control,
the  alarm  is  activated,  regard-
less  of  the  status  of  the  doors
and boot.

2 minutes after the last door or
the boot is closed, the alarm is
activated.

 To avoid triggering the alarm

on entering the vehicle, ﬁ rst

press the unlocking button on
the remote control.

A C C E S S

ELECTRIC WINDOWS

System intended to open or close a
window  manually  or  automatically.
Fitted  with  a  safety  anti-pinch  sys-
tem  and  a  system  for  deactivation
in  the  event  of  misuse  of  the  rear
controls.

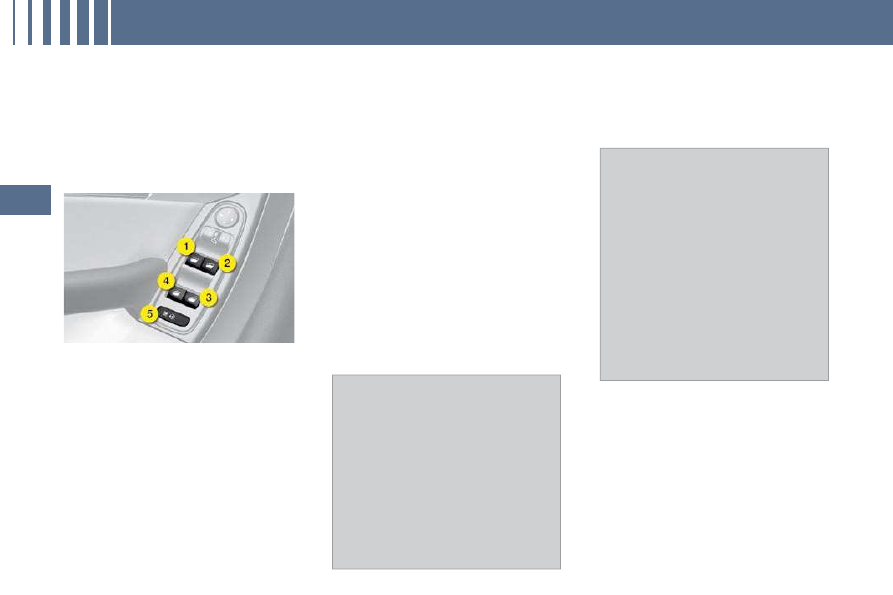

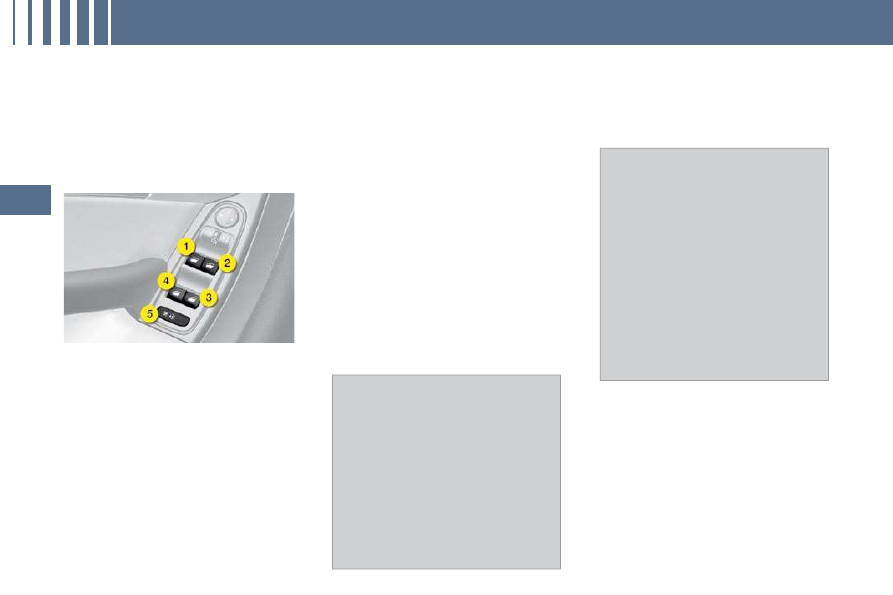

1. Driver's electric window

control.

2. Passenger's electric window

control.

3. Rear right electric window

control.

4. Rear left electric window

control.

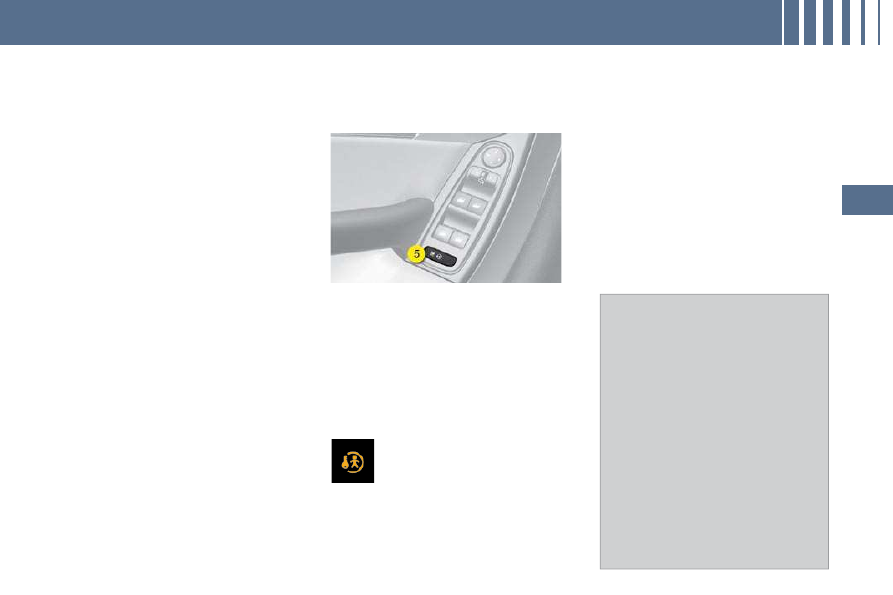

5. Deactivation of the rear

electric window and door
controls.

One-touch electric windows

There are two options:

automatic mode



Press or pull the control ﬁ rmly.

The window opens or closes
fully when the control is re-
leased.

 Pressing the control again

stops the movement of the
window.

The  electric  window  controls  re-
main  operational  for  approximately
45  seconds  after  the  ignition  is
switched  off  or  until  the  vehicle  is
locked after a door is opened.
If  one  of  the  passenger  windows
cannot  be  operated  from  the  driv-
er's door control pad, carry out the
operation  from  the  control  pad  of
the  passenger  door  concerned,
and vice versa.

  Safety anti-pinch
When  the  window  rises  and  meets
an  obstacle,  it  stops  and  partially
lowers again.

If the window cannot be closed (for
example, in the presence of ice),
immediately after the movement is
reversed:
 press and hold the control until

the window opens fully,

 then pull the control immediate-

ly and hold it until the window
closes,

 continue to hold the control for

approximately one second after
the window has closed.

  The  safety    anti  -  pinch    function
is  not  operational  during  these
operations.

manual mode

 Press or pull the control gently.

The window stops when the
control is released.

A C C E S S

Reinitialisation
If a window does not rise automatically,
its operation must be reinitialised:
 pull the control until the window

stops,

 release the control and pull it

again until the window closes
fully,

 continue to hold the control for

approximately one second after
the window has closed,

 press the control to lower the

window automatically to the low
position,

 when the window has reached

the  low  position,  press  the  con-
trol  again  for  approximately
one second.

  The  safety    anti  -  pinch    function
is  not  operational  during  these
operations.

Deactivation of the rear
electric window and door
controls

 For the safety of your children,

press control 5 to deactivate the
rear electric window controls re-
gardless of their position.

Indicator lamp on, the rear controls
are deactivated.
Indicator lamp off, the rear controls
are activated.

Always  remove  the  key  from  the
ignition  when  leaving  the  vehicle,
even for a short time.
If an obstacle is encountered during
operation  of  the  electric  windows,
you must reverse the movement of
the  window.  To  do  this,  press  the
control concerned.
When the driver operates the con-
trols  for  the  passengers'  electric
windows, they must ensure that no
one is preventing correct closing of
the windows.
The  driver  must  ensure  that  the
passengers  use  the  electric  win-
dows correctly.
Be  aware  of  children  when  opera-
ting the windows.

This warning lamp comes
on temporarily on the instru-
ment panel on deactivation
and each time the ignition is
switched on.

This  control  also  deactivates  the
interior  controls  for  the  rear  doors
(refer  to  the  section  "Child  safety  -
§ Electric child lock").
Any  other  status  of  the  indicator
lamp  indicates  a  malfunction  of  the
electric  child  lock.  Have  it  checked
by a CITROËN dealer.

A C C E S S

DOORS

Opening

From outside

When the selective unlocking is

activated, the ﬁ rst press of the

remote control unlocking button
permits unlocking of the driver's
door only.

 Pull on the front door control to

open the door; this unlocks the
vehicle completely.

 Pull on the rear door control to

open the door; this unlocks the
door concerned only.

With the selective unlocking acti-
vated:
-

the driver's door control unlocks
the driver's door only.

the other door controls unlock
the other doors and the boot.

The interior door controls do not
operate when the vehicle is dead-
locked.

Manual centralised control

System which provides full manual
locking or unlocking of the doors
and boot from the inside.

Locking
 Press button A to lock the vehicle.
The red indicator lamp on the button
comes on.

If  one  of  the  doors  is  open,  the
central locking from the inside does
not take place.
If  the  boot  or  the  rear  screen  is
open,  the  central  locking  from  the
inside  is  active  for  the  doors,  to
permit  the  transportation  of  long
objects.

 After unlocking the vehicle com-

pletely using the remote control
or the key, pull the door handle.

From inside

A C C E S S

Unlocking
 Press button A again to unlock

the vehicle.

The red indicator lamp on the button
switches off.

If the vehicle is locked or dead-
locked from the outside, the red in-

dicator lamp ﬂ ashes and button A

is inactive.
 In this case, use the remote

control or the key to unlock the
vehicle.

Automatic centralised control

System  which  provides  full  auto-
matic  locking  or  unlocking  of  the
doors,  boot  and  rear  screen  while
driving.
You  can  activate  or  deactivate  this
function.

  Locking
When  the  speed  exceeds  6  mph
(10 km/h),  the  doors,  the  boot  and
the rear screen lock automatically.

Unlocking
 Above 6 mph (10 km/h), press

button A to unlock the doors, the
boot and the rear screen tempo-
rarily.

Activation
 Press button A for more than

two seconds.

A conﬁ rmation message appears on

the multifunction screen.

Deactivation
 Press button A again for more

than two seconds.

A conﬁ rmation message appears on

the multifunction screen.

Emergency control

System which locks or unlocks the
doors mechanically in the event of
a malfunction of the battery or of the
central locking.

Locking the driver's door
 Insert the key in the lock, then

turn it to the right.

Unlocking the driver's door
 Insert the key in the lock, then

turn it to the left.

Locking the front and rear
passenger doors

 Insert the key in the lock, located

on the edge of the door, then turn
it one eighth of a turn .

Unlocking the front and rear
passenger doors
 Pull the interior door opening

control.

If  one  of  the  doors  or  the  boot  or
rear  screen  is  open,  the  automatic
central locking does not take place.

A C C E S S

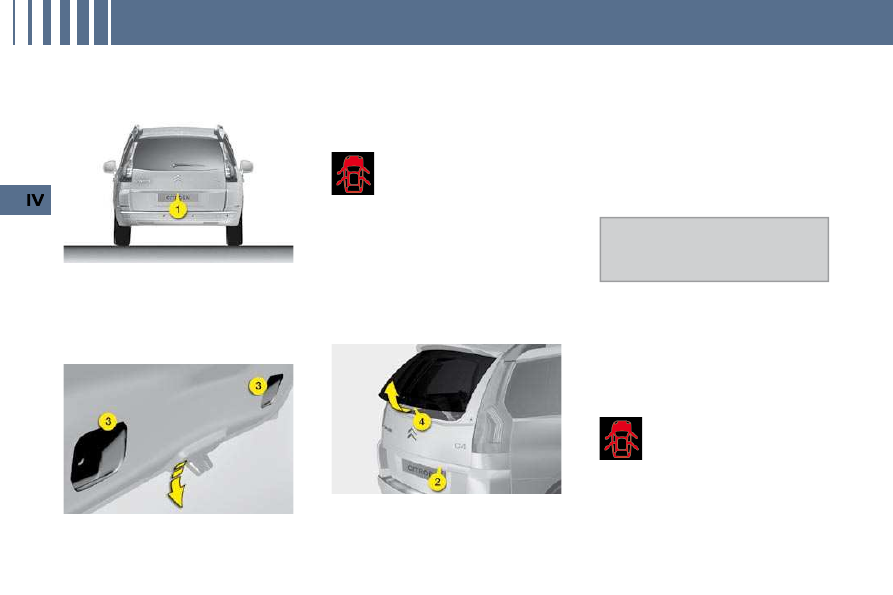

BOOT

 After unlocking the vehicle com-

pletely  using  the  remote  control
or  the  key,  with  the  rear  screen
closed, pull on the handle  1  and
raise the tailgate.

 Lower the tailgate using one of

the two handholds 3 , located on
the interior boot trim.

- when the engine is run-

ning ,  this  warning  lamp
comes  on,  accompanied
by  a  message  on  the
multifunction screen for a
few seconds,

when  the  vehicle  is  moving
(speed above 6 mph (10 km/h)),
this warning lamp comes on, ac-
companied  by  an  audible  signal
and a message on the multifunc-
tion screen for a few seconds.

If the tailgate is not closed correctly:

REAR SCREEN

This opening gives easy access
to the boot, even if you are parked
close to a wall or another vehicle.

Closing

 Lower the rear screen guiding

it with the wiper arm until it is
closed.

If the rear screen is not closed
correctly:

- when the engine is run-

ning ,  this  warning  lamp
comes  on,  accompanied
by  a  message  on  the
multifunction screen for a
few seconds,

when  the  vehicle  is  moving   (speed
above  6  mph  (10  km/h)),  this  warning
light  comes  on,  accompanied  by  an
audible  signal  and  a  message  on  the
multifunction screen for a few seconds.

The  boot  and  the  rear  screen
cannot  both  be  open  at  the  same
time.

When  the  rear  screen  is  open,  you
can  access  the  boot  by  raising  the
rear shelf using its tab (C4 Picasso).
      After unlocking the vehicle com-

pletely  using  the  remote  control
or the key, with the boot closed,
press the control  2  and raise the
rear  screen  using  the  base   4   of
the wiper arm.

 Past the balancing point, allow

the  tailgate  to  lower  and  close
itself  (do  not  assist  it  or  slow  it
down).

Opening

Closing

A C C E S S

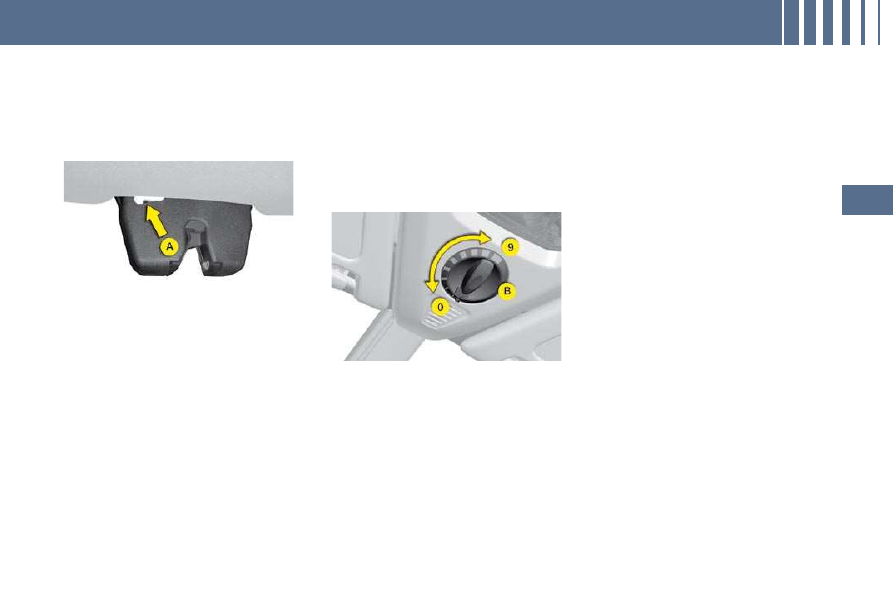

Emergency tailgate release

System for mechanical unlocking of
the boot in the event of a battery or
central locking malfunction.

Unlocking
 Fold back the rear seats to gain

access to the lock from inside
the boot.

 Insert a small screwdriver into

hole A of the lock to unlock the
tailgate.

 Push the white part, located in-

side the lock, to the left to unlock
the boot.

PANORAMIC GLASS ROOF

System which consists of a pano-
ramic tinted glass surface to increase
the light and visibility in the passenger
compartment.
Fitted with an electric blind in several
sections to improve thermal and
aural comfort.

Opening the roof blind

 Rotate the control B to slide the

roof blind to the position desired
(positions 1 to 9 ).

Closing the roof blind

 Rotate the control B to position 0

to close the roof blind.

Recommendations
-

Pressing  the  locking  button  on
the remote control for more than
two  seconds  will  close  the  blind
(practical  when,  for  example,
you leave your vehicle on a sunlit
car park).

On  returning  to  your  vehicle,  a
press  on  the  button   B   reposi-
tions the blind to the last position
selected.

Anti-pinch

The blind has an anti-pinch function.
At the end of its travel, when the blind
encounters an obstacle on closing, it
stops and moves back slightly.
Following  a  fault  or  after  a  battery
disconnection during the movement
of  the  blind  or  after  it  has  stopped,
you  have  to  re-initialise  the  anti-
pinch function:
      place  the  blind  in  the  closed

position,

 press button B for approximately

two seconds.

A C C E S S

Emergency tailgate release

System for mechanical unlocking of
the boot in the event of a battery or
central locking malfunction.

Unlocking
 Fold back the rear seats to gain

access to the lock from inside
the boot.

 Insert a small screwdriver into

hole A of the lock to unlock the
tailgate.

 Push the white part, located in-

side the lock, to the left to unlock
the boot.

PANORAMIC GLASS ROOF

Opening the roof blind

 Rotate the control B to slide the

roof blind to the position desired
(positions 1 to 9 ).

Closing the roof blind

 Rotate the control B to position 0

to close the roof blind.

Recommendations
-

Pressing  the  locking  button  on
the remote control for more than
two  seconds  will  close  the  blind
(practical  when,  for  example,
you leave your vehicle on a sunlit
car park).

On  returning  to  your  vehicle,  a
press  on  the  button   B   reposi-
tions the blind to the last position
selected.

Anti-pinch

position,

 press button B for approximately

two seconds.

A C C E S S

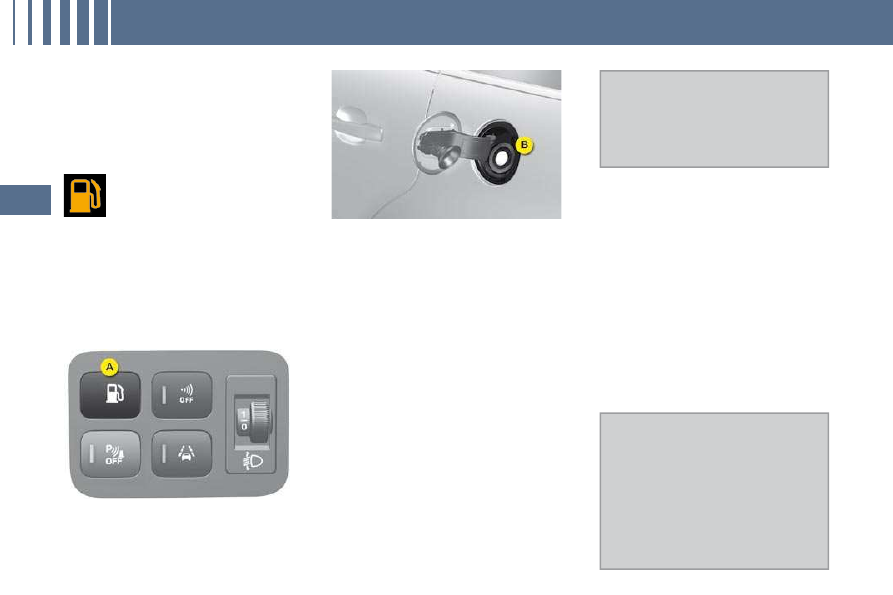

FUEL TANK

Capacity of the tank: approxi-
mately 60 litres.

Low fuel level

When the minimum level in the
tank is reached, this warning
lamp on the instrument panel
comes on, accompanied by

an audible warning and a message
on the multifunction screen.
When it ﬁ rst comes on, around

7 litres of fuel remain in the tank.
Refuel as soon as possible to avoid
running out.

Additions of fuel must be of at least
5 litres to be taken into account by
the fuel gauge.

The petrol or diesel engine of your

vehicle is ﬁ tted with a catalytic con-

verter,  a  device  which  helps  to  re-
duce the level of harmful emissions
in the exhaust gases.

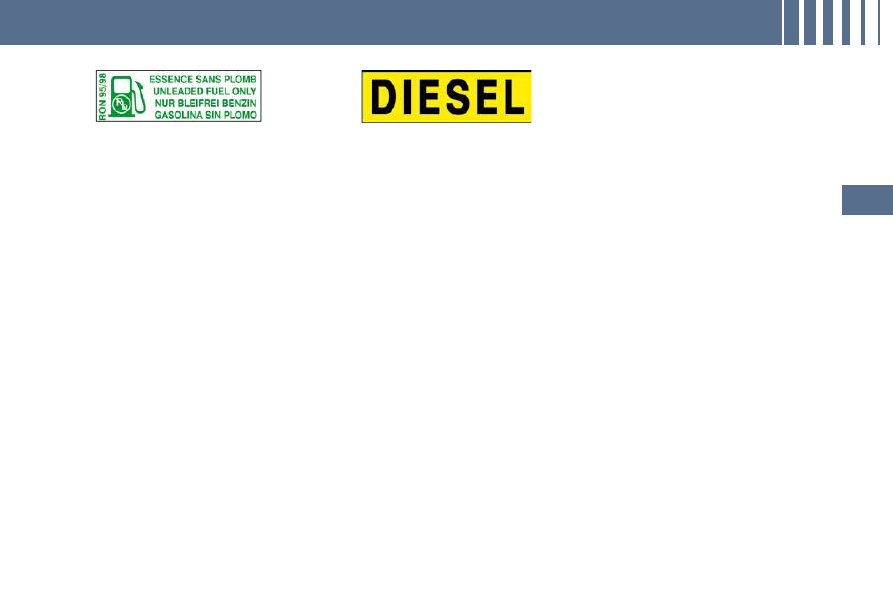

  For petrol engines, unleaded fuel
is obligatory.
The  ﬁ ller  neck  is  narrower,  permit-

ting unleaded petrol only.

Opening the ﬁ ller cap may result

in an inrush of air. This vacuum is
entirely normal and results from the
sealing of the fuel system.
 Press on the control A , situated

on the control panel on the left

hand side. The fuel ﬂ ap automat-

ically opens up.

 Take care to select the pump

that corresponds to the correct
fuel type for your vehicle.

 Introduce the nozzle so as to push

in the metal non-return ﬂ ap B.

 Make sure that the nozzle is

pushed in as far as possible
before starting to refuel (risk of
blowback).

 Maintain this position throughout

the refuelling operation.



Push the fuel ﬂ ap to close it.

Fuel cut-off switch
Your vehicle is equipped with a safety
device which cuts off the fuel supply
in the event of a collision.

Refuelling

If you are ﬁ lling your tank to the

top, do not persist after the third
cut-off; this could cause your
vehicle to malfunction.

After  switching  off  the  ignition,  the
control   A   is  active  for  only  a  few
minutes.  If  necessary,  switch  on
the ignition again to reactivate it.
  If  you  have  put  in  fuel  that  is
wrong  for  your  vehicle,  it  is  es-
sential  to  have  the  tank  drained
before you start the engine.

A C C E S S

           Quality of the fuel used for petrol
engines
The  petrol  engines  are  perfectly
compatible  with  E10  type  petrol
biofuels  (containing  10 %  ethanol),
conforming  to  European  standards
EN 228 and EN 15376.
E85 type fuels (containing up to 85 %
ethanol) are reserved exclusively for
vehicles marketed for the use of this
type  of  fuel  (BioFlex  vehicles).  The
quality  of  the  ethanol  must  comply
with European standard EN 15376.
For Brazil only, special vehicles are
marketed to run on fuels containing
up to 100 % ethanol (type E100).

           Quality of the fuel used for Diesel
engines
The  Diesel  engines  are  perfectly
compatible with biofuels which con-
form to current and future European
standards  (diesel  fuel  which  com-
plies  with  standard  EN  590  mixed
with  a  biofuel  which  complies  with
standard EN 14214) available at the
pumps  (containing  up  to  7 %  Fatty
Acid Methyl Ester).
The B30 biofuel can be used in cer-
tain  Diesel  engines;  however,  this
use  is  subject  to  strict  application
of  the  special  servicing  conditions.
Consult a CITROËN dealer.
The use of any other type of (bio)fuel
(vegetable or animal oils, pure or di-
luted, domestic fuel...) is strictly pro-
hibited (risk of damage to the engine
and fuel circuit).

V I S I B I L I T Y

LIGHTING CONTROLS

System for selection and control of
the various front and rear lamps pro-
viding the vehicle's lighting.

Main lighting

The various front and rear lamps of
the vehicle are designed to adapt
the driver's visibility progressively in
relation to the climatic conditions:
-

sidelamps, to be seen,

dipped headlamps to see with-
out dazzling other drivers,

main beam headlamps to see
clearly when the road is clear,

directional headlamps for im-
proved visibility when cornering.

Additional lighting

Other lamps are ﬁ tted to fulﬁ l the

requirements of particular driving
conditions:
-

a rear foglamp to be seen from a
distance,

front foglamps for even better
forward vision,

daytime running lamps to be
seen during the day.

Programming

Various automatic lighting control
modes are also available depending
on options:
-

guide-me-home lighting,

automatic lighting,

directional lighting.

Manual controls

lamps off,

automatic lighting,

sidelamps only,

dipped headlamps or
main beam headlamps.

B. Stalk for switching headlamps by

pulling: dipped headlamps/main
beam headlamps.

In the lamps off and sidelamps
modes, the driver can switch on the
main beam headlamps temporarily

("headlamp ﬂ ash") by maintaining a

pull on the stalk.

Displays

Lighting of the corresponding indi-
cator lamp on the instrument panel

conﬁ rms the selective switching on

of the lighting selected.

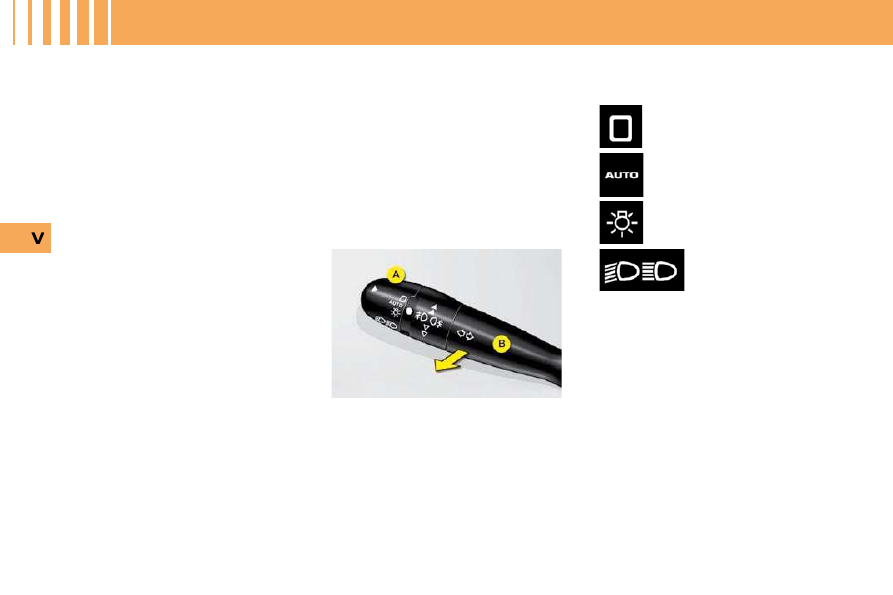

The  lighting  commands  are  issued
directly  by  the  driver  by  means  of
the ring  A  and the stalk  B .

A. Main lighting mode selection ring,

with:

V I S I B I L I T Y

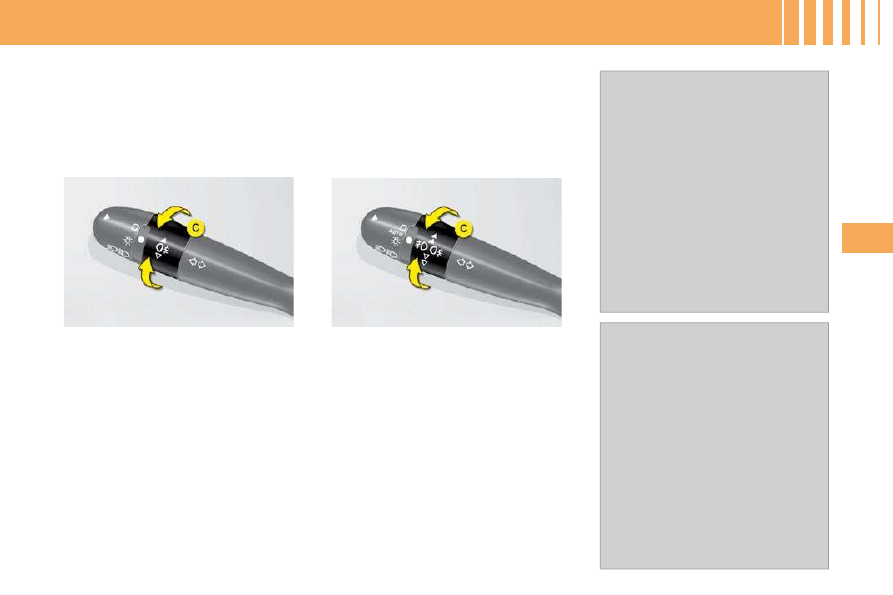

C. Foglamps selection ring.
The foglamps operate with the side-
lamps and the dipped and main
beam headlamps.

1 st turn forwards: rear foglamp on.

1 st turn rearwards: rear foglamp off.

1 st turn forwards: front foglamps on.

2 nd turn forwards: rear foglamps on.

1 st turn rearwards: rear foglamps off.

2 nd turn rearwards: front foglamps
off.

Model with rear foglamp only

Model with front and rear
foglamps

     In good or rainy weather, both day
and  night,  the  front  foglamps  and
the rear foglamp are prohibited. In
these situations, the power of their
beams  may  dazzle  other  drivers.
They should only be used in fog or
snow.
In  these  weather  conditions,  it  is
your responsibility to switch on the
foglamps  and  dipped  headlamps
manually as the brightness sensor

may detect sufﬁ cient light.
Do not forget to switch off the front
foglamps and the rear foglamp
when they are no longer necessary.

  Lighting on buzzer
On  switching  off  the  ignition,  all
of  the  lamps  turn  off  immediately,
except  for  diiped  beam  if  guide-
me-home lighting is activated.
To reactivate the lighting control, ro-
tate ring  A  to the "0" position, lamps
off, then to the desired position.
On  opening  the  driver's  door  a
temporry  audible  signal  warns  the
driver that the lamps are on.
The  lamps,  with  the  exception  of
the sidelamps, switch off automati-
cally after thirty minutes to prevent
discharging of the battery.

Citroen C4 Picasso Dag (2009 year). Manual - part 6
