J 34196-B Transmission Bushing Service Set. See Special Tools.

Removal Procedure

2008 Chevrolet Silverado 1500

2008 TRANSMISSION Automatic Transmission - 4L60-E/4L65-E/4L70-E - Cab & Chassis Sierra, Cab & Chassis

Silverado, Sierra & Silverado

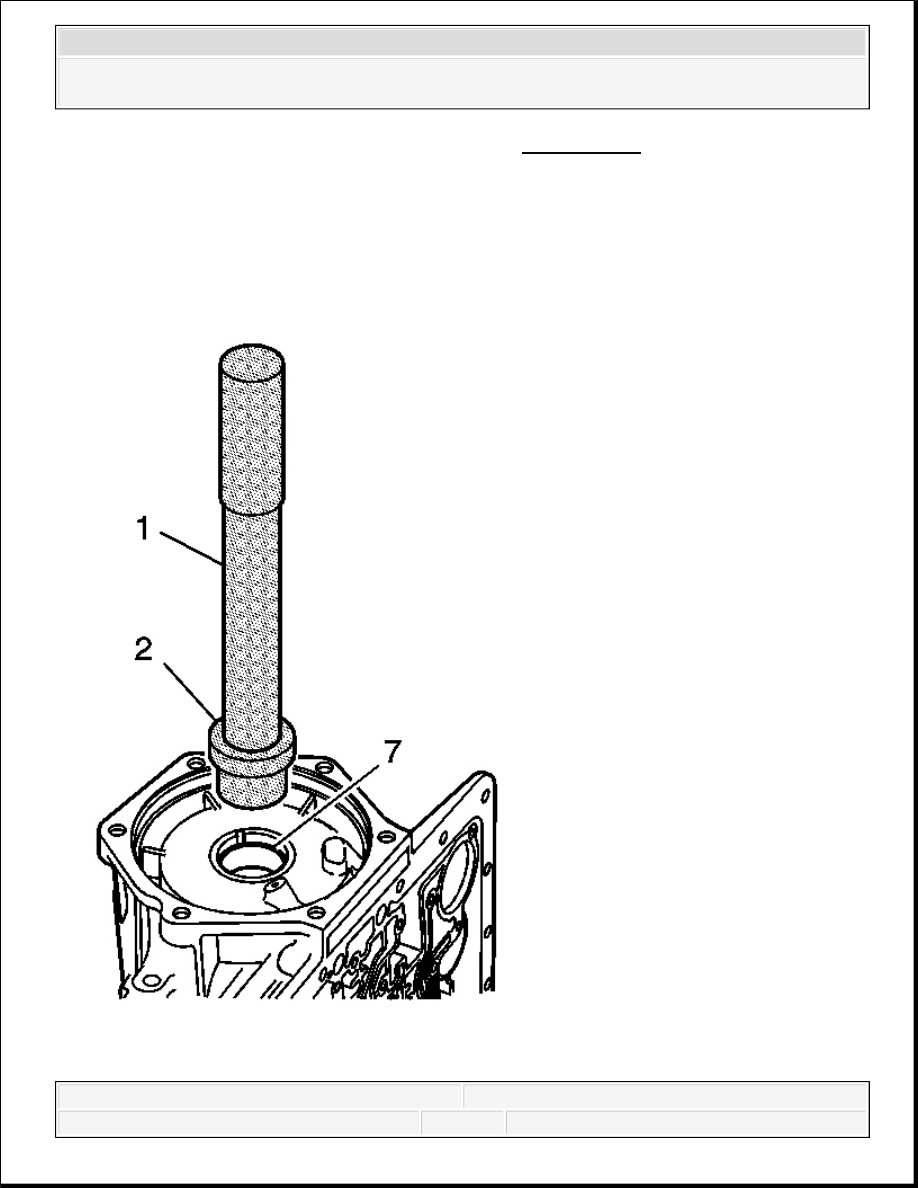

Fig. 307: Identifying Case Busing, Special Tools J 8092 & J 34196-10
Courtesy of GENERAL MOTORS CORP.

Remove the case bushing (7) using J 8092 (1) and J 34196-10 (2) which is part of kit J 34196-
B . See Special Tools.

Installation Procedure

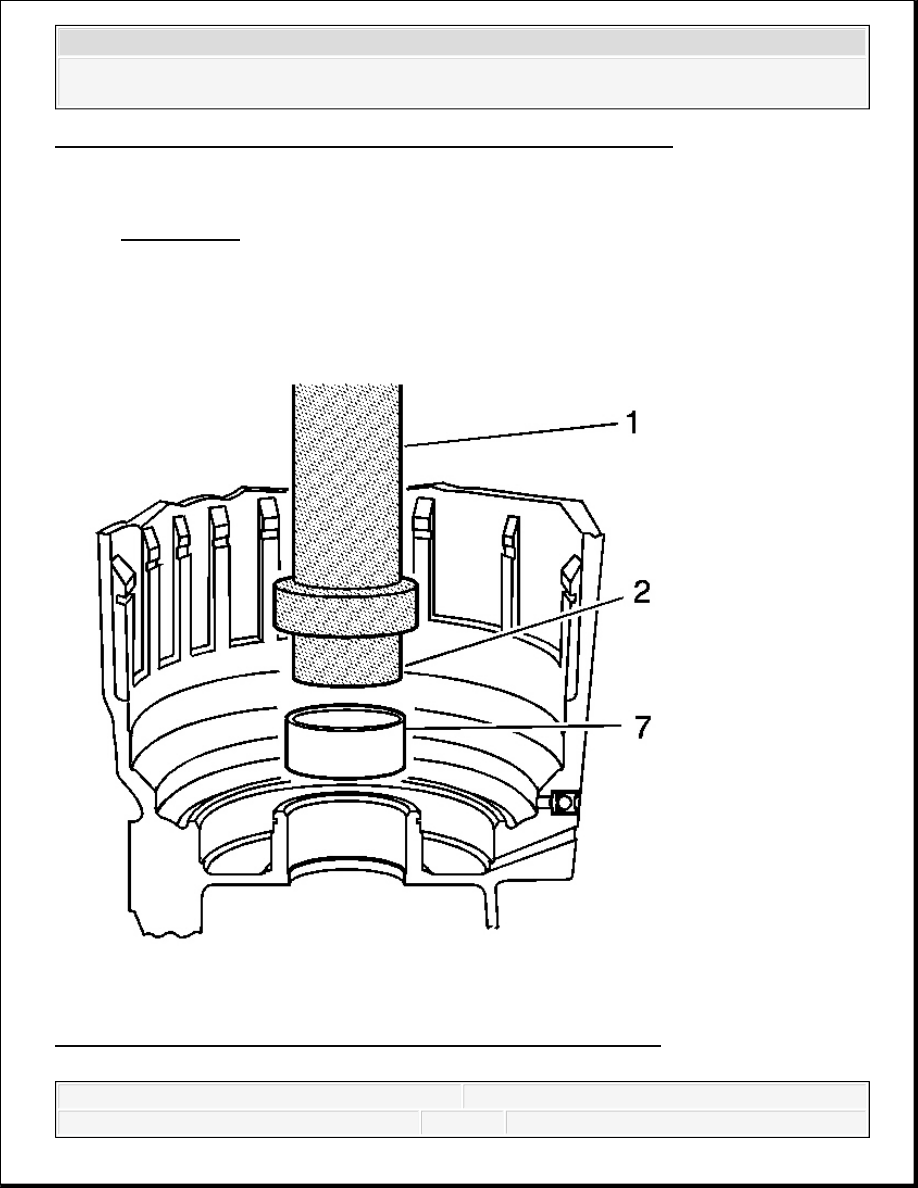

Fig. 308: View Of Case Bushing, Special Tools J 8092 & J 34196-10
Courtesy of GENERAL MOTORS CORP.

2008 Chevrolet Silverado 1500

2008 TRANSMISSION Automatic Transmission - 4L60-E/4L65-E/4L70-E - Cab & Chassis Sierra, Cab & Chassis

Silverado, Sierra & Silverado

Install a case bushing (7) using J 8092 (1) and J 34196-10 (2) which is part of kit J 34196-B .
See Special Tools.

MANUAL SHIFT SHAFT SEAL INSTALLATION

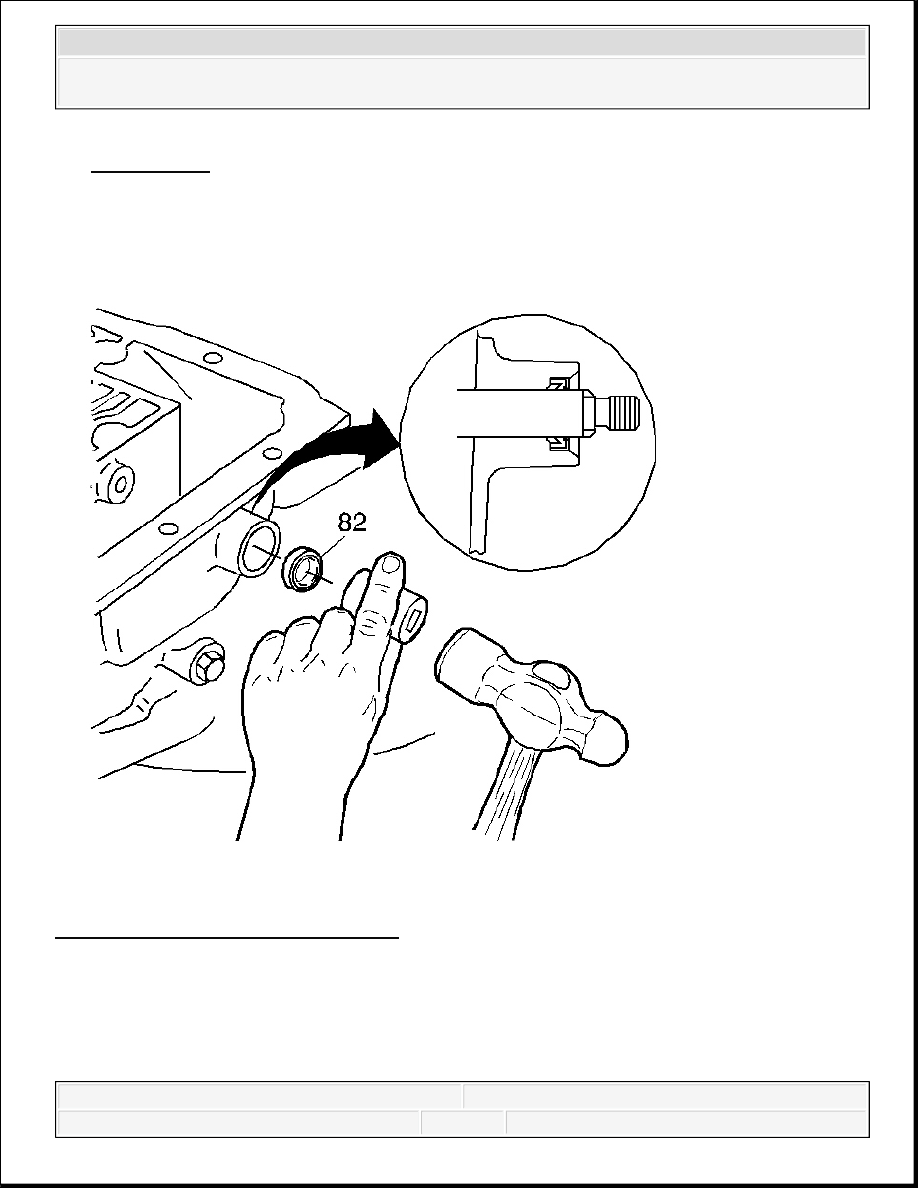

Fig. 309: Installing Manual Shaft Seal
Courtesy of GENERAL MOTORS CORP.

Install a new manual shaft seal (82).

LOW AND REVERSE CLUTCH PISTON INSTALLATION

2008 Chevrolet Silverado 1500

2008 TRANSMISSION Automatic Transmission - 4L60-E/4L65-E/4L70-E - Cab & Chassis Sierra, Cab & Chassis

Silverado, Sierra & Silverado

Tools Required

J 23327-1 Forward Clutch Spring Compressor (Bridge). See Special Tools.

J 34627 Snap Ring Remover and Installer. See Special Tools.

J 36850 Transjel Lubricant. See Special Tools.

Installation
