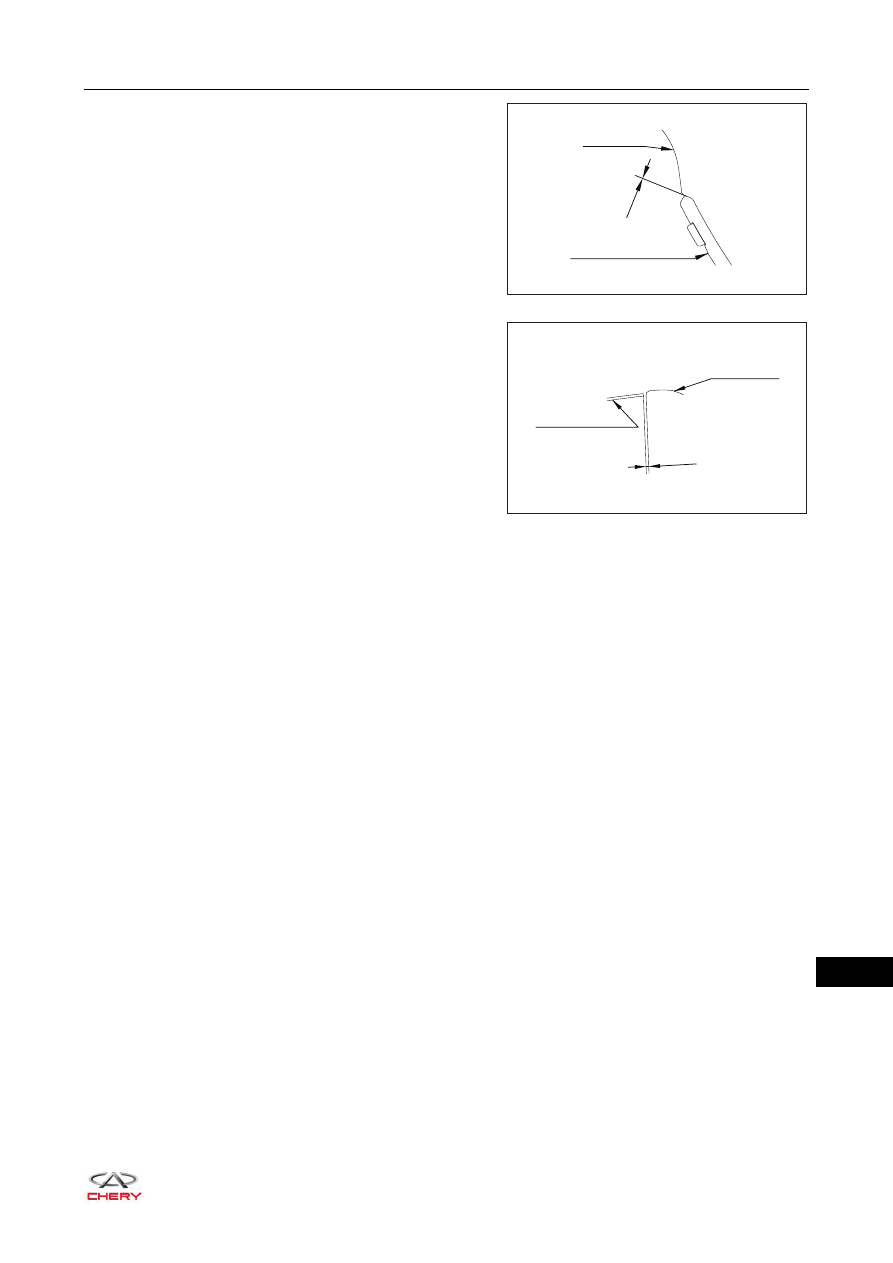

Wire harness information contains basic introductions of circuit diagrams, inspection methods of cables and
connectors, as well as layout of connector positions and wire harness positions, etc.

Circuit Diagram Information

Circuit diagrams are classified into each chapter in Service Manual. If a component appears in a specific
system, its related information (such as wire harness, connector, terminal, etc.) will appear in the circuit
diagram and be introduced in detail. For example, the information of Engine Control Module (ECM) is mainly
introduced in chapter 6. If the component wire harnesses involve other systems, the component information
will also appear in the corresponding systems.
Chery automobile offers related circuit diagram information of the vehicle electrical equipment to help
technicians determine and detect the vehicle malfunction effectively.
Functions and features of circuit diagram:
 Power supply circuit is on the top of the page, while ground circuit is at the bottom.
 Components (such as switches and fuses) are displayed on the circuit diagram in the form of simple icon.

51–

Circuit Diagram Instruction

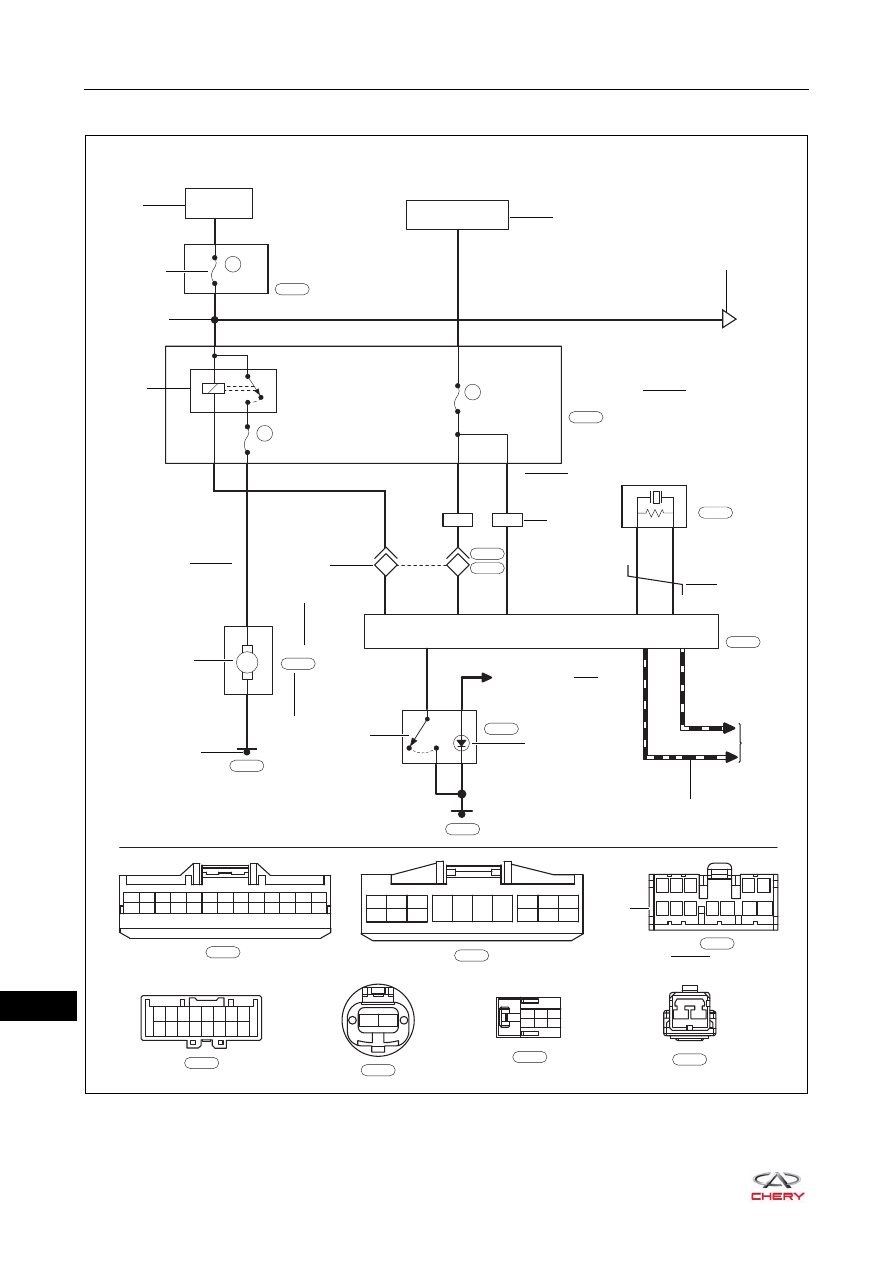

ET21020000
