Chery Tiggo 5 (T21). Service manual - part 538

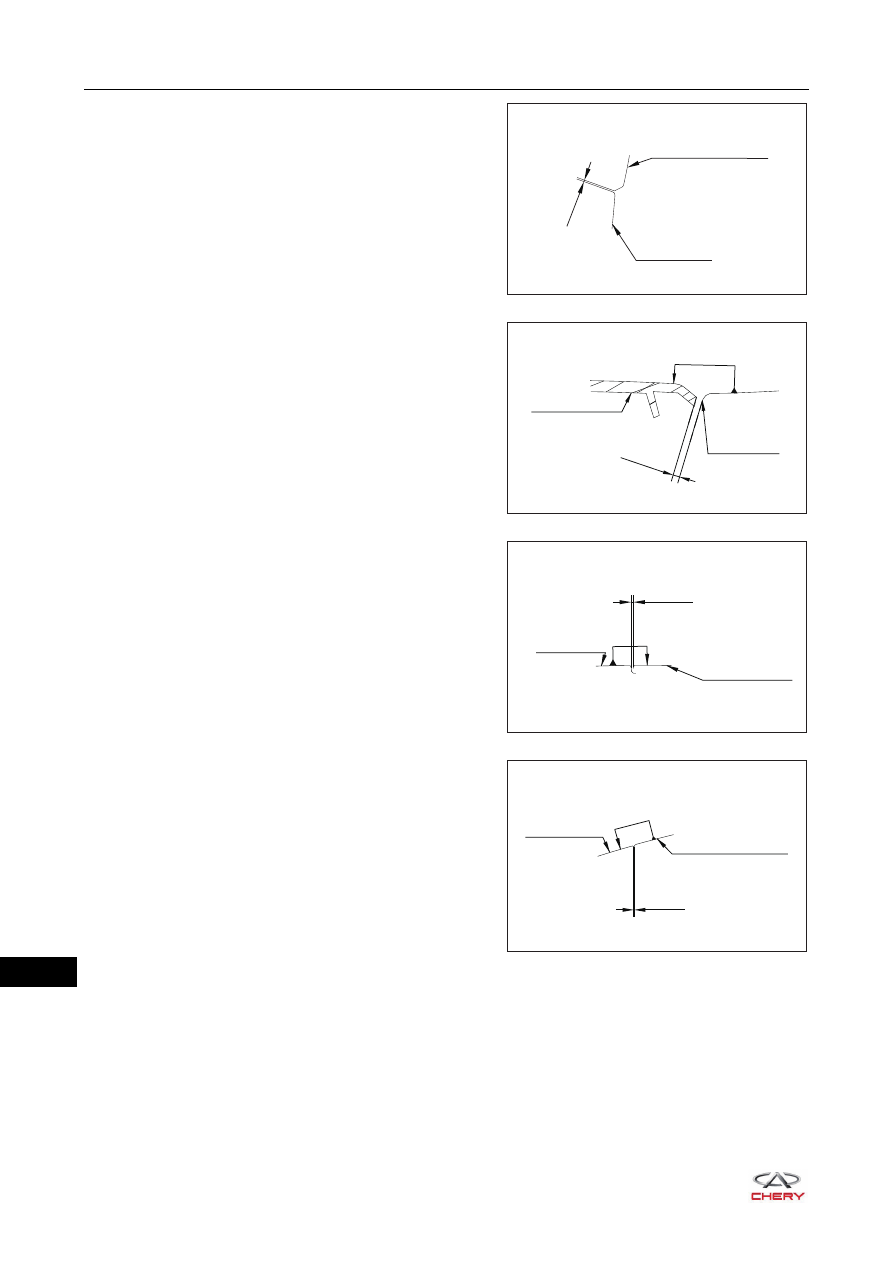

50–

23

50

Clearance between rear combination light and back door
upper trim board at B-11: 4.0 ± 1.5 mm
Flush between rear combination light and back door upper
trim board at B-11: 0.7 ± 1.2 mm

Clearance between side body outer panel and rear
combination light at B-12: 2.0 ± 1.0 mm
Flush between side body outer panel and rear combination
light at B-12: -1.0 ± 12.0 mm

Clearance between rear combination light and side body
outer panel at B-13: 2.0 ± 1.0 mm
Flush between rear combination light and side body outer
panel at B-13: -0.8 ± 1.0 mm

Clearance between rear bumper and back door at B-14:



4.0 ± 1.5 mm
Flush between rear bumper and back door at B-14:



-0.7 ± 1.5 mm

0.7±1.2

4.0±1.5

RT21500680

REAR
COMBINATION LIGHT

BACK DOOR
UPPER TRIM BOARD

RT21500460

SIDE BODY
OUTER PANEL

-1.0±1.0

2.0±1.0

REAR
COMBINATION LIGHT

RT21500500

2.0±1.0

-0.8±1.0

REAR
COMBINATION LIGHT

SIDE BODY
OUTER PANEL

4.0±1.5

RT21500620

REAR BUMPER

BACK DOOR

-0.7±1.5

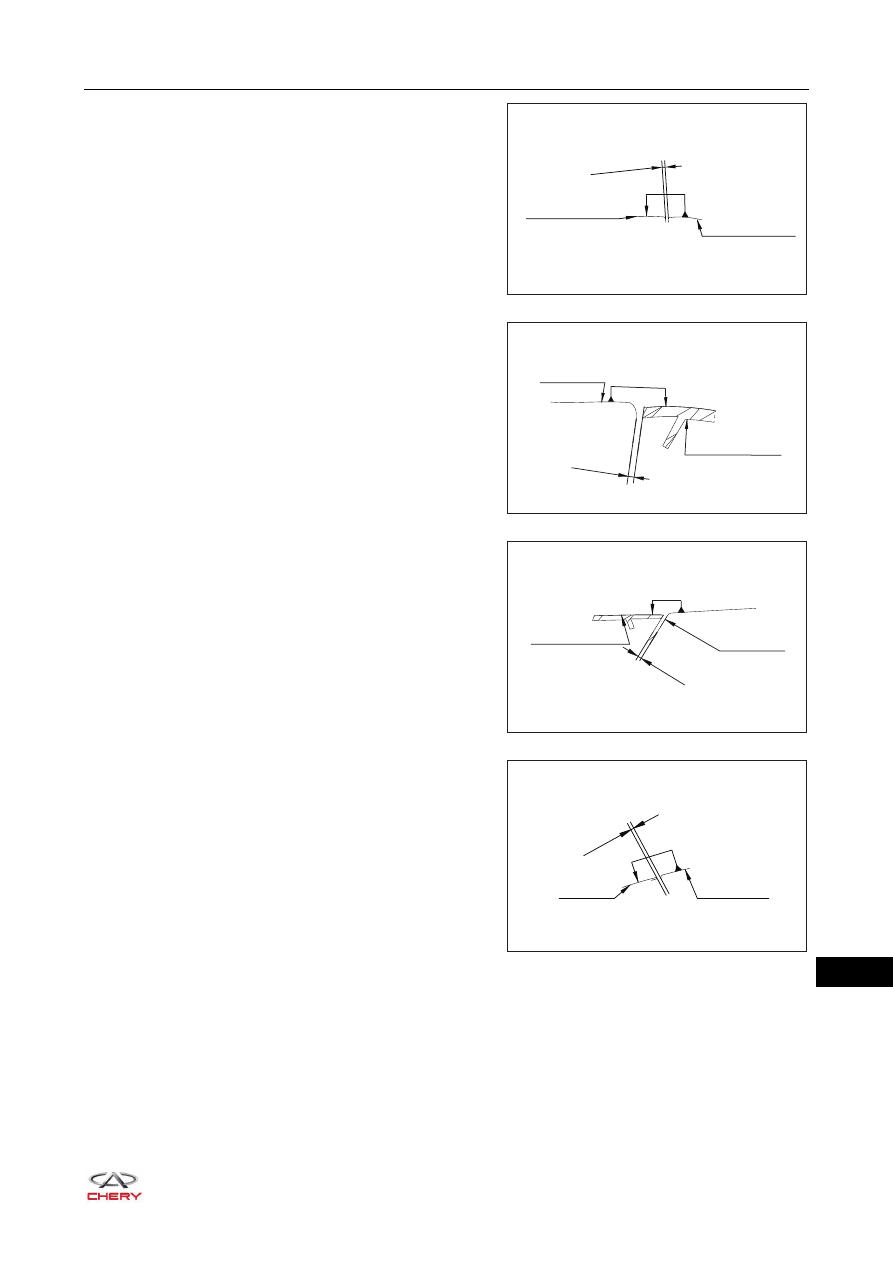

50–

24

50

Clearance between rear bumper and rear combination light
at B-15: 2.0 ± 1.0 mm

Clearance between rear combination light and side body
outer panel at B-16: 2.5 ± 1.0 mm
Flush between rear combination light and side body outer
panel at B-16: 2.0 ± 1.0 mm

Clearance between fuel filler door and side body outer panel
at B-17: 3.0 ± 0.8 mm
Flush between fuel filler door and side body outer panel at



B-17: -1.0

 mm

Clearance between side body outer panel and rear bumper
at B-18: 0.5 ± 0.5 mm
Flush between side body outer panel and rear bumper at



B-18: -0.7 ± 1.0 mm

2.0±1.0

RT21500630

REAR BUMPER

REAR COMBINATION LIGHT

2.5±1.0

2.0±1.0

RT21500570

SIDE BODY
OUTER PANEL

REAR
COMBINATION LIGHT

RT21500510

FUEL FILLER DOOR

3.0±0.8

-1.0

+1.0

-2.0

SIDE BODY
OUTER PANEL

+1.0
 -0.2

-0.7±1.0

0.5±0.5

RT21500590

REAR BUMPER

SIDE BODY OUTER PANEL

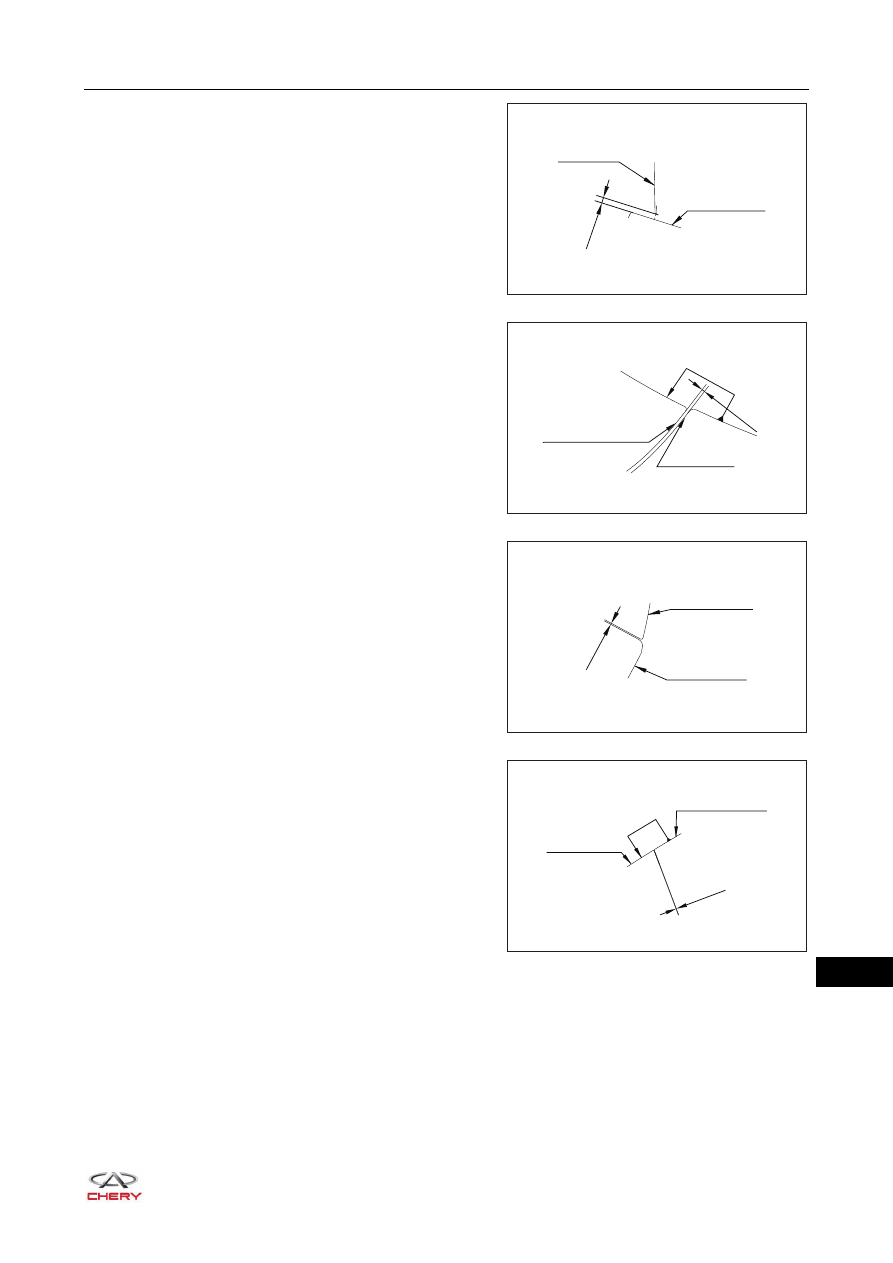

50–

25

50

Clearance between rear bumper and back door at B-19:



7.0 ± 2.0 mm

Clearance between rear towing hook cover plate and rear
bumper at B-20: 0.8 ± 0.5 mm
Flush between rear towing hook cover plate and rear
bumper at B-20: -0.5 ± 0.5 mm

Clearance between rear fog light and rear bumper at B-21:
1.3 ± 1.0 mm

Clearance between rear wheel flare trim board and rear
bumper at B-22: 1.0 ± 1.0 mm
Flush between rear wheel flare trim board and rear bumper
at B-22: 0 ± 1.0 mm

7.0±2.0

RT21500640

REAR BUMPER

BACK DOOR

-0.5±0.5

0.8±0.5

RT21500650

REAR BUMPER

REAR TOWING
HOOK COVER PLATE

1.3±1.0

RT21500610

REAR FOG LIGHT

REAR BUMPER

1.0±1.0

0±1.0

RT21500580

REAR BUMPER

REAR WHEEL
FLARE TRIM BOARD

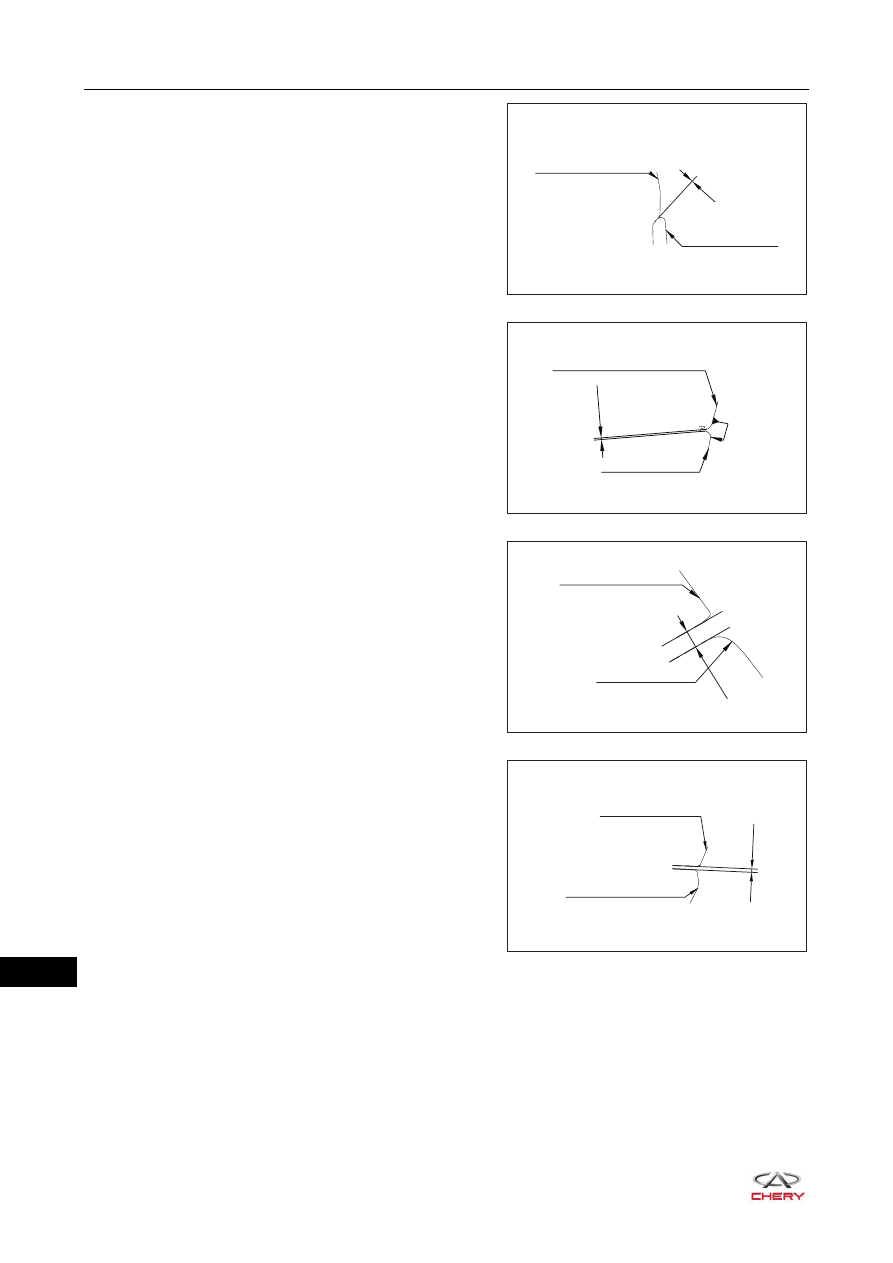

50–

26

50

Clearance between rear wheel flare trim board and side
body outer panel at B-23: 0

 mm

Clearance between rear wheel flare trim board and rear
apron plate at B-24: 2.0 ± 1.0 mm
Flush between rear wheel flare trim board and rear apron
plate at B-24: 3.0 ± 1.0 mm

Clearance between rear door trim board and rear apron
plate at B-25: 4.6 ± 2.0 mm

Clearance between rear door trim board and rear apron
plate at B-26: 6.0 ± 1.8 mm

RT21500560

0

0

+1.0

SIDE BODY OUTER PANEL

REAR WHEEL
FLARE TRIM BOARD

+1.0
  0

RT21500540

3.0±1.0

2.0±1.0

REAR APRON PLATE

REAR WHEEL FLARE TRIM BOARD

RT21500550

REAR DOOR TRIM BOARD

4.6±2.0

REAR APRON PLATE

RT21500530

6.0±1.8

REAR APRON PLATE

REAR DOOR TRIM BOARD
