Chery Tiggo 5 (T21). Service manual - part 490

46–

10

46

Tool

General Tool

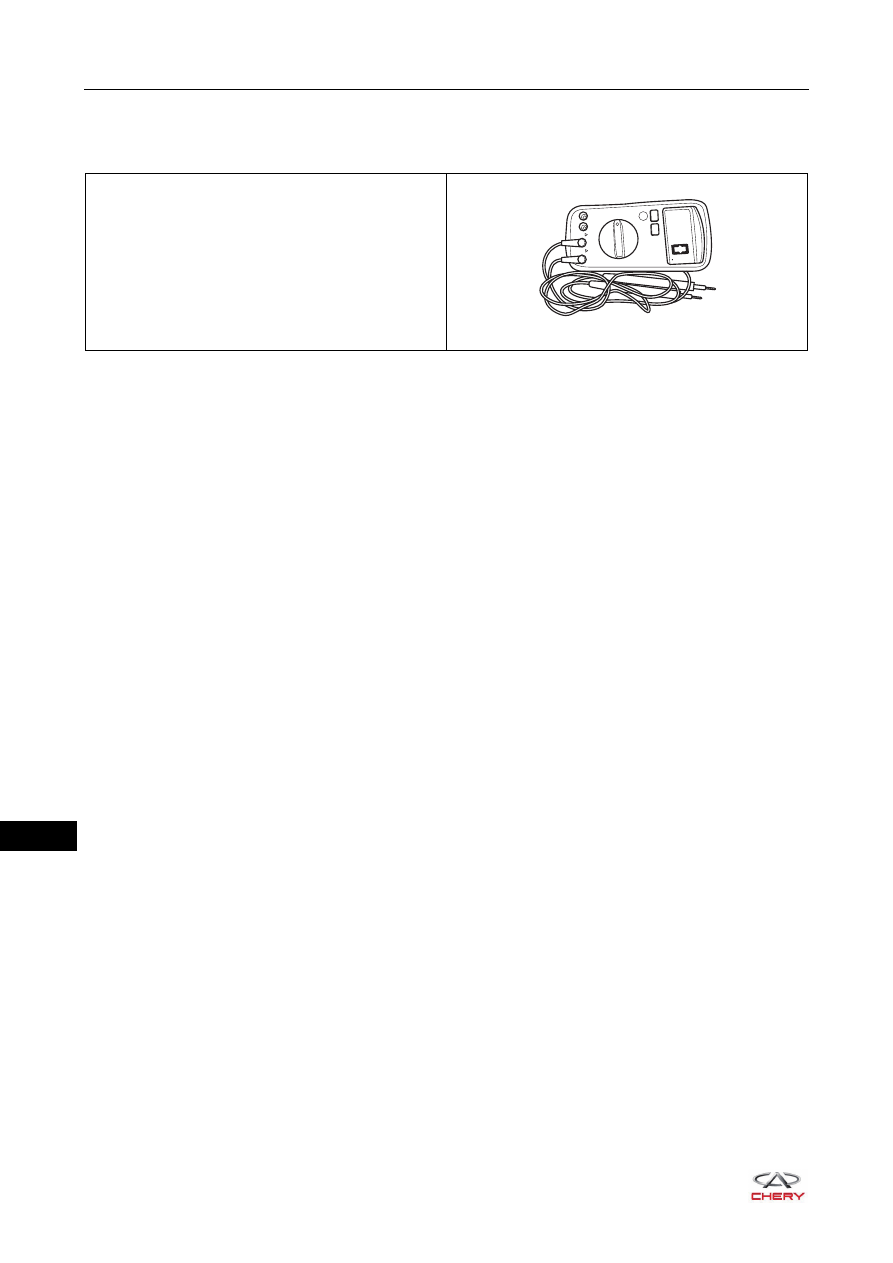

Digital Multimeter

RCH0000002

46–

11

46

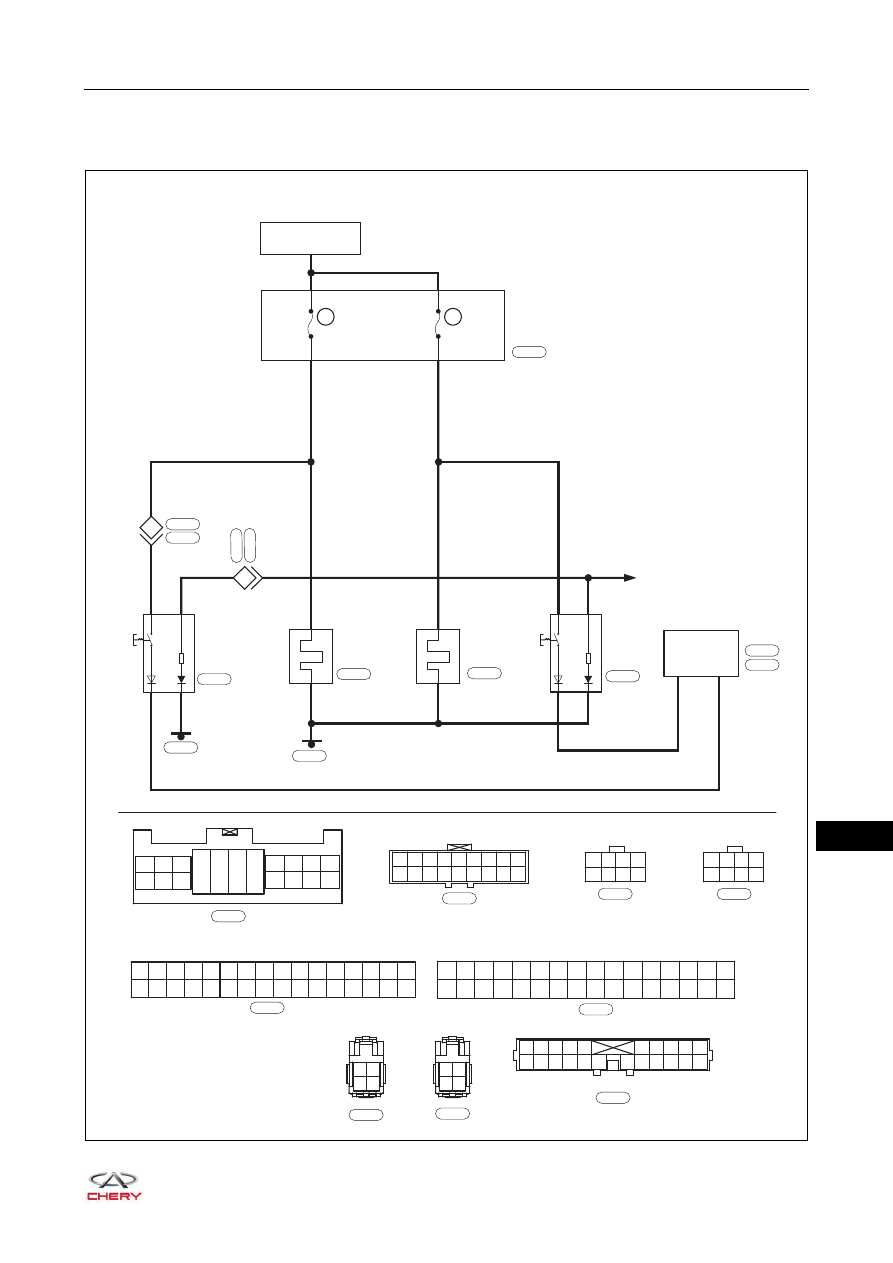

Circuit Diagram

Seat System

ET21460010

RF02

20A

F2

F7

RF07

20A

INSTRUMENT
PANEL FUSE
AND RELAY
BOX B

B

YR

YR

GR

RW

Lg

Lg

RW

RW

R

R

R

RW

B

B

B

1

2

3

2

4

1

3

2

4

1

FRONT
PASSENGER
SEAT HEATER
SWITCH

BCM

1

2

A23

B1

FRONT
PASSENGER
SEAT HEATER

DRIVER
SEAT
HEATER

DRIVER
SEAT HEAT
SWITCH

B-042

I-047

IGNITION SWITCH
    ON OR START

F1 F2 F3

F8 F9 F10

F11 F12 F13 F14

F15 F16 F17 F18

F4

F5 F6

F7

W

B-060

B-060

18

I-035

B-059

I-006

B-003

1

2

3

4

5

6

7

8

9

10 11 12 13 14 15 16 17 18

W

B-059

1

2

3

4

5

6

7

8

B

B

I-044

1

2

3

4

5

6

7

8

I-044

B-065

B-071

B-067

B-067

ILLUMINTION

A32

A31

A30

A29

A28

A16

A15

A14

A13

A12

A11

A10

A9

A8

A7

A6

A5

A4

A3

A2

A1

A27

A26

A25

A24

A23

A22

A21

A20

A19

A18

A17

B-065

B

L

I-005

I-005

B1 B2 B3 B4 B5 B6 B7 B8 B9 B10 B11 B12 B13 B14 B15 B16

B17 B18 B19 B20 B21 B22 B23 B24 B25 B26 B27 B28 B29 B30 B31 B32

L

B-047

B-047

1

2

4

3

1

2

4

3

B-071

B

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

21

22

W

I-006

20

46–

12

46

ON-VEHICLE SERVICE

Front Seat Assembly

Removal

HINT:

 Use the same procedures for the front passenger seat assembly and driver seat assembly.

 Procedures listed below are for the driver seat assembly.

1. Turn off all the electrical equipment and ignition switch.
2. Disconnect the negative battery cable.
3. Remove the driver seat headrest assembly.

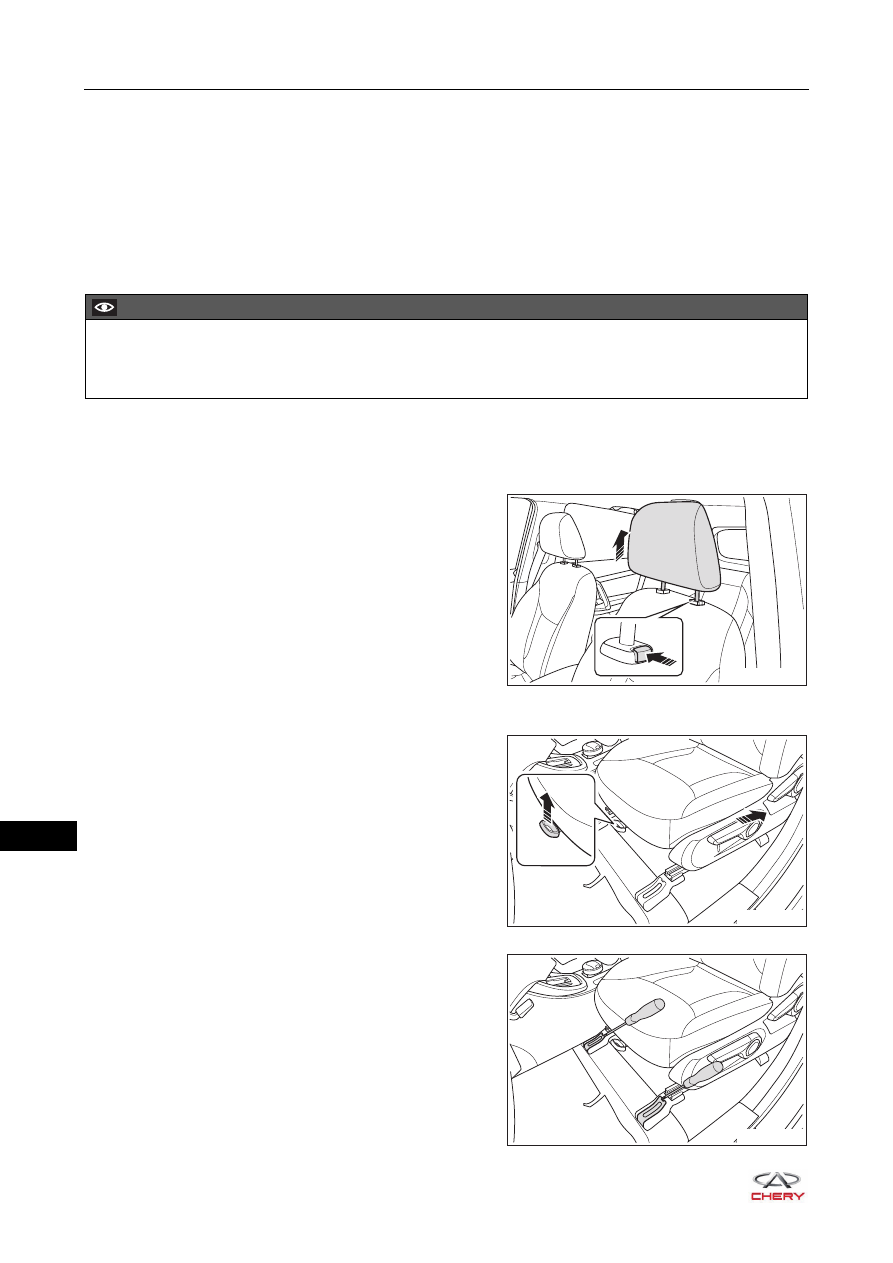

a. As shown in the illustration, press the seat headrest

guide w/ button and remove the driver seat headrest
assembly.

4. Remove the driver seat assembly.

a. As shown in the illustration, pull up the seat track

unlock handle and move the seat assembly to the
rearmost position.

b. Using a screwdriver wrapped with protective tape, pry

up the seat front mounting foot cover.

CAUTION

 Be sure to wear safety equipment to prevent accidents when removing seat assembly.
 Avoid scratch or damage to the body paint surface and carpet when removing seat assembly.

RT21460040

RT21460050

RT21460060

46–

13

46

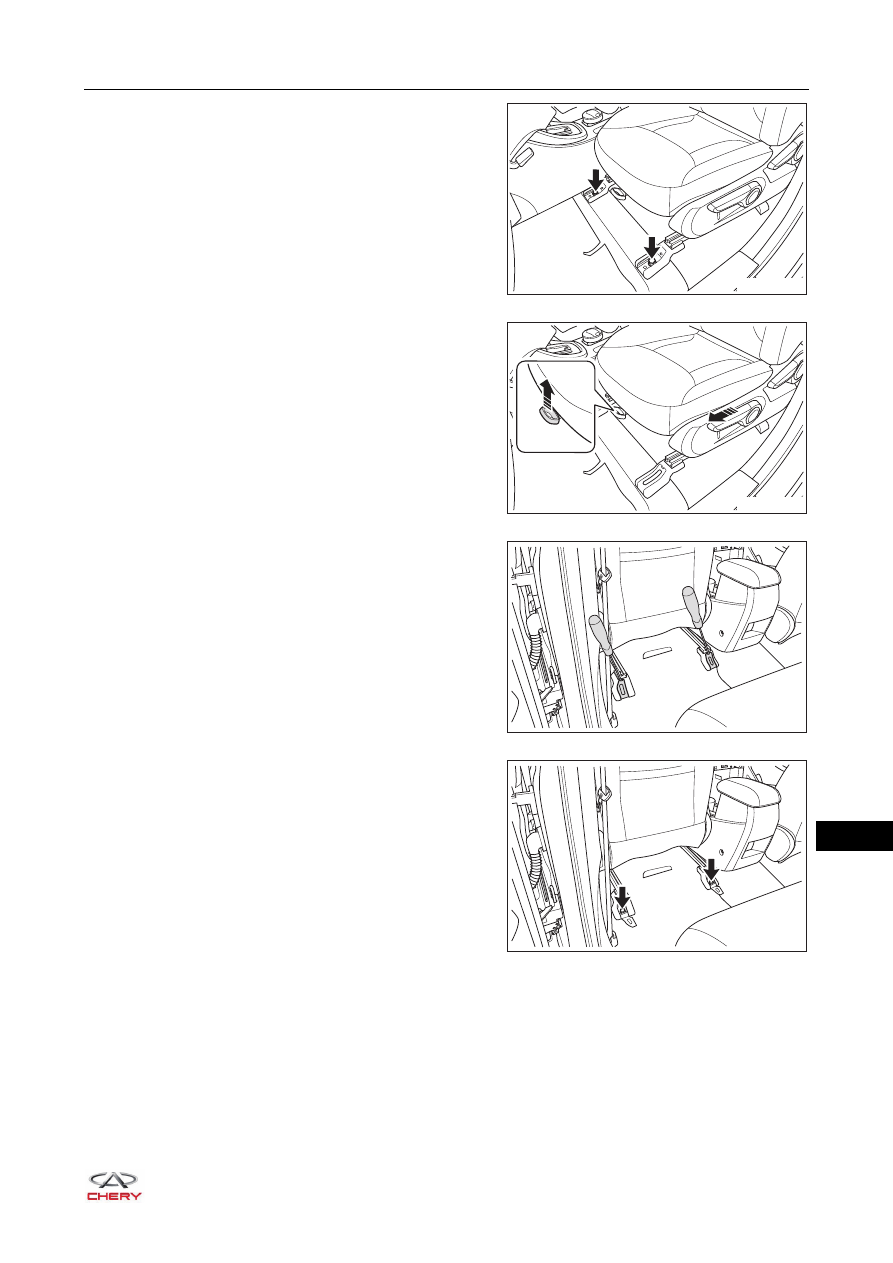

c. Remove 2 fixing bolts (arrow) on the front side of seat

assembly.



(Tightening torque: 50 ± 5 N·m)

d. As shown in the illustration, pull up the seat track

unlock handle and move the seat assembly to the
foremost position.

e. Using a screwdriver wrapped with protective tape, pry

up the seat rear mounting foot cover.

f. Remove 2 fixing bolts (arrow) on the rear side of seat

assembly.



(Tightening torque: 50 ± 5 N·m)

RT21460070

RT21460071

RT21460080

RT21460090
