Chery Tiggo 5 (T21). Service manual - part 488

2

46

46–

3

46

SEAT

GENERAL INFORMATION

Description

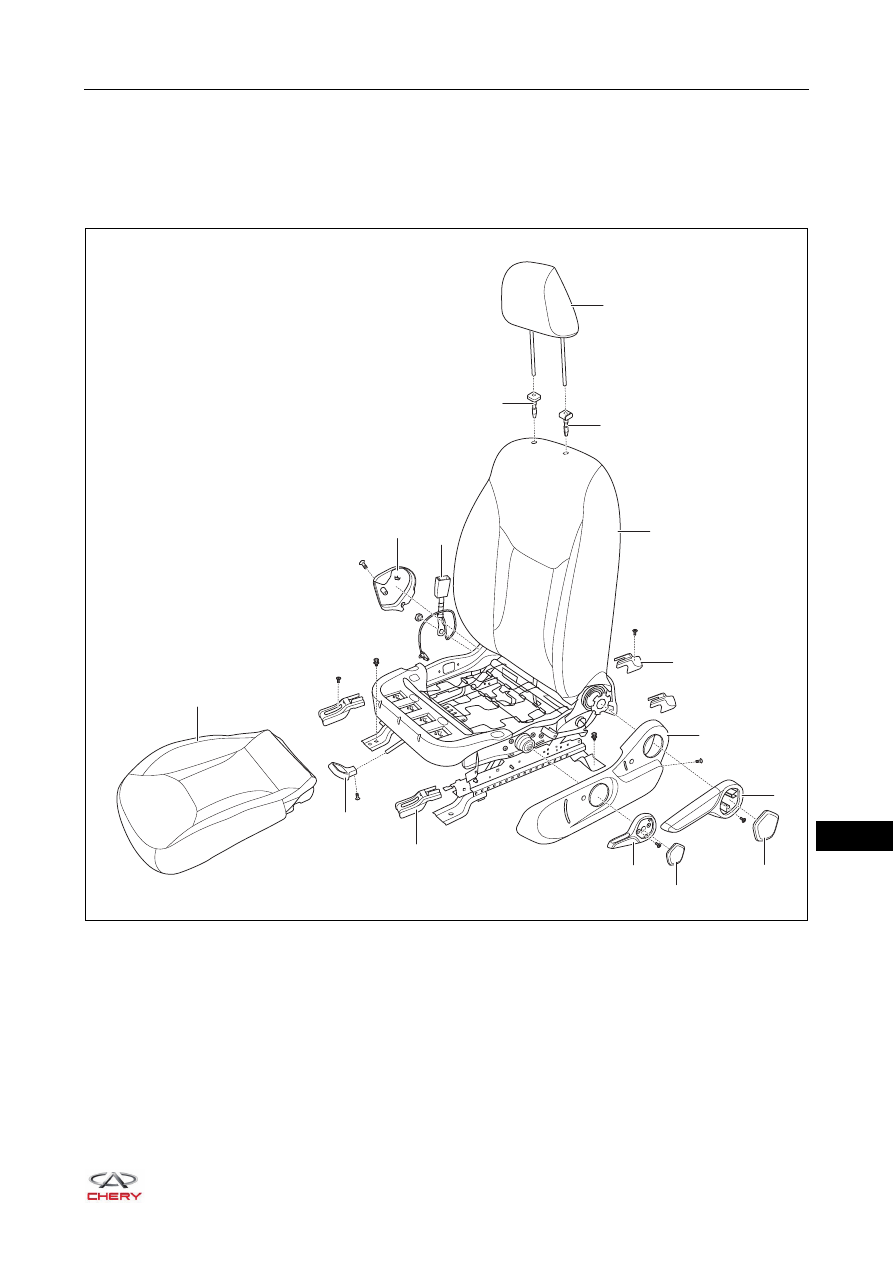

Driver Seat Assembly

RT21460010

×2

×2

×2

×2

×2

×2

×2

×3

1

3

6

7

8

9

2

4

5

15

10

11

12

13

14

46–

4

46

1 - Driver Seat Headrest Assembly

2 - Driver Seat Headrest Guide w/o Button

3 - Driver Seat Headrest Guide w/ Button

4 - Drive Seat Inner Shield Assembly

5 - Driver Seat Belt Buckle Assembly

6 - Driver Seatback Assembly

7 - Driver Seat Rear Mounting Foot Cover Assembly 8 - Driver Seat Outer Shield Assembly

9 - Driver Seat Reclining Adjuster Handle

10 - Driver Seat Reclining Adjuster Handle Cover

11 - Driver Seat Height Adjuster Handle Cover

12 - Driver Seat Height Adjuster Handle

13 - Driver Seat Front Mounting Foot Cover

Assembly

14 - Driver Seat Track Unlock Handle

15 - Driver Seat Cushion Assembly

46–

5

46

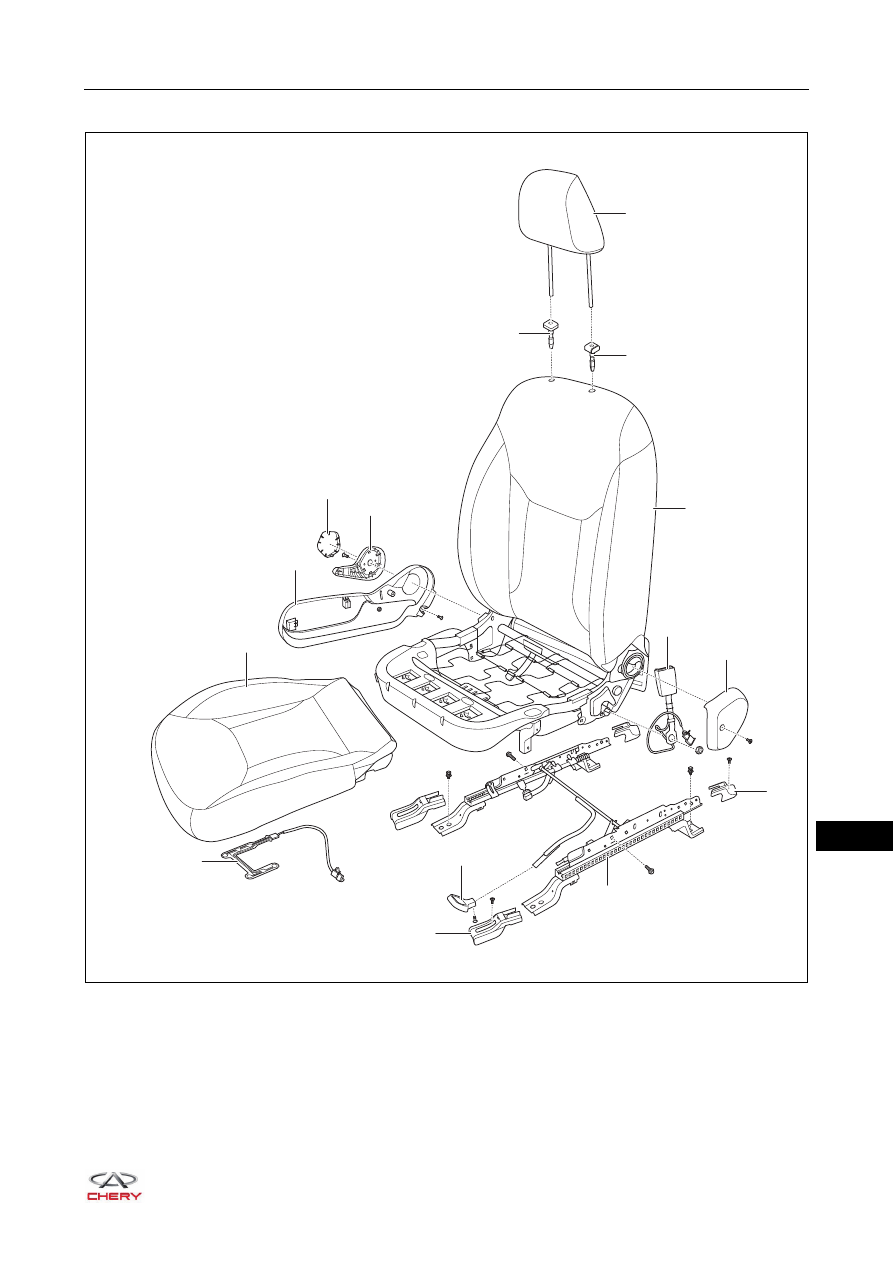

Front Passenger Seat Assembly

RT21460020

×2

×2

×3

×3

×2

×2

×2

×2

×2

3

4

7

1

2

8

5

6

13

14

15

12

10

9

11
