25–

33

25

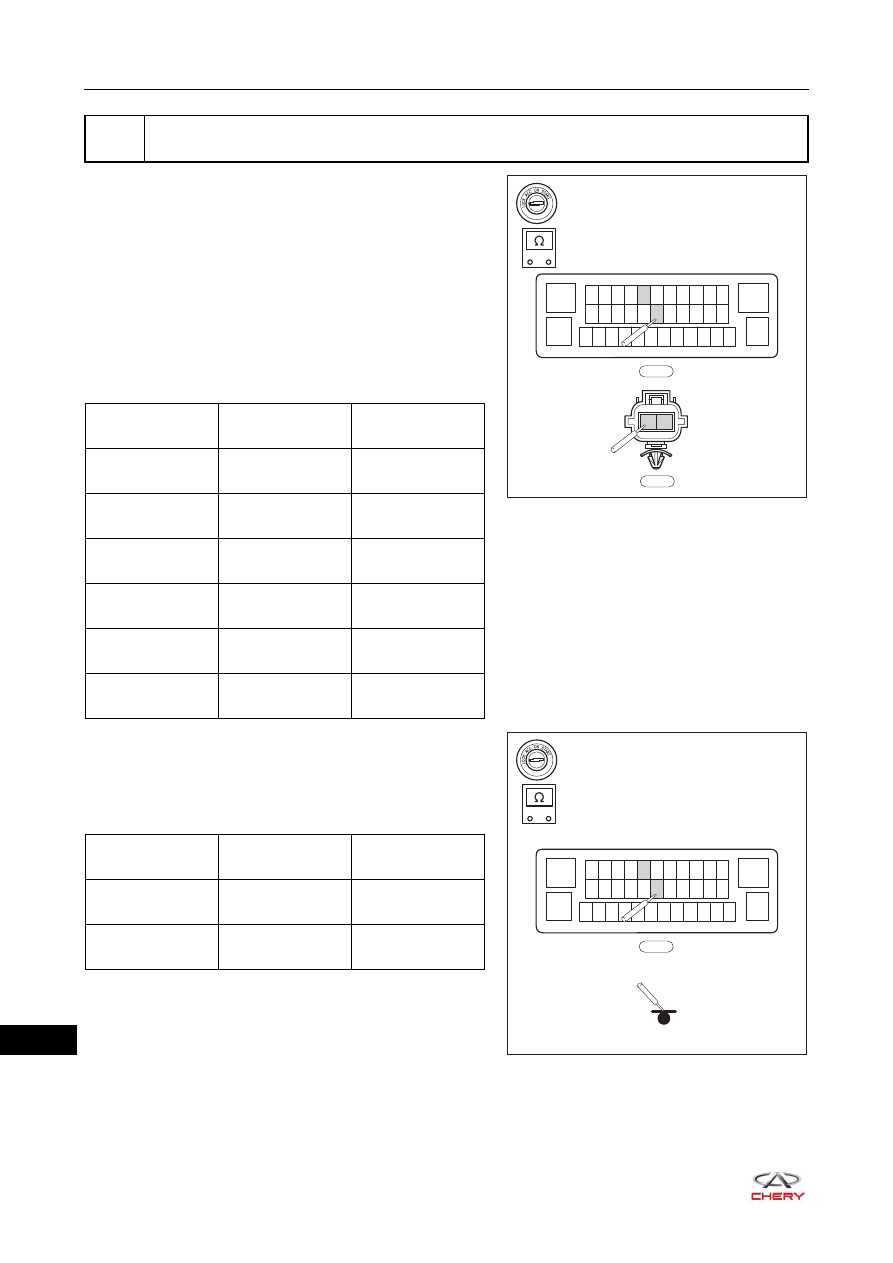

a. Turn ignition switch to LOCK.
b. Disconnect the negative battery cable.
c. Check front left wheel speed sensor mounting bolt for looseness.
d. Check if excessive clearance exists between the installation position of front left wheel speed sensor and

front steering knuckle.

e. Check the installation position of front left wheel speed sensor for dirt.

a. Connect X-431 3G diagnostic tester (the latest software) to Data Link Connector (DLC).
b. Drive the vehicle straight ahead, and read the data stream of front left wheel speed sensor with X-431 3G

diagnostic tester.

c. Check if the data change of front left wheel speed sensor matches the change of other wheel speed

sensors.

a. Remove the front left hub assembly.
b. Check for foreign matter, missing teeth or damage on the front left hub ring gear.
c. Check if the front left hub assembly is securely installed.

2

Check installation of front left wheel speed sensor

OK

Tighten mounting bolt properly, clean or
replace front left wheel speed sensor

NG

3

Check front left wheel speed sensor

OK

Replace front left wheel speed sensor

NG

4

Check front left hub ring gear

OK

Replace front left hub ring gear

NG

OK

25–

34

25

a. Turn ignition switch to LOCK.
b. Disconnect the negative battery cable.
c. Disconnect the ABS control module assembly connector

E-085.

d. Disconnect the front left wheel speed sensor connector

E-060.

e. Using a digital multimeter, check for continuity between

the terminals of connector E-085 and connector E-060 to
check if there is an open in the wire harness and
connector according to the table below..
Standard Condition

f. Using a digital multimeter, check for continuity between

connector E-085 and body ground to check if the front left
wheel speed sensor is short to ground according to the
table below.
Standard Condition

5

Check wire harness and connector (front left wheel speed sensor - ABS control module
assembly)

RT21250230

E-085

13

12 11 10 9 8 7 6 5 4 3 2

24 23 22 21 20 19 18 17 16 15 14

37 36 35 34 33 32 31 30 29 28 27 26

1

38

25

-

+

E-060

1

2

Multimeter

Connection

Condition

Specified

Condition

E-085 (8) -

E-060 (2)

Always

Continuity

E-085 (19) -

E-060 (1)

Always

Continuity

E-085 (8) -

E-060 (1)

Always

No continuity

E-085 (19) -

E-060 (2)

Always

No continuity

E-060 (1) -

E-060 (2)

Always

No continuity

E-085 (8) -

E-085 (19)

Always

No continuity

RT21250240

E-085

13

12 11 10 9 8 7 6 5 4 3 2

24 23 22 21 20 19 18 17 16 15 14

37 36 35 34 33 32 31 30 29 28 27 26

1

38

25

-

+

Multimeter

Connection

Condition

Specified

Condition

E-085 (8) - Body

ground

Always

No continuity

E-085 (19) - Body

ground

Always

No continuity

25–

35

25

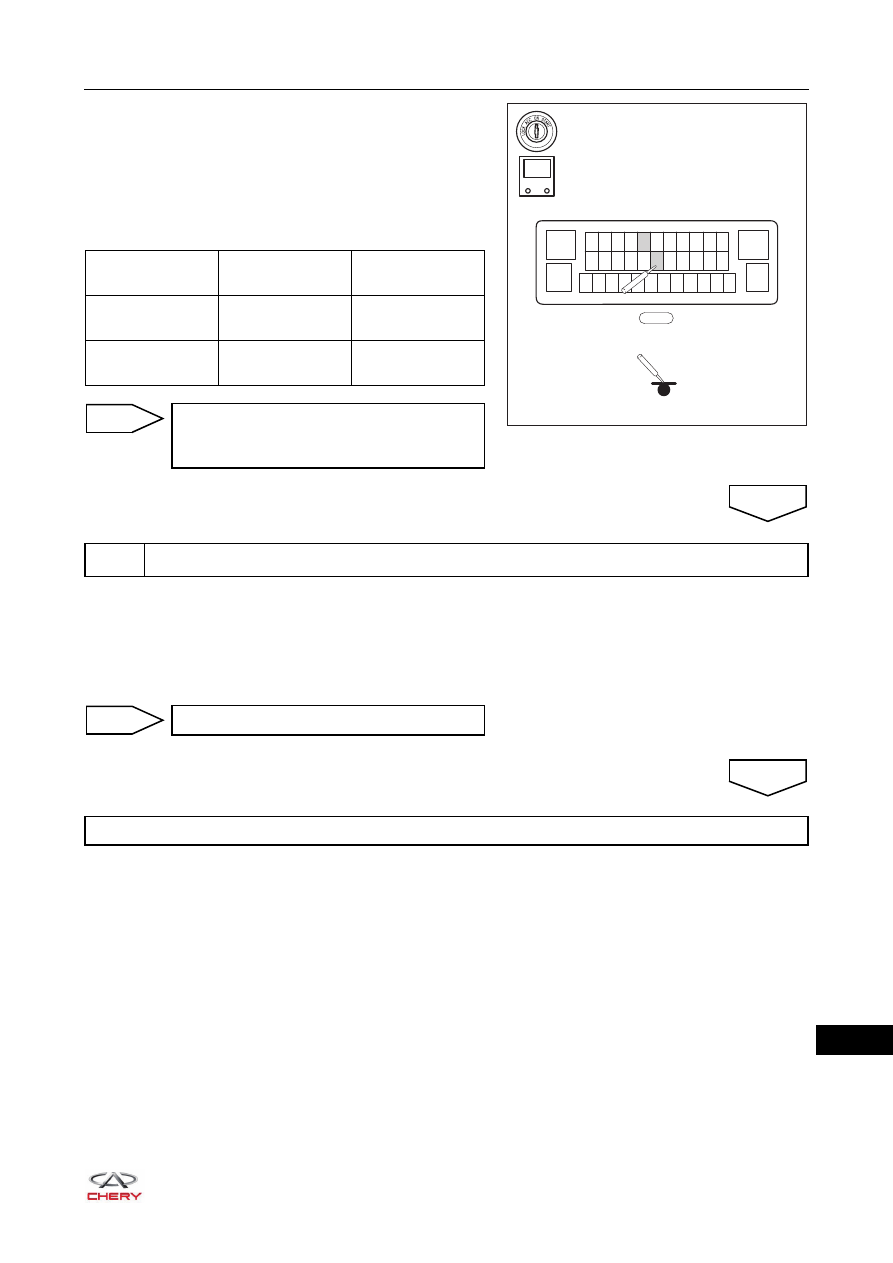

g. Connect the negative battery cable.
h. Turn ignition switch ON.
i. Using a digital multimeter, measure the voltage between

connector E-085 and body ground to check if the front left
wheel speed sensor is short to power supply according to
the table below.
Standard Condition

a. Use X-431 3G diagnostic tester to clear the DTC.
b. Start the engine.
c. Drive the vehicle at 15 km/h or more, read the ABS control module assembly DTC again with X-431 3G

diagnostic tester.

d. Check if the same DTC is output.

RT21250250

E-085

13

12 11 10 9 8 7 6 5 4 3 2

24 23 22 21 20 19 18 17 16 15 14

37 36 35 34 33 32 31 30 29 28 27 26

1

38

25

-

+

V

Multimeter

Connection

Condition

Specified

Condition

E-085 (8) - Body

ground

Ignition switch ON Approximately 0 V

E-085 (19) - Body

ground

Ignition switch ON Approximately 0 V

Repair or replace wire harness and
connector between front left wheel speed
sensor and ABS control module assembly

NG

6

Reconfirm DTCs

OK

System operates normally

NO

Replace ABS control module assembly

YES

25–

36

25

Code

C0034-00 Right Front Wheel Speed Sensor

Code

C0034-09 Right Front Wheel Speed Sensor

Code

C0034-11 Right Front Wheel Speed Sensor

Code

C0034-12 Right Front Wheel Speed Sensor

Code

C0034-13 Right Front Wheel Speed Sensor

Code

C0034-29 Right Front Wheel Speed Sensor
