Chery Tiggo 5 (T21). Service manual - part 265

24–

3

24

TIRE AND WHEEL

GENERAL INFORMATION

Precautions

 Use tires only with the standard specification and type, because they have excellent reliability and skid

resistance. Non-standard tire may lead to vehicle malfunction, causing accident or even serious injury and
death.

 Contact surface of rim and tire should be cleaned before installing a new tire.
 When installing the wheel bolts, firstly, pre-tighten the bolts by hand, and then tighten them to the specified

torque with a torque wrench.

 Do not apply grease to the wheel bolts.
 Some bad driving habits will shorten the life of tire:

- Rapid acceleration
- Depress brake pedal suddenly and firmly
- High-speed driving
- Turn at excessive speed
- Striking curbs or other obstacles
- Tire pressure is too high or too low when driving vehicle

Tire Identification

 Letter and number code of tire type, size, load index and

speed level are stamped on the side wall of tire as shown
in the illustration.

225/65R

17 1

02

H

RT21240010

225/65 R17 102H

24–

4

24

Specifications

Torque Specification

Tire Type

Rim Type

Tire Pressure Specifications of Cold Tire

Description

Torque (N·m)

Wheel Mounting Bolt

110 ± 10

Description

Parameter

Tire Type

225/65 R17 102H

Description

Parameter

Rim Type

17 × 7 J

Description

Pressure (kPa)

Front Tire (Unloaded)

230

Rear Tire (Unloaded)

230

Spare Tire

250

24–

5

24

DIAGNOSIS & TESTING

Problem Symptoms Table

HINT:
Use the table below to help determine the cause of the problem symptoms. Check each suspected area in
sequence. Repair or replace the faulty components, or adjust as necessary.

Inspection

1. Check if tires are damaged or scratched as shown in the

illustration.

2. Check if rims are damaged or scratched as shown in the

illustration.

Symptom

Suspected Area

See page

Wear on one side of tire

Wheel alignment (wrong)

23-47

Wear on both sides of tire

Tire pressure (insufficient)

24-4

Tire center wear

Tire pressure (excessive)

24-4

Serrated wear

Wheel alignment (wrong)

23-47

Severe wear of some area of tire

Brake (too hard)

-

Scratches on side wall of tire

Sharp objects on road (scratched)

24-5

Excessive tire noise

Tire pressure (incorrect)

24-4

Tire (worn)

24-5

CAUTION

 Be sure to refer to the instruction when installing non-standard tires and rims.
 Use tires only with the standard specification and type.

RT21240020

24–

6

24

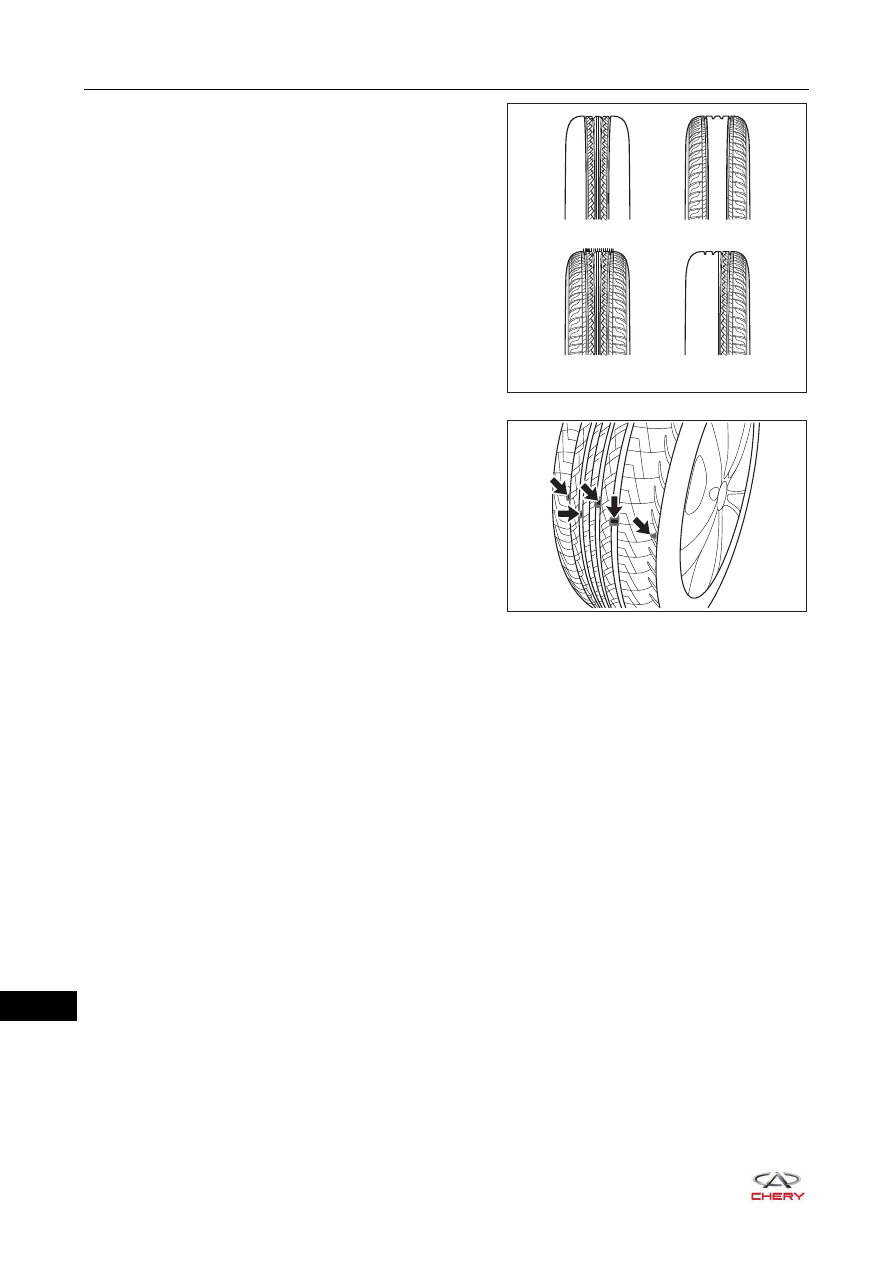

3. Check if tires are worn abnormally as shown in the

illustration.

4. Check the tread wear indicators (arrow) as shown in the

illustration. When tires are worn to the indicating mark,
replace them.

5. Use tire pressure gauge to check if pressures of all tires (including spare tire) are normal. Inflate tires to

specified tire pressure as necessary.

6. Check the air cock for leakage.

Center Wear

Wear on Both Sides

Serrated Wear

Wear on One Side

RT21240030

RT21240040
