Chery Tiggo 5 (T21). Service manual - part 191

17–

18

17

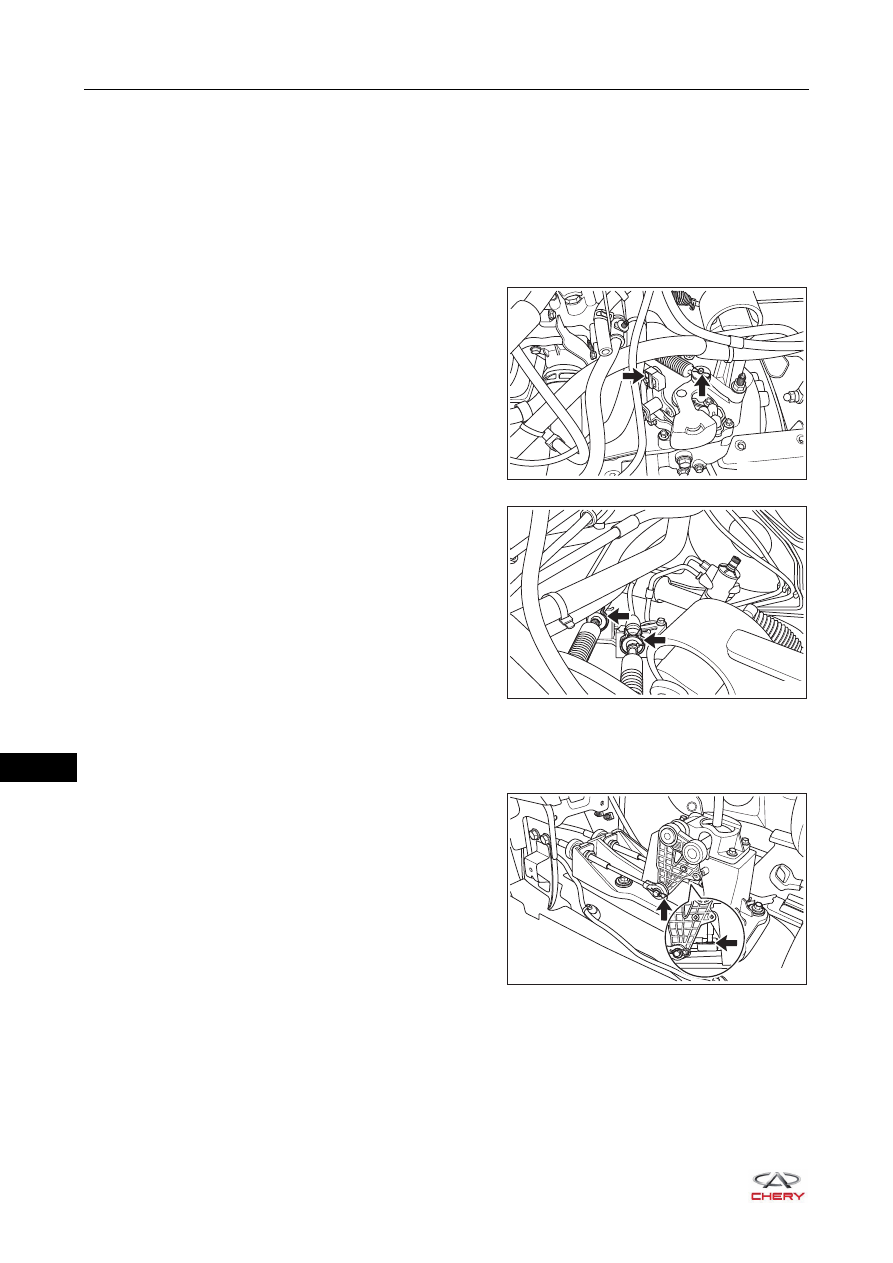

Select and Shift Cable

Removal

1. Turn off all the electrical equipment and ignition switch.
2. Disconnect the negative battery cable.
3. Remove the battery (

See page 16-7

).

4. Remove the air filter assembly (

See page 10-17

).

5. Disconnect the select and shift cable from the transmission.

a. Remove the cotter pins (arrow) connecting select and

shift cable with transmission gear shift mechanism.

b. Remove the flexible shaft clamps (arrow) and select

and shift cable.

6. Remove the auxiliary fascia console (

See page 45-9

).

7. Remove the fixing bolts between gear select and shift cable and body.
8. Disconnect the select and shift cable from gear shift control mechanism.

a. Remove the flexible shaft clamps and cotter pins

connecting select and shift cable with gear shift
control mechanism.

9. Remove the gear select and shift cable.

RT21170090

RT21170100

RT21170110

17–

19

17

Installation

Installation is in the reverse order of removal.

CAUTION

 DO NOT install the select and shift cable in reverse position during installation.

17–

20

17

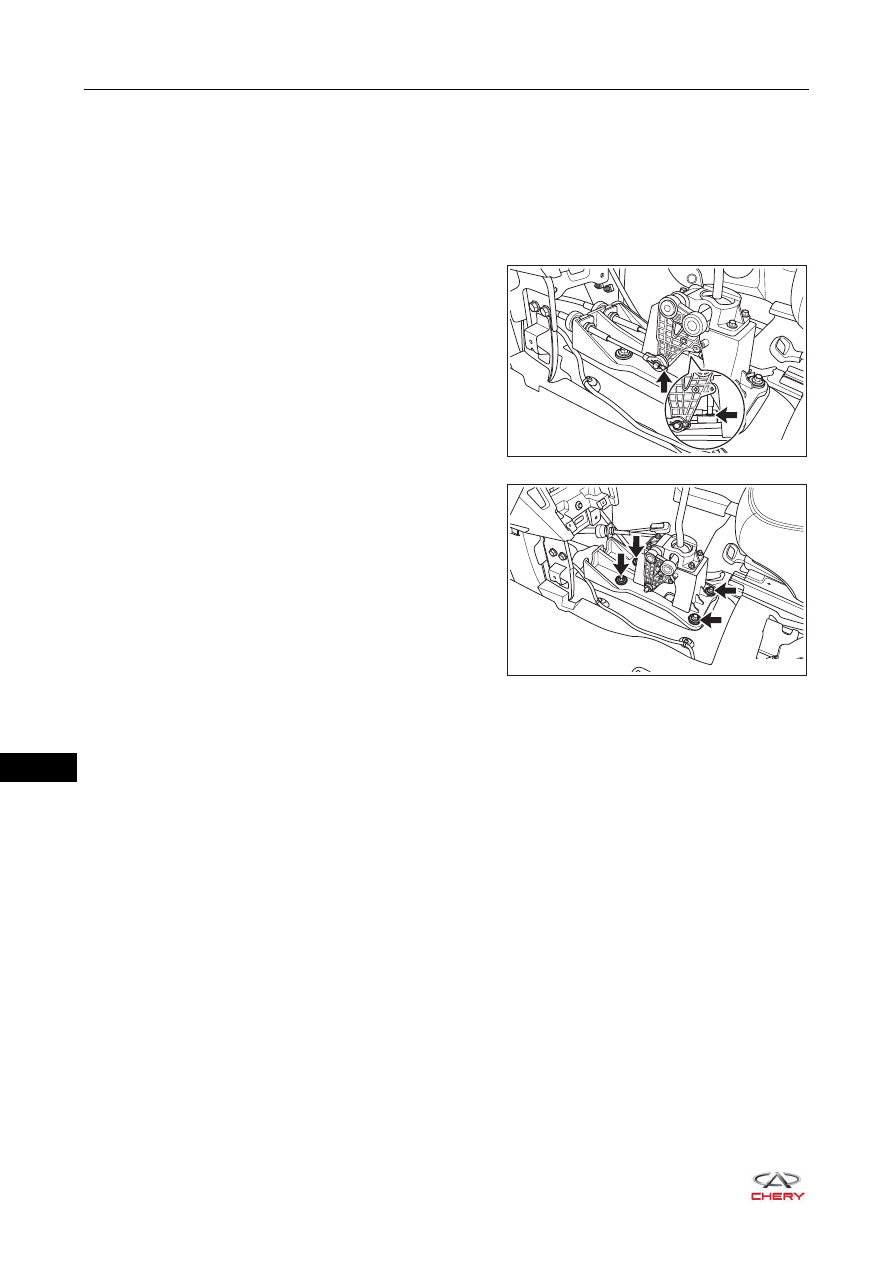

Gear Shift Control Mechanism

Removal

1. Turn off all the electrical equipment and ignition switch.
2. Disconnect the negative battery cable.
3. Remove the auxiliary fascia console (

See page 45-9

).

4. Remove the gear shift control mechanism.

a. Remove the flexible shaft clamps and cotter pins

connecting select and shift cable with gear shift
control mechanism.

b. Remove the fixing bolts from gear shift control

mechanism, and remove the gear shift control
mechanism.



(Tightening torque: 23 ± 2 N·m)

Installation

Installation is in the reverse order of removal.

RT21170110

RT21170130

17–

21

17

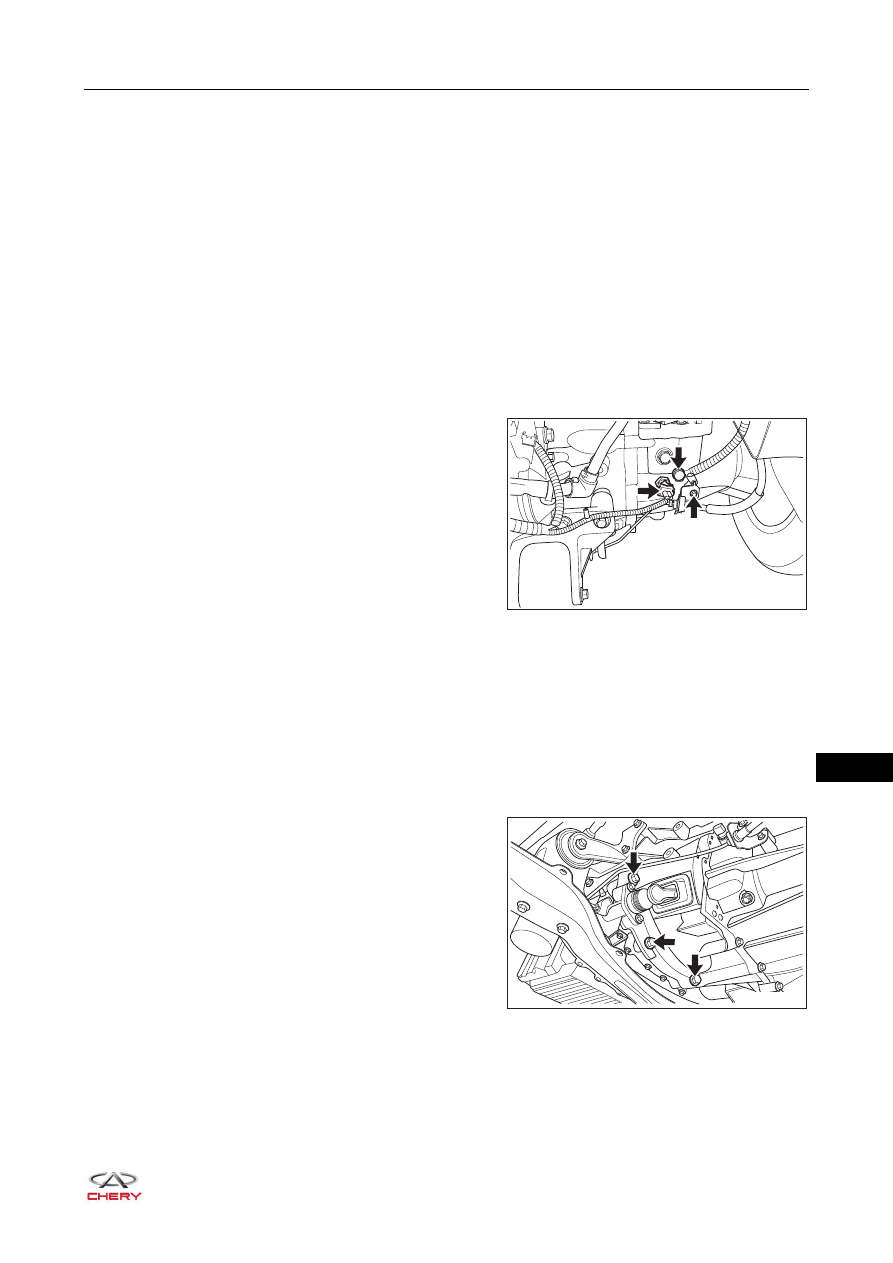

Transmission Assembly

Removal

1. Turn off all the electrical equipment and ignition switch.
2. Disconnect the negative battery cable.
3. Remove the battery (

See page 16-7

).

4. Remove the battery bracket (

See page 16-9

).

5. Remove the air filter assembly (

See page 10-17

).

6. Drain transmission oil.
7. Remove the front wheels (

See page 24-9

).

8. Remove the drive shaft(

See page 20-5

).

9. Use an engine equalizer to hang the engine.
10.Remove the flexible shaft clamps and cotter pins connecting select and shift cable with gear shift

mechanism.

11.Disconnect the back-up light switch connector, ground

wire and clutch line bracket II.

12.Remove the crankshaft position sensor.

a. Remove the fixing bolt from crankshaft position sensor, and remove the crankshaft position sensor.

13.Remove the left mounting (

See page 07-67

).

14.Remove the front mounting (

See page 07-66

).

15.Remove the rear mounting (

See page 07-64

).

16.Remove the clutch release cylinder from transmission (

See page 19-12

).

17.Remove the starter (

See page 15-64

).

18.Remove the transmission.

a. Support the transmission assembly with a

transmission carrier.

b. Remove the transmission lower coupling bolts, and

remove the seal plate.



(Tightening torque: 50 ± 5 N·m)

RT21170140

RT21170150
