17–

10

17

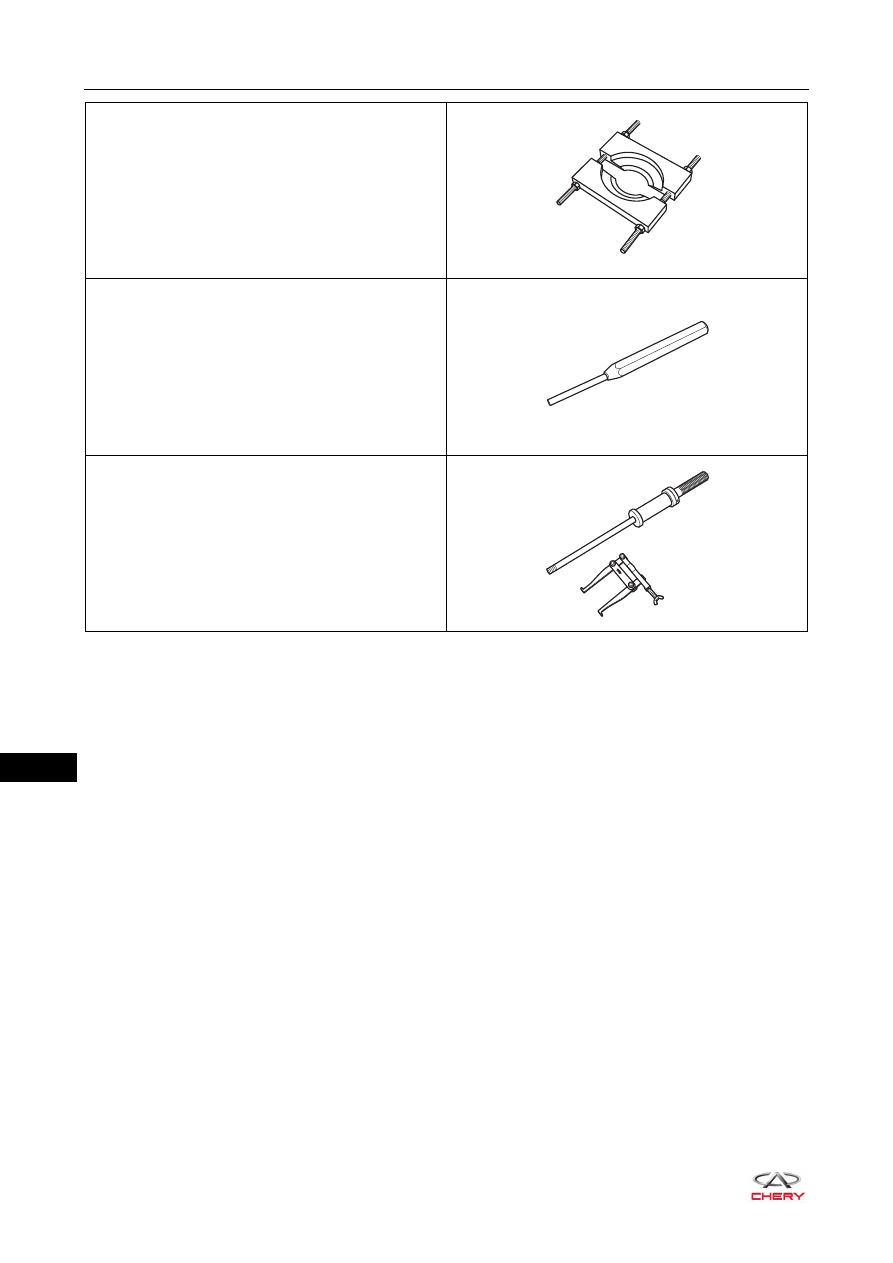

Bearing Remover

Punch

Puller

RCH0000011

RCH0000015

RCH0000059

17–

11

17

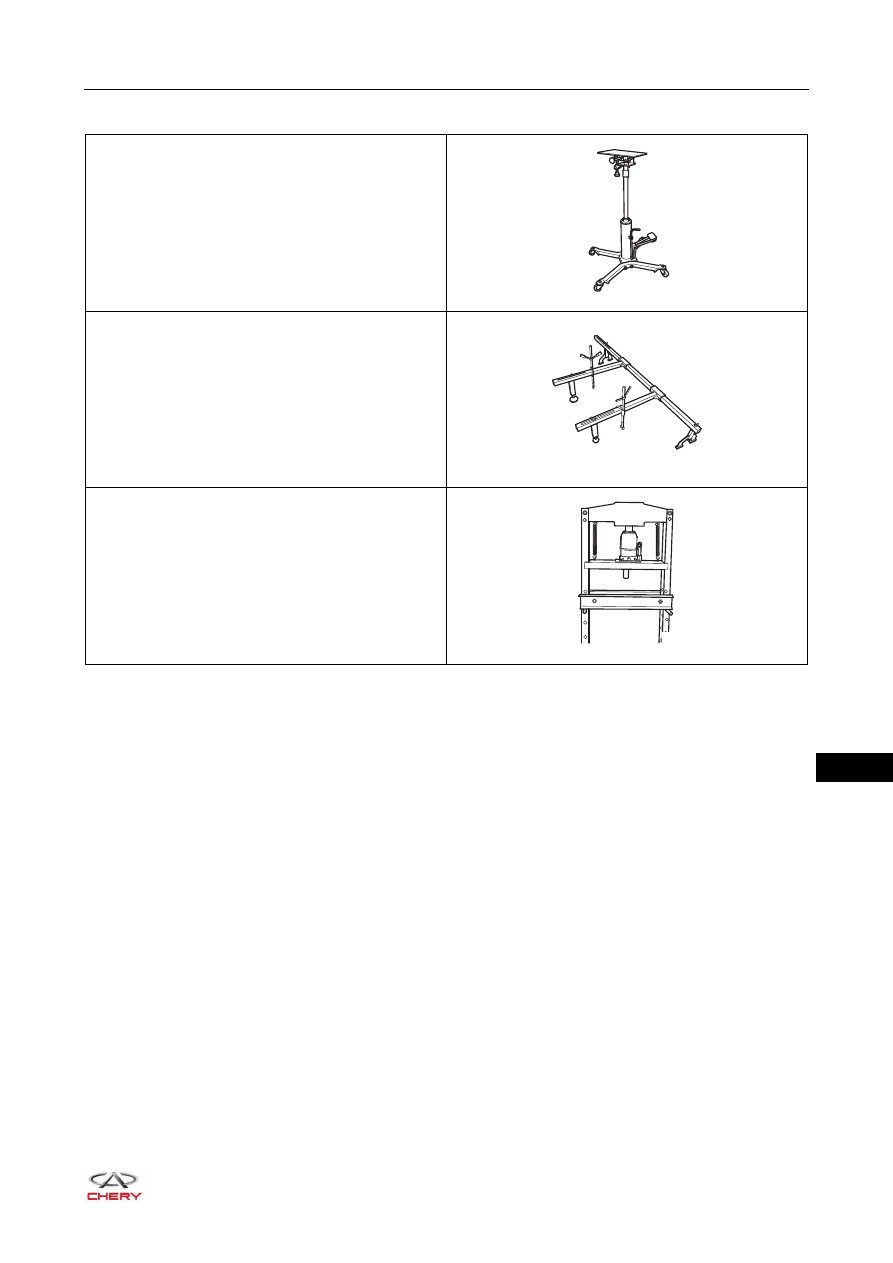

General Tools

Transmission Carrier

Engine Equalizer

Hydraulic Press

RCH0000005

RCH0000026

RCH0000012

17–

12

17

DIAGNOSIS & TESTING

Problem Symptoms Table

HINT:
Use the table below to help determine the cause of problem symptoms. Check each suspected area in
sequence. Repair or replace the faulty components, or adjust as necessary.

Symptom

Suspected Area

See page

Noise

Oil level (too low)

17-14

Oil wrong grade

17-14

Gear (worn or damaged)

-

Bearing (worn or damaged)

-

Gear thrust position and clearance
improper

-

Oil leakage

Drain plug

-

Drain plug gasket

-

Differential oil seal

17-16

Joint surface damaged and not trimmed in
time

-

Hard shifting or impossible to shift

Oil level (too low)

17-14

Gear (worn or damaged)

-

Synchronizer ring (worn or damaged)

-

Shift key spring (worn or damaged)

-

Jumps out of gear

Detent ball spring

-

Shift fork (worn)

17-35

Gear (worn or damaged)

-

Bearing (worn or damaged)

-

Bearing irregular damaged

Lubricant contains metal impurities

-

Insufficient lubrication or lubricant does not
conform to standard

-

Irregular bearing

-

Release fork makes a "click" sound when
clutch pedal is depressed

Insufficient lubrication at joint surface of
release fork and hydraulic sub cylinder or
joint surface of release fork and ball joint
housing

-

No shift

Shift drive train (loose)

-

Driver rocker arm (loose)

-

17–

13

17

On-vehicle Inspection

Transmission Oil

Check transmission oil level.
1. Raise the vehicle with a lifter

2. Remove the transmission retaining plug and washer.
3. Check if oil level is at the opening of retaining plug.

Transmission oil type:

GL-4

Viscosity:

75W-90

Standard capacity:

2.2 L ± 0.1 L

CAUTION

 To guarantee the service quality of transmission, perform operations carefully and keep each component

of transmission clean.

 Select appropriate or special tools.
 Transmission can achieve a good operation condition only when strictly performing service according to

the technical requirements of assembly or adjustment.

WARNING

 Be sure to wear necessary safety equipment to prevent accidents.
 Check if safety lock of lifter is locked when performing vehicle lift repair and inspection.

CAUTION

 An excessively large or small amount of oil may affect proper functioning of transmission.
 After filling oil, run the vehicle, and then check the oil level.
