The mirror will dim automatically to reduce
glare when bright lights are detected from
behind your vehicle. It will automatically
return to normal reflection when you select
reverse gear to make sure you have a clear
view when backing up.

SUN VISORS

E138666

Rotate the sun visor toward the side window
and extend it rearward for extra shade.

Illuminated Vanity Mirror

E162197

Lift the cover to switch the lamp on.

MOONROOF

 (IF EQUIPPED)

WARNING: Do not leave children

unattended in your vehicle and do not let
them play with the moonroof. Failure to
follow this instruction could result in
personal injury.

WARNING: When closing the

moonroof, verify that it is free of
obstruction and make sure that children
and pets are not in the proximity of the roof
opening.

Note: With the panoramic moonroof panel
fully open and vehicle speed increasing to
approximately 50 mph (80 km/h), the
moonroof opening panel automatically
closes approximately 8 in (20 cm) to reduce
excessive wind noise at higher speeds. This
feature only functions one time per key cycle,
so you can open the glass further if desired.

The moonroof controls are located on the
overhead console and have a one-touch
open and close feature. To stop its
movement during one-touch operation, press
the control a second time.

103

Nautilus (CD9) Canada/United States of America, enUSA, Edition date: 201806, Third-Printing-

Windows and Mirrors

Opening and Closing the Moonroof

E191272

Moonroof open.

A

Moonroof vent.

B

Sunshade open.

C

Sunshade close.

D

Moonroof close.

E

Moonroof Open

Press and release to open the moonroof.
The moonroof opens to the fully open
position. When vehicle speed increases
higher than 50 mph (80 km/h), the moonroof
panel automatically closes to the comfort
stop position to reduce excessive wind noise.
Once you reduce vehicle speed, press and
release the control again to return to the fully
open position.

Moonroof Vent

Press and release to vent the moonroof.

Sunshade Open

Press and release to open the sunshade.
The sunshade opens automatically with the
moonroof. You can also open the sunshade
with the moonroof closed.

Note: The sunshade stops short of its fully
opened position for the comfort of rear
passengers. To open the sunshade fully,
press the control again.

Sunshade Close

Press and release to close the sunshade. If
fully open, the sunshade stops after covering
the rear glass panel. Press and release again
to fully close the sunshade.

Moonroof Close

Press and release to close the moonroof
from either the open or vent positions.

Bounce-Back

The moonroof automatically reverses some
distance if an obstacle is detected while
closing.

To override this feature, press and hold the
moonroof close control within two seconds
after the roof comes to a stop following a
bounce-back reversal or two successive
reversals if equipped with a retractable
panoramic roof.

104

Nautilus (CD9) Canada/United States of America, enUSA, Edition date: 201806, Third-Printing-

Windows and Mirrors

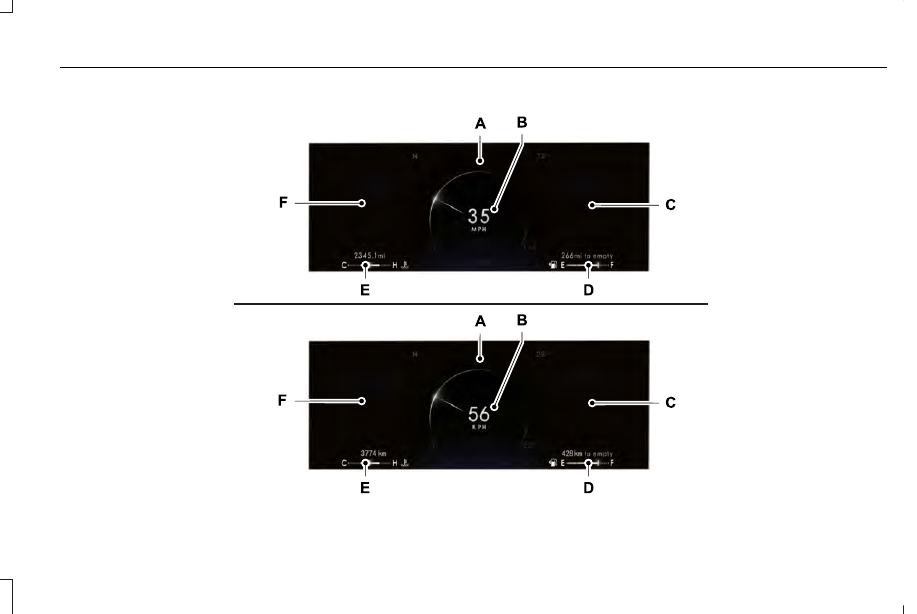

GAUGES

Note: Clusters shown in single gauge view.

E271984

105

Nautilus (CD9) Canada/United States of America, enUSA, Edition date: 201806, Third-Printing-

Instrument Cluster

Status Bar.

A

Speedometer.

B

Right Information Group.

C

Fuel Gauge.

D

Coolant Gauge.

E

Left Information Group.

F

Status Bar

Displays information related to the current
audio source, compass direction and outside
air temperature.

Left and Right Information Group

Information that appears depends on current
gauge view and on-demand settings.  See
General Information (page 112).

Fuel Gauge

The fuel gauge indicates about how much
fuel is in the fuel tank.

The arrow adjacent to the fuel pump symbol
indicates on which side of your vehicle the
fuel filler door is located.

Note: The fuel gauge may vary slightly when
your vehicle is moving or on a slope.

Low Fuel Reminder

A low fuel level reminder displays and
sounds when the distance to empty reaches
75 mi (120 km) to empty for MyKey, and at
50 mi (80 km), 25 mi (40 km), 10 mi (20 km)
and 0 mi (0 km) for all vehicle keys.

Note: The low fuel reminder can appear at
different fuel gauge positions depending on
fuel economy conditions. This variation is
normal.

Engine Coolant Temperature Gauge

Indicates engine coolant temperature. At
normal operating temperature, the level
indicator will be in the normal range. If the
engine coolant temperature exceeds the
normal range, stop your vehicle as soon as
safely possible, switch off the engine and let
the engine cool.

106

Nautilus (CD9) Canada/United States of America, enUSA, Edition date: 201806, Third-Printing-

Instrument Cluster

WARNING: Do not remove the

coolant reservoir cap when the cooling
system is hot. Wait 10 minutes for the
cooling system to cool down. Cover the
coolant reservoir cap with a thick cloth to
prevent the possibility of scalding and
slowly remove the cap. Failure to follow
this instruction could result in personal
injury.

WARNING LAMPS AND
INDICATORS

The following warning lamps and indicators
alert you to a vehicle condition that may
become serious.  Some lamps illuminate
when you start your vehicle to make sure
they work.  If any lamps remain on after
starting your vehicle, refer to the respective
system warning lamp for further information.

Note: Some warning indicators appear in
the information display and operate the
same as a warning lamp but do not
illuminate when you start your vehicle.

Adaptive Cruise Control Indicator

 (If

Equipped)

E144524

It illuminates when you switch the
system on.

It illuminates white when the

system is in standby mode.  It illuminates
green when you set the adaptive cruise
speed.

See Using Adaptive Cruise Control (page
230).

Adaptive Steering

 (If Equipped)

E223375

The adaptive steering system
indicator illuminates if the system
detects a fault during the

continuous diagnostic checks.

Adaptive Steering Initialization (yellow,
flashing): The adaptive steering system has
detected a difference between steering
wheel angle and the desired road wheel
angle. The steering wheel adjusts itself to
correct this difference. This adjustment is
part of normal system operation.

Adaptive Steering Off (yellow, solid): The
adaptive steering system is off. It is possible
that the steering wheel may not be straight
when the vehicle is driving straight ahead. If
this message persists, see an authorized
dealer.

Adaptive Steering Loss (red, solid): The
adaptive steering system integrity cannot be
verified. Do not drive the vehicle and contact
an authorized dealer immediately.  See
Steering (page 254).

Airbag Warning Lamp

E67017

If it does not illuminate when you
switch the ignition on, continues
to flash or remains on when the

engine is running, this indicates a
malfunction.  Have your vehicle checked as
soon as possible.

107

Nautilus (CD9) Canada/United States of America, enUSA, Edition date: 201806, Third-Printing-

Instrument Cluster

Anti-Lock Brake System Warning Lamp

If it illuminates when you are
driving, this indicates a
malfunction.  Your vehicle

continues to have normal braking without
the anti-lock brake system function.  Have
your vehicle checked as soon as possible.

Auto Hold Active

E197933

It illuminates when the system
holds your vehicle stationary.

Auto Hold Unavailable

E197934

It illuminates when the system is
on, but unavailable to hold your
vehicle stationary.

Automatic High Beam Control

 (If Equipped)

It illuminates when the system
automatically turns the headlamp
high beam on.

See Automatic High Beam Control (page
93).

Battery

If it illuminates while driving, it
indicates a malfunction. Switch off
all unnecessary electrical

equipment and have the system checked by
an authorized dealer immediately.

Blind Spot Information System
Indicator

 (If Equipped)

E151262

It illuminates when you switch the
system off.

See Blind Spot Information

System (page 248).

Brake System Warning Lamp

WARNING: Driving your vehicle with

the warning lamp on is dangerous. A
significant decrease in braking
performance may occur. It may take you
longer to stop your vehicle. Have your
vehicle checked as soon as possible.
Driving extended distances with the
parking brake engaged can cause brake
failure and the risk of personal injury.

Note: Indicators vary depending on region.

This lamp is a dual function lamp and will
illuminate when:

•

You apply the parking brake with the
ignition on.

•

Your vehicle has a brake fault or low
brake fluid level, regardless of parking
brake position.

108

Nautilus (CD9) Canada/United States of America, enUSA, Edition date: 201806, Third-Printing-

Instrument Cluster

E270480

If the lamp illuminates when you
are moving, you may have the
parking brake applied. Make sure
the parking brake is off. Have your
vehicle checked as soon as
possible if the lamp continues to

illuminate.

Cruise Control Indicator

 (If Equipped)

E71340

It illuminates when you switch the
system on.

See Using Cruise Control (page

229).

Direction Indicator

Illuminates when the left or right
direction indicator or the hazard
warning flasher is turned on.

Flashes during operation. An increase in the
rate of flashing warns of a failed indicator
bulb.

Door Ajar

Displays when the ignition is on
and any door is not completely
closed.

Electric Park Brake

E146190

It illuminates or flashes when the
electric parking brake has a
malfunction. See Electric Parking

Brake (page 201).

Engine Coolant Temperature Warning
Lamp

If it illuminates when your vehicle
is moving, this indicates that the
engine is overheating.  Stop your

vehicle as soon as it is safe to do so and
switch the engine off.  Have your vehicle
checked as soon as possible.

Fasten Rear Seatbelt

 (If Equipped)

E206718

Illuminates and a chime sounds to
signal the rear seatbelts are not
buckled.

Fasten Seatbelt Warning Lamp

E71880

It illuminates and a chime sounds
until you fasten the seatbelts.

Front Fog Lamp Indicator

 (If Equipped)

It illuminates when you switch the
front fog lamps on.

Headlamp High Beam Indicator

It illuminates when you switch the
headlamp high beam on.

Hill Start Assist

 (If Equipped)

E274708

It illuminates when the system is
active.

Hood Ajar

E246598

Displays when the ignition is on
and the hood is not completely
closed.

109

Nautilus (CD9) Canada/United States of America, enUSA, Edition date: 201806, Third-Printing-

Instrument Cluster

Liftgate Ajar

E162453

Illuminates when the liftgate is not
completely closed.

Low Beam Malfunction Warning

E181350

It will illuminate when there is a
malfunction with the low beam
headlamp bulb.

Low Fuel Level Warning Lamp

If it illuminates when you are
driving, refuel as soon as possible.

Low Tire Pressure Warning Lamp

It illuminates when your tire
pressure is low. If the lamp remains
on with the engine running or

when driving, check your tire pressure as
soon as possible.

It also illuminates momentarily when you
switch the ignition on to confirm the lamp is
functional. If it does not illuminate when you
switch the ignition on, or begins to flash at
any time, have the system checked by your
authorized dealer.

Low Washer Fluid Level Warning Lamp

E132353

It illuminates when the washer fluid
is low.

Oil Pressure Warning Lamp

It illuminates when you switch the
ignition on.

If it illuminates when the engine is

running this indicates a malfunction.  Stop
your vehicle as soon as it is safe to do so
and switch the engine off.  Check the engine
oil level.  If the oil level is sufficient, this
indicates a system malfunction.  Have your
vehicle checked as soon as possible.

See Engine Oil Check (page 321).

Parking Lamps

It illuminates when you switch the
parking lamps on.

Powertrain Fault

Illuminates when the system
detects a powertrain or an AWD
fault. Contact an authorized dealer

as soon as possible.

Rear Fog Lamp Indicator

 (If Equipped)

E67040

It illuminates when you switch the
rear fog lamps on.

Service Engine Soon

If it illuminates when the engine is
running this indicates a
malfunction.  The On Board

Diagnostics system has detected a
malfunction of the vehicle emission control
system.

110

Nautilus (CD9) Canada/United States of America, enUSA, Edition date: 201806, Third-Printing-

Instrument Cluster

If it flashes, engine misfire may be occurring.
Increased exhaust gas temperatures could
damage the catalytic converter or other
vehicle components. Drive in a moderate
fashion (avoid heavy acceleration and
deceleration) and have your vehicle
immediately serviced.

It illuminates when you switch the ignition
on prior to engine start to check the bulb and
to indicate whether your vehicle is ready for
Inspection and Maintenance (I/M) testing.

Normally, it illuminates until the engine is
cranked and automatically turns off if no
malfunctions are present. However, if after
15 seconds it flashes eight times, this
indicates that your vehicle is not ready for
Inspection and Maintenance (I/M) testing.

See Catalytic Converter (page 185).

Stability Control and Traction Control
Indicator

E138639

Flashes during operation.

If it does not illuminate when you switch the
ignition on, or remains on when the engine
is running, this indicates a malfunction.  Have
your vehicle checked as soon as possible.

Note: The system automatically turns off if
there is a malfunction.

See Using Stability Control (page 208).   See
Using Traction Control (page 206).

Stability Control and Traction Control
Off Warning Lamp

E130458

It illuminates when you switch the
system off.

AUDIBLE WARNINGS AND
INDICATORS

Keyless Warning Alert

The horn will sound twice when you exit your
vehicle with the intelligent access key and
your vehicle is in RUN, indicating your vehicle
is still on.

Headlamps On Warning Chime

Sounds when you have left the headlamps
or parking lamps on and open the driver door
with the vehicle off.

Parking Brake On Warning Chime

Sounds when you have left the parking brake
on and drive your vehicle. If the warning
chime remains on after you have released
the parking brake, have the system checked
by your authorized dealer immediately.

111

Nautilus (CD9) Canada/United States of America, enUSA, Edition date: 201806, Third-Printing-

Instrument Cluster

GENERAL INFORMATION

WARNING: Driving while distracted

can result in loss of vehicle control, crash
and injury. We strongly recommend that
you use extreme caution when using any
device that may take your focus off the
road. Your primary responsibility is the safe
operation of your vehicle. We recommend
against the use of any hand-held device
while driving and encourage the use of
voice-operated systems when possible.
Make sure you are aware of all applicable
local laws that may affect the use of
electronic devices while driving.

You can control various systems on your
vehicle using the quick action menu (QAM)
buttons on the right-hand side of the steering
wheel. The information display provides the
corresponding information.

Note: Some options may appear slightly
different or not at all if the items are optional.

Note: Some MyKey menu options only
appear if MyKey is enabled and at least one
MyKey is programmed.

E204495

This icon gives you the ability to
switch a feature on or off. A check
in the box indicates the feature is

on, and unchecked indicates the feature is
off.

112

Nautilus (CD9) Canada/United States of America, enUSA, Edition date: 201806, Third-Printing-

Information Displays

Information Display Controls

E247519

Back Button.

A

Toggle Up.

B

OK Button.

C

Toggle Down.

D

Phone QAM Buttons.

E

Audio QAM Button.

F

Navigation QAM Button.

G

Settings QAM Button.

H

Display QAM Button.

I

Note: The NAV button is replaced with a
compass button on vehicles without
navigation.

•

Press one of the QAM buttons to enter a
menu.

•

Toggle (B) and (D) to scroll through and
highlight the options within a menu.

•

Press (C) to enter a sub-menu.

•

Press (A) to exit a menu.

•

Press the open menu's QAM button at
any time to close the menu (escape
button).

•

Press (C) to choose and confirm settings
or messages.

113

Nautilus (CD9) Canada/United States of America, enUSA, Edition date: 201806, Third-Printing-

Information Displays

Settings

Settings

Traction Control

Enter the submenu and select your setting

Handling in D

Drive Control

Handling in S

Performance in S

Enter the submenu and select your setting

Steering in D

Adaptive Steering

Steering in S

System

Blindspot

Driver Assistance

Cross Traffic Alert

Enter the submenu and select your setting

Cruise Control

Driver Alert

Enter the submenu and select your setting

Mode

Lane Keeping System

Intensity

Sensitivity

Alert Sensitivity

Pre-Collision

114

Nautilus (CD9) Canada/United States of America, enUSA, Edition date: 201806, Third-Printing-

Information Displays

Settings

Distance Indication

Active Braking

Evasive Steering

Rear Park Aid

Trailer Sway

Speedometer km/h

Speedometer MPH

Enter the submenu and select your setting

Lighting

Vehicle

Follow onscreen directions to confirm or modify your settings.

Oil Life Reset

Enter the submenu and select your setting

Wipers

Alarm

Auto Engine Off

Easy Entry/Exit

Enter the submenu and select your setting

Locks

Mirrors

Neutral Tow

115

Nautilus (CD9) Canada/United States of America, enUSA, Edition date: 201806, Third-Printing-

Information Displays

Settings

Power Liftgate

Remote Start

Silent Mode

Enter the submenu and select your setting

Tire Mobility Kit

Follow onscreen directions to confirm or modify your settings.

Tire Monitor

Enter the submenu and select your setting

Windows

Follow onscreen directions to confirm or modify your settings.

MyKey Status

MyKey

Create MyKey

Enter the submenu and select your setting

911 Assist

Do Not Disturb

Traction Control

Max Speed

Speed Minder

Volume Limiter

Follow onscreen directions to confirm or modify your settings.

Clear MyKeys

116

Nautilus (CD9) Canada/United States of America, enUSA, Edition date: 201806, Third-Printing-

Information Displays

Display

Display

Enter the submenu and select your setting

Gauges

No Content

Info/Trip/Fuel

Trip 1

Trip 2

Fuel Economy

Eco Behavior

Auto StartStop

Tire Pressure

Power Distribution

Seatbelts

Enter the submenu and select your setting

Distance

Display Setup

Temperature

117

Nautilus (CD9) Canada/United States of America, enUSA, Edition date: 201806, Third-Printing-

Information Displays

Display

Tire Pressure

Language

•

Trip 1 - Displays distance traveled, average fuel economy, and time spent for trip. Press and hold OK to reset.
•

Trip 2 information is the same as Trip 1.

•

Fuel Economy - Displays instantaneous and average fuel economy.

•

Eco Behavior - Displays information about your Acceleration, Deceleration and speed.

•

Auto StartStop - Displays engine information.

•

Tire Pressure - Displays a graphic of current vehicle tire pressures.

•

Power Distribution (if equipped) - Displays a graphic of the power distribution between the front and rear wheels.

•

Seatbelts - Displays the buckle status for the rear seats.

Phone

See General Information (page 415).

Audio

See General Information (page 415).

Navigation

 (If Equipped)

See General Information (page 415).

INFORMATION MESSAGES

Note:  Depending on your vehicle options
and instrument cluster type, not all of these
messages may be available and certain
messages may be abbreviated or shortened.

E222314

118

Nautilus (CD9) Canada/United States of America, enUSA, Edition date: 201806, Third-Printing-

Information Displays
