Note:  If you enter your entry code too fast
on the keypad, the unlock function may not
work.  Enter your entry code again more
slowly.

E138637

You can use the keypad to do the following:
•

Lock or unlock the doors.

•

Program and erase user codes.

•

Arm and disarm the anti-theft alarm.

You can operate the keypad with the
factory-set five-digit entry code.  The code
is on the owner's instruction wallet card in the
glove box and is available from an authorized
dealer.  You can also program up to five of
your own five-digit personal entry codes.

Programming a Personal Entry Code

1. Enter the factory-set five-digit code.

2. Press 1·2 on the keypad within five

seconds.

3. Enter your personal five-digit code.  You

must do this within five seconds of
completing step 2.

4. Press 1·2 on the keypad to save personal

code 1.

The doors lock then unlock to confirm that
programming was successful.

To program additional personal entry codes,
repeat steps 1 through 3, then for step 4:
•

Press 3·4 to save personal code 2.

•

Press 5·6 to save personal code 3.

•

Press 7·8 to save personal code 4.

•

Press 9·0 to save personal code 5.

For vehicles with SYNC 3, you can also
program the system with a personal entry
code.  See Settings (page 481).

Hints:
•

Do not set a code that uses five of the
same number.

•

Do not use five numbers in sequential
order.

•

The factory-set code works even if you
have set your own personal code.

Erasing a Personal Code

1. Enter the factory-set five-digit code.

2. Press and release 1·2 on the keypad

within five seconds.

3. Press and hold 1·2 for two seconds. You

must do this within five seconds of
completing Step 2.

All personal codes erase and only the
factory-set five-digit code works.

71

Nautilus (CD9) Canada/United States of America, enUSA, Edition date: 201806, Third-Printing-

Doors and Locks

Anti-Scan Feature

The keypad goes into an anti-scan mode if
you enter the wrong code seven times.  This
mode turns off the keypad for one minute
and the keypad lamp flashes.

The anti-scan feature turns off after:
•

One minute of keypad inactivity.

•

You press the unlock button on the
remote control.

•

You switch the ignition on.

•

You unlock your vehicle using intelligent
access.

Locking and Unlocking the Doors

Locking All Doors

Press and hold 7·8 and 9·0 simultaneously
with the driver door closed. You do not need
to enter the keypad code first.

Unlocking the Driver Door

Enter the factory-set or your personal
five-digit code.  You must press each number
within five seconds of each other.  The
interior lamps illuminate.

Note: All doors unlock if you switch on the
all-door unlocking mode.  See Locking and
Unlocking (page 66).

Unlocking All Doors

Enter the factory-set or your personal
five-digit code, then press 3·4 within five
seconds.

Displaying the Factory-Set Code

Note: You need to have two programmed
intelligent access keys for this procedure.

E203693

1

1. Open the floor console storage

compartment lid.

E203694

2

2. With the buttons facing up and the unlock

button facing the front of your vehicle,
place the first intelligent access key onto
the back up slot inside the center
console.

3. Press the push button ignition switch

once and wait a few seconds.

4. Press the push button ignition switch

again and remove the key.

72

Nautilus (CD9) Canada/United States of America, enUSA, Edition date: 201806, Third-Printing-

Doors and Locks

5. Place the second programmed key onto

the backup slot, then press the push
button ignition switch.

The factory-set code appears in the
information display for a few seconds.

Note: The code may not display until after
any other warning messages first display.

73

Nautilus (CD9) Canada/United States of America, enUSA, Edition date: 201806, Third-Printing-

Doors and Locks

POWER LIFTGATE

WARNING: It is extremely dangerous

to ride in a cargo area, inside or outside of
a vehicle. In a crash, people riding in these
areas are more likely to be seriously
injured or killed. Do not allow people to
ride in any area of your vehicle that is not
equipped with seats and seatbelts. Make
sure everyone in your vehicle is in a seat
and properly using a seatbelt. Failure to
follow this warning could result in serious
personal injury or death.

WARNING: Make sure that you fully

close the liftgate to prevent exhaust fumes
from entering your vehicle. If you are
unable to fully close the liftgate, open the
air vents or the windows to allow fresh air
to enter your vehicle. Failure to follow this
instruction could result in personal injury
or death.

WARNING: Keep keys out of reach

of children. Do not allow children to
operate or play near an open or moving
power liftgate. You should supervise the
operation of the power liftgate at all times.

Note:  Make sure that you close the liftgate
before operating or moving your vehicle,
especially in an enclosure, like a garage or
a parking structure.  This could damage the
liftgate and its components.

Note:  Do not hang anything, for example a
bike rack, from the glass or liftgate.  This
could damage the liftgate and its
components.

The liftgate only operates with the
transmission in park (P).

Three warning tones sound as the liftgate
begins to power close. If there is a problem
with the open or close request, one of the
following may occur:
•

A tone sounds if the ignition is on and
the transmission is not in park (P).

•

A tone sounds if the battery voltage is
below the minimum operating voltage.

•

A tone sounds if the liftgate is not fully
closed and your vehicle is moving at a
speed greater than 3 mph (5 km/h).

If the liftgate starts to close after it has fully
opened, this indicates there may be
excessive weight on the liftgate or a possible
strut failure. A repetitive tone sounds and
the liftgate closes under control. A repetitive
tone sounds and the liftgate closes under
control. If the liftgate continues to close after
opening, have the system checked by an
authorized dealer.

74

Nautilus (CD9) Canada/United States of America, enUSA, Edition date: 201806, Third-Printing-

Liftgate

Opening and Closing the Liftgate

WARNING: Make sure all persons

are clear of the power liftgate area before
using the power liftgate control.

Note: Make sure the area behind your
vehicle is free from obstruction and that
there is enough room for you to operate the
liftgate. Objects too close to your vehicle, for
example a wall, garage door or another
vehicle may come into contact with the
moving liftgate. This could damage the
liftgate and its components.

Note: Be careful when opening or closing
the liftgate in a garage or other enclosed
area to avoid damaging the liftgate.

Note:  Do not leave the liftgate open while
driving. This could damage the liftgate and
its components.

From the Instrument Panel

E138633

With the transmission in park (P),
press the button on the instrument
panel.

Remote Control

E138630

Press the button twice within three
seconds.

Outside Control Button

Opening the Liftgate

1. Unlock the liftgate with the remote

control or power door unlock control.  If
a passive key is within 3 ft (1 m) of the
liftgate, the liftgate unlocks when you
press the liftgate release button.

E201985

2

2. Press the liftgate release button.

75

Nautilus (CD9) Canada/United States of America, enUSA, Edition date: 201806, Third-Printing-

Liftgate

Note: Allow the power system to open the
liftgate. Instructionly pushing or pulling the
liftgate may activate the system’s obstacle
detection feature and stop the power
operation or reverse its direction, replicate
a strut failure, or damage mechanical
components.

Closing the Liftgate

WARNING: Keep clear of the liftgate

when using the rear switch.

E138636

Press and release the liftgate control button.

Stopping the Liftgate Movement

Note:  Do not apply sudden excessive force
to the liftgate while it is in motion.  This could
damage the power liftgate and its
components.

You can stop the liftgate movement by doing
any of the following:
•

Pressing the liftgate control button.

•

Pressing the liftgate button on the remote
control twice.

•

Pressing the liftgate button on the
instrument panel.

•

Moving your foot under and away from
the center rear bumper in a single-kick
motion.

*

*

This method only works for vehicles with the

hands-free liftgate feature.

Setting the Liftgate Open Height

1. Open the liftgate.

2. Stop the liftgate movement by pressing

the control button on the liftgate when it
reaches the desired height.

Note: Once the liftgate has stopped moving,
you can also instructionly move it to the desired
height.

3. Press and hold the liftgate control button

on the liftgate until a tone sounds,
indicating programming is complete.

Note: You can only use the liftgate control
button to program the height.

Note: You cannot program the height if the
liftgate position is too low.

The new open liftgate height is recalled
when the power liftgate is opened.  To
change the programmed height, repeat the
above procedure.  Once you open the power
liftgate, you can instructionly move it to a
different height.

Note: The system recalls the new
programmed height, even if you disconnect
the battery.

When operating the power liftgate after you
have programmed a lower height than fully
open, you can fully open the liftgate by
instructionly pushing it upward to the maximum
open position.

76

Nautilus (CD9) Canada/United States of America, enUSA, Edition date: 201806, Third-Printing-

Liftgate

Obstacle Detection

When Closing

The system stops when it detects an
obstacle.  A tone sounds and the system
reverses to open.  Once you remove the
obstacle, you can power close the liftgate.

Note: Entering your vehicle while the liftgate
is closing can cause your vehicle to bounce
and activate obstacle detection. To prevent
this, let the power liftgate close completely
before you enter your vehicle. Before driving
off, check the instrument cluster for a liftgate
or door ajar message or warning indicator.
Failure to do this could result in
unintentionally leaving the liftgate open
while driving.

When Opening

The system stops when it detects an
obstacle and a tone sounds.  Once you
remove the obstacle, you can continue to
operate the liftgate.

Switching the Power Liftgate On or Off

You can switch the power liftgate on or off
through the vehicle settings in your
information display.

When switched off, the liftgate only unlatches
and will not power open or close.

Hands-Free Feature

 (If Equipped)

Make sure you have an intelligent access
transmitter within 3 ft (1 m) of the liftgate.

E201983

2

1

1. Move your foot under and away from the

rear bumper detection area in a
single-kick motion.  Do not move your
foot sideways or the sensors may not
detect the motion.  Kick between the
exhaust and hitch if your vehicle has a
hitch.

2. The liftgate will power open or close.

Note: Allow the power system to open the
liftgate. Instructionly pushing or pulling the
liftgate may activate the system’s obstacle
detection feature and stop the power
operation or reverse its direction, replicate
a strut failure, or damage mechanical
components.

Note:  Splashing water may cause the
hands-free liftgate to open.  Keep the
intelligent access key away from the rear
bumper detection area when washing your
vehicle.

77

Nautilus (CD9) Canada/United States of America, enUSA, Edition date: 201806, Third-Printing-

Liftgate

PASSIVE ANTI-THEFT SYSTEM

Note:  The system is not compatible with
non-Ford aftermarket remote start systems.
Use of these systems may result in engine
starting problems and a loss of security
protection.

Note:  Metallic objects, electronic devices
or a second coded key on the same key
chain may result in vehicle starting problems,
especially if they are too close to the key
when starting your vehicle.  Prevent these
objects from touching the coded key when
starting your vehicle.  Switch the ignition off,
move all objects on the key chain away from
the coded key and restart your vehicle if a
problem occurs.

Note:  Do not leave a duplicate coded key
in your vehicle.  Always take your keys and
lock all doors when leaving your vehicle.

SecuriLock™

The system helps prevent the engine from
starting unless you use a coded key
programmed to your vehicle.  Using the
wrong key may prevent your vehicle from
starting.  A message may appear in the
information display.

If you are unable to start your vehicle with a
coded key, it is not operating correctly.  A
message may appear in the information
display.

Automatic Arming

The system arms when you switch the
ignition off.

Automatic Disarming

The system disarms when you switch the
ignition on with a coded key.

Replacement Keys

Note: Your vehicle comes with two keys.

The intelligent access key functions as a
programmed key that operates the driver
door lock and turns on the intelligent access
with push button start system, as well as a
remote control.

If your coded keys are lost or stolen and you
do not have an extra coded key, you need
to erase the key codes from your vehicle and
program new coded keys.  Contact an
authorized dealer.

Store a spare intelligent access key away
from your vehicle in a safe place.  You can
purchase replacement keys or remote
controls from an authorized dealer.

Programming a Spare Intelligent Access
Key

Note: You can program a maximum of four
intelligent access keys to your vehicle.

You must have two previously programmed
intelligent access keys inside your vehicle
and the new unprogrammed intelligent
access keys readily accessible. Contact an
authorized dealer to have the spare key
programmed if two previously programmed
keys are not available.

78

Nautilus (CD9) Canada/United States of America, enUSA, Edition date: 201806, Third-Printing-

Security

Make sure that the ignition is switched off
before beginning this procedure.  Make sure
that you close all the doors before beginning
and that they remain closed throughout the
procedure.  Carry out all steps within 30
seconds of starting the sequence.  Stop and
wait for at least one minute before starting
again if you carry out any steps out of
sequence.

Read and understand the entire procedure
before you begin.

E203693

1

1. Open the floor console storage

compartment lid.

E203694

2

2. With the buttons facing up and the unlock

button facing the front of your vehicle,
place the first intelligent access key onto
the back up slot inside the center
console.

3. Press the push button ignition switch.

4. Wait five seconds and then press the

push button ignition switch again.

5. Remove the intelligent access key.

6. Within 10 seconds, place a second

programmed intelligent access key onto
the backup slot and press the push
button ignition switch.

7. Wait five seconds and then press the

push button ignition switch again.

8. Remove the intelligent access key.

9. Wait five seconds, then place the

unprogrammed intelligent access key
onto the backup slot and press the push
button ignition switch.

10.

Once complete, the information cluster
displays a message confirming that you
have programed the key.

If programming was unsuccessful, wait 10
seconds and repeat the procedure. If it still
does not work, take your vehicle to an
authorized dealer.

79

Nautilus (CD9) Canada/United States of America, enUSA, Edition date: 201806, Third-Printing-

Security

ANTI-THEFT ALARM

The system will warn you of an unauthorized
entry to your vehicle. It will be triggered if
any door, the luggage compartment or the
hood is opened without using the key,
remote control or keyless entry keypad.

The direction indicators will flash and the
horn will sound if unauthorized entry is
attempted while the alarm is armed.

Take all remote controls to an authorized
dealer if there is any potential alarm problem
with your vehicle.

Arming the Alarm

The alarm is ready to arm when there is not
a key in your vehicle. Electronically lock your
vehicle to arm the alarm.

Disarming the Alarm

Disarm the alarm by any of the following
actions:

•

Unlock the doors or luggage
compartment with the remote control or
keyless entry keypad.

•

Switch your vehicle on or start your
vehicle.

•

Use a key in the driver door to unlock
your vehicle, then switch your vehicle on
within 12 seconds.

Note: Pressing the panic button on the
remote control will stop the horn and signal
indicators, but will not disarm the system.

80

Nautilus (CD9) Canada/United States of America, enUSA, Edition date: 201806, Third-Printing-

Security

ADJUSTING THE STEERING WHEEL
- VEHICLES WITH: POWER
ADJUSTABLE STEERING COLUMN

WARNING: Do not adjust the

steering wheel when your vehicle is
moving.

Note:  Make sure that you are sitting in the
correct position.   See Sitting in the Correct
Position (page 142).

E261582

Use the control on the side of the steering
column to adjust the position.

To adjust:
•

Tilt: Press the top or bottom of the
control.

•

Telescope: Press the front or rear of the
control.

End of Travel Position

The steering column sets a stopping position
just short of the end of the column position
to prevent damage to the steering column.
A new stopping position sets if the steering
column encounters an object when tilting or
telescoping.

To reset the steering column to its normal
stopping position:

1. Confirm there is nothing obstructing the

motion of the steering column.

2. Press and hold the steering column

control until the steering column stops
moving.

3. Press the steering column control again.

Note: The steering column may begin to
move again.

4. When the steering column stops,

continue holding the control for a few
seconds.

5. Repeat for each direction as necessary.

81

Nautilus (CD9) Canada/United States of America, enUSA, Edition date: 201806, Third-Printing-

Steering Wheel

A new stopping position sets.  The next time
you tilt or telescope the steering column, it
stops just short of the end of the column
position.

Memory Feature

 (If Equipped)

You can save and recall the steering column
position with the memory function.   See
General Information (page 112).

Pressing the adjustment control during a
memory recall cancels the operation.

Easy Entry and Exit Feature

The column moves up when you switch the
ignition off.  Switch the ignition on to return
the system to its previous settings.  You can
switch this feature on or off in the information
display.   See Information Displays (page
112).

Note:  If you press any adjustment or
memory button when in easy exit mode, the
system cancels the operation.

Note: Depending on your vehicle, the column
may move up and in.

ADJUSTING THE STEERING WHEEL
- VEHICLES WITH: MANUAL
ADJUSTABLE STEERING COLUMN

WARNING: Do not adjust the

steering wheel when your vehicle is
moving.

Note: Make sure that you are sitting in the
correct position.  See Sitting in the Correct
Position (page 142).

E259854

1. Unlock the steering column.

2. Adjust the steering wheel to the desired

position.

E259855

3. Lock the steering column.

AUDIO CONTROL

You can operate the following functions with
the control:

82

Nautilus (CD9) Canada/United States of America, enUSA, Edition date: 201806, Third-Printing-

Steering Wheel

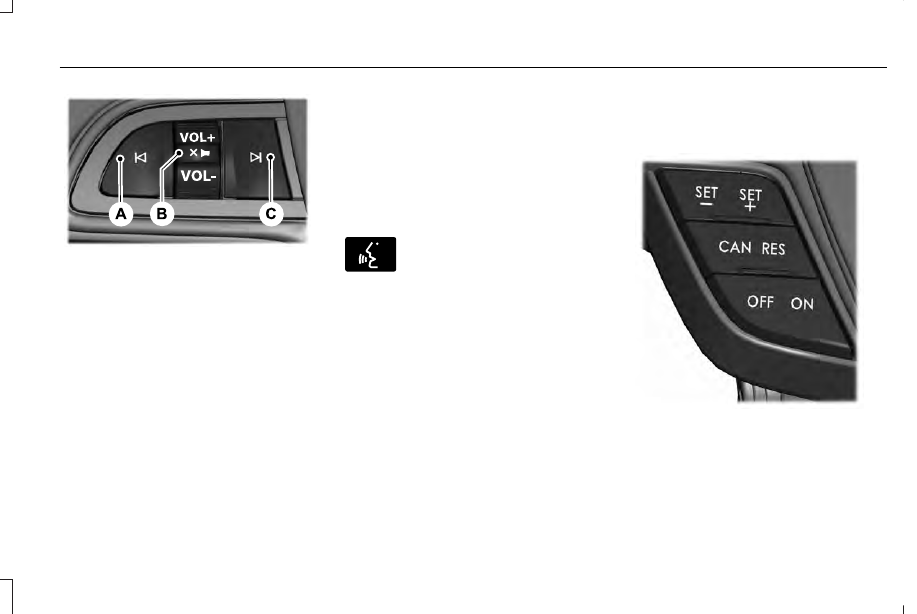

E221073

Seek down or previous.

A

Volume up or down and mute.

B

Seek up or next.

C

Seek, Next or Previous

Press the seek button to:
•

Tune the radio to the next or previous
stored preset.

•

Play the next or the previous track.

Press and hold the seek button to:
•

Tune the radio to the next station up or
down the frequency band.

•

Seek through a track.

VOICE CONTROL

The controls are on the steering wheel.

E142599

Press and release to activate voice
recognition.

CRUISE CONTROL

Cruise Control

E221071

See Using Cruise Control (page 229).

83

Nautilus (CD9) Canada/United States of America, enUSA, Edition date: 201806, Third-Printing-

Steering Wheel

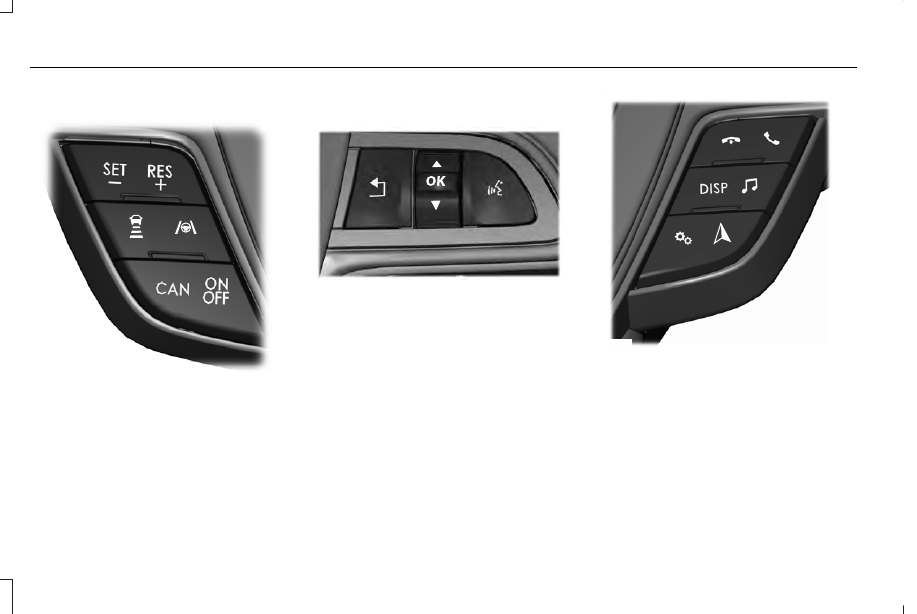

Adaptive Cruise Control

E266201

See Using Adaptive Cruise Control (page
230).

INFORMATION DISPLAY CONTROL

E221074

E251877

See Information Displays (page 112).

Note: The HUD button replaces the DISP
button on vehicles that have a head up
display (HUD).

84

Nautilus (CD9) Canada/United States of America, enUSA, Edition date: 201806, Third-Printing-

Steering Wheel

HEATED STEERING WHEEL

 (IF

EQUIPPED)

Switch the heated steering wheel on and off
using the touchscreen.

Touch the button to switch the
heated steering wheel on and off.

Note: You can use the heated steering
wheel only when the engine is running.

Note: The system uses a sensor and is
designed to control the temperature of the
steering wheel and to prevent it from
overheating.

Note: In warm temperatures, the steering
wheel quickly reaches its maximum
temperature and the system reduces the
current to the heating element. This could
cause you to think that the system has
stopped working but it has not. This is
normal.

85

Nautilus (CD9) Canada/United States of America, enUSA, Edition date: 201806, Third-Printing-

Steering Wheel

WINDSHIELD WIPERS

E270969

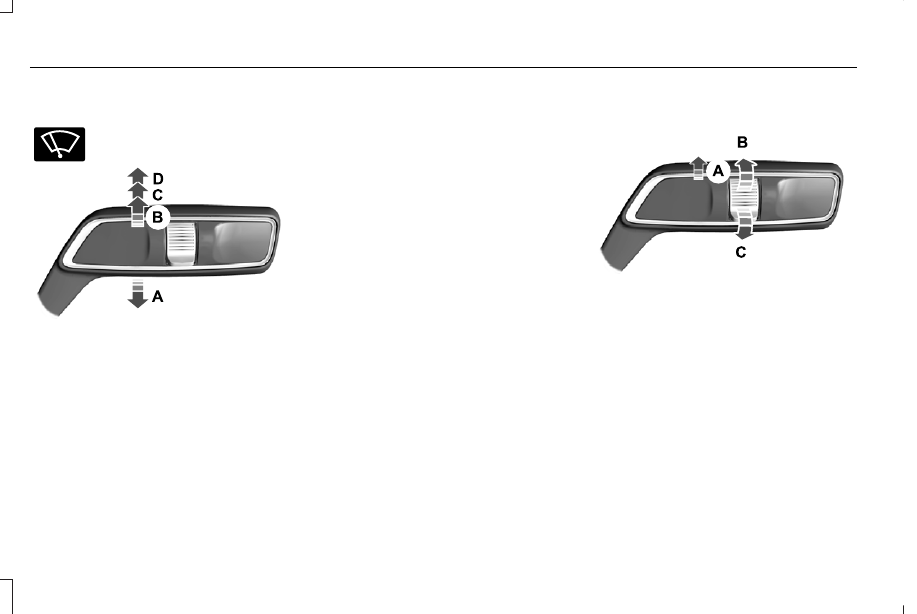

Push the lever up or down to
operate the windshield wiper.

E269410

Single wipe.

A

Intermittent wipe.

B

Normal wipe.

C

High-speed wipe.

D

Note: Fully defrost the windshield before you
switch the windshield wipers on.

Note: Make sure that you switch the
windshield wipers off before entering a car
wash.

Note:  If streaks or smears appear on the
windshield, clean the windshield and the
wiper blades.  If that does not resolve the
issue, install new wiper blades.

Note:  Do not operate the wipers on a dry
windshield.  This may scratch the glass,
damage the wiper blades or cause the wiper
motor to burn out.  Always use the
windshield washers before wiping a dry
windshield.

Intermittent Wipe

E269411

Intermittent wipe

A

Shortest wipe interval.

B

Longest wipe interval.

C

Use the rotary control to adjust the
intermittent wipe interval.

Speed Dependent Wipers

When your vehicle speed increases, the
interval between wipes decreases.

86

Nautilus (CD9) Canada/United States of America, enUSA, Edition date: 201806, Third-Printing-

Wipers and Washers
