19. Anti-Lock Brake (ABS) Light

This light monitors the Anti-Lock Brake System
(ABS). The light will turn on when the ignition
is cycled to the ON/RUN position and may
stay on for as long as four seconds.

If the ABS light remains on or turns on while driving, it
indicates that the Anti-Lock portion of the brake system
is not functioning and that service is required. However,
the conventional brake system will continue to operate
normally if the BRAKE warning light is not on.

If the ABS light is on, the brake system should be serviced
as soon as possible to restore the benefits of Anti-Lock
brakes. If the ABS light does not turn on when the
ignition is cycled to the ON/RUN position, have the light
inspected by an authorized dealer.

20. Park/Headlight ON Indicator — If Equipped

This indicator will illuminate when the park
lights or headlights are turned on.

21. Electronic Stability Control (ESC) OFF Indicator
Light

This light indicates the Electronic Stability Con-
trol (ESC) is off.

UNDERSTANDING YOUR INSTRUMENT PANEL

155

DRIVER INFORMATION DISPLAY (DID)

The Driver Information Display (DID) features a driver-
interactive display that is located in the instrument
cluster.

This system allows the driver to select a variety of useful
information by pushing the switches mounted on the
steering wheel. The DID consists of the following:

• Tachometer
• MPH/KMH
• Vehicle Information
• Fuel Economy
• Trip A
• Trip B
• Audio
• Stored Messages
• Screen Setup
• Performance
• Diagnostics
• Hibernation

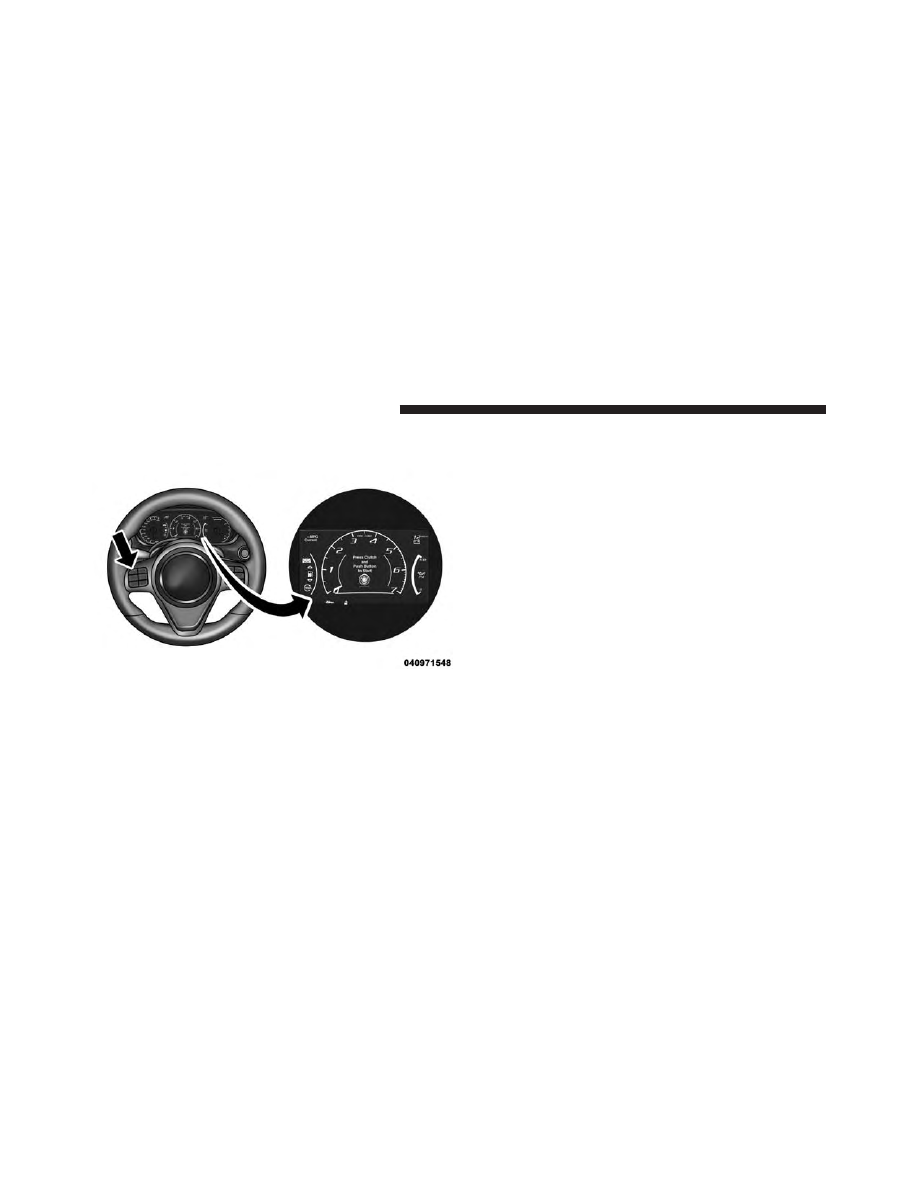

Driver Information Display (DID)

156

UNDERSTANDING YOUR INSTRUMENT PANEL

The system allows the driver to select information by
pushing the following buttons mounted on the steering
wheel:

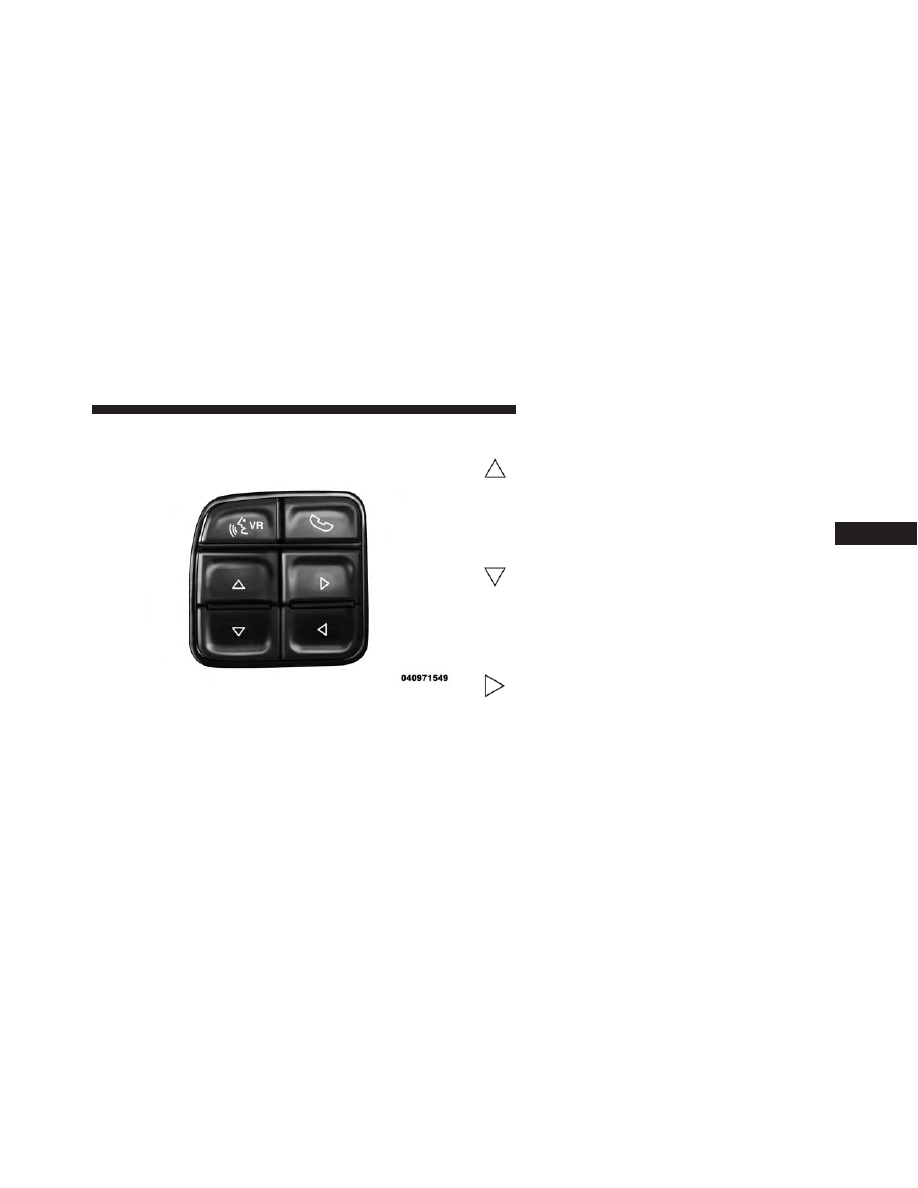

• UP Arrow Button

Push and release the UP arrow button to scroll
upward through the main menu and sub-
menus (Fuel Economy, Trip A, Trip B, Audio,
Stored Messages, Screen Set Up).

• DOWN Arrow Button

Push and release the DOWN arrow button to
scroll downward through the main menu and
submenus (Fuel Economy, Trip A, Trip B, Au-
dio, Stored Messages, Screen Set Up).

• RIGHT Arrow Button

Push and release the RIGHT arrow button to
access/select the information screens or sub-
menu screens of a main menu item. Push and
hold the RIGHT arrow button for two seconds

to reset displayed/selected features that can be reset.

DID Steering Wheels Controls

UNDERSTANDING YOUR INSTRUMENT PANEL

157

• LEFT Arrow Button

Push and release the LEFT arrow button to
return to the main menu from an info screen or
submenu item.

NOTE:

Pushing the LEFT arrow button will override the

DID “pop up” messages and return you to the menu
screen.

DID Display

DID Display

158

UNDERSTANDING YOUR INSTRUMENT PANEL

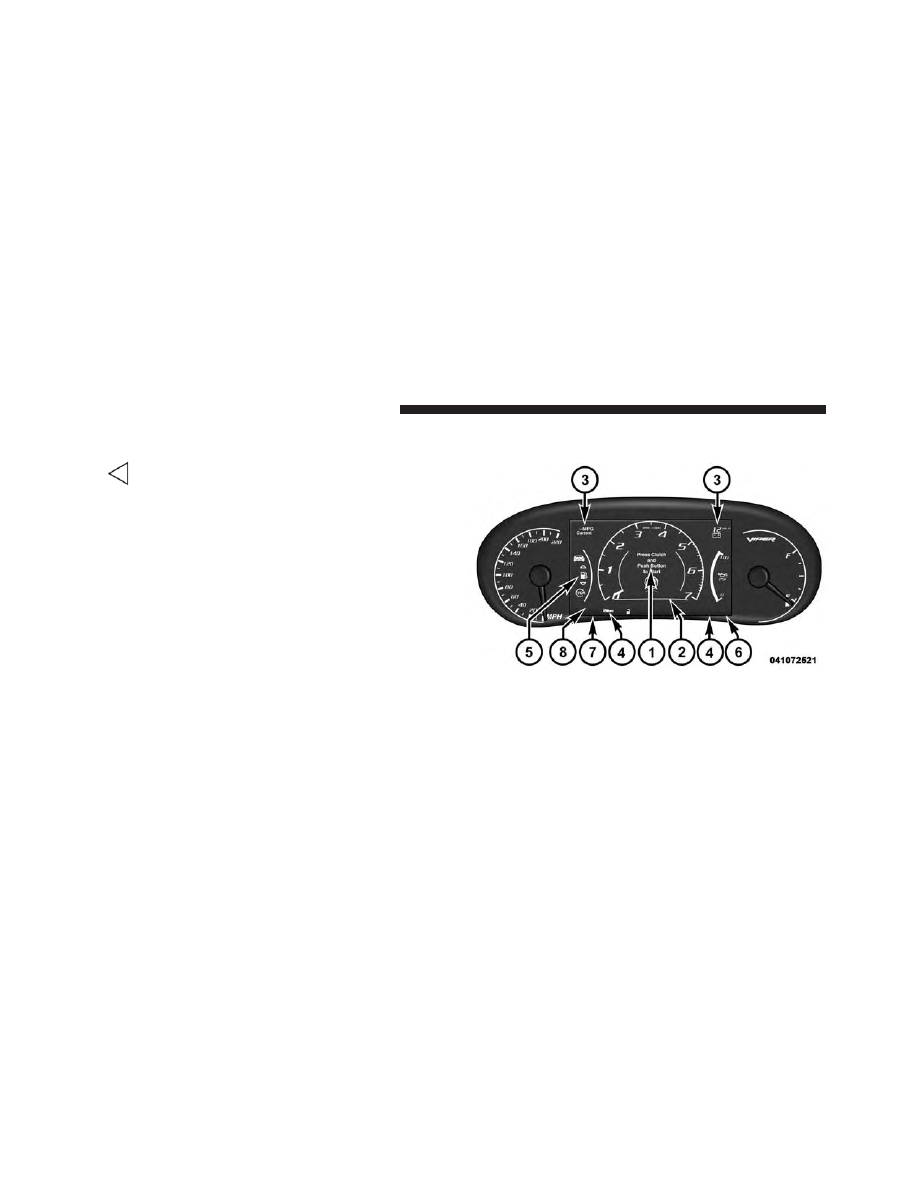

The DID display is located in the center portion of the
instrument cluster and consists of the following sections:

1. Main Screen — The inner ring of the display will

illuminate in grey under normal conditions, yellow for
non critical warnings, red for critical warnings, and
white for on demand information.

2. Audio / Phone Information and Sub-menu Informa-

tion — Whenever there are sub-menus available, the
position within the sub-menus is shown here.

3. Reconfigurable Telltales/Information

4. Telltales/Indicators

5. Selectable Information (Tach, Mph/Kmh, Vehicle Info,

Fuel Economy, Trip A, Trip B, Audio, Stored Messages,
Screen Setup, Performance, Diagnostics, Hibernation)

6. Suspension Status — The suspension status icon will

illuminate in this area. Refer to “Starting And Operat-
ing” for further information.

7. ESC Status — The ESC status icon will illuminate in

this area. Refer to “Starting And Operating” for fur-
ther information.

8. Launch Control status when launch control mode is

entered. Refer to “Starting And Operating” for further
information.

UNDERSTANDING YOUR INSTRUMENT PANEL

159

The main display area will normally display the main
menu or the screens of a selected feature of the main
menu. The main display area also displays “pop up”
messages that consist of approximately 60 possible warn-
ing or information messages. These pop up messages fall
into several categories:
• Five Second Stored Messages

When the appropriate conditions occur, this type of
message takes control of the main display area for five
seconds and then returns to the previous screen. Most of
the messages of this type are then stored (as long as the
condition that activated it remains active) and can be
reviewed from the “Messages” main menu item. As long
as there is a stored message, an “i” will be displayed in
the DID’s compass/outside temp line. Examples of this
message type are “Right Front Turn Signal Lamp Out”
and “Low Tire Pressure.”

NOTE:

Pushing the LEFT arrow button will override the

DID “pop up” messages and return you to the menu
screen.
• Unstored Messages

This message type is displayed indefinitely or until the
condition that activated the message is cleared. Examples
of this message type are “Turn Signal On” (if a turn signal
is left on) and “Lights On” (if driver leaves the vehicle).
• Five Second Unstored Messages

When the appropriate conditions occur, this type of
message takes control of the main display area for five
seconds and then returns to the previous screen. An
example of this message type is “Automatic High Beams
On.”

160

UNDERSTANDING YOUR INSTRUMENT PANEL

Driver Information Display (DID) Messages

• Front Seat Belts Unbuckled
• Driver Seat Belt Unbuckled
• Passenger Seat Belt Unbuckled
• Key Fob Battery Low
• Service Air Bag System
• ESC Status (ESC OFF, ESC ON, ESC SPORT, ESC

TRACK, RAIN MODE) — Refer to “Starting And
Operating” for further information.

• Oil Pressure Low
• Fuel Low
• Service Antilock Brake System
• Service Electronic Throttle Control
• Cruise Off

• Cruise Ready
• Cruise Set To XXX MPH
• Tire Pressure Screen With Low Tire Pressure Warnings
• Service Tire Pressure System
• Parking Brake Engaged
• Brake Fluid Low
• Service Electronic Braking System
• Engine Temperature Hot
• Battery Voltage Low
• Service Electronic Throttle Control
• Lights On
• Right Turn Signal Light Out
• Left Turn Signal Light Out

UNDERSTANDING YOUR INSTRUMENT PANEL

161

• Turn Signal On
• Service Air Bag System
• Service Air Bag Warning Light
• Driver Seat Belt Unbuckled
• Passenger Seat Belt Unbuckled
• Front Seat Belts Unbuckled
• Door Open
• Doors Open
• Engage Park Brake to Prevent Rolling

DID Yellow Telltales

This area will show amber caution telltales. These tell-
tales include:
• Low Fuel Telltale

When the fuel level reaches approximately 3.0 gal
(11.0 L), this light will turn on, and remain on until

fuel is added.
• Electronic Speed Control Ready

This light will turn on when the electronic
speed control is ON. Refer to “Electronic Speed
Control” in “Understanding The Features Of
Your Vehicle” for further information.

162

UNDERSTANDING YOUR INSTRUMENT PANEL

DID Red Telltales

This area will show red telltales. These telltales include:
• Door Ajar

This light will turn on to indicate that one or
more doors may be ajar.

• Oil Pressure Warning Light

This telltale indicates low engine oil pressure. If

the light turns on while driving, stop the vehicle and shut
off the engine as soon as possible. The selectable gauge
will flash red for 3 seconds if the pressure is 10 psi or less.
The oil level should be checked under this condition.

Do not operate the vehicle until the cause is corrected.
This light does not show how much oil is in the engine.
The engine oil level must be checked under the hood.

The oil level should be maintained in the

⬙SAFE⬙ zone at

all times. Oil level below the

⬙SAFE⬙ zone can cause the

oil pressure warning lamp to illuminate under some
conditions and can cause engine damage.
• Charging System Light

This light shows the status of the electrical charg-
ing system. If the light stays on or comes on while

driving, turn off some of the vehicle’s non-essential
electrical devices or increase engine speed (if at idle). If
the charging system light remains on, it means that the
vehicle is experiencing a problem with the charging
system. Obtain SERVICE IMMEDIATELY. See an autho-
rized dealer.

Refer to “Jump Starting Procedures” in “What To Do In
Emergencies” if jump starting is required.

UNDERSTANDING YOUR INSTRUMENT PANEL

163

• Electronic Throttle Control (ETC) Light

This light informs you of a problem with the
Electronic Throttle Control (ETC) system. The
light will come on when the ignition is first
cycled ON and remain on briefly as a bulb

check. If the light does not come on during starting, have
the system checked by an authorized dealer.

If a problem is detected, the light will come on while the
engine is running. Cycle the ignition when the vehicle
has completely stopped and the shift lever is in Neutral,
with the Parking Brake applied. The light should turn off.

If the light remains lit with the engine running, your
vehicle will usually be drivable. However, see an autho-
rized dealer for service as soon as possible. If the light is
flashing when the engine is running, immediate service is
required. You may experience reduced performance, an
elevated/rough idle or engine stall, and your vehicle
may require towing.

• Engine Temperature Warning Light

This light warns of an overheated engine condi-
tion. As temperatures rise and the gauge ap-

proaches H, this indicator will illuminate, and a single
chime will sound after reaching a set threshold. Further
overheating will cause the temperature gauge to pass H,
the indicator will continuously flash, and a continuous
chime will occur until the engine is allowed to cool.

If the light turns on while driving, safely pull over and
stop the vehicle. If the A/C system is on, turn it off. Also,
shift the transmission into NEUTRAL and idle the ve-
hicle. If the temperature reading does not return to
normal, turn the engine off immediately and call for
service. Refer to “If Your Engine Overheats” in “What To
Do In Emergencies” for more information.

164

UNDERSTANDING YOUR INSTRUMENT PANEL

DID Green Telltales

• Electronic Speed Control SET

This telltale will illuminate green when the
electronic speed control is SET. Refer to “Elec-
tronic Speed Control” in “Understanding The
Features

Your

Vehicle”

for

further

information.

Driver Information Display (DID) Selectable Menu
Items

Push and release the UP or DOWN arrow buttons until
the desired Selectable Menu icon is highlighted in the
DID.

Tachometer

Push and release the UP or DOWN arrow
button until the Tachometer icon is highlighted
in the DID. Push and release the RIGHT arrow
button to change the display between full

tachometer or digital speedometer.

MPH To km/h

Push and release the UP or DOWN arrow
button until the MPH to km/h icon is high-
lighted in the DID. Push and release the OK
button to change the display between MPH
or km/h.

UNDERSTANDING YOUR INSTRUMENT PANEL

165

Vehicle Info (Customer Information Features)

Push and release the UP or DOWN arrow
button until the Vehicle Info icon is highlighted
in the DID. Push and release the RIGHT arrow
button to display the following information

sub-menus:

Tire Pressure

Push and release the UP or DOWN arrow button until
“Tire Pressure” is highlighted in the DID. Push and
release the RIGHT arrow button, and one of the follow-
ing will be displayed:

• If tire pressure is OK for all tires a vehicle ICON is

displayed with tire pressure values in each corner of
the ICON.

• If one or more tires have low pressure, the tire pressure

values in each corner of the ICON with the pressure
value of the low tire displayed in a different color than
the other tire pressure value.

• If the Tire Pressure system requires service, “Service

Tire Pressure System” is displayed.

Tire PSI is an information only function and cannot be
reset. Push and release the LEFT arrow button to return
to the main menu.

Refer to “Tire Pressure Monitoring System (TPMS)”
under “Starting and Operating” for further information.

Coolant Temperature

Push and release the UP or DOWN arrow button until
“Coolant Temperature” is highlighted in the DID. Push
and release the RIGHT arrow button, and the coolant
temperature will be displayed.

166

UNDERSTANDING YOUR INSTRUMENT PANEL

Oil Temperature

Push and release the UP or DOWN arrow button until
“Oil Temperature” is highlighted in the DID. Push and
release the RIGHT arrow button, and the oil temperature
will be displayed.

Engine Hours

Push and release the UP or DOWN arrow button until
“Engine Hours” is highlighted in the DID. Push and
release the RIGHT arrow button, and the oil temperature
will be displayed.

Intake Air Temp.

Push and release the UP or DOWN arrow button until
“Intake Air Temp.” is highlighted in the DID. Push and
release the RIGHT arrow button, and the intake air
temperature will be displayed.

Current Power

Push and release the UP or DOWN arrow button until
“Current Power” is highlighted in the DID. Push and
release the RIGHT arrow button, and the current power
will be displayed.

Current Torque

Push and release the UP or DOWN arrow button until
“Current Torque” is highlighted in the DID. Push and
release the RIGHT arrow button, and the current torque
will be displayed.

UNDERSTANDING YOUR INSTRUMENT PANEL

167

SRT Performance

WARNING!

Measurement of vehicle statistics with the Perfor-
mance Features is intended for off-highway or off-
road use only and should not be done on any public
roadways. It is recommended that these features be
used in a controlled environment and within the
limits of the law. The capabilities of the vehicle as
measured by the performance pages must never be
exploited in a reckless or dangerous manner, which
can jeopardize the user’s safety or the safety of
others. Only a safe, attentive, and skillful driver can
prevent accidents.

Push and release the UP or DOWN arrow button until
the SRT icon is highlighted in the DID. Push and release
the RIGHT arrow button, and 0–60 MPH Duration will be
displayed. Push and release the LEFT and RIGHT arrow
button to scroll through the following information sub-
menus:

0–60 Time

Push and release the LEFT and RIGHT arrow button
until the last 0–60 MPH information is displayed.

Braking Distance

Push and release the LEFT and RIGHT arrow button
until the last Braking Distance information is displayed.

1/4 Mile Elapsed Time

Push and release the LEFT and RIGHT arrow button
until the last 1/4 Mile Top Speed & Duration information
is displayed.

168

UNDERSTANDING YOUR INSTRUMENT PANEL

1/8 Mile Elapsed Time

Push and release the LEFT and RIGHT arrow button
until the last 1/8 Mile Top Speed & Duration information
is displayed.

G-Force Instant

Push and release the LEFT and RIGHT arrow button
until the Current G-Forces are displayed.

G-Force Peak

Push and release the LEFT and RIGHT arrow button
until the Peak G-Forces are displayed.

Fuel Economy

Push and release the UP or DOWN arrow
button until the Fuel Economy icon is high-
lighted and the following will display:

Range To Empty (RTE)

Average Fuel Economy/Miles Per Gallon (MPG Bar-
graph)

Current Miles Per Gallon (MPG)

Trip A

Push and release the UP or DOWN arrow
button until the Trip A icon is highlighted in
the DID. The Trip A information will display
the following:

• Distance
• Average Speed
• Elapsed Time

Hold the RIGHT arrow button to reset all the informa-
tion.

UNDERSTANDING YOUR INSTRUMENT PANEL

169

Trip B — If Equipped

Push and release Up or Down arrow button
until the Trip B icon is highlighted in the DID.
The Trip B information will display the
following:

• Distance
• Average Speed
• Elapsed Time

Hold the RIGHT arrow button to reset all the informa-
tion.

Audio

Push and release the UP or DOWN arrow
button until the Audio display icon is high-
lighted in the DID. Push and release the RIGHT
arrow button to display the active source.

Stored Messages

Push and release the UP or DOWN arrow
button until the Messages Menu item is high-
lighted in the DID. This feature shows the
number of stored warning messages. Pushing

the RIGHT arrow button will allow you to see what the
stored messages are.

170

UNDERSTANDING YOUR INSTRUMENT PANEL

Dodge Viper SRT (2015 year). Instruction - part 10
