Dodge Viper SRT (2015 year). Instruction

2. Place the hand-held transmitter 1 to 3 inches (3 to 8

cm) away from the HomeLink® button you wish to
program while keeping the HomeLink® indicator
light in view.

3. Push and hold the HomeLink® button you want to

program while you push and hold the hand-held
transmitter button.

4. Continue to hold both buttons and observe the indi-

cator light. The HomeLink® indicator will flash slowly
and then rapidly after HomeLink® has received the
frequency signal from the hand-held transmitter. Re-
lease both buttons after the indicator light changes
from slow to rapid.

5. At the garage door opener motor (in the garage),

locate the “LEARN” or “TRAINING” button. This can
usually be found where the hanging antenna wire is
attached to the garage door opener/device motor.

Firmly push and release the “LEARN” or “TRAIN-
ING” button. On some garage door openers/devices
there may be a light that blinks when the garage door
opener/device is in the LEARN/TRAIN mode.

NOTE:

You have 30 seconds in which to initiate the next

step after the LEARN button has been pushed.

6. Return to the vehicle and push the programmed

HomeLink® button twice (holding the button for two
seconds each time). If the garage door opener/device
activates, programming is complete.

NOTE:

If the garage door opener/device does not acti-

vate, push the button a third time (for two seconds) to
complete the training.

To program the remaining two HomeLink® buttons,
repeat each step for each remaining button. DO NOT
erase the channels.

UNDERSTANDING THE FEATURES OF YOUR VEHICLE

123

Reprogramming A Single HomeLink® Button
(Rolling Code)

To reprogram a channel that has been previously trained,
follow these steps:

1. Cycle the ignition to the ON/RUN position.

2. Push and hold the desired HomeLink® button until

the indicator light begins to flash after 20 seconds. Do
not release the button.

3. Without releasing the button proceed with “Program-

ming A Rolling Code” step 2 and follow all remaining
steps.

Programming A Non-Rolling Code

For programming Garage Door Openers manufactured
before 1995.

1. Cycle the ignition to the ON/RUN position.

2. Place the hand-held transmitter 1 to 3 inches (3 to 8

cm) away from the HomeLink® button you would like
to program while keeping the HomeLink® indicator
light in view.

3. Simultaneously push and hold both the HomeLink®

button you want to program and the hand-held trans-
mitter button.

4. Continue to hold both buttons and observe the indi-

cator light. HomeLink® indicator will flash slowly
and then rapidly after HomeLink® has received the
frequency signal from the hand-held transmitter. Re-
lease both buttons after the indicator light changes
from slow to rapid.

5. Push and hold the programmed HomeLink® button

and observe the indicator light.

• If the indicator light stays on constantly, program-

ming is complete and the garage door/device should
activate when the HomeLink® button is pressed.

124

UNDERSTANDING THE FEATURES OF YOUR VEHICLE

• To program the remaining two HomeLink® buttons,

repeat each step for each remaining button. DO NOT
erase the channels.

Reprogramming A Single HomeLink® Button
(Non — Rolling Code)

To reprogram a channel that has been previously trained,
follow these steps:

1. Cycle the ignition to the ON/RUN position.

For vehicle’s equipped with Keyless Enter-N-Go™, place
the ignition in the RUN position with the Engine ON.

2. Push and hold the desired HomeLink® button until

the indicator light begins to flash after 20 seconds. Do
not release the button.

3. Without releasing the button proceed with “Program-

ming A Non-Rolling Code” step 2 and follow all
remaining steps.

Canadian/Gate Operator Programming

For programming transmitters in Canada/United States
that require the transmitter signals to “time-out” after
several seconds of transmission.

Canadian radio frequency laws require transmitter sig-
nals to time-out (or quit) after several seconds of trans-
mission – which may not be long enough for HomeLink®
to pick up the signal during programming. Similar to this
Canadian law, some U.S. gate operators are designed to
time-out in the same manner.

It may be helpful to unplug the device during the cycling
process to prevent possible overheating of the garage
door or gate motor.

1. Cycle the ignition to the ON/RUN position.

UNDERSTANDING THE FEATURES OF YOUR VEHICLE

125

2. Place the hand-held transmitter 1 to 3 inches (3 to 8

cm) away from the HomeLink® button you wish to
program while keeping the HomeLink® indicator
light in view.

3. Continue to push and hold the HomeLink® button,

while you press and release (“cycle”) your hand-held
transmitter every two seconds until HomeLink® has
successfully accepted the frequency signal. The indi-
cator light will flash slowly and then rapidly when
fully trained.

4. Watch for the HomeLink® indicator to change flash

rates. When it changes, it is programmed. It may take
up to 30 seconds or longer in rare cases. The garage
door may open and close while you are programming.

5. Push and hold the programmed HomeLink® button

and observe the indicator light.

NOTE:

• If the indicator light stays on constantly, program-

ming is complete and the garage door/device should
activate when the HomeLink® button is pushed.

• To program the two remaining HomeLink® buttons,

repeat each step for each remaining button. DO NOT
erase the channels.

If you unplugged the garage door opener/device for
programming, plug it back in at this time.

Reprogramming A Single HomeLink® Button
(Canadian/Gate Operator)

To reprogram a channel that has been previously trained,
follow these steps:

1. Cycle the ignition to the ON/RUN position.

126

UNDERSTANDING THE FEATURES OF YOUR VEHICLE

2. Push and hold the desired HomeLink® button until

the indicator light begins to flash after 20 seconds. Do
not release the button.

3. Without

releasing

the

button

proceed

with

“Canadian/Gate Operator Programming” step 2 and
follow all remaining steps.

Using HomeLink®

operate,

push

and

release

the

programmed

HomeLink® button. Activation will now occur for the
programmed device (i.e., garage door opener, gate opera-
tor, security system, entry door lock, home/office light-
ing, etc.,). The hand-held transmitter of the device may
also be used at any time.

Security

It is advised to erase all channels before you sell or turn
in your vehicle.

To do this, push and hold the two outside buttons for 20
seconds until the red indicator flashes. Note that all
channels will be erased. Individual channels cannot be
erased.

The HomeLink® Universal Transceiver is disabled when
the Vehicle Security Alarm is active.

Troubleshooting Tips

If you are having trouble programming HomeLink®,
here are some of the most common solutions:
• Replace the battery in the original hand-held transmit-

ter.

• Push the LEARN button on the Garage Door Opener

to complete the training for a Rolling Code.

• Did you unplug the device for programming and

remember to plug it back in?

UNDERSTANDING THE FEATURES OF YOUR VEHICLE

127

If you have any problems, or require assistance, please
call toll-free 1-800-355-3515 or, on the Internet at
HomeLink.com for information or assistance.

WARNING!

• Vehicle exhaust contains carbon monoxide, a dan-

gerous gas. Do not run your vehicle in the garage
while programming the transceiver. Exhaust gas
can cause serious injury or death.

(Continued)

WARNING! (Continued)

• Your motorized door or gate will open and close

while you are programming the universal trans-
ceiver. Do not program the transceiver if people,
pets or other objects are in the path of the door or
gate. Only use this transceiver with a garage door
opener that has a “stop and reverse” feature as
required by Federal safety standards. This includes
most garage door opener models manufactured
after 1982. Do not use a garage door opener without
these safety features. Call toll-free 1-800-355-3515
or, on the Internet at HomeLink.com for safety
information or assistance.

128

UNDERSTANDING THE FEATURES OF YOUR VEHICLE

General Information

This device complies with FCC rules Part 15 and Industry
Canada RSS-210. Operation is subject to the following
two conditions:

1. This device may not cause harmful interference.

2. This device must accept any interference that may be

received including interference that may cause unde-
sired operation.

NOTE:

• The transmitter has been tested and it complies with

FCC and IC rules. Changes or modifications not ex-
pressly approved by the party responsible for compli-
ance could void the user’s authority to operate the
device.

• The term IC before the certification/registration num-

ber only signifies that Industry Canada technical speci-
fications were met.

ELECTRICAL POWER OUTLETS

Your vehicle is equipped with two 12 Volt (13 Amp)
power outlet that can be used to power cellular phones,
small electronics and other low powered electrical acces-
sories.

One power outlet is located on the center console to the
right of the shifter. Push down on the power outlet to
access the opening. Push down on it again to close. This
power outlet is powered when the ignition is in the ON
or ACC position.

UNDERSTANDING THE FEATURES OF YOUR VEHICLE

129

The second power outlet is located between the seat
backs above the cup holders. This power outlet is con-
nected directly by the battery and powered at all times.

NOTE:

Do not exceed the maximum power of 160 Watts

(13 Amps) at 12 Volts. If the 160 Watt (13 Amp) power
rating is exceeded the fuse protecting the system will
need to be replaced.

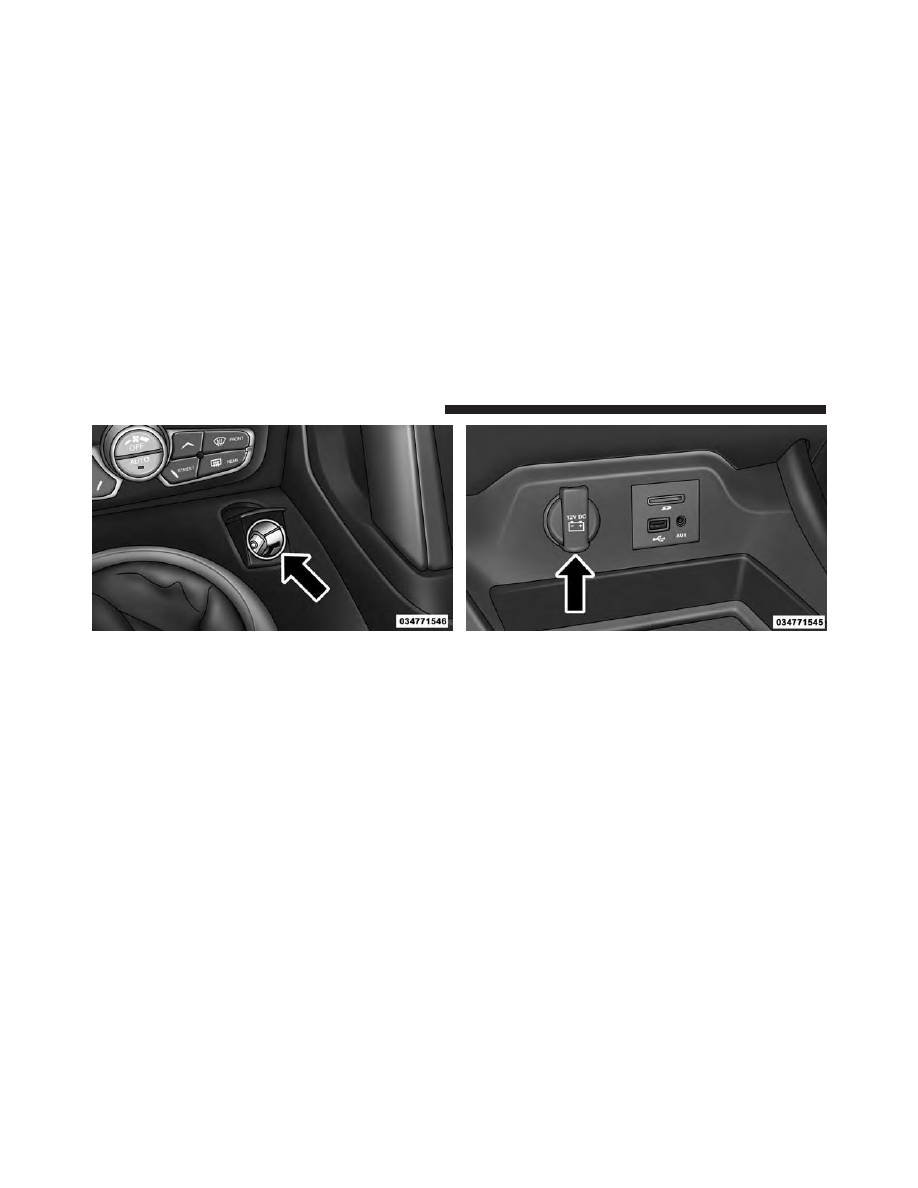

Front Power Outlet

Center Console Outlet

130

UNDERSTANDING THE FEATURES OF YOUR VEHICLE

WARNING!

To avoid serious injury or death:
• Only devices designed for use in this type of outlet

should be inserted into any 12 Volt outlet.

• Do not touch with wet hands.

• Close the lid when not in use and while driving the

vehicle.

• If this outlet is mishandled, it may cause an electric

shock and failure.

CAUTION!

• Many accessories that can be plugged in draw

power from the vehicle’s battery, even when not in
use (i.e., cellular phones, etc.). Eventually, if
plugged in long enough, the vehicle’s battery will
discharge sufficiently to degrade battery life and/or
prevent the engine from starting.

• Accessories that draw higher power (i.e., coolers,

vacuum cleaners, lights, etc.) will degrade the bat-
tery even more quickly. Only use these intermit-
tently and with greater caution.

• After the use of high power draw accessories, or

long periods of the vehicle not being started (with
accessories still plugged in), the vehicle must be
driven a sufficient length of time to allow the
generator to recharge the vehicle’s battery.

UNDERSTANDING THE FEATURES OF YOUR VEHICLE

131

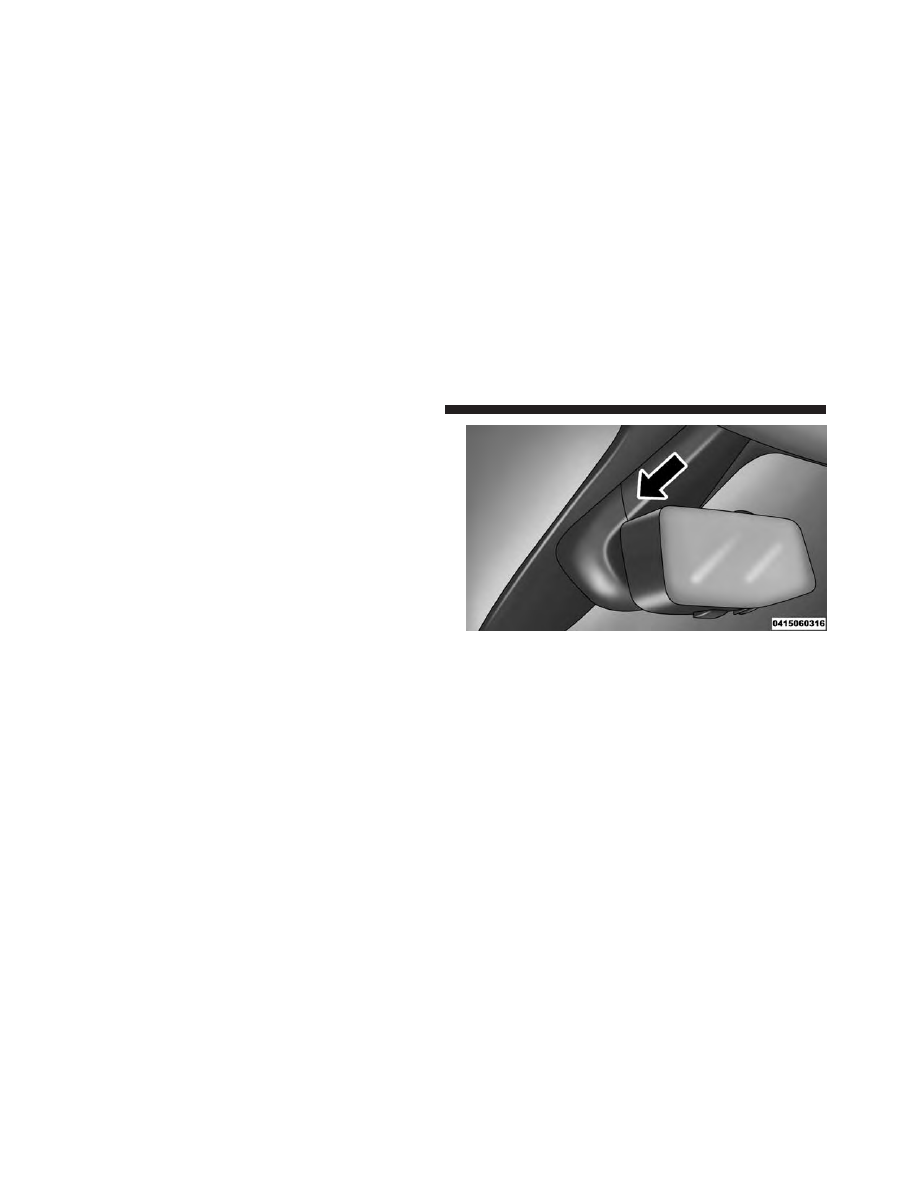

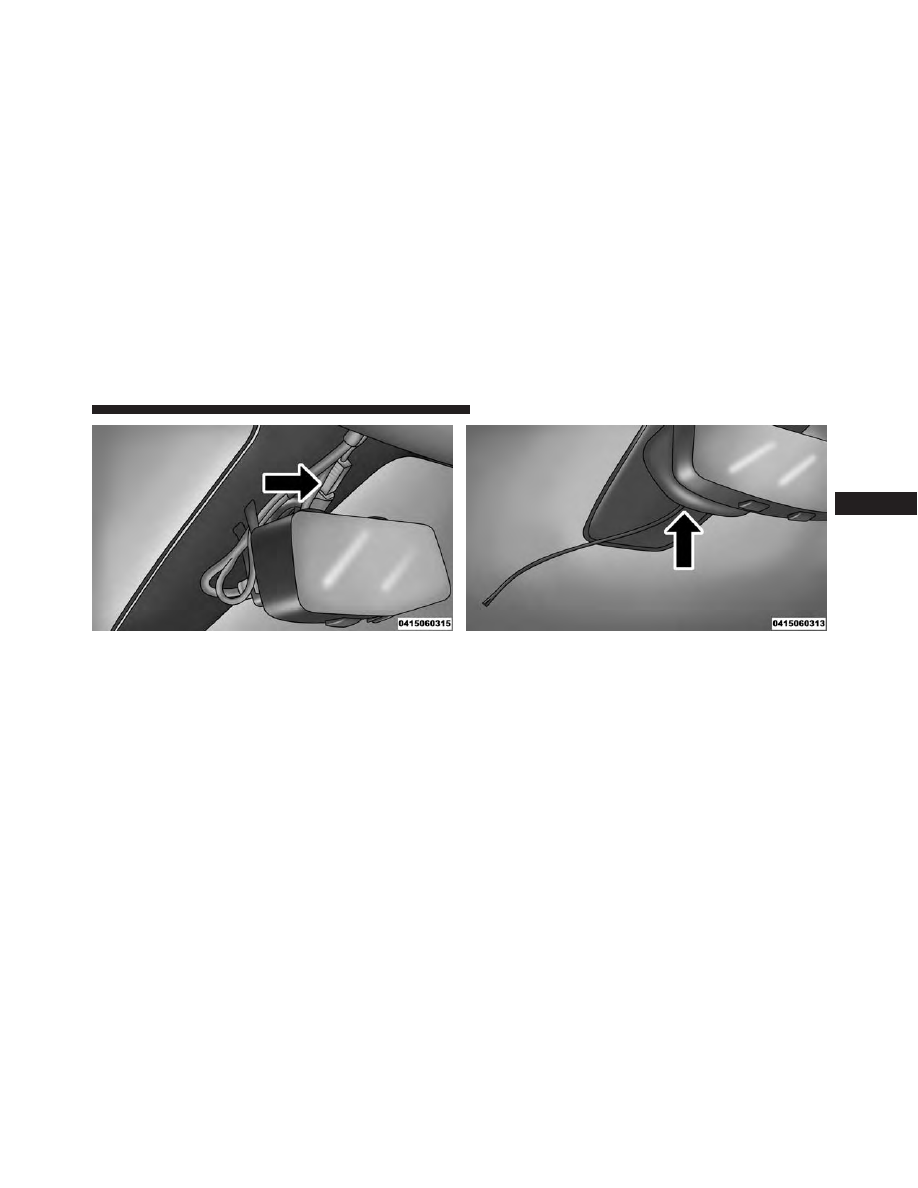

Auxiliary Jumper Harness

The SRT Viper is equipped with an auxiliary power
jumper, allowing an electronic device to be directly
connected to the vehicle without having to use the
console power outlets. Power to the device will be
controlled by the ignition switch.

NOTE:

The electronic device must draw less than five

amps to prevent damage.

To install, remove the mirror cover by pulling straight
down and separating the cover pieces.

Connect the auxiliary port jumper into the unused con-
nector taped to the wiring bundle. Connect the other end
of the auxiliary port jumper to the electronic device.

NOTE:

The red wire in the bundle is the power wire and

will provide the positive 12 volts to the electronic device.

Mirror Cover Removal

132

UNDERSTANDING THE FEATURES OF YOUR VEHICLE

CUPHOLDERS — IF EQUIPPED

There are two cupholders located in the rear of the center
console.

STORAGE

Glove Compartment

An electronic glove compartment is located on the pas-
senger side of the instrument panel. Push in the button to
open the glove compartment.

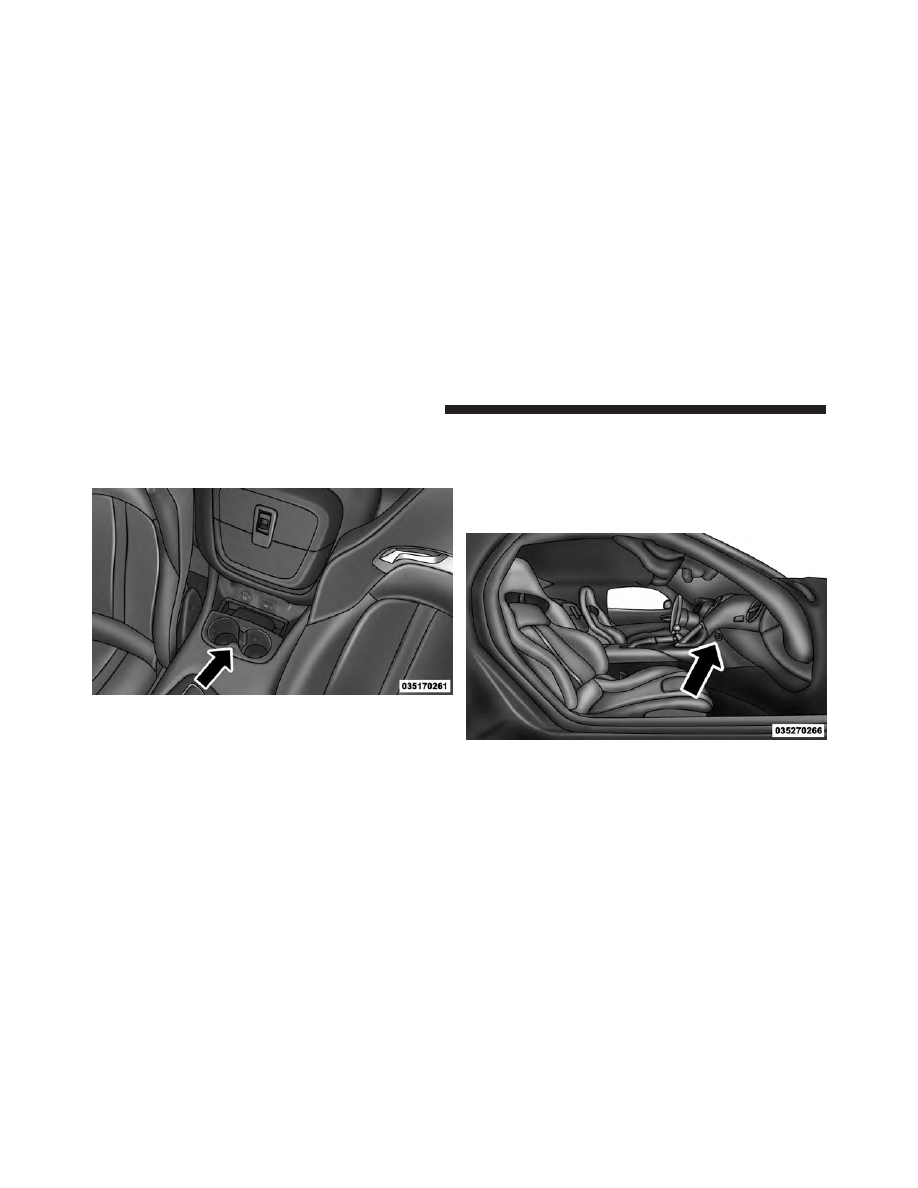

Center Console Cupholders

Glove Compartment

134

UNDERSTANDING THE FEATURES OF YOUR VEHICLE

NOTE:

The glove compartment will lock with the door

locks unless the key fob is detected inside the vehicle.

Console Features

Console Cubby Bin — If Equipped

An open storage area, or cubby bin, is located in the
center console rearward of the shift lever.

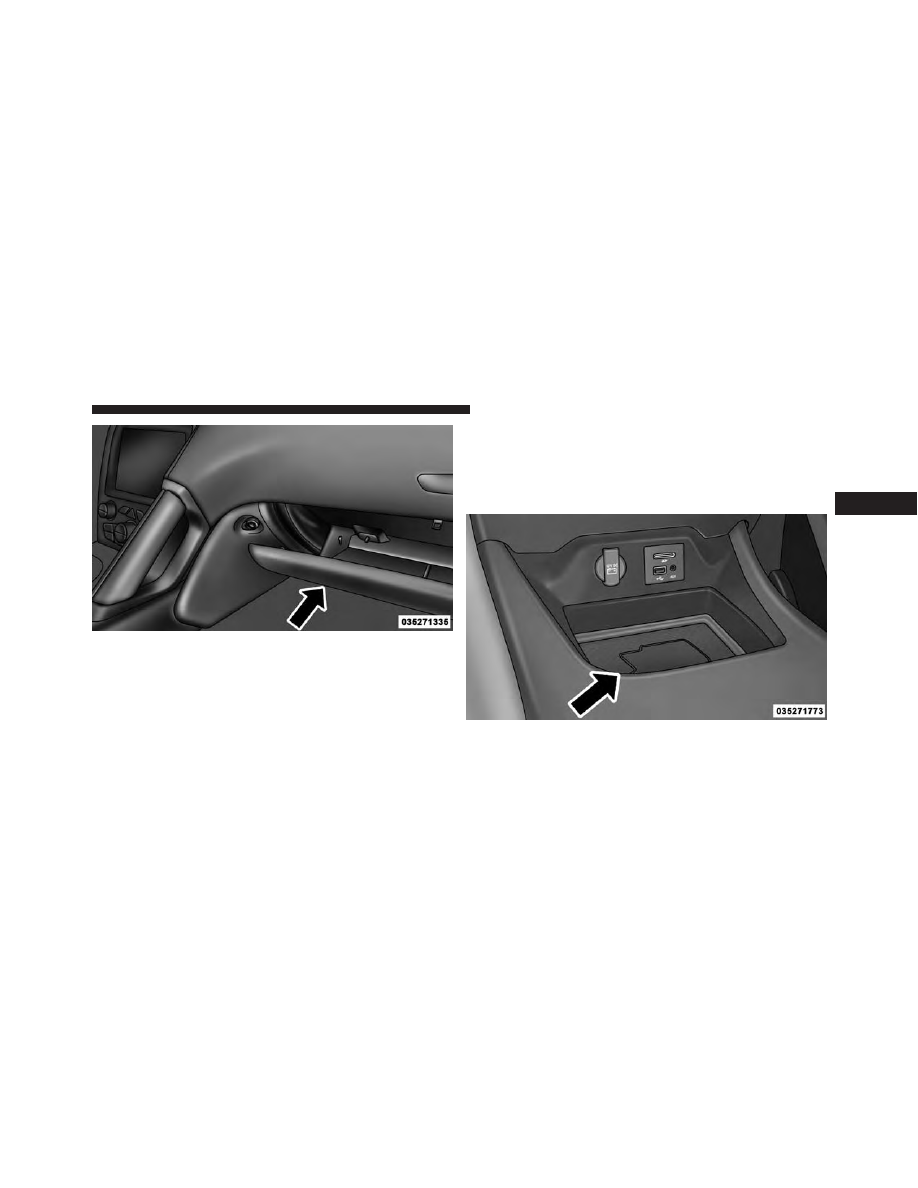

Opened Glove Compartment

Center Console Cubby Bin Location

UNDERSTANDING THE FEATURES OF YOUR VEHICLE

135

Cargo Net Storage — If Equipped

There is a cargo net storage area located between the
driver and passengers seat.

Storage Bin — If Equipped

There is a storage bin located between the driver and
passengers seat. Pull up on the release lever to open the
storage bin.

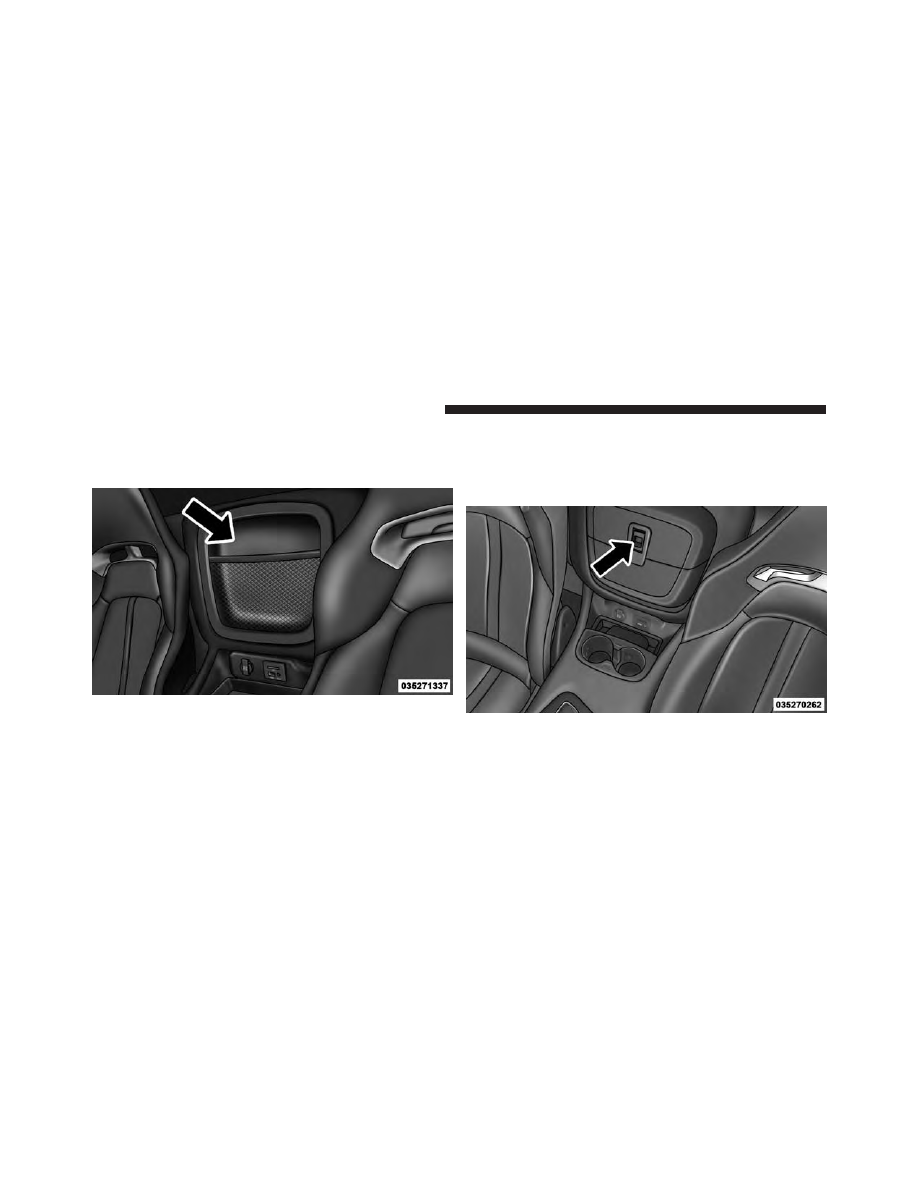

Cargo Net Storage Location

Storage Bin Location

136

UNDERSTANDING THE FEATURES OF YOUR VEHICLE

WARNING!

Do not operate this vehicle with a console compart-
ment lid in the open position. Driving with the
console compartment lid open may result in injury in
a collision.

Door Storage

The door panels contain storage areas located in the
lower center area of the door panel.

Door Panel Storage

UNDERSTANDING THE FEATURES OF YOUR VEHICLE

137

REAR WINDOW FEATURES

Rear Window Defroster

The rear window defroster button is located on
the climate control panel. Push this button to turn

on the rear window defroster. An indicator in the button
will illuminate when the rear window defroster is on. The
rear window defroster automatically turns off after ap-
proximately 10 minutes. For an additional five minutes of
operation, push the button a second time.

NOTE:

To prevent excessive battery drain, use the rear

window defroster only when the engine is operating.

CAUTION!

Failure to follow these cautions can cause damage to
the heating elements:
• Use care when washing the inside of the rear

window. Do not use abrasive window cleaners on
the interior surface of the window. Use a soft cloth
and a mild washing solution, wiping parallel to the
heating elements. Labels can be peeled off after
soaking with warm water.

• Do not use scrapers, sharp instruments, or abrasive

window cleaners on the interior surface of the
window.

• Keep all objects a safe distance from the window.

138

UNDERSTANDING THE FEATURES OF YOUR VEHICLE

Dodge Viper SRT (2015 year). Instruction - part 8
