Dodge Avenger (2014 year). Instruction

CAUTION! (Continued)

• Do not shift between PARK, REVERSE, NEU-

TRAL, or DRIVE when the engine is above idle
speed.

• Before shifting into any gear, make sure your foot

is firmly pressing the brake pedal.

NOTE:

You MUST press and hold the brake pedal while

shifting out of PARK.

WARNING!

• It is dangerous to shift out of PARK or NEUTRAL

if the engine speed is higher than idle speed. If
your foot is not firmly pressing the brake pedal, the
vehicle could accelerate quickly forward or in re-
verse. You could lose control of the vehicle and hit
someone or something. Only shift into gear when
the engine is idling normally and your foot is
firmly pressing the brake pedal.

(Continued)

300

STARTING AND OPERATING

WARNING! (Continued)

• Unintended movement of a vehicle could injure

those in and near the vehicle. As with all vehicles,
you should never exit a vehicle while the engine is
running. Before exiting a vehicle, always apply the
parking brake, shift the transmission into PARK,
turn the engine OFF, and remove the ignition key.
Once the key is removed, the transmission is
locked in PARK, securing the vehicle against un-
wanted movement.

• When leaving the vehicle, always remove the igni-

tion key and lock your vehicle.

(Continued)

WARNING! (Continued)

• Never leave children alone in a vehicle, or with

access to an unlocked vehicle. Allowing children to
be in a vehicle unattended is dangerous for a
number of reasons. A child or others could be
seriously or fatally injured. Children should be
warned not to touch the parking brake, brake pedal
or the shift lever.

• Do not leave the ignition key in or near the vehicle,

or in a location accessible to children. A child could
operate power windows, other controls, or move
the vehicle.

Key Ignition Park Interlock

This vehicle is equipped with a Key Ignition Park Inter-
lock which requires the transmission to be in PARK
before the ignition switch can be turned to the LOCK
position. The key can only be removed from the ignition

STARTING AND OPERATING

301

when the ignition is in the LOCK position, and once
removed, the transmission is locked in PARK.

NOTE:

If a malfunction occurs, the system will trap the

key in the ignition switch to warn you that this safety
feature is inoperable. The engine can be started and
stopped but the key cannot be removed until you obtain
service.

Brake/Transmission Shift Interlock System

This vehicle is equipped with a Brake Transmission Shift
Interlock system (BTSI) that holds the shift lever in PARK
unless the brakes are applied. To shift the transmission
out of PARK, the ignition switch must be turned to the
ON/RUN position (engine running or not) and the brake
pedal must be pressed.

Four-Speed Automatic Transmission — If
Equipped

The transmission gear position display (located in the
instrument cluster) indicates the transmission gear range.
You must press the brake pedal to move the shift lever
out of PARK (refer to “Brake/Transmission Shift Inter-
lock System” in this section). To drive, move the shift
lever from PARK or NEUTRAL to the DRIVE position.

The electronically-controlled transmission provides a
precise shift schedule. The transmission electronics are
self-calibrating; therefore, the first few shifts on a new
vehicle may be somewhat abrupt. This is a normal
condition, and precision shifts will develop within a few
hundred miles (kilometers).

Only shift from DRIVE to PARK or REVERSE when the
accelerator pedal is released and the vehicle is stopped.
Be sure to keep your foot on the brake pedal when
shifting between these gears.

302

STARTING AND OPERATING

Gear Ranges

DO NOT race the engine when shifting from PARK or
NEUTRAL into another gear range.

NOTE:

After selecting any gear range, wait a moment to

allow the selected gear to engage before accelerating.
This is especially important when the engine is cold.

PARK (P)

This range supplements the parking brake by locking the
transmission. The engine can be started in this range.
Never attempt to use PARK while the vehicle is in
motion. Apply the parking brake when leaving the
vehicle in this range.

When parking on a level surface, you may shift the
transmission into PARK first, and then apply the parking
brake.

When parking on a hill, apply the parking brake before
shifting the transmission to PARK, otherwise the load on

the transmission locking mechanism may make it diffi-
cult to move the shift lever out of PARK. As an added
precaution, turn the front wheels toward the curb on a
downhill grade and away from the curb on an uphill
grade.

WARNING!

• Never use the PARK position as a substitute for the

parking brake. Always apply the parking brake
fully when parked to guard against vehicle move-
ment and possible injury or damage.

• Your vehicle could move and injure you and others

if it is not completely in PARK. Check by trying to
move the shift lever out of PARK with the brake
pedal released. Make sure the transmission is in
PARK before leaving the vehicle.

(Continued)

STARTING AND OPERATING

303

WARNING! (Continued)

• It is dangerous to shift out of PARK or NEUTRAL

(Continued)

WARNING! (Continued)

• Unintended movement of a vehicle could injure

those in or near the vehicle. As with all vehicles,
you should never exit a vehicle while the engine is
running. Before exiting a vehicle, always apply the
parking brake, shift the transmission into PARK,
turn the engine OFF, and remove the ignition key.
Once the key is removed, the transmission is
locked in PARK, securing the vehicle against un-
wanted movement.

(Continued)

304

STARTING AND OPERATING

WARNING! (Continued)

• When leaving the vehicle, always remove the igni-

tion key and lock your vehicle. Never leave chil-
dren alone in a vehicle, or with access to an
unlocked vehicle. Allowing children to be in a
vehicle unattended is dangerous for a number of
reasons. A child or others could be seriously or
fatally injured. Children should be warned not to
touch the parking brake, brake pedal or the shift
lever.

• Do not leave the ignition key in or near the vehicle,

or in a location accessible to children. A child could
operate power windows, other controls, or move
the vehicle.

CAUTION!

• Before moving the shift lever out of PARK, you

must turn the ignition switch from the LOCK/OFF
position to the ON/RUN position, and also press
the brake pedal. Otherwise, damage to the shift
lever could result.

• DO NOT race the engine when shifting from

PARK or NEUTRAL into another gear range, as this
can damage the drivetrain.

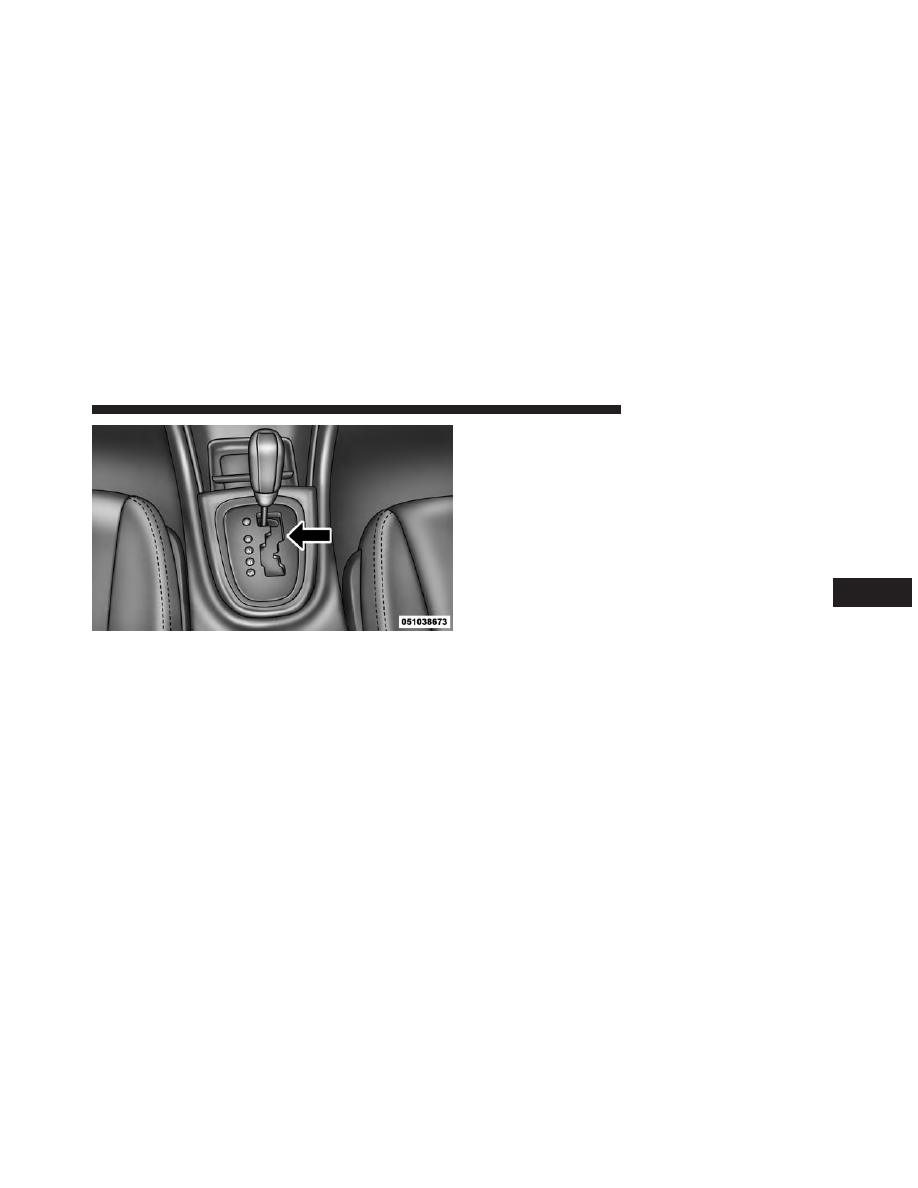

The following indicators should be used to ensure that
you have engaged the transmission into the PARK posi-
tion:

• When shifting into PARK, firmly move the shift lever

all the way forward and to the left until it stops and is
fully seated.

STARTING AND OPERATING

305

• Look at the transmission gear position display and

verify that it indicates the PARK position.

• With brake pedal released, verify that the shift lever

will not move out of PARK.

REVERSE (R)

This range is for moving the vehicle backward. Shift into
REVERSE only after the vehicle has come to a complete
stop.

NEUTRAL (N)

Use this range when the vehicle is standing for prolonged
periods with the engine running. The engine may be
started in this range. Apply the parking brake and shift
the transmission into PARK if you must leave the vehicle.

WARNING!

Do not coast in NEUTRAL and never turn off the
ignition to coast down a hill. These are unsafe
practices that limit your response to changing traffic
or road conditions. You might lose control of the
vehicle and have a collision.

CAUTION!

Towing the vehicle, coasting, or driving for any other
reason with the transmission in NEUTRAL can cause
severe transmission damage. Refer to “Recreational
Towing” in “Starting And Operating” and “Towing A
Disabled Vehicle” in “What To Do In Emergencies”
for further information.

306

STARTING AND OPERATING

DRIVE (D)

This range should be used for most city and highway
driving. It provides the smoothest upshifts and down-
shifts, and the best fuel economy. The transmission
automatically upshifts through all forward gears. The
DRIVE position provides optimum driving characteris-
tics under all normal operating conditions.

⬙3⬙ range. Under

these conditions, using the

⬙3⬙ range will improve perfor-

mance and extend transmission life by reducing exces-
sive shifting and heat buildup.

If the transmission temperature exceeds normal operat-
ing limits, the powertrain controller will modify the
DRIVE and “3” range shift points. This is done to prevent
transmission damage due to overheating.

During cold temperatures, transmission operation may
be modified depending on engine and transmission
temperature as well as vehicle speed. This feature im-
proves warm up time of the engine and transmission to
achieve maximum efficiency. Engagement of the torque
converter clutch is inhibited until the transmission fluid
is warm (refer to the “Note” under “Torque Converter
Clutch” in this section). During extremely cold tempera-
tures (-16°F [-27°C] or below), operation may briefly be
limited to second gear only. Normal operation will re-
sume once the transmission temperature has risen to a
suitable level.

DRIVE 3 (3)

This range eliminates shifts into fourth gear. The trans-
mission will operate normally in first and second gear.
Shifts into third may be delayed to provide second gear
operation at higher speeds. Using the

⬙3⬙ range while

operating the vehicle under heavy operating conditions

STARTING AND OPERATING

307

will improve performance and extend transmission life
by reducing excessive shifting and heat build-up. The

⬙3⬙

range should also be used when descending steep grades
to avoid brake system distress.

LOW (L)

Use this range for engine braking when descending very
steep grades. In this range, the transmission will down-
shift for maximum engine braking, and upshifts will
occur only to prevent engine overspeed.

Transmission Limp Home Mode

Transmission function is monitored electronically for
abnormal conditions. If a condition is detected that could
result in transmission damage, Transmission Limp Home
Mode is activated. In this mode, the transmission remains
in third gear regardless of which forward gear is selected.

PARK, REVERSE, and NEUTRAL will continue to oper-
ate. The Malfunction Indicator Light (MIL) may be illu-
minated. Limp Home Mode allows the vehicle to be
driven to an authorized dealer for service without dam-
aging the transmission.

In the event of a momentary problem, the transmission
can be reset to regain all forward gears by performing the
following steps:

1. Stop the vehicle.

2. Shift the transmission into PARK.

3. Turn the ignition switch to the OFF position.

4. Wait approximately 10 seconds.

5. Restart the engine.

6. Shift into the desired gear range. If the problem is no

longer detected, the transmission will return to normal
operation.

308

STARTING AND OPERATING

NOTE:

Even if the transmission can be reset, we recom-

mend that you visit your authorized dealer at your
earliest possible convenience. Your authorized dealer has
diagnostic equipment to determine if the problem could
recur.

If the transmission cannot be reset, authorized dealer
service is required.

Overdrive Operation

The automatic transmission includes an electronically
controlled Overdrive (fourth gear). The transmission will
automatically shift into Overdrive if the following con-
ditions are present:

• The shift lever is in the DRIVE position.
• The transmission fluid has reached an adequate tem-

perature.

• The engine coolant has reached an adequate tempera-

ture.

• Vehicle speed is sufficiently high.
• The driver is not heavily pressing the accelerator.

Torque Converter Clutch

A feature designed to improve fuel economy has been
included in the automatic transmission on your vehicle.
A clutch within the torque converter engages automati-
cally at calibrated speeds. This may result in a slightly
different feeling or response during normal operation in
the upper gears. When the vehicle speed drops or during
some accelerations, the clutch automatically disengages.

STARTING AND OPERATING

309

NOTE:

The torque converter clutch will not engage until

the transmission fluid and engine coolant are warm
[usually after 1 to 3 miles (2 to 5 km) of driving]. Because
the engine speed is higher when the torque converter
clutch is not engaged, it may seem as if the transmission
is not shifting into Overdrive when cold. This is normal.
Shifting between the DRIVE and 3 ranges, when the
transmission is sufficiently warm, will demonstrate that
the transmission is able to shift into and out of Overdrive.

Six-Speed Automatic Transmission (62TE) —
If Equipped

Only shift from DRIVE to PARK or REVERSE when the
accelerator pedal is released and the vehicle is stopped.
Be sure to keep your foot on the brake pedal when
shifting between these gears.

The transmission shift lever has PARK, REVERSE, NEU-
TRAL, DRIVE, and AutoStick® shift positions. Instruction
shifts can be made using the AutoStick® shift control
(refer to “AutoStick®” in this section for further informa-
tion). Moving the shift lever into the AutoStick® position
(below the Drive position) activates AutoStick® mode,
providing instruction shift control and displaying the cur-
rent gear in the instrument cluster.

310

STARTING AND OPERATING

Gear Ranges

DO NOT race the engine when shifting from PARK or
NEUTRAL into another gear range.

NOTE:

After selecting any gear range, wait a moment to

allow the selected gear to engage before accelerating.
This is especially important when the engine is cold.

PARK (P)

When parking on a level surface, you may shift the
transmission into PARK first, and then apply the parking
brake.

Shift Lever

STARTING AND OPERATING

311

When parking on a hill, apply the parking brake before
shifting the transmission to PARK, otherwise the load on
the transmission locking mechanism may make it diffi-
cult to move the shift lever out of PARK. As an added
precaution, turn the front wheels toward the curb on a
downhill grade and away from the curb on an uphill
grade.

WARNING!

• Never use the PARK position as a substitute for the

parking brake. Always apply the parking brake
fully when parked to guard against vehicle move-
ment and possible injury or damage.

(Continued)

WARNING! (Continued)

• Your vehicle could move and injure you and others

if it is not completely in PARK. Check by trying to
move the shift lever out of PARK with the brake
pedal released. Make sure the transmission is in
PARK before leaving the vehicle.

• It is dangerous to shift out of PARK or NEUTRAL

(Continued)

312

STARTING AND OPERATING

WARNING! (Continued)

• Unintended movement of a vehicle could injure

(Continued)

WARNING! (Continued)

• When leaving the vehicle, always remove the igni-

• Do not leave the ignition key in or near the vehicle,

or in a location accessible to children. A child could
operate power windows, other controls, or move
the vehicle.

STARTING AND OPERATING

313

CAUTION!

• Before moving the shift lever out of PARK, you

must turn the ignition switch from the LOCK/OFF
position to the ON/RUN position, and also press
the brake pedal. Otherwise, damage to the shift
lever could result.

• DO NOT race the engine when shifting from

PARK or NEUTRAL into another gear range, as this
can damage the drivetrain.

The following indicators should be used to ensure that
you have engaged the transmission into the PARK posi-
tion:

• When shifting into PARK, firmly move the shift lever

all the way forward and to the left until it stops and is
fully seated.

• Look at the transmission gear position display and

verify that it indicates the PARK position.

• With brake pedal released, verify that the shift lever

will not move out of PARK.

REVERSE (R)

This range is for moving the vehicle backward. Shift into
REVERSE only after the vehicle has come to a complete
stop.

NEUTRAL (N)

314

STARTING AND OPERATING

WARNING!

CAUTION!

DRIVE (D)

When frequent transmission shifting occurs (such as
when operating the vehicle under heavy loading condi-
tions, in hilly terrain, traveling into strong head winds, or
while towing heavy trailers), use the AutoStick® shift
control (refer to “AutoStick®” in this section for further
information) to select a lower gear. Under these condi-
tions, using a lower gear will improve performance and
extend transmission life by reducing excessive shifting
and heat buildup.

During cold temperatures, transmission operation may
be modified depending on engine and transmission

STARTING AND OPERATING

315

Dodge Avenger (2014 year). Instruction - part 19
