KIA Cadenza (2018 year). Manual

4 125

Features of your vehicle

Manual heating and air condi-
tioning

The heating and cooling system can
be controlled manually by pressing
buttons or turning knob(s) other than
the AUTO button. In this case, the
system works sequentially according
to the order of buttons or knob(s)
selected.
1. Start the engine.
2. Set the mode to the desired posi-

tion.

For improving the effectiveness of
heating and cooling;
- Heating:
- Cooling:

3. Set the temperature control to the

desired position.

4. Set the air intake control to the

outside (fresh) air position.

5. Set the fan speed control to the

desired speed.

6. If air conditioning is desired, turn

the air conditioning system on.

Press the AUTO button in order to
convert to full automatic control of
the system.

Mode selection

OYG046306

Features of your vehicle

126

The mode selection button controls
the direction of the air flow through
the ventilation system.
The air flow outlet port is converted
as follows:

Face-Level (B, C, D, E, F)

Air flow is directed toward the upper
body and face. Additionally, each
outlet can be controlled to direct the
air discharged from the outlet.

Bi-Level (B, C, D, E, F)

Air flow is directed towards the face
and the floor.

Floor-Level (A, C, D, E)

Most of the air flow is directed to the
floor, with a small amount of the air
being directed to the windshield and
side window defrosters.

Floor/Defrost-Level (A, C, D, E)

Most of the air flow is directed to the
floor and the windshield with a small
amount directed to the side window
defrosters.

■

Type A

■

Type B

OYG046305

4 127

Features of your vehicle

Defrost-Level

Most of the air flow is directed to the
windshield with a small amount of air
directed to the side window defrosters.

Instrument panel vents

The outlet vents can be opened or
closed separately using the thumb-
wheel (if equipped).
Also, you can adjust the direction of
air delivery from these vents using
the vent control lever as shown.

Temperature control

The temperature will increase to the
maximum (HI) by turning the knob to
the extreme right.
The temperature will decrease to the
minimum (Lo) by turning the knob to
the extreme left.
When turning the knob, the tempera-
ture will increase or decrease by
1°F/0.5°C. When set to the lowest
temperature setting, the air condi-
tioning will operate continuously.

OYG046307

OYG046308

■

Driver’s side

■

Passenger’s side

OYG046309

Features of your vehicle

128

Adjusting the driver and passenger
side temperature equally

• Press the “SYNC” button to adjust

the driver and passenger side tem-
perature equally.
The passenger side temperature
will be set to the same temperature
as the driver side temperature.

• Turn the driver side temperature

control knob. The driver and pas-
senger side temperature will be
adjusted equally.

Adjusting the driver and passenger
side temperature individually

• Press the “SYNC” button again to

adjust the driver and passenger
side temperature individually. The
illumination of button turns off.

• Operate the driver side tempera-

ture control knob to adjust the driv-
er side temperature.

• Operate the passenger side tem-

perature control knob to adjust the
passenger side temperature.

Temperature conversion

You can switch the temperature
mode from Centigrade to Fahrenheit
as follows:
While pressing the OFF button,
press the AUTO button for 3 seconds
or more.
The display will change from
Centigrade to Fahrenheit, or from
Fahrenheit to Centigrade.
If the battery has been discharged or
disconnected, the temperature mode
display will reset to Fahrenheit.

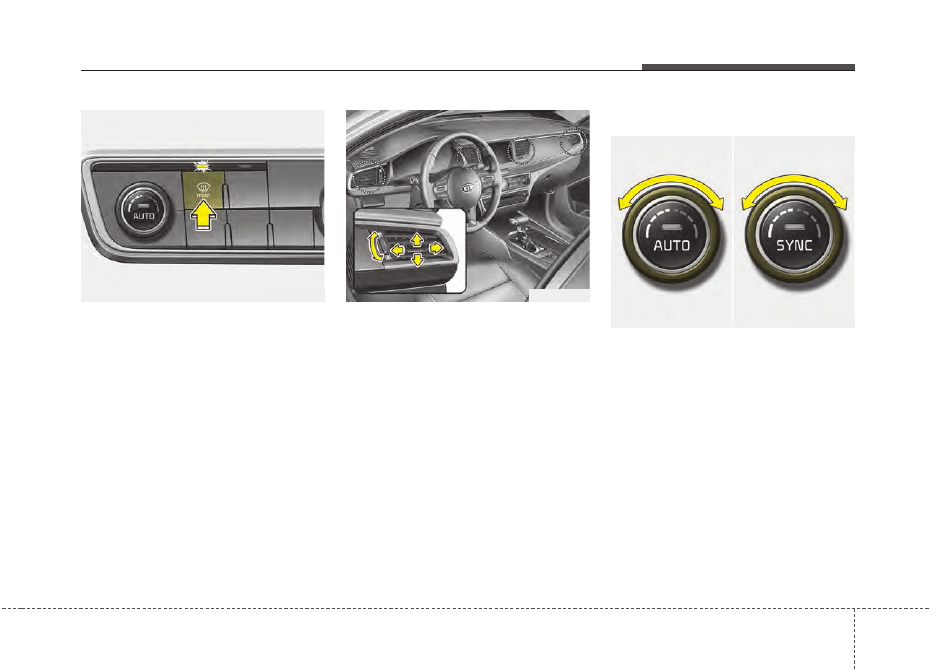

Air intake control

This is used to select the outside
(fresh) air position or recirculated air
position.
To change the air intake control posi-
tion, push the control button.

OYG046310

OYG046311

4 129

Features of your vehicle

Outside (fresh) air position

With the outside (fresh)
air position selected, air
enters the vehicle from
outside and is heated or
cooled according to the
function selected.

Recirculated air position

With the recirculated air
position selected, air
from the passenger
compartment will be
drawn through the heat-
ing system and heated
or cooled according to
the function selected.

Prolonged operation of the heater in
the recirculated air position (without
air conditioning selected) may cause
fogging of the windshield and side
windows and the air within the pas-
senger compartment may become
stale.
In addition, prolonged use of the air
conditioning with the recirculated air
position selected will result in exces-
sively dry air in the passenger com-
partment.

Sunroof inside air recirculation
(if equipped)

If the sunroof opens while the heater
or Air Conditioning system operates,
the outside (fresh) air will be select-
ed automatically for ventilating the
car. Then, if you select the recirculat-
ed air position, the outside (fresh) air
will be selected automatically after 3
minutes.
If you close the sunroof, the intake
mode will be changed to the previous
selected mode.

Fan speed control

The fan speed can be set to the
desired speed by operating the fan
speed control button.
To change the fan speed, press (

)

the button for higher speed, or push
(

) the button for lower speed. To

turn the fan speed control off, press
the front blower OFF button.

OYG046312

Features of your vehicle

130

Air conditioning

Press the A/C button to turn the air
conditioning system on (indicator
light will illuminate).
Press the button again to turn the air
conditioning system off.

OFF mode

Press the front blower OFF button to
turn off the front air climate control
system. However, you can still oper-
ate the mode and air intake buttons
as long as the ignition switch is in the
ON position.

OYG046313

WARNING -

Reduced
Visibility

Continuous use of the climate
control system in the recirculat-
ed air position may allow
humidity to increase inside the
vehicle which may fog the glass
and obscure visibility.

WARNING -

Recirculated
Air

Continued use of the climate
control system in the recirculat-
ed air position can cause
drowsiness or sleepiness, and
loss of vehicle control. Set the
air intake control to the outside
(fresh) air position as much as
possible while driving.

WARNING -

Sleeping with
AC on

Do not sleep in a vehicle with
the air conditioning or heating
on as this may cause serious
harm or death due to a drop in
the oxygen level and/or body
temperature.

OYG046314

4 131

Features of your vehicle

Climate information screen
selection (if equipped)

Press the climate information screen
selection button to display climate
information on the screen.

System operation

Ventilation

1.Set the mode to the

position.

2.Set the air intake control to the out-

side (fresh) air position.

3.Set the temperature control to the

desired position.

4.Set the fan speed control to the

desired speed.

Heating

1.Set the mode to the

position.

2.Set the air intake control to the out-

side (fresh) air position.

3.Set the temperature control to the

desired position.

4.Set the fan speed control to the

desired speed.

5.If dehumidified heating is desired,

turn the air conditioning system (if
equipped) on.

• If the windshield fogs up, set the

mode to the

position.

Operation Tips

• To keep dust or unpleasant fumes

from entering the vehicle through
the ventilation system, temporarily
set the air intake control to the
recirculated air position. Be sure to
return the control to the fresh air
position when the irritation has
passed to keep fresh air in the
vehicle. This will help keep the driv-
er alert and comfortable.

• Air for the heating/cooling system

is drawn in through the grilles just
ahead of the windshield. Care
should be taken that these are not
blocked by leaves, snow, ice or
other obstructions.

• To prevent interior fog on the wind-

shield, set the air intake control to
the fresh air position and fan speed
to the desired position, turn on the
air conditioning system, and adjust
the temperature control to desired
temperature.

OYG046315

Features of your vehicle

132

Air conditioning (if equipped)

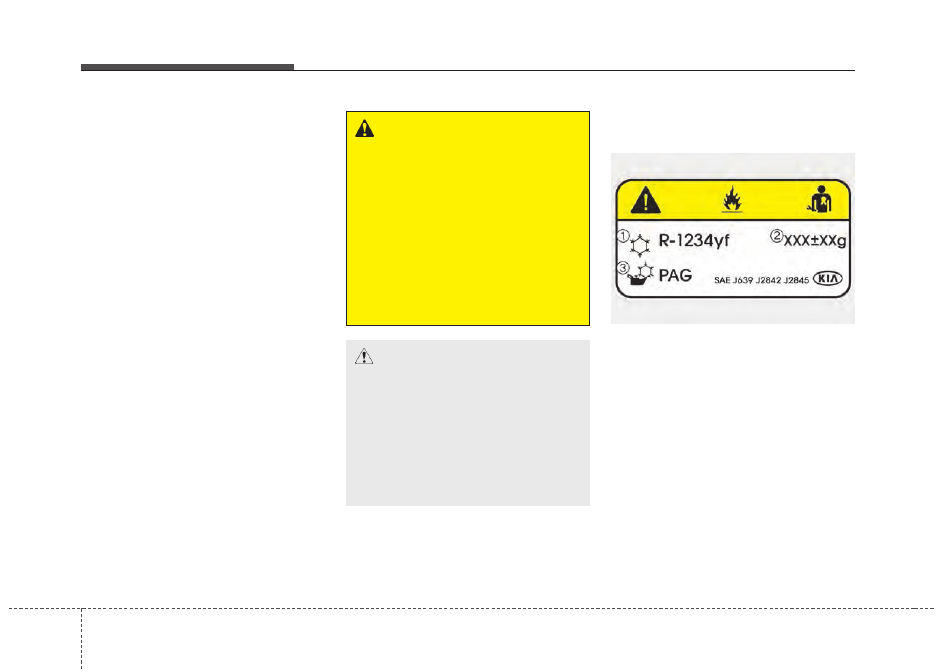

All Kia Air Conditioning Systems are
filled with R-1234yf refrigerant.
1.Start the engine. Press the air con-

ditioning button.

2.Set the mode to the

position.

3.Set the air intake control to the out-

side air or recirculated air position.

4.Adjust the fan speed control and

temperature control to maintain
maximum comfort.

• When maximum cooling is desired,

set the temperature control to the
extreme left position, set the mode
control to the MAX A/C position,
then set the fan speed control to
the highest speed.

✽

NOTICE

When opening the windows in humid
weather, air conditioning may create
water droplets inside the vehicle.
Since excessive water droplets may
cause damage to electrical equip-
ment, air conditioning should only be
used with the windows closed.

Air conditioning system operation tips

• If the vehicle has been parked in

direct sunlight during hot weather,
open the windows for a short time
to let the hot air inside the vehicle
escape.

• To help reduce moisture inside of

the windows on rainy or humid
days, decrease the humidity inside
the vehicle by operating the air
conditioning system.

• During air conditioning system

operation, you may occasionally
notice a slight change in engine
speed as the air conditioning com-
pressor cycles. This is a normal
system operation characteristic.

• Use the air conditioning system

every month only for a few minutes
to ensure maximum system per-
formance.

CAUTION -

Excessive A/C
Use

When using the air conditioning
system, monitor the tempera-
ture gauge closely while driving
up hills or in heavy traffic when
outside temperatures are high.
Air conditioning system opera-
tion may cause engine over-
heating. Continue to use the
blower fan but turn the air con-
ditioning system off if the tem-
perature gauge indicates engine
overheating.

4 133

Features of your vehicle

• When using the air conditioning

system, you may notice clear water
dripping (or even puddling) on the
ground under the passenger side
of the vehicle. This is a normal sys-
tem operation characteristic.

• Operating the air conditioning sys-

tem in the recirculated air position
provides maximum cooling, how-
ever, continual operation in this
mode may cause the air inside the
vehicle to become stale.

• During cooling operation, you may

occasionally notice a misty air flow
because of rapid cooling and
humid air intake. This is a normal
system operation characteristic.

Climate control air filter
(if equipped)

The climate control air filter installed
behind the glove box filters the dust or
other pollutants that come into the
vehicle from the outside through the
heating and air conditioning system. If
dust or other pollutants accumulate in
the filter over a period of time, the air
flow from the air vents may decrease,
resulting in moisture accumulation on
the inside of the windshield even
when the outside (fresh) air position is
selected. If this happens, have the cli-
mate control air filter replaced by an
authorized Kia dealer.

✽

NOTICE

• Replace the filter every 15,000

miles or once a year.
If the vehicle is being driven in
severe conditions such as dusty or
rough roads, more frequent air
conditioner filter inspections and
changes are required.

• When the air flow rate suddenly

decreases, the system should be
checked at an authorized Kia
dealer.

1LDA5047

Outside air

Recirculated

air

Climate control
air filter

Blower

Evaporator
core

Heater core

Features of your vehicle

134

Checking the amount of air
conditioner refrigerant and
compressor lubricant

When the amount of refrigerant is
low, the performance of the air condi-
tioning is reduced. Overfilling also
has a negative impact on the air con-
ditioning system.
Therefore, if abnormal operation is
found, have the system inspected by
an authorized Kia dealer.

Air Conditioning refrigerant
label

❈

The actual Air Conditioning refrig-

erant label in the vehicle may differ
from the illustration.

Each symbol and specification on
the air conditioning refrigerant label
is represented below :
1. Classification of refrigerant
2. Amount of refrigerant
3. Classification of Compressor lubri-

cant

Refer to chapter 8 for more detail on
the location of air conditioning refrig-
erant label.

WARNING

The oil and refrigerant in your
vehicle's air conditioning sys-
tem is under very high pres-
sure. If proper service proce-
dures are not followed an explo-
sion may result. To reduce the
risk of serious injury or death,
the air conditioning system in
your vehicle should only be
serviced by trained and certi-
fied technicians.

CAUTION

It is important that the correct
type and amount of oil and refrig-
erant is used, otherwise damage
to the vehicle may occur. To pre-
vent damage, the air conditioning
system in your vehicle should
only be serviced by trained and
certified technicians.

OUM066035L

■

Example

4 135

Features of your vehicle

• For maximum defrosting, set the

temperature control to the extreme
right/hot position and the fan speed
control to the highest speed.

• If warm air to the floor is desired

while defrosting or defogging, set
the mode to the floor-defrost posi-
tion.

• Before driving, clear all snow and

ice from the windshield, rear win-
dow, outside rear view mirrors, and
all side windows.

• Clear all snow and ice from the

hood and air inlet in the cowl grill to
improve heater and defroster effi-
ciency and to reduce the probabili-
ty of fogging up the inside of the
windshield.

Automatic climate control
system

To defog inside windshield

1. Set the fan speed to the desired

position.

2. Select desired temperature.
3. Press the defroster button (

4. The outside (fresh) air position will

be selected automatically and the
air conditioning will turn on
according to the detected ambient
temperature.

WINDSHIELD DEFROSTING AND DEFOGGING

WARNING -

Windshield
heating

Do not use the

posi-

tion during cooling operation in
extremely humid weather. The
difference between the temper-
ature of the outside air and the
windshield could cause the
outer surface of the windshield
to fog up, causing loss of visi-
bility. In this case, set the mode
selection to the

position

and fan speed control to the
lower speed.

OYG046316N

Features of your vehicle

136

If the air conditioning and outside
(fresh) air position are not selected
automatically, adjust the correspon-
ding button manually. If the

posi-

tion is selected, lower fan speed is
adjusted to a higher fan speed.

To defrost outside windshield

1. Set the fan speed to the highest

position.

2. Set the temperature to the

extreme hot (HI) position.

3. Press the defroster button (

4. The outside (fresh) air position will

be selected automatically and the
air conditioning will turn on
according to the detected ambient
temperature.

Defogging logic

To reduce the possibility of fogging
up the inside of the windshield, the
air intake or air conditioning is con-
trolled automatically according to
certain conditions such as

position. To cancel automatic defog-
ging logic or return to the automatic
defogging logic, do the following.

OYG046317N

4 137

Features of your vehicle

Automatic climate control system

1. Turn the ignition switch to the ON

position.

2. Press the defroster button (

3. While pressing the air conditioning

button (A/C), press the air intake
control button at least 5 times with-
in 3 seconds.

The recirculation indicator blinks 3
times with 0.5 second of interval. It
indicates that the defogging logic is
canceled or returned to the pro-
grammed status.
If the battery has been discharged or
disconnected, it resets to the defog
logic status.

Auto defogging system
(if equipped)

Auto defogging reduces the probabil-
ity of fogging up the inside of the
windshield by automatically sensing
the moisture of inside the windshield.
The auto defogging system operates
when the heater or air conditioning is
on.

This indicator illuminates
when the auto defogging
system senses the mois-
ture on the inside of the
windshield and operates.

If more moisture is in the vehicle,
higher steps operate as follow. For
example if auto defogging does not
defog inside the windshield at step 1
Outside air position, it tries to defog
again at step 2 Operating the air con-
ditioning.

Step 1 : Outside air position
Step 2 : Operating the air condition-

ing

Step 3 : Blowing air flow toward the

windshield

Step 4 : Increasing air flow toward

the windshield

OYG046318N

OYG046319

Features of your vehicle

138

To cancel or reset the Auto Defogging
System

Press the front windshield defroster
button for 3 seconds when the igni-
tion switch is in the ON position.
When the Auto Defogging System is
canceled, ADS OFF symbol will blink
3 times and the ADS OFF will be dis-
played on the climate control infor-
mation screen.
When the Auto Defogging System is
reset, ADS OFF symbol will blink 6
times without a signal.
Do not remove the sensor cover
located on the upper end of the pas-
senger side windshield glass.
Damage to the system parts could
occur and may not be covered by
your vehicle warranty.

4 139

Features of your vehicle

When the ignition switch is in the ON
position, the clean air function turns
on automatically.
Also, the clean air function turns off
automatically, when the ignition
switch turns to the OFF position.

The system automatically selects the
outside (fresh) air position when the
climate control system operates over
a certain period of time (approxi-
mately 30 minutes) in low tempera-
ture with the recirculated air position
selected.

To cancel or reset the
Automatic Ventilation

When the air conditioning system is
on, select Face Level

mode and

keep pressing the air intake control
button more than 3 seconds.
When the automatic ventilation is
canceled, the indicator blinks 3
times. When the automatic ventila-
tion is activated, the indicator blinks
6 times.

CLEAN AIR (IF EQUIPPED)

OYG046320L

AUTOMATIC VENTILATION

Features of your vehicle

140

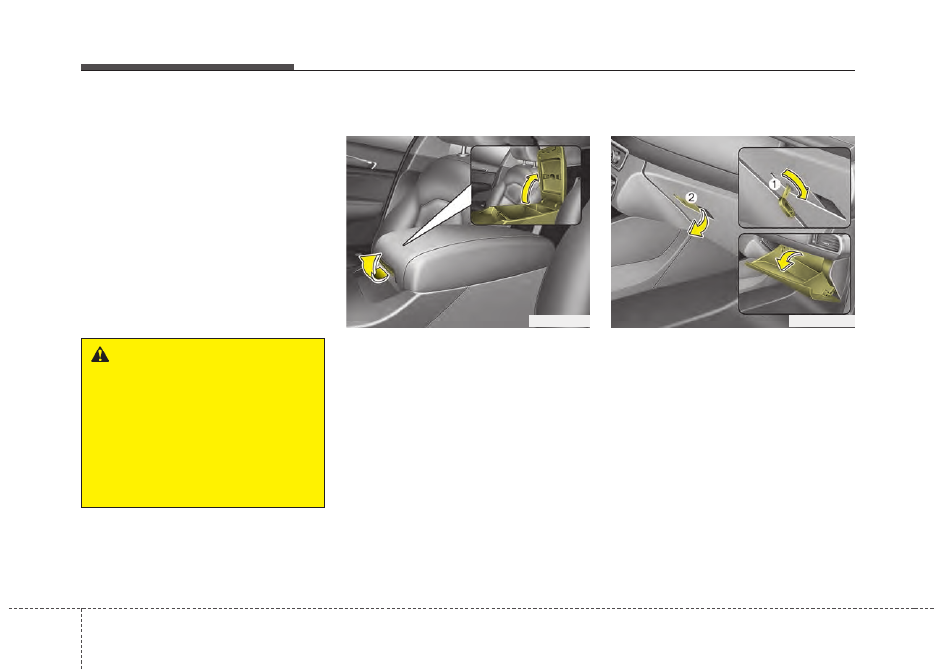

STORAGE COMPARTMENTS

These compartments can be used to
store small items required by the
driver or passengers.

• To avoid possible theft, do not

leave valuables in the storage
compartment.

• Always keep the storage compart-

ment covers closed while driving.
Do not attempt to place so many
items in the storage compartment
that the storage compartment
cover can not close securely.

Center console storage

To open the center console storage,
pull up the lever.

Glove box

The glove box can be locked and
unlocked with a master key (1). (if
equipped)
To open the glove box, pull the lever
(2) and the glove box will automati-
cally open. Close the glove box after
use.

WARNING

Flammable
materials

Do not store, propane cylinders
or other flammable/explosive
materials in the vehicle. These
items may catch fire and/or
explode if the vehicle is
exposed to hot temperatures for
extended periods.

OYG046323

OYG046321

KIA Cadenza (2018 year). Manual - part 13
