Features of your vehicle

LED Headlamp Warning
Light (if equipped)

This warning light illuminates:

• Once you set the Engine Start/Stop

Button to the ON position.
- It illuminates for approximately 3

seconds and then goes off.

• When there is a malfunction with

the LED headlamp.
In this case, have your vehicle
inspected by an authorized Kia
dealer.

This warning light blinks:

• When there is a malfunction with a

LED headlamp related part.
In this case, have your vehicle
inspected by an authorized Kia
dealer.

✽

NOTICE

Continuous driving with the LED
Headlamp Warning Light on or
blinking can reduce LED headlamp
(low beam) life.

Icy Road Warning Light
(if equipped)

This warning light is to warn the driv-
er the road may be icy.
When the following conditions occur,
the warning light (including Outside
Temperature Gauge) blinks 5 times
and then illuminates, and also warn-
ing chime sounds once.
- The temperature on the Outside

Temperature Gauge is below
approximately 40°F (4°C).

Indicator Lights

Electronic Stability
Control (ESC) Indicator
Light

This indicator light illuminates:

• Once you set the Engine

Start/Stop Button to the ON posi-
tion.
- It illuminates for approximately 3

seconds and then goes off.

• When there is a malfunction with

the ESC system.
In this case, have your vehicle
inspected by an authorized Kia
dealer.

This indicator light blinks:

While the ESC is operating.

❈

For more details, refer to
“Electronic Stability Control (ESC)”
in chapter 5.

Features of your vehicle

Electronic Stability
Control (ESC) OFF
Indicator Light

This indicator light illuminates:

• Once you set the Engine

Start/Stop Button to the ON posi-
tion.
- It illuminates for approximately 3

seconds and then goes off.

• When you deactivate the ESC sys-

tem by pressing the ESC OFF but-
ton.

❈

For more details, refer to
“Electronic Stability Control (ESC)”
in chapter 5.

Immobilizer Indicator
Light (With Smart Key)

This indicator light illuminates for up
to 30 seconds:

• When the vehicle detects the

smart key in the vehicle properly
while the Engine Start/Stop Button
is ACC or ON.
- At this time, you can start the

engine.

- The indicator light goes off after

starting the engine.

This indicator light blinks for a few
seconds:

• When the smart key is not in the

vehicle.
- At this time, you can not start the

engine.

This indicator light illuminates for 2
seconds and goes off:

• When the vehicle can not detect

the smart key which is in the vehi-
cle while the Engine Start/Stop
Button is ON.
In this case, have your vehicle
inspected by an authorized Kia
dealer.

This indicator light blinks:

• When the battery of the smart key

is weak.
- At this time, you can not start the

engine. However, you can start the
engine if you press the Engine
Start/Stop Button with the smart
key. (For more details, refer to
“Starting the Engine” in chapter 5).

• When there is a malfunction with

the immobilizer system.
In this case, have your vehicle
inspected by an authorized Kia
dealer.

4 95

Features of your vehicle

Turn Signal Indicator
Light

This indicator light blinks:

• When you turn the turn signal light

on.

If any of the following occurs, there
may be a malfunction with the turn
signal system. In this case, have your
vehicle inspected by an authorized
Kia dealer.

- The indicator light does not blink

but illuminates.

- The indicator light blinks more

rapidly.

- The indicator light does not illumi-

nate at all.

High Beam Indicator
Light

This indicator light illuminates:

• When the headlights are on and in

the high beam position

• When the turn signal lever is pulled

into the Flash-to-Pass position.

High beam assist indica-
tor (if equipped)

This warning light illuminates :

• When the high-Beam is on with the

light switch in the AUTO light posi-
tion.

• If your vehicle detects oncoming or

preceding vehicles, the High beam
assist system will switch the high
beam to low beam automatically.

❈

For more details, refer to “High
beam assist” in this chapter.

Light ON Indicator Light

This indicator light illuminates:

• When the tail lights or headlights

are on.

Front Fog Indicator
Light (if equipped)

This indicator light illuminates:

• When the front fog lights are on.

Features of your vehicle

Cruise
Indicator Light
(if equipped)

This indicator light illuminates:

• When the cruise control system is

enabled.

❈

For more details, refer to “Cruise
Control System” in chapter 5.

AUTO HOLD Indicator
Light (if equipped)

This indicator light illuminates:

• [White] When you activate the auto

hold system by pressing the AUTO
HOLD button.

• [Green] When you stop the vehicle

completely by depressing the
brake pedal with the auto hold sys-
tem activated.

• [Yellow] When there is a malfunc-

tion with the auto hold system.
In this case, have your vehicle
inspected by an authorized Kia
dealer.

❈

For more details, refer to “Auto
Hold” in chapter 5.

Lane Departure Warning
System (LDWS) Indicator
Light (if equipped)

This indicator light illuminates:

• [White] When the lane departure

warning system does not detect
the lane line.

• [Green] When you activate the lane

departure warning system by
pressing the LDWS button.

• [Yellow] When there is a malfunc-

tion with the lane departure warn-
ing system.

In this case, have your vehicle inspect-
ed by an authorized Kia dealer.

❈

For more details, refer to “Lane
Departure Warning System
(LDWS)” in chapter 5.

AUTO

HOLD

CRUISE

4 97

Features of your vehicle

ECO Indicator Light
(if equipped)

This indicator light illuminates :

• When the Active ECO system is

activated by pressing the DRIVE
mode button.

• The ECO indicator (green) will illu-

minate to show that the Active
ECO is operating.

❈

For more details, refer to “Drive
Mode Integrated Control System"
in chapter 5.

SPORT Mode Indicator
Light (if equipped)

This indicator light illuminates:

• When you select “SPORT” mode

as drive mode.

❈

For more details, refer to “Drive
Mode” in chapter 5.

WARNING -

Distracted
driving

Driving while distracted can
result in a loss of vehicle con-
trol that may lead to an acci-
dent, severe personal injury,
and death. The driver’s primary
responsibility is in the safe and
legal operation of a vehicle, and
use of any handheld devices,
other equipment, or vehicle sys-
tems which take the driver’s
eyes, attention and focus away
from the safe operation of a
vehicle or which are not permis-
sible by law should never be
used during operation of the
vehicle.

Features of your vehicle

Description

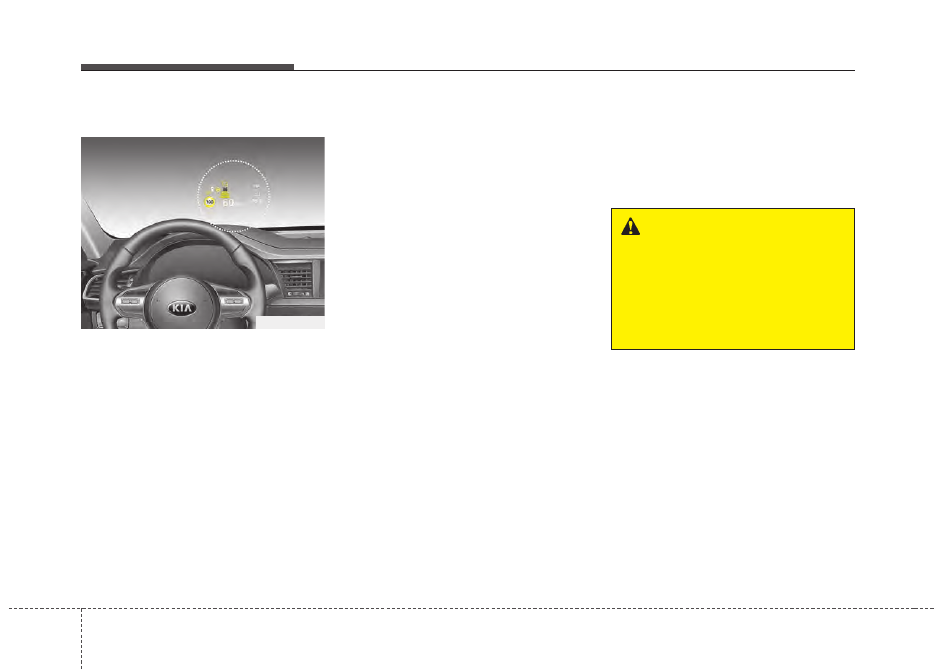

The head up display is a transparent
display which projects a shadow of
some information of the instrument
cluster and navigation on the wind-
shield glass.

• The head up display image on the

windshield glass may be invisible
when:
- Sitting posture is bad.
- Wearing a polarized sunglasses.
- There is an object on the cover of

the head up display.

- Driving on a wet road.
- An inadequate lighting is turned

on inside the vehicle.

- Any light comes from the outside.
- Wearing an inadequate glasses

to your eyesight.

• If the head up display image is not

shown well, adjust the height, rota-
tion or illumination of the head up
display in the LCD window.

❈

For more details, refer to “LCD
window” in this chapter.

• When the head up display needs

inspection or repair, we recom-
mend that you consult an author-
ized Kia dealer.

• Do not place any accessories on

the clash pad or attach any objects
on the windshield glass.

✽

NOTICE

Installing window tint or any other
type of metallic coating on the wind-
shield can prevent the driver from
seeing the Head Up Display images.

✽

NOTICE

When replacing the front wind-
shield glass of the vehicles equipped
with the head up display, replace it
with a windshield glass designed for
the head up display operation.
Otherwise, duplicated images may
be displayed on the windshield glass.

HEAD UP DISPLAY (HUD) (IF EQUIPPED)

OYG046430N

WARNING -

Head up
display

The Head up display is a supple-
mental system. Do not solely
rely on the system, always drive
safely, and pay attention to the
driving conditions on the road.

4 99

Features of your vehicle

Head Up Display ON/OFF

The HUD display will be activated or
deactivated in user setting mode
while engine is ON.

Head Up Display Information

1. Turn By Turn navigation information
2. Road signs
3. Speedometer
4. Cruise setting speed
5. Advanced Smart Cruise

Control(ASCC) information

6. Blind Spot Detection (BSD) sys-

tem information

7. Warning lights (Low fuel, BSD)
8. AV mode information

Head Up Display Setting

On the LCD display, you can change
the head up display settings as fol-
lows.
1. Display height
2. Rotation
3. Brightness
4. Content select
5. Speedometer size
6. Speedometer color

❈

For more details, refer to “LCD
window” in this chapter.

OYG046113L

OYG046158N

Features of your vehicle

100

The rear parking assist system
assists the driver during backward
movement of the vehicle by chiming if
any object is sensed within a distance
of 47 in. (120 cm) behind the vehicle.
This system is a supplemental system
and it is not intended to nor does it
replace the need for extreme care and
attention of the driver. The sensing
range and objects detectable by the
back sensors (

➀

) are limited.

Whenever backing-up, pay as much
attention to what is behind you as you
would in a vehicle without a rear park-
ing assist system.

Operation of the rear parking
assist system

Operating condition

• This system will activate when the

indicator on the rear parking assist
OFF button is not illuminated. If
you desire to deactivate the rear
parking assist system, press the
rear parking assist OFF button
again. (The indicator on the button
will illuminate.) To turn the system
on, press the button again. (The
indicator on the button will go off.)
If the vehicle is moving at a speed
over 3 mph (5 km/h), the system
may not be activated correctly.

REAR PARKING ASSIST SYSTEM (IF EQUIPPED)

WARNING -

Rear parking
assist system

Never rely solely on the rear
parking assist system. Always
perform a visual inspection to
make sure the vehicle is clear of
all obstructions before moving
the vehicle in any direction. Stop
immediately if you are aware of
a child anywhere near your vehi-
cle. Some objects may not be
detected by the sensors, due to
the object's size or material.

OYG046400N

4 101

Features of your vehicle

• This system will activate when

backing up with the ignition switch
ON.
If the vehicle is moving at a speed
over 3 mph (5 km/h), the system
may not be activated correctly.

• The sensing distance while the

back-up warning system is in oper-
ation is approximately 47 in. (120
cm) at the rear bumper center
area, 23.5 in. (60 cm) at the rear
bumper both side area.

• When more than two objects are

sensed at the same time, the clos-
est one will be recognized first.

Types of warning sound

• When an object is 47 in. to 24 in.

(120 cm to 61 cm) from the rear
bumper: Buzzer beeps intermit-
tently.

• When an object is 24 in. to 12 in.

(60 cm to 31 cm) from the rear
bumper: Buzzer beeps more fre-
quently.

• When an object is within 16 in. (40

cm) of the rear bumper:
Buzzer sounds continuously.

Non-operational conditions of
rear parking assist system

The rear parking assist system
may not operate properly when:
1. Moisture is frozen to the sensor. (It

will operate normally once the
moisture clears.

2. The sensor is covered with foreign

matter, such as snow or water, or
the sensor cover is blocked. (It will
operate normally when the materi-
al is removed or the sensor is no
longer blocked.)

3. Driving on uneven road surfaces

(unpaved roads, gravel, bumps,
gradient).

4. Objects generating excessive

noise (vehicle horns, loud motor-
cycle engines, or truck air brakes)
are within range of the sensor.

5. Heavy rain or water spray exists.
6. Wireless transmitters or mobile

phones are within range of the
sensor.

7. The sensor is covered with snow.
8. Trailer towing

Features of your vehicle

102

The detecting range may decrease
when:
1. The sensor is covered with foreign

matter such as snow or water.
(The sensing range will return to
normal when removed.)

2. Outside air temperature is

extremely hot or cold.

The following objects may not be
recognized by the sensor:
1. Sharp or slim objects such as

ropes, chains or small poles.

2. Objects which tend to absorb the

sensor frequency such as clothes,
sound absorbent material or snow.

3. Undetectable objects smaller than

40 in. (1 m) in height and narrower
than 6 in. (14 cm) in diameter.

Rear parking assist system
precautions

• The rear parking assist system

may not sound consistently
depending on the speed and
shapes of the objects detected.

• The rear parking assist system may

malfunction if the vehicle bumper
height or sensor installation has
been modified or damaged. Any
non-factory installed equipment or
accessories may also interfere with
the sensor performance.

• The sensor may not recognize

objects less than 15 in. (40 cm)
from the sensor, or it may sense an
incorrect distance. Use caution.

• When the sensor is frozen or cov-

ered with snow, dirt, or water, the
sensor may be inoperative until the
material is removed using a soft
cloth.

• To prevent damage, do not push,

scratch or strike the sensor.

✽

NOTICE

This system can only sense objects
within the range and location of the
sensors. It cannot detect objects in
other areas where sensors are not
installed. Also, small or slim objects,
such as poles or objects located
between sensors may not be detected
by the sensors.
Always visually check behind the
vehicle when backing up.
Be sure to inform any drivers of the
vehicle that may be unfamiliar with
the system regarding the systems
capabilities and limitations.

4 103

Features of your vehicle

Self-diagnosis

If you don’t hear an audible warning
sound or if the buzzer sounds inter-
mittently when shifting the gear to the
R (Reverse) position, this may indi-
cate a malfunction in the rear parking
assist system. If this occurs, have
your vehicle checked by an author-
ized Kia dealer as soon as possible.

✽

NOTICE

Your new vehicle warranty does not
cover any accidents or damage to
the vehicle or injuries to its occu-
pants due to a rear parking assist
system malfunction. Always drive
safely and cautiously.

Features of your vehicle

104

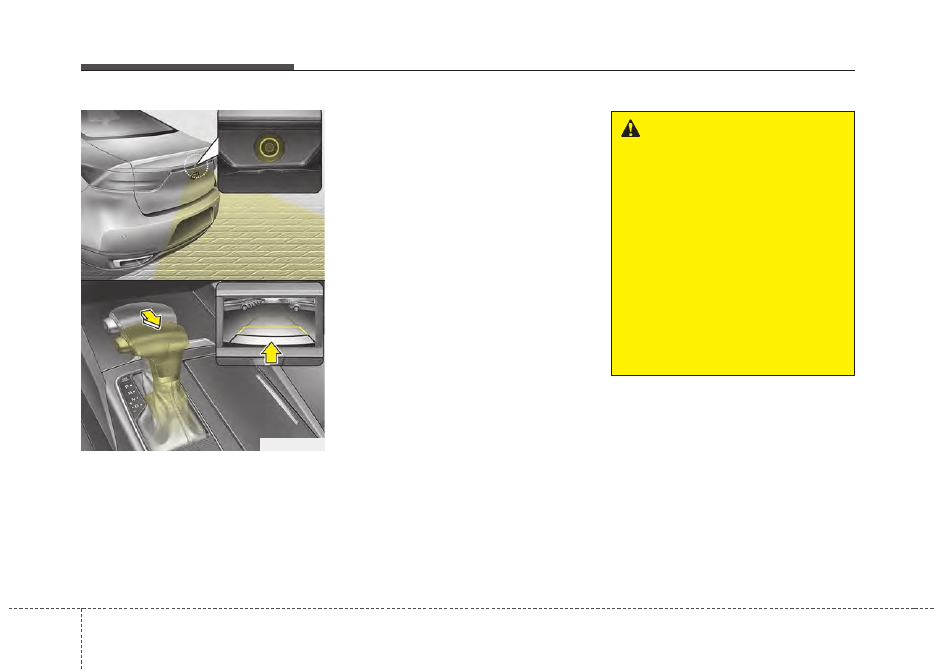

The rearview camera will activate
with the ignition switch ON and the
shift lever in the R (Reverse) position.

This system is a supplemental sys-
tem that shows behind the vehicle
through the audio screen while back-
ing up unless equipped with a navi-
gation system, then will display on
the navigation screen.
• This system is a supplementary

function only. It is the responsibility
of the driver to always check the
inside/outside rearview mirrors and
the area behind the vehicle before
and while backing up because
there is a dead zone that can't be
seen by the camera.

• Always keep the camera lens

clean. If lens is covered with for-
eign matter, the camera may not
operate normally.

❈

If your vehicle is equipped with
AVN (Audio, Video and Navigation)
system, rearview display will show
behind the vehicle through the
AVN monitor while backing-up.
Refer to a separately supplied
manual for detailed information.

REARVIEW CAMERA

WARNING -

Backing &
using camera

Never rely solely on the rear view
camera when backing. You must
always use methods of viewing
the area behind you including
looking over both shoulders as
well as continuously checking all
three rear view mirrors. Due to
the difficulty of ensuring that the
area behind you remains clear,
always back slowly and stop
immediately if you even suspect
that a person, and especially a
child, might be behind you.

OYG046403

OYG046404L

4 105

Features of your vehicle

The Surround View Monitoring
System (SVM) is not a substitute for
proper and safe parking procedures.
The Surround View Monitoring
System (SVM) may not detect every
object surrounding the vehicle.
Always drive safely and use caution
when parking.
The Surround View Monitoring
System (SVM) can assist in parking
by allowing the driver to see around
the vehicle. Push the button into the
[ON] position to operate the system.
To cancel the system, push the but-
ton again.

Operating conditions
- When the Engine Start/Stop

Button is ON position

- When the transaxle is on D, N or R
- When the vehicle speed is not over

9.32 mph (15 km/h)

• When the vehicle speed is over 9.32

mph (15 km/h), the SVM system is
turned off. If the vehicle speed is not
over 9.32mph (15km/h) after turn-
ing off the SVM by over speed, the
SVM is not turned on. To operate
again, push the button.

• When the vehicle moves back-

wards, regardless of On/Off of but-
ton and vehicle speed, the SVM is
operated.

• When the trunk and driver/passen-

ger door are opened and the out-
side mirror is folded, the warning is
illuminated in SVM system.

• If the SVM system is not operating

normally, the system should be
checked by an authorized Kia dealer.

• When the vehicle moves over

9.32mph (15km/h) forward after
moving backward, the SVM screen
will be turned off.

SURROUND VIEW MONITORING SYSTEM (SVM) (IF EQUIPPED)

OYG046405

WARNING

This system is a supplementary
function only. It is the responsi-
bility of the driver to always
check the area around the vehi-
cle before and while moving.

Features of your vehicle

106

Battery saver function

• The purpose of this feature is to

prevent the battery from being dis-
charged if the lights are left in the
ON position. The system automati-
cally shuts off the parking lights 30
seconds after the ignition key is
removed and the driver’s door is
opened and closed.

• With this feature, the parking lights

will turn off automatically if the driver
parks on the side of the road at night
and opens the driver’s side door.
If necessary, to keep the parking
lights on when the ignition key is
removed, perform the following:
1) Open the driver-side door.
2) Turn the parking lights OFF and

ON again using the light switch
on the steering column.

Lighting control

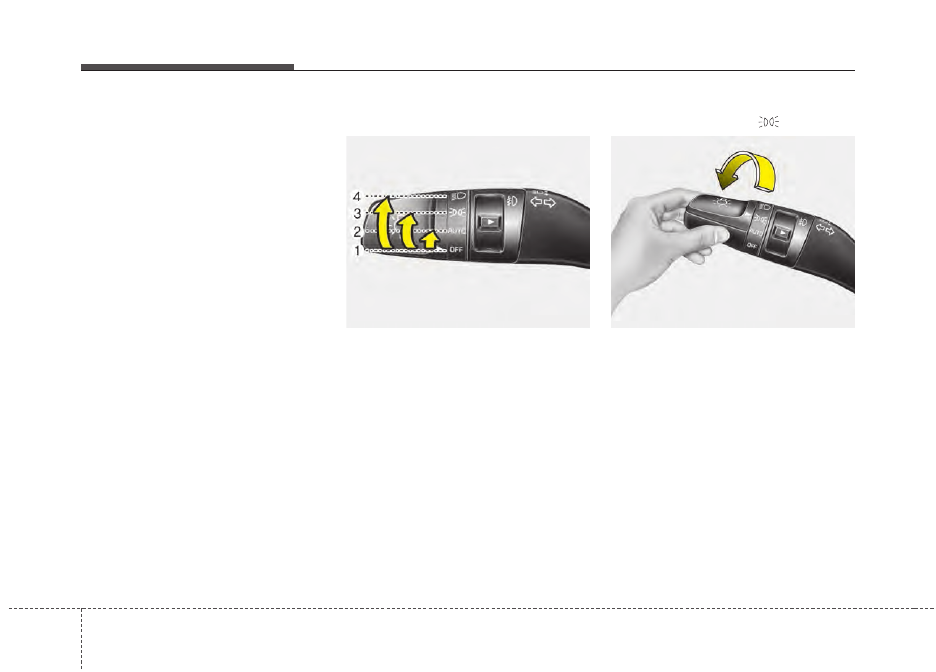

The light switch has a Headlight and
a Parking light position.
To operate the lights, turn the knob at
the end of the control lever to one of
the following positions:
(1) OFF position
(2) Auto light position
(3) Parking & Tail light
(4) Headlight position

Parking & Tail light (

)

When the light switch is in the park-
ing light position, the tail, license and
instrument panel lights will turn ON.

LIGHTING

OUM044053

OUMA046054

4 107

Features of your vehicle

Headlight position (

)

When the light switch is in the head-
light position, the head, tail, license
lights will turn ON.

✽

NOTICE

The ignition switch must be in the ON
position to turn on the headlights.

Auto light position

When the light switch is in the AUTO
light position, the taillights and head-
lights will turn ON or OFF automati-
cally depending on the amount of
light outside the vehicle.
When the light switch is positioned at
an auto light position, at first, the
wiper will turn on and then, after 5
seconds the head lamp will turn on
automatically.
If the head lamp has been turned on
due to this function of the vehicle, the
head lamp will turn off 60 seconds
after the wiper has been turned off.

OUMA046056

OYG046407

CAUTION

• Never place anything over the

sensor (1) located on the
instrument panel, this will
ensure better auto-light sys-
tem control.

• Don’t clean the sensor using a

window cleaner, the cleaner
may leave a light film which
could interfere with sensor
operation.

Features of your vehicle

108

High beam operation

To turn on the high beam headlamp,
push the lever away from you.The lever
will return to its original position. The
high beam indicator will light when the
headlight high beams are switched on.
To prevent the battery from being
discharged, do not leave the lights
on for a prolonged time while the
engine is not running.

To flash the headlights, pull the lever
towards you. It will return to the nor-
mal (low beam) position when
released. The headlight switch does
not need to be on to use this flashing
feature.

High Beam Assist (if equipped)

The High Beam Assist is a system
that automatically adjusts the head-
lamp range (switches between high
beam and low beam) according to
the brightness of other vehicles and
road conditions.

WARNING -

High beams

Do not use high beam when
there are other vehicles. Using
high beam could obstruct the
other driver’s vision.

OUM044058

OYG046454N

OUM044059

KIA Cadenza (2018 year). Manual - part 11
