Westfalia. Testing repair electrical manual - part 91
PE00.19-D-2200-
60D
Legend for wiring diagram of
CAN bus - engine
Models XD1##, XD2##,
XD3##, XD4##, XD5##,
XD6##, XD7##, YD1##,
YD2##, YD3##, YD4##,
YD5##, YD6##, YD7##,
WD1##, WD2##, WD3##,
WD6##, WD7## ### up to
529900 up to 4/30/03
Models 903.61# /66# /67#,
904.61# /66# ## up to
529900 up to 4/30/03 with
code (ZU7) National version
for Canada
Models 903.61# /66# /67#,
904.61# /66# ## up to
529900 up to 4/30/03 with
code (ZU8) National version
for USA
Models 903.61# /62# /66#
/67#, 904.61# /62# /66# ##
up to 529900 up to 4/30/03
with code (ZU9) National
version for Mexico
Code
Designation
Coordinate
A2
ABS/ESP control unit
7L
A4
ETC control unit
4A
A40
EWM control unit
6A
A62
WSP control unit
4L
A80
CDI control unit
2A
A81
Air conditioning pushbutton control and operating unit
9L

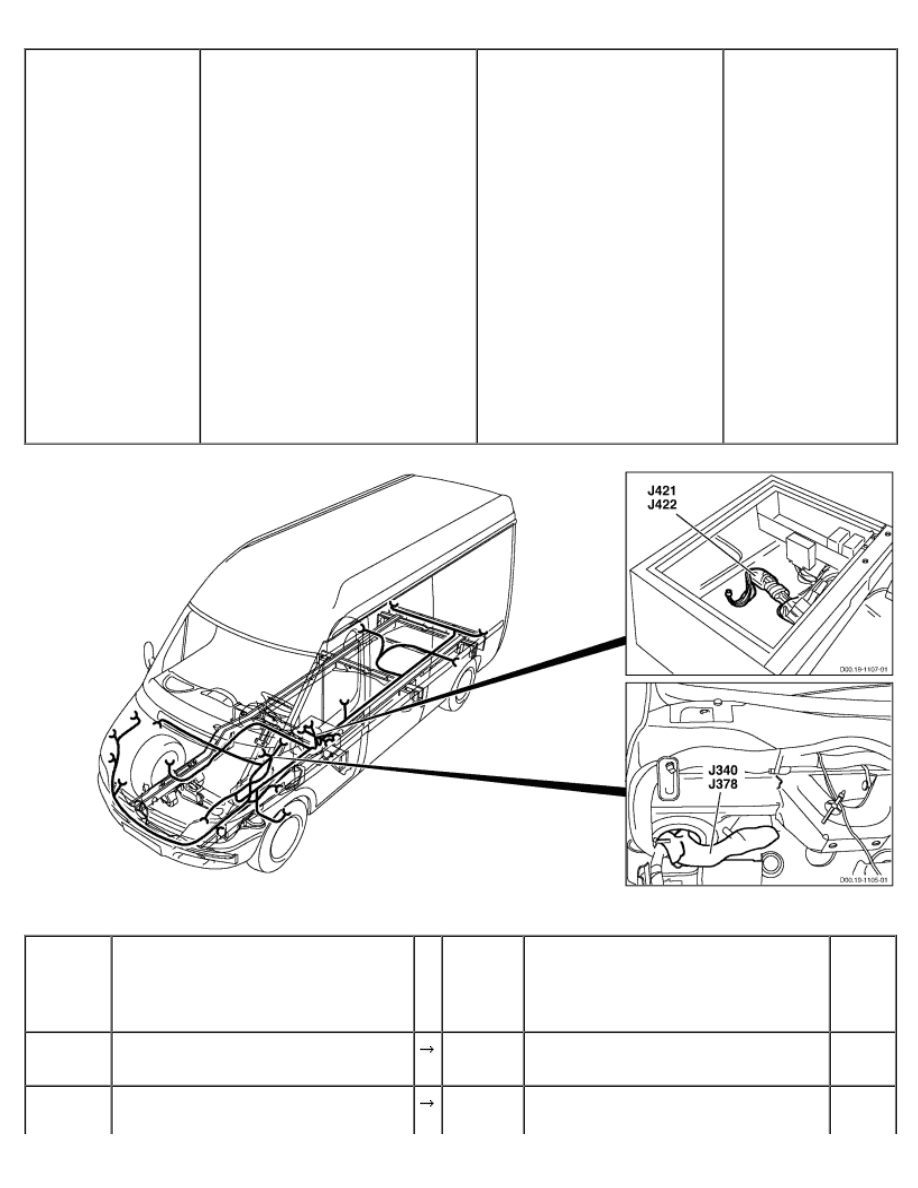

J340
CAN-high connector sleeve
4G
J378
CAN-low connector sleeve
3G
J421
CAN-low connector sleeve
3E
J422
CAN-high connector sleeve
4E
P15
Instrument cluster
2L
X82
Frame/waistrail connector
8G
X217
Frame/waistrail connector
6E
