Snowmobile Ski-Doo TRAIL ACE SERIES (REV GEN5). OPERATOR’S GUIDE (2024) - page 3
MAINTENANCE PROCEDURES
1. Sealing washer
2. Oil drain plug
12. Install drain plugs and tighten to specification.
Tightening Torque
15 ± 2 Nm
Drain plugs
(133 ± 18 lbf-in)
13. Install a new oil filter. Refer to procedure in this subsection.
14. Refill oil tank at the proper level with the recommended oil.
Approximate Engine Oil Capacity (with filter)
600 ACE
2.1 l (2.22 qt(liq.,US))
900 ACE
900 ACE Turbo
3.3 l (3.5 qt(liq.,US))
900 ACE Turbo R
15. Reinstall dipstick in oil tank and properly tighten it.
16. Start engine and let it idle for a few minutes.
17. Ensure there are no leaks.
18. Stop engine and check oil level as explained in this subsection. Re-
fill if necessary.
19. Dispose oil and filter as per your local environmental regulations.
243
MAINTENANCE PROCEDURES
Engiine Oiil Fiilter
Engine Oil Filter Replacement
Removiing the Oill Fillter
1. Remove the RH side panel.
2. Clean oil filter area.
3. Remove:
- Oil filter cover screws
- Oil filter cover with O-ring
- Oil filter.
1. Oil filter cover screws
2. Oil filter cover
3. O-ring
4. Oil filter
4. Dispose filter as per your local environmental regulations.
Installling the Oiil Filter
1. Check the oil filter inlet and outlet orifices inside oil filter receptacle
(integrated part of magneto cover) for dirt and contaminations.
244
MAINTENANCE PROCEDURES
1. Oil inlet orifice from the oil pressure pump
2. Oil outlet orifice to the engine lubrication system
3. Oil filter receptacle
2. Install a new O-ring on oil filter cover.
3. Install the new filter into the cover.
4. Lubricate filter seal and cover O-ring with engine oil.
245
MAINTENANCE PROCEDURES
1. Lubricate with engine oil
NOTICE
Pay attention to avoid pinching the O-ring during filter and cov-
er installation.
5. Install the oil filter cover.
6. Tighten oil filter cover screws to specification.
Tightening Torque
Oil filter cover screws
10 ± 1 Nm (89 ± 9 lbf-in)
7. Wipe off any oil spillage on engine.
Exhaust System
Exhaust System Verification
The muffler tail pipe should be centered with the exit hole in the bottom
pan. Exhaust system must be free of rust or leaks. Make sure that all
parts are securely in place.
Check retaining springs and heat shields condition and replace if
necessary.
The exhaust system is designed to reduce noise and to improve the
total performance of the engine. Modification may be in violation of lo-
cal laws.
246
MAINTENANCE PROCEDURES
NOTICE
If any exhaust system component is removed, modified or dam-
aged, severe engine damage may result.
Spark Plugs
Spark plugs inspection or replacement may be performed by an au-
thorized BRP snowmobile dealer, repair shop, or person of your own
choosing. Spark plugs inspection or replacement requires an in-depth
technical knowledge. Though not required, it is recommended that an
authorized BRP snowmobile dealer performs spark plugs inspection
or replacement.
Brake Fluid
Brake Fluid Level Verification
NOTICE
Vehicle must be on a level surface before checking any fluid
levels.
Check brake fluid (DOT 4) in reservoir for proper level. Add fluid (DOT
4) as required.
XRS Turbo R Models
TYPICAL
247
MAINTENANCE PROCEDURES
All Other Models
TYPICAL
1. Brake fluid reservoir
248
MAINTENANCE PROCEDURES
XRS Turbo R Models
TYPICAL
1. Minimum
2. Maximum
3. Operating range
249
MAINTENANCE PROCEDURES
All Other Models
TYPICAL
1. Minimum
2. Maximum
3. Operating range
CAUTION
Avoid getting brake fluid on skin or eyes - it may cause severe
burns. In case of contact with the skin, wash thoroughly. In
case of contact with the eyes, immediately rinse with plenty of
water for at least 10 minutes and then consult a doctor
immediately.
250
MAINTENANCE PROCEDURES
Recommended Brake Fluid
Recommended Brake Fluid
XPS DOT 4 Brake Fluid
Alternative or if not available
DOT 4 Brake Fluid
Use only DOT 4 brake fluid from a sealed container. An opened con-
tainer may be contaminated or may have absorbed moisture from the
air.
WARNING
Use only DOT 4 brake fluid from a sealed container. To avoid
serious damage to the braking system, do not use fluids other
than the recommended one, nor mix different fluids for topping
up.
Chaincase Oiil
Recommended Chaincase Oil
Recommended Chaincase Oil
XPS Synthetic chaincase oil
Alternative or if not available
75W140 gear oil that meets the API GL-5 specification
NOTICE
If the recommended XPS chaincase oil is not available, use a
75W140 gear oil that meets the API GL-5 specification. The
chaincase of this snowmobile has been developed and vali-
dated using the XPS™ Synthetic chaincase oil. BRP strongly
recommends the use of its XPS Synthetic chaincase oil at all
times. Damages caused by oil which is not suitable for the
chaincase will not be covered by the BRP limited warranty.
Verifying the Chaincase Oil Level
With the vehicle on a level surface, check the oil level by removing the
check plug.
251
MAINTENANCE PROCEDURES
CHECK PLUG
Oil level must reach the threaded hole.
If level is correct, reinstall check plug and tighten to the specified
torque.
Tightening Torque
Check plug
6 ± 1 Nm (53 ± 9 lbf-in)
If level is insufficient, refer to Chaincase Filling Procedure.
Replacing the Chaincase Oil
Draining the Chaincase Oill
1. Place the vehicle on a level surface.
2. Place a drain pan under the chaincase drain plug area.
3. Remove filler cap.
4. Remove the drain plug located at the bottom of the chaincase.
252
MAINTENANCE PROCEDURES
5. Wait a while to allow all oil to drain out of the chaincase.
6. Install drain plug and tighten to specification.
Tightening Torque
Chaincase drain plug
6 ± 1 Nm (53 ± 9 lbf-in)
Fillliing the Chaiincase
1. Open the RH side panel. Refer to Equipment.
2. Remove the check plug.
253
MAINTENANCE PROCEDURES
CHECK PLUG
3. Remove the filler cap.
TYPICAL - TOP OF CHAINCASE
1. Filler cap
4. Pour recommended oil in the filler hole until oil comes out by the
check plug hole.
5. Reinstall check plug and tighten to specification.
254
MAINTENANCE PROCEDURES
Tightening Torque
Check plug
6 ± 1 Nm (53 ± 9 lbf-in)
Reinstall the filler cap.
Driive Chain
Access to Chaincase
Open RH side panel, refer to Equipment.
Drive Chain Adjustment
Using the Torx end of the driven pulley expander, GENTLY turn ten-
sioner clockwise to eliminate the play.
Do not force the tensioner in.
NOTE:
Do not remove the hair cotter pin.
NOTICE
Overtightening the drive chain could result in severe damage to
the chaincase components.
Driive Belt
Drive Belt Inspection
Remove the drive belt guard. Refer to the procedure in Equipment.
Inspect belt for cracks, fraying or abnormal wear (uneven wear, wear
on one side, missing cogs, cracked fabric). If abnormal wear is noted,
probable cause could be pulley misalignment, excessive RPM with
frozen track, fast starts without warm-up period, burred or rusty
sheave, oil on belt or distorted spare belt. Contact an authorized BRP
snowmobile dealer.
Replacing the Drive Belt
Removing the Drive Bellt
1. Remove the tether cord cap from engine cut-off switch.
2. Remove the LH side panel.
3. Remove the drive belt guard. Refer to Removing the Drive Belt
Guard.
255
MAINTENANCE PROCEDURES
4. Insert the driven pulley expander provided, in the threaded hole on
the adjuster hub as shown.
TYPICAL - PULLEY EXPANDER INSTALLED ON ADJUSTER
HUB
5. Open the driven pulley by screwing the tool in.
6. Remove the drive belt by slipping it over the edge of the driven pul-
ley, then over the drive pulley.
Installling the Driive Bellt
The driven pulley must be expanded. Refer to Removing the Drive
Belt.
1. Slip the belt over the drive pulley, then over the driven pulley.
NOTICE
Do not force or use tools to pry the belt into place, as this could
cut or break the cords in the belt.
NOTE:
The maximum drive belt life span is obtained when belt is installed
with arrows in the direction of rotation.
256
MAINTENANCE PROCEDURES
1. To be pointed in the direction of rotation
2. Unscrew and remove the driven pulley expander from the pulley.
3. Rotate the driven pulley several times to properly set the belt be-
tween the sheaves.
4. If a new belt was installed, an adjustment will be required for the
proper belt height. Refer to Adjusting the Drive Belt Height.
5. Install belt guard.
6. Close side panel.
Adjusting the Drive Belt Height
Remove the tether cord cap from engine cut-off switch.
Remove the LH side panel.
Remove the drive belt guard.
1. Loosen the clamping bolt.
257
MAINTENANCE PROCEDURES
2. Using the suspension adjustment tool provided, turn the ring 1/4
turn at a time then rotate the driven pulley to properly set the drive
belt between the pulley sheaves.
258
MAINTENANCE PROCEDURES
NOTE:
The adjustment ring has left hand treads.
Repeat step 4 until the lowest portion of the cogs on the external
surface of drive belt is even with the driven pulley edge.
TYPICAL - PRELIMINARY SETTING
1. Lowest portion of cogs even with external surface of drive belt
NOTE:
Turning the ring counterclockwise lowers the drive belt in the pulley.
Turning the ring clockwise raises the drive belt in the pulley.
3. Firmly tighten the clamping bolt. If possible, tighten to specified tor-
que using a torque wrench.
TIGHTENING TORQUE
Clamping bolt
5.5 ± 0.5 Nm (49 ± 4 lbf-in)
259
MAINTENANCE PROCEDURES
4. Install belt guard, refer to Installing the Drive Belt Guard.
5. Install LH side panel.
6. Start engine and check if vehicle creeps.
7. If vehicle does not creep, adjustment is complete.
8. If vehicle creeps, check the drive belt deflection.
Reverse Actiivatiion (iif equipped)
Reverse may not activate or may be harder to activate if the belt is
positioned too high in the driven pulley. If reverse activation does not
work properly, ensure the drive belt is properly adjusted.
Adjust the drive belt lower in the driven pulley if needed.
Track
Track Condition
WARNING
Remove tether cord cap from engine cut-off switch before per-
forming any maintenance or adjustment, unless otherwise
specified. Vehicle must be parked in a safe place, away from
the trail.
Remove tether cord cap from engine cut-off switch.
260
MAINTENANCE PROCEDURES
Lift the rear of the snowmobile and support it with a wide-base snow-
mobile mechanical stand with a rear deflector panel. With the engine
off, rotate the track by hand, and inspect condition. If worn or cut, or if
track fibers are exposed, or if missing or defective inserts or guides
are noted; contact an authorized BRP snowmobile dealer.
Snowmobiles Equipped with Traction Enhancing Products
If your snowmobile is equipped with a BRP approved studded track,
PROCEED WITH A VISUAL INSPECTION OF YOUR TRACK BE-
FORE EACH USE.
Look for any defects, such as:
- Perforations in the track
- Tears in the track (particularly around traction holes on studded
tracks)
- Lugs that are broken or torn off, exposing portions of rods
- Delamination of the rubber
- Broken rods
- Broken studs (studded tracks)
- Bent studs (studded tracks)
- Missing studs
- Studs that are torn off the track
- Missing track guide(s)
- Also, ensure that studs nut are tighten to the recommended
torque.
On approved studded tracks, replace broken or damaged studs imme-
diately. If your track shows signs of deterioration, it must be replaced
immediately. When in doubt, ask your dealer.
WARNING
Riding with a damaged track or studs could lead to a loss of
control.
For complete information on traction enhancing products, refer to
TRACTION ENHANCING PRODUCTS in SAFETY INFORMATION at
the beginning of this Operator's Guide.
Track Tension and Alignment
NOTE:
Track tension and alignment are interrelated. Do not adjust one with-
out the other.
261
MAINTENANCE PROCEDURES
WARNING
To prevent serious injury to individuals near the snowmobile:
– NEVER stand behind or near a moving track.
– Always use a wide-base snowmobile stand with a rear de-
flector panel if it is necessary to rotate track.
– When the track is raised off the ground, only run it at the low-
est possible speed.
Centrifugal force could cause debris, damaged or loose studs,
pieces of torn track, or an entire severed track to be violently
thrown backwards out of the tunnel with tremendous force, pos-
sibly resulting in the loss of a leg or other serious injury.
Veriifyiing the Track Tension
NOTE:
Ride the snowmobile in snow about 15 to 20 minutes prior to adjusting
track tension.
1. Remove tether cord cap from engine cut-off switch.
2. Lift rear of vehicle and support it off the ground.
CAUTION
Use proper lifting techniques, notably using your legs force. Do
not attempt to lift the rear of vehicle if it is above your limits.
3. Allow rear suspension to fully extend.
4. Prepare the tensiometer.
Service tool
Tensiometer (P/N 414348200)
1. Set the bottom O-ring as per the Track Deflection from the ap-
plicable vehicle in the Technical Specifications table.
262
MAINTENANCE PROCEDURES
1. Bottom O-ring
2. Place the upper O-ring to 0 kgf (0 lbf).
1. Upper O-ring
5. Position the tensiometer on track, halfway between front and rear
idler wheels.
6. Push the tensiometer downwards until bottom O-ring (deflection
set earlier) be aligned with the bottom of slider shoe.
TYPICAL
263
MAINTENANCE PROCEDURES
TYPICAL
1. Deflection O-ring aligned with slider shoe
7. Read load recorded by the upper O-ring on the tensiometer.
TYPICAL - LOAD READING
1. Upper O-ring
8. Load reading must be as per the track deflection in the Technical
Specifications.
9. If load reading is not in accordance with the specification, adjust
track tension. Refer to Track Tension Adjustment.
Adjjusting the Track Tensiion
1. Remove tether cord cap from engine cut-off switch.
264
MAINTENANCE PROCEDURES
CAUTION
Use proper lifting techniques, notably using your legs force. Do
not attempt to lift the rear of vehicle if it is above your limits.
2. Remove wheel caps.
3. Loosen the rear axle screw or, on 2 idler wheel models, the rear
axle nut.
4. Tighten or loosen both adjustment screws (equally) to increase or
decrease track tension.
TYPICAL
1. Remove cap
2. Loosen the axle screw or nut
3. Tighten or loosen adjustment screws
5. If correct tension is unattainable, contact an authorized BRP snow-
mobile dealer.
6. Retighten the rear axle fasteners to specification.
TIGHTENING TORQUE
Rear idler wheel retaining
48 ± 6 Nm (35 ± 4 lbf-ft)
screws
7. Check track alignment as described below.
265
MAINTENANCE PROCEDURES
Aliigniing the Track
WARNING
Before checking track alignment, ensure that the track is free of
all particles which could be thrown out while track is rotating.
Keep hands, tools, feet and clothing clear of track. Always lift
the snowmobile on a wide-base stand with a rear deflector pan-
el. Ensure no one is standing in close proximity to the snowmo-
bile, especially at the rear of the track. Never rotate track at
high speed.
Centrifugal force could cause debris, damaged or loose studs,
pieces of torn track, or an entire severed track to be violently
thrown backwards out of the tunnel with tremendous force.
1. Lift rear of vehicle and support it off the ground.
CAUTION
Use proper lifting techniques, notably by using the force of your
legs . Do not attempt to lift the rear of vehicle if it is above your
limits.
2. Start engine and accelerate slightly so that track slowly turns. This
must be done in a short period of time (15 to 20 seconds).
3. Check that the track is well centered; equal distance on both sides
between edges of track guides and slider shoes.
1
2
3
A01F05A
1. Guides
2. Slider shoes
3. Equal distance
266
MAINTENANCE PROCEDURES
4. To correct track alignment:
1. Guides
2. Slider shoes
3. Tighten on this side
1. Stop engine.
2. Remove tether cord cap from engine cut-off switch.
WARNING
Remove tether cord cap from engine cut-off switch before per-
forming any maintenance or adjustment, unless otherwise
specified. Vehicle must be parked in a safe place, away from
the trail.
3. Loosen the rear axle nut.
4. Tighten adjustment screw on side where the slider shoe is the
farthest from the track insert guides.
5. Tighten the rear axle nut.
WARNING
Properly tighten wheel retaining bolt, otherwise wheel may
come off and cause track to “lock”.
6. Restart engine and rotate track slowly to recheck alignment.
7. Tighten the rear axle nut to specified torque.
267
MAINTENANCE PROCEDURES
Tightening Torque
Rear axle screw
48 ± 6 Nm (35 ± 4 lbf-ft)
8. Reposition snowmobile on the ground.
Suspensiion
Rear Suspension Condition
Visually inspect all suspension components including slider shoes,
springs, wheels, etc.
NOTE:
During normal driving, snow will act as a lubricant and coolant for the
slider shoes. Extensive riding on ice or sanded snow, will create ex-
cessive heat build-up and cause premature slider shoe wear.
Suspension Stopper Strap Condition
Inspect stopper straps for wear and cracks, bolt and nut for tightness.
If loose inspect holes for deformation. Replace as required. Tighten
nut to specification.
Tightening Torque
Stopper strap nut
7 ± 1 Nm (62 ± 9 lbf-in)
Suspension Lubrication
Lubricate the following suspension pivots at grease fittings. Refer to
Maintenance Schedule for maintenance frequency.
SERVICE PRODUCT
XPS Synthetic grease suspension
268
MAINTENANCE PROCEDURES

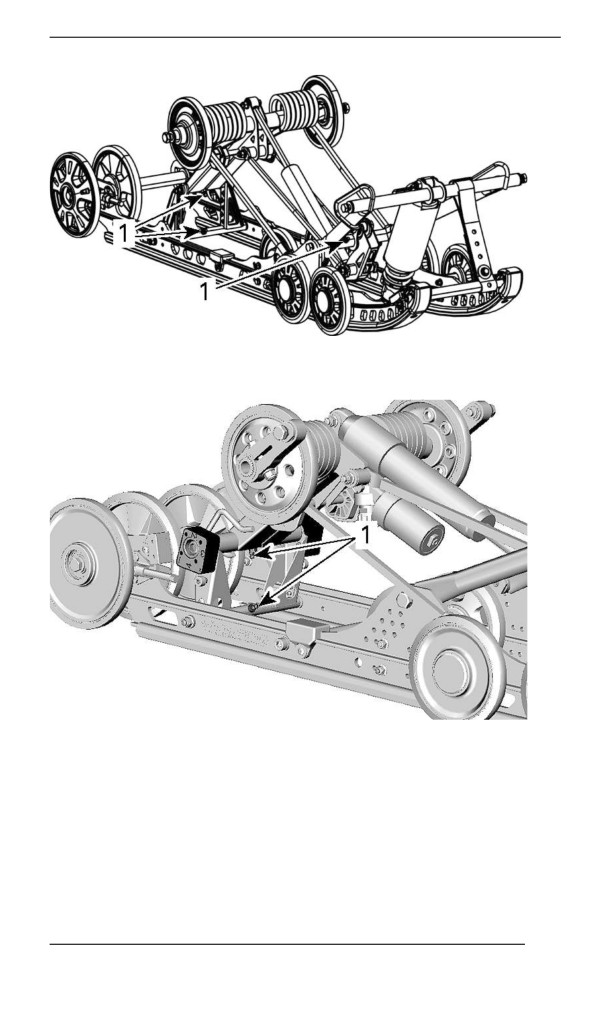

SC-5M
1. Grease fittings
RMOTION
1. Grease fitting
Steering and Front Suspension Condition
Visually inspect steering and front suspension for tightness of compo-
nents (steering arms, control arms and links, tie rods, ball joints, ski
bolts, ski legs, etc.). If necessary, contact an authorized BRP snowmo-
bile dealer.
269
MAINTENANCE PROCEDURES
Skiis
Wear and Condition of Skis and Runners
Check the condition of the skis and ski runner carbides. If worn, con-
tact an authorized BRP snowmobile dealer.
WARNING
Excessively worn skis and/or ski runners will adversely affect
snowmobile control.
Fuses
Access to Fuse Block
Open RH side panel, refer to Body and Seat.
Fuses Location
TYPICAL – FA
270
MAINTENANCE PROCEDURES
TYPICAL – FUSE BOX 1 (FB1)
Refer to Technical Specification for relay and fuse identification.
Fuse Inspection
Check fuse condition and replace it if necessary.
To remove fuse from holder, pull fuse out. Check if filament is melted.
271
MAINTENANCE PROCEDURES
1. Fuse
2. Check if melted
WARNING
Do not use a higher rated fuse.
WARNING
If fuse has burnt out, source of malfunction should be deter-
mined and corrected before restarting. See an authorized BRP
snowmobile dealer for servicing.

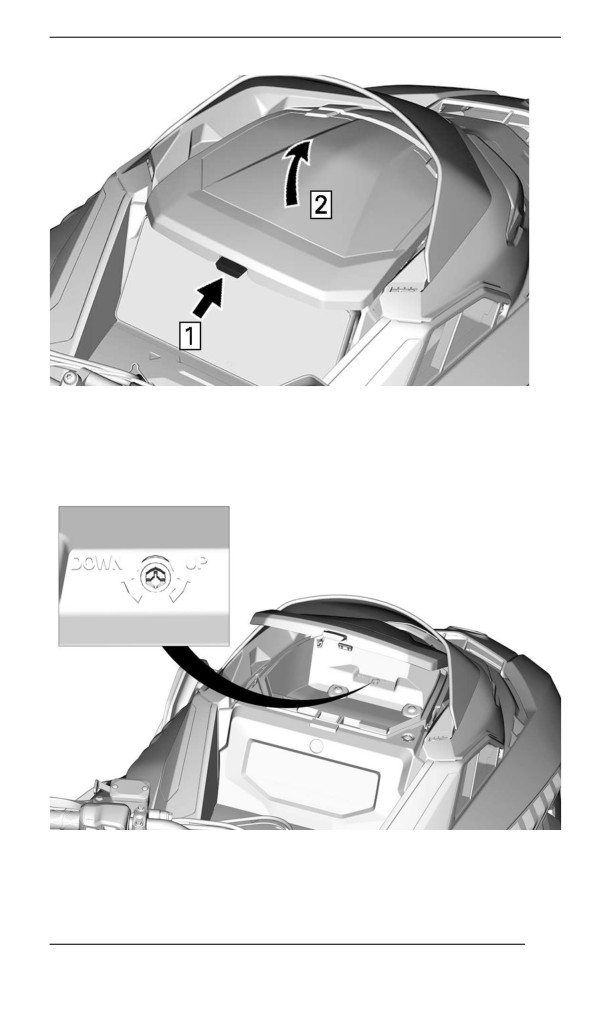

Headllights Beam Aimiing
Open the storage compartment.
272
MAINTENANCE PROCEDURES
TYPICAL
Step 1. Push
Step 2. Lift
Turn the adjustment screw to reach desired beam height.
TYPICAL
273
MAINTENANCE PROCEDURES
Battery
WARNING
Never charge or boost the battery while it is installed on the
vehicle.

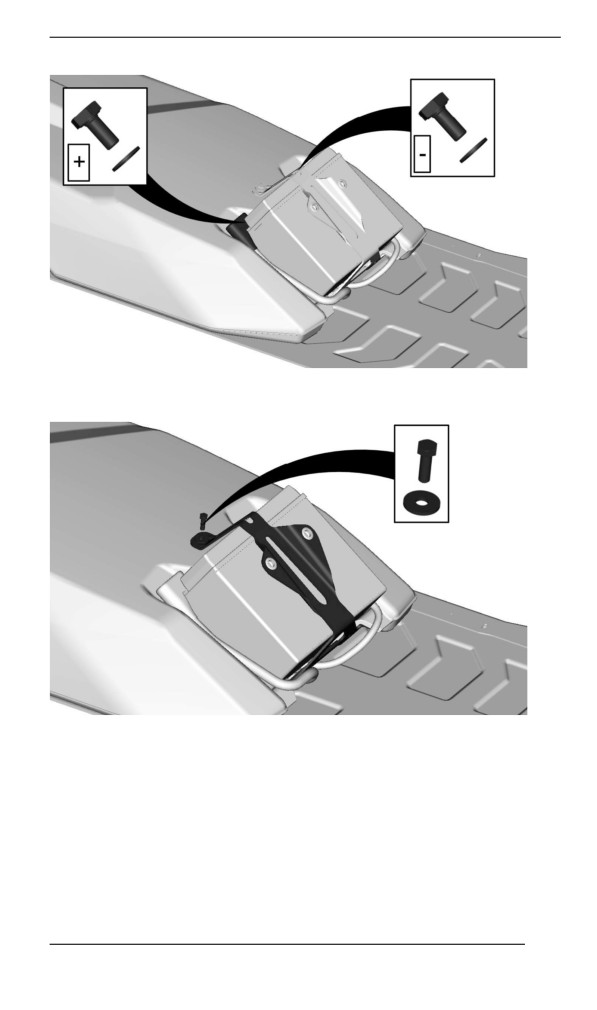

Removing the Battery
1. Remove the seat.
2. Remove the battery cover.
TYPICAL
3. Disconnect the negative terminal first, then the positive terminal.
NOTICE
Battery BLACK ( – ) cable must always be disconnected first
and connected last.
274
MAINTENANCE PROCEDURES
4. Remove the battery hold down bracket.
5. Remove the battery.
275
MAINTENANCE PROCEDURES
Cleaning the Battery
Clean battery casing and battery posts using a soft brush and a solu-
tion of baking soda and water.
Remove corrosion from battery cable terminals and battery posts us-
ing a firm wire brush.
Rinse with clear water then dry well.
Charging the Battery
Use any automotive type battery charger. Always refer to the battery
charger manufacturer’s instructions.
Installing the Battery
NOTICE
Battery BLACK ( – ) cable must always be disconnected first
and connected last.
The installation is the reverse of the removal procedure. However, pay
attention to the following details.
276
MAINTENANCE PROCEDURES
TIGHTENING TORQUE
Battery terminals (positive and
10 ± 2 Nm
negative)
(89 ± 18 lbf-in)
5 ± 0.5 Nm
Battery hold down bracket
(44 ± 4 lbf-in)
1.5 ± 0.5 Nm
Battery cover retaining screws
(13 ± 4 lbf-in)
277
VEHICLE CARE
Post-Operation Care
Remove snow and ice from rear suspension, track, front suspension,
steering mechanism and skis.
WARNING
Make sure D.E.S.S. key is removed from D.E.S.S. post before
standing in front the vehicle, getting close to the track or rear
suspension components.
Always cover your snowmobile when leaving it outside overnight or
during extended periods of inactivity. This will protect it from frost and
snow as well as help retain its appearance.
Vehiiclle Clleaniing and Protection
Wash snowmobile using water mixed with a mild detergent.
Use only microfiber cloths or an equivalent.
NOTICE
Never use a high pressure washer to clean the vehicle. Use low
pressure only, like a garden hose.
Non Compatible Cleaning Products
Material Type
Non-Compatible Cleaning Products
BRAKE AND PARTS CLEANER
All plastics, vinyls,
OR
painted steel and
ANY PETROLEUM BASE CLEANING
aluminium
PRODUCTS
Compatible Cleaning Products
Material Type
Cleaning Product
All plastics, vinyls,
Automotive type soap with water
painted steel and
XPS Spray Cleaner and Polish
aluminium.
XPS All Purpose Cleaner
For more information and products, Visit the XPS Products website at
278
STORAGE
During summer, or when a snowmobile is not in use for more than
three months, proper storage is necessary.
Storage
Clean the vehicle
Add fuel stabilizer to fuel following the product manufacturer
recommendations.
Run the engine after adding the product to the fuel
Lubricate engine
Lubricate brake lever pivot
Lubricate rear suspension
Charge battery monthly to keep it fully charged during storage
Block muffler outlet with rags
Lift rear of vehicle until track is clear of the ground. Do not release
track tension
CAUTION
Use appropriate lifting device or have assistance to share lifting
stress. If a lifting device is not used, use proper lifting techni-
ques, notably using your legs force. Do not attempt to lift the
rear of vehicle if it is above your limits.
NOTICE
The snowmobile has to be stored in a cool and dry place and
covered with an opaque but ventilated tarpaulin. This will pre-
vent sun rays and grime from affecting plastic components and
vehicle finish.
NOTICE
Fuel stabilizer should be added prior to engine lubrication to
ensure carburetor protection against varnish deposits.
279
PRESEASON PREPARATION
Proper vehicle preparation is necessary when a vehicle has not been
used for more than three months.
Using the maintenance schedule, perform the items titled EVERY
YEAR AT PRESEASON.
Visit your authorized BRP snowmobile dealer for more information.
280
MAINTENANCE RECORDS
Send photocopy of maintenance record to BRP if needed.
Pre-delivery
Serial
Signature/Print:
number:
Mileage /
km:
Hours:
Date:
Dealer
no:
Notes:
Refer to vehicle Pre-Delivery Bulletin for detailed installation
procedures
281
MAINTENANCE RECORDS
First inspection
Mileage /
Signature/Print:
km:
Hours:
Date:
Dealer
no:
Notes:
For maintenance schedule refer to Maintenance Information
section of this operator's guide
Service
Mileage /
Signature/Print:
km:
Hours:
Date:
Dealer
no:
Notes:
For maintenance schedule refer to Maintenance Information
section of this operator's guide
282
MAINTENANCE RECORDS
Service
Mileage /
Signature/Print:
km:
Hours:
Date:
Dealer
no:
Notes:
For maintenance schedule refer to Maintenance Information
section of this operator's guide
Service
Mileage /
Signature/Print:
km:
Hours:
Date:
Dealer
no:
Notes:
For maintenance schedule refer to Maintenance Information
section of this operator's guide
283
MAINTENANCE RECORDS
Service
Mileage /
Signature/Print:
km:
Hours:
Date:
Dealer
no:
Notes:
For maintenance schedule refer to Maintenance Information
section of this operator's guide
Service
Mileage /
Signature/Print:
km:
Hours:
Date:
Dealer
no:
Notes:
For maintenance schedule refer to Maintenance Information
section of this operator's guide
284
MAINTENANCE RECORDS
Service
Mileage /
Signature/Print:
km:
Hours:
Date:
Dealer
no:
Notes:
For maintenance schedule refer to Maintenance Information
section of this operator's guide
Service
Mileage /
Signature/Print:
km:
Hours:
Date:
Dealer
no:
Notes:
For maintenance schedule refer to Maintenance Information
section of this operator's guide
285
MAINTENANCE RECORDS
Service
Mileage /
Signature/Print:
km:
Hours:
Date:
Dealer
no:
Notes:
For maintenance schedule refer to Maintenance Information
section of this operator's guide
Service
Mileage /
Signature/Print:
km:
Hours:
Date:
Dealer
no:
Notes:
For maintenance schedule refer to Maintenance Information
section of this operator's guide
286
MAINTENANCE RECORDS
Service
Mileage /
Signature/Print:
km:
Hours:
Date:
Dealer
no:
Notes:
For maintenance schedule refer to Maintenance Information
section of this operator's guide
Service
Mileage /
Signature/Print:
km:
Hours:
Date:
Dealer
no:
Notes:
For maintenance schedule refer to Maintenance Information
section of this operator's guide
287
MAINTENANCE RECORDS
Service
Mileage /
Signature/Print:
km:
Hours:
Date:
Dealer
no:
Notes:
For maintenance schedule refer to Maintenance Information
section of this operator's guide
Service
Mileage /
Signature/Print:
km:
Hours:
Date:
Dealer
no:
Notes:
For maintenance schedule refer to Maintenance Information
section of this operator's guide
288
TECHNICAL
INFORMATION
289
VEHICLE IDENTIFICATION
Vehiiclle Descriiptiion Decal
Vehicle description decal is located on right hand side of tunnel.
TYPICAL
BOMBARDIER RECREATIONAL PRODUCTS Inc.
Date
VIN. / NIV.
Description
Type: SNO/MNG
ASSEMBLED IN CANADA / ASSEMBLÉ AU CANADA
FOR NORTH AMERICAN MARKET
290
VEHICLE IDENTIFICATION
520002459
FOR EUROPEAN MARKET
Identificatiion Numbers
The main components of your snowmobile (engine and frame) are
identified by different identification numbers. It may sometimes be-
come necessary to locate these numbers for warranty purposes or to
trace your snowmobile in the event of loss. These numbers are re-
quired by the authorized BRP snowmobile dealer to complete war-
ranty claims properly. We strongly recommend that you take note of
all the identification numbers on your snowmobile and supply them to
your insurance company.
Vehicle Identification Number (VIN)
VIN is scribed on vehicle description decal. See above. It is also en-
graved on tunnel near vehicle description decal.
Model number and model year are part of the information found in the
VIN. See illustration.
2BP
S
LSAB
9
A
V
000001
2BP = Canada
Serial
Model number
YH2 = Finland
number
Factory
S = Ski-Doo
V = Valcourt
L = Lynx
R = Rovaniemi
Numeric or
Alphabetic
Model year: P = 2023
R= 2024
291
VEHICLE IDENTIFICATION
Engine Identification Number Location
292
COMPLIANCE LABELS

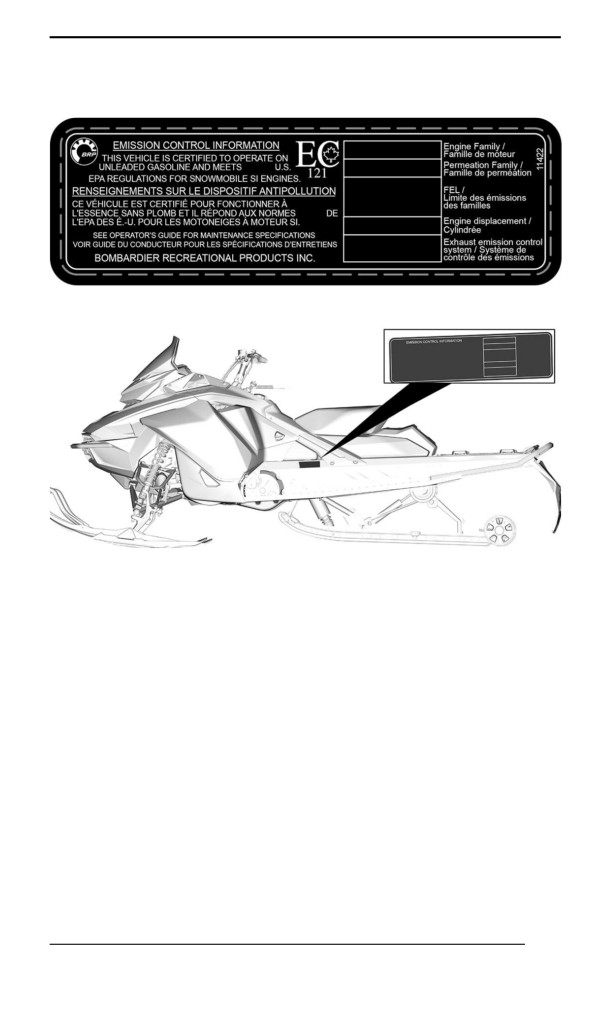

EPA Complliance Label
EPA COMPLIANCE LABEL
TYPICAL
293
COMPLIANCE LABELS

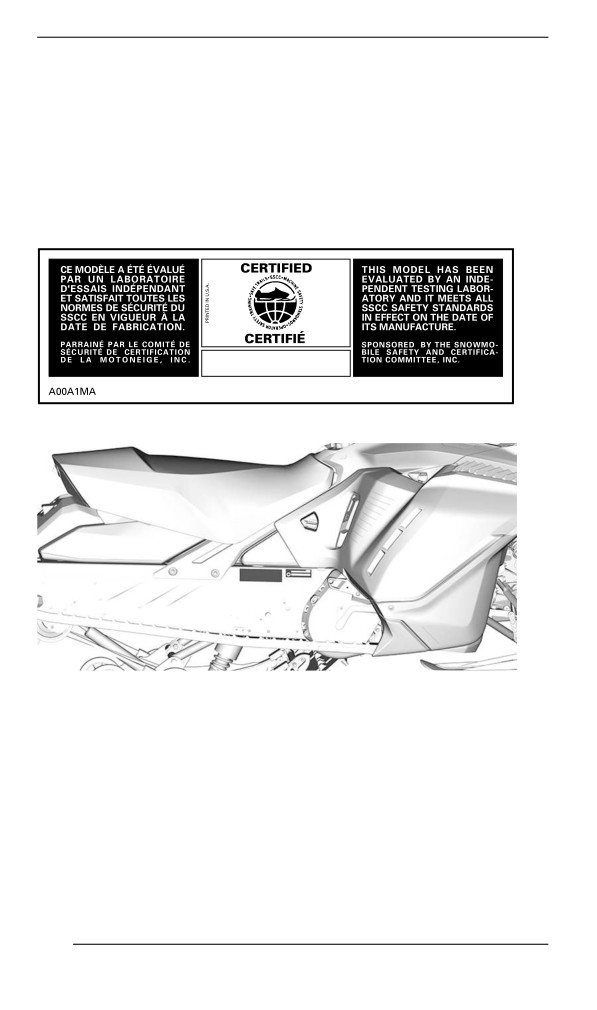

SSCC Labell
Safety standards for snowmobiles have been adopted by the Snow-
mobile Safety and Certification Committee (SSCC) of which BRP is a
proud participating member. Assurance that your snowmobile meets
these standards is easily checked by locating the Certification Label
on a right vertical portion of the vehicle.
The following label shows that an independent testing laboratory has
verified compliance with the SSCC safety standards.
SSCC LABEL
TYPICAL
294
COMPLIANCE LABELS
Yelllowstone Natiionall Park Complliance Labell
YELLOWSTONE NATIONAL PARK - COMPLIANCE LABEL
LABEL LOCATION
295
COMPLIANCE LABELS
Regullatiion (EU) 2016/1628 appllicablle for
Non-Road Mobiile Machineries

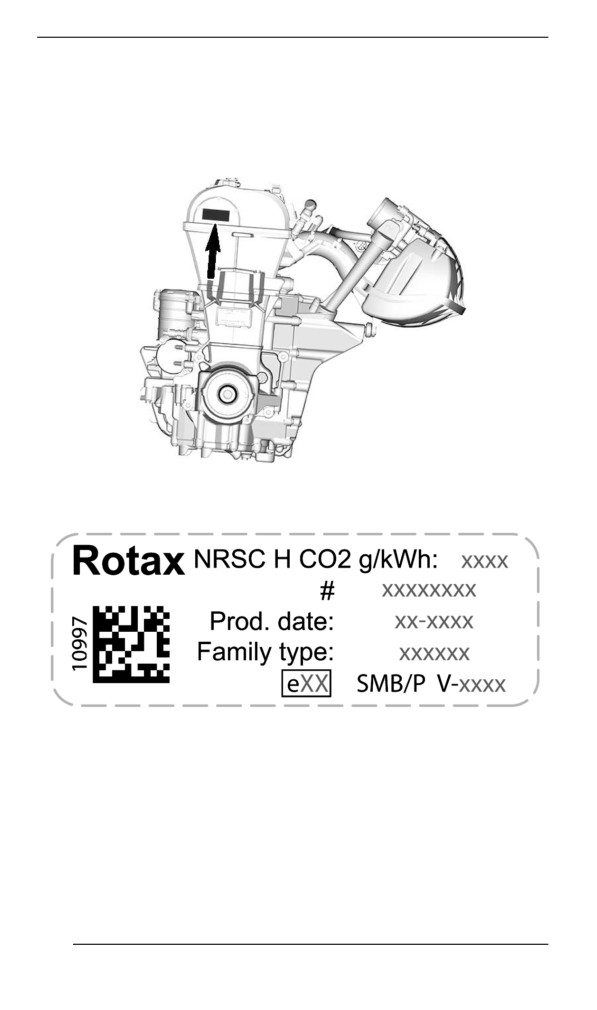

Vehicles who comply to Regulation (EU) 2016/1628 (NRMM) are iden-
tified on the engine valve cover.
TYPICAL
NRMM IDENTIFICATION ON ENGINE
296
COMPLIANCE LABELS
Depending on your particular vehicle configuration, an additional
NRMM identification decal may be installed on the tunnel, near the
gearbox.
TYPICAL - ON RH SIDE OF TUNNEL
Bombardier Recreational
Products Inc.
565 de la Montagne,
Valcourt,QC, Canada
J0E 2L0
BRP-Rotax GmbH Co. KG
Rotaxstrasse 1
Gunskirchen, A-4623
Austria
Rotax
NRMM IDENTIFICATION ON VEHICLE
297
NOISE EMISSION AND VIBRATION VALUES
MODEL
600 ACE
900 ACE
NOISE EMISSION AND VIBRATION VALUES1
90,4 dB @ 3625
90.3 dB @ 3625
Sound power
RPM
RPM
level (LWA)
(Uncertainty
(Uncertainty
(Kwa) 3 dB)
(Kwa) 3 dB)
Noise
78 dB @ 3625
RPM
Sound pressure (LpA)
(Uncertainty
(KpA) 3 dB)
Hand-arm
<2.5 m/s2 @
2.5 m/s2 @
system
3625 RPM
3625 RPM
Vibration
Whole body at
<0.5 m/s2 @
<0.5m/s2 @
seat
3625 RPM
3625 RPM
1: Noise emission and Vibration values are measured in
accordance with Annexes A and B of ISMA 1 regulation on a snow
covered or grass surface in neutral or without belt.
298
EU DECLARATION OF CONFORMITY
299
UK DECLARATION OF CONFORMITY
300
EPA CERTIFIED ENGINES
Engine Emiissiions Information
Manufacturer''s Responsibility
Snowmobile manufacturers of snowmobile engines need to determine
the exhaust emission levels for each engine horsepower family and
certify these engines with the United States of America Environmental
Protection Agency (EPA). An emissions control information label,
showing emission levels and engine specifications, must be placed on
each vehicle at the time of manufacture.
Dealer''s Responsibility
When performing service on a certified BRP snowmobiles that carry
an emissions control information label, adjustments must be kept with-
in published factory specifications.
Replacement or repair of any emission related component must be
executed in a manner that maintains emission levels within the pre-
scribed certification standards.
Dealers are not to modify the engine in any manner that would alter
the horsepower or allow emission levels to exceed their predeter-
mined factory specifications.
Exceptions include manufacturer's prescribed changes, such as alti-
tude adjustments for example.
Owner’s Responsibility
The owner / operator is required to have engine maintenance per-
formed to maintain emission levels within prescribed certification
standards.
The owner / operator is not to, and should not allow anyone to modify
the engine in any manner that would alter the horsepower or allow
emissions levels to exceed their predetermined factory specifications.
EPA Emission Regulations
All BRP snowmobiles manufactured by BRP are certified to the EPA
as conforming to the requirements of the regulations for the control of
air pollution from new snowmobile engines. This certification is contin-
gent on certain adjustments being set to factory standards. For this
reason, the factory procedure for servicing the product must be strictly
followed and, whenever practicable, returned to the original intent of
the design.
The responsibilities listed above are general and in no way a complete
listing of the rules and regulations pertaining to the EPA requirements
on exhaust emissions for snowmobile products. For more detailed in-
formation on this subject, you may contact the following locations:
301
EPA CERTIFIED ENGINES
MAIL:
U.S. Environmental Protection Agency
Certification Division
Gasoline Engine Compliance Center
2000 Traverwood Drive
Ann Arbor MI 48105
USA
INTERNET WEB SITE:
302
RADIO FREQUENCY DIGITALLY ENCODED
SECURITY SYSTEM (RF D.E.S.S. KEY)
This device complies with FCC Part 15 and Industry Canada license
exempt RSS standard(s).
Operation is subject to the following two conditions: (1) this device
may not cause interference, and (2) this device must accept any inter-
ference, including interference that may cause undesired operation of
the device.
Changes or modifications not expressly approved by the party respon-
sible for compliance could void the user’s authority to operate the
equipment.
IC Registration Number: 12006A-1001317030
FCC ID: 2ACER-1001317030
We, the party responsible for compliance, declare under our sole re-
sponsibility that the device is in conformity with the provisions of the
following Council Directive: 2014/53/EU. To which this declaration re-
lates is in conformity with the essential requirements and other rele-
vant requirements. The product is in conformity with the following
directives, harmonized standards and regulations:
Radio Equipment Directive
(RED)
2014/53/EU and Harmonized
Standards:
IEC 62368-1:2014, CISPR 25:2016, ISO 11452-2:2004, ETSI EN 300
330 V2.1.1:2017
Radio Equipment Statutory Instrument 2017/1206 and Designated
Standards:
IEC 62368-1:2014, CISPR 25:2016, ISO 11452-2:2004, ETSI EN 300
330 V2.1.1:2017
303
MULTIFUNCTION GAUGE REGULATORY
INFORMATION
Technical Information
Transmitter:
- BT operating frequency range: 2402 - 2480 MHz
- BT version: 5.0
- BT max transmit power: +8 dBm
Manufacturer and Address
Manufacturer:
- Enovation Controls LLC
Address:
-
5311 S 122nd E. Ave. Tulsa,
OK 74146,
USA
To display the regulatory information on the vehicle digital display:
From the app menu, go to Preferences / General / About.
USA and Canada
This device complies with FCC Part 15 and Industry Canada license
exempt RSS standard (s). Operation is subject to the following two
conditions:
(1) this device may not cause interference, and
(2) this device must accept any interference, including interference
that may cause undesired operation of the device.
Le présent appareil est conforme aux CNR d'Industrie Canada appli-
cables aux appareils radio exempts de licence. L'exploitation est au-
torisée aux deux conditions suivantes:
(1) l'appareil ne doit pas produire de brouillage, et
(2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectri-
que subi, même si le brouillage est susceptible d'en compromettre le
fonctionnement.
Changes or modifications not expressly approved by the party respon-
sible for compliance could void the user's authority to operate the
equipment.
IC: 28102-ECB01
FCC ID: 2A3FV-ECB01
RF exposure:
- The equipment complies with FCC RF exposure limits set forth for
an uncontrolled environment.
- This equipment must be installed and operated with a separation
distance of at least 20 cm from all persons.
304
MULTIFUNCTION GAUGE REGULATORY INFORMATION
- The antenna(s) used for this transmitter must not be co-located or
operating in conjunction with any other antenna or transmitter.
Mexico
IFETEL
Marca: Robert Bosch LLC
Modelo(s): VIPHI2BT
Número: RCPENOD22-2195
NOM-208-SCFl-2016 (Disposición Técnica IFT-008-2015)
La operación de este equipo está sujeta a las siguientes dos condi-
ciones: (1) es posible que este equipo o dispositivo no cause interfer-
encia perjudicial y (2) este equipo o dispositivo debe aceptar cualquier
interferencia, incluyendo la que pueda causar su operación no
deseada.
Brazil
03473-18-04473
Este equipamento opera em caráter secundário, isto é, não tem direito
a proteção contra interferência prejudicial, mesmo de estações do
mesmo tipo, e não pode causar interferência a sistemas operando em
caráter primário.
Japan
This device is granted pursuant to the Japanese Radio Law (
)
and the Japanese Telecommunications Business Law
(
). This device should not be modified (otherwise the
granted designation number will become invalid).
Europe
Declaration of Conformity
305
MULTIFUNCTION GAUGE REGULATORY INFORMATION
Simplified EU Declaration of Conformity according Radio Equipment
Directive 2014/53/EU.
DE
Hiermit erklärt Enovation Controls LLC, dass der Funkanlagentyp OD1025-01 der Richtlinie 2014/53/EU entspricht.
Der vollständige Text der EU-Konformitätserklärung ist unter der folgenden Internetadresse verfügbar:
FR
Le soussigné, Enovation Controls LLC, déclare que l'équipement radioélectrique du type OD1025-01 est
conforme à la directive 2014/53/UE. Le texte complet de la déclaration UE de conformité est disponible à
l'adresse internet suivante: https://www.brp.com/en/sustainability/product-responsibility.html
BG
Enovation Controls LLC
,
OD1025-01
2014/53/.
:
EL
Με την παρούσα ο/η Enovation Controls LLC, δηλώνει ότι ο ραδιοεξοπλισ×όØ OD1025-01 πληροί την οδηγία 2014/53/EE.
Το πλήρεØ κεί×ενο τηØ δήλωσηØ συ××όρφωσηØ ΕΕ διατίθεται στην ακόλουθη ιστοσελίδα στο διαδίκτυο:
CS
Tímto Enovation Controls LLC prohlašuje, že typ rádiového zařízení OD1025-01 je v souladu se směrnicí 2014/53/EU.
Úplné znění EU prohlášení o shodě je k dispozici na této internetové adrese:
DA
Hermed erklærer Enovation Controls LLC, at radioudstyrstypen OD1025-01 er i overensstemmelse med direktiv
2014/53/EU.
EU-overensstemmelseserklæringens fulde tekst kan ðndes på følgende internetadresse:
ET
Käesolevaga deklareerib Enovation Controls LLC, et käesolev raadioseadme tüüp OD1025-01 vastab direktiivi
2014/53/EL nõuetele.
ELi vastavusdeklaratsiooni täielik tekst on kättesaadav järgmisel internetiaadressil:
ES
Por la presente, Enovation Controls LLC declara que el tipo de equipo radioeléctrico OD1025-01 es conforme
con la Directiva 2014/53/UE.
El texto completo de la declaración UE de conformidad está disponible en la dirección Internet siguiente:
FI
Enovation Controls LLC vakuuttaa, että radiolaitetyyppi OD1025-01 on direktiivin 2014/53/EU mukainen.
EU-vaatimustenmukaisuusvakuutuksen täysimittainen teksti on saatavilla seuraavassa internetosoitteessa:
EN
Hereby, Enovation Controls LLC declares that the radio equipment type OD1025-01 is in compliance with
Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet
HR
Enovation Controls LLC ovime izjavljuje da je radijska oprema tipa OD1025-01 u skladu s Direktivom 2014/53/EU.
Cjeloviti tekst EU izjave o sukladnosti dostupan je na sljedećoj internetskoj adresi:
HU
Enovation Controls LLC igazolja, hogy a OD1025-01 típusú rádióberendezés megfelel a 2014/53/EU irányelvnek.
Az EU-megfelelőségi nyilatkozat teljes szövege elérhető a következő internetes címen:
IT
Il fabbricante, Enovation Controls LLC, dichiara che il tipo di apparecchiatura radio OD1025-01 è conforme
alla direttiva 2014/53/UE.
Il testo completo della dichiarazione di conformità UE è disponibile al seguente indirizzo Internet:
306
MULTIFUNCTION GAUGE REGULATORY INFORMATION
LT
Aš, Enovation Controls LLC, patvirtinu, kad radijo įrenginių tipas OD1025-01 atitinka Direktyvą 2014/53/ES.
Visas ES atitikties deklaracijos tekstas prieinamas šiuo interneto adresu:
LV
Ar šo Enovation Controls LLC deklarē, ka radioiekārta OD1025-01 atbilst Direktīvai 2014/53/ES.
Pilns ES atbilstības deklarācijas teksts ir pieejams šādā interneta vietnē:
MT
B'dan, Enovation Controls LLC, niddikjara li dan it-tip ta' tagħmir tar-radju OD1025-01 huwa konformi mad-Direttiva
2014/53/UE. It-test kollu tad-dikjarazzjoni ta' konformità tal-UE huwa disponibbli f'dan l-indirizz tal-Internet li ġej:
NL
Hierbij verklaar ik, Enovation Controls LLC, dat het type radioapparatuur OD1025-01 conform is met Richtlijn
2014/53/EU.
De volledige tekst van de EU-conformiteitsverklaring kan worden geraadpleegd op het volgende internetadres:
PL
Enovation Controls LLC niniejszym oświadcza, że typ urządzenia radiowego OD1025-01 jest zgodny z dyrektywą
2014/53/UE. Pełny tekst deklaracji zgodności UE jest dostępny pod następującym adresem internetowym:
PT
O(a) abaixo assinado(a) Enovation Controls LLC declara que o presente tipo de equipamento de rádio OD1025-01 está
em conformidade com a Diretiva 2014/53/UE.
O texto integral da declaração de conformidade está disponível no seguinte endereço de Internet:
RO
Prin prezenta, Enovation Controls LLC declară că tipul de echipamente radio OD1025-01 este în conformitate cu
Directiva 2014/53/UE. Textul integral al declaraiei UE de conformitate este disponibil la următoarea adresă internet:
SV
Härmed försäkrar Enovation Controls LLC att denna typ av radioutrustning OD1025-01 överensstämmer med direktiv
2014/53/EU. Den fullständiga texten till EU-försäkran om överensstämmelse nns på följande webbadress:
SL
Enovation Controls LLC potrjuje, da je tip radijske opreme OD1025-01 skladen z Direktivo 2014/53/EU.
Celotno besedilo izjave EU o skladnosti je na voljo na naslednjem spletnem naslovu:
SK
Enovation Controls LLC týmto vyhlasuje, že rádiové zariadenie typu OD1025-01 je v súlade so smernicou 2014/53/EÚ.
Úplné EÚ vyhlásenie o zhode je k dispozícii na tejto internetovej adrese:
IS
Enovation Controls LLC lýsir því hér með yr að þráðlausi arskiptabúnaðurinn OD1025-01 er í samræmi við tilskipun
2014/53/ESB. Óstyttan texta ESB-samræmisyrlýsingarinnar er að nna á ve anginu:
Liechtenstein
Hiermit erklärt Enovation Controls LLC, dass der Funkanlagentyp OD1025-01 der Richtlinie 2014/53/EU entspricht.
Der vollständige Text der EU-Konformitätserklärung ist unter der folgenden Internetadresse verfügbar:
NO
Hermed erklærer Enovation Controls LLC at radioutstyrstypen OD1025-01 er i samsvar med direktiv 2014/53/EU.
Hele teksten i EU-samsvarserklæringen nnes på følgende internettadresse:
RU
µ¾ÀÉÌÑÒÓ Enovation Controls LLC ÑÌÔÕ¾ÓÖÒÀ ×ÌÓØÙÓÚÕ, ÛÕ¾ ÜÌÝÒ¾ÕÚÞÑÒÛÚÔß¾Ú ¾à¾ÜâݾØÌÑÒÚ
ßÌÕÚä¾ÜÒÒ OD1025-01 ¾ÕØÚÛÌÚÕ ÕÜÚà¾ØÌÑÒÓÀ åÒÜÚßÕÒØæ 2014/53/EU.
ç¾ÙÑæì ÕÚßÔÕ ÝÚßÙÌÜÌíÒÒ Ô¾¾ÕØÚÕÔÕØÒÓ îï ݾÔÕâÉÚÑ ÑÌ ÔÌìÕÚ
307
MULTIFUNCTION GAUGE REGULATORY INFORMATION
This page is intention-
ally blank
308
TECHNICAL
SPECIFICATIONS
309
ENGINE
900 ACE
ENGINE
Rotax 903, liquid
Engine type
cooled, 4-stroke,
D.O.H.C., dry sump
Number of cylinder
3
74 mm
Bore
(2.9 in)
69.7 mm
Stroke
(2.74 in)
899 cm³
Displacement
(54.9 in³)
Maximum power engine speed
7250 ± 200 RPM
FUEL SYSTEM
Multi point EFI, 46
Fuel delivery
mm heated throttle
body
Standard
and ECO
1300 ± 200 RPM
Idle speed (not adjustable)
mode
Sport mode
1500 ± 200 RPM
ELECTRICAL SYSTEM
30 A @ 14.5 V
Total system output
650 W @ 6000 RPM
NGK MR8BI-8 or
Type
equivalent
Spark plug
Not adjustable
Gap
0.7 to 0.8 mm
(.028 to .031 in)
310
ENGINE
LUBRICATION SYSTEM
Recom
XPS 4T 0W40
mended
Synthetic oil
XPS oil
Use a 0W40 4-stroke
SAE synthetic engine
oil meeting or
exceeding the
following lubricant
Type
industry
If XPS
specifications.Always
product is
Engine oil
check the API
not
service label
available
certification on the oil
container, it must
contain at least the
indicated standard.
-
- API service
classification SN
Oil change with filter:
Quantity
3.3 l
(3.5 qt (liq.,US))
900 ACE Turbo
ENGINE
Rotax 903, liquid
cooled, 4-stroke,
Engine type
D.O.H.C., dry sump,
turbo without
intercooler
Number of cylinder
3
74 mm
Bore
(2.9 in)
69.7 mm
Stroke
(2.74 in)
311
ENGINE
ENGINE
899 cm³
Displacement
(54.9 in³)
Maximum power engine speed
7400 ± 200 RPM
FUEL SYSTEM
Multi point EFI, 46
Fuel delivery
mm heated throttle
body
Standard
and ECO
1300 ± 200 RPM
Idle speed (not adjustable)
mode
Sport mode
1500 ± 200 RPM
ELECTRICAL SYSTEM
30 A @ 14.5 V
Total system output
650 W @ 6000 RPM
NGK LMAR9AI-8D or
Type
equivalent
Spark plug
Not adjustable
Gap
0.7 to 0.8 mm
(.028 to .031 in)
LUBRICATION SYSTEM
Recom
XPS 4T 0W40
Engine oil
Type
mended
Synthetic oil
XPS oil
312
ENGINE
LUBRICATION SYSTEM
Use a 0W40 4-stroke
SAE synthetic engine
oil meeting or
exceeding the
following lubricant
industry
If XPS
specifications.Always
product is
check the API
not
service label
available
certification on the oil
container, it must
contain at least the
indicated standard.
-
- API service
classification SN
Oil change with filter:
Quantity
3.3 l
(3.5 qt (liq.,US))
900 ACE Turbo R
ENGINE
Rotax 903, liquid
cooled, 4-stroke,
Engine type
D.O.H.C., dry sump,
turbo with intercooler
Number of cylinder
3
74 mm
Bore
(2.9 in)
69.7 mm
Stroke
(2.74 in)
899 cm³
Displacement
(54.9 in³)
Maximum power engine speed
7900 ± 200 RPM
313
ENGINE
FUEL SYSTEM
Multi point EFI, 46
Fuel delivery
mm heated throttle
body
Standard
and ECO
1300 ± 200 RPM
Idle speed (not adjustable)
mode
Sport mode
1650 ± 200 RPM
ELECTRICAL SYSTEM
30 A @ 14.5 V
Total system output
650 W @ 6000 RPM
NGK LMAR9AI-8D or
Type
equivalent
Spark plug
Not adjustable
Gap
0.7 to 0.8 mm
(.028 to .031 in)
LUBRICATION SYSTEM
Recom
XPS 4T 0W40
mended
Synthetic oil
XPS oil
Use a 0W40 4-stroke
SAE synthetic engine
oil meeting or
exceeding the
following lubricant
Engine oil
Type
industry
If XPS
specifications.Always
product is
check the API
not
service label
available
certification on the oil
container, it must
contain at least the
indicated standard.
-
- API service
classification SN
314
ENGINE
LUBRICATION SYSTEM
Oil change with filter:
Quantity
3.3 l
(3.5 qt (liq.,US))
315
VEHICLE
Grand Touriing
COOLING SYSTEM
XPS Extended life
Recommended
pre-mixed coolant
Ethyl glycol and
distilled water
Coolant type
(50%/50%)
Alternative, or if
or coolant
not available
specifically
formulated for
aluminum engines
With radiator
6.9 l (7.3 qt (US))
Coolant capacity
Without radiator
5.9 l (6.2 qt (US))
FUEL SYSTEM
Fuel pump
In-tank electrical
Regular unleaded
Type
gasoline
900
ACE
87 Pump posted
Octane rating
AKI (RON+MON)/2)
92 RON
Fuel
Premium unleaded
Type
900
ACE
gasoline
Turbo
900 ACE
91 Pump posted
Turbo R
Octane rating
AKI (RON+MON)/2
95 RON
Fuel tank capacity
36 l (9.5 gal (US))
ELECTRICAL SYSTEM – 900 ACE, 900 ACE TURBO and 900
ACE TURBO R
Battery
12 V, 18 A•h
Headlamp
LED
316
VEHICLE
ELECTRICAL SYSTEM – 900 ACE, 900 ACE TURBO and 900
ACE TURBO R
2.6 W / 139 mW
Taillight and stoplight
LED
FA
Main
40 A
F1
Start
5A
F2
Accessories
15 A
Taillight / Brake /
F3
10 A
PAC
F4
ECM / RFID / O2
10 A
Sensor / Caps
Fuses
F5
ACS
15 A
Engine/ Fuel
F7
10 A
pump / Starter
F8
Cluster
20 A
F9
Fan
15 A
F10
Headlamps
15 A
F11
Reverse
30 A
RY1
Main
-
RY2
Accessories
-
Relays -
FB1
RY3
Fan
-
RY4
Lighting
-
RY5
Forward
-
Relays -
FB2
RY6
Reverse
-
DRIVE SYSTEM — CHAINCASE
Chaincase
XPS Synthetic
Type
Recommended
oil
chaincase oil
317
VEHICLE
DRIVE SYSTEM — CHAINCASE
75W140 gear oil
Alternative, or if
that meets the API
not available
GL-5 specification
550 ml (18.9 fl oz
Capacity
(US))
900 ACE
24/49
900 ACE Turbo
25/45
Chain drive ratio
(130 hp)
900 ACE Turbo
27/45
R (180 hp)
DRIVE SYSTEM — PULLEYS
900 ACE
pDrive
900 ACE Turbo
pDrive 4S
Type
900 ACE Turbo
pDrive 4S+
R
Drive pulley
900 ACE
2200 ± 100 RPM
Engage
900 ACE Turbo
ment
(130 hp)
RPM
2700 ± 100 RPM
900 ACE Turbo
R (180 hp)
900 ACE
QRS-4S
Driven
Type
900 ACE Turbo
pulley
900 ACE Turbo
QRS-4S Vent
R
318
VEHICLE
DRIVE SYSTEM — TRACK
Drive sprocket number
Grand Touring
16
of teeth
Width
38 cm (15 in)
Track
Length
348.7 cm (137 in)
Profile height
32 mm (1.25 in)
Deflection
32 mm (1.26 in)
Track adjustment(3)
6.0 to 8.5 kgf (13 to
Force
19 lbf)
BRAKE SYSTEM
Single 200-mm
Brake
Type
cross-drilled carbon
steel disc
Type
DOT 4
Brake fluid
65 ml (2.2 fl oz
Quantity
(US))
Fixed twin pistons
Caliper
(2 x 40 mm)
Brake pad material
Organic
Minimum brake pad thickness (includes
5 mm (.197 in)
backing plate)
Minimum brake disc thickness
4.5 mm (.177 in)
Maximum brake disc warpage
0.25 mm (.01 in)
FRONT SUSPENSION
Suspension type
RAS X
Suspension maximum travel
225 mm (8.9 in)
319
VEHICLE
FRONT SUSPENSION
Shock absorber type
KYB 36
REAR SUSPENSION
Suspension type
rMotion X
Suspension maximum travel
276 mm (10.9 in)
Measured at rear arm
Center
KYB 36
Shock absorber type
Rear
ACS (Air Control
Suspension)
WEIGHT AND DIMENSIONS
900 ACE
254 kg (559 lb)
900 ACE Turbo
266 kg (586 lb)
Mass (dry)
900 ACE Turbo
268 kg (590 lb)
R
Overall length
312.7 cm (123.1 in)
Overall width
121.1cm (47.8 n)
Overall height
151.3 cm (59.6 in)
Ski stance
109 m (43 in)
Grand Touring
Cargo load
25 kg (55 lb)
Limited
(1)
Do not attempt to adjust gap on this spark
NOTICE
plug.
(2)
Refer to Engine Oil for detailed information.
(3)
Refer to Track Tension Verification in Maintenance
Procedures for detailed procedure.
320
VEHICLE
Renegade
COOLING SYSTEM
Recommended
XPS Extended life
pre-mixed coolant
Ethyl glycol and
distilled water (50%/
Type
50%)
Coolant
Alternative, or if
or coolant
not available
specifically
formulated for
aluminum engines
capacity
6.9 l (7.3 qt (US))
FUEL SYSTEM
Fuel pump
In-tank electrical
Type
Regular unleaded
gasoline
900 ACE
Octane rating
87 Pump posted
AKI (R+M)/2)
92
(RON)
Fuel
Type
Premium unleaded
900 ACE
gasoline
Turbo
900 ACE
Octane rating
91 Pump posted
Turbo R
AKI (R+M)/2)
95
(RON)
Fuel tank capacity
36 l (9.5 gal (US))
ELECTRICAL SYSTEM – 900 ACE, 900
ACE turbo, 900 ACE
Turbo R
Battery
12 V, 18 A•h
Headlamp
LED
321
VEHICLE
ELECTRICAL SYSTEM – 900 ACE, 900 ACE turbo, 900 ACE
Turbo R
2.6 W / 139
mW
Taillight and stoplight
LED
FA
Main Fuse
40 A
F1
Relays / Coils /
5A
Start
F2
Accessories
15 A
F3
Taillight / Brake
10 A
/ PAC
ECM / RFID /
O2 Sensor /
F4
CAPS (with a
10 A
Compact digital
display)
Fuses
F7
Fuel Pump /
10 A
Engine / Starter
F5
Suspension (If
15 A
equipped)
F8
Cluster
20 A
F9
Fan
15 A
F10
Headlamps
15 A
Reverse (If
F11
30 A
equipped)
RY1
Main
-
RY2
Accessories
-
Relays
RY3
Fan
-
RY4
Lighting
-
322
VEHICLE
ELECTRICAL SYSTEM – 900 ACE, 900 ACE turbo, 900 ACE
Turbo R
Relays -
RY5
Forward
-
FB2 (With
Electronic
RY6
Reverse
-
Reverse)
DRIVE SYSTEM — CHAINCASE
Recommended
XPS Synthetic
chaincase oil
Type
Alternative, or if
75W140 gear oil
not available
that meets the API
Chaincase
GL-5 specification
oil
550 ml (18.6 fl oz
Capacity
(US))
900 ACE
24/49
900 ACE Turbo
25/45
Chain drive ratio
900 ACE Turbo
27/45
R
DRIVE SYSTEM — PULLEYS
900 ACE
pDrive
900 ACE Turbo
pDrive-4S
Type
900 ACE Turbo
pDrive-4S+
Drive pulley
R
900 ACE
2200 ± 100 RPM
Engage
ment
900 ACE Turbo,
RPM
900 ACE Turbo
2700 ± 100 RPM
R
Driven
Type
900 ACE
QRS-4S
pulley
323
VEHICLE
DRIVE SYSTEM — PULLEYS
900 ACE Turbo,
900 ACE Turbo
QRS-4S Vent
R
DRIVE SYSTEM — TRACK
Drive sprocket number of teeth
8
Width
38 cm (15 in)
Length
348.7 cm (137 in)
Track
31.8 mm (1.25 in) or
Profile height
38.1 mm (1.5 in)
Deflection
32 mm (1.26 in)
Track adjustment(3)
Force
7.3 kgf (16 lbf)
BRAKE SYSTEM
All Models
Single
Except X-RS
200-mmcross-dril
led carbonsteel disc
Brake
Type
Single 220 mm
X-RS Models
stainless floating
only
disc with 4 pistons
caliper
Type
DOT 4
Brake fluid
65 ml (2.2 fl oz
Quantity
(US))
Fixed twin pistons
(2 x 40 mm)
Caliper
All Models
Brake pad material
Organic
Except X-RS
324
VEHICLE
BRAKE SYSTEM
X-RS Models
Ferrite
only
Minimum brake pad thickness (includes
5 mm (.197 in)
backing plate)
Minimum brake disc thickness
4.5 mm (.177 in)
Maximum brake disc warpage
0.25 mm (.01 in)
FRONT SUSPENSION
Suspension type
All Models
RAS X
Renegade
Adrenaline,
235 mm (9.3 in)
Renegade
Suspension maximum
Enduro
travel
Renegade X
Renegade
243 mm (9.6 in)
X-RS
Renegade
Adrenaline,
Renegade
KYB 36
Adrenaline with
Enduro
Shock absorber type
Package
Renegade X
KYB 36 Plus
Renegade
KYB Pro 36 EA or
X-RS
Smart-Shox
REAR SUSPENSION
Suspension type
rMotion X
Renegade
Suspension maximum
Adrenaline with
travel
276 mm (10.9 in)
Enduro
Measured at rear arm
Package
325
VEHICLE
REAR SUSPENSION
Renegade
Adrenaline,
292 mm (11.5 in)
Renegade X,
X-RS
Renegade
Adrenaline,
Renegade
KYB 36
Adrenaline with
Enduro
Center
Package
Renegade X
KYB 36 Plus
Renegade
KYB Pro 40 EA
X-RS
Shock
absorber
Renegade
type
KYB 36
Adrenaline
Renegade
Adrenaline with
ACS (Air Control
Enduro
Suspension)
Rear
Package
Renegade X
KYB Pro 36 EA
Renegade
KYB Pro 40 EA or
X-RS
Smart-Shox
WEIGHT AND DIMENSIONS
Renegade
Adrenaline 900
226 kg (497 lb)
ACE
Renegade
Mass (dry)
Adrenaline 900
235 kg (518 lb)
ACE Turbo
Renegade
Adrenaline 900
238 kg (524 lb)
ACE Turbo R
326
VEHICLE
WEIGHT AND DIMENSIONS
Renegade
Adrenaline with
Enduro
241
kg (531 lb)
Package 900
ACE
Renegade
Adrenaline with
Enduro
250
kg (552 lb)
Package 900
ACE Turbo
Renegade
Adrenaline with
Enduro
252
kg (556 lb)
Package 900
ACE Turbo R
Renegade X
Turbo /
238
kg (524 lb)
Renegade X
Turbo R
Renegade
242
kg (533 lb)
X-RS
Overall length
303.8 cm (119.6 in)
Renegade
Adrenaline,
Renegade
121.7 cm (47.9 in)
Adrenaline with
Overall width
Enduro
Package
Renegade X,
121.1 cm (47.8 in)
X-RS
Renegade
Adrenaline with
133.1 cm (52.4 in)
Enduro
Overall height
Package
Renegade
126.7 cm (49.9 in)
Adrenaline,
327
VEHICLE
WEIGHT AND DIMENSIONS
Renegade X,
X-RS
Ski stance
All Models
109 cm (43 in)
Cargo load
15.8 kg (35 lb)
(1)
Do not attempt to adjust gap on this spark
NOTICE
plug.
(2)
Refer to Engine Oil for detailed information.
(3)
Refer to Track Tension Verification in Maintenance
Procedures for detailed procedure.
328
TROUBLESHOOT-
ING
329
TROUBLESHOOTING GUIDELINES – E-TEC
ENGINES
ELECTRIC STARTER DOES NOT WORK
1. Emergency engine stop switch in OFF position or tether
cord cap not installed on engine cut-off switch.
- Place the emergency engine stop switch in the ON position
and install tether cord cap (on engine cut-off switch.
2. Throttle applied while attempting an engine start.
- Release throttle while cranking.
ENGINE IS CRANKING BUT FAILS TO START
1. No fuel to the engine.
- Check fuel tank level, add fuel if necessary.
2. System voltage too low.
- Contact an authorized BRP snowmobile dealer.
ENGINE RPM DOES NOT REACH CLUTCH ENGAGEMENT
POINT
1. D.E.S.S. did not read D.E.S.S. key code in the tether cord
cap. D.E.S.S. pilot lamp blinks (slow short beeps/
repetitive).
- Properly install tether cord cap.
2. D.E.S.S. has read a different code than the one
programmed. D.E.S.S. pilot lamp blinks rapidly (fast short
beeps/repetitive).
- Install a tether cord cap for which this snowmobile was
programmed.
3. ECM does not recognize the D.E.S.S. key.
- Refer to an authorized BRP snowmobile dealer.
330
TROUBLESHOOTING GUIDELINES - E-TEC ENGINES
ENGINE LACKS ACCELERATION OR POWER
1.
Engine warm-up in progress.
- Drive vehicle at low speeds for a few minutes.
2.
Engine break-in period not completed.
- Complete break-in period.
3.
Drive and driven pulleys require servicing.
- Contact an authorized BRP snowmobile dealer.
4.
Engine overheats.
- Check coolant level, see Maintenance procedures.
- Check heat exchangers cleanliness. Clean if necessary.
5.
Drive belt worn too thin.
- If the drive belt has lost more than 3 mm (1/8 in) of its
original width, it will affect vehicle performance.
- Replace drive belt.
6.
Incorrect track adjustment.
- See MAINTENANCE and/or an authorized Lynx dealer for
proper alignment and tension adjustments.
7.
R.A.V.E. valves problem.
- Seek service from an authorized BRP snowmobile dealer,
repair shop, or person of your own choosing for
maintenance, repair, or replacement.
8.
Fuel pressure too low.
- Seek service from an authorized BRP snowmobile dealer,
repair shop, or person of your own choosing for
maintenance, repair, or replacement.
331
TROUBLESHOOTING GUIDELINES - E-TEC ENGINES
ENGINE BACKFIRES
1. Engine is running too hot.
- See item 4 of ENGINE LACKS POWER.
2. Ignition timing is incorrect or there is an ignition system
failure.
- Seek service from an authorized BRP snowmobile dealer,
repair shop, or person of your own choosing for
maintenance, repair, or replacement.
3. Exhaust system leak.
- Seek service from an authorized BRP snowmobile dealer,
repair shop, or person of your own choosing for
maintenance, repair, or replacement.
4. Fuel pressure too low.
- Seek service from an authorized BRP snowmobile dealer,
repair shop, or person of your own choosing for
maintenance, repair, or replacement.
ENGINE MISFIRES
1. Water in fuel.
- Drain fuel system and refill with fresh fuel.
2. RAVE valves malfunction.
- Have RAVE valves system inspected. Seek service from an
authorized BRP snowmobile dealer, repair shop, or person
of your own choosing for maintenance, repair, or
replacement.
HEATED GRIPS/THUMB WARMERS ARE NOT WORKING
1. Engine RPM is too low.
- Make sure engine RPM is above 2000.
ENGINE HAS SHUT DOWN
1. The engine shuts down after long periods of idling.
- Do not let engine idle too long. Refer to Vehicle warm-up in
operating instruction.
332
MONITORING SYSTEM
Piilot Lamps, Messages and Beeper Codes
Gauge pilot lamp(s) will inform you if an anomaly occurs or to inform
you of a particular condition.
PILOT LAMPS – 4.5” AND 7.2” DIGITAL DISPLAY
DIGITAL PILOT LAMP
–
10.25” COLOR DIGITAL
TOUCHSCREEN
PILOT LAMPS – 10.25” COLOR DIGITAL TOUCHSCREEN
Pilot lamp can flash alone or in combination with another lamp.
The lower display is used as a complement of the pilot lamps to give
you a brief description if an anomaly occurs or to inform you of a par-
ticular condition.
4.5" DIGITAL LOWER DISPLAY
333
MONITORING SYSTEM
7.2" DIGITAL LOWER DISPLAY
10.25” COLOR DIGITAL TOUCHSCREEN
Some messages will be displayed with a beep code and pilot lamp(s).
Beeper codes will be heard and messages will be displayed to catch
your attention.
See table below for details.
NOTE:
Some of the listed pilot lamps and messages do not apply to all
models.
334
MONITORING SYSTEM
Pilot
Message
lamp
Beeper
Description
display
ON
Engine is overheating,
reduce snowmobile
speed and run in loose
snow or stop engine
immediately and let
engine cool down.
HIGH
Check coolant level,
ENGINE
refer to Maintenance. If
TEMPERA
coolant level is correct
TURE
and overheating
persists, contact an
1 Long
authorized BRP
beep
snowmobile dealer. Do
repeat
not run the engine if
ing
condition persists.
Reduce speed or stop
engine. Let engine cool
down and restart. If
overheating persists,
MUFFLER
contact an authorized
OVERHEAT
BRP snowmobile
dealer. Do not run the
engine if condition
persists.
Critical overheat. Stop
engine immediately and
let engine cool down.
Check coolant level,
1 Long
HIGH
refer to Maintenance. If
beep
ENGINE
coolant level is correct
repeat
TEMPERA
and overheating
ing
TURE
persists, contact an
authorized BRP
snowmobile dealer. Do
not run the engine if
condition persists.
335
MONITORING SYSTEM
Pilot
Message
lamp
Beeper
Description
display
ON
MUFFLER
Critical overheat. Stop
OVERHEAT
engine immediately and
let engine cool down. If
overheating persists,
contact an authorized
ECM
BRP snowmobile
OVERHEAT
dealer. Do not run the
engine if condition
persists.
Indicate a low or high
battery voltage
—
condition. See an
BATT VOLT
authorized BRP
snowmobile dealer as
soon as possible.
Engine fault, see an
1 Long
authorized BRP
beep
CHECK
snowmobile dealer,
repeat
ENGINE
repair shop or person of
ing
your own choosing as
soon as possible.
Displayed when brake is
applied for more than 15
seconds while throttle
—
—
lever is squeezed and
vehicle is moving at
more than 5 km/h (3
MPH).
Engine detonation
(RPM is limited when
4 short
this condition occurs).
beeps
—
KNOCK
- Ensure
every 5
recommended fuel is
minutes
used.
- Check fuel quality,
replace if
336
MONITORING SYSTEM
Pilot
Message
lamp
Beeper
Description
display
ON
necessary.
- If fault still occurs,
contact an
authorized BRP
snowmobile dealer,
repair shop, or
person of your own
choosing.
4 short
Engine RPM limited for
beeps
—
REV LIMIT
protection when certain
every 5
faults occur.
minutes
Indicates that maximum
—
—
OVER REV
engine RPM is reached.
Check clutch calibration.
Short
Shutdown procedure in
beeps
force due to engine
—
repeat
SHUTDOWN
overheating or fuel
ing
pump problem.
rapidly
337
MONITORING SYSTEM
Pilot
Message
lamp
Beeper
Description
display
ON
Good key, vehicle ready
—
—
to operate.
Unable to read key (bad
connection). Make sure
—
WRONG KEY
the key is clean and
correctly snapped on
DESS
post.
Invalid key or key not
programmed. Use the
—
CHECK KEY
proper key for the
vehicle or have the
programmed.
Fuel
level
sensor
—
—
problem.
(blink
ing)
Fault Codes
The fault codes can be displayed on the center display.
The fault codes are accessible in the setting menu.
Contact an authorized BRP snowmobile dealer for code signification.
338
WARRANTY
339
BRP LIMITED WARRANTY USA AND
CANADA: 2024 SKI-DOO® SNOWMOBILES
SCOPE OF THE LIMITED WARRANTY
Bombardier Recreational Products Inc. (“BRP”) warrants its 2024
Ski-Doo snowmobiles sold by authorized BRP dealers (as defined be-
low) in the United States of America (“USA”) and in Canada from de-
fects in material or workmanship for the period and under the
conditions described below. This limited warranty will become null and
void if: (1) the snowmobile was used for racing or any other competi-
tive activity, at any point, even by a previous owner; or (2) the snow-
mobile has been altered or modified in such a way so as to adversely
affect its operation, performance or durability, or has been altered or
modified to change its intended use.
Non-factory installed parts and accessories are not covered under this
limited warranty. Please refer to the applicable parts and accessories
limited warranty text.
LIMITATIONS OF LIABILITY
TO THE EXTENT PERMITTED BY LAW, THIS WARRANTY IS
EXPRESSLY GIVEN AND ACCEPTED IN LIEU OF ANY AND
ALL OTHER WARRANTIES, EXPRESSED OR IMPLIED, IN-
CLUDING WITHOUT LIMITATION ANY WARRANTY OF MER-
CHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE.
TO THE EXTENT THAT THEY CANNOT BE DISCLAIMED, THE
IMPLIED WARRANTIES ARE LIMITED IN DURATION TO THE
LIFE OF THE EXPRESS WARRANTY. INCIDENTAL AND CON-
SEQUENTIAL DAMAGES ARE EXCLUDED FROM COVERAGE
UNDER THIS WARRANTY. SOME STATES/PROVINCES DO
NOT ALLOW FOR THE DISCLAIMERS, LIMITATIONS AND EX-
CLUSIONS IDENTIFIED ABOVE. AS A RESULT, THEY MAY
NOT APPLY TO YOU. THIS WARRANTY GIVES YOU SPECIFIC
RIGHTS, AND YOU MAY ALSO HAVE OTHER LEGAL RIGHTS
WHICH MAY VARY FROM STATE TO STATE, OR PROVINCE
TO PROVINCE.
Neither the distributor, any BRP dealer nor any other person has been
authorized to make any affirmation, representation or warranty regard-
ing the product, other than those contained in this limited warranty,
and if made, shall not be enforceable against BRP. BRP reserves the
right to modify this limited warranty at any time, being understood that
such modification will not alter the warranty conditions applicable to
the products sold while this warranty is in effect.
EXCLUSIONS – ARE NOT WARRANTED
The following are not warranted under any circumstances:
- Normal wear and tear;
- Routine maintenance items, tune ups, adjustments;
340
BRP LIMITED WARRANTY USA AND CANADA: 2024 SKI-DOO®
SNOWMOBILES
-
Damage caused by failure to provide proper maintenance and/or
storage, as described in the Operator's Guide;
-
Damage resulting from removal of parts, improper repairs, service,
maintenance, modifications or use of parts or accessories not
manufactured or approved by BRP or resulting from repairs done
by a person that is not an authorized servicing BRP dealer;
-
Damage caused by abuse, abnormal use, neglect, use of the prod-
uct on surfaces other than snow, or operation of the product in a
manner inconsistent with the recommended operation described in
the Operator’s Guide;
-
Damage resulting from accident, submersion, fire, theft, vandalism
or any act of God;
-
Operation with fuels, oils or lubricants which are not suitable for
use with the product (see the Operator’s Guide);
-
Snow or water ingestion;
–
Incidental or consequential damages, or damages of any kind in-
cluding without limitation towing, storage, telephone, rental, taxi, in-
convenience, insurance coverage, loan payments, loss of time,
loss of income; and
-
Damage resulting from studs installed on tracks if the installation
does not conform to BRP’s instructions.
WARRANTY COVERAGE PERIOD
This limited warranty will be in effect from the date of delivery to the
first retail consumer or the date the product is first put into use, which-
ever occurs first and for the following period:
TWELVE (12) CONSECUTIVE MONTHS, for private or commercial
use owners. However, the warranty coverage period on a snowmobile
delivered between June 1st and December 1st of a given year will ex-
pire November 30th of the following year.
For emission-related components; please also refer to the US EPA
Emission-Related Warranty contained herein.
The repair or replacement of parts or the performance of service under
this warranty does not extend the life of this warranty beyond its origi-
nal expiration date.
CONDITIONS REQUIRED FOR WARRANTY
COVERAGE
This warranty coverage is available only if each of the following condi-
tions has been fulfilled:
- The 2024 Ski-Doo snowmobile must be purchased as new and un-
used by its first owner from a BRP dealer authorized to distribute
Ski-Doo snowmobiles in the country or in the case of the EEA,
union of countries, in which the sale occurred (“BRP dealer”);
341
BRP LIMITED WARRANTY USA AND CANADA: 2024 SKI-DOO®
SNOWMOBILES
- The BRP specified pre-delivery inspection process must be com-
pleted and documented and signed by the purchaser;
- The 2024 Ski-Doo snowmobile must have undergone proper regis-
tration by an authorized BRP dealer;
- The 2024 Ski-Doo snowmobile must be purchased in the country
in which the purchaser resides; and
- Routine maintenance outlined in the Operator’s Guide must be
timely performed in order to maintain warranty coverage. BRP re-
serves the right to make warranty coverage contingent upon proof
of proper maintenance.
BRP will not honor this limited warranty to any private use owner or
commercial use owner if one of the preceding conditions has not been
met. Such limitations are necessary in order to allow BRP to preserve
both the safety of its products, and also that of its consumers and the
general public.
WHAT TO DO TO OBTAIN WARRANTY
COVERAGE
The customer must cease using the snowmobile upon the appearance
of an anomaly. The customer must notify a servicing BRP dealer with-
in three (3) days of the appearance of a defect, and provide it with rea-
sonable access to the product and reasonable opportunity to repair it.
The customer must also present to the authorized BRP dealer, proof
of purchase of the product and must sign the repair/work order prior to
starting the repair in order to validate the warranty repair. All parts re-
placed under this limited warranty become the property of BRP.
WHAT BRP WILL DO
BRP’s obligations under this warranty are limited to, at its sole discre-
tion, repairing parts found defective under normal use, maintenance
and service, or replacing such parts without charge for parts and labor,
at any authorized BRP dealer during the warranty coverage period
under the conditions described herein. No claim of breach of warranty
shall be cause for cancellation or rescission of the sale of the snowmo-
bile to the owner.
In the event that service is required outside of the country of original
sale, the owner will bear responsibility for any additional charges due
to local practices and conditions, such as, but not limited to, freight, in-
surance, taxes, license fees, import duties, and any and all other finan-
cial charges, including those levied by governments, states, territories
and their respective agencies.
BRP reserves the right to improve or modify products from time to time
without assuming any obligation to modify products previously
manufactured.
342
BRP LIMITED WARRANTY USA AND CANADA: 2024 SKI-DOO®
SNOWMOBILES
TRANSFER
If the ownership of a product is transferred during the warranty cover-
age period, this limited warranty, subject to its terms and conditions,
shall also be transferred and be valid for the remaining coverage peri-
od provided BRP or an authorized Ski-Doo Distributor/Dealer receives
a proof that the former owner agreed to the transfer of ownership, in
addition to the co-ordinates of the new owner.
CONSUMER ASSISTANCE
In the event of a controversy or a dispute in connection with this limited
warranty, BRP suggests that you try to resolve the issue at the dealer-
ship level. We recommend discussing the issue with the authorized
dealer's service manager or owner.
If the matter still remains unresolved, contact BRP by filling out the
customer contact form at www.brp.com or contact BRP by mail at one
of the addresses listed under the CONTACT US section of this guide.
343
US EPA EMISSION-RELATED WARRANTY
Bombardier Recreational Products Inc. (“BRP”) warrants to the ulti-
mate purchaser and each subsequent purchaser that this new engine,
including all parts of its exhaust emission-control system and its evap-
orative emission-control system, meets two conditions:
1. It is designed, built, and equipped so it conforms at the time of sale
to the ultimate purchaser with the requirements of 40 CFR 1051
and 40 CFR 1060.
2. It is free from defects in materials and workmanship that may keep
it from meeting the requirements of 40 CFR 1051 and 40 CFR
1060.
Where a warrantable condition exists, BRP will repair or replace, as it
elects, any part or component with a defect in materials or workman-
ship that would increase the engine’s emissions of any regulated pol-
lutant within the stated warranty period at no cost to the owner,
including expenses related to diagnosing and repairing or replacing
emission-related parts. All defective parts replaced under this warranty
become the property of BRP.
For all emission-related warranty claims, BRP is limiting the diagnosis
and repair of emission-related parts to the authorized Ski-Doo dealers,
unless for emergency repairs as required by item 2 of the following
list.
As a certifying manufacturer, BRP will not deny emission-related war-
ranty claims based on any of the following:
1. Maintenance or other service BRP or BRP's authorized facilities
performed.
2. Engine/equipment repair work that an operator performed to cor-
rect an unsafe, emergency condition attributable to BRP as long as
the operator tries to restore the engine/equipment to its proper con-
figuration as soon as possible.
3. Any action or inaction by the operator unrelated to the warranty
claim.
4. Maintenance that was performed more frequently than BRP
specify.
5. Anything that is BRP fault or responsibility.
6. The use of any fuel that is commonly available where the equip-
ment operates unless BRP written maintenance instructions state
that this fuel would harm the equipment’s emission control system
and operators can readily find the proper fuel. See maintenance in-
formation section and fuel requirements of fueling section.
Emission-Rellated Warranty Periiod
The emission-related warranty is valid for the following period which-
ever comes first:
344
US EPA EMISSION-RELATED WARRANTY
Kilo
hours
months
meters
Exhaust emission-related
200
30
4000
components
Evaporative emission-related
N/A
24
N/A
components
Components Covered
The emission-related warranty covers all components whose failure
would increase an engine’s emissions of any regulated pollutant, in-
cluding the following listed components:
1.
For exhaust emissions, emission-related components include any
engine parts related to the following systems:
- Air-induction system
- Fuel system
- Ignition system
- Exhaust gas recirculation systems
2.
The following parts are also considered emission-related compo-
nents for exhaust emissions:
- Aftertreatment devices
- Crankcase ventilation valves
- Sensors
- Electronic control units
3.
The following parts are considered emission-related components
for evaporative emissions:
- Fuel tank
- Fuel cap
- Fuel line
- Fuel line fittings
- Clamps*
- Pressure relief valves*
- Control valves*
- Control solenoids*
- Electronic controls*
- Vacuum control diaphragms*
- Control cables*
- Control linkages*
- Purge valves
- Vapor hoses
- Liquid/vapor separator
- Carbon canister
- Canister mounting brackets
345
US EPA EMISSION-RELATED WARRANTY
- Carburetor purge port connector
NOTE:
*As related to the evaporative emission control system
4. Emission-related components also include any other part whose
only purpose is to reduce emissions or whose failure will increase
emissions without significantly degrading engine/equipment
performance.
Limited Appllicabillity
As a certifying manufacturer, BRP may deny emission-related war-
ranty claims for failures that have been caused by the owner’s or oper-
ator’s improper maintenance or use, by accidents for which the
manufacturer has no responsibility, or by acts of God. For example, an
emission-related warranty claim need not be honored for failures that
have been directly caused by the operator’s abuse of the engine/
equipment or the operator’s use of the engine/equipment in a manner
for which it was not designed and are not attributable to the manufac-
turer in anyway.
If you have any question regarding your warranty rights and responsi-
bility or for the name and location of the nearest authorized BRP deal-
er, you should contact BRP by filling out the customer contact form at
www.brp.com or contact BRP by mail at one of the addresses listed
under the CONTACT US section of this guide, or call at
1-888-272-9222.
346
BRP INTERNATIONAL LIMITED WARRANTY:
2024 SKI-DOO® SNOWMOBILES
SCOPE OF THE LIMITED WARRANTY
Bombardier Recreational Products Inc. (“BRP”) warrants its 2024
Ski-Doo snowmobiles sold by distributors or dealers authorized by
BRP to distribute Ski-Doo snowmobiles ("Ski-Doo Distributor/Deal-
er") outside of the fifty United States, Canada, members of the Euro-
pean Economic Area (which is comprised of the member states of the
European Union plus the United Kingdom, Norway, Iceland and Liech-
tenstein) (“EEA”), members states of the Commonwealth of the Inde-
pendent States (including Ukraine and Turkmenistan) ("CIS") and
Turkey, from defects in material or workmanship for the period and
under the conditions described below.
Non-factory installed parts and accessories are not covered under this
limited warranty. Please refer to the applicable parts and accessories
limited warranty text.
This limited warranty will become null and void if: (1) the snowmobile
was used for racing or any other competitive activity, at any point,
even by a previous owner; or (2) the snowmobile has been altered or
modified in such a way so as to adversely affect its operation, perform-
ance or durability, or has been altered or modified to change its in-
tended use.
LIMITATIONS OF LIABILITY
TO THE EXTENT PERMITTED BY LAW, THIS WARRANTY IS
EXPRESSLY GIVEN AND ACCEPTED IN LIEU OF ANY AND
ALL OTHER WARRANTIES, EXPRESSED OR IMPLIED, IN-
CLUDING WITHOUT LIMITATION ANY WARRANTY OF MER-
CHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE.
TO THE EXTENT THAT THEY CANNOT BE DISCLAIMED, THE
IMPLIED WARRANTIES ARE LIMITED IN DURATION TO THE
LIFE OF THE EXPRESS WARRANTY. INCIDENTAL AND CON-
SEQUENTIAL DAMAGES ARE EXCLUDED FROM COVERAGE
UNDER THIS WARRANTY. SOME JURISDICTIONS DO NOT
ALLOW FOR THE DISCLAIMERS, LIMITATIONS AND EXCLU-
SIONS IDENTIFIED ABOVE. AS A RESULT, THEY MAY NOT
APPLY TO YOU. THIS WARRANTY GIVES YOU SPECIFIC
RIGHTS, AND YOU MAY ALSO HAVE OTHER LEGAL RIGHTS
WHICH MAY VARY FROM COUNTRY TO COUNTRY. BRP
SHALL NOT BE HELD LIABLE IF PRODUCTS OR WARRANTY
PARTS ARE NOT AVAILABLE IN CERTAIN COUNTRIES FOR
REASONS OUTSIDE OF BRP’S CONTROL. (FOR PRODUCTS
PURCHASED IN AUSTRALIA REFER TO “FOR PRODUCTS
SOLD IN AUSTRALIA ONLY”, BELOW).
Neither the Ski-Doo Distributor/Dealer nor any other person has been
authorized to make any affirmation, representation or warranty
347
BRP INTERNATIONAL LIMITED WARRANTY: 2024 SKI-DOO®
SNOWMOBILES
regarding the product, other than those contained in this limited war-
ranty, and if made, shall not be enforceable against BRP.
BRP reserves the right to modify this warranty at any time, being
understood that such modification will not alter the warranty conditions
applicable to the products sold while this warranty is in effect.
EXCLUSIONS – ARE NOT WARRANTED
The following are not warranted under this limited warranty under any
circumstances:
-
Normal wear and tear;
–
Routine maintenance items, tune ups, adjustments;
–
Damage caused by negligence or failure to provide proper mainte-
nance and/or storage, as described in the operator's guide;
-
Damage resulting from removal of parts, improper repairs, service,
maintenance, modifications or use of parts or accessories not
manufactured or approved by BRP which in its reasonable judge-
ment are either incompatible with the product or adversely affect
its operation, performance and durability, or resulting from repairs
done by a person that is not an authorized servicing BRP snowmo-
bile distributor/ dealer;
-
Damage caused by abuse, abnormal use, neglect, racing or opera-
tion of the product on surfaces other than snow, or operation of the
product in a manner inconsistent with the recommended operation
described in the Operator’s Guide;
-
Damage resulting from accident, submersion, fire, snow or water
ingestion, theft, vandalism or any act of God;
-
Operation with fuels, oils or lubricants which are not suitable for
use with the product (see the Operator’s Guide);
-
Damage resulting from rust, corrosion or exposure to the
elements;
-
Incidental or consequential damages, or damages of any kind in-
cluding without limitation towing, storage, transportation expenses,
telephone, rental, taxi, inconvenience, insurance coverage, loan
payments, loss of time, loss of income; or time missed for down-
time experience due to service work.
-
And damage resulting from studs installed on tracks if the installa-
tion does not conform to BRP’s instructions.
WARRANTY COVERAGE PERIOD
This warranty will be in effect from (1) the date of delivery to the first
retail consumer or (2) the date the product is first put into use, which-
ever occurs first and for a period of:
TWELVE (12) CONSECUTIVE MONTHS, for private or commercial
use owners. However, the warranty coverage period on a snowmobile
348
BRP INTERNATIONAL LIMITED WARRANTY: 2024 SKI-DOO®
SNOWMOBILES
delivered between June 1st and December 1st of a given year will ex-
pire November 30th of the following year.
The repair or replacement of parts or the performance of service under
this warranty does not extend the life of this warranty beyond its origi-
nal expiration date.
Note that the duration and any other modalities of the warranty cover-
age are subject to the applicable national or local legislation in the cus-
tomer's country.
FOR PRODUCTS SOLD IN AUSTRALIA ONLY
Nothing in these Warranty terms and conditions should be taken to ex-
clude, restrict or modify the application of any condition, warranty,
guarantee, right or remedy conferred or implied under the Competition
and Consumer Act 2010 (Cth), including the Australian Consumer
Law or any other law, where to do so would contravene that law, or
cause any part of these terms and conditions to be void. The benefits
given to you under this limited warranty are in addition to other rights
and remedies that you have under Australian law.
Our goods come with guarantees that cannot be excluded under the
Australian Consumer Law. You are entitled to a replacement or refund
for a major failure and for compensation for any other reasonably fore-
seeable loss or damage. You are also entitled to have the goods re-
paired or replaced if the goods fail to be of acceptable quality and the
failure does not amount to a major failure.
CONDITIONS TO HAVE WARRANTY COVERAGE
This warranty coverage is available only if each of the following condi-
tions has been fulfilled:
- The 2024 Ski-Doo snowmobile must be purchased as new and un-
used by its first owner from a Ski-Doo Distributor/Dealer authorized
to distribute Ski-Doo snowmobiles in the country or in the case of
the EEA, union of countries, in which the sale occurred;
- The BRP specified pre-delivery inspection process must be com-
pleted, documented and signed by the purchaser;
- The product must have undergone proper registration by an au-
thorized Ski-Doo Distributor/Dealer;
- The 2024 Ski-Doo snowmobile must be purchased in the country
in which the purchaser resides.
- Routine maintenance outlined in the Operator’s Guide must be
timely performed in order to maintain warranty coverage. BRP re-
serves the right to make warranty coverage contingent upon proof
of proper maintenance.
BRP will not honour this limited warranty to any private use owner or
commercial use owner if one of the preceding conditions has not been
349
BRP INTERNATIONAL LIMITED WARRANTY: 2024 SKI-DOO®
SNOWMOBILES
met. Such limitations are necessary in order to allow BRP to preserve
both the safety of its products, and also that of its consumers and the
general public.
WHAT TO DO TO OBTAIN WARRANTY
COVERAGE
The customer must cease using the snowmobile upon the appearance
of an anomaly. The customer must notify a servicing BRP snowmobile
distributor/ dealer within two (2) months of the appearance of a defect,
and provide it with reasonable access to the product and reasonable
opportunity to repair it. The customer must also present to the author-
ized BRP snowmobile distributor/ dealer, proof of purchase of the
product and must sign the repair/work order prior to starting the repair
in order to validate the warranty repair. All parts replaced under this
limited warranty become the property of BRP.
Note that the notification period is subject to the applicable national or
local legislation in customer's country.
WHAT BRP WILL DO
To the extent permitted by law, BRP’s obligations under this warranty
are limited to, at its sole discretion, repairing parts found defective
under normal use, maintenance and service, or replacing such parts
without charge for parts and labour, at any authorized Ski-Doo Distrib-
utor/Dealer during the warranty coverage period under the conditions
described herein. BRP’s responsibility is limited to making the required
repairs or replacements of parts. No claim of breach of warranty shall
be cause for cancellation or rescission of the sale of the snowmobile
to the owner. You may have other legal rights which may vary from
country to country.
In the event that service is required outside of the country of original
sale, the owner will bear responsibility for any additional charges due
to local practices and conditions, such as, but not limited to, freight, in-
surance, taxes, license fees, import duties, and any and all other finan-
cial charges, including those levied by governments, states, territories
and their respective agencies.
BRP reserves the right to improve or modify products from time to time
without assuming any obligation to modify products previously
manufactured.
TRANSFER
If the ownership of a product is transferred during the warranty cover-
age period, this limited warranty, subject to its terms and conditions,
shall also be transferred and be valid for the remaining coverage peri-
od provided BRP or an authorized Ski-Doo Distributor/Dealer receives
350
BRP INTERNATIONAL LIMITED WARRANTY: 2024 SKI-DOO®
SNOWMOBILES
a proof that the former owner agreed to the transfer of ownership, in
addition to the co-ordinates of the new owner.
CONSUMER ASSISTANCE
In the event of a controversy or a dispute in connection with this limited
warranty, BRP suggests that you try to resolve the issue at the Ski--
Doo Distributor/Dealer level. We recommend discussing the issue with
the authorized Ski-Doo Distributor/Dealer's service manager or owner.
If the matter still remains unresolved, contact BRP by filling out the
customer contact form at www.brp.com or contact BRP by mail at one
of the addresses listed under the CONTACT US section of this guide.
351
BRP LIMITED WARRANTY FOR THE
EUROPEAN ECONOMIC AND THE
COMMONWEALTH OF THE INDEPENDENT
STATES (CIS) AREAS AND TURKEY: 2024
SKI-DOO® SNOWMOBILES
SCOPE OF THE LIMITED WARRANTY
Bombardier Recreational Products Inc. (“BRP”) warrants its 2024
Ski-Doo snowmobiles sold by distributors or dealers authorized by
BRP to distribute Ski-Doo snowmobiles ("Ski-Doo Distributor/Deal-
er") in member states of the European Economic Area (which is com-
prised of the member states of the European Union plus the United
Kingdom, Norway, Iceland and Liechtenstein) ("EEA"), in member
states of the Commonwealth of the Independent States (including Uk-
raine and Turkmenistan) ("CIS") and Turkey from defects in material
or workmanship for the period and under the conditions described
below.
Non-factory installed parts and accessories are not covered under this
limited warranty. Please refer to the applicable parts and accessories
limited warranty text.
This limited warranty will become null and void if: (1) the snowmobile
was used for racing or any other competitive activity, at any point,
even by a previous owner; or (2) the snowmobile has been altered or
modified in such a way so as to adversely affect its operation, perform-
ance or durability, or has been altered or modified to change its in-
tended use.
LIMITATIONS OF LIABILITY
TO THE EXTENT PERMITTED BY LAW, THIS WARRANTY IS
EXPRESSLY GIVEN AND ACCEPTED IN LIEU OF ANY AND
ALL OTHER WARRANTIES, EXPRESSED OR IMPLIED, IN-
CLUDING WITHOUT LIMITATION ANY WARRANTY OF MER-
CHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE.
TO THE EXTENT THAT THEY CANNOT BE DISCLAIMED, THE
IMPLIED WARRANTIES ARE LIMITED IN DURATION TO THE
LIFE OF THE EXPRESS WARRANTIES. INCIDENTAL AND
CONSEQUENTIAL DAMAGES ARE EXCLUDED FROM COVER-
AGE UNDER THIS WARRANTY. SOME JURISDICTIONS DO
NOT ALLOW FOR THE DISCLAIMERS, LIMITATIONS AND EX-
CLUSIONS IDENTIFIED ABOVE. AS A RESULT, THEY MAY
NOT APPLY TO YOU. THIS WARRANTY GIVES YOU SPECIFIC
RIGHTS, AND YOU MAY ALSO HAVE OTHER LEGAL RIGHTS
WHICH MAY VARY FROM COUNTRY TO COUNTRY. BRP
SHALL NOT BE HELD LIABLE IF PRODUCTS OR WARRANTY
PARTS ARE NOT AVAILABLE IN CERTAIN COUNTRIES FOR
REASONS OUTSIDE OF BRP’S CONTROL.
352
Neither the Ski-Doo Distributor/Dealer nor any other person has been
authorized to make any affirmation, representation or warranty regard-
ing the product, other than those contained in this limited warranty,
and if made, shall not be enforceable against BRP.
BRP reserves the right to modify this warranty at any time, being
understood that such modification will not alter the warranty conditions
applicable to the products sold while this warranty is in effect.
EXCLUSIONS – ARE NOT WARRANTED
The following are not warranted under this limited warranty under any
circumstances:
-
Normal wear and tear;
–
Routine maintenance items, tune ups, adjustments;
–
Damage caused by negligence or failure to provide proper mainte-
nance and/or storage, as described in the operator's guide;
-
Damage resulting from removal of parts, improper repairs, service,
maintenance, modifications or use of parts or accessories not
manufactured or approved by BRP which in its reasonable judge-
ment are either incompatible with the product or adversely affect
its operation, performance and durability, or resulting from repairs
done by a person that is not an authorized servicing BRP snowmo-
bile distributor/ dealer;
-
Damage caused by abuse, abnormal use, neglect, racing or opera-
tion of the product on surfaces other than snow, or operation of the
product in a manner inconsistent with the recommended operation
described in the Operator’s Guide;
-
Damage resulting from accident, submersion, fire, snow or water
ingestion, theft, vandalism or any act of God;
-
Operation with fuels, oils or lubricants which are not suitable for
use with the product (see the Operator’s Guide);
-
Damage resulting from rust, corrosion or exposure to the
elements;
-
Incidental or consequential damages, or damages of any kind in-
cluding without limitation towing, storage, transportation expenses,
telephone, rental, taxi, inconvenience, insurance coverage, loan
payments, loss of time, loss of income; or time missed for down-
time experience due to service work.
-
And damage resulting from studs installed on tracks if the installa-
tion does not conform to BRP’s instructions.
WARRANTY COVERAGE PERIOD
This warranty will be in effect from (1) the date of delivery to the first
retail consumer or (2) the date the product is first put into use, which-
ever occurs first and for a period of:
353
TWENTY-FOUR (24) CONSECUTIVE MONTHS, for private use own-
ers and TWELVE (12) CONSECUTIVE MONTHS for commercial use
owners. However, the warranty coverage period on a snowmobile de-
livered between June 1st and December 1st of a given year will expire
November 30th of the applicable year. A snowmobile is used commer-
cially when it is used in connection with generating income or any work
or employment during any part of the warranty period. A snowmobile
is also used commercially when, at any point during the warranty peri-
od, it has commercial tags or is licensed for commercial use.
The repair or replacement of parts or the performance of service under
this warranty does not extend the life of this warranty beyond its origi-
nal expiration date.
Note that the duration and any other modalities of the warranty cover-
age are subject to the applicable national or local legislation in the cus-
tomer's country.
CONDITIONS TO HAVE WARRANTY COVERAGE
This warranty coverage is available only if each of the following condi-
tions has been fulfilled:
- The 2024 Ski-Doo snowmobile must be purchased as new and un-
used by its first owner from a Ski-Doo Distributor/Dealer authorized
to distribute Ski-Doo products in the country in which the sale
occurred;
- The BRP specified pre-delivery inspection process must be com-
pleted, documented and signed by the purchaser;
- The product must have undergone proper registration by an au-
thorized Ski-Doo Distributor/Dealer;
- The 2024 Ski-Doo snowmobile must be purchased within the coun-
try (or in the case of the EEA, union of countries) in which the pur-
chaser resides; and
- Routine maintenance outlined in the Operator’s Guide must be
timely performed in order to maintain warranty coverage. BRP re-
serves the right to make warranty coverage contingent upon proof
of proper maintenance.
BRP will not honour this limited warranty to any private use owner or
commercial use owner if one of the preceding conditions has not been
met. Such limitations are necessary in order to allow BRP to preserve
both the safety of its products, and also that of its consumers and the
general public.
WHAT TO DO TO OBTAIN WARRANTY
COVERAGE
The customer must cease using the snowmobile upon the appearance
of an anomaly. The customer must notify a servicing BRP snowmobile
354
distributor/ dealer within two (2) months of the appearance of a defect,
and provide it with reasonable access to the product and reasonable
opportunity to repair it. The customer must also present to the author-
ized BRP snowmobile distributor/ dealer, proof of purchase of the
product and must sign the repair/work order prior to starting the repair
in order to validate the warranty repair. All parts replaced under this
limited warranty become the property of BRP.
Note that the notification period is subject to the applicable national or
local legislation in customer's country.
WHAT BRP WILL DO
To the extent permitted by law, BRP’s obligations under this warranty
are limited to, at its sole discretion, repairing parts found defective
under normal use, maintenance and service, or replacing such parts
without charge for parts and labour, at any authorized Ski-Doo Distrib-
utor/Dealer during the warranty coverage period under the conditions
described herein. BRP’s responsibility is limited to making the required
repairs or replacements of parts. No claim of breach of warranty shall
be cause for cancellation or rescission of the sale of the snowmobile
to the owner. You may have other legal rights which may vary from
country to country.
In the event that service is required outside of the country of original
sale, or for EEA residents, if service is required outside of the EEA,
the owner will bear responsibility for any additional charges due to lo-
cal practices and conditions, such as, but not limited to, freight, insur-
ance, taxes, license fees, import duties, and any and all other financial
charges, including those levied by governments, states, territories and
their respective agencies.
BRP reserves the right to improve or modify products from time to time
without assuming any obligation to modify products previously
manufactured.
TRANSFER
If the ownership of a product is transferred during the warranty cover-
age period, this limited warranty, subject to its terms and conditions,
shall also be transferred and be valid for the remaining coverage peri-
od provided BRP or an authorized Ski-Doo Distributor/Dealer receives
a proof that the former owner agreed to the transfer of ownership, in
addition to the co-ordinates of the new owner.
CONSUMER ASSISTANCE
In the event of a controversy or a dispute in connection with this limited
warranty, BRP suggests that you try to resolve the issue at the
355
Ski-Doo Distributor/Dealer level. We recommend discussing the issue
with the authorized Ski-Doo Distributor/Dealer's service manager or
owner.
If the matter still remains unresolved, contact BRP by filling out the
customer contact form at www.brp.com or contact BRP by mail at one
of the addresses listed under the CONTACT US section of this guide.
ADDITIONAL TERMS AND CONDITIONS FOR FRANCE ONLY
The following terms and conditions are applicable to products sold in
France only:
The seller shall deliver goods that are complying with the contract and
shall be responsible for defects existing upon delivery. The seller shall
also be responsible for defects resulting from packaging, assembling
instructions or the installation when it is its responsibility per the con-
tract or if accomplished under its responsibility. To be compliant with
the contract, the good shall:
1. Be fit for normal use for goods similar thereto and, if applicable:
- Correspond to the description provided by the seller and have
the qualities presented to the buyer though sample or model;
- Have the qualities that a buyer may legitimately expect consid-
ering the public declarations of the seller, the manufacturer of
its representative, including in advertising or labeling; or
2. Have the characteristics mutually agreed upon as between the par-
ties or be fit for the specific use intended by the buyer and brought
to the attention of the seller and which accepted
The action for failure to comply is prescribed after two years after de-
livery of the goods. The seller is responsible for the warranty for hid-
den defects of the good sold if such hidden defects are rendering the
good unfit for the intended use, or if they diminish its use in such a
way that the buyer would not have acquired the good or would have
given a lesser price, had he known. The action for such hidden defects
shall be taken by the buyer within 2 years of the discovery of the
defect.
356
CUSTOMER
INFORMATION
357
DATA PRIVACY INFORMATION
Bombardier Recreational Products inc., its affiliates and subsidiaries
(“BRP”) is committed to protecting your privacy and support a general
policy of openness about how we collect, use and disclose your per-
sonal information in the course of managing our relationship with you.
More details can be found by visiting BRP’s Privacy Policy at:
https://brp. com/en/privacy-policy. html or by scanning the QR
Code below.
Please be assured that we have appropriate security measures in
place to ensure that your personal information is protected against
loss and unauthorized access.
Your personal information that may be collected by BRP, directly from
you or from authorized dealers or authorized third parties, includes:
- Contact, Demographic & Registration Information (e.g., name,
full address, phone number, email, gender, ownership history, lan-
guage of communication)
- Vehicle Information (e.g., serial number, purchase and delivery
date, unit usage, vehicle location and movements)
- Third Party Information (e.g., information received from BRP
partners, joint-marketing activities information, social media)
- Technological Information (e.g., IP address, type of device, op-
erating system, browser type, webpages you view, cookies and
similar technologies when you use BRP or dealers’ websites or
mobile application)
- Interaction with BRP Information (e.g., information collected
when you call BRP’s in-house sales representatives, buy items on
a BRP web Site, sign up for BRP emails, participate in BRP-spon-
sored contests and sweepstakes or attend BRP-sponsored
events)
- Transactional Information (e.g., information necessary to handle
returns, payment information when you purchase our products or
services through our websites or mobile applications and other is-
sues related to your purchase of BRP products)
This information may be used and processed for the following
purposes:
- Safety & Security
- Customer Support for Sales & After Sales (e.g., complete or follow
up with you about your purchase or maintenance)
- Registration & Warranty
- Communication (e.g., sending you a BRP satisfaction survey)
- Online Behavioural Advertising, Profiling and Location-Based
Services
(e.g., offer customized experience)
- Compliance & Dispute Resolution
- Marketing & Advertising
- Assistance (e.g., help with any delivery issues, handle returns, and
other issues related to your purchase of BRP products).
358
DATA PRIVACY INFORMATION
We also may use personal information to generate aggregated or stat-
istical data that no longer identifies you personally.
Your personal information may be disclosed to the following:
BRP, BRP’s authorized dealerships, distributors, service pro-
viders, advertising & market research partners and other author-
ized third parties.
We may receive information about you from diverse sources, including
third parties, such as BRP’s authorized dealerships and partners, with
whom we offer services or engage in joint-marketing activities. We
may also receive information about you from social media platforms
such as Facebook and Twitter, when you interact with us on those
platforms.
Depending on the circumstances, your personal information may be
communicated outside the region where you reside. Your personal in-
formation is retained only for as long as necessary for the purpose for
which we obtained it and according to our retention policies.
To exercise your data privacy rights (e.g. right of access, right of recti-
fication), to withdraw your consent in order to be removed from the ad-
dress list for marketing purposes or for the satisfaction survey or for
general data privacy questions, please contact BRP’s Data Protection
Officer at or by mail at privacyofficer@brp.com or by mail at:
BRP Legal Service, 726 St-Joseph, Valcourt, Quebec, Canada, J0E
2L0.
When BRP processes your personal information, they do so in
compliance with its Privacy Policy available at: https://www.brp.
com/en/privacy-policy.html or by using the following
QR Code.
359
CONTACT US
Asiia Paciific
Australia
Level 26
477 Pitt Street
Sydney, NSW 2020
China
上海市徐汇区衡山路10号6号楼301
Rm 301, Building 6,
No.10 Heng Shan Rd,
Shanghai, China
Japan
21F Shinagawa East One Tower
2-16-1 Konan, Minato-ku-ku,
Tokyo 108-0075
New Zealand
Suite 1.6, 2-8 Osborne Street,
Newmarket, Auckland 2013
Europe, Middle East and Afriica
Belgium
Oktrooiplein 1
9000 Gent
Czech Republic
Stefanikova 43a
Prague 5
150 00
Germany
Itterpark 11
40724 Hilden
Finland
Isoaavantie 7
PL 8040
96101 Rovaniemi
France
Arteparc Bâtiment B
Route de la côte d'Azur,
13590 Meyreuil
360
CONTACT US
Norway
Ingvald Ystgaardsvei 15
N-7484 Trondheim
Salg, marketing, ettermarked
Sweden
Spinnvägen 15
903 61 Umeå
Sweden 90821
Switzerland
Avenue d’Ouchy 4-6
1006 Lausanne
Latiin America
Brazil
Av. James Clerck Maxwell, 230
Campinas, Sao Paulo
CEP 13069-380
Mexico
Av. Ferrocarril 202
Parque Industrial Querétaro
Santo Rosa Jauregui, Querétaro
C.P. 76220
North Ameriica
Canada
3200A, rue King Ouest,
Suite 300
Sherbrooke (Québec) J1L 1C9
United States of America
10101 Science Drive
Sturtevant, Wisconsin
53177
361
CHANGE OF ADDRESS/OWNERSHIP
If your address has changed or if you are the new owner of the snow-
mobile, be sure to notify BRP by either:
- Notifying an authorized BRP snowmobile dealer or distributor.
- North America Only: calling at 1 888 272-9222.
- Mailing one of the change of address cards on the following pages
at one of the BRP addresses indicated in the Contact Us section of
this guide.
In case of change of ownership, please join a proof that the former
owner agreed to the transfer.
Notifying BRP, even after the expiration of the limited warranty, is very
important as it enables BRP to reach the snowmobile owner if neces-
sary, like when safety recalls are initiated. It is the owner’s responsibil-
ity to notify BRP.
STOLEN UNITS: If your personal snowmobile is stolen, you should
notify BRP or an authorized BRP snowmobile dealer. We will ask you
to provide your name, address, phone number, the vehicle identifica-
tion number and the date it was stolen.
362
