Snowmobile Ski-Doo TRAIL E-TEC SERIES. OPERATOR’S GUIDE (2024)

BODY AND SEAT

6. Remove the upper body module.

1. Grab the upper body module in the gauge support area.

2. Pull the module forward.

3. Remove the module from the vehicle.

Installing the Upper Body Module

The installation is the reverse of the removal procedure. However, pay

attention to the following.

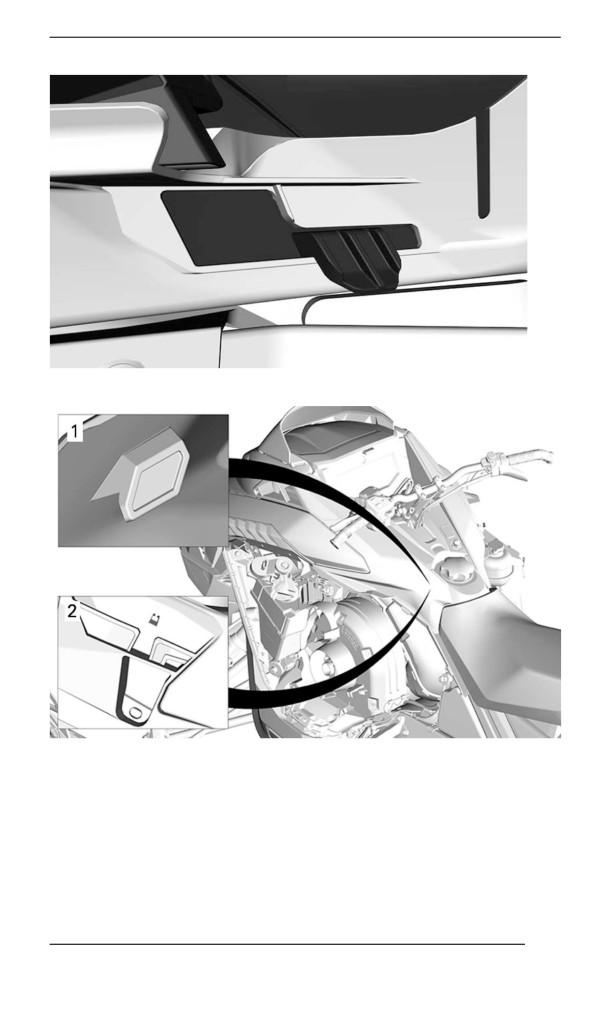

1. Ensure to engage front hood tabs in front bottom pan, and rear

side hood tabs in rear console when pushing the module back in

place.

126

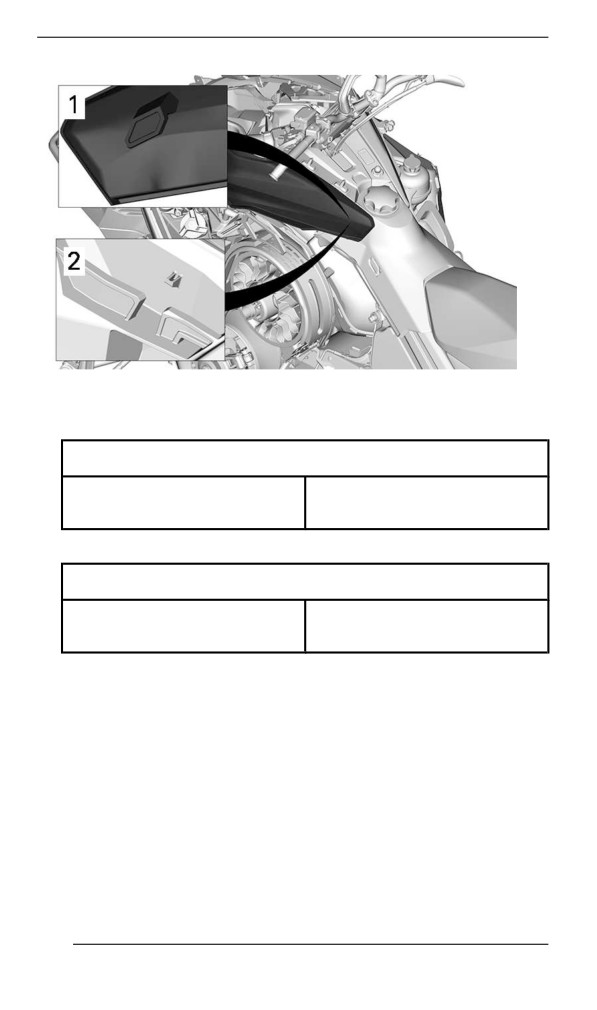

BODY AND SEAT

1. Rear end hooks

2. Console slots

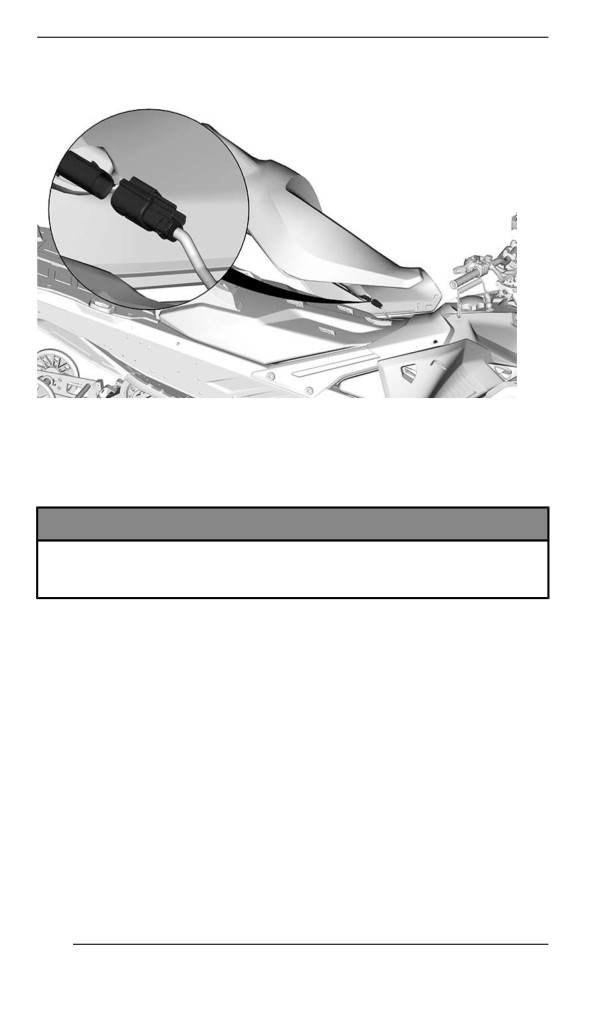

2. Ensure to connect the air intake hose.

Tightening Torque

1.0 ± 0.2 Nm

Intake duct clamp

(9 ± 2 lbf-in)

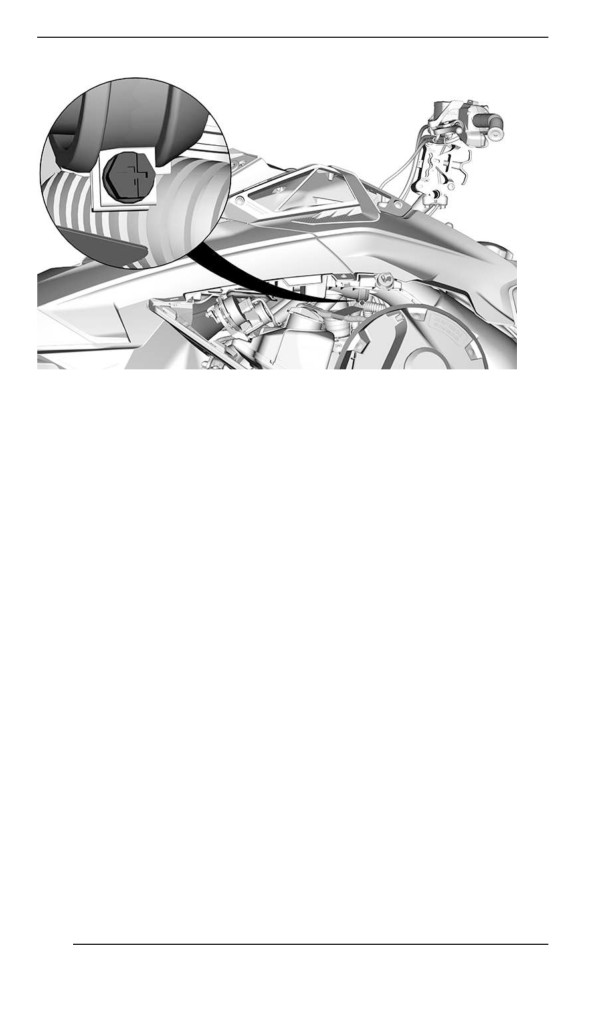

3. On both sides, install the upper body module retaining screws.

Tightening Torque

1.8 ± 0.2 Nm

Upper body module screw

(16 ± 2 lbf-in)

4. Connect the module connectors.

Seat

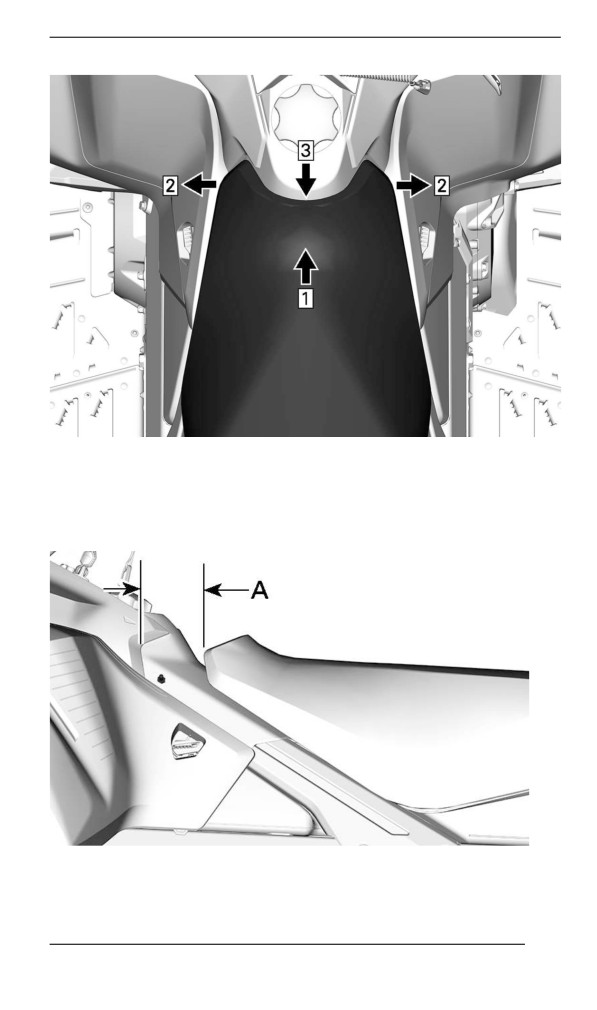

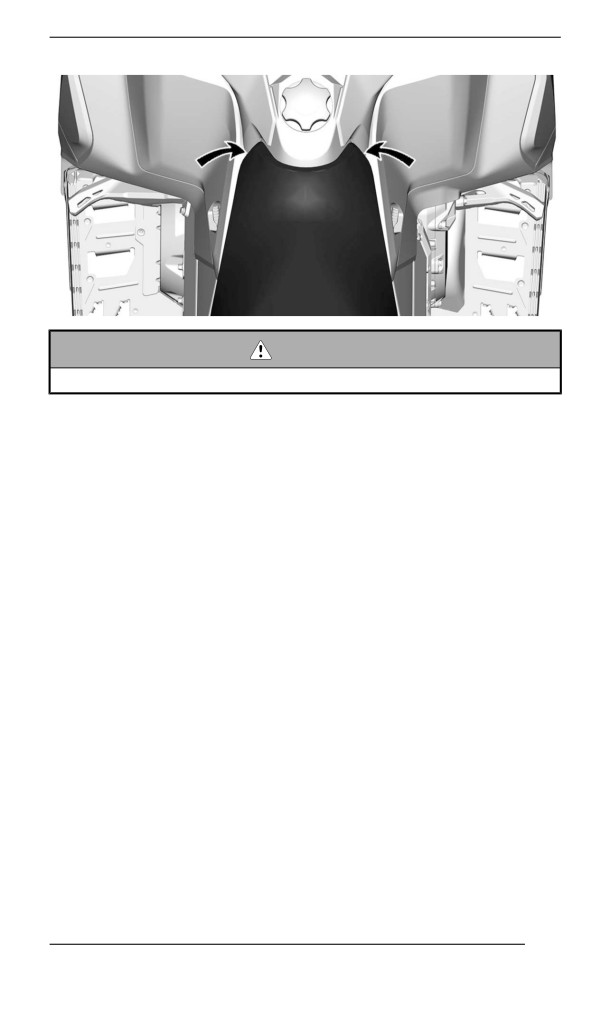

Removing the Seat – Ball Stud Lock

1. Push in the center of the seat frontward.

2. Pull on both sides to disengage the ball studs.

3. Pull the seat rearward to release it from the retaining tabs.

128

EQUIPMENT

Some features may not apply to your model or could be optional.

Operator''s Guiide

The Operator's Guide should be stored in the Front Storage

Compartment.

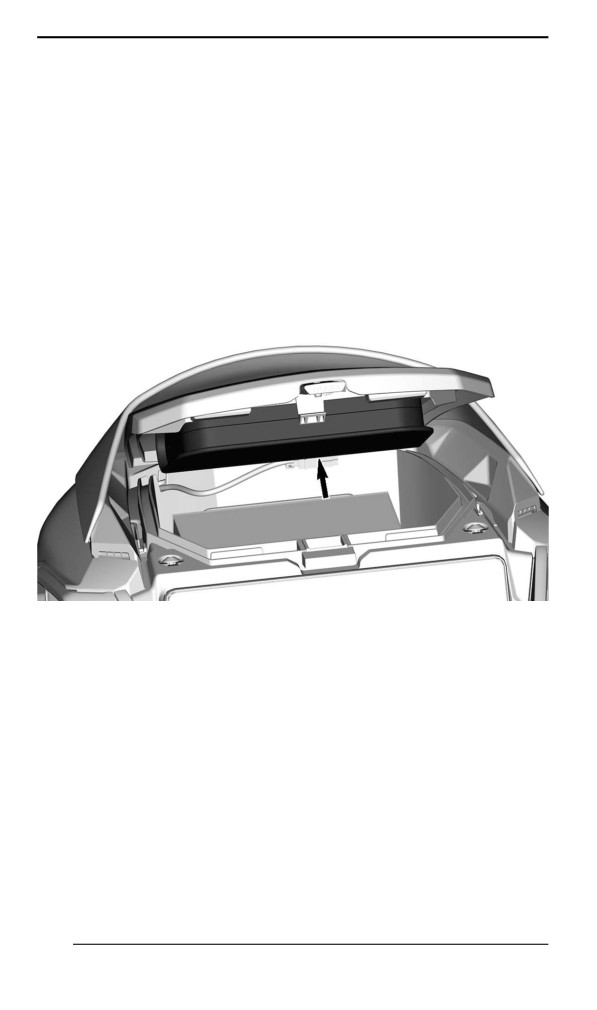

Heated Celll Case (iif equipped)

A heated cell case is mounted underneath the front storage compart-

ment cover. It allows to keep your cell phone at a warm temperature

while charging.

The temperature inside the case is kept between 5° C and 15° C (41°

F and 59° F).

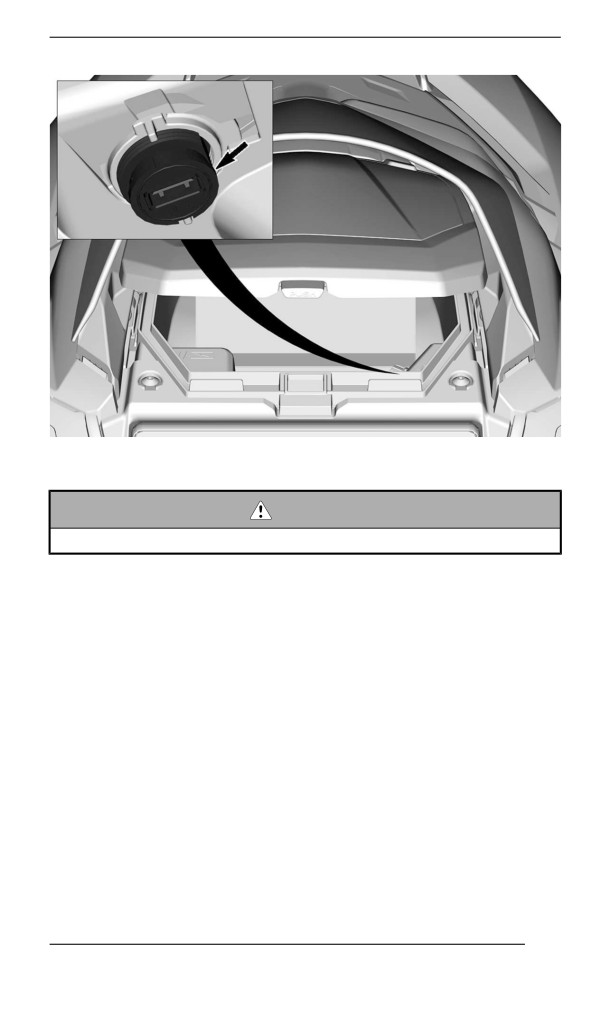

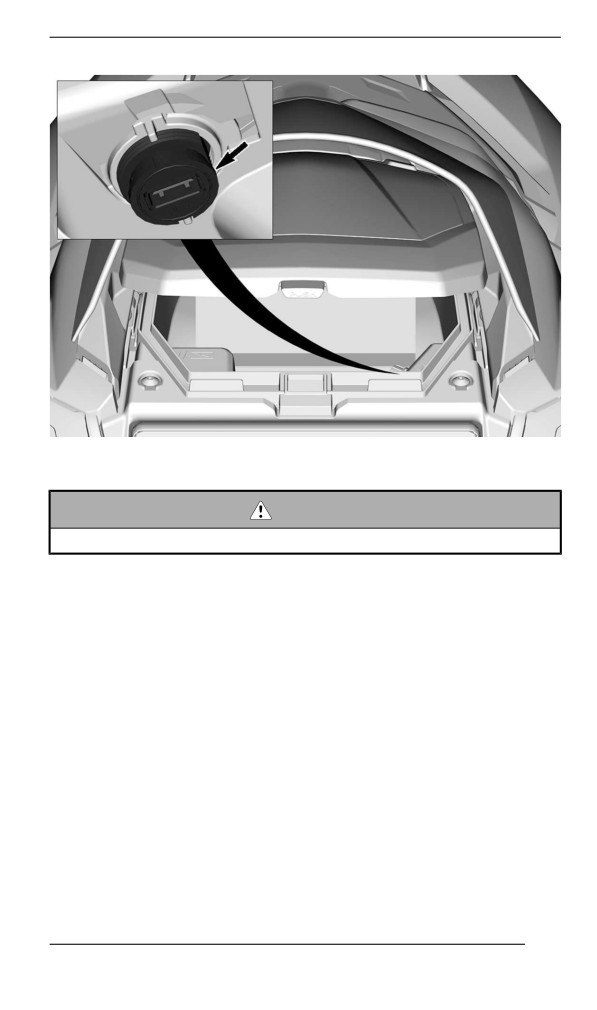

Power Outllet - USB (if equiipped)

The USB power Outlet is located in the front storage compartment. It

allows to charge your cell phone while stored in the heated cell case.

132

EQUIPMENT

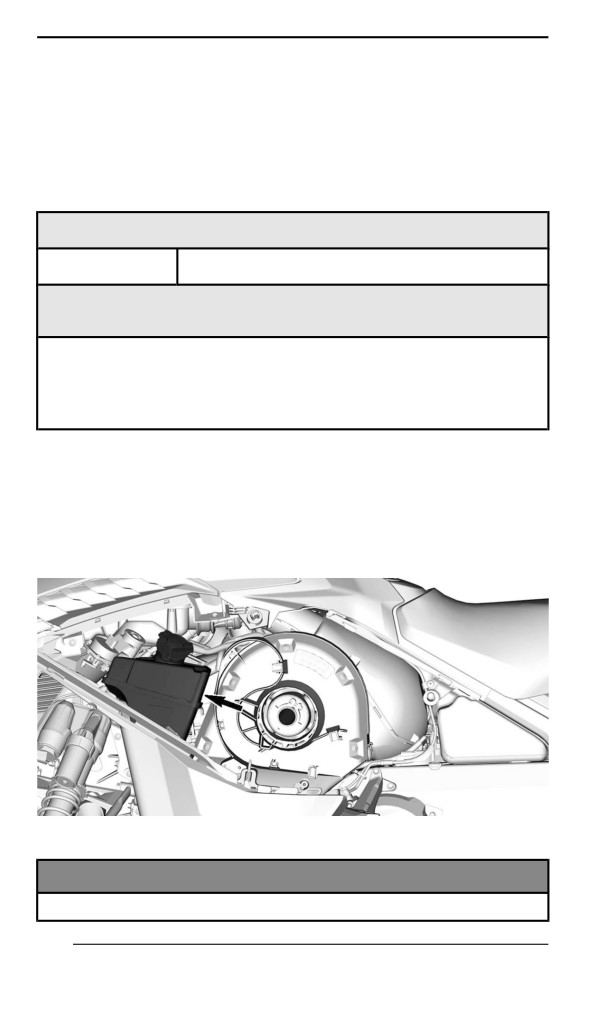

Driive Belt Guard

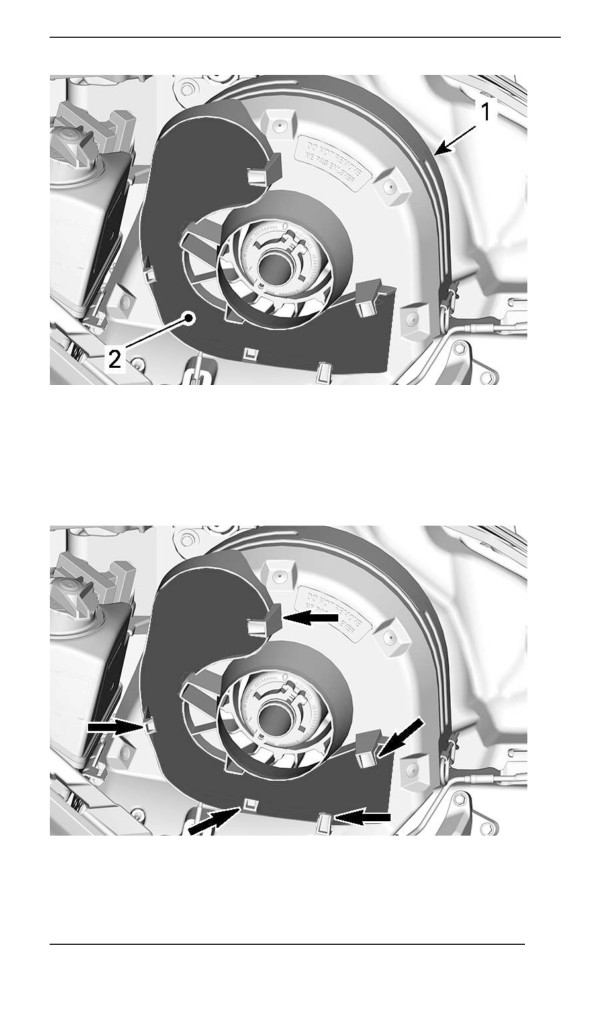

Removing the Drive Belt Guard

WARNING

NEVER operate engine:

– Without shields and belt guard securely installed.

– With hood and/or side panels opened or removed.

NEVER attempt to make adjustments to moving parts while en-

gine is running.

NOTE:

Belt guard is purposely made slightly oversize to maintain tension on

its pins and retainers preventing undue noise and vibration. It is impor-

tant that this tension be maintained when reinstalling.

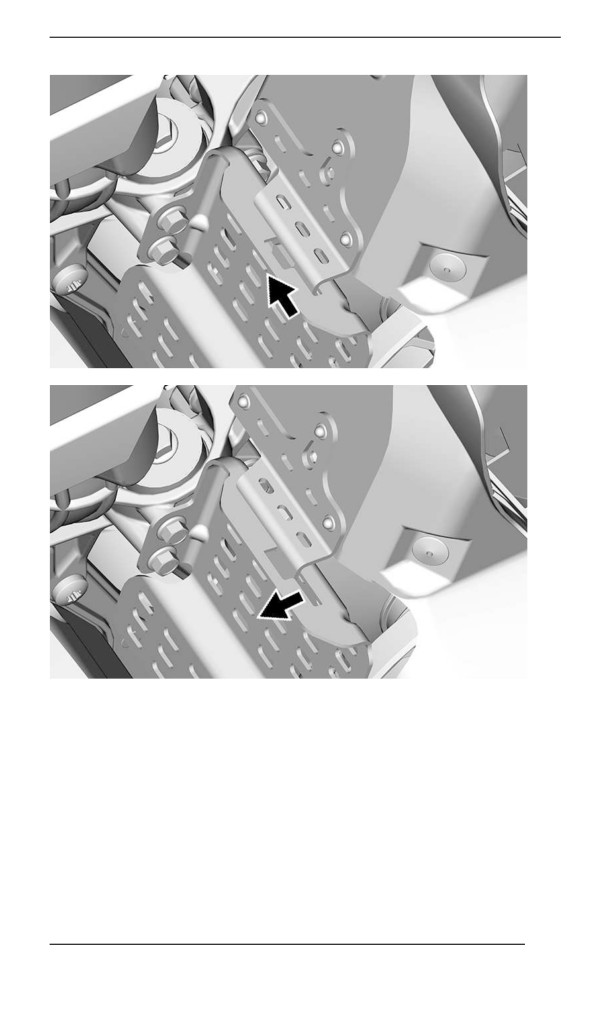

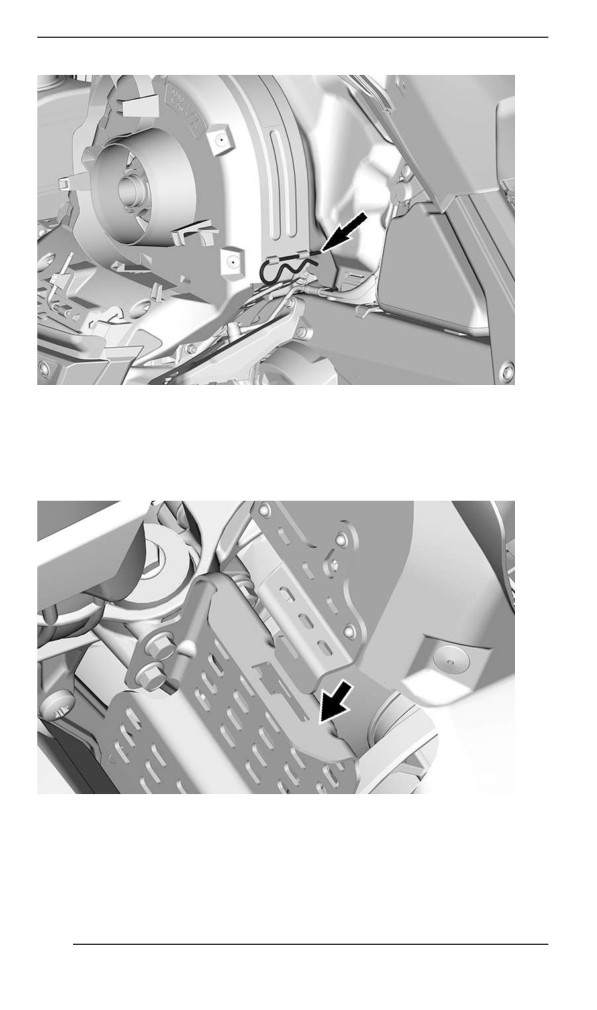

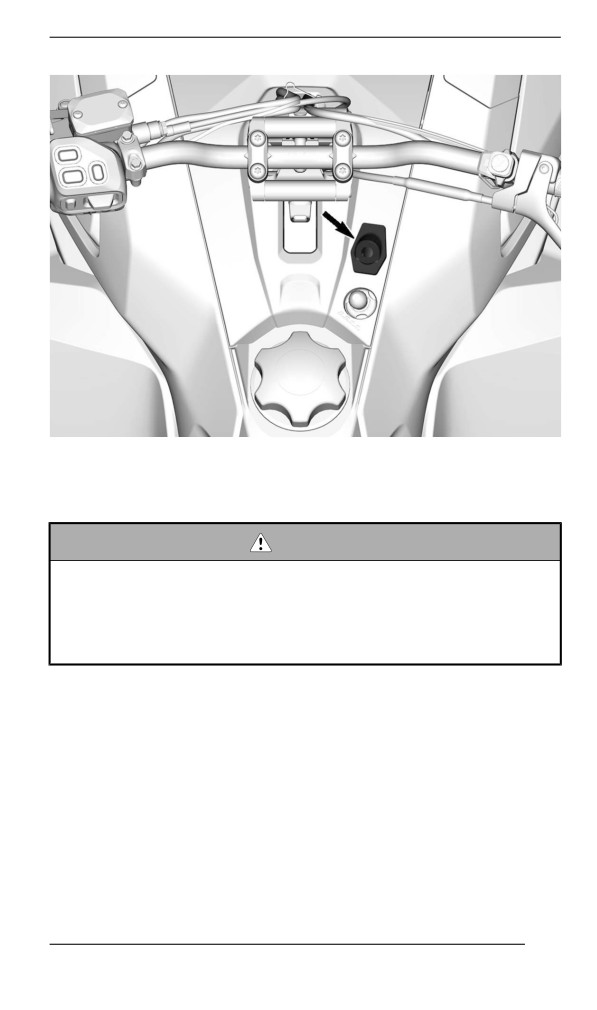

1. Remove tether cord cap from engine cut-off switch.

2. Open the LH side panel. See procedure in this section.

3. Remove retaining pin.

135

EQUIPMENT

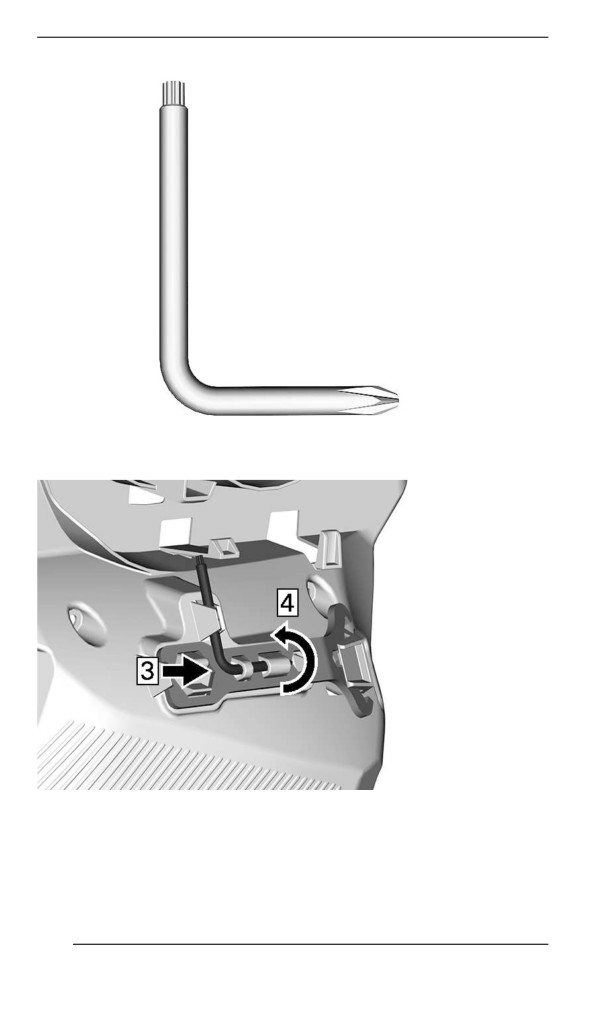

Tools

A part of the drive belt guard is designed to hold the tools allowing for

basic maintenance.

The tools are supplied with the vehicle. They should always be in-

stalled in their proper location and orientation.

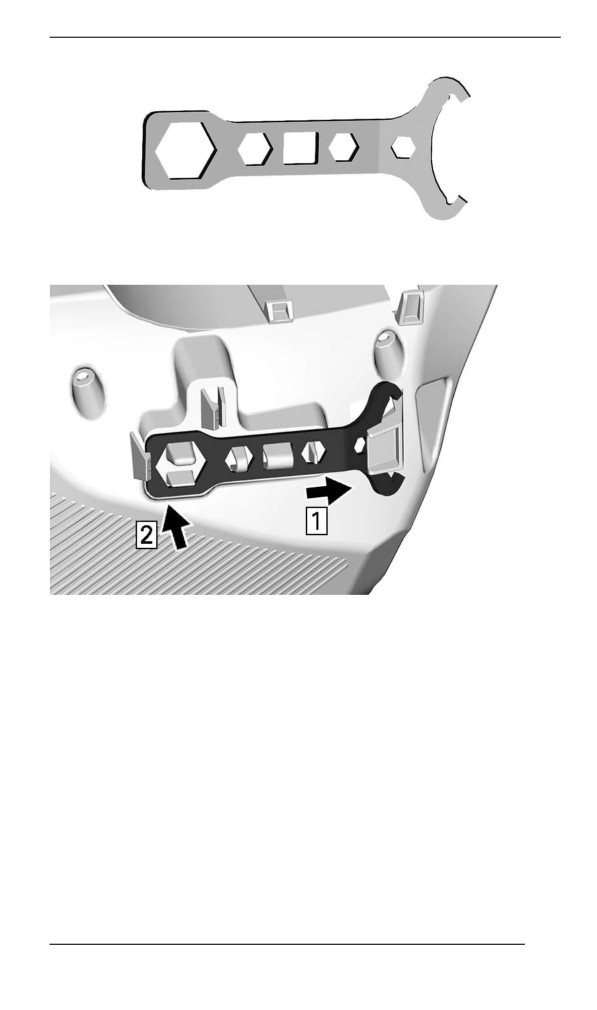

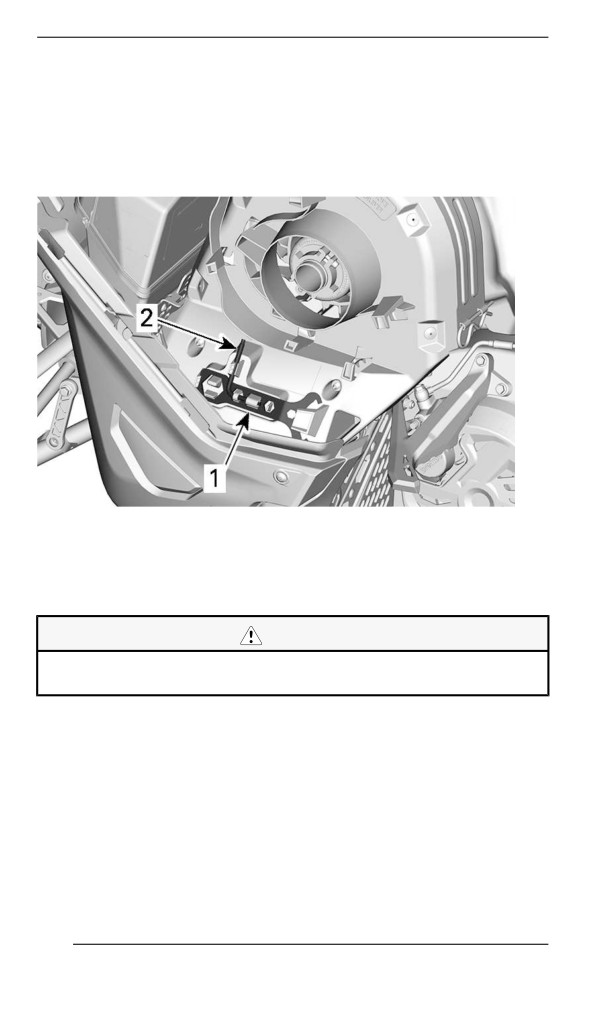

TYPICAL - DRIVE BELT GUARD TOOLS LOCATION

1. Suspension adjustment tool

2. Pulley expander and headlight adjustment tool

Install in the following sequence:

CAUTION

Make sure tools are secured properly. Tools may detach and

cause damage to rotating parts.

1. Slide the suspension adjustment tool open end under retaining tab.

140

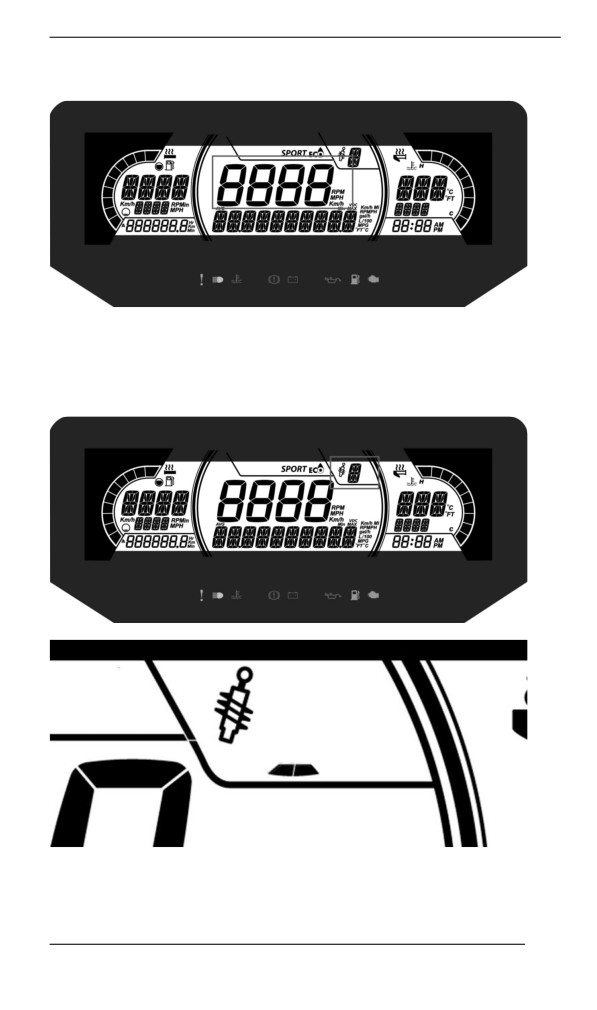

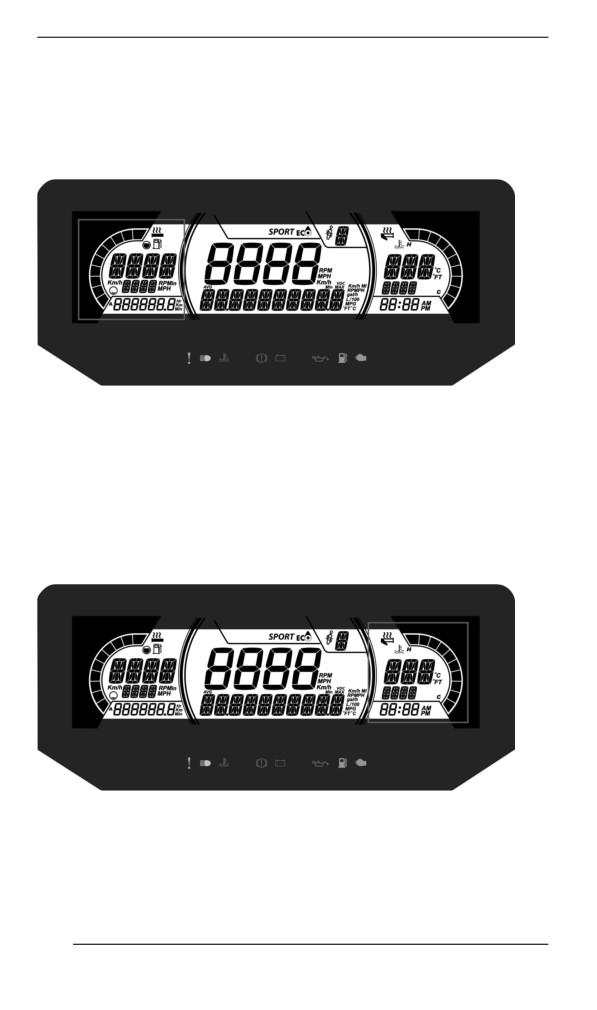

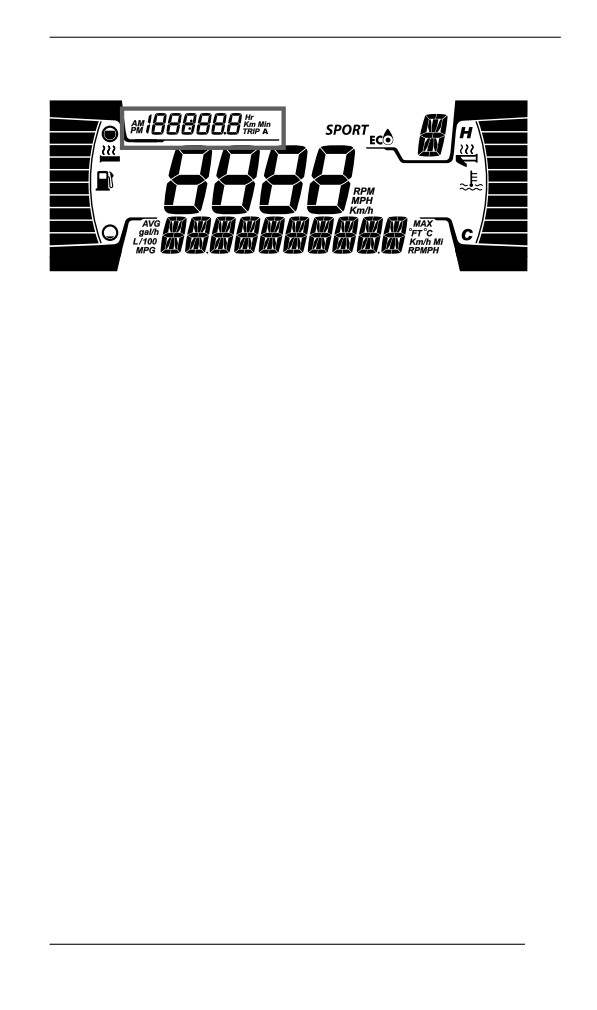

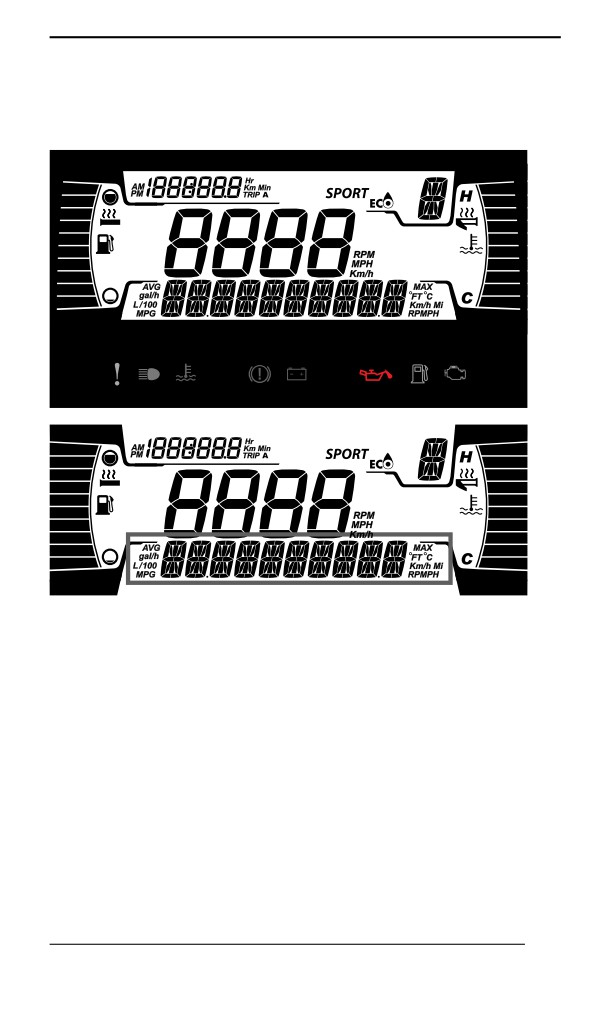

GAUGE – 4.5” DIGITAL DISPLAY

Multifunctiion Display

Lower Display

May display the following:

- RPM

- Speed

- Engine Temperature

- Fuel Statistics

- Settings

- Messages

- Outside temperature (if equipped)

To change the displayed information, use the gauge LOWER (M) but-

ton, or the Mode button on the handlebar multifunction switch, if

equipped.

The SPEED STAT display shows the maximum and the averaged

speed. Hold LOWER button for 3 seconds to reset.

When the SPEED display is chosen, the RPM is shown in the TRIP

display.

143

GAUGE - 4.5” DIGITAL DISPLAY

Trip Display

This display shows trip informations:

- Cumulative distance odometer

- Trip A hours

- Trip A distance (Km or mph)

- Vehicle hour meter

- Clock (If battery equipped)

To change the displayed information, use the gauge UPPER (T) but-

ton, or the Trip button on the handlebar multifunction switch, if

equipped.

Warniing Lamps and Indiicators

The following indicator lamps will alert you to a vehicle condition that

may become serious. Some lamps will illuminate when starting the ve-

hicle to make sure they work. If any lamps remain on after starting the

vehicle, refer to the respective system warning lamp for further

information.

NOTE:

Some warning indicators appear in the display of the multifunction

gauge and function the same as an indicator lamp but do not display

when starting the vehicle.

145

GAUGE - 4.5” DIGITAL DISPLAY

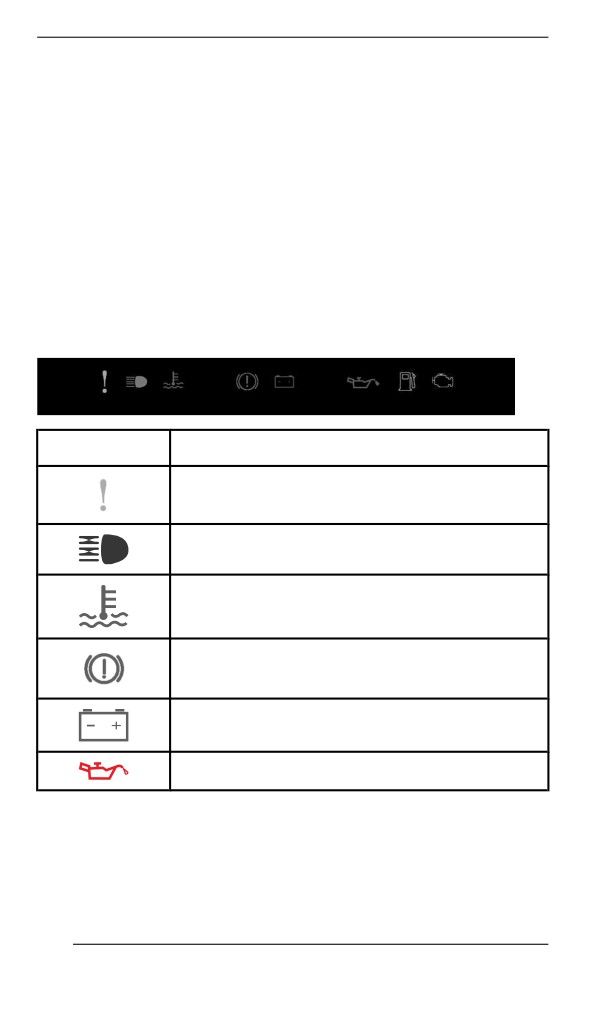

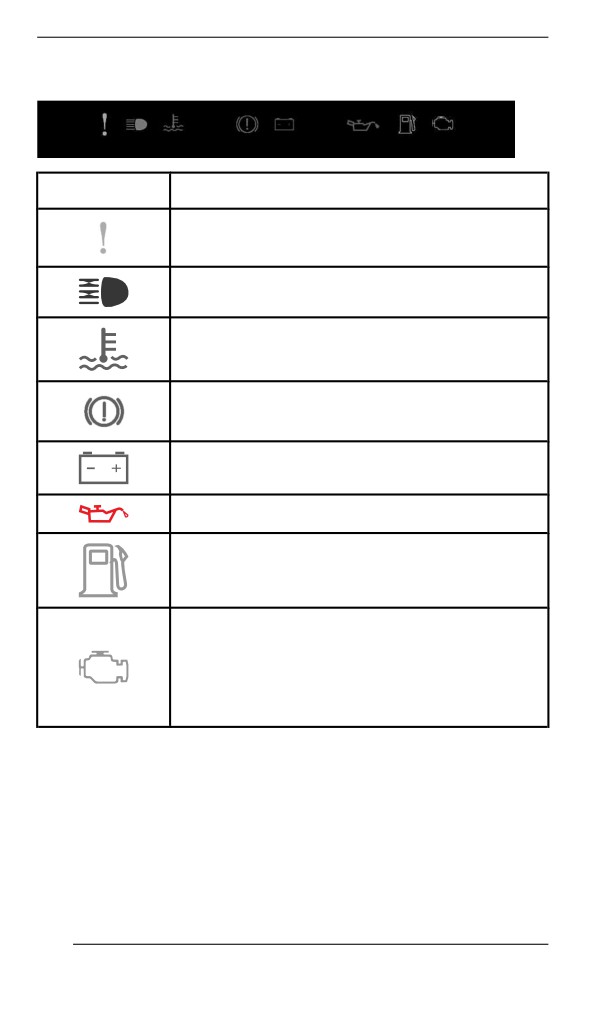

Telltale Lights - Lower Bar

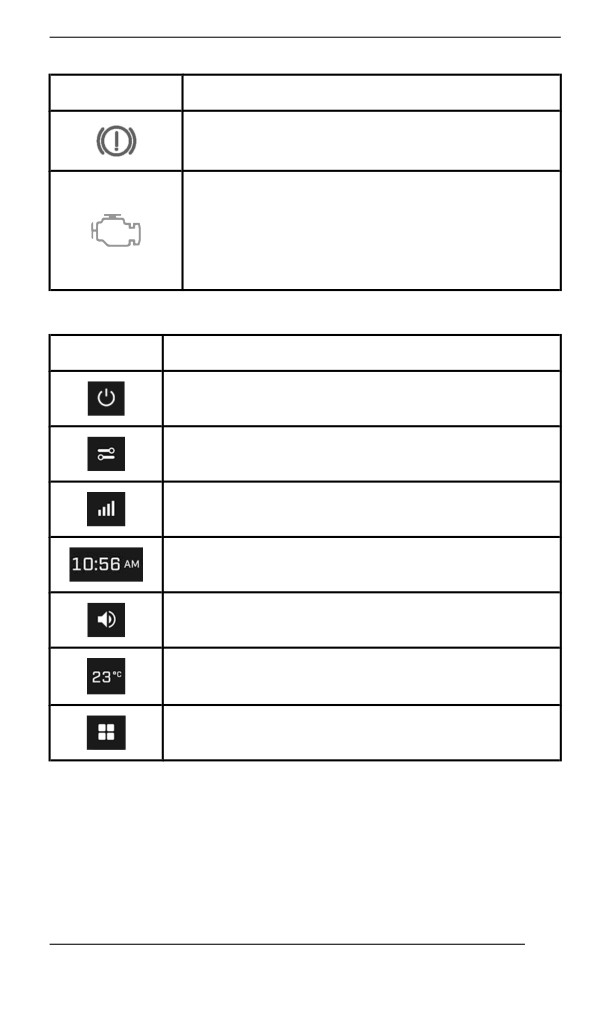

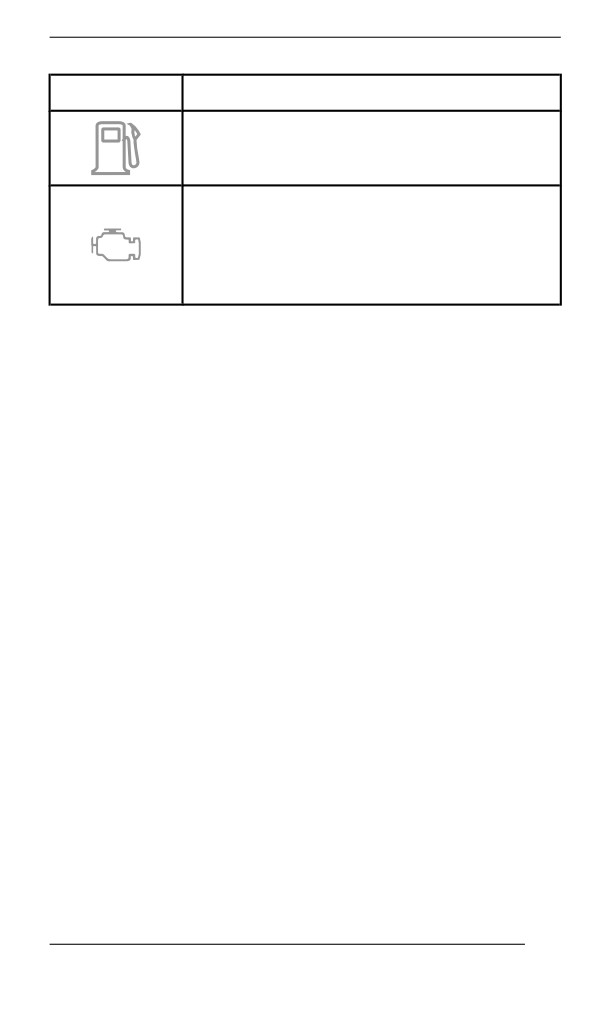

Lights

Description

ORANGE - Vehicle malfunction

BLUE - The high beam are selected

RED - The engine temperature is too high.

RED - Parking brake is engaged or malfunction

of the brake system

RED - The battery voltage too low or problem

with the electrical system

RED - Low injection oil level

ORANGE - Low fuel level

ORANGE

Turn on: Malfunction of the vehicle emissions

control system

Blink: Engine problems, the limp home mode is

activated. Have the vehicle serviced

immediately.

146

GAUGE - 4.5” DIGITAL DISPLAY

Settiings

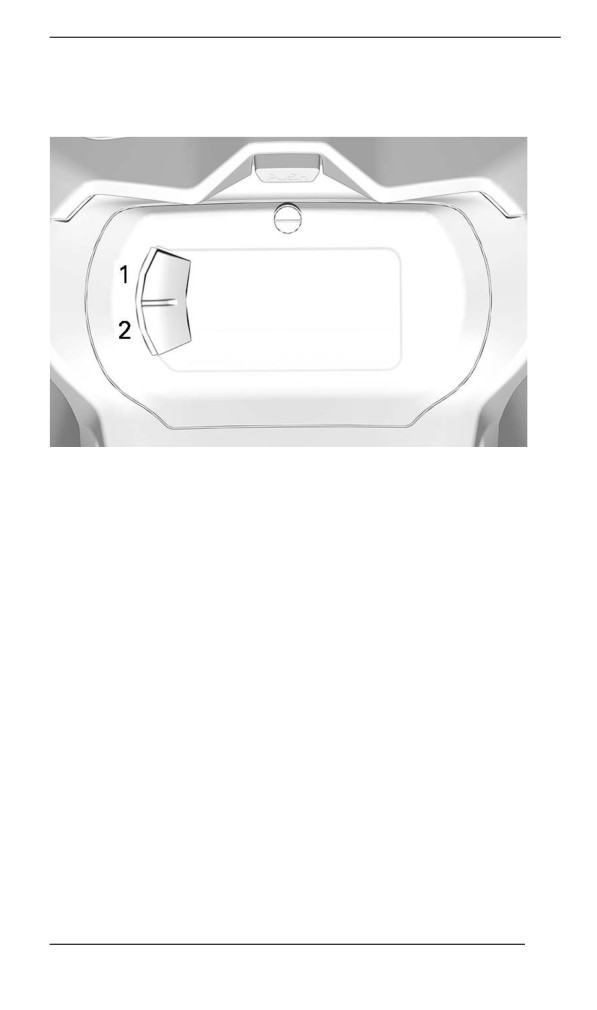

Setup

1. Upper button (Trip)

2. Lower button (Menu)

NOTE: A Trip and a Menu buttons can be found on the handlebar

multifunction switch, if equipped.

Using the LOWER (M) button, select SETTINGS and hold to enter

setting menu.

Reset Stats

Using LOWER button, select RESET STAT and hold to reset.

Unit Selection

This multifunction gauge is factory preset in metric units but it is possi-

ble to change it to imperial units.

Using LOWER button, select UNITS and hold button to change units.

Setting Clock

Using LOWER button, select CLOCK to change the clock.

1. Press LOWER button to select clock display.

2. Push and hold LOWER button for 1 second.

147

GAUGE - 4.5” DIGITAL DISPLAY

3. Press LOWER button to select 12:00 AM PM or 24:00 time base.

4. Push and hold LOWER button to acknowledge selection.

5. Press LOWER button to change hours (hours flash).

6. Push and hold LOWER button to acknowledge hour selection.

7. Press LOWER button to switch to minutes (minutes flash).

8. Push and hold LOWER button to acknowledge minutes selection.

Setting Language

The gauge display language can be changed. Refer to an authorized

BRP snowmobile dealer for language availability and to setup the

gauge to your preference.

148

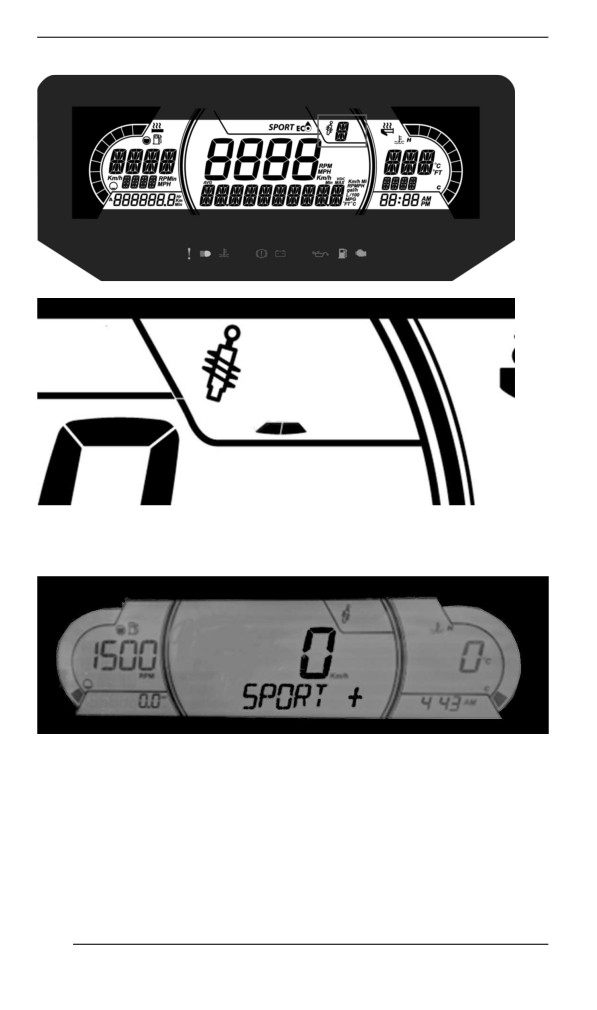

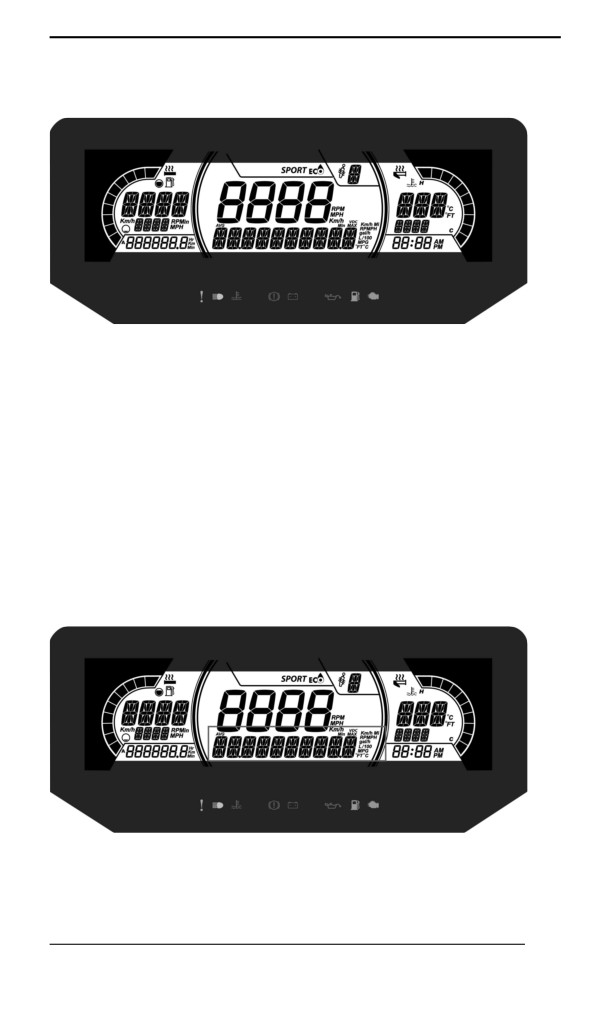

GAUGE – 7.2” DIGITAL DISPLAY

Multifunctiion Display

1. Select the upper or center display by using the MENU (M) button

on the multifunction switch. Refer to Secondary Controls for Menu/

Set button location.

2. While the desired display is flashing, navigate through the display,

by using the SET (S) button on the multifunction switch.

Once the desired information is displayed, press the MENU (M)

button or wait 5 seconds to confirm.

To reset

- Average speed

- Top speed

- Total fuel consumption

Press and hold the SET (S) button while display is flashing.

Lower Display

7.2" DIGITAL LOWER DISPLAY

May display the following:

- Settings

149

GAUGE - 7.2” DIGITAL DISPLAY

- Messages

The SPEED display shows the Maximum and the averaged speed.

Hold MENU button for 3 seconds to reset.

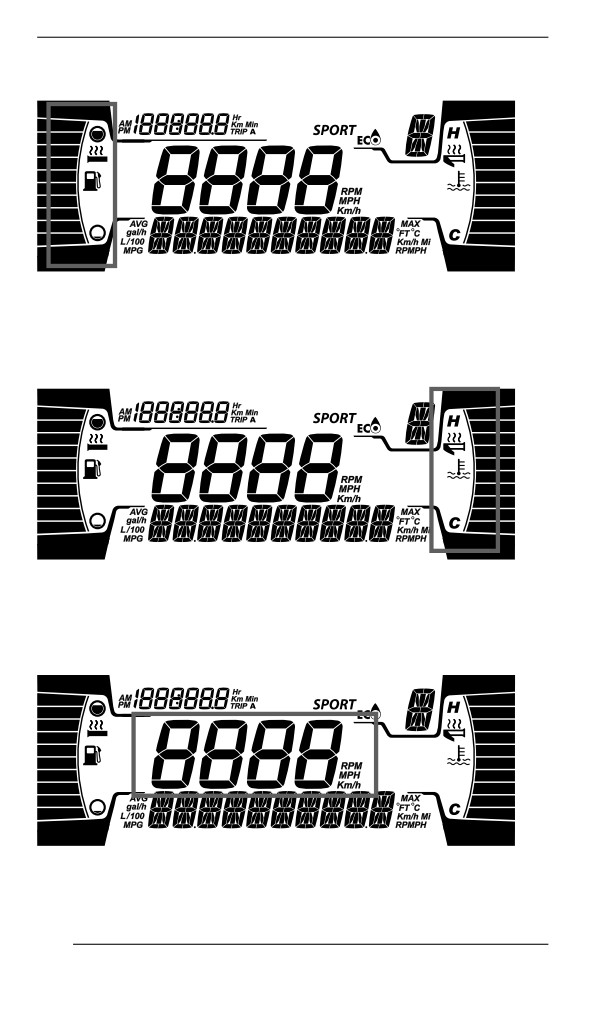

Left Lateral Display

The left lateral display includes:

- Fuel level indicator

- Heated Grip level

- Trip distance A and B (Km or mph)

- Cumulative hours

- Speed

- RPM

- Odometer

Right Lateral Display

The right lateral display includes:

- Engine Temperature

- Heated throttle indicator

- Clock

150

GAUGE - 7.2” DIGITAL DISPLAY

Refer to TUNE YOUR RIDE section for selection procedure.

Warning Lamps and Indicators

The following indicator lamps will alert you to a vehicle condition that

may become serious. Some lamps will illuminate when starting the ve-

hicle to make sure they work. If any lamps remain on after starting the

vehicle, refer to the respective system warning lamp for further

information.

NOTE:

Some warning indicators appear in the display of the multifunction

gauge and function the same as an indicator lamp but do not display

when starting the vehicle.

Telltale Lights - Lower Bar

Lights

Description

ORANGE - Vehicle malfunction

BLUE - The high beam are selected

RED - The engine temperature is too high.

RED - Parking brake is engaged or malfunction

of the brake system

RED - The battery voltage too low or problem

with the electrical system

RED - Low injection oil level

152

GAUGE - 7.2” DIGITAL DISPLAY

Lights

Description

ORANGE - Low fuel level

ORANGE

Turn on: Malfunction of the vehicle emissions

control system

Blink: Engine problems, the limp home mode is

activated. Have the vehicle serviced

immediately.

Settiings

Setup

Using MENU button, select SETTINGS and hold to enter setting

menu. Various options are available such as swapping the SPEED

and RPM in the Central Display.

Unit Selection

This multifunction gauge is factory preset in metric units but it is possi-

ble to change it to imperial units.

Using MENU button, select UNITS and hold button to change units.

Setting Clock

Using MENU button, select CLOCK and hold to change units.

1. Press MENU button to select clock display.

2. Push and hold MENU button for 1 second.

3. Press MENU button to select 12:00 AM PM or 24:00 time base.

4. Push and hold MENU button or OK button to acknowledge

selection.

5. Press MENU button to change hours (hours flash).

6. Push and hold MENU button or OK button to acknowledge hour

selection

7. Push MENU button to switch to minutes (minutes flash).

8. Press MENU button to change minutes.

Setting Language

The gauge display language can be changed. Refer to an authorized

BRP snowmobile dealer for language availability and to setup the

gauge to your preference.

153

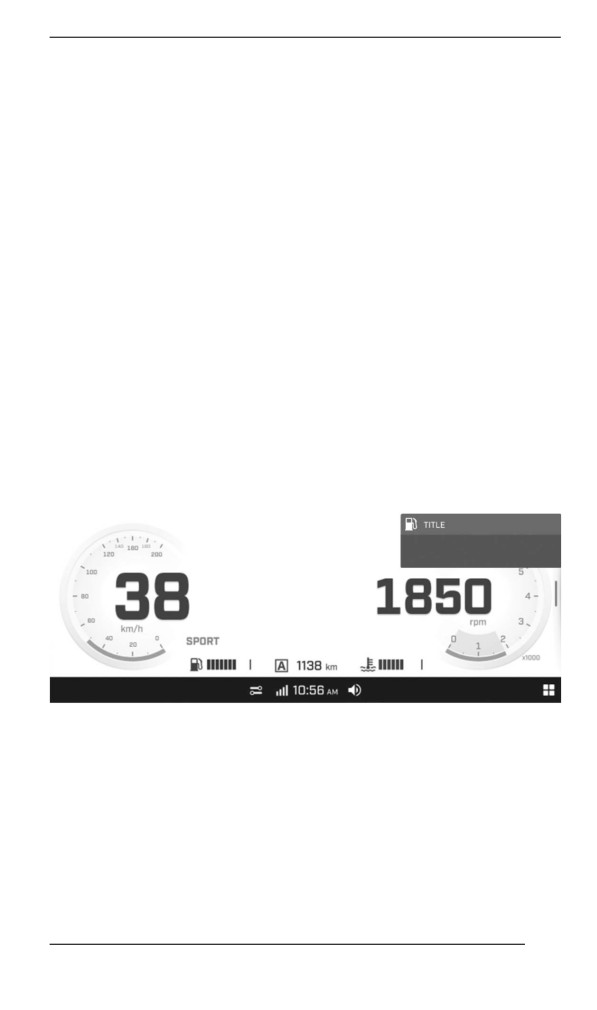

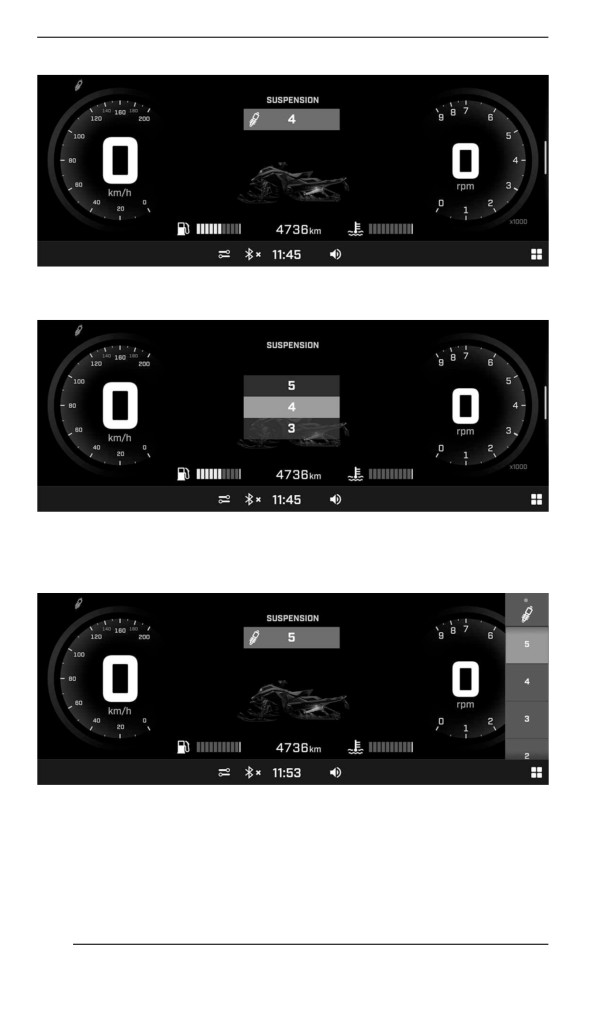

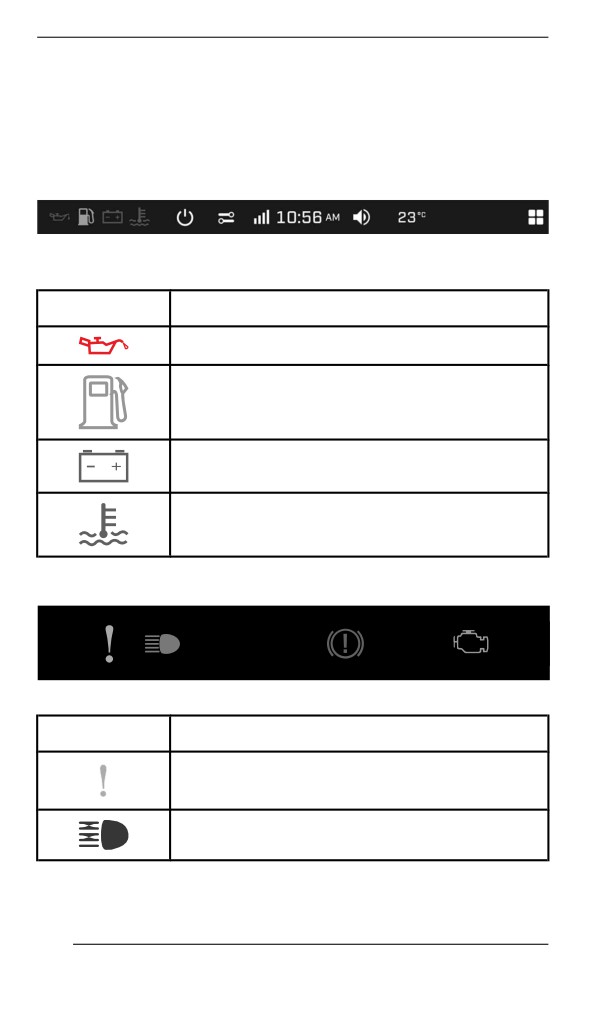

GAUGE – 10.25” COLOR TOUCHSCREEN

DISPLAY

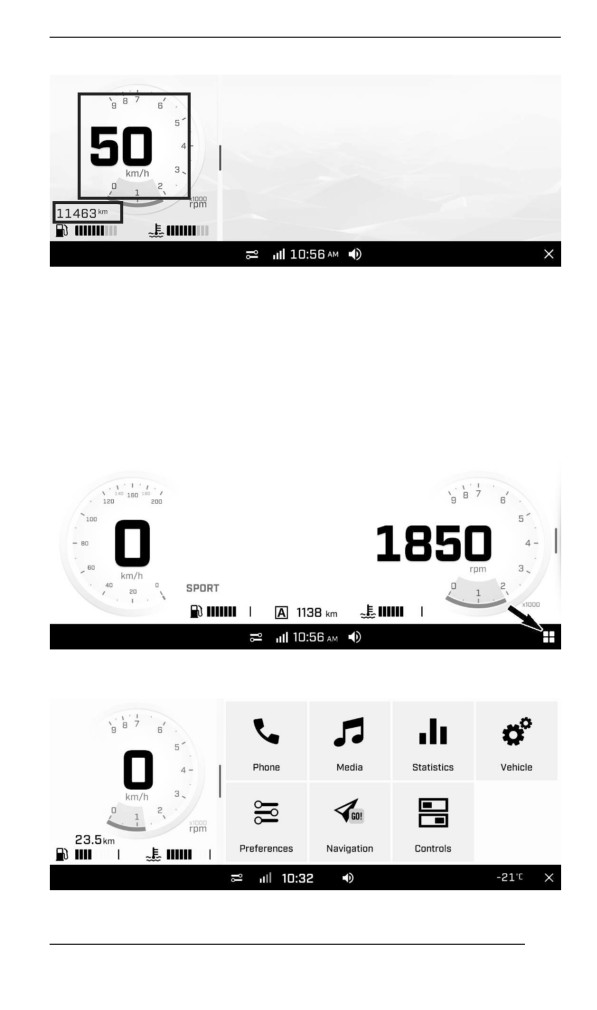

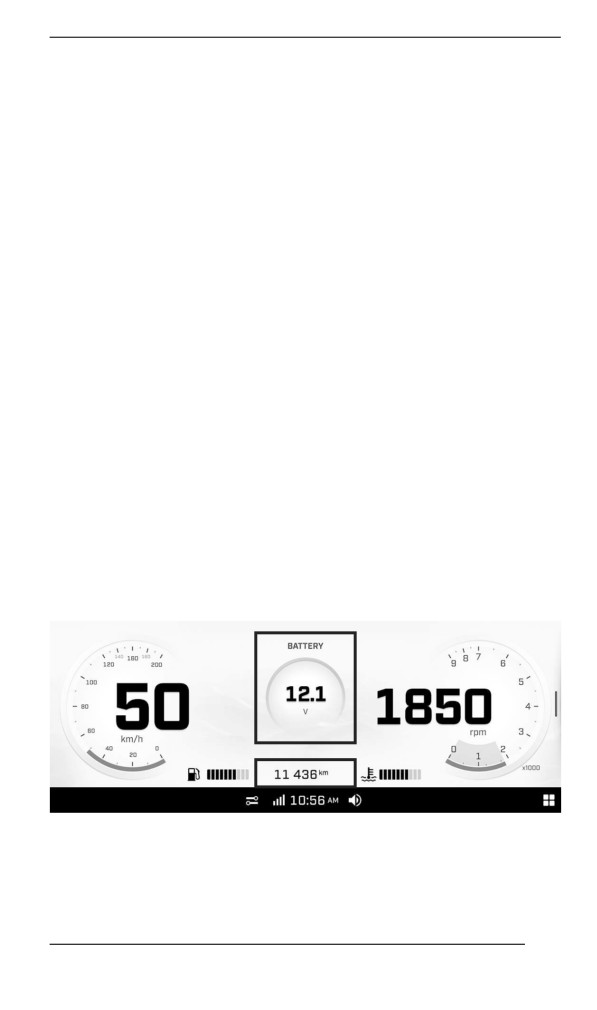

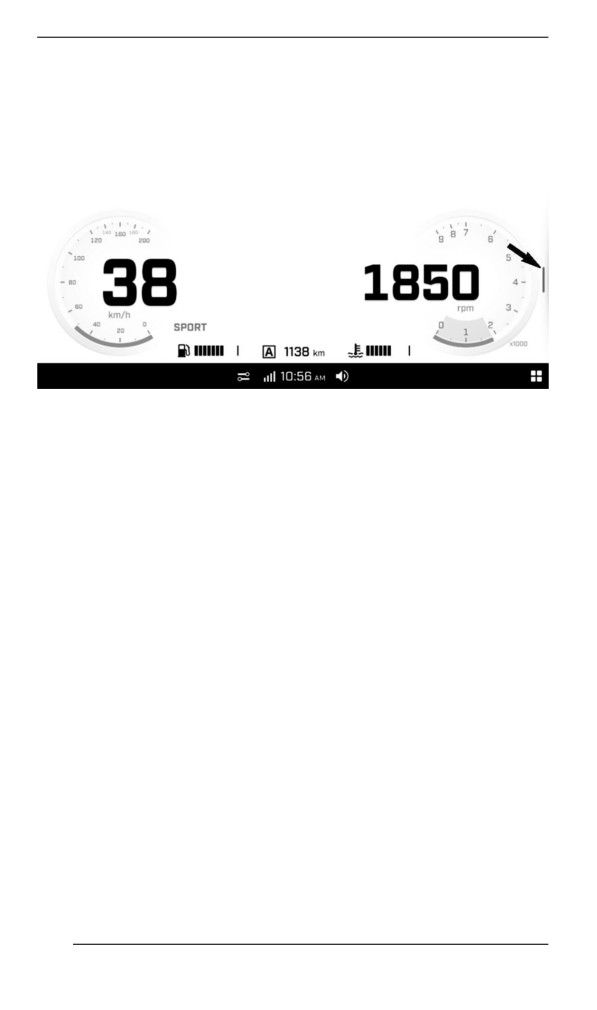

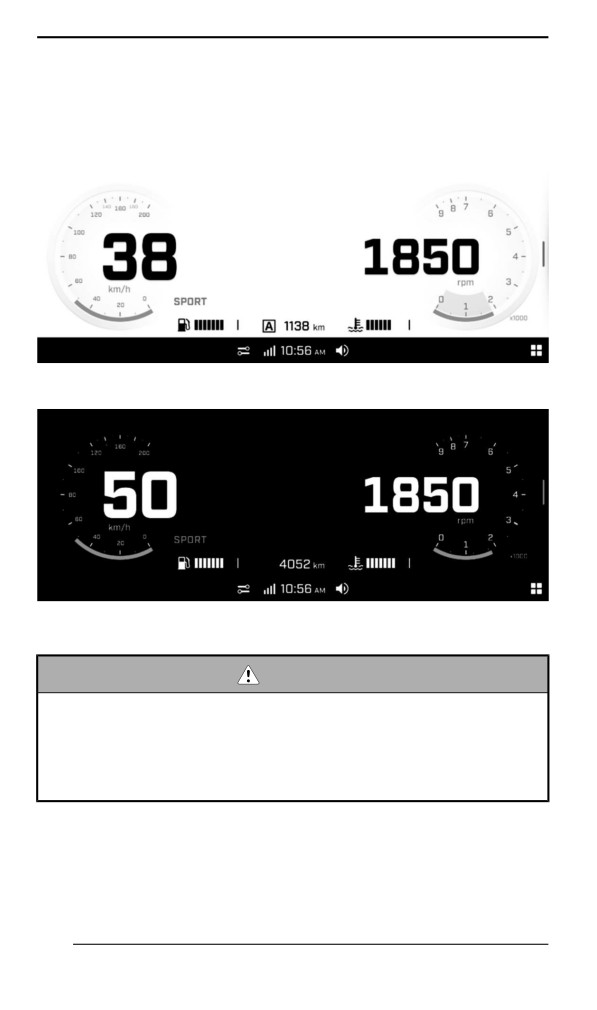

Default Display

Light Mode

Dark Mode

Naviigatiing the Diigital Display

WARNING

Reading or tampering with the multifunction gauge can distract

you from the operation of the vehicle, particularly from con-

stantly scanning the environment. Always pay attention to road

conditions, ensure your environment is clear and free from ob-

stacles. Furthermore, when riding, only glance at the multifunc-

tion gauge briefly to maintain awareness of road conditions.

The multifunction gauge includes digital gauges (speedometer and

tachometer), indicator lamps and an infotainment center with a digital

screen.

154

GAUGE - 10.25” COLOR TOUCHSCREEN DISPLAY

We recommend you practice selecting some functions on the infotain-

ment center before getting on the road. You will get used to them and

they will be easier to use on the road.

Use the handlebar multifunction switch to navigate (touchscreen not

available when riding). Refer to Secondary Controls.

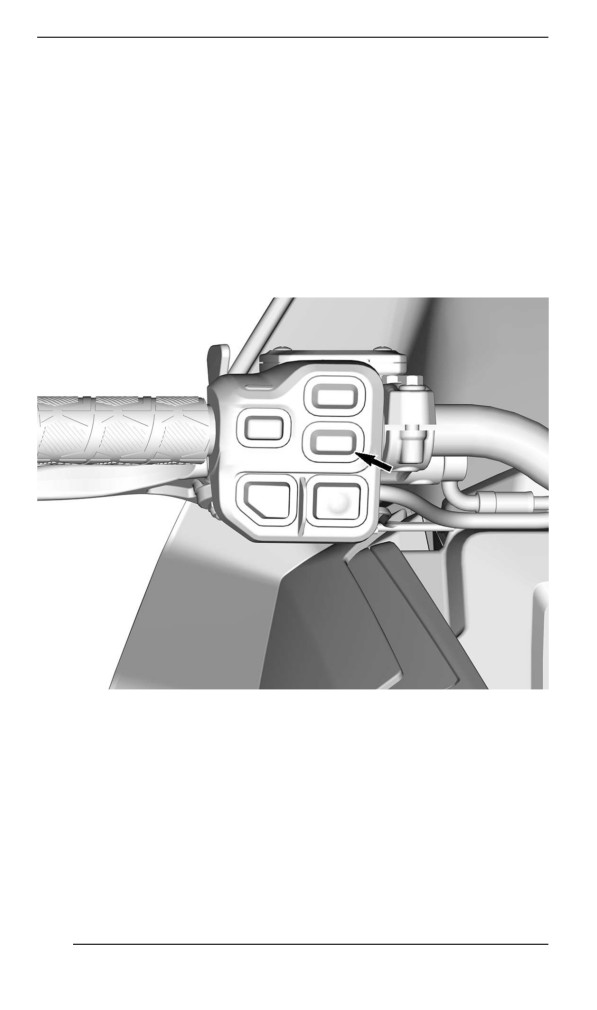

Pressing the App Menu button on the handlebar multifunction switch

will make the modal view appear on top of the cluster.

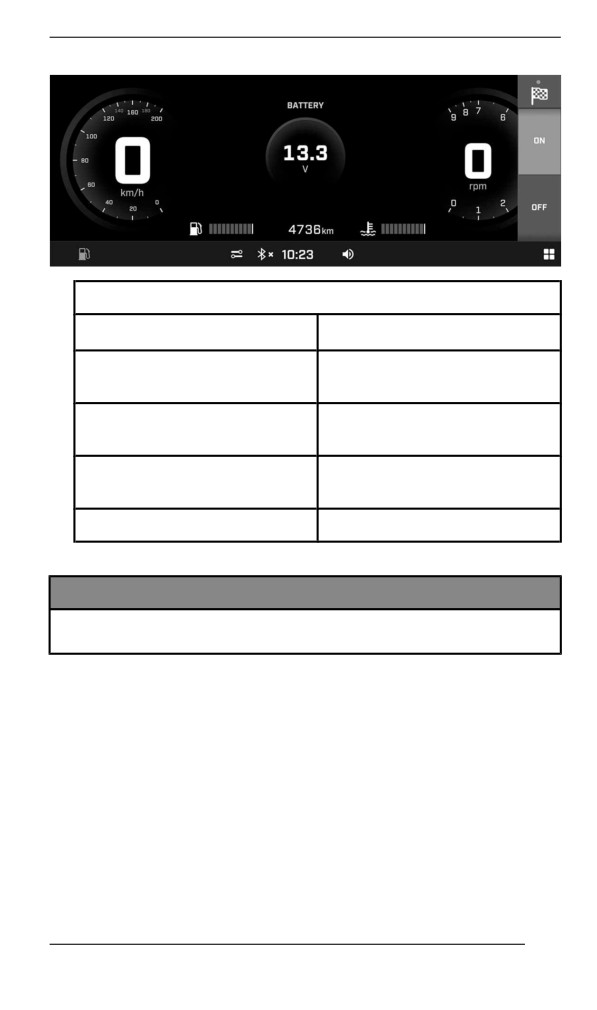

Center Diispllay

In full gauge view, long press in the upper center of the screen to show

one of the following extra gauges. Cycle through the extra gauges with

additional long presses.

- Battery voltage

- Coolant temperature

- Belt temperature (if equipped)

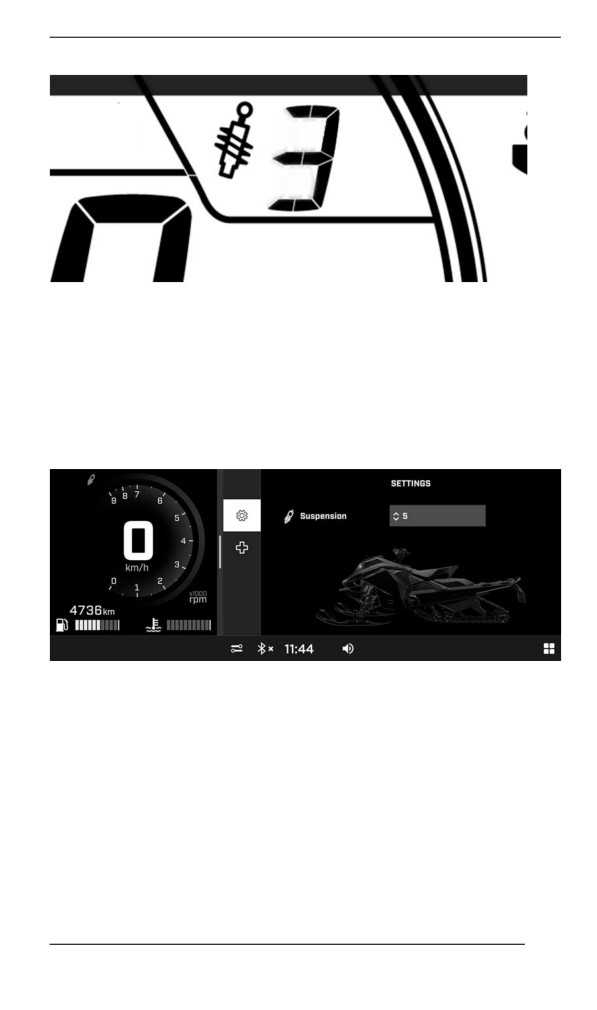

- Smart-Shox suspension type (if equipped)

- Altitude (if equipped)

- Ratio boost (if equipped)

- Air suspension (if equipped)

In full gauge view, long press the lower center of the screen to show

one the following information. Cycle through the informations with ad-

ditional long presses.

- Vehicle total distance

- Vehicle total hours

- Trip A distance

- Trip A hours

- Trip B distance

- Trip B hours

155

GAUGE - 10.25” COLOR TOUCHSCREEN DISPLAY

Narrow View Diispllay

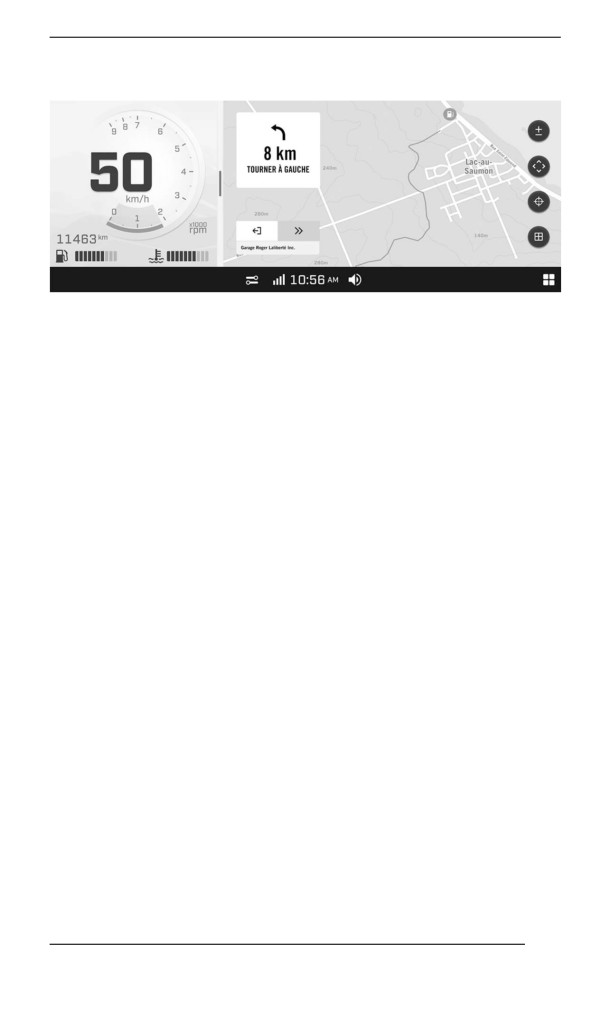

To change from full gauge view to narrow view, open an app or slide

the divider on the right side.

To change back to full gauge view, cycle through the apps or slide the

divider back in place.

The size of the left and right lateral displays cannot be adjusted.

Left Lateral Display

In narrow view, the left lateral display includes:

- Fuel level indicator

- Engine temperature

- Speedometer

- Tripmeter

- RPM

In narrow view, long press the speedometer to change the display be-

tween speedometer only or speedometer and RPM.

In narrow view, long press the tripmeter to show one of the following

information. Cycle through the informations with additional long

presses.

- Current ride distance

- Current ride hours

- Trip A distance

- Trip A hours

- Trip B distance

- Trip B hours

156

GAUGE - 10.25” COLOR TOUCHSCREEN DISPLAY

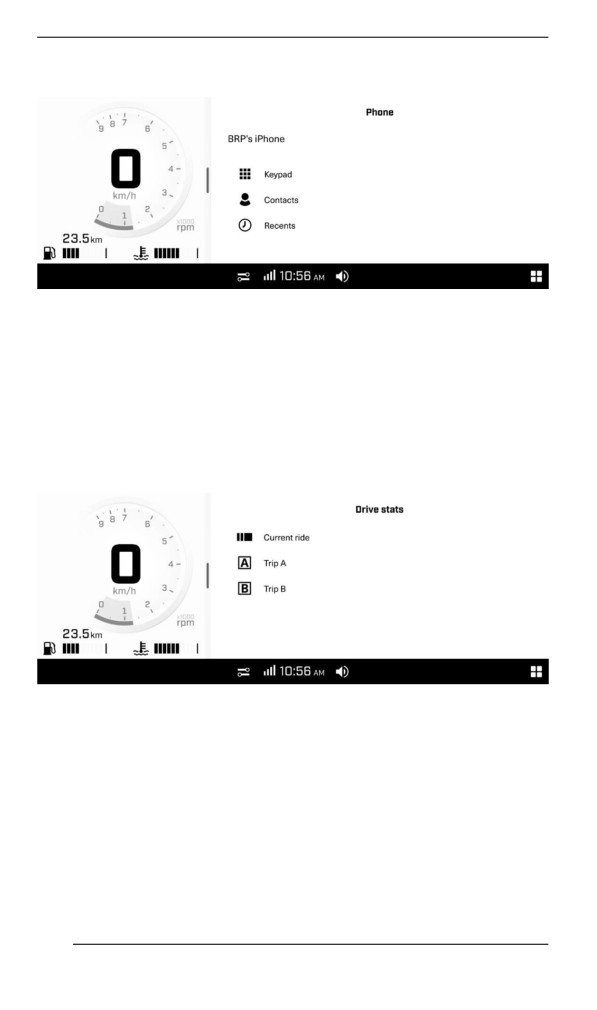

Phone

The phone menu is to access:

- The keypad

- The phone contact list

- The phone history

NOTE:

To have access to the Phone menu, a phone and rider helmet must be

paired. Refer to Pair your Smartphone Via Bluetooth.

Statistics

The Statistics menu is used to get :

- Trip distance information

- Trip elapsed time information

- Average speed

3 sets of statistics are kept in memory. Trip A and Trip B can be reset

independently. Current ride statistic will be reset when the vehicle

restart.

158

GAUGE - 10.25” COLOR TOUCHSCREEN DISPLAY

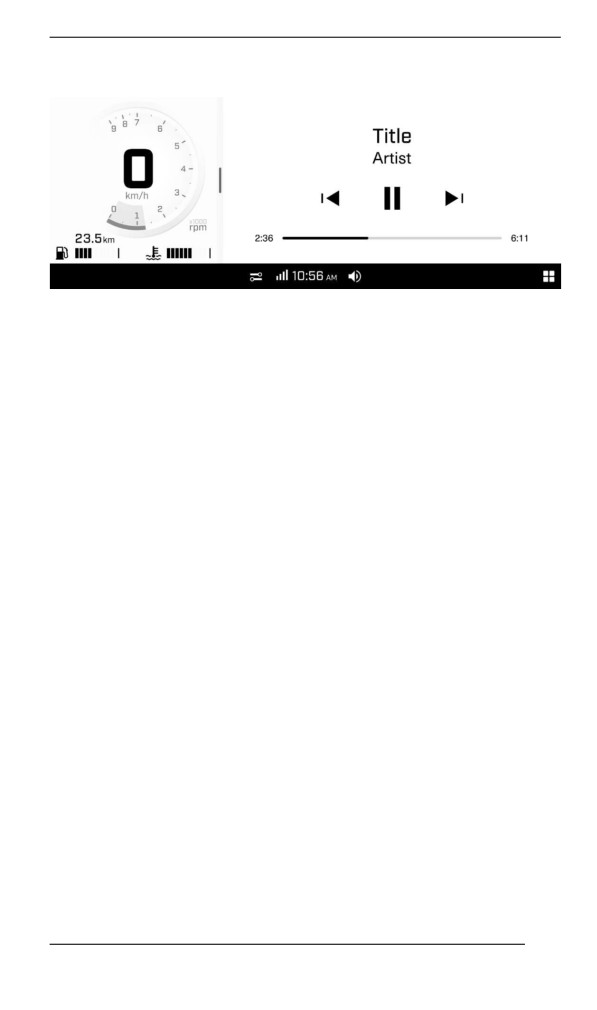

Media

Allow to control volume and music listened in the helmet audio

system.

Gives also song informations when available.

This vehicle is not equipped with speakers. An appropriate helmet

audio system is required to listen to music.

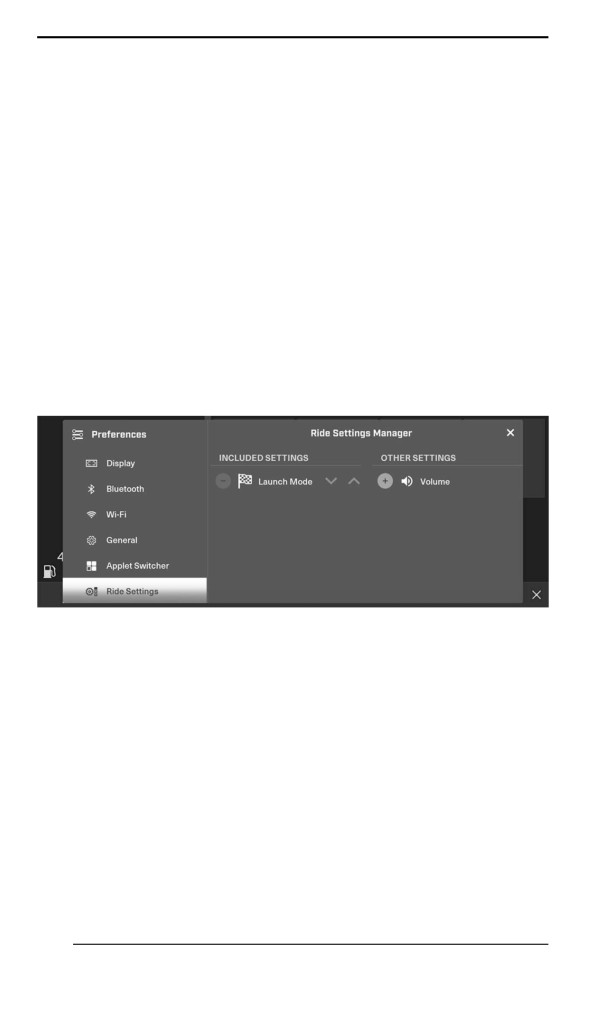

Preferences

The Preferences menu is to:

- Adjust the display brightness and appearance (Light/Dark/Auto)

- Pair Bluetooth devices:

- Phone

- Driver headset

- Passenger headset

- Connect vehicle to a Wi-Fi network

- Access General settings:

- Adjust the units (Imperial/Metric)

- Set the language

- Set the date and time

- Software update

- Get information about manufacturer information and device

regulatory compliance

- Reset to factory settings

- Set the apps to be used while riding

- Set the settings to be used while riding

It is recommended to check for updates regularly.

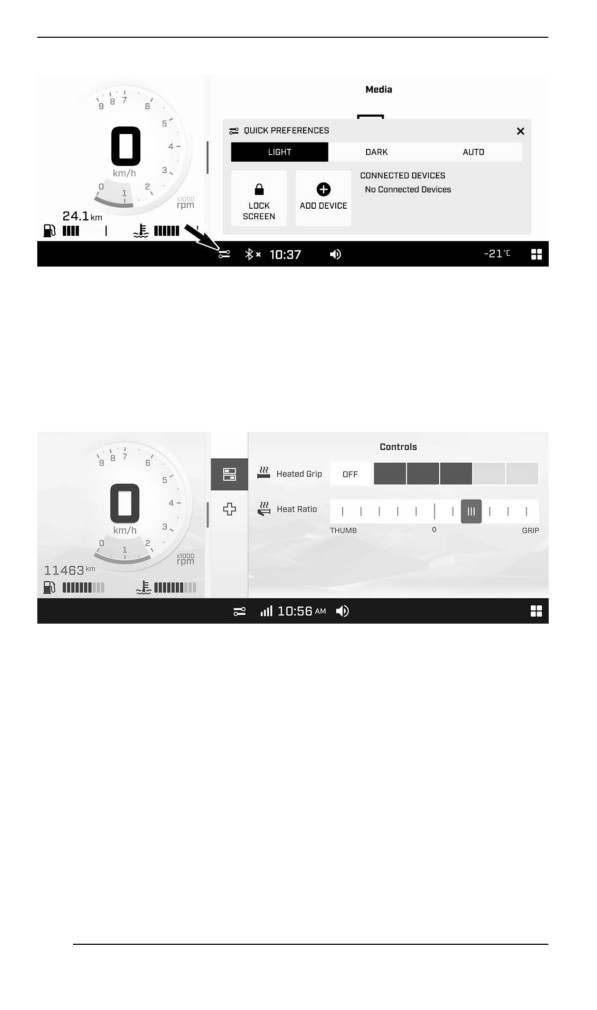

Quick Preferences

To access the Quick Preferences menu, press the following icon.

159

GAUGE - 10.25” COLOR TOUCHSCREEN DISPLAY

The Quick Preferences menu is to:

- Adjust the display appearance (Light/Dark/Auto)

- Lock the screen (press and hold anywhere on the screen to

unlock)

- Add a Bluetooth device

- View connected Bluetooth devices

Vehicle Settings

The Controls app menu is to:

- Adjust heated grips and thumb ratio

- View vehicle Health:

- Vehicle information

- Faults (codes and description)

- Procedures (summerization)

160

GAUGE - 10.25” COLOR TOUCHSCREEN DISPLAY

BRP GO! App

Before using BRP Connect, the BRP GO! app must be downloaded to

the phone. The app can be downloaded from the Apple App Store or

Google Play Store via a simple search.

NOTE: Not all phones are compatible. User experience may vary.

Visit our website for more details:

www.brpconnecttutorial.com

NOTE:

The smartphone must be connected with a USB cable to the USB port

located in the glove box.

User's personal data will be deleted from the cluster when the phone

disconnected.

User agrees that personal data (contact list and call history) be trans-

ferred to the cluster when smartphone is connected.

Warniing Lamps and Indiicators

The following indicator lamps will alert you to a vehicle condition that

may become serious. Some lamps will illuminate when starting the ve-

hicle to make sure they work. If any lamps remain on after starting the

vehicle, refer to the respective system warning lamp for further

information.

NOTE:

Some warning indicators appear in the display of the multifunction

gauge and function the same as an indicator lamp but do not display

when starting the vehicle.

161

GAUGE - 10.25” COLOR TOUCHSCREEN DISPLAY

Telltale Lights

The telltale lights are separated on two levels:

- Digital bar

- Physical bar

Digital Bar

DIGITAL PILOT LAMP

–

10.25” COLOR DIGITAL

TOUCHSCREEN

Lights

Description

RED - Low engine oil pressure (if applicable)

ORANGE - Low fuel level

RED - The battery voltage too low or problem

with the electrical system

RED - The engine temperature is too high.

Physical Bar

PILOT LAMPS – 10.25” COLOR DIGITAL TOUCHSCREEN

Lights

Description

ORANGE - Vehicle malfunction

BLUE - The high beam are selected

162

GAUGE - 10.25” COLOR TOUCHSCREEN DISPLAY

Lights

Description

RED - Parking brake is engaged or malfunction

of the brake system

ORANGE

Turn on: Malfunction of the vehicle emissions

control system

Blink: Engine problems, the limp home mode is

activated. Have the vehicle serviced

immediately.

Icons and Indicators - Multifunction Display

Icon

Description

Shut down

Quick Preferences

Smartphone Network connection

Clock

Audio Volume

Ambient Temperature

App menu

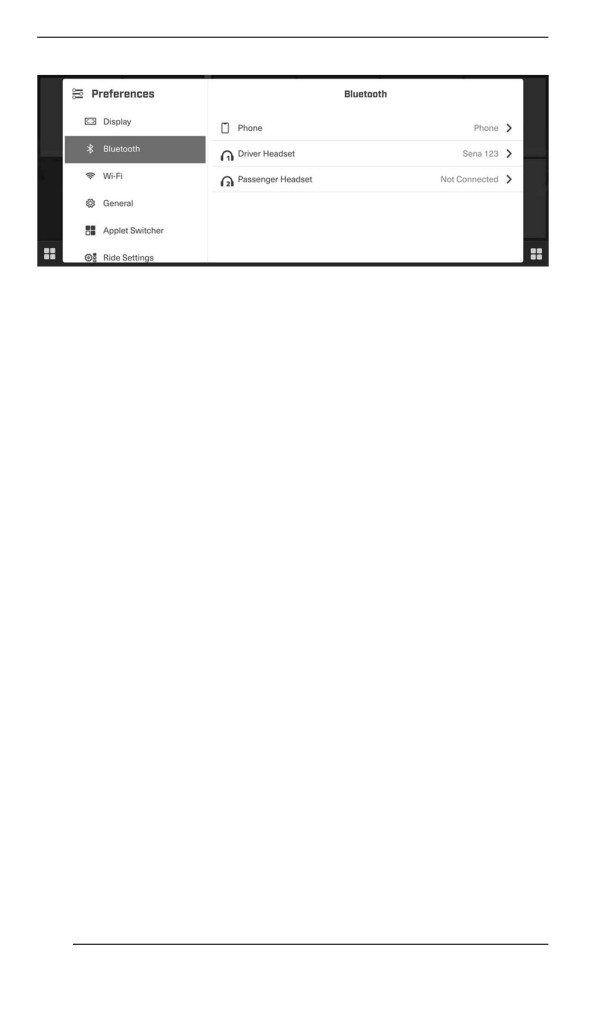

Pairiing your Smartphone Viia Bluetooth

On the Vehicle

1. Open the App menu.

2. Go to “Preferences”.

3. Select “Bluetooth”.

163

GAUGE - 10.25” COLOR TOUCHSCREEN DISPLAY

4. Select “Phone”.

5. Select “Add Device”.

NOTE: More than one smartphone can be paired with the vehicle.

However, only one will connect at any given time.

On the Phone

1. Activate your phone's bluetooth function.

Refer to your manufacturer's user guide for detailed procedure.

2. Select the bluetooth name of your vehicle display in the list of avail-

able devices.

3. A confirmation number will appear on the display and on the

phone. Make sure that the numbers match.

4. Press Pair on your phone.

5. Allow Contacts and Favorite Sync on your phone.

Pairing a Helmet

To pair a helmet, refer to Pairing your Smartphone Via Bluetooth and

select “Driver Headset” or “Passenger Headset”.

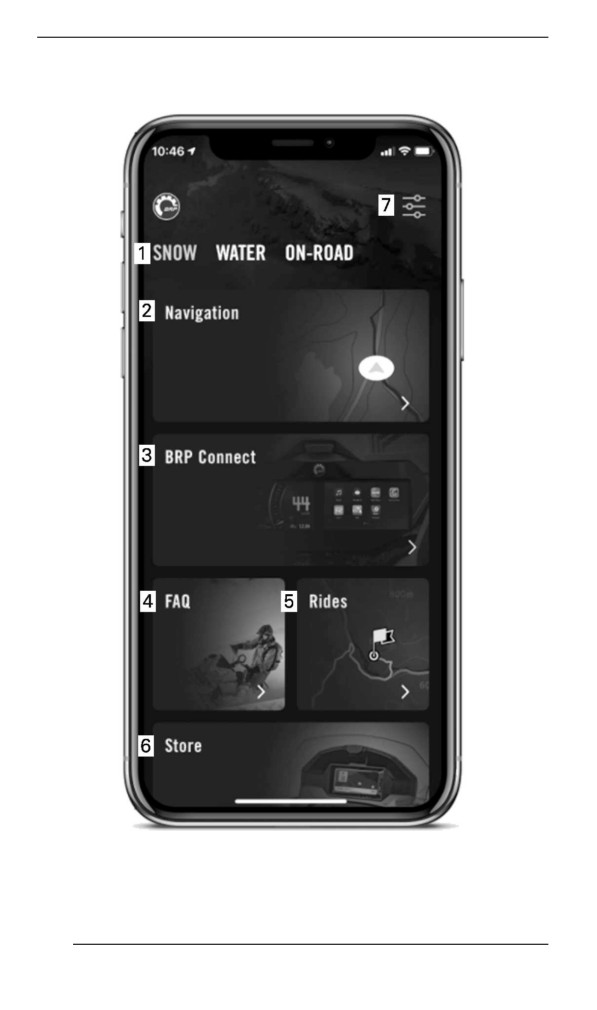

BRP GO! App

1) Download the BRP GO! Smartphone App

Download the BRP GO! app via the App Store for Apple™ or the Goo-

gle™ Play Store for Android.

2) Connect your smartphone using your charging / data transfer

cable

It is recommended to use an original charging cable from the smart-

phone OEM to optimize transfer between the phone and the vehicle.

Use the front USB port.

164

GAUGE - 10.25” COLOR TOUCHSCREEN DISPLAY

2. Navigation: Access all the navigation features of the app such as

route planning, turn-by-turn navigation, friends location, offline nav-

igation, and more. You can access thousands of snowmobile trails

across North America and Europe on the map.

3. BRP Connect: See the list of compatible apps that can be used on

the vehicle's display. You can also access from there the Vehicle

Connection Guide to help you connect your phone to your vehicle's

display.

4. FAQ: This link takes you to answers of common questions asked

by riders like you. An internet connection is required.

5. Rides: Easily access your planned and completed rides made with

the Navigation features of the BRP GO! app.

6. Store: This link takes you to the online store of your vehicle. An in-

ternet connection is required.

7. Settings: Manage your profile and your account settings.

Messages iin Multifunction Gauge

Important information about vehicle condition is displayed on the multi-

function gauge. When starting the engine, always look at the gauge

for any indicator lamps or special messages.

Important information messages can also be displayed temporarily to

assist indicator lamps.

Notifications will always appear at the top right corner of the screen.

10.25” COLOR DIGITAL TOUCHSCREEN

There are two types of notifications:

- Vehicle notifications include warning, caution and notice messages

- Infotainment notifications include messages regarding connected

devices

Vehicle notifications have priority over infotainment notifications when

they are both present at the same time.

167

FUEL

Fuel Requiirements

NOTICE

Always use fresh gasoline. Gasoline will oxidize; the result is

loss of octane, volatile compounds, and the production of gum

and varnish deposits which can damage the fuel system.

Alcohol fuel blending varies by country and region. Your vehicle has

been designed to operate using the recommended fuels, however, be

aware of the following:

- Use of fuel containing alcohol above the percentage specified by

government regulations is not recommended and can result in the

following problems in the fuel system components:

- Starting and operating difficulties.

- Deterioration of rubber or plastic parts.

- Corrosion of metal parts.

- Damage to internal engine parts.

- Inspect frequently for the presence of fuel leaks or other fuel sys-

tem abnormalities if you suspect the presence of alcohol in gaso-

line exceeds the current government regulations.

- Alcohol blended fuels attract and hold moisture which may lead to

fuel phase separation and can result in engine performance prob-

lems or engine damage.

Recommended Fuel

Use unleaded gasoline containing MAXIMUM 10% ethanol. The gaso-

line must have the following minimum octane requirements.

Fuel type

Engine

Min. octane rating

600R E-TEC

Fuel with NO

91 AKI (RON+MON)/2

850 E-TEC

ethanol

95 RON

850 E-TEC Turbo R

91 AKI (RON+MON)/2

95 RON

Fuel which may

600R E-TEC

contain up to

850 E-TEC

10% MAX

850 E-TEC Turbo R

ethanol

169

FUEL

NOTICE

Never experiment with other fuels. Engine or fuel system dam-

ages may occur with the use of an inadequate fuel.

NOTICE

Do NOT use fuel from fuel pumps labeled E85.

Use of fuel labeled E15 is prohibited by U.S. EPA Regulations.

Fueling Procedure

WARNING

Always stop engine before refueling.

WARNING

Fuel is flammable and explosive under certain conditions.

Never use an open flame to check fuel level.

Never smoke or allow flame or spark in vicinity.

Always work in a well-ventilated area.

NOTE:

Do not sit or lean on seat when fuel tank cap is not properly installed.

1. Stop engine.

2. Have operator and passenger get off vehicle.

WARNING

Do not allow anyone seated on the vehicle while fueling.

3. Unscrew slowly the fuel reservoir cap counterclockwise to stabilize

pressure before removing it.

NOTE:

A short whistling sound is normal.

170

FUEL

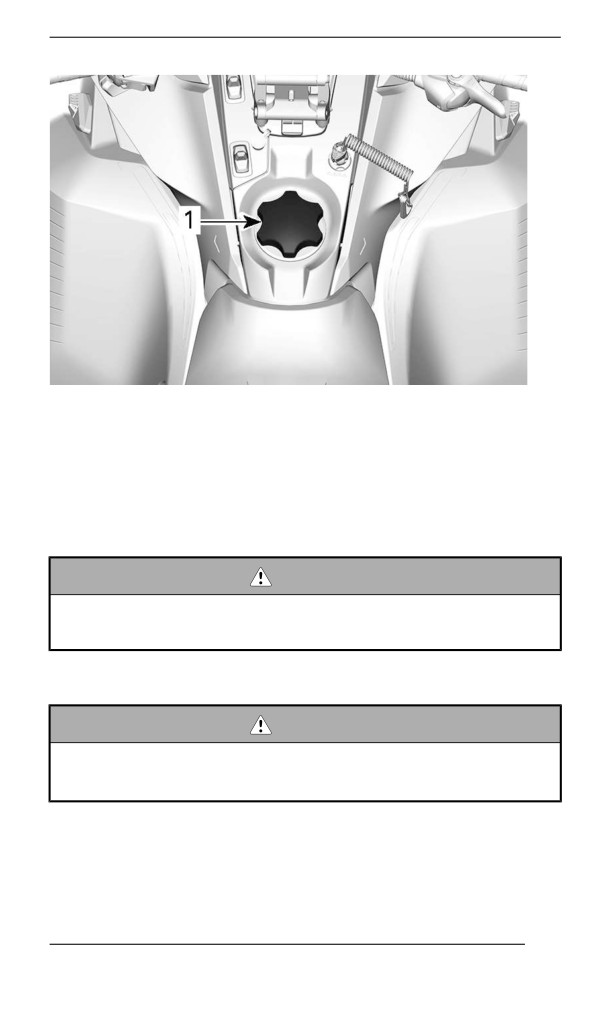

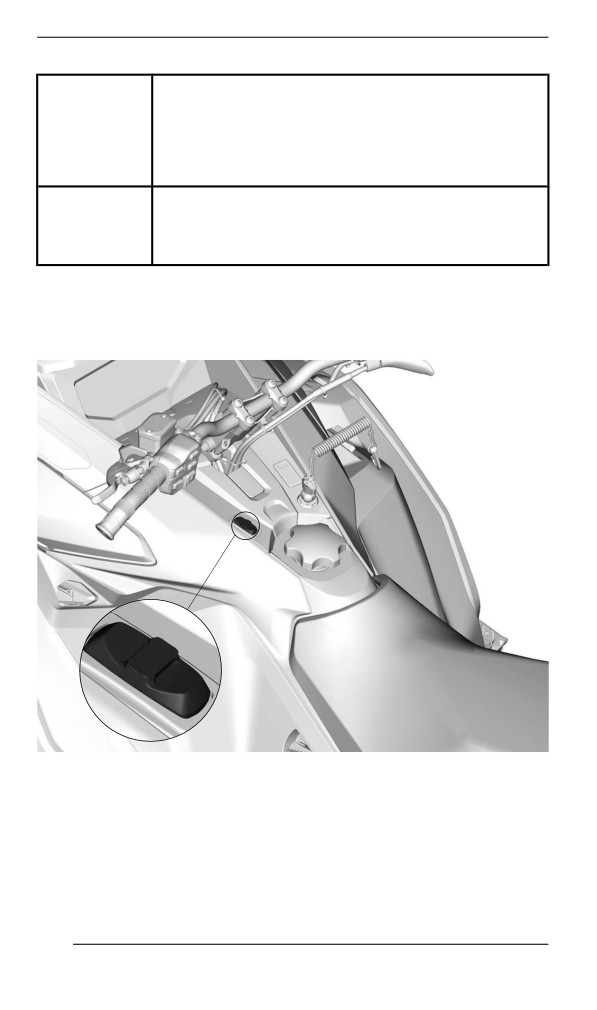

TYPICAL

1. Fuel tank cap

4. Insert the spout into the filler neck.

5. Pour fuel slowly so that air can escape from the tank and prevent

fuel flow back. Be careful not to spill fuel.

6. Stop filling when the fuel reaches the bottom of filler neck. Do not

overfill.

WARNING

Never top up the fuel tank before placing the vehicle in a warm

area. As temperature increases, fuel expands and may

overflow.

7. Fully tighten fuel reservoir cap clockwise.

WARNING

Always wipe off any small fuel spillage from the vehicle. If a ma-

jor spillage occurs, remove side panels to remove fuel vapors

from engine compartment before starting.

NOTE:

Do not sit or lean on seat when fuel tank cap is not properly installed.

171

INJECTION OIL

Recommended Injection Oill

Rotax^® engines were developed and validated using the XPS^® oil.

BRP recommends the use of its XPS injection oil or an equivalent at

all time. Damages caused by the use of an injection oil not suitable for

this 2-stroke direct fuel injection engine may not be covered by the

BRP Limited Warranty.

RECOMMENDED Injection Oil

850 E-TEC

XPS 2T E-TEC Synthetic Oil (full synthetic)

IF THE RECOMMENDED XPS ENGINE OIL IS NOT

AVAILABLE

Use a 2-stroke lubricant designed for snowmobiles meeting or

exceeding the following lubricant industry specifications:

- JASO FD (M345-2004)

- SAE Grade 4 (F / M 4)

Injectiion Oiil Level Veriifiicatiion

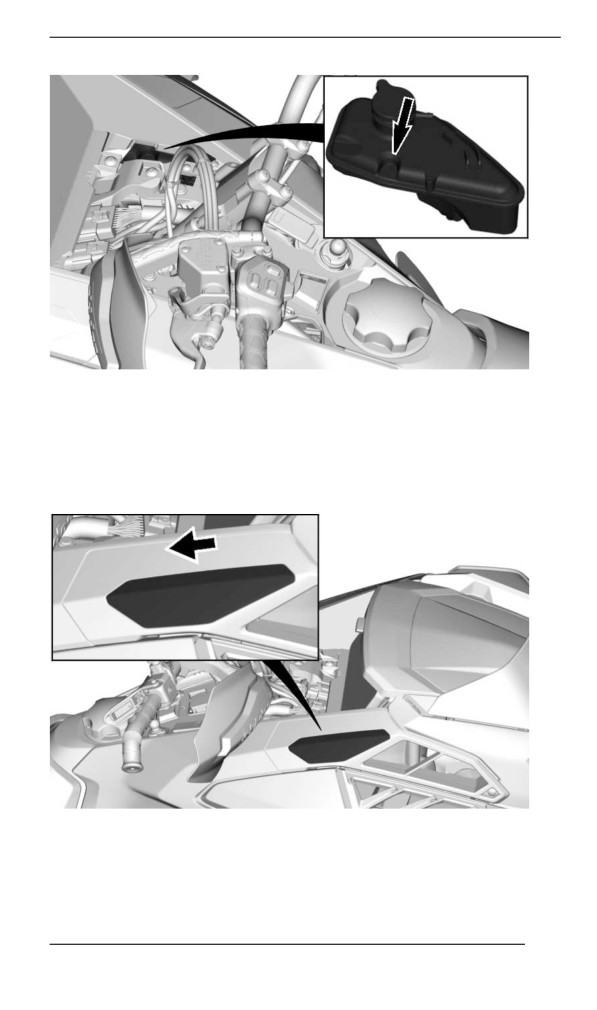

The injection oil reservoir is located behind the LH side panel. Refer to

Equipment for opening procedure.

Always maintain a sufficient amount of recommended injection oil in

the injection oil reservoir.

Marks on the tank indicates "1/4" and "1/2" of the total amount of oil.

NOTICE

Check level and refill every time you refuel.

172

INJECTION ICE FLUID

Recommended Injection ICE Fluiid

The Intake Cooling Enhancer (ICE) fluid was specially formulated to

cool down the air entering the engine while at wide open throttle to al-

low the turbo to supply the maximum boost to the engine for a pro-

longed time. BRP recommends the use of its XPS injection ICE fluid at

all time. Damages caused by the use of fluid not suitable for this

2-stroke direct fuel injection engine may not be covered by the BRP

Limited Warranty.

RECOMMENDED Injection ICE Fluid

XPS ICE Fluid - Water/ methanol premix

If the vehicle were to run out of fluid, the turbo boost would lower to

prevent the engine from overheating.

The power will never go lower than a normally aspirated 850 E-TEC

engine.

Veriifyiing the Injjection ICE Flluiid Level

The injection oil reservoir is located at the back of the fuel tank.

Always maintain a sufficient amount of recommended ICE fluid in the

reservoir.

Marks on the tank indicates "1/4" and "1/2" of the total amount of oil.

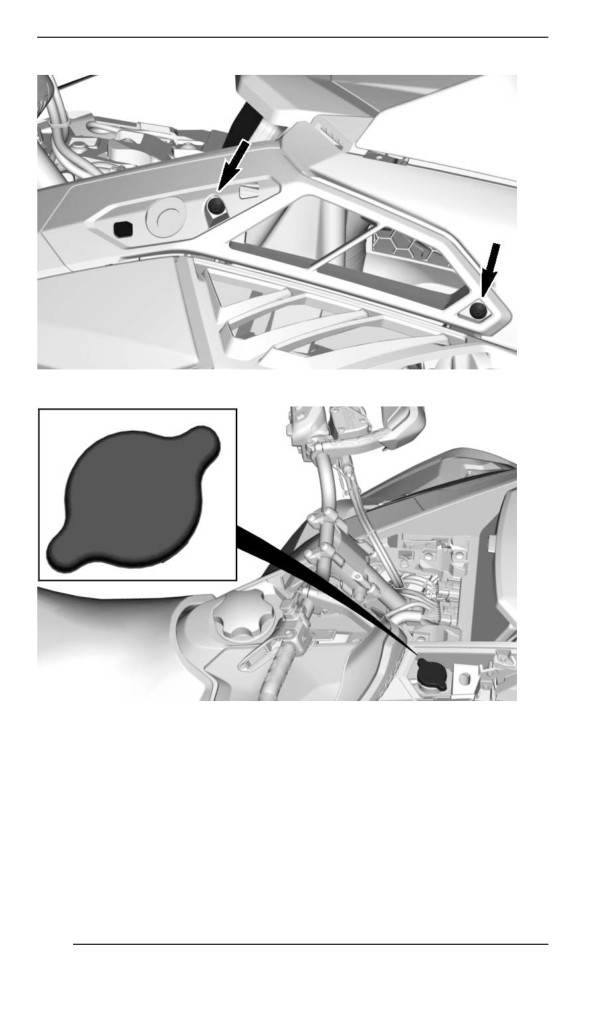

Adding ICE Fluid

1. Remove the ICE fluid tank cap.

2. Pour the fluid into the tank.

3. Reinstall the cap.

4. Wipe off any spillage.

174

BREAK-IN PERIOD

Operation Duriing Break-In

Engine

During the break-in period:

- Avoid prolonged full throttle operation.

- Avoid sustained accelerations.

- Avoid prolonged cruising speeds.

- Avoid engine overheating.

However, brief accelerations and speed variations contribute to a

good break-in.

During a predetermined period, the engine management system con-

trols some engine parameters.

The duration is based on fuel volume. It will take approximately two

fuel tanks to complete the break-in.

During this period:

- The engine performance and behavior will not be optimal.

- The fuel and oil consumption will be higher.

Drive Belt

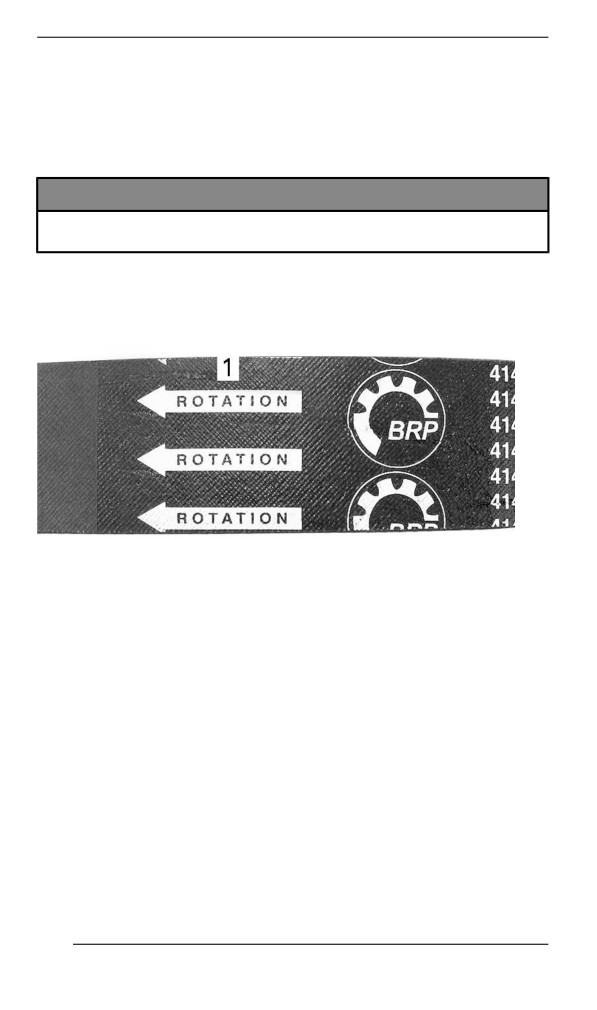

A new drive belt requires a break in period of 50 km (30 mi).

During the break-in period:

- Avoid strong acceleration and deceleration.

- Avoid pulling a load.

- Avoid high speed cruising.

If the vehicle creeps, lower the drive belt height from the preliminary

setting. Refer to Drive Belt in maintenance procedure.

175

LAUNCH MODE (IF EQUIPPED)

This mode is used at standstill to offer the best acceleration possible.

Activating the Launch Mode

To activate the launch mode, the following conditions must be met:

- The normal DESS key is used.

- The vehicle is in forward gear.

- The engine temperature is between 30°C and 75°C.

- The air intake temperature is between -40°C and 70°C.

- The exhaust temperature is between 80°C and 680°C.

- The vehicle is completely stopped.

- The throttle lever is released.

- The launch mode setting is added. If required, add the Launch

Mode as follows:

1. Open the App menu.

2. Go to “Preferences.”

3. Select “Ride Settings.”

4. Add “Launch Mode” settings

1. Set the driving mode to SPORT using the driving mode switch. Re-

fer to Driving Modes.

2. When in SPORT mode, press and hold the SPORT position on the

switch for one second to enable the launch mode function.

3. Press the ride setting button until the lunch mode modal view

appears.

4. Select “ON” to activate the launch mode.

NOTE: If the vehicle is not launch within 30 seconds, the launch

mode will be disabled and engine idle speed will go back to normal.

176

LAUNCH MODE (IF EQUIPPED)

Launch Control Status

On Screen Display

Launch Control Status

Launch ON, hold brake and

Launch mode is successfully

press accelerator

activated

Arming

Vehicle did not reach the

conditions yet

Launch not available

Conditions are not met when

activating the launch mode

Launch control OFF

Launch control is deactivated

5. Once the launch mode is activated, apply the brake lever.

NOTICE

To deactivate the launch control, briefly press and release the

throttle only.

6. Use the throttle lever to modulate the amount of turbocharger

boost generated by the engine to launch the vehicle.

7. When the system is ready, the following message will be displayed

Launch Ready, release brake when ready.

NOTE: If the vehicle is not launched within 8 seconds of arming, the

launch mode will be disabled.

8. When ready, release the brake lever to launch the vehicle.

After a successful launch, the following message will be displayed

Launch!.

177

BASIC PROCEDURES

Engiine Starting Procedure

Procedure

1. Apply parking brake.

2. Recheck throttle control lever operation.

3. Put your helmet on.

4. Ensure that the tether cord cap is installed on the engine cut-off

switch and that the cord is attached to your clothing eyelet.

5. Ensure that the emergency engine stop switch is in the ON position

(up).

WARNING

Never depress throttle while starting engine.

6. Release parking brake.

NOTE:

For an initial cold start, do not release parking brake. Perform the ve-

hicle warm-up procedure as explained below.

Manual Start Modells

Grab rewind starter handle, pull handle slowly until a resistance is felt,

then hold handle firmly and pull vigorously to start engine.

NOTE:

The maximum torque that can be transmitted to the engine by the re-

wind starter is 80 Nm (59 lbf-ft). The maximum force that can be ex-

erted on the on the rope is 2 200 N (494.6 lbf).

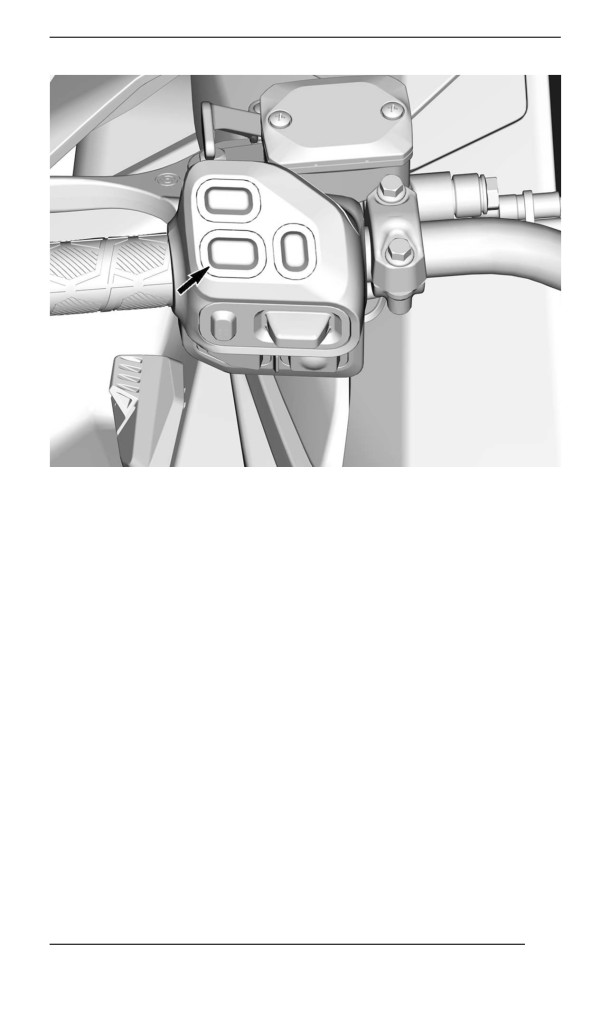

Electriic Start Models

Press the START/RER button to engage the electric starter and start

the engine. Release button immediately when engine has started.

NOTICE

Do not engage electric starter for more than 10 seconds at a

time. A rest period should be observed between the cranking

cycles to allow electric starter to cool down.

Emergency Starting

The engine can be started with the emergency starter rope supplied in

the storage compartment. Refer to Body and Seat.

178

BASIC PROCEDURES

Remove the drive belt guard. Refer to Body and Seat.

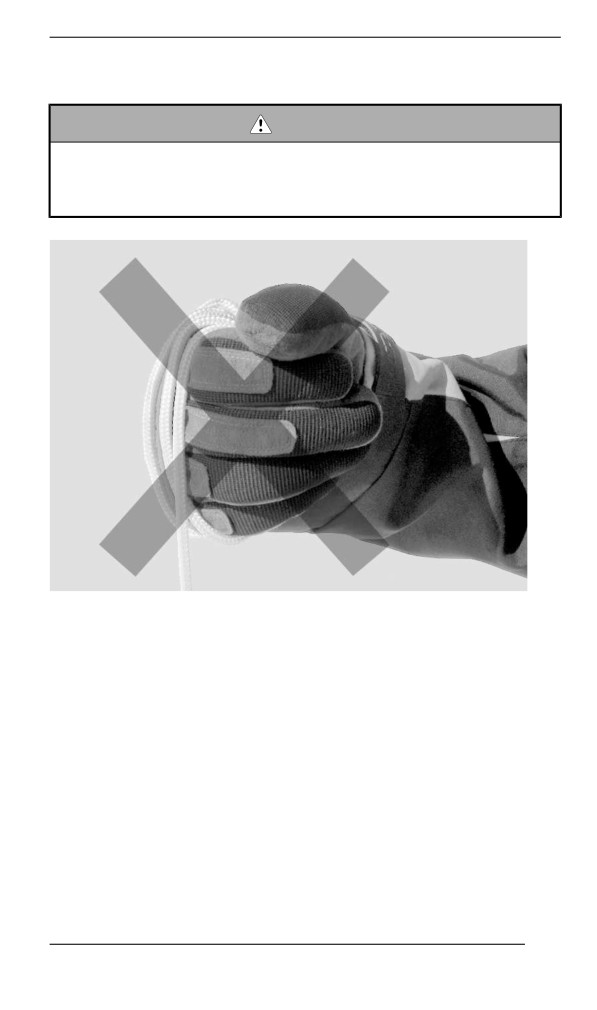

WARNING

Do not wind starting rope around your hand. Hold rope by the

handle only. Do not start the engine by the drive pulley unless it

is a true emergency situation. Have the snowmobile repaired

as soon as possible.

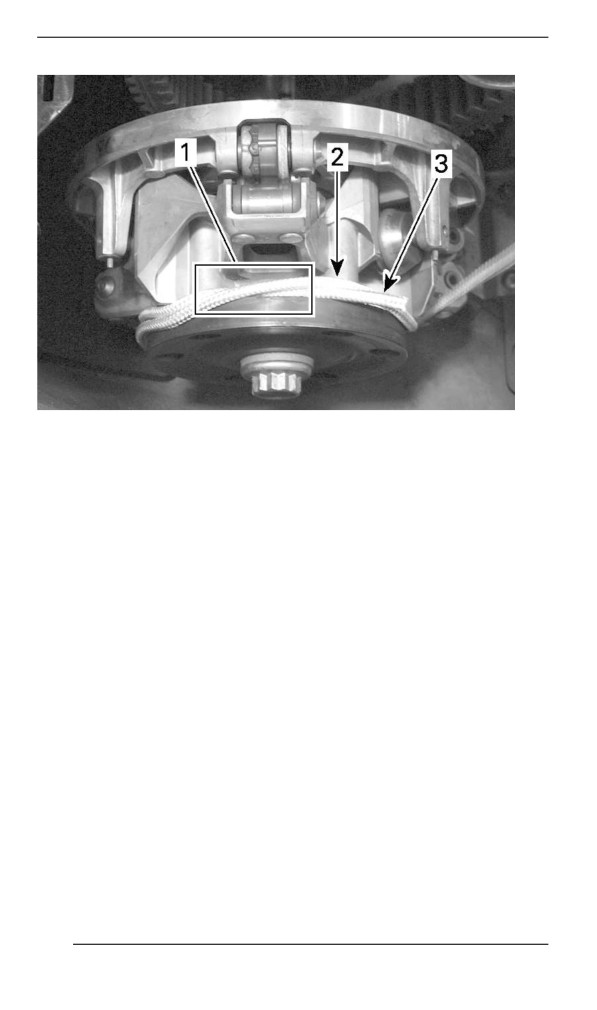

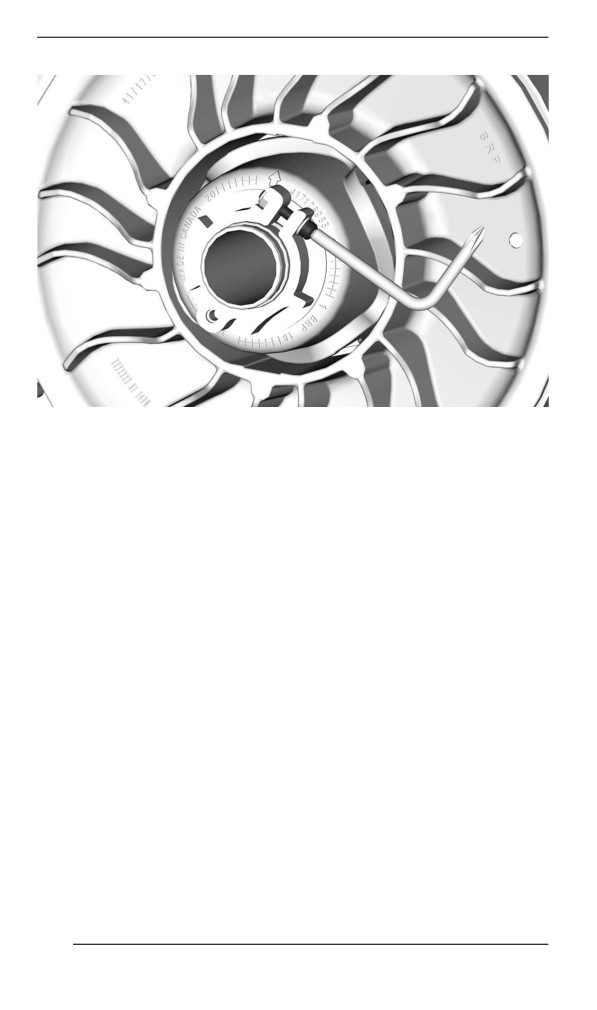

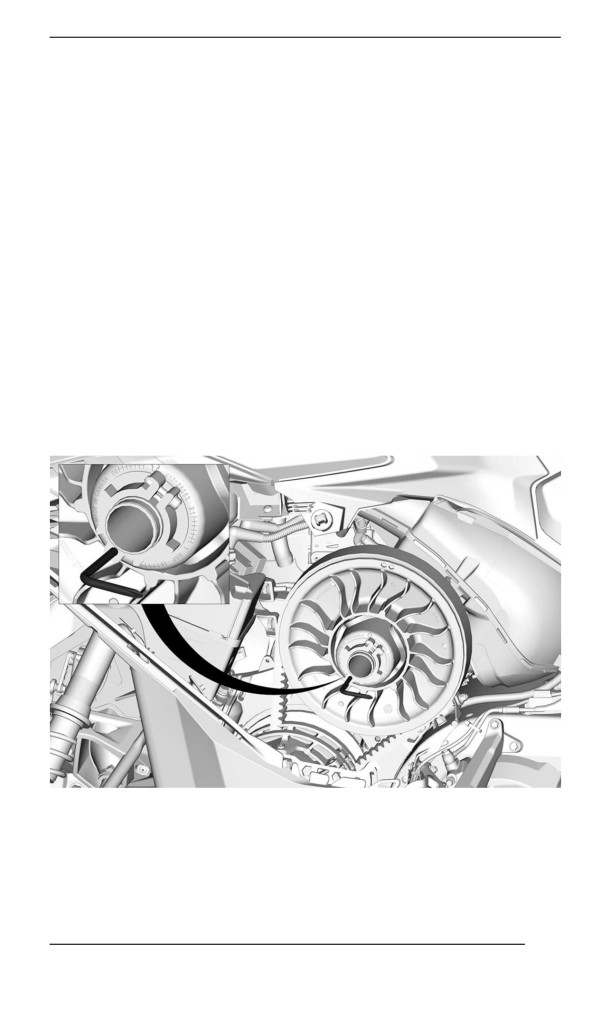

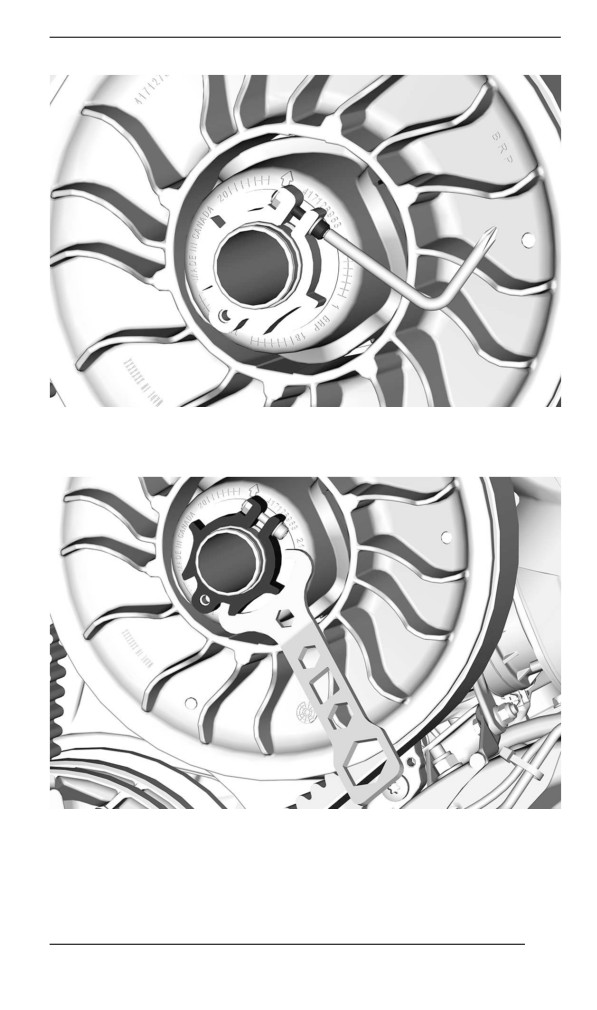

Attach one end of emergency rope to the rewind handle.

NOTE:

The suspension adjustment tool can be used as an emergency

handle.

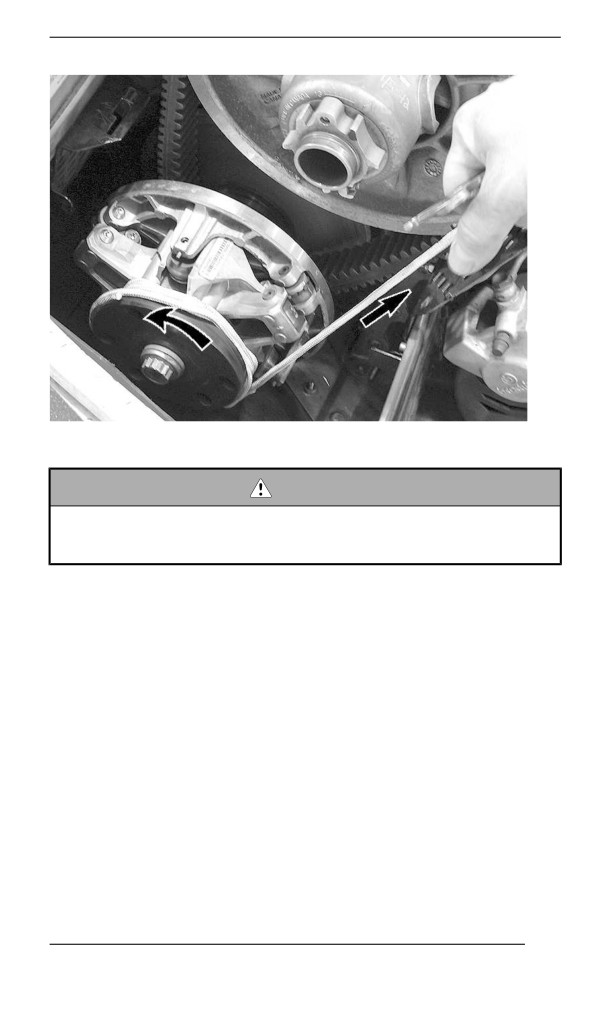

Cross the rope on the first turn as shown.

179

BASIC PROCEDURES

Start engine as per usual manual starting.

WARNING

When starting the snowmobile in an emergency situation, using

drive pulley, do not reinstall the belt guard and return slowly to

have snowmobile repaired.

Vehicle Warm-Up

Before every ride, vehicle has to be warmed up as follows.

1. Start engine as explained in Engine Starting Procedure above.

2. Allow engine to warm up one or two minutes at idle speed.

NOTE:

Engine will shut down after approximately 12 minutes of idling.

3. Disengage parking brake.

4. Apply throttle until drive pulley engages. Drive at low speed the first

two or three minutes.

181

BASIC PROCEDURES

NOTICE

If vehicle does not move when throttle is applied, stop engine,

remove tether cord cap from the engine cut-off switch, then do

the following.

– Check if skis are stuck on the ground. Lift one ski at a time

by the handle, then put it down.

– Check if track is stuck on the ground. Lift rear of snowmobile

enough to clear track from the ground, then drop.

– Check rear suspension for hard snow or ice accumulation

that could interfere with track rotation. Clean the area.

CAUTION

Beware of injuries by using proper lifting techniques, notably

using your legs force. Do not attempt to lift the rear of vehicle if

it is above your limits.

WARNING

Make sure tether cord cap is removed before standing in front

the vehicle, getting close to the track or rear suspension

components.

NOTE:

Warm-up is electronically controlled. During this period (up to 10 mi-

nutes depending on ambient temperature), engine RPM is limited.

Reverse (RER)

When the engine is running, depressing the RER button will slow

down engine RPM to almost a stop and advance the ignition timing to

invert crankshaft rotation.

- Engine will automatically shift into forward when restarting after

stopping or stalling.

- Shifting procedure will take place only when the engine is running.

- If engine is running at a speed above 4300 RPM, the function of

the RER button is disabled.

- It is recommended to warm up the engine to its normal operating

temperature before shifting.

Shifting in Reverse

1. Bring vehicle to a complete stop.

2. Apply and hold brake. Remain seated, refer to Rider Position (Re-

verse Operation) in Riding the vehicle for posture information.

182

BASIC PROCEDURES

3. With engine at idle speed, select reverse (R) gear using the Start /

RER button.

4. Wait until reverse beeper sounds, then gently depress throttle

lever.

WARNING

The reverse speed is not limited. Always proceed with caution

as fast reverse could result in loss of vehicle stability. Come to

complete stop before activating the reverse. Always remain

seated and apply the brake before shifting. Ensure the path be-

hind is clear of obstacles or bystanders before proceeding.

Shifting in Forward from Reverse

1. Bring vehicle to a complete stop.

2. Apply and hold brake.

3. Press and release the RER button.

4. Apply throttle slowly and evenly. Allow drive pulley to engage then

accelerate carefully.

Shuttiing Off the Engine

Release throttle lever and wait until engine has returned to idle speed.

Shut off the engine using either the emergency engine stop switch or

by pulling off the tether cord cap from the engine cut-off switch.

WARNING

Always remove the tether cord cap from engine cut-off switch

when vehicle is not in operation in order to prevent accidental

engine starting or to avoid unauthorized use by children or

others or theft.

183

RIDING CONDITIONS AND YOUR

SNOWMOBILE

Altitude

At factory, your snowmobile was calibrated to be used within an alti-

tude range (relative to sea level).

A new snowmobile has a tag attached to the handlebar indicating its

calibration. Refer to Safety Information on Vehicle.

If for any reason you don't know your snowmobile calibration, contact

an authorized BRP snowmobile dealer.

If your snowmobile is to be used at an altitude outside the specified

range, have it calibrated accordingly by an authorized BRP snowmo-

bile dealer.

NOTICE

An inappropriate altitude calibration would decrease perform-

ance and may cause serious damage to the snowmobile.

Temperature

The engine management of these engines provides the optimum air/

fuel ratio for all temperatures.

184

TUNE YOUR RIDE

Snowmobile handling and comfort depend upon multiple adjustments.

WARNING

Suspension adjustment could affect vehicle handling. Always

take time to familiarize yourself with the vehicle''s behavior after

any suspension adjustment have been made. Always adjust LH

and RH suspension components to the same setting.

Choice of suspension adjustments vary with carrying load, operator's

weight, personal preference, riding speed and field condition.

NOTE:

Some adjustments may not apply to your snowmobile.

WARNING

Before proceeding with any suspension adjustment, remember:

– Park in a safe place.

– Remove the tether cord cap from the engine cut-off switch.

– Use appropriate lifting device or have assistance to share

lifting stress. If a lifting device is not used, use proper lifting

techniques, notably using your legs force.

– Do not attempt to lift the front or rear of vehicle if it is above

your limits.

– Support front of vehicle off the ground with a suitable device

before adjusting suspension.

– Support rear of vehicle off the ground with a wide-base

snowmobile stand with a rear deflector panel.

– Make sure support device is stable and secure.

The best way to set up the suspension is to customize each adjust-

ment one at a time. Various adjustments are interrelated. It may be

necessary to readjust center spring after adjusting front springs for in-

stance. Test run the snowmobile under the same conditions; trail,

speed, snow, operator riding position, etc. Proceed methodically until

you are satisfied.

Following are guidelines to fine-tune suspension. Use suspension ad-

justment tool provided in the tool kit.

Ski Runner Depth Setting (Piilot TX Skiis)

Pilot TX skis enables the rider to dial in the amount of ski bite for con-

ditions and riding style.

A knob adjacent to the ski leg raises or lowers the ski runner.

185

TUNE YOUR RIDE

Ski behavior depends largely on trail conditions but also on ski runner

adjustment. Same as drivers behavior adapts to trail condition

change.

Ski runner bottom face conditions must be regularly checked espe-

cially if the snow condition is marginal such as a lack of snow, pres-

ence of rocks or sand. Snowmobile must be driven slowly when on

paved surfaces in order to prevent overheating of the ski runner bot-

toms and as such, damage to carbide inserts. Ski runners must be re-

placed as soon as any of the carbide inserts are worn out or missing.

Worn out runner usage may lead to damage of ski sole.

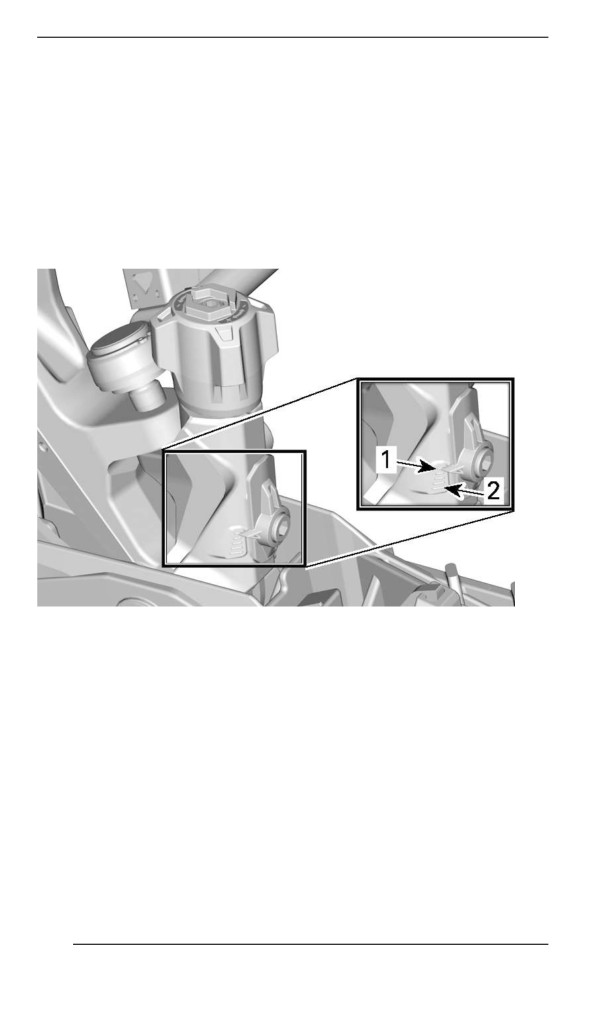

RUNNER DEPTH ADJUSTMENT KNOB

1. Position 1

2. Position 5

186

TUNE YOUR RIDE

Pilot TX Ski Adjustability

Posi

Lateral

Han

Possible

tion

grip

dling

understeering

oversteering

***

****

*****

***

Front Suspensiion Adjustments

Ski Stance

Skis can be set to three different widths.

To obtain the different widths, place the spacers:

- Inside the skis leg (narrowest ski stance setting: easiest to initiate

turn on sidehills), or

- Outside the skis leg (widest ski stance setting: most stable on cor-

ners), or

- On each side (central setting: best steering accuracy on deep

snow).

187

TUNE YOUR RIDE

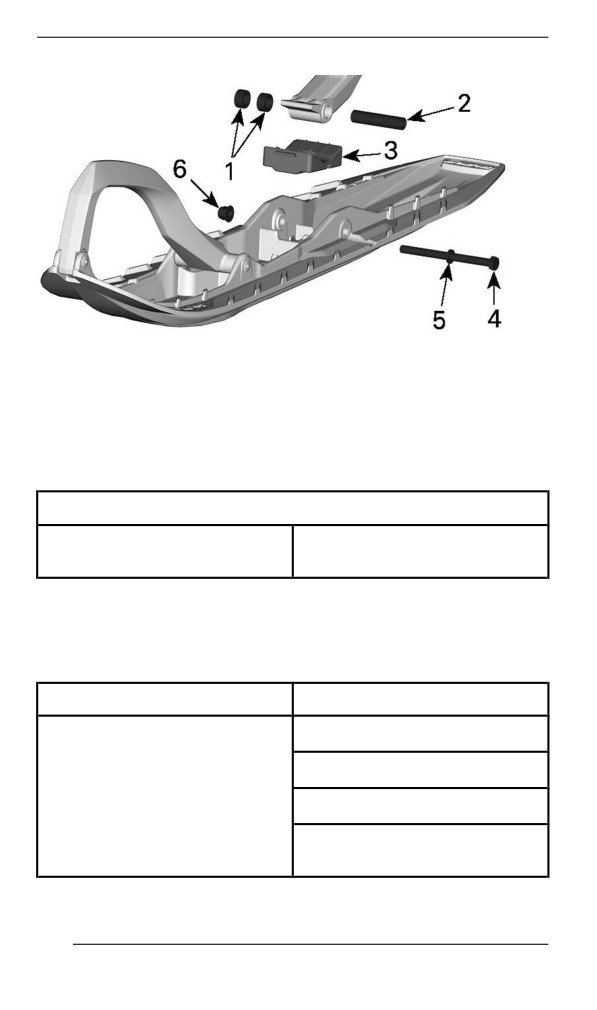

1. Spacers

2. Axle

3. Stopper

4. Screw

5. Washer

6. Nut

TIGHTENING TORQUE

48 ± 6 Nm

Ski nut

(35 ± 4 lbf-ft)

Front Springs

Front spring preload has an effect on front suspension firmness.

Front spring preload also has an effect on the steering behavior.

Action

Result

Firmer front suspension

Higher front end

Increasing preload

More precise steering

More bump absorption

capability

188

TUNE YOUR RIDE

Action

Result

Softer front suspension

Lower front end

Decreasing preload

Lighter steering

Less bump absorption

capability

WARNING

Adjust both springs to the same preload. Uneven adjustment

can cause poor handling and loss of stability, and/or control,

and increase the risk of an accident.

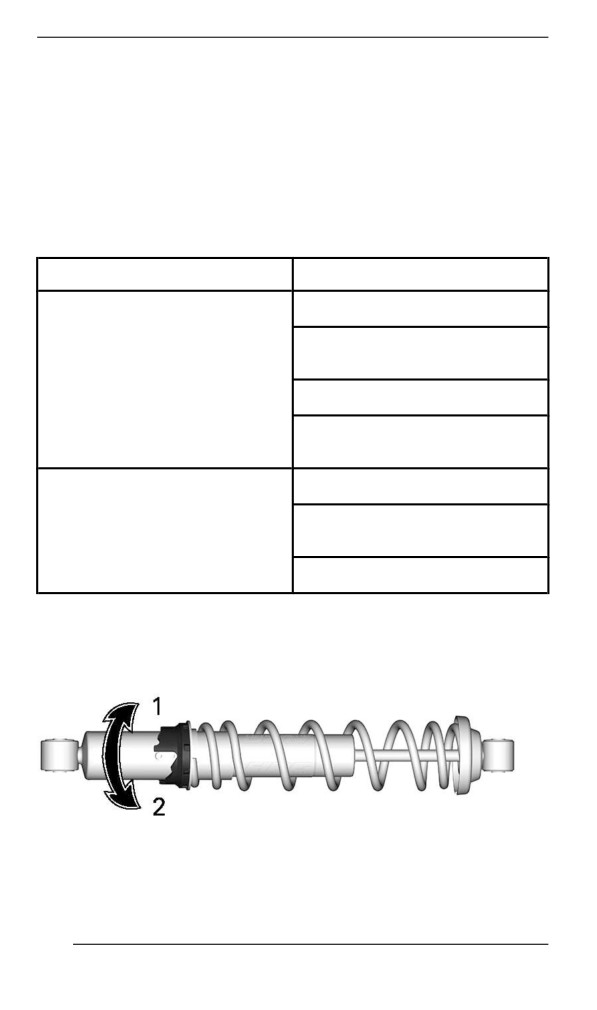

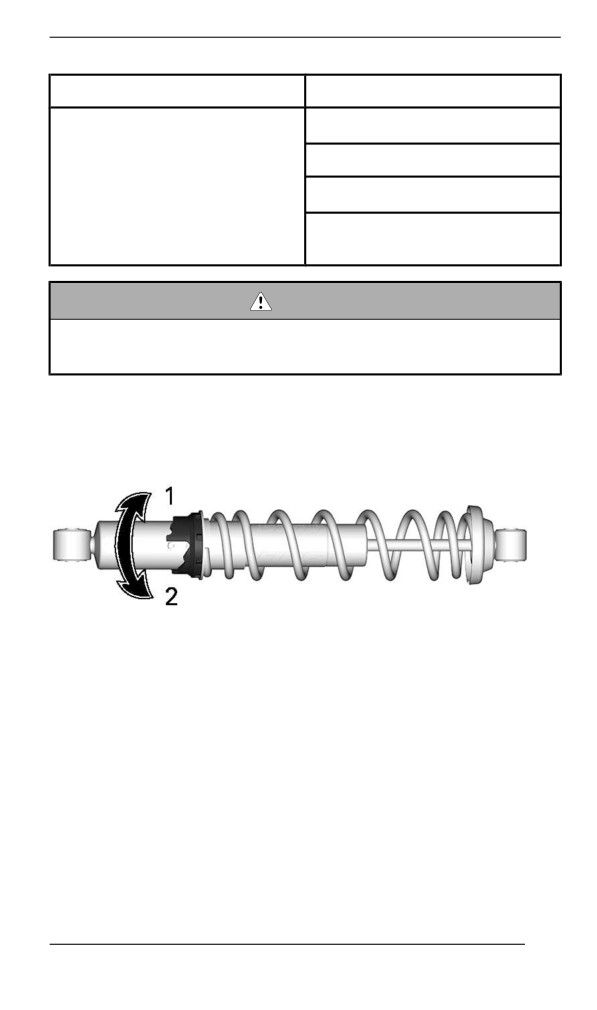

Cam Type Adjuster

Using the suspension adjustment tool provided in the tool kit, turn the

cam to increase or decrease the spring preload.

1. Increase preload

2. Decrease preload

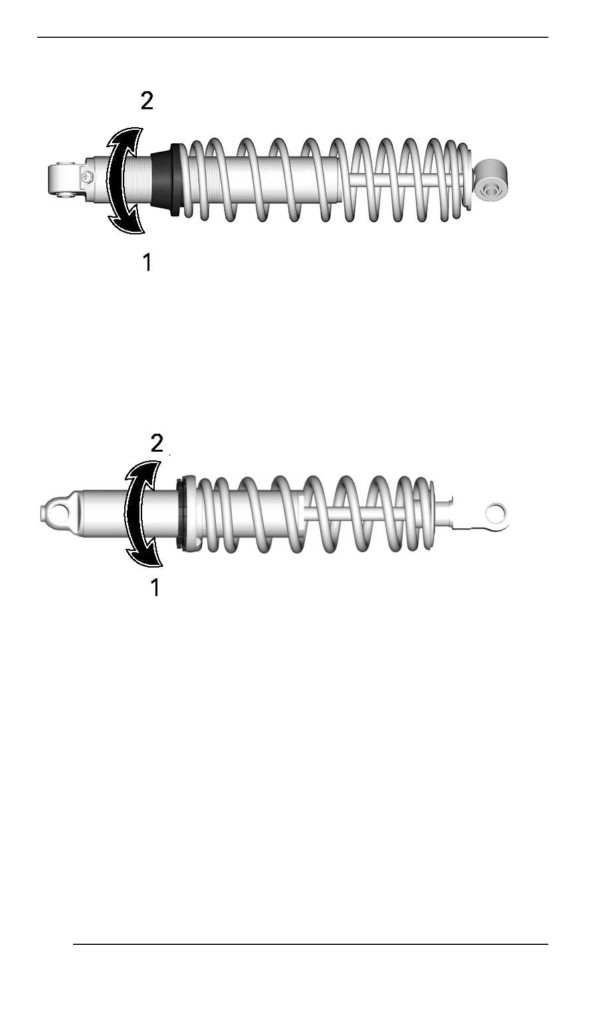

Ring Adjuster – Type 1

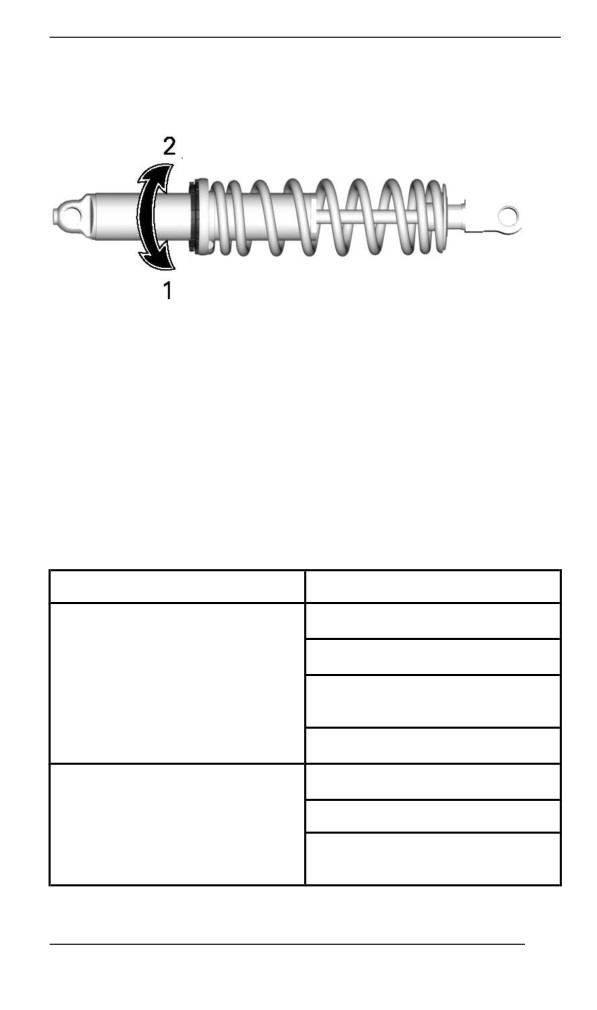

Grab and turn the ring and the spring to increase or decrease the

spring preload.

189

TUNE YOUR RIDE

1. Increase preload

2. Decrease preload

Ring Adjuster – Type 2

Grab and turn the ring and the spring to increase or decrease the

spring preload.

1. Increase preload

2. Decrease preload

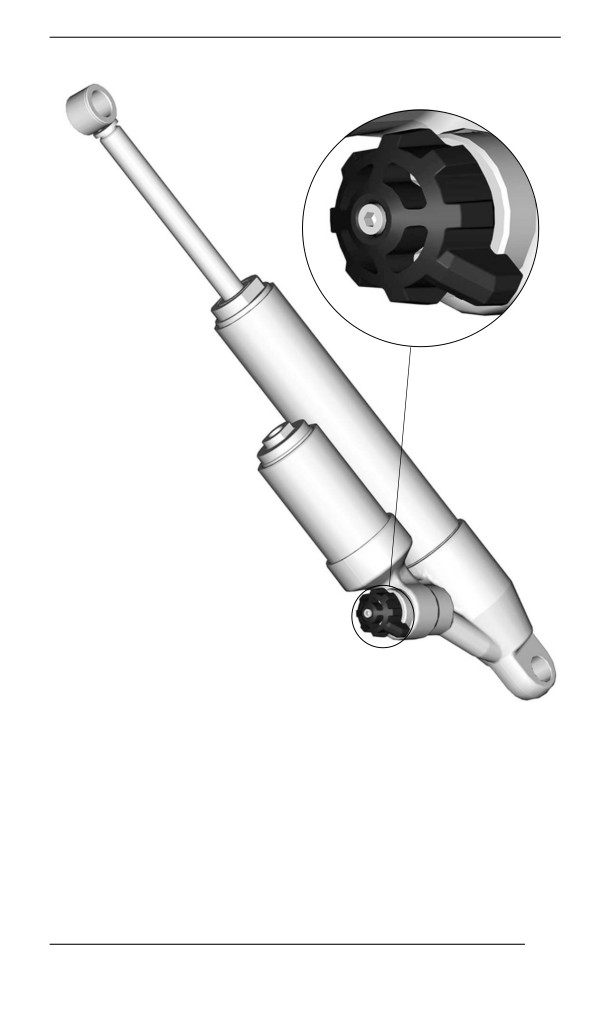

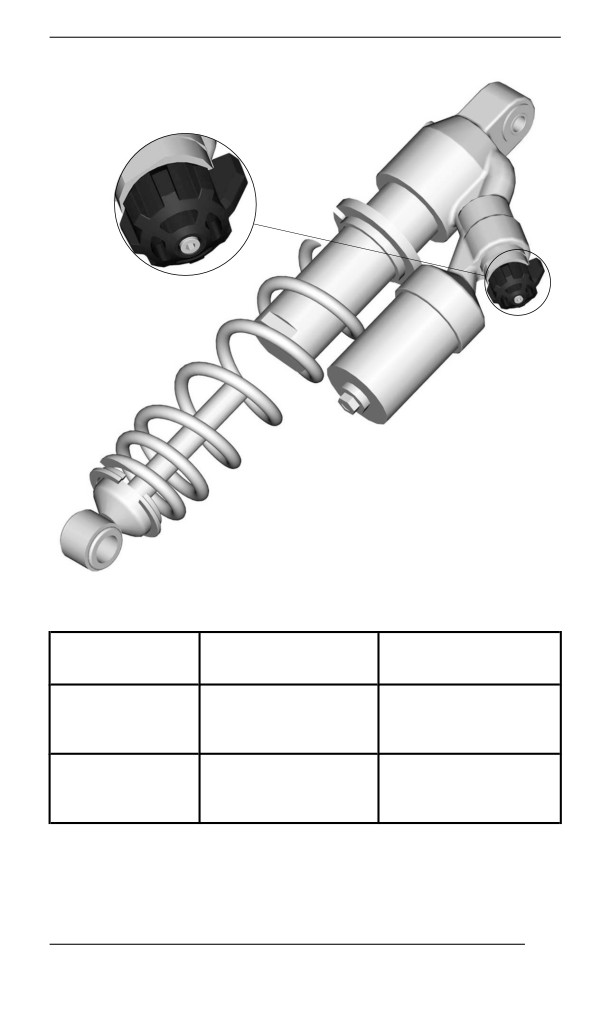

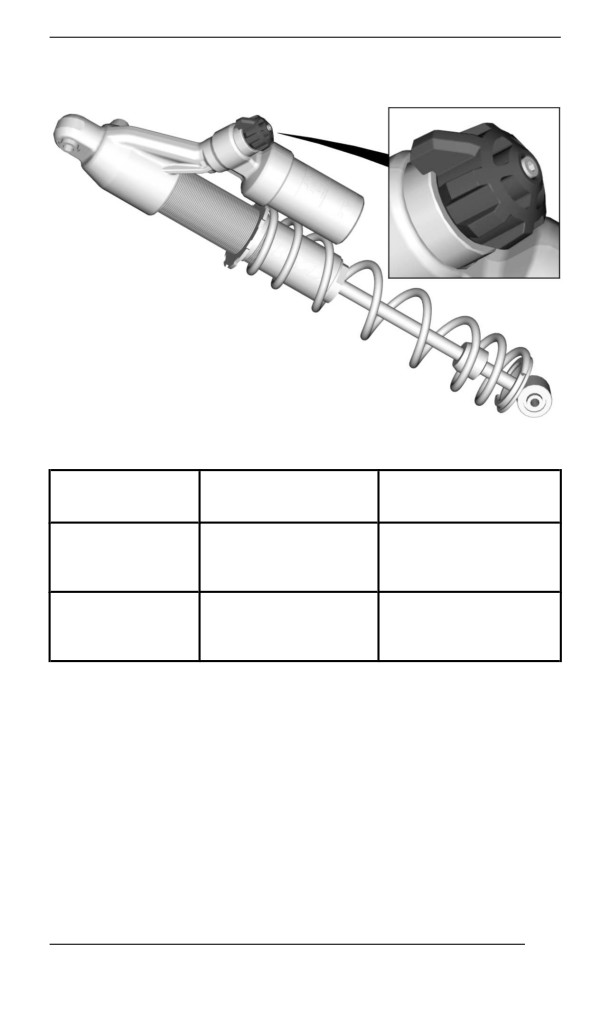

Front Shock Compression Damping (if equipped)

NOTE:

Both low and high speed compression damping are adjusted

simultaneously.

Low speed compression damping controls how the shock absorber re-

acts to a low suspension velocity (slow compression strokes, in most

cases when riding at lower speeds).

High speed compression damping controls how the shock absorber

reacts to a high suspension velocity (quick compression strokes, in

most cases when riding at higher speeds).

190

TUNE YOUR RIDE

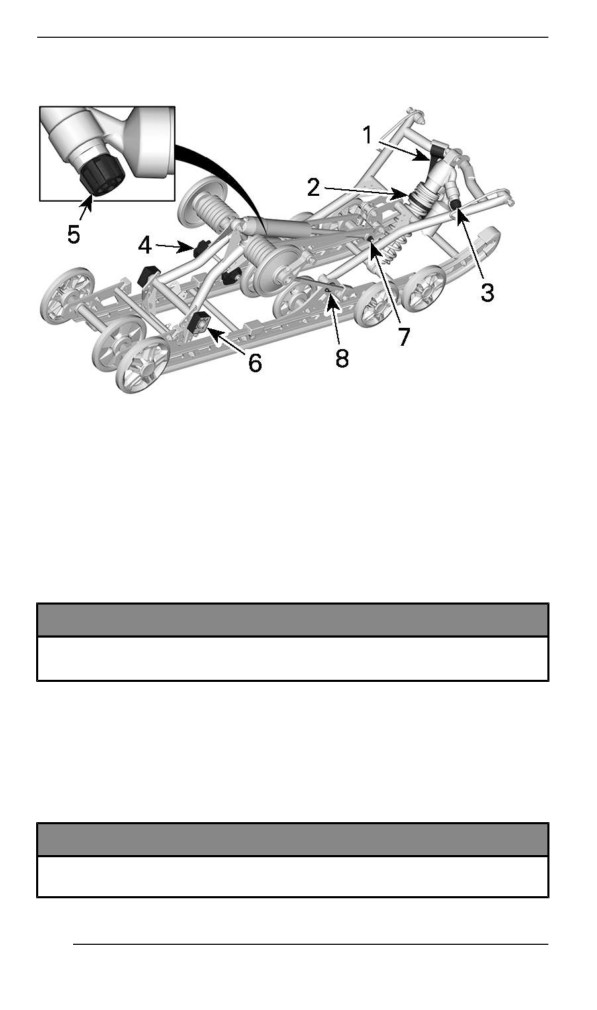

Rear Suspensiion Adjustments

RMOTION-X

1. Stopper strap

2. Center spring

3. Center shock absorber

4. Rear spring

5. Rear shock absorber

6. Coupling blocks

7. Rear shock lower pivot

8. Front arm

NOTICE

Whenever adjusting rear suspension, check track tension and

adjust if necessary.

Stopper Strap – rMotion-X

Stopper strap length has an effect on the amount of weight the center

spring has to carry especially during acceleration, therefore on the

front end uplift.

Stopper straps length also has an effect on center spring travel.

NOTICE

Whenever stopper strap length is changed, track tension must

be checked.

192

TUNE YOUR RIDE

Action

Result

Lighter ski pressure under

acceleration

Increasing stopper strap length

More center spring travel

More bump absorption

capability

Heavier ski pressure under

acceleration

Decreasing stopper strap length

Less center spring travel

Less bump absorption

capability

NOTE:

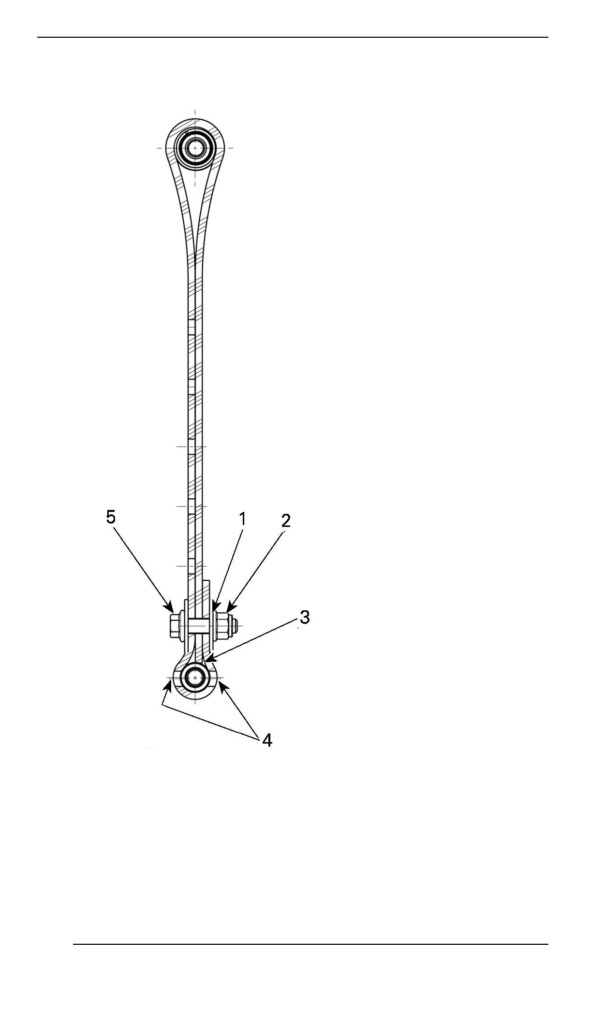

Stopper strap could be set to position 1, 2, 3, 4 and 5. Below are illus-

trations for position 1 and 3. Smaller numbers correspond to a longer

strap setting.

193

TUNE YOUR RIDE

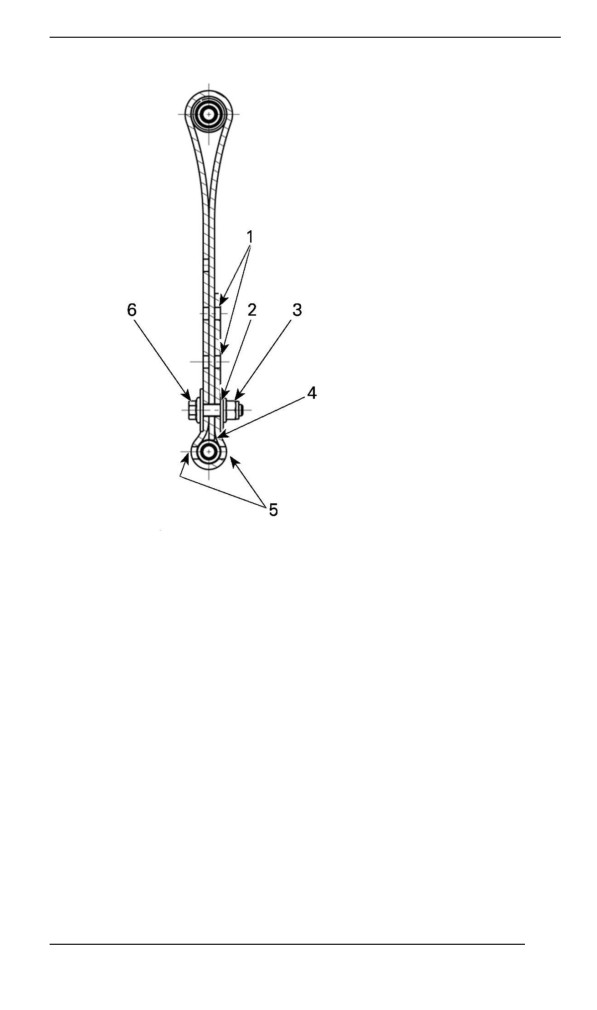

STOPPER STRAP POSITION 3 (3RD HOLE)

1. Free holes

3rd hole from end

3. Towards rear

4. Tip of strap touching strap axis

5. Two holes left open between screw head and nut

6. Towards front

NOTE:

Decreasing the stopper strap length may reduce comfort. If too much

weight transfer is felt, try to correct it by adjusting the coupling blocks

first. Always install stopper strap bolt as close as possible to the lower

shaft.

When operating the snowmobile in deep snow, it may be necessary to

vary stopper strap length and/or riding position, to change the angle at

which the track rides on the snow. Operator's familiarity with the vari-

ous adjustments as well as snow conditions will dictate the most effi-

cient combination.

195

TUNE YOUR RIDE

Generally, a longer stopper strap setting gives better performance in

deep snow on a flat landscape.

Center Spring

Center spring preload has an effect on steering effort, handling and

bump absorption.

Also, since center spring preload adjustment puts more or less pres-

sure on the front of the track, it has an effect on the performance in

deep snow.

Action

Result

Lighter steering

More bump absorption

capability

Increasing preload

Better deep snow starts

Better deep snow performance

and handling

Heavier steering

Less bump absorption

Decreasing preload

capability

Better trail handling

Cam Type Adjuster

Using the suspension adjustment tool provided in the tool kit, turn the

cam to increase or decrease the spring preload.

1. Increase preload

2. Decrease preload

Ring Type Adjuster

196

TUNE YOUR RIDE

Grab and turn the ring and the spring to increase or decrease the

spring preload.

1. Increase preload

2. Decrease preload

Rear Spring

Rear spring preload has an effect on comfort, ride height and load

compensation.

Also, adjusting rear spring preload shifts more or less weight to the

snowmobile front end. As a result, more or less weight is applied to

the skis. This has an effect on performance in deep snow, steering ef-

fort and handling.

Slight suspension bottoming occurring under the worst riding condi-

tions indicates a good choice of spring preload.

Action

Result

Firmer rear suspension

Higher rear end

Increasing preload

More bump absorption

capability

Heavier steering

Softer rear suspension

Lower rear end

Decreasing preload

Less bump absorption

capability

197

TUNE YOUR RIDE

Action

Result

Lighter steering

Better performance and

handling in deep snow

Refer to the following to determine if preload is correct.

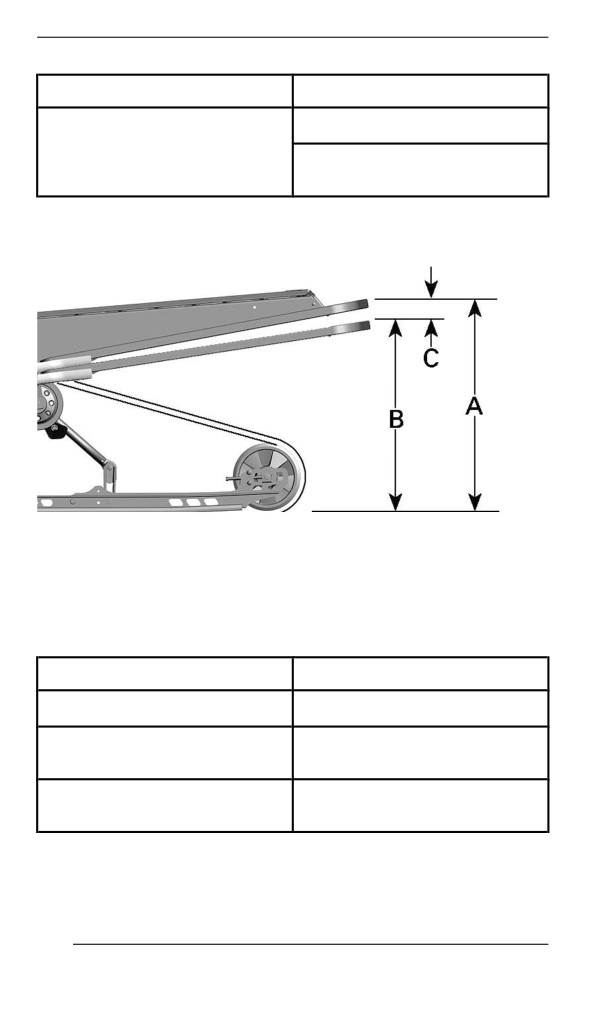

TYPICAL - PROPER ADJUSTMENT

- A = Suspension fully extended

- B = Suspension has collapsed with operator, passenger and load

added

- C = Distance between dimension “A” and “B”, see table below

What to do

50 to 75 mm (2 to 3 in)

No adjustment required

More than

Adjusted too soft. Increase

75 mm (3 in)

preload

Less than

Adjusted too firm. Decrease

50 mm (2 in)

preload

198

TUNE YOUR RIDE

NOTE:

If the specification is unattainable with the original springs, see an au-

thorized Ski-Doo dealer for other available springs.

To increase spring preload using tool, always turn the left side adjust-

ment cam in a clockwise direction, and the right side cam in a counter-

clockwise direction.

CAUTION

Never set preload cams directly from position 5 to 1 or directly

from position 1 to 5.

WARNING

Both rear spring preload must be set at the same position. Oth-

erwise vehicle behavior may be unpredictable, and suspension

may become warped.

The adjustment cams have 5 different settings, 1 being the softest.

199

TUNE YOUR RIDE

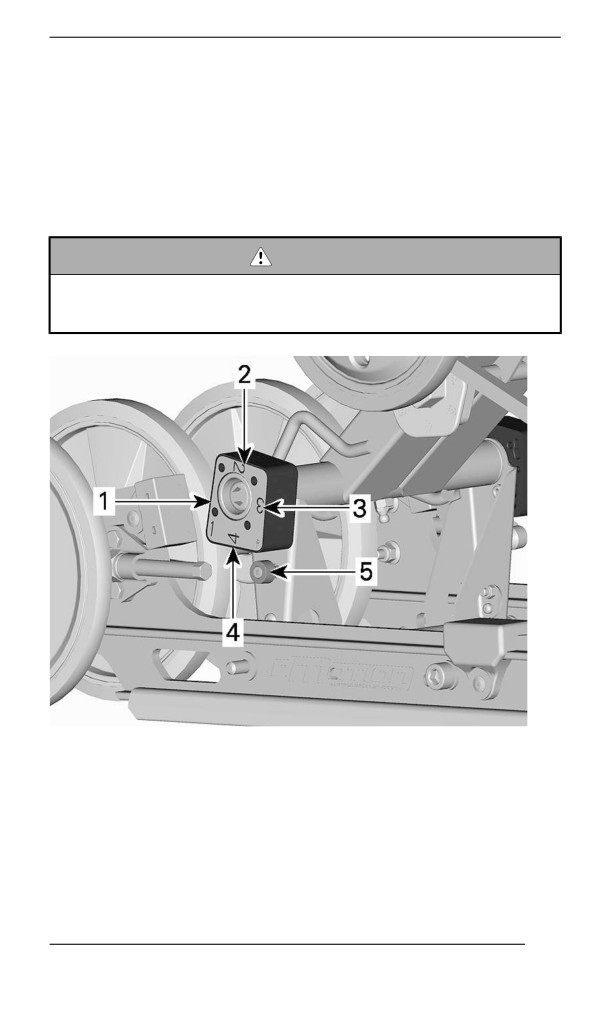

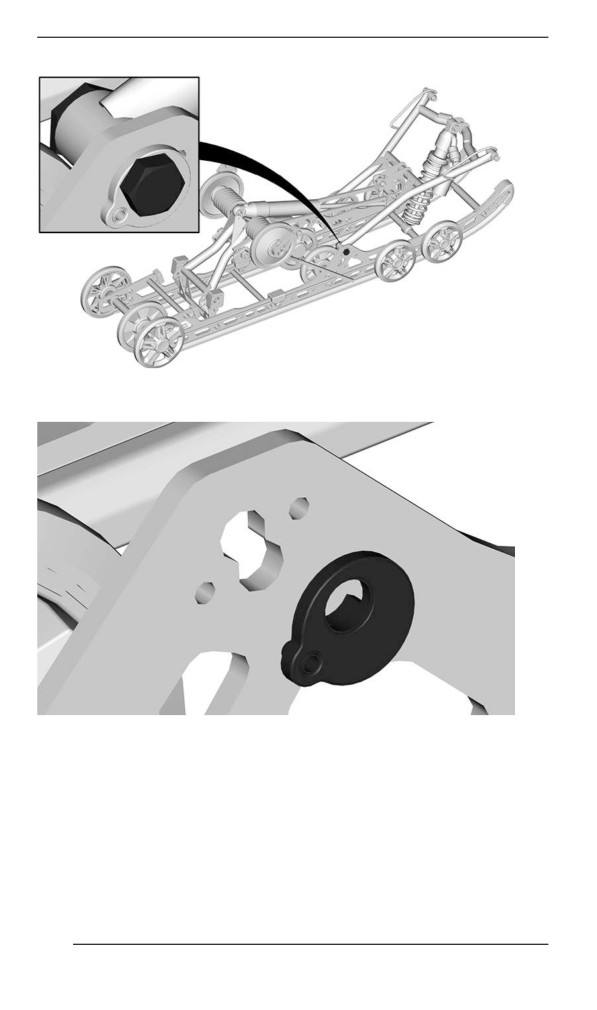

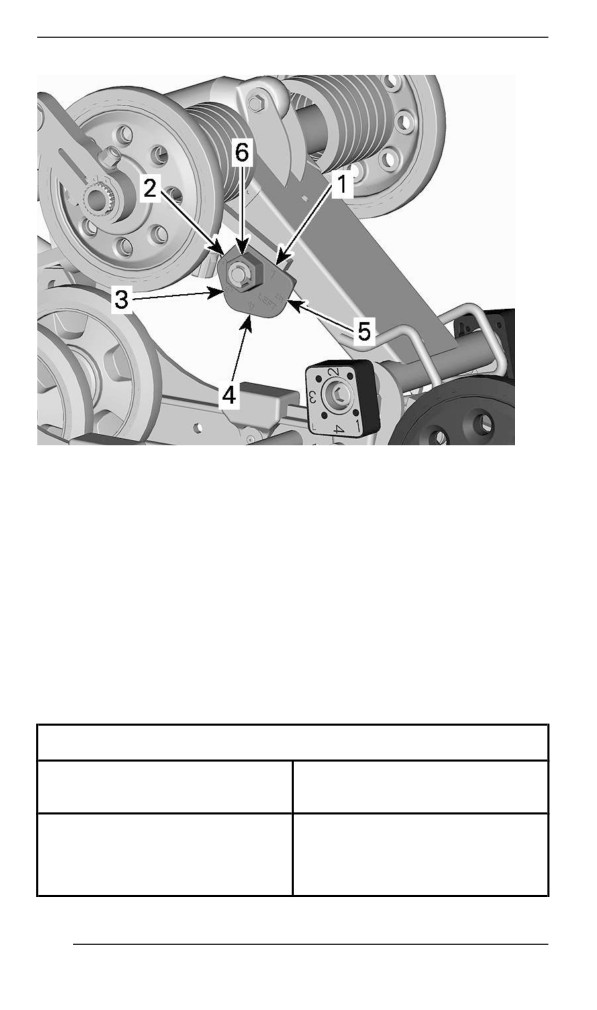

TYPICAL - LH SIDE SHOWN

1. Position 1

2. Position 2

3. Position 3

4. Position 4

5. Position 5

6. Adjustment nut

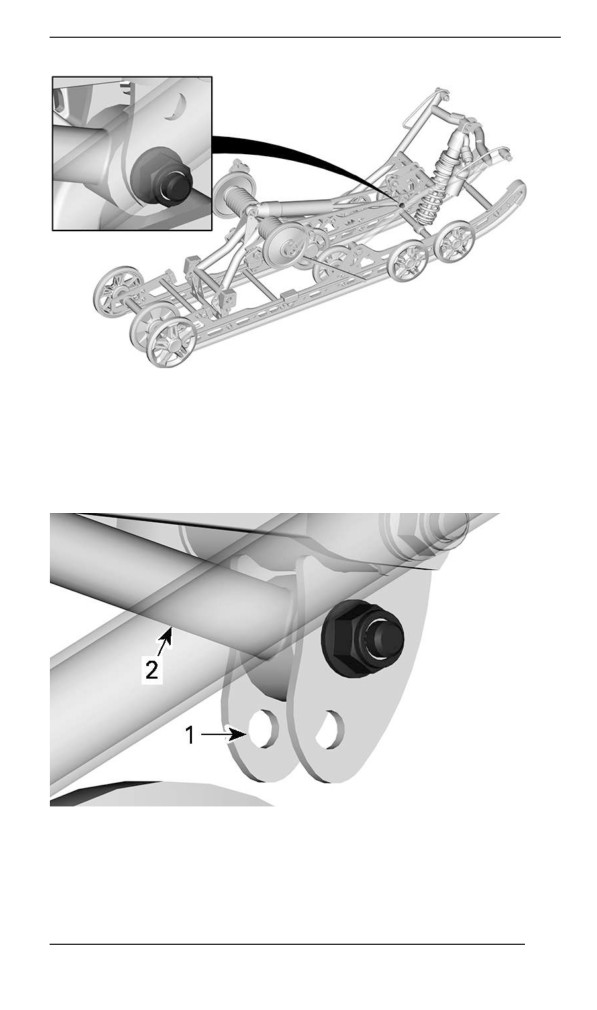

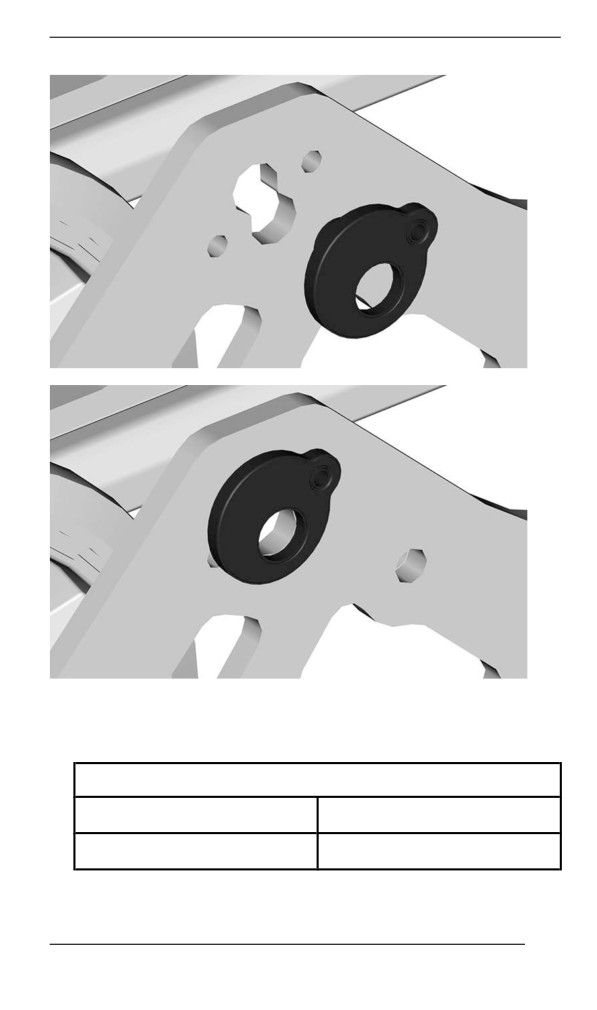

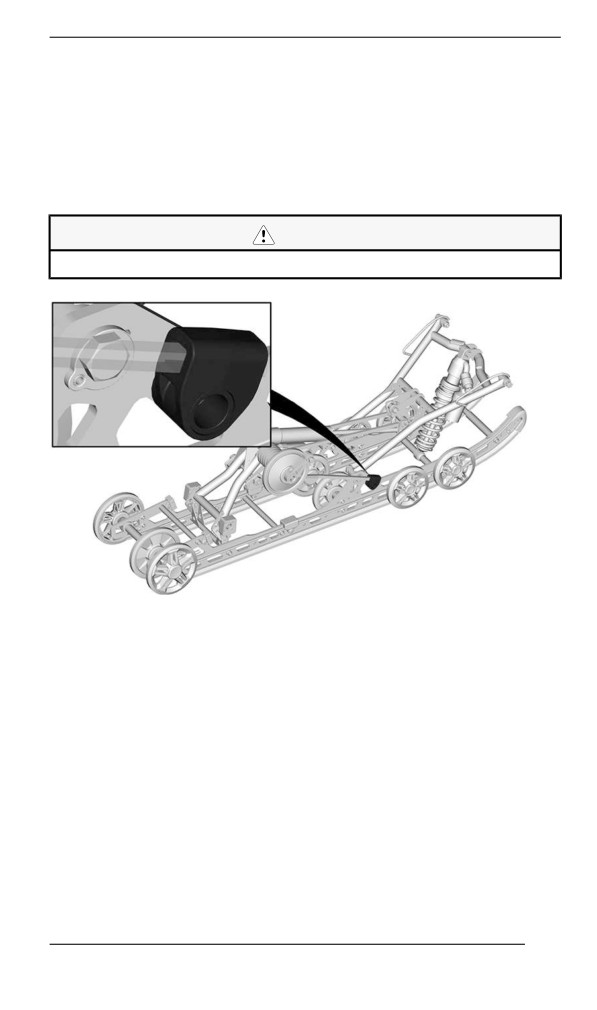

Front arm Adjustments (rMotion-X)

The lower pivot of the front arm can be set to2 different positions.

The lower pivot adjustment has an effect on the vehicle handling dur-

ing acceleration.

Front arm lower pivot position

Factory setting. Best for

Upper

cornering under acceleration.

Does not keep as much

pressure on skis while engine is

Lower

pulling. Best for bumpy trail

under acceleration.

200

TUNE YOUR RIDE

To change the front arm pivot position, process as follows:

1. Lift rear of the vehicle and support it off the ground.

2. Release the track tension. Refer to Track tension adjustment in

Maintenance procedures.

3. Set rear spring preload to minimum. Refer to rear spring.

4. Firmly hold the spring support and remove the spring support

screw.

CAUTION

Spring supports are spring loaded.

5. Remove the front arm lower screw.

201

TUNE YOUR RIDE

9. Repeat the steps for the other side.

10. Adjust the rear spring settings.

11. Adjust the track tension.

Center Shock Absorber

Center Shock Compression Dampiing (if equiipped)

NOTE:

Both low and high speed compression damping are adjusted

simultaneously.

Low speed compression damping controls how the shock absorber re-

acts to a low suspension velocity (slow compression strokes, in most

cases when riding at lower speeds).

High speed compression damping controls how the shock absorber

reacts to a high suspension velocity (quick compression strokes, in

most cases when riding at higher speeds).

To adjust, turn the adjuster button located on the reservoir.

204

TUNE YOUR RIDE

Result on big and

Turning

Action

small bumps

Increasing

Firmer compression

Clockwise

compression

damping

damping force

Decreasing

Counter

Softer compression

compression

Clockwise

damping

damping force

Rear Shock Absorber

Rear Shock Position (rMotion-X)

The lower pivot of the rear shock can be set to 2 different positions.

Rear shock lower pivot position

Upper

Softer absorption

Lower

Reference absorption

(from factory)

To change the shock lower pivot position, process as follows:

1. Lift rear of the vehicle and support it off the ground.

2. Remove stopper strap screw to release tension.

3. Remove the shock lower screw and nut.

206

TUNE YOUR RIDE

TIGHTENING TORQUE

Rear shock lower nut

24.5 ± 3.5 Nm (18 ± 3 lbf-ft)

Stopper strap nut

10 ± 2 Nm (89 ± 18 lbf-in)

7. Verify track tension and adjust if required.

Rear Shock Compressiion Damping (iif equipped)

NOTE:

Both low and high speed compression damping are adjusted

simultaneously.

Low speed compression damping controls how the shock absorber re-

acts to a low suspension velocity (slow compression strokes, in most

cases when riding at lower speeds).

High speed compression damping controls how the shock absorber

reacts to a high suspension velocity (quick compression strokes, in

most cases when riding at higher speeds).

To adjust, turn the adjuster button located on the reservoir.

208

TUNE YOUR RIDE

3 POSITIONS COMPRESSION DAMPING ADJUSTER BUTTON

Result on big and

Turning

Action

small bumps

Increasing

Firmer compression

Clockwise

compression

damping

damping force

Decreasing

Counter

Softer compression

compression

Clockwise

damping

damping force

Rear Shock Absorber (ACS)

The operator can adjust the comfort and ride height by adjusting the

air pressure inside the air shock absorber.

209

TUNE YOUR RIDE

To adjust, proceed as follows:

Model with 7.2“Digiitall Diispllay

1. Start engine.

2. Press and hold MODE (M) button until requested setting starts

flashing.

When the air suspension mode is selected, AIR_SUSP is dis-

played. The display also shows the actual suspension setting (a

number from 1 to 5, 1 being the softest setting).

3. Depress the heated throttle lever switch as shown to increase or

decrease air pressure.

4. The desired set point appears on the display. To confirm, press the

MENU (M) button or wait 5 seconds.

210

TUNE YOUR RIDE

ACS SETTING 3

Modell with the 10.25” Touchscreen Collor Displlay

There are multiple ways to change the suspension level.

Changing the suspension level using the touchscreen

1. Go to vehicle menu.

2. Use the touchscreen to select the desired level.

NOTE: The display shows the actual suspension setting (a number

from 1 to 5, 1 being the softest setting).

NOTE: When the level is changing, the suspension icon will flash in

white until it reaches its level. The suspension icon will disappear after

the suspension reaches the desired level.

Changing the suspension level using the center gauge

3. Select the suspension as the center gauge.

211

TUNE YOUR RIDE

4. Use the touchscreen or the up/down button of the multifunction

switch to change the suspension level.

Changing the suspension level using the ride setting button

5. Press the ride setting button until you land on the suspension mo-

dal view.

6. Use the touchscreen or the up/down button of the multifunction

switch to change the suspension level.

Coupling Blocks (rMotion–X)

The adjustment of the coupling blocks has an effect on vehicle han-

dling during acceleration only.

212

TUNE YOUR RIDE

NOTE:

A high coupling block setting will reduce both comfort and transfer

under acceleration.

To adjust, push on release button under cam and turn coupling block

to the desired setting.

Place the desired setting number towards rubber stopper. No tools

required.

WARNING

Both blocks must be set at the same position. Otherwise ve-

hicle behavior may be unpredictable and suspension may be-

come warped.

COUPLING BLOCK - RIGHT SIDE VIEW(R - RIGHT EMBOSSED

ON BLOCK)

1. Position 1 (minimum)

2. Position 2

3. Position 3

4. Position 4 (maximum)

5. Release button

213

TUNE YOUR RIDE

Couplling Bllocks Settiing

Position

use

More ski lift during acceleration - and best

comfort

Intermediate setting

Less ski lift during acceleration - and some

comfort loss

Adjjustment Tips Accordiing to Vehicle Behavior

Problem

Corrective measures

Check ski alignment.

Reduce front suspension spring

Front suspension darting

preload.

Increase center spring preload.

–

Reduce rear spring preload.

Steering feels too heavy

Reduce front suspension spring

at steady speeds

preload.

Increase center spring preload.

–

Set coupling blocks to a lower

Steering feels too heavy

position (if equipped).

during acceleration

Reduce rear spring preload.

–

Lengthen limiter strap.

–

Set coupling blocks to a higher

Too much ski lift during

position (if equipped).

cornering or acceleration

Shorten limiter strap.

–

Increase rear spring preload.

Reduce rear spring preload.

Rear of snowmobile

–

Reduce compression damping

seems too stiff

adjustment

if equipped

Rear of snowmobile

Increase rear spring preload.

seems too soft

214

TUNE YOUR RIDE

Problem

Corrective measures

- Increase compression damping

adjustment

Rear suspension is

if equipped.

frequently bottoming

- Increase rear spring preload.

- Increase center spring preload.

- Lengthen limiter strap.

- Reduce center spring preload.

- Increase rear spring preload.

Snowmobile seems to

- Increase front suspension spring

pivot around its center

preload.

- Shorten limiter strap.

- Set coupling blocks to a lower

Track spins too much at

position (if equipped).

start

- Lengthen limiter strap.

Smart-Shox Suspensiion Mode

The Smart-Shox suspension is an electronic controlled compression

and rebound damping system integrated in each shock absorbers.

It is possible to choose between three modes of damping. These

modes set the level of damping to match the rider's preferences.

The following Smart-Shox modes are preset in the vehicle.

Smart-Shox Mode

This mode provides maximum comfort. The

Comfort

suspension moves freely while controlling body

movement to avoid bottoming out and enhance

cornering and acceleration.

215

TUNE YOUR RIDE

This mode enhance handling and provides comfort

in straight line. The suspension minimizes body

Sport

movement in cornering, accelerating and braking

while offering optimal calibration to face bumpy

trails.

This mode is the stiffer of all, maximize the flat

Sport+

cornering and always ready to tackle the most

extreme situations.

Model with the 7.2“ Digital Display

1. To select the Smart-Shox mode, press the switch until the desired

mode appears in the display.

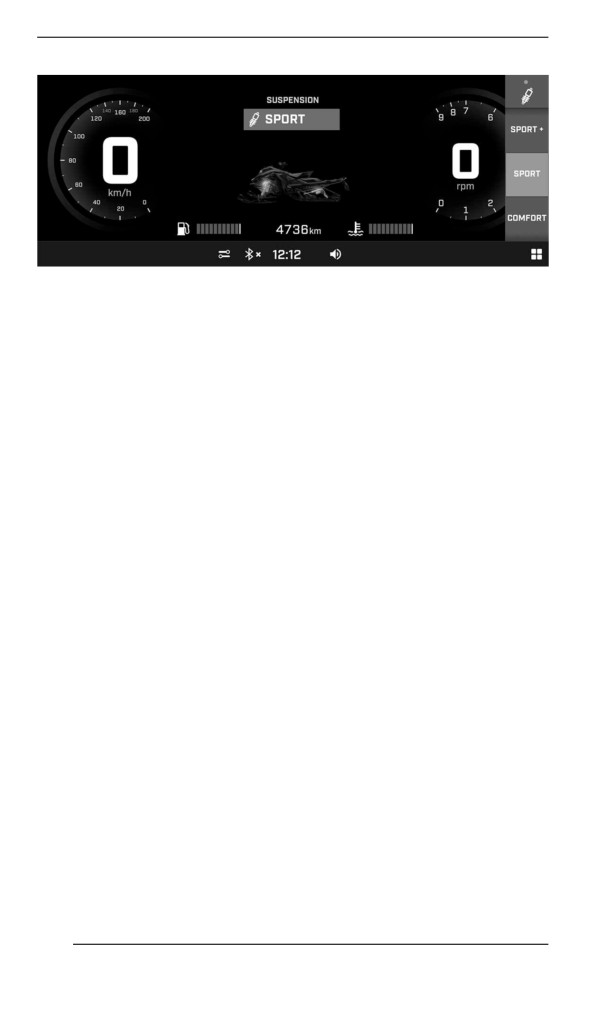

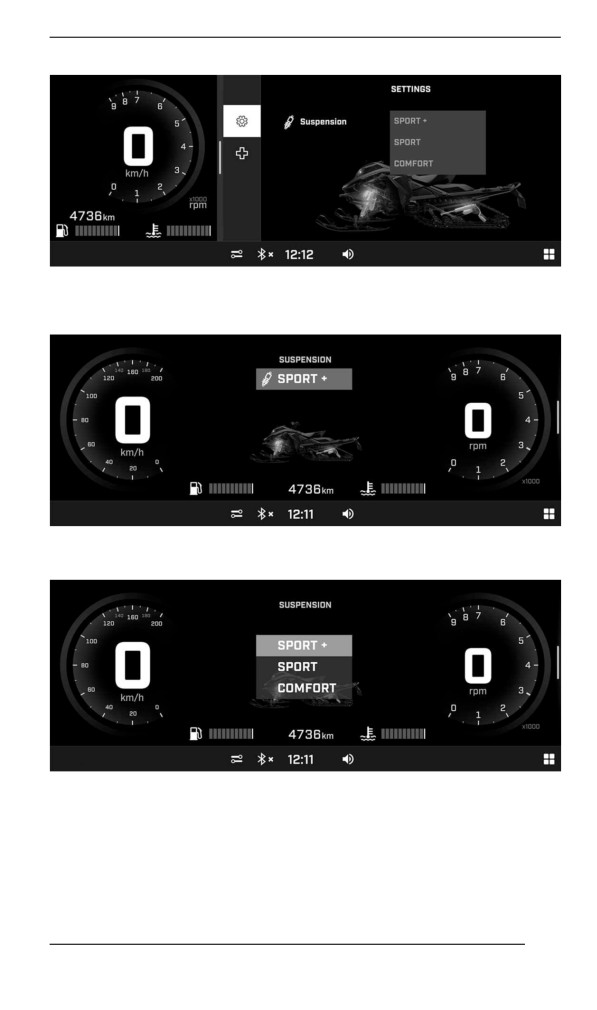

216

MAINTENANCE SCHEDULE

Maintenance is very important to keep your vehicle in safe operating

condition. The vehicle should be serviced as per the maintenance

schedule.

Proper maintenance is the owner’s responsibility. A warranty claim

may be denied if, among other things, the owner or operator caused

the problem through improper maintenance or use.

Perform periodic checks and follow the maintenance schedule. The

maintenance schedule does not exempt the pre-ride inspection.

WARNING

Failure to properly maintain the vehicle according to the main-

tenance schedule and procedures can make it unsafe to

operate.

EPA Regullatiion - Canadiian and USA Vehiiclles

A repair shop or person of the owner''s choosing may maintain,

replace, or repair emission control devices and systems. These in-

structions do not require components or service by BRP or authorized

BRP snowmobile dealers.

Although an authorized BRP snowmobile dealer has an in-depth tech-

nical knowledge and tools to service your vehicle, the emission-related

warranty is not conditioned on the use of an authorized BRP snowmo-

bile dealer or any other establishment with which BRP has a commer-

cial relationship.

Proper maintenance is the owner’s responsibility. A warranty claim

may be denied if, among other things, the owner or operator caused

the problem through improper maintenance or use.

For emission-related warranty claims, BRP is limiting the diagnosis

and repair of emission-related parts to the authorized BRP snowmo-

bile dealers. For more information, please refer to the US EPA Emis-

sions PERFORMANCE WARRANTY contained in the warranty

section.

You must follow the instructions for fuel requirements in the fueling

section of this manual. Even if gasoline containing greater than ten

volume percent ethanol is readily available, the US EPA issued a pro-

hibition against the use of gasoline containing greater than 10 vol %

ethanol that applies to this vehicle. The use of gasoline containing

greater than 10 vol% ethanol with this engine may harm the emission

control system.

222

MAINTENANCE SCHEDULE

Traill/ Crossover/ Utillity Usage

Whether your vehicle is a Trail, Crossover, or Utility model, these

types of usage require maintenance tasks to be performed between

the regular yearly intervals. These are identified as A + in the chart

below.

If you regularly ride in trails, explore the countryside, or work with

your snowmobile, follow the A+ Trail / Crossover / Utility interval and

perform the tasks outlined in the chart below.

223

MAINTENANCE SCHEDULE

Maiintenance Schedulle

Make sure to perform proper maintenance at recommended intervals

as indicated in the tables.

The maintenance chart indicates the items needing to be addressed

based on 2 criteria, whichever happens first:

- Calendar time

- Odometer reading.

Your driving habits determines the factors you shall adhere too. For

example:

- Someone who uses their vehicle every weekend trail riding would

most likely follow the odometer reading to determine the fre-

quency of his maintenance.

- Someone who uses their vehicle seldomly over the year or only on

a few occasions would follow the calendar time to determine the

frequency of his maintenance.

IMPORTANT: The following tables show the appropriate mainte-

nance application for the first 2 years. For subsequent years, repeat

the same pattern alternatively.

Maiintenance Overviiew

Calendar

Trail/ Cross

Odometer

Time

Over/ Utility

Every

1500 km (1000 mi)

A+

Month

1 Year

3000 km (2000 mi)

Every

4500 km (3000 mi)

A+

Month

2 Years

6000 km (4000 mi)

A and B

224

MAINTENANCE SCHEDULE

E-TEC Engine

TRAIL /

CROSSOVER

A+

/ UTILITY

Every

Every 2

A=Adjust

Every

month

years

C=Clean

year

I=Inspect

1500

6000

L=Lubricate

3000 km

R=Replace

(2000

(1000

(4000

T=Torque

mi)

Air and Fuel Delivery

Fuel components (fuel

cap, hoses, clamps and

tank fixation) and

function

In-line fuel filter

Every 5

years

Body and Chassis

Body panels and

I, T

hardware

Pivots, latches, hinges

and key barrels

Engine and Cooling

Engine cooling

components (coolant

concentration, coolant

I, A

level, hose condition,

clamps, leaks)

Engine rubber mounts

Rewind starter (manual

C, L

start models)

Spark plugs - Except

Every 3

Turbo R

years

225

MAINTENANCE SCHEDULE

TRAIL /

CROSSOVER

A+

/ UTILITY

Every

Every 2

A=Adjust

Every

month

years

C=Clean

year

I=Inspect

1500

6000

L=Lubricate

3000 km

R=Replace

(2000

(1000

(4000

T=Torque

mi)

10 000

(6000

mi)

Every

100

hours

Spark plugs - Turbo R

3000 km

(2000

mi)

I, C

Every 3

years

Oil injection pump

strainer

10 000

(6000

mi)

I, C

Every 3

years

RAVE valves

10 000

(6000

mi)

Engine coolant

226

MAINTENANCE SCHEDULE

TRAIL /

CROSSOVER

A+

/ UTILITY

Every

Every 2

A=Adjust

Every

month

years

C=Clean

year

I=Inspect

1500

6000

L=Lubricate

3000 km

R=Replace

(2000

(1000

(4000

T=Torque

mi)

Every 5

years

Exhaust and Emissions

Exhaust components

(gaskets, pipes, muffler

condition, leaks)

Exhaust manifold

Brake

Brake components and

I, L

function

Brake fluid

Every 2

years

Drive

Chaincase drive chain

tension

Gearbox / chaincase oil

level

Track alignment and

I, A

tension

Gearbox / chaincase oil

Continuously Variable Transmission (CVT)

CVT components and

I, C, L

function

CVT drive belt condition

227

MAINTENANCE SCHEDULE

TRAIL /

CROSSOVER

A+

/ UTILITY

Every

Every 2

A=Adjust

Every

month

years

C=Clean

year

I=Inspect

1500

6000

L=Lubricate

3000 km

R=Replace

(2000

(1000

(4000

T=Torque

mi)

CVT drive belt tension

Drive pulley retaining

screw

Electrical

Battery connections and

condition

Electrical harness

routing

Headlight aim

Modules and applicable

software updates

Operation of control

switches and lighting

Steering and Controls

Ski runners

Gearbox position lever

I, A

operation

Steering alignment

I, A

Steering components

and function

Throttle cable

Throttle operation

228

MAINTENANCE PROCEDURES

This section includes instructions for basic maintenance procedures.

WARNING

Turn off the engine, remove tether cord cap and follow these

maintenance procedures when performing maintenance. If you

do not follow proper maintenance procedures you can be in-

jured by hot parts, moving parts, electricity, chemicals or other

hazards.

WARNING

Should removal of a locking device be required (e.g. lock tabs,

self-locking fasteners, etc.) when undergoing disassembly/as-

sembly, always replace with a new one.

Engiine Coolant

WARNING

Never open coolant tank cap when engine is hot.

Verifying the Engine Coolant Level

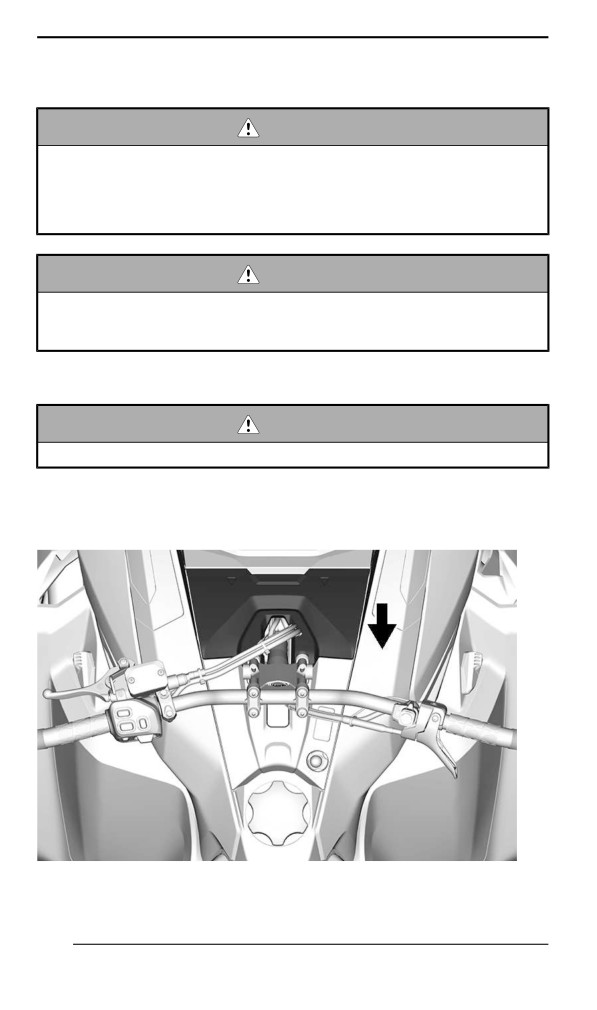

1. Remove access panel.

2. Check coolant level at room temperature. Liquid should touch the

flat surface of the eyesight.

230

MAINTENANCE PROCEDURES

Recommended Engine Coolant

RECOMMENDED COOLANT

XPS Extended life pre-mixed coolant

IF THE RECOMMENDED XPS COOLANT IS NOT

AVAILABLE

Distilled water and antifreeze solution (50% distilled water, 50%

antifreeze)

NOTICE

Always use ethylene-glycol antifreeze containing corrosion in-

hibitors specifically for internal combustion aluminum engines.

Exhaust System

Exhaust System Verification

The muffler tail pipe should be centered with the exit hole in the bottom

pan. Exhaust system must be free of rust or leaks. Make sure that all

parts are securely in place.

Check retaining springs and heat shields condition and replace if

necessary.

The exhaust system is designed to reduce noise and to improve the

total performance of the engine. Modification may be in violation of lo-

cal laws.

NOTICE

If any exhaust system component is removed, modified or dam-

aged, severe engine damage may result.

Spark Plugs

Spark plugs inspection or replacement may be performed by an au-

thorized BRP snowmobile dealer, repair shop, or person of your own

choosing. Spark plugs inspection or replacement requires an in-depth

technical knowledge. Though not required, it is recommended that an

authorized BRP snowmobile dealer performs spark plugs inspection

or replacement.

233

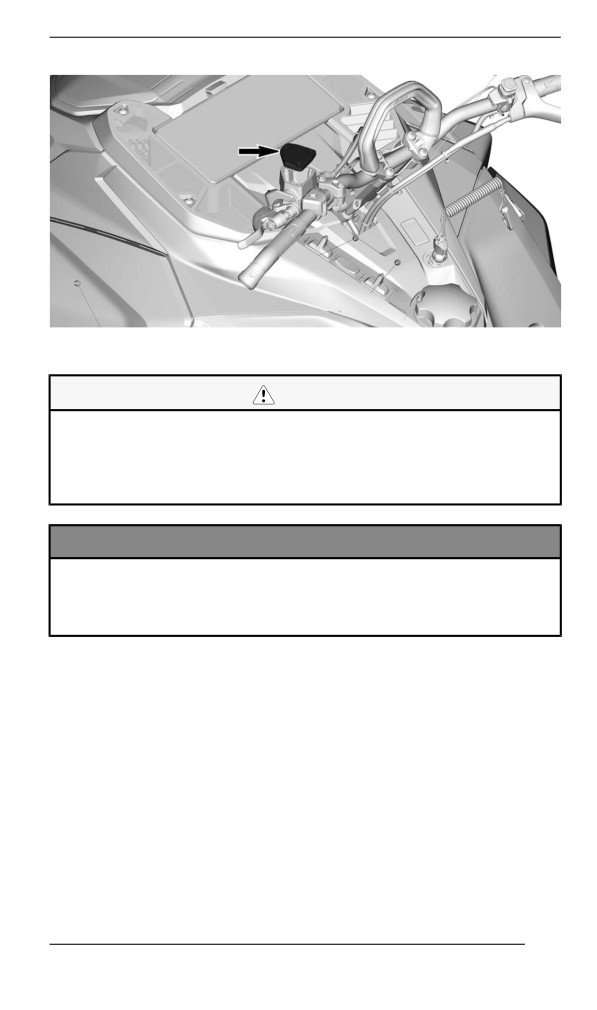

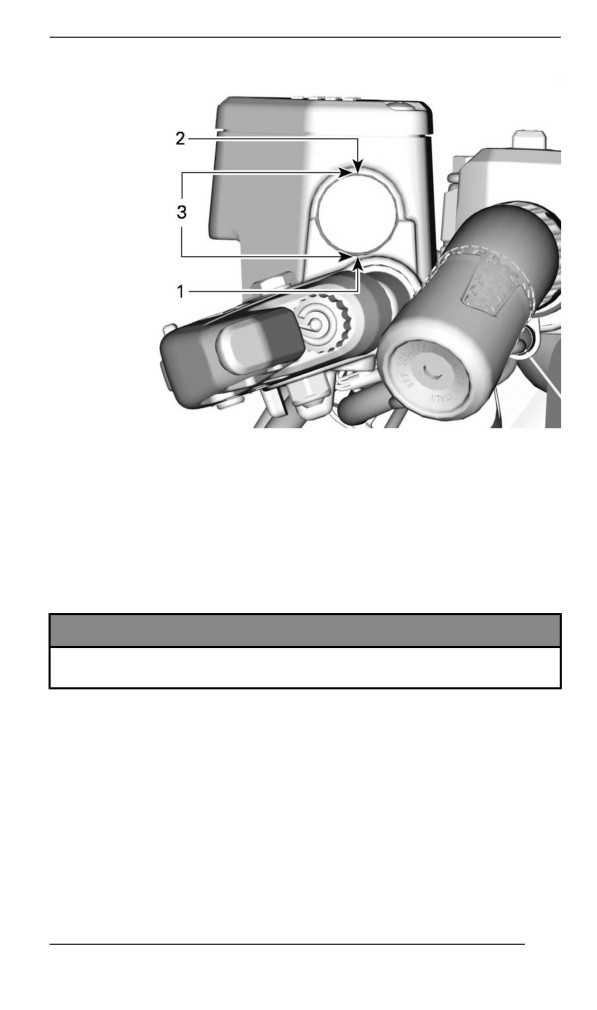

MAINTENANCE PROCEDURES

4. Add fluid as required. Do not overfill. Use only the recommended

brake fluid. Refer to Recommended Brake Fluid in this subsection.

CAUTION

Avoid getting brake fluid on skin or eyes - it may cause severe

burns. In case of contact with the skin, wash thoroughly. In

case of contact with the eyes, immediately rinse with plenty of

water for at least 10 minutes and then consult a doctor

immediately.

NOTICE

– Brake fluid can damage paint, rubber and plastic parts

– Protect these nearby parts with a rag when servicing the

brake system

– Rinse thoroughly in case of spillage.

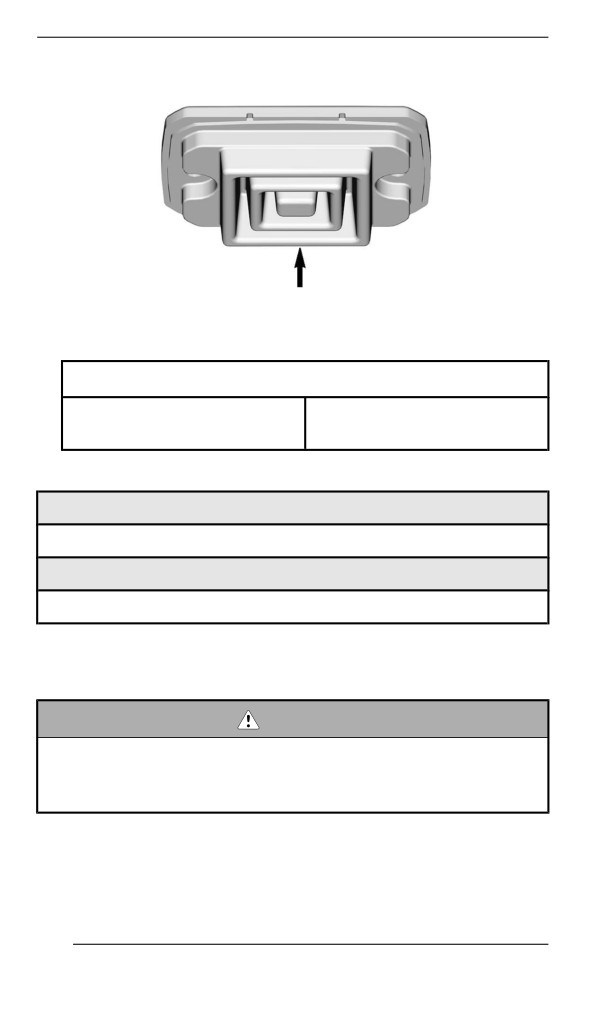

5. Ensure the diaphragm is pushed in the reservoir cap before instal-

ling the cap one the reservoir.

237

MAINTENANCE PROCEDURES

6. Reinstall reservoir cap and screws. Tighten to specification.

Tightening Torque

0.7 ± 0.1 Nm

Reservoir cap screws

(6 ± 1 lbf-in)

Recommended Brake Fluid

XPS DOT 4 Brake Fluid

Alternative or if not available

DOT 4 Brake Fluid

Use only DOT 4 brake fluid from a sealed container. An opened con-

tainer may be contaminated or may have absorbed moisture from the

air.

WARNING

Use only DOT 4 brake fluid from a sealed container. To avoid

serious damage to the braking system, do not use fluids other

than the recommended one, nor mix different fluids for topping

up.

238

MAINTENANCE PROCEDURES

Chaincase Oiil

Recommended Chaincase Oil

XPS Synthetic chaincase oil

Alternative or if not available

75W140 gear oil that meets the API GL-5 specification

NOTICE

If the recommended XPS chaincase oil is not available, use a

75W140 gear oil that meets the API GL-5 specification. The

chaincase of this snowmobile has been developed and vali-

dated using the XPS™ Synthetic chaincase oil. BRP strongly

recommends the use of its XPS Synthetic chaincase oil at all

times. Damages caused by oil which is not suitable for the

chaincase will not be covered by the BRP limited warranty.

Verifying the Chaincase Oil Level

With the vehicle on a level surface, check the oil level by removing the

check plug.

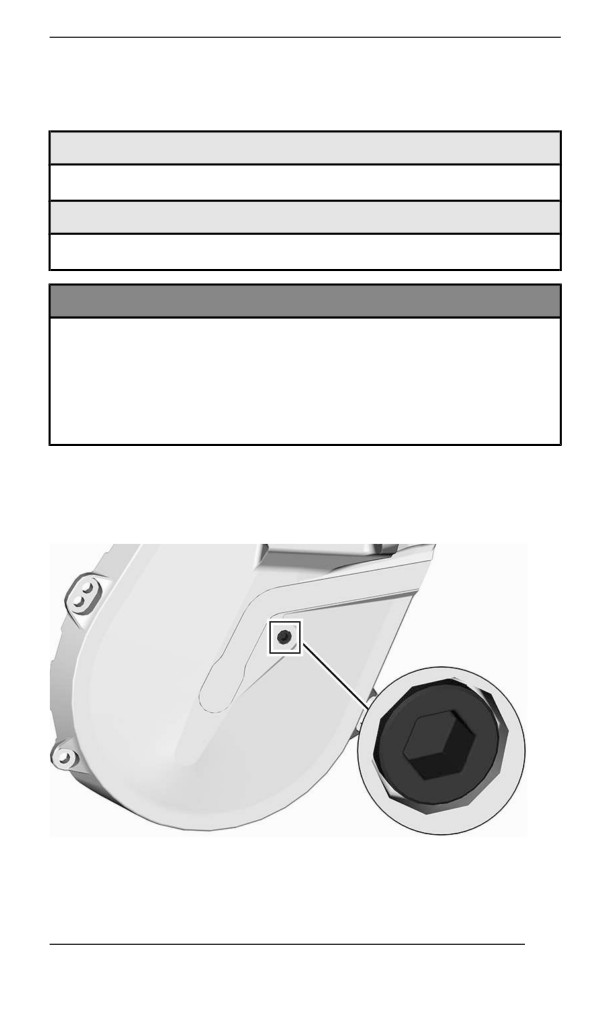

CHECK PLUG

Oil level must reach the threaded hole.

239

MAINTENANCE PROCEDURES

If level is correct, reinstall check plug and tighten to the specified

torque.

Tightening Torque

Check plug

6 ± 1 Nm (53 ± 9 lbf-in)

If level is insufficient, refer to Chaincase Filling Procedure.

Replacing the Chaincase Oil

Draining the Chaincase Oill

1. Place the vehicle on a level surface.

2. Place a drain pan under the chaincase drain plug area.

3. Remove filler cap.

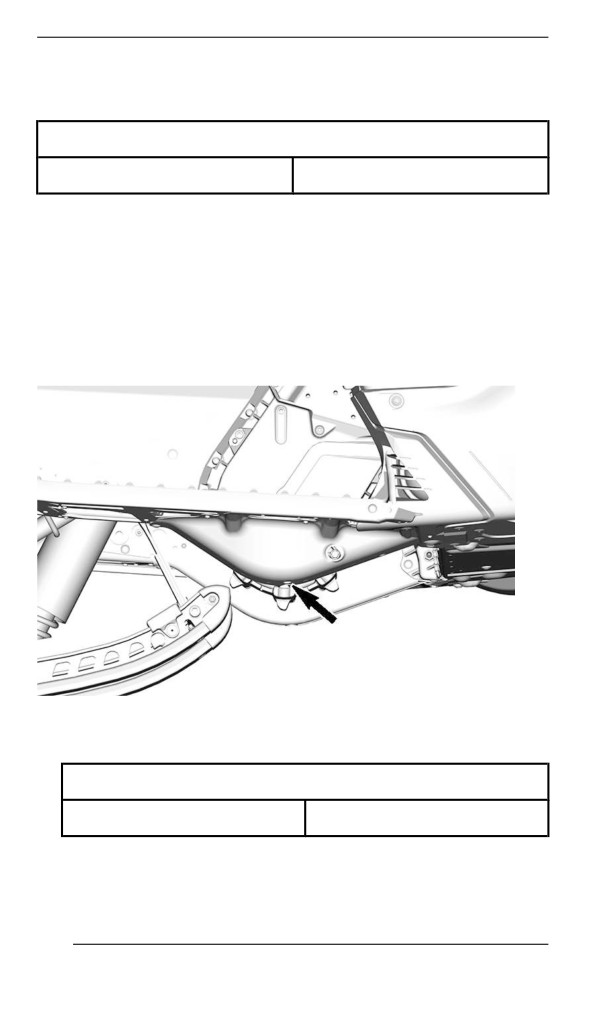

4. Remove the drain plug located at the bottom of the chaincase.

5. Wait a while to allow all oil to drain out of the chaincase.

6. Install drain plug and tighten to specification.

Tightening Torque

Chaincase drain plug

6 ± 1 Nm (53 ± 9 lbf-in)

Fiillling the Chaincase

1. Open the RH side panel. Refer to Equipment.

240

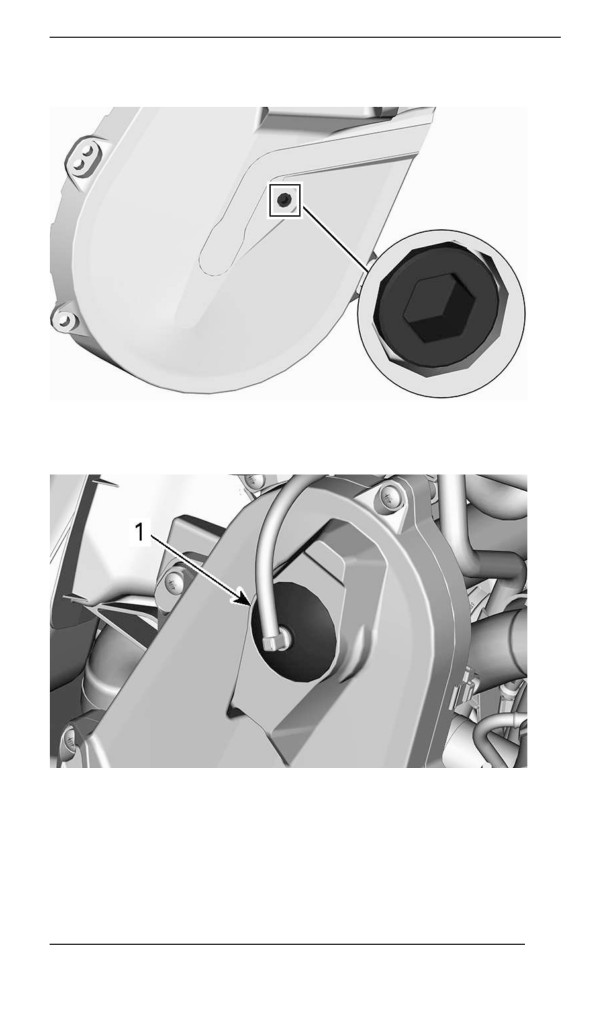

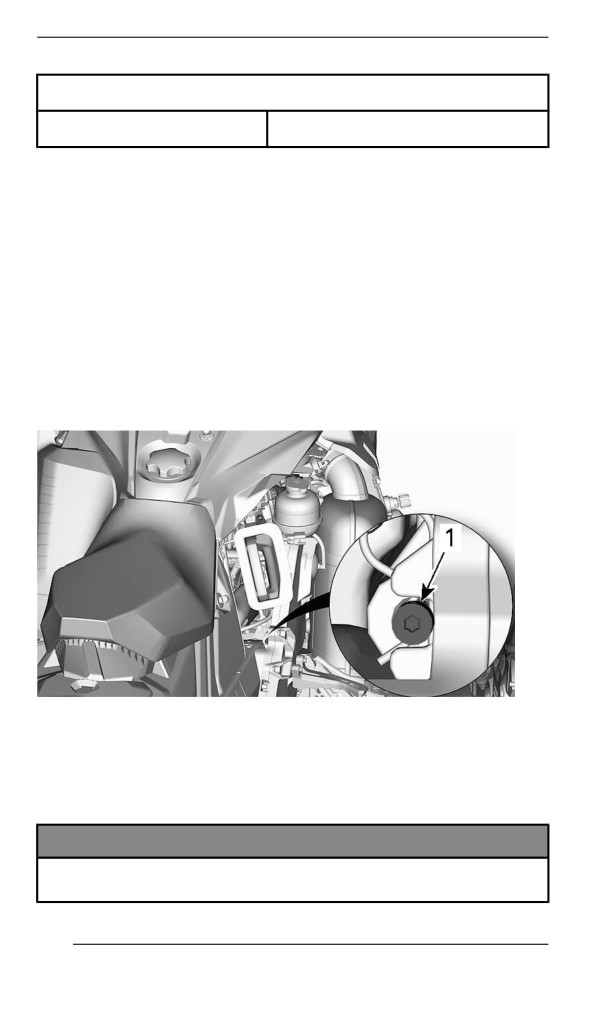

MAINTENANCE PROCEDURES

Tightening Torque

Check plug

6 ± 1 Nm (53 ± 9 lbf-in)

Reinstall the filler cap.

Drive Chaiin

Access to Chaincase

Open RH side panel, refer to Equipment.

Drive Chain Adjustment

Using the Torx end of the driven pulley expander, GENTLY turn ten-

sioner clockwise to eliminate the play.

NOTE: Make sure the play is completely eliminated by trying to turn

back and forth the driven pulley.

TYPICAL

Do not force the tensioner in.

NOTE:

Do not remove the hair cotter pin.

NOTICE

Overtightening the drive chain could result in severe damage to

the chaincase components.

242

MAINTENANCE PROCEDURES

Driive Belt

Drive Belt Inspection

Remove the drive belt guard. Refer to the procedure in Equipment.

Inspect belt for cracks, fraying or abnormal wear (uneven wear, wear

on one side, missing cogs, cracked fabric). If abnormal wear is noted,

probable cause could be pulley misalignment, excessive RPM with

frozen track, fast starts without warm-up period, burred or rusty

sheave, oil on belt or distorted spare belt. Contact an authorized BRP

snowmobile dealer.

Replacing the Drive Belt

Removing the Drive Bellt

1. Remove the tether cord cap from engine cut-off switch.

2. Remove the LH side panel.

3. Remove the drive belt guard. Refer to Removing the Drive Belt

Guard.

4. Insert the driven pulley expander provided, in the threaded hole on

the adjuster hub as shown.

TYPICAL - PULLEY EXPANDER INSTALLED ON ADJUSTER

HUB

5. Open the driven pulley by screwing the tool in.

6. Remove the drive belt by slipping it over the edge of the driven pul-

ley, then over the drive pulley.

243

MAINTENANCE PROCEDURES

Installling the Driive Bellt

The driven pulley must be expanded. Refer to Removing the Drive

Belt.

1. Slip the belt over the drive pulley, then over the driven pulley.

NOTICE

Do not force or use tools to pry the belt into place, as this could

cut or break the cords in the belt.

NOTE:

The maximum drive belt life span is obtained when belt is installed

with arrows in the direction of rotation.

1. To be pointed in the direction of rotation

2. Unscrew and remove the driven pulley expander from the pulley.

3. Rotate the driven pulley several times to properly set the belt be-

tween the sheaves.

4. If a new belt was installed, an adjustment will be required for the

proper belt height. Refer to Adjusting the Drive Belt Height.

5. Install belt guard.

6. Close side panel.

Adjusting the Drive Belt Height

Remove the tether cord cap from engine cut-off switch.

Remove the LH side panel.

Remove the drive belt guard.

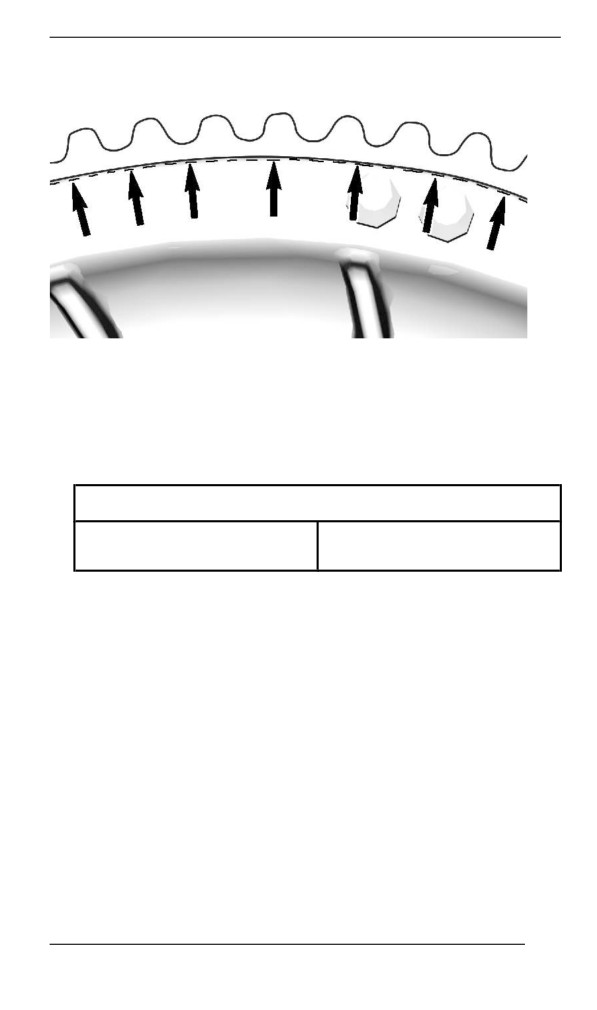

The drive belt height must be checked every time a new drive belt is

installed and as part of the pre-ride inspection.

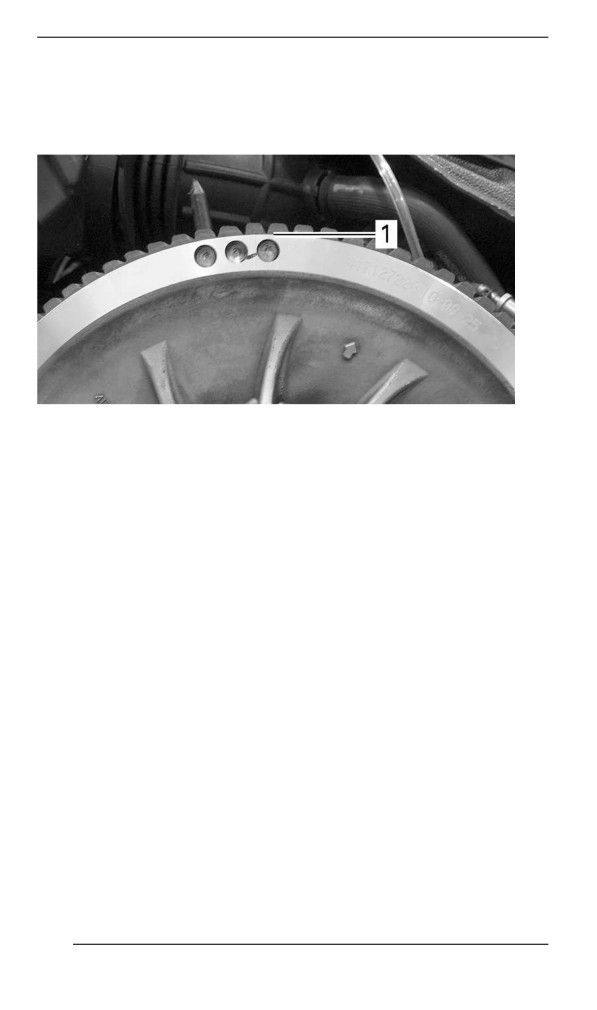

1. Loosen the clamping screw.

244

MAINTENANCE PROCEDURES

4. Install belt guard, refer to Installing the Drive Belt Guard.

5. Install LH side panel.

6. Start engine and check if vehicle creeps.

7. If vehicle does not creep, adjustment is complete.

8. If vehicle creeps, check the drive belt deflection.

Reverse Actiivatiion (iif equipped)

Reverse may not activate or may be harder to activate if the belt is

positioned too high in the driven pulley. If reverse activation does not

work properly, ensure the drive belt is properly adjusted.

Adjust the drive belt lower in the driven pulley if needed.

248

MAINTENANCE PROCEDURES

Driive Pullley

Drive Pulley Adjustment (if equipped)

WARNING

Remove tether cord cap from engine cut-off switch before per-

forming any adjustment. Vehicle must be parked in a safe

place, away from the trail.

WARNING

NEVER disassemble or modify the drive pulley.

Improper assembly or modifications could cause the pulley to

explode violently under the stress generated by the high rota-

tional speed.

Visit your BRP snowmobile dealer to maintain or service the

drive pulley. Improper servicing or maintenance may affect per-

formance and reduce belt life. Always respect maintenance

schedules.

The drive pulley is factory calibrated to transmit maximum engine

power at a predefined RPM. Factors such as ambient temperature, al-

titude or surface condition may vary this critical engine RPM thus af-

fecting snowmobile efficiency.

This adjustable drive pulley allows setting maximum engine RPM to

maintain maximum power.

Ramp cams should be adjusted so that actual maximum engine RPM

matches the maximum horsepower RPM. Refer to Technical Specifi-

cations (Engine).

NOTE:

Use a precision digital tachometer for engine RPM adjustment.

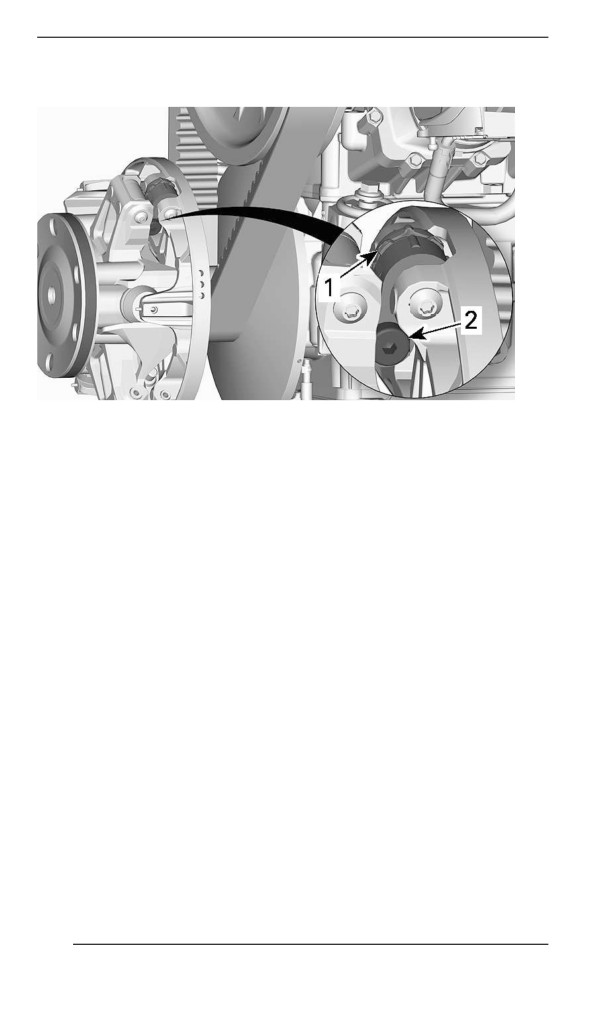

There are 5 positions in which the ramp cam can be set.

Each position modifies the maximum engine RPM by about 200 RPM.

Lower position numbers decrease engine RPM in steps of 200 RPM

and higher position numbers increase it in steps of 200 RPM.

Procedure

1. Refer to Body and Seat in Vehicle Information and remove:

- LH side panel

- Drive pulley guard

249

Snowmobile Ski-Doo TRAIL E-TEC SERIES. OPERATOR’S GUIDE (2024) - page 2
