Snowmobile Ski-Doo TRAIL ACE SERIES (REV GEN4). OPERATOR’S GUIDE (2024)

MAINTENANCE PROCEDURES

Replacing the Engine Oil

CAUTION

The engine oil can be very hot. Wait until engine oil is warm.

NOTICE

Engine oil and oil filter must be replaced at the same time.

1. Bring engine to its normal operating temperature.

2. Place vehicle on a level surface.

3. Remove the LH side panel.

4. Remove dipstick.

LH SIDE OF VEHICLE

1. Oil tank dipstick

5. Remove the oil filter. Refer to the procedure in this subsection.

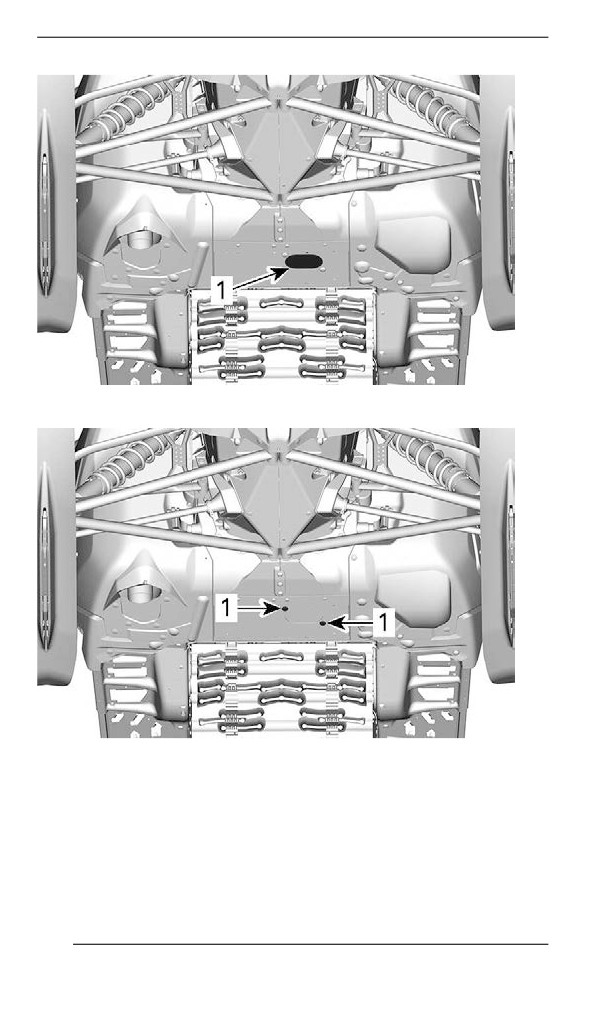

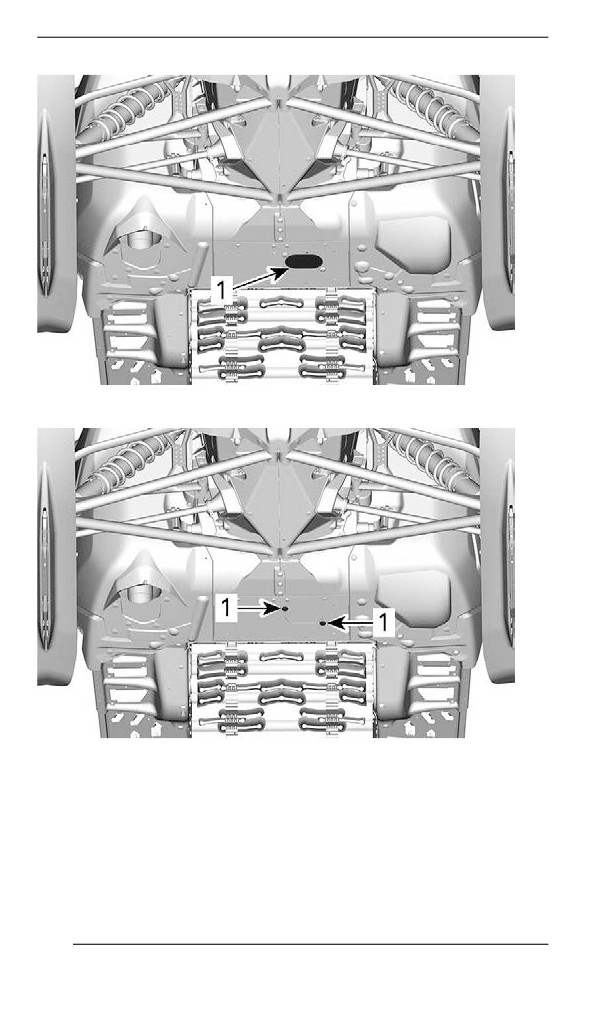

6. From underneath the vehicle, access the drain plug:

1. Remove one access cover retaining screw and loosen the

other.

201

MAINTENANCE PROCEDURES

1. Sealing washer

2. Oil drain plug

12. Install drain plugs and tighten to specification.

Tightening Torque

15 ± 2 Nm

Drain plugs

(133 ± 18 lbf-in)

13. Install a new oil filter. Refer to procedure in this subsection.

14. Refill oil tank at the proper level with the recommended oil.

Approximate Engine Oil Capacity (with filter)

600 ACE

2.1 l (2.22 qt(liq.,US))

900 ACE

900 ACE Turbo

3.3 l (3.5 qt(liq.,US))

900 ACE Turbo R

15. Reinstall dipstick in oil tank and properly tighten it.

16. Start engine and let it idle for a few minutes.

17. Ensure there are no leaks.

18. Stop engine and check oil level as explained in this subsection. Re-

fill if necessary.

19. Dispose oil and filter as per your local environmental regulations.

204

MAINTENANCE PROCEDURES

Engine Oill Fillter

Engine Oil Filter Replacement

Removing the Oiil Fiilter

1. Remove the RH side panel.

2. Clean oil filter area.

3. Remove:

- Oil filter cover screws

- Oil filter cover with O-ring

- Oil filter.

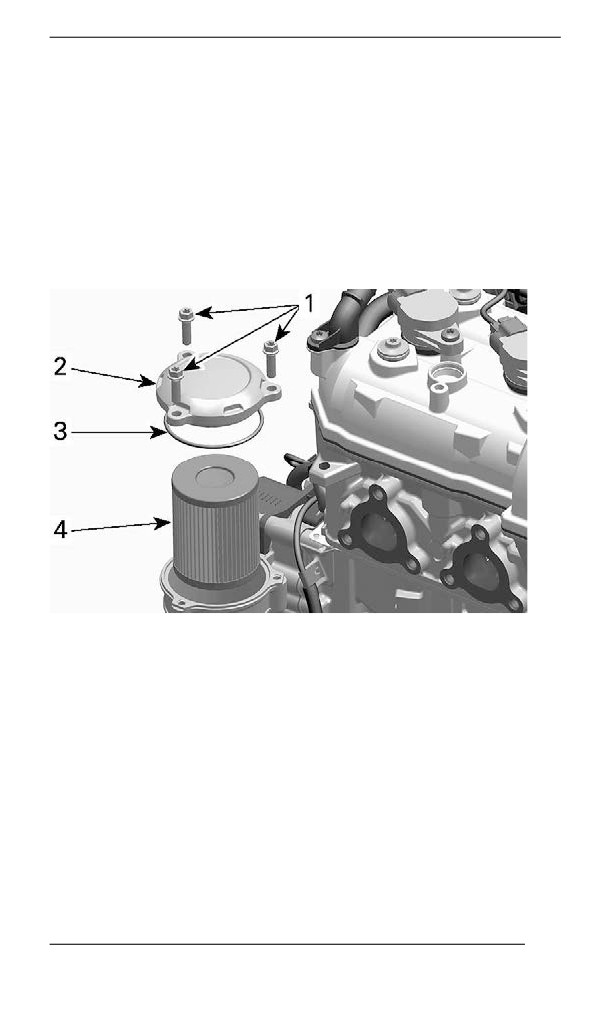

1. Oil filter cover screws

2. Oil filter cover

3. O-ring

4. Oil filter

4. Dispose filter as per your local environmental regulations.

Installliing the Oill Fiilter

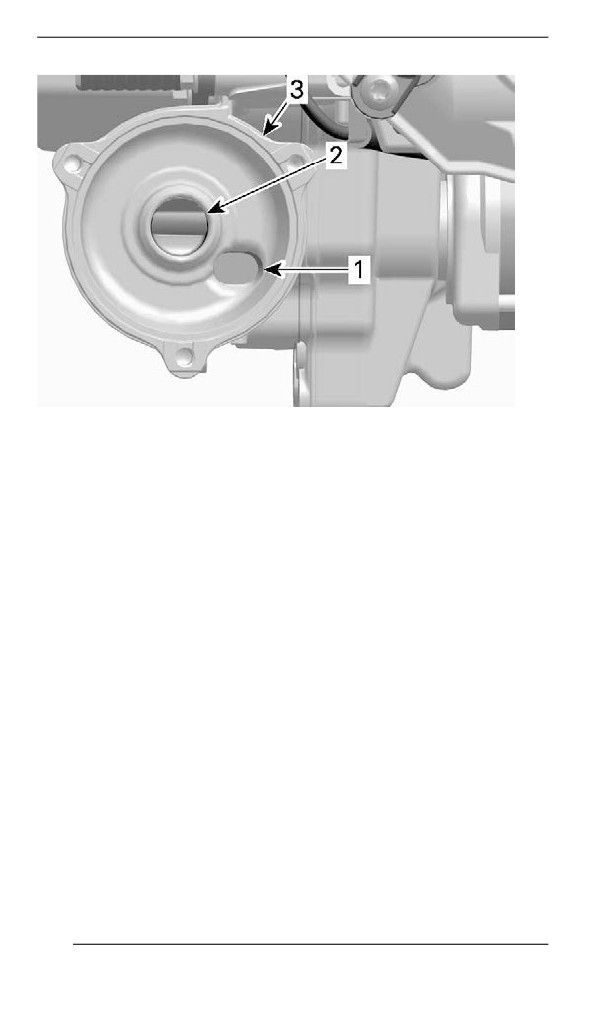

1. Check the oil filter inlet and outlet orifices inside oil filter receptacle

(integrated part of magneto cover) for dirt and contaminations.

205

MAINTENANCE PROCEDURES

1. Lubricate with engine oil

NOTICE

Pay attention to avoid pinching the O-ring during filter and cov-

er installation.

5. Install the oil filter cover.

6. Tighten oil filter cover screws to specification.

Tightening Torque

Oil filter cover screws

10 ± 1 Nm (89 ± 9 lbf-in)

7. Wipe off any oil spillage on engine.

Exhaust System

Exhaust System Verification

The muffler tail pipe should be centered with the exit hole in the bottom

pan. Exhaust system must be free of rust or leaks. Make sure that all

parts are securely in place.

Check retaining springs and heat shields condition and replace if

necessary.

The exhaust system is designed to reduce noise and to improve the

total performance of the engine. Modification may be in violation of lo-

cal laws.

207

MAINTENANCE PROCEDURES

NOTICE

If any exhaust system component is removed, modified or dam-

aged, severe engine damage may result.

Spark Pllugs

Spark plugs inspection or replacement may be performed by an au-

thorized BRP snowmobile dealer, repair shop, or person of your own

choosing. Spark plugs inspection or replacement requires an in-depth

technical knowledge. Though not required, it is recommended that an

authorized BRP snowmobile dealer performs spark plugs inspection

or replacement.

Brake Flluiid

Brake Fluid Level Verification

NOTICE

Vehicle must be on a level surface before checking any fluid

levels.

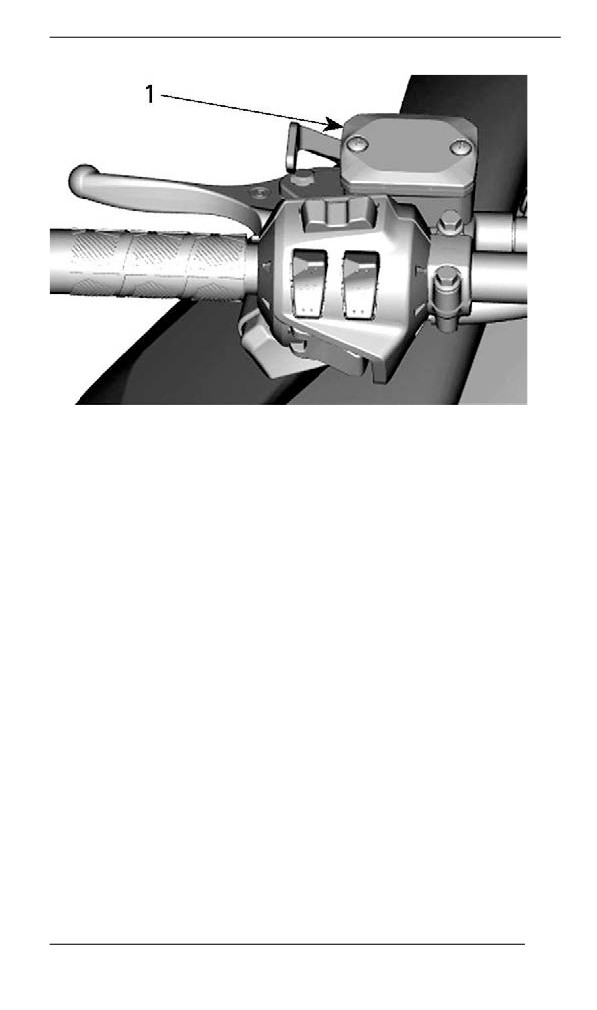

Check brake fluid (DOT 4) in reservoir for proper level. Add fluid (DOT

4) as required.

208

MAINTENANCE PROCEDURES

Use only DOT 4 brake fluid from a sealed container. An opened con-

tainer may be contaminated or may have absorbed moisture from the

air.

WARNING

Use only DOT 4 brake fluid from a sealed container. To avoid

serious damage to the braking system, do not use fluids other

than the recommended one, nor mix different fluids for topping

up.

Chaincase Oiil

Recommended Chaincase Oil

XPS Synthetic chaincase oil

Alternative or if not available

75W140 gear oil that meets the API GL-5 specification

NOTICE

If the recommended XPS chaincase oil is not available, use a

75W140 gear oil that meets the API GL-5 specification. The

chaincase of this snowmobile has been developed and vali-

dated using the XPS™ Synthetic chaincase oil. BRP strongly

recommends the use of its XPS Synthetic chaincase oil at all

times. Damages caused by oil which is not suitable for the

chaincase will not be covered by the BRP limited warranty.

Verifying the Chaincase Oil Level

With the vehicle on a level surface, check the oil level by removing the

check plug.

211

MAINTENANCE PROCEDURES

CHECK PLUG

Oil level must reach the threaded hole.

If level is correct, reinstall check plug and tighten to the specified

torque.

Tightening Torque

Check plug

6 ± 1 Nm (53 ± 9 lbf-in)

If level is insufficient, refer to Chaincase Filling Procedure.

Replacing the Chaincase Oil

Draining the Chaincase Oill

1. Place the vehicle on a level surface.

2. Place a drain pan under the chaincase drain plug area.

3. Remove filler cap.

4. Remove the drain plug located at the bottom of the chaincase.

212

MAINTENANCE PROCEDURES

Drive Belt

Drive Belt Inspection

Remove the drive belt guard. Refer to the procedure in Equipment.

Inspect belt for cracks, fraying or abnormal wear (uneven wear, wear

on one side, missing cogs, cracked fabric). If abnormal wear is noted,

probable cause could be pulley misalignment, excessive RPM with

frozen track, fast starts without warm-up period, burred or rusty

sheave, oil on belt or distorted spare belt. Contact an authorized BRP

snowmobile dealer.

Replacing the Drive Belt

Removiing the Driive Belt

1. Remove the tether cord cap from engine cut-off switch.

2. Remove the LH side panel.

3. Remove the drive belt guard. Refer to Removing the Drive Belt

Guard.

4. Insert the driven pulley expander provided, in the threaded hole on

the adjuster hub as shown.

TYPICAL - PULLEY EXPANDER INSTALLED ON ADJUSTER

HUB

5. Open the driven pulley by screwing the tool in.

6. Remove the drive belt by slipping it over the edge of the driven pul-

ley, then over the drive pulley.

216

MAINTENANCE PROCEDURES

Installliing the Drive Belt

The driven pulley must be expanded. Refer to Removing the Drive

Belt.

1. Slip the belt over the drive pulley, then over the driven pulley.

NOTICE

Do not force or use tools to pry the belt into place, as this could

cut or break the cords in the belt.

NOTE:

The maximum drive belt life span is obtained when belt is installed

with arrows in the direction of rotation.

1. To be pointed in the direction of rotation

2. Unscrew and remove the driven pulley expander from the pulley.

3. Rotate the driven pulley several times to properly set the belt be-

tween the sheaves.

4. If a new belt was installed, an adjustment will be required for the

proper belt height. Refer to Adjusting the Drive Belt Height.

5. Install belt guard.

6. Close side panel.

Adjusting the Drive Belt Height

Remove the tether cord cap from engine cut-off switch.

Remove the LH side panel.

Remove the drive belt guard.

1. Loosen the clamping bolt.

217

MAINTENANCE PROCEDURES

NOTE:

The adjustment ring has left hand treads.

Repeat step 4 until the lowest portion of the cogs on the external

surface of drive belt is even with the driven pulley edge.

TYPICAL - PRELIMINARY SETTING

1. Lowest portion of cogs even with external surface of drive belt

NOTE:

Turning the ring counterclockwise lowers the drive belt in the pulley.

Turning the ring clockwise raises the drive belt in the pulley.

3. Firmly tighten the clamping bolt. If possible, tighten to specified tor-

que using a torque wrench.

TIGHTENING TORQUE

Clamping bolt

5.5 ± 0.5 Nm (49 ± 4 lbf-in)

219

MAINTENANCE PROCEDURES

4. Install belt guard, refer to Installing the Drive Belt Guard.

5. Install LH side panel.

6. Start engine and check if vehicle creeps.

7. If vehicle does not creep, adjustment is complete.

8. If vehicle creeps, check the drive belt deflection.

Reverse Actiivatiion (iif equipped)

Reverse may not activate or may be harder to activate if the belt is

positioned too high in the driven pulley. If reverse activation does not

work properly, ensure the drive belt is properly adjusted.

Adjust the drive belt lower in the driven pulley if needed.

Track

Track Condition

WARNING

Remove tether cord cap from engine cut-off switch before per-

forming any maintenance or adjustment, unless otherwise

specified. Vehicle must be parked in a safe place, away from

the trail.

Remove tether cord cap from engine cut-off switch.

220

MAINTENANCE PROCEDURES

Lift the rear of the snowmobile and support it with a wide-base snow-

mobile mechanical stand with a rear deflector panel. With the engine

off, rotate the track by hand, and inspect condition. If worn or cut, or if

track fibers are exposed, or if missing or defective inserts or guides

are noted; contact an authorized BRP snowmobile dealer.

Snowmobiles Equipped with Traction Enhancing Products

If your snowmobile is equipped with a BRP approved studded track,

PROCEED WITH A VISUAL INSPECTION OF YOUR TRACK BE-

FORE EACH USE.

Look for any defects, such as:

- Perforations in the track

- Tears in the track (particularly around traction holes on studded

tracks)

- Lugs that are broken or torn off, exposing portions of rods

- Delamination of the rubber

- Broken rods

- Broken studs (studded tracks)

- Bent studs (studded tracks)

- Missing studs

- Studs that are torn off the track

- Missing track guide(s)

- Also, ensure that studs nut are tighten to the recommended

torque.

On approved studded tracks, replace broken or damaged studs imme-

diately. If your track shows signs of deterioration, it must be replaced

immediately. When in doubt, ask your dealer.

WARNING

Riding with a damaged track or studs could lead to a loss of

control.

For complete information on traction enhancing products, refer to

TRACTION ENHANCING PRODUCTS in SAFETY INFORMATION at

the beginning of this Operator's Guide.

Track Tension and Alignment

NOTE:

Track tension and alignment are interrelated. Do not adjust one with-

out the other.

221

MAINTENANCE PROCEDURES

WARNING

To prevent serious injury to individuals near the snowmobile:

– NEVER stand behind or near a moving track.

– Always use a wide-base snowmobile stand with a rear de-

flector panel if it is necessary to rotate track.

– When the track is raised off the ground, only run it at the low-

est possible speed.

Centrifugal force could cause debris, damaged or loose studs,

pieces of torn track, or an entire severed track to be violently

thrown backwards out of the tunnel with tremendous force, pos-

sibly resulting in the loss of a leg or other serious injury.

Veriifyiing the Track Tension

NOTE:

Ride the snowmobile in snow about 15 to 20 minutes prior to adjusting

track tension.

1. Remove tether cord cap from engine cut-off switch.

2. Lift rear of vehicle and support it off the ground.

CAUTION

Use proper lifting techniques, notably using your legs force. Do

not attempt to lift the rear of vehicle if it is above your limits.

3. Allow rear suspension to fully extend.

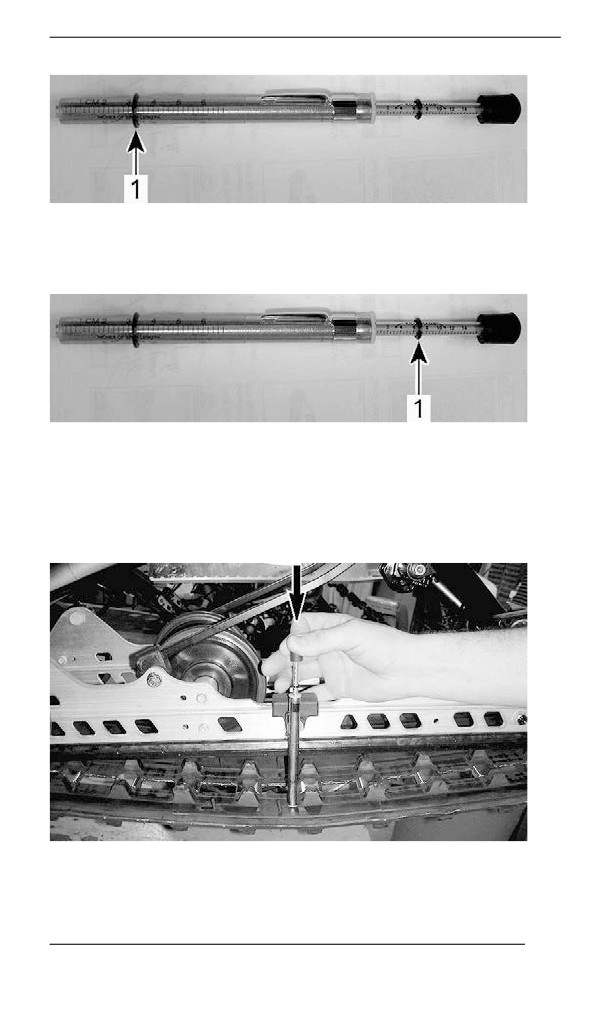

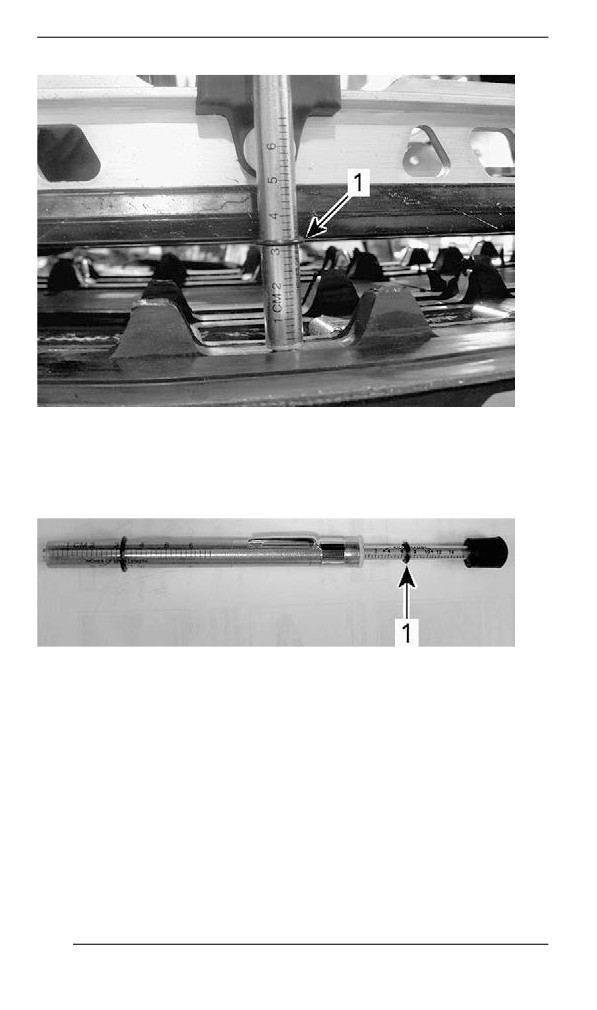

4. Prepare the tensiometer.

Service tool

Tensiometer (P/N 414348200)

1. Set the bottom O-ring as per the Track Deflection from the ap-

plicable vehicle in the Technical Specifications table.

222

MAINTENANCE PROCEDURES

CAUTION

Use proper lifting techniques, notably using your legs force. Do

not attempt to lift the rear of vehicle if it is above your limits.

2. Remove wheel caps.

3. Loosen the rear axle screw or, on 2 idler wheel models, the rear

axle nut.

4. Tighten or loosen both adjustment screws (equally) to increase or

decrease track tension.

TYPICAL

1. Remove cap

2. Loosen the axle screw or nut

3. Tighten or loosen adjustment screws

5. If correct tension is unattainable, contact an authorized BRP snow-

mobile dealer.

6. Retighten the rear axle fasteners to specification.

TIGHTENING TORQUE

Rear idler wheel retaining

48 ± 6 Nm (35 ± 4 lbf-ft)

screws

7. Check track alignment as described below.

225

MAINTENANCE PROCEDURES

Aliigniing the Track

WARNING

Before checking track alignment, ensure that the track is free of

all particles which could be thrown out while track is rotating.

Keep hands, tools, feet and clothing clear of track. Always lift

the snowmobile on a wide-base stand with a rear deflector pan-

el. Ensure no one is standing in close proximity to the snowmo-

bile, especially at the rear of the track. Never rotate track at

high speed.

Centrifugal force could cause debris, damaged or loose studs,

pieces of torn track, or an entire severed track to be violently

thrown backwards out of the tunnel with tremendous force.

1. Lift rear of vehicle and support it off the ground.

CAUTION

Use proper lifting techniques, notably by using the force of your

legs . Do not attempt to lift the rear of vehicle if it is above your

limits.

2. Start engine and accelerate slightly so that track slowly turns. This

must be done in a short period of time (15 to 20 seconds).

3. Check that the track is well centered; equal distance on both sides

between edges of track guides and slider shoes.

A01F05A

1. Guides

2. Slider shoes

3. Equal distance

226

MAINTENANCE PROCEDURES

4. To correct track alignment:

1. Guides

2. Slider shoes

3. Tighten on this side

1. Stop engine.

2. Remove tether cord cap from engine cut-off switch.

WARNING

Remove tether cord cap from engine cut-off switch before per-

forming any maintenance or adjustment, unless otherwise

specified. Vehicle must be parked in a safe place, away from

the trail.

3. Loosen the rear axle nut.

4. Tighten adjustment screw on side where the slider shoe is the

farthest from the track insert guides.

5. Tighten the rear axle nut.

WARNING

Properly tighten wheel retaining bolt, otherwise wheel may

come off and cause track to “lock”.

6. Restart engine and rotate track slowly to recheck alignment.

7. Tighten the rear axle nut to specified torque.

227

MAINTENANCE PROCEDURES

Tightening Torque

Rear axle screw

48 ± 6 Nm (35 ± 4 lbf-ft)

8. Reposition snowmobile on the ground.

Suspensiion

Steering and Front Suspension Condition

Visually inspect steering and front suspension for tightness of compo-

nents (steering arms, control arms and links, tie rods, ball joints, ski

bolts, ski legs, etc.). If necessary, contact an authorized BRP snowmo-

bile dealer.

Rear Suspension Condition

Visually inspect all suspension components including slider shoes,

springs, wheels, etc.

NOTE:

During normal driving, snow will act as a lubricant and coolant for the

slider shoes. Extensive riding on ice or sanded snow, will create ex-

cessive heat build-up and cause premature slider shoe wear.

Suspension Stopper Strap Condition

Inspect stopper straps for wear and cracks, bolt and nut for tightness.

If loose inspect holes for deformation. Replace as required. Tighten

nut to specification.

Tightening Torque

Stopper strap nut

11 ± 1 Nm (97 ± 9 lbf-in)

Suspension Lubrication

Lubricate the following suspension pivots at grease fittings. Refer to

Maintenance Schedule for maintenance frequency.

SERVICE PRODUCT

XPS Synthetic grease suspension

228

MAINTENANCE PROCEDURES

Rinse with clear water then dry well.

Charging the Battery

Use any automotive type battery charger. Always refer to the battery

charger manufacturer’s instructions.

Installing the Battery

NOTICE

Battery BLACK ( – ) cable must always be disconnected first

and connected last.

The installation is the reverse of the removal procedure. However, pay

attention to the following details.

TIGHTENING TORQUE

Battery terminals (positive and

10 ± 2 Nm

negative)

(89 ± 18 lbf-in)

5 ± 0.5 Nm

Battery hold down bracket

(44 ± 4 lbf-in)

1.5 ± 0.5 Nm

Battery cover retaining screws

(13 ± 4 lbf-in)

239

VEHICLE CARE

Post-Operation Care

Remove snow and ice from rear suspension, track, front suspension,

steering mechanism and skis.

WARNING

Make sure D.E.S.S. key is removed from D.E.S.S. post before

standing in front the vehicle, getting close to the track or rear

suspension components.

Always cover your snowmobile when leaving it outside overnight or

during extended periods of inactivity. This will protect it from frost and

snow as well as help retain its appearance.

Vehiiclle Clleaniing and Protection

Wash snowmobile using water mixed with a mild detergent.

Use only microfiber cloths or an equivalent.

NOTICE

Never use a high pressure washer to clean the vehicle. Use low

pressure only, like a garden hose.

Non Compatible Cleaning Products

Material Type

Non-Compatible Cleaning Products

BRAKE AND PARTS CLEANER

All plastics, vinyls,

painted steel and

ANY PETROLEUM BASE CLEANING

aluminium

PRODUCTS

Compatible Cleaning Products

Material Type

Cleaning Product

All plastics, vinyls,

Automotive type soap with water

painted steel and

XPS Spray Cleaner and Polish

aluminium.

XPS All Purpose Cleaner

For more information and products, Visit the XPS Products website at

www.xpslubricants.com

240

STORAGE

During summer, or when a snowmobile is not in use for more than

three months, proper storage is necessary.

Storage

Clean the vehicle

Add fuel stabilizer to fuel following the product manufacturer

recommendations.

Run the engine after adding the product to the fuel

Lubricate engine

Lubricate brake lever pivot

Lubricate rear suspension

Charge battery monthly to keep it fully charged during storage

Block muffler outlet with rags

Lift rear of vehicle until track is clear of the ground. Do not release

track tension

CAUTION

Use appropriate lifting device or have assistance to share lifting

stress. If a lifting device is not used, use proper lifting techni-

ques, notably using your legs force. Do not attempt to lift the

rear of vehicle if it is above your limits.

NOTICE

The snowmobile has to be stored in a cool and dry place and

covered with an opaque but ventilated tarpaulin. This will pre-

vent sun rays and grime from affecting plastic components and

vehicle finish.

NOTICE

Fuel stabilizer should be added prior to engine lubrication to

ensure carburetor protection against varnish deposits.

241

VEHICLE IDENTIFICATION

520002459

FOR EUROPEAN MARKET

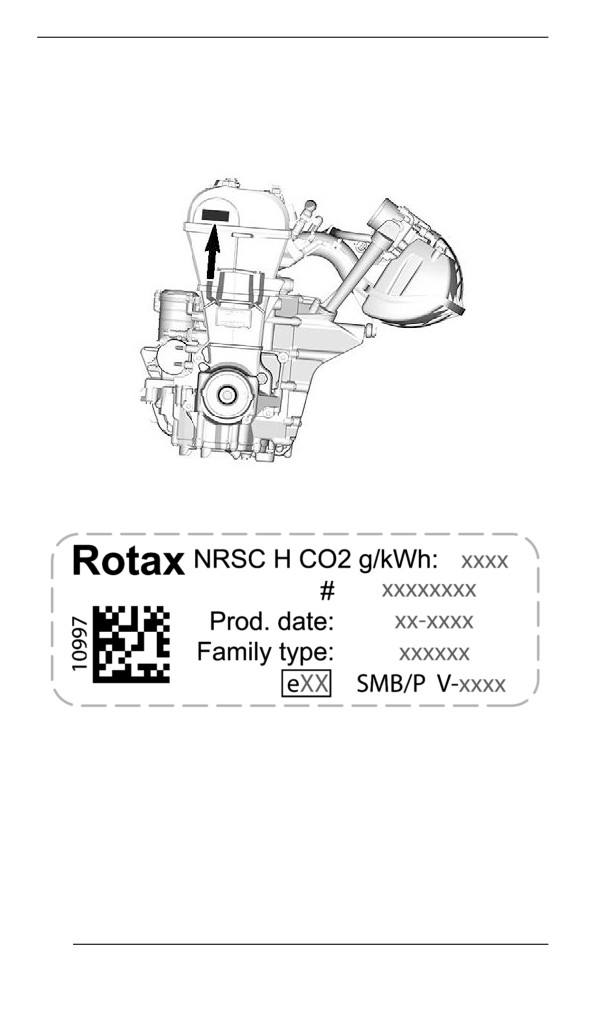

Identificatiion Numbers

The main components of your snowmobile (engine and frame) are

identified by different identification numbers. It may sometimes be-

come necessary to locate these numbers for warranty purposes or to

trace your snowmobile in the event of loss. These numbers are re-

quired by the authorized BRP snowmobile dealer to complete war-

ranty claims properly. We strongly recommend that you take note of

all the identification numbers on your snowmobile and supply them to

your insurance company.

Vehicle Identification Number (VIN)

VIN is scribed on vehicle description decal. See above. It is also en-

graved on tunnel near vehicle description decal.

Model number and model year are part of the information found in the

VIN. See illustration.

2BP

LSAB

000001

2BP = Canada

Serial

Model number

YH2 = Finland

number

Factory

S = Ski-Doo

V = Valcourt

L = Lynx

R = Rovaniemi

Numeric or

Alphabetic

Model year: P = 2023

Q = 2024

R=2025etc.

253

NOISE EMISSION AND VIBRATION VALUES

MODEL

600 ACE

900 ACE

NOISE EMISSION AND VIBRATION VALUES¹

90,4 dB @ 3625

90.3 dB @ 3625

Sound power

RPM

level (LWA)

(Uncertainty

(Kwa) 3 dB)

Noise

78 dB @ 3625

RPM

Sound pressure (LpA)

(Uncertainty

(KpA) 3 dB)

Hand-arm

<2.5 m/s² @

2.5 m/s² @

system

3625 RPM

Vibration

Whole body at

<0.5 m/s² @

<0.5m/s² @

seat

3625 RPM

¹: Noise emission and Vibration values are measured in

accordance with Annexes A and B of ISMA 1 regulation on a snow

covered or grass surface in neutral or without belt.

260

EPA CERTIFIED ENGINES

Engine Emiissiions Information

Manufacturer''s Responsibility

Snowmobile manufacturers of snowmobile engines need to determine

the exhaust emission levels for each engine horsepower family and

certify these engines with the United States of America Environmental

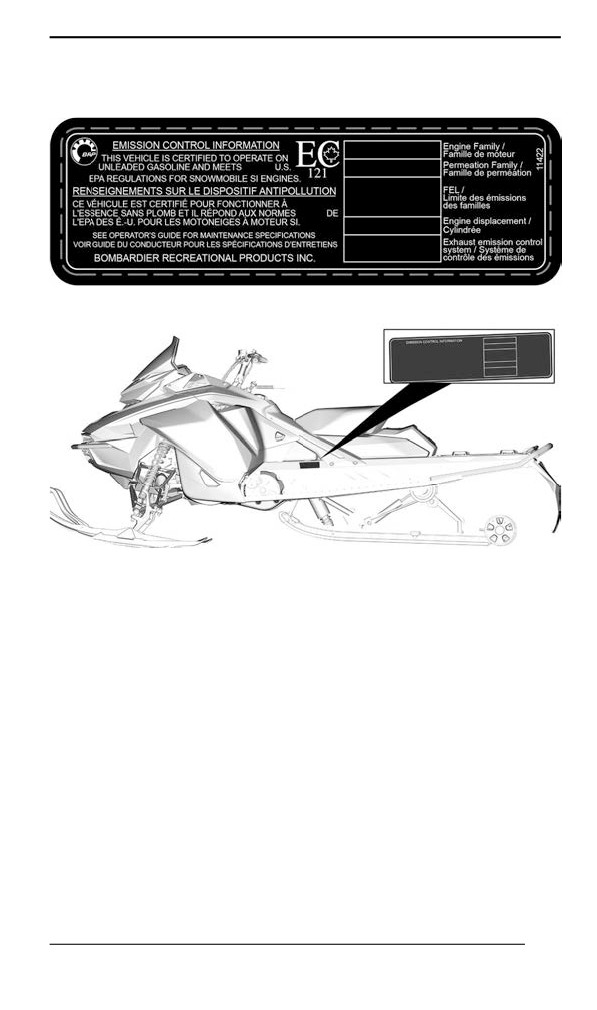

Protection Agency (EPA). An emissions control information label,

showing emission levels and engine specifications, must be placed on

each vehicle at the time of manufacture.

Dealer''s Responsibility

When performing service on a certified BRP snowmobiles that carry

an emissions control information label, adjustments must be kept with-

in published factory specifications.

Replacement or repair of any emission related component must be

executed in a manner that maintains emission levels within the pre-

scribed certification standards.

Dealers are not to modify the engine in any manner that would alter

the horsepower or allow emission levels to exceed their predeter-

mined factory specifications.

Exceptions include manufacturer's prescribed changes, such as alti-

tude adjustments for example.

Owner’s Responsibility

The owner / operator is required to have engine maintenance per-

formed to maintain emission levels within prescribed certification

standards.

The owner / operator is not to, and should not allow anyone to modify

the engine in any manner that would alter the horsepower or allow

emissions levels to exceed their predetermined factory specifications.

EPA Emission Regulations

All BRP snowmobiles manufactured by BRP are certified to the EPA

as conforming to the requirements of the regulations for the control of

air pollution from new snowmobile engines. This certification is contin-

gent on certain adjustments being set to factory standards. For this

reason, the factory procedure for servicing the product must be strictly

followed and, whenever practicable, returned to the original intent of

the design.

The responsibilities listed above are general and in no way a complete

listing of the rules and regulations pertaining to the EPA requirements

on exhaust emissions for snowmobile products. For more detailed in-

formation on this subject, you may contact the following locations:

263

RADIO FREQUENCY DIGITALLY ENCODED

SECURITY SYSTEM (RF D.E.S.S. KEY)

This device complies with FCC Part 15 and Industry Canada license

exempt RSS standard(s).

Operation is subject to the following two conditions: (1) this device

may not cause interference, and (2) this device must accept any inter-

ference, including interference that may cause undesired operation of

the device.

Changes or modifications not expressly approved by the party respon-

sible for compliance could void the user’s authority to operate the

equipment.

IC Registration Number: 12006A-1001317030

FCC ID: 2ACER-1001317030

We, the party responsible for compliance, declare under our sole re-

sponsibility that the device is in conformity with the provisions of the

following Council Directive: 2014/53/EU. To which this declaration re-

lates is in conformity with the essential requirements and other rele-

vant requirements. The product is in conformity with the following

directives, harmonized standards and regulations:

Radio Equipment Directive

(RED)

2014/53/EU and Harmonized

Standards:

IEC 62368-1:2014, CISPR 25:2016, ISO 11452-2:2004, ETSI EN 300

330 V2.1.1:2017

Radio Equipment Statutory Instrument 2017/1206 and Designated

Standards:

IEC 62368-1:2014, CISPR 25:2016, ISO 11452-2:2004, ETSI EN 300

330 V2.1.1:2017

265

ENGINE

600 ACE

ENGINE

600 ACE

Rotax 600, liquid

cooled, 4-stroke,

Engine type

D.O.H.C., dry

sump.

Number of cylinder

Bore

74 mm (2.91 in)

Stroke

69.7 mm (2.74 in)

Displacement

600 cm³ (36.6 in³)

Maximum power engine speed

7250 RPM

FUEL SYSTEM

Multi point EFI, 46

Fuel delivery

mm heated

throttle body

At ECO Mode

1500 ± 200 RPM

(not adjustable)

Idle speed

STD/ Sport Mode

1700 ± 200 RPM

(not adjustable)

ELECTRICAL SYSTEM

30 A @ 14.5 V

Total system output

420 W to 650 W

@ 6000 RPM

NGK MR7BI-8 or

Type

equivalent

Spark

600 ACE

plug⁽¹⁾

Not adjustable 0.7

Gap

to 0.8 mm (.028 to

.031 in)

268

ENGINE

LUBRICATION SYSTEM

4T 0W40

Type

Synthetic oil

Engine oil⁽²⁾

Oil change and

Quantity

600 ACE

filter, 2.1 l (2.22

qt(liq.,US))

900 ACE

ENGINE

900 ACE

Rotax 903, liquid

cooled, 4-stroke,

Engine type

D.O.H.C., dry

sump

Number of cylinder

Bore

74 mm (2.9 in)

Stroke

69.7 mm (2.74 in)

Displacement

899 cm³ (54.9 in³)

Maximum power engine speed

7250 ± 200 RPM

FUEL SYSTEM

Multi point EFI, 46

Fuel delivery

mm heated

throttle body

Standard and

1300 ± 200 RPM

ECO mode

Idle speed (not adjustable)

Sport mode

1500 ± 200 RPM

269

VEHICLE

Grand Touring Sport

COOLING SYSTEM

XPS Extended life

Recommended

pre-mixed coolant

Ethyl glycol and

distilled water

Coolant type

(50%/50%)

Alternative, or if

or coolant

not available

specifically

formulated for

aluminum engines

With radiator

6.9 l (7.3 qt (US))

Coolant capacity

Without radiator

5.9 l (6.2 qt (US))

FUEL SYSTEM

Fuel pump

In-tank electrical

Regular unleaded

Type

gasoline

Fuel

87 Pump posted

Octane rating

AKI (RON+MON)/2)

92 RON

Fuel tank capacity

36 l (9.5 gal (US))

ELECTRICAL SYSTEM

Battery

12 V, 18 A•h

Headlamp

2 x 60/55 W (H-13)

2.6 W / 139 m W

Taillight and stoplight

LED

Main Fuse

40 A

Fuses

Start / Relays

271

VEHICLE

ELECTRICAL SYSTEM

Accessories

15 A

Taillight / Brake

10 A

/ PAC

ECM / RFID /

O2 Sensor /

10 A

CAPS

Fuel Pump

10 A

Cluster

15 A

Fan

15 A

F10

Headlamps

20 A

RY1

Main

RY2

Accessories

Relays

RY3

Fan

RY4

Lighting

DRIVE SYSTEM — CHAINCASE

XPS Synthetic

Recommended

chaincase oil

Type

75W140 gear oil

Alternative, or if

that meets the API

Chaincase

not available

GL-5 specification

oil

550 ml (18.9 fl oz

Capacity

(US))

600 ACE

21/51

Chain drive ratio

900 ACE

24/49

272

VEHICLE

DRIVE SYSTEM — PULLEYS

600 ACE

eDrive 2

Type

Drive pulley

900 ACE

pDrive

Engagement RPM

2200 ± 100 RPM

Driven

Type

QRS-4S

pulley

DRIVE SYSTEM — TRACK

Drive sprocket number of teeth

Width

38 cm (15 in)

Track

Length

348.7 cm (137 in)

Profile height

32 mm (1.25 in)

Deflection

32 mm (1.26 in)

Track adjustment⁽³⁾

6.0 to 8.5 kgf (13 to

Force

19 lbf)

BRAKE SYSTEM

Single 200-mm

Brake

Type

cross-drilled carbon

steel disc

Type

DOT 4

Brake fluid

65 ml (2.2 fl oz

Quantity

(US))

Fixed twin pistons

Caliper

(2 x 40 mm)

Brake pad material

Organic

Minimum brake pad thickness (includes

5 mm (.197 in)

backing plate)

273

VEHICLE

BRAKE SYSTEM

Minimum brake disc thickness

4.5 mm (.177 in)

Maximum brake disc warpage

0.25 mm (.01 in)

FRONT SUSPENSION

Suspension type

RAS X

Suspension maximum travel

225 mm (8.9 in)

Shock absorber type

Motion Control

REAR SUSPENSION

Suspension type

SC-5M

Suspension maximum travel

245 mm (9.6 in)

Measured at rear arm

Center

Motion control

Shock absorber type

Rear

HPG

WEIGHT AND DIMENSIONS

600 ACE

231 kg (509 lb)

Mass (dry)

900 ACE

241 kg (530 lb)

Overall length

312.7 cm (123.1 in)

Overall width

121.7 cm (47.9 in)

Overall height

151.3 cm (59.6 in)

Ski stance

109.2 cm (43 in)

Cargo load

15.8 kg (35 lb)

274

VEHICLE

(1)

Do not attempt to adjust gap on this spark

NOTICE

plug.

(2)

Refer to Engine Oil for detailed information.

(3)

Refer to Track Tension Verification in Maintenance

Procedures for detailed procedure.

Renegade Sport

COOLING SYSTEM

Recommended

XPS Extended life

pre-mixed coolant

Ethyl glycol and

distilled water (50%/

Type

50%)

Coolant

Alternative, or if

or coolant

not available

specifically

formulated for

aluminum engines

capacity

6.9 l (7.3 qt (US))

FUEL SYSTEM

Fuel pump

In-tank electrical

Type

Regular unleaded

gasoline

Fuel

Octane rating

87 Pump posted

AKI (R+M)/2)

(RON)

Fuel tank capacity

36 l (9.5 gal (US))

ELECTRICAL SYSTEM

Battery

12 V, 18 A•h

Headlamp

2x60/55W(H-13)

275

VEHICLE

ELECTRICAL SYSTEM

2.6 W / 139 mW

Taillight and stoplight

LED

Main Fuse

40 A

Start / Relays

Accessories

15 A

Taillight / Brake

10 A

/ PAC

ECM / RFID /

O2 Sensor /

CAPS (with a

15 A

Compact digital

display)

Fuses

ECM / RFID /

O2 Sensor /

CAPS (with a

10 A

4.5” digital

display)

Fuel Pump /

10 A

Engine

Cluster

15 A

Fan

15 A

F10

Headlamps

30 A

RY1

Main

RY2

Accessories

Relays

RY3

Fan

RY4

Lighting

DRIVE SYSTEM — CHAINCASE

Chaincase

Recommended

XPS Synthetic

Type

oil

chaincase oil

276

VEHICLE

DRIVE SYSTEM — CHAINCASE

Alternative, or if

75W140 gear oil

not available

that meets the API

GL-5 specification

550 ml (18.6 fl oz

Capacity

(US))

Chain drive ratio

21/51

DRIVE SYSTEM — PULLEYS

Type

eDrive 2

Drive pulley

Engagement

2200 ± 100 RPM

RPM

Driven pulley

Type

QRS-4S

DRIVE SYSTEM — TRACK

Drive sprocket number of teeth

Width

38 cm (15 in)

Track

Length

348.7 cm (137 in)

Profile height

34.3 mm (1.35 in)

Deflection

32 mm (1.26 in)

Track adjustment⁽³⁾

Force

7.3 kgf (16 lbf)

BRAKE SYSTEM

Single 200-mm

Brake

Type

cross-drilled carbon

steel disc

Brake fluid

Type

DOT 4

277

VEHICLE

BRAKE SYSTEM

65 ml (2.2 fl oz

Quantity

(US))

Fixed twin pistons

Caliper

(2 x 40 mm)

Brake pad material

Organic

Minimum brake pad thickness (includes

5 mm (.197 in)

backing plate)

Minimum brake disc thickness

4.5 mm (.177 in)

Maximum brake disc warpage

0.25 mm (.01 in)

FRONT SUSPENSION

Suspension type

RAS X

Suspension maximum travel

235 mm (9.3 in)

Shock absorber type

Motion Control

REAR SUSPENSION

Suspension type

SC-5M

Suspension maximum travel

245 mm (9.6 in)

Measured at rear arm

Center

Motion Control

Shock absorber type

Rear

HPG

WEIGHT AND DIMENSIONS

Mass (dry)

213 kg (469 lb)

Overall length

303.8 cm (119.6 in)

Overall width

121.7 cm (47.9 in)

278

TROUBLESHOOTING-

GUIDELINES

1. ELECTRIC STARTER DOES NOT WORK

Emergency engine stop switch in OFF position or tether cord cap not

installed on engine cut-off switch.

- Place the emergency engine stop switch in the ON position and in-

stall tether cord cap (on engine cut-off switch.

Throttle applied while attempting an engine start.

- Release throttle while cranking.

2. ENGINE IS CRANKED BUT FAILS TO START

No fuel to the engine.

- Check fuel tank level, add fuel if necessary.

System voltage too low.

- Contact an authorized BRP snowmobile dealer.

3. ENGINE RPM DOES NOT REACH CLUTCH

ENGAGEMENT POINT

D.E.S.S. did not read D.E.S.S. key code in the tether cord cap.

- Properly install tether cord cap.

D.E.S.S. has read a different code than the one programmed.

- Install a tether cord cap for which this snowmobile was

programmed.

ECM does not recognize the D.E.S.S. key.

- Refer to an authorized BRP snowmobile dealer.

4. ENGINE LACKS ACCELERATION OR POWER

Engine warm-up in progress.

- Drive vehicle at low speeds for a few minutes.

Engine break-in period not completed.

- Complete break-in period.

Drive and driven pulleys require servicing.

- Contact an authorized BRP snowmobile dealer.

282

TROUBLESHOOTING-GUIDELINES

Engine overheats.

- Check coolant level, see Maintenance Procedures.

- Check heat exchangers cleanliness. Clean if necessary.

Drive belt worn too thin.

- If the drive belt has lost more than 3 mm (1/8 in) of its original

width, it will affect vehicle performance.

- Replace drive belt.

Incorrect track adjustment.

- See Maintenance Procedures and/or an authorized BRP snowmo-

bile dealer for proper alignment and tension adjustments.

Fuel pressure too low.

- Seek service from an authorized BRP snowmobile dealer, repair

shop, or person of your own choosing for maintenance, repair, or

replacement. Please refer to the US EPA EMISSION-RELATED

WARRANTY contained herein for information about warranty

claims.

5. ENGINE BACKFIRES

Engine is running too hot.

- See item 4 of ENGINE LACKS POWER.

Ignition timing is incorrect or there is an ignition system failure.

- Seek service from an authorized BRP snowmobile dealer, repair

shop, or person of your own choosing for maintenance, repair, or

replacement. Please refer to the US EPA EMISSION-RELATED

WARRANTY contained herein for information about warranty

claims.

Exhaust system leak.

- Seek service from an authorized BRP snowmobile dealer, repair

shop, or person of your own choosing for maintenance, repair, or

replacement. Please refer to the US EPA EMISSION-RELATED

WARRANTY contained herein for information about warranty

claims.

Fuel pressure too low.

- Seek service from an authorized BRP snowmobile dealer, repair

shop, or person of your own choosing for maintenance, repair, or

283

TROUBLESHOOTING-GUIDELINES

replacement. Please refer to the US EPA EMISSION-RELATED

WARRANTY contained herein for information about warranty

claims.

6. ENGINE MISFIRES

Water in fuel.

- Drain fuel system and refill with fresh fuel.

7. HEATED GRIPS/THUMB WARMERS ARE NOT

WORKING

Engine RPM is too low.

- Make sure engine RPM is above 2000.

8. ENGINE HAS SHUT DOWN

The engine shuts down after long periods of idling.

- Do not let engine idle too long. Refer to Vehicle Warm-up in Oper-

ating Instruction.

284

MONITORING SYSTEM

Piilot Lamps, Messages and Beeper Codes

Gauge pilot lamp(s) will inform you if an anomaly occurs or to inform

you of a particular condition.

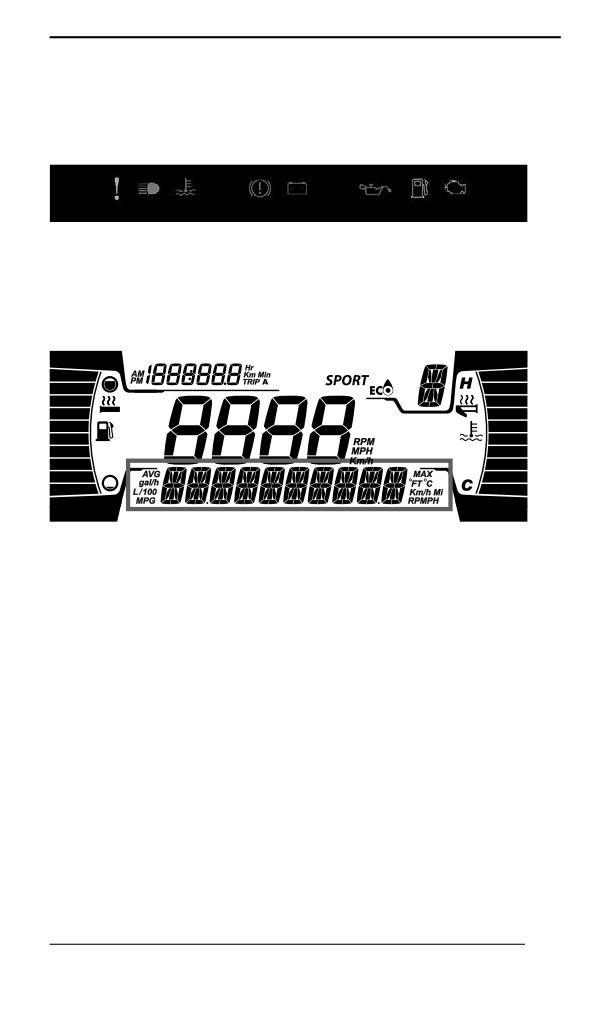

TYPICAL — PILOT LAMPS

Pilot lamp can flash alone or in combination with another lamp.

The lower display is used as a complement of the pilot lamps to give

you a brief description if an anomaly occurs or to inform you of a par-

ticular condition.

4.5" DIGITAL LOWER DISPLAY

Messages will be displayed with a beep code and pilot lamp(s).

Beeper codes will be heard and messages will be displayed to catch

your attention.

See table below for details.

NOTE:

Some of the listed pilot lamps and messages do not apply to all

models.

285

MONITORING SYSTEM

Pilot

Message

lamp

Beeper

Description

display

Engine is overheating,

reduce snowmobile

speed and run in loose

snow or stop engine

immediately and let

engine cool down.

HIGH

Check coolant level,

ENGINE

refer to Maintenance. If

TEMPERA

coolant level is correct

TURE

and overheating

persists, contact an

1 Long

authorized BRP

beep

snowmobile dealer. Do

repeat

not run the engine if

ing

condition persists.

Reduce speed or stop

engine. Let engine cool

down and restart. If

overheating persists,

MUFFLER

contact an authorized

OVERHEAT

BRP snowmobile

dealer. Do not run the

engine if condition

persists.

Critical overheat. Stop

engine immediately and

let engine cool down.

Check coolant level,

1 Long

HIGH

refer to Maintenance. If

beep

ENGINE

coolant level is correct

repeat

TEMPERA

and overheating

ing

TURE

persists, contact an

authorized BRP

snowmobile dealer. Do

not run the engine if

condition persists.

286

MONITORING SYSTEM

Pilot

Message

lamp

Beeper

Description

display

MUFFLER

Critical overheat. Stop

OVERHEAT

engine immediately and

let engine cool down. If

overheating persists,

contact an authorized

ECM

BRP snowmobile

OVERHEAT

dealer. Do not run the

engine if condition

persists.

Indicate a low or high

battery voltage

—

condition. See an

BATT VOLT

authorized BRP

snowmobile dealer as

soon as possible.

Engine fault, see an

1 Long

authorized BRP

beep

CHECK

snowmobile dealer,

repeat

ENGINE

repair shop or person of

ing

your own choosing as

soon as possible.

Displayed when brake is

applied for more than 15

seconds while throttle

—

lever is squeezed and

vehicle is moving at

more than 5 km/h (3

MPH).

Engine detonation

(RPM is limited when

4 short

this condition occurs).

beeps

—

KNOCK

- Ensure

every 5

recommended fuel is

minutes

used.

- Check fuel quality,

replace if

287

MONITORING SYSTEM

Pilot

Message

lamp

Beeper

Description

display

necessary.

- If fault still occurs,

contact an

authorized BRP

snowmobile dealer,

repair shop, or

person of your own

choosing.

4 short

Engine RPM limited for

beeps

—

REV LIMIT

protection when certain

every 5

faults occur.

minutes

Indicates that maximum

—

OVER REV

engine RPM is reached.

Check clutch calibration.

Short

Shutdown procedure in

beeps

force due to engine

—

repeat

SHUTDOWN

overheating or fuel

ing

pump problem.

rapidly

288

MONITORING SYSTEM

Pilot

Message

lamp

Beeper

Description

display

Good key, vehicle ready

—

to operate.

Unable to read key (bad

connection). Make sure

—

WRONG KEY

the key is clean and

correctly snapped on

DESS

post.

Invalid key or key not

programmed. Use the

—

CHECK KEY

proper key for the

vehicle or have the

programmed.

Fuel

level

sensor

—

problem.

(blink

ing)

Fault Codes

The fault codes can be displayed on the center display.

The fault codes are accessible in the setting menu.

Contact an authorized BRP snowmobile dealer for code signification.

289

BRP LIMITED WARRANTY USA AND

CANADA: 2024 SKI-DOO® SNOWMOBILES

SCOPE OF THE LIMITED WARRANTY

Bombardier Recreational Products Inc. (“BRP”) warrants its 2024

Ski-Doo snowmobiles sold by authorized BRP dealers (as defined be-

low) in the United States of America (“USA”) and in Canada from de-

fects in material or workmanship for the period and under the

conditions described below. This limited warranty will become null and

void if: (1) the snowmobile was used for racing or any other competi-

tive activity, at any point, even by a previous owner; or (2) the snow-

mobile has been altered or modified in such a way so as to adversely

affect its operation, performance or durability, or has been altered or

modified to change its intended use.

Non-factory installed parts and accessories are not covered under this

limited warranty. Please refer to the applicable parts and accessories

limited warranty text.

LIMITATIONS OF LIABILITY

TO THE EXTENT PERMITTED BY LAW, THIS WARRANTY IS

EXPRESSLY GIVEN AND ACCEPTED IN LIEU OF ANY AND

ALL OTHER WARRANTIES, EXPRESSED OR IMPLIED, IN-

CLUDING WITHOUT LIMITATION ANY WARRANTY OF MER-

CHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE.

TO THE EXTENT THAT THEY CANNOT BE DISCLAIMED, THE

IMPLIED WARRANTIES ARE LIMITED IN DURATION TO THE

LIFE OF THE EXPRESS WARRANTY. INCIDENTAL AND CON-

SEQUENTIAL DAMAGES ARE EXCLUDED FROM COVERAGE

UNDER THIS WARRANTY. SOME STATES/PROVINCES DO

NOT ALLOW FOR THE DISCLAIMERS, LIMITATIONS AND EX-

CLUSIONS IDENTIFIED ABOVE. AS A RESULT, THEY MAY

NOT APPLY TO YOU. THIS WARRANTY GIVES YOU SPECIFIC

RIGHTS, AND YOU MAY ALSO HAVE OTHER LEGAL RIGHTS

WHICH MAY VARY FROM STATE TO STATE, OR PROVINCE

TO PROVINCE.

Neither the distributor, any BRP dealer nor any other person has been

authorized to make any affirmation, representation or warranty regard-

ing the product, other than those contained in this limited warranty,

and if made, shall not be enforceable against BRP. BRP reserves the

right to modify this limited warranty at any time, being understood that

such modification will not alter the warranty conditions applicable to

the products sold while this warranty is in effect.

EXCLUSIONS – ARE NOT WARRANTED

The following are not warranted under any circumstances:

- Normal wear and tear;

- Routine maintenance items, tune ups, adjustments;

292

BRP LIMITED WARRANTY USA AND CANADA: 2024 SKI-DOO^®

SNOWMOBILES

Damage caused by failure to provide proper maintenance and/or

storage, as described in the Operator's Guide;

Damage resulting from removal of parts, improper repairs, service,

maintenance, modifications or use of parts or accessories not

manufactured or approved by BRP or resulting from repairs done

by a person that is not an authorized servicing BRP dealer;

Damage caused by abuse, abnormal use, neglect, use of the prod-

uct on surfaces other than snow, or operation of the product in a

manner inconsistent with the recommended operation described in

the Operator’s Guide;

Damage resulting from accident, submersion, fire, theft, vandalism

or any act of God;

Operation with fuels, oils or lubricants which are not suitable for

use with the product (see the Operator’s Guide);

Snow or water ingestion;

–

Incidental or consequential damages, or damages of any kind in-

cluding without limitation towing, storage, telephone, rental, taxi, in-

convenience, insurance coverage, loan payments, loss of time,

loss of income; and

Damage resulting from studs installed on tracks if the installation

does not conform to BRP’s instructions.

WARRANTY COVERAGE PERIOD

This limited warranty will be in effect from the date of delivery to the

first retail consumer or the date the product is first put into use, which-

ever occurs first and for the following period:

TWELVE (12) CONSECUTIVE MONTHS, for private or commercial

use owners. However, the warranty coverage period on a snowmobile

delivered between June 1^st and December 1^st of a given year will ex-

pire November 30^th of the following year.

For emission-related components; please also refer to the US EPA

Emission-Related Warranty contained herein.

The repair or replacement of parts or the performance of service under

this warranty does not extend the life of this warranty beyond its origi-

nal expiration date.

CONDITIONS REQUIRED FOR WARRANTY

COVERAGE

This warranty coverage is available only if each of the following condi-

tions has been fulfilled:

- The 2024 Ski-Doo snowmobile must be purchased as new and un-

used by its first owner from a BRP dealer authorized to distribute

Ski-Doo snowmobiles in the country in which the sale occurred

(“BRP dealer”);

293

BRP LIMITED WARRANTY USA AND CANADA: 2024 SKI-DOO^®

SNOWMOBILES

- The BRP specified pre-delivery inspection process must be com-

pleted and documented and signed by the purchaser;

- The 2024 Ski-Doo snowmobile must have undergone proper regis-

tration by an authorized BRP dealer;

- The 2024 Ski-Doo snowmobile must be purchased in the country

in which the purchaser resides; and

- Routine maintenance outlined in the Operator’s Guide must be

timely performed in order to maintain warranty coverage. BRP re-

serves the right to make warranty coverage contingent upon proof

of proper maintenance.

BRP will not honor this limited warranty to any private use owner or

commercial use owner if one of the preceding conditions has not been

met. Such limitations are necessary in order to allow BRP to preserve

both the safety of its products, and also that of its consumers and the

general public.

WHAT TO DO TO OBTAIN WARRANTY

COVERAGE

The customer must cease using the snowmobile upon the appearance

of an anomaly. The customer must notify a servicing BRP dealer with-

in three (3) days of the appearance of a defect, and provide it with rea-

sonable access to the product and reasonable opportunity to repair it.

The customer must also present to the authorized BRP dealer, proof

of purchase of the product and must sign the repair/work order prior to

starting the repair in order to validate the warranty repair. All parts re-

placed under this limited warranty become the property of BRP.

WHAT BRP WILL DO

BRP’s obligations under this warranty are limited to, at its sole discre-

tion, repairing parts found defective under normal use, maintenance

and service, or replacing such parts with new genuine Ski-Doo parts

without charge for parts and labor , at any authorized BRP dealer dur-

ing the warranty coverage period under the conditions described here-

in. No claim of breach of warranty shall be cause for cancellation or

rescission of the sale of the snowmobile to the owner.

In the event that service is required outside of the country of original

sale, the owner will bear responsibility for any additional charges due

to local practices and conditions, such as, but not limited to, freight, in-

surance, taxes, license fees, import duties, and any and all other finan-

cial charges, including those levied by governments, states, territories

and their respective agencies.

BRP reserves the right to improve or modify products from time to time

without assuming any obligation to modify products previously

manufactured.

294

BRP LIMITED WARRANTY USA AND CANADA: 2024 SKI-DOO^®

SNOWMOBILES

TRANSFER

If the ownership of a product is transferred during the warranty cover-

age period, this limited warranty, subject to its terms and conditions,

shall also be transferred and be valid for the remaining coverage peri-

od provided BRP or an authorized Ski-Doo Distributor/Dealer receives

a proof that the former owner agreed to the transfer of ownership, in

addition to the co-ordinates of the new owner.

CONSUMER ASSISTANCE

In the event of a controversy or a dispute in connection with this limited

warranty, BRP suggests that you try to resolve the issue at the dealer-

ship level. We recommend discussing the issue with the authorized

dealer's service manager or owner.

If the matter still remains unresolved, contact BRP by filling out the

customer contact form at www.brp.com or contact BRP by mail at one

of the addresses listed under the CONTACT US section of this guide.

295

US EPA EMISSION-RELATED WARRANTY

Bombardier Recreational Products Inc. (“BRP”) warrants to the ulti-

mate purchaser and each subsequent purchaser that this new engine,

including all parts of its exhaust emission-control system and its evap-

orative emission-control system, meets two conditions:

1. It is designed, built, and equipped so it conforms at the time of sale

to the ultimate purchaser with the requirements of 40 CFR 1051

and 40 CFR 1060.

2. It is free from defects in materials and workmanship that may keep

it from meeting the requirements of 40 CFR 1051 and 40 CFR

1060.

Where a warrantable condition exists, BRP will repair or replace, as it

elects, any part or component with a defect in materials or workman-

ship that would increase the engine’s emissions of any regulated pol-

lutant within the stated warranty period at no cost to the owner,

including expenses related to diagnosing and repairing or replacing

emission-related parts. All defective parts replaced under this warranty

become the property of BRP.

For all emission-related warranty claims, BRP is limiting the diagnosis

and repair of emission-related parts to the authorized Ski-Doo dealers,

unless for emergency repairs as required by item 2 of the following

list.

As a certifying manufacturer, BRP will not deny emission-related war-

ranty claims based on any of the following:

1. Maintenance or other service BRP or BRP's authorized facilities

performed.

2. Engine/equipment repair work that an operator performed to cor-

rect an unsafe, emergency condition attributable to BRP as long as

the operator tries to restore the engine/equipment to its proper con-

figuration as soon as possible.

3. Any action or inaction by the operator unrelated to the warranty

claim.

4. Maintenance that was performed more frequently than BRP

specify.

5. Anything that is BRP fault or responsibility.

6. The use of any fuel that is commonly available where the equip-

ment operates unless BRP written maintenance instructions state

that this fuel would harm the equipment’s emission control system

and operators can readily find the proper fuel. See maintenance in-

formation section and fuel requirements of fueling section.

Emission-Rellated Warranty Periiod

The emission-related warranty is valid for the following period which-

ever comes first:

296

US EPA EMISSION-RELATED WARRANTY

Kilo

hours

months

meters

Exhaust emission-related

200

4000

components

Evaporative emission-related

N/A

components

Components Covered

The emission-related warranty covers all components whose failure

would increase an engine’s emissions of any regulated pollutant, in-

cluding the following listed components:

For exhaust emissions, emission-related components include any

engine parts related to the following systems:

- Air-induction system

- Fuel system

- Ignition system

- Exhaust gas recirculation systems

The following parts are also considered emission-related compo-

nents for exhaust emissions:

- Aftertreatment devices

- Crankcase ventilation valves

- Sensors

- Electronic control units

The following parts are considered emission-related components

for evaporative emissions:

- Fuel tank

- Fuel cap

- Fuel line

- Fuel line fittings

- Clamps*

- Pressure relief valves*

- Control valves*

- Control solenoids*

- Electronic controls*

- Vacuum control diaphragms*

- Control cables*

- Control linkages*

- Purge valves

- Vapor hoses

- Liquid/vapor separator

- Carbon canister

- Canister mounting brackets

297

US EPA EMISSION-RELATED WARRANTY

- Carburetor purge port connector

NOTE:

*As related to the evaporative emission control system

4. Emission-related components also include any other part whose

only purpose is to reduce emissions or whose failure will increase

emissions without significantly degrading engine/equipment

performance.

Limited Appllicabillity

As a certifying manufacturer, BRP may deny emission-related war-

ranty claims for failures that have been caused by the owner’s or oper-

ator’s improper maintenance or use, by accidents for which the

manufacturer has no responsibility, or by acts of God. For example, an

emission-related warranty claim need not be honored for failures that

have been directly caused by the operator’s abuse of the engine/

equipment or the operator’s use of the engine/equipment in a manner

for which it was not designed and are not attributable to the manufac-

turer in anyway.

If you have any question regarding your warranty rights and responsi-

bility or for the name and location of the nearest authorized BRP deal-

er, you should contact BRP by filling out the customer contact form at

www.brp.com or contact BRP by mail at one of the addresses listed

under the CONTACT US section of this guide, or call at

1-888-272-9222.

298

BRP INTERNATIONAL LIMITED WARRANTY:

2024 SKI-DOO® SNOWMOBILES

SCOPE OF THE LIMITED WARRANTY

Bombardier Recreational Products Inc. (“BRP”) warrants its 2024

Ski-Doo snowmobiles sold by distributors or dealers authorized by

BRP to distribute Ski-Doo snowmobiles ("Ski-Doo Distributor/Deal-

er") outside of the fifty United States, Canada, members of the Euro-

pean Economic Area (which is comprised of the member states of the

European Union plus the United Kingdom, Norway, Iceland and Liech-

tenstein) (“EEA”), members states of the Commonwealth of the Inde-

pendent States (including Ukraine and Turkmenistan) ("CIS") and

Turkey, from defects in material or workmanship for the period and

under the conditions described below.

Non-factory installed parts and accessories are not covered under this

limited warranty. Please refer to the applicable parts and accessories

limited warranty text.

This limited warranty will become null and void if: (1) the snowmobile

was used for racing or any other competitive activity, at any point,

even by a previous owner; or (2) the snowmobile has been altered or

modified in such a way so as to adversely affect its operation, perform-

ance or durability, or has been altered or modified to change its in-

tended use.

LIMITATIONS OF LIABILITY

TO THE EXTENT PERMITTED BY LAW, THIS WARRANTY IS

EXPRESSLY GIVEN AND ACCEPTED IN LIEU OF ANY AND

ALL OTHER WARRANTIES, EXPRESSED OR IMPLIED, IN-

CLUDING WITHOUT LIMITATION ANY WARRANTY OF MER-

CHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE.

TO THE EXTENT THAT THEY CANNOT BE DISCLAIMED, THE

IMPLIED WARRANTIES ARE LIMITED IN DURATION TO THE

LIFE OF THE EXPRESS WARRANTY. INCIDENTAL AND CON-

SEQUENTIAL DAMAGES ARE EXCLUDED FROM COVERAGE

UNDER THIS WARRANTY. SOME JURISDICTIONS DO NOT

ALLOW FOR THE DISCLAIMERS, LIMITATIONS AND EXCLU-

SIONS IDENTIFIED ABOVE. AS A RESULT, THEY MAY NOT

APPLY TO YOU. THIS WARRANTY GIVES YOU SPECIFIC

RIGHTS, AND YOU MAY ALSO HAVE OTHER LEGAL RIGHTS

WHICH MAY VARY FROM COUNTRY TO COUNTRY. BRP

SHALL NOT BE HELD LIABLE IF PRODUCTS OR WARRANTY

PARTS ARE NOT AVAILABLE IN CERTAIN COUNTRIES FOR

REASONS OUTSIDE OF BRP’S CONTROL. (FOR PRODUCTS

PURCHASED IN AUSTRALIA REFER TO “FOR PRODUCTS

SOLD IN AUSTRALIA ONLY”, BELOW).

Neither the Ski-Doo Distributor/Dealer nor any other person has been

authorized to make any affirmation, representation or warranty

299

BRP INTERNATIONAL LIMITED WARRANTY: 2024 SKI-DOO^®

SNOWMOBILES

regarding the product, other than those contained in this limited war-

ranty, and if made, shall not be enforceable against BRP.

BRP reserves the right to modify this warranty at any time, being

understood that such modification will not alter the warranty conditions

applicable to the products sold while this warranty is in effect.

EXCLUSIONS – ARE NOT WARRANTED

The following are not warranted under this limited warranty under any

circumstances:

Normal wear and tear;

–

Routine maintenance items, tune ups, adjustments;

–

Damage caused by negligence or failure to provide proper mainte-

nance and/or storage, as described in the operator's guide;

Damage resulting from removal of parts, improper repairs, service,

maintenance, modifications or use of parts or accessories not

manufactured or approved by BRP which in its reasonable judge-

ment are either incompatible with the product or adversely affect

its operation, performance and durability, or resulting from repairs

done by a person that is not an authorized servicing BRP snowmo-

bile distributor/ dealer;

Damage caused by abuse, abnormal use, neglect, racing or opera-

tion of the product on surfaces other than snow, or operation of the

product in a manner inconsistent with the recommended operation

described in the Operator’s Guide;

Damage resulting from accident, submersion, fire, snow or water

ingestion, theft, vandalism or any act of God;

Operation with fuels, oils or lubricants which are not suitable for

use with the product (see the Operator’s Guide);

Damage resulting from rust, corrosion or exposure to the

elements;

Incidental or consequential damages, or damages of any kind in-

cluding without limitation towing, storage, transportation expenses,

telephone, rental, taxi, inconvenience, insurance coverage, loan

payments, loss of time, loss of income; or time missed for down-

time experience due to service work.

And damage resulting from studs installed on tracks if the installa-

tion does not conform to BRP’s instructions.

WARRANTY COVERAGE PERIOD

This warranty will be in effect from (1) the date of delivery to the first

retail consumer or (2) the date the product is first put into use, which-

ever occurs first and for a period of:

TWELVE (12) CONSECUTIVE MONTHS, for private or commercial

use owners. However, the warranty coverage period on a snowmobile

300

BRP INTERNATIONAL LIMITED WARRANTY: 2024 SKI-DOO^®

SNOWMOBILES

delivered between June 1^st and December 1^st of a given year will ex-

pire November 30^th of the following year.

The repair or replacement of parts or the performance of service under

this warranty does not extend the life of this warranty beyond its origi-

nal expiration date.

Note that the duration and any other modalities of the warranty cover-

age are subject to the applicable national or local legislation in the cus-

tomer's country.

FOR PRODUCTS SOLD IN AUSTRALIA ONLY

Nothing in these Warranty terms and conditions should be taken to ex-

clude, restrict or modify the application of any condition, warranty,

guarantee, right or remedy conferred or implied under the Competition

and Consumer Act 2010 (Cth), including the Australian Consumer

Law or any other law, where to do so would contravene that law, or

cause any part of these terms and conditions to be void. The benefits

given to you under this limited warranty are in addition to other rights

and remedies that you have under Australian law.

Our goods come with guarantees that cannot be excluded under the

Australian Consumer Law. You are entitled to a replacement or refund

for a major failure and for compensation for any other reasonably fore-

seeable loss or damage. You are also entitled to have the goods re-

paired or replaced if the goods fail to be of acceptable quality and the

failure does not amount to a major failure.

CONDITIONS TO HAVE WARRANTY COVERAGE

This warranty coverage is available only if each of the following condi-

tions has been fulfilled:

- The 2024 Ski-Doo snowmobile must be purchased as new and un-

used by its first owner from a Ski-Doo Distributor/Dealer authorized

to distribute Ski-Doo snowmobiles in the country in which the sale

occurred;

- The BRP specified pre-delivery inspection process must be com-

pleted, documented and signed by the purchaser;

- The product must have undergone proper registration by an au-

thorized Ski-Doo Distributor/Dealer;

- The 2024 Ski-Doo snowmobile must be purchased in the country

in which the purchaser resides.

- Routine maintenance outlined in the Operator’s Guide must be

timely performed in order to maintain warranty coverage. BRP re-

serves the right to make warranty coverage contingent upon proof

of proper maintenance.

BRP will not honour this limited warranty to any private use owner or

commercial use owner if one of the preceding conditions has not been

301

BRP INTERNATIONAL LIMITED WARRANTY: 2024 SKI-DOO^®

SNOWMOBILES

met. Such limitations are necessary in order to allow BRP to preserve

both the safety of its products, and also that of its consumers and the

general public.

WHAT TO DO TO OBTAIN WARRANTY

COVERAGE

The customer must cease using the snowmobile upon the appearance

of an anomaly. The customer must notify a servicing BRP snowmobile

distributor/ dealer within two (2) months of the appearance of a defect,

and provide it with reasonable access to the product and reasonable

opportunity to repair it. The customer must also present to the author-

ized BRP snowmobile distributor/ dealer, proof of purchase of the

product and must sign the repair/work order prior to starting the repair

in order to validate the warranty repair. All parts replaced under this

limited warranty become the property of BRP.

Note that the notification period is subject to the applicable national or

local legislation in customer's country.

WHAT BRP WILL DO

To the extent permitted by law, BRP’s obligations under this warranty

are limited to, at its sole discretion, repairing parts found defective

under normal use, maintenance and service, or replacing such parts

with new genuine Ski-Doo parts without charge for parts and labour, at

any authorized Ski-Doo Distributor/Dealer during the warranty cover-

age period under the conditions described herein. BRP’s responsibility

is limited to making the required repairs or replacements of parts. No

claim of breach of warranty shall be cause for cancellation or rescis-

sion of the sale of the snowmobile to the owner. You may have other

legal rights which may vary from country to country.

In the event that service is required outside of the country of original

sale, the owner will bear responsibility for any additional charges due

to local practices and conditions, such as, but not limited to, freight, in-

surance, taxes, license fees, import duties, and any and all other finan-

cial charges, including those levied by governments, states, territories

and their respective agencies.

BRP reserves the right to improve or modify products from time to time

without assuming any obligation to modify products previously

manufactured.

TRANSFER

If the ownership of a product is transferred during the warranty cover-

age period, this limited warranty, subject to its terms and conditions,

shall also be transferred and be valid for the remaining coverage peri-

od provided BRP or an authorized Ski-Doo Distributor/Dealer receives

302

BRP INTERNATIONAL LIMITED WARRANTY: 2024 SKI-DOO^®

SNOWMOBILES

a proof that the former owner agreed to the transfer of ownership, in

addition to the co-ordinates of the new owner.

CONSUMER ASSISTANCE

In the event of a controversy or a dispute in connection with this limited

warranty, BRP suggests that you try to resolve the issue at the Ski--

Doo Distributor/Dealer level. We recommend discussing the issue with

the authorized Ski-Doo Distributor/Dealer's service manager or owner.

If the matter still remains unresolved, contact BRP by filling out the

customer contact form at www.brp.com or contact BRP by mail at one

of the addresses listed under the CONTACT US section of this guide.

303

BRP LIMITED WARRANTY FOR THE

EUROPEAN ECONOMIC AND THE

COMMONWEALTH OF THE INDEPENDENT

STATES (CIS) AREAS AND TURKEY: 2024

SKI-DOO® SNOWMOBILES

SCOPE OF THE LIMITED WARRANTY

Bombardier Recreational Products Inc. (“BRP”) warrants its 2024

Ski-Doo snowmobiles sold by distributors or dealers authorized by

BRP to distribute Ski-Doo snowmobiles ("Ski-Doo Distributor/Deal-

er") in member states of the European Economic Area (which is com-

prised of the member states of the European Union plus the United

Kingdom, Norway, Iceland and Liechtenstein) ("EEA"), in member

states of the Commonwealth of the Independent States (including Uk-

raine and Turkmenistan) ("CIS") and Turkey from defects in material

or workmanship for the period and under the conditions described

below.

Non-factory installed parts and accessories are not covered under this

limited warranty. Please refer to the applicable parts and accessories

limited warranty text.

This limited warranty will become null and void if: (1) the snowmobile

was used for racing or any other competitive activity, at any point,

even by a previous owner; or (2) the snowmobile has been altered or

modified in such a way so as to adversely affect its operation, perform-

ance or durability, or has been altered or modified to change its in-

tended use.

LIMITATIONS OF LIABILITY

TO THE EXTENT PERMITTED BY LAW, THIS WARRANTY IS

EXPRESSLY GIVEN AND ACCEPTED IN LIEU OF ANY AND

ALL OTHER WARRANTIES, EXPRESSED OR IMPLIED, IN-

CLUDING WITHOUT LIMITATION ANY WARRANTY OF MER-

CHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE.

TO THE EXTENT THAT THEY CANNOT BE DISCLAIMED, THE

IMPLIED WARRANTIES ARE LIMITED IN DURATION TO THE

LIFE OF THE EXPRESS WARRANTIES. INCIDENTAL AND

CONSEQUENTIAL DAMAGES ARE EXCLUDED FROM COVER-

AGE UNDER THIS WARRANTY. SOME JURISDICTIONS DO

NOT ALLOW FOR THE DISCLAIMERS, LIMITATIONS AND EX-

CLUSIONS IDENTIFIED ABOVE. AS A RESULT, THEY MAY

NOT APPLY TO YOU. THIS WARRANTY GIVES YOU SPECIFIC

RIGHTS, AND YOU MAY ALSO HAVE OTHER LEGAL RIGHTS

WHICH MAY VARY FROM COUNTRY TO COUNTRY. BRP

SHALL NOT BE HELD LIABLE IF PRODUCTS OR WARRANTY

PARTS ARE NOT AVAILABLE IN CERTAIN COUNTRIES FOR

REASONS OUTSIDE OF BRP’S CONTROL.

304

Neither the Ski-Doo Distributor/Dealer nor any other person has been

authorized to make any affirmation, representation or warranty regard-

ing the product, other than those contained in this limited warranty,

and if made, shall not be enforceable against BRP.

BRP reserves the right to modify this warranty at any time, being

understood that such modification will not alter the warranty conditions

applicable to the products sold while this warranty is in effect.

EXCLUSIONS – ARE NOT WARRANTED

The following are not warranted under this limited warranty under any

circumstances:

Normal wear and tear;

–

Routine maintenance items, tune ups, adjustments;

–

Damage caused by negligence or failure to provide proper mainte-

nance and/or storage, as described in the operator's guide;

Damage resulting from removal of parts, improper repairs, service,

maintenance, modifications or use of parts or accessories not

manufactured or approved by BRP which in its reasonable judge-

ment are either incompatible with the product or adversely affect

its operation, performance and durability, or resulting from repairs

done by a person that is not an authorized servicing BRP snowmo-

bile distributor/ dealer;

Damage caused by abuse, abnormal use, neglect, racing or opera-

tion of the product on surfaces other than snow, or operation of the

product in a manner inconsistent with the recommended operation

described in the Operator’s Guide;

Damage resulting from accident, submersion, fire, snow or water

ingestion, theft, vandalism or any act of God;

Operation with fuels, oils or lubricants which are not suitable for

use with the product (see the Operator’s Guide);

Damage resulting from rust, corrosion or exposure to the

elements;

Incidental or consequential damages, or damages of any kind in-

cluding without limitation towing, storage, transportation expenses,

telephone, rental, taxi, inconvenience, insurance coverage, loan

payments, loss of time, loss of income; or time missed for down-

time experience due to service work.

And damage resulting from studs installed on tracks if the installa-

tion does not conform to BRP’s instructions.

WARRANTY COVERAGE PERIOD

This warranty will be in effect from (1) the date of delivery to the first

retail consumer or (2) the date the product is first put into use, which-

ever occurs first and for a period of:

305

TWENTY-FOUR (24) CONSECUTIVE MONTHS, for private use own-

ers and TWELVE (12) CONSECUTIVE MONTHS for commercial use

owners. However, the warranty coverage period on a snowmobile de-

livered between June 1^st and December 1^st of a given year will expire

November 30^th of the applicable year. A snowmobile is used commer-

cially when it is used in connection with generating income or any work

or employment during any part of the warranty period. A snowmobile

is also used commercially when, at any point during the warranty peri-

od, it has commercial tags or is licensed for commercial use.

The repair or replacement of parts or the performance of service under

this warranty does not extend the life of this warranty beyond its origi-

nal expiration date.

Note that the duration and any other modalities of the warranty cover-

age are subject to the applicable national or local legislation in the cus-

tomer's country.

CONDITIONS TO HAVE WARRANTY COVERAGE

This warranty coverage is available only if each of the following condi-

tions has been fulfilled:

- The 2024 Ski-Doo snowmobile must be purchased as new and un-

used by its first owner from a Ski-Doo Distributor/Dealer authorized

to distribute Ski-Doo products in the country in which the sale

occurred;

- The BRP specified pre-delivery inspection process must be com-

pleted, documented and signed by the purchaser;

- The product must have undergone proper registration by an au-

thorized Ski-Doo Distributor/Dealer;

- The 2024 Ski-Doo snowmobile must be purchased within the coun-

try (or in the case of the EEA, union of countries) in which the pur-

chaser resides; and

- Routine maintenance outlined in the Operator’s Guide must be

timely performed in order to maintain warranty coverage. BRP re-

serves the right to make warranty coverage contingent upon proof

of proper maintenance.

BRP will not honour this limited warranty to any private use owner or

commercial use owner if one of the preceding conditions has not been

met. Such limitations are necessary in order to allow BRP to preserve

both the safety of its products, and also that of its consumers and the

general public.

WHAT TO DO TO OBTAIN WARRANTY

COVERAGE

The customer must cease using the snowmobile upon the appearance

of an anomaly. The customer must notify a servicing BRP snowmobile

306

distributor/ dealer within two (2) months of the appearance of a defect,

and provide it with reasonable access to the product and reasonable

opportunity to repair it. The customer must also present to the author-

ized BRP snowmobile distributor/ dealer, proof of purchase of the

product and must sign the repair/work order prior to starting the repair

in order to validate the warranty repair. All parts replaced under this

limited warranty become the property of BRP.

Note that the notification period is subject to the applicable national or

local legislation in customer's country.

WHAT BRP WILL DO

To the extent permitted by law, BRP’s obligations under this warranty

are limited to, at its sole discretion, repairing parts found defective

under normal use, maintenance and service, or replacing such parts

without charge for parts and labour, at any authorized Ski-Doo Distrib-

utor/Dealer during the warranty coverage period under the conditions

described herein. BRP’s responsibility is limited to making the required

repairs or replacements of parts. No claim of breach of warranty shall

be cause for cancellation or rescission of the sale of the snowmobile

to the owner. You may have other legal rights which may vary from

country to country.

In the event that service is required outside of the EEA, CIS or Turkey,

the owner will bear responsibility for any additional charges due to lo-

cal practices and conditions, such as, but not limited to, freight, insur-

ance, taxes, license fees, import duties, and any and all other financial

charges, including those levied by governments, states, territories and

their respective agencies.

BRP reserves the right to improve or modify products from time to time

without assuming any obligation to modify products previously

manufactured.

TRANSFER

If the ownership of a product is transferred during the warranty cover-

age period, this limited warranty, subject to its terms and conditions,

shall also be transferred and be valid for the remaining coverage peri-

od provided BRP or an authorized Ski-Doo Distributor/Dealer receives

a proof that the former owner agreed to the transfer of ownership, in

addition to the co-ordinates of the new owner.

CONSUMER ASSISTANCE

In the event of a controversy or a dispute in connection with this limited

warranty, BRP suggests that you try to resolve the issue at the Ski--

Doo Distributor/Dealer level. We recommend discussing the issue with

the authorized Ski-Doo Distributor/Dealer's service manager or owner.

307

If the matter still remains unresolved, contact BRP by filling out the

customer contact form at www.brp.com or contact BRP by mail at one

of the addresses listed under the CONTACT US section of this guide.

ADDITIONAL TERMS AND CONDITIONS FOR FRANCE ONLY

The following terms and conditions are applicable to products sold in

France only:

The seller shall deliver goods that are complying with the contract and

shall be responsible for defects existing upon delivery. The seller shall

also be responsible for defects resulting from packaging, assembling

instructions or the installation when it is its responsibility per the con-

tract or if accomplished under its responsibility. To be compliant with

the contract, the good shall:

1. Be fit for normal use for goods similar thereto and, if applicable:

- Correspond to the description provided by the seller and have

the qualities presented to the buyer though sample or model;

- Have the qualities that a buyer may legitimately expect consid-

ering the public declarations of the seller, the manufacturer of

its representative, including in advertising or labeling; or

2. Have the characteristics mutually agreed upon as between the par-

ties or be fit for the specific use intended by the buyer and brought

to the attention of the seller and which accepted

The action for failure to comply is prescribed after two years after de-

livery of the goods. The seller is responsible for the warranty for hid-

den defects of the good sold if such hidden defects are rendering the

good unfit for the intended use, or if they diminish its use in such a

way that the buyer would not have acquired the good or would have

given a lesser price, had he known. The action for such hidden defects

shall be taken by the buyer within 2 years of the discovery of the

defect.

308

DATA PRIVACY INFORMATION

Bombardier Recreational Products inc., its affiliates and subsidiaries

(“BRP”) is committed to protecting your privacy and support a general

policy of openness about how we collect, use and disclose your per-

sonal information in the course of managing our relationship with you.

More details can be found by visiting BRP’s Privacy Policy at:

https://brp. com/en/privacy-policy. html or by scanning the QR

Code below.

Please be assured that we have appropriate security measures in

place to ensure that your personal information is protected against

loss and unauthorized access.

Your personal information that may be collected by BRP, directly from

you or from authorized dealers or authorized third parties, includes:

- Contact, Demographic & Registration Information (e.g., name,

full address, phone number, email, gender, ownership history, lan-

guage of communication)

- Vehicle Information (e.g., serial number, purchase and delivery

date, unit usage, vehicle location and movements)

- Third Party Information (e.g., information received from BRP

partners, joint-marketing activities information, social media)

- Technological Information (e.g., IP address, type of device, op-

erating system, browser type, webpages you view, cookies and

similar technologies when you use BRP or dealers’ websites or

mobile application)

- Interaction with BRP Information (e.g., information collected

when you call BRP’s in-house sales representatives, buy items on

a BRP web Site, sign up for BRP emails, participate in BRP-spon-

sored contests and sweepstakes or attend BRP-sponsored

events)

- Transactional Information (e.g., information necessary to handle

returns, payment information when you purchase our products or

services through our websites or mobile applications and other is-

sues related to your purchase of BRP products)

This information may be used and processed for the following

purposes:

- Safety & Security

- Customer Support for Sales & After Sales (e.g., complete or follow

up with you about your purchase or maintenance)

- Registration & Warranty

- Communication (e.g., sending you a BRP satisfaction survey)

- Online Behavioural Advertising, Profiling and Location-Based

Services

(e.g., offer customized experience)

- Compliance & Dispute Resolution

- Marketing & Advertising

- Assistance (e.g., help with any delivery issues, handle returns, and

other issues related to your purchase of BRP products).

310

DATA PRIVACY INFORMATION

We also may use personal information to generate aggregated or stat-

istical data that no longer identifies you personally.

Your personal information may be disclosed to the following:

BRP, BRP’s authorized dealerships, distributors, service pro-

viders, advertising & market research partners and other author-

ized third parties.

We may receive information about you from diverse sources, including

third parties, such as BRP’s authorized dealerships and partners, with

whom we offer services or engage in joint-marketing activities. We

may also receive information about you from social media platforms

such as Facebook and Twitter, when you interact with us on those

platforms.

Depending on the circumstances, your personal information may be

communicated outside the region where you reside. Your personal in-

formation is retained only for as long as necessary for the purpose for

which we obtained it and according to our retention policies.

To exercise your data privacy rights (e.g. right of access, right of recti-

fication), to withdraw your consent in order to be removed from the ad-

dress list for marketing purposes or for the satisfaction survey or for

general data privacy questions, please contact BRP’s Data Protection

Officer at or by mail at privacyofficer@brp.com or by mail at:

BRP Legal Service, 726 St-Joseph, Valcourt, Quebec, Canada, J0E

2L0.

When BRP processes your personal information, they do so in

compliance with its Privacy Policy available at: https://www.brp.

com/en/privacy-policy.html or by using the following

QR Code.

311

www.brp.com

Asiia Paciific

Australia

Level 26

477 Pitt Street

Sydney, NSW 2020

China

上海市徐汇区衡山路10号6号楼301

Rm 301, Building 6,

No.10 Heng Shan Rd,

Shanghai, China

Japan

21F Shinagawa East One Tower

2-16-1 Konan, Minato-ku-ku,

Tokyo 108-0075

New Zealand

Suite 1.6, 2-8 Osborne Street,

Newmarket, Auckland 2013

Europe, Middle East and Afriica

Belgium

Oktrooiplein 1

9000 Gent

Czech Republic

Stefanikova 43a

Prague 5

150 00

Germany

Itterpark 11

40724 Hilden

Finland

Isoaavantie 7

PL 8040

96101 Rovaniemi

France

Arteparc Bâtiment B

Route de la côte d'Azur,

13590 Meyreuil

312

Snowmobile Ski-Doo TRAIL ACE SERIES (REV GEN4). OPERATOR’S GUIDE (2024) - page 2
