BASIC PROCEDURES
3. With engine at idle speed, press and release the Start / RER
button.
4. Wait until reverse beeper sounds, then gently depress throttle
lever.
WARNING
The reverse speed is not limited. Always proceed with caution
as fast reverse could result in loss of vehicle stability. Come to
complete stop before activating the reverse. Always remain
seated and apply the brake before shifting. Ensure the path be-
hind is clear of obstacles or bystanders before proceeding.
Shifting in Forward from Reverse
1. Bring vehicle to a complete stop.
2. Apply and hold brake.
3. Press and release the RER button.
4. Apply throttle slowly and evenly. Allow drive pulley to engage then
accelerate carefully.
Shutting Off the Engiine
Release throttle lever and wait until engine has returned to idle speed.
Shut off the engine using either the emergency engine stop switch or
by pulling off the tether cord cap from the engine cut-off switch.
WARNING
Always remove the tether cord cap from engine cut-off switch
when vehicle is not in operation in order to prevent accidental
engine starting or to avoid unauthorized use by children or
others or theft.
130
RIDING CONDITIONS AND YOUR
SNOWMOBILE
Alltiitude
At factory, your snowmobile was calibrated to be used within an alti-
tude range (relative to sea level).
A new snowmobile has a tag attached to the handlebar indicating its
calibration. Refer to Safety Information on Vehicle.
If for any reason you don't know your snowmobile calibration, contact
an authorized BRP snowmobile dealer.
If your snowmobile is to be used at an altitude outside the specified
range, have it calibrated accordingly by an authorized BRP snowmo-
bile dealer.
NOTICE
An inappropriate altitude calibration would decrease perform-
ance and may cause serious damage to the snowmobile.
Temperature
The engine management of these engines provides the optimum air/
fuel ratio for all temperatures.
Hard Packed Snow
All models covered in this guide which are equipped with a minimum
track profile of 44 mm (1.75 in) are built for deep snow conditions and
should never be used during a prolonged period of time in marginal or
hard packed snow conditions.
In the event you have to ride in these types of conditions:
- Avoid exceeding a speed of 70 km/h (45 mph) in all conditions
- Avoid hard acceleration (over 75% of throttle)
- Ice scratchers should be applied
- Engine temperature should not exceed 75% on the temperature
gauge.
NOTICE
Running these types of tracks at high speed on a trail, on hard
packed surfaces or on ice puts more stress on the lugs, which
tends to heat up as a result. It also could drastically reduce the
life of specific wear parts. To avoid potential degradation, de-
lamination or damages to the track and wear parts, reduce your
speed and minimize the distance that is being ridden on these
types of surfaces.
131
RIDING CONDITIONS AND YOUR SNOWMOBILE
Vehicles Equipped with Ice Scratchers
Ice scratchers are equipped on the vehicle to increase engine cooling
efficiency, to lubricate and to cool track clips and sliders. They must
be used whenever on ice, hard packed snow, or any conditions that
do not lift enough snow particles into the rear suspension and the
tunnel.
NOTICE
Although it is not recommended to ride a snowmobile equipped
with a high lug profile track on trails or hard packed snow condi-
tions, it is highly suggested to combine idler wheels and ice
scratchers on a vehicle used in these conditions.
IMPORTANT
Ridding in these trail conditions puts the reliability of the track and
its warranty at risk
If equipped with the following track profile heights, never exceed the
recommended sustained vehicle speeds listed.
Track Profile Height
Maximum Sustained Speed
57 mm (2.25 in)
110 km/h (70 MPH)
60 mm (2.36 in)
64 mm (2.52 in)
95 km/h (60 MPH)
75 mm (3 in)
132
TUNE YOUR RIDE
Snowmobile handling and comfort depend upon multiple adjustments.
WARNING
Suspension adjustment could affect vehicle handling. Always
take time to familiarize yourself with the vehicle''s behavior after
any suspension adjustment have been made. Always adjust LH
and RH suspension components to the same setting.
Choice of suspension adjustments vary with carrying load, operator's
weight, personal preference, riding speed and field condition.
NOTE:
Some adjustments may not apply to your snowmobile.
WARNING
Before proceeding with any suspension adjustment, remember:
– Park in a safe place.
– Remove the tether cord cap from the engine cut-off switch.
– Use appropriate lifting device or have assistance to share
lifting stress. If a lifting device is not used, use proper lifting
techniques, notably using your legs force.
– Do not attempt to lift the front or rear of vehicle if it is above
your limits.
– Support front of vehicle off the ground with a suitable device
before adjusting suspension.
– Support rear of vehicle off the ground with a wide-base
snowmobile stand with a rear deflector panel.
– Make sure support device is stable and secure.
The best way to set up the suspension is to customize each adjust-
ment one at a time. Various adjustments are interrelated. It may be
necessary to readjust center spring after adjusting front springs for in-
stance. Test run the snowmobile under the same conditions; trail,
speed, snow, operator riding position, etc. Proceed methodically until
you are satisfied.
Following are guidelines to fine-tune suspension. Use suspension ad-
justment tool provided in the tool kit.
Front Suspensiion Adjustments
Ski Stance
Skis can be set to three different widths.
To obtain the different widths, place the spacers:
133
TUNE YOUR RIDE
- Inside the skis leg (narrowest ski stance setting: easiest to initiate
turn on sidehills), or
- Outside the skis leg (widest ski stance setting: most stable on cor-
ners), or
- On each side (central setting: best steering accuracy on deep
snow).

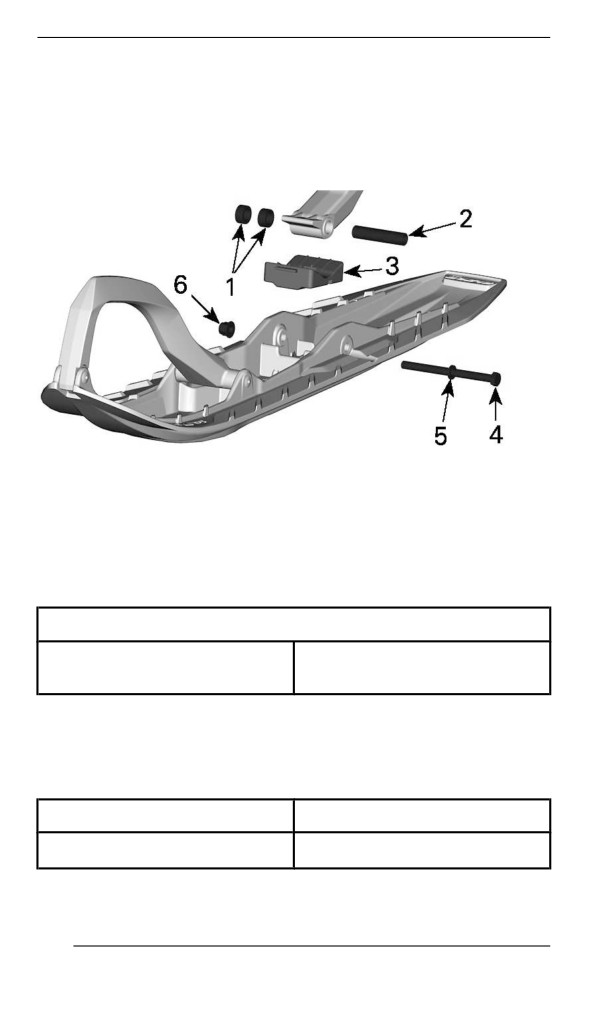

1. Spacers
2. Axle
3. Stopper
4. Screw
5. Washer
6. Nut
TIGHTENING TORQUE
48 ± 6 Nm
Ski nut
(35 ± 4 lbf-ft)
Front Springs
Front spring preload has an effect on front suspension firmness.
Front spring preload also has an effect on the steering behavior.
Action
Result
Increasing preload
Firmer front suspension
134
TUNE YOUR RIDE
Action
Result
Higher front end
More precise steering
More bump absorption
capability
Softer front suspension
Lower front end
Decreasing preload
Lighter steering
Less bump absorption
capability

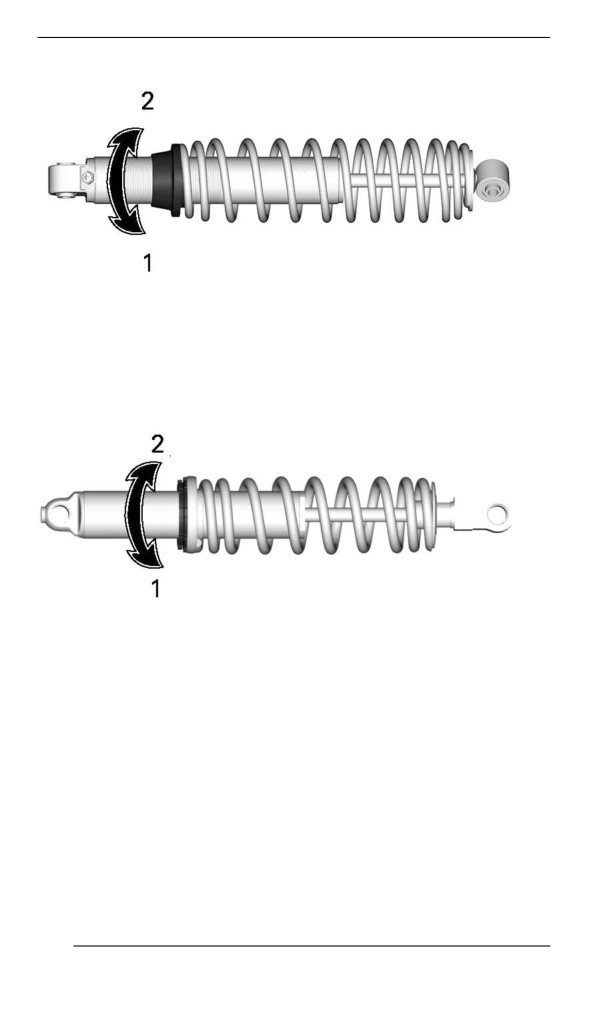

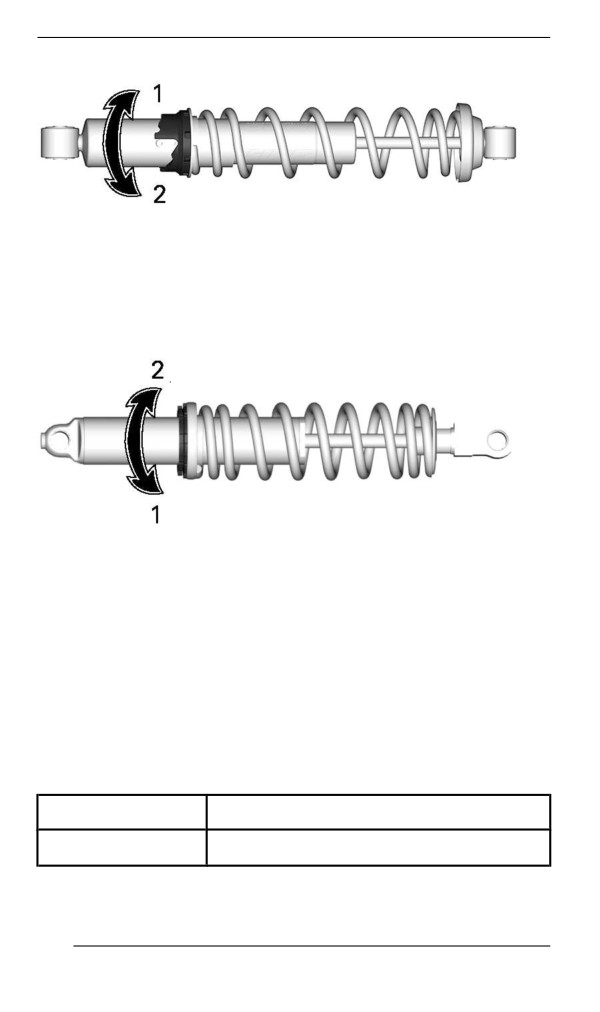

Cam Type Adjuster

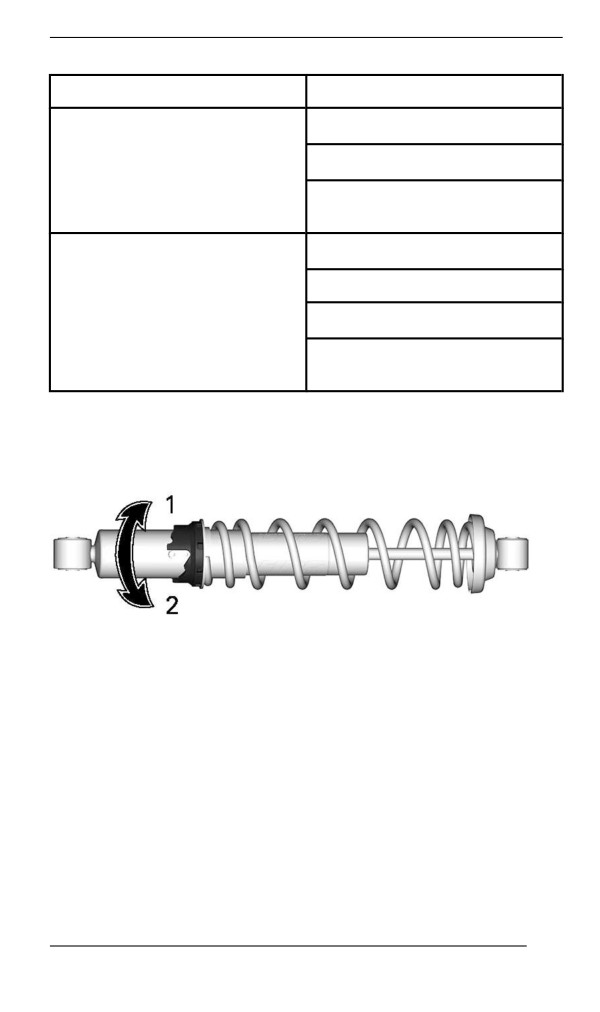

Using the suspension adjustment tool provided in the tool kit, turn the
cam to increase or decrease the spring preload.
1. Increase preload
2. Decrease preload
Ring Type 1 Adjuster
Grab and turn the ring and the spring to increase or decrease the
spring preload.
135
TUNE YOUR RIDE
1. Increase preload
2. Decrease preload
Ring Type 2 Adjuster
Grab and turn the ring and the spring to increase or decrease the
spring preload.
1. Increase preload
2. Decrease preload
136
TUNE YOUR RIDE
Rear Suspension Adjjustments

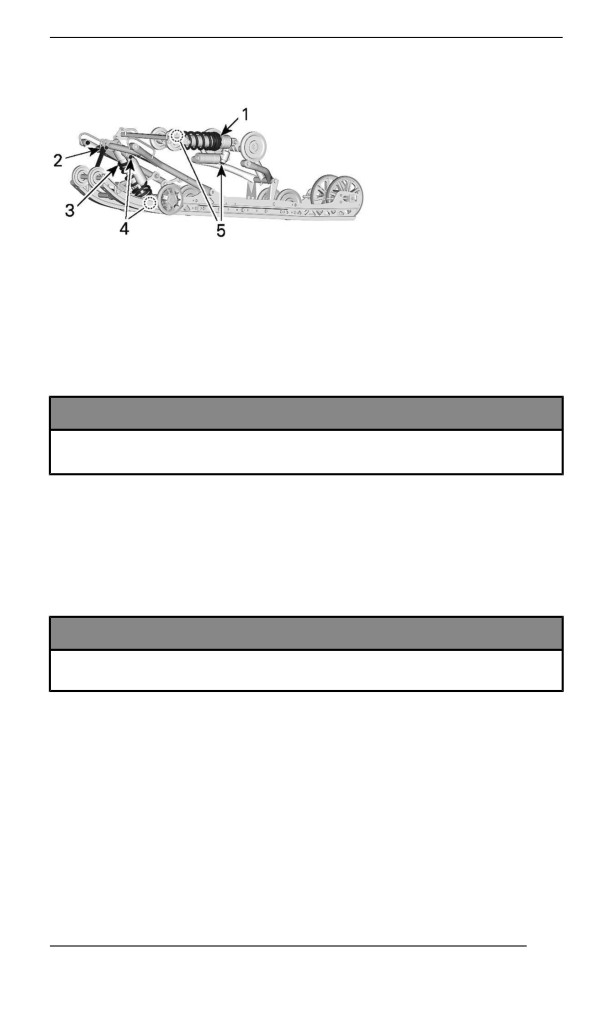

TYPICAL - ADJUSTABLE COMPONENTS
1. Rear spring
2. Stopper strap
3. Center spring
4. Center shock absorber
5. Rear shock absorber
NOTICE
Whenever adjusting rear suspension, check track tension and
adjust if necessary.
Stopper Strap
Stopper strap length has an effect on the amount of weight the center
spring has to carry especially during acceleration, therefore on the
front end uplift.
Stopper strap length also has an effect on center spring travel.
NOTICE
Whenever stopper strap length is changed, track tension must
be checked.
NOTE:
Stopper strap can be set to position 1, 2, 3 or 4. Smaller numbers cor-
respond to a longer strap setting.
137
TUNE YOUR RIDE

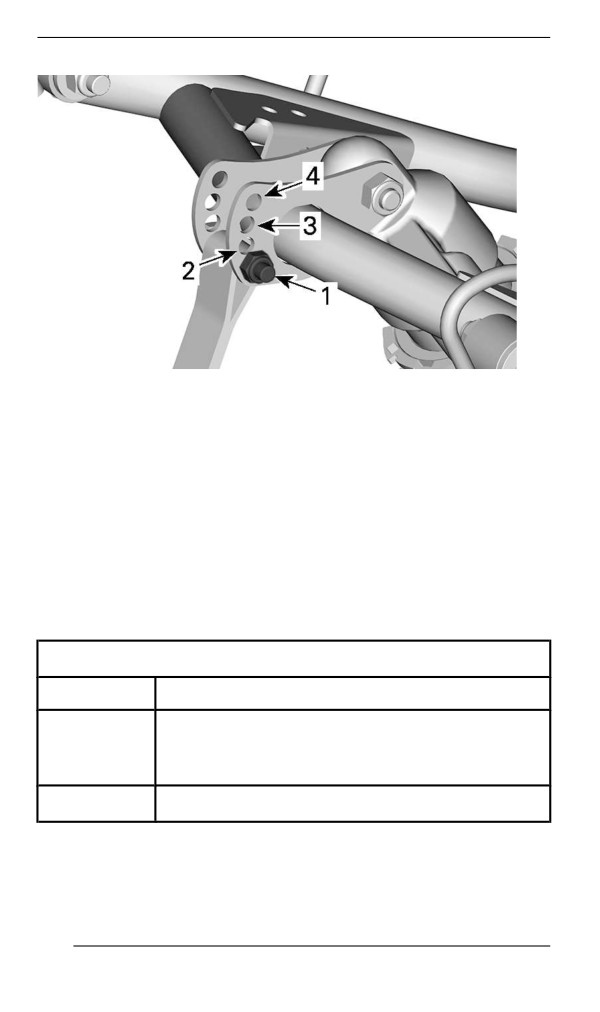

STOPPER STRAP POSITIONS
1. Position 1 (longest)
2. Position 2
3. Position 3
4. Position 4 (shortest)
When operating the snowmobile in deep snow or hill climbing, it may
be necessary to vary stopper strap length and/or riding position, to
change the angle at which the track rides on the snow. Operator's fa-
miliarity with the various adjustments as well as snow conditions will
dictate the most efficient combination.
Generally, a longer stopper strap setting gives better performance on
a flat landscape and a shorter setting will improve handling in steep hill
climbing and deep snow conditions.
Stopper Strap Setting
Position
use
Boon docking:
1
- Better bump absorption
- Lighter and easier handling on flat landscape.
2
Normal setting: Best overall setting (General use)
138
TUNE YOUR RIDE
Stopper Strap Setting
Position
use
Hill climb:
- Better track attack angle for hill climbing
3
- Better maneuverability on deep snow and on
sidehilling
Steep hill climb:
- Better track attack angle for hill climbing
4
- Less transfer
- Lower ride height
Center Spring
Center spring preload has an effect on steering effort, handling and
bump absorption.
Also, since center spring preload adjustment puts more or less pres-
sure on the front of the track, it has an effect on the performance in
deep snow.
Action
Result
Lighter steering
More bump absorption
capability
Increasing preload
Better deep snow starts
Better deep snow performance
and handling
Heavier steering
Less bump absorption
Decreasing preload
capability
Better trail handling
Cam Type Adjuster
Using the suspension adjustment tool provided in the tool kit, turn the
cam to increase or decrease the spring preload.
139
TUNE YOUR RIDE
1. Increase preload
2. Decrease preload
Ring Type Adjuster
Grab and turn the ring and the spring to increase or decrease the
spring preload.
1. Increase preload
2. Decrease preload
Rear Spring
Rear spring preload has an effect on comfort, ride height and load
compensation.
Also, adjusting rear spring preload shifts more or less weight to the
snowmobile front end. As a result, more or less weight is applied to
the skis. This has an effect on performance in deep snow, steering ef-
fort and handling.
Slight suspension bottoming occurring under the worst riding condi-
tions indicates a good choice of spring preload.
Action
Result
Increasing preload
Firmer rear suspension
140
TUNE YOUR RIDE
Action
Result
Higher rear end
More bump absorption capability
Heavier steering
Softer rear suspension
Lower rear end
Less bump absorption capability
Decreasing preload
Lighter steering
Better deep snow performance and
handling

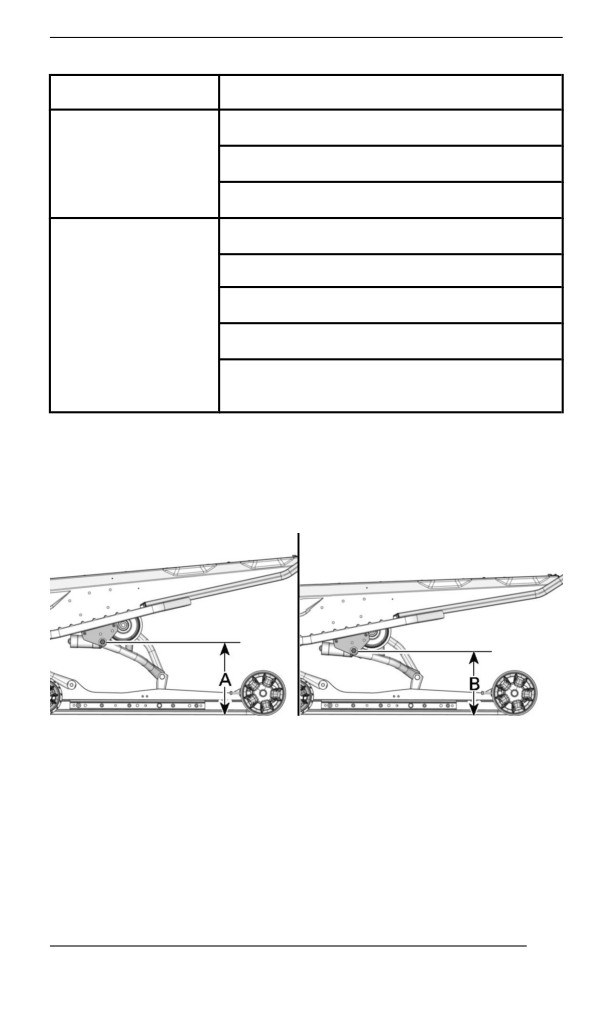

Refer to the following to determine if preload is correct.
- A = Suspension fully extended
- B = Suspension has collapsed with operator, passenger(s) and
load added
- C = Distance between dimension “A” and “B”, see table below

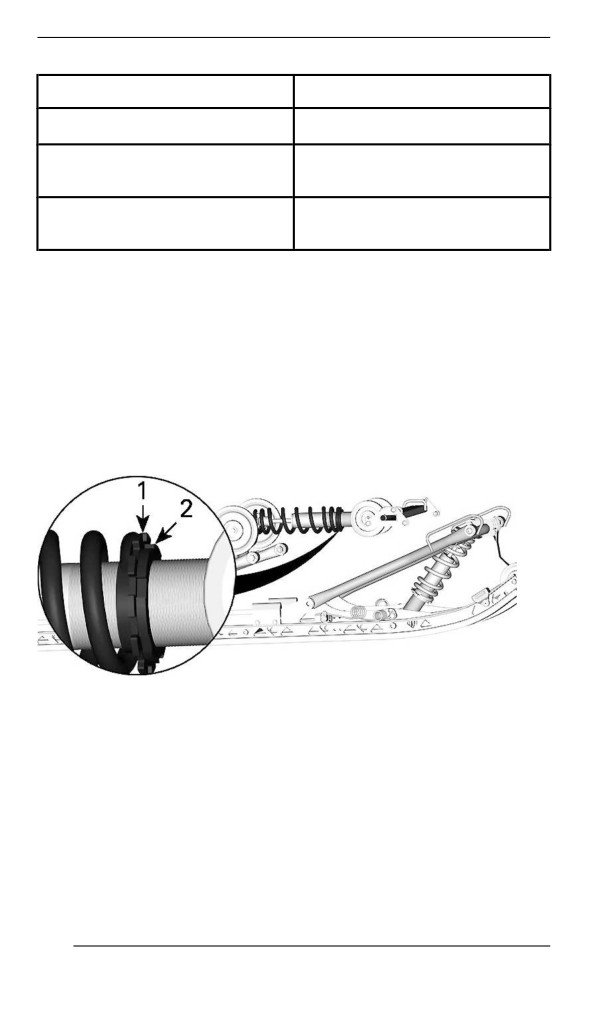

TYPICAL - DISTANCE BETWEEN GROUND AND UPPER REAR
ARM PIVOT
141
TUNE YOUR RIDE
C
What to do
90 to 100 mm (3.6 to 4 in)
No adjustment required
More than
Adjusted too soft. Increase
100 mm (4 in)
preload
Less than
Adjusted too firm. Decrease
90 mm (3.6 in)
preload
NOTE:
If the specification is unattainable with the original springs, visit an au-
thorized BRP snowmobile dealer for other available springs.
For normal setting, refer to Suspension Adjustment Table.

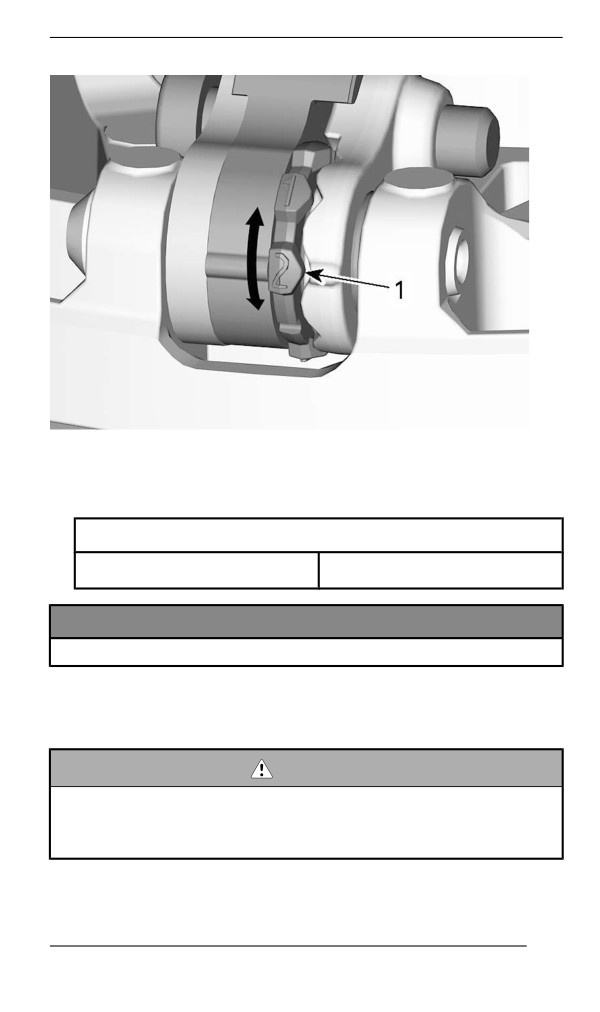

To adjust, unscrew the locking ring, then turn the adjustment ring to
set the spring preload.
When the desired preload is set, tighten the locking ring against the
adjustment ring.
1. Adjustment ring
2. Locking ring
142
TUNE YOUR RIDE
Adjustment Tiips According to Vehiiclle Behaviior
Problem
Corrective measures
Check ski alignment.
-
Reduce front suspension spring
Front suspension darting
preload.
-
Increase center spring preload.
Reduce rear spring preload.
Steering feels too heavy
-
Reduce front suspension spring
at steady speeds
preload.
-
Increase center spring preload.
-
Set coupling blocks to a lower
Steering feels too heavy
position (if equipped).
during acceleration
-
Reduce rear spring preload.
Lengthen limiter strap.
-
Set coupling blocks to a higher
Too much ski lift during
position (if equipped).
cornering or acceleration
-
Shorten limiter strap.
Increase rear spring preload.
Reduce rear spring preload.
Rear of snowmobile
-
Reduce compression damping
seems too stiff
adjustment
if equipped
Rear of snowmobile
-
Increase rear spring preload.
seems too soft
Increase compression damping
adjustment
Rear suspension is
if equipped.
frequently bottoming
-
Increase rear spring preload.
Increase center spring preload.
Lengthen limiter strap.
143
TUNE YOUR RIDE
Problem
Corrective measures
- Reduce center spring preload.
- Increase rear spring preload.
Snowmobile seems to
- Increase front suspension spring
pivot around its center
preload.
- Shorten limiter strap.
- Set coupling blocks to a lower
Track spins too much at
position (if equipped).
start
- Lengthen limiter strap.
144
MAINTENANCE
145
MAINTENANCE SCHEDULE
Maintenance is very important to keep your vehicle in safe operating
condition. The vehicle should be serviced as per the maintenance
schedule.
Proper maintenance is the owner’s responsibility. A warranty claim
may be denied if, among other things, the owner or operator caused
the problem through improper maintenance or use.
Perform periodic checks and follow the maintenance schedule. The
maintenance schedule does not exempt the pre-ride inspection.
WARNING
Failure to properly maintain the vehicle according to the main-
tenance schedule and procedures can make it unsafe to
operate.
EPA Regullatiion - Canadiian and USA Vehiiclles
A repair shop or person of the owner''s choosing may maintain,
replace, or repair emission control devices and systems. These in-
structions do not require components or service by BRP or authorized
BRP snowmobile dealers.
Although an authorized BRP snowmobile dealer has an in-depth tech-
nical knowledge and tools to service your vehicle, the emission-related
warranty is not conditioned on the use of an authorized BRP snowmo-
bile dealer or any other establishment with which BRP has a commer-
cial relationship.
Proper maintenance is the owner’s responsibility. A warranty claim
may be denied if, among other things, the owner or operator caused
the problem through improper maintenance or use.
For emission-related warranty claims, BRP is limiting the diagnosis
and repair of emission-related parts to the authorized BRP snowmo-
bile dealers. For more information, please refer to the US EPA Emis-
sions PERFORMANCE WARRANTY contained in the warranty
section.
You must follow the instructions for fuel requirements in the fueling
section of this manual. Even if gasoline containing greater than ten
volume percent ethanol is readily available, the US EPA issued a pro-
hibition against the use of gasoline containing greater than 10 vol %
ethanol that applies to this vehicle. The use of gasoline containing
greater than 10 vol% ethanol with this engine may harm the emission
control system.
146
MAINTENANCE SCHEDULE
Deep Snow/ Traiil/ Crossover/ Utiiliity Usage
Whether your vehicle is a Deep Snow, Trail, Crossover, or Utility mod-
el, these types of usage require maintenance tasks to be performed
between the regular yearly intervals. These are identified as A+ in the
chart below.
If you regularly ride deep snow and perform frequent hill climbs,
follow the A+ Deep Snow interval and perform the tasks outlined in the
chart below.
If you regularly ride in trails, explore the countryside, or work with
your snowmobile, follow the A+ Trail / Crossover / Utility interval and
perform the tasks outlined in the chart below.
147
MAINTENANCE SCHEDULE
Maiintenance Schedulle
Make sure to perform proper maintenance at recommended intervals
as indicated in the tables.
The maintenance chart indicates the items needing to be addressed
based on 2 criteria, whichever happens first:
- Calendar time
- Odometer reading.
Your driving habits determines the factors you shall adhere too. For
example:
- Someone who uses their vehicle every other weekend trail riding
with friends would most likely follow the odometer reading to de-
termine the frequency of his maintenance.
- Someone who uses their vehicle seldomly over the year or only on
a few occasions would follow the calendar time to determine the
frequency of his maintenance.
IMPORTANT: The following tables show the appropriate mainte-
nance application for the first 3 years. For subsequent years, repeat
the same pattern alternatively.
Maiintenance Overviiew
Deep Snow or
Calendar
Odometer
Trail/ Cross
Time
Over/ Utility
Every
1500 km (1000 mi)
A+
Month
1 Year
3000 km (2000 mi)
A
Every
4500 km (3000 mi)
A+
Month
2 Years
6000 km (4000 mi)
A and B
Every
7500 km (5000 mi)
A+
Month
148
MAINTENANCE SCHEDULE
E-TEC Engine (except turbo)
TRAIL /
CROSSOVER
A+
A
B
/ UTILITY
Every
Every 2
A=Adjust
Every
month
years
C=Clean
year
or
or
I=Inspect
or
1500
6000
L=Lubricate
3000 km
km
km
R=Replace
(2000
(1000
(4000
T=Torque
mi)
mi)
mi)
Air and Fuel Delivery
Fuel components (fuel
cap, hoses, clamps and
I
tank fixation) and
function*
R
In-line fuel filter
Every 5
years
Body and Chassis
Body panels and
I, T
hardware
Pivots, latches, hinges
L
and key barrels
Engine and Cooling
Engine cooling
components (coolant
concentration, coolant
I, A
level, hose condition,
clamps, leaks)*
Engine rubber mounts
I
Rewind starter (manual
C, L
start models)
R
Spark plugs
Every 3
years
149
MAINTENANCE SCHEDULE
TRAIL /
CROSSOVER
A+
A
B
/ UTILITY
Every
Every 2
A=Adjust
Every
month
years
C=Clean
year
or
or
I=Inspect
or
1500
6000
L=Lubricate
3000 km
km
km
R=Replace
(2000
(1000
(4000
T=Torque
mi)
mi)
mi)
or
10 000
km
(6000
mi)
I, C
Every 3
years
Oil injection pump
or
strainer
10 000
km
(6000
mi)
I, C
Every 3
years
or
RAVE valves
10 000
km
(6000
mi)
R
Engine coolant
Every 5
years
Exhaust and Emissions
Exhaust components
(gaskets, pipes, muffler
I
condition, leaks)*
Exhaust manifold
T
150
MAINTENANCE SCHEDULE
TRAIL /
CROSSOVER
A+
A
B
/ UTILITY
Every
Every 2
A=Adjust
Every
month
years
C=Clean
year
or
or
I=Inspect
or
1500
6000
L=Lubricate
3000 km
km
km
R=Replace
(2000
(1000
(4000
T=Torque
mi)
mi)
mi)
Brake
Brake components and
I, L
function*
R
Brake fluid
Every 2
years
Drive
Chaincase drive chain
A
A
tension
Gearbox / chaincase oil
I
I
level
Track alignment and
A
I, A
tension
Gearbox / chaincase oil
R
Continuously Variable Transmission (CVT)
CVT components and
I, C, L
function*
CVT drive belt condition
I
CVT drive belt tension
A
A
Drive pulley retaining
T
screw
Electrical
Battery connections and
I
condition
151
MAINTENANCE SCHEDULE
TRAIL /
CROSSOVER
A+
A
B
/ UTILITY
Every
Every 2
A=Adjust
Every
month
years
C=Clean
year
or
or
I=Inspect
or
1500
6000
L=Lubricate
3000 km
km
km
R=Replace
(2000
(1000
(4000
T=Torque
mi)
mi)
mi)
Electrical harness
I
routing
Headlight aim
A
Modules and applicable
I
software updates
Operation of control
I
switches and lighting
Steering and Controls
Ski runners
I
I
Gearbox position lever
I, A
operation
Steering alignment
I, A
Steering components
I
and function*
Throttle cable
A
Throttle operation
I
Suspension
Suspension components
I, L
and function*
Rear suspension limiter
R
strap
*For an extensive list of maintenance actions to be performed, refer to
the Maintenance Checklist.
152
MAINTENANCE SCHEDULE
DEEP SNOW
A+
A
B
Every 2
A=Adjust
Every
Every
years
C=Clean
month
year
or
I=Inspect
or
or
6000
L=Lubricate
1500 km
3000 km
km
R=Replace
(1000
(2000
(4000
T=Torque
mi)
mi)
mi)
Air and Fuel Delivery
Fuel components (fuel
cap, hoses, clamps and
I
tank fixation) and
function*
R
In-line fuel filter
Every 5
years
Body and Chassis
Body panels and
I, T
hardware
Pivots, latches, hinges
L
and key barrels
Engine and Cooling
Engine cooling
components (coolant
concentration, coolant
I, A
level, hose condition,
clamps, leaks)*
Engine rubber mounts
I
Rewind starter (manual
C, L
start models)
R
Every 3
years
Spark plugs
or
10 000
km
153
MAINTENANCE SCHEDULE
DEEP SNOW
A+
A
B
Every 2
A=Adjust
Every
Every
years
C=Clean
month
year
or
I=Inspect
or
or
6000
L=Lubricate
1500 km
3000 km
km
R=Replace
(1000
(2000
(4000
T=Torque
mi)
mi)
mi)
(6000
mi)
I, C
Every 3
years
Oil injection pump
or
strainer
10 000
km
(6000
mi)
I, C
Every 3
years
or
RAVE valves
10 000
km
(6000
mi)
R
Engine coolant
Every 5
years
Exhaust and Emissions
Exhaust components
(gaskets, pipes, muffler
I
condition, leaks)*
Exhaust manifold
T
Brake
Brake components and
I, L
function*
Brake fluid
R
154
MAINTENANCE SCHEDULE
DEEP SNOW
A+
A
B
Every 2
A=Adjust
Every
Every
years
C=Clean
month
year
or
I=Inspect
or
or
6000
L=Lubricate
1500 km
3000 km
km
R=Replace
(1000
(2000
(4000
T=Torque
mi)
mi)
mi)
Every 2
years
Drive
A
After the
first
75 km
(50 mi)
then
every
Chaincase drive chain
500 km
A
tension
(300 mi),
up to
then
every
1500 km
(1000
mi)
Gearbox / chaincase oil
I
level
A
After the
first
75 km
(50 mi)
then
Track alignment and
every
I, A
tension
500 km
(300 mi),
up to
then
every
1500 km
155
MAINTENANCE SCHEDULE
DEEP SNOW
A+
A
B
Every 2
A=Adjust
Every
Every
years
C=Clean
month
year
or
I=Inspect
or
or
6000
L=Lubricate
1500 km
3000 km
km
R=Replace
(1000
(2000
(4000
T=Torque
mi)
mi)
mi)
(1000
mi)
Gearbox / chaincase oil
R
Continuously Variable Transmission (CVT)
CVT components and
I, C, L
function*
CVT drive belt condition
I
CVT drive belt tension
A
A
Drive pulley retaining
T
screw
Electrical
Battery connections and
I
condition
Electrical harness
I
routing
Headlight aim
A
Modules and applicable
I
software updates
Operation of control
I
switches and lighting
Steering and Controls
Ski runners
I
Gearbox position lever
I, A
operation
Steering alignment
I, A
156
MAINTENANCE SCHEDULE
DEEP SNOW
A+
A
B
Every 2
A=Adjust
Every
Every
years
C=Clean
month
year
or
I=Inspect
or
or
6000
L=Lubricate
1500 km
3000 km
km
R=Replace
(1000
(2000
(4000
T=Torque
mi)
mi)
mi)
Steering components
I
and function*
Throttle cable
A
Throttle operation
I
Suspension
Suspension components
I, L
and function*
Rear suspension limiter
R
strap
*For an extensive list of maintenance actions to be performed, refer to
the Maintenance Checklist.
157
MAINTENANCE PROCEDURES
This section includes instructions for basic maintenance procedures.
WARNING
Turn off the engine, remove tether cord cap and follow these
maintenance procedures when performing maintenance. If you
do not follow proper maintenance procedures you can be in-
jured by hot parts, moving parts, electricity, chemicals or other
hazards.
WARNING
Should removal of a locking device be required (e.g. lock tabs,
self-locking fasteners, etc.) when undergoing disassembly/as-
sembly, always replace with a new one.
Engiine Coolant
WARNING
Never open coolant tank cap when engine is hot.
Engine Coolant Level Verification
Open the RH side panel, see Body and Seat.
Check coolant level at room temperature. Liquid should be at cold lev-
el line of coolant tank.
NOTE:
When checking level at low temperature it may be slightly lower then
the mark.
If additional coolant is necessary or if entire system has to be refilled,
refer to an authorized BRP snowmobile dealer, repair shop or person
of your own choosing.
158
MAINTENANCE PROCEDURES

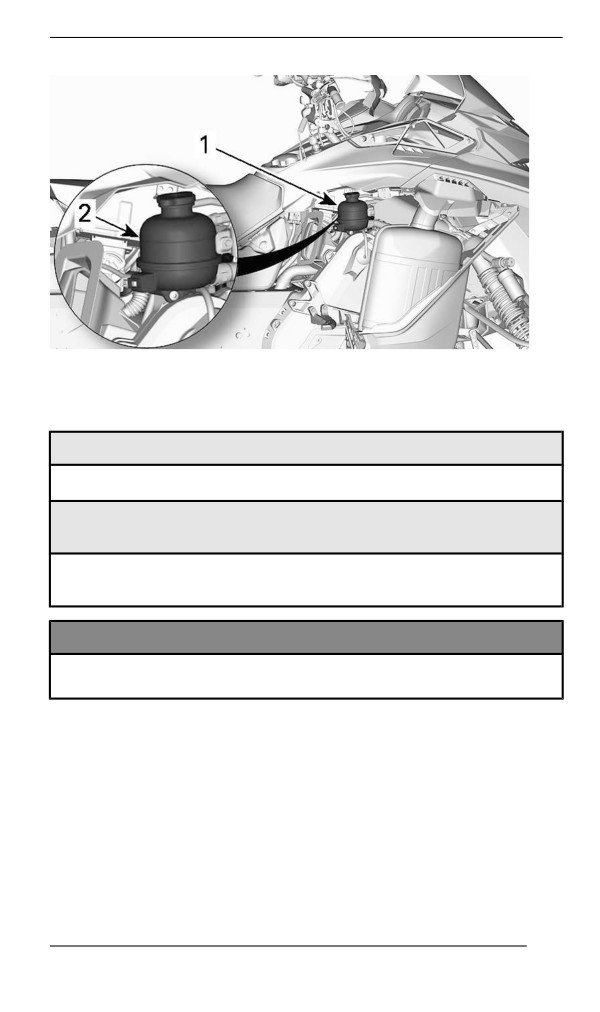

1. Coolant reservoir
2. COLD line
Recommended Engine Coolant
RECOMMENDED COOLANT
XPS Extended life pre-mixed coolant
IF THE RECOMMENDED XPS COOLANT IS NOT
AVAILABLE
Distilled water and antifreeze solution (50% distilled water, 50%
antifreeze)
NOTICE
Always use ethylene-glycol antifreeze containing corrosion in-
hibitors specifically for internal combustion aluminum engines.
Exhaust System
Exhaust System Verification
The muffler tail pipe should be centered with the exit hole in the bottom
pan. Exhaust system must be free of rust or leaks. Make sure that all
parts are securely in place.
Check retaining springs and heat shields condition and replace if
necessary.
159
MAINTENANCE PROCEDURES
The exhaust system is designed to reduce noise and to improve the
total performance of the engine. Modification may be in violation of lo-
cal laws.
NOTICE
If any exhaust system component is removed, modified or dam-
aged, severe engine damage may result.
Spark Pllugs
Spark plugs inspection or replacement may be performed by an au-
thorized BRP snowmobile dealer, repair shop, or person of your own
choosing. Spark plugs inspection or replacement requires an in-depth
technical knowledge. Though not required, it is recommended that an
authorized BRP snowmobile dealer performs spark plugs inspection
or replacement.
Brake Flluiid
Brake Fluid Level Verification
NOTICE
Vehicle must be on a level surface before checking any fluid
levels.
Check brake fluid (DOT 4) in reservoir for proper level. Add fluid (DOT
4) as required.
160
MAINTENANCE PROCEDURES
TYPICAL

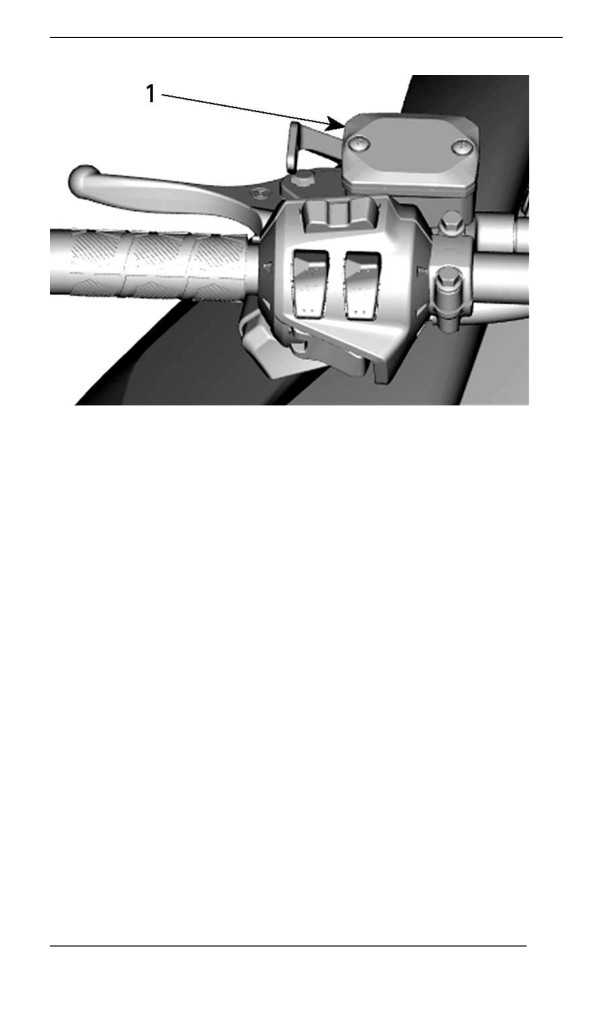

1. Brake fluid reservoir
161
MAINTENANCE PROCEDURES
TYPICAL

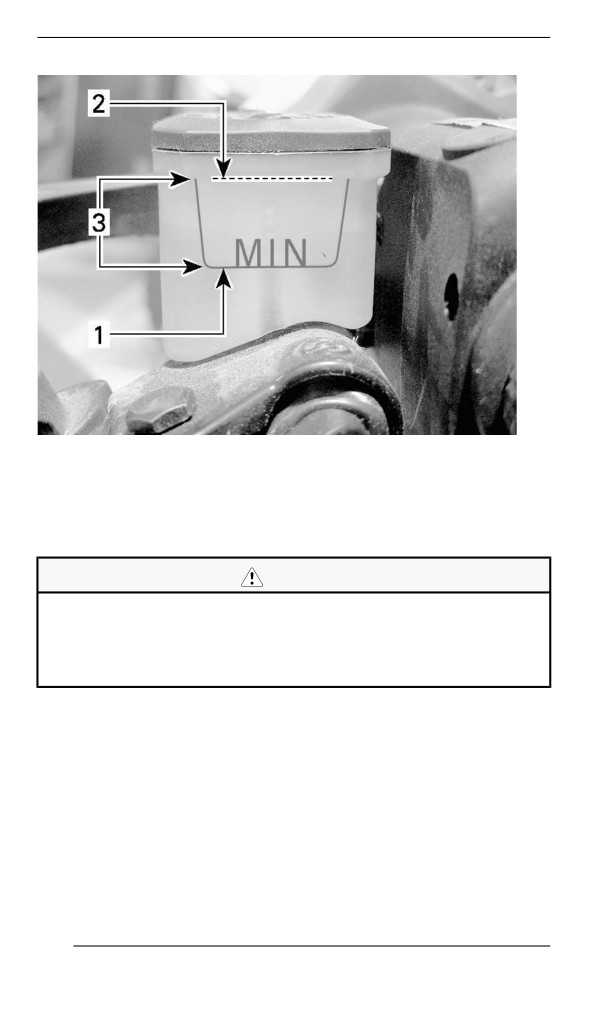

1. Minimum
2. Maximum
3. Operating range
CAUTION
Avoid getting brake fluid on skin or eyes - it may cause severe
burns. In case of contact with the skin, wash thoroughly. In
case of contact with the eyes, immediately rinse with plenty of
water for at least 10 minutes and then consult a doctor
immediately.
Recommended Fluid
Use only DOT 4 brake fluid from a sealed container. An opened con-
tainer may be contaminated or may have absorbed moisture from the
air.
162
MAINTENANCE PROCEDURES
WARNING
Use only DOT 4 brake fluid from a sealed container. To avoid
serious damage to the braking system, do not use fluids other
than the recommended one, nor mix different fluids for topping
up.
NOTICE
Brake fluid can damage painted and plastic parts. Handle with
care. Rinse thoroughly in case of spillage.
Chaincase Oiil
Recommended Chaincase Oil
Recommended Chaincase Oil
XPS Synthetic chaincase oil
Alternative or if not available
75W140 gear oil that meets the API GL-5 specification
NOTICE
If the recommended XPS chaincase oil is not available, use a
75W140 gear oil that meets the API GL-5 specification. The
chaincase of this snowmobile has been developed and vali-
dated using the XPS™ Synthetic chaincase oil. BRP strongly
recommends the use of its XPS Synthetic chaincase oil at all
times. Damages caused by oil which is not suitable for the
chaincase will not be covered by the BRP limited warranty.
Chaincase Oil Level Verification
With the vehicle on a level surface, check the oil level by removing the
check plug.
163
MAINTENANCE PROCEDURES

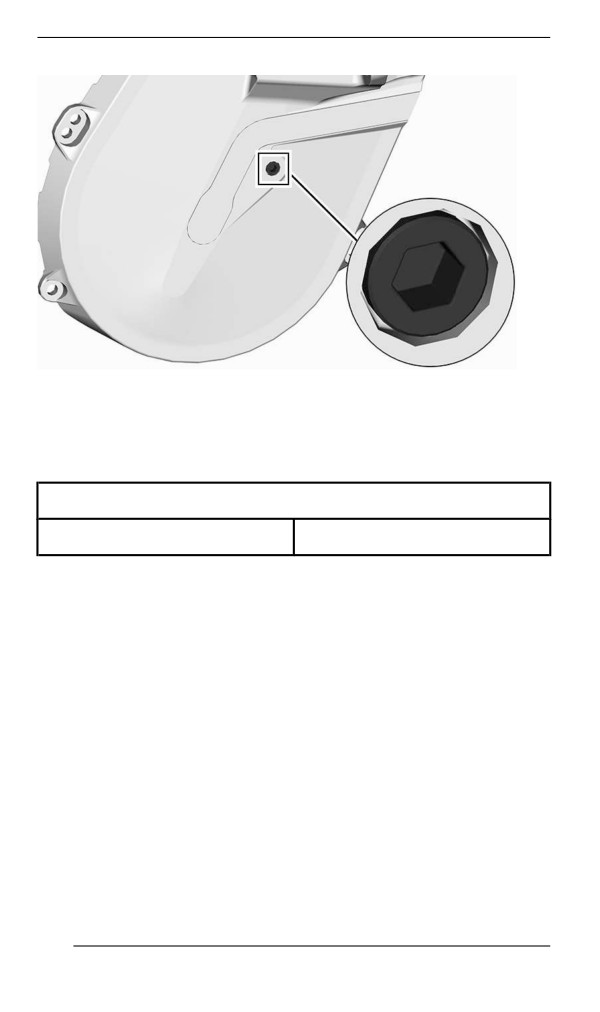

CHECK PLUG
Oil level must reach the threaded hole.
If level is correct, reinstall check plug and tighten to the specified
torque.
Tightening Torque
Check plug
6 ± 1 Nm (53 ± 9 lbf-in)
If level is insufficient, refer to Chaincase Filling Procedure.
Chaincase Oil Replacement
Chaiincase Oill Draiiniing
1. Place the vehicle on a level surface.
2. Place a drain pan under the chaincase drain plug area.
3. Remove filler cap.
4. Remove the drain plug located at the bottom of the chaincase.
164
MAINTENANCE PROCEDURES

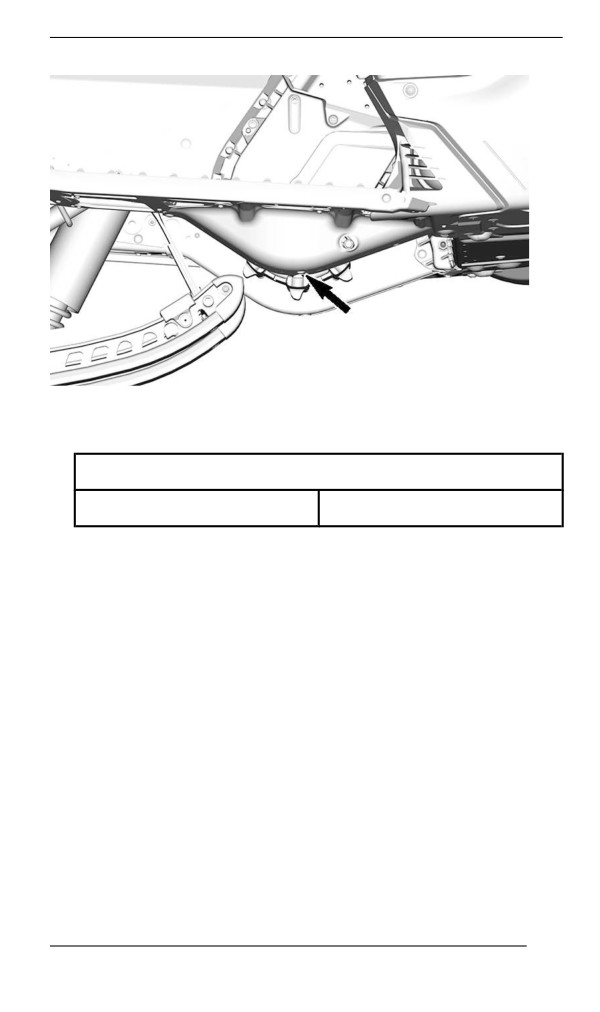

5. Wait a while to allow all oil to drain out of the chaincase.
6. Install drain plug and tighten to specification.
Tightening Torque
Chaincase drain plug
6 ± 1 Nm (53 ± 9 lbf-in)
Chaincase Fillling Procedure
1. Open the RH side panel. Refer to Equipment.
2. Remove the check plug.
165
MAINTENANCE PROCEDURES
CHECK PLUG
3. Remove the filler cap.

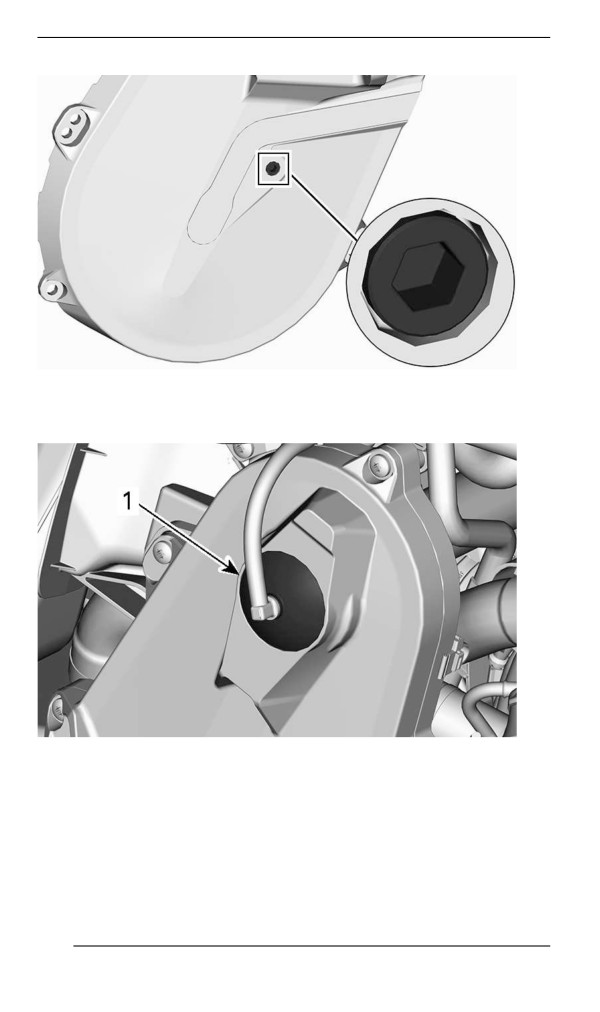

TYPICAL - TOP OF CHAINCASE
1. Filler cap
4. Pour recommended oil in the filler hole until oil comes out by the
check plug hole.
5. Reinstall check plug and tighten to specification.
166
MAINTENANCE PROCEDURES
Tightening Torque
Check plug
6 ± 1 Nm (53 ± 9 lbf-in)
Reinstall the filler cap.
Driive Chain
Access to Chaincase
Open RH side panel, refer to Equipment.
Drive Chain Adjustment
Using the Torx end of the driven pulley expander, GENTLY turn ten-
sioner clockwise to eliminate the play.
TYPICAL
Do not force the tensioner in.
NOTE:
Do not remove the hair cotter pin.
NOTICE
Overtightening the drive chain could result in severe damage to
the chaincase components.
167
MAINTENANCE PROCEDURES
Drive Belt
Drive Belt Inspection
Remove the drive belt guard. Refer to the procedure in Equipment.
Inspect belt for cracks, fraying or abnormal wear (uneven wear, wear
on one side, missing cogs, cracked fabric). If abnormal wear is noted,
probable cause could be pulley misalignment, excessive RPM with
frozen track, fast starts without warm-up period, burred or rusty
sheave, oil on belt or distorted spare belt. Contact an authorized BRP
snowmobile dealer.
Drive Belt Replacement
Removiing the Driive Belt
1. Remove tether cord cap from engine cut-off switch.
2. Remove drive belt guard. Refer to Equipment.

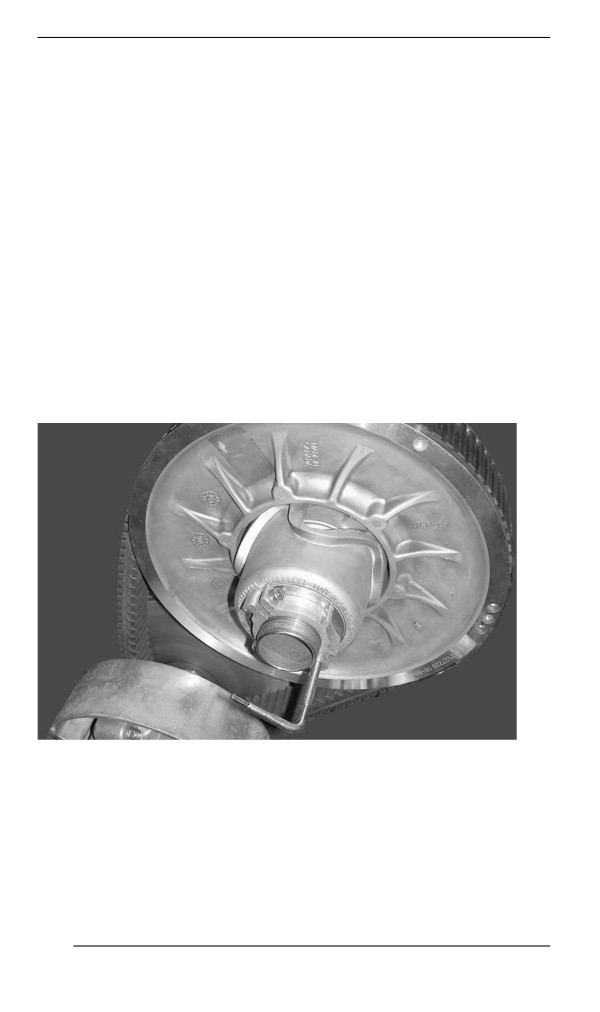

3. Insert the driven pulley expander provided in the threaded hole on
the adjuster hub as shown.

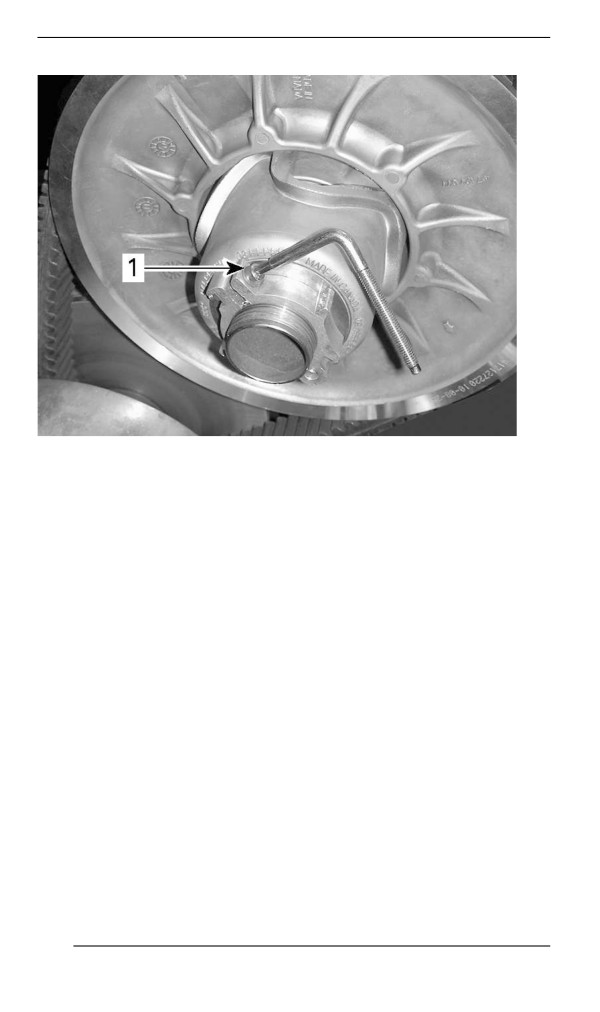

TYPICAL - PULLEY EXPANDER INSTALLED ON ADJUSTER
HUB
4. Open the driven pulley by screwing the tool in.
5. Remove the drive belt by slipping it over the top of the driven pul-
ley, then over the drive pulley.
168
MAINTENANCE PROCEDURES
Installliing the Drive Belt
1. If necessary, open the driven pulley. Refer to Removing the Drive
Belt above.
2. Slip the belt over the drive pulley, then over the driven pulley.
NOTICE
Do not force or use tools to pry the belt into place, as this could
cut or break the cords in the belt.
NOTE:
The maximum drive belt life span is obtained when belt is installed
with arrows in the direction of rotation.

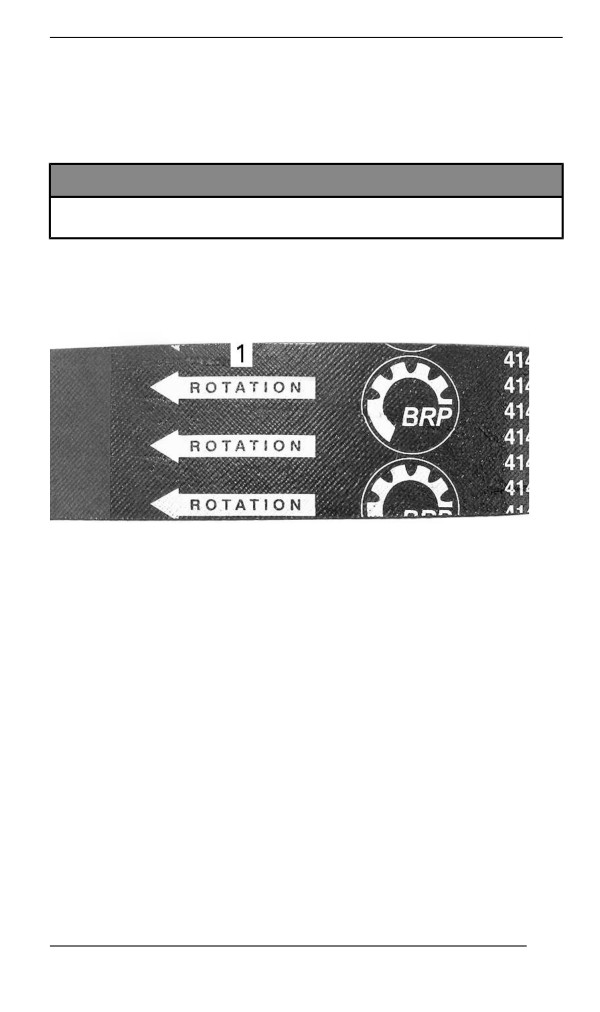

1. To be pointed in the direction of rotation
3. Unscrew and remove the driven pulley expander from the pulley.
4. Rotate the driven pulley several times to properly set the belt be-
tween the sheaves.
5. If a new belt was installed, an adjustment will be required for the
proper belt height. Refer to Adjusting the Drive Belt Height below.
6. Install belt guard. Refer to Equipment.
7. Close side panel. Refer to Body and Seat.
Drive Belt Height Adjustment
The drive belt height must be checked every time a new drive belt is
installed and as part of the pre-ride inspection.
To adjust the drive belt height, proceed as follows:
1. Remove tether cord cap from engine cut-off switch.
2. Remove drive belt guard.
3. Loosen the clamping bolt.
169
MAINTENANCE PROCEDURES

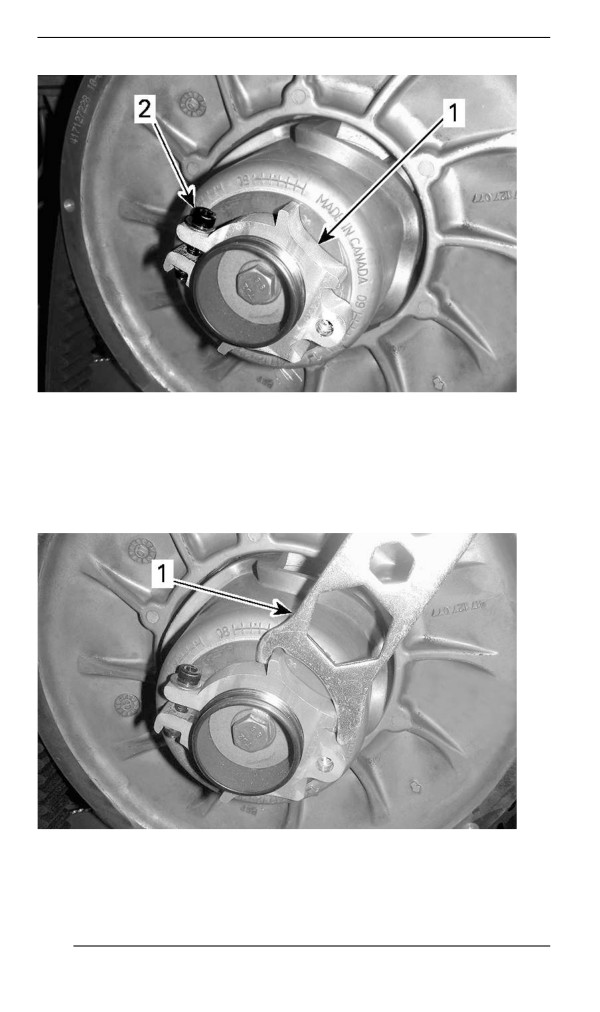

1. Adjuster hub
2. Clamping bolt
4. Using the suspension adjustment tool provided, turn the ring 1/4
turn at a time then rotate the driven pulley to properly set the drive
belt between the pulley sheaves.
1. Suspension adjustment tool
170
MAINTENANCE PROCEDURES
NOTE:
The adjustment ring has left hand treads.
Repeat step 4 until the lowest portion of the cogs on the external
surface of drive belt is even with the driven pulley edge.

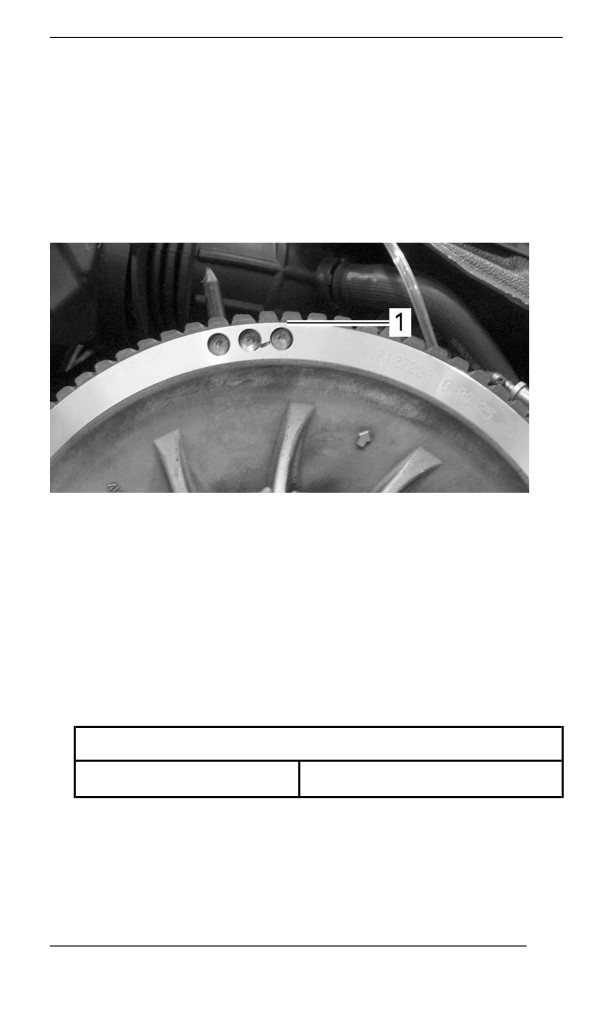

TYPICAL - PRELIMINARY SETTING
1. Lowest portion of cogs even with external surface of drive belt
NOTE:
Turning the ring counterclockwise lowers the drive belt in the pulley.
Turning the ring clockwise raises the drive belt in the pulley.
5. Firmly tighten the clamping bolt. If possible, tighten to specified tor-
que using a torque wrench.
TIGHTENING TORQUE
Clamping bolt
5.5 ± 0.5 Nm (49 ± 4 lbf-in)
171
MAINTENANCE PROCEDURES
TYPICAL

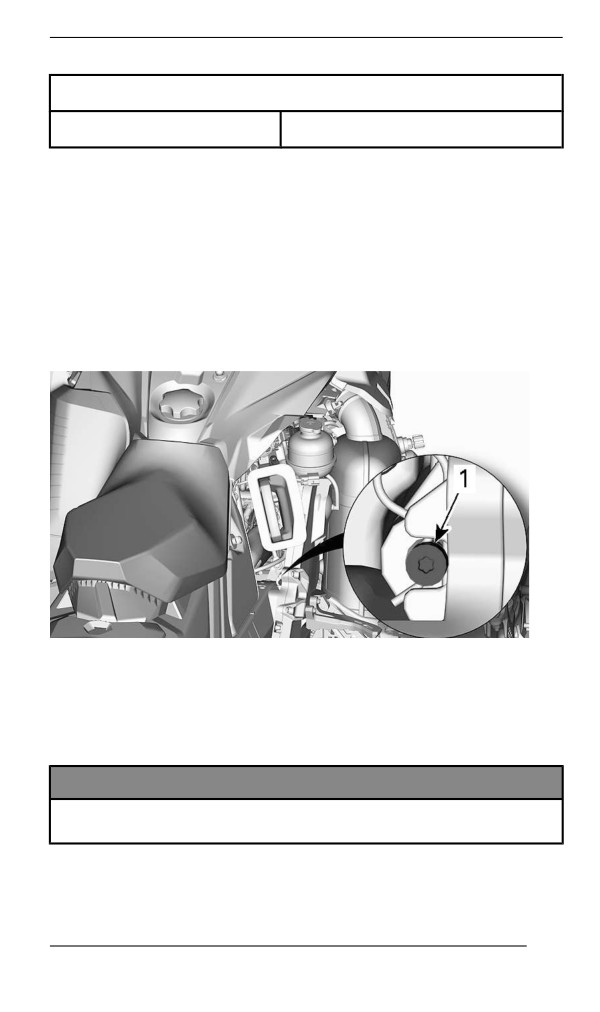

1. Clamping bolt
6. Install drive belt guard.
7. Install side panel.
NOTE:
These settings are correct as a preliminary adjustment for most mod-
els. In some cases, when starting the engine, the vehicle could creep,
indicating that the drive belt is too tight.
If the vehicle creeps, lower the drive belt height from the prelimi-
nary setting. Repeat procedure until creeping stops.
Reverse Actiivatiion
NOTE:
The reverse may not activate if the belt is positioned too high in the
driven pulley. If reverse activation does not work properly, ensure the
drive belt is properly adjusted. Adjust the drive belt lower in the driven
pulley if needed.
172
MAINTENANCE PROCEDURES
Driive Pullley
Drive Pulley Adjustment
WARNING
Remove tether cord cap from engine cut-off switch before per-
forming any adjustment. Vehicle must be parked in a safe
place, away from the trail.
WARNING
NEVER disassemble or modify the drive pulley.
Improper assembly or modifications could cause the pulley to
explode violently under the stress generated by the high rota-
tional speed.
Visit your BRP snowmobile dealer to maintain or service the
drive pulley. Improper servicing or maintenance may affect per-
formance and reduce belt life. Always respect maintenance
schedules.
The drive pulley is factory calibrated to transmit maximum engine
power at a predefined RPM. Factors such as ambient temperature, al-
titude or surface condition may vary this critical engine RPM thus af-
fecting snowmobile efficiency.
This adjustable drive pulley allows setting maximum engine RPM to
maintain maximum power.
Ramp cams should be adjusted so that actual maximum engine RPM
matches the maximum horsepower RPM. Refer to Technical Specifi-
cations (Engine).
NOTE:
Use a precision digital tachometer for engine RPM adjustment.
There are 5 positions in which the ramp cam can be set.
Each position modifies the maximum engine RPM by about 200 RPM.
Lower position numbers decrease engine RPM in steps of 200 RPM
and higher position numbers increase it in steps of 200 RPM.
Procedure
1. Refer to Body and Seat in Vehicle Information and remove:
- LH side panel
- Drive pulley guard
173
MAINTENANCE PROCEDURES
2. Locate the cam and the pivot screw on the drive pulley.
TYPICAL

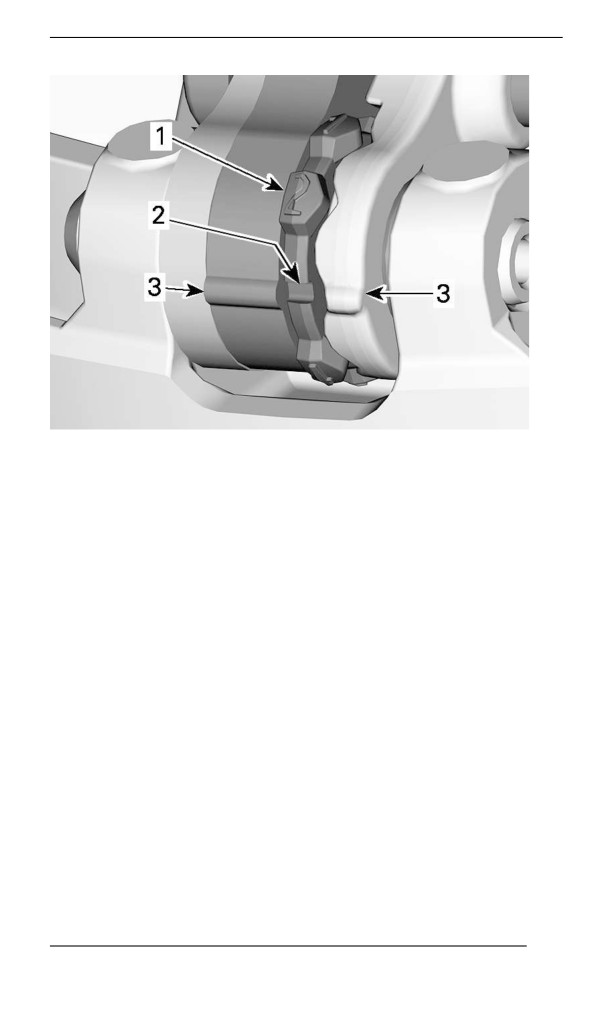

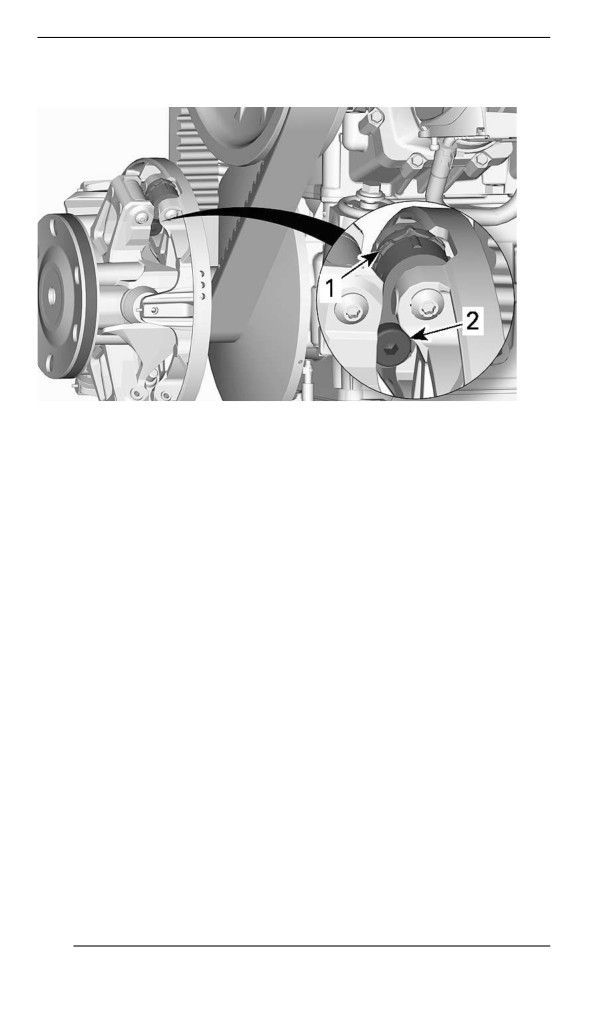

1. Cam
2. Pivot screw
The cam position is identified as follows:
- Positions 1, 2, 4 and 5 are numbered.
- Position 3 (middle) is identified by a notch.
- There are notches on each side of the cam used as pointers.
174
MAINTENANCE PROCEDURES
1. Numbered position
2. Position 3 - Notch
3. Pointers
To adjust, proceed as follows for all 3 cams:
3. Using the Allen end of the driven pulley expander, loosen the pivot
screw.
175
MAINTENANCE PROCEDURES

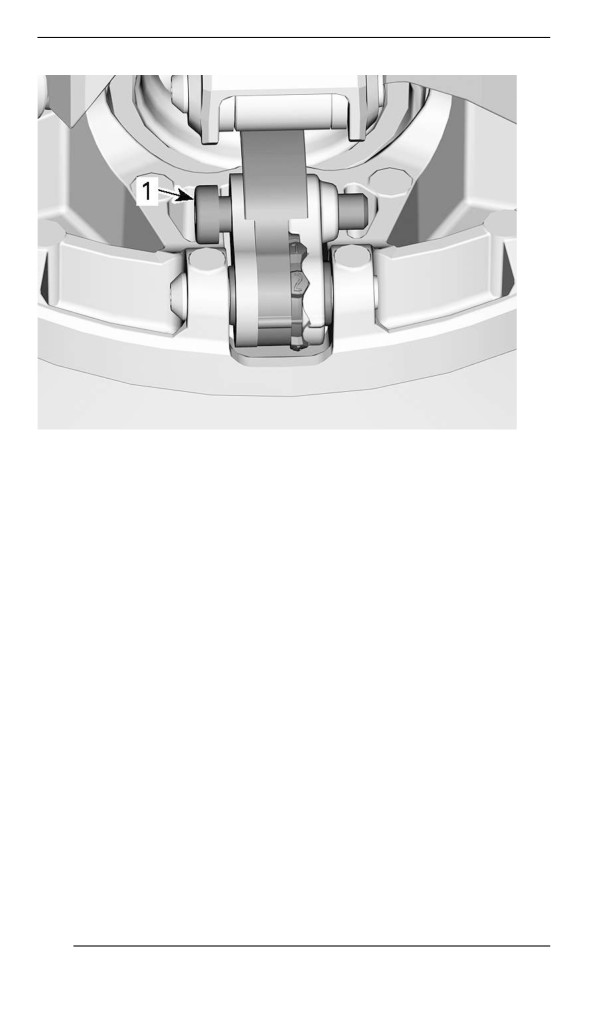

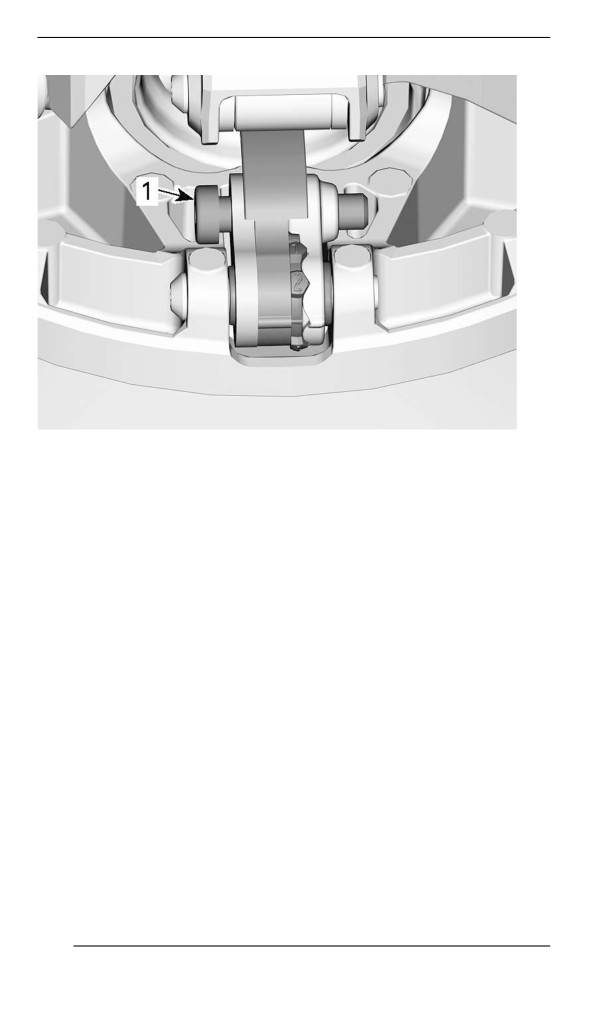

1. Pivot screw
4. Move the right lever aside to be able to turn the cam.
5. Turn cam to the desired position.
176
MAINTENANCE PROCEDURES
1. Desired cam position (here #2)
6. Tighten the pivot screw.
TIGHTENING TORQUE
Pivot
8 ± 1 Nm (71 ± 9 lbf-in)
NOTICE
Always adjust all 3 cams to the same setting.
Track
Track Condition
WARNING
Remove tether cord cap from engine cut-off switch before per-
forming any maintenance or adjustment, unless otherwise
specified. Vehicle must be parked in a safe place, away from
the trail.
Remove tether cord cap from engine cut-off switch.
177
MAINTENANCE PROCEDURES
Lift the rear of the snowmobile and support it with a wide-base snow-
mobile mechanical stand with a rear deflector panel. With the engine
off, rotate the track by hand, and inspect condition. If worn or cut, or if
track fibers are exposed, or if missing or defective inserts or guides
are noted; contact an authorized BRP snowmobile dealer.
Look for any defects, such as:
- Perforations in the track
- Tears in the track (particularly around traction holes on studded
tracks)
- Lugs that are broken or torn off, exposing portions of rods
- Delamination of the rubber
- Broken rods
- Missing track guide(s)
WARNING
Riding with a damaged track or studs could lead to a loss of
control.
Track Tension and Alignment
NOTE:
Track tension and alignment are interrelated. Do not adjust one with-
out the other.
WARNING
To prevent serious injury to individuals near the snowmobile:
– NEVER stand behind or near a moving track.
– Always use a wide-base snowmobile stand with a rear de-
flector panel if it is necessary to rotate track.
– When the track is raised off the ground, only run it at the low-
est possible speed.
Centrifugal force could cause debris, damaged or loose studs,
pieces of torn track, or an entire severed track to be violently
thrown backwards out of the tunnel with tremendous force, pos-
sibly resulting in the loss of a leg or other serious injury.
Veriifyiing the Track Tension
NOTE:
Ride the snowmobile in snow about 15 to 20 minutes prior to adjusting
track tension.
178
MAINTENANCE PROCEDURES
1. Remove tether cord cap from engine cut-off switch.
2. Lift rear of vehicle and support it off the ground.
CAUTION
Use proper lifting techniques, notably using your legs force. Do
not attempt to lift the rear of vehicle if it is above your limits.
3. Allow rear suspension to fully extend.
4. Prepare the tensiometer.

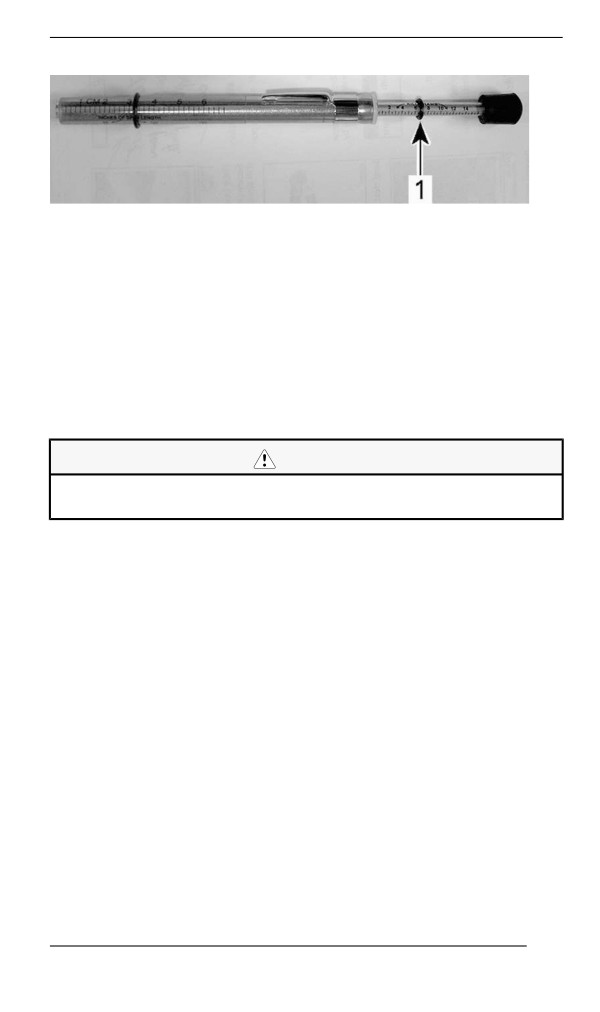

Service tool
Tensiometer (P/N 414348200)

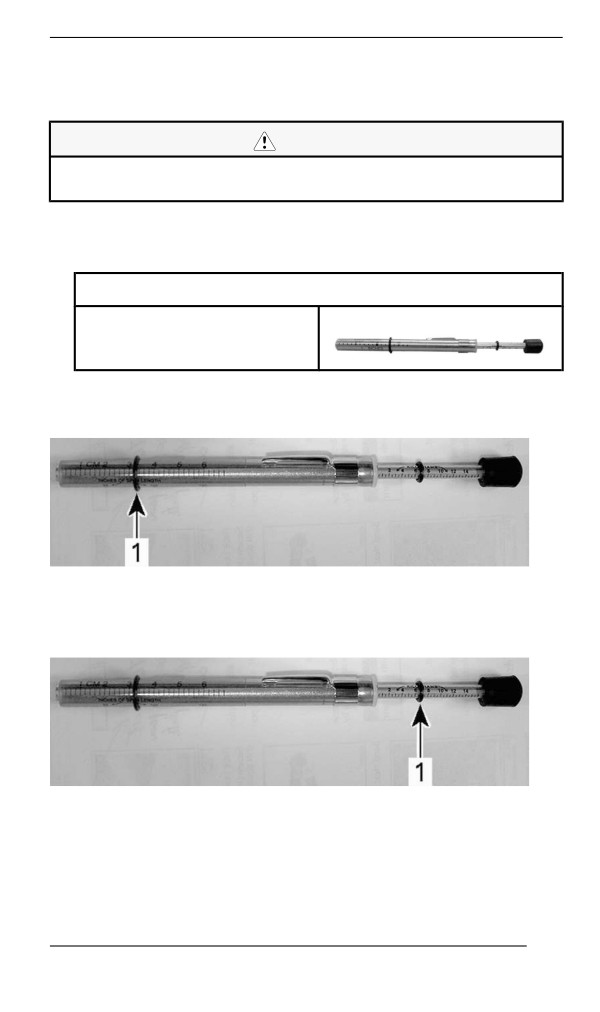

1. Set the bottom O-ring as per the Track Deflection from the ap-
plicable vehicle in the Technical Specifications table.
1. Bottom O-ring
2. Place the upper O-ring to 0 kgf (0 lbf).
1. Upper O-ring
5. Position the tensiometer on track, halfway between front and rear
idler wheels.
179
MAINTENANCE PROCEDURES
6. Push the tensiometer downwards until bottom O-ring (deflection
set earlier) be aligned with the bottom of slider shoe.
TYPICAL
TYPICAL
1. Deflection O-ring aligned with slider shoe

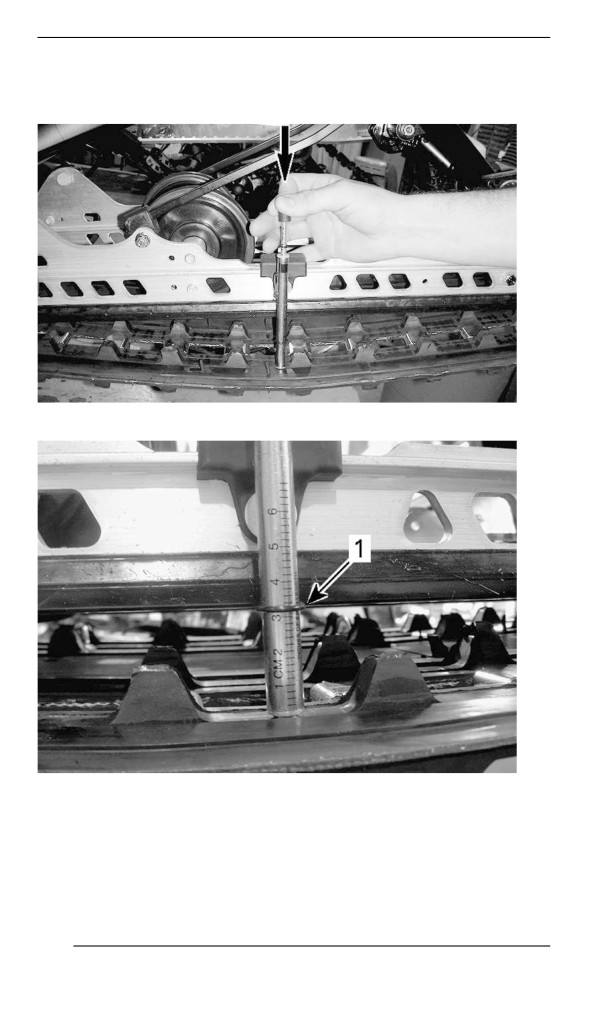

7. Read load recorded by the upper O-ring on the tensiometer.
180
MAINTENANCE PROCEDURES
TYPICAL - LOAD READING
1. Upper O-ring
8. Load reading must be as per the track deflection in the Technical
Specifications.
9. If load reading is not in accordance with the specification, adjust
track tension. Refer to Track Tension Adjustment.
Adjusting the Track Tension
1. Remove tether cord cap from engine cut-off switch.
2. Lift rear of vehicle and support it off the ground.
CAUTION
Use proper lifting techniques, notably using your legs force. Do
not attempt to lift the rear of vehicle if it is above your limits.
3. Loosen the rear axle nut.
4. Tighten or loosen both adjustment screws (equally) to increase or
decrease track tension.
181
MAINTENANCE PROCEDURES

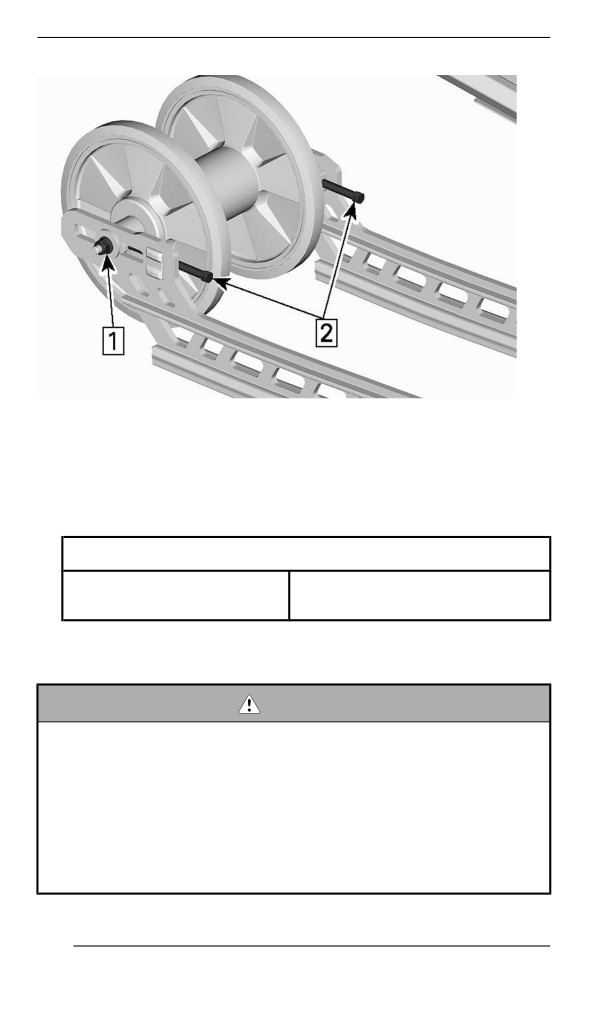

1. Loosen the axle nut
2. Tighten or loosen the adjustment screws
5. If correct tension is unattainable, contact an authorized BRP snow-
mobile dealer.
6. Retighten the rear axle nut to specification.
TIGHTENING TORQUE
Rear idler wheel retaining
48 ± 6 Nm (35 ± 4 lbf-ft)
nut and screw
7. Check track alignment as described below.
Aliigniing the Track
WARNING
Before checking track alignment, ensure that the track is free of
all particles which could be thrown out while track is rotating.
Keep hands, tools, feet and clothing clear of track. Always lift
the snowmobile on a wide-base stand with a rear deflector pan-
el. Ensure no one is standing in close proximity to the snowmo-
bile, especially at the rear of the track. Never rotate track at
high speed.
Centrifugal force could cause debris, damaged or loose studs,
pieces of torn track, or an entire severed track to be violently
thrown backwards out of the tunnel with tremendous force.
182
MAINTENANCE PROCEDURES
1. Lift rear of vehicle and support it off the ground.
CAUTION
Use proper lifting techniques, notably by using the force of your
legs . Do not attempt to lift the rear of vehicle if it is above your
limits.
2. Start engine and accelerate slightly so that track slowly turns. This
must be done in a short period of time (15 to 20 seconds).
3. Check that the track is well centered; equal distance on both sides
between edges of track guides and slider shoes.
1
2
3
A01F05A

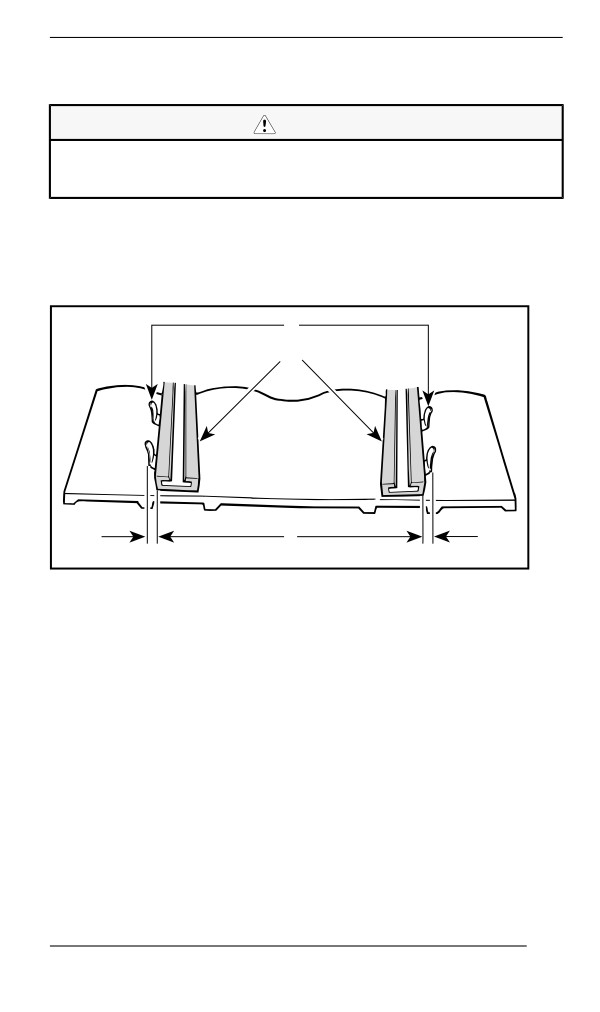

1. Guides
2. Slider shoes
3. Equal distance
4. To correct track alignment:
183
MAINTENANCE PROCEDURES
1. Guides

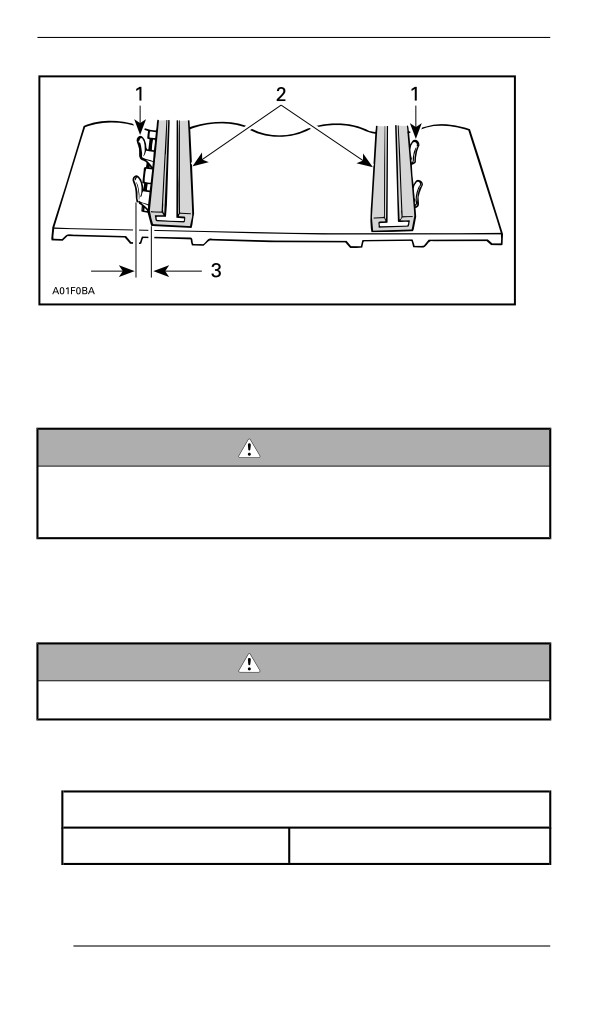

2. Slider shoes
3. Tighten on this side
1. Stop engine.
2. Remove tether cord cap from engine cut-off switch.
WARNING
Remove tether cord cap from engine cut-off switch before per-
forming any maintenance or adjustment, unless otherwise
specified. Vehicle must be parked in a safe place, away from
the trail.
3. Loosen the rear axle nut.
4. Tighten adjustment screw on side where the slider shoe is the
farthest from the track insert guides.
5. Tighten the rear axle nut.
WARNING
Properly tighten wheel retaining bolt, otherwise wheel may
come off and cause track to “lock”.
6. Restart engine and rotate track slowly to recheck alignment.
7. Tighten the rear axle nut to specified torque.
Tightening Torque
Rear axle screw
48 ± 6 Nm (35 ± 4 lbf-ft)
8. Reposition snowmobile on the ground.
184
MAINTENANCE PROCEDURES
Suspension
Rear Suspension Condition
Visually inspect all suspension components including slider shoes,
springs, wheels, etc.
NOTE:
During normal driving, snow will act as a lubricant and coolant for the
slider shoes. Extensive riding on ice or sanded snow, will create ex-
cessive heat build-up and cause premature slider shoe wear.
Suspension Stopper Strap Condition
Inspect stopper straps for wear and cracks, bolt and nut for tightness.
If loose inspect holes for deformation. Replace as required. Tighten
nut to specification.
Tightening Torque
Stopper strap nut
10 ± 1 Nm (89 ± 9 lbf-in)

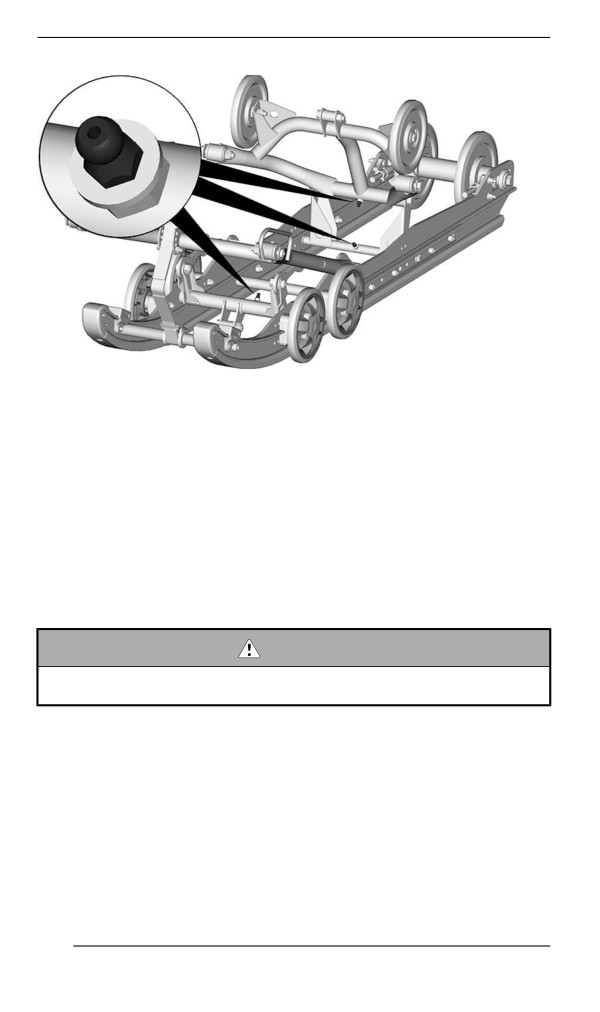

Suspension Lubrication – PPS
Lubricate the following suspension pivots at grease fittings. Refer to
MAINTENANCE SCHEDULE for maintenance frequency.
SUSPENSION GREASE
XPS Synthetic suspension grease
185
MAINTENANCE PROCEDURES
TYPICAL
Steering and Front Suspension Condition
Visually inspect steering and front suspension for tightness of compo-
nents (steering arms, control arms and links, tie rods, ball joints, ski
bolts, ski legs, etc.). If necessary, contact an authorized BRP snowmo-
bile dealer.
Skiis
Wear and Condition of Skis and Runners
Check the condition of the skis and ski runner carbides. If worn, con-
tact an authorized BRP snowmobile dealer.
WARNING
Excessively worn skis and/or ski runners will adversely affect
snowmobile control.
Fuses
Access to Fuse Block
Open RH side panel, refer to Body and Seat.
186
MAINTENANCE PROCEDURES
Fuses Location
TYPICAL

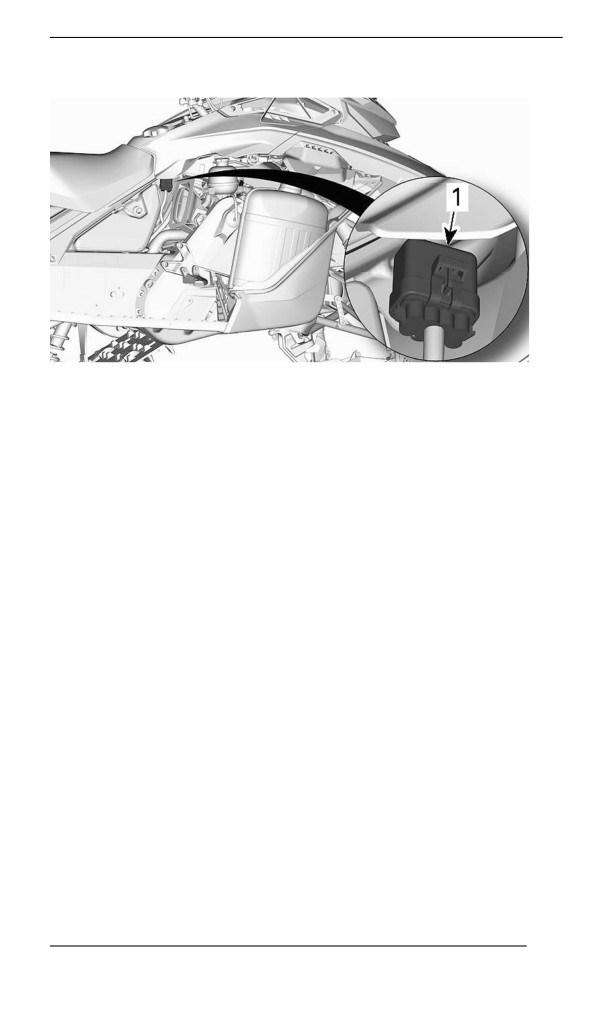

1. Fuse block
Unlock fuse block from its cover.
Refer to Technical Specifications for fuse rate and configuration.
Fuse Inspection
Check fuse condition and replace it if necessary.
To remove fuse from holder, pull fuse out. Check if filament is melted.
187
MAINTENANCE PROCEDURES

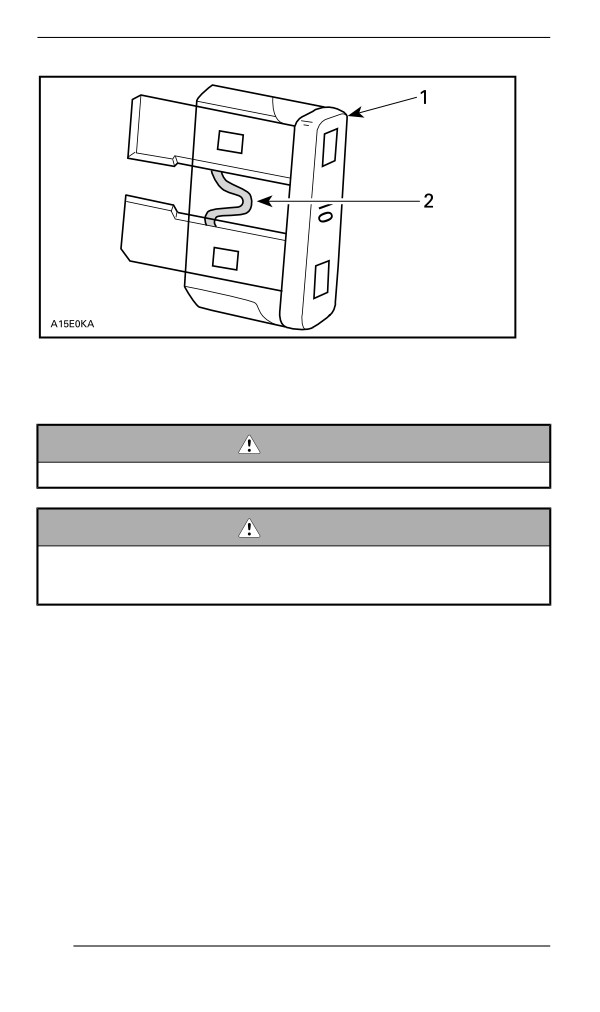

1. Fuse
2. Check if melted
WARNING
Do not use a higher rated fuse.
WARNING
If fuse has burnt out, source of malfunction should be deter-
mined and corrected before restarting. See an authorized BRP
snowmobile dealer for servicing.
Headllights
Headlights Bulb Replacement
1. Remove the windshield.
2. Open the storage compartment.
188
MAINTENANCE PROCEDURES

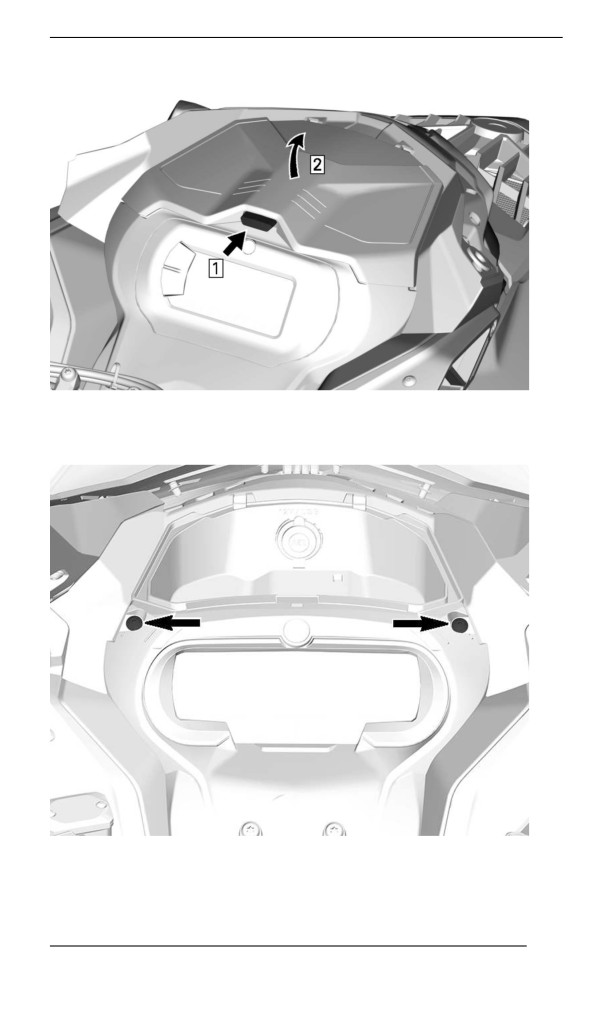

TYPICAL
3. Remove the gauge support retaining screws.
4. Lift the front of the gauge support, then slide it forward to remove it.
189
MAINTENANCE PROCEDURES

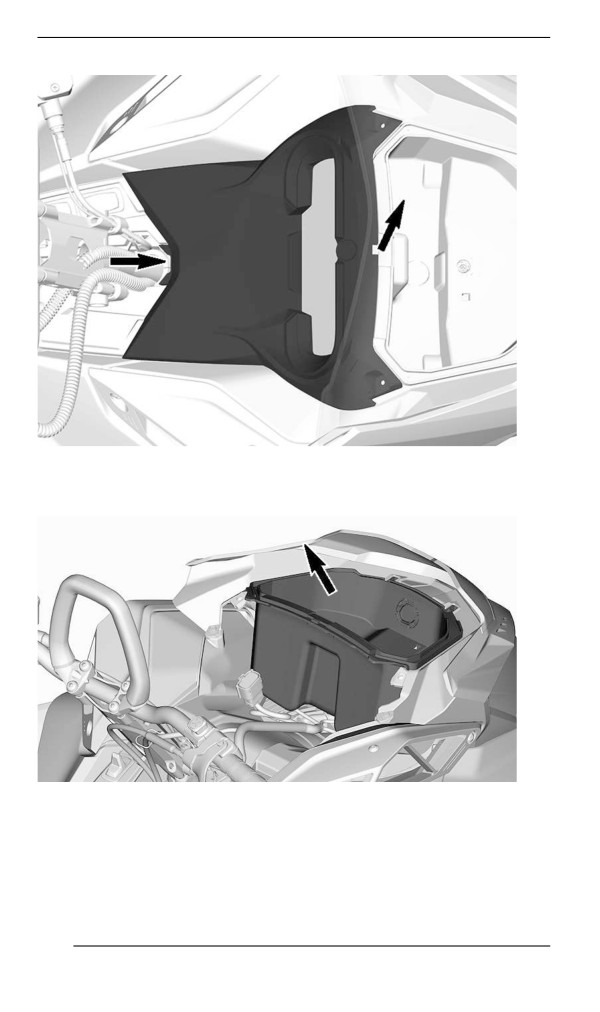

5. Set gauge support aside.
6. Remove the storage compartment.
7. Disconnect 12V power outlet connectors to remove (if equipped).
8. Disconnect bulb connector.
190
MAINTENANCE PROCEDURES

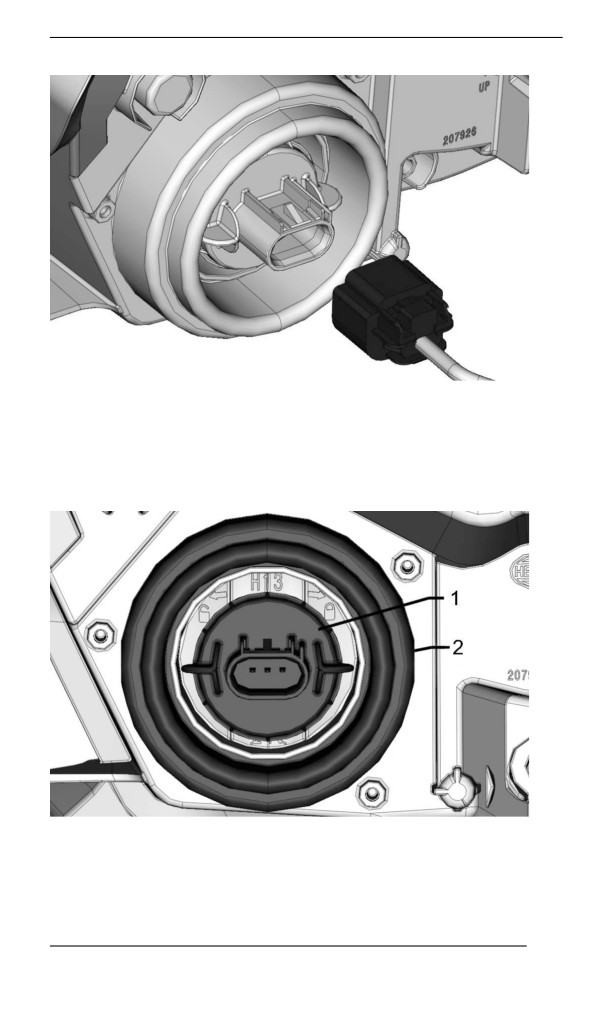

9. Unlock bulb by turning it counterclockwise.
10. Pull bulb out.
NOTE:
Ensure bulb seal stays in place.
1. Bulb
2. Bulb seal
191
MAINTENANCE PROCEDURES
Install a new bulb using the reverse of the removal procedure.
NOTICE
Never touch glass portion of an halogen bulb with bare fingers,
it shortens its operating life. If glass is touched, clean it with
isopropyl alcohol which will not leave a film on the bulb.
Check headlights operation.
Headlights Beam Aiming

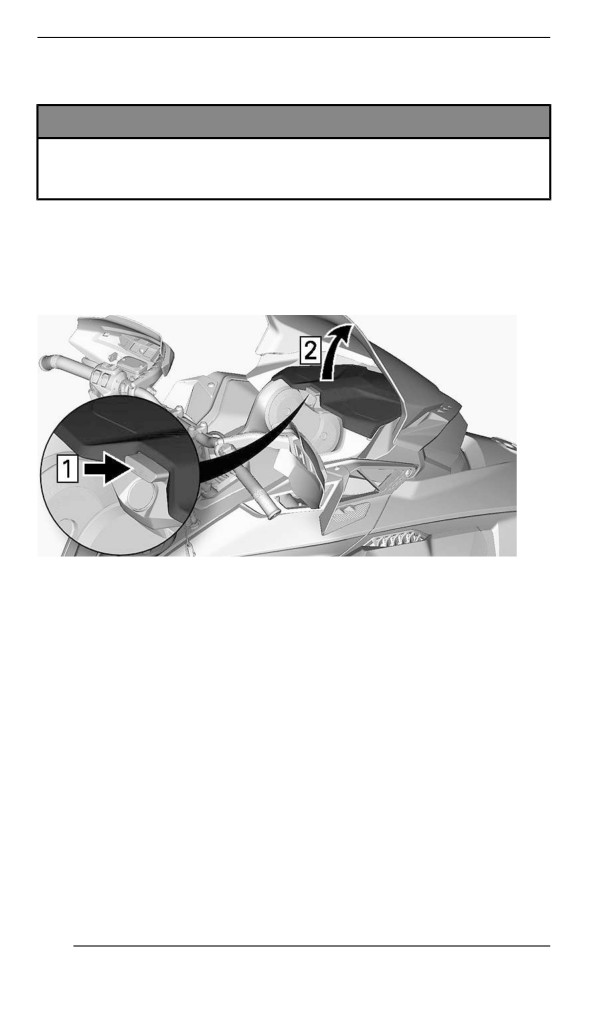

Open the storage compartment.
TYPICAL

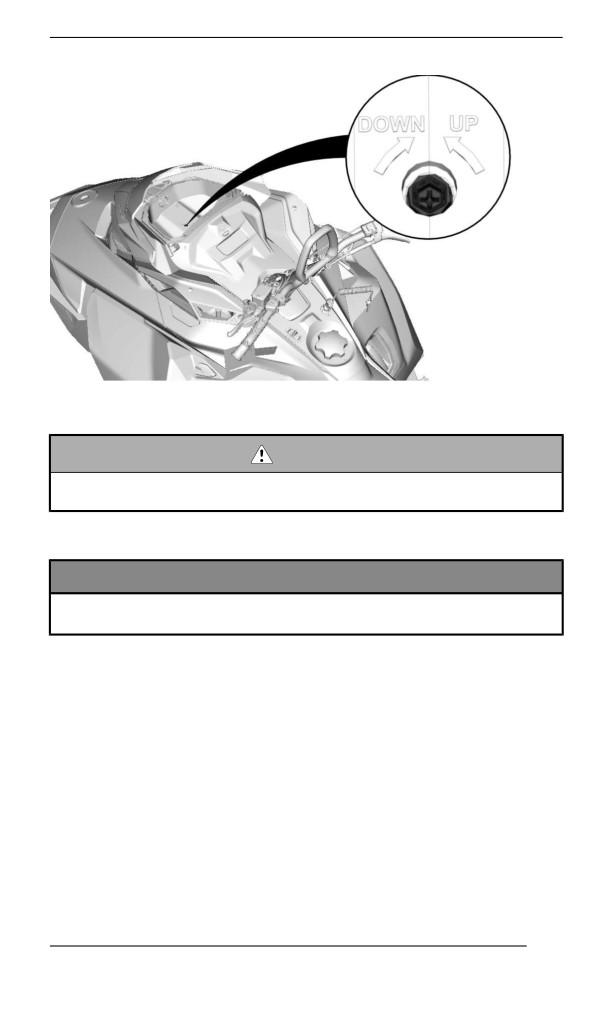

Turn the adjustment screw to reach desired beam height.
192
MAINTENANCE PROCEDURES
Battery
WARNING
Never charge or boost the battery while it is installed on the
vehicle.
Removing the Battery
NOTICE
Battery BLACK ( – ) cable must always be disconnected first
and connected last.
1. Remove the seat.
2. Remove the battery cover.
193

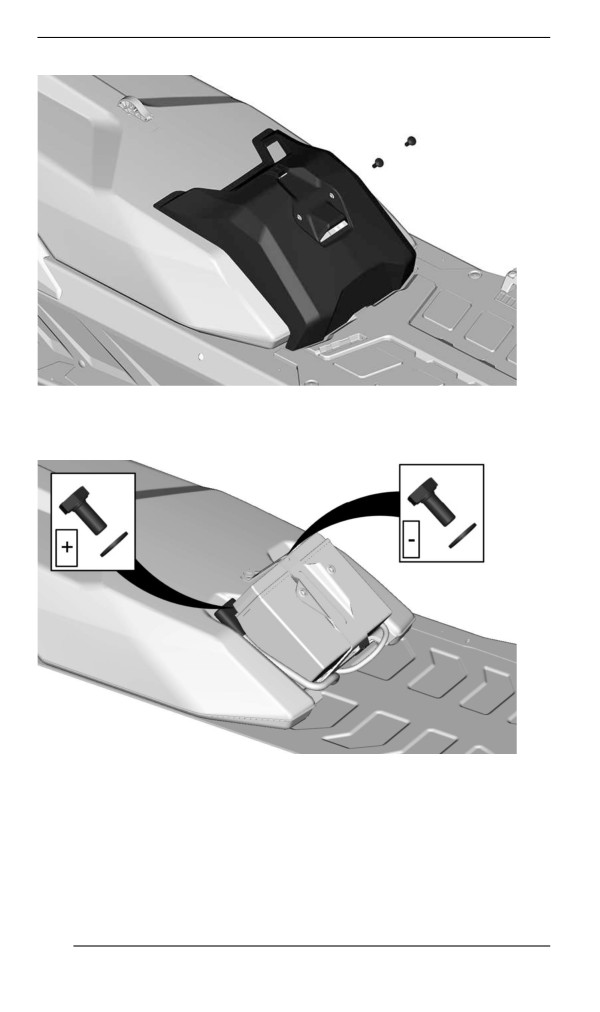

MAINTENANCE PROCEDURES
TYPICAL
3. Disconnect the negative terminal first, then the positive terminal.

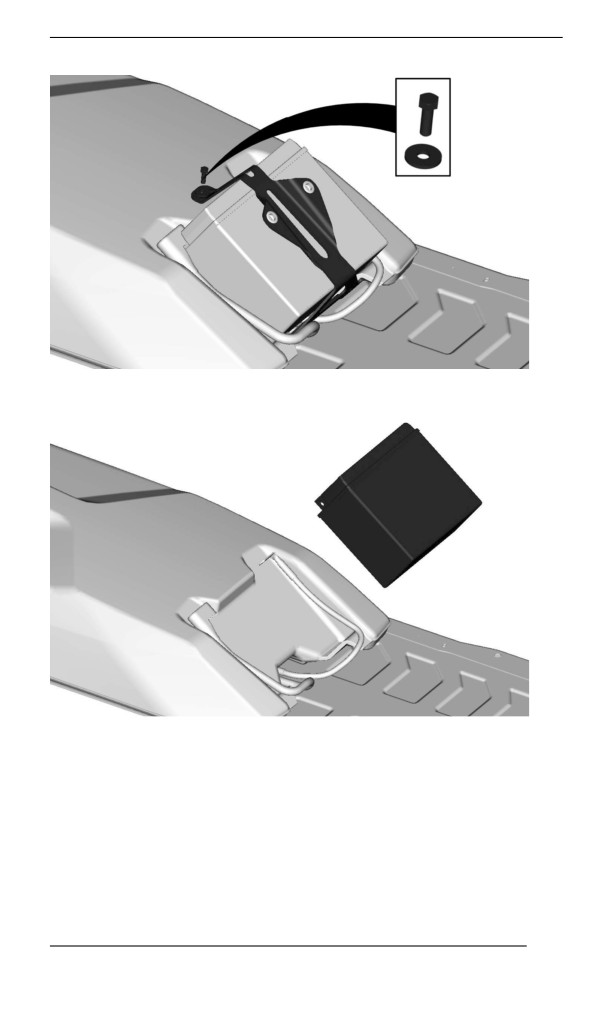

4. Remove the battery hold down bracket.
194
MAINTENANCE PROCEDURES
5. Remove the battery.
Installing the Battery
The installation is the reverse of the removal procedure. However, pay
attention to the following details.
195
MAINTENANCE PROCEDURES
TIGHTENING TORQUE
Battery terminals (positive and
10 ± 2 Nm (89 ± 18 lbf-in)
negative)
Battery hold down bracket
5 ± 0.5 Nm (44 ± 4 lbf-in)
Battery cover retaining screws
1.5 ± 0.5 Nm (13 ± 4 lbf-in)
196
VEHICLE CARE
Post-Operatiion Care
Remove snow and ice from rear suspension, track, front suspension,
steering mechanism and skis.
WARNING
Make sure D.E.S.S. key is removed from D.E.S.S. post before
standing in front the vehicle, getting close to the track or rear
suspension components.
Always cover your snowmobile when leaving it outside overnight or
during extended periods of inactivity. This will protect it from frost and
snow as well as help retain its appearance.
Vehicle Cleaning and Protectiion
Wash snowmobile with water mixed with a mild detergent. Use only
microfiber cloths or an equivalent.
NOTICE
Never use a high pressure washer to clean the vehicle. USE
LOW PRESSURE ONLY (EX: garden hose).
NOTICE
Never use XPS Brake and Parts Cleaner or any petroleum
based cleaners on plastic parts.
Non Compatible Cleaning Products
material type
non-compatible cleaning Products
All plastics, vinyls,
BRAKE AND PARTS CLEANER OR
painted steel and
ANY PETROLEUM BASE CLEANING
aluminium.
PRODUCTS
Compatible Cleaning Products
material type
cleaning Product
All plastics, vinyls,
Soapy water
painted steel and
XPS Spray Cleaner and Polish
aluminium.
XPS All Purpose Cleaner
197
VEHICLE CARE
For more information and products, Visit the XPS Products website at
198
E-TEC ENGINE STORAGE PROCEDURE
E-TEC Engiine - Compact Digiitall Diispllay
To engage procedure, do the following:
1. Place the vehicle in a well ventilated area.
2. Start the engine and let it run at idle speed until it reaches its oper-
ating temperature (watch the coolant temperature on the display or
verify the rear heat exchanger becomes warm).
3. Press and release the mode button on the gauge until the odome-
ter is displayed on the lower display.

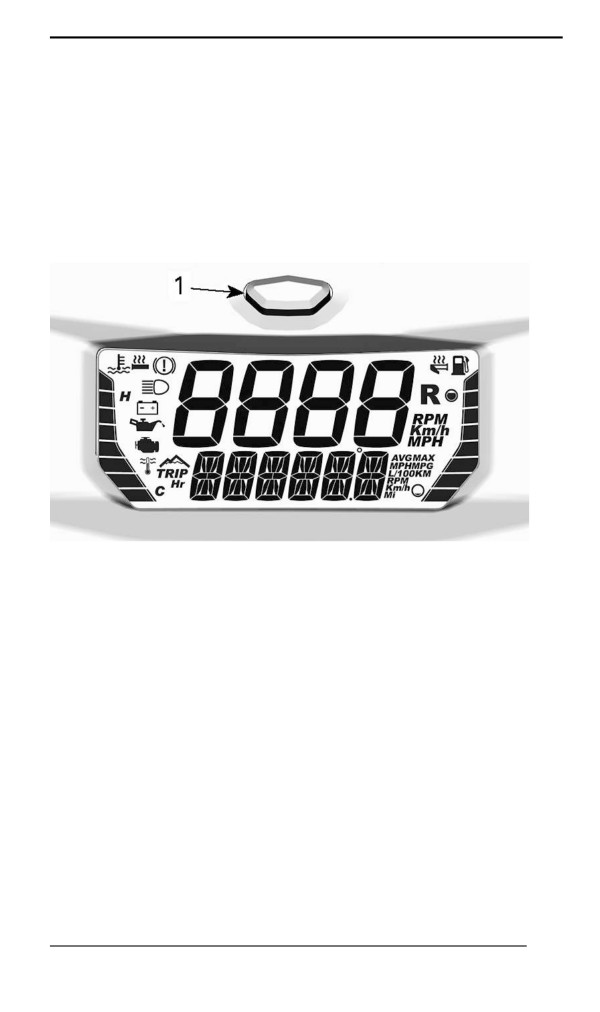

1. Gauge mode button
NOTE:
The storage mode does not function in other modes (trip A, trip B and
hr trip).
4. While holding the mode button on the gauge, rapidly switch from
HIGH to LOW beam until the gauge displays PRESS/HOLD BUT-
TON FOR OIL INJECTION.
5. Release all buttons.
6. Again, press and hold the mode button for 2 - 3 seconds.
7. When gauge displays OIL, release button and wait for the lubrica-
tion function to end.
Do not touch anything during engine lubrication cycle.
The engine lubrication function takes approximately 1 minute. Dur-
ing this time the engine RPM will increase slightly to approximately
1600 RPM and the oil pump will "oil flood" the engine.
199
E-TEC ENGINE STORAGE PROCEDURE
At the end of engine lubrication procedure, the ECM will turn the
engine off.
Remove tether cord cap from engine cut-off switch.
NOTICE
Do not start the engine during storage period.
200
MAINTENANCE RECORDS
Send photocopy of maintenance record to BRP if needed.
Pre-delivery
Serial
Signature/Print:
number:
Mileage /
km:
Hours:
Date:
Dealer
no:
Notes:
Refer to vehicle Pre-Delivery Bulletin for detailed installation
procedures
201
MAINTENANCE RECORDS
First inspection
Mileage /
Signature/Print:
km:
Hours:
Date:
Dealer
no:
Notes:
For maintenance schedule refer to Maintenance Information
section of this operator's guide
Service
Mileage /
Signature/Print:
km:
Hours:
Date:
Dealer
no:
Notes:
For maintenance schedule refer to Maintenance Information
section of this operator's guide
202
MAINTENANCE RECORDS
Service
Mileage /
Signature/Print:
km:
Hours:
Date:
Dealer
no:
Notes:
For maintenance schedule refer to Maintenance Information
section of this operator's guide
Service
Mileage /
Signature/Print:
km:
Hours:
Date:
Dealer
no:
Notes:
For maintenance schedule refer to Maintenance Information
section of this operator's guide
203
MAINTENANCE RECORDS
Service
Mileage /
Signature/Print:
km:
Hours:
Date:
Dealer
no:
Notes:
For maintenance schedule refer to Maintenance Information
section of this operator's guide
Service
Mileage /
Signature/Print:
km:
Hours:
Date:
Dealer
no:
Notes:
For maintenance schedule refer to Maintenance Information
section of this operator's guide
204
MAINTENANCE RECORDS
Service
Mileage /
Signature/Print:
km:
Hours:
Date:
Dealer
no:
Notes:
For maintenance schedule refer to Maintenance Information
section of this operator's guide
Service
Mileage /
Signature/Print:
km:
Hours:
Date:
Dealer
no:
Notes:
For maintenance schedule refer to Maintenance Information
section of this operator's guide
205
MAINTENANCE RECORDS
Service
Mileage /
Signature/Print:
km:
Hours:
Date:
Dealer
no:
Notes:
For maintenance schedule refer to Maintenance Information
section of this operator's guide
Service
Mileage /
Signature/Print:
km:
Hours:
Date:
Dealer
no:
Notes:
For maintenance schedule refer to Maintenance Information
section of this operator's guide
206
MAINTENANCE RECORDS
Service
Mileage /
Signature/Print:
km:
Hours:
Date:
Dealer
no:
Notes:
For maintenance schedule refer to Maintenance Information
section of this operator's guide
Service
Mileage /
Signature/Print:
km:
Hours:
Date:
Dealer
no:
Notes:
For maintenance schedule refer to Maintenance Information
section of this operator's guide
207
MAINTENANCE RECORDS
Service
Mileage /
Signature/Print:
km:
Hours:
Date:
Dealer
no:
Notes:
For maintenance schedule refer to Maintenance Information
section of this operator's guide
Service
Mileage /
Signature/Print:
km:
Hours:
Date:
Dealer
no:
Notes:
For maintenance schedule refer to Maintenance Information
section of this operator's guide
208
TECHNICAL
INFORMATION
209
VEHICLE IDENTIFICATION
Vehiiclle Descriiptiion Decal

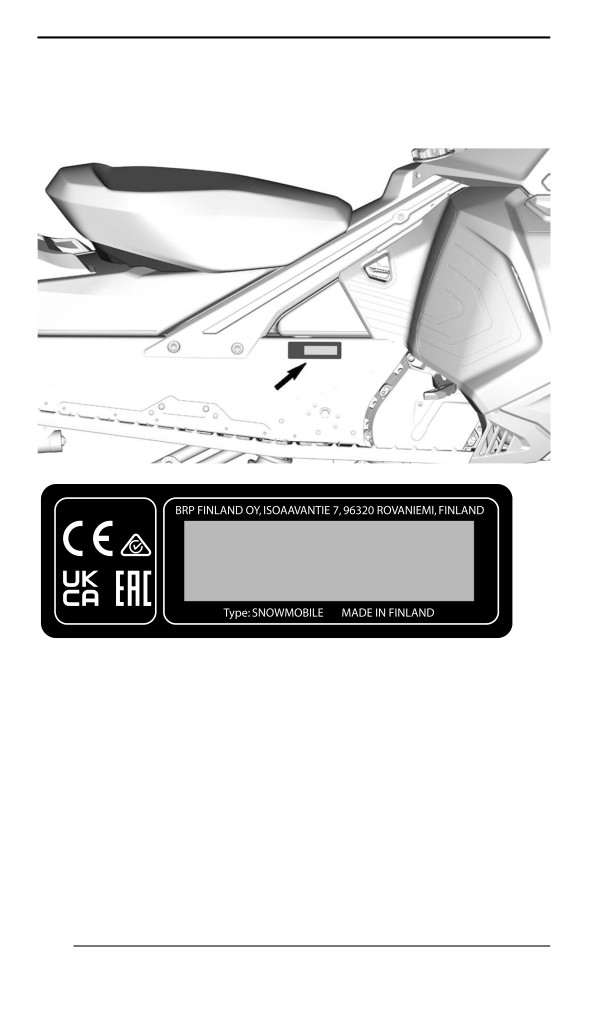

Vehicle description decal is located on right hand side of tunnel.
520002459
FOR EUROPEAN MARKET
Identiifiication Numbers
The main components of your snowmobile (engine and frame) are
identified by different identification numbers. It may sometimes be-
come necessary to locate these numbers for warranty purposes or to
trace your snowmobile in the event of loss. These numbers are re-
quired by the authorized BRP snowmobile dealer to complete war-
ranty claims properly. We strongly recommend that you take note of
all the identification numbers on your snowmobile and supply them to
your insurance company.
210
VEHICLE IDENTIFICATION
Vehicle Identification Number (VIN)
VIN is scribed on vehicle description decal. See above. It is also en-
graved on tunnel near vehicle description decal.
Model number and model year are part of the information found in the

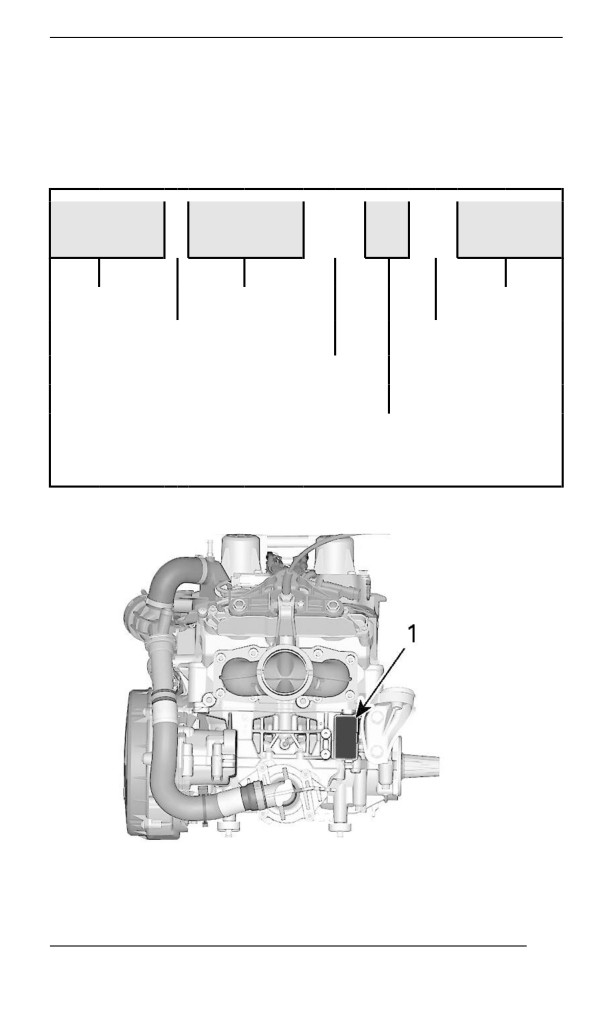

VIN. See illustration.
2BP
S
LSAB
9
A
V
000001
2BP = Canada
Serial
Model number
YH2 = Finland
number
Factory
S = Ski-Doo
V = Valcourt
L = Lynx
R = Rovaniemi
Numeric or
Alphabetic
Model year: P = 2023
Q = 2024
R = 2025 etc.
Engine Identification Number Location
1. Engine identification number
211
REGULATION (EU) 2016/1628 APPLICABLE
FOR NON-ROAD MOBILE MACHINERIES
Vehicles who comply to Regulation (EU) 2016/1628 (NRMM) are iden-
tified on the engine.

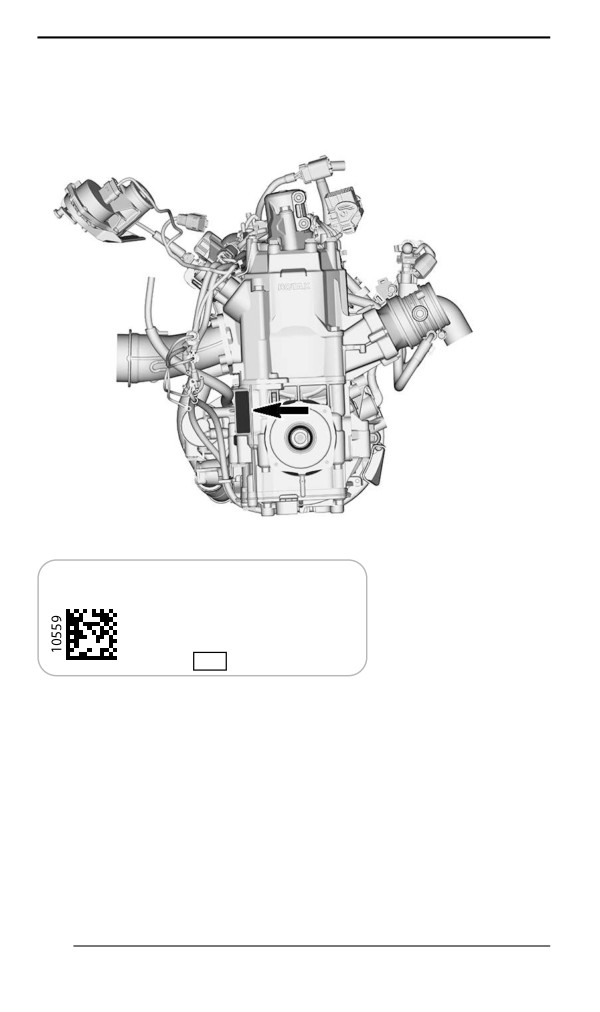

TYPICAL
Rotax
NRSC H CO2 g/kWh:
XXXX
#
MXXXXXXX
Prod. date:
MM-YYYY
Family type:
XXXXXX
e13
SMB/P V-####
TYPICAL - NRMM IDENTIFICATION LABEL
Depending on your particular vehicle configuration, an additional
NRMM identification label may be installed on the tunnel, near the
chaincase.
212
REGULATION (EU) 2016/1628 APPLICABLE FOR NON-ROAD MOBILE
MACHINERIES

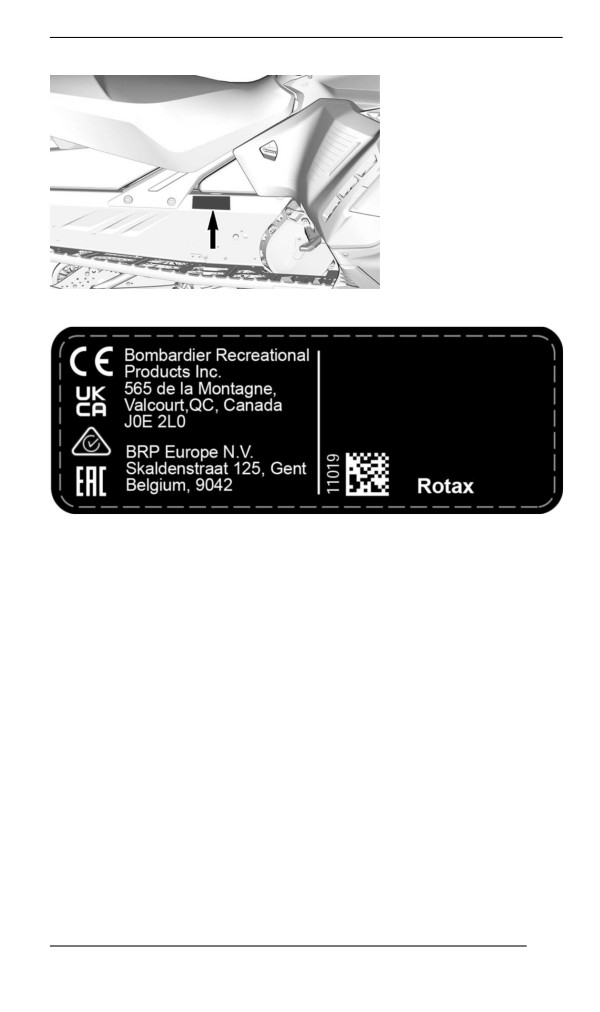

TYPICAL - ON RH SIDE OF TUNNEL
NRMM IDENTIFICATION ON VEHICLE
213
NOISE EMISSION AND VIBRATION VALUES
MODEL
600R E-TEC
NOISE EMISSION AND VIBRATION VALUES1
Sound
power
98.3 dB (Uncertainty (Kwa) 3 dB)
level
(L
WA)
Noise
Sound
pres
86.2 dB (Uncertainty (KpA) 3 dB)
sure
(LpA)
Han
d-arm
3.11 m/s2
system
Vibration
Whole
body at
<0.5 m/s2
seat
1: Noise emission and Vibration values are measured
in accordance with Annexes A and B of ISMA 1
regulation on a snow covered or grass surface in
neutral or without belt.
214
EU DECLARATION OF CONFORMITY
215
UK DECLARATION OF CONFORMITY
216
EAC DECLARATION OF CONFORMITY
Left blank for Eurasian Conformity
mark where applicable
217
RADIO FREQUENCY DIGITALLY ENCODED
SECURITY SYSTEM (RF D.E.S.S. KEY)
This device complies with FCC Part 15 and Industry Canada license
exempt RSS standard(s).
Operation is subject to the following two conditions: (1) this device
may not cause interference, and (2) this device must accept any inter-
ference, including interference that may cause undesired operation of
the device.
Changes or modifications not expressly approved by the party respon-
sible for compliance could void the user’s authority to operate the
equipment.
IC Registration Number: 12006A-1001002222
FCC ID: 2ACER-1001002222
We, the party responsible for compliance, declare under our sole re-
sponsibility that the device is in conformity with the provisions of the
following Council Directive: 2014/53/EU. To which this declaration re-
lates is in conformity with the essential requirements and other rele-
vant requirements. The product is in conformity with the following
directives, harmonized standards and regulations:
Radio Equipment Directive
(RED)
2014/53/EU and Harmonized
Standards:
IEC 62368-1:2014, CISPR 25:2016, ISO 11452-2:2004, ETSI EN 300
330 V2.1.1:2017
Radio Equipment Statutory Instrument 2017/1206 and Designated
Standards:
IEC 62368-1:2014, CISPR 25:2016, ISO 11452-2:2004, ETSI EN 300
330 V2.1.1:2017
218
TECHNICAL
SPECIFICATIONS
219
ENGINE
600R E-TEC
ENGINE
600R E-TEC
Rotax 600R E-TEC
liquid cooled with
Engine type
reed valves and
electronic RAVE
Number of cylinder
2
Bore
72.3 mm (2.846 in)
Stroke
73 mm (2.874 in)
599.4 cm³ (36.58
Displacement
in³)
Maximum power engine speed
8100 ± 100 RPM
FUEL SYSTEM
E-TEC direct
Fuel delivery
injection
Idle speed (not adjustable)
1200 ± 200 RPM
ELECTRICAL SYSTEM
30 A @ 14.5 V
Lighting system output
1340 W @ 6000
RPM
NGK ILKR8Q7
(engine and spark
Type
plug threads are
indexed)
Spark plug
Not adjustable 0.6
Gap(1)
to 0.7 mm (.024 to
.028 in)
220
ENGINE
LUBRICATION SYSTEM
Electronic oil
Oil injection pump type
injection pump
XPS 2T E-TEC
Type(2)
Recommended
synthetic oil
Injection oil
3.4 l (3.6
Quantity
qt(liq.,US))
221
VEHICLE
Shredder
COOLING SYSTEM
XPS Extended life
Recommended
pre-mixed coolant
Ethyl glycol and
distilled water (50%/
Coolant type
50%)
Alternative, or if
or coolant
not available
specifically
formulated for
aluminum engines
Coolant capacity
7.2 l (7.6 qt(liq.,US))
FUEL SYSTEM
In-tank electrical
Fuel pump
fuel pump
Premium unleaded
gasoline (fuel which
Type
may contain up to
Fuel
10% MAX ethanol
Octane rating
95
(RON)
37 l (9.8
Fuel tank capacity
gal(liq.,US))
ELECTRICAL SYSTEM
Battery (if equipped)
12 V, 18 A•h
Headlamp
2 x 60/55 W (H-13)
Taillight and stoplight
2 x 0.4/1.4 W LED
F1
Start/RER
5A
Fuses
Loads/
F2
25 A
Accessory
222
VEHICLE
ELECTRICAL SYSTEM
Battery (if
F3
30 A
equipped)
F4
Cluster
7.5 A
DRIVE SYSTEM
XPS Synthetic
Recommended
chaincase oil
Type
75W140 gear oil
Chaincase
Alternative, or if
that meets the API
oil
not available
GL-5 specification
350 ml (12 fl
Capacity
oz(US))
Chain drive ratio
21/53
Drive pulley type
pDrive with clickers
Drive pulley engagement RPM
3400 ± 100 RPM
Driven pulley type
QRS-VENT+
Drive sprocket number of teeth
6
Width
40 cm (15.75 in)
Track
Length
391.2 cm (154 in)
Profile height
64 mm (2.5 in)
Deflection
40 mm (1.57 in)
Track adjustment(3)
Force
7.3 kgf (16.1 lbf)
223
VEHICLE
BRAKE SYSTEM
Single 200 mm
Brake
Type
cross drilled carbon
steel disc
Type
DOT 4
Brake fluid
Quantity
65 ml (2.2 fl oz(US))
Fixed twin pistons
Caliper
(2 x 40mm)
Brake pad material
Organic
Minimum brake pad thickness (includes
5 mm (0.197 in)
backing plate)
Minimum brake disc thickness
4.5 mm (0.177 in)
Maximum brake disc warpage
0.25 mm (0.01 in)
FRONT SUSPENSION
Suspension type
LFS
Suspension maximum travel
215 mm (8.5 in)
Shock absorber type
HPG 36
Stabilizer bar type
Link
REAR SUSPENSION
Suspension type
PPS DS+ 3900
Suspension maximum travel
390 mm (15.4 in)
Center
HPG 36
Shock absorber type
Rear
HPG 36
224
VEHICLE
WEIGHT AND DIMENSIONS
3900 600R
209 kg (461 lb)
E-Tec
Mass (dry)
3900 ES 600R
219 kg (483 lb)
E-Tec
Overall length
325 cm (128 in)
Overall width
112 cm (44 in)
Overall height
129 cm (51 in)
Ski stance
92 cm (36 in)
(1)
Do not attempt to adjust gap on this spark
NOTICE
plug.
(2)
Refer to INJECTION OIL for detailed information.
(3)
Refer to Track Tension Verification in Maintenance
Procedures for detailed procedure.
225
VEHICLE
This page is intention-
ally blank
226
TROUBLESHOOT-
ING
227
TROUBLESHOOTING GUIDELINES
ELECTRIC STARTER DOES NOT WORK
1. Emergency engine stop switch in OFF position or tether
cord cap not installed on engine cut-off switch.
- Place the emergency engine stop switch in the ON position
and install tether cord cap (on engine cut-off switch.
2. Throttle applied while attempting an engine start.
- Release throttle while cranking.
ENGINE IS CRANKING BUT FAILS TO START
1. No fuel to the engine.
- Check fuel tank level, add fuel if necessary.
2. System voltage too low.
- Contact an authorized BRP snowmobile dealer.
ENGINE RPM DOES NOT REACH CLUTCH ENGAGEMENT
POINT
1. D.E.S.S. did not read D.E.S.S. key code in the tether cord
cap. D.E.S.S. pilot lamp blinks (slow short beeps/
repetitive).
- Properly install tether cord cap.
2. D.E.S.S. has read a different code than the one
programmed. D.E.S.S. pilot lamp blinks rapidly (fast short
beeps/repetitive).
- Install a tether cord cap for which this snowmobile was
programmed.
3. ECM does not recognize the D.E.S.S. key.
- Refer to an authorized BRP snowmobile dealer.
228
TROUBLESHOOTING GUIDELINES
ENGINE LACKS ACCELERATION OR POWER
1.
Engine warm-up in progress.
- Drive vehicle at low speeds for a few minutes.
2.
Engine break-in period not completed.
- Complete break-in period.
3.
Drive and driven pulleys require servicing.
- Contact an authorized BRP snowmobile dealer.
4.
Engine overheats.
- Check coolant level, see Maintenance procedures.
- Check heat exchangers cleanliness. Clean if necessary.
5.
Drive belt worn too thin.
- If the drive belt has lost more than 3 mm (1/8 in) of its
original width, it will affect vehicle performance.
- Replace drive belt.
6.
Incorrect track adjustment.
- See MAINTENANCE and/or an authorized Lynx dealer for
proper alignment and tension adjustments.
7.
R.A.V.E. valves problem.
- Seek service from an authorized BRP snowmobile dealer,
repair shop, or person of your own choosing for
maintenance, repair, or replacement.
8.
Fuel pressure too low.
- Seek service from an authorized BRP snowmobile dealer,
repair shop, or person of your own choosing for
maintenance, repair, or replacement.
229
TROUBLESHOOTING GUIDELINES
ENGINE BACKFIRES
1. Engine is running too hot.
- See item 4 of ENGINE LACKS POWER.
2. Ignition timing is incorrect or there is an ignition system
failure.
- Seek service from an authorized BRP snowmobile dealer,
repair shop, or person of your own choosing for
maintenance, repair, or replacement.
3. Exhaust system leak.
- Seek service from an authorized BRP snowmobile dealer,
repair shop, or person of your own choosing for
maintenance, repair, or replacement.
4. Fuel pressure too low.
- Seek service from an authorized BRP snowmobile dealer,
repair shop, or person of your own choosing for
maintenance, repair, or replacement.
ENGINE MISFIRES
1. Water in fuel.
- Drain fuel system and refill with fresh fuel.
2. RAVE valves malfunction.
- Have RAVE valves system inspected. Seek service from an
authorized BRP snowmobile dealer, repair shop, or person
of your own choosing for maintenance, repair, or
replacement.
HEATED GRIPS/THUMB WARMERS ARE NOT WORKING
1. Engine RPM is too low.
- Make sure engine RPM is above 2000.
ENGINE HAS SHUT DOWN
1. The engine shuts down after long periods of idling.
- Do not let engine idle too long. Refer to Vehicle warm-up in
operating instruction.
230
MONITORING SYSTEM
Piilot Lamps, Messages and Beeper Codes
Gauge pilot lamps will inform you if an anomaly occurs or to inform
you of a particular condition.

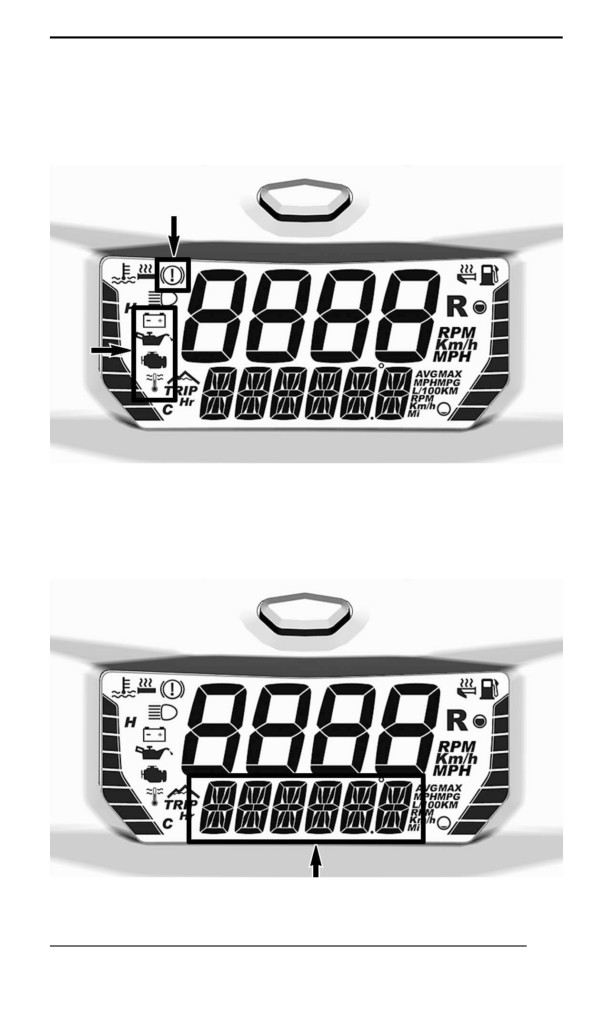

PILOT LAMPS
Pilot lamp can flash alone or in combination with another lamp.
The lower display is used to give you a brief description if an anomaly
occurs or to inform you of a particular condition.
LOWER DISPLAY
231
MONITORING SYSTEM
Messages will be displayed with a beep code and pilot lamp(s).
Beeper codes will be heard, and messages will be displayed to catch
your attention.
Refer to following table for details.
NOTE:
Some of the listed pilot lamps and messages do not apply to all
models.
Pilot
Message
Lamp
Beeper
Description
Display
ON
Engine is overheating,
reduce
snowmobile
speed and run in loose
snow or stop engine
immediately and let
engine cool down.
HIGH
Check coolant level,
ENGINE
refer to Maintenance. If
TEMPERA
coolant level is correct
TURE
and
overheating
persists, contact an
4 short
authorized
BRP
beeps
snowmobile dealer. Do
every 30
not run the engine if
seconds
condition persists.
Reduce speed or stop
engine. Let engine cool
down and restart. If
overheating
persists,
MUFFLER
contact an authorized
OVERHEAT
BRP
snowmobile
dealer. Do not run the
engine if
condition
persists.
Critical overheat. Stop
Short
HIGH
engine immediately and
beeps
ENGINE
let engine cool down.
repeating
TEMPERA
rapidly
TURE
Check coolant level,
refer to Maintenance. If
232
MONITORING SYSTEM
Pilot
Message
Lamp
Beeper
Description
Display
ON
coolant level is correct
and
overheating
persists, contact an
authorized
BRP
snowmobile dealer. Do
not run the engine if
condition persists.
MUFFLER
Critical overheat. Stop
OVERHEAT
engine immediately and
let engine cool down. If
overheating
persists,
contact an authorized
ECM
BRP
snowmobile
OVERHEAT
dealer. Do not run the
engine if
condition
persists.
Indicate a low or high
4 short
battery
voltage
beeps
condition.
Visit
an
BATT VOLT
every 5
authorized
BRP
minutes
snowmobile dealer as
soon as possible.
Engine fault, see an
authorized
BRP
4 short
CHECK
snowmobile
dealer,
beeps
ENGINE
repair shop or person of
your own choosing as
soon as possible.
Displayed when brake
is applied for more than
15 seconds while
throttle lever is
squeezed and vehicle is
moving at more than 5
km/h (3 mph).
233
MONITORING SYSTEM
Pilot
Message
Lamp
Beeper
Description
Display
ON
Engine detonation
(RPM is limited when
this condition occurs).
- Ensure
recommended fuel is
used.
4 short
- Check fuel quality,
beeps
replace if
KNOCK
every 5
necessary.
minutes
- If fault still occurs,
contact an
authorized BRP
snowmobile dealer,
repair shop, or
person of your own
choosing.
4 short
Engine RPM limited for
beeps
REV LIMIT
protection when certain
every 5
faults occur.
minutes
Indicates that maximum
engine RPM is reached.
OVER REV
Check
clutch
calibration.
Short
Shutdown procedure in
beeps
force due to engine
SHUTDOWN
repeating
overheating or fuel
rapidly
pump problem.
The belt temperature
2 short
reaches
75
C 167 F.
beeps
BELT
Message and beeps
every 10
OVERHEAT
disappears when the
seconds
temperature
drops
below 75 C 167 F.
2 short
BELT
If a critical condition is
beeps
OVERLOAD
detected over 1 minute.
234
MONITORING SYSTEM
Pilot
Message
Lamp
Beeper
Description
Display
ON
every 15
Message and beeps
seconds
disappears if the driver
reduces critical style of
riding.
If
it
stills in critical
2 short
condition
over
10
beeps
BELT
minutes. Message will
every 10
OVERLOAD
not disappear until the
seconds
engine shutdown.
2 short
Good key, vehicle ready
beeps
to operate.
Unable to read key (bad
Short
connection). Make sure
beeps,
WRONG KEY
the key is clean and
repeating
correctly snapped on
DESS
slowly
post.
Invalid key or key not
Short
programmed. Use the
beeps
BAD KEY
proper key for the
repeating
vehicle or have the
rapidly
programmed.
Fuel
level
sensor
problem.
(blin-
king)
235
MONITORING SYSTEM
This page is intention-
ally blank
236
WARRANTY
237
BRP INTERNATIONAL LIMITED WARRANTY:
2023 LYNX® SNOWMOBILES
SCOPE OF THE LIMITED WARRANTY
Bombardier Recreational Products Inc. (“BRP”) warrants its 2023
LYNX snowmobiles sold by distributors or dealers authorized by BRP
to distribute LYNX snowmobiles ("LYNX Distributor / Dealer") outside
of the fifty United States, Canada, members of the European Econom-
ic Area (which is comprised of the member states of the European
Union plus United Kingdom, Norway, Iceland and Liechtenstein)
(“EEA”), members states of the Commonwealth of the Independent
States (including Ukraine and Turkmenistan) (''CIS'') and Turkey, from
defects in material or workmanship for the period and under the condi-
tions described below.
Non-factory installed parts and accessories are not covered under this
limited warranty. Please refer to the applicable parts and accessories
limited warranty text.
This limited warranty will become null and void if: (1) the snowmobile
was used for racing or any other competitive activity, at any point,
even by a previous owner; or (2) the snowmobile has been altered or
modified in such a way so as to adversely affect its operation, perform-
ance or durability, or has been altered or modified to change its in-
tended use.
LIMITATIONS OF LIABILITY
TO THE EXTENT PERMITTED BY LAW, THIS WARRANTY IS
EXPRESSLY GIVEN AND ACCEPTED IN LIEU OF ANY AND
ALL OTHER WARRANTIES, EXPRESSED OR IMPLIED, IN-
CLUDING WITHOUT LIMITATION ANY WARRANTY OF MER-
CHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE.
TO THE EXTENT THAT THEY CANNOT BE DISCLAIMED, THE
IMPLIED WARRANTIES ARE LIMITED IN DURATION TO THE
LIFE OF THE EXPRESS WARRANTY. INCIDENTAL AND CON-
SEQUENTIAL DAMAGES ARE EXCLUDED FROM COVERAGE
UNDER THIS WARRANTY. SOME JURISDICTIONS DO NOT
ALLOW FOR THE DISCLAIMERS, LIMITATIONS AND EXCLU-
SIONS IDENTIFIED ABOVE, AS A RESULT, THEY MAY NOT
APPLY TO YOU. THIS WARRANTY GIVES YOU SPECIFIC
RIGHTS, AND YOU MAY ALSO HAVE OTHER LEGAL RIGHTS
WHICH MAY VARY FROM COUNTRY TO COUNTRY. (FOR
PRODUCTS PURCHASED IN AUSTRALIA REFER TO “FOR
PRODUCTS SOLD IN AUSTRALIA ONLY”, BELOW).
Neither the LYNX Distributor / Dealer nor any other person has been
authorized to make any affirmation, representation or warranty regard-
ing the product, other than those contained in this limited warranty,
and if made, shall not be enforceable against BRP.
238
BRP INTERNATIONAL LIMITED WARRANTY: 2023 LYNX® SNOWMOBILES
BRP reserves the right to modify this warranty at any time, being
understood that such modification will not alter the warranty conditions
applicable to the products sold while this warranty is in effect.
EXCLUSIONS – ARE NOT WARRANTED
The following are not warranted under this limited warranty under any
circumstances:
-
Normal wear and tear;
Routine maintenance items, tune ups, adjustments;
Damage caused by negligence or failure to provide proper mainte-
nance and/or storage, as described in the operator's guide;
-
Damage resulting from removal of parts, improper repairs, service,
maintenance, modifications or use of parts or accessories not
manufactured or approved by BRP which in its reasonable judge-
ment are either incompatible with the product or adversely affect
its operation, performance and durability, or resulting from repairs
done by a person that is not an authorized servicing BRP snowmo-
bile distributor/ dealer;
-
Damage caused by abuse, abnormal use, neglect, racing or opera-
tion of the product on surfaces other than snow, or operation of the
product in a manner inconsistent with the recommended operation
described in the Operator’s Guide;
-
Damage resulting from accident, submersion, fire, snow or water
ingestion, theft, vandalism or any act of God;
-
Operation with fuels, oils or lubricants which are not suitable for
use with the product (see the Operator’s Guide);
-
Damage resulting from rust, corrosion or exposure to the
elements;
-
Incidental or consequential damages, or damages of any kind in-
cluding without limitation towing, storage, transportation expenses,
telephone, rental, taxi, inconvenience, insurance coverage, loan
payments, loss of time, loss of income; or time missed for down-
time experience due to service work.
-
And damage resulting from studs installed on tracks if the installa-
tion does not conform to BRP’s instructions.
WARRANTY COVERAGE PERIOD
This warranty will be in effect from (1) the date of delivery to the first
retail consumer or (2) the date the product is first put into use, which-
ever occurs first and for a period of:
TWELVE (12) CONSECUTIVE MONTHS, for private or commercial
use owners. However, the warranty coverage period on a snowmobile
delivered between June 1st and December 1st of a given year will ex-
pire November 30th of the following year.
239
BRP INTERNATIONAL LIMITED WARRANTY: 2023 LYNX® SNOWMOBILES
The repair or replacement of parts or the performance of service under
this warranty does not extend the life of this warranty beyond its origi-
nal expiration date.
Note that the duration and any other modalities of the warranty cover-
age are subject to the applicable national or local legislation in the cus-
tomer's country.
FOR PRODUCTS SOLD IN AUSTRALIA ONLY
Nothing in these Warranty terms and conditions should be taken to ex-
clude, restrict or modify the application of any condition, warranty,
guarantee, right or remedy conferred or implied under the Competition
and Consumer Act 2010 (Cth), including the Australian Consumer
Law or any other law, where to do so would contravene that law, or
cause any part of these terms and conditions to be void. The benefits
given to you under this limited warranty are in addition to other rights
and remedies that you have under Australian law.
Our goods come with guarantees that cannot be excluded under the
Australian Consumer Law. You are entitled to a replacement or refund
for a major failure and for compensation for any other reasonably fore-
seeable loss or damage. You are also entitled to have the goods re-
paired or replaced if the goods fail to be of acceptable quality and the
failure does not amount to a major failure.
CONDITIONS TO HAVE WARRANTY COVERAGE
This warranty coverage is available only if each of the following condi-
tions has been fulfilled:
- The 2023 LYNX snowmobile must be purchased as new and un-
used by its first owner from a LYNX Distributor / Dealer authorized
to distribute LYNX snowmobiles in the country in which the sale
occurred;
- The BRP specified pre-delivery inspection process must be com-
pleted and documented;
- The product must have undergone proper registration by an au-
thorized LYNX Distributor / Dealer;
- The 2023 LYNX snowmobile must be purchased in the country or
union of countries in which the purchaser resides.
- Routine maintenance outlined in the operator’s guide must be
timely performed in order to maintain warranty coverage. BRP re-
serves the right to make warranty coverage contingent upon proof
of proper maintenance.
BRP will not honour this limited warranty to any private use owner or
commercial use owner if one of the preceding conditions has not been
met. Such limitations are necessary in order to allow BRP to preserve
both the safety of its products, and also that of its consumers and the
general public.
240
BRP INTERNATIONAL LIMITED WARRANTY: 2023 LYNX® SNOWMOBILES
WHAT TO DO TO OBTAIN WARRANTY
COVERAGE
The customer must cease using the snowmobile upon the appearance
of an anomaly. The customer must notify a servicing LYNX Distributor
/ Dealer within two (2) days of the appearance of a defect, and provide
it with reasonable access to the product and reasonable opportunity to
repair it. The customer must also present to the authorized LYNX Dis-
tributor / Dealer, proof of purchase of the product and must sign the re-
pair / work order prior to starting the repair in order to validate the
warranty repair. All parts replaced under this limited warranty become
the property of BRP.
Note that the notification period is subject to the applicable national or
local legislation in customer's country.
WHAT BRP WILL DO
To the extent permitted by law, BRP’s obligations under this warranty
are limited to, at its sole discretion, repairing parts found defective
under normal use, maintenance and service, or replacing such parts
with new genuine LYNX parts without charge for parts and labour, at
any authorized LYNX Distributor / Dealer during the warranty cover-
age period under the conditions described herein. BRP’s responsibility
is limited to making the required repairs or replacements of parts. No
claim of breach of warranty shall be cause for cancellation or rescis-
sion of the sale of the snowmobile to the owner. You may have other
legal rights which may vary from country to country.
In the event that service is required outside of the country of original
sale, the owner will bear responsibility for any additional charges due
to local practices and conditions, such as, but not limited to, freight, in-
surance, taxes, license fees, import duties, and any and all other finan-
cial charges, including those levied by governments, states, territories
and their respective agencies.
BRP reserves the right to improve or modify products from time to time
without assuming any obligation to modify products previously
manufactured.
TRANSFER
If the ownership of a product is transferred during the warranty cover-
age period, this limited warranty, subject to its terms and conditions,
shall also be transferred and be valid for the remaining coverage peri-
od provided BRP or an authorized LYNX Distributor / Dealer receives
a proof that the former owner agreed to the transfer of ownership, in
addition to the coordinates of the new owner.
241
BRP INTERNATIONAL LIMITED WARRANTY: 2023 LYNX® SNOWMOBILES
CONSUMER ASSISTANCE
In the event of a controversy or a dispute in connection with this limited
warranty, BRP suggests that you try to resolve the issue at the LYNX
Distributor / Dealer level. We recommend discussing the issue with
the authorized LYNX Distributor / Dealer's service manager or owner.
If the matter still remains unresolved, contact BRP by filling out the
customer contact form at www.brp.com or contact BRP by mail at one
of the addresses listed under the CONTACT US section of this guide.
242
BRP LIMITED WARRANTY FOR THE
EUROPEAN ECONOMIC AND THE
COMMONWEALTH OF THE INDEPENDENT
STATES (CIS) AREAS AND TURKEY : 2023
LYNX® SNOWMOBILES
SCOPE OF THE LIMITED WARRANTY
Bombardier Recreational Products Inc. (“BRP”) warrants its 2023
LYNX snowmobiles sold by distributors or dealers authorized by BRP
to distribute LYNX snowmobiles ("LYNX Distributor / Dealer") in mem-
ber states of the European Economic Area (which is comprised of the
member states of the European Union plus the United Kingdom, Nor-
way, Iceland and Liechtenstein) ("EEA"), in member states of the
Commonwealth of the Independent States (including Ukraine and
Turkmenistan) (''CIS'') and Turkey from defects in material or work-
manship for the period and under the conditions described below.
Non-factory installed parts and accessories are not covered under this
limited warranty. Please refer to the applicable parts and accessories
limited warranty text.
This limited warranty will become null and void if: (1) the snowmobile
was used for racing or any other competitive activity, at any point,
even by a previous owner; or (2) the snowmobile has been altered or
modified in such a way so as to adversely affect its operation, perform-
ance or durability, or has been altered or modified to change its in-
tended use.
LIMITATIONS OF LIABILITY
TO THE EXTENT PERMITTED BY LAW, THIS WARRANTY IS
EXPRESSLY GIVEN AND ACCEPTED IN LIEU OF ANY AND
ALL OTHER WARRANTIES, EXPRESSED OR IMPLIED, IN-
CLUDING WITHOUT LIMITATION ANY WARRANTY OF MER-
CHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE.
TO THE EXTENT THAT THEY CANNOT BE DISCLAIMED, THE
IMPLIED WARRANTIES ARE LIMITED IN DURATION TO THE
LIFE OF THE EXPRESS WARRANTIES. INCIDENTAL AND
CONSEQUENTIAL DAMAGES ARE EXCLUDED FROM COVER-
AGE UNDER THIS WARRANTY. SOME JURISDICTIONS DO
NOT ALLOW FOR THE DISCLAIMERS, LIMITATIONS AND EX-
CLUSIONS IDENTIFIED ABOVE, AS A RESULT, THEY MAY
NOT APPLY TO YOU. THIS WARRANTY GIVES YOU SPECIFIC
RIGHTS, AND YOU MAY ALSO HAVE OTHER LEGAL RIGHTS
WHICH MAY VARY FROM COUNTRY TO COUNTRY.
Neither the LYNX Distributor / Dealer nor any other person has been
authorized to make any affirmation, representation or warranty regard-
ing the product, other than those contained in this limited warranty,
and if made, shall not be enforceable against BRP.
243
BRP reserves the right to modify this warranty at any time, being
understood that such modification will not alter the warranty conditions
applicable to the products sold while this warranty is in effect.
EXCLUSIONS – ARE NOT WARRANTED
The following are not warranted under this limited warranty under any
circumstances:
-
Normal wear and tear;
Routine maintenance items, tune ups, adjustments;
Damage caused by negligence or failure to provide proper mainte-
nance and/or storage, as described in the operator's guide;
-
Damage resulting from removal of parts, improper repairs, service,
maintenance, modifications or use of parts or accessories not
manufactured or approved by BRP which in its reasonable judge-
ment are either incompatible with the product or adversely affect
its operation, performance and durability, or resulting from repairs
done by a person that is not an authorized servicing BRP snowmo-
bile distributor/ dealer;
-
Damage caused by abuse, abnormal use, neglect, racing or opera-
tion of the product on surfaces other than snow, or operation of the
product in a manner inconsistent with the recommended operation
described in the Operator’s Guide;
-
Damage resulting from accident, submersion, fire, snow or water
ingestion, theft, vandalism or any act of God;
-
Operation with fuels, oils or lubricants which are not suitable for
use with the product (see the Operator’s Guide);
-
Damage resulting from rust, corrosion or exposure to the
elements;
-
Incidental or consequential damages, or damages of any kind in-
cluding without limitation towing, storage, transportation expenses,
telephone, rental, taxi, inconvenience, insurance coverage, loan
payments, loss of time, loss of income; or time missed for down-
time experience due to service work.
-
And damage resulting from studs installed on tracks if the installa-
tion does not conform to BRP’s instructions.
WARRANTY COVERAGE PERIOD
This warranty will be in effect from (1) the date of delivery to the first
retail consumer or (2) the date the product is first put into use, which-
ever occurs first and for a period of:
TWENTY-FOUR (24) CONSECUTIVE MONTHS, for private use own-
ers and TWELVE (12) CONSECUTIVE MONTHS for commercial use
owners. However, the warranty coverage period on a snowmobile de-
livered between June 1st and December 1st of a given year will expire
November 30th of the applicable year. A snowmobile is used commer-
cially when it is used in connection with generating income or any work
244
or employment during any part of the warranty period. A snowmobile
is also used commercially when, at any point during the warranty peri-
od, it has commercial tags or is licensed for commercial use.
The repair or replacement of parts or the performance of service under
this warranty does not extend the life of this warranty beyond its origi-
nal expiration date.
Note that the duration and any other modalities of the warranty cover-
age are subject to the applicable national or local legislation in the cus-
tomer's country.
CONDITIONS TO HAVE WARRANTY COVERAGE
This warranty coverage is available only if each of the following condi-
tions has been fulfilled:
- The 2023 LYNX snowmobile must be purchased as new and un-
used by its first owner from a LYNX Distributor / Dealer authorized
to distribute LYNX products in the country in which the sale
occurred;
- The BRP specified pre-delivery inspection process must be com-
pleted and documented;
- The product must have undergone proper registration by an au-
thorized LYNX Distributor / Dealer;
- The 2023 LYNX snowmobile must be purchased within the EEA by
an EEA resident, in the CIS for residents of the countries com-
prised in such area and in Turkey for residents of Turkey; and
- Routine maintenance outlined in the operator’s guide must be
timely performed in order to maintain warranty coverage. BRP re-
serves the right to make warranty coverage contingent upon proof
of proper maintenance.
BRP will not honour this limited warranty to any private use owner or
commercial use owner if one of the preceding conditions has not been
met. Such limitations are necessary in order to allow BRP to preserve
both the safety of its products, and also that of its consumers and the
general public.
WHAT TO DO TO OBTAIN WARRANTY
COVERAGE
The customer must cease using the snowmobile upon the appearance
of an anomaly. The customer must notify a servicing LYNX Distributor
/ Dealer within two (2) months of the appearance of a defect, and pro-
vide it with reasonable access to the product and reasonable opportu-
nity to repair it. The customer must also present to the authorized
LYNX Distributor / Dealer, proof of purchase of the product and must
sign the repair / work order prior to starting the repair in order to
245
validate the warranty repair. All parts replaced under this limited war-
ranty become the property of BRP.
Note that the notification period is subject to the applicable national or
local legislation in customer's country.
WHAT BRP WILL DO
To the extent permitted by law, BRP’s obligations under this warranty
are limited to, at its sole discretion, repairing parts found defective
under normal use, maintenance and service, or replacing such parts
with new genuine LYNX parts without charge for parts and labour, at
any authorized LYNX Distributor / Dealer during the warranty cover-
age period under the conditions described herein. BRP’s responsibility
is limited to making the required repairs or replacements of parts. No
claim of breach of warranty shall be cause for cancellation or rescis-
sion of the sale of the snowmobile to the owner. You may have other
legal rights which may vary from country to country.
In the event that service is required outside of the EEA, CIS or Turkey,
the owner will bear responsibility for any additional charges due to lo-
cal practices and conditions, such as, but not limited to, freight, insur-
ance, taxes, license fees, import duties, and any and all other financial
charges, including those levied by governments, states, territories and
their respective agencies.
BRP reserves the right to improve or modify products from time to time
without assuming any obligation to modify products previously
manufactured.
TRANSFER
If the ownership of a product is transferred during the warranty cover-
age period, this limited warranty, subject to its terms and conditions,
shall also be transferred and be valid for the remaining coverage peri-
od provided BRP or an authorized LYNX Distributor / Dealer receives
a proof that the former owner agreed to the transfer of ownership, in
addition to the coordinates of the new owner.
CONSUMER ASSISTANCE
In the event of a controversy or a dispute in connection with this limited
warranty, BRP suggests that you try to resolve the issue at the LYNX
Distributor / Dealer level. We recommend discussing the issue with
the authorized LYNX Distributor / Dealer's service manager or owner.
If the matter still remains unresolved, contact BRP by filling out the
customer contact form at www.brp.com or contact BRP by mail at one
of the addresses listed under the CONTACT US section of this guide.
246
ADDITIONAL TERMS AND CONDITIONS FOR FRANCE ONLY
The following terms and conditions are applicable to products sold in
France only:
The seller shall deliver goods that are complying with the contract and
shall be responsible for defects existing upon delivery. The seller shall
also be responsible for defects resulting from packaging, assembling
instructions or the installation when it is its responsibility per the con-
tract or if accomplished under its responsibility. To be compliant with
the contract, the good shall:
1. Be fit for normal use for goods similar thereto and, if applicable:
- Correspond to the description provided by the seller and have
the qualities presented to the buyer though sample or model;
- Have the qualities that a buyer may legitimately expect consid-
ering the public declarations of the seller, the manufacturer of
its representative, including in advertising or labeling; or
2. Have the characteristics mutually agreed upon as between the par-
ties or be fit for the specific use intended by the buyer and brought
to the attention of the seller and which accepted.
The action for failure to comply is prescribed after two years after de-
livery of the goods. The seller is responsible for the warranty for hid-
den defects of the good sold if such hidden defects are rendering the
good unfit for the intended use, or if they diminish its use in such a
way that the buyer would not have acquired the good or would have
given a lesser price, had he known. The action for such hidden defects
shall be taken by the buyer within 2 years of the discovery of the
defect.
247
This page is intention-
ally blank
248
CUSTOMER
INFORMATION
249
DATA PRIVACY INFORMATION
Bombardier Recreational Products inc., its affiliates and subsidiaries
(“BRP”) is committed to protecting your privacy and support a general
policy of openness about how we collect, use and disclose your per-
sonal information in the course of managing our relationship with you.
More details can be found by visiting BRP’s Privacy Policy at:
https://brp. com/en/privacy-policy. html or by scanning the QR
Code below.
Please be assured that we have appropriate security measures in
place to ensure that your personal information is protected against
loss and unauthorized access.
Your personal information that may be collected by BRP, directly from
you or from authorized dealers or authorized third parties, includes:
- Contact, Demographic & Registration Information (e.g., name,
full address, phone number, email, gender, ownership history, lan-
guage of communication)
- Vehicle Information (e.g., serial number, purchase and delivery
date, unit usage, vehicle location and movements)
- Third Party Information (e.g., information received from BRP
partners, joint-marketing activities information, social media)
- Technological Information (e.g., IP address, type of device, op-
erating system, browser type, webpages you view, cookies and
similar technologies when you use BRP or dealers’ websites or
mobile application)
- Interaction with BRP Information (e.g., information collected
when you call BRP’s in-house sales representatives, buy items on
a BRP web Site, sign up for BRP emails, participate in BRP-spon-
sored contests and sweepstakes or attend BRP-sponsored
events)
- Transactional Information (e.g., information necessary to handle
returns, payment information when you purchase our products or
services through our websites or mobile applications and other is-
sues related to your purchase of BRP products)
This information may be used and processed for the following
purposes:
- Safety & Security
- Customer Support for Sales & After Sales (e.g., complete or follow
up with you about your purchase or maintenance)
- Registration & Warranty
- Communication (e.g., sending you a BRP satisfaction survey)
- Online Behavioural Advertising, Profiling and Location-Based
Services
(e.g., offer customized experience)
- Compliance & Dispute Resolution
- Marketing & Advertising
- Assistance (e.g., help with any delivery issues, handle returns, and
other issues related to your purchase of BRP products).
250
DATA PRIVACY INFORMATION
We also may use personal information to generate aggregated or stat-
istical data that no longer identifies you personally.
Your personal information may be disclosed to the following:
BRP, BRP’s authorized dealerships, distributors, service pro-
viders, advertising & market research partners and other author-
ized third parties.
We may receive information about you from diverse sources, including
third parties, such as BRP’s authorized dealerships and partners, with
whom we offer services or engage in joint-marketing activities. We
may also receive information about you from social media platforms
such as Facebook and Twitter, when you interact with us on those
platforms.
Depending on the circumstances, your personal information may be
communicated outside the region where you reside. Your personal in-
formation is retained only for as long as necessary for the purpose for
which we obtained it and according to our retention policies.
To exercise your data privacy rights (e.g. right of access, right of recti-
fication), to withdraw your consent in order to be removed from the ad-
dress list for marketing purposes or for the satisfaction survey or for
general data privacy questions, please contact BRP’s Data Protection
Officer at or by mail at privacyofficer@brp.com or by mail at:
BRP Legal Service, 726 St-Joseph, Valcourt, Quebec, Canada, J0E
2L0.
When BRP processes your personal information, they do so in
compliance with its Privacy Policy available at: https://www.brp.
com/en/privacy-policy.html or by using the following
QR Code.
251
CONTACT US
Norway
Ingvald Ystgaardsvei 15
N-7484 Trondheim
Asiia Paciific
Salg, marketing, ettermarked
Australia
6 Lord Street
Sweden
Lakes Business Park
Spinnvägen 15
Botany, NSW 2019
903 61 Umeå
Sweden 90821
China
Room 3703, Tower 2,
Switzerland
Grand Gateway
Avenue d’Ouchy 4-6
3 Hong Qiao Road,
1006 Lausanne
Xuhui District,
Shanghai 200030
Latiin Ameriica
Japan
Brazil
21F Shinagawa East One
Av. James Clerck Maxwell, 230
Tower
Campinas, Sao Paulo
2-16-1 Konan, Minato-ku-ku,
CEP 13069-380
Tokyo 108-0075
Mexico
New Zealand
Av. Ferrocarril 202
Suite 1.6, 2-8 Osborne Street,
Parque Industrial Querétaro
Newmarket, Auckland 2013
Santo Rosa Jauregui, Querétaro
C.P. 76220
Europe, Middle East
and Africa
North Ameriica
Belgium
Canada
Oktrooiplein 1
3200A, rue King Ouest,
9000 Gent
Suite 300
Sherbrooke (Québec) J1L 1C9
Czech Republic
Stefanikova 43a
United States of America
Prague 5
10101 Science Drive
150 00
Sturtevant, Wisconsin
53177
Germany
Itterpark 11
40724 Hilden
Finland
Isoaavantie 7
PL 8040
96101 Rovaniemi
France
Arteparc Bâtiment B
Route de la côte d'Azur,
13590 Meyreuil
252
CHANGE OF ADDRESS/OWNERSHIP
If your address has changed or if you are the new owner of the snow-
mobile, be sure to notify BRP by either:
- Notifying an authorized BRP snowmobile dealer or distributor.
- North America Only: calling at 1 888 272-9222.
- Mailing one of the change of address cards on the following pages
at one of the BRP addresses indicated in the Contact Us section of
this guide.
In case of change of ownership, please join a proof that the former
owner agreed to the transfer.
Notifying BRP, even after the expiration of the limited warranty, is very
important as it enables BRP to reach the snowmobile owner if neces-
sary, like when safety recalls are initiated. It is the owner’s responsibil-
ity to notify BRP.
STOLEN UNITS: If your personal snowmobile is stolen, you should
notify BRP or an authorized BRP snowmobile dealer. We will ask you
to provide your name, address, phone number, the vehicle identifica-
tion number and the date it was stolen.
253















Content      ..      1      2
