Snowmobile Lynx CROSSOVER ACE SERIES. OPERATOR’S GUIDE (2023)

MAINTENANCE PROCEDURES

Track

Track Condition

WARNING

Remove tether cord cap from engine cut-off switch before per-

forming any maintenance or adjustment, unless otherwise

specified. Vehicle must be parked in a safe place, away from

the trail.

Remove tether cord cap from engine cut-off switch.

Lift the rear of the snowmobile and support it with a wide-base snow-

mobile mechanical stand with a rear deflector panel. With the engine

off, rotate the track by hand, and inspect condition. If worn or cut, or if

track fibers are exposed, or if missing or defective inserts or guides

are noted; contact an authorized BRP snowmobile dealer.

Snowmobiles Equipped with Traction Enhancing Products

If your snowmobile is equipped with a BRP approved studded track,

PROCEED WITH A VISUAL INSPECTION OF YOUR TRACK BE-

FORE EACH USE.

Look for any defects, such as:

- Perforations in the track

- Tears in the track (particularly around traction holes on studded

tracks)

- Lugs that are broken or torn off, exposing portions of rods

- Delamination of the rubber

- Broken rods

- Broken studs (studded tracks)

- Bent studs (studded tracks)

- Missing studs

- Studs that are torn off the track

- Missing track guide(s)

- Also, ensure that studs nut are tighten to the recommended

torque.

On approved studded tracks, replace broken or damaged studs imme-

diately. If your track shows signs of deterioration, it must be replaced

immediately. When in doubt, ask your dealer.

WARNING

Riding with a damaged track or studs could lead to a loss of

control.

282

MAINTENANCE PROCEDURES

For complete information on traction enhancing products, refer to

TRACTION ENHANCING PRODUCTS in SAFETY INFORMATION at

the beginning of this Operator's Guide.

Track Tension and Alignment

NOTE:

Track tension and alignment are interrelated. Do not adjust one with-

out the other.

WARNING

To prevent serious injury to individuals near the snowmobile:

– NEVER stand behind or near a moving track.

– Always use a wide-base snowmobile stand with a rear de-

flector panel if it is necessary to rotate track.

– When the track is raised off the ground, only run it at the low-

est possible speed.

Centrifugal force could cause debris, damaged or loose studs,

pieces of torn track, or an entire severed track to be violently

thrown backwards out of the tunnel with tremendous force, pos-

sibly resulting in the loss of a leg or other serious injury.

Verifying the Track Tensiion

NOTE:

Ride the snowmobile in snow about 15 to 20 minutes prior to adjusting

track tension.

1. Remove tether cord cap from engine cut-off switch.

2. Lift rear of vehicle and support it off the ground.

CAUTION

Use proper lifting techniques, notably using your legs force. Do

not attempt to lift the rear of vehicle if it is above your limits.

3. Allow rear suspension to fully extend.

4. Prepare the tensiometer.

283

MAINTENANCE PROCEDURES

TYPICAL - LOAD READING

1. Upper O-ring

8. Load reading must be as per the track deflection in the Technical

Specifications.

9. If load reading is not in accordance with the specification, adjust

track tension. Refer to Track Tension Adjustment.

Adjjusting the Track Tensiion - PPS Suspension

1. Remove tether cord cap from engine cut-off switch.

2. Lift rear of vehicle and support it off the ground.

CAUTION

Use proper lifting techniques, notably using your legs force. Do

not attempt to lift the rear of vehicle if it is above your limits.

3. Remove wheel cap.

4. Loosen the rear axle screws.

5. Tighten or loosen both adjustment screws (equally) to increase or

decrease track tension.

286

MAINTENANCE PROCEDURES

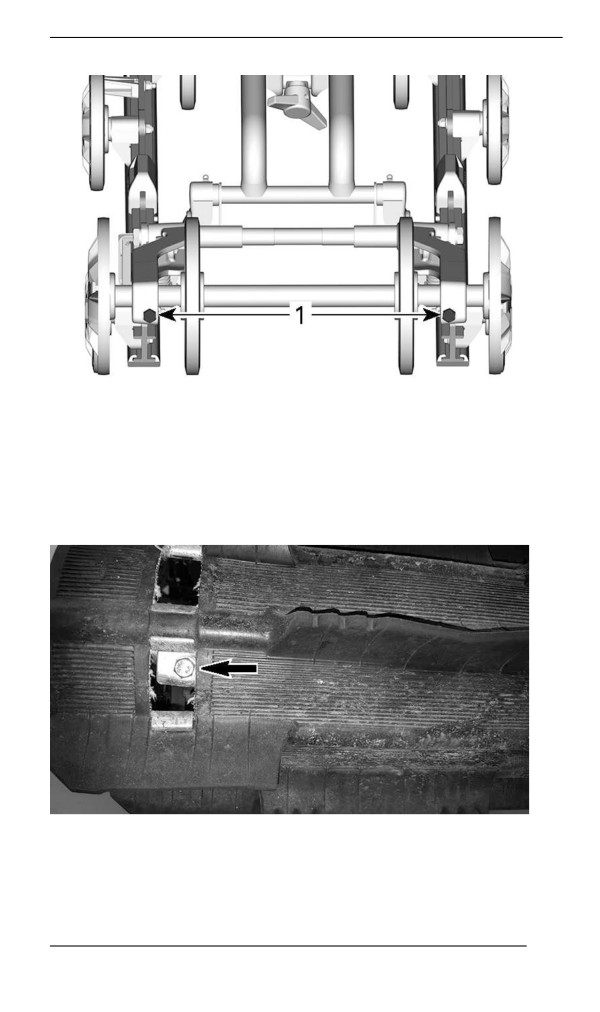

1. Loosen the axle screws

2. Tighten or loosen the adjustment screws

6. If correct tension is unattainable, contact an authorized Lynx

dealer.

7. Retighten the rear axle nut to specification.

TIGHTENING TORQUE

Rear idler wheel screw

48 ± 6 Nm (35 ± 4 lbf-ft)

8. Check track alignment as described below.

Adjusting the Track Tension - EasyRiide Suspensiion

1. Remove the tether cord cap from engine cut-off switch.

2. Lift rear of vehicle and support it off the ground.

CAUTION

Use proper lifting techniques, notably using your legs force. Do

not attempt to lift the rear of vehicle if it is above your limits.

287

MAINTENANCE PROCEDURES

TIGHTENING TORQUE

Idler wheel screw

48 ± 6 Nm (35 ± 4 lbf-ft)

9. Check track alignment as described below.

Aliigniing the Track

WARNING

Before checking track alignment, ensure that the track is free of

all particles which could be thrown out while track is rotating.

Keep hands, tools, feet and clothing clear of track. Always lift

the snowmobile on a wide-base stand with a rear deflector pan-

el. Ensure no one is standing in close proximity to the snowmo-

bile, especially at the rear of the track. Never rotate track at

high speed.

Centrifugal force could cause debris, damaged or loose studs,

pieces of torn track, or an entire severed track to be violently

thrown backwards out of the tunnel with tremendous force.

1. Lift rear of vehicle and support it off the ground.

CAUTION

Use proper lifting techniques, notably by using the force of your

legs . Do not attempt to lift the rear of vehicle if it is above your

limits.

2. Start engine and accelerate slightly so that track slowly turns. This

must be done in a short period of time (15 to 20 seconds).

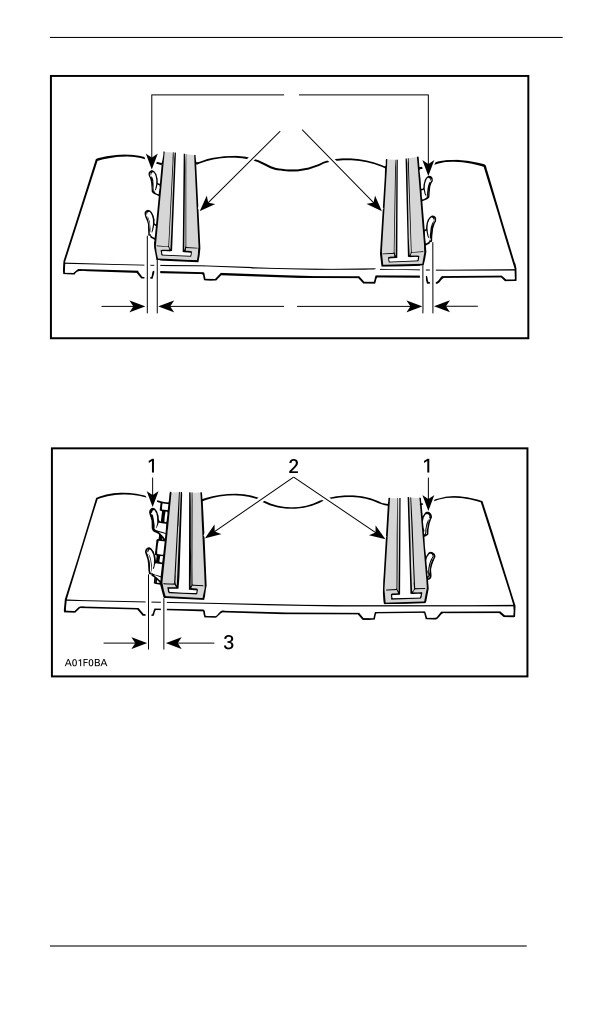

3. Check that the track is well centered; equal distance on both sides

between edges of track guides and slider shoes.

290

MAINTENANCE PROCEDURES

WARNING

Remove tether cord cap from engine cut-off switch before per-

forming any maintenance or adjustment, unless otherwise

specified. Vehicle must be parked in a safe place, away from

the trail.

3. Loosen the rear axle nut.

4. Tighten adjustment screw on side where the slider shoe is the

farthest from the track insert guides.

5. Tighten the rear axle nut.

WARNING

Properly tighten wheel retaining bolt, otherwise wheel may

come off and cause track to “lock”.

6. Restart engine and rotate track slowly to recheck alignment.

7. Tighten the rear axle nut to specified torque.

Tightening Torque

Rear axle screw

48 ± 6 Nm (35 ± 4 lbf-ft)

8. Reposition snowmobile on the ground.

Suspensiion

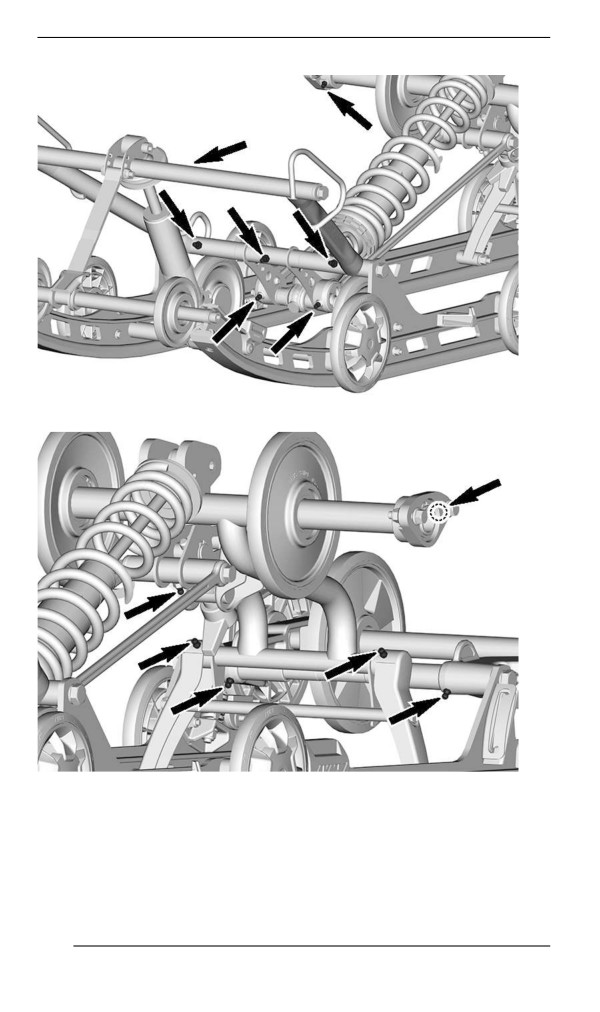

Rear Suspension Condition

Visually inspect all suspension components including slider shoes,

springs, wheels, etc.

NOTE:

During normal driving, snow will act as a lubricant and coolant for the

slider shoes. Extensive riding on ice or sanded snow, will create ex-

cessive heat build-up and cause premature slider shoe wear.

Suspension Stopper Strap Condition

Inspect stopper straps for wear and cracks, bolt and nut for tightness.

If loose inspect holes for deformation. Replace as required. Tighten

nut to specification.

292

VEHICLE CARE

Post-Operatiion Care

Remove snow and ice from rear suspension, track, front suspension,

steering mechanism and skis.

WARNING

Make sure D.E.S.S. key is removed from D.E.S.S. post before

standing in front the vehicle, getting close to the track or rear

suspension components.

Always cover your snowmobile when leaving it outside overnight or

during extended periods of inactivity. This will protect it from frost and

snow as well as help retain its appearance.

Vehicle Cleaning and Protectiion

Wash snowmobile with water mixed with a mild detergent. Use only

microfiber cloths or an equivalent.

NOTICE

Never use a high pressure washer to clean the vehicle. USE

LOW PRESSURE ONLY (EX: garden hose).

NOTICE

Never use XPS Brake and Parts Cleaner or any petroleum

based cleaners on plastic parts.

Non Compatible Cleaning Products

material type

non-compatible cleaning Products

All plastics, vinyls,

BRAKE AND PARTS CLEANER OR

painted steel and

ANY PETROLEUM BASE CLEANING

aluminium.

PRODUCTS

Compatible Cleaning Products

material type

cleaning Product

All plastics, vinyls,

Soapy water

painted steel and

XPS Spray Cleaner and Polish

aluminium.

XPS All Purpose Cleaner

309

STORAGE

During summer, or when a snowmobile is not in use for more than

three months, proper storage is necessary.

Storage

Clean the vehicle

Add fuel stabilizer to fuel following the product manufacturer

recommendations.

Run the engine after adding the product to the fuel

Lubricate engine

Lubricate brake lever pivot

Lubricate rear suspension

Charge battery monthly to keep it fully charged during storage

Block muffler outlet with rags

Lift rear of vehicle until track is clear of the ground. Do not release

track tension

CAUTION

Use appropriate lifting device or have assistance to share lifting

stress. If a lifting device is not used, use proper lifting techni-

ques, notably using your legs force. Do not attempt to lift the

rear of vehicle if it is above your limits.

NOTICE

The snowmobile has to be stored in a cool and dry place and

covered with an opaque but ventilated tarpaulin. This will pre-

vent sun rays and grime from affecting plastic components and

vehicle finish.

NOTICE

Fuel stabilizer should be added prior to engine lubrication to

ensure carburetor protection against varnish deposits.

311

VEHICLE IDENTIFICATION

Identificatiion Numbers

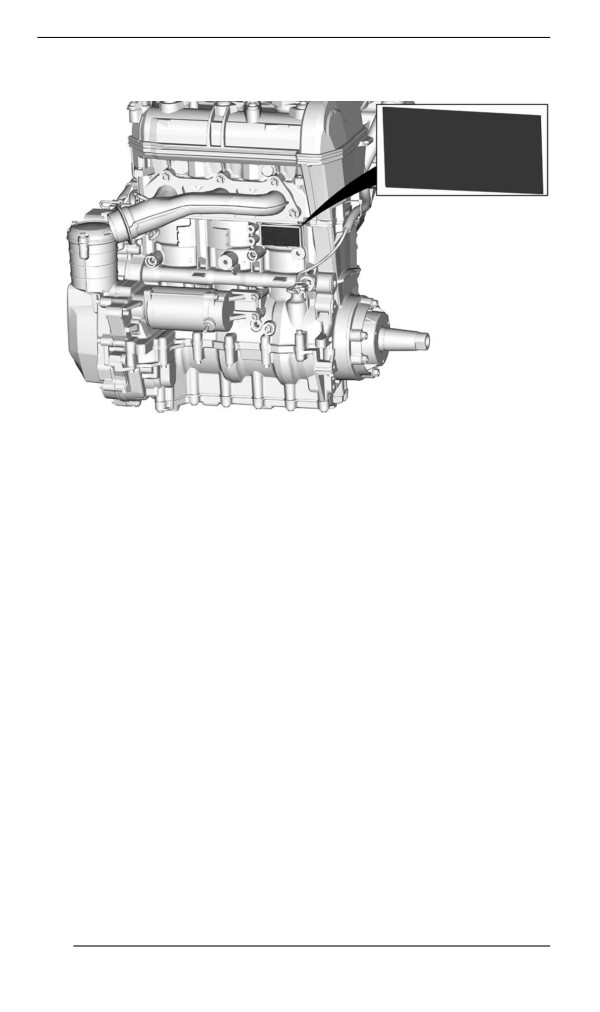

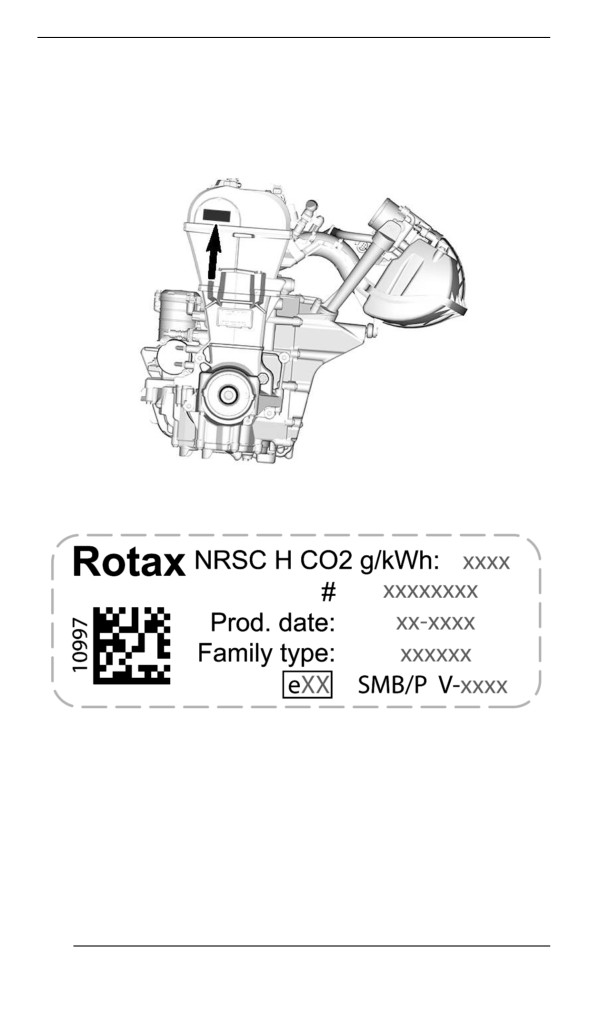

The main components of your snowmobile (engine and frame) are

identified by different identification numbers. It may sometimes be-

come necessary to locate these numbers for warranty purposes or to

trace your snowmobile in the event of loss. These numbers are re-

quired by the authorized BRP snowmobile dealer to complete war-

ranty claims properly. We strongly recommend that you take note of

all the identification numbers on your snowmobile and supply them to

your insurance company.

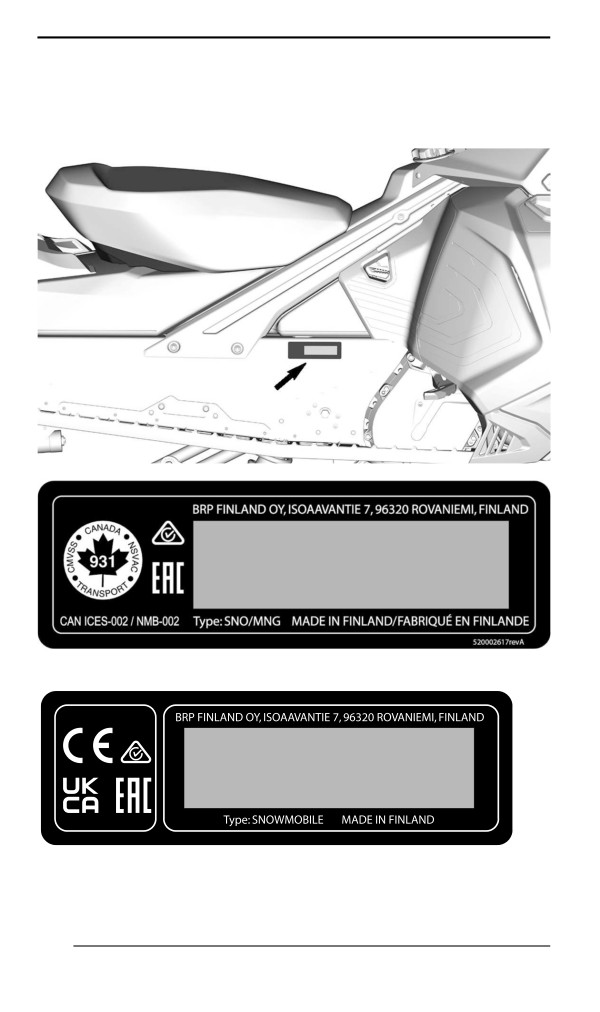

Vehicle Identification Number (VIN)

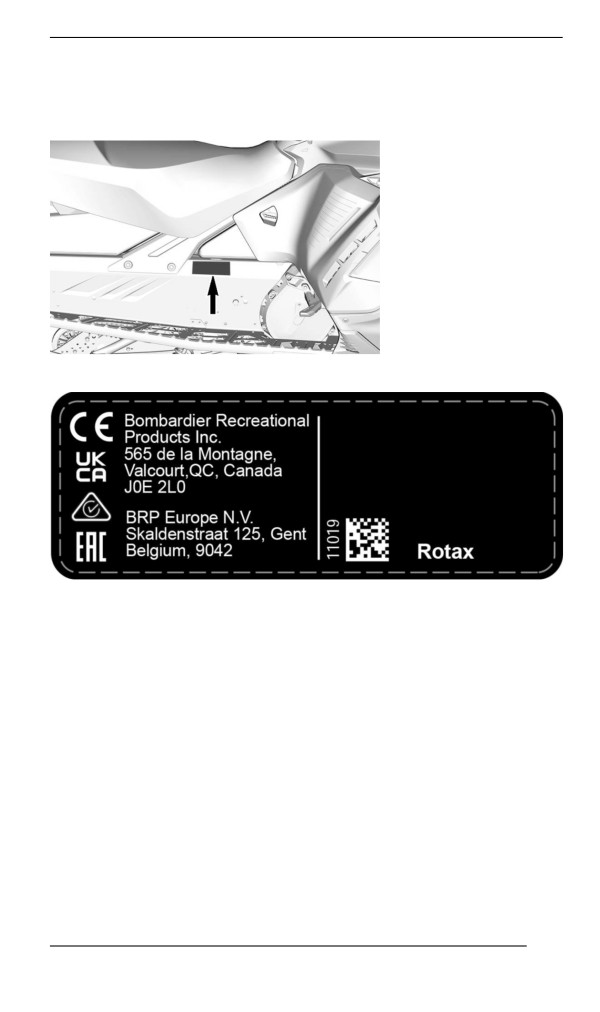

VIN is scribed on vehicle description decal. See above. It is also en-

graved on tunnel near vehicle description decal.

Model number and model year are part of the information found in the

VIN. See illustration.

2BP

LSAB

000001

2BP = Canada

Serial

Model number

YH2 = Finland

number

Factory

S = Ski-Doo

V = Valcourt

L = Lynx

Numeric or

R = Rovaniemi

Alphabetic

Model year: P = 2023

Q = 2024

R=2025etc.

323

NOISE EMISSION AND VIBRATION VALUES

MODEL

600 ACE

900 ACE

NOISE EMISSION AND VIBRATION VALUES¹

90,4 dB @ 3625

91,2 dB @ 3625

Sound power level

Noise

RPM (Uncertainty

(LWA)

(Kwa) 3 dB)

<2.5 m/s² @

3.15 m/s² @

Hand-arm system

3625 RPM

Vibration

Whole body at

<0.5 m/s² @

<0.5m/s² @ 3625

seat

3625 RPM

RPM

¹: Noise emission and Vibration values are measured in accordance

with Annexes A and B of ISMA 1 regulation on a snow covered or

grass surface in neutral or without belt.

900 ACE Turbo (130 hp) and Turbo

MODEL

R (180 hp)

NOISE EMISSION AND VIBRATION VALUES¹

Sound power level

99 dB @ 3625 RPM (Uncertainty

(LWA)

(Kwa) 3 dB)

Noise

Sound pressure

92 dB @ 3625 RPM (Uncertainty

(LpA)

(Kpa) 3 dB)

Hand-arm system

<2.5 m/s² @ 3625 RPM

Vibration

Whole body at

<0.5m/s² @ 3625 RPM

seat

¹: Noise emission and Vibration values are measured in accordance

with Annexes A and B of ISMA 1 regulation on a snow covered or

grass surface in neutral or without belt.

330

EPA CERTIFIED ENGINES

Engiine Emissions Informatiion

Manufacturer''s Responsibility

Snowmobile manufacturers of snowmobile engines need to determine

the exhaust emission levels for each engine horsepower family and

certify these engines with the United States of America Environmental

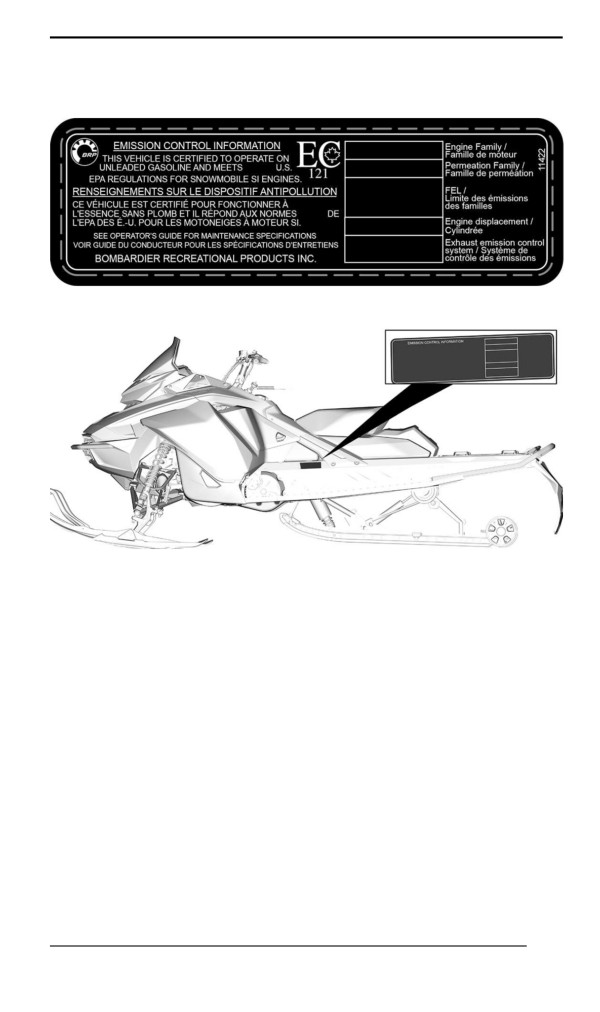

Protection Agency (EPA). An emissions control information label,

showing emission levels and engine specifications, must be placed on

each vehicle at the time of manufacture.

Dealer''s Responsibility

When performing service on a certified BRP snowmobiles that carry

an emissions control information label, adjustments must be kept with-

in published factory specifications.

Replacement or repair of any emission related component must be

executed in a manner that maintains emission levels within the pre-

scribed certification standards.

Dealers are not to modify the engine in any manner that would alter

the horsepower or allow emission levels to exceed their predeter-

mined factory specifications.

Exceptions include manufacturer's prescribed changes, such as alti-

tude adjustments for example.

Owner Responsibility

The owner / operator is required to have engine maintenance per-

formed to maintain emission levels within prescribed certification

standards.

The owner / operator is not to, and should not allow anyone to modify

the engine in any manner that would alter the horsepower or allow

emissions levels to exceed their predetermined factory specifications.

EPA Emission Regulations

All BRP snowmobiles manufactured by BRP are certified to the EPA

as conforming to the requirements of the regulations for the control of

air pollution from new snowmobile engines. This certification is contin-

gent on certain adjustments being set to factory standards. For this

reason, the factory procedure for servicing the product must be strictly

followed and, whenever practicable, returned to the original intent of

the design.

The responsibilities listed above are general and in no way a complete

listing of the rules and regulations pertaining to the EPA requirements

on exhaust emissions for snowmobile products. For more detailed in-

formation on this subject, you may contact the following locations:

334

RADIO FREQUENCY DIGITALLY ENCODED

SECURITY SYSTEM (RF D.E.S.S. KEY)

This device complies with FCC Part 15 and Industry Canada license

exempt RSS standard(s).

Operation is subject to the following two conditions: (1) this device

may not cause interference, and (2) this device must accept any inter-

ference, including interference that may cause undesired operation of

the device.

Changes or modifications not expressly approved by the party respon-

sible for compliance could void the user’s authority to operate the

equipment.

IC Registration Number: 12006A-1001002222

FCC ID: 2ACER-1001002222

We, the party responsible for compliance, declare under our sole re-

sponsibility that the device is in conformity with the provisions of the

following Council Directive: 2014/53/EU. To which this declaration re-

lates is in conformity with the essential requirements and other rele-

vant requirements. The product is in conformity with the following

directives, harmonized standards and regulations:

Radio Equipment Directive

(RED)

2014/53/EU and Harmonized

Standards:

IEC 62368-1:2014, CISPR 25:2016, ISO 11452-2:2004, ETSI EN 300

330 V2.1.1:2017

Radio Equipment Statutory Instrument 2017/1206 and Designated

Standards:

IEC 62368-1:2014, CISPR 25:2016, ISO 11452-2:2004, ETSI EN 300

330 V2.1.1:2017

336

MULTIFUNCTION GAUGE REGULATORY

INFORMATION

Technical Information

Transmitter:

- BT operating frequency range: 2402 - 2480 MHz

- BT version: 4.2 (no BTLE)

- BT output power: < 8.5 dBm

Receiver:

- FM operating range: 76 - 108 MHz

Manufacturer and Address

Manufacturer:

- Robert Bosch LLC

Address:

38000 Hills Tech Drive,

Farmington Hills, MI 48331,

USA

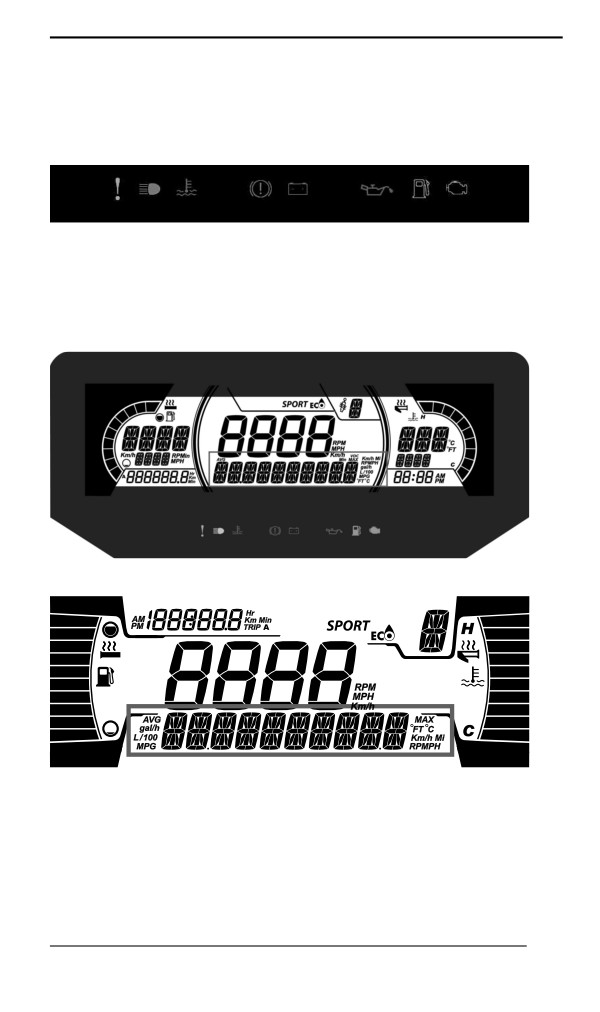

To display the regulatory information on the vehicle digital

display:

From the home screen, access the main menu and keep the joystick

pressed down for more than 10 seconds.

USA and Canada

This device complies with FCC Part 15 and Industry Canada license

exempt RSS standard (s). Operation is subject to the following two

conditions:

(1) this device may not cause interference, and

(2) this device must accept any interference, including interference

that may cause undesired operation of the device.

Le présent appareil est conforme aux CNR d'Industrie Canada appli-

cables aux appareils radio exempts de licence. L'exploitation est au-

torisée aux deux conditions suivantes:

(1) l'appareil ne doit pas produire de brouillage, et

(2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectri-

que subi, même si le brouillage est susceptible d'en compromettre le

fonctionnement.

Changes or modifications not expressly approved by the party respon-

sible for compliance could void the user's authority to operate the

equipment.

IC: 22868 - VDIBRHS01

FCC ID: 2AMJS - VDIBRHS01

RF exposure:

337

MULTIFUNCTION GAUGE REGULATORY INFORMATION

- The equipment complies with FCC RF exposure limits set forth for

an uncontrolled environment.

- This equipment must be installed and operated with a separation

distance of at least 20 cm from all persons.

- The antenna(s) used for this transmitter must not be co-located or

operating in conjunction with any other antenna or transmitter.

Mexico

IFETEL

Marca: Robert Bosch LLC

Modelo(s): VIPHI2BT

Número: RCPBOVI18-0967

NOM-121-SCT1-2009

La operación de este equipo está sujeta a las siguientes dos condi-

ciones: (1) es posible que este equipo o dispositivo no cause interfer-

encia perjudicial y (2) este equipo o dispositivo debe aceptar cualquier

interferencia, incluyendo la que pueda causar su operación no

deseada.

Brazil

03473-18-04473

Este equipamento opera em caráter secundário, isto é, não tem direito

a proteção contra interferência prejudicial, mesmo de estações do

mesmo tipo, e não pode causar interferência a sistemas operando em

caráter primário.

Japan

This device is granted pursuant to the Japanese Radio Law (

)

and the Japanese Telecommunications Business Law

(

). This device should not be modified (otherwise the

granted designation number will become invalid).

338

MULTIFUNCTION GAUGE REGULATORY INFORMATION

Europe

Declaration of Conformity

Simplified EU Declaration of Conformity according Radio Equipment

Directive 2014/53/EU.

Hiermit erklärt Robert Bosch LLC, dass der Funkanlagentyp VIPHI2BT der Richtlinie 2014/53/EU entspricht.

Der vollständige Text der EU-Konformitätserklärung ist unter der folgenden Internetadresse verfügbar: eu-doc.

bosch.com

Le soussigné, Robert Bosch LLC, déclare que l'équipement radioélectrique du type VIPHI2BT est conforme à la

directive 2014/53/UE.

Le texte complet de la déclaration UE de conformité est disponible à l'adresse internet suivante:eu-doc.

bosch.com

Robert Bosch LLC

VIPHI2BT

2014/53/.

: eu-doc.

bosch.com

Με την παρούσα ο/η Robert Bosch LLC, δηλώνει ότι ο ραδιοεξοπλισ×όØ VIPHI2BT πληροί την οδηγία 2014/53/EE.

Το πλήρεØ κεί×ενο τηØ δήλωσηØ συ××όρφωσηØ ΕΕ διατίθεται στην ακόλουθη ιστοσελίδα στο διαδίκτυο: eu-doc.

bosch.com

Tímto Robert Bosch LLC prohlašuje, že typ rádiového zařízení VIPHI2BT je v souladu se směrnicí 2014/53/EU.

Úplné znění EU prohlášení o shodě je k dispozici na této internetové adrese: eu-doc.bosch.com

Hermed erklærer Robert Bosch LLC, at radioudstyrstypen VIPHI2BT er i overensstemmelse med direktiv

2014/53/EU.

EU-overensstemmelseserklæringens fulde tekst kan ðndes på følgende internetadresse: eu-doc.bosch.com

Käesolevaga deklareerib Robert Bosch LLC, et käesolev raadioseadme tüüp VIPHI2BT vastab direktiivi

2014/53/EL nõuetele.

ELi vastavusdeklaratsiooni täielik tekst on kättesaadav järgmisel internetiaadressil: eu-doc.bosch.com

Por la presente, Robert Bosch LLC declara que el tipo de equipo radioeléctrico VIPHI2BT es conforme con la

Directiva 2014/53/UE.

El texto completo de la declaración UE de conformidad está disponible en la dirección Internet siguiente: eu-doc.

bosch.com

Robert Bosch LLC vakuuttaa, että radiolaitetyyppi VIPHI2BT on direktiivin 2014/53/EU mukainen.

EU-vaatimustenmukaisuusvakuutuksen täysimittainen teksti on saatavilla seuraavassa internetosoitteessa: eu-doc.

bosch.com

Hereby, Robert Bosch LLC declares that the radio equipment type VIPHI2BT is in compliance with Directive

2014/53/EU.

The full text of the EU declaration of conformity is available at the following internet address: eu-doc.bosch.com

Robert Bosch LLC ovime izjavljuje da je radijska oprema tipa VIPHI2BT u skladu s Direktivom 2014/53/EU.

Cjeloviti tekst EU izjave o sukladnosti dostupan je na sljedećoj internetskoj adresi: eu-doc.bosch.com

Robert Bosch LLC igazolja, hogy a VIPHI2BT típusú rádióberendezés megfelel a 2014/53/EU irányelvnek.

Az EU-megfelelőségi nyilatkozat teljes szövege elérhető a következő internetes címen: eu-doc.bosch.com

Il fabbricante, Robert Bosch LLC, dichiara che il tipo di apparecchiatura radio VIPHI2BT è conforme alla direttiva

2014/53/UE.

Il testo completo della dichiarazione di conformità UE è disponibile al seguente indirizzo Internet: eu-doc.

bosch.com

339

MULTIFUNCTION GAUGE REGULATORY INFORMATION

Aš, Robert Bosch LLC, patvirtinu, kad radijo įrenginių tipas VIPHI2BT atitinka Direktyvą 2014/53/ES.

Visas ES atitikties deklaracijos tekstas prieinamas šiuo interneto adresu: eu-doc.bosch.com

Ar šo Robert Bosch LLC deklarē, ka radioiekārta VIPHI2BT atbilst Direktīvai 2014/53/ES.

Pilns ES atbilstības deklarācijas teksts ir pieejams šādā interneta vietnē: eu-doc.bosch.com

B'dan, Robert Bosch LLC, niddikjara li dan it-tip ta' tagħmir tar-radju VIPHI2BT huwa konformi mad-Direttiva

2014/53/UE.

It-test kollu tad-dikjarazzjoni ta' konformità tal-UE huwa disponibbli f'dan l-indirizz tal-Internet li ġej: eudoc.

bosch.com

Hierbij verklaar ik, Robert Bosch LLC, dat het type radioapparatuur VIPHI2BT conform is met Richtlijn

2014/53/EU.

De volledige tekst van de EU-conformiteitsverklaring kan worden geraadpleegd op het volgende internetadres: eudoc.

bosch.com

Robert Bosch LLC niniejszym oświadcza, że typ urządzenia radiowego VIPHI2BT jest zgodny z dyrektywą

2014/53/UE.

Pełny tekst deklaracji zgodności UE jest dostępny pod następującym adresem internetowym: eu-doc.bosch.com

O(a) abaixo assinado(a) Robert Bosch LLC declara que o presente tipo de equipamento de rádio VIPHI2BT está

em conformidade com a Diretiva 2014/53/UE.

O texto integral da declaração de conformidade está disponível no seguinte endereço de Internet: eudoc.

bosch.com

Prin prezenta, Robert Bosch LLC declară că tipul de echipamente radio VIPHI2BT este în conformitate cu

Directiva 2014/53/UE.

Textul integral al declaraiei UE de conformitate este disponibil la următoarea adresă internet: eu-doc.bosch.com

Härmed försäkrar Robert Bosch LLC att denna typ av radioutrustning VIPHI2BT överensstämmer med direktiv

2014/53/EU.

Den fullständiga texten till EU-försäkran om överensstämmelse nns på följande webbadress: eu-doc.bosch.com

Robert Bosch LLC potrjuje, da je tip radijske opreme VIPHI2BT skladen z Direktivo 2014/53/EU.

Celotno besedilo izjave EU o skladnosti je na voljo na naslednjem spletnem naslovu: eu-doc.bosch.com

Robert Bosch LLC týmto vyhlasuje, že rádiové zariadenie typu VIPHI2BT je v súlade so smernicou 2014/53/EÚ.

Úplné EÚ vyhlásenie o zhode je k dispozícii na tejto internetovej adrese: eu-doc.bosch.com

Robert Bosch LLC lýsir því hér með yr að þráðlausi arskiptabúnaðurinn VIPHI2BT er í samræmi við tilskipun

2014/53/ESB.

Óstyttan texta ESB-samræmisyrlýsingarinnar er að nna á ve anginu: eu-doc.bosch.com

Liechtenstein

Hiermit erklärt Robert Bosch LLC, dass der Funkanlagentyp VIPHI2BT der Richtlinie 2014/53/EU entspricht.

Der vollständige Text der EU-Konformitätserklärung ist unter der folgenden Internetadresse verfügbar: eudoc.

bosch.com

Hermed erklærer Robert Bosch LLC at radioutstyrstypen VIPHI2BT er i samsvar med direktiv 2014/53/EU.

Hele teksten i EU-samsvarserklæringen nnes på følgende internettadresse: eu-doc.bosch.com

340

ENGINE

600 ACE

ENGINE

600 ACE

Rotax 600, liquid

cooled, 4-stroke,

Engine type

D.O.H.C., dry

sump.

Number of cylinder

Bore

74 mm (2.91 in)

Stroke

69.7 mm (2.74 in)

Displacement

600 cm³ (36.6 in³)

Maximum power engine speed

7250 RPM

FUEL SYSTEM

Multi point EFI, 46

Fuel delivery

mm heated

throttle body

At ECO Mode

1500 ± 200 RPM

(not adjustable)

Idle speed

STD/ Sport Mode

1700 ± 200 RPM

(not adjustable)

ELECTRICAL SYSTEM

30 A @ 14.5 V

Total system output

420 W or 650 W

@ 6000 RPM

NGK MR7BI-8 or

Type

equivalent

Spark

600 ACE

plug⁽¹⁾

Not adjustable 0.7

Gap

to 0.8 mm (.028 to

.031 in)

342

ENGINE

900 ACE Turbo R

900 ACE Turbo

ENGINE

R (180 hp)

Rotax 903, liquid

cooled, 4-stroke,

Engine type

D.O.H.C., dry

sump, turbo with

intercooler

Number of cylinder

Bore

74 mm (2.9 in)

Stroke

69.7 mm (2.74 in)

Displacement

899 cm³ (54.9 in³)

Maximum power engine speed

7900 ± 200 RPM

FUEL SYSTEM

Multi point EFI, 46

Fuel delivery

mm heated

throttle body

Standard and

1300 ± 200 RPM

ECO mode

Idle speed (not adjustable)

Sport mode

1650 ± 200 RPM

ELECTRICAL SYSTEM

30 A @ 14.5 V

Total system output

420 W or 650 W

@ 6000 RPM

NGK

Type

LMAR9AI-8D or

equivalent

Spark plug⁽¹⁾

Gap

Not adjustable 0.7

to 0.8 mm (.028 to

.031 in)

346

VEHICLE

Adventure

COOLING SYSTEM

XPS Extended life

Recommended

pre-mixed coolant

Ethyl glycol and

distilled water (50%/

Coolant type

50%)

Alternative, or if

or coolant

not available

specifically

formulated for

aluminum engines

5.9 l (6.23

Adventure

qt(liq.,US))

6.9 l (7.29

Coolant capacity

Adventure LX

qt(liq.,US))

7.2 l (7.61

Adventure SC

qt(liq.,US))

FUEL SYSTEM

In-tank electrical

Fuel pump

fuel pump

Regular unleaded

Type

gasoline

600 ACE

900 ACE

87 Pump Posted

Octane rating

AKI (RON+MON)/2

(RON)

Fuel

Premium unleaded

Type

gasoline

900 ACE

Turbo

91 Pump Posted

Octane rating

AKI (RON+MON)/2

95 RON

37 l (9,8

Fuel tank capacity

gal(liq.,US))

348

VEHICLE

DRIVE SYSTEM — CHAINCASE

550 ml (18.9 fl

Capacity

oz(US))

Adventure

21/ 51/ 110

Adventure LX

Adventure SC

Chain drive ratio

24/ 51/ 112

900 ACE

Adventure SC

25/ 45/ 108

900 ACE Turbo

DRIVE SYSTEM — PULLEYS

600 ACE

eDrive II LC

Drive pulley type

900 ACE

pDrive-LC

900 ACE Turbo

pDrive-4S

600 ACE

2200 ± 100 RPM

Drive pulley

900 ACE

engagement RPM

900 ACE Turbo

2700 ± 100 RPM

600 ACE

QRS-4S

900 ACE

Driven pulley type

900 ACE Turbo

QRS-4SVENT

DRIVE SYSTEM — TRACK

Drive sprocket number of teeth

Width

38.1 cm (15 in)

Adventure LX

348.7 cm (137.4 in)

Length

Track

Adventure

370.5 cm (145.7 in)

Adventure SC

Profile

Adventure

41 mm (1.6 in)

height

Adventure SC

350

VEHICLE

DRIVE SYSTEM — TRACK

Adventure LX

34 mm (1.35 in)

Deflection

32 mm (1.26 in)

Track

adjust

6.0 to 8.5 kgf (13 to

ment⁽³⁾

Force

19 lbf)

BRAKE SYSTEM

Single 200 mm

Brake

Type

cross drilled carbon

steel disc

Type

DOT 4

Brake fluid

65 ml (2.2 fl

Quantity

oz(US))

Fixed twin pistons

Caliper

(2 x 40mm)

Brake pad material

Organic

Minimum brake pad thickness (includes

5.0 mm (.200 in)

backing plate)

Minimum brake disc thickness

4.5 mm (.177 in)

Maximum brake disc warpage

0.25 mm (.010 in)

FRONT SUSPENSION

Suspension type

LFS

Adventure

221 mm (8.7 in)

Suspension maximum

Adventure SC

travel

Adventure LX

257 mm (10.1 in)

Adventure

Shock absorber type

HPG

Adventure LX

351

VEHICLE

FRONT SUSPENSION

Adventure SC

HPG Plus 36 Black

Stabilizer bar type

Link

REAR SUSPENSION

Adventure LX

PPS3 3500

Suspension type

Adventure

PPS3 3700

Adventure SC

Adventure

Suspension maximum

Adventure LX

291 mm (11.5 in)

travel

Adventure SC

Adventure

HPG 36

Adventure LX

Center

Shock

Adventure SC

HPG Plus 36

absorber

type

Adventure

HPG 36

Adventure LX

Rear

Adventure SC

HPG Plus 46

WEIGHT AND DIMENSIONS

Adventure

230 kg (507 lb)

Mass (dry)

Adventure LX

242 kg (534 lb)

Adventure SC

248 kg (547 lb)

Adventure

316 cm (124.4 in)

Overall length

Adventure LX

306 cm (120.4 in)

(without snowflap)

Adventure SC

325 cm (128 in)

Adventure

120 cm (47.2 in)

Adventure SC

Overall width

Adventure LX

128 cm (50.4 in)

352

VEHICLE

WEIGHT AND DIMENSIONS

Adventure

128 cm (50.4 in)

Overall height (including

Adventure SC

windshield)

Adventure LX

147 cm (57.9 in)

Adventure

99.6 ± 2.1 cm (39.2

Adventure SC

± .8 in)

Ski stance

Adventure LX

108 cm (42.5 in)

(1)

Do not attempt to adjust gap on this spark

NOTICE

plug.

(2)

Refer to Engine Oil for detailed information.

(3)

Measure gap between slider shoe and bottom inside track

when exerting a downward pull to the track.

Commander

COOLING SYSTEM

XPS Extended life

Recommended

pre-mixed coolant

Ethyl glycol and

distilled water (50%/

Coolant type

50%)

Alternative, or if

or coolant

not available

specifically

formulated for

aluminum engines

900 ACE

7.0 l (7.4 qt(liq.,US))

Coolant capacity

900 ACE Turbo

7.2 l (7.5 qt(liq.,US))

353

VEHICLE

FUEL SYSTEM

Fuel pump

In-tank electrical

Regular unleaded

gasoline (fuel which

Type

may contain up to

10% MAX ethanol

900 ACE

87 Pump Posted

Octane rating

AKI (R+M)/2)

92 RON

Fuel

Premium unleaded

gasoline (fuel which

Type

may contain up to

900 ACE

10% MAX ethanol

Turbo

91 Pump Posted

Octane rating

AKI (RON+MON)/2

95 RON

42 l (11.1

Fuel tank capacity

gal(liq.,US))

ELECTRICAL SYSTEM — 900 ACE

Commander

Grand Tourer

12 V, 30 A•h

Commander

GLX

Battery

Commander

12 V, 18 A•h

Limited

Headlamp

2 x 60/55 W (H-13)

Taillight and stoplight

2 x 0.4/1.4 W LED

Main

Clock/Starter/

Fuses

Relays

Headlamps

20 A

354

VEHICLE

DRIVE SYSTEM - TRACK

Drive sprocket number of teeth

Width

50 cm (20 in)

Track

Length

392.3 cm (154.4 in)

Track

Profile height

44 mm (1.75 in)

Deflection

32 mm (1.26 in)

Track adjustment⁽³⁾

Force

7.3 kgf (16 lbf)

BRAKE SYSTEM

Single 200 mm

Brake

Type

cross drilled carbon

steel disc

Type

DOT 4

Brake fluid

Quantity

65 ml (2.2 fl oz(US))

Fixed twin pistons (2

Caliper

x 40mm)

Brake pad material

Organic

Minimum brake pad thickness (includes

5 mm (.2 in)

backing plate)

Minimum brake disc thickness

4.5 mm (.177 in)

Maximum brake disc warpage

0.25 mm (.01 in)

FRONT SUSPENSION

Commander

LFS

Grand Tourer

Suspension type

LFS with bended

All other models

lower A-arms

358

VEHICLE

FRONT SUSPENSION

Commander

210 mm (8.3 in)

Limited

Suspension maximum

travel

Commander

Grand Tourer

257 mm (10.1 in)

Commander

GLX

Commander

HPG 36

Limited

Shock absorber type

Commander

HPG Plus 36 R

Grand Tourer

Black

Commander

KYB PRO 36 R EA

GLX

Kashima

Commander

Limited

Stabilizer bar type

Commander

Grand Tourer

Link

Commander

GLX

REAR SUSPENSION

Suspension type

EasyRide

Suspension maximum travel

340 mm (13.4 in)

Commander

HPG 36

Limited

Center

Commander

Shock

Grand Tourer

HPG Plus 46

absorber

Commander

Kashima

type

GLX

Commander

Rear

Commander

HPG 36

Limited

359

VEHICLE

REAR SUSPENSION

Commander

Grand Tourer

HPG Plus 46

Commander

Kashima

GLX

WEIGHT AND DIMENSIONS

Commander

280 kg (617.3 lb)

900 ACE

Commander

292 kg (643.7 lb)

Mass (dry)

900 ACE Turbo

Commander

Limited 900

301 kg (663.6 lb)

ACE

Commander

Limited 900

313 kg (690 lb)

ACE Turbo

Commander

Grand Tourer

295 kg (650.4 lb)

900 ACE Turbo

Mass (dry)

Commander

Grand Tourer

307 kg (676.8 lb)

900 ACE Turbo

Commander

320 kg (704. lb)

GLX

Commander

324 cm (127.6 in)

Limited

Overall length

(without snowflap)

Commander

Grand Tourer

323 cm (127.1 in)

Commander

GLX

Commander

Overall width

Commander

120 cm (47.2 in)

Limited

360

VEHICLE

WEIGHT AND DIMENSIONS

Commander

Grand Tourer

128 cm (50.4 in)

Commander

GLX

Commander

150 cm (59 in)

Limited

Overall height

Commander

Grand Tourer

147 cm (57.9 in)

Commander

GLX

Commander

97.5 to 101.7 cm

Limited

(38.4 to 40 in)

Commander

Ski stance

GLX

Commander

108 cm (42.5 in)

Grand Tourer

(1)

Do not attempt to adjust gap on this spark

NOTICE

plug.

(2)

Refer to Engine Oil for detailed information.

(3)

Refer to Track Tension Verification in Maintenance

Procedures for detailed procedure.

XTerrain RE

COOLING SYSTEM

XPS Extended life

Coolant type

Recommended

pre-mixed coolant

361

VEHICLE

COOLING SYSTEM

Ethyl glycol and

distilled water (50%/

50%)

Alternative, or if

or coolant

not available

specifically

formulated for

aluminum engines

7.4 l (7.82

Coolant capacity

qt(liq.,US))

FUEL SYSTEM

In-tank electrical

Fuel pump

fuel pump

Premium unleaded

Type

gasoline

900 ACE

Fuel

Turbo R

91 Pump Posted

Octane rating

AKI (RON+MON)/2

95 RON

37 l (9,8

Fuel tank capacity

gal(liq.,US))

ELECTRICAL SYSTEM

Battery

12 V, 18 A•h

Headlamp

2 x 60/55 W (H-13)

Europe

2 x 0.4/1.4 W LED

Taillight and stoplight

CAN/USA

2 x 2.6/ 3.5 W LED

Main

40 A

Start

Fuses

Accessories

15 A

Taillight / Brake

10 A

/ PAC

362

VEHICLE

DRIVE SYSTEM

Drive pulley engagement RPM

2700 ± 100 RPM

Driven pulley type

QRS-4S Vent

Drive sprocket number of teeth

38.1 cm (15 in) or

Width

40.6 cm (16 in)

Length

370.5 cm (145.7 in)

Track

41 mm (1.6 in)

Profile height

51 mm (2 in)

Deflection

3.2 cm (1.26 in)

Track

adjust

6.0 to 8.5 kgf (13 to

ment⁽³⁾

Force

19 lbf)

BRAKE SYSTEM

Single 200 mm

Brake

Type

cross drilled carbon

steel disc

Type

DOT 4

Brake fluid

Quantity

65 ml (2.2 fl oz(US))

Fixed twin pistons (2

Caliper

x 40mm)

Brake pad material

Organic

Minimum brake pad thickness (includes

5.0 mm (.200 in)

backing plate)

Minimum brake disc thickness

4.5 mm (.177 in)

Maximum brake disc warpage

0.25 mm (.010 in)

364

VEHICLE

FRONT SUSPENSION

Suspension type

LFS+

Suspension maximum travel

257 mm (10.1 in)

KYB PRO 46 HLCR

Shock absorber type

Kashima

Stabilizer bar type

Link

REAR SUSPENSION

Suspension type

PPS3 3700

Suspension maximum travel

291 mm (11.5 in)

KYB PRO 46 HLCR

Center

Kashima

Shock absorber type

KYB PRO 46 HLCR

Rear

Kashima

WEIGHT AND DIMENSIONS

Mass (dry)

264 kg (582 lb)

Overall length

312 cm (122.8 in)

(without snowflap)

Overall width

130 cm (51.2 in)

Overall height (including windshield)

126 cm (49.6 in)

Ski stance

109.7 cm (42.9 in)

(1)

Do not attempt to adjust gap on this spark

NOTICE

plug.

(2)

Refer to Engine Oil for detailed information.

(3)

Refer to Track Tension Verification in Maintenance

Procedures for detailed procedure.

365

TROUBLESHOOTING-

GUIDELINES

1. ELECTRIC STARTER DOES NOT WORK

Emergency engine stop switch in OFF position or tether cord cap not

installed on engine cut-off switch.

- Place the emergency engine stop switch in the ON position and in-

stall tether cord cap (on engine cut-off switch.

Throttle applied while attempting an engine start.

- Release throttle while cranking.

2. ENGINE IS CRANKED BUT FAILS TO START

No fuel to the engine.

- Check fuel tank level, add fuel if necessary.

System voltage too low.

- Contact an authorized BRP snowmobile dealer.

3. ENGINE RPM DOES NOT REACH CLUTCH

ENGAGEMENT POINT

D.E.S.S. did not read D.E.S.S. key code in the tether cord cap.

- Properly install tether cord cap.

D.E.S.S. has read a different code than the one programmed.

- Install a tether cord cap for which this snowmobile was

programmed.

ECM does not recognize the D.E.S.S. key.

- Refer to an authorized BRP snowmobile dealer.

4. ENGINE LACKS ACCELERATION OR POWER

Engine warm-up in progress.

- Drive vehicle at low speeds for a few minutes.

Engine break-in period not completed.

- Complete break-in period.

Drive and driven pulleys require servicing.

- Contact an authorized BRP snowmobile dealer.

368

TROUBLESHOOTING-GUIDELINES

Engine overheats.

- Check coolant level, see Maintenance Procedures.

- Check heat exchangers cleanliness. Clean if necessary.

Drive belt worn too thin.

- If the drive belt has lost more than 3 mm (1/8 in) of its original

width, it will affect vehicle performance.

- Replace drive belt.

Incorrect track adjustment.

- See Maintenance Procedures and/or an authorized BRP snowmo-

bile dealer for proper alignment and tension adjustments.

Fuel pressure too low.

- Seek service from an authorized BRP snowmobile dealer, repair

shop, or person of your own choosing for maintenance, repair, or

replacement. Please refer to the US EPA EMISSION-RELATED

WARRANTY contained herein for information about warranty

claims.

5. ENGINE BACKFIRES

Engine is running too hot.

- See item 4 of ENGINE LACKS POWER.

Ignition timing is incorrect or there is an ignition system failure.

- Seek service from an authorized BRP snowmobile dealer, repair

shop, or person of your own choosing for maintenance, repair, or

replacement. Please refer to the US EPA EMISSION-RELATED

WARRANTY contained herein for information about warranty

claims.

Exhaust system leak.

- Seek service from an authorized BRP snowmobile dealer, repair

shop, or person of your own choosing for maintenance, repair, or

replacement. Please refer to the US EPA EMISSION-RELATED

WARRANTY contained herein for information about warranty

claims.

Fuel pressure too low.

- Seek service from an authorized BRP snowmobile dealer, repair

shop, or person of your own choosing for maintenance, repair, or

369

MONITORING SYSTEM

Piilot Lamps, Messages and Beeper Codes

Gauge pilot lamp(s) will inform you if an anomaly occurs or to inform

you of a particular condition.

TYPICAL — PILOT LAMPS

Pilot lamp can flash alone or in combination with another lamp.

The lower display is used as a complement of the pilot lamps to give

you a brief description if an anomaly occurs or to inform you of a par-

ticular condition.

7.2" DIGITAL LOWER DISPLAY

4.5" DIGITAL LOWER DISPLAY

Messages will be displayed with a beep code and pilot lamp(s).

Beeper codes will be heard and messages will be displayed to catch

your attention.

See table below for details.

371

MONITORING SYSTEM

NOTE:

Some of the listed pilot lamps and messages do not apply to all

models.

Pilot

Message

lamp

Beeper

Description

display

Engine is overheating,

reduce snowmobile

speed and run in loose

snow or stop engine

immediately and let

engine cool down.

HIGH

Check coolant level,

ENGINE

refer to Maintenance. If

TEMPERA

coolant level is correct

TURE

and overheating

persists, contact an

1 Long

authorized BRP

beep

snowmobile dealer. Do

repeat

not run the engine if

ing

condition persists.

Reduce speed or stop

engine. Let engine cool

down and restart. If

overheating persists,

MUFFLER

contact an authorized

OVERHEAT

BRP snowmobile

dealer. Do not run the

engine if condition

persists.

Critical overheat. Stop

engine immediately and

let engine cool down.

1 Long

HIGH

Check coolant level,

beep

ENGINE

refer to Maintenance. If

repeat

TEMPERA

coolant level is correct

ing

TURE

and overheating

persists, contact an

authorized BRP

snowmobile dealer. Do

372

MONITORING SYSTEM

Pilot

Message

lamp

Beeper

Description

display

not run the engine if

condition persists.

MUFFLER

Critical overheat. Stop

OVERHEAT

engine immediately and

let engine cool down. If

overheating persists,

contact an authorized

ECM

BRP snowmobile

OVERHEAT

dealer. Do not run the

engine if condition

persists.

Indicate a low or high

battery voltage

—

BATT VOLT

condition. See an

authorized BRP

snowmobile dealer as

soon as possible.

Engine fault, see an

1 Long

authorized BRP

beep

CHECK

snowmobile dealer,

repeat

ENGINE

repair shop or person of

ing

your own choosing as

soon as possible.

Displayed when brake is

applied for more than 15

seconds while throttle

—

lever is squeezed and

vehicle is moving at

more than 5 km/h (3

MPH).

4 short

Engine detonation

beeps

—

KNOCK

(RPM is limited when

every 5

this condition occurs).

minutes

373

MONITORING SYSTEM

Pilot

Message

lamp

Beeper

Description

display

- Ensure

recommended fuel is

used.

- Check fuel quality,

replace if

necessary.

- If fault still occurs,

contact an

authorized BRP

snowmobile dealer,

repair shop, or

person of your own

choosing.

4 short

Engine RPM limited for

beeps

—

REV LIMIT

protection when certain

every 5

faults occur.

minutes

Indicates that maximum

—

OVER REV

engine RPM is reached.

Check clutch calibration.

Short

Shutdown procedure in

beeps

force due to engine

—

repeat

SHUTDOWN

overheating or fuel

ing

pump problem.

rapidly

Good key, vehicle ready

—

to operate.

Unable to read key (bad

DESS

connection). Make sure

—

WRONG KEY

the key is clean and

correctly snapped on

post.

374

BRP INTERNATIONAL LIMITED WARRANTY:

2023 LYNX® SNOWMOBILES

SCOPE OF THE LIMITED WARRANTY

Bombardier Recreational Products Inc. (“BRP”) warrants its 2023

LYNX snowmobiles sold by distributors or dealers authorized by BRP

to distribute LYNX snowmobiles ("LYNX Distributor / Dealer") outside

of the fifty United States, Canada, members of the European Econom-

ic Area (which is comprised of the member states of the European

Union plus United Kingdom, Norway, Iceland and Liechtenstein)

(“EEA”), members states of the Commonwealth of the Independent

States (including Ukraine and Turkmenistan) (''CIS'') and Turkey, from

defects in material or workmanship for the period and under the condi-

tions described below.

Non-factory installed parts and accessories are not covered under this

limited warranty. Please refer to the applicable parts and accessories

limited warranty text.

This limited warranty will become null and void if: (1) the snowmobile

was used for racing or any other competitive activity, at any point,

even by a previous owner; or (2) the snowmobile has been altered or

modified in such a way so as to adversely affect its operation, perform-

ance or durability, or has been altered or modified to change its in-

tended use.

LIMITATIONS OF LIABILITY

TO THE EXTENT PERMITTED BY LAW, THIS WARRANTY IS

EXPRESSLY GIVEN AND ACCEPTED IN LIEU OF ANY AND

ALL OTHER WARRANTIES, EXPRESSED OR IMPLIED, IN-

CLUDING WITHOUT LIMITATION ANY WARRANTY OF MER-

CHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE.

TO THE EXTENT THAT THEY CANNOT BE DISCLAIMED, THE

IMPLIED WARRANTIES ARE LIMITED IN DURATION TO THE

LIFE OF THE EXPRESS WARRANTY. INCIDENTAL AND CON-

SEQUENTIAL DAMAGES ARE EXCLUDED FROM COVERAGE

UNDER THIS WARRANTY. SOME JURISDICTIONS DO NOT

ALLOW FOR THE DISCLAIMERS, LIMITATIONS AND EXCLU-

SIONS IDENTIFIED ABOVE, AS A RESULT, THEY MAY NOT

APPLY TO YOU. THIS WARRANTY GIVES YOU SPECIFIC

RIGHTS, AND YOU MAY ALSO HAVE OTHER LEGAL RIGHTS

WHICH MAY VARY FROM COUNTRY TO COUNTRY. (FOR

PRODUCTS PURCHASED IN AUSTRALIA REFER TO “FOR

PRODUCTS SOLD IN AUSTRALIA ONLY”, BELOW).

Neither the LYNX Distributor / Dealer nor any other person has been

authorized to make any affirmation, representation or warranty regard-

ing the product, other than those contained in this limited warranty,

and if made, shall not be enforceable against BRP.

378

BRP INTERNATIONAL LIMITED WARRANTY: 2023 LYNX^® SNOWMOBILES

BRP reserves the right to modify this warranty at any time, being

understood that such modification will not alter the warranty conditions

applicable to the products sold while this warranty is in effect.

EXCLUSIONS – ARE NOT WARRANTED

The following are not warranted under this limited warranty under any

circumstances:

Normal wear and tear;

–

Routine maintenance items, tune ups, adjustments;

–

Damage caused by negligence or failure to provide proper mainte-

nance and/or storage, as described in the operator's guide;

Damage resulting from removal of parts, improper repairs, service,

maintenance, modifications or use of parts or accessories not

manufactured or approved by BRP which in its reasonable judge-

ment are either incompatible with the product or adversely affect

its operation, performance and durability, or resulting from repairs

done by a person that is not an authorized servicing BRP snowmo-

bile distributor/ dealer;

Damage caused by abuse, abnormal use, neglect, racing or opera-

tion of the product on surfaces other than snow, or operation of the

product in a manner inconsistent with the recommended operation

described in the Operator’s Guide;

Damage resulting from accident, submersion, fire, snow or water

ingestion, theft, vandalism or any act of God;

Operation with fuels, oils or lubricants which are not suitable for

use with the product (see the Operator’s Guide);

Damage resulting from rust, corrosion or exposure to the

elements;

Incidental or consequential damages, or damages of any kind in-

cluding without limitation towing, storage, transportation expenses,

telephone, rental, taxi, inconvenience, insurance coverage, loan

payments, loss of time, loss of income; or time missed for down-

time experience due to service work.

And damage resulting from studs installed on tracks if the installa-

tion does not conform to BRP’s instructions.

WARRANTY COVERAGE PERIOD

This warranty will be in effect from (1) the date of delivery to the first

retail consumer or (2) the date the product is first put into use, which-

ever occurs first and for a period of:

TWELVE (12) CONSECUTIVE MONTHS, for private or commercial

use owners. However, the warranty coverage period on a snowmobile

delivered between June 1^st and December 1^st of a given year will ex-

pire November 30^th of the following year.

379

BRP INTERNATIONAL LIMITED WARRANTY: 2023 LYNX^® SNOWMOBILES

The repair or replacement of parts or the performance of service under

this warranty does not extend the life of this warranty beyond its origi-

nal expiration date.

Note that the duration and any other modalities of the warranty cover-

age are subject to the applicable national or local legislation in the cus-

tomer's country.

FOR PRODUCTS SOLD IN AUSTRALIA ONLY

Nothing in these Warranty terms and conditions should be taken to ex-

clude, restrict or modify the application of any condition, warranty,

guarantee, right or remedy conferred or implied under the Competition

and Consumer Act 2010 (Cth), including the Australian Consumer

Law or any other law, where to do so would contravene that law, or

cause any part of these terms and conditions to be void. The benefits

given to you under this limited warranty are in addition to other rights

and remedies that you have under Australian law.

Our goods come with guarantees that cannot be excluded under the

Australian Consumer Law. You are entitled to a replacement or refund

for a major failure and for compensation for any other reasonably fore-

seeable loss or damage. You are also entitled to have the goods re-

paired or replaced if the goods fail to be of acceptable quality and the

failure does not amount to a major failure.

CONDITIONS TO HAVE WARRANTY COVERAGE

This warranty coverage is available only if each of the following condi-

tions has been fulfilled:

- The 2023 LYNX snowmobile must be purchased as new and un-

used by its first owner from a LYNX Distributor / Dealer authorized

to distribute LYNX snowmobiles in the country in which the sale

occurred;

- The BRP specified pre-delivery inspection process must be com-

pleted and documented;

- The product must have undergone proper registration by an au-

thorized LYNX Distributor / Dealer;

- The 2023 LYNX snowmobile must be purchased in the country or

union of countries in which the purchaser resides.

- Routine maintenance outlined in the operator’s guide must be

timely performed in order to maintain warranty coverage. BRP re-

serves the right to make warranty coverage contingent upon proof

of proper maintenance.

BRP will not honour this limited warranty to any private use owner or

commercial use owner if one of the preceding conditions has not been

met. Such limitations are necessary in order to allow BRP to preserve

both the safety of its products, and also that of its consumers and the

general public.

380

BRP INTERNATIONAL LIMITED WARRANTY: 2023 LYNX^® SNOWMOBILES

WHAT TO DO TO OBTAIN WARRANTY

COVERAGE

The customer must cease using the snowmobile upon the appearance

of an anomaly. The customer must notify a servicing LYNX Distributor

/ Dealer within two (2) days of the appearance of a defect, and provide

it with reasonable access to the product and reasonable opportunity to

repair it. The customer must also present to the authorized LYNX Dis-

tributor / Dealer, proof of purchase of the product and must sign the re-

pair / work order prior to starting the repair in order to validate the

warranty repair. All parts replaced under this limited warranty become

the property of BRP.

Note that the notification period is subject to the applicable national or

local legislation in customer's country.

WHAT BRP WILL DO

To the extent permitted by law, BRP’s obligations under this warranty

are limited to, at its sole discretion, repairing parts found defective

under normal use, maintenance and service, or replacing such parts

with new genuine LYNX parts without charge for parts and labour, at

any authorized LYNX Distributor / Dealer during the warranty cover-

age period under the conditions described herein. BRP’s responsibility

is limited to making the required repairs or replacements of parts. No

claim of breach of warranty shall be cause for cancellation or rescis-

sion of the sale of the snowmobile to the owner. You may have other

legal rights which may vary from country to country.

In the event that service is required outside of the country of original

sale, the owner will bear responsibility for any additional charges due

to local practices and conditions, such as, but not limited to, freight, in-

surance, taxes, license fees, import duties, and any and all other finan-

cial charges, including those levied by governments, states, territories

and their respective agencies.

BRP reserves the right to improve or modify products from time to time

without assuming any obligation to modify products previously

manufactured.

TRANSFER

If the ownership of a product is transferred during the warranty cover-

age period, this limited warranty, subject to its terms and conditions,

shall also be transferred and be valid for the remaining coverage peri-

od provided BRP or an authorized LYNX Distributor / Dealer receives

a proof that the former owner agreed to the transfer of ownership, in

addition to the coordinates of the new owner.

381

BRP LIMITED WARRANTY FOR THE

EUROPEAN ECONOMIC AND THE

COMMONWEALTH OF THE INDEPENDENT

STATES (CIS) AREAS AND TURKEY : 2023

LYNX® SNOWMOBILES

SCOPE OF THE LIMITED WARRANTY

Bombardier Recreational Products Inc. (“BRP”) warrants its 2023

LYNX snowmobiles sold by distributors or dealers authorized by BRP

to distribute LYNX snowmobiles ("LYNX Distributor / Dealer") in mem-

ber states of the European Economic Area (which is comprised of the

member states of the European Union plus the United Kingdom, Nor-

way, Iceland and Liechtenstein) ("EEA"), in member states of the

Commonwealth of the Independent States (including Ukraine and

Turkmenistan) (''CIS'') and Turkey from defects in material or work-

manship for the period and under the conditions described below.

Non-factory installed parts and accessories are not covered under this

limited warranty. Please refer to the applicable parts and accessories

limited warranty text.

This limited warranty will become null and void if: (1) the snowmobile

was used for racing or any other competitive activity, at any point,

even by a previous owner; or (2) the snowmobile has been altered or

modified in such a way so as to adversely affect its operation, perform-

ance or durability, or has been altered or modified to change its in-

tended use.

LIMITATIONS OF LIABILITY

TO THE EXTENT PERMITTED BY LAW, THIS WARRANTY IS

EXPRESSLY GIVEN AND ACCEPTED IN LIEU OF ANY AND

ALL OTHER WARRANTIES, EXPRESSED OR IMPLIED, IN-

CLUDING WITHOUT LIMITATION ANY WARRANTY OF MER-

CHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE.

TO THE EXTENT THAT THEY CANNOT BE DISCLAIMED, THE

IMPLIED WARRANTIES ARE LIMITED IN DURATION TO THE

LIFE OF THE EXPRESS WARRANTIES. INCIDENTAL AND

CONSEQUENTIAL DAMAGES ARE EXCLUDED FROM COVER-

AGE UNDER THIS WARRANTY. SOME JURISDICTIONS DO

NOT ALLOW FOR THE DISCLAIMERS, LIMITATIONS AND EX-

CLUSIONS IDENTIFIED ABOVE, AS A RESULT, THEY MAY

NOT APPLY TO YOU. THIS WARRANTY GIVES YOU SPECIFIC

RIGHTS, AND YOU MAY ALSO HAVE OTHER LEGAL RIGHTS

WHICH MAY VARY FROM COUNTRY TO COUNTRY.

Neither the LYNX Distributor / Dealer nor any other person has been

authorized to make any affirmation, representation or warranty regard-

ing the product, other than those contained in this limited warranty,

and if made, shall not be enforceable against BRP.

383

BRP reserves the right to modify this warranty at any time, being

understood that such modification will not alter the warranty conditions

applicable to the products sold while this warranty is in effect.

EXCLUSIONS – ARE NOT WARRANTED

The following are not warranted under this limited warranty under any

circumstances:

Normal wear and tear;

–

Routine maintenance items, tune ups, adjustments;

–

Damage caused by negligence or failure to provide proper mainte-

nance and/or storage, as described in the operator's guide;

Damage resulting from removal of parts, improper repairs, service,

maintenance, modifications or use of parts or accessories not

manufactured or approved by BRP which in its reasonable judge-

ment are either incompatible with the product or adversely affect

its operation, performance and durability, or resulting from repairs

done by a person that is not an authorized servicing BRP snowmo-

bile distributor/ dealer;

Damage caused by abuse, abnormal use, neglect, racing or opera-

tion of the product on surfaces other than snow, or operation of the

product in a manner inconsistent with the recommended operation

described in the Operator’s Guide;

Damage resulting from accident, submersion, fire, snow or water

ingestion, theft, vandalism or any act of God;

Operation with fuels, oils or lubricants which are not suitable for

use with the product (see the Operator’s Guide);

Damage resulting from rust, corrosion or exposure to the

elements;

Incidental or consequential damages, or damages of any kind in-

cluding without limitation towing, storage, transportation expenses,

telephone, rental, taxi, inconvenience, insurance coverage, loan

payments, loss of time, loss of income; or time missed for down-

time experience due to service work.

And damage resulting from studs installed on tracks if the installa-

tion does not conform to BRP’s instructions.

WARRANTY COVERAGE PERIOD

This warranty will be in effect from (1) the date of delivery to the first

retail consumer or (2) the date the product is first put into use, which-

ever occurs first and for a period of:

TWENTY-FOUR (24) CONSECUTIVE MONTHS, for private use own-

ers and TWELVE (12) CONSECUTIVE MONTHS for commercial use

owners. However, the warranty coverage period on a snowmobile de-

livered between June 1^st and December 1^st of a given year will expire

November 30^th of the applicable year. A snowmobile is used commer-

cially when it is used in connection with generating income or any work

384

or employment during any part of the warranty period. A snowmobile

is also used commercially when, at any point during the warranty peri-

od, it has commercial tags or is licensed for commercial use.

The repair or replacement of parts or the performance of service under

this warranty does not extend the life of this warranty beyond its origi-

nal expiration date.

Note that the duration and any other modalities of the warranty cover-

age are subject to the applicable national or local legislation in the cus-

tomer's country.

CONDITIONS TO HAVE WARRANTY COVERAGE

This warranty coverage is available only if each of the following condi-

tions has been fulfilled:

- The 2023 LYNX snowmobile must be purchased as new and un-

used by its first owner from a LYNX Distributor / Dealer authorized

to distribute LYNX products in the country in which the sale

occurred;

- The BRP specified pre-delivery inspection process must be com-

pleted and documented;

- The product must have undergone proper registration by an au-

thorized LYNX Distributor / Dealer;

- The 2023 LYNX snowmobile must be purchased within the EEA by

an EEA resident, in the CIS for residents of the countries com-

prised in such area and in Turkey for residents of Turkey; and

- Routine maintenance outlined in the operator’s guide must be

timely performed in order to maintain warranty coverage. BRP re-

serves the right to make warranty coverage contingent upon proof

of proper maintenance.

BRP will not honour this limited warranty to any private use owner or

commercial use owner if one of the preceding conditions has not been

met. Such limitations are necessary in order to allow BRP to preserve

both the safety of its products, and also that of its consumers and the

general public.

WHAT TO DO TO OBTAIN WARRANTY

COVERAGE

The customer must cease using the snowmobile upon the appearance

of an anomaly. The customer must notify a servicing LYNX Distributor

/ Dealer within two (2) months of the appearance of a defect, and pro-

vide it with reasonable access to the product and reasonable opportu-

nity to repair it. The customer must also present to the authorized

LYNX Distributor / Dealer, proof of purchase of the product and must

sign the repair / work order prior to starting the repair in order to

385

validate the warranty repair. All parts replaced under this limited war-

ranty become the property of BRP.
