Snowmobile Lynx CROSSOVER ACE SERIES. OPERATOR’S GUIDE (2023)

BODY AND SEAT

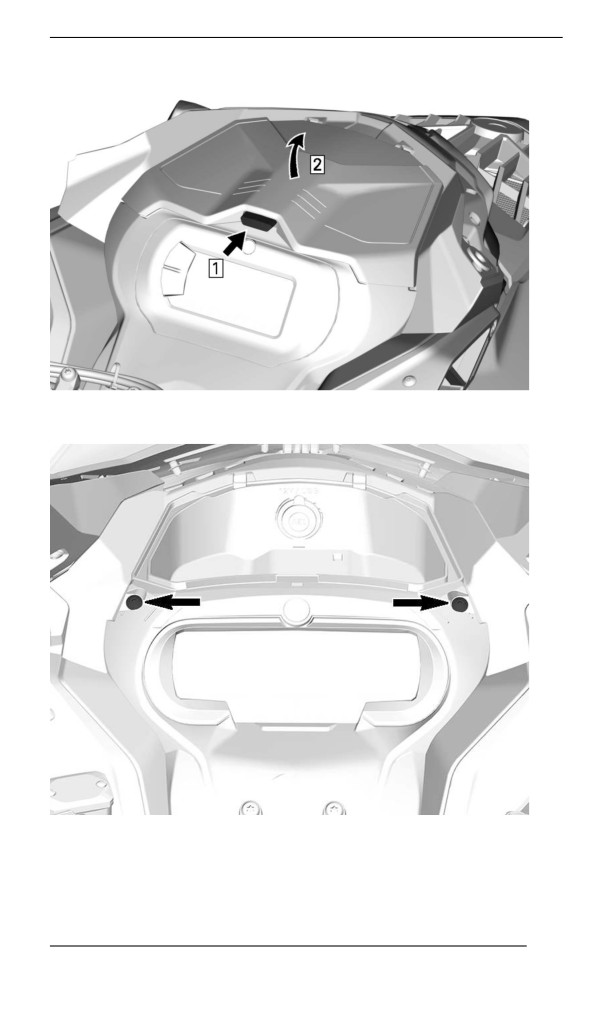

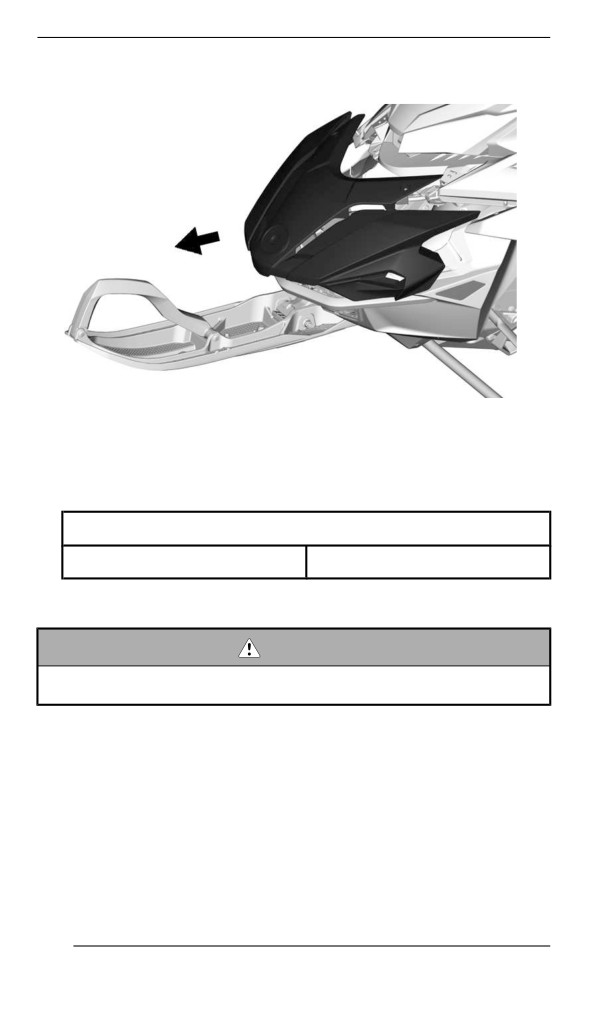

10. Remove the upper body module.

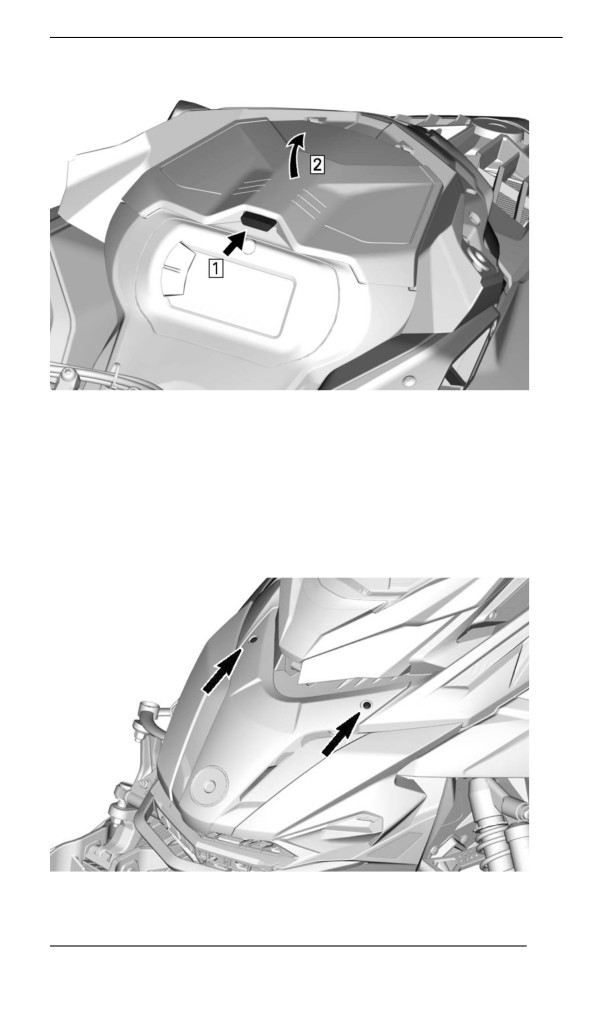

1. Grab the upper body module in the gauge support section.

2. Pull the module forward.

3. Remove the module from the vehicle.

Installing the Upper Body Module

The installation is the reverse of the removal procedure. However, pay

attention to the following.

1. Lower the upper body module in place.

NOTE:

Make sure the air intake duct is positioned correctly in the boot.

2. Tighten air intake duct clamp.

TIGHTENING TORQUE

Duct clamp

1 ± 0.2 Nm

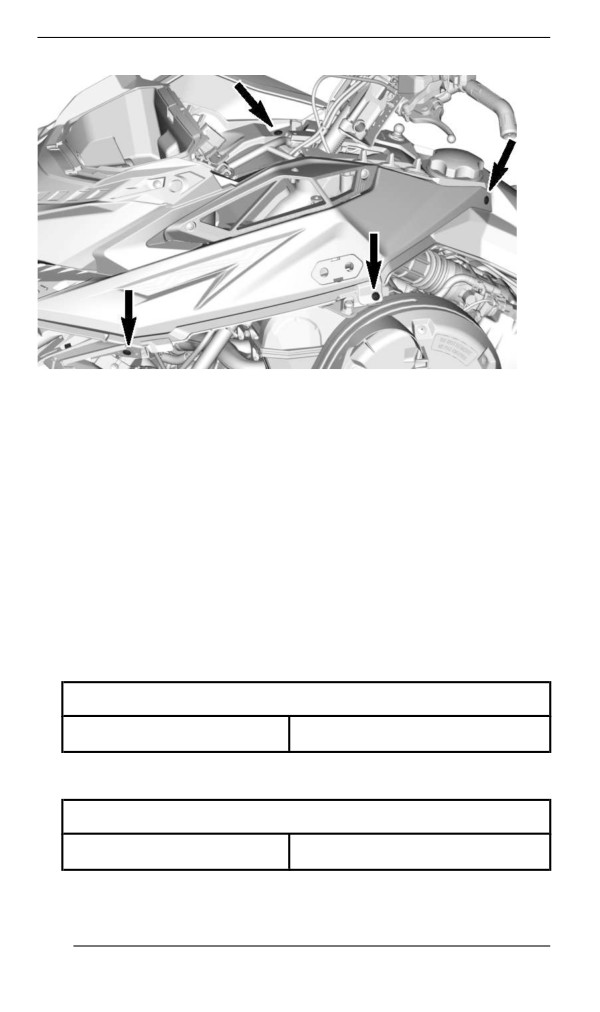

3. On both sides, install the upper body module retaining screws.

4. Install the hood.

TIGHTENING TORQUE

Upper body screws

2.5 ± 0.2 Nm

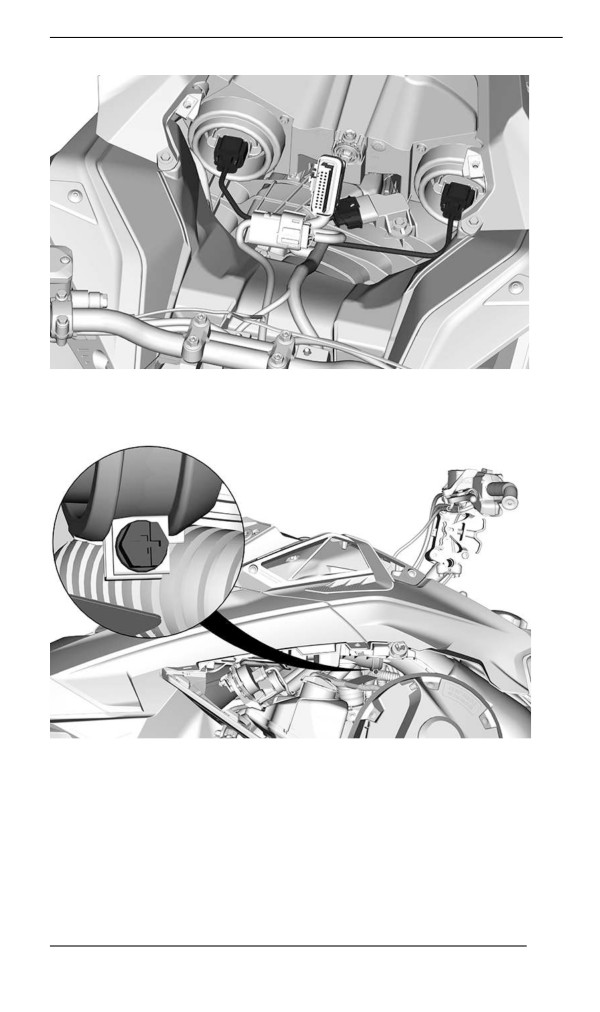

5. Connect the headlight connectors.

154

BODY AND SEAT

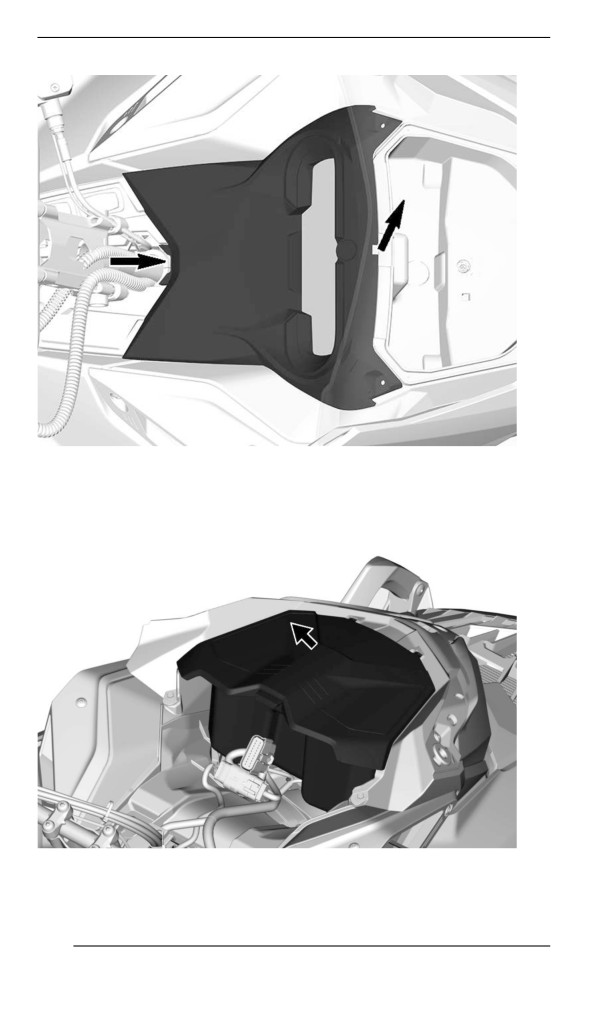

6. Install the storage compartment but leave the cover open.

7. Install gauge, secure with the screws.

TIGHTENING TORQUE

Gauge screws

2.5 ± 0.2 Nm

8. Install:

- Side panels

- Hood

- Windshield

Seat

400 mm (16 in.) Tunnel Width

Removing the Seat (tab llock)

From between the fuel tank and the seat front end, pull the locking tab

upwards.

Slide the seat backwards while holding the tab up.

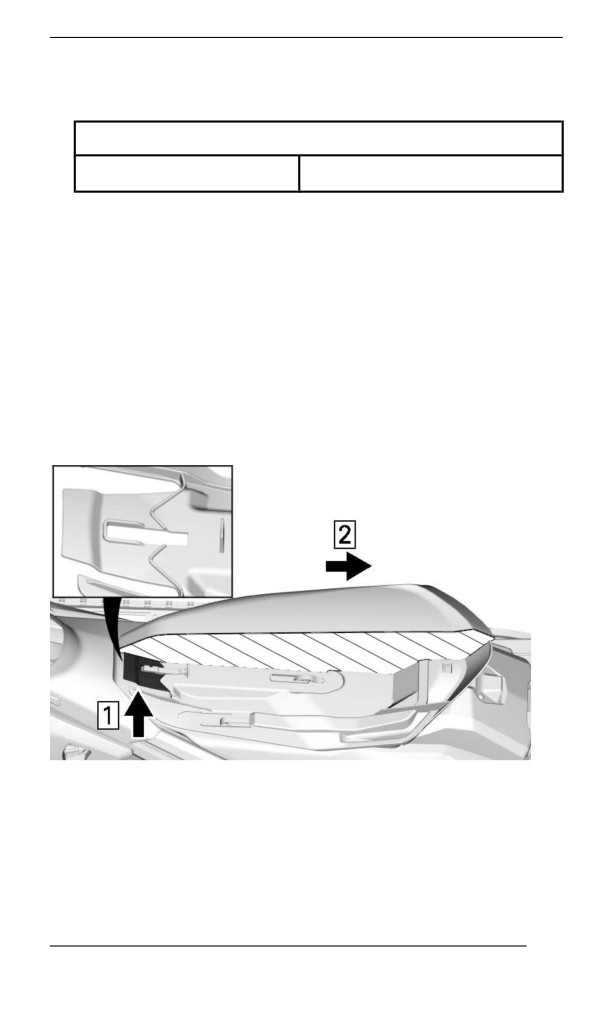

CROSSCUT VIEW OF SEAT FOAM

1. Pull upwards

2. Slide backwards

155

BODY AND SEAT

500 mm (20 in.) Tunnel Width

Removing the Seat

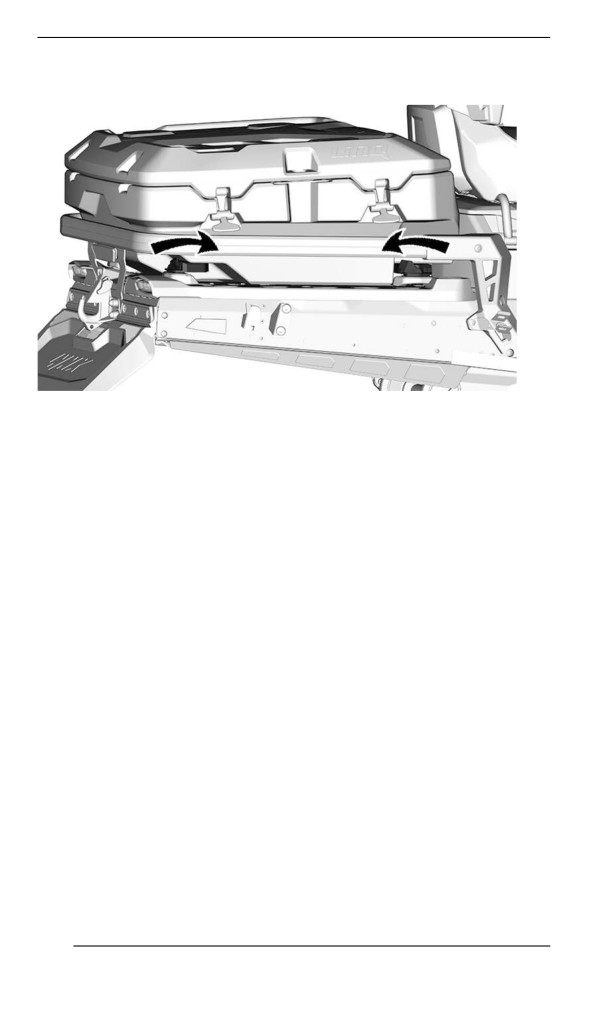

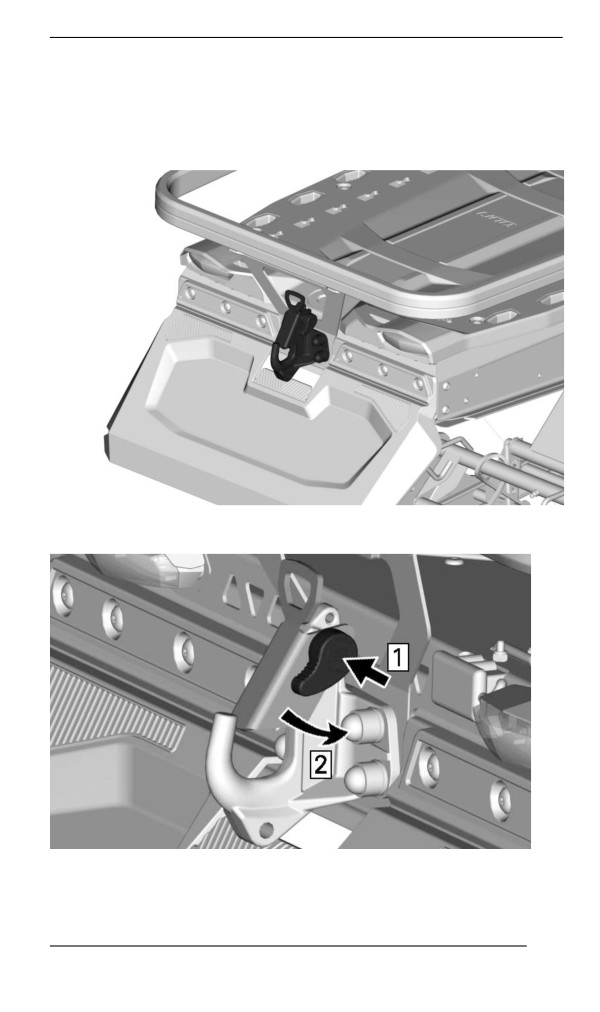

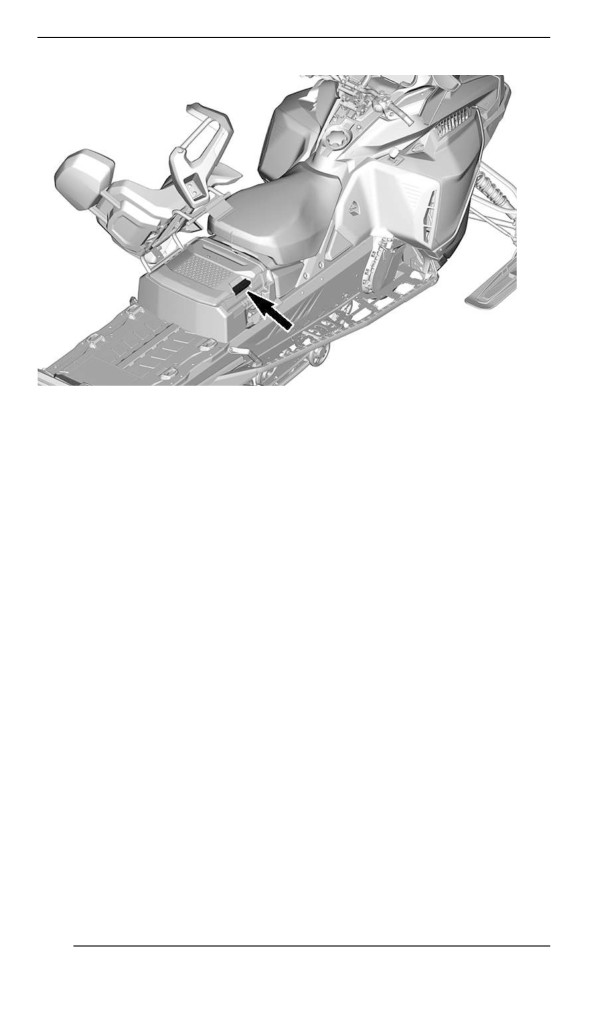

Release the latch at the back of the seat.

Slide seat rearwards to remove it.

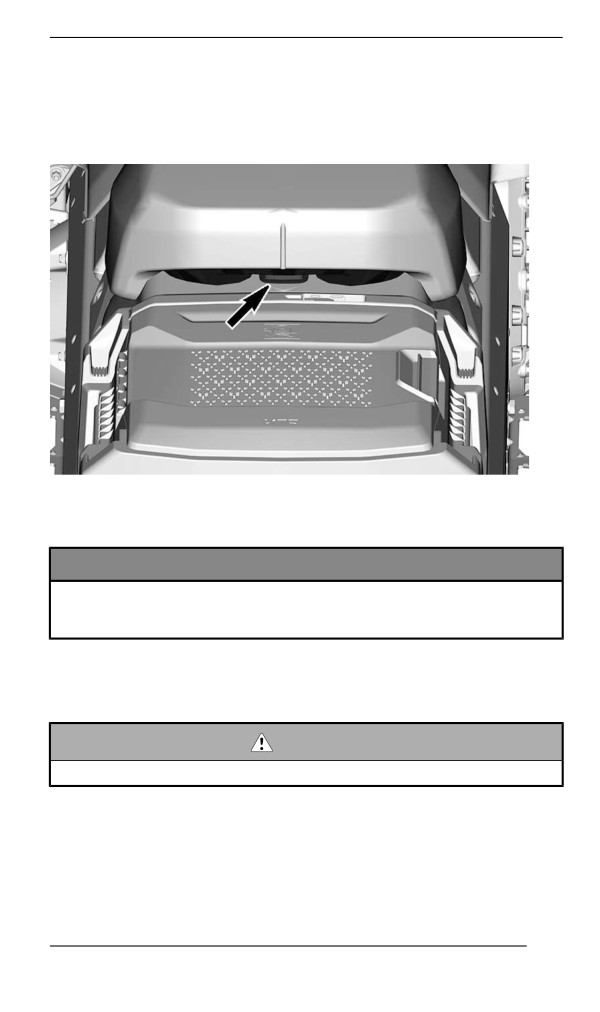

Installliing the Seat

NOTICE

Riding the vehicle with any objects between the seat and the

fuel tank could damage the fuel tank. NEVER place any objects

between seat and fuel tank.

Place seat over the hooks, then slide it forward.

Securely engage the latch.

WARNING

Make sure seat is securely latched before riding.

157

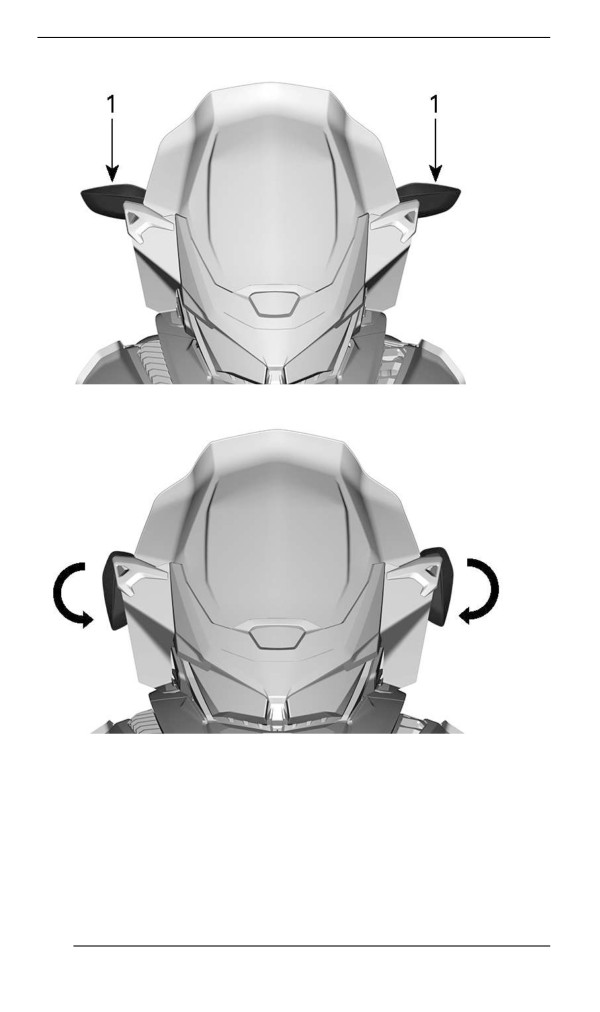

EQUIPMENT

Some features may not apply to your model or could be optional.

Operator''s Guiide

The Operator's Guide should be stored in the Front Storage

Compartment.

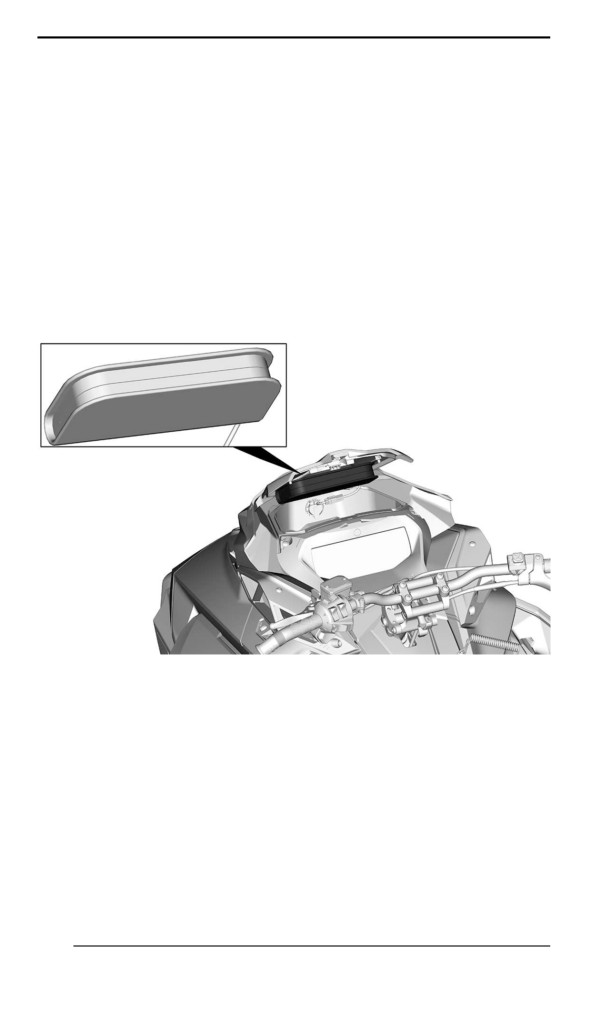

Heated Celll Case (iif equipped)

A heated cell case is mounted underneath the front storage compart-

ment cover. It allows to keep your cell phone at a warm temperature

while charging.

The temperature inside the case is kept between 5° C and 15° C (41°

F and 59° F).

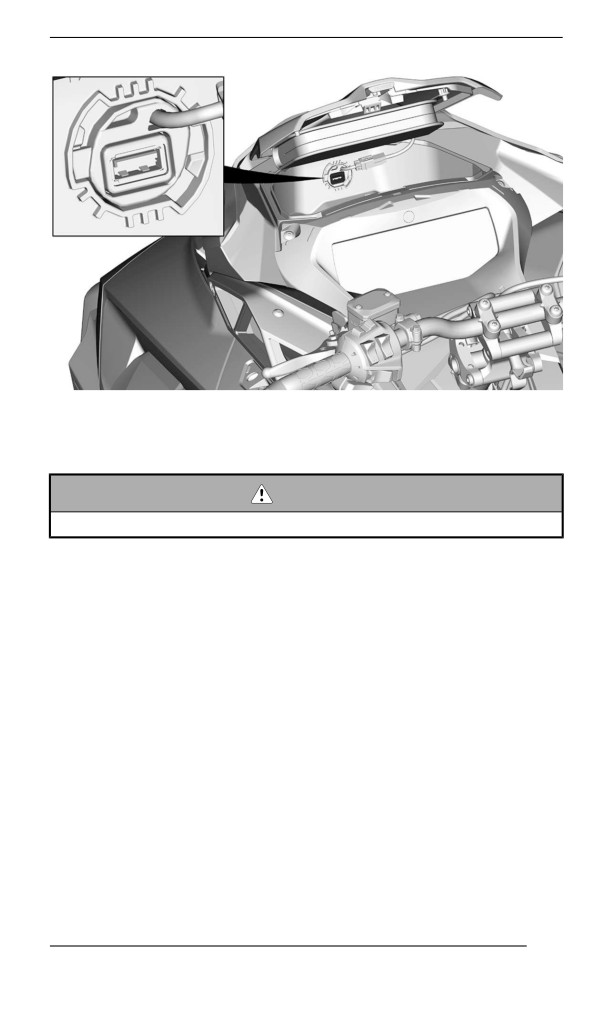

Power Outllet - USB (if equiipped)

The USB power Outlet is located in the front storage compartment. It

allows to charge your cell phone while stored in the heated cell case.

158

EQUIPMENT

provide braking capability, as well proper steering and directional con-

trol. Do not use handlebar strap for towing, lifting or side hilling.

WARNING

Do not use while riding at speed. Steering control is highly re-

duced and brake control is not possible.

Ellectric Viisor Jack Connector

An electric visor can be connected to the jack connector. A stress re-

lief extension is supplied with the vehicle.

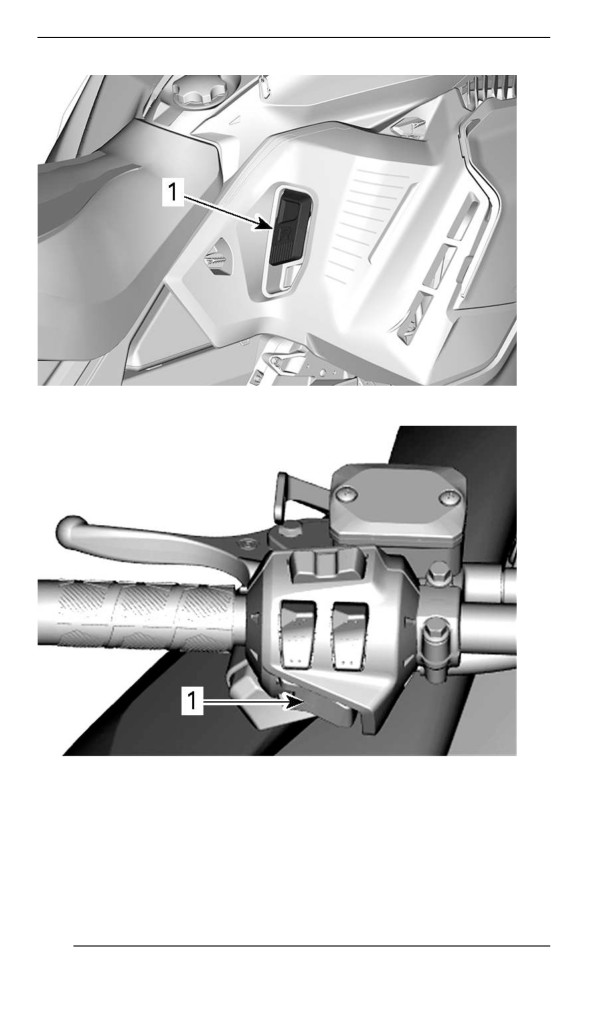

DRIVER - ELECTRIC VISOR JACK CONNECTOR LOCATION

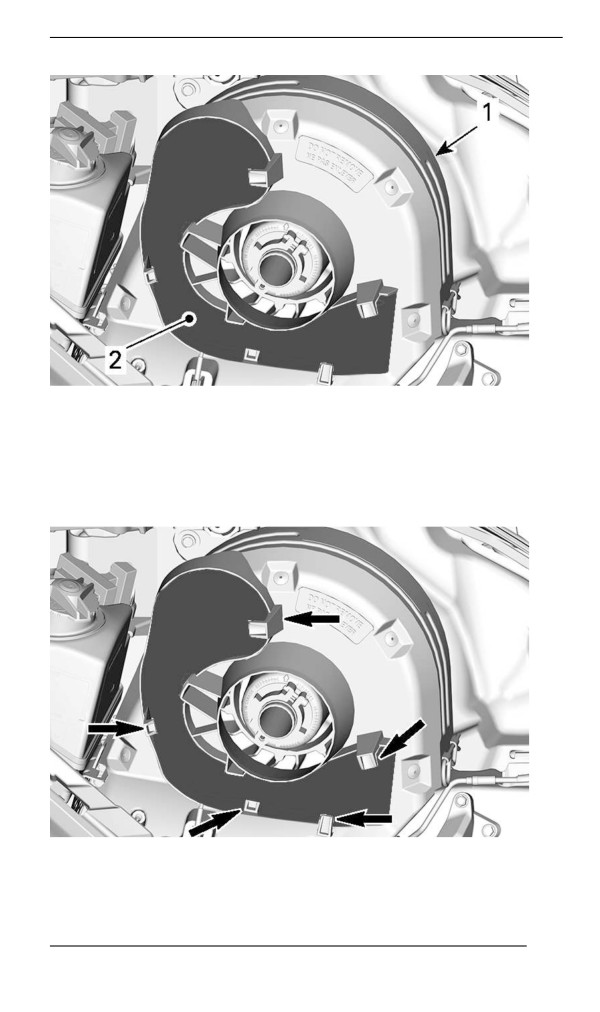

Driive Belt Guard

Removing the Drive Belt Guard

WARNING

NEVER operate engine:

– Without shields and belt guard securely installed.

– With hood and/or side panels opened or removed.

NEVER attempt to make adjustments to moving parts while en-

gine is running.

161

EQUIPMENT

NOTE:

Belt guard is purposely made slightly oversize to maintain tension on

its pins and retainers preventing undue noise and vibration. It is impor-

tant that this tension be maintained when reinstalling.

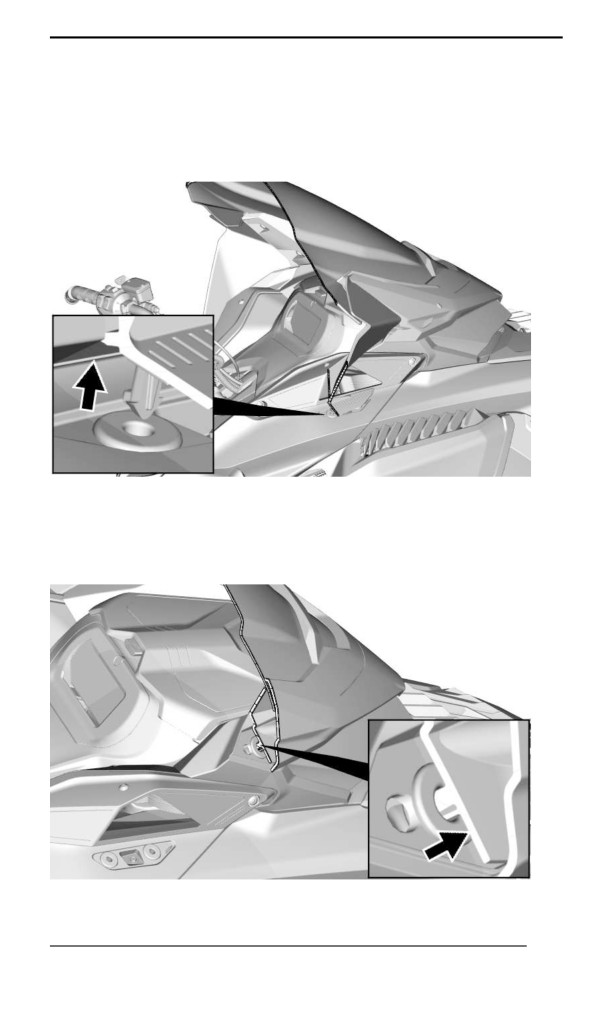

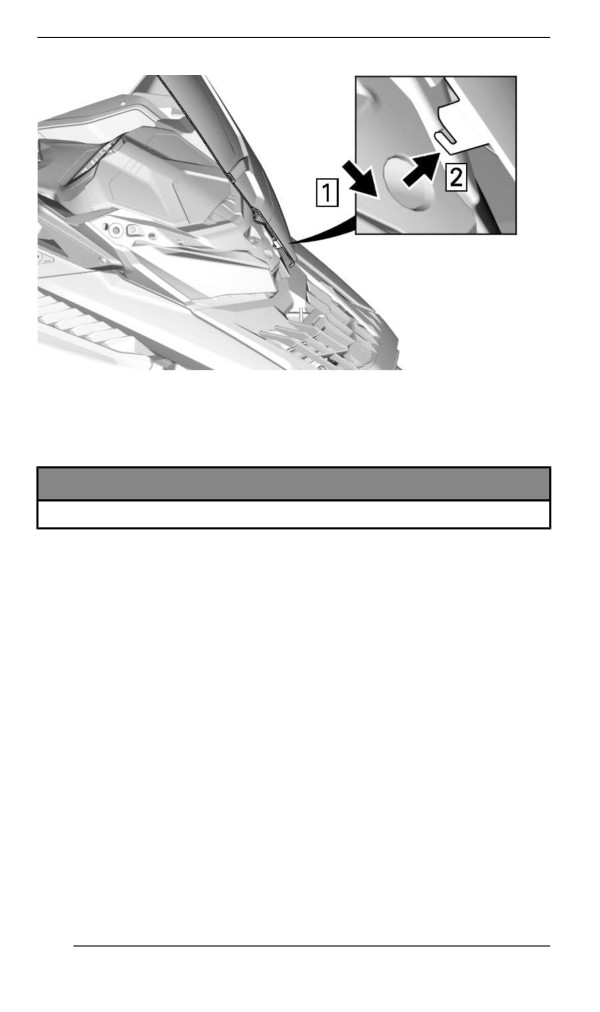

Remove tether cord cap from engine cut-off switch.

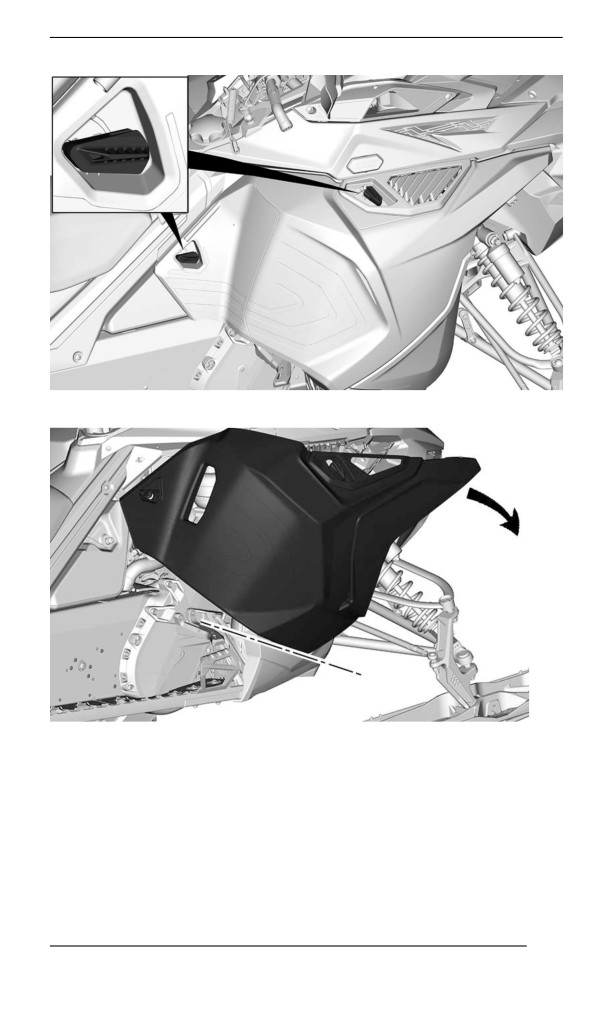

Open the LH side panel. See procedure in this section.

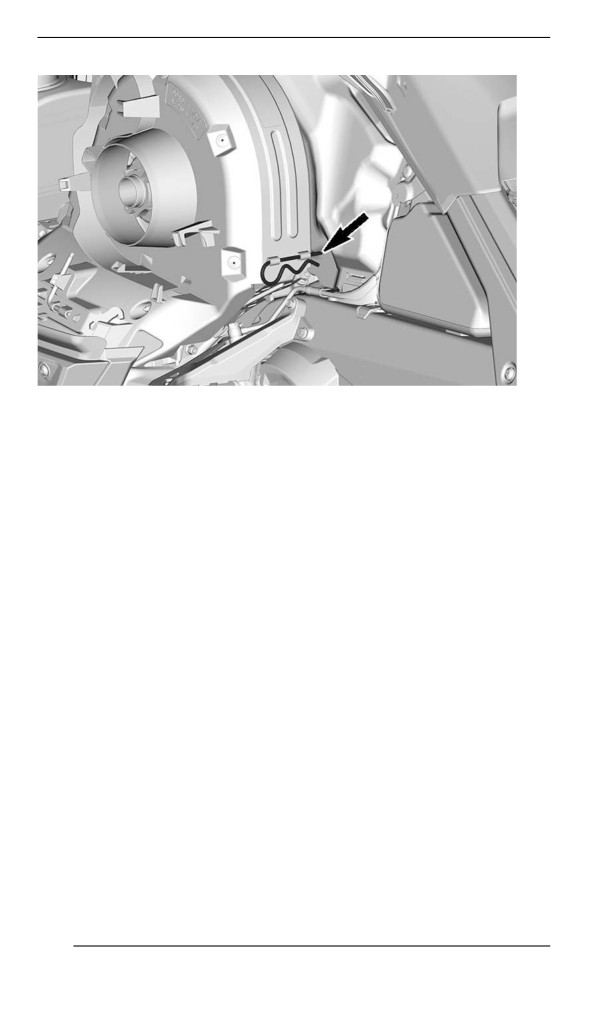

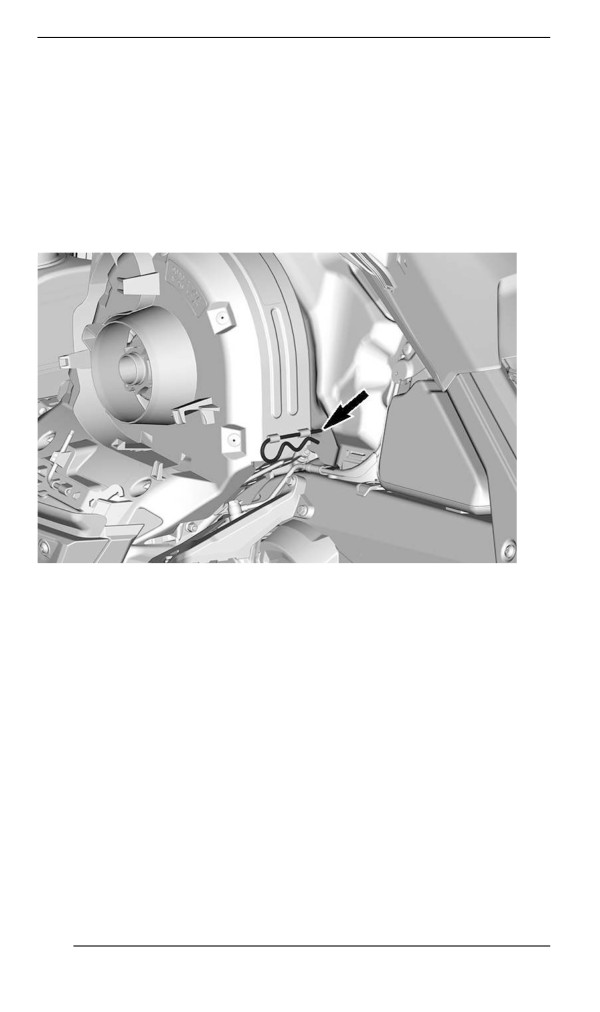

Remove retaining pin.

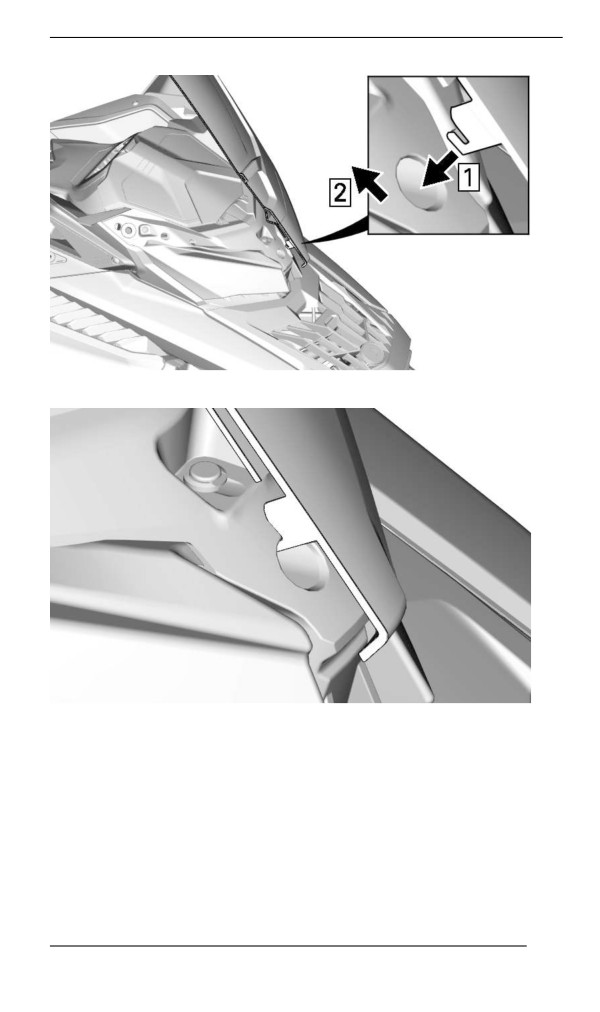

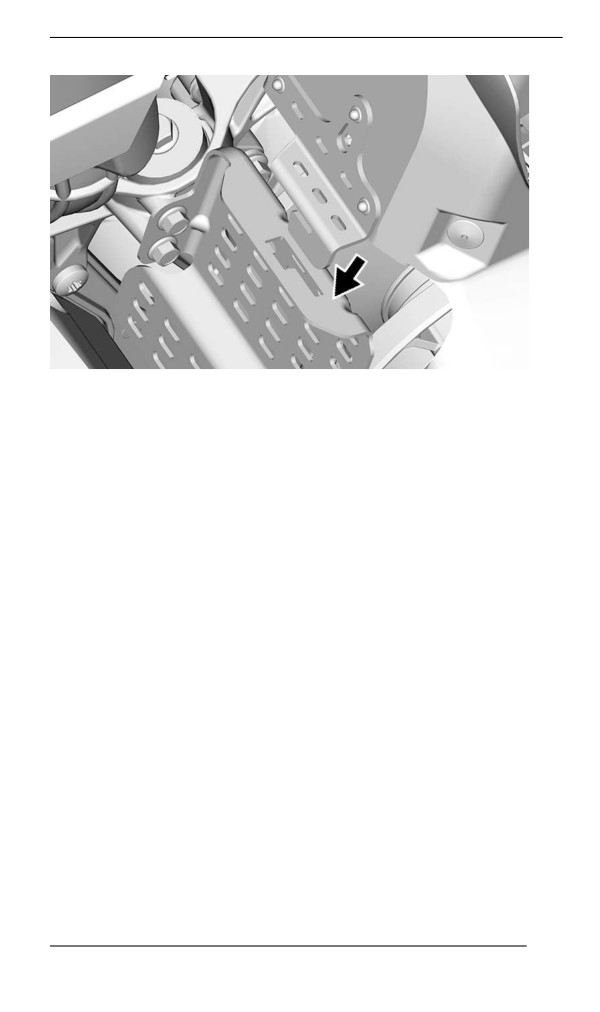

TYPICAL

Lift rear portion of guard then release from front tab.

Installing the Drive Belt Guard

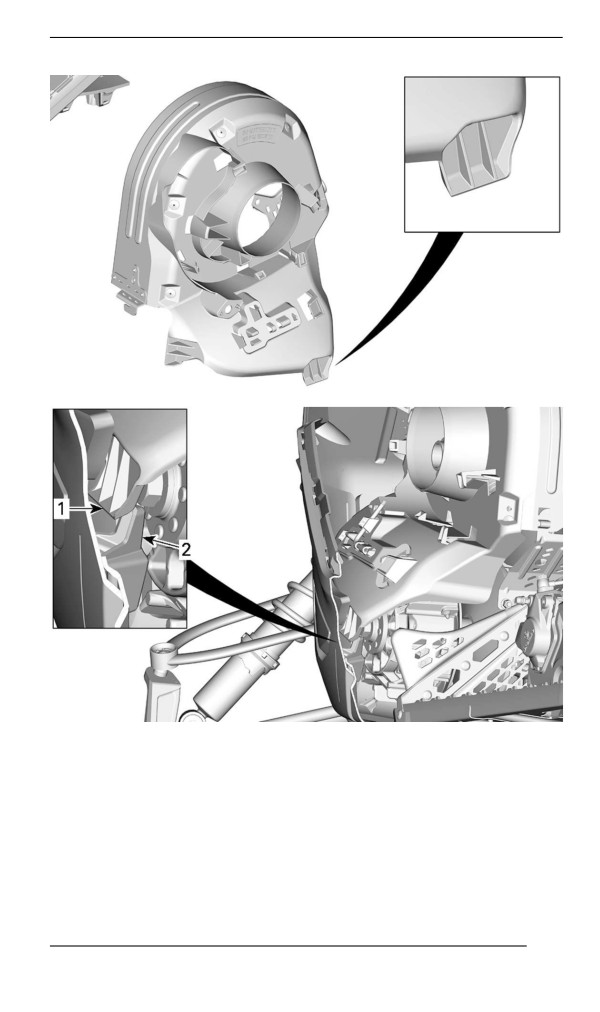

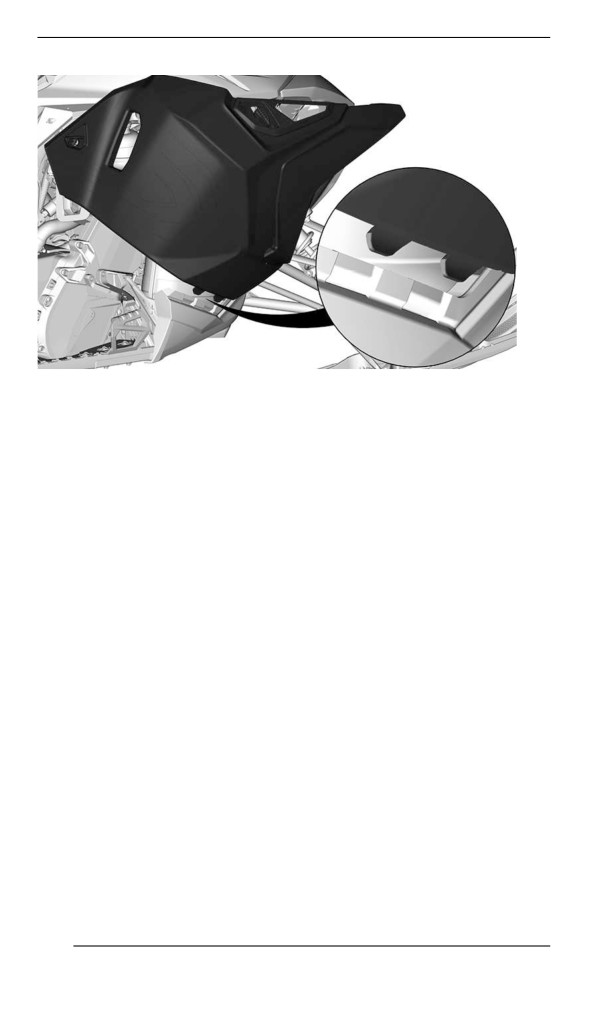

1. Insert belt guard tab in front support slot.

162

EQUIPMENT

Tools

A part of the drive belt guard is designed to hold the tools allowing for

basic maintenance.

The tools are supplied with the vehicle. They should always be in-

stalled in their proper location and orientation.

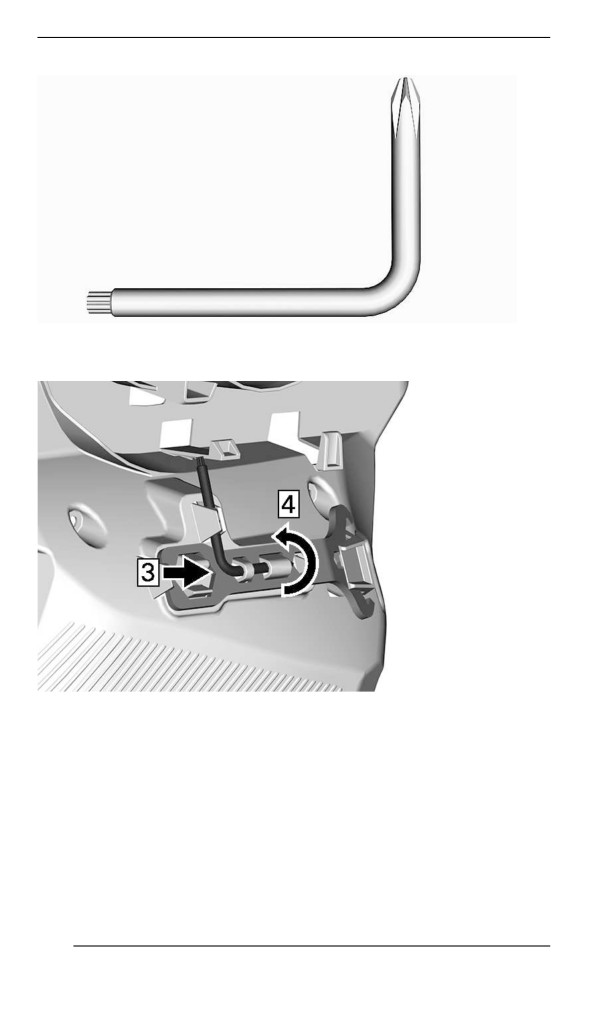

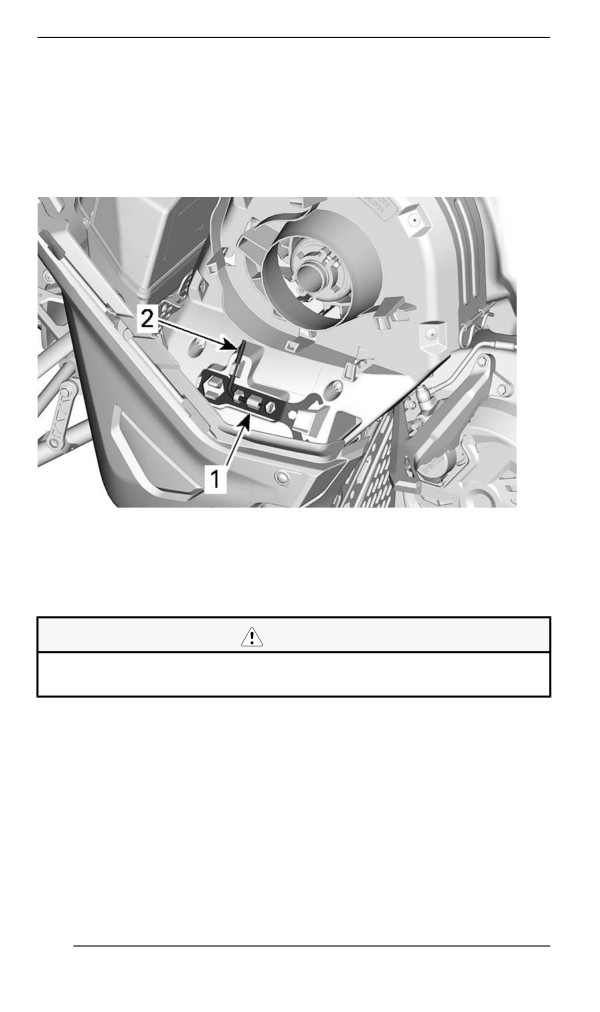

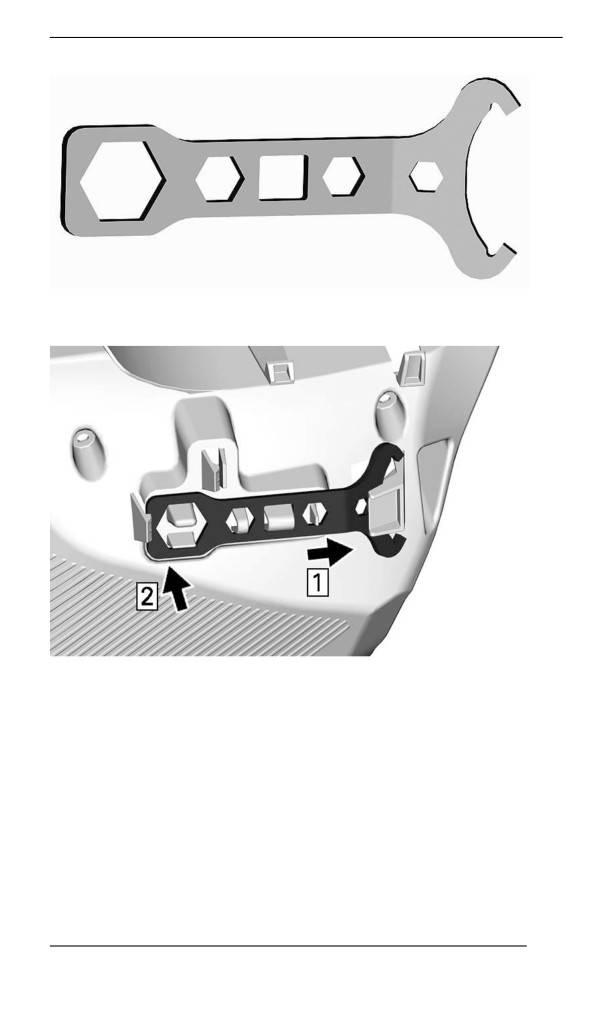

TYPICAL - DRIVE BELT GUARD TOOLS LOCATION

1. Suspension adjustment tool

2. Pulley expander and headlight adjustment tool

Install in the following sequence:

CAUTION

Make sure tools are secured properly. Tools may detach and

cause damage to rotating parts.

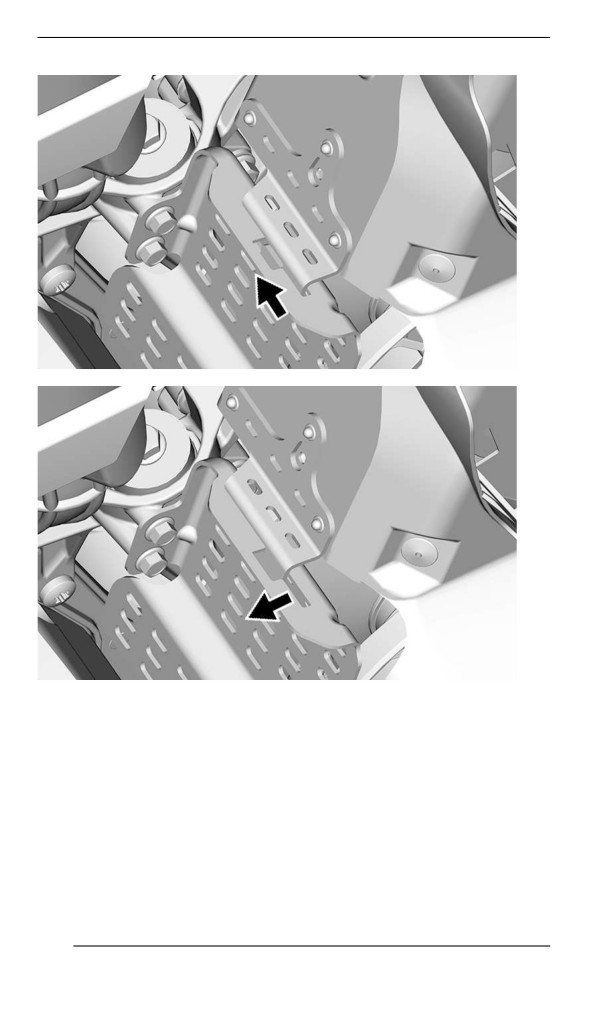

1. Slide the suspension adjustment tool open end under retaining tab.

168

COMPACT DIGITAL DISPLAY

WARNING

Reading the digital display can distract from the operation of

the vehicle, particularly from constantly scanning the

environment.

NOTE:

The digital display is factory preset in Imperial units and in English. To

change units or language, contact an authorized BRP snowmobile

dealer.

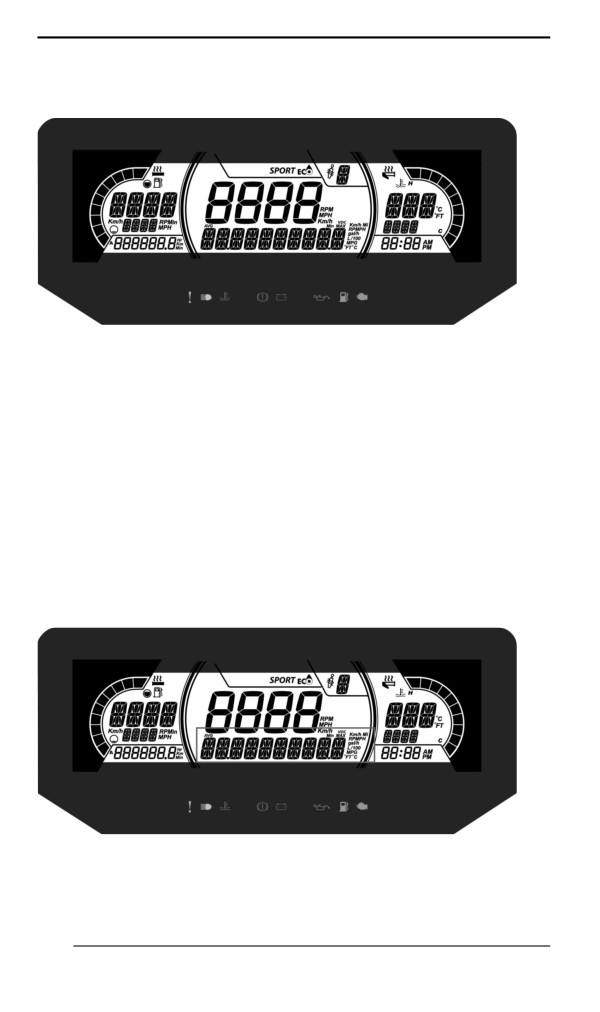

Diispllay Features

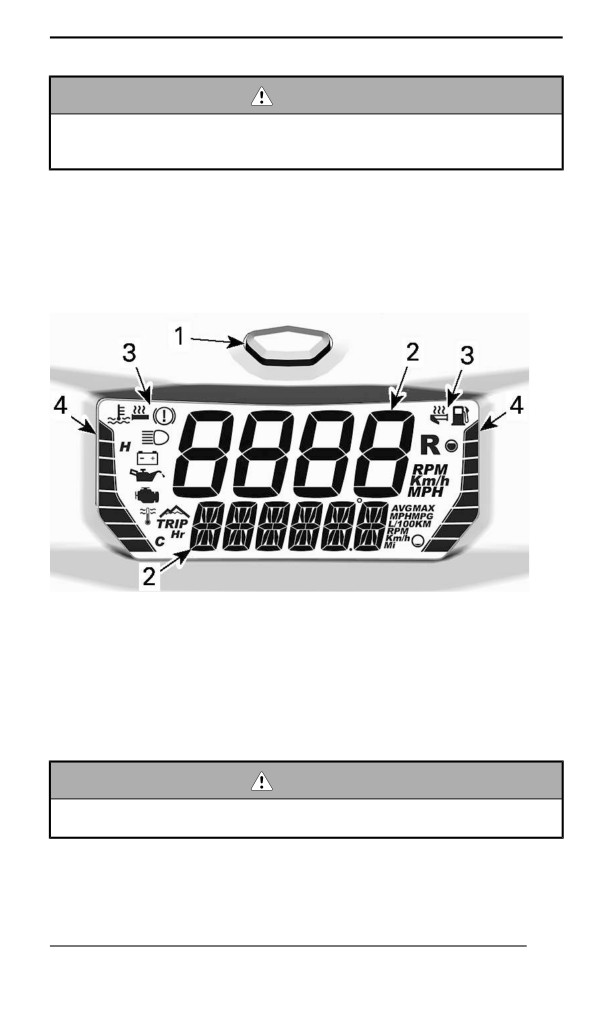

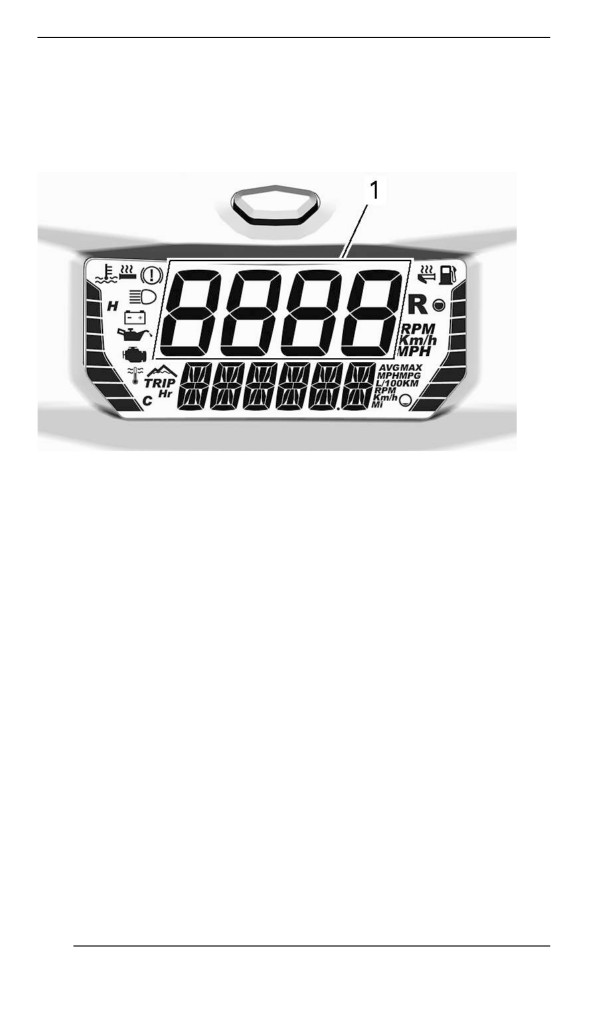

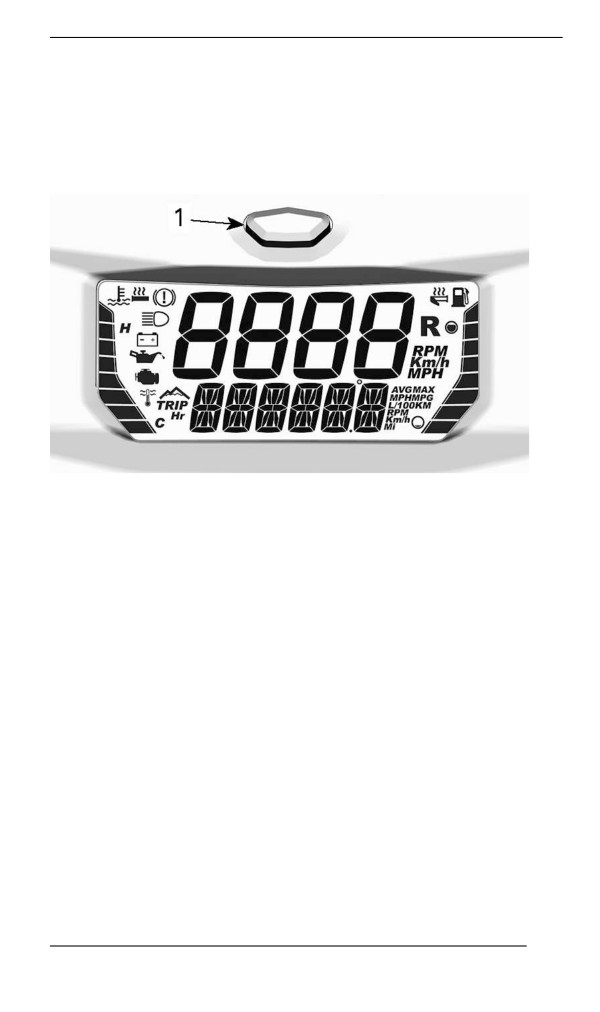

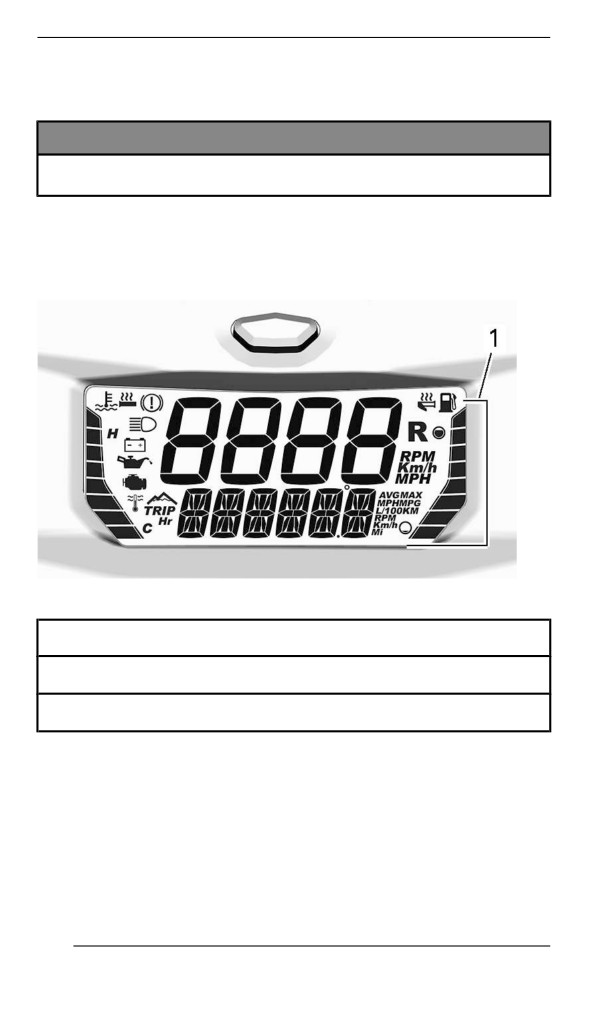

COMPACT DIGITAL DISPLAY

1. Mode button

2. Digits

3. Icons

4. Bar gauges

The digital display also has a built-in beeper.

Digital Display

WARNING

Never adjust or set functions on the digital display while riding

the vehicle.

To set the displays to your preference, refer to Display Combination

Selection.

177

COMPACT DIGITAL DISPLAY

The LH side bar gauge displays the engine coolant temperature ex-

cept while adjusting the heating elements.

NOTICE

If engine overheats, stop vehicle in a safe place. Refer to

TROUBLESHOOTING.

For details on heated grips operation, refer to Heated Grips and Throt-

tle Lever Switch in Secondary Controls.

RH Side Bar Gauge

1. RH bar gauge

RH Bar Gauge Information

Fuel level

Heated throttle lever level

The RH side bar gauge displays the fuel level except while adjusting

the heated throttle lever.

For details on heated throttle lever operation, refer to Heated Grips

and Throttle Lever Switch in Secondary Controls.

180

COMPACT DIGITAL DISPLAY

refer to the following table for available combinations.

Available Display Combinations

Icon/

Upper

Lower

Specific

Display

information

Vehicle

speed

Km/h or MPH

speed

Km/h or MPH

Engine

RPM

Engine

RPM

speed

Odometer

Km or MI

Trip

odometer

A(1)

Km or MI

Trip

odometer

B (1) (2)

Km or MI

Vehicle

Km/h or MPH

speed

Trip hour

(1)

Top speed

(1)

Km/h or MPH

Average

speed (1)

Km/h or MPH

182

COMPACT DIGITAL DISPLAY

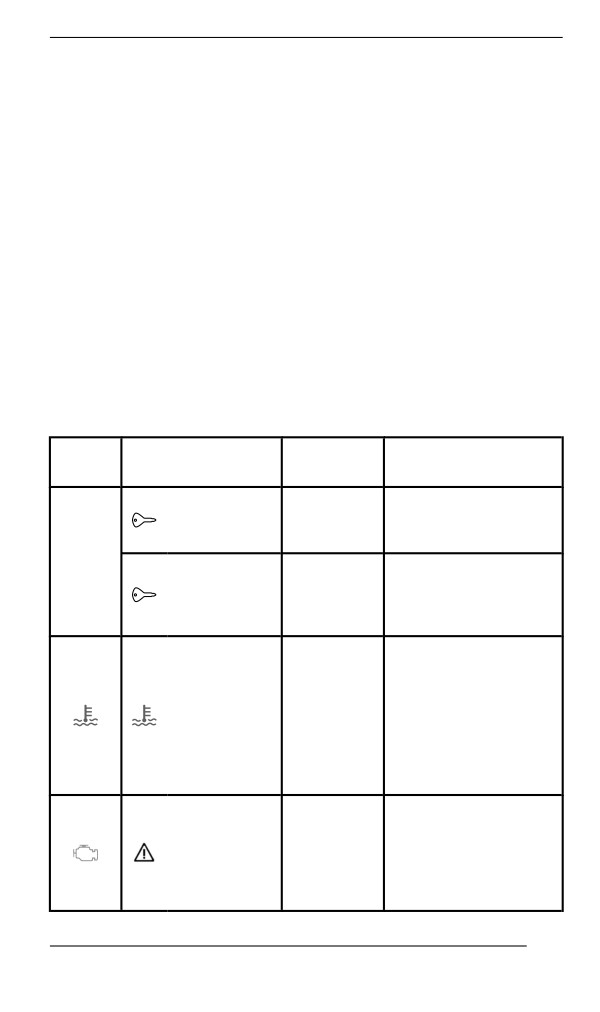

Icons and Messages

For details on malfunction pilot lamps and messages, refer to Monitor-

ing System.

Message

Icon

Beeper

Lower

Description

Display

2 short

At power up, with a good key.

—

GOOD KEY

beeps

Vehicle ready for use.

Displayed during break-in

—

BREAK-IN

period. Refer to Break-in Period

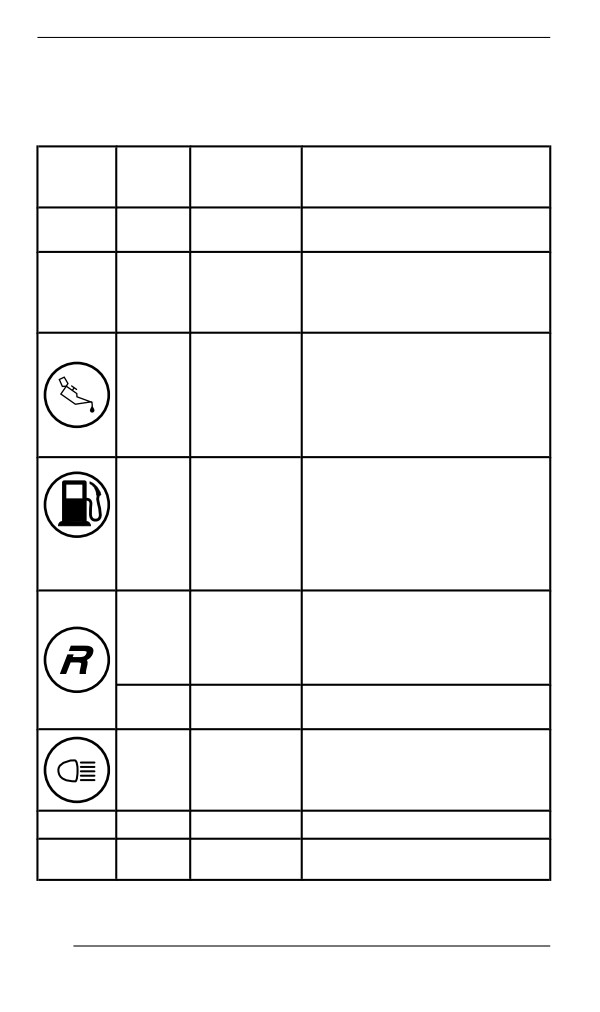

Engine oil pressure is low. Stop

4 short

vehicle in a safe place then,

beeps

check the engine oil level. If at

every

LOW OIL

level, the engine may need

maintenance. Refer to your

minutes

authorized BRP snowmobile

dealer.

Low fuel level. No bar left in fuel

—

level display. Replenish fuel

tank as soon as possible.

(blink

ing)

Long

beeps

repeat

REVERSE

Reverse is selected.

ing

slowly

3 short

Reverse did not engage, try

REV. FAIL

beeps

again.

High beam headlights are

—

selected.

—

SPORT

Driving Mode is set to Sport

Driving Mode is set back to

—

SPORT OFF

Standard

184

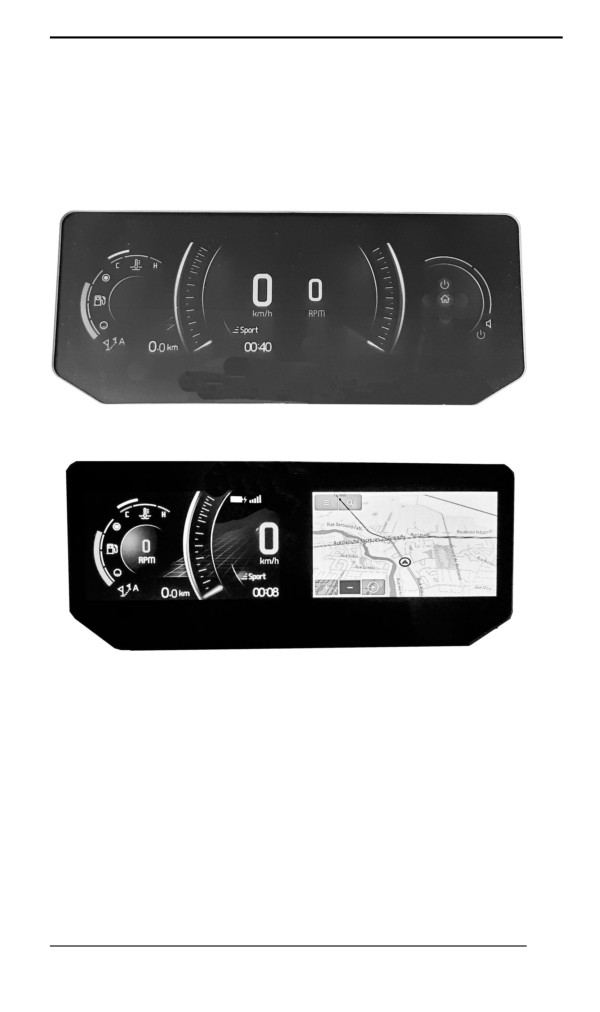

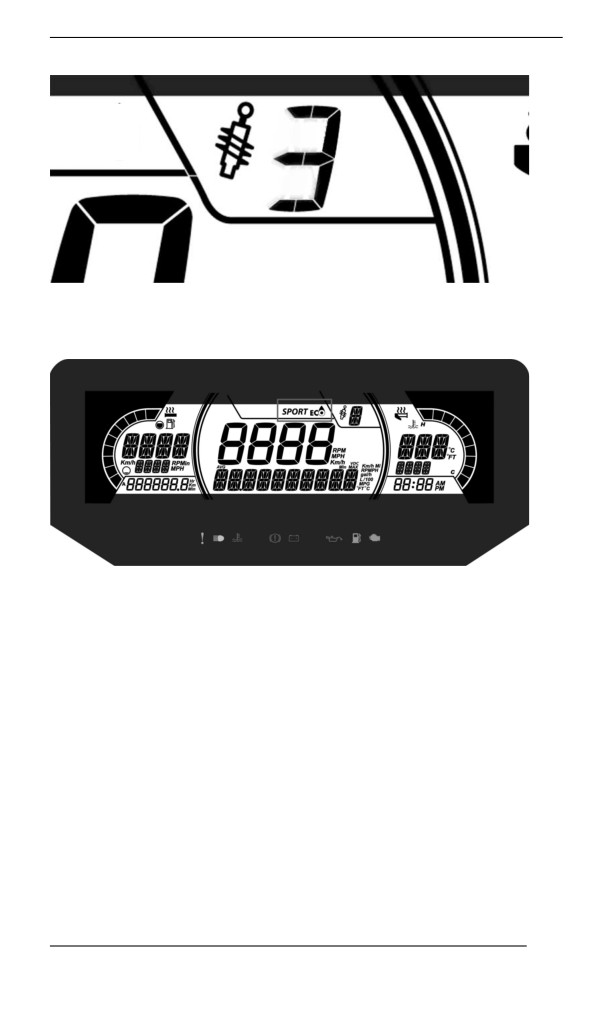

7.2” DIGITAL DISPLAY

Mulltiifunction Diispllay

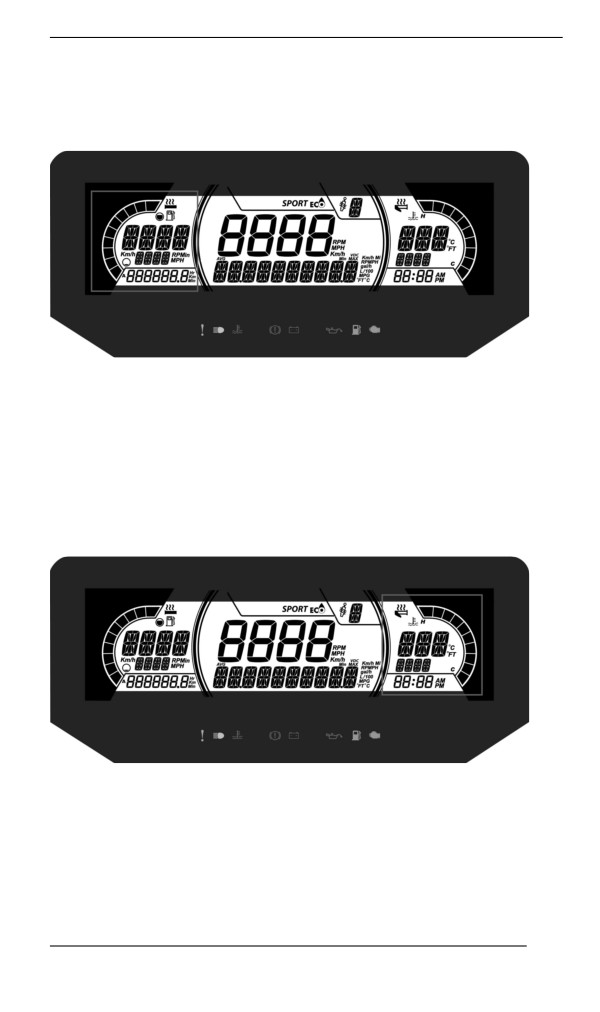

1. Select the upper or center display by using the MENU (M) button

on the multifunction switch. Refer to Secondary Controls for Menu/

Set button location.

2. While the desired display is flashing, navigate through the display,

by using the SET (S) button on the multifunction switch.

Once the desired information is displayed, press the MENU (M)

button or wait 5 seconds to confirm.

To reset

- Average speed

- Top speed

- Total fuel consumption

Press and hold the SET (S) button while display is flashing.

Lower Display

May display the following:

- Settings

- Messages

186

7.2” DIGITAL DISPLAY

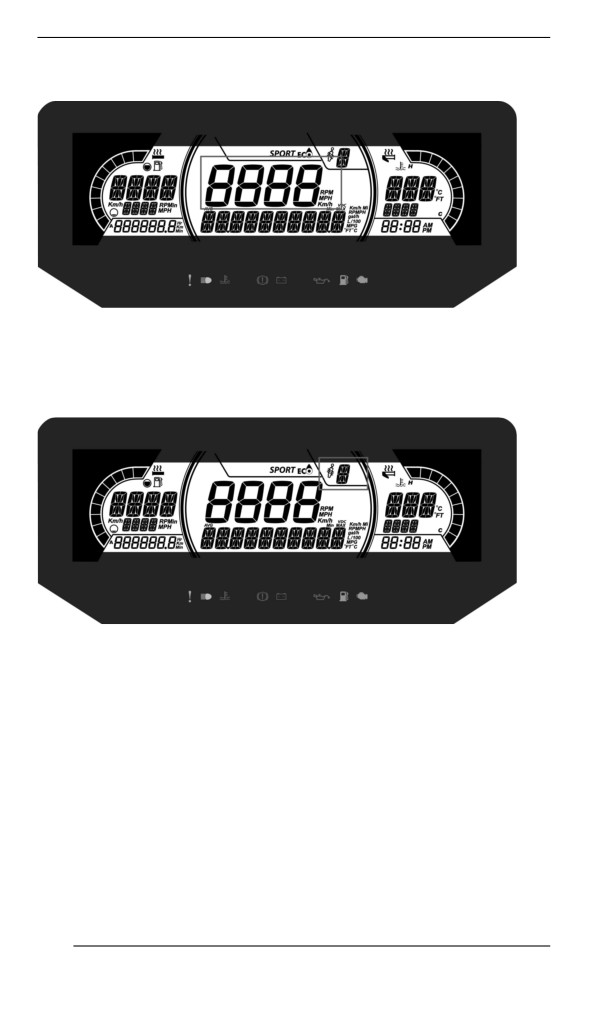

The SPEED display shows the Maximum and the averaged speed.

Hold MENU button for 3 seconds to reset.

Left Lateral Display

The left lateral display includes:

- Fuel level indicator

- Heated Grip level

- Trip distance A and B (Km or mph)

- Cumulative hours

- Speed

- RPM

- Odometer

Right Lateral Display

The right lateral display includes:

- Engine Temperature

- Heated throttle indicator

- Clock

187

7.2” DIGITAL DISPLAY

NOTE:

When in STANDARD mode, no information is displayed.

A message of the selected mode will be displayed on the lower display

at activation and deactivation as follow:

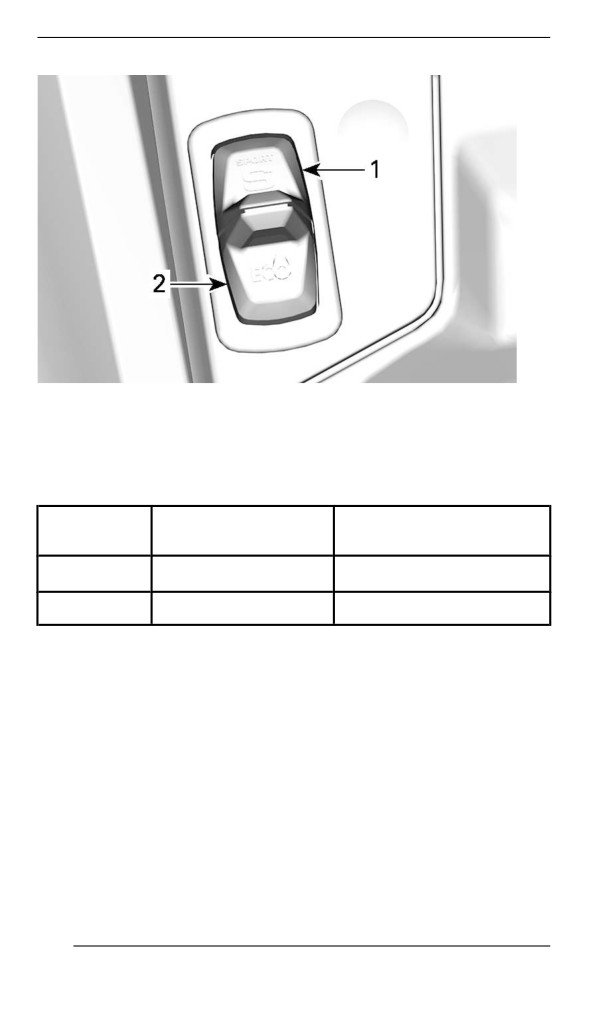

DRIVING

MESSAGE AT

MODE

ACTIVATION

DEACTIVATION

Sport

Sport OFF

Eco

Eco OFF

Warning Lamps and Indicators

The following indicator lamps will alert you to a vehicle condition that

may become serious. Some lamps will illuminate when starting the ve-

hicle to make sure they work. If any lamps remain on after starting the

vehicle, refer to the respective system warning lamp for further

information.

NOTE:

Some warning indicators appear in the display of the multifunction

gauge and function the same as an indicator lamp but do not display

when starting the vehicle.

190

7.2” DIGITAL DISPLAY

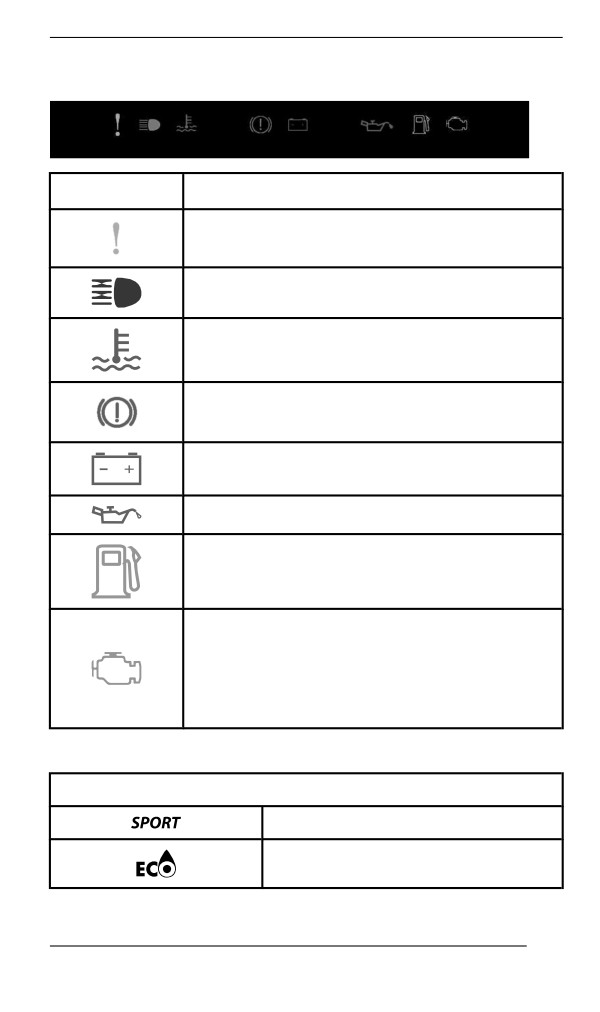

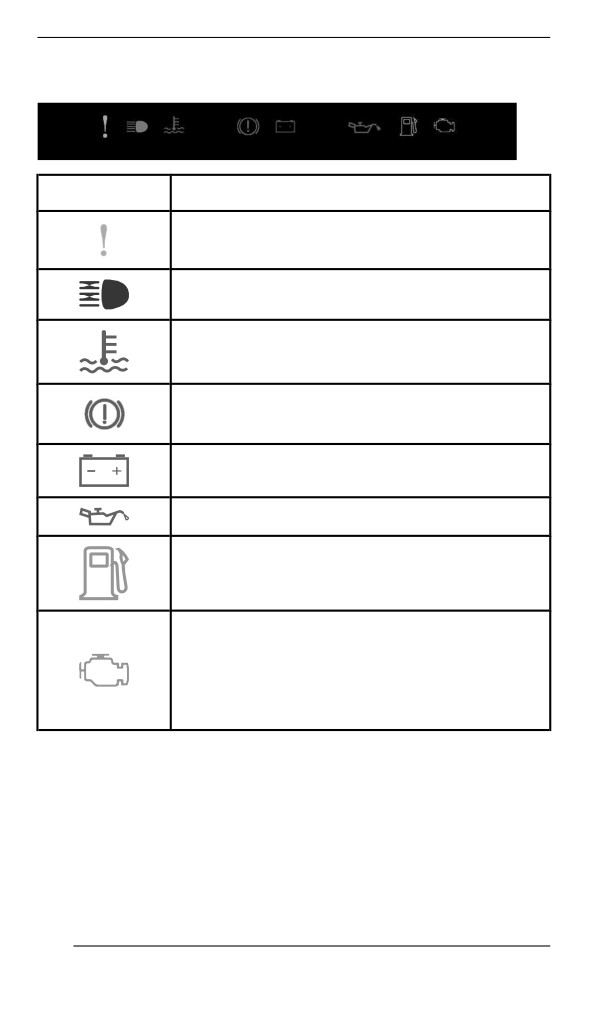

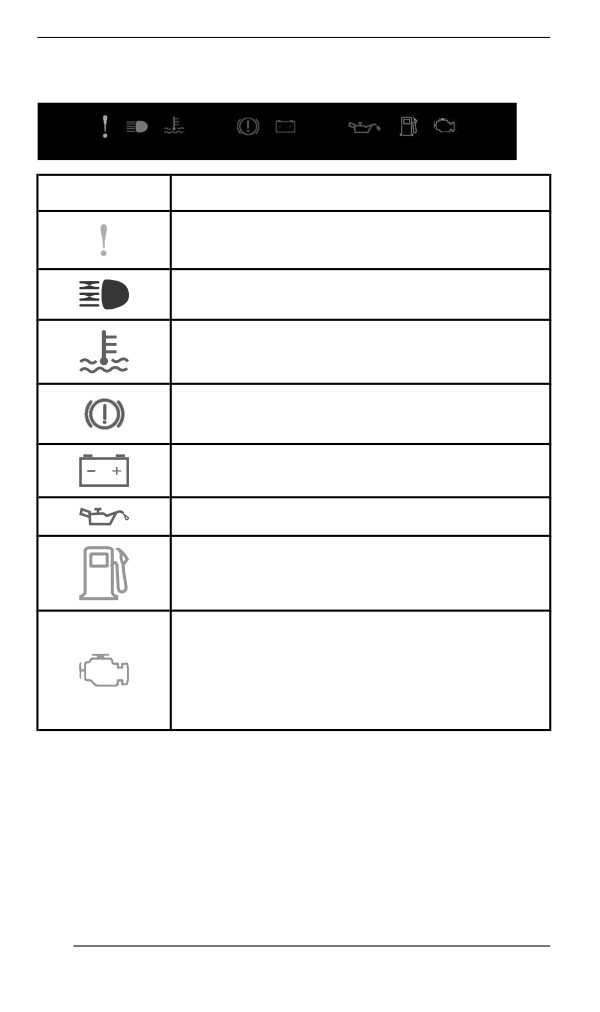

Telltale Lights - Lower Bar

Lights

Description

ORANGE - Vehicle malfunction

BLUE - The high beam are selected

RED - The engine temperature is too high.

RED - Parking brake is engaged or malfunction

of the brake system

RED - The battery voltage too low or problem

with the electrical system

RED - Low engine oil pressure (if applicable)

ORANGE - Low fuel level

ORANGE

Turn on: Malfunction of the vehicle emissions

control system

Blink: Engine problems, the limp home mode is

activated. Have the vehicle serviced

immediately.

Icons and Indicators - Multifunction Display

Icons and Indicators

Denotes SPORT mode is selected.

Denotes ECO mode is selected.

191

7.2” DIGITAL DISPLAY

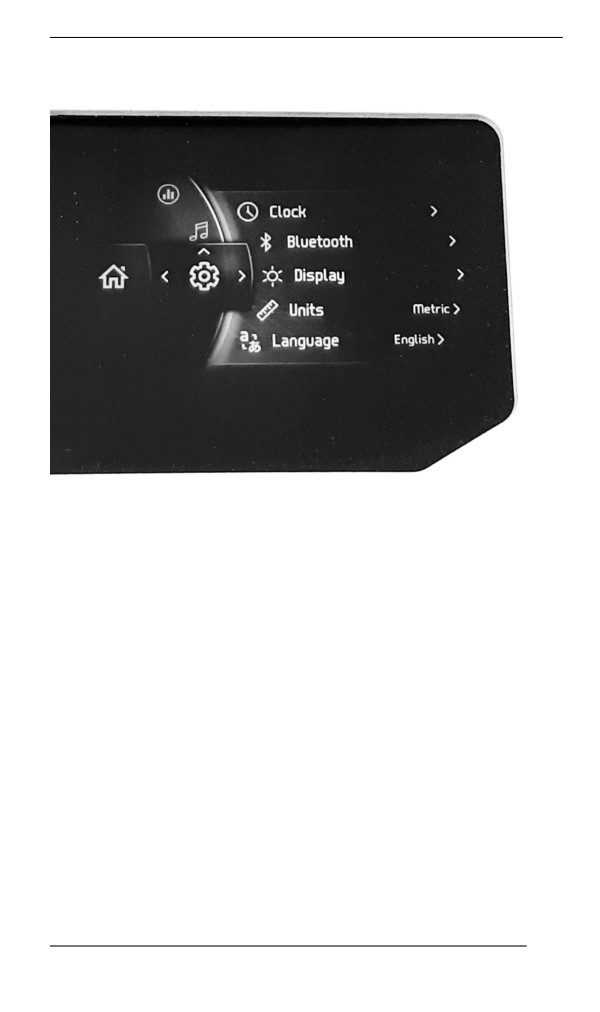

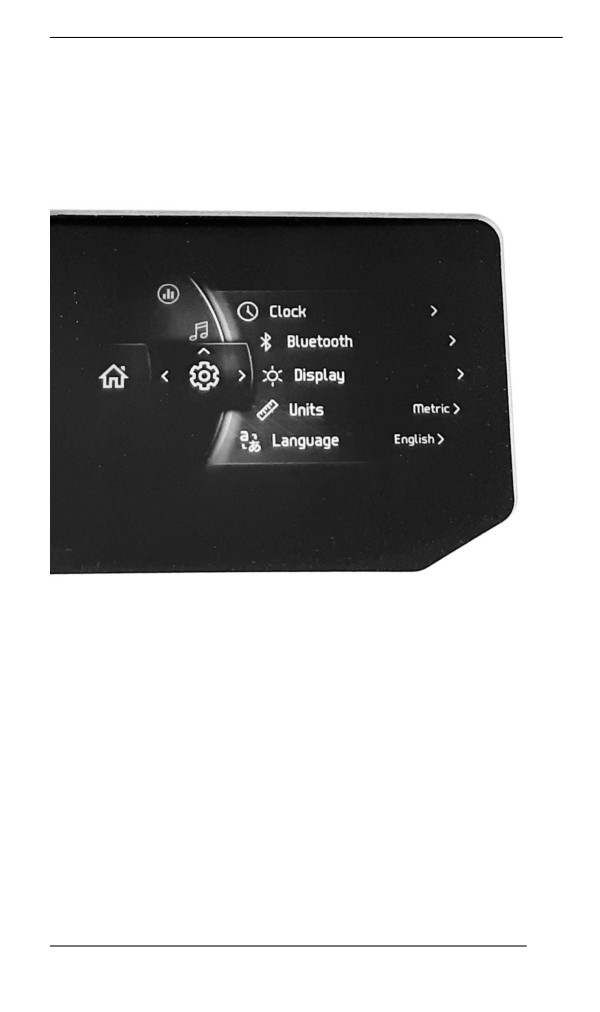

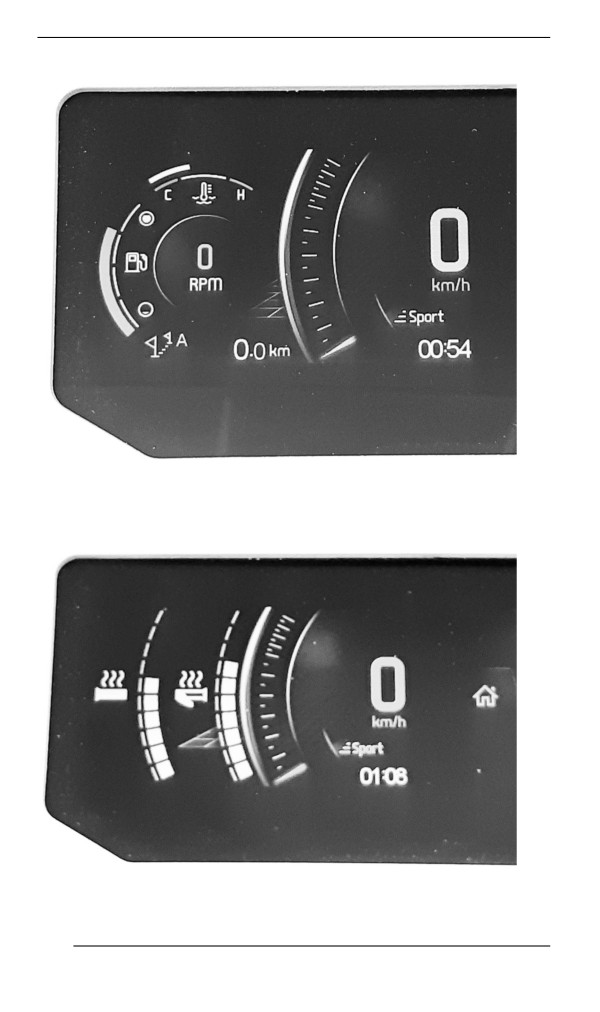

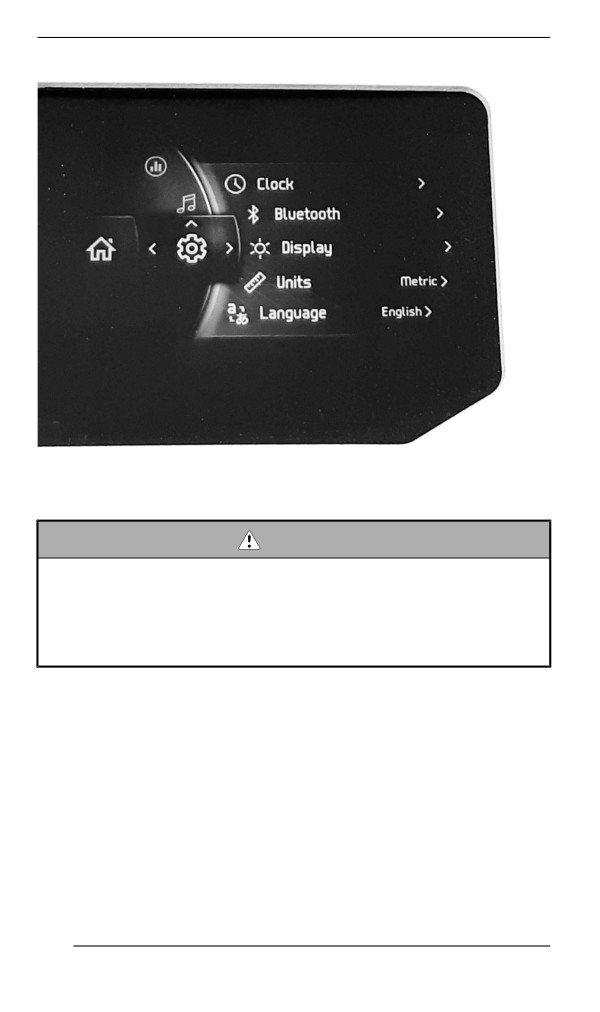

Settings

Setup

Using MENU button, select SETTINGS and hold to enter setting

menu. Various options are available such as swapping the SPEED

and RPM in the Central Display.

Unit Selection

This multifunction gauge is factory preset in metric units but it is possi-

ble to change it to imperial units.

Using MENU button, select UNITS and hold button to change units.

Setting Clock

Using MENU button, select CLOCK and hold to change units.

1. Press MENU button to select clock display.

2. Push and hold MENU button for 1 second.

3. Press MENU button to select 12:00 AM PM or 24:00 time base.

4. Push and hold MENU button or OK button to acknowledge

selection.

5. Press MENU button to change hours (hours flash).

6. Push and hold MENU button or OK button to acknowledge hour

selection

7. Push MENU button to switch to minutes (minutes flash).

8. Press MENU button to change minutes.

Setting Language

The gauge display language can be changed. Refer to an authorized

BRP snowmobile dealer for language availability and to setup the

gauge to your preference.

192

LARGE PANORAMIC 7.8” WIDE LCD DISPLAY

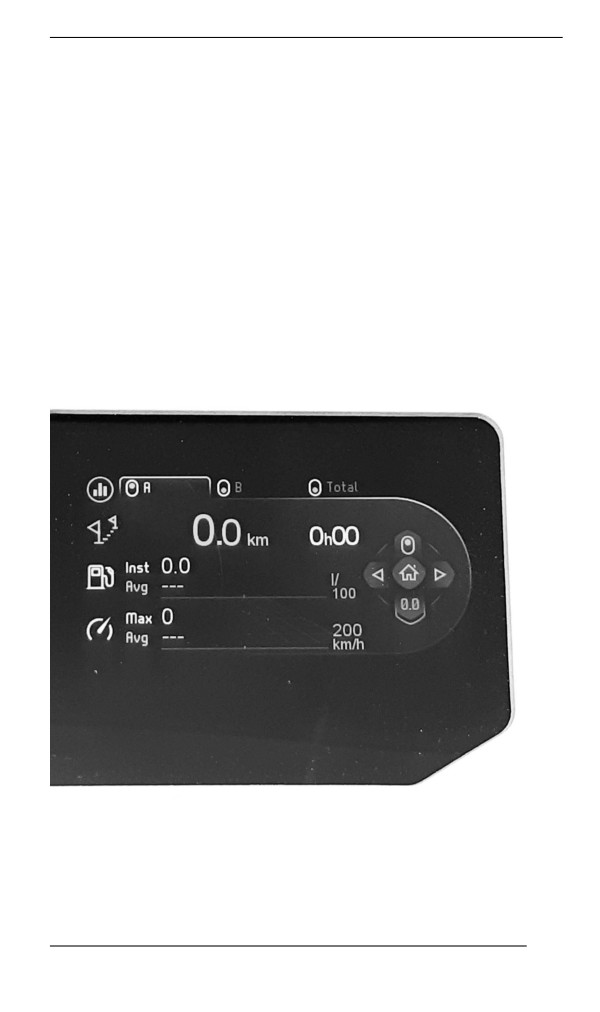

To select the value to be displayed in the tripmeter;

1. Access the Stats/Trip screen

2. Select and activate the desired set of statistic to be shown (Trip A,

Trip B or Total)

Riight Laterall Diispllay

The right lateral display includes:

- Tachometer

- Audio volume

- Audio output indicator

- Menu

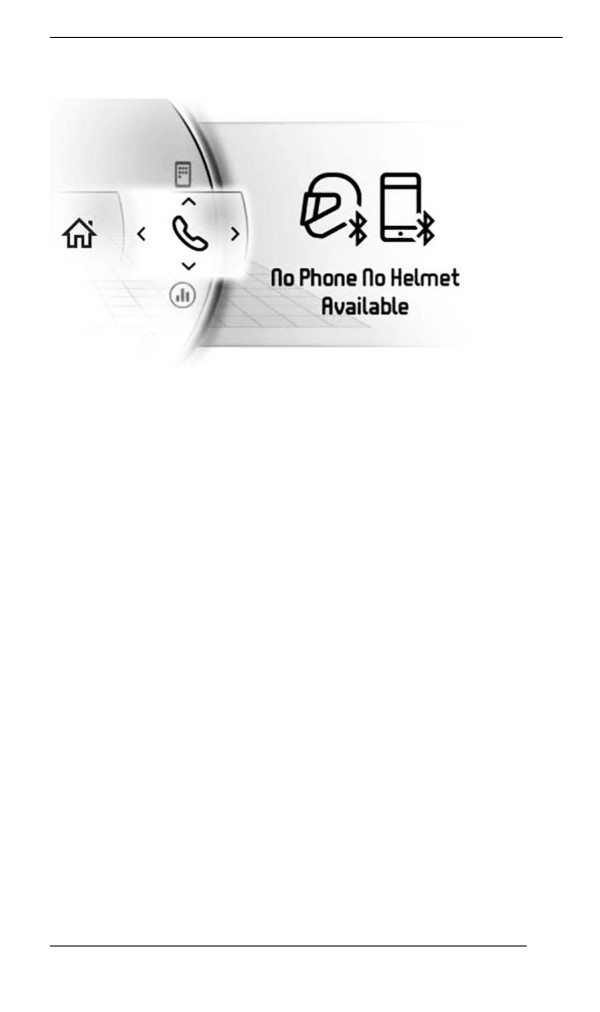

- BRP Connect

- Phone

- Statistics

- Audio

- Settings

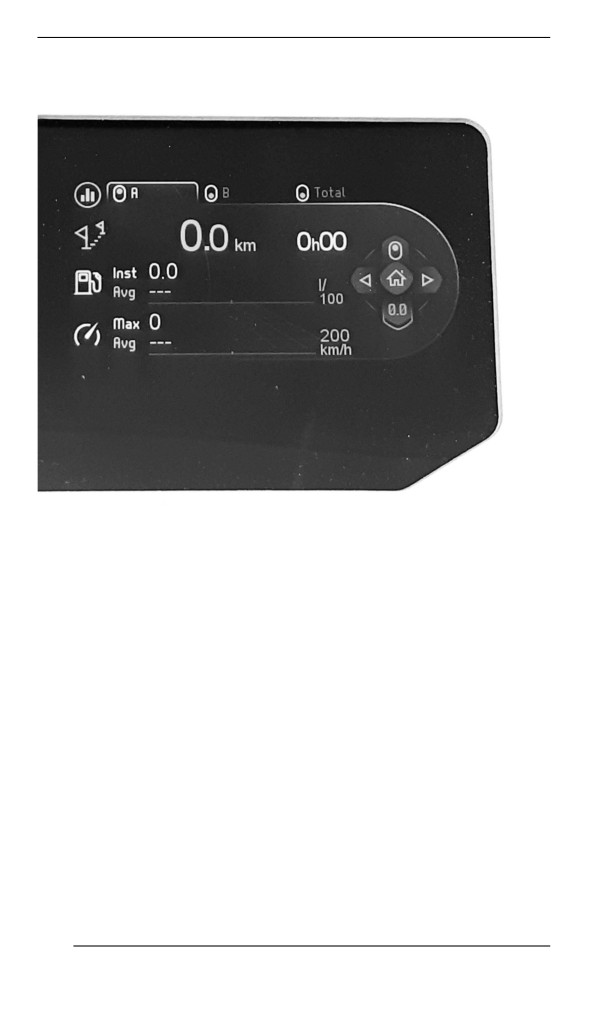

STATS/TRIPS VIEW

195

LARGE PANORAMIC 7.8” WIDE LCD DISPLAY

SETTINGS VIEW

Naviigatiing iin the Digital Diispllay

WARNING

Reading or tampering with the multifunction gauge can distract

you from the operation of the vehicle, particularly from con-

stantly scanning the environment. Always pay attention to road

conditions, ensure your environment is clear and free from ob-

stacles. Furthermore, when riding, only glance at the multifunc-

tion gauge briefly to maintain awareness of road conditions.

The multifunction gauge includes analog gauges (speedometer and

tachometer), indicator lamps and an infotainment center with a digital

screen.

We recommend you practice selecting some functions on the infotain-

ment center before getting on the road. You will get used to them and

they will be easier to use on the road.

Use the rotating control to control the display functions. Refer to Ro-

tary Control in Secondary Controls.

Pressing the center knob will get the Menu selection in the right

screen, in this order:

196

LARGE PANORAMIC 7.8” WIDE LCD DISPLAY

- BRP Connect

- Phone

- Statistics

- Audio

- Settings

When an icon is selected, its related screen will appear.

SETTINGS VIEW

When an item is selected, this sets the item to the current value.

Warning Lamps and Indicators

The following indicator lamps will alert you to a vehicle condition that

may become serious. Some lamps will illuminate when starting the ve-

hicle to make sure they work. If any lamps remain on after starting the

vehicle, refer to the respective system warning lamp for further

information.

NOTE:

Some warning indicators appear in the display of the multifunction

gauge and function the same as an indicator lamp but do not display

when starting the vehicle.

197

LARGE PANORAMIC 7.8” WIDE LCD DISPLAY

Tellltale Lights - Lower Bar

Lights

Description

ORANGE - Vehicle malfunction

BLUE - The high beam are selected

RED - The engine temperature is too high.

RED - Parking brake is engaged or malfunction

of the brake system

RED - The battery voltage too low or problem

with the electrical system

RED - Low engine oil pressure (if applicable)

ORANGE - Low fuel level

ORANGE

Turn on: Malfunction of the vehicle emissions

control system

Blink: Engine problems, the limp home mode is

activated. Have the vehicle serviced

immediately.

198

LARGE PANORAMIC 7.8” WIDE LCD DISPLAY

Settings

BRP Connect

Before using BRP Connect, the BRP GO! app must be downloaded to

the phone. The app can be downloaded from the Apple App Store or

Google Play Store via a simple search. Not all phones are compatible.

Visit our website for more details

www.brpconnecttutorial.com

NOTE:

The smartphone must be connected via Bluetooth and with a USB ca-

ble to the USB port located in the glove box.

User's personal data will be deleted from the cluster when phone pair-

ing is deleted.

User agree that personal data (contact list and call history) be trans-

ferred to the cluster when smartphone is connected.

Contact list and call history are stored in cluster permanently. To de-

lete these information you must un-pair your smartphone or overwrite

using another smartphone.

NOTE:

The apps can also reach directly by pressing the APPS button located

at the bottom of the rotary control.

200

LARGE PANORAMIC 7.8” WIDE LCD DISPLAY

Statistics

The Statistics menu is used to get :

- Trip distance information

- Trip elapsed time information

- Instant fuel consumption

- Average fuel consumption

- Maximum speed

- Average speed

3 sets of statistics are kept in memory. Each set of statistic can be re-

set independently.

Press knob to enter into the stats/trip screen.

Move the knob left or right to select another trip.

Press the knob to exit this screen and validate your selection.

Audiio

Allow to control volume and music listened in the helmet audio

system.

Gives also song informations when available.

202

LARGE PANORAMIC 7.8” WIDE LCD DISPLAY

Settiings

The Settings menu is to:

- Adjust clock

- Pair Bluetooth devices

- Phone

- Rider headset

- Passenger headset

- Adjust the display (brightness and Mode (AUTO/DAY/NIGHT)

- Adjust the units (Imperial/Metric)

- Set the language

- Get information about firmware version and device regulatory

compliance

- Show vehicle fault codes.

Pairiing your Smartphone Viia Bluetooth

On the Vehicle

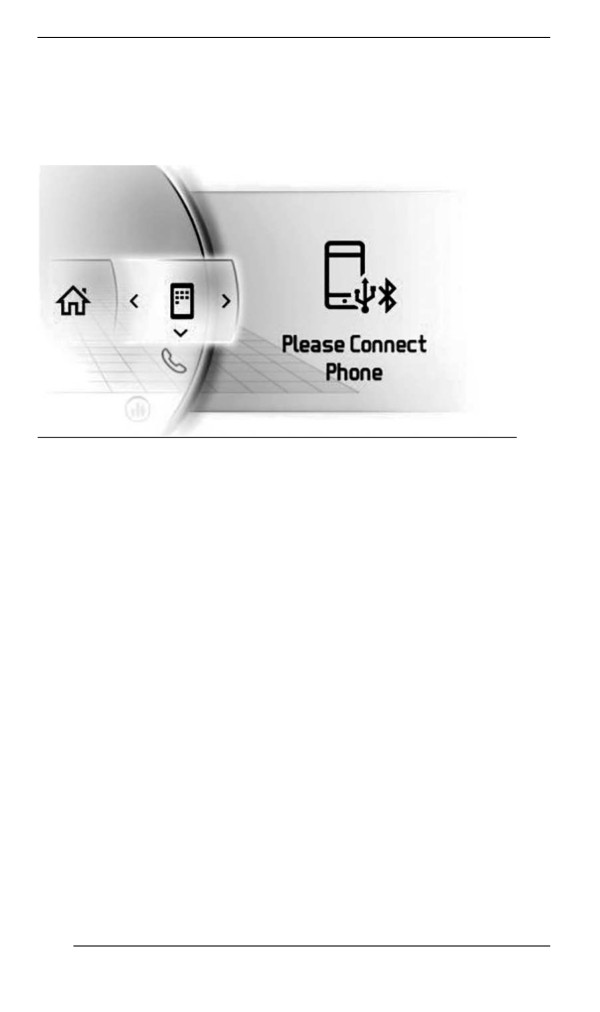

1. Short press the rotary control knob to access menu.

2. Go to “Settings” and move the knob RIGHT.

3. Select “Bluetooth” and move the knob RIGHT.

4. Select “Phone” and move the knob RIGHT.

5. Select “Add Phone” and press the knob RIGHT.

203

LARGE PANORAMIC 7.8” WIDE LCD DISPLAY

Bluetooth is now visible.

On the Phone

1. Activate your phone's bluetooth function.

Refer to your manufacturer's user guide for detailed procedure.

2. Choose "BRP Connect"

3. A confirmation number will appear on your phone screen and the

vehicle gauge screen. Make sure these numbers match.

4. Press Pair on your phone and select the green check mark on the

vehicle gauge

5. Allow Contacts and Favorite Sync on your phone

Paiiring a Hellmet

To pair a helmet, go to the “Settings” page and select “Add helmet”.

BRP GO! App

Follow these steps to setup your smartphone with BRP Connect.

1) Download the BRP GO! Smartphone App

Download the BRP GO! app via the App Store for Apple™ or the Goo-

gle™ Play Store for Android.

2) Download Apps Compatible With BRP Connect

Visit our website to know more about the compatible apps. These

apps will improve your riding experience. Some apps may require ad-

ditional purchase to be compatible with the system or may require ad-

ditional devices to be used.

www.brpconnecttutorial.com

3) Connect your smartphone using your charging / data transfer

cable

It is recommended to use an original charging cable from the smart-

phone OEM to optimize transfer between the phone and the vehicle.

Use the front USB port.

1. Unlock your phone screen

2. Connect your phone charging cable

3. A checkmark will appear on your phone screen once the connec-

tion is done.

4) Access your Apps

Quick press the JOYSTICK to access Menu.

204

LARGE PANORAMIC 7.8” WIDE LCD DISPLAY

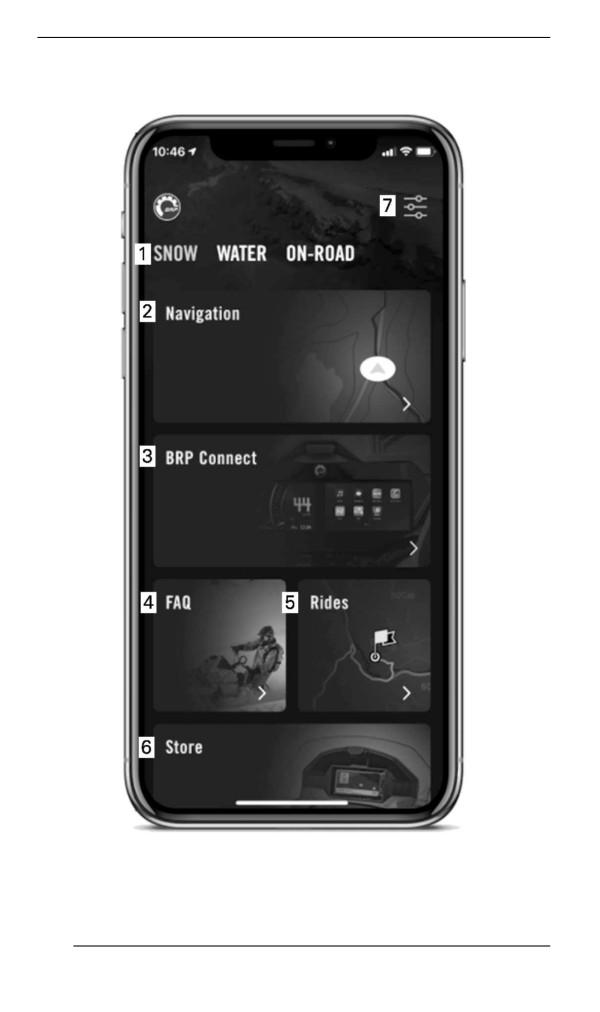

2. Navigation: Access all the navigation features of the app such as

route planning, turn-by-turn navigation, friends location, offline nav-

igation, and more. You can access thousands of snowmobile trails

across North America and Europe on the map.

3. BRP Connect: See the list of compatible apps that can be used on

the vehicle's display. You can also access from there the Vehicle

Connection Guide to help you connect your phone to your vehicle's

display.

4. FAQ: This link takes you to answers of common questions asked

by riders like you. An internet connection is required.

5. Rides: Easily access your planned and completed rides made with

the Navigation features of the BRP GO! app.

6. Store: This link takes you to the online store of your vehicle. An in-

ternet connection is required.

7. Settings: Manage your profile and your account settings.

Messages iin Multifunction Gauge

Important information about vehicle condition is displayed on the multi-

function gauge. When starting the engine, always look at the gauge

for any indicator lamps or special messages.

MESSAGE/

Icon

CAUSE

WHAT TO DO

WARNING

Contact an

Defective

BAD KEY

authorized BRP

key

snowmobile dealer.

Use the right key for

WRONG

the vehicle or contact

Wrong key

KEY

an authorized BRP

snowmobile dealer.

- Stop and wait for

engine to cool off.

HIGH

- Check for leaks.

Engine is

ENGINE

- Check coolant

overheat

TEMPERA

level

ing

TURE

and adjust (see

Maintenance

procedures).

Important

* Have the vehicle

engine

transported to the

LIMP HOME

manage

nearest authorized

MODE

ment

BRP snowmobile

compo

dealer.

nent

207

LARGE PANORAMIC 7.8” WIDE LCD DISPLAY

MESSAGE/

Icon

CAUSE

WHAT TO DO

WARNING

- Check for oil

leaks.

LOW OIL -

Low oil

- Check oil level

STOP

pressure

and adjust (see

ENGINE

Maintenance

procedures.

A combination of two different warnings can occur.

NA = Not applicable

* BRP recommends having the vehicle transport when in LIMP

HOME. If you operate the vehicle in LIMP HOME, avoid abrupt

maneuvers and immediately go to the nearest authorized BRP

snowmobile dealer to have your vehicle serviced before riding

again. In LIMP HOME, the engine RPM is limited and therefore

the vehicle speed.

Important information messages can also be displayed temporarily to

assist indicator lamps.

When a digital warning appears, it will show the warning for 6 seconds

and then the warning will disappear for 60 seconds. During the 60 sec-

onds, the small digital indicator will flash. This sequence will be re-

peated three times and then will stop for 15 minutes. During the 15

minutes only the indicator lamps will be activated.

208

FUEL

Fuel Requiirements

NOTICE

Always use fresh gasoline. Gasoline will oxidize; the result is

loss of octane, volatile compounds, and the production of gum

and varnish deposits which can damage the fuel system.

Alcohol fuel blending varies by country and region. Your vehicle has

been designed to operate using the recommended fuels, however, be

aware of the following:

- Use of fuel containing alcohol above the percentage specified by

government regulations is not recommended and can result in the

following problems in the fuel system components:

- Starting and operating difficulties.

- Deterioration of rubber or plastic parts.

- Corrosion of metal parts.

- Damage to internal engine parts.

- Inspect frequently for the presence of fuel leaks or other fuel sys-

tem abnormalities if you suspect the presence of alcohol in gaso-

line exceeds the current government regulations.

- Alcohol blended fuels attract and hold moisture which may lead to

fuel phase separation and can result in engine performance prob-

lems or engine damage.

Recommended Fuel

Use unleaded gasoline containing MAXIMUM 10% ethanol. The gaso-

line must have the following minimum octane requirements:

Fuel type

Engine

Minimum octane rating

600 ACE

87 AKI (RON+MON)/2

900 ACE

92 RON

Fuel with NO

ethanol

91 AKI (RON+MON)/2

900 ACE Turbo

95 RON

91 AKI (RON+MON)/2

95 RON

Fuel which may

600 ACE

contain up to 10%

900 ACE

MAX ethanol

900 ACE Turbo

209

FUEL

NOTICE

Never experiment with other fuels. Engine or fuel system dam-

ages may occur with the use of an inadequate fuel.

NOTICE

Do NOT use fuel from fuel pumps labeled E85.

Use of fuel labeled E15 is prohibited by U.S. EPA Regulations.

Fueling Procedure

WARNING

Always stop engine before refueling.

WARNING

Fuel is flammable and explosive under certain conditions.

Never use an open flame to check fuel level.

Never smoke or allow flame or spark in vicinity.

Always work in a well-ventilated area.

NOTE:

Do not sit or lean on seat when fuel tank cap is not properly installed.

1. Stop engine.

2. Have operator and passenger get off vehicle.

WARNING

Do not allow anyone seated on the vehicle while fueling.

3. Unscrew slowly the fuel reservoir cap counterclockwise to stabilize

pressure before removing it.

NOTE:

A short whistling sound is normal.

210

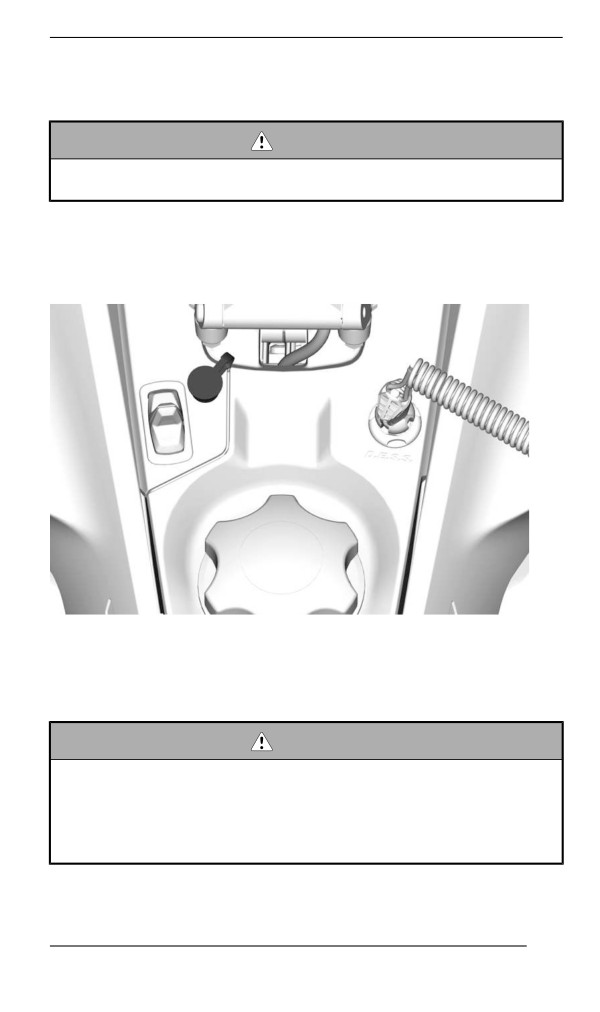

FUEL

TYPICAL

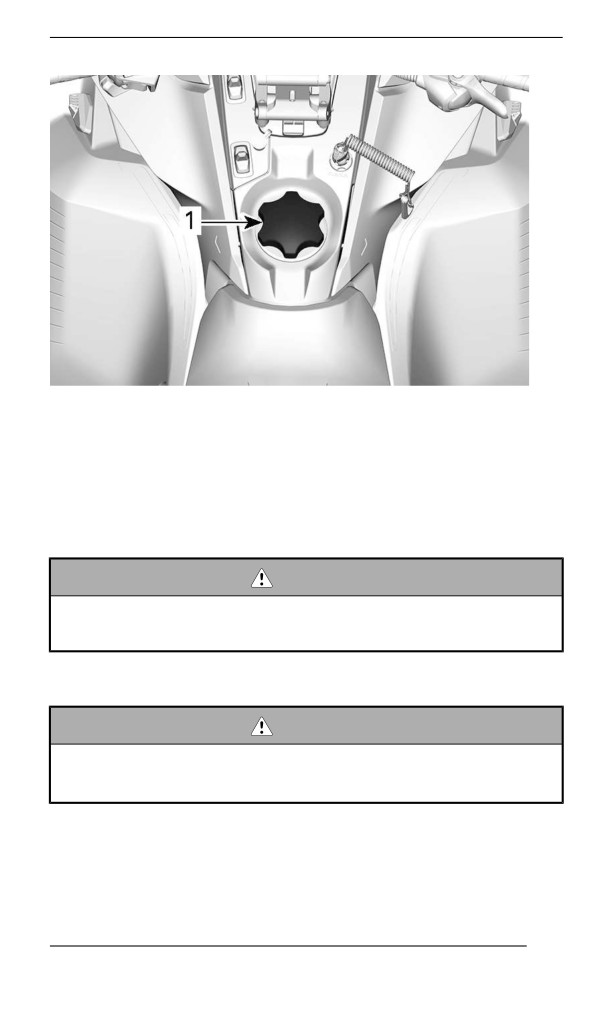

1. Fuel tank cap

4. Insert the spout into the filler neck.

5. Pour fuel slowly so that air can escape from the tank and prevent

fuel flow back. Be careful not to spill fuel.

6. Stop filling when the fuel reaches the bottom of filler neck. Do not

overfill.

WARNING

Never top up the fuel tank before placing the vehicle in a warm

area. As temperature increases, fuel expands and may

overflow.

7. Fully tighten fuel reservoir cap clockwise.

WARNING

Always wipe off any small fuel spillage from the vehicle. If a ma-

jor spillage occurs, remove side panels to remove fuel vapors

from engine compartment before starting.

NOTE:

Do not sit or lean on seat when fuel tank cap is not properly installed.

211

BREAK-IN PERIOD

Operatiion During Break-In

Engine

During the break-in period:

- Avoid prolonged full throttle operation.

- Avoid sustained accelerations.

- Avoid prolonged cruising speeds.

- Avoid engine overheating.

However, brief accelerations and speed variations contribute to a

good break-in.

During a predetermined period, the engine management system con-

trols some engine parameters.

The duration is based on fuel volume. It will take approximately two

fuel tanks to complete the break-in.

During this period:

- The engine performance and behavior will not be optimal.

- The fuel and oil consumption will be higher.

Drive Belt

A new drive belt requires a break in period of 50 km (30 mi).

During the break-in period:

- Avoid strong acceleration and deceleration.

- Avoid pulling a load.

- Avoid high speed cruising.

If the vehicle creeps, lower the drive belt height from the preliminary

setting. Refer to Drive Belt in maintenance procedure.

212

BASIC PROCEDURES

Engine Startiing Procedure

Procedure

1. Apply parking brake.

2. Recheck throttle control lever operation.

3. Put your helmet on.

4. Ensure that the tether cord cap is installed on the engine cut-off

switch and that the cord is attached to your clothing eyelet.

5. Ensure that the emergency engine stop switch is in the ON position

(up).

WARNING

Never depress throttle while starting engine.

6. Release parking brake.

NOTE:

For an initial cold start, do not release parking brake. Perform the ve-

hicle warm-up procedure as explained below.

7. Depress the START button to engage the electric starter and start

the engine. Release button immediately when engine has started.

NOTICE

Do not engage electric starter for more than 10 seconds at a

time. A rest period should be observed between the cranking

cycles to allow electric starter to cool down.

Emergency Startiing

Do not attempt any emergency starting procedure. Have the battery

charged or replaced.

Vehicle Warm-Up

Before every ride, vehicle has to be warmed up as follows.

1. Start engine as explained in ENGINE STARTING PROCEDURE

(PAGE 213) ENGINE STARTING PROCEDURE above.

2. Allow engine to warm up one or two minutes at idle speed.

NOTE:

Engine will shut down after approximately 12 minutes of idling.

213

BASIC PROCEDURES

3. Disengage parking brake.

4. Apply throttle until drive pulley engages. Drive at low speed the first

two or three minutes.

NOTICE

If vehicle does not move when throttle is applied, stop engine,

remove tether cord cap from the engine cut-off switch, then do

the following.

– Check if skis are stuck on the ground. Lift one ski at a time

by the handle, then put it down.

– Check if track is stuck on the ground. Lift rear of snowmobile

enough to clear track from the ground, then drop.

– Check rear suspension for hard snow or ice accumulation

that could interfere with track rotation. Clean the area.

– Validate that transmission is engaged (not in neutral).

CAUTION

Beware of injuries by using proper lifting techniques, notably

using your legs force. Do not attempt to lift the rear of vehicle if

it is above your limits.

WARNING

Make sure tether cord cap is removed before standing in front

the vehicle, getting close to the track or rear suspension

components.

NOTE:

Warm-up is electronically controlled. During this period (up to 10 mi-

nutes depending on ambient temperature), engine RPM is limited.

Shiiftiing iin Hiigh or Low range

This transmission is designed to accept shifting while moving. How-

ever, shifting while the engine is under heavy load is not

recommended.

NOTICE

Shifting at a speed faster than 30 km/h (19 MPH) may cause

serious damage to the gearbox.

214

BASIC PROCEDURES

High Range

This position selects the high speed range of the gearbox. It is the nor-

mal driving speed range. It allows the vehicle to reach its maximum

speed.

Low Range

This position selects the low speed range of the gearbox. It allows the

vehicle to move slowly with maximum engine torque.

Low range should be used whenever:

- Pulling a cargo carrier or accessory

- Hauling a load

- Crossing obstacles

- Climbing onto trailer

- Hill climbing

It is also recommended to use low range if driving for prolonged peri-

ods at speeds under 24 km/h (15 MPH).

NOTICE

Use the low speed range to pull a cargo carrier, carry heavy

cargo, go over obstacles or drive uphill and downhill.

Shifting in Reverse

1. Bring vehicle to a complete stop.

2. Apply and hold brake. Remain seated, refer to Rider Position (Re-

verse Operation) in Riding the vehicle for posture information.

3. With engine at idle speed, select reverse (R) gear using the re-

verse lever or Start / RER button.

215

BASIC PROCEDURES

WARNING

The reverse speed is not limited. Always proceed with caution

as fast reverse could result in loss of vehicle stability. Come to

complete stop before activating the reverse. Always remain

seated and apply the brake before shifting. Ensure the path be-

hind is clear of obstacles or bystanders before proceeding.

Shifting in Forward from Reverse

1. Bring vehicle to a complete stop.

2. Apply and hold brake.

3. Press and release the RER button or reverse lever.

4. Apply throttle slowly and evenly. Allow drive pulley to engage then

accelerate carefully.

Shuttiing Off the Engine

Release throttle lever and wait until engine has returned to idle speed.

Shut off the engine using either the emergency engine stop switch or

by pulling off the tether cord cap from the engine cut-off switch.

WARNING

Always remove the tether cord cap from engine cut-off switch

when vehicle is not in operation in order to prevent accidental

engine starting or to avoid unauthorized use by children or

others or theft.

217

RIDING CONDITIONS AND YOUR

SNOWMOBILE

Altitude

At factory, your snowmobile was calibrated to be used within an alti-

tude range (relative to sea level).

A new snowmobile has a tag attached to the handlebar indicating its

calibration. Refer to Safety Information on Vehicle.

If for any reason you don't know your snowmobile calibration, contact

an authorized BRP snowmobile dealer.

If your snowmobile is to be used at an altitude outside the specified

range, have it calibrated accordingly by an authorized BRP snowmo-

bile dealer.

NOTICE

An inappropriate altitude calibration would decrease perform-

ance and may cause serious damage to the snowmobile.

Temperature

The engine management of these engines provides the optimum air/

fuel ratio for all temperatures.

Hard Packed Snow

All models covered in this guide which are equipped with a minimum

track profile of 44 mm (1.75 in) are built for deep snow conditions and

should never be used during a prolonged period of time in marginal or

hard packed snow conditions.

In the event you have to ride in these types of conditions:

- Avoid exceeding a speed of 70 km/h (45 mph) in all conditions

- Avoid hard acceleration (over 75% of throttle)

- Ice scratchers should be applied

- Engine temperature should not exceed 75% on the temperature

gauge.

NOTICE

Running these types of tracks at high speed on a trail, on hard

packed surfaces or on ice puts more stress on the lugs, which

tends to heat up as a result. It also could drastically reduce the

life of specific wear parts. To avoid potential degradation, de-

lamination or damages to the track and wear parts, reduce your

speed and minimize the distance that is being ridden on these

types of surfaces.

218

RIDING CONDITIONS AND YOUR SNOWMOBILE

Vehicles Equipped with Ice Scratchers

Ice scratchers are equipped on the vehicle to increase engine cooling

efficiency, to lubricate and to cool track clips and sliders. They must

be used whenever on ice, hard packed snow, or any conditions that

do not lift enough snow particles into the rear suspension and the

tunnel.

NOTICE

Although it is not recommended to ride a snowmobile equipped

with a high lug profile track on trails or hard packed snow condi-

tions, it is highly suggested to combine idler wheels and ice

scratchers on a vehicle used in these conditions.

IMPORTANT

Ridding in these trail conditions puts the reliability of the track and

its warranty at risk

If equipped with the following track profile heights, never exceed the

recommended sustained vehicle speeds listed.

Track Profile Height

Maximum Sustained Speed

57 mm (2.25 in)

110 km/h (70 MPH)

60 mm (2.36 in)

64 mm (2.52 in)

95 km/h (60 MPH)

75 mm (3 in)

219

TUNE YOUR RIDE

Snowmobile handling and comfort depend upon multiple adjustments.

WARNING

Suspension adjustment could affect vehicle handling. Always

take time to familiarize yourself with the vehicle''s behavior after

any suspension adjustment have been made. Always adjust LH

and RH suspension components to the same setting.

Choice of suspension adjustments vary with carrying load, operator's

weight, personal preference, riding speed and field condition.

NOTE:

Some adjustments may not apply to your snowmobile.

WARNING

Before proceeding with any suspension adjustment, remember:

– Park in a safe place.

– Remove the tether cord cap from the engine cut-off switch.

– Use appropriate lifting device or have assistance to share

lifting stress. If a lifting device is not used, use proper lifting

techniques, notably using your legs force.

– Do not attempt to lift the front or rear of vehicle if it is above

your limits.

– Support front of vehicle off the ground with a suitable device

before adjusting suspension.

– Support rear of vehicle off the ground with a wide-base

snowmobile stand with a rear deflector panel.

– Make sure support device is stable and secure.

The best way to set up the suspension is to customize each adjust-

ment one at a time. Various adjustments are interrelated. It may be

necessary to readjust center spring after adjusting front springs for in-

stance. Test run the snowmobile under the same conditions; trail,

speed, snow, operator riding position, etc. Proceed methodically until

you are satisfied.

Following are guidelines to fine-tune suspension. Use suspension ad-

justment tool provided in the tool kit.

Front Suspension Adjustments

Ski Stance

Skis can be set to three different widths.

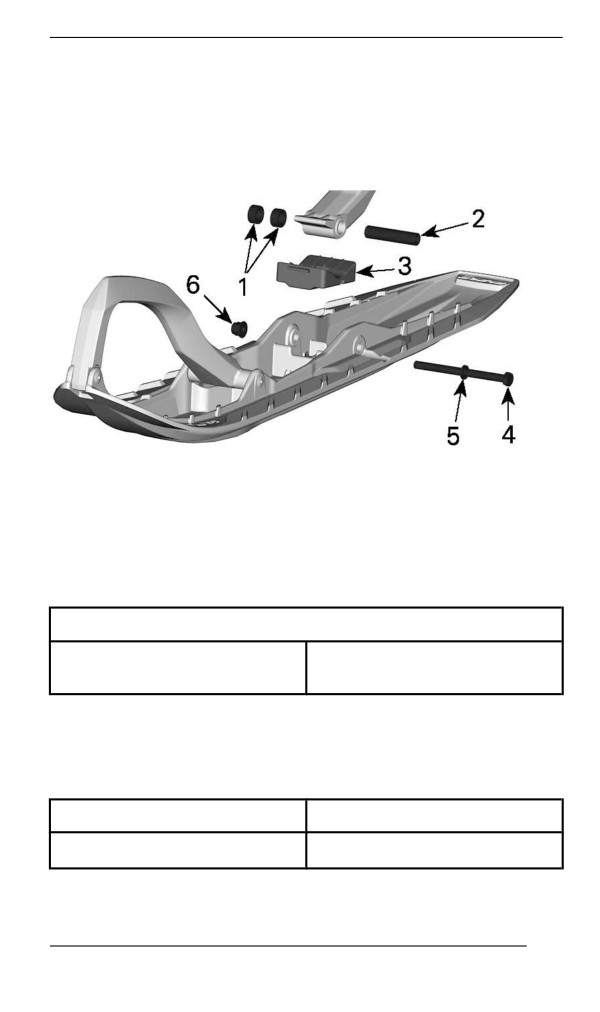

To obtain the different widths, place the spacers:

220

TUNE YOUR RIDE

- Inside the skis leg (narrowest ski stance setting: easiest to initiate

turn on sidehills), or

- Outside the skis leg (widest ski stance setting: most stable on cor-

ners), or

- On each side (central setting: best steering accuracy on deep

snow).

1. Spacers

2. Axle

3. Stopper

4. Screw

5. Washer

6. Nut

TIGHTENING TORQUE

48 ± 6 Nm

Ski nut

(35 ± 4 lbf-ft)

Front Springs

Front spring preload has an effect on front suspension firmness.

Front spring preload also has an effect on the steering behavior.

Action

Result

Increasing preload

Firmer front suspension

221

TUNE YOUR RIDE

Action

Result

Higher front end

More precise steering

More bump absorption

capability

Softer front suspension

Lower front end

Decreasing preload

Lighter steering

Less bump absorption

capability

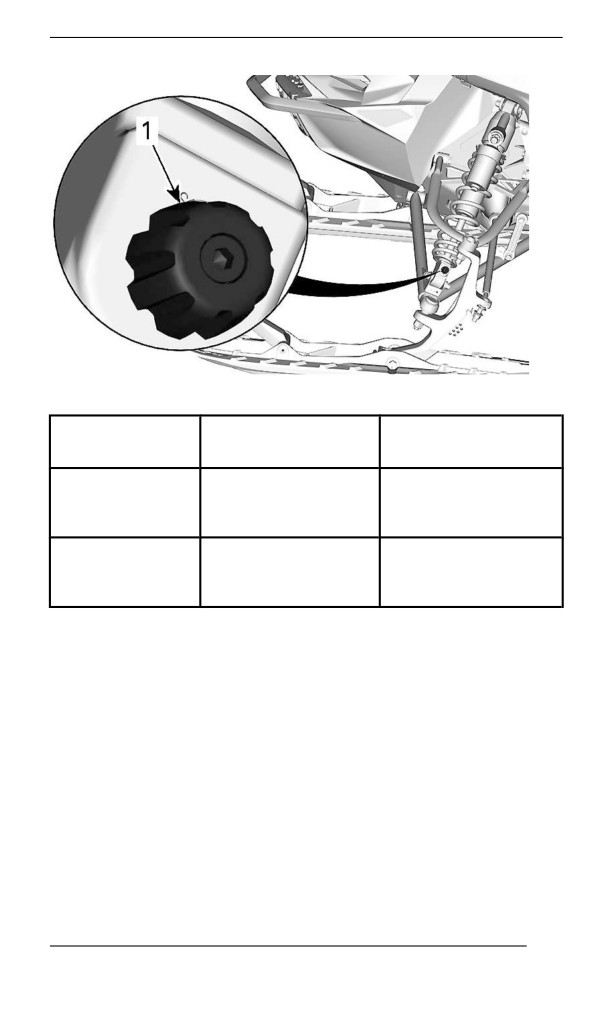

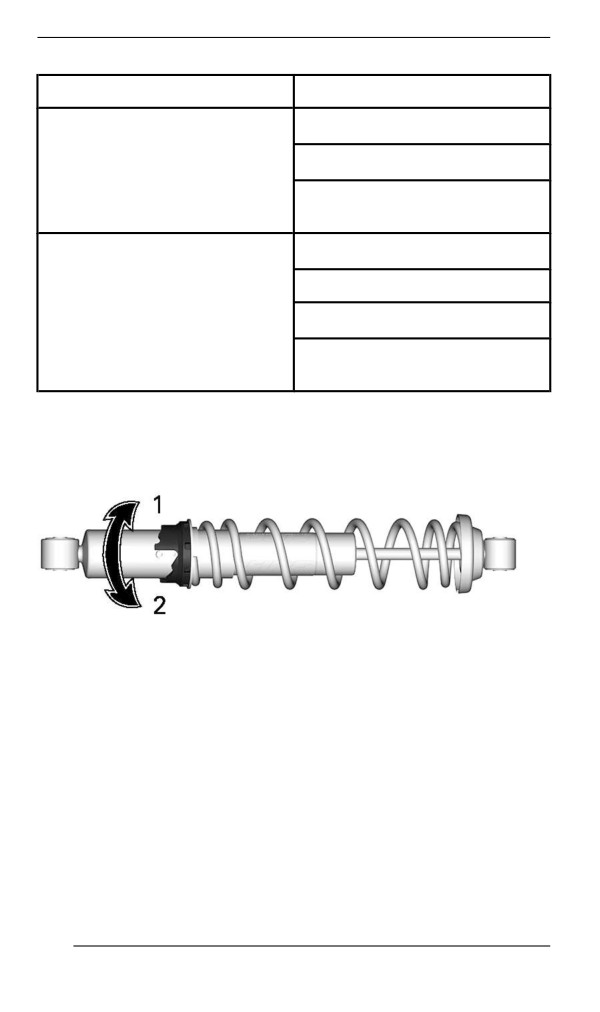

Cam Type Adjuster

Using the suspension adjustment tool provided in the tool kit, turn the

cam to increase or decrease the spring preload.

1. Increase preload

2. Decrease preload

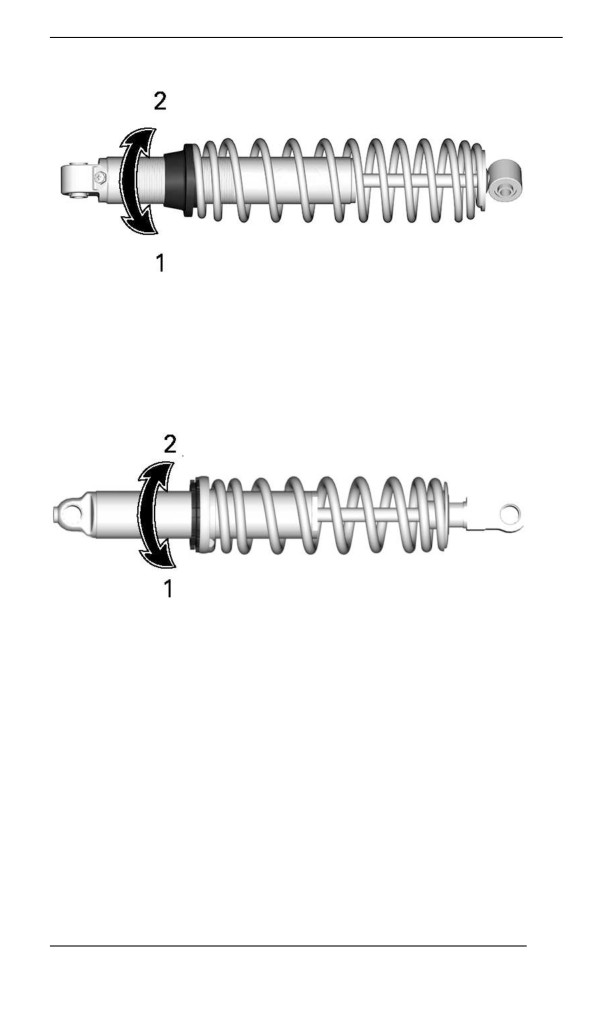

Ring Type 1 Adjuster

Grab and turn the ring and the spring to increase or decrease the

spring preload.

222

TUNE YOUR RIDE

1. Increase preload

2. Decrease preload

Ring Type 2 Adjuster

Grab and turn the ring and the spring to increase or decrease the

spring preload.

1. Increase preload

2. Decrease preload

Front Shock Absorber Adjustments (KYB HLCR Series Only)

Compressiion Damping

Low speed compression damping controls how the shock absorber re-

acts to a low suspension velocity (slow compression strokes, in most

cases when riding at lower speeds).

High speed compression damping controls how the shock absorber

reacts to a high suspension velocity (quick compression strokes, in

most cases when riding at higher speeds).

223

TUNE YOUR RIDE

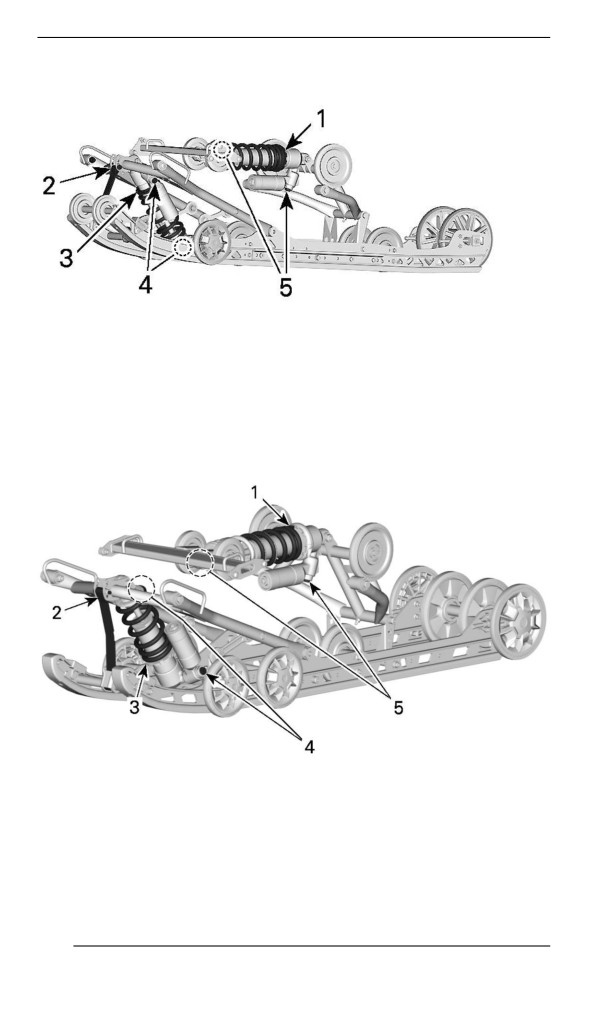

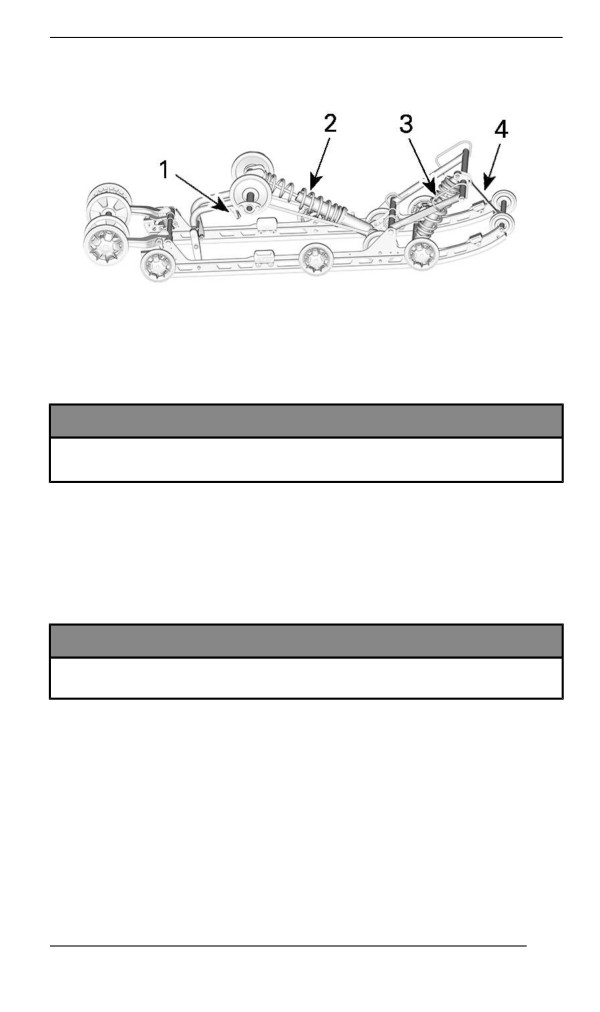

EASYRIDE - ADJUSTABLE COMPONENTS

1. Easy Adjust Handle (if equipped)

2. Rear spring

3. Center spring

4. Stopper strap

NOTICE

Whenever adjusting rear suspension, check track tension and

adjust if necessary.

Stopper Strap – PPS Suspension

Stopper strap length has an effect on the amount of weight the center

spring has to carry especially during acceleration, therefore on the

front end uplift.

Stopper strap length also has an effect on center spring travel.

NOTICE

Whenever stopper strap length is changed, track tension must

be checked.

NOTE:

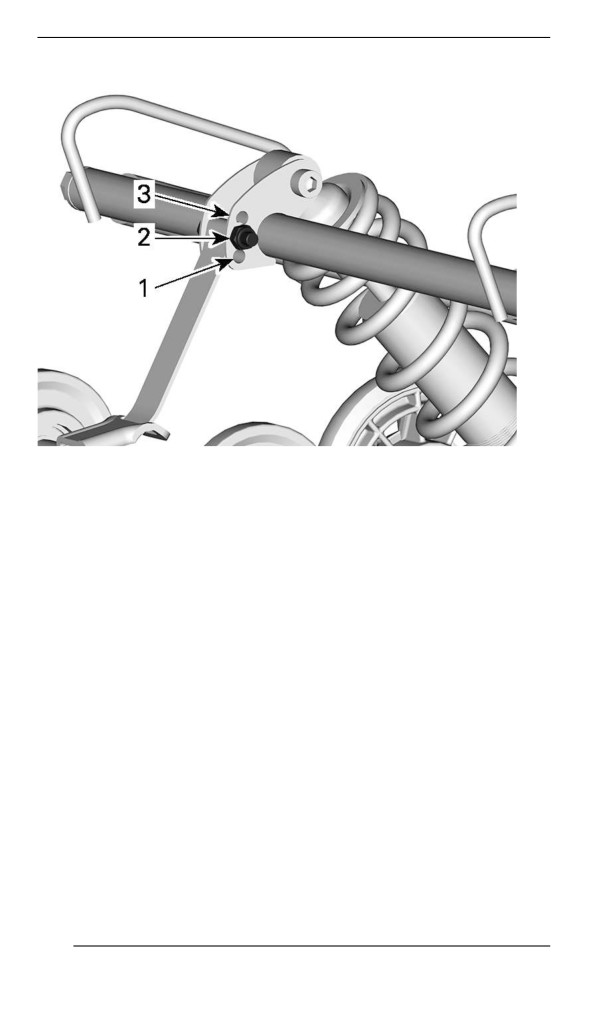

Stopper strap can be set to position 1, 2, 3 or 4. Smaller numbers cor-

respond to a longer strap setting.

227

TUNE YOUR RIDE

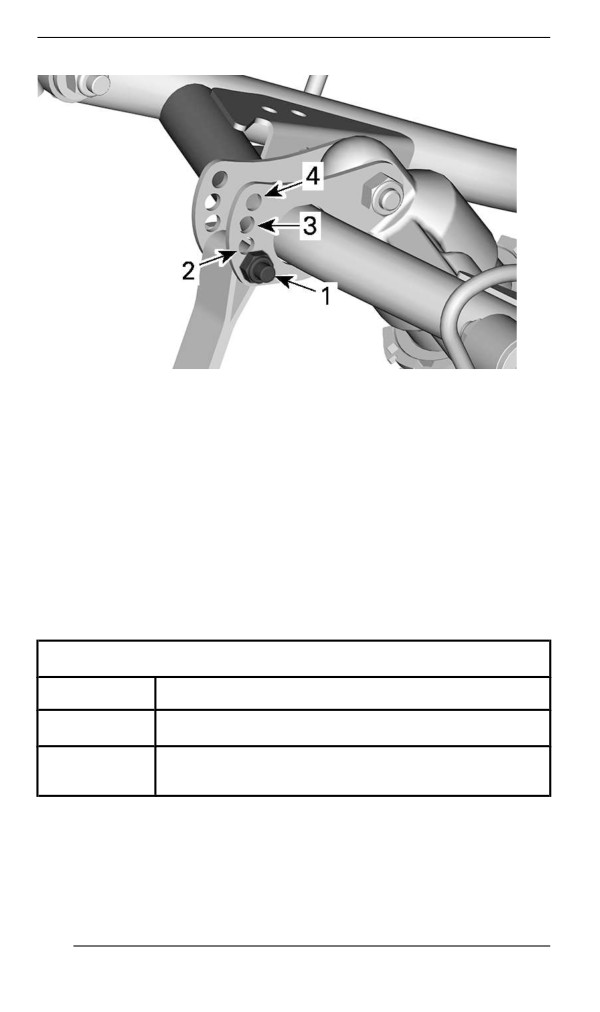

STOPPER STRAP POSITIONS

1. Position 1 (longest)

2. Position 2

3. Position 3

4. Position 4 (shortest)

When operating the snowmobile in deep snow or hill climbing, it may

be necessary to vary stopper strap length and/or riding position, to

change the angle at which the track rides on the snow. Operator's fa-

miliarity with the various adjustments as well as snow conditions will

dictate the most efficient combination.

Generally, a longer stopper strap setting gives better performance on

a flat landscape and a shorter setting will improve handling in steep hill

climbing and deep snow conditions.

Stopper Strap Setting

Position

Use

Standard setting: Best overall setting for trail usage

Better performance in cornering, less suspension

travel

228

TUNE YOUR RIDE

Stopper Strap Setting

Position

Use

Hill climb:

- Better track attack angle for hill climbing

- Better maneuverability on deep snow and on

sidehilling

Steep hill climb:

- Better track attack angle for hill climbing

- Less transfer

- Lower ride height

Stopper Strap – EasyRide Suspension

Stopper strap length has an effect on the amount of weight the center

spring has to carry especially during acceleration, therefore on the

front end uplift.

Stopper strap length also has an effect on center spring travel.

NOTICE

Whenever stopper strap length is changed, track tension must

be checked.

NOTE:

Stopper strap can be set to position 1, 2 or 3. Smaller numbers corre-

spond to a longer strap setting.

229

TUNE YOUR RIDE

STOPPER STRAP POSITIONS

1. Position 1 (longest)

2. Position 2

3. Position 3 (shortest)

When operating the snowmobile in deep snow or hill climbing, it may

be necessary to vary stopper strap length and/or riding position, to

change the angle at which the track rides on the snow. Operator's fa-

miliarity with the various adjustments as well as snow conditions will

dictate the most efficient combination.

Generally, a longer stopper strap setting gives better performance on

a flat landscape and a shorter setting will improve handling in steep hill

climbing and deep snow conditions.

230

TUNE YOUR RIDE

Stopper Strap Setting

Position

Use

Boon docking:

- Better bump absorption

- Lighter and easier handling on flat landscape.

Standard setting: Best overall setting (general use)

Hill climb:

- Better track attack angle for hill climbing

- Less transfer

- Lower ride height

Center Spring

Center spring preload has an effect on steering effort, handling and

bump absorption.

Also, since center spring preload adjustment puts more or less pres-

sure on the front of the track, it has an effect on the performance in

deep snow.

Action

Result

Lighter steering

More bump absorption

capability

Increasing preload

Better deep snow starts

Better deep snow performance

and handling

Heavier steering

Less bump absorption

Decreasing preload

capability

Better trail handling

Cam Type Adjuster

231

TUNE YOUR RIDE

Using the suspension adjustment tool provided in the tool kit, turn the

cam to increase or decrease the spring preload.

1. Increase preload

2. Decrease preload

Ring Type Adjuster

Grab and turn the ring and the spring to increase or decrease the

spring preload.

1. Increase preload

2. Decrease preload

Rear Spring

Rear spring preload has an effect on comfort, ride height and load

compensation.

Also, adjusting rear spring preload shifts more or less weight to the

snowmobile front end. As a result, more or less weight is applied to

the skis. This has an effect on performance in deep snow, steering ef-

fort and handling.

Slight suspension bottoming occurring under the worst riding condi-

tions indicates a good choice of spring preload.

232

TUNE YOUR RIDE

Action

Result

Firmer rear suspension

Higher rear end

Increasing preload

More bump absorption capability

Heavier steering

Softer rear suspension

Lower rear end

Less bump absorption capability

Decreasing preload

Lighter steering

Better deep snow performance and

handling

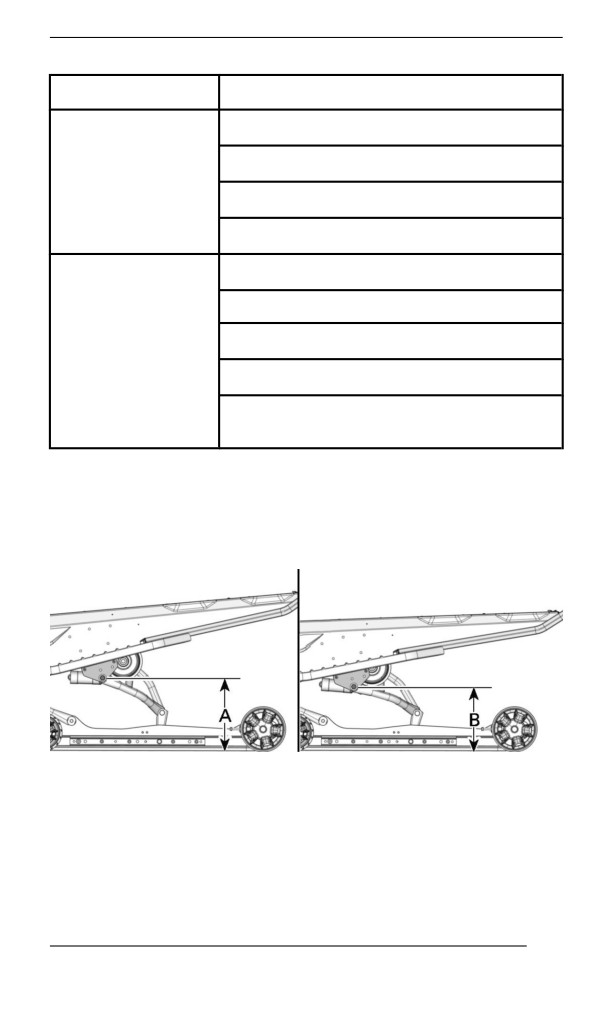

Refer to the following to determine if preload is correct.

- A = Suspension fully extended

- B = Suspension has collapsed with operator, passenger(s) and

load added

- C = Distance between dimension “A” and “B”, see table below

TYPICAL - DISTANCE BETWEEN GROUND AND UPPER REAR

ARM PIVOT

233

TUNE YOUR RIDE

What to do

90 to 100 mm (3.6 to 4 in)

No adjustment required

More than

Adjusted too soft. Increase

100 mm (4 in)

preload

Less than

Adjusted too firm. Decrease

90 mm (3.6 in)

preload

NOTE:

If the specification is unattainable with the original springs, visit an au-

thorized BRP snowmobile dealer for other available springs.

For normal setting, refer to Suspension Adjustment Table.

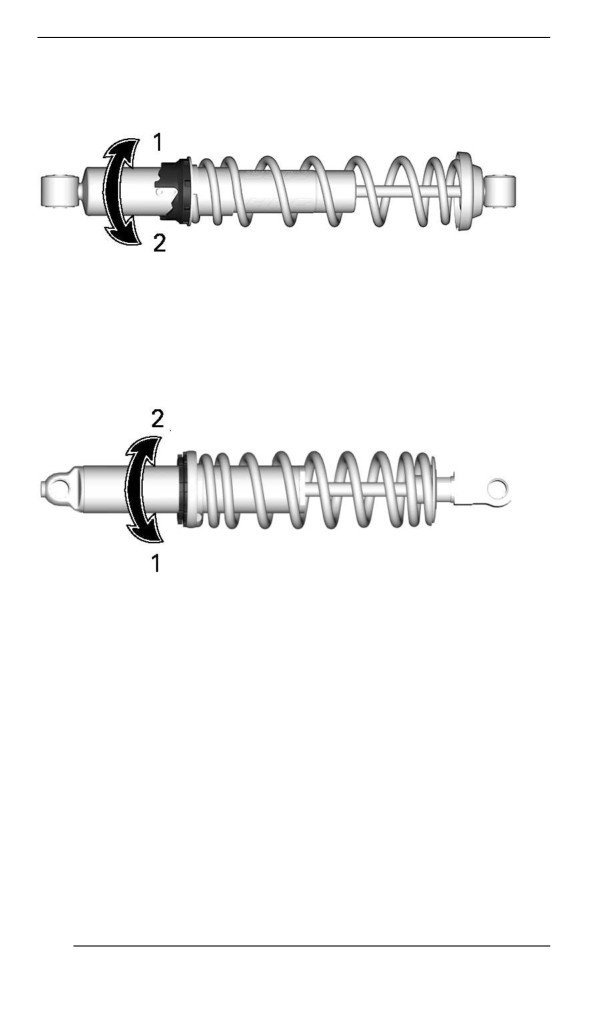

To adjust, unscrew the locking ring, then turn the adjustment ring to

set the spring preload.

When the desired preload is set, tighten the locking ring against the

adjustment ring.

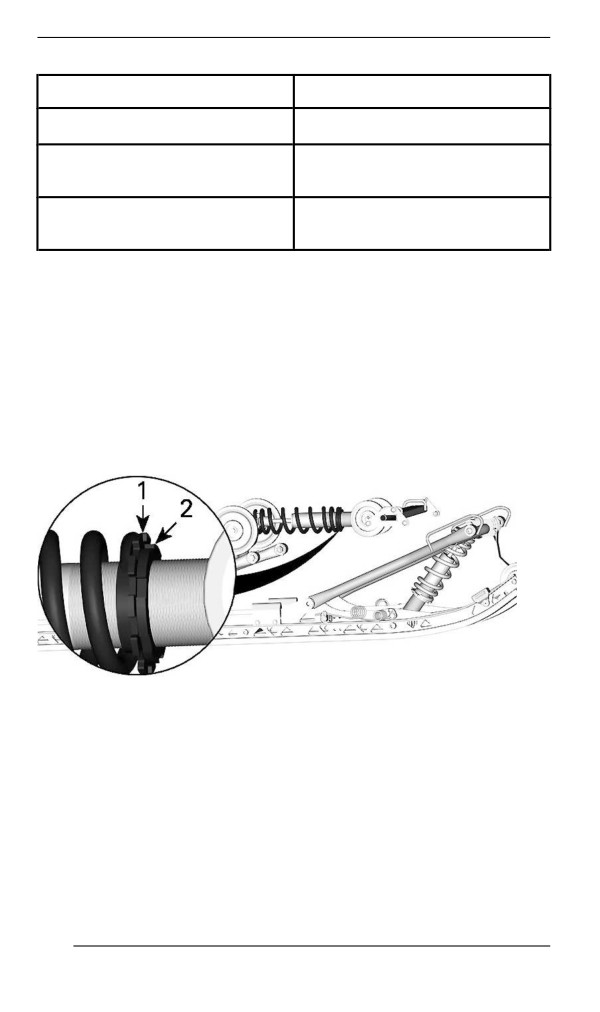

1. Adjustment ring

2. Locking ring

Center and Rear Shock Absorber Adjustments (KYB HCLR

Series Only)

Compression Dampiing

Low speed compression damping controls how the shock absorber re-

acts to a low suspension velocity (slow compression strokes, in most

cases when riding at lower speeds).

234

TUNE YOUR RIDE

High speed compression damping controls how the shock absorber

reacts to a high suspension velocity (quick compression strokes, in

most cases when riding at higher speeds).

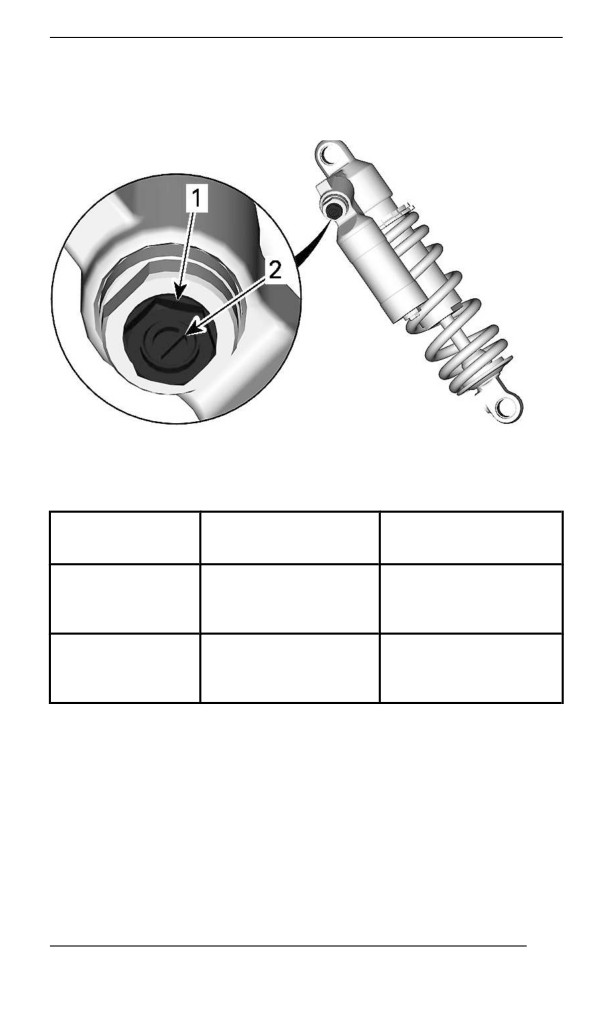

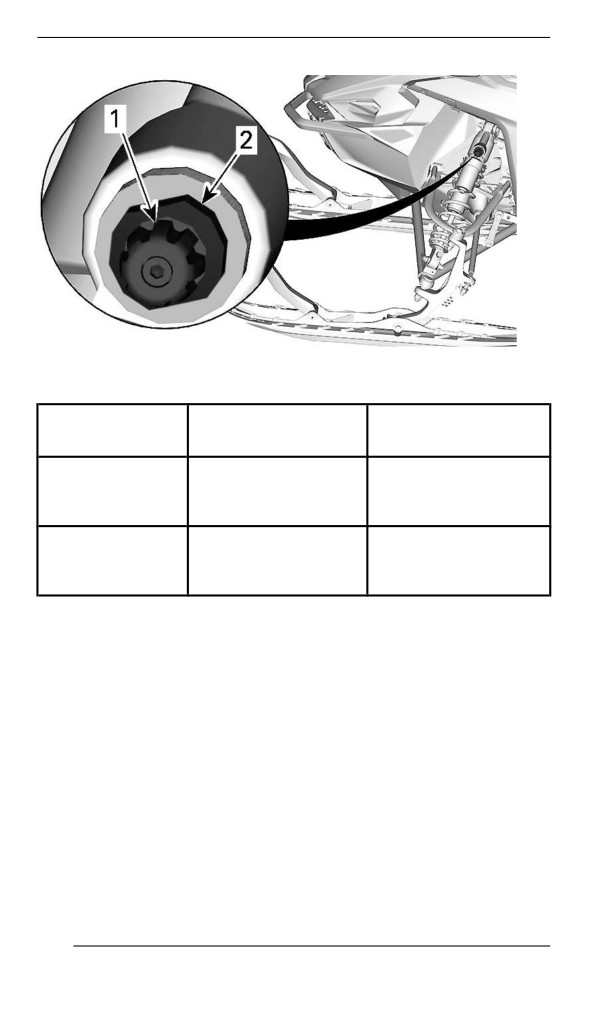

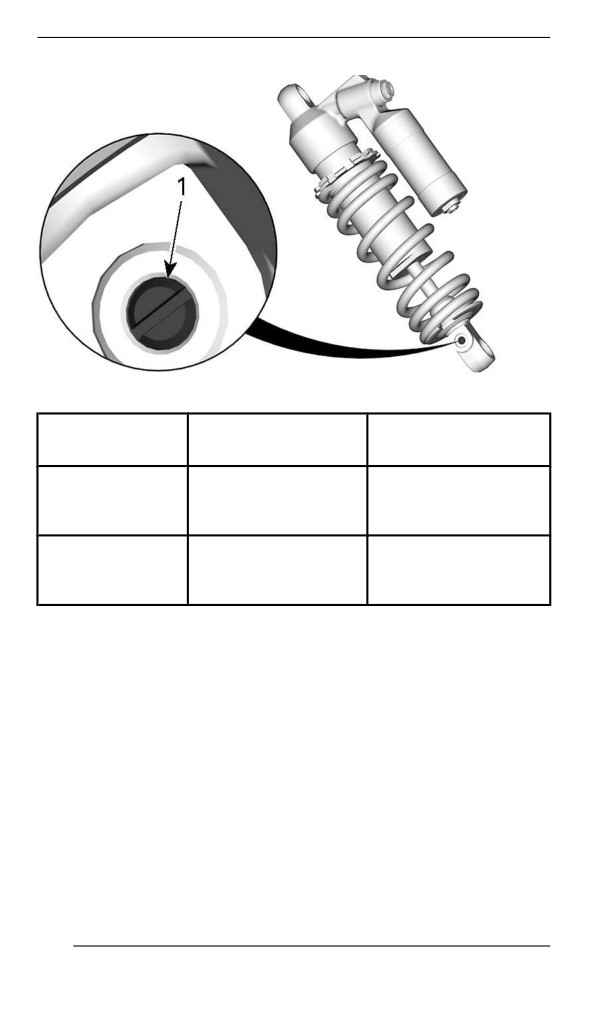

1. High speed compression adjuster (hexagonal)

2. Low speed compression adjuster (slotted)

Result on big and

Turning

Action

small bumps

Increasing

Firmer compression

Clockwise

compression

damping

damping force

Decreasing

Counter

Softer compression

compression

Clockwise

damping

damping force

Rebound Damping

Rebound damping controls how the shock absorber restrains the ex-

tension stroke.

235

TUNE YOUR RIDE

Adjustment Tiips According to Vehiiclle Behaviior

Problem

Corrective measures

Check ski alignment.

Reduce front suspension spring

Front suspension darting

preload.

Increase center spring preload.

–

Reduce rear spring preload.

Steering feels too heavy

Reduce front suspension spring

at steady speeds

preload.

Increase center spring preload.

Steering feels too heavy

Reduce rear spring preload.

during acceleration

Lengthen limiter strap.

Too much ski lift during

Shorten limiter strap.

cornering or acceleration

–

Increase rear spring preload.

–

Reduce rear spring preload.

Rear of snowmobile

Reduce compression damping

seems too stiff

adjustment

if equipped

Rear of snowmobile

Increase rear spring preload.

seems too soft

–

Increase compression damping

adjustment

Rear suspension is

if equipped.

frequently bottoming

Increase rear spring preload.

–

Increase center spring preload.

–

Lengthen limiter strap.

Reduce center spring preload.

Snowmobile seems to

–

Increase rear spring preload.

pivot around its center

Increase front suspension spring

preload.

Shorten limiter strap.

Reduce rear spring preload.

Track spins too much at

Increase center spring preload.

start

–

Lengthen limiter strap.

237

TUNE YOUR RIDE

Suspensiion Adjjustment Tablle

NOTE:

Clicks and turns counted from closed position.

Front Spring / Shock absorber settings

Normal

Setting

Comfort

Sport

(Standard)

Low speed

compression

(Clicks)

High speed

compression

2.5

0.5

(Turns)

Rebound

(Clicks)

Spring preload (mm)

Center Spring / Shock absorber

Stopper strap settings

Normal

Setting

Comfort

Sport

(Standard)

Low speed

compression

(Clicks)

High speed

compression

2.5

0.75

(Turns)

Rebound

(Clicks)

Spring preload (mm)

(With stopper strap

removed)

238

MAINTENANCE SCHEDULE

Maintenance is very important to keep your vehicle in safe operating

condition. The vehicle should be serviced as per the maintenance

schedule.

Proper maintenance is the owner’s responsibility. A warranty claim

may be denied if, among other things, the owner or operator caused

the problem through improper maintenance or use.

Perform periodic checks and follow the maintenance schedule. The

maintenance schedule does not exempt the pre-ride inspection.

WARNING

Failure to properly maintain the vehicle according to the main-

tenance schedule and procedures can make it unsafe to

operate.

EPA Regullatiion - Canadiian and USA Vehiiclles

A repair shop or person of the owner''s choosing may maintain,

replace, or repair emission control devices and systems. These in-

structions do not require components or service by BRP or authorized

BRP snowmobile dealers.

Although an authorized BRP snowmobile dealer has an in-depth tech-

nical knowledge and tools to service your vehicle, the emission-related

warranty is not conditioned on the use of an authorized BRP snowmo-

bile dealer or any other establishment with which BRP has a commer-

cial relationship.

Proper maintenance is the owner’s responsibility. A warranty claim

may be denied if, among other things, the owner or operator caused

the problem through improper maintenance or use.

For emission-related warranty claims, BRP is limiting the diagnosis

and repair of emission-related parts to the authorized BRP snowmo-

bile dealers. For more information, please refer to the US EPA Emis-

sions PERFORMANCE WARRANTY contained in the warranty

section.

You must follow the instructions for fuel requirements in the fueling

section of this manual. Even if gasoline containing greater than ten

volume percent ethanol is readily available, the US EPA issued a pro-

hibition against the use of gasoline containing greater than 10 vol %

ethanol that applies to this vehicle. The use of gasoline containing

greater than 10 vol% ethanol with this engine may harm the emission

control system.

242

MAINTENANCE SCHEDULE

Traill/ Crossover/ Utillity Usage

Whether your vehicle is a Trail, Crossover, or Utility model, these

types of usage require maintenance tasks to be performed between

the regular yearly intervals. These are identified as A + in the chart

below.

If you regularly ride in trails, explore the countryside, or work with

your snowmobile, follow the A+ Trail / Crossover / Utility interval and

perform the tasks outlined in the chart below.

Extreme Cold Condition

An engine that is frequently operated at or below an ambient tempera-

ture of -25 °C (-13 °F) will require an increase in service and mainte-

nance schedule.

Any combustion engine operated at these low ambient temperature

will collect an increased amount of condensation at every startup/

warm-up.

Since the engine is not reaching operating temperatures for extended

periods of time, the oil is starting to be strongly diluted with water and

gas residue (more water content).

An engine needs to reach operating temperature, in order to be able

to evaporate condensate out of the oil.

If daily usage (work or leisure driving cycle) is similar to those men-

tioned below, BRP strongly recommends changing the oil at least

once a month.

Parameters of an increase in service and maintenance schedule:

- Engine not reaching the proper operating temperature during nor-

mal daily usage

- Multiple starts and stops without reaching operating temperature

- Short idle periods

- Low RPM driving cycle in short distances without reaching operat-

ing temperature.

NOTE:

BRP strongly recommends the installation of a block heater to help

warm up the liquids, this will also help to extend the oil lifetime.

243

MAINTENANCE SCHEDULE

Maiintenance Schedulle

Make sure to perform proper maintenance at recommended intervals

as indicated in the tables.

The maintenance chart indicates the items needing to be addressed

based on 2 criteria, whichever happens first:

- Calendar time

- Odometer reading.

Your driving habits determines the factors you shall adhere too. For

example:

- Someone who uses their vehicle every other weekend trail riding

with friends would most likely follow the odometer reading to de-

termine the frequency of his maintenance.

- Someone who uses their vehicle seldomly over the year or only on

a few occasions would follow the calendar time to determine the

frequency of his maintenance.

IMPORTANT: The following tables show the appropriate mainte-

nance application for the first 3 years. For subsequent years, repeat

the same pattern alternatively.

Maiintenance Overviiew

Deep Snow or

Calendar

Odometer

Trail/ Cross

Time

Over/ Utility

Every

1500 km (1000 mi)

A+

Month

1 Year

3000 km (2000 mi)

Every

4500 km (3000 mi)

A+

Month

2 Years

6000 km (4000 mi)

A and B

Every

7500 km (5000 mi)

A+

Month

244

MAINTENANCE SCHEDULE

600 ACE/ 900 ACE Engines

TRAIL /

CROSSOVER

A+

/ UTILITY

Every

Every 2

A=Adjust

Every

month

years

C=Clean

year

I=Inspect

1500

6000

L=Lubricate

3000 km

R=Replace

(2000

(1000

(4000

T=Torque

mi)

Air and Fuel Delivery

Fuel components (fuel

cap, hoses, clamps and

tank fixation) and

function*

In-line fuel filter

Every 5

years

Body and Chassis

Body panels and

I, T

hardware

Pivots, latches, hinges

and key barrels

Engine and Cooling

Engine cooling

components (coolant

concentration, coolant

I, A

level, hose condition,

clamps, leaks)

Engine oil and oil filter

Engine seals and

gaskets

Spark plugs

Every 3

years

245

MAINTENANCE SCHEDULE

TRAIL /

CROSSOVER

A+

/ UTILITY

Every

Every 2

A=Adjust

Every

month

years

C=Clean

year

I=Inspect

1500

6000

L=Lubricate

3000 km

R=Replace

(2000

(1000

(4000

T=Torque

mi)

10 000

(6000

mi)

Engine coolant

Every 5

years

Exhaust and Emissions

Exhaust components

(gaskets, pipes, muffler

condition, leaks)*

Exhaust manifold

Brake

Brake components and

I, L

function*

Brake fluid

Every

years

Drive

Chaincase drive chain

tension

Gearbox / chaincase oil

level

Track alignment and

I, A

tension

246

MAINTENANCE SCHEDULE

TRAIL /

CROSSOVER

A+

/ UTILITY

Every

Every 2

A=Adjust

Every

month

years

C=Clean

year

I=Inspect

1500

6000

L=Lubricate

3000 km

R=Replace

(2000

(1000

(4000

T=Torque

mi)

Gearbox / chaincase oil

Continuously Variable Transmission (CVT)

CVT components and

C, L

function*

CVT drive belt condition

CVT drive belt tension

Drive pulley retaining

screw

Electrical

Battery connections and

condition

Electrical harness

routing

Headlight aim

Modules and applicable

software updates

Operation of control

switches and lighting

Steering and Controls

Ski runners

Gearbox position lever

I, A

operation

Steering alignment

I, A

247

MAINTENANCE SCHEDULE

TRAIL /

CROSSOVER

A+

/ UTILITY

Every

Every 2

A=Adjust

Every

month

years

C=Clean

year

I=Inspect

1500

6000

L=Lubricate

3000 km

R=Replace

(2000

(1000

(4000

T=Torque

mi)

Steering components

and function*

Throttle cable

Throttle operation

Suspension

Suspension components

I, L

and function*

*For an extensive list of maintenance actions to be performed, refer to

the Maintenance Checklist.

248

MAINTENANCE SCHEDULE

900 ACE Turbo/ R

TRAIL /

CROSSOVER

A+

/ UTILITY

Every

Every 2

A=Adjust

Every

month

years

C=Clean

year

I=Inspect

1500

6000

L=Lubricate

3000 km

R=Replace

(2000

(1000

(4000

T=Torque

mi)

Air and Fuel Delivery

Fuel components (fuel

cap, hoses, clamps and

tank fixation) and

function*

In-line fuel filter

Every 5

years

Body and Chassis

Body panels and

I, T

hardware

Pivots, latches, hinges

and key barrels

Engine and Cooling

Engine cooling

components (coolant

concentration, coolant

I, A

level, hose condition,

clamps, leaks)

Engine oil and oil filter

Engine seals and

gaskets

Spark plugs

Every 3

years

249

MAINTENANCE SCHEDULE

TRAIL /

CROSSOVER

A+

/ UTILITY

Every

Every 2

A=Adjust

Every

month

years

C=Clean

year

I=Inspect

1500

6000

L=Lubricate

3000 km

R=Replace

(2000

(1000

(4000

T=Torque

mi)

10 000

(6000

mi)

Engine coolant

Every 5

years

Exhaust and Emissions

Exhaust components

(gaskets, pipes, muffler

condition, leaks)*

Exhaust manifold

Every 3

years

Turbo exhaust gasket

10 000

(6000

mi)

Brake

Brake components and

I, L

function*

Brake fluid

Every 2

years

250

MAINTENANCE SCHEDULE

TRAIL /

CROSSOVER

A+

/ UTILITY

Every

Every 2

A=Adjust

Every

month

years

C=Clean

year

I=Inspect

1500

6000

L=Lubricate

3000 km

R=Replace

(2000

(1000

(4000

T=Torque

mi)

Drive

Chaincase drive chain

tension

Gearbox / chaincase oil

level

Track alignment and

I, A

tension

Gearbox / chaincase oil

Continuously Variable Transmission (CVT)

CVT components and

I, C, L

function*

CVT drive belt condition

CVT drive belt tension

Drive pulley retaining

screw

Electrical

Battery connections and

condition

Electrical harness

routing

Headlight aim

Modules and applicable

software updates

Operation of control

switches and lighting

251

MAINTENANCE SCHEDULE

TRAIL /

CROSSOVER

A+

/ UTILITY

Every

Every 2

A=Adjust

Every

month

years

C=Clean

year

I=Inspect

1500

6000

L=Lubricate

3000 km

R=Replace

(2000

(1000

(4000

T=Torque

mi)

Steering and Controls

Ski runners

Gearbox position lever

I, A

operation

Steering alignment

I, A

Steering components

and function*

Throttle cable

Throttle operation

Suspension

Suspension components

I, L

and function*

*For an extensive list of maintenance actions to be performed, refer to

the Maintenance Checklist.

252

MAINTENANCE PROCEDURES

This section includes instructions for basic maintenance procedures.

WARNING

Turn off the engine, remove tether cord cap and follow these

maintenance procedures when performing maintenance. If you

do not follow proper maintenance procedures you can be in-

jured by hot parts, moving parts, electricity, chemicals or other

hazards.

WARNING

Should removal of a locking device be required (e.g. lock tabs,

self-locking fasteners, etc.) when undergoing disassembly/as-

sembly, always replace with a new one.

Engine Coollant

WARNING

Never open coolant tank cap when engine is hot.

Engine Coolant Level Verification

Open the RH side panel, see Body and Seat.

Check coolant level at room temperature. Liquid should be at cold lev-

el line of coolant tank.

NOTE:

When checking level at low temperature it may be slightly lower then

the mark.

If additional coolant is necessary or if entire system has to be refilled,

refer to an authorized BRP snowmobile dealer, repair shop or person

of your own choosing.

253

MAINTENANCE PROCEDURES

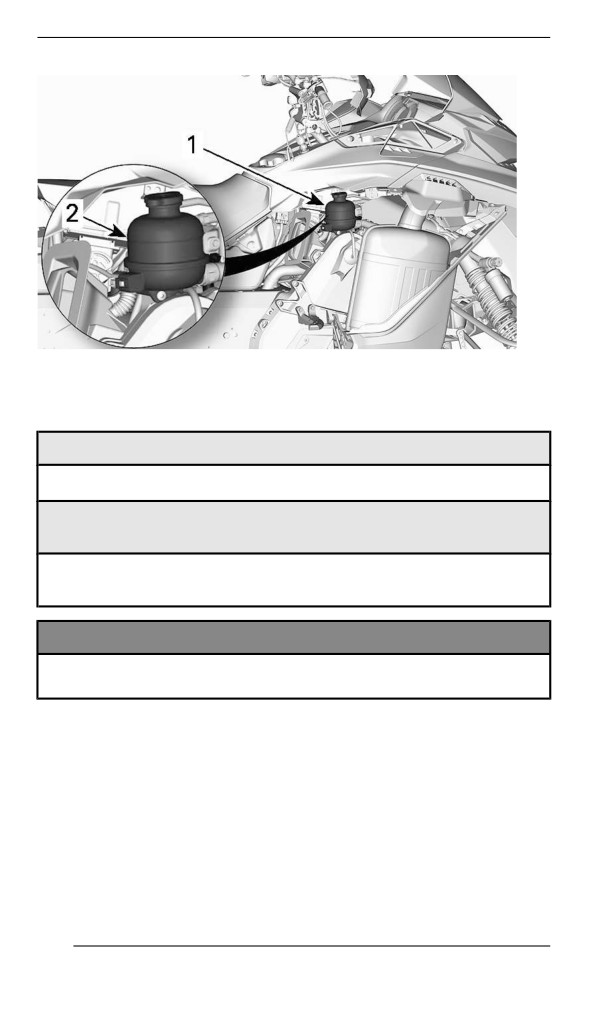

1. Coolant reservoir

2. COLD line

Recommended Engine Coolant

RECOMMENDED COOLANT

XPS Extended life pre-mixed coolant

IF THE RECOMMENDED XPS COOLANT IS NOT

AVAILABLE

Distilled water and antifreeze solution (50% distilled water, 50%

antifreeze)

NOTICE

Always use ethylene-glycol antifreeze containing corrosion in-

hibitors specifically for internal combustion aluminum engines.

Engiine Oiil

Extreme Cold Condition

An engine that is operated in -25°C/-13°F and below environment will

require an increase in service and maintenance schedule.

Any combustion engine operated in such a low load and rather cold

operating temperature collects an increased amount of condensation

at every startup/warm-up.

254

MAINTENANCE PROCEDURES

Since the engine is not reaching operating temperatures for extended

periods of time, the oil is starting to be strongly diluted with water and

gas residue (more water content).

An engine needs to reach operating temperature, in order to be able

to evaporate condensate out of the oil.

If daily usage (work or leisure driving cycle) is similar to those men-

tioned below, BRP strongly recommends changing the oil at least

once a month.

Parameters of an increase in service and maintenance schedule:

- Engine not reaching the proper operating temperature during nor-

mal daily usage

- Multiple starts and stops without reaching operating temperature

- Short idle periods

- Low RPM driving cycle in short distances without reaching operat-

ing temperature.

NOTE:

BRP strongly recommends the installation of a block heater to help

warm up the liquids, this will also help to extend the oil lifetime.

Recommended Oil

Rotax^® engines were developed and validated using the XPS™ oil.

BRP recommends the use of its XPS engine oil or an equivalent at all

time. Do not add any oil additives to the recommended engine oil.

Damages caused by the use of an oil not suitable for the engine or by

adding of an oil additives may not be covered by the BRP Limited

Warranty.

XPS RECOMMENDED Engine Oil

4T 0W40 Synthetic oil

IF THE RECOMMENDED XPS ENGINE OIL IS NOT

AVAILABLE

Use a 0W40 4-stroke SAE synthetic engine oil meeting or

exceeding the following lubricant industry specifications.

Always check the API service label certification on the oil container,

it must contain at least the indicated standard.

- API service classification SN

255

MAINTENANCE PROCEDURES

Verifying the Engine Oil Level

NOTICE

Check level before each ride and refill if necessary. Do not

overfill. Operating the engine with an improper level may se-

verely damage engine. Wipe off any spillage.

Place vehicle on a level surface and proceed as follows to check oil

level:

1. Start engine and let it reach its normal operating temperature. En-

gine is at normal temperature when rear radiator gets warm, indi-

cating that the thermostat is open.

2. Let engine run at idle for 30 more seconds.

3. Stop engine.

4. Open the LH side panel. Refer to Body and Seat.

5. Remove the drive belt guard, refer to Drive Belt Guard.

6. Remove dipstick from the filler tube, then wipe it clean.

7. Completely insert dipstick in the filler tube.

8. Remove dipstick and check the oil level. Oil level should be be-

tween the MIN and MAX marks as shown, add if necessary.

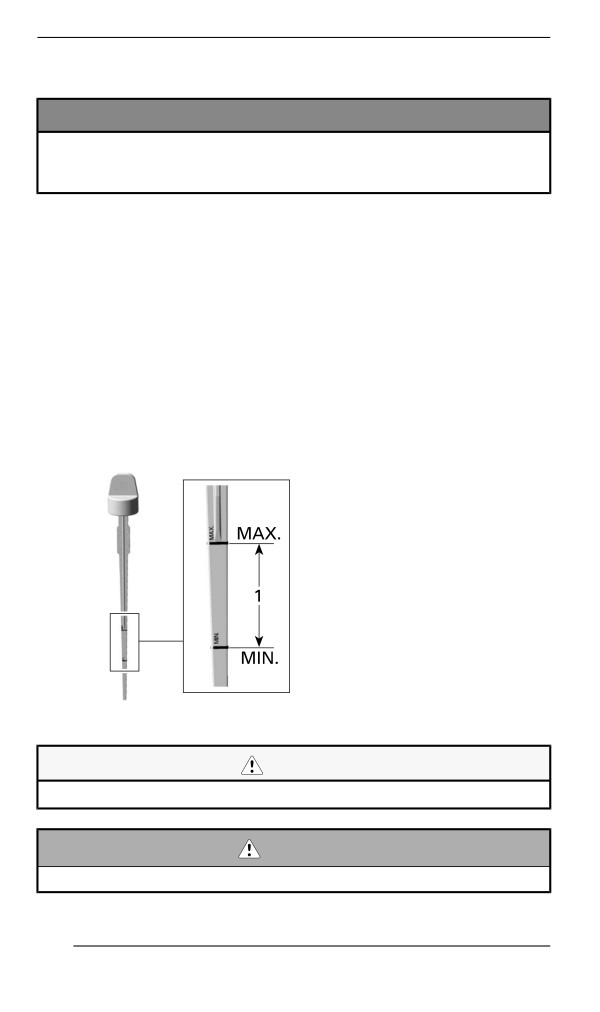

1. Oil level between MIN. and MAX.

CAUTION

Engine oil can be very hot.

WARNING

Wipe off any oil spills. Oil is highly flammable when heated.

256

MAINTENANCE PROCEDURES

Replacing the Engine Oil

CAUTION

The engine oil can be very hot. Wait until engine oil is warm.

NOTICE

Engine oil and oil filter must be replaced at the same time.

1. Bring engine to its normal operating temperature.

2. Place vehicle on a level surface.

3. Remove the LH side panel.

4. Remove dipstick.

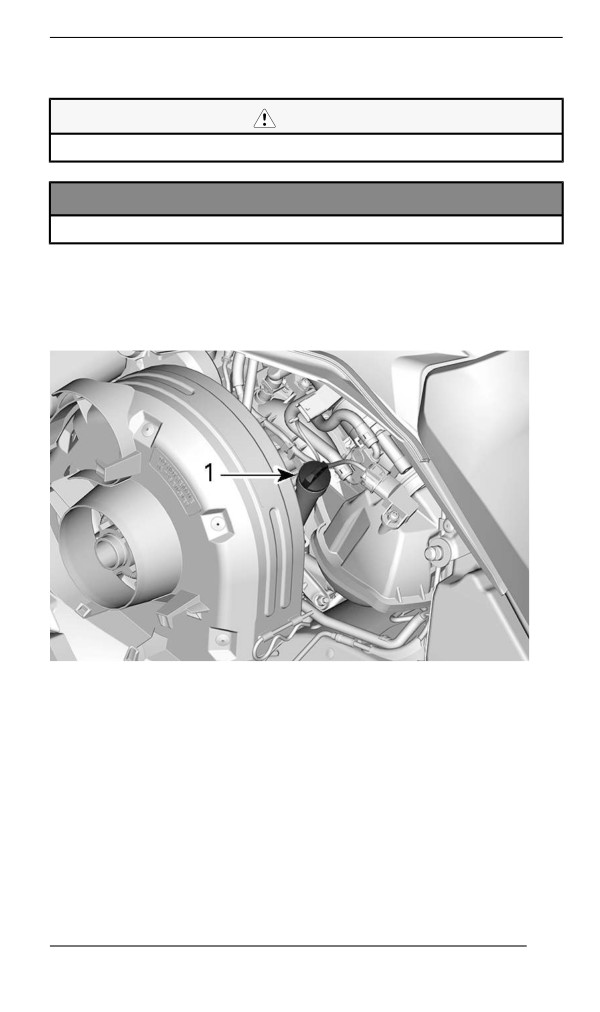

LH SIDE OF VEHICLE

1. Oil tank dipstick

5. Remove the oil filter. Refer to the procedure in this subsection.

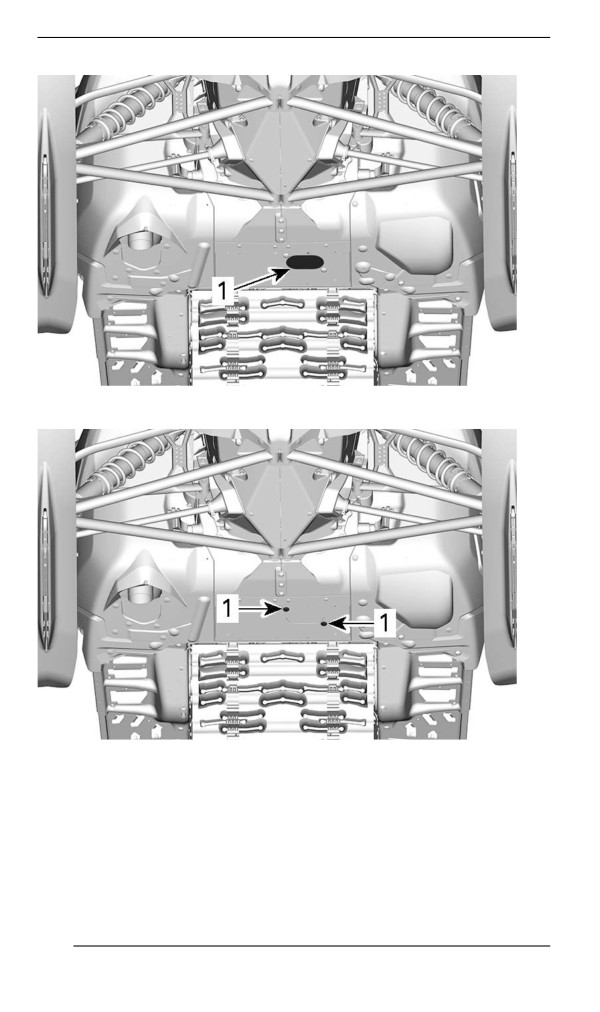

6. From underneath the vehicle, access the drain plug:

1. Remove one access cover retaining screw and loosen the

other.

257

MAINTENANCE PROCEDURES

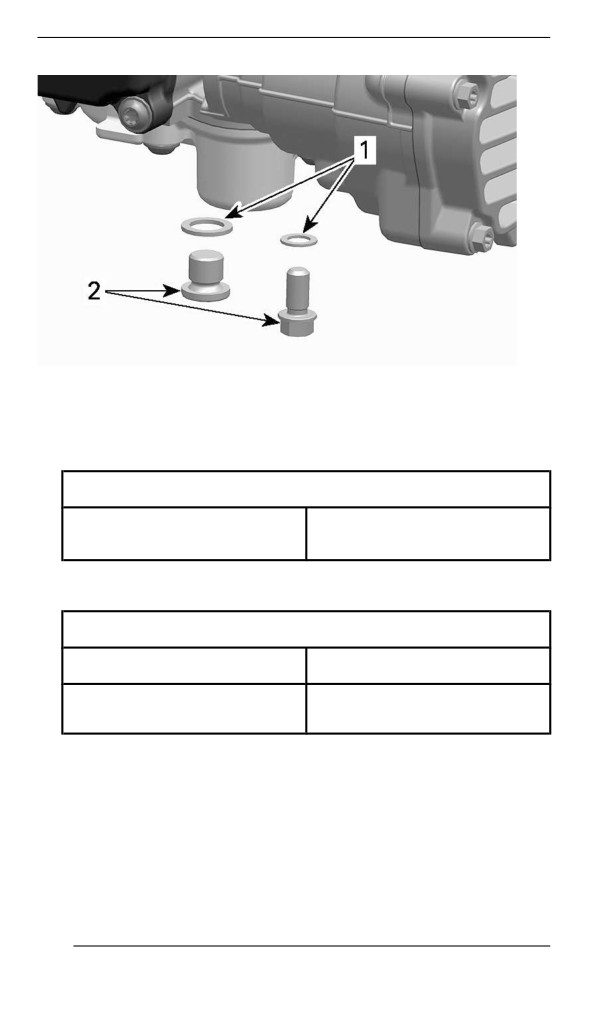

1. Sealing washer

2. Oil drain plug

12. Install drain plugs and tighten to specification.

Tightening Torque

15 ± 2 Nm

Drain plugs

(133 ± 18 lbf-in)

13. Install a new oil filter. Refer to procedure in this subsection.

14. Refill oil tank at the proper level with the recommended oil.

Approximate Engine Oil Capacity (with filter)

600 ACE

2.1 l (2.22 qt(liq.,US))

900 ACE

3.3 l (3.5 qt(liq.,US))

900 ACE Turbo

15. Reinstall dipstick in oil tank and properly tighten it.

16. Start engine and let it idle for a few minutes.

17. Ensure there are no leaks.

18. Stop engine and check oil level as explained in this subsection. Re-

fill if necessary.

19. Dispose oil and filter as per your local environmental regulations.

260

MAINTENANCE PROCEDURES

Engine Oill Fillter

Engine Oil Filter Replacement

Removing the Oiil Fiilter

1. Remove the RH side panel.

2. Clean oil filter area.

3. Remove:

- Oil filter cover screws

- Oil filter cover with O-ring

- Oil filter.

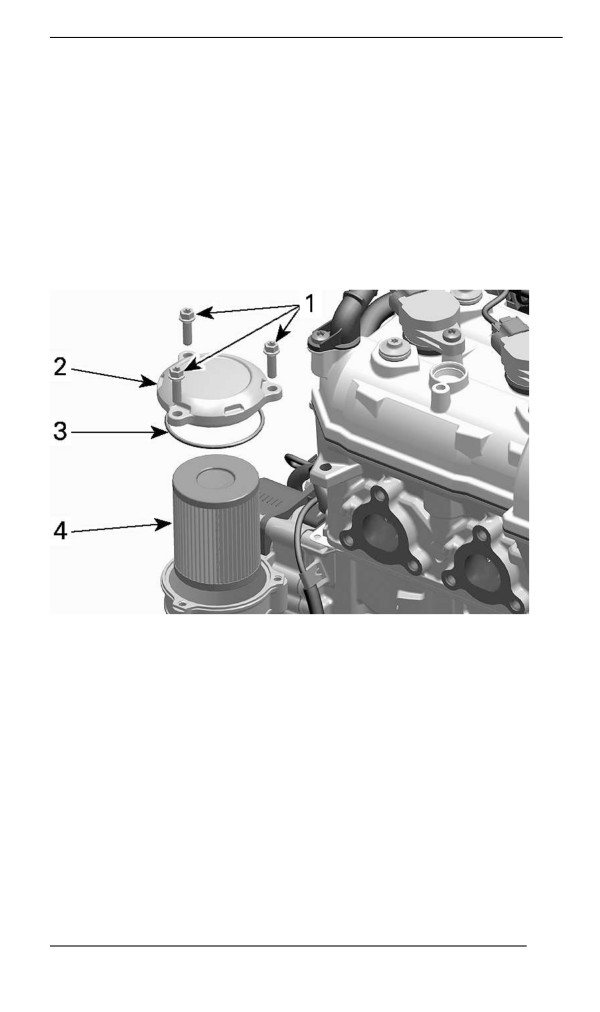

1. Oil filter cover screws

2. Oil filter cover

3. O-ring

4. Oil filter

4. Dispose filter as per your local environmental regulations.

Installliing the Oill Fiilter

1. Check the oil filter inlet and outlet orifices inside oil filter receptacle

(integrated part of magneto cover) for dirt and contaminations.

261

MAINTENANCE PROCEDURES

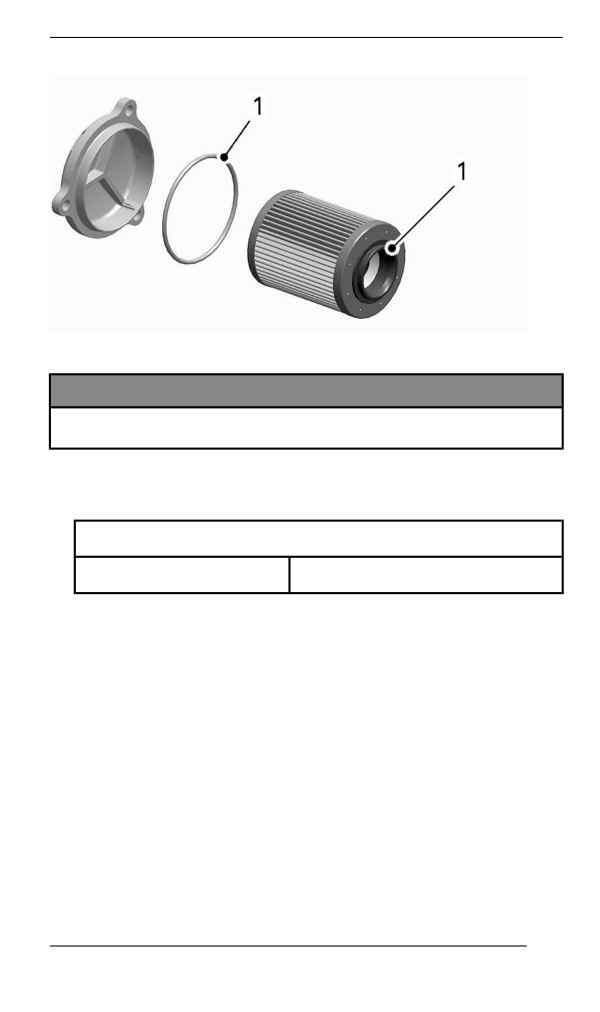

1. Lubricate with engine oil

NOTICE

Pay attention to avoid pinching the O-ring during filter and cov-

er installation.

5. Install the oil filter cover.

6. Tighten oil filter cover screws to specification.

Tightening Torque

Oil filter cover screws

10 ± 1 Nm (89 ± 9 lbf-in)

7. Wipe off any oil spillage on engine.

Exhaust System

Exhaust System Verification

The muffler tail pipe should be centered with the exit hole in the bottom

pan. Exhaust system must be free of rust or leaks. Make sure that all

parts are securely in place.

Check retaining springs and heat shields condition and replace if

necessary.

The exhaust system is designed to reduce noise and to improve the

total performance of the engine. Modification may be in violation of lo-

cal laws.

263

MAINTENANCE PROCEDURES

NOTICE

If any exhaust system component is removed, modified or dam-

aged, severe engine damage may result.

Spark Pllugs

Spark plugs inspection or replacement may be performed by an au-

thorized BRP snowmobile dealer, repair shop, or person of your own

choosing. Spark plugs inspection or replacement requires an in-depth

technical knowledge. Though not required, it is recommended that an

authorized BRP snowmobile dealer performs spark plugs inspection

or replacement.

Brake Flluiid

Brake Fluid Level Verification

NOTICE

Vehicle must be on a level surface before checking any fluid

levels.

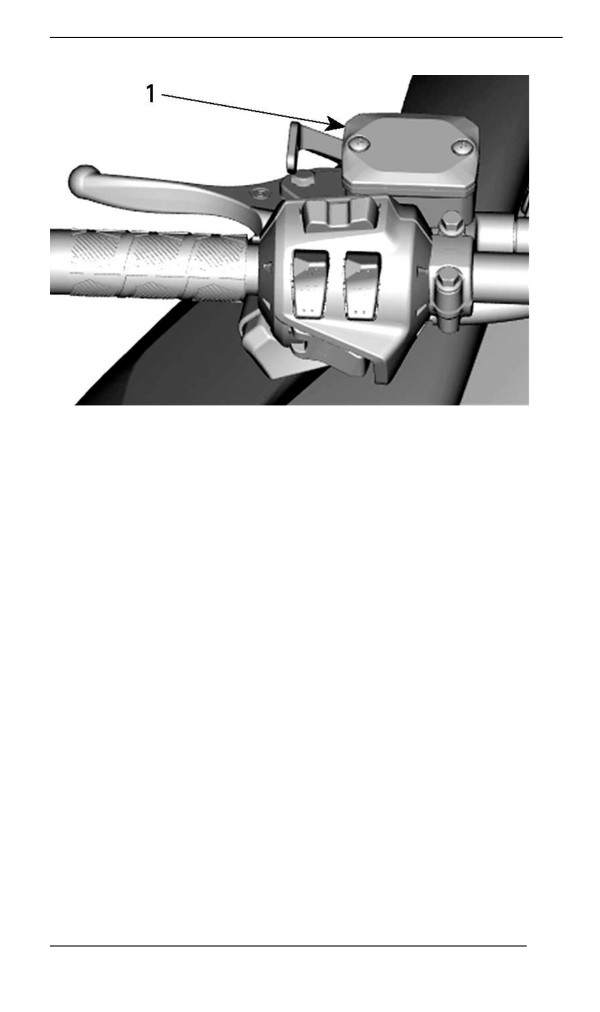

Check brake fluid (DOT 4) in reservoir for proper level. Add fluid (DOT

4) as required.

264

MAINTENANCE PROCEDURES

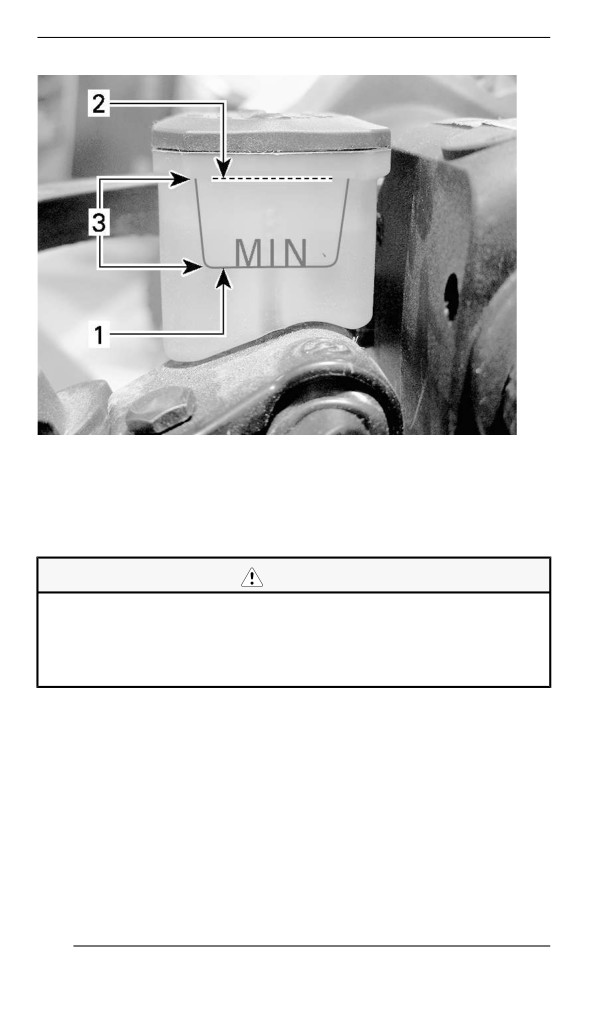

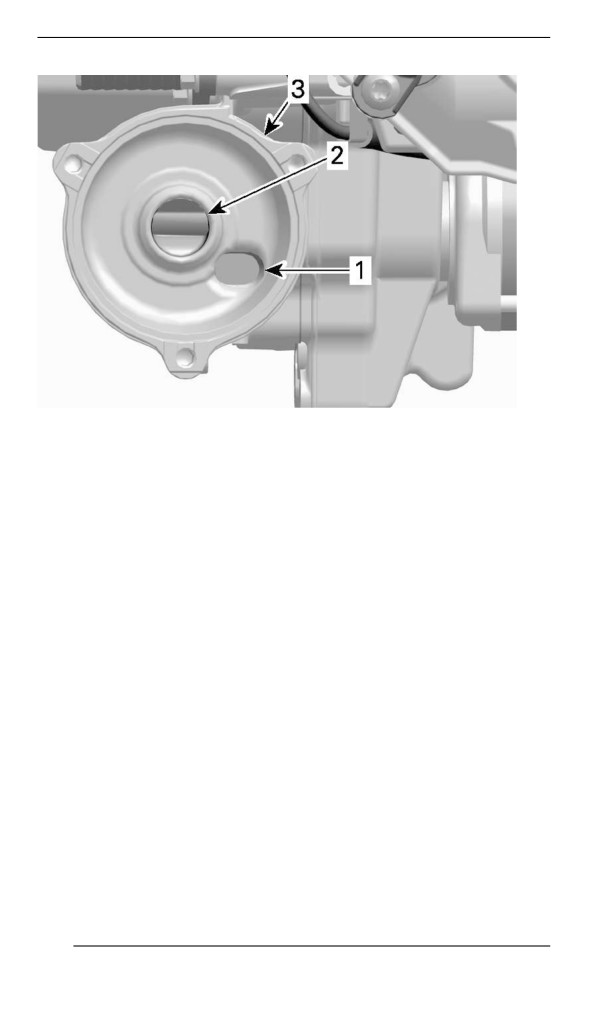

TYPICAL

1. Minimum

2. Maximum

3. Operating range

CAUTION

Avoid getting brake fluid on skin or eyes - it may cause severe

burns. In case of contact with the skin, wash thoroughly. In

case of contact with the eyes, immediately rinse with plenty of

water for at least 10 minutes and then consult a doctor

immediately.

Recommended Fluid

Use only DOT 4 brake fluid from a sealed container. An opened con-

tainer may be contaminated or may have absorbed moisture from the

air.

266

MAINTENANCE PROCEDURES

WARNING

Use only DOT 4 brake fluid from a sealed container. To avoid

serious damage to the braking system, do not use fluids other

than the recommended one, nor mix different fluids for topping

up.

NOTICE

Brake fluid can damage painted and plastic parts. Handle with

care. Rinse thoroughly in case of spillage.

Chaincase Oiil

Recommended Chaincase Oil

XPS Synthetic chaincase oil

Alternative or if not available

75W140 gear oil that meets the API GL-5 specification

NOTICE

If the recommended XPS chaincase oil is not available, use a

75W140 gear oil that meets the API GL-5 specification. The

chaincase of this snowmobile has been developed and vali-

dated using the XPS™ Synthetic chaincase oil. BRP strongly

recommends the use of its XPS Synthetic chaincase oil at all

times. Damages caused by oil which is not suitable for the

chaincase will not be covered by the BRP limited warranty.

Chaincase Oil Level Verification

With the vehicle on a level surface, check the oil level by removing the

check plug.

267

MAINTENANCE PROCEDURES

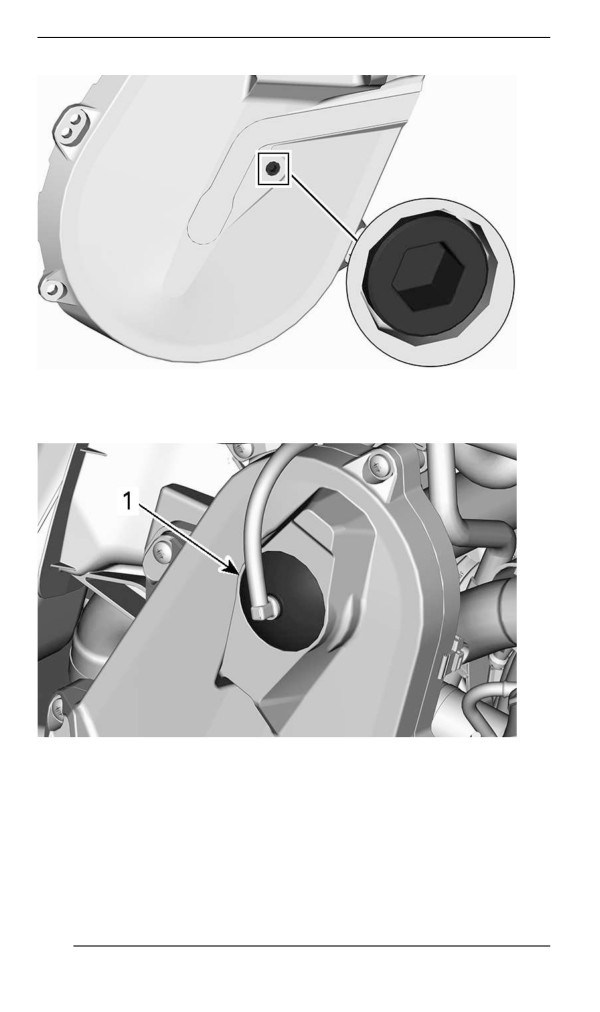

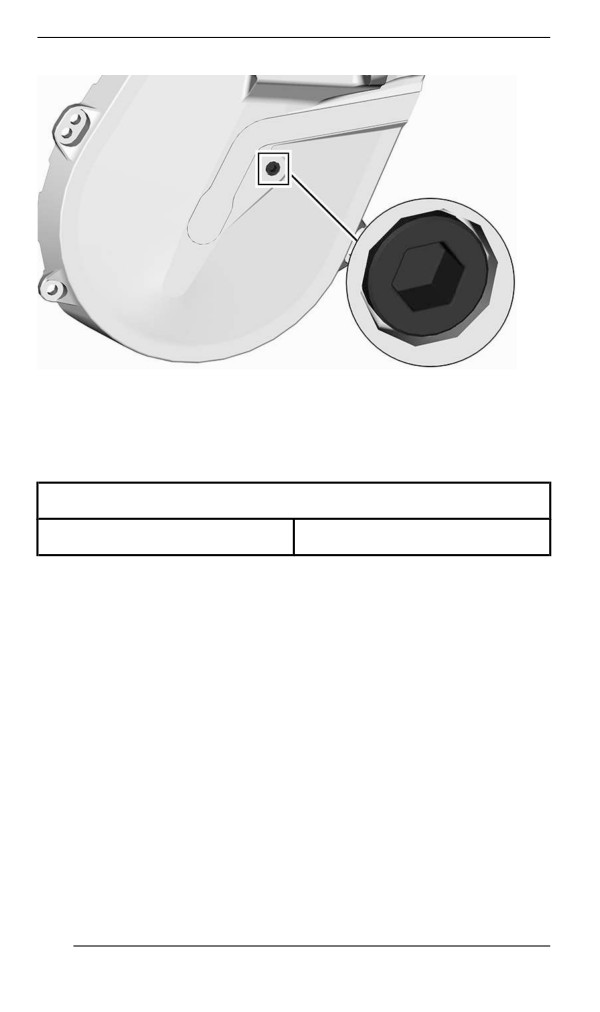

CHECK PLUG

Oil level must reach the threaded hole.

If level is correct, reinstall check plug and tighten to the specified

torque.

Tightening Torque

Check plug

6 ± 1 Nm (53 ± 9 lbf-in)

If level is insufficient, refer to Chaincase Filling Procedure.

Chaincase Oil Replacement

Chaiincase Oill Draiiniing

1. Place the vehicle on a level surface.

2. Place a drain pan under the chaincase drain plug area.

3. Remove filler cap.

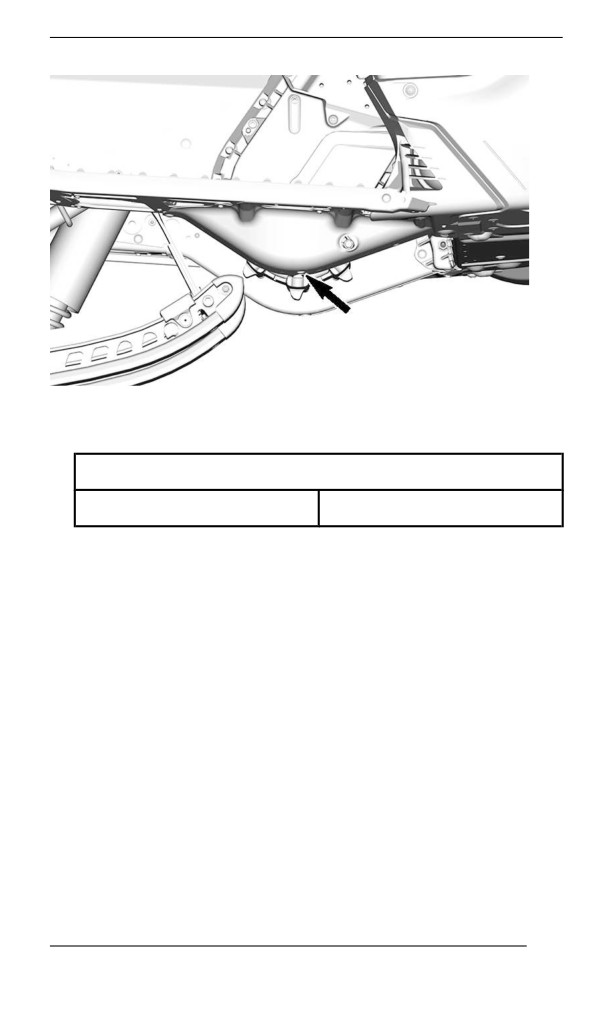

4. Remove the drain plug located at the bottom of the chaincase.

268

MAINTENANCE PROCEDURES

Tightening Torque

Check plug

6 ± 1 Nm (53 ± 9 lbf-in)

Reinstall the filler cap.

Gearbox Oiil

Recommended Gearbox Oil

XPS RECOMMENDED Chaincase Oil

XPS™ Synchromesh Transmission Synthetic Oil

IF THE RECOMMENDED XPS OIL IS NOT

AVAILABLE

Use a 75W140 gear oil that meets the API GL-5 specification

NOTICE

The gearbox of this snowmobile has been developed and vali-

dated using the XPS synchromesh transmission synthetic oil.

BRP strongly recommends the use of its synchromesh trans-

mission synthetic oil at all times. Damages caused by oil which

is not suitable for the gearbox will not be covered by the BRP

limited warranty.

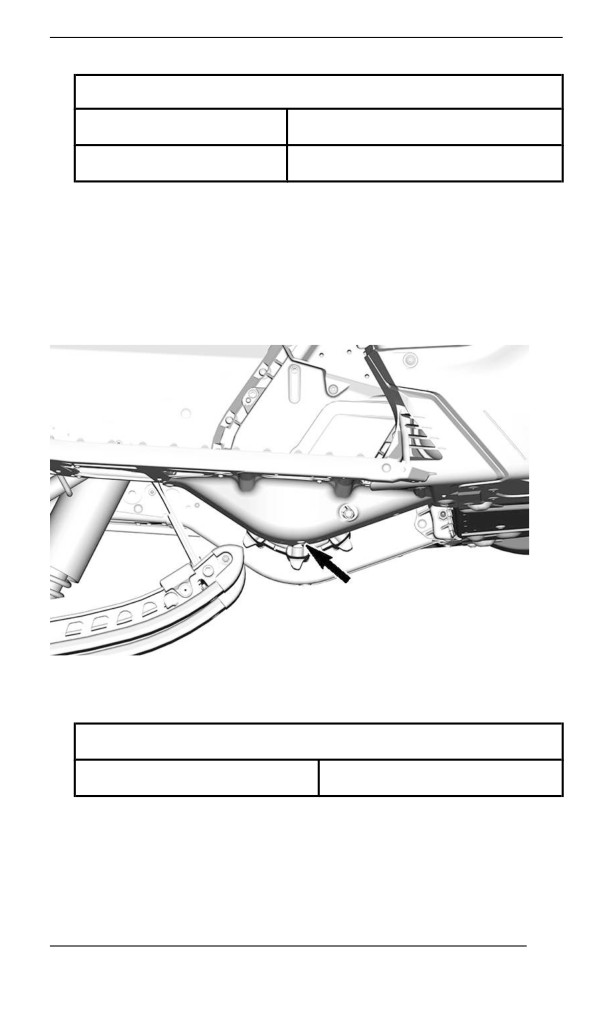

Gearbox Oil Level

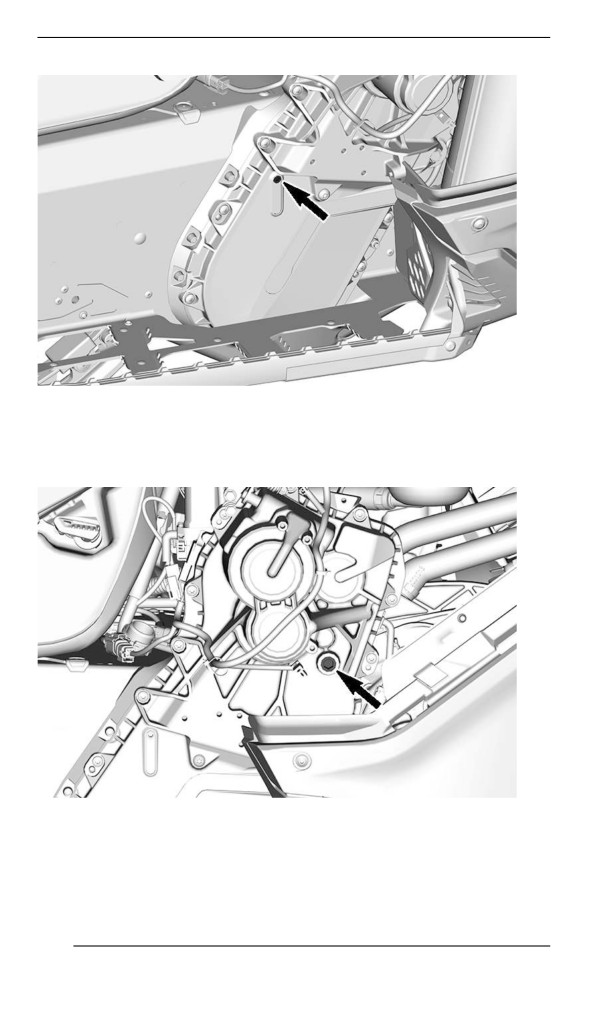

With the vehicle on a level surface, check the oil level by removing the

check plug on the left side of gearbox.

Oil level must reach the threaded hole's lower edge.

271

MAINTENANCE PROCEDURES

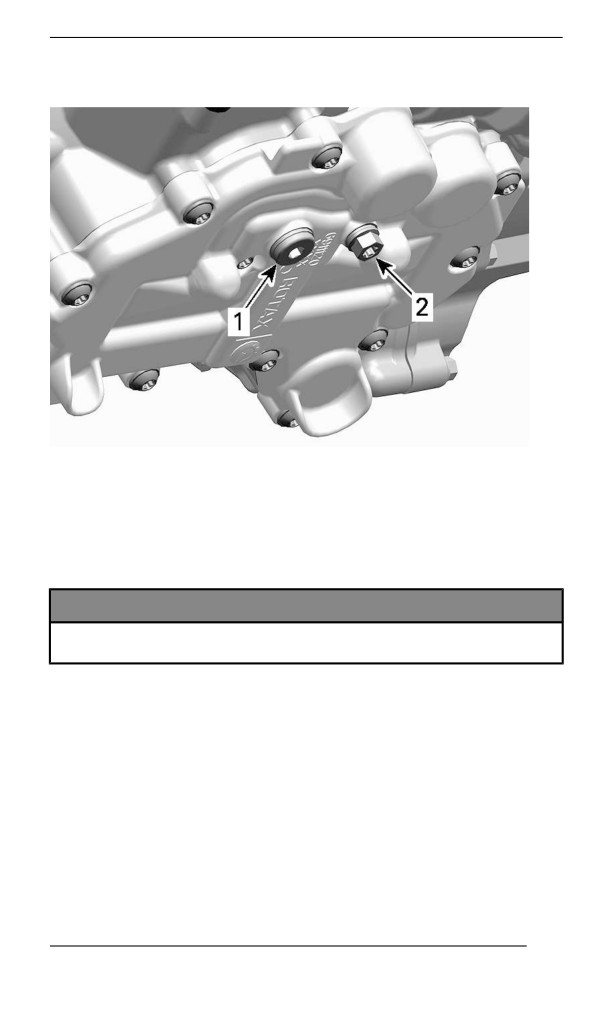

TIGHTENING TORQUE

Check plug

6 ± 1 Nm (53 ± 9 lbf-in)

Filler plug

8 ± 1 Nm (71 ± 9 lbf-in)

Replacing the Gearbox Oil

Gearbox Oiil Drainiing

1. Place the vehicle on a level surface.

2. Place a drain pan under gearbox drain plug area.

3. Remove filler cap.

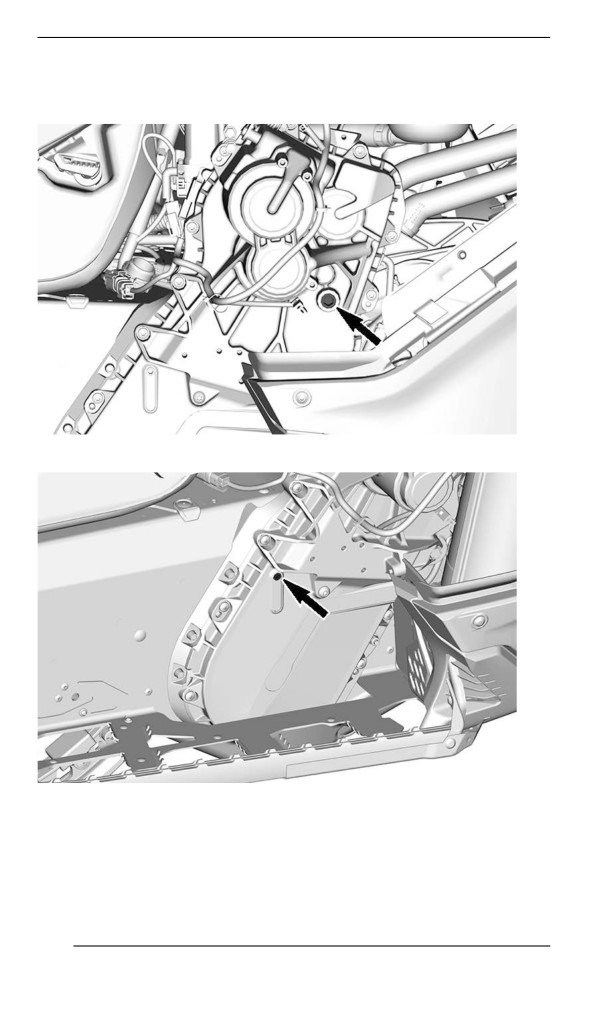

4. Remove the drain plug located at the bottom of gearbox.

5. Wait a while to allow all oil to drain out of gearbox.

6. Install drain plug and tighten to specification.

Tightening Torque

Gearbox drain plug

6 ± 1 Nm (53 ± 9 lbf-in)

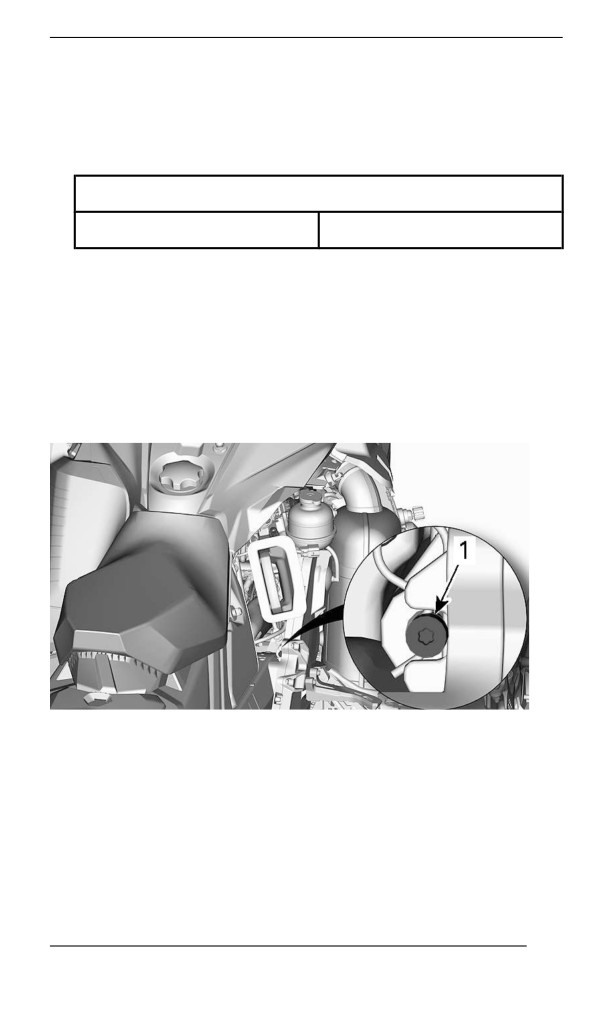

Gearbox Oiil Fillliing

NOTE:

Vehicle must be on a level surface.

273

MAINTENANCE PROCEDURES

NOTE:

Oil level is correct when it just begins to come out of the check plug

orifice.

4. Reinstall check plug and tighten to specification.

tightening torque

Oil level check plug

6 ± 1 Nm (53 ± 9 lbf-in)

Driive Chain

Access to Chaincase

Open RH side panel, refer to Equipment.

Drive Chain Adjustment

Using the Torx end of the driven pulley expander, GENTLY turn ten-

sioner clockwise to eliminate the play.

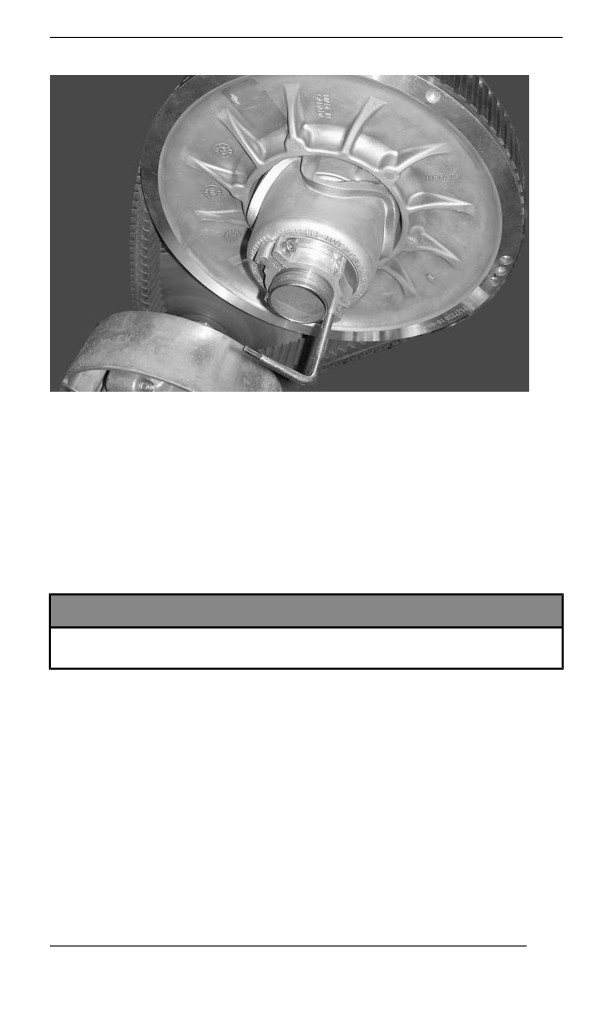

TYPICAL

Do not force the tensioner in.

NOTE:

Do not remove the hair cotter pin.

275

MAINTENANCE PROCEDURES

NOTICE

Overtightening the drive chain could result in severe damage to

the chaincase components.

Drive Belt

Drive Belt Inspection

Remove the drive belt guard. Refer to the procedure in Equipment.

Inspect belt for cracks, fraying or abnormal wear (uneven wear, wear

on one side, missing cogs, cracked fabric). If abnormal wear is noted,

probable cause could be pulley misalignment, excessive RPM with

frozen track, fast starts without warm-up period, burred or rusty

sheave, oil on belt or distorted spare belt. Contact an authorized BRP

snowmobile dealer.

Drive Belt Replacement

Drive Belt Removall

1. Remove tether cord cap from engine cut-off switch.

2. Remove drive belt guard, refer to Controls, Instruments and

Equipment.

3. Insert the driven pulley expander provided in the threaded hole on

the adjuster hub as shown.

276

MAINTENANCE PROCEDURES

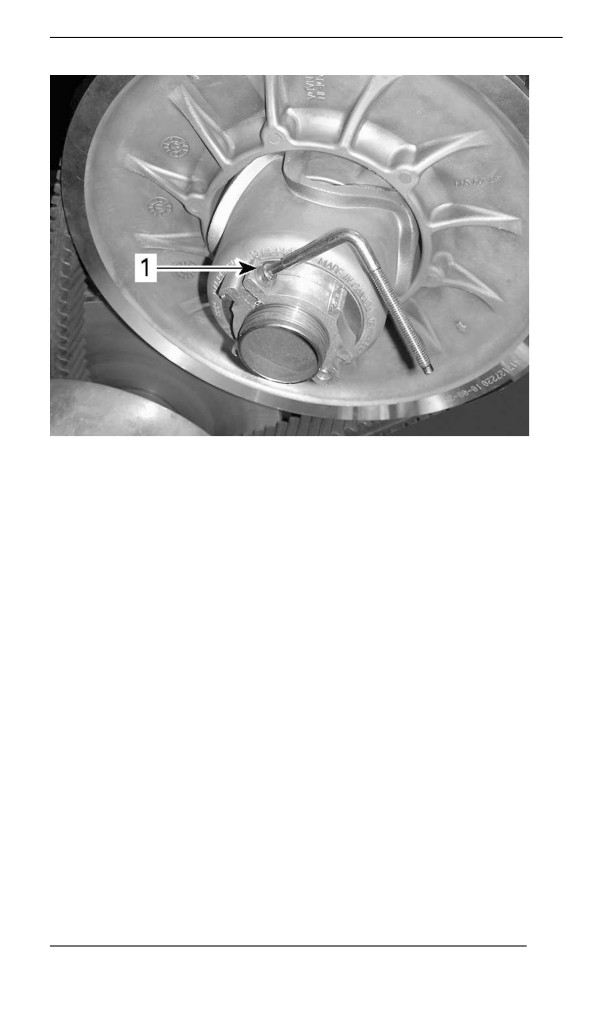

TYPICAL - PULLEY EXPANDER INSTALLED ON ADJUSTER

HUB

4. Open the driven pulley by screwing the tool in.

5. Remove the drive belt by slipping it over the top of the driven pul-

ley, then over the drive pulley.

Driive Belt Installlatiion

1. If necessary, open the driven pulley, refer to Drive Belt Removal

above.

2. Slip the belt over the drive pulley, then over the driven pulley.

NOTICE

Do not force or use tools to pry the belt into place, as this could

cut or break the cords in the belt.

NOTE:

The maximum drive belt life span is obtained when belt is installed

with arrows in the direction of rotation.

277

MAINTENANCE PROCEDURES

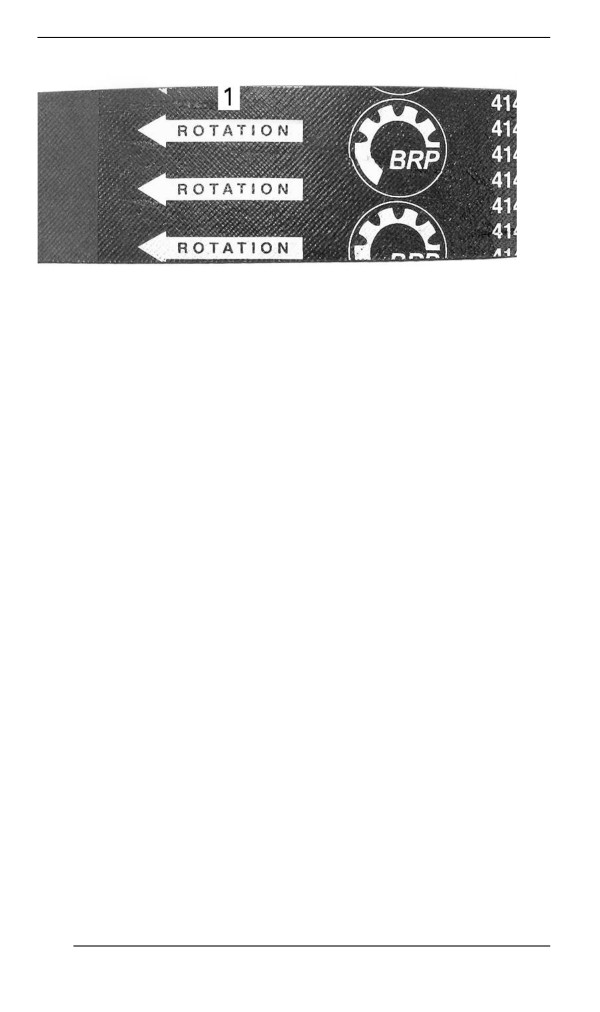

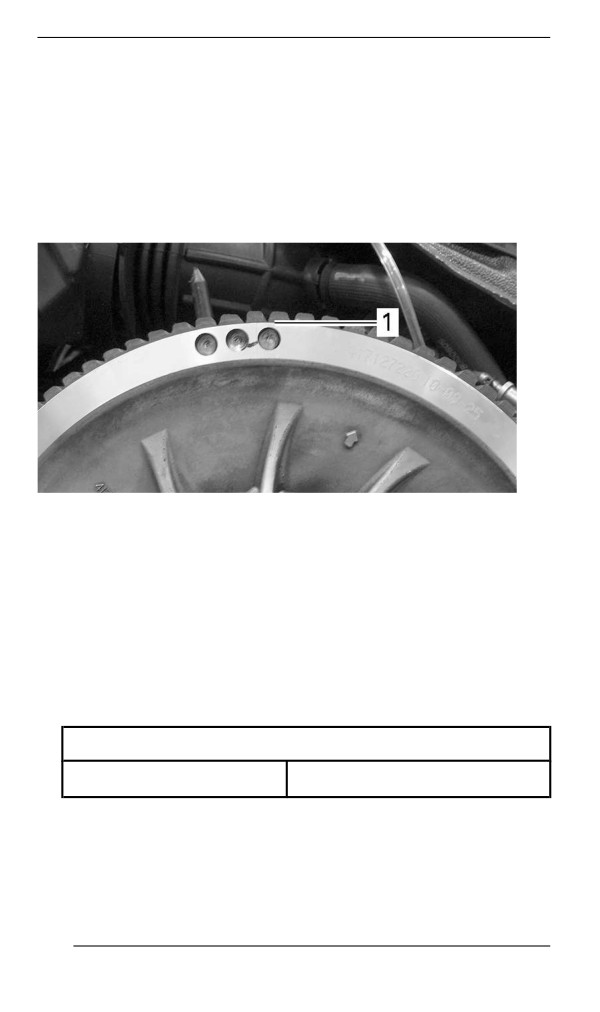

1. To be pointed in the direction of rotation

3. Unscrew and remove the driven pulley expander from the pulley.

4. Rotate the driven pulley several times to properly set the belt be-

tween the sheaves.

5. If a new belt was installed, an adjustment will be required for the

proper belt height. Refer to drive belt height adjustment below.

6. Install belt guard. Refer to Equipment.

7. Close side panel. Refer to Body and Seat.

Drive Belt Height Adjustment

The drive belt height must be checked every time a new drive belt is

installed and as part of the pre-ride inspection.

To adjust the drive belt height, proceed as follows:

1. Remove tether cord cap from engine cut-off switch.

2. Remove drive belt guard.

3. Loosen the clamping bolt.

278

MAINTENANCE PROCEDURES

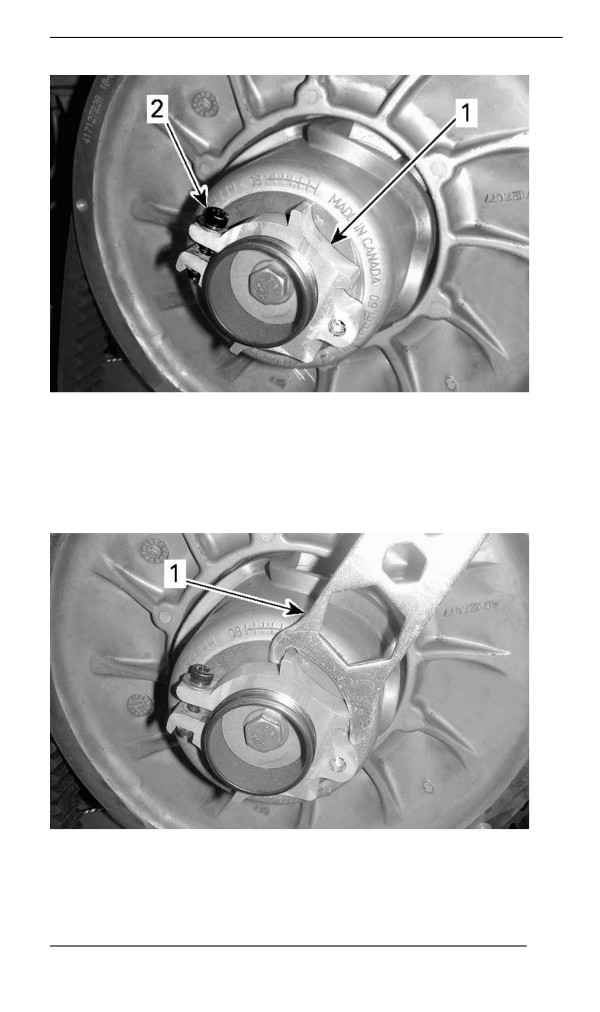

NOTE:

The adjustment ring has left hand treads.

Repeat step 4 until the lowest portion of the cogs on the external

surface of drive belt is even with the driven pulley edge.

TYPICAL - PRELIMINARY SETTING

1. Lowest portion of cogs even with external surface of drive belt

NOTE:

Turning the ring counterclockwise lowers the drive belt in the pulley.

Turning the ring clockwise raises the drive belt in the pulley.

5. Firmly tighten the clamping bolt. If possible, tighten to specified tor-

que using a torque wrench.

TIGHTENING TORQUE

Clamping bolt

5.5 ± 0.5 Nm (49 ± 4 lbf-in)

280

MAINTENANCE PROCEDURES

TYPICAL

1. Clamping bolt

6. Install drive belt guard.

7. Install side panel.

NOTE:

These settings are correct as a preliminary adjustment for most mod-

els. In some cases, when starting the engine, the vehicle could creep,

indicating that the drive belt is too tight.

If the vehicle creeps, lower the drive belt height from the prelimi-

nary setting. Repeat procedure until creeping stops.

Reverse Activation

NOTE:

The reverse may not activate if the belt is positioned too high in the

driven pulley. If reverse activation does not work properly, ensure the

drive belt is properly adjusted. Adjust the drive belt lower in the driven

pulley if needed.

281

Snowmobile Lynx CROSSOVER ACE SERIES. OPERATOR’S GUIDE (2023) - page 2
