MAINTENANCE PROCEDURES
4. To correct track alignment:
1. Guides
2. Slider shoes
3. Tighten on this side
1. Stop engine.
2. Remove tether cord cap from engine cut-off switch.
WARNING
Remove tether cord cap from engine cut-off switch before per-
forming any maintenance or adjustment, unless otherwise
specified. Vehicle must be parked in a safe place, away from
the trail.
3. Loosen the rear axle nut.
4. Tighten adjustment screw on side where the slider shoe is the
farthest from the track insert guides.
5. Tighten the rear axle nut.
WARNING
Properly tighten wheel retaining bolt, otherwise wheel may
come off and cause track to “lock”.
6. Restart engine and rotate track slowly to recheck alignment.
7. Tighten the rear axle nut to specified torque.
241
MAINTENANCE PROCEDURES
Tightening Torque
Rear axle screw
48 ± 6 Nm (35 ± 4 lbf-ft)
8. Reposition snowmobile on the ground.
Suspensiion
Steering and Front Suspension Condition
Visually inspect steering and front suspension for tightness of compo-
nents (steering arms, control arms and links, tie rods, ball joints, ski
bolts, ski legs, etc.). If necessary, contact an authorized BRP snowmo-
bile dealer.
Suspension Stopper Strap Condition
Inspect stopper straps for wear and cracks, bolt and nut for tightness.
If loose inspect holes for deformation. Replace as required. Tighten
nut to specification.
Tightening Torque
Stopper strap nut
11 ± 1 Nm (97 ± 9 lbf-in)
Rear Suspension Condition
Visually inspect all suspension components including slider shoes,
springs, wheels, etc.
NOTE:
During normal driving, snow will act as a lubricant and coolant for the
slider shoes. Extensive riding on ice or sanded snow, will create ex-
cessive heat build-up and cause premature slider shoe wear.
Suspension Lubrication – PPS
Lubricate the following suspension pivots at grease fittings. Refer to
MAINTENANCE SCHEDULE for maintenance frequency.
SUSPENSION GREASE
XPS Synthetic suspension grease
242
MAINTENANCE PROCEDURES
TYPICAL
Skis
Wear and Condition of Skis and Runners
Check the condition of the skis and ski runner carbides. If worn, con-
tact an authorized BRP snowmobile dealer.
WARNING
Excessively worn skis and/or ski runners will adversely affect
snowmobile control.
Fuses

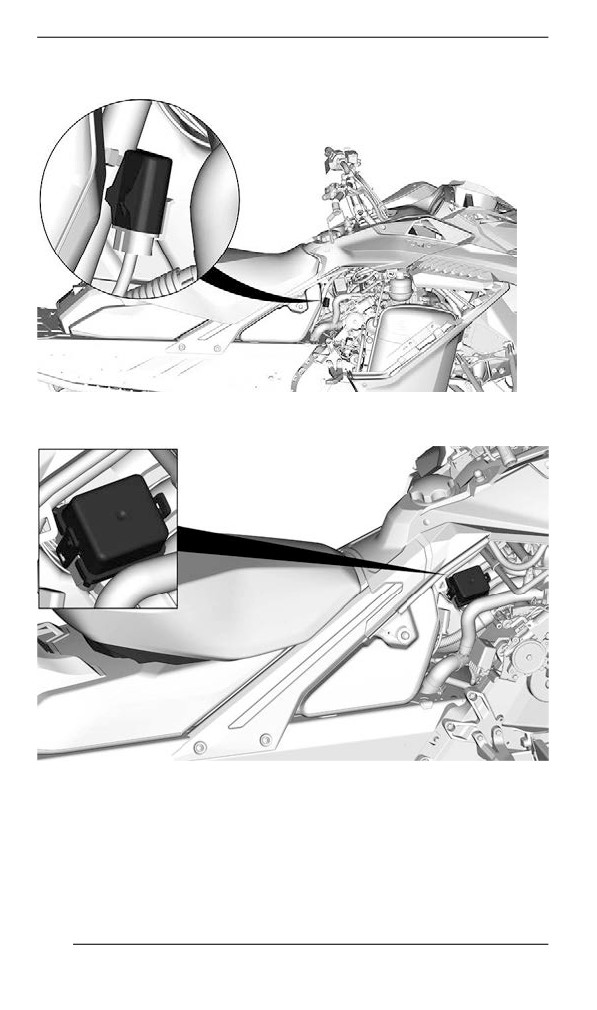

Access to Fuse Block
Open RH side panel, refer to Body and Seat.
243
MAINTENANCE PROCEDURES

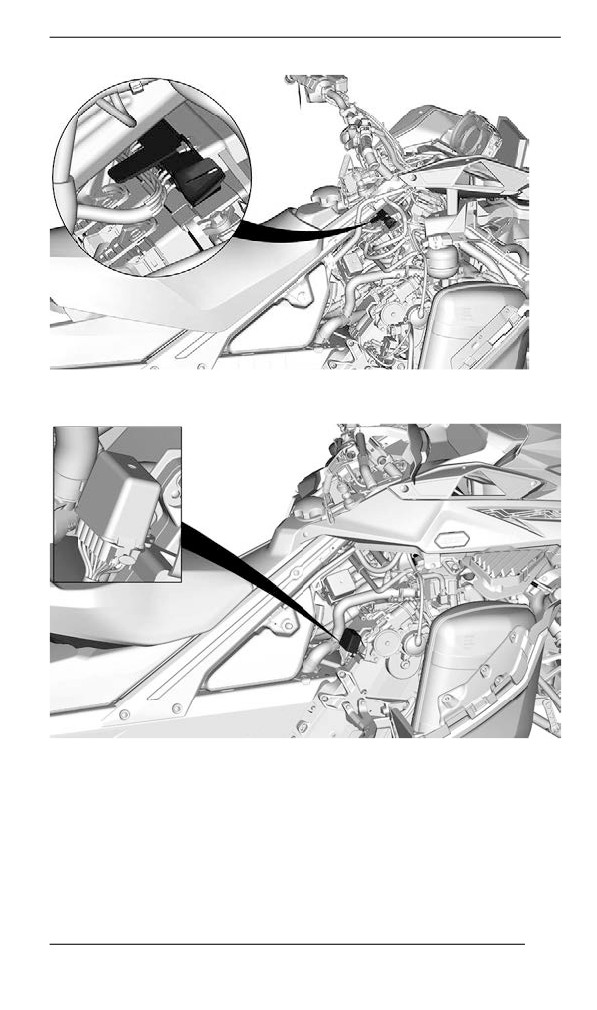

Fuses Location
TYPICAL – FA
TYPICAL – FUSE BOX 1 (FB1)
244
MAINTENANCE PROCEDURES
TYPICAL – RELAY BLOCK - IF EQUIPPED
TYPICAL – FUSE BOX 2 (FB2) - IF EQUIPPED
Refer to Technical Specification for relay and fuse identification.
Fuse Inspection
Check fuse condition and replace it if necessary.
To remove fuse from holder, pull fuse out. Check if filament is melted.
245
MAINTENANCE PROCEDURES
1. Fuse
2. Check if melted
WARNING
Do not use a higher rated fuse.
WARNING
If fuse has burnt out, source of malfunction should be deter-
mined and corrected before restarting. See an authorized BRP
snowmobile dealer for servicing.
Headllights
Headlights Bulb Replacement
1. Remove the windshield. Refer to Removing the Windshield in Body
and Seat subsection.

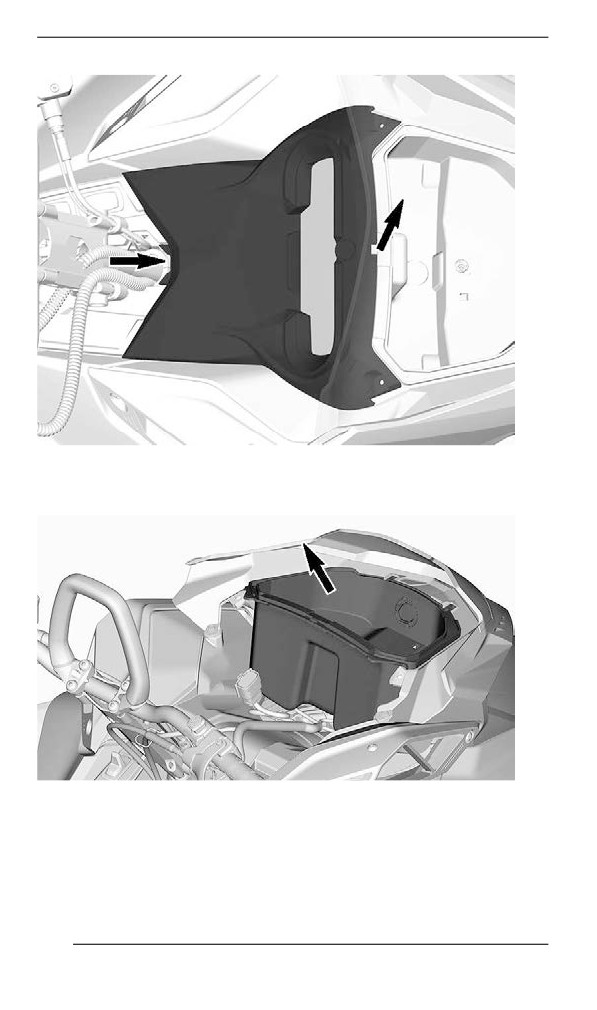

2. Open the storage compartment.
246
MAINTENANCE PROCEDURES
TYPICAL

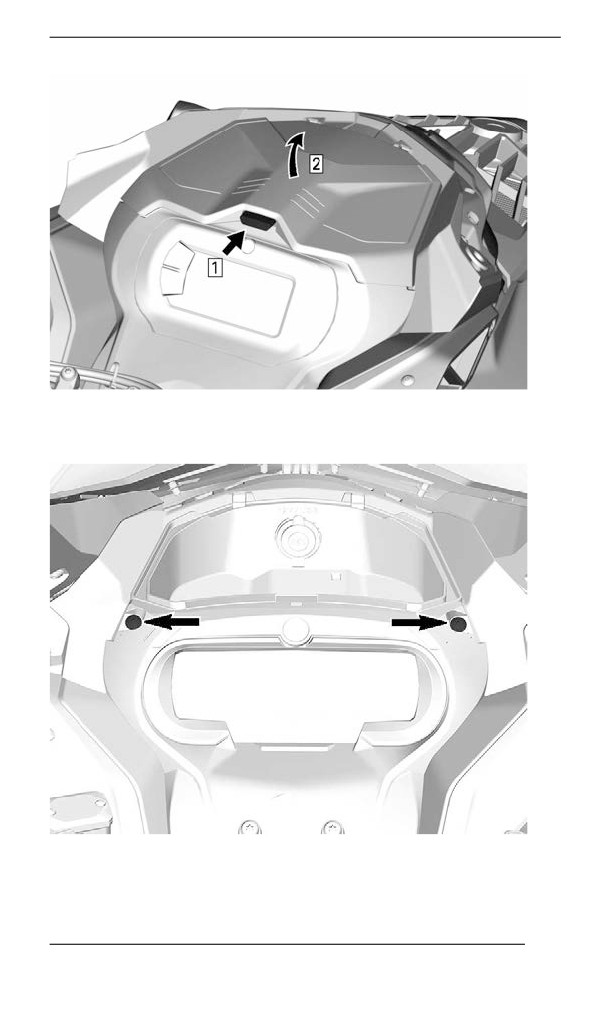

3. Remove the gauge support retaining screws.
4. Lift the front of the gauge support, then slide it forward to remove it.
247
MAINTENANCE PROCEDURES
5. Set gauge support aside.
6. Remove the storage compartment.
7. Disconnect 12V power outlet connectors to remove (if equipped).

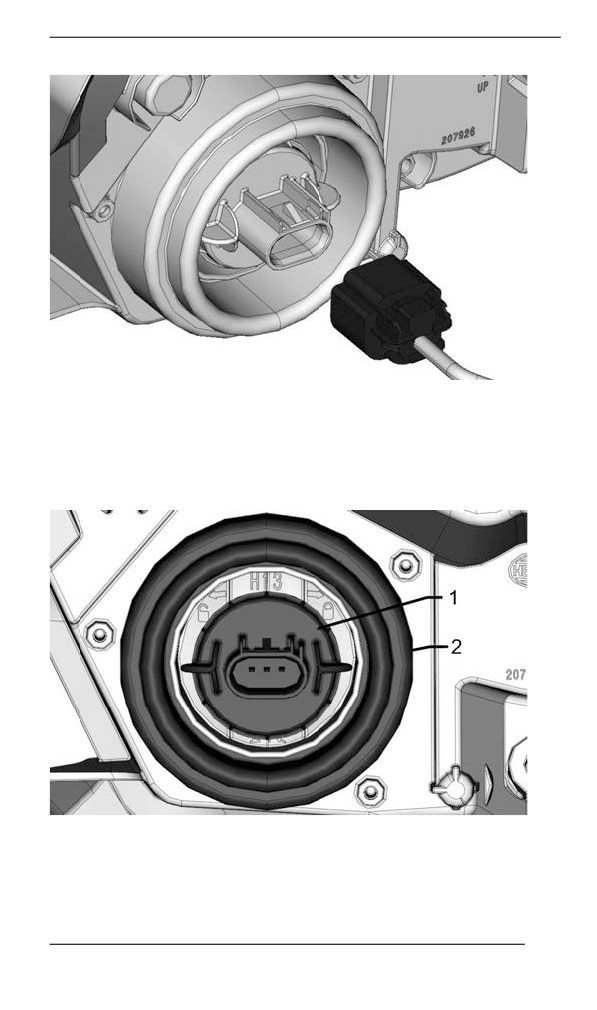

8. Disconnect bulb connector.
248
MAINTENANCE PROCEDURES
9. Unlock bulb by turning it counterclockwise.
10. Pull bulb out.
NOTE:
Ensure bulb seal stays in place.
1. Bulb
2. Bulb seal
249
MAINTENANCE PROCEDURES
Install a new bulb using the reverse of the removal procedure.
NOTICE
Never touch glass portion of an halogen bulb with bare fingers,
it shortens its operating life. If glass is touched, clean it with
isopropyl alcohol which will not leave a film on the bulb.
Check headlights operation.
Headlights Beam Aiming
Open the storage compartment.
TYPICAL
Turn the adjustment screw to reach desired beam height.
250
MAINTENANCE PROCEDURES
Battery
WARNING
Never charge or boost the battery while it is installed on the
vehicle.
Removing the Battery
1. Remove the seat.
2. Remove the battery cover.
251
MAINTENANCE PROCEDURES
TYPICAL
3. Disconnect the negative terminal first, then the positive terminal.
NOTICE
Battery BLACK ( – ) cable must always be disconnected first
and connected last.

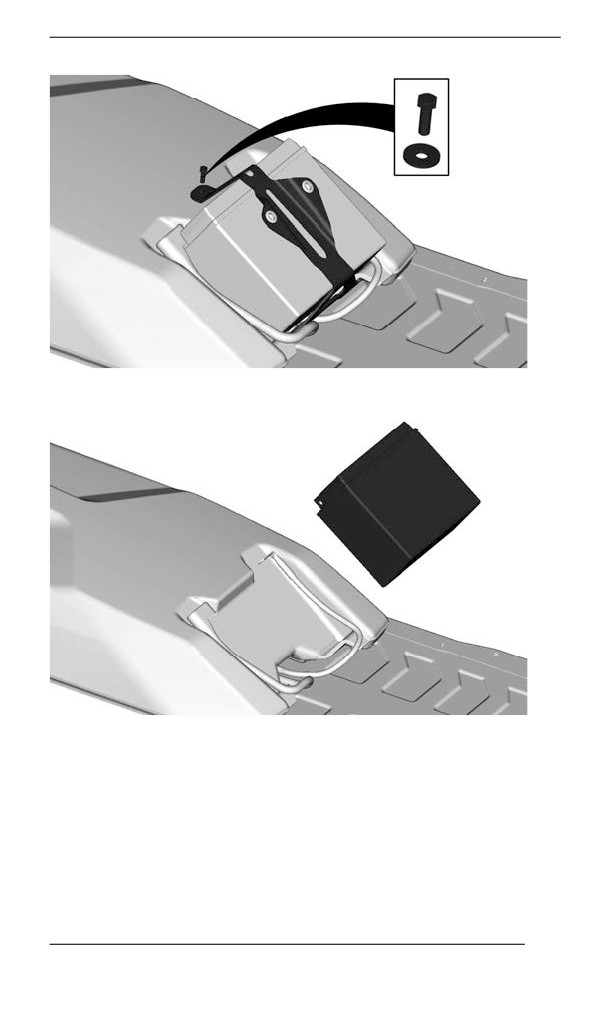

4. Remove the battery hold down bracket.
252
MAINTENANCE PROCEDURES
5. Remove the battery.
Cleaning the Battery
Clean battery casing and battery posts using a soft brush and a solu-
tion of baking soda and water.
Remove corrosion from battery cable terminals and battery posts us-
ing a firm wire brush.
Rinse with clear water then dry well.
253
MAINTENANCE PROCEDURES
Charging the Battery
Use any automotive type battery charger. Always refer to the battery
charger manufacturer’s instructions.
Installing the Battery
NOTICE
Battery BLACK ( – ) cable must always be disconnected first
and connected last.
The installation is the reverse of the removal procedure. However, pay
attention to the following details.
TIGHTENING TORQUE
Battery terminals (positive and
10 ± 2 Nm
negative)
(89 ± 18 lbf-in)
5 ± 0.5 Nm
Battery hold down bracket
(44 ± 4 lbf-in)
1.5 ± 0.5 Nm
Battery cover retaining screws
(13 ± 4 lbf-in)
254
VEHICLE CARE
Post-Operatiion Care
Remove snow and ice from rear suspension, track, front suspension,
steering mechanism and skis.
WARNING
Make sure D.E.S.S. key is removed from D.E.S.S. post before
standing in front the vehicle, getting close to the track or rear
suspension components.
Always cover your snowmobile when leaving it outside overnight or
during extended periods of inactivity. This will protect it from frost and
snow as well as help retain its appearance.
Vehicle Cleaning and Protectiion
Wash snowmobile using water mixed with a mild detergent.
Use only microfiber cloths or an equivalent.
NOTICE
Never use a high pressure washer to clean the vehicle. Use low
pressure only, like a garden hose.
Non Compatible Cleaning Products
Material Type
Non-Compatible Cleaning Products
BRAKE AND PARTS CLEANER
All plastics, vinyls,
OR
painted steel and
ANY PETROLEUM BASE CLEANING
aluminium
PRODUCTS
Compatible Cleaning Products
Material Type
Cleaning Product
All plastics, vinyls,
Automotive type soap with water
painted steel and
XPS Spray Cleaner and Polish
aluminium.
XPS All Purpose Cleaner
For more information and products, Visit the XPS Products website at
255
STORAGE
During summer, or when a snowmobile is not in use for more than
three months, proper storage is necessary.
Storage
Clean the vehicle
Add fuel stabilizer to fuel following the product manufacturer
recommendations.
Run the engine after adding the product to the fuel
Lubricate engine
Lubricate brake lever pivot
Lubricate rear suspension
Charge battery monthly to keep it fully charged during storage
Block muffler outlet with rags
Lift rear of vehicle until track is clear of the ground. Do not release
track tension
CAUTION
Use appropriate lifting device or have assistance to share lifting
stress. If a lifting device is not used, use proper lifting techni-
ques, notably using your legs force. Do not attempt to lift the
rear of vehicle if it is above your limits.
NOTICE
The snowmobile has to be stored in a cool and dry place and
covered with an opaque but ventilated tarpaulin. This will pre-
vent sun rays and grime from affecting plastic components and
vehicle finish.
NOTICE
Fuel stabilizer should be added prior to engine lubrication to
ensure carburetor protection against varnish deposits.
256
PRESEASON PREPARATION
Proper vehicle preparation is necessary when a vehicle has not been
used for more than three months.
Using the maintenance schedule, perform the items titled EVERY
YEAR AT PRESEASON.
Visit your authorized BRP snowmobile dealer for more information.
257
MAINTENANCE RECORDS
Send photocopy of maintenance record to BRP if needed.
Pre-delivery
Serial
Signature/Print:
number:
Mileage /
km:
Hours:
Date:
Dealer
no:
Notes:
Refer to vehicle Pre-Delivery Bulletin for detailed installation
procedures
258
MAINTENANCE RECORDS
First inspection
Mileage /
Signature/Print:
km:
Hours:
Date:
Dealer
no:
Notes:
For maintenance schedule refer to Maintenance Information
section of this operator's guide
Service
Mileage /
Signature/Print:
km:
Hours:
Date:
Dealer
no:
Notes:
For maintenance schedule refer to Maintenance Information
section of this operator's guide
259
MAINTENANCE RECORDS
Service
Mileage /
Signature/Print:
km:
Hours:
Date:
Dealer
no:
Notes:
For maintenance schedule refer to Maintenance Information
section of this operator's guide
Service
Mileage /
Signature/Print:
km:
Hours:
Date:
Dealer
no:
Notes:
For maintenance schedule refer to Maintenance Information
section of this operator's guide
260
MAINTENANCE RECORDS
Service
Mileage /
Signature/Print:
km:
Hours:
Date:
Dealer
no:
Notes:
For maintenance schedule refer to Maintenance Information
section of this operator's guide
Service
Mileage /
Signature/Print:
km:
Hours:
Date:
Dealer
no:
Notes:
For maintenance schedule refer to Maintenance Information
section of this operator's guide
261
MAINTENANCE RECORDS
Service
Mileage /
Signature/Print:
km:
Hours:
Date:
Dealer
no:
Notes:
For maintenance schedule refer to Maintenance Information
section of this operator's guide
Service
Mileage /
Signature/Print:
km:
Hours:
Date:
Dealer
no:
Notes:
For maintenance schedule refer to Maintenance Information
section of this operator's guide
262
MAINTENANCE RECORDS
Service
Mileage /
Signature/Print:
km:
Hours:
Date:
Dealer
no:
Notes:
For maintenance schedule refer to Maintenance Information
section of this operator's guide
Service
Mileage /
Signature/Print:
km:
Hours:
Date:
Dealer
no:
Notes:
For maintenance schedule refer to Maintenance Information
section of this operator's guide
263
MAINTENANCE RECORDS
Service
Mileage /
Signature/Print:
km:
Hours:
Date:
Dealer
no:
Notes:
For maintenance schedule refer to Maintenance Information
section of this operator's guide
Service
Mileage /
Signature/Print:
km:
Hours:
Date:
Dealer
no:
Notes:
For maintenance schedule refer to Maintenance Information
section of this operator's guide
264
MAINTENANCE RECORDS
Service
Mileage /
Signature/Print:
km:
Hours:
Date:
Dealer
no:
Notes:
For maintenance schedule refer to Maintenance Information
section of this operator's guide
Service
Mileage /
Signature/Print:
km:
Hours:
Date:
Dealer
no:
Notes:
For maintenance schedule refer to Maintenance Information
section of this operator's guide
265
MAINTENANCE RECORDS
This page is intention-
ally blank
266
TECHNICAL
INFORMATION
267
VEHICLE IDENTIFICATION
Vehiiclle Descriiptiion Decal
Vehicle description decal is located on right hand side of tunnel.
FOR NORTH AMERICAN MARKET
520002459
FOR EUROPEAN MARKET
268
VEHICLE IDENTIFICATION
Identificatiion Numbers
The main components of your snowmobile (engine and frame) are
identified by different identification numbers. It may sometimes be-
come necessary to locate these numbers for warranty purposes or to
trace your snowmobile in the event of loss. These numbers are re-
quired by the authorized BRP snowmobile dealer to complete war-
ranty claims properly. We strongly recommend that you take note of
all the identification numbers on your snowmobile and supply them to
your insurance company.
Vehicle Identification Number (VIN)
VIN is scribed on vehicle description decal. See above. It is also en-
graved on tunnel near vehicle description decal.
Model number and model year are part of the information found in the
VIN. See illustration.
2BP
S
LSAB
9
A
V
000001
2BP = Canada
Serial
Model number
YH2 = Finland
number
Factory
S = Ski-Doo
V = Valcourt
L = Lynx
Numeric or
R = Rovaniemi
Alphabetic
Model year: P = 2023
Q = 2024
R=2025etc.
269
VEHICLE IDENTIFICATION
Engine Identification Number Location
270
COMPLIANCE LABELS
271
COMPLIANCE LABELS
Regullatiion (EU) 2016/1628 appllicablle for
Non-Road Mobiile Machineries

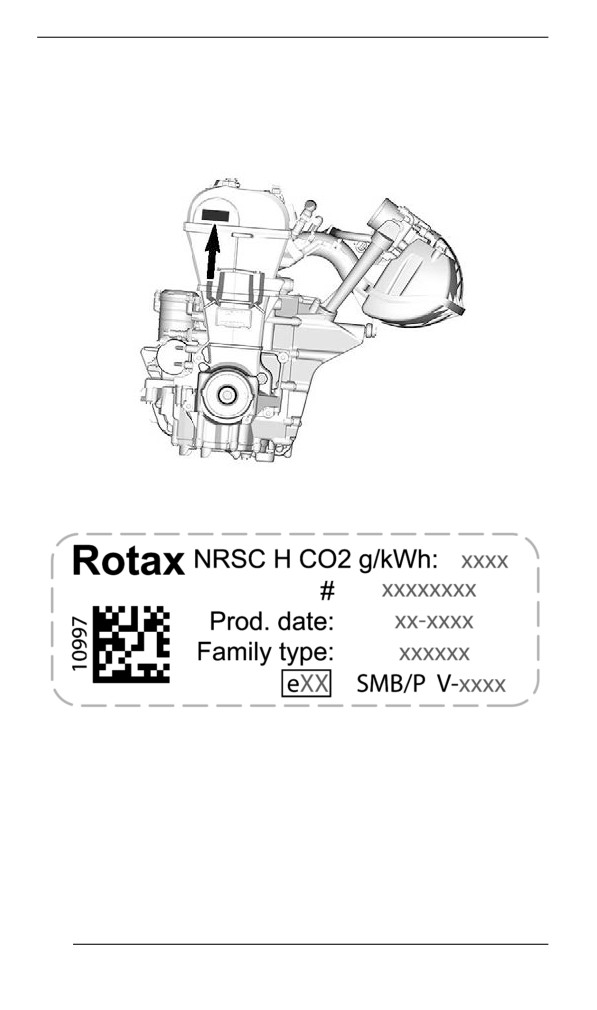

Vehicles who comply to Regulation (EU) 2016/1628 (NRMM) are iden-
tified on the engine valve cover.
TYPICAL
NRMM IDENTIFICATION ON ENGINE
272
COMPLIANCE LABELS
Depending on your particular vehicle configuration, an additional
NRMM identification decal may be installed on the tunnel, near the
gearbox.
TYPICAL - ON RH SIDE OF TUNNEL
Bombardier Recreational
Products Inc.
565 de la Montagne,
Valcourt,QC, Canada
J0E 2L0
BRP-Rotax GmbH Co. KG
Rotaxstrasse 1
Gunskirchen, A-4623
Austria
Rotax
NRMM IDENTIFICATION ON VEHICLE
273
NOISE EMISSION AND VIBRATION VALUES
MODEL
600 ACE
900 ACE
NOISE EMISSION AND VIBRATION VALUES1
90,4 dB @ 3625
91,2 dB @ 3625
Sound power level
Noise
RPM (Uncertainty
RPM (Uncertainty
(LWA)
(Kwa) 3 dB)
(Kwa) 3 dB)
<2.5 m/s2 @
3.15 m/s2 @
Hand-arm system
3625 RPM
3625 RPM
Vibration
Whole body at
<0.5 m/s2 @
<0.5m/s2 @ 3625
seat
3625 RPM
RPM
1: Noise emission and Vibration values are measured in accordance
with Annexes A and B of ISMA 1 regulation on a snow covered or
grass surface in neutral or without belt.
900 ACE Turbo (130 hp) and Turbo
MODEL
R (180 hp)
NOISE EMISSION AND VIBRATION VALUES1
Sound power level
99 dB @ 3625 RPM (Uncertainty
(LWA)
(Kwa) 3 dB)
Noise
Sound pressure
92 dB @ 3625 RPM (Uncertainty
(LpA)
(Kpa) 3 dB)
Hand-arm system
<2.5 m/s2 @ 3625 RPM
Vibration
Whole body at
<0.5m/s2 @ 3625 RPM
seat
1: Noise emission and Vibration values are measured in accordance
with Annexes A and B of ISMA 1 regulation on a snow covered or
grass surface in neutral or without belt.
274
EU DECLARATION OF CONFORMITY
275
UK DECLARATION OF CONFORMITY
276
EPA CERTIFIED ENGINES
Engine Emiissiions Information
Manufacturer''s Responsibility
Snowmobile manufacturers of snowmobile engines need to determine
the exhaust emission levels for each engine horsepower family and
certify these engines with the United States of America Environmental
Protection Agency (EPA). An emissions control information label,
showing emission levels and engine specifications, must be placed on
each vehicle at the time of manufacture.
Dealer''s Responsibility
When performing service on a certified BRP snowmobiles that carry
an emissions control information label, adjustments must be kept with-
in published factory specifications.
Replacement or repair of any emission related component must be
executed in a manner that maintains emission levels within the pre-
scribed certification standards.
Dealers are not to modify the engine in any manner that would alter
the horsepower or allow emission levels to exceed their predeter-
mined factory specifications.
Exceptions include manufacturer's prescribed changes, such as alti-
tude adjustments for example.
Owner’s Responsibility
The owner / operator is required to have engine maintenance per-
formed to maintain emission levels within prescribed certification
standards.
The owner / operator is not to, and should not allow anyone to modify
the engine in any manner that would alter the horsepower or allow
emissions levels to exceed their predetermined factory specifications.
EPA Emission Regulations
All BRP snowmobiles manufactured by BRP are certified to the EPA
as conforming to the requirements of the regulations for the control of
air pollution from new snowmobile engines. This certification is contin-
gent on certain adjustments being set to factory standards. For this
reason, the factory procedure for servicing the product must be strictly
followed and, whenever practicable, returned to the original intent of
the design.
The responsibilities listed above are general and in no way a complete
listing of the rules and regulations pertaining to the EPA requirements
on exhaust emissions for snowmobile products. For more detailed in-
formation on this subject, you may contact the following locations:
277
EPA CERTIFIED ENGINES
MAIL:
U.S. Environmental Protection Agency
Certification Division
Gasoline Engine Compliance Center
2000 Traverwood Drive
Ann Arbor MI 48105
USA
INTERNET WEB SITE:
278
RADIO FREQUENCY DIGITALLY ENCODED
SECURITY SYSTEM (RF D.E.S.S. KEY)
This device complies with FCC Part 15 and Industry Canada license
exempt RSS standard(s).
Operation is subject to the following two conditions: (1) this device
may not cause interference, and (2) this device must accept any inter-
ference, including interference that may cause undesired operation of
the device.
Changes or modifications not expressly approved by the party respon-
sible for compliance could void the user’s authority to operate the
equipment.
IC Registration Number: 12006A-1001317030
FCC ID: 2ACER-1001317030
We, the party responsible for compliance, declare under our sole re-
sponsibility that the device is in conformity with the provisions of the
following Council Directive: 2014/53/EU. To which this declaration re-
lates is in conformity with the essential requirements and other rele-
vant requirements. The product is in conformity with the following
directives, harmonized standards and regulations:
Radio Equipment Directive
(RED)
2014/53/EU and Harmonized
Standards:
IEC 62368-1:2014, CISPR 25:2016, ISO 11452-2:2004, ETSI EN 300
330 V2.1.1:2017
Radio Equipment Statutory Instrument 2017/1206 and Designated
Standards:
IEC 62368-1:2014, CISPR 25:2016, ISO 11452-2:2004, ETSI EN 300
330 V2.1.1:2017
279
MULTIFUNCTION GAUGE REGULATORY
INFORMATION
Technical Information
Transmitter:
- BT operating frequency range: 2402 - 2480 MHz
- BT version: 4.2 (no BTLE)
- BT output power: < 8.5 dBm
Receiver:
- FM operating range: 76 - 108 MHz
Manufacturer and Address
Manufacturer:
- Robert Bosch LLC
Address:
-
38000 Hills Tech Drive,
Farmington Hills, MI 48331,
USA
To display the regulatory information on the vehicle digital
display:
From the home screen, access the main menu and keep the joystick
pressed down for more than 10 seconds.
USA and Canada
This device complies with FCC Part 15 and Industry Canada license
exempt RSS standard (s). Operation is subject to the following two
conditions:
(1) this device may not cause interference, and
(2) this device must accept any interference, including interference
that may cause undesired operation of the device.
Le présent appareil est conforme aux CNR d'Industrie Canada appli-
cables aux appareils radio exempts de licence. L'exploitation est au-
torisée aux deux conditions suivantes:
(1) l'appareil ne doit pas produire de brouillage, et
(2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectri-
que subi, même si le brouillage est susceptible d'en compromettre le
fonctionnement.
Changes or modifications not expressly approved by the party respon-
sible for compliance could void the user's authority to operate the
equipment.
IC: 22868 - VDIBRHS01
FCC ID: 2AMJS - VDIBRHS01
RF exposure:
280
MULTIFUNCTION GAUGE REGULATORY INFORMATION
- The equipment complies with FCC RF exposure limits set forth for
an uncontrolled environment.
- This equipment must be installed and operated with a separation
distance of at least 20 cm from all persons.
- The antenna(s) used for this transmitter must not be co-located or
operating in conjunction with any other antenna or transmitter.
Mexico
IFETEL
Marca: Robert Bosch LLC
Modelo(s): VIPHI2BT
Número: RCPBOVI18-0967
NOM-121-SCT1-2009
La operación de este equipo está sujeta a las siguientes dos condi-
ciones: (1) es posible que este equipo o dispositivo no cause interfer-
encia perjudicial y (2) este equipo o dispositivo debe aceptar cualquier
interferencia, incluyendo la que pueda causar su operación no
deseada.
Brazil
03473-18-04473
Este equipamento opera em caráter secundário, isto é, não tem direito
a proteção contra interferência prejudicial, mesmo de estações do
mesmo tipo, e não pode causar interferência a sistemas operando em
caráter primário.
Japan
This device is granted pursuant to the Japanese Radio Law (
)
and the Japanese Telecommunications Business Law
(
). This device should not be modified (otherwise the
granted designation number will become invalid).
281
MULTIFUNCTION GAUGE REGULATORY INFORMATION
Europe
Declaration of Conformity
Simplified EU Declaration of Conformity according Radio Equipment
Directive 2014/53/EU.
DE
Hiermit erklärt Robert Bosch LLC, dass der Funkanlagentyp VIPHI2BT der Richtlinie 2014/53/EU entspricht.
Der vollständige Text der EU-Konformitätserklärung ist unter der folgenden Internetadresse verfügbar: eu-doc.
bosch.com
FR
Le soussigné, Robert Bosch LLC, déclare que l'équipement radioélectrique du type VIPHI2BT est conforme à la
directive 2014/53/UE.
Le texte complet de la déclaration UE de conformité est disponible à l'adresse internet suivante:eu-doc.
bosch.com
BG
Robert Bosch LLC
,
VIPHI2BT
2014/53/.
: eu-doc.
bosch.com
EL
Με την παρούσα ο/η Robert Bosch LLC, δηλώνει ότι ο ραδιοεξοπλισ×όØ VIPHI2BT πληροί την οδηγία 2014/53/EE.
Το πλήρεØ κεί×ενο τηØ δήλωσηØ συ××όρφωσηØ ΕΕ διατίθεται στην ακόλουθη ιστοσελίδα στο διαδίκτυο: eu-doc.
bosch.com
CS
Tímto Robert Bosch LLC prohlašuje, že typ rádiového zařízení VIPHI2BT je v souladu se směrnicí 2014/53/EU.
Úplné znění EU prohlášení o shodě je k dispozici na této internetové adrese: eu-doc.bosch.com
DA
Hermed erklærer Robert Bosch LLC, at radioudstyrstypen VIPHI2BT er i overensstemmelse med direktiv
2014/53/EU.
EU-overensstemmelseserklæringens fulde tekst kan ðndes på følgende internetadresse: eu-doc.bosch.com
ET
Käesolevaga deklareerib Robert Bosch LLC, et käesolev raadioseadme tüüp VIPHI2BT vastab direktiivi
2014/53/EL nõuetele.
ELi vastavusdeklaratsiooni täielik tekst on kättesaadav järgmisel internetiaadressil: eu-doc.bosch.com
ES
Por la presente, Robert Bosch LLC declara que el tipo de equipo radioeléctrico VIPHI2BT es conforme con la
Directiva 2014/53/UE.
El texto completo de la declaración UE de conformidad está disponible en la dirección Internet siguiente: eu-doc.
bosch.com
FI
Robert Bosch LLC vakuuttaa, että radiolaitetyyppi VIPHI2BT on direktiivin 2014/53/EU mukainen.
EU-vaatimustenmukaisuusvakuutuksen täysimittainen teksti on saatavilla seuraavassa internetosoitteessa: eu-doc.
bosch.com
EN
Hereby, Robert Bosch LLC declares that the radio equipment type VIPHI2BT is in compliance with Directive
2014/53/EU.
The full text of the EU declaration of conformity is available at the following internet address: eu-doc.bosch.com
HR
Robert Bosch LLC ovime izjavljuje da je radijska oprema tipa VIPHI2BT u skladu s Direktivom 2014/53/EU.
Cjeloviti tekst EU izjave o sukladnosti dostupan je na sljedećoj internetskoj adresi: eu-doc.bosch.com
HU
Robert Bosch LLC igazolja, hogy a VIPHI2BT típusú rádióberendezés megfelel a 2014/53/EU irányelvnek.
Az EU-megfelelőségi nyilatkozat teljes szövege elérhető a következő internetes címen: eu-doc.bosch.com
IT
Il fabbricante, Robert Bosch LLC, dichiara che il tipo di apparecchiatura radio VIPHI2BT è conforme alla direttiva
2014/53/UE.
Il testo completo della dichiarazione di conformità UE è disponibile al seguente indirizzo Internet: eu-doc.
bosch.com
282
MULTIFUNCTION GAUGE REGULATORY INFORMATION
LT
Aš, Robert Bosch LLC, patvirtinu, kad radijo įrenginių tipas VIPHI2BT atitinka Direktyvą 2014/53/ES.
Visas ES atitikties deklaracijos tekstas prieinamas šiuo interneto adresu: eu-doc.bosch.com
LV
Ar šo Robert Bosch LLC deklarē, ka radioiekārta VIPHI2BT atbilst Direktīvai 2014/53/ES.
Pilns ES atbilstības deklarācijas teksts ir pieejams šādā interneta vietnē: eu-doc.bosch.com
MT
B'dan, Robert Bosch LLC, niddikjara li dan it-tip ta' tagħmir tar-radju VIPHI2BT huwa konformi mad-Direttiva
2014/53/UE.
It-test kollu tad-dikjarazzjoni ta' konformità tal-UE huwa disponibbli f'dan l-indirizz tal-Internet li ġej: eudoc.
bosch.com
NL
Hierbij verklaar ik, Robert Bosch LLC, dat het type radioapparatuur VIPHI2BT conform is met Richtlijn
2014/53/EU.
De volledige tekst van de EU-conformiteitsverklaring kan worden geraadpleegd op het volgende internetadres: eudoc.
bosch.com
PL
Robert Bosch LLC niniejszym oświadcza, że typ urządzenia radiowego VIPHI2BT jest zgodny z dyrektywą
2014/53/UE.
Pełny tekst deklaracji zgodności UE jest dostępny pod następującym adresem internetowym: eu-doc.bosch.com
PT
O(a) abaixo assinado(a) Robert Bosch LLC declara que o presente tipo de equipamento de rádio VIPHI2BT está
em conformidade com a Diretiva 2014/53/UE.
O texto integral da declaração de conformidade está disponível no seguinte endereço de Internet: eudoc.
bosch.com
RO
Prin prezenta, Robert Bosch LLC declară că tipul de echipamente radio VIPHI2BT este în conformitate cu
Directiva 2014/53/UE.
Textul integral al declaraiei UE de conformitate este disponibil la următoarea adresă internet: eu-doc.bosch.com
SV
Härmed försäkrar Robert Bosch LLC att denna typ av radioutrustning VIPHI2BT överensstämmer med direktiv
2014/53/EU.
Den fullständiga texten till EU-försäkran om överensstämmelse nns på följande webbadress: eu-doc.bosch.com
SL
Robert Bosch LLC potrjuje, da je tip radijske opreme VIPHI2BT skladen z Direktivo 2014/53/EU.
Celotno besedilo izjave EU o skladnosti je na voljo na naslednjem spletnem naslovu: eu-doc.bosch.com
SK
Robert Bosch LLC týmto vyhlasuje, že rádiové zariadenie typu VIPHI2BT je v súlade so smernicou 2014/53/EÚ.
Úplné EÚ vyhlásenie o zhode je k dispozícii na tejto internetovej adrese: eu-doc.bosch.com
IS
Robert Bosch LLC lýsir því hér með yr að þráðlausi arskiptabúnaðurinn VIPHI2BT er í samræmi við tilskipun
2014/53/ESB.
Óstyttan texta ESB-samræmisyrlýsingarinnar er að nna á ve anginu: eu-doc.bosch.com
Liechtenstein
Hiermit erklärt Robert Bosch LLC, dass der Funkanlagentyp VIPHI2BT der Richtlinie 2014/53/EU entspricht.
Der vollständige Text der EU-Konformitätserklärung ist unter der folgenden Internetadresse verfügbar: eudoc.
bosch.com
NO
Hermed erklærer Robert Bosch LLC at radioutstyrstypen VIPHI2BT er i samsvar med direktiv 2014/53/EU.
Hele teksten i EU-samsvarserklæringen nnes på følgende internettadresse: eu-doc.bosch.com
283
MULTIFUNCTION GAUGE REGULATORY INFORMATION
This page is intention-
ally blank
284
TECHNICAL
SPECIFICATIONS
285
ENGINE
600 ACE
ENGINE
Rotax 600, liquid
Engine type
cooled, 4-stroke,
D.O.H.C., dry sump.
Number of cylinder
2
74 mm
Bore
(2.91 in)
69.7 mm
Stroke
(2.74 in)
600 cm³
Displacement
(36.6 in³)
Maximum power engine speed
7250 RPM
FUEL SYSTEM
Multi point EFI, 46
Fuel delivery
mm heated throttle
body
At ECO
1500 ± 200 RPM
Mode
Idle speed (not adjustable)
STD/ Sport
1700 ± 200 RPM
Mode
ELECTRICAL SYSTEM
30 A @ 14.5 V
Total system output
520 W @ 6000 RPM
NGK MR7BI-8 or
Type
equivalent
Spark plug
Not adjustable
Gap
0.7 to 0.8 mm
(.028 to .031 in)
286
ENGINE
LUBRICATION SYSTEM
Recom
XPS 4T 0W40
mended
Synthetic oil
XPS oil
Use a 0W40 4-stroke
SAE synthetic engine
oil meeting or
exceeding the
following lubricant
Type
industry
If XPS
specifications.Always
product is
Engine oil
check the API
not
service label
available
certification on the oil
container, it must
contain at least the
indicated standard.
-
- API service
classification SN
Oil change with filter:
Quantity
2.1 l
(2.22 qt (liq.,US))
900 ACE
ENGINE
Rotax 903, liquid
Engine type
cooled, 4-stroke,
D.O.H.C., dry sump
Number of cylinder
3
74 mm
Bore
(2.9 in)
69.7 mm
Stroke
(2.74 in)
287
ENGINE
ENGINE
899 cm³
Displacement
(54.9 in³)
Maximum power engine speed
7250 ± 200 RPM
FUEL SYSTEM
Multi point EFI, 46
Fuel delivery
mm heated throttle
body
Standard
and ECO
1300 ± 200 RPM
Idle speed (not adjustable)
mode
Sport mode
1500 ± 200 RPM
ELECTRICAL SYSTEM
30 A @ 14.5 V
Total system output
650 W @ 6000 RPM
NGK MR8BI-8 or
Type
equivalent
Spark plug
Not adjustable
Gap
0.7 to 0.8 mm
(.028 to .031 in)
LUBRICATION SYSTEM
Recom
XPS 4T 0W40
Engine oil
Type
mended
Synthetic oil
XPS oil
288
ENGINE
LUBRICATION SYSTEM
Use a 0W40 4-stroke
SAE synthetic engine
oil meeting or
exceeding the
following lubricant
industry
If XPS
specifications.Always
product is
check the API
not
service label
available
certification on the oil
container, it must
contain at least the
indicated standard.
-
- API service
classification SN
Oil change with filter:
Quantity
3.3 l
(3.5 qt (liq.,US))
900 ACE Turbo
ENGINE
Rotax 903, liquid
cooled, 4-stroke,
Engine type
D.O.H.C., dry sump,
turbo without
intercooler
Number of cylinder
3
74 mm
Bore
(2.9 in)
69.7 mm
Stroke
(2.74 in)
899 cm³
Displacement
(54.9 in³)
Maximum power engine speed
7400 ± 200 RPM
289
ENGINE
FUEL SYSTEM
Multi point EFI, 46
Fuel delivery
mm heated throttle
body
Standard
and ECO
1300 ± 200 RPM
Idle speed (not adjustable)
mode
Sport mode
1500 ± 200 RPM
ELECTRICAL SYSTEM
30 A @ 14.5 V
Total system output
650 W @ 6000 RPM
NGK LMAR9AI-8D or
Type
equivalent
Spark plug
Not adjustable
Gap
0.7 to 0.8 mm
(.028 to .031 in)
LUBRICATION SYSTEM
Recom
XPS 4T 0W40
mended
Synthetic oil
XPS oil
Use a 0W40 4-stroke
SAE synthetic engine
oil meeting or
exceeding the
following lubricant
Engine oil
Type
industry
If XPS
specifications.Always
product is
check the API
not
service label
available
certification on the oil
container, it must
contain at least the
indicated standard.
-
- API service
classification SN
290
ENGINE
LUBRICATION SYSTEM
Oil change with filter:
Quantity
3.3 l
(3.5 qt (liq.,US))
291
VEHICLE
Adventure
COOLING SYSTEM
XPS
XPS Extended life
recommended
pre-mixed coolant
coolant
Ethyl glycol and
Coolant type
distilled water (50%/
If the XPS
50%)
product is not
or coolant
available
specifically
formulated for
aluminum engines
5.9 l
Adventure
(6.23 qt (liq.,US))
6.9 l
Coolant capacity
Adventure LX
(7.29 qt (liq.,US))
7.2 l
Adventure SC
(7.61 qt (liq.,US))
FUEL SYSTEM
In-tank electrical
Fuel pump
fuel pump
Regular unleaded
Type
gasoline
600 ACE
900 ACE
87 Pump Posted
Octane
AKI (RON+MON)/2
rating
92
(RON)
Fuel
Premium unleaded
Type
gasoline
900 ACE Turbo
91 Pump Posted
Octane
AKI (RON+MON)/2
rating
95 RON
37 l
Fuel tank capacity
(9,8 gal (liq.,US))
292
VEHICLE
ELECTRICAL SYSTEM
Battery
12 V, 18 A•h
Headlamp
2 x 60/55 W (H-13)
Taillight and stoplight
2 x 0.4/1.4 W LED
FA
Main
40 A
F1
Start / Relays
5A
F2
Headlamps
20 A
Taillight / Brake
F3
10 A
/ PAC
ECM / RFID /
F4
10 A
O2 Sensor
Fuses
Engine/ Fuel
F5
10 A
Pump
F6
Fan
15 A
F7
Accessories
15 A
F8
Cluster
15 A
F9
ACS (not used)
15 A
Electrical
F10
30 A
reverse
RY1
Main
-
RY2
Forward
-
RY3
Fan
-
Relays
RY4
Reverse
-
RY5
Accessories
-
RY6
Lighting
-
293
VEHICLE
DRIVE SYSTEM — CHAINCASE
XPS
XPS Synthetic
recommended
chaincase oil
oil
Type
Chaincase
If the XPS
75W140 gear oil
oil
product is not
that meets the API
available
GL-5 specification
550 ml
Capacity
(18.9 fl oz (US))
Adventure
21/ 51/ 110
Adventure LX
Adventure SC
Chain drive ratio
24/ 51/ 112
900 ACE
Adventure SC
25/ 45/ 108
900 ACE Turbo
DRIVE SYSTEM — PULLEYS
600 ACE
eDrive II LC
Drive pulley type
900 ACE
pDrive-LD
900 ACE Turbo
pDrive-4S
600 ACE
2200 ± 100 RPM
Drive pulley
900 ACE
engagement RPM
900 ACE Turbo
2700 ± 100 RPM
600 ACE
QRS-4S
900 ACE
Driven pulley type
900 ACE Turbo
QRS-4SVENT
294
VEHICLE
DRIVE SYSTEM — TRACK
Drive sprocket number of teeth
8
38.1 cm
Width
(15 in)
348.7 cm
Adventure LX
(137.4 in)
Length
Adventure
370.5 cm
Track
Adventure SC
(145.7 in)
Adventure
41 mm
Adventure SC
(1.6 in)
Profile
height
32 mm
Adventure LX
(1.25 in)
32 mm
Deflection
(1.26 in)
Track
adjustment
6.0
to 8.5 kgf
Force
(13 to 19 lbf)
BRAKE SYSTEM
Single 200 mm
Brake
Type
cross drilled carbon
steel disc
Type
DOT 4
Brake fluid
65 ml
Quantity
(2.2 fl oz (US))
Fixed twin pistons
Caliper
(2 x 40mm)
Brake pad material
Organic
Minimum brake pad thickness (includes
5.0 mm
backing plate)
(.200 in)
295
VEHICLE
BRAKE SYSTEM
4.5 mm
Minimum brake disc thickness
(.177 in)
0.25 mm
Maximum brake disc warpage
(.010 in)
FRONT SUSPENSION
Suspension type
LFS X
Adventure
221 mm
Adventure SC
(8.7 in)
Suspension maximum
travel
257 mm
Adventure LX
(10.1 in)
Adventure
HPG
Adventure LX
Shock absorber type
Adventure SC
HPG Plus 36 Black
Stabilizer bar type
Link
REAR SUSPENSION
Adventure LX
PPS3 3500
Suspension type
Adventure
PPS3 3700
Adventure SC
Adventure
Suspension maximum
291 mm
Adventure LX
travel
(11.5 in)
Adventure SC
Adventure
HPG 36
Adventure LX
Center
Adventure SC
HPG Plus 36
Shock
absorber
Adventure
type
HPG 36
Adventure LX
Rear
HPGK Plus 46
Adventure SC
(Kashima)
296
VEHICLE
WEIGHT AND DIMENSIONS
230 kg
Adventure
(507 lb)
242 kg
Mass (dry)
Adventure LX
(534 lb)
248 kg
Adventure SC
(547 lb)
316 cm
Adventure
(124.4 in)
Overall length
306 cm
Adventure LX
(without snowflap)
(120.4 in)
325 cm
Adventure SC
(128 in)
Adventure
120 cm
Adventure SC
(47.2 in)
Overall width
128 cm
Adventure LX
(50.4 in)
Adventure
128 cm
Adventure SC
(50.4 in)
Overall height (including
windshield)
147 cm
Adventure LX
(57.9 in)
Adventure
108 cm
Adventure SC
(42.5 in)
Ski stance
108 cm
Adventure LX
(42.5 in)
297
VEHICLE
This page is intention-
ally blank
298
TROUBLESHOOT-
ING
299
TROUBLESHOOTING-
GUIDELINES
1. ELECTRIC STARTER DOES NOT WORK
Emergency engine stop switch in OFF position or tether cord cap not
installed on engine cut-off switch.
- Place the emergency engine stop switch in the ON position and in-
stall tether cord cap (on engine cut-off switch.
Throttle applied while attempting an engine start.
- Release throttle while cranking.
2. ENGINE IS CRANKED BUT FAILS TO START
No fuel to the engine.
- Check fuel tank level, add fuel if necessary.
System voltage too low.
- Contact an authorized BRP snowmobile dealer.
3. ENGINE RPM DOES NOT REACH CLUTCH
ENGAGEMENT POINT
D.E.S.S. did not read D.E.S.S. key code in the tether cord cap.
- Properly install tether cord cap.
D.E.S.S. has read a different code than the one programmed.
- Install a tether cord cap for which this snowmobile was
programmed.
ECM does not recognize the D.E.S.S. key.
- Refer to an authorized BRP snowmobile dealer.
4. ENGINE LACKS ACCELERATION OR POWER
Engine warm-up in progress.
- Drive vehicle at low speeds for a few minutes.
Engine break-in period not completed.
- Complete break-in period.
Drive and driven pulleys require servicing.
- Contact an authorized BRP snowmobile dealer.
300
TROUBLESHOOTING-GUIDELINES
Engine overheats.
- Check coolant level, see Maintenance Procedures.
- Check heat exchangers cleanliness. Clean if necessary.
Drive belt worn too thin.
- If the drive belt has lost more than 3 mm (1/8 in) of its original
width, it will affect vehicle performance.
- Replace drive belt.
Incorrect track adjustment.
- See Maintenance Procedures and/or an authorized BRP snowmo-
bile dealer for proper alignment and tension adjustments.
Fuel pressure too low.
- Seek service from an authorized BRP snowmobile dealer, repair
shop, or person of your own choosing for maintenance, repair, or
replacement. Please refer to the US EPA EMISSION-RELATED
WARRANTY contained herein for information about warranty
claims.
5. ENGINE BACKFIRES
Engine is running too hot.
- See item 4 of ENGINE LACKS POWER.
Ignition timing is incorrect or there is an ignition system failure.
- Seek service from an authorized BRP snowmobile dealer, repair
shop, or person of your own choosing for maintenance, repair, or
replacement. Please refer to the US EPA EMISSION-RELATED
WARRANTY contained herein for information about warranty
claims.
Exhaust system leak.
- Seek service from an authorized BRP snowmobile dealer, repair
shop, or person of your own choosing for maintenance, repair, or
replacement. Please refer to the US EPA EMISSION-RELATED
WARRANTY contained herein for information about warranty
claims.
Fuel pressure too low.
- Seek service from an authorized BRP snowmobile dealer, repair
shop, or person of your own choosing for maintenance, repair, or
301
TROUBLESHOOTING-GUIDELINES
replacement. Please refer to the US EPA EMISSION-RELATED
WARRANTY contained herein for information about warranty
claims.
6. ENGINE MISFIRES
Water in fuel.
- Drain fuel system and refill with fresh fuel.
7. HEATED GRIPS/THUMB WARMERS ARE NOT
WORKING
Engine RPM is too low.
- Make sure engine RPM is above 2000.
8. ENGINE HAS SHUT DOWN
The engine shuts down after long periods of idling.
- Do not let engine idle too long. Refer to Vehicle Warm-up in Oper-
ating Instruction.
302

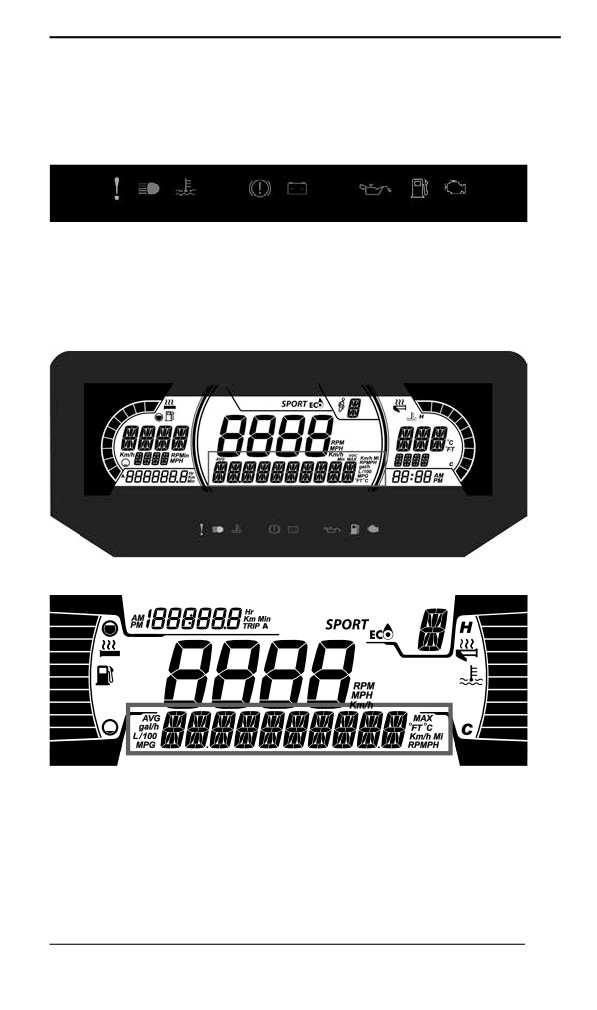

MONITORING SYSTEM
Piilot Lamps, Messages and Beeper Codes
Gauge pilot lamp(s) will inform you if an anomaly occurs or to inform
you of a particular condition.
TYPICAL — PILOT LAMPS
Pilot lamp can flash alone or in combination with another lamp.
The lower display is used as a complement of the pilot lamps to give
you a brief description if an anomaly occurs or to inform you of a par-
ticular condition.
7.2" DIGITAL LOWER DISPLAY
4.5" DIGITAL LOWER DISPLAY
Messages will be displayed with a beep code and pilot lamp(s).
Beeper codes will be heard and messages will be displayed to catch
your attention.
See table below for details.
303
MONITORING SYSTEM
NOTE:
Some of the listed pilot lamps and messages do not apply to all
models.
Pilot
Message
lamp
Beeper
Description
display
ON
Engine is overheating,
reduce snowmobile
speed and run in loose
snow or stop engine
immediately and let
engine cool down.
HIGH
Check coolant level,
ENGINE
refer to Maintenance. If
TEMPERA
coolant level is correct
TURE
and overheating
persists, contact an
1 Long
authorized BRP
beep
snowmobile dealer. Do
repeat
not run the engine if
ing
condition persists.
Reduce speed or stop
engine. Let engine cool
down and restart. If
overheating persists,
MUFFLER
contact an authorized
OVERHEAT
BRP snowmobile
dealer. Do not run the
engine if condition
persists.
Critical overheat. Stop
engine immediately and
let engine cool down.
1 Long
HIGH
Check coolant level,
beep
ENGINE
refer to Maintenance. If
repeat
TEMPERA
coolant level is correct
ing
TURE
and overheating
persists, contact an
authorized BRP
snowmobile dealer. Do
304
MONITORING SYSTEM
Pilot
Message
lamp
Beeper
Description
display
ON
not run the engine if
condition persists.
MUFFLER
Critical overheat. Stop
OVERHEAT
engine immediately and
let engine cool down. If
overheating persists,
contact an authorized
ECM
BRP snowmobile
OVERHEAT
dealer. Do not run the
engine if condition
persists.
Indicate a low or high
battery voltage
—
BATT VOLT
condition. See an
authorized BRP
snowmobile dealer as
soon as possible.
Engine fault, see an
1 Long
authorized BRP
beep
CHECK
snowmobile dealer,
repeat
ENGINE
repair shop or person of
ing
your own choosing as
soon as possible.
Displayed when brake is
applied for more than 15
seconds while throttle
—
—
lever is squeezed and
vehicle is moving at
more than 5 km/h (3
MPH).
4 short
Engine detonation
beeps
—
KNOCK
(RPM is limited when
every 5
this condition occurs).
minutes
305
MONITORING SYSTEM
Pilot
Message
lamp
Beeper
Description
display
ON
- Ensure
recommended fuel is
used.
- Check fuel quality,
replace if
necessary.
- If fault still occurs,
contact an
authorized BRP
snowmobile dealer,
repair shop, or
person of your own
choosing.
4 short
Engine RPM limited for
beeps
—
REV LIMIT
protection when certain
every 5
faults occur.
minutes
Indicates that maximum
—
—
OVER REV
engine RPM is reached.
Check clutch calibration.
Short
Shutdown procedure in
beeps
force due to engine
—
repeat
SHUTDOWN
overheating or fuel
ing
pump problem.
rapidly
Good key, vehicle ready
—
—
to operate.
Unable to read key (bad
DESS
connection). Make sure
—
WRONG KEY
the key is clean and
correctly snapped on
post.
306
MONITORING SYSTEM
Pilot
Message
lamp
Beeper
Description
display
ON
Invalid key or key not
programmed. Use the
—
CHECK KEY
proper key for the
vehicle or have the
programmed.
Fuel
level
sensor
—
—
problem.
(blink
ing)
Fault Codes
The fault codes can be displayed on the center display.
The fault codes are accessible in the setting menu.
Contact an authorized BRP snowmobile dealer for code signification.
307
MONITORING SYSTEM
This page is intention-
ally blank
308
WARRANTY
309
BRP INTERNATIONAL LIMITED WARRANTY:
2024 LYNX® SNOWMOBILES
SCOPE OF THE LIMITED WARRANTY
Bombardier Recreational Products Inc. (“BRP”) warrants its 2024
LYNX snowmobiles sold by distributors or dealers authorized by BRP
to distribute LYNX snowmobiles ("LYNX Distributor / Dealer") outside
of the fifty United States, Canada, members of the European Econom-
ic Area (which is comprised of the member states of the European
Union plus United Kingdom, Norway, Iceland and Liechtenstein)
(“EEA”), members states of the Commonwealth of the Independent
States (including Ukraine and Turkmenistan) (''CIS'') and Turkey, from
defects in material or workmanship for the period and under the condi-
tions described below.
Non-factory installed parts and accessories are not covered under this
limited warranty. Please refer to the applicable parts and accessories
limited warranty text.
This limited warranty will become null and void if: (1) the snowmobile
was used for racing or any other competitive activity, at any point,
even by a previous owner; or (2) the snowmobile has been altered or
modified in such a way so as to adversely affect its operation, perform-
ance or durability, or has been altered or modified to change its in-
tended use.
LIMITATIONS OF LIABILITY
TO THE EXTENT PERMITTED BY LAW, THIS WARRANTY IS
EXPRESSLY GIVEN AND ACCEPTED IN LIEU OF ANY AND
ALL OTHER WARRANTIES, EXPRESSED OR IMPLIED, IN-
CLUDING WITHOUT LIMITATION ANY WARRANTY OF MER-
CHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE.
TO THE EXTENT THAT THEY CANNOT BE DISCLAIMED, THE
IMPLIED WARRANTIES ARE LIMITED IN DURATION TO THE
LIFE OF THE EXPRESS WARRANTY. INCIDENTAL AND CON-
SEQUENTIAL DAMAGES ARE EXCLUDED FROM COVERAGE
UNDER THIS WARRANTY. SOME JURISDICTIONS DO NOT
ALLOW FOR THE DISCLAIMERS, LIMITATIONS AND EXCLU-
SIONS IDENTIFIED ABOVE. AS A RESULT, THEY MAY NOT
APPLY TO YOU. THIS WARRANTY GIVES YOU SPECIFIC
RIGHTS, AND YOU MAY ALSO HAVE OTHER LEGAL RIGHTS
WHICH MAY VARY FROM COUNTRY TO COUNTRY. BRP
SHALL NOT BE HELD LIABLE IF PRODUCTS OR WARRANTY
PARTS ARE NOT AVAILABLE IN CERTAIN COUNTRIES FOR
REASONS OUTSIDE OF BRP’S CONTROL. (FOR PRODUCTS
PURCHASED IN AUSTRALIA REFER TO “FOR PRODUCTS
SOLD IN AUSTRALIA ONLY”, BELOW).
Neither the LYNX Distributor / Dealer nor any other person has been
authorized to make any affirmation, representation or warranty
310
BRP INTERNATIONAL LIMITED WARRANTY: 2024 LYNX® SNOWMOBILES
regarding the product, other than those contained in this limited war-
ranty, and if made, shall not be enforceable against BRP.
BRP reserves the right to modify this warranty at any time, being
understood that such modification will not alter the warranty conditions
applicable to the products sold while this warranty is in effect.
EXCLUSIONS – ARE NOT WARRANTED
The following are not warranted under this limited warranty under any
circumstances:
-
Normal wear and tear;
–
Routine maintenance items, tune ups, adjustments;
–
Damage caused by negligence or failure to provide proper mainte-
nance and/or storage, as described in the operator's guide;
-
Damage resulting from removal of parts, improper repairs, service,
maintenance, modifications or use of parts or accessories not
manufactured or approved by BRP which in its reasonable judge-
ment are either incompatible with the product or adversely affect
its operation, performance and durability, or resulting from repairs
done by a person that is not an authorized servicing BRP snowmo-
bile distributor/ dealer;
-
Damage caused by abuse, abnormal use, neglect, racing or opera-
tion of the product on surfaces other than snow, or operation of the
product in a manner inconsistent with the recommended operation
described in the Operator’s Guide;
-
Damage resulting from accident, submersion, fire, snow or water
ingestion, theft, vandalism or any act of God;
-
Operation with fuels, oils or lubricants which are not suitable for
use with the product (see the Operator’s Guide);
-
Damage resulting from rust, corrosion or exposure to the
elements;
-
Incidental or consequential damages, or damages of any kind in-
cluding without limitation towing, storage, transportation expenses,
telephone, rental, taxi, inconvenience, insurance coverage, loan
payments, loss of time, loss of income; or time missed for down-
time experience due to service work.
-
And damage resulting from studs installed on tracks if the installa-
tion does not conform to BRP’s instructions.
WARRANTY COVERAGE PERIOD
This warranty will be in effect from (1) the date of delivery to the first
retail consumer or (2) the date the product is first put into use, which-
ever occurs first and for a period of:
TWELVE (12) CONSECUTIVE MONTHS, for private or commercial
use owners. However, the warranty coverage period on a snowmobile
311
BRP INTERNATIONAL LIMITED WARRANTY: 2024 LYNX® SNOWMOBILES
delivered between June 1st and December 1st of a given year will ex-
pire November 30th of the following year.
The repair or replacement of parts or the performance of service under
this warranty does not extend the life of this warranty beyond its origi-
nal expiration date.
Note that the duration and any other modalities of the warranty cover-
age are subject to the applicable national or local legislation in the cus-
tomer's country.
FOR PRODUCTS SOLD IN AUSTRALIA ONLY
Nothing in these Warranty terms and conditions should be taken to ex-
clude, restrict or modify the application of any condition, warranty,
guarantee, right or remedy conferred or implied under the Competition
and Consumer Act 2010 (Cth), including the Australian Consumer
Law or any other law, where to do so would contravene that law, or
cause any part of these terms and conditions to be void. The benefits
given to you under this limited warranty are in addition to other rights
and remedies that you have under Australian law.
Our goods come with guarantees that cannot be excluded under the
Australian Consumer Law. You are entitled to a replacement or refund
for a major failure and for compensation for any other reasonably fore-
seeable loss or damage. You are also entitled to have the goods re-
paired or replaced if the goods fail to be of acceptable quality and the
failure does not amount to a major failure.
CONDITIONS TO HAVE WARRANTY COVERAGE
This warranty coverage is available only if each of the following condi-
tions has been fulfilled:
- The 2024 LYNX snowmobile must be purchased as new and un-
used by its first owner from a LYNX Distributor / Dealer authorized
to distribute LYNX snowmobiles in the country in which the sale
occurred;
- The BRP specified pre-delivery inspection process must be com-
pleted and documented;
- The product must have undergone proper registration by an au-
thorized LYNX Distributor / Dealer;
- The 2024 LYNX snowmobile must be purchased in the country in
which the purchaser resides.
- Routine maintenance outlined in the operator’s guide must be
timely performed in order to maintain warranty coverage. BRP re-
serves the right to make warranty coverage contingent upon proof
of proper maintenance.
BRP will not honour this limited warranty to any private use owner or
commercial use owner if one of the preceding conditions has not been
312
BRP INTERNATIONAL LIMITED WARRANTY: 2024 LYNX® SNOWMOBILES
met. Such limitations are necessary in order to allow BRP to preserve
both the safety of its products, and also that of its consumers and the
general public.
WHAT TO DO TO OBTAIN WARRANTY
COVERAGE
The customer must cease using the snowmobile upon the appearance
of an anomaly. The customer must notify a servicing LYNX Distributor
/ Dealer within two (2) days of the appearance of a defect, and provide
it with reasonable access to the product and reasonable opportunity to
repair it. The customer must also present to the authorized LYNX Dis-
tributor / Dealer, proof of purchase of the product and must sign the re-
pair / work order prior to starting the repair in order to validate the
warranty repair. All parts replaced under this limited warranty become
the property of BRP.
Note that the notification period is subject to the applicable national or
local legislation in customer's country.
WHAT BRP WILL DO
To the extent permitted by law, BRP’s obligations under this warranty
are limited to, at its sole discretion, repairing parts found defective
under normal use, maintenance and service, or replacing such parts
without charge for parts and labour, at any authorized LYNX Distribu-
tor / Dealer during the warranty coverage period under the conditions
described herein. BRP’s responsibility is limited to making the required
repairs or replacements of parts. No claim of breach of warranty shall
be cause for cancellation or rescission of the sale of the snowmobile
to the owner. You may have other legal rights which may vary from
country to country.
In the event that service is required outside of the country of original
sale, the owner will bear responsibility for any additional charges due
to local practices and conditions, such as, but not limited to, freight, in-
surance, taxes, license fees, import duties, and any and all other finan-
cial charges, including those levied by governments, states, territories
and their respective agencies.
BRP reserves the right to improve or modify products from time to time
without assuming any obligation to modify products previously
manufactured.
TRANSFER
If the ownership of a product is transferred during the warranty cover-
age period, this limited warranty, subject to its terms and conditions,
shall also be transferred and be valid for the remaining coverage peri-
od provided BRP or an authorized LYNX Distributor / Dealer receives
313
BRP INTERNATIONAL LIMITED WARRANTY: 2024 LYNX® SNOWMOBILES
a proof that the former owner agreed to the transfer of ownership, in
addition to the coordinates of the new owner.
CONSUMER ASSISTANCE
In the event of a controversy or a dispute in connection with this limited
warranty, BRP suggests that you try to resolve the issue at the LYNX
Distributor / Dealer level. We recommend discussing the issue with
the authorized LYNX Distributor / Dealer's service manager or owner.
If the matter still remains unresolved, contact BRP by filling out the
customer contact form at www.brp.com or contact BRP by mail at one
of the addresses listed under the CONTACT US section of this guide.
314
BRP LIMITED WARRANTY FOR THE
EUROPEAN ECONOMIC AND THE
COMMONWEALTH OF THE INDEPENDENT
STATES (CIS) AREAS AND TURKEY: 2024
LYNX® SNOWMOBILES
SCOPE OF THE LIMITED WARRANTY
Bombardier Recreational Products Inc. (“BRP”) warrants its 2024
LYNX snowmobiles sold by distributors or dealers authorized by BRP
to distribute LYNX snowmobiles ("LYNX Distributor / Dealer") in mem-
ber states of the European Economic Area (which is comprised of the
member states of the European Union plus the United Kingdom, Nor-
way, Iceland and Liechtenstein) ("EEA"), in member states of the
Commonwealth of the Independent States (including Ukraine and
Turkmenistan) (''CIS'') and Turkey from defects in material or work-
manship for the period and under the conditions described below.
Non-factory installed parts and accessories are not covered under this
limited warranty. Please refer to the applicable parts and accessories
limited warranty text.
This limited warranty will become null and void if: (1) the snowmobile
was used for racing or any other competitive activity, at any point,
even by a previous owner; or (2) the snowmobile has been altered or
modified in such a way so as to adversely affect its operation, perform-
ance or durability, or has been altered or modified to change its in-
tended use.
LIMITATIONS OF LIABILITY
TO THE EXTENT PERMITTED BY LAW, THIS WARRANTY IS
EXPRESSLY GIVEN AND ACCEPTED IN LIEU OF ANY AND
ALL OTHER WARRANTIES, EXPRESSED OR IMPLIED, IN-
CLUDING WITHOUT LIMITATION ANY WARRANTY OF MER-
CHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE.
TO THE EXTENT THAT THEY CANNOT BE DISCLAIMED, THE
IMPLIED WARRANTIES ARE LIMITED IN DURATION TO THE
LIFE OF THE EXPRESS WARRANTIES. INCIDENTAL AND
CONSEQUENTIAL DAMAGES ARE EXCLUDED FROM COVER-
AGE UNDER THIS WARRANTY. SOME JURISDICTIONS DO
NOT ALLOW FOR THE DISCLAIMERS, LIMITATIONS AND EX-
CLUSIONS IDENTIFIED ABOVE. AS A RESULT, THEY MAY
NOT APPLY TO YOU. THIS WARRANTY GIVES YOU SPECIFIC
RIGHTS, AND YOU MAY ALSO HAVE OTHER LEGAL RIGHTS
WHICH MAY VARY FROM COUNTRY TO COUNTRY. BRP
SHALL NOT BE HELD LIABLE IF PRODUCTS OR WARRANTY
PARTS ARE NOT AVAILABLE IN CERTAIN COUNTRIES FOR
REASONS OUTSIDE OF BRP’S CONTROL.
315
Neither the LYNX Distributor / Dealer nor any other person has been
authorized to make any affirmation, representation or warranty regard-
ing the product, other than those contained in this limited warranty,
and if made, shall not be enforceable against BRP.
BRP reserves the right to modify this warranty at any time, being
understood that such modification will not alter the warranty conditions
applicable to the products sold while this warranty is in effect.
EXCLUSIONS – ARE NOT WARRANTED
The following are not warranted under this limited warranty under any
circumstances:
-
Normal wear and tear;
–
Routine maintenance items, tune ups, adjustments;
–
Damage caused by negligence or failure to provide proper mainte-
nance and/or storage, as described in the operator's guide;
-
Damage resulting from removal of parts, improper repairs, service,
maintenance, modifications or use of parts or accessories not
manufactured or approved by BRP which in its reasonable judge-
ment are either incompatible with the product or adversely affect
its operation, performance and durability, or resulting from repairs
done by a person that is not an authorized servicing BRP snowmo-
bile distributor/ dealer;
-
Damage caused by abuse, abnormal use, neglect, racing or opera-
tion of the product on surfaces other than snow, or operation of the
product in a manner inconsistent with the recommended operation
described in the Operator’s Guide;
-
Damage resulting from accident, submersion, fire, snow or water
ingestion, theft, vandalism or any act of God;
-
Operation with fuels, oils or lubricants which are not suitable for
use with the product (see the Operator’s Guide);
-
Damage resulting from rust, corrosion or exposure to the
elements;
-
Incidental or consequential damages, or damages of any kind in-
cluding without limitation towing, storage, transportation expenses,
telephone, rental, taxi, inconvenience, insurance coverage, loan
payments, loss of time, loss of income; or time missed for down-
time experience due to service work.
-
And damage resulting from studs installed on tracks if the installa-
tion does not conform to BRP’s instructions.
WARRANTY COVERAGE PERIOD
This warranty will be in effect from (1) the date of delivery to the first
retail consumer or (2) the date the product is first put into use, which-
ever occurs first and for a period of:
316
TWENTY-FOUR (24) CONSECUTIVE MONTHS, for private use own-
ers and TWELVE (12) CONSECUTIVE MONTHS for commercial use
owners. However, the warranty coverage period on a snowmobile de-
livered between June 1st and December 1st of a given year will expire
November 30th of the applicable year. A snowmobile is used commer-
cially when it is used in connection with generating income or any work
or employment during any part of the warranty period. A snowmobile
is also used commercially when, at any point during the warranty peri-
od, it has commercial tags or is licensed for commercial use.
The repair or replacement of parts or the performance of service under
this warranty does not extend the life of this warranty beyond its origi-
nal expiration date.
Note that the duration and any other modalities of the warranty cover-
age are subject to the applicable national or local legislation in the cus-
tomer's country.
CONDITIONS TO HAVE WARRANTY COVERAGE
This warranty coverage is available only if each of the following condi-
tions has been fulfilled:
- The 2024 LYNX snowmobile must be purchased as new and un-
used by its first owner from a LYNX Distributor / Dealer authorized
to distribute LYNX products in the country in which the sale
occurred;
- The BRP specified pre-delivery inspection process must be com-
pleted and documented;
- The product must have undergone proper registration by an au-
thorized LYNX Distributor / Dealer;
- The 2024 LYNX snowmobile must be purchased in the country (or
in the case of the EEA, union of countries) in which the purchaser
resides; and
- Routine maintenance outlined in the operator’s guide must be
timely performed in order to maintain warranty coverage. BRP re-
serves the right to make warranty coverage contingent upon proof
of proper maintenance.
BRP will not honour this limited warranty to any private use owner or
commercial use owner if one of the preceding conditions has not been
met. Such limitations are necessary in order to allow BRP to preserve
both the safety of its products, and also that of its consumers and the
general public.
WHAT TO DO TO OBTAIN WARRANTY
COVERAGE
The customer must cease using the snowmobile upon the appearance
of an anomaly. The customer must notify a servicing LYNX Distributor
317
/ Dealer within two (2) months of the appearance of a defect, and pro-
vide it with reasonable access to the product and reasonable opportu-
nity to repair it. The customer must also present to the authorized
LYNX Distributor / Dealer, proof of purchase of the product and must
sign the repair / work order prior to starting the repair in order to vali-
date the warranty repair. All parts replaced under this limited warranty
become the property of BRP.
Note that the notification period is subject to the applicable national or
local legislation in customer's country.
WHAT BRP WILL DO
To the extent permitted by law, BRP’s obligations under this warranty
are limited to, at its sole discretion, repairing parts found defective
under normal use, maintenance and service, or replacing such parts
without charge for parts and labour, at any authorized LYNX Distribu-
tor / Dealer during the warranty coverage period under the conditions
described herein. BRP’s responsibility is limited to making the required
repairs or replacements of parts. No claim of breach of warranty shall
be cause for cancellation or rescission of the sale of the snowmobile
to the owner. You may have other legal rights which may vary from
country to country.
In the event that service is required outside of the country of original
sale, or for EEA residents, if service is required outside of the EEA,
the owner will bear responsibility for any additional charges due to lo-
cal practices and conditions, such as, but not limited to, freight, insur-
ance, taxes, license fees, import duties, and any and all other financial
charges, including those levied by governments, states, territories and
their respective agencies.
BRP reserves the right to improve or modify products from time to time
without assuming any obligation to modify products previously
manufactured.
TRANSFER
If the ownership of a product is transferred during the warranty cover-
age period, this limited warranty, subject to its terms and conditions,
shall also be transferred and be valid for the remaining coverage peri-
od provided BRP or an authorized LYNX Distributor / Dealer receives
a proof that the former owner agreed to the transfer of ownership, in
addition to the coordinates of the new owner.
CONSUMER ASSISTANCE
In the event of a controversy or a dispute in connection with this limited
warranty, BRP suggests that you try to resolve the issue at the LYNX
318
Distributor / Dealer level. We recommend discussing the issue with
the authorized LYNX Distributor / Dealer's service manager or owner.
If the matter still remains unresolved, contact BRP by filling out the
customer contact form at www.brp.com or contact BRP by mail at one
of the addresses listed under the CONTACT US section of this guide.
319
ADDITIONAL TERMS AND CONDITIONS FOR FRANCE ONLY
The following terms and conditions are applicable to products sold in
France only:
The seller shall deliver goods that are complying with the contract and
shall be responsible for defects existing upon delivery. The seller shall
also be responsible for defects resulting from packaging, assembling
instructions or the installation when it is its responsibility per the con-
tract or if accomplished under its responsibility. To be compliant with
the contract, the good shall:
1. Be fit for normal use for goods similar thereto and, if applicable:
- Correspond to the description provided by the seller and have
the qualities presented to the buyer though sample or model;
- Have the qualities that a buyer may legitimately expect consid-
ering the public declarations of the seller, the manufacturer of
its representative, including in advertising or labeling; or
2. Have the characteristics mutually agreed upon as between the par-
ties or be fit for the specific use intended by the buyer and brought
to the attention of the seller and which accepted.
The action for failure to comply is prescribed after two years after de-
livery of the goods. The seller is responsible for the warranty for hid-
den defects of the good sold if such hidden defects are rendering the
good unfit for the intended use, or if they diminish its use in such a
way that the buyer would not have acquired the good or would have
given a lesser price, had he known. The action for such hidden defects
shall be taken by the buyer within 2 years of the discovery of the
defect.
320
CUSTOMER
INFORMATION
321
DATA PRIVACY INFORMATION
Bombardier Recreational Products inc., its affiliates and subsidiaries
(“BRP”) is committed to protecting your privacy and support a general
policy of openness about how we collect, use and disclose your per-
sonal information in the course of managing our relationship with you.
More details can be found by visiting BRP’s Privacy Policy at:
https://brp. com/en/privacy-policy. html or by scanning the QR
Code below.
Please be assured that we have appropriate security measures in
place to ensure that your personal information is protected against
loss and unauthorized access.
Your personal information that may be collected by BRP, directly from
you or from authorized dealers or authorized third parties, includes:
- Contact, Demographic & Registration Information (e.g., name,
full address, phone number, email, gender, ownership history, lan-
guage of communication)
- Vehicle Information (e.g., serial number, purchase and delivery
date, unit usage, vehicle location and movements)
- Third Party Information (e.g., information received from BRP
partners, joint-marketing activities information, social media)
- Technological Information (e.g., IP address, type of device, op-
erating system, browser type, webpages you view, cookies and
similar technologies when you use BRP or dealers’ websites or
mobile application)
- Interaction with BRP Information (e.g., information collected
when you call BRP’s in-house sales representatives, buy items on
a BRP web Site, sign up for BRP emails, participate in BRP-spon-
sored contests and sweepstakes or attend BRP-sponsored
events)
- Transactional Information (e.g., information necessary to handle
returns, payment information when you purchase our products or
services through our websites or mobile applications and other is-
sues related to your purchase of BRP products)
This information may be used and processed for the following
purposes:
- Safety & Security
- Customer Support for Sales & After Sales (e.g., complete or follow
up with you about your purchase or maintenance)
- Registration & Warranty
- Communication (e.g., sending you a BRP satisfaction survey)
- Online Behavioural Advertising, Profiling and Location-Based
Services
(e.g., offer customized experience)
- Compliance & Dispute Resolution
- Marketing & Advertising
- Assistance (e.g., help with any delivery issues, handle returns, and
other issues related to your purchase of BRP products).
322
DATA PRIVACY INFORMATION
We also may use personal information to generate aggregated or stat-
istical data that no longer identifies you personally.
Your personal information may be disclosed to the following:
BRP, BRP’s authorized dealerships, distributors, service pro-
viders, advertising & market research partners and other author-
ized third parties.
We may receive information about you from diverse sources, including
third parties, such as BRP’s authorized dealerships and partners, with
whom we offer services or engage in joint-marketing activities. We
may also receive information about you from social media platforms
such as Facebook and Twitter, when you interact with us on those
platforms.
Depending on the circumstances, your personal information may be
communicated outside the region where you reside. Your personal in-
formation is retained only for as long as necessary for the purpose for
which we obtained it and according to our retention policies.
To exercise your data privacy rights (e.g. right of access, right of recti-
fication), to withdraw your consent in order to be removed from the ad-
dress list for marketing purposes or for the satisfaction survey or for
general data privacy questions, please contact BRP’s Data Protection
Officer at or by mail at privacyofficer@brp.com or by mail at:
BRP Legal Service, 726 St-Joseph, Valcourt, Quebec, Canada, J0E
2L0.
When BRP processes your personal information, they do so in
compliance with its Privacy Policy available at: https://www.brp.
com/en/privacy-policy.html or by using the following
QR Code.
323
CONTACT US
Asiia Paciific
Australia
Level 26
477 Pitt Street
Sydney, NSW 2020
China
上海市徐汇区衡山路10号6号楼301
Rm 301, Building 6,
No.10 Heng Shan Rd,
Shanghai, China
Japan
21F Shinagawa East One Tower
2-16-1 Konan, Minato-ku-ku,
Tokyo 108-0075
New Zealand
Suite 1.6, 2-8 Osborne Street,
Newmarket, Auckland 2013
Europe, Middle East and Afriica
Belgium
Oktrooiplein 1
9000 Gent
Czech Republic
Stefanikova 43a
Prague 5
150 00
Germany
Itterpark 11
40724 Hilden
Finland
Isoaavantie 7
PL 8040
96101 Rovaniemi
France
Arteparc Bâtiment B
Route de la côte d'Azur,
13590 Meyreuil
324
CONTACT US
Norway
Ingvald Ystgaardsvei 15
N-7484 Trondheim
Salg, marketing, ettermarked
Sweden
Spinnvägen 15
903 61 Umeå
Sweden 90821
Switzerland
Avenue d’Ouchy 4-6
1006 Lausanne
Latiin America
Brazil
Av. James Clerck Maxwell, 230
Campinas, Sao Paulo
CEP 13069-380
Mexico
Av. Ferrocarril 202
Parque Industrial Querétaro
Santo Rosa Jauregui, Querétaro
C.P. 76220
North Ameriica
Canada
3200A, rue King Ouest,
Suite 300
Sherbrooke (Québec) J1L 1C9
United States of America
10101 Science Drive
Sturtevant, Wisconsin
53177
325
CHANGE OF ADDRESS/OWNERSHIP
If your address has changed or if you are the new owner of the snow-
mobile, be sure to notify BRP by either:
- Notifying an authorized BRP snowmobile dealer or distributor.
- North America Only: calling at 1 888 272-9222.
- Mailing one of the change of address cards on the following pages
at one of the BRP addresses indicated in the Contact Us section of
this guide.
In case of change of ownership, please join a proof that the former
owner agreed to the transfer.
Notifying BRP, even after the expiration of the limited warranty, is very
important as it enables BRP to reach the snowmobile owner if neces-
sary, like when safety recalls are initiated. It is the owner’s responsibil-
ity to notify BRP.
STOLEN UNITS: If your personal snowmobile is stolen, you should
notify BRP or an authorized BRP snowmobile dealer. We will ask you
to provide your name, address, phone number, the vehicle identifica-
tion number and the date it was stolen.
326
