134

Infotainment system

input. To change the display

language

103.

Address input of destinations in

foreign countries

In case you want to enter the address

of a destination located in a foreign

country via voice input, you need to

change the language of the Info

Display to the language of the foreign

country.
E.g., if the display is currently set to

English and you want to enter the

name of a city located in France, you

need to change the display language

to French.
For changing the display language,

see "Language" in chapter "System

settings"

103.

Input order for destination addresses

The order in which the parts of an

address need to be entered using the

speech recognition system is

dependent on the country where the

destination is located.
If the speech recognition system

rejects your address entry, repeat the

command with a different order of the

address parts.

Activating speech recognition

Notice

Speech recognition is not available

during an active phone call.

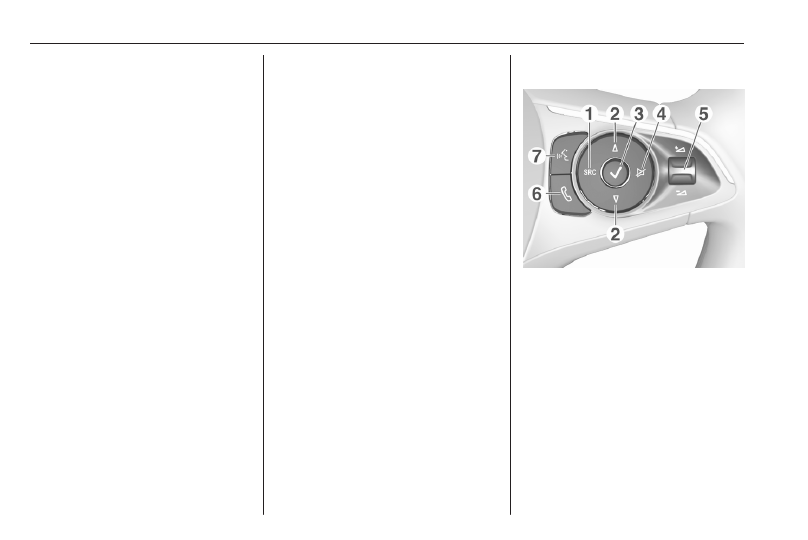

Activation via the

button on the

steering wheel

Press

on the steering wheel.

The audio system mutes, a voice

output message prompts you to say a

command, and help menus with the

most important commands currently

available are shown on the display.
The speech recognition is ready for

voice input, after a beep has been

given.
You can now say a voice command to

initiate a system function (e.g. playing

a preset radio station).

Adjusting the volume of voice

prompts

Press volume button on the steering

wheel upwards (increase volume)

or downwards (decrease volume)

Interrupting a voice prompt

As an experienced user, you can

interrupt a voice prompt by briefly

pressing

on the steering wheel.

Alternatively you can say "Set

dialogue mode as expert".
A beep is heard immediately, and a

command can be stated without

having to wait.

Cancelling a dialogue sequence

To cancel a dialogue sequence and

to deactivate the speech recognition,

press

on the steering wheel.

If you do not say any command for a

certain period of time, or if you say

commands that are not recognised by

the system, a dialogue sequence is

automatically cancelled.

Operation via speech commands

Follow the instructions given by voice

output and shown on the display.

Infotainment system

135

For best results:

● Listen for the voice prompt and

wait for the beep before saying a

command or replying.

● Read the example commands on

the display.

● The voice prompt can be

interrupted by pressing

again.

● Wait for the beep and then speak

the command naturally, not too

fast, not too slow.

Usually commands can be spoken in

a single command.

Voice pass-thru application

The voice pass-thru application of the

Infotainment system allows access to

the speech recognition commands on

your smartphone.
Voice pass-through is available via

the phone projection applications

Apple CarPlay and Android Auto.

Activating speech recognition

Press and hold

on the steering

wheel until a speech recognition

session is started.

Adjusting the volume of voice

prompts

Turn

)

on the control panel or press

volume button on the steering wheel

upwards (increase volume)

downwards (decrease volume)

Deactivating speech recognition

Press

on the steering wheel. The

speech recognition session is ended.

Phone

The phone function provides you with

the possibility of having mobile phone

conversations via a vehicle

microphone and the vehicle

loudspeakers as well as operating the

most important mobile phone

functions via the Infotainment system

in the vehicle. To be able to use the

phone function, the mobile phone

must be connected to the

Infotainment system via Bluetooth.
Not all phone functions are supported

by every mobile phone. The usable

phone functions depend on the

relevant mobile phone and network

provider. You can find further

information on this in the operating

instructions for your mobile phone, or

you can enquire about them with your

network provider.

Important information for

operation and traffic safety

Warning

Mobile phones have effects on

your environment. For this reason

safety regulations and directions

have been prepared. You should

be familiar with the related

directions before you use the

telephone function.

Warning

Use of the hands-free facility while

driving can be dangerous because

your concentration is reduced

when telephoning. Park your

136

Infotainment system

vehicle before you use the hands-

free facility. Follow the stipulations

of the country in which you find

yourself at present.
Do not forget to follow the special

regulations that apply in specific

areas and always switch off the

mobile phone if the use of mobile

phones is prohibited, if

interference is caused by the

mobile phone or if dangerous

situations can occur.

Pairing a device

During the pairing process, PIN code

exchange between the Bluetooth

device and the Infotainment system

and connection of the Bluetooth

devices to the Infotainment system

are carried out.

Important information

● Two paired Bluetooth devices

can be connected to the

Infotainment system at the same

time. One device in hands-free

mode, the other in audio

streaming mode, see description

on Bluetooth profile settings

below.
However, two devices cannot be

used in hands-free mode at the

same time.

● Pairing only needs to be carried

out once, unless the device is

deleted from the list of paired

devices. If the device has been

connected previously, the

Infotainment system establishes

the connection automatically.

● Bluetooth operation considerably

drains the device's battery.

Therefore, connect the device to

the USB port for charging.

Pairing a new device

1. Activate the Bluetooth function of

the Bluetooth device. For further

information, see the operating

instructions for the Bluetooth

device.

2. If another Bluetooth device is

already connected:
Press

, select OPTIONS, select

Bluetooth connection and then

touch

Search.

If no Bluetooth device is currently

connected:
Press

and then touch

Bluetooth search.
A search for all Bluetooth devices

in the near environment is

performed.

3. Select the Bluetooth device you

wish to pair from the displayed list.

4. Confirm the pairing procedure:

● If SSP (secure simple

pairing) is supported:
Confirm the messages on the

Infotainment system and the

Bluetooth device.

● If SSP (secure simple

pairing) is not supported:
On the Infotainment system:

a message is displayed

asking you to enter a PIN

code on your Bluetooth

device.
On the Bluetooth device:

enter the PIN code and

confirm your input.

5. Activate the functions you want

the paired smartphone to perform

Infotainment system

137

and confirm your settings. You

can change these Bluetooth

profile settings at any time, see

below.
The Infotainment system and the

device are paired.

6. The phone book is downloaded

automatically to the Infotainment

system. Depending on the phone,

the Infotainment system must be

allowed access to the phone

book. If required, confirm the

messages displayed on the

Bluetooth device.
If this function is not supported by

the Bluetooth device, a

corresponding message is

displayed.

Operations on paired devices

Press

, select OPTIONS and then

select Bluetooth connection.
A list of all paired devices is

displayed.

Changing the Bluetooth profile

settings

Touch

next to the desired paired

device.
Activate or deactivate the profile

settings as desired and confirm your

settings.

Connecting a paired device

Devices which are paired but not

connected are identified by

Select the desired device to connect

it.

Disconnecting a device

The currently connected device is

identified by

Select the device to disconnect it.

Deleting a paired device

Touch

in the upper right corner of

the screen to display

icons next to

each paired device.
Touch

next to the Bluetooth device

you want to delete and confirm the

displayed message.

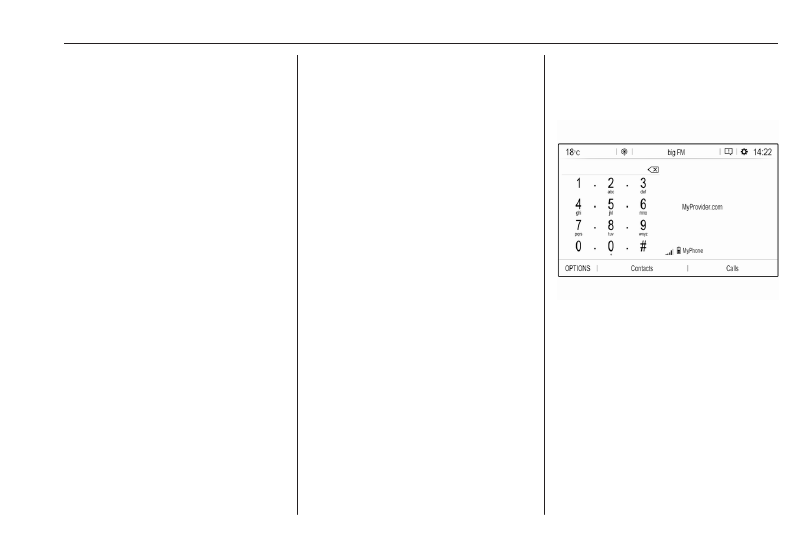

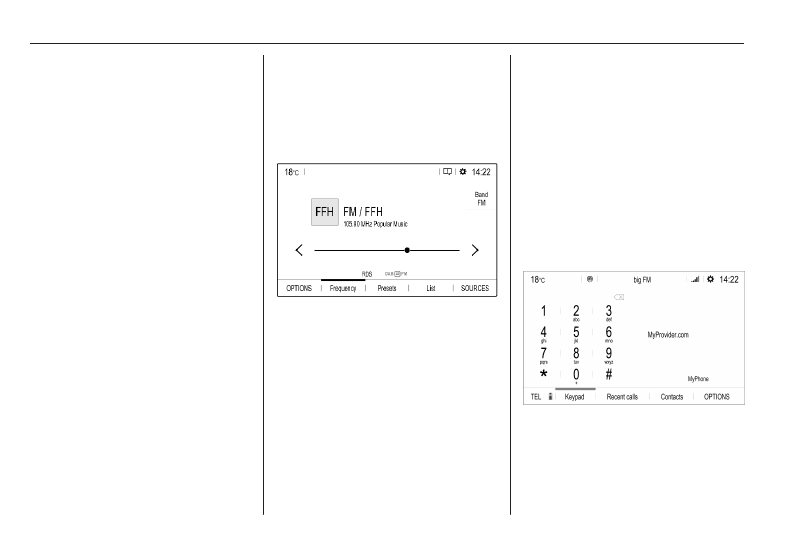

Phone main menu

Press

to display the phone

main menu.

Many functions of the mobile phone

can now be controlled via the phone

main menu (and associated

submenus), and via the phone-

specific controls on the steering

wheel.

Initiating a phone call

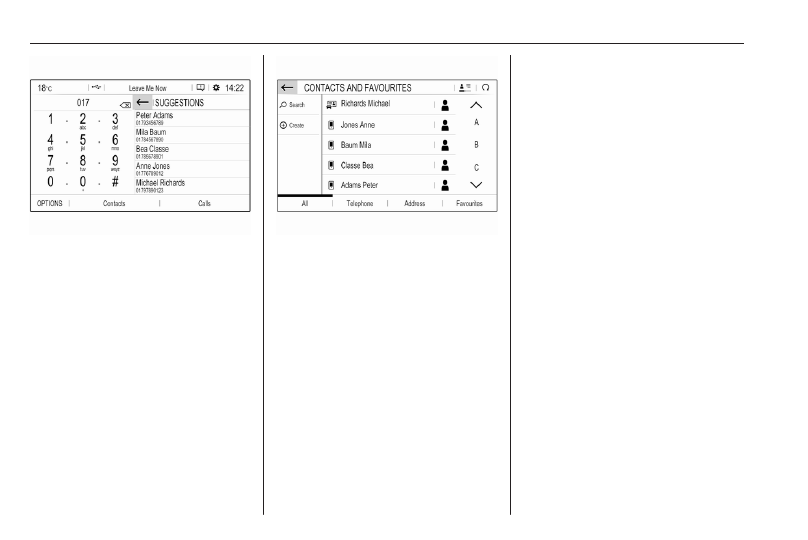

Entering a phone number

Enter a phone number using the

keypad in the phone main menu.

138

Infotainment system

As soon as figures are entered,

matching entries from the contacts list

are displayed in alphabetical order.
Touch the desired list entry to initiate

a phone call.

Using the contacts list

The contacts list contains all phone

book entries from the connected

Bluetooth device and all contacts

from the navigation system.
Select Contacts and then select the

desired list type.

Searching for a contact

The contacts are ordered by the first

name or surname. To change the

order, touch

To scroll through the list, use the

scroll bar,

To search for a contact via keyboard,

touch Search.
Modifying or deleting a contact

Select

next to the contact and then

select the desired option.
If you want to add a photo to the

contact:

Connect a USB device with the

desired photo stored on it to the USB

port

119, touch the photo frame and

then select the desired photo.
Confirm your selection to download

the selected photo to the system.

Using the call history

All incoming, outgoing, or missed

calls are registered.
Select Calls and then select the

desired list.
Select the desired list entry to initiate

a call.

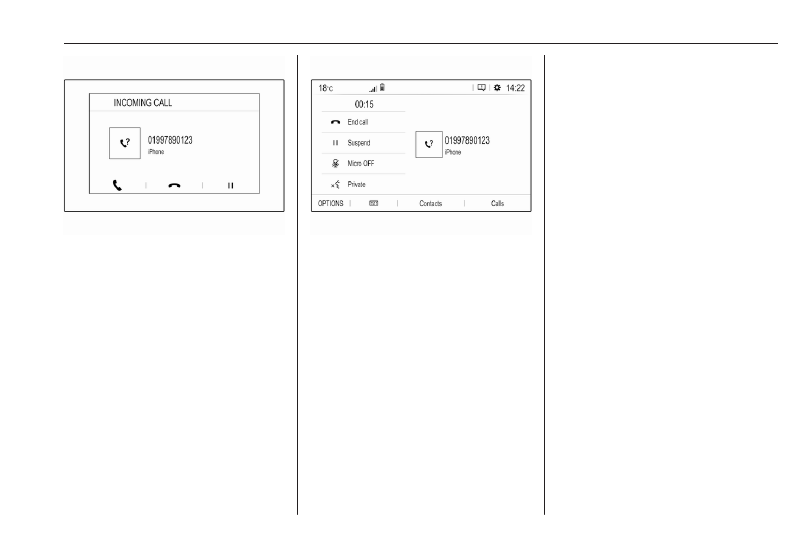

Incoming phone call

If an audio mode, e.g. the radio or

USB mode, is active at the moment a

call comes in, the audio source is

muted and stays muted until the call

ends.
A message with the caller's phone

number or name is displayed.

Infotainment system

139

To answer the call, touch

To reject the call, touch

To put the call on hold, touch

. To

resume to the call, touch

During the ongoing call, the following

menu is displayed.

To mute the microphone of the

Infotainment system, touch Micro

OFF.
To continue conversation via the

mobile phone (private mode), touch

Private. To reactivate the

conversation via the Infotainment

system, touch

Private.

Notice

If you leave the vehicle and lock it

while you are still in a private mode

phone conversation, the

Infotainment system may remain

switched on until you leave the

Bluetooth reception area of the

Infotainment system.

Put incoming calls always on hold

For safety reasons the phone function

can put all incoming calls on hold by

default.
To activate this function, select

OPTIONS, select Security and then

select Put incoming calls on hold.

Quick messages

Different quick messages can be sent

to contacts via the Infotainment

system.
Select OPTIONS and then Quick

messages to display a list of quick

messages sorted by different

categories.
To send a quick message, select the

respective message and choose the

contact.

140

Infotainment system

Multimedia

Introduction

Important information on operation

and traffic safety

Warning

Drive safely at all times. Only

operate the Infotainment system if

the traffic conditions allow a safe

usage.
In the interest of safety, it might be

appropriate to stop the vehicle

before operating the Infotainment

system.

Warning

The usage of a navigation app

does not release the driver from

the responsibility for a correct,

vigilant attitude in road traffic.

Always follow the applicable traffic

rules.

Radio reception

Radio reception may be disrupted by

static, noise, distortion or loss of

reception due to:

● changes in distance from the

transmitter

● multi-path reception due to

reflection

● shadowing

Theft-deterrent feature

The Infotainment system is equipped

with an electronic security system for

the purpose of theft deterrence.
The Infotainment system therefore

functions only in your vehicle and is

worthless to a thief.

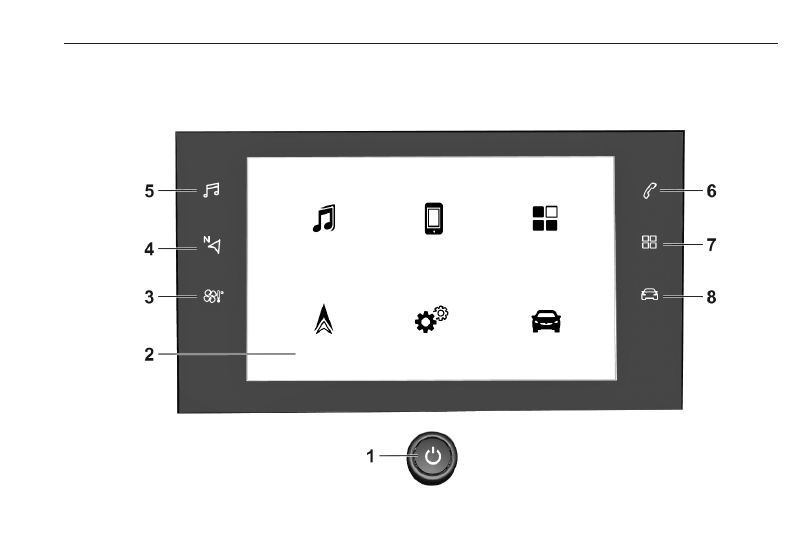

142

Infotainment system

)

If switched off: switch

power on / off
If switched on: mute system
Turn: adjust volume

Info Display
Home menu will be

displayed by a 3-finger

touch on screen

Open climate menu if available

Display navigation app

when phone projection is

active ................................... 151

Open audio menu:
Radio ................................... 149
External devices (USB,

Bluetooth) ............................ 151

Open phone menu .............. 156
Display phone projection

screen when phone

projection is active .............. 151

Open menu for picture

function ............................... 151

Open vehicle settings menu . 89

Steering wheel controls

SRC (Source)
Select audio source,

confirm selection with

Long press: mute system

Select next / previous

preset radio station when

radio active .......................... 149
or select next / previous

track / picture when

external devices active ....... 151

Infotainment system

143

or select next / previous

entry in station list, media

list, call / contacts list when

operation started via

steering wheel controls
Confirm selection with

Confirm selected item
or open station list, media list

Activate / deactivate mute

function

Turn upwards /

downwards: increase /

decrease volume

Short press: accept

incoming call
Long press: reject

incoming call, hang up call .. 156

or open call / contacts list . . . 156
If phone call active: open

call in progress menu

(with embedded speech

recognition)
Short press: activate

embedded speech recognition
Long press: activate

speech recognition in

Apple CarPlay™ or

Android™ Auto if phone

connected via USB port ...... 154
(without embedded

speech recognition)
Short press: activate

speech recognition in

Apple CarPlay™ or

Android™ Auto if phone

connected via USB port

Control elements

The Infotainment system is operated

via function buttons, a touch screen

and menus that are shown on the

display.
Inputs are made optionally via:

● the control panel on the

Infotainment system

● the touch screen
● audio controls on the steering

wheel

● the speech recognition

154

Switching the Infotainment

system on or off

Press

)

. After switching on, the last

selected Infotainment source

becomes active.

Notice

Some functions of the Infotainment

system are only available if ignition

is switched on or engine is running.

144

Infotainment system

Automatic switch-off

If the Infotainment system has been

switched on pressing

)

while the

ignition is switched off, it will switch off

again automatically when the Eco

mode becomes active.

Setting the volume

Turn

)

. The current setting is shown

on the display.
When the Infotainment system is

switched on, the last selected volume

is set.

Speed compensated volume

When the speed compensated

volume is activated, the volume is

adapted automatically to make up for

the road and wind noise as you drive.

Mute

Press

)

to mute the Infotainment

system.
To cancel the mute function,

press

)

again. The last selected

volume is set again.

Modes of operation

Audio-Media

Press

to display the main menu of

the last selected audio mode.

Changing the media source

Select SOURCES to display the

menu for media source selection.
Select the desired media source.
For a detailed description of:

● Radio functions

149

● External devices

151

Phone

Before the phone function can be

used, a connection has to be

established between the Infotainment

system and the mobile phone.
For a detailed description of

preparing and establishing a

Bluetooth connection between the

Infotainment system and a mobile

phone

156.

If the mobile phone is connected,

press

to display the main menu of

the phone function.

For a detailed description of mobile

phone operation via the Infotainment

system

156.

Infotainment system

145

Apps

To show specific apps of your

smartphone on the display of the

Infotainment system, connect your

smartphone.
Press

and touch Apple CarPlay or

Android Auto. A menu with different

selectable apps is displayed.
For a detailed description

151.

Settings

Press

, select OPTIONS and then

select Audio settings to display the

respective menu.

For a detailed description.
Touch the top bar

of the screen to

display a menu for various system-

related settings.

For a detailed description.

Vehicle settings

Select

to open a menu for various

vehicle-related settings.
Vehicle personalisation

89.

Settings center

The Settings center provides quick

access to the following settings:

● dark screen
● brightness
● profiles
● system configuration
● privacy settings

Touch the top bar

of the screen to

display the Settings center.

Menu operation

The display of the Infotainment

system has a touch-sensitive surface

that allows direct interaction with the

displayed menu controls.

Caution

Do not use pointed or hard items

like ballpoint pens, pencils or

similar for touch screen operation.

Selecting or activating a screen

button or menu item

Touch a screen button or menu item.

146

Infotainment system

The corresponding system function is

activated, a message is shown, or a

submenu with further options is

displayed.

and

/ OK screen buttons

When operating the menus, touch

in the respective submenu

to return to the next higher menu

level.
When no

screen button is

displayed, you are on the top level of

the respective menu.
On some screens

/ OK needs to

be touched for confirmation after

selecting menu items or changing

settings. Otherwise all performed

selections or settings will be lost.

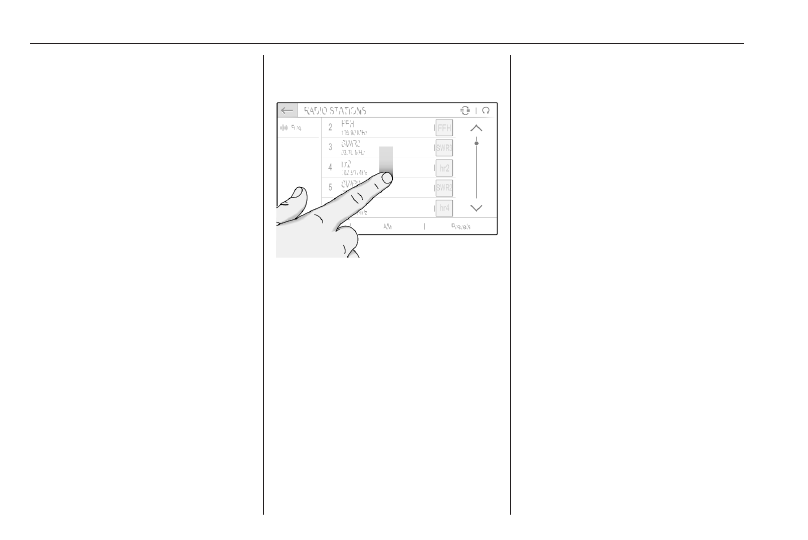

Scrolling a list

If there are more items available than

presentable on the screen, the list

must be scrolled.
To scroll through a list of menu items,

you may optionally:

● Place your finger anywhere on

the screen and move it upwards

or downwards.

Notice

Constant pressure must be applied

and the finger must be moved at a

constant speed.

● Touch

at the top or

bottom of the scroll bar.

● Touch anywhere on the guiding

line of the scroll bar.

● Move the slider of the scroll bar

up and down with your finger.

Updating a list

Touch

to manually update lists,

e.g. the station list.

Input fields and keyboards

Input fields are indicated by

Touch the input field to open a

keyboard for text or number input.
Depending on the application or

function currently active, different

keyboards are displayed.
Keyboards for text input

Keyboards for text input may contain

several input fields. To enable a field

for text input, touch it.
To enter a character, touch the

respective screen button. The

character is entered upon release.
Touch and hold a letter screen button

to display associated letters in a letter

pop-up menu. Release and then

select the desired letter.

Infotainment system

147

To switch to the symbol keyboard,

touch 0..#.
To switch back to the letter keyboard

or to switch between capital and small

letters, touch Aa.
To switch the letter keyboard

between normal order and

alphabetical order, touch

To delete the most recently entered

character or symbol, touch

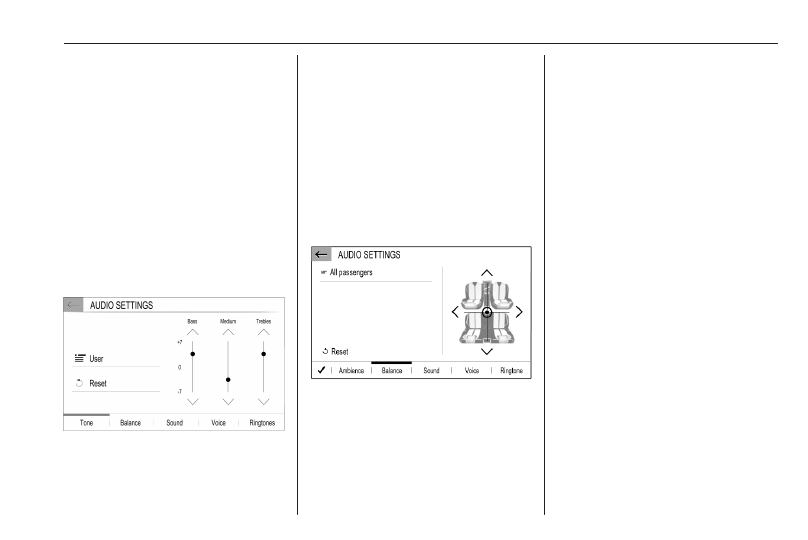

Audio settings

Press

, select OPTIONS and then

select AUDIO SETTINGS.

Several predefined settings are

available to optimise the tone for a

specific style of music (e.g. Pop-

Rock or Classical).

To adjust the tone individually, select

User. Change the settings as desired.

Notice

If you change the settings of a

predefined setting, e.g. Pop-Rock,

this settings will be applied to the

User or Personalised setting.

Balance and fader

Select the Balance tab.

Several predefined settings are

available to adjust the volume

distribution inside the vehicle (e.g. All

passengers or Front only).

To change the current setting, e.g. All

passengers, select that setting and

then select the desired new setting

from the displayed list.
You may individually adjust the

predefined settings.
To define the point in the passenger

compartment where the volume is at

its highest level, move the cursor in

the illustration on the right side of the

screen to the desired point.
To return to the default factory

settings, select

Volume settings

Press

, select OPTIONS and then

select AUDIO SETTINGS. Then

select the Sound tab.

Audible touch feedback

If the audible touch feedback function

is activated, each touch of a screen

button or menu item is indicated by a

beeping sound.
To adjust the touch beep volume,

activate Touch tones and then adjust

the setting.

148

Infotainment system

Speed compensated volume

Activate or deactivate Volume linked

to speed.
If activated, the volume of the

Infotainment system is adapted

automatically to make up for the road

and wind noise as you drive.

Speech output

Select the Voice tab.
Adjust the volume for all speech

outputs of the system.

Ringtone

Select the Ringtones tab.
Adjust the ringtone volume of

incoming calls.

System settings

Touch the top bar

of the screen to

display the Settings center.
The configuration menu is accessible

via the Settings center.

Configuring the system

Select System configuration to

perform some basic system

configurations, e.g.:

● Adjust the display of units for

temperature or fuel consumption.

● Reset the system configuration to

factory defaults.

● Update the installed software

version.

● Adjust the privacy settings for

data sharing and vehicle position.

Changing display language

To adjust the language for the menu

texts, select Language and then

select the desired language.

Notice

If the selected display language is

supported by the embedded speech

recognition, the language of the

speech recognition will be changed

accordingly; if not, embedded

speech recognition will be not

available.

Adjusting time and date

Select Date and time.
To adjust the time and date, select the

respective tabs.

Adjusting the screen

Select Screen configuration.
Text scroll function

Select the Animation tab.
If long texts on the screen should be

scrolled automatically, activate

Automatic scrolling.
If Automatic scrolling is deactivated,

long texts are truncated.
Adjusting the brightness

Select Brightness and set the

brightness of the screen to the

desired level.

Infotainment system

149

Storing your personal settings

To go to the profile settings, touch the

top bar of the screen

and then

select Profiles.
You can store a multitude of settings

in a personal profile. For example, all

current tone settings, all radio presets

and a phone book.
In case you share the vehicle with

other people, this enables you to

restore your personal settings from

your profile at any time.
A maximum of three personal profiles

may be stored.
Additionally, a Common profile is

available. All settings done at any

time are automatically stored in that

profile. If no personal profile is

activated, the Common profile is

active.

Storing your personal profile

After performing all your personal

settings:
Select one of the personal profile

tabs.
Select the input field

and enter the

desired name of your personal profile.

Finally, confirm your inputs to store

them in your personal profile.

Activating your personal profile

Touch the top bar

of the screen,

then select Profiles and then select

the tab with the name of your personal

profile.

Activating the Common profile

If a personal profile is currently active:
Go to the Common profile tab and

then select Activate profile.

Resetting a personal profile

You can at any time reset a personal

profile to restore the default factory

settings on that profile.
Activate the respective profile and

then select Reset the profile.

Resetting the Common profile

You can at any time reset the

Common profile to restore the default

factory settings on that profile.
Select Common profile and then

select Reset the common profile.

Audio

Activating the radio

Press

. The audio main menu last

selected is displayed.
If the radio main menu is not active,

select SOURCES and then select

Radio.

The station last played will be

received.

Selecting a waveband

Select OPTIONS and repeatedly

touch

to toggle between the

different wavebands.

150

Infotainment system

Searching for stations

Automatic station search

Briefly touch

to play the

previous or next receivable station.

Manual station search

Press and hold

. Release when

the required frequency has almost

been reached.
A search is made for the next station

that can be received and it is played

automatically.

Station lists

In the station lists, all receivable radio

stations within the current reception

area are available for selection.
To display the station list of the

waveband currently active, select

List.
Select the desired station.
Update station lists

If the stations stored in the waveband-

specific station list can no longer be

received, the station lists must be

updated.
To start an update for the currently

active waveband, select

Storing favourite stations

Up to 24 radio stations of all

wavebands can be stored as

favourites in the Presets list.

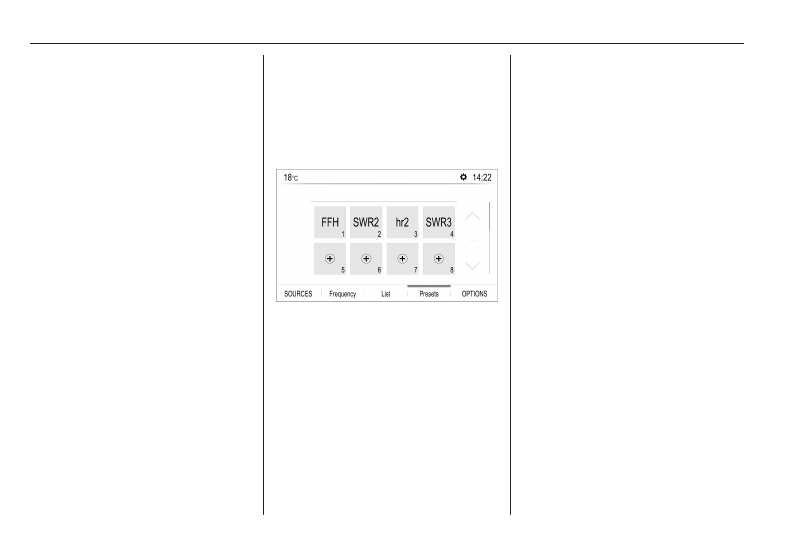

Select Presets to display the preset

buttons.

Storing the currently active station

Touch and hold the desired button in

the Presets list for a few seconds. The

respective frequency or station name

is displayed on the button.
If a station is already stored on a

preset button, that station will be

overwritten by the new one.
Alternatively, touch

;

Mem in the

radio main menu to store the currently

active station.

Storing a station from a station list

Select OPTIONS and then select the

desired waveband.
To store a station from the station list,

briefly touch

;

next to the desired

station. The station is stored and the

number of the preset button will be

displayed. To delete a station,

touch

;

again.

Alternatively, touch and hold the

name of the station until it is stored.

To delete the station, touch and hold

the name of the station again until a

corresponding message is displayed.

Retrieving stations

In the radio main menu select

Presets and then briefly touch the

preset button of the desired station.

Activating RDS

In the radio main menu, select

OPTIONS and activate RDS.
If RDS is activated, RDS is displayed

in the bottom line of the radio main

menu.

Infotainment system

151

Radio text

If RDS is activated, information on the

radio programme currently active or

the music track currently playing are

displayed below the programme

name.
To show or hide the information, go to

the OPTIONS menu and activate or

deactivate Information.

Traffic announcements

Many RDS stations broadcast traffic

news. If the traffic announcements

function is activated, radio or media

playback is interrupted for the

duration of a traffic announcement.
To activate traffic announcements, go

to the OPTIONS menu and activate

TA.
If TA is activated, TA is displayed in

the bottom line of the radio main

menu.

Digital audio broadcasting

Digital audio broadcasting (DAB)

broadcasts radio stations digitally.
DAB stations are indicated by the

programme name instead of the

broadcasting frequency.

FM-DAB Linking

This function enables switching from

an FM station to a corresponding

DAB station and vice versa.
Switching from FM to DAB occurs as

soon as a corresponding DAB station

is available. Therefore, it is

recommended to store favourite

stations as DAB stations to reduce

frequent switching.
Switching from DAB to FM occurs if

the signal is too weak to be picked up

by the receiver and the corresponding

FM station is available.

Notice

After switching, the volume might be

different.

Activation

Precondition is that RDS is activated

before FM-DAB Linking can be

activated.
To activate FM-DAB Linking, select

OPTIONS in the radio main menu and

then select FM-DAB Follow-up.
The following symbol will be

displayed when FM-DAB Linking is

activated:

Deactivation

To deactivate FM-DAB Linking, select

OPTIONS in the radio main menu and

then deselect FM-DAB Follow-up.
FM-DAB Linking will automatically be

deactivated when RDS is

deactivated.

External devices

A USB port is located in the centre

console.

Caution

To protect the system, do not use

a USB hub.

Notice

The USB ports must always be kept

clean and dry.

152

Infotainment system

USB ports

An MP3 player, USB device, SD card

(via USB connector / adapter) or

smartphone can be connected to the

USB port.
The Infotainment system can play

audio files or show picture files

contained in USB devices.
When connected to a USB port,

various functions of the devices

mentioned above can be operated via

the controls and menus of the

Infotainment system.

Notice

Not all auxiliary devices are

supported by the Infotainment

system.

Connecting / disconnecting a device

Connect one of the devices

mentioned above to a USB port. If

required, use the appropriate

connection cable. The music function

starts automatically.

Notice

If a non-readable USB device is

connected, a corresponding error

message appears and the

Infotainment system automatically

switches to the previous function.

To disconnect a USB device, select

another function and then remove the

USB device.

Caution

Avoid disconnecting the device

during playback. This may

damage the device or the

Infotainment system.

Bluetooth audio streaming

Streaming allows you to listen to

music from your smartphone.
For a detailed description on how to

establish a Bluetooth connection

156.

If audio playback does not start

automatically, it may be necessary to

start the playback on the smartphone.

First adjust the volume on your

smartphone (to a high level). Then

adjust the volume of Infotainment

system.

File formats

The audio equipment supports

different file formats.

Activating the music function

Connecting the USB or Bluetooth

device.
If device already connected, but

playback of stored music files not

active:
Press

, select SOURCES and then

select the respective source.
Playback of the audio tracks starts

automatically.

Playback functions

Interrupting and resuming playback

Touch

to interrupt playback. The

screen button changes to

Touch

to resume playback.

Infotainment system

153

Playing the previous or next track

Touch

Fast forwarding and rewinding

Touch and hold

. Release to

return to normal playback mode.
Alternatively, you can move the slider

showing the current track position to

the left or right.

Playing tracks randomly

Select OPTIONS and touch the

Random icon repeatedly:

: play tracks of currently selected

list (album, artist, etc.) in random

order.

: play all tracks stored on

connected device in random order.

: play tracks of currently selected

list (album, artist, etc.) in normal

playback mode.

Repeating tracks

Select OPTIONS and touch the

Repeat icon

repeatedly to select

one of the following options:

: repeat tracks of currently

selected list (album, artist, etc.)

: repeat tracks of currently

selected list (album, artist, etc.) once

: play tracks of currently selected

list (album, artist, etc.) in normal

playback mode

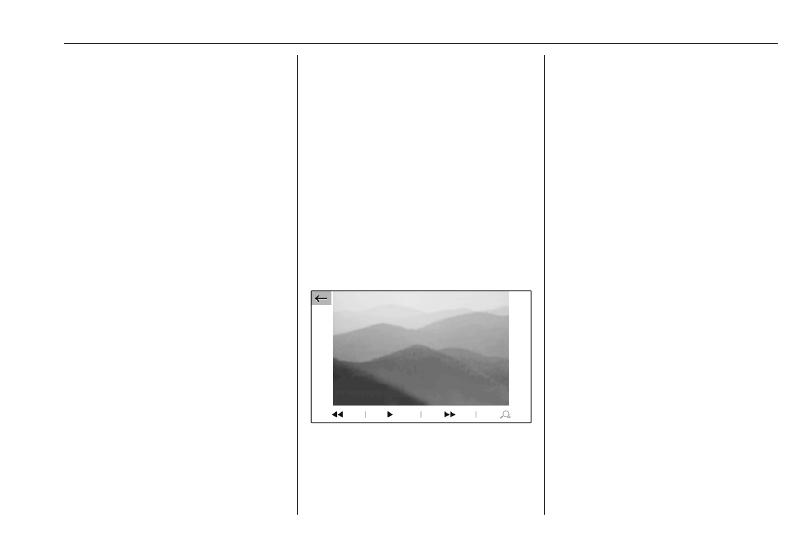

Activating the picture viewer

Connecting the USB device.
If device already connected, but

picture viewer not active:
Press

, select Photos and choose

the desired folder and picture.

Touch the screen to display the menu

bar.

Viewing the previous or next


Touch

Starting or stopping a slide show

Select

to view the pictures stored

on the USB device in a slide show.
Touch

to end the slide show.

Phone projection

The phone projection applications

Apple CarPlay and Android Auto

display selected apps from your

smartphone on the Info Display and

allow their operation directly via the

Infotainment controls.
Check with the device's manufacturer

if this function is compatible with your

smartphone and if this application is

available in the country you are in.

Preparing the smartphone

iPhone

: Make sure Siri

is activated

on your phone.
Android phone: Download the

Android Auto app to your phone from

the Google Play™ Store.

154

Infotainment system

Connecting the smartphone

iPhone

Connect the phone to the USB port.
If the phone is already connected via

Bluetooth, upon connecting to the

USB port and launching Apple

CarPlay, the Bluetooth connection

will disconnect. After disconnecting

the USB connection, the phone will be

connected via Bluetooth again.
Android phone

Connect the phone via Bluetooth

156 and then connect the phone to

the USB port.

Starting phone projection

If phone projection is not starting

automatically, press

and then

touch Apple CarPlay or

Android Auto.
The phone projection screen

displayed depends on your

smartphone and software version.

Returning to the Infotainment screen

Press, e.g., the

button on the

control panel.

Speech recognition

Embedded speech recognition

The embedded speech recognition of

the Infotainment system enables you

to operate various functions of the

Infotainment system via voice input. It

recognises commands and numeric

sequences independently of the

relevant speaker. The commands

and numeric sequences can be

spoken without a voice pause

between the individual words.
In the event of incorrect operation or

commands, the speech recognition

gives visual and / or acoustic

feedback and requests you to re-

enter the desired command. Apart

from this, the speech recognition

acknowledges important commands

and will enquire if necessary.
In general, there are different ways to

speak commands for performing the

desired actions.

Notice

To ensure that conversations inside

the vehicle do not lead to

unintentional triggering of the

system functions, the speech

recognition does not start until it has

been activated.

Important information

Language support

● Not all languages available for

the display of the Infotainment

system are also available for the

speech recognition.

● If the display language currently

selected is not supported by the

speech recognition, speech

recognition is not available.
In such a case, you need to select

another language for the display

if you want to control the

Infotainment system via voice

input. To change the display

language

140.

Activating speech recognition

Notice

Speech recognition is not available

during an active phone call.

Activation via the

button on the

steering wheel

Press

on the steering wheel.

Infotainment system

155

The audio system mutes, a voice

output message prompts you to say a

command, and help menus with the

most important commands currently

available are shown on the display.
The speech recognition is ready for

voice input, after a beep has been

given.
You can now say a voice command to

initiate a system function (e.g. playing

a preset radio station).

Adjusting the volume of voice

prompts

Press volume button on the steering

wheel upwards (increase volume)

or downwards (decrease volume)

Interrupting a voice prompt

As an experienced user, you can

interrupt a voice prompt by briefly

pressing

on the steering wheel.

Alternatively you can say "Set

dialogue mode as expert".
A beep is heard immediately, and a

command can be stated without

having to wait.

Cancelling a dialogue sequence

To cancel a dialogue sequence and

to deactivate the speech recognition,

press

on the steering wheel.

If you do not say any command for a

certain period of time, or if you say

commands that are not recognised by

the system, a dialogue sequence is

automatically cancelled.

Operation via speech commands

Follow the instructions given by voice

output and shown on the display.
For best results:

● Listen for the voice prompt and

wait for the beep before saying a

command or replying.

● Read the example commands on

the display.

● The voice prompt can be

interrupted by pressing

again.

● Wait for the beep and then speak

the command naturally, not too

fast, not too slow.

Usually commands can be spoken in

a single command.

Voice pass-thru application

The voice pass-thru application of the

Infotainment system allows access to

the speech recognition commands on

your smartphone.
Voice pass-through is available via

the phone projection applications

Apple CarPlay and Android Auto.

Activating speech recognition

Press (without embedded speech

recognition) or press and hold (with

embedded speech recognition)

the steering wheel until a speech

recognition session is started.

Adjusting the volume of voice

prompts

Turn

)

on the control panel or press

volume button on the steering wheel

upwards (increase volume)

downwards (decrease volume)

Deactivating speech recognition

Press

on the steering wheel. The

speech recognition session is ended.

156

Infotainment system

Phone

The phone function provides you with

the possibility of having mobile phone

conversations via a vehicle

microphone and the vehicle

loudspeakers as well as operating the

most important mobile phone

functions via the Infotainment system

in the vehicle. To be able to use the

phone function, the mobile phone

must be connected to the

Infotainment system via Bluetooth.
Not all phone functions are supported

by every mobile phone. The usable

phone functions depend on the

relevant mobile phone and network

provider. You can find further

information on this in the operating

instructions for your mobile phone, or

you can enquire about them with your

network provider.

Important information for

operation and traffic safety

Warning

Mobile phones have effects on

your environment. For this reason

safety regulations and directions

have been prepared. You should

be familiar with the related

directions before you use the

telephone function.

Warning

Use of the hands-free facility while

driving can be dangerous because

your concentration is reduced

when telephoning. Park your

vehicle before you use the hands-

free facility. Follow the stipulations

of the country in which you find

yourself at present.
Do not forget to follow the special

regulations that apply in specific

areas and always switch off the

mobile phone if the use of mobile

phones is prohibited, if

interference is caused by the

mobile phone or if dangerous

situations can occur.

Pairing a device

During the pairing process, PIN code

exchange between the Bluetooth

device and the Infotainment system

and connection of the Bluetooth

devices to the Infotainment system

are carried out.

Important information

● Two paired Bluetooth devices

can be connected to the

Infotainment system at the same

time. One device in hands-free

mode, the other in audio

streaming mode, see description

on Bluetooth profile settings

below.
However, two devices cannot be

used in hands-free mode at the

same time.

● Pairing only needs to be carried

out once, unless the device is

deleted from the list of paired

devices. If the device has been

Infotainment system

157

connected previously, the

Infotainment system establishes

the connection automatically.

● Bluetooth operation considerably

drains the device's battery.

Therefore, connect the device to

the USB port for charging.

Pairing a new device

1. Activate the Bluetooth function of

the Bluetooth device. For further

information, see the operating

instructions for the Bluetooth

device.

2. Press

and then touch Bluetooth

search.
A search for all Bluetooth devices

in the near environment is

performed.

3. Select the Bluetooth device you

wish to pair from the displayed list.

4. Confirm the pairing procedure:

● If SSP (secure simple

pairing) is supported:

Confirm the messages on the

Infotainment system and the

Bluetooth device.

● If SSP (secure simple

pairing) is not supported:
On the Infotainment system:

a message is displayed

asking you to enter a PIN

code on your Bluetooth

device.
On the Bluetooth device:

enter the PIN code and

confirm your input.
The Infotainment system and

the device are paired.

5. The phone book is downloaded

automatically to the Infotainment

system. Depending on the phone,

the Infotainment system must be

allowed access to the phone

book. If required, confirm the

messages displayed on the

Bluetooth device.
If this function is not supported by

the Bluetooth device, a

corresponding message is

displayed.

Operations on paired devices

Press

, select TEL and then select

Bluetooth connection.
A list of all paired devices is

displayed.

Changing the Bluetooth profile

settings

Touch

next to the desired paired

device.
Activate or deactivate the profile

settings as desired and confirm your

settings.

Connecting a paired device

Devices which are paired but not

connected are identified by

Select the desired device to connect

it.

Disconnecting a device

The currently connected device is

identified by

Select the device to disconnect it.

Climate control

159

Climate control

Climate control systems ............. 159

Electronic climate control

system .................................... 159

Auxiliary heater ........................ 165

Temperature preconditioning . . 165

Air vents ..................................... 166

Adjustable air vents ................. 166

Fixed air vents ......................... 167

Maintenance .............................. 167

Air intake ................................. 167

Air conditioning regular

operation ................................ 168

Service .................................... 168

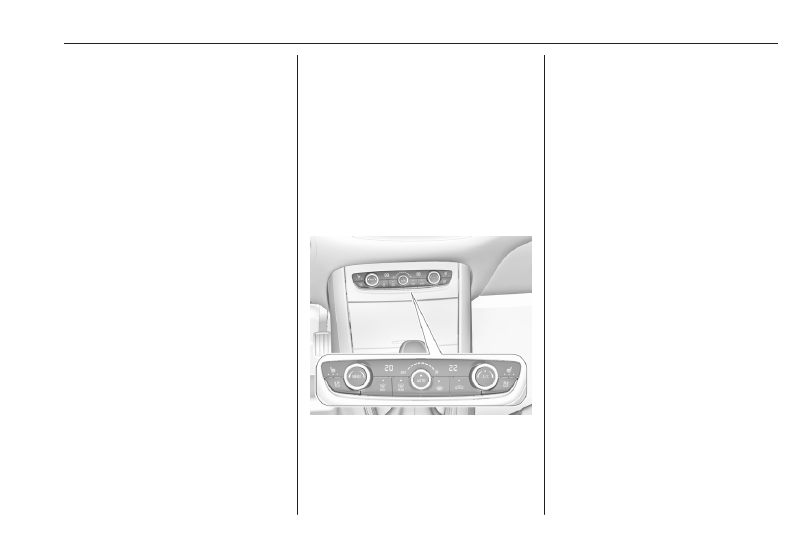

Climate control systems

Electronic climate control

system

The dual zone climate control allows

different temperatures for driver side

and front passenger side.
In automatic mode, temperature, fan

speed and air distribution are

regulated automatically.

Controls for:

● temperature on driver side

● MENU enters the climate control

settings menu in the Info Display

● fan speed

● automatic mode AUTO
● temperature on front passenger

side

● cooling A/C
● manual air recirculation

● demisting and defrosting

● heated rear window and exterior

mirrors

● heated windscreen

● heated seats

● ventilated seats

Heated rear window

27.

Heated exterior mirrors

24.

Heated seats

35.

Ventilated seats

35.

Activated functions are indicated by

the LED in the respective control.
The electronic climate control system

is only fully operational when the

engine is running.
Make sure the sun sensor on top of

the instrument panel used by the

electronic climate control system is

not covered.

160

Climate control

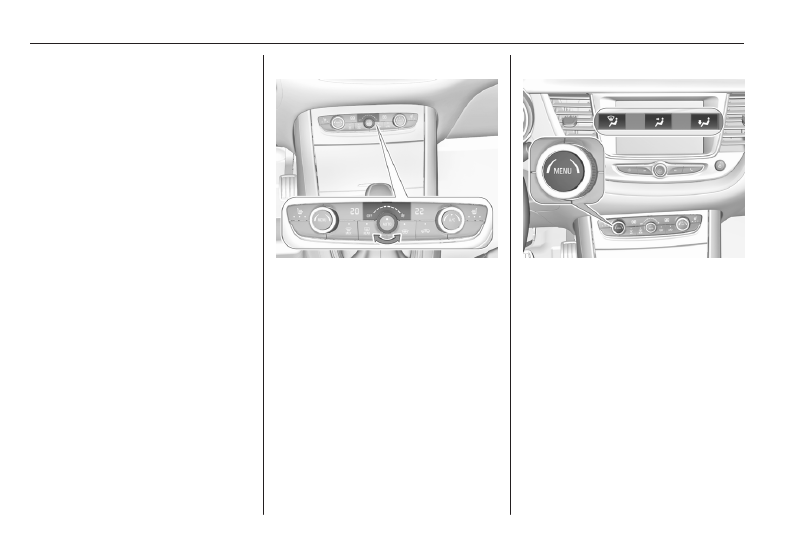

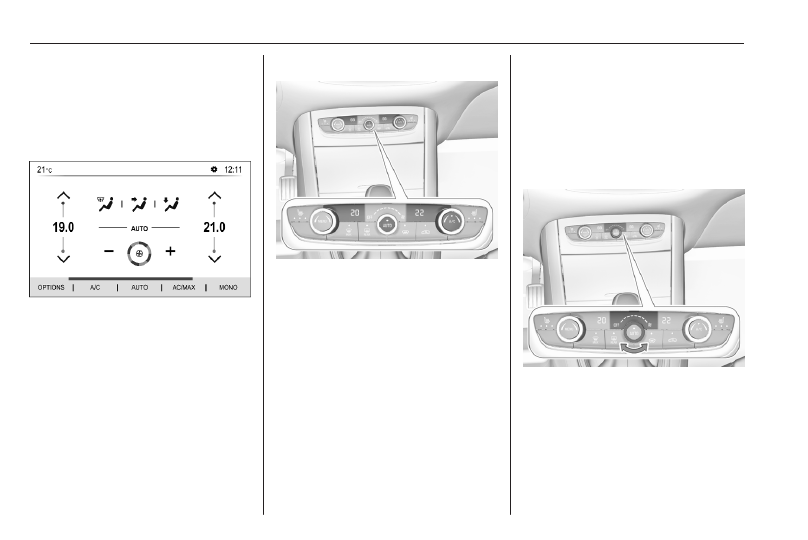

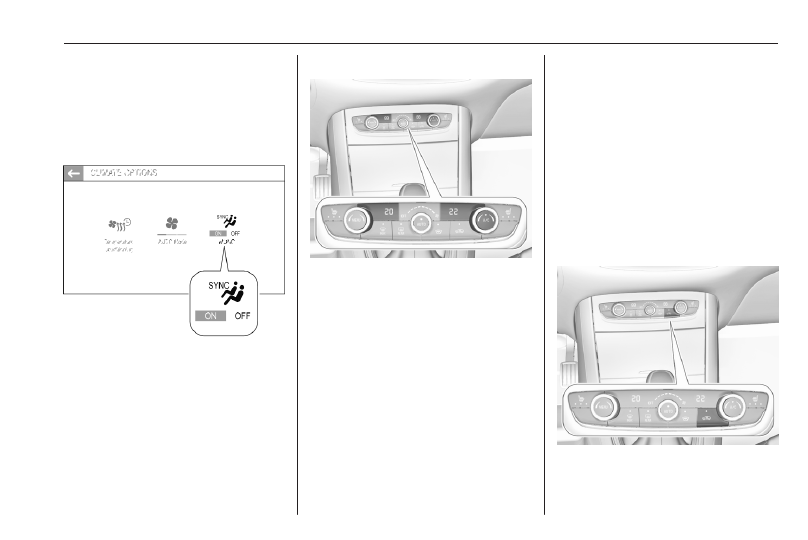

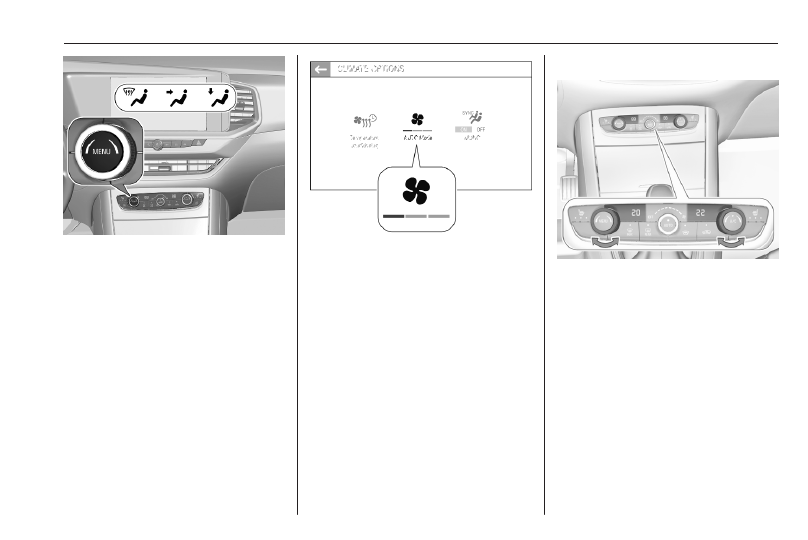

Climate control settings menu

Climate setting menu can be

displayed in the Info Display.
Info Display

159.

● air distribution

● fan speed

● temperature for driver and

passenger side

● dual zone temperature

synchronisation MONO

● cooling A/C
● automatic mode AUTO
● maximum air conditioning AC/

MAX

Automatic mode AUTO

Basic setting for maximum comfort:

● Set the preselected

temperatures for driver and front

passenger using the left and right

rotary knob. Recommended

temperature is 22 °C.

● Press AUTO, the air distribution

and fan speed are regulated

automatically.

● Open all air vents to allow

optimised air distribution in

automatic mode.

● Air conditioning must be

activated for optimal cooling and

demisting. Press A/C to switch on

air conditioning. The LED in the

button indicates activation.

Different pre-set fan speeds can be

set by turning the rotary knob.
Turn anticlockwise to decrease or

turn clockwise to increase the fan

speed.

Climate control

161

To display the respective pre-set

speed, first press MENU to enter the

climate control settings menu and

then touch OPTIONS on the Info

Display.
Following speeds are selectable via

the rotary knob:

● one bar for a soft and silent air

distribution.

● two bars for thermal comfort and

silent air distribution.

● three bars for a dynamic and

efficient air distribution.

Temperature preselection

Set the preselected temperatures

separately for the driver and the front

passenger to the desired value using

the left and right rotary knob. The

rotary knob on the passenger side

changes the temperature of the

passenger side. The rotary knob on

the driver's side changes the

temperature of the driver's side or of

both sides, depending on activation of

synchronisation MONO in the climate

control settings menu. Press MENU

to enter the climate control settings

menu.

162

Climate control

Recommended temperature is 22 °C.

Temperature is indicated in displays

beside the rotary knob and in the

climate settings menu.
If the minimum temperature Lo is set,

the climate control system runs at

maximum cooling, if cooling A/C is

switched on.
If the maximum temperature Hi is set,

the climate control system runs at

maximum heating.

Notice

If A/C is switched on, reducing the

set cabin temperature can cause the

engine to restart from an Autostop or

inhibit an Autostop.

Stop-start system

174.

Manual settings

Climate control system settings can

be changed by activating the

following functions:

Fan speed

Adjust the air flow by turning rotary

knob to the desired speed. Turn

anticlockwise to decrease or turn

clockwise to increase. Fan speed can

also be changed in the climate control

settings menu. Press MENU to enter

the climate control settings menu.
Turn rotary knob anticlockwise as far

as it will go: fan and cooling are

switched off.
To return to automatic mode, press

AUTO.

Air distribution

Press MENU to enter the climate

control settings menu.
Touch on the Info Display:

: to windscreen and front door

windows

: to head area and rear seats via

adjustable air vents

: to front and rear foot well and

windscreen

To return to automatic air distribution,

press AUTO.

Climate control

163

Dual zone temperature

synchronisation MONO or SYNC

Press MENU to enter the climate

control settings menu.
Touch OPTIONS to open the climate

options menu.

Set

to ON to link passenger side

temperature setting to the driver side
Touch MONO or SYNC to link

passenger side temperature setting

to the driver side.
When passenger side control dial will

be adjusted, synchronisation is

deactivated.

Air conditioning A/C

Press A/C to switch on cooling. The

LED in the button illuminates to

indicate activation. Cooling is only

functional when the engine is running

and climate control fan is switched on.
Press A/C again to switch off cooling.
The air conditioning system cools and

dehumidifies (dries) when outside

temperature is above a specific level.

Therefore condensation may form

and drip from under the vehicle.
If no cooling or drying is required,

switch off the cooling system for fuel

saving reasons.

Maximum air conditioning AC/MAX

Press MENU to enter the climate

control settings menu.
Touch A/C MAX to activate/

deactivate maximum air conditioning.
The maximum air conditioning

function sets the temperature as low

as possible and adjusts the

distribution to all air vents. In addition,

it sets the air flow to maximum and

activates the air recirculation.

Manual air recirculation

164

Climate control

Press

to activate the air

recirculation mode. The LED in the

button illuminates to indicate

activation.
Press

again to deactivate

recirculation mode.

Warning

The exchange of fresh air is

reduced in air recirculation mode.

In operation without cooling, the

air humidity increases, so the

windows may mist up from inside.

The quality of the passenger

compartment air deteriorates,

which may cause the occupants to

feel drowsy.

In warm and very humid ambient air

conditions, the windscreen may mist

up from outside, when cold air is

directed towards it. If windscreen

mists up from outside, activate

windscreen wiper and deactivate

Demisting and defrosting the

windows

● Press

. The LED in the button

illuminates to indicate activation.

● Temperature and air distribution

are set automatically and the fan

runs at high speed.

● Switch on air conditioning by

pressing A/C, if required.

● Switch on heated rear window

● Switch on heated

windscreen

● To return to previous mode,

press

again. To return to

automatic mode, press AUTO.

Notice

is pressed while the engine is

running, an Autostop will be inhibited

until

is pressed again.

is pressed while the engine is in

an Autostop, the engine will restart

automatically.

Stop-start system

174.

Deactivation of electronic climate

control system

Cooling, fan and automatic mode can

be switched off by turning the rotary

knob around the AUTO button

anticlockwise.
Activation by switching on the fan or

pressing AUTO.
Heated rear window, windscreen and

exterior mirrors

27.

Heated seats

35.

Climate control

165

Auxiliary heater

Air heater

Quickheat is an electric auxiliary air

heater which automatically warms up

the passenger compartment more

quickly.

Temperature

preconditioning

The temperature preconditioning

allows to heat or to ventilate the

vehicle's interior with ambient air.
The temperature preconditioning can

be programmed via the Info Display

or the MyVauxhall App.

The operating status of the

temperature preconditioning is shown

by a LED.

● LED illuminates: A timer has

been set.

● LED flashes: The system is

operating.

The LED is extinguished at the end of

the operation or when the

temperature preconditioning is

stopped using the remote control.
The temperature preconditioning can

be programmed by using the Info

Display.

Notice

The temperature preconditioning is

only activated if the ignition is off and

the vehicle is locked.
If the charging level of the high

voltage battery is below 30%, the

temperature preconditioning is not

activated.
When the vehicle is plugged in,

battery charging takes precedence

over pre-conditioning.

Consequently, it can only be

activated if the battery is charged

above a threshold fixed at 80%.
If a recurrent heating / ventilation is

programmed and two heating /

ventilation procedures are carried

out without operating the vehicle, the

programming is deactivated.

Setting timer

Notice

Several timers can be programmed

and saved. It is recommended to

programme temperature

preconditioning with the vehicle

plugged in, in order to optimise the

long-term perfomance of the high

voltage battery.

Vauxhall Grandland X (2023 year). Manual in english - page 5
